Product Type	Bike Rack Accessory
Brand	Thule
Model	Tour Rack 100090
Max Load Capacity	11 kg (24.2 lbs)
Compatible Frame Diameter	15 - 42 mm
Minimum Wheel Width Clearance	155 mm (6.1 in)
Maximum Tire Width	64 mm (2.5 in)
Material	Aluminum / Steel / Plastic
Mounting Type	Clamp-on (frame attachment)
Safety Warning	Do not exceed max load; secure fasteners; check regularly
Maintenance	Inspect for wear and damage; clean with mild soap and water
Repair Parts Availability	Contact Thule dealer for spare parts
Warranty	Limited lifetime warranty (excludes wear and tear)
Country of Origin	Sweden (Thule brand)
Installation Tools Required	4 mm hex key (Allen wrench)

Frequently Asked Questions - Tour Rack 100090 THULE

What is the maximum load capacity of the Thule Tour Rack 100090?

The maximum load capacity is 11 kg (24.2 lbs). Do not exceed this limit.

Which bicycle frames are compatible with this rack?

Frames with a diameter between 15 mm and 42 mm are compatible. Ensure your frame fits within this range.

How do I install the Tour Rack on my bike?

Follow the step-by-step instructions in the manual. Use the provided hardware and a 4 mm hex key to tighten the clamps securely.

Can I use the rack with a carbon fiber frame?

Check compatibility with your frame manufacturer. For carbon frames, use a protective pad and do not overtighten.

How often should I inspect the rack?

Inspect before each ride for damage or loose parts. Replace any worn components immediately.

What tools are needed for assembly?

Only a 4 mm hex key is required. All other hardware is included.

Is the rack suitable for e-bikes?

Yes, as long as the total weight including bike and luggage does not exceed 11 kg.

How do I clean and maintain the rack?

Clean with mild soap and water. Dry thoroughly. Lubricate moving parts sparingly.

Can I use the rack with panniers?

Yes, it supports panniers. Ensure they are securely attached and do not interfere with pedaling or brakes.

Where can I find spare parts?

Contact a Thule dealer or customer support for replacement parts. Use only Thule-approved accessories.

USER MANUAL Tour Rack 100090 THULE

Technical line drawing of a robotic device with articulated limbs and wiring (no text or symbols)

EN Bike Rack

FR Porte-vélos

Important - Read the instructions carefully before use and keep for future reference.

WARNING

1. Make sure your bicycle is compatible with this luggage carrier. If in doubt, contact your local dealer, or Customer Support.
2. Check the product manual for maximum dimensions for the luggage carrier.
3. Follow specific sizing guidelines to ensure the luggage carrier fits securely on frames not specifically designed for bicycles.
4. Make sure the fasteners are fully secured, and check them frequently.
5. Luggage should only be carried on the luggage carrier.
6. Do not modify the product in any way.

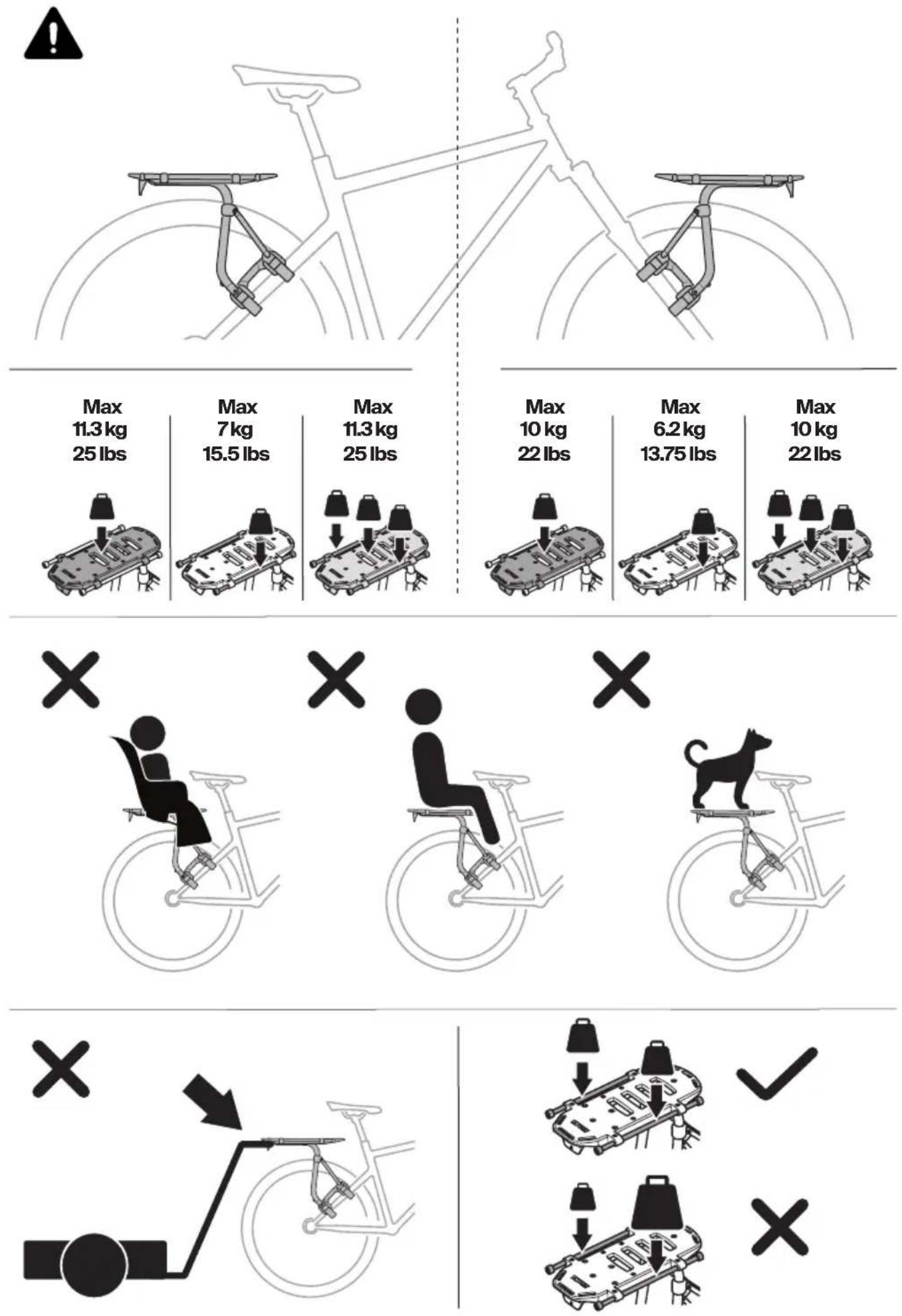

7. The maneuverability of the bike could be reduced by the luggage carrier. The load of the luggage carrier may lessen the stability and alter the riding characteristics of the bicycle, particularly regarding steering and braking.
8. Ensure that any luggage fitted to the luggage carrier is securely fitted in accordance with the manufacturer's instructions.
9. Make sure that there are no loose straps that can get caught in the wheel.

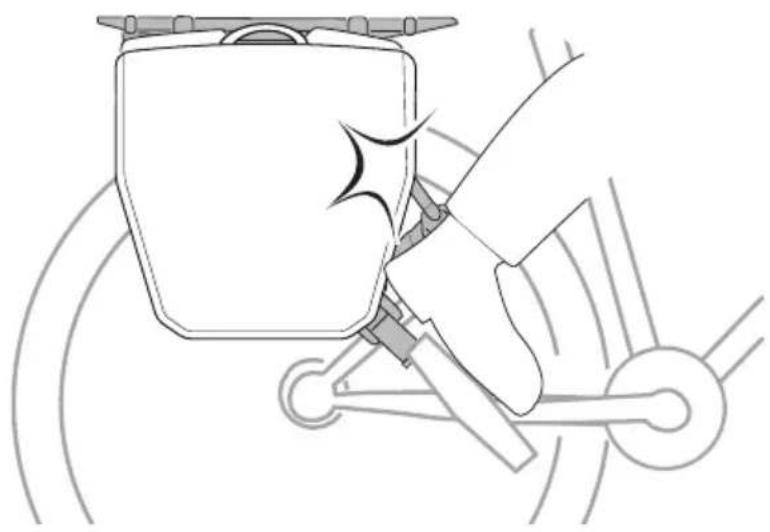

10. Do not position or cover reflectors and lamps such that these are obscured when luggage is attached to the luggage carrier.
11. Regularly inspect the luggage carrier for damage and signs of wear. Do not use the luggage carrier if any part is broken, damaged or becomes loose.
12. Do not use accessories or replacement parts that are not approved by Thule.
13. Do not exceed the maximum permissible load.

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

MANDATORY ACTION indicates instructions that must be followed to avoid the risk of injury, and damage to the product or other equipment.

NOTE indicates additional information that is useful for trouble-free and optimal use of the product.

FR

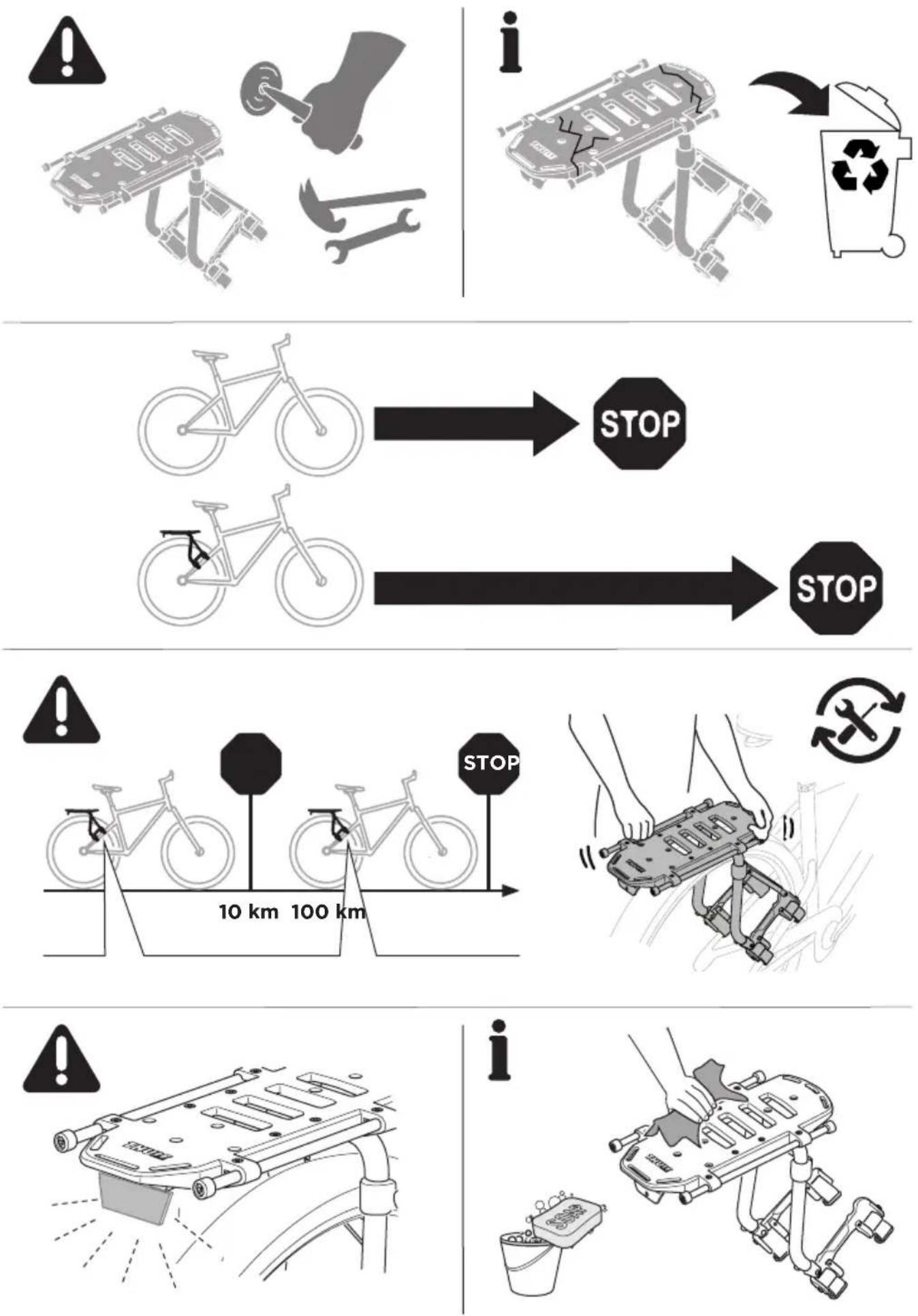

Symboles

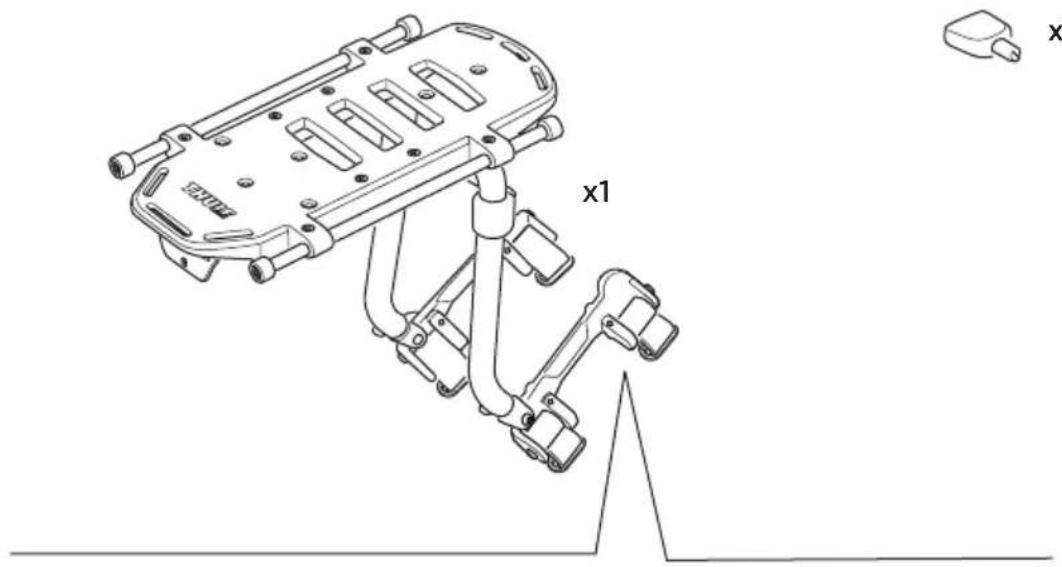

Technical line drawing of a mechanical assembly with no visible text or symbols

Three identical mechanical linkages with circular ends, shown in line style without any text or symbols.

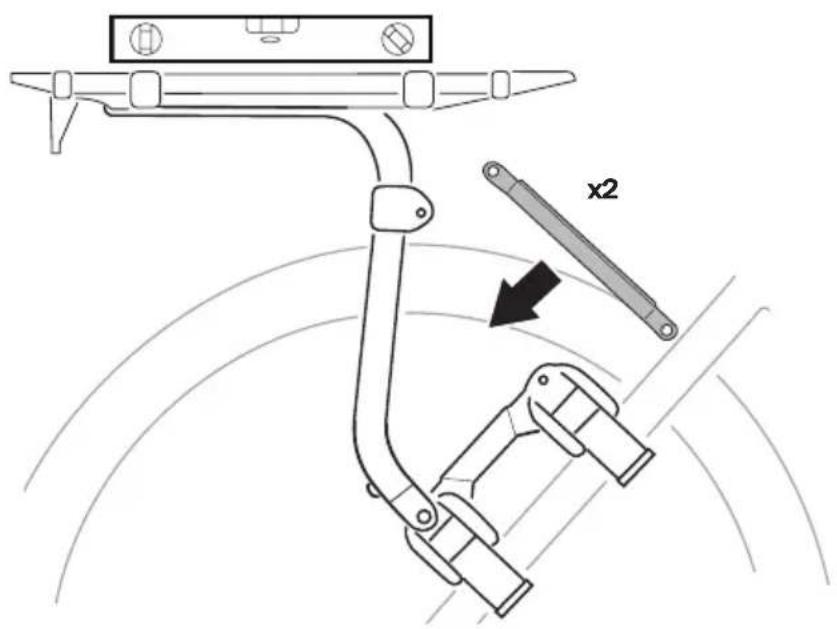

x2

x2

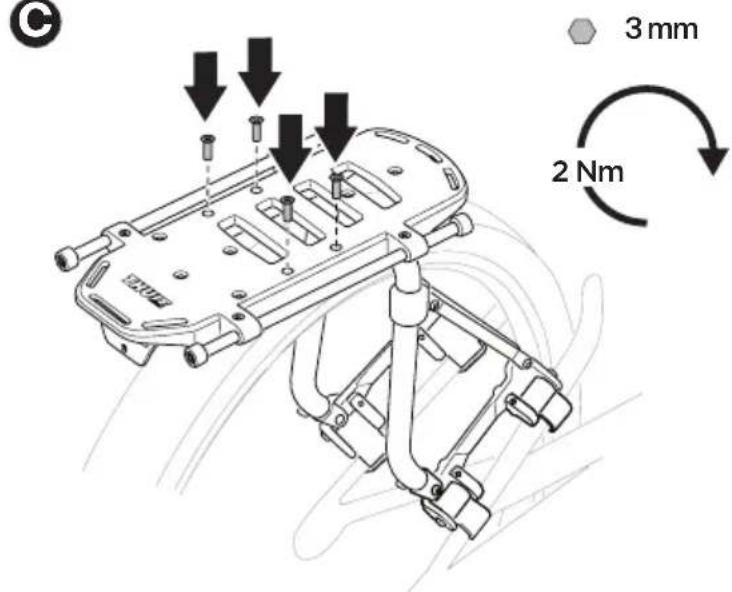

3mm

4 mm

THULE

Instructions Safety

11kg /2.4 lbs

∅ = 15-42 mm

Side profile illustration of a bicycle with visible frame and wheels (no text or symbols)

155 mm 6 inch

< 64 mm 2.5"

∅ < 15 mm

42 mn

Side view of a bicycle with visible frame and wheels (no text or symbols)

< 155 mm 6 inch

64 mm 2.5"

1

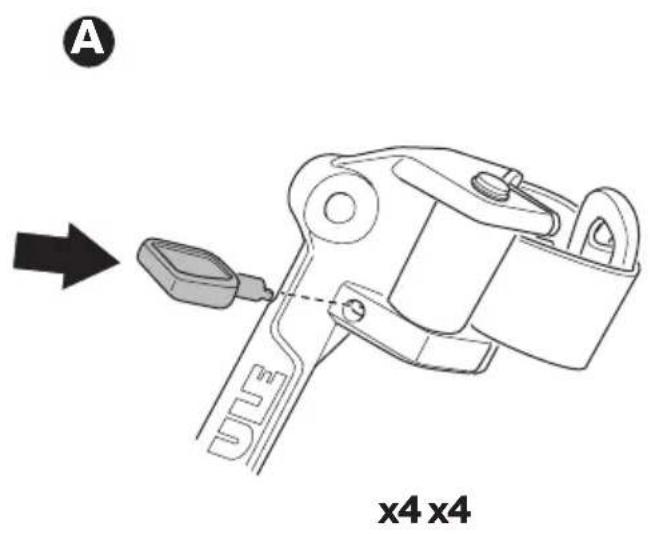

A

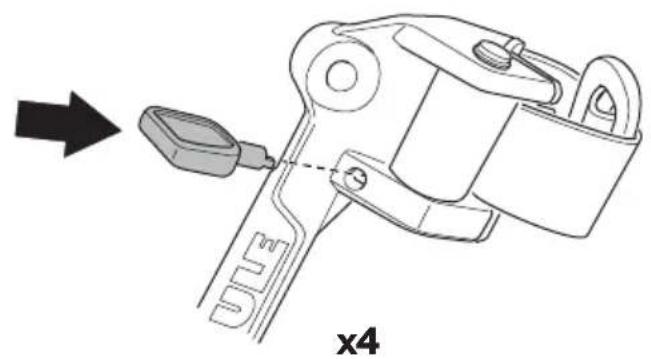

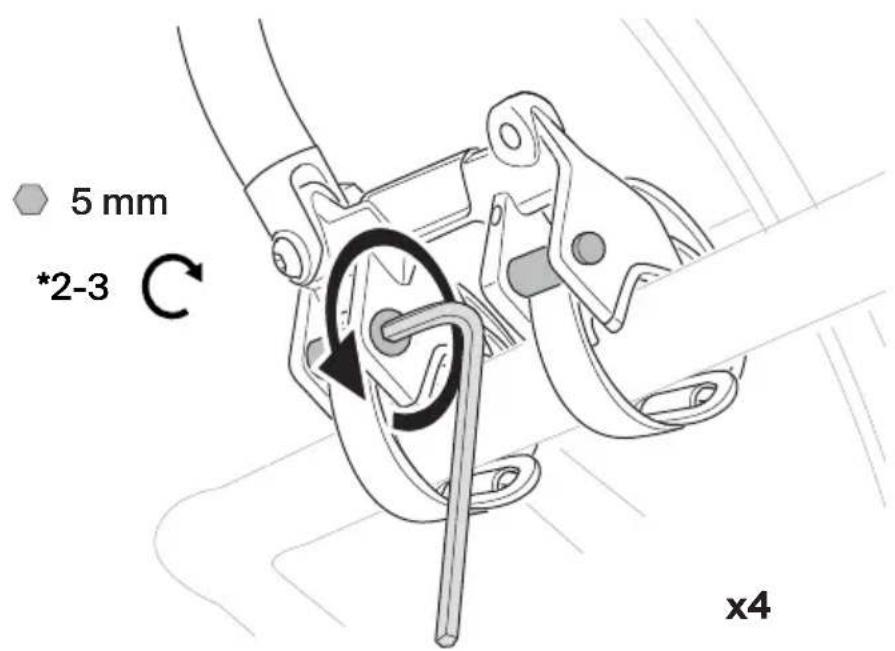

Technical line drawing of a mechanical clamp or bracket assembly with a directional arrow and label 'x4' (no text or symbols on the diagram itself)

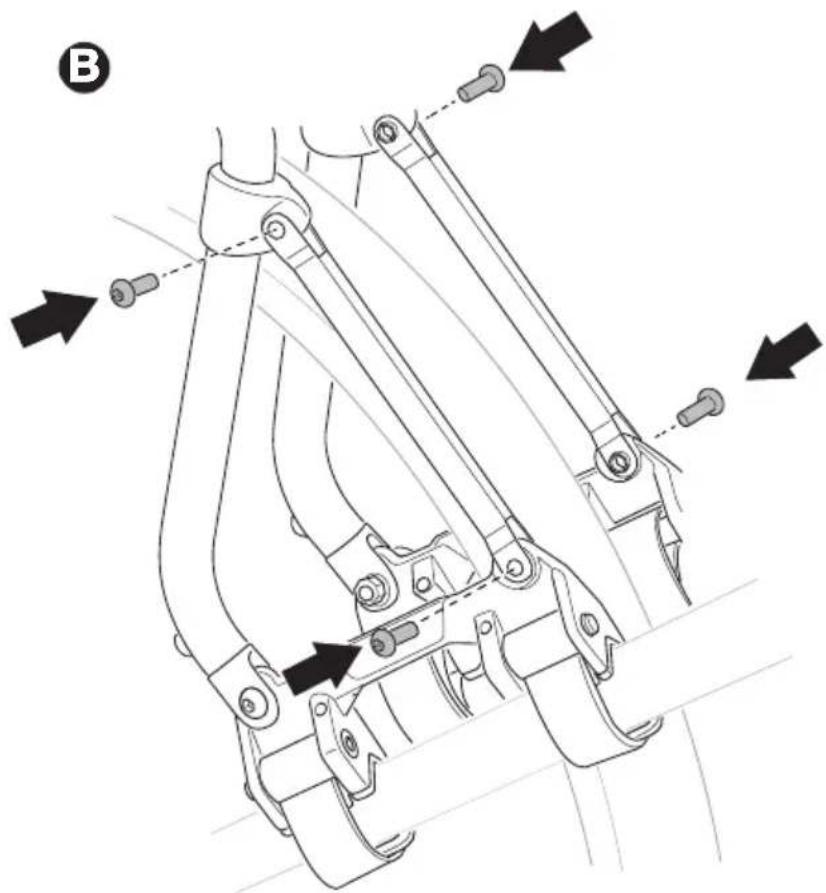

B

2
A

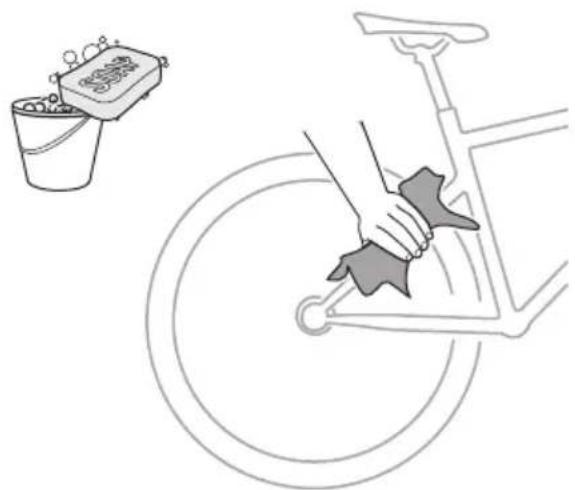

Line drawing of a hand cleaning a bicycle wheel with a bucket nearby (no text or symbols)

B

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

3
A

i

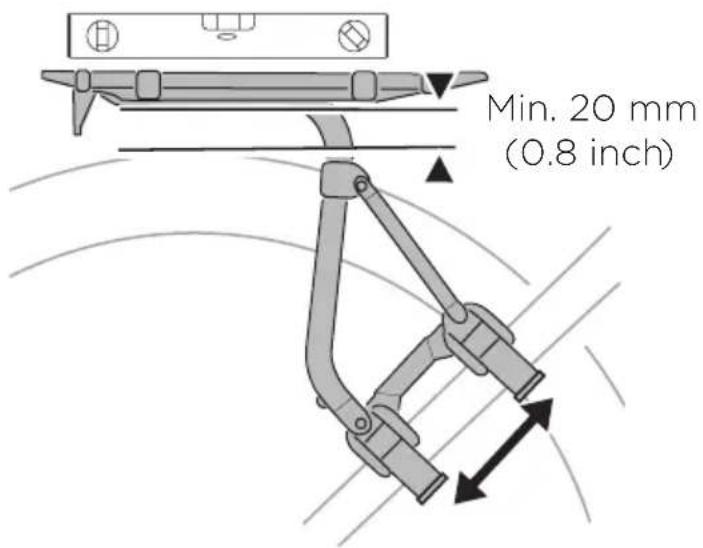

120 mm

80 mm

x4

Pure diagram of two parallel horizontal bars with corner notches, no text or symbols present

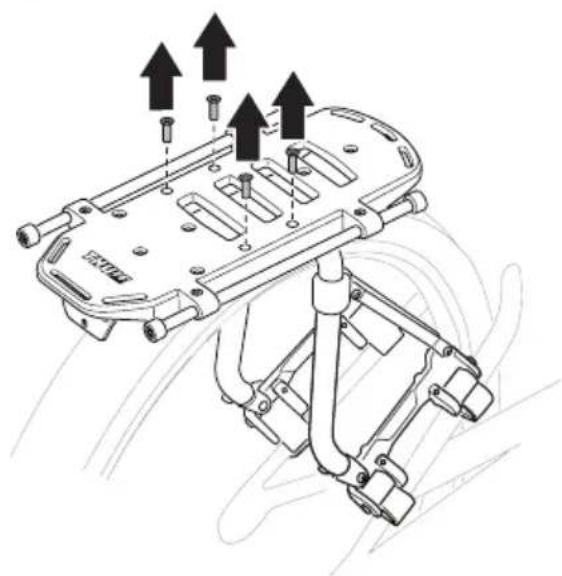

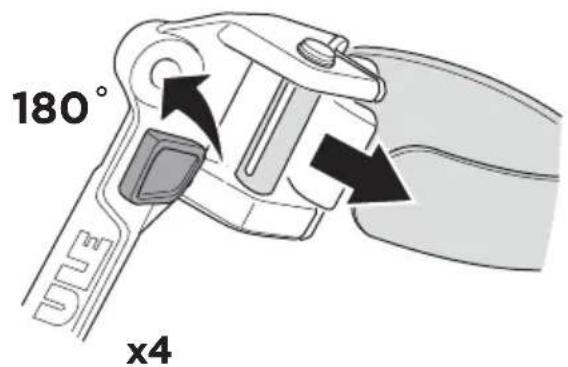

Technical line drawing of a mechanical linkage assembly with directional arrows indicating movement (no text or symbols present)

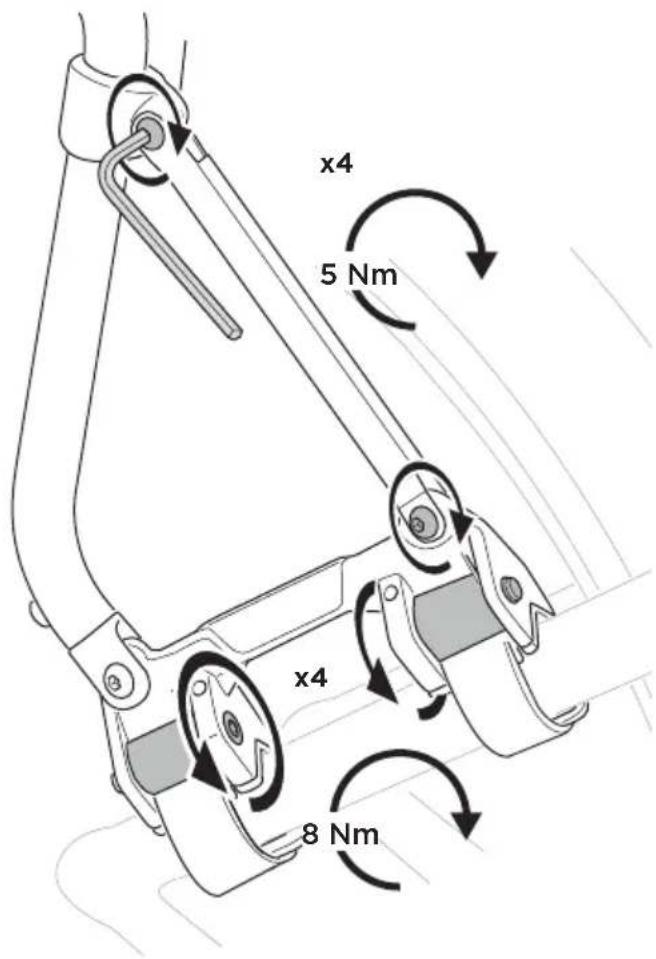

4 mm

©

i

Mechanical linkage diagram showing a frame with joints and a central shaft, no text or symbols present

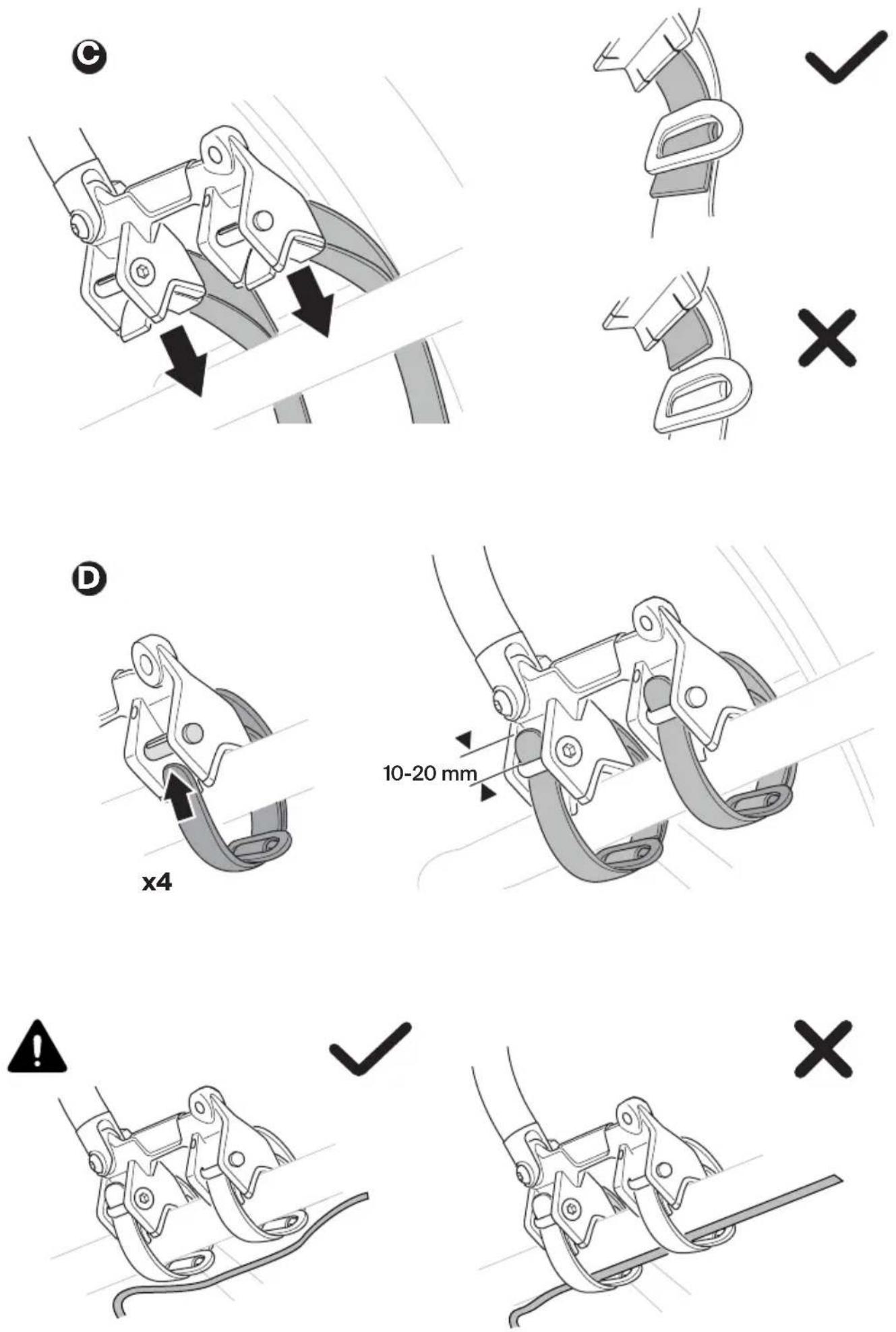

D

!

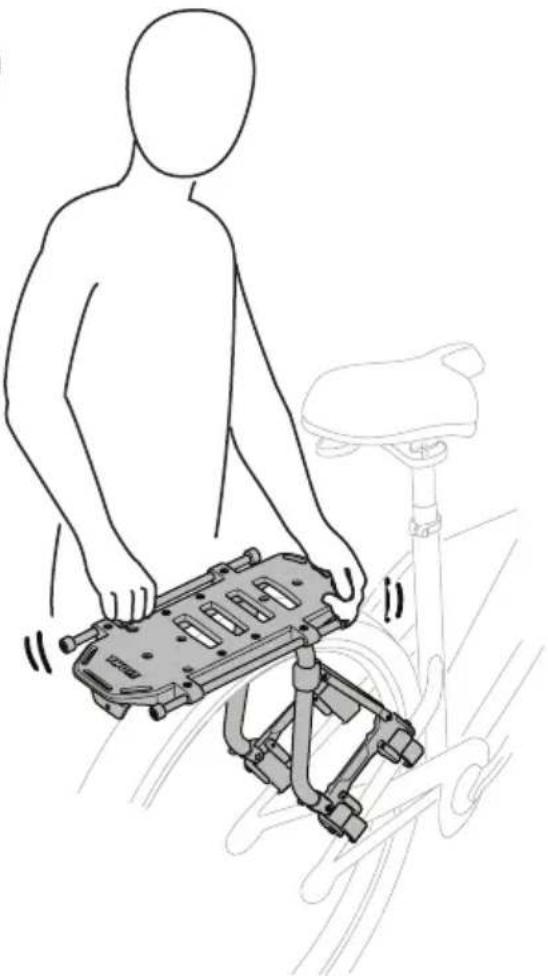

Line drawing of a person using a bicycle-mounted device with motion lines indicating speed (no text or symbols)

Line drawing of a hand using a tool to lift a car (no text or symbols)

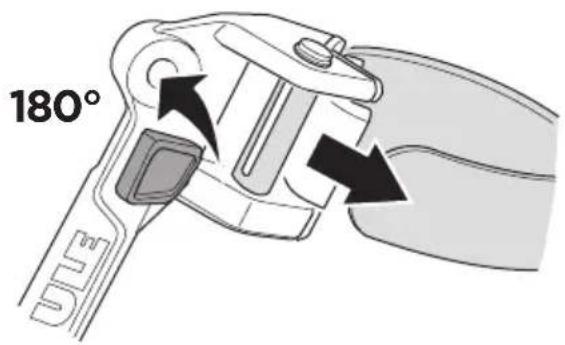

A

Technical line drawing of a mechanical assembly with mounting brackets and directional arrows indicating motion (no text or symbols)

B

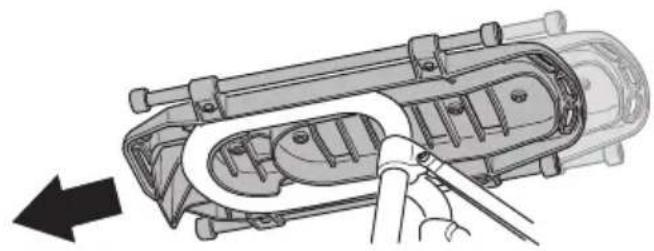

Mechanical assembly diagram showing a hand using a tool to adjust internal components (no text or symbols visible)

©

i

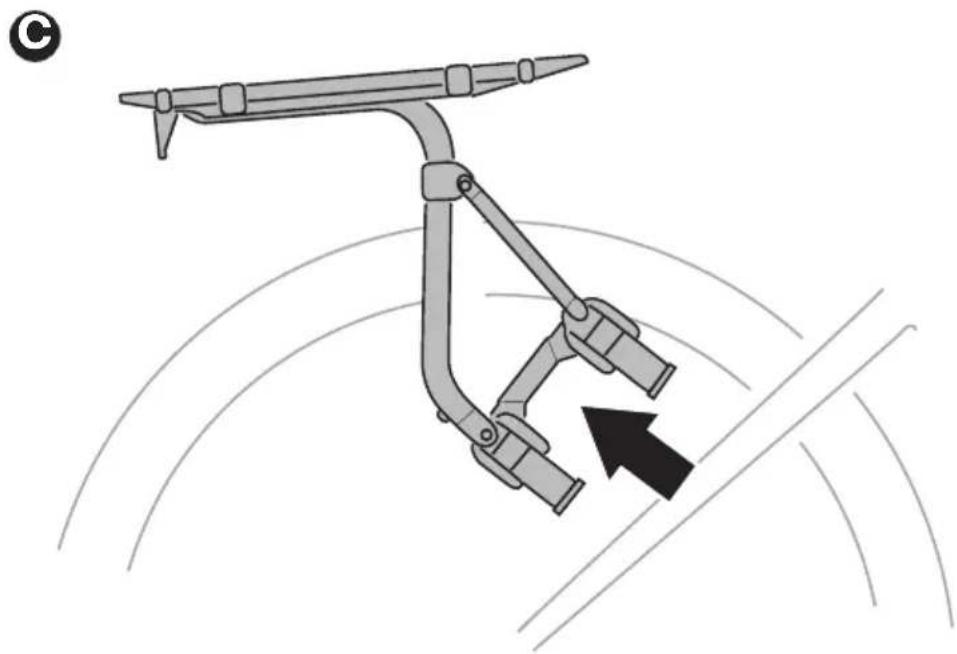

B

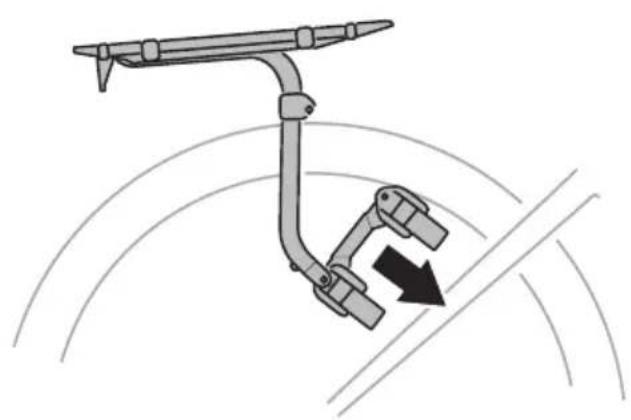

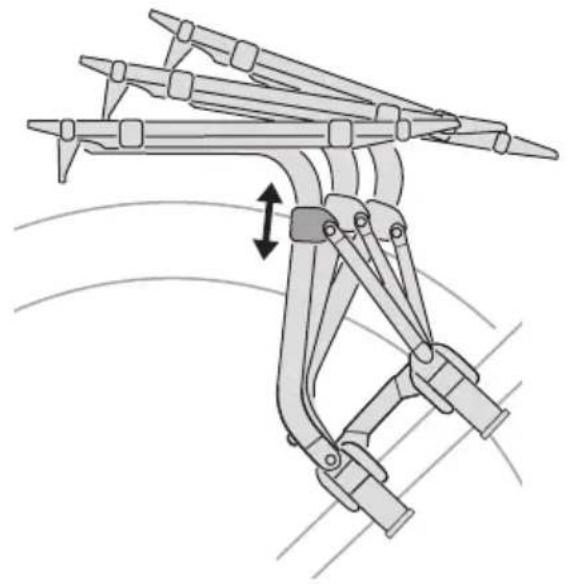

Diagram of a mechanical linkage system with curved arms and directional arrows, no text or symbols present

EN Accessories/Spare parts
