USER MANUAL FLB-240 Frezzi

Introducing the most powerful and lightest weight on-camera professional battery. The FBL-240 is designed for the professional videographer who requires a lightweight, dependable battery that offers the most capacity to dependently run a camera all day.

This incredible battery weighs just 3.1 lbs and connects directly to all cameras with an A/B or V-Lock bracket. Frezzi's simultaneous FLC-2 dual channel charger with power supply and FLC-1 compact single channel chargers are available.

• 240WH Battery can deliver 8 hours of runtime with 30W camera load*
• Can handle a camera & light together up to 85W
  • Thermal, overdischarge, overload, over-current protection
  • Built-in charge port to allow FLC-1 compact travel charger option
• Advanced LED meter with sleep mode and low battery flashing indicator
• FLB-100 at 100WH available- Worlds Most Powerful legally transportable Li-Ion Battery

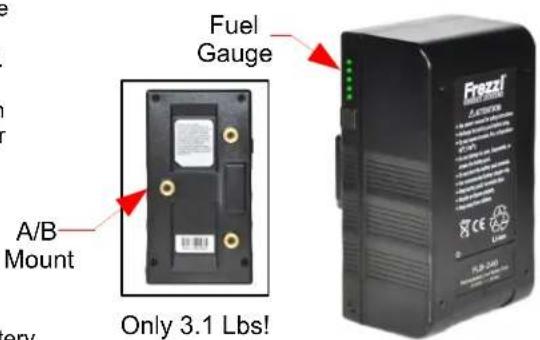

Fuel Gauge A/B Mount Only 3.1 Lbs!

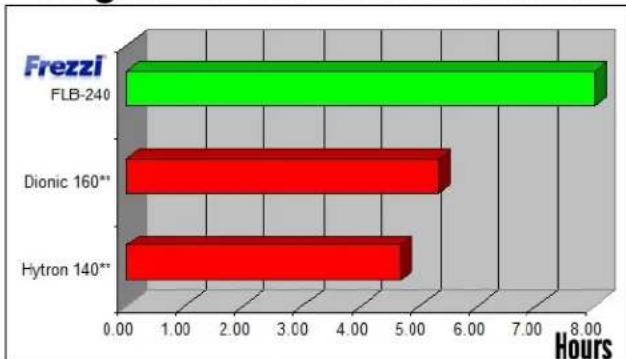

Longest Run Time in the Business!

data based on a typical 30W camcorder
** Donic 160 and Hytron 140 are registered trademarks of Anton Bauer. Specifications for these items are based on manufactures web site data.

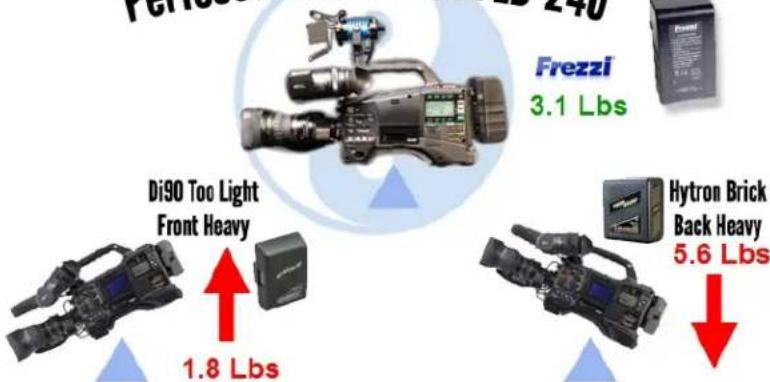

Perfect Balance with FLB-240

Frieze 240 Frezzi 3.1 Lbs Di90 Too Light Front Heavy 1.8 Lbs Hytron Brick Back Heavy 5.6 Lbs

Lithium-Ion Batteries

Item No. Model No. Description

93900 FLB-100 100WH Battery with meter for A/B mount

93903 FLB-240 240WH Battery with meter for A/B mount

93910 FLB-100V 100WH Battery with meter for V-Lock mount

93913 FLB-240V 240WH Battery with meter for V-Lock mount

Specifications

Weights: FLB-100, FLB-100V: 1.9 lbs.

FLB-240, FLB-240V : 3.1 lbs.

FLB-100 FLB-100V 2.0" FLB-240 FLB-240V 2.7" 6.50" 3.6"

Person wearing a video camera with external camera module, viewed from behind (no visible text or symbols)

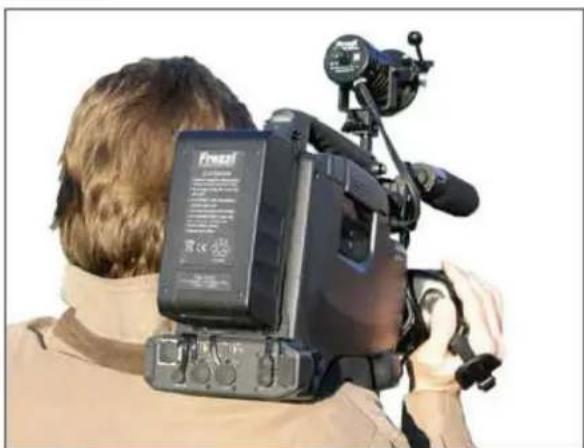

240WH Battery Powering Camera and Frezzi Dimmer Light

Black electronic device with a digital display and two battery packs (no visible text or symbols)

FLC-4 Quad Fast Simultaneous Li-Ion Battery Charger

The FLC-4 is an advanced 4-channel fast charger for all Frezzi Li-Ion batteries that features an intelligent backlit LCD display that shows the charging status of each channel, instantaneous voltage, charge current, and the capacity that has been delivered to each battery. The FLC-4 has a universal AC input for worldwide operation and is available in A/B and V-Mount format. It can accept some batteries from other manufacturers, check with Frezzi for compatibility. Weight 6 lbs and 5.6 x 6.5 x 11"

Item No. Model No. Description

93941 FLC-4 Quad Li-Ion Charger for A/B mount

93942 FLC-4V Quad Li-Ion Charger for V-Mount

Professional Lithium-Ion Battery Chargers

Frezzi's Lithium-Ion battery chargers are available in either a Dual simultaneous charger with 50W Power supply that can be used while charging or an extremely compact economical single channel travel charger weighing in at just 8oz. The FLC-2 Dual Channel Charger / Power Supply comes with (2) Anton/Bauer® type mounting plates and can charge all Frezzi FLB-100, FLB-130 or FLB-200 Lithium-Ion batteries. Frezzi's FLC-2V Dual channel charger comes with (2) V-Lock mounting plates, and can charge all Frezzi FLB-100V, FLB-130V or FLB-200V as well as Sony or IDX V-Lock style Lithium-Ion batteries. Both the FLC-2 and FLC-2V indicate level of charge status with LED indicators on each channel. The FLC-1 Single channel travel charger can charge all Frezzi FLB series batteries via a unique built-in charge port in all FLB series batteries. All FLC model chargers have auto AC voltage select for worldwide operation.

• Dual Chargers offer simultaneous charging
- 50W power supply can be used while charging (XLR-4 Connector)
- Single channel is smallest & lightest weight charger available in the world
- Feature rich, low cost
- CE & UL Approved
• Auto Voltage Select for worldwide operation.

Item No.	Model No.	Description
93920	FLC-2	Dual Simultaneous A/B Mount
93921	FLC-2V	Dual Simultaneous V-Mount
93922	FLC-1	Compact Travel Charger for all FLB series batteries

Two electronic devices: a black rectangular device with a label and a rectangular battery connected to a cable (no visible text or symbols)

FLC-2V, FLC-2

Exterior view of a black electronic device with two ports and a central connector (no visible text or symbols)

FLC-2 Dual Lithium Charger for A/B

FLC-1

Professional Lithium-Ion Power Packages

Frezzi's New Lithium-Ion Camera Power Packages come complete with (2) Lithium-Ion Batteries and (1) Dual Channel Simultaneous Battery Charger with 50W Power Supply. The Power packages are available with your choice of 100WH or 240WH batteries, all have advanced LED meter with sleep mode and connect directly to any camera with either an Anton/Bauer® or V-Lock battery bracket. The Power packages also include an advanced Dual channel simultaneous battery charger with 50W power supply that can be used while charging.

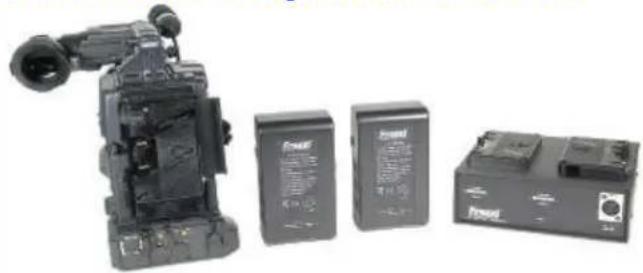

Lithium-Ion Power Packages for A/B Mount Cameras

Exterior view of a professional video camera with three rectangular electronic devices (no visible text or symbols)

Model No. LP-1 Item No. 93930

Item No. Model No. Qty Description

93900 FLB-100 2 14.8V 100WH Lithium-Ion Batteries with advanced meter, each weighs only 1.9 lbs and can run a camera drawing 25W for 4 hours

93920 FLC-2 1 Dual simultaneous Lithium charger with 50W power supply you can use while charging both of your batteries.

Exterior view of a black electronic device labeled 'Prazei' with two ports and a control knob (no readable text beyond branding)

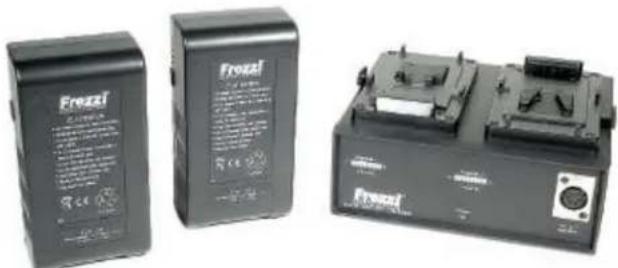

Model No. LP-3 Item No. 93932

Item No. Model No. Qty Description

93903 FLB-240 2 14.8V 240WH Lithium-Ion Batteries with advanced meter, each weighs only 3.1 lbs and can run a camera drawing 25W for 8 hours

93920 FLC-2 1 Dual simultaneous Lithium charger with 50W power supply you can use while charging both of your batteries.

Lithium-Ion Power Packages for V-Mount Cameras

Three black Frezzel battery units with printed labels, displayed side by side (no visible text on main body)

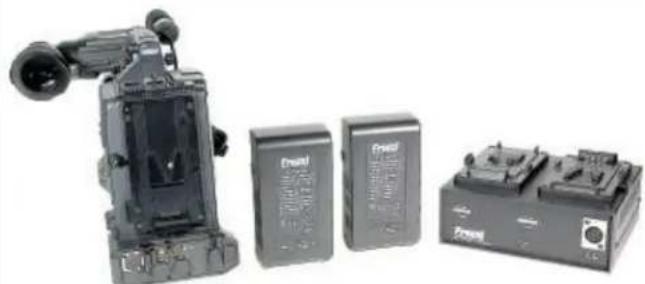

Model No. LP-1V Item No. 93933

Item No. Model No. Qty Description

93900 FLB-100V 2 14.8V 100WH Lithium-Ion Batteries with advanced meter, each weighs only 1.9 lbs and can run a camera drawing 25W for 4 hours

93921 FLC-2V 1 Dual simultaneous Lithium charger with 50W power supply you can use while charging both of your batteries.

Exterior view of a video camera with three battery modules (no visible text or symbols)

Model No. LP-3V Item No. 93935

Item No. Model No. Qty 93903 FLB-240V 2

Description

14.8V 240WH Lithium-Ion Batteries with advanced meter, each weighs only 3.1 lbs and can run a camera drawing 25W for 8 hours

93921 FLC-2V

1 Dual simultaneous Lithium charger with 50W power supply you can use while charging both of your batteries
