USER MANUAL Saga 1910 Oras
Installation and Maintenance Guide
Oras Saga
GB Thank you for selecting an Oras product. This installation and maintenance guide will introduce you to the installation, functions, and use of the faucet. Please read the guide carefully before installation, and keep it on hand for any potential future maintenance. If an operating malfunction or fault appears in your faucet, a plumbing professional is your best source of assistance. Information on cleaning the faucet, conditions of use, and warranty terms is available in the brochure that came with your product: "Important notes on Oras products".
Technical data....6-8
Installation 19-20
Maintenance 26, 29
Spare parts 30
Technical data....9-10
Installation 22-23
Maintenance 26-27, 29
Spare parts 31
Technical data....11
Installation....21
Maintenance 26-29
Spare parts 30
Technical data....12-18
Installation 24-25
Maintenance 26, 29
Spare parts 32
Technical data....18
Installation....19
Maintenance 26, 29
Spare parts ....33
Technical data....34
Installation 35-37
Maintenance 29
Spare parts 38-39
1904
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
75 kPa (0.1 l/s)
max. +80°C


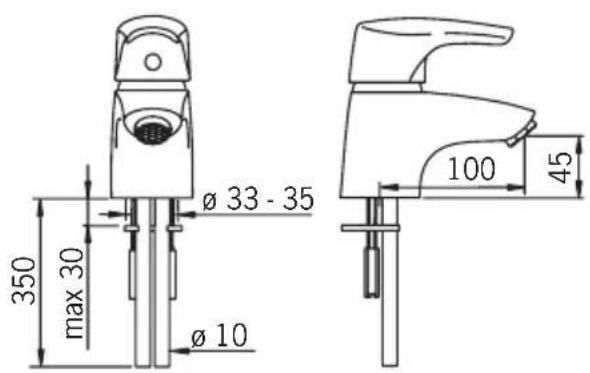

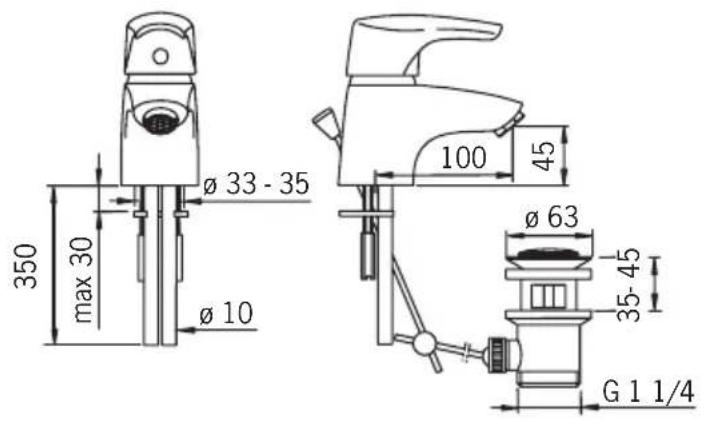

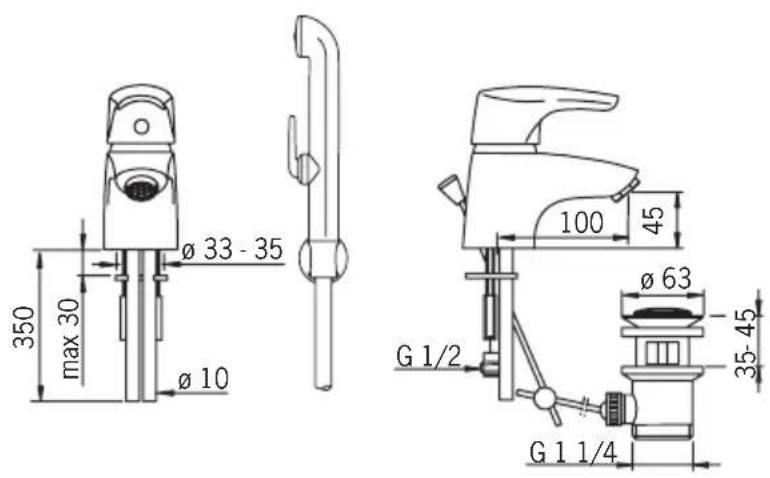

350 max 30 ø 33 - 35 ø 10 100 45 ø 63 35-45 G 1 1/4
VA 1.42/19637

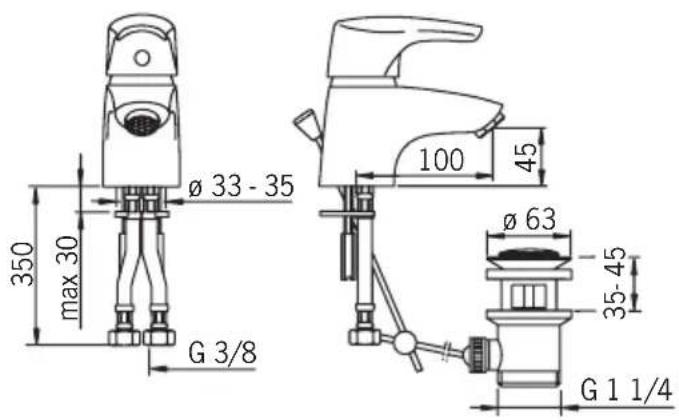

1904F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.19 l/s (300 kPa)
85 kPa (0.1 l/s)
max. +80°C


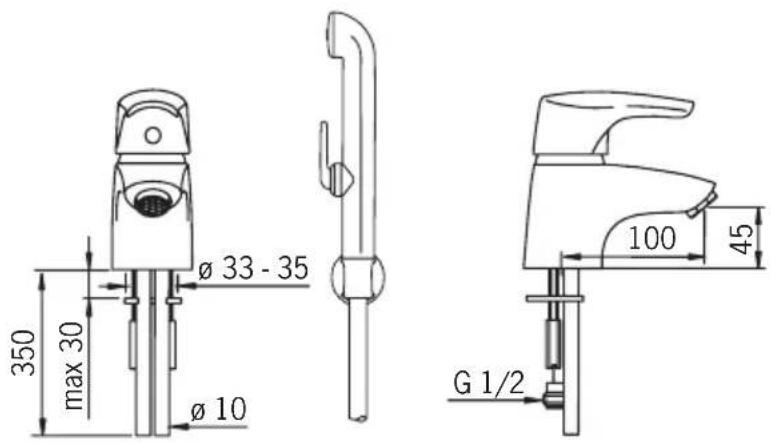

350 max 30 ø 33 - 35 G 3/8 100 45 ø 63 35 - 45 G 1 1/4
1.42/19637
KIWA K6345/07

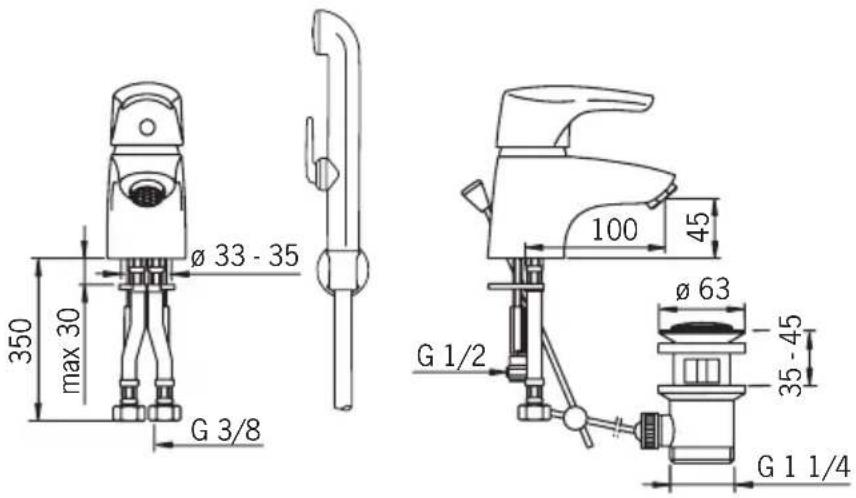

1908
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.14 l/s (300 kPa)
140 kPa (0.1 l/s)
max. +80°C
1908F
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.14 l/s (300 kPa)
155 kPa (0.1 l/s)
max. +80°C


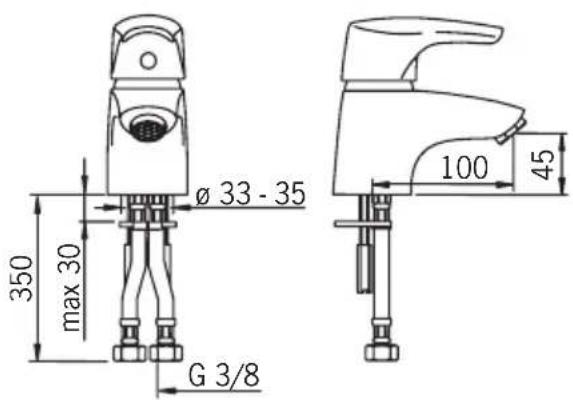

350 max 30 Ø 33 - 35 G 3/8 100 45 Ø 63 35 - 45 G 1/2 G 1 1/4

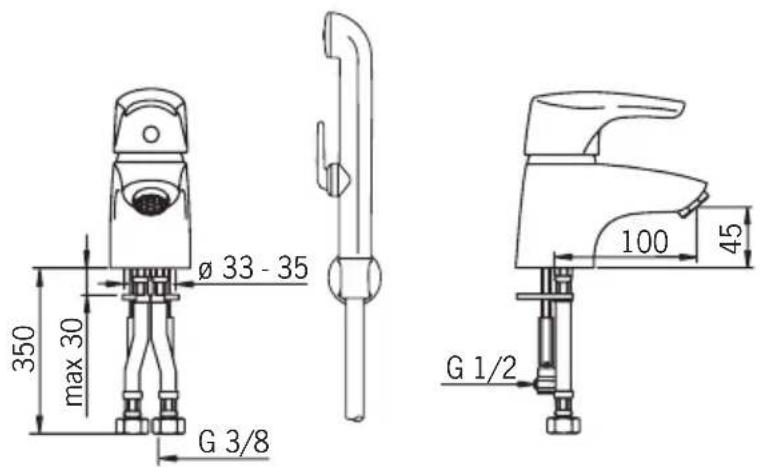

1910
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
75 kPa (0.1 l/s)
max. +80°C
VA 1.42/19637
Sintef Nr. 1154
1910F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.19 l/s (300 kPa)
85 kPa (0.1 l/s)
max. +80°C
VA 1.42/19637
KIWA K6345/07
1912
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.14 l/s (300 kPa)
140 kPa (0.1 l/s)
max. +80°C
1912F
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.14 l/s (300 kPa)
155 kPa (0.1 l/s)
max. +80°C

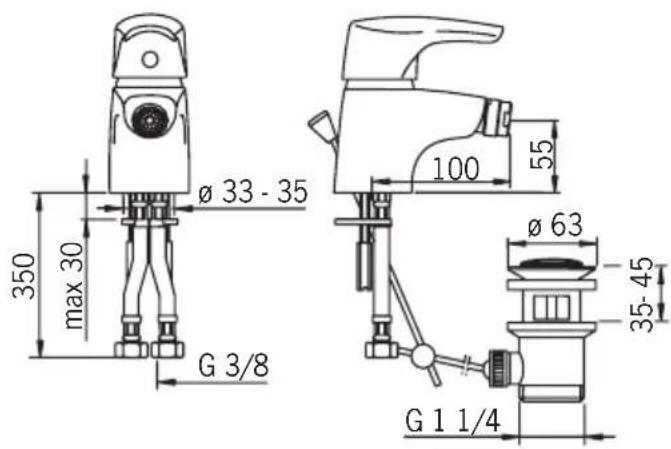

1918F
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.19 l/s (300 kPa)
85 kPa (0.1 l/s)
max. +80°C
1933
EN 817
I (ISO 3822)
50 - 1000 kPa
0.27 l/s (300 kPa)
165 kPa (0.2 l/s)
max. +80°C
VA 1.42/19643
Sintef Nr. 1156


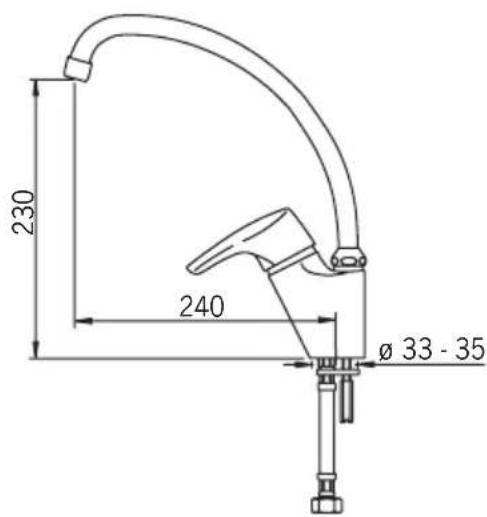

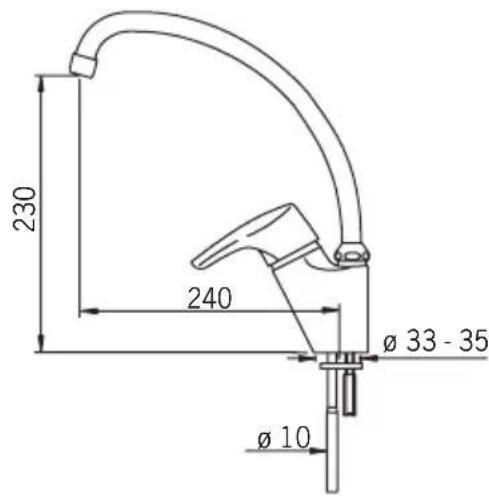

230 240 Ø 33 - 35 Ø 10
EN 817
I (ISO 3822)
50 - 1000 kPa
0.23 l/s (300 kPa)
220 kPa (0.2 l/s)
max. +80°C
V7A 1.42/19643
1934
EN 817
I (ISO 3822)
50 - 1000 kPa
0.27 l/s (300 kPa)
165 kPa (0.2 l/s)
max. +80°C


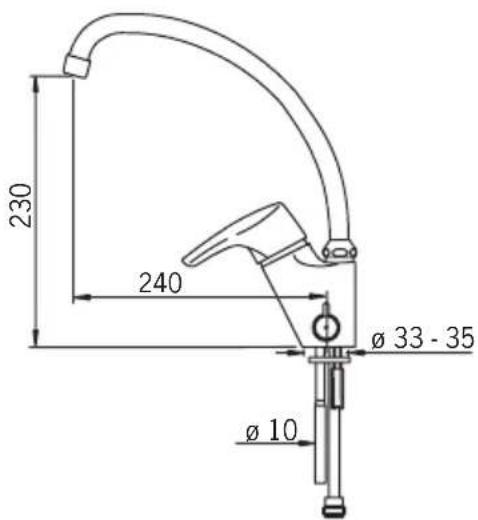

230 240 Ø 33 - 35 Ø 10
VA 1.42/19643
Sintef Nr. 1156
1934F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.23 l/s (300 kPa)
220 kPa (0.2 l/s)
max. +80°C
VA 1.42/19643

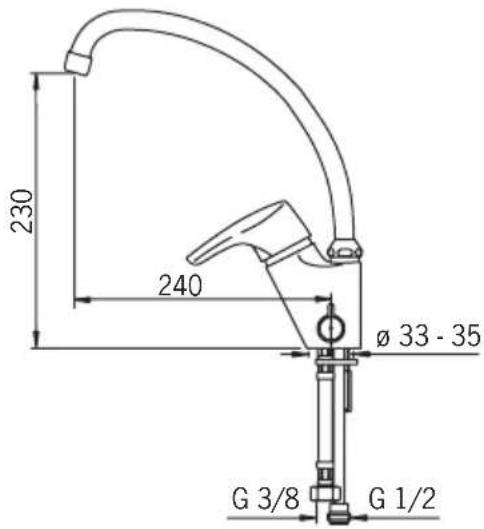

EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.23 l/s (300 kPa)
220 kPa (0.2 l/s)
max. +80°C
1930
EN 817
I (ISO 3822)
50 - 1000 kPa
0.27 l/s (300 kPa)
170 kPa (0.2 l/s)
max. +80°C
VA 1.42/19639
Sintef Nr. 1155


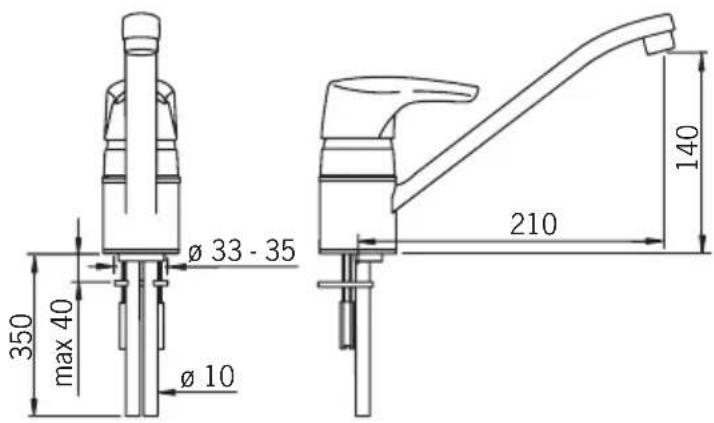

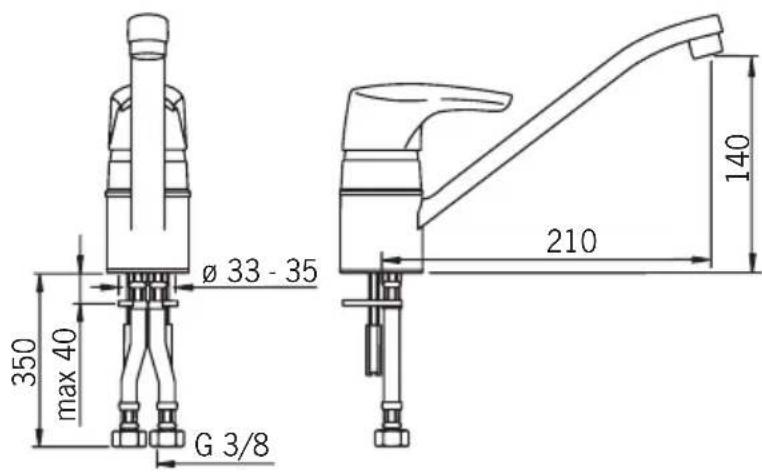

350 max 40 Ø 33 - 35 Ø 10 210 1401930F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.24 l/s (300 kPa)
210 kPa (0.1 l/s)
max. +80°C
VA 1.42/19639
CSTB 348-M1-14/1
KIWA K6345/07
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.27 l/s (300 kPa)
170 kPa (0.2 l/s)
max. +80°C
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
50 - 1000 kPa
0.27 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
160 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C
VA 1.42/19640
1937Y
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
50 - 1000 kPa
0.27 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
160 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C
KIWA K6345/07
1915Y
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
50 - 1000 kPa
0.27 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
160 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C

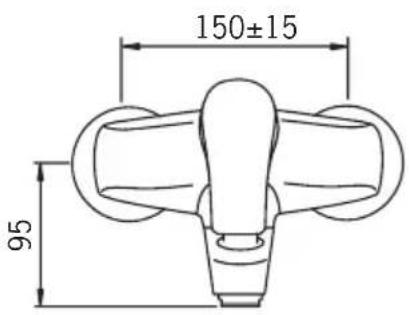

1940
EN 817
II (ISO 3822)
50 - 1000 kPa
0.33 l/s (300 kPa)
250 kPa (0.3 l/s)
max. +80°C


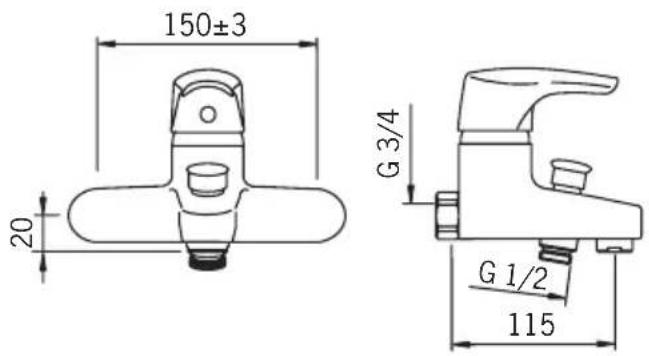

150±3 20 G 3/4 G 1/2 115
VA 1.42/19642

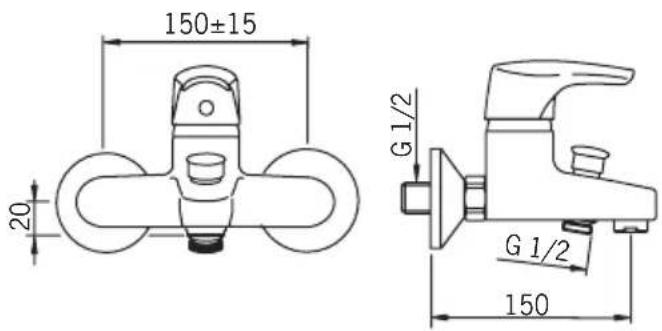

1940Y
EN 817
II (ISO 3822)
50 - 1000 kPa
0.33 l/s (300 kPa)
250 kPa (0.3 l/s)
max. +80°C
KIWA K6345/07

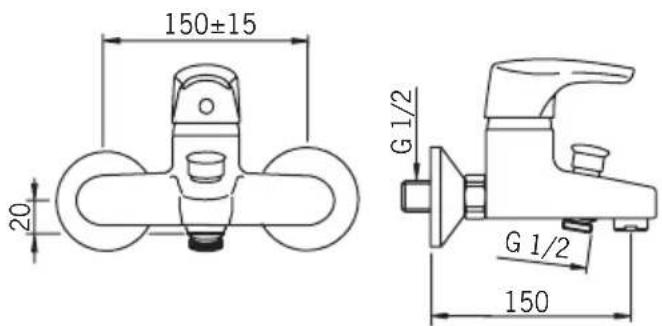

1940U
EN 817
I (ISO 3822)
50 - 1000 kPa
0.33 l/s (300 kPa)
250 kPa (0.3 l/s)
max. +80°C
1951Y
EN 817
II (ISO 3822) Oras lab.
50 - 1000 kPa
0.33 l/s (300 kPa)
250 kPa (0.3 l/s)
max. +80°C


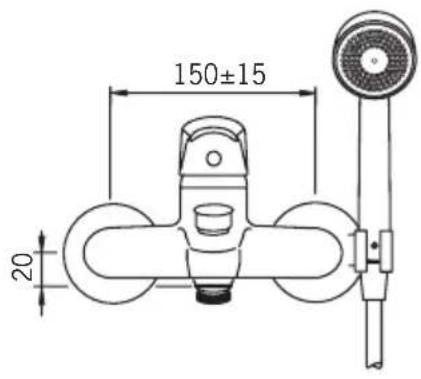

150±15 20

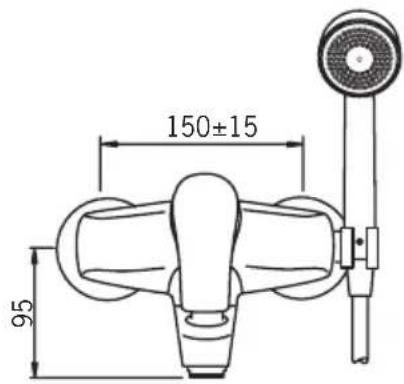

EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
50 - 1000 kPa
0.33 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
160 kPa (0.2 l/s)
260 kPa (0.3 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C


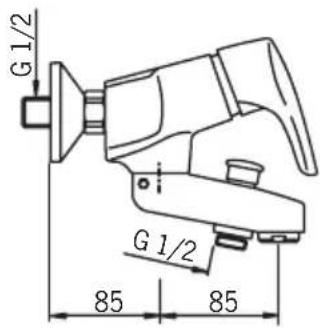

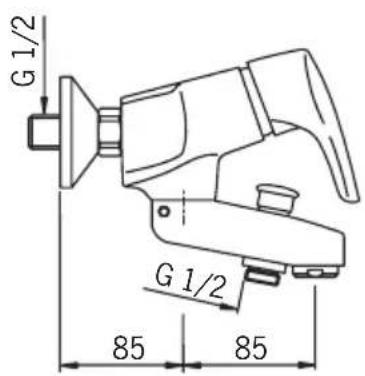

G 1/2 G 1/2 85 85
KIWA K6345/07
1960
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.26 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
180 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C
VA 1.42/19638
1960Y
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.26 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
180 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C
KIWA K6345/07
1960U
EN 817
I (ISO 3822)
50 - 1000 kPa
0.25 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
180 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C
1970
EN 817
50 - 1000 kPa
max. +80°C


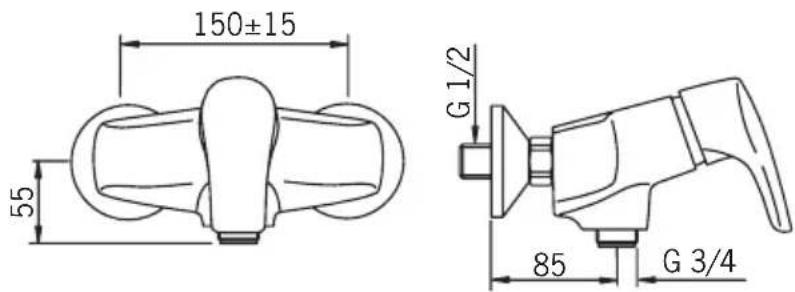

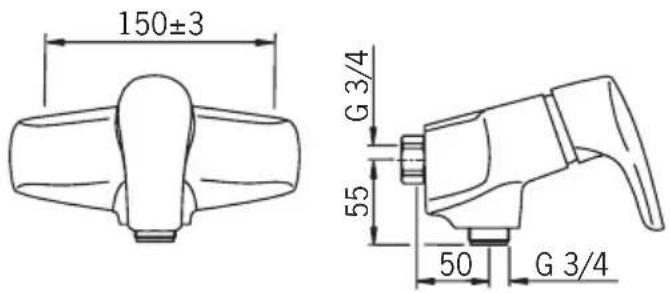

150±3 G 3/4 55 50 G 3/41970Y
EN 817
50 - 1000 kPa
max. +80°C
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.25 l/s (300 kPa
0.2 l/s (300 kPa, with flow reducers)
200 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C


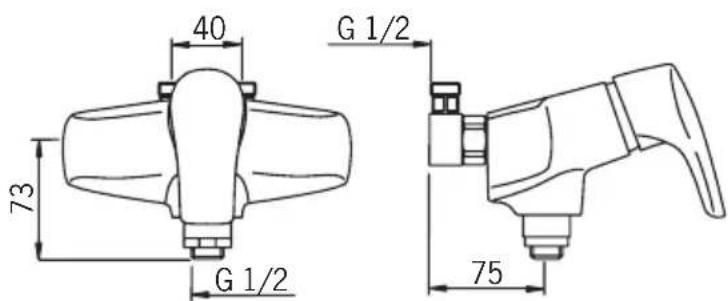

40 G 1/2 73 G 1/2 751972
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
50 - 1000 kPa
0.33 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
160 kPa (0.2 l/s)
260 kPa (0.3 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
0.33 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
160 kPa (0.2 l/s)
260 kPa (0.3 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
50 - 1000 kPa
0.25 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
190 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C


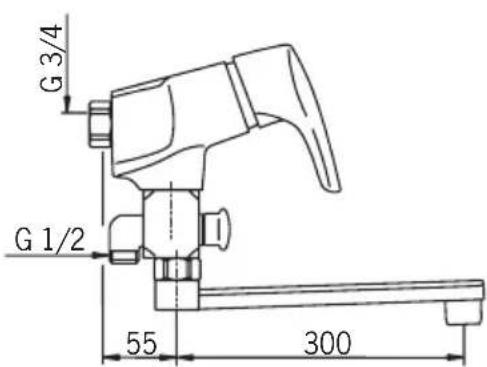

G 3/4 G 1/2 55 300
VA 1.42/19641
1942Y
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
50 - 1000 kPa
0.25 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
190 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
max. +80°C

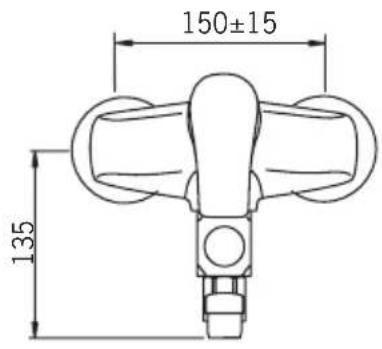

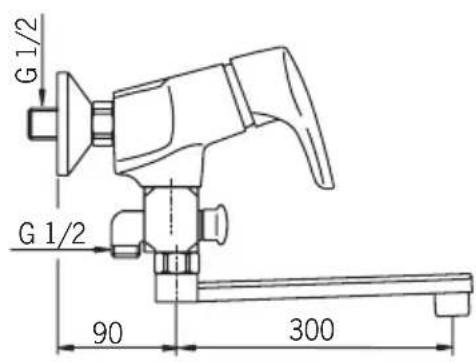

1946F
EN 817
II (ISO 3822)
50 - 1000 kPa
0.3 l/s (300 kPa)
300 kPa (0.3 l/s)
max. +80°C


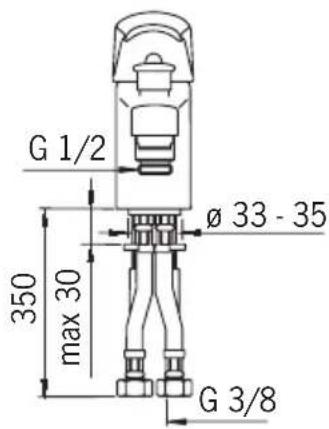

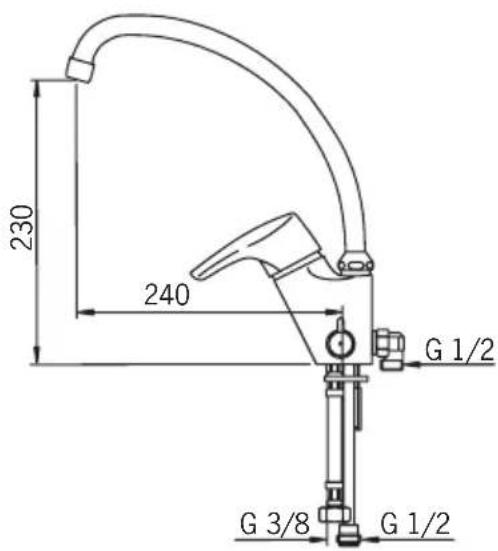

G 1/2 ø 33 - 35 350 max 30 G 3/8


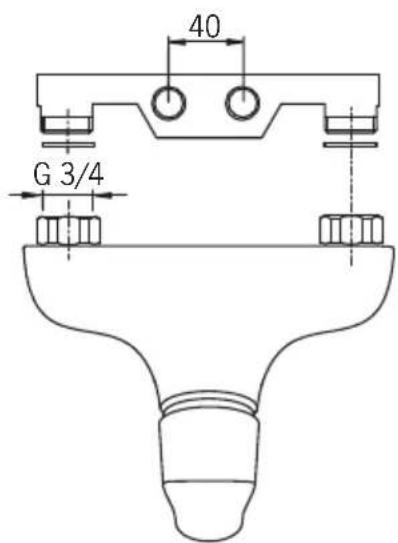

1969
EN 817
50 - 1000 kPa
max. +80°C


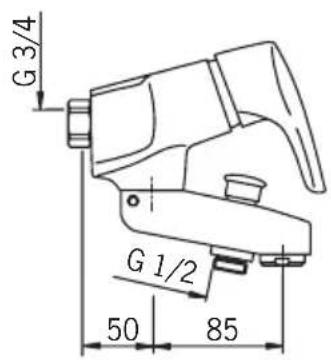

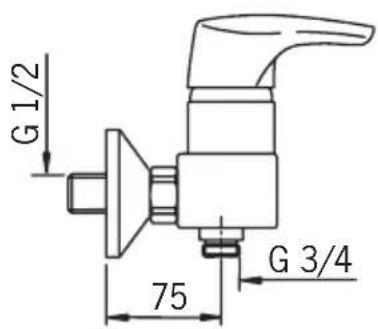

G 1/2 75 G 3/4
Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia


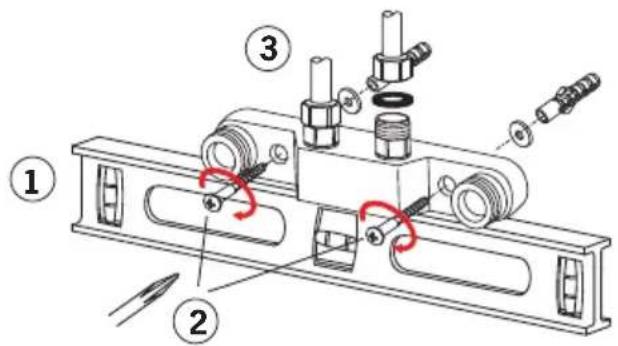

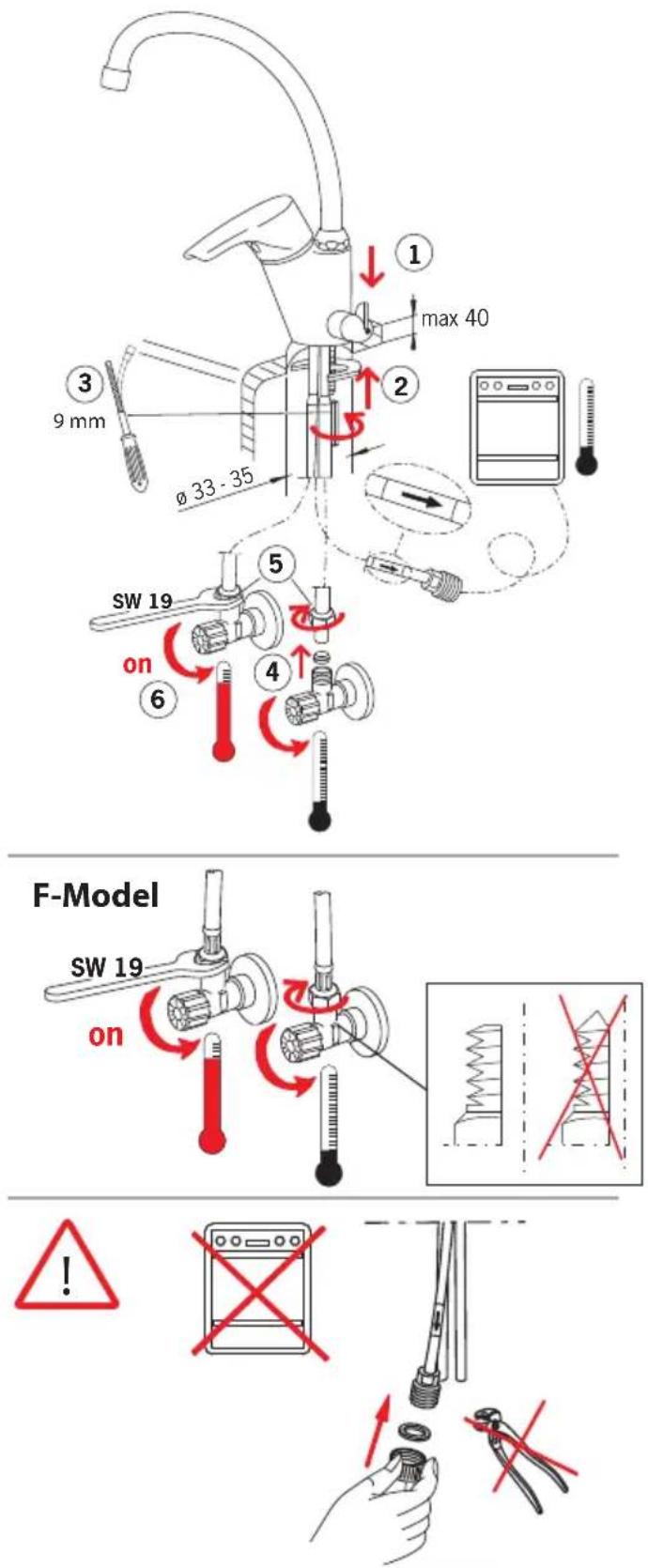

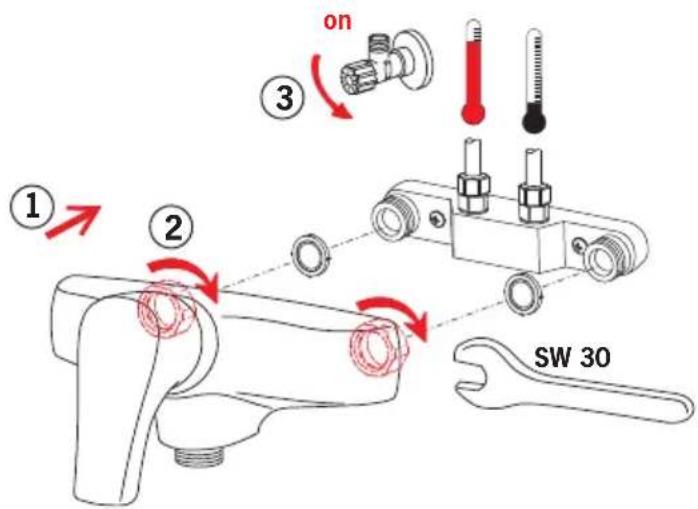

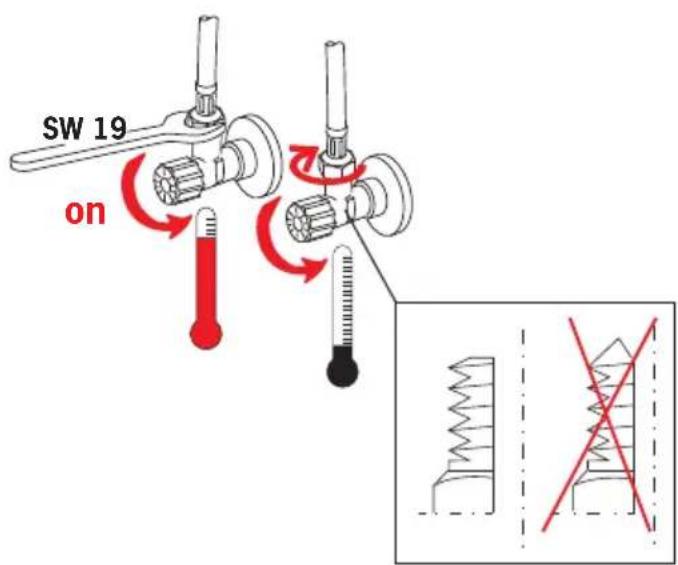

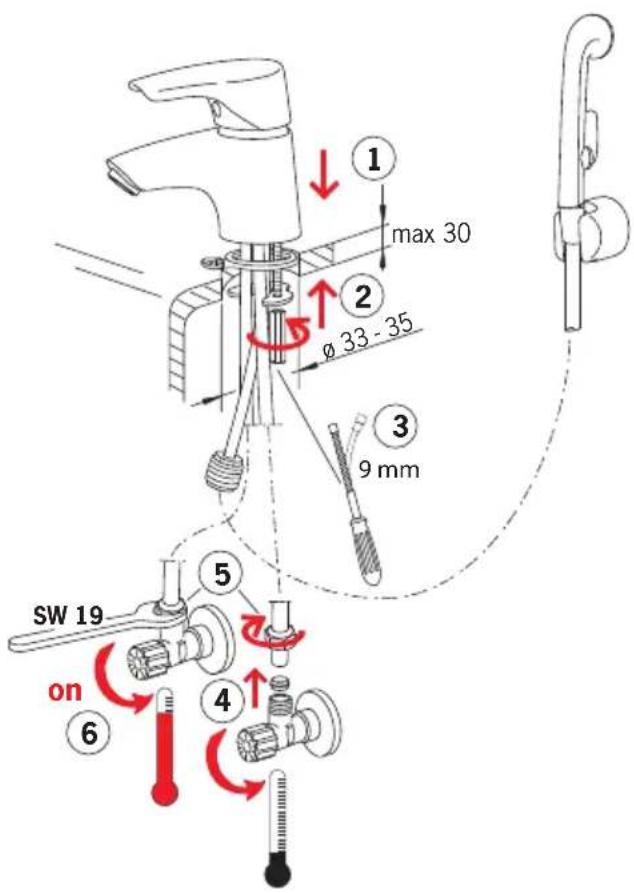

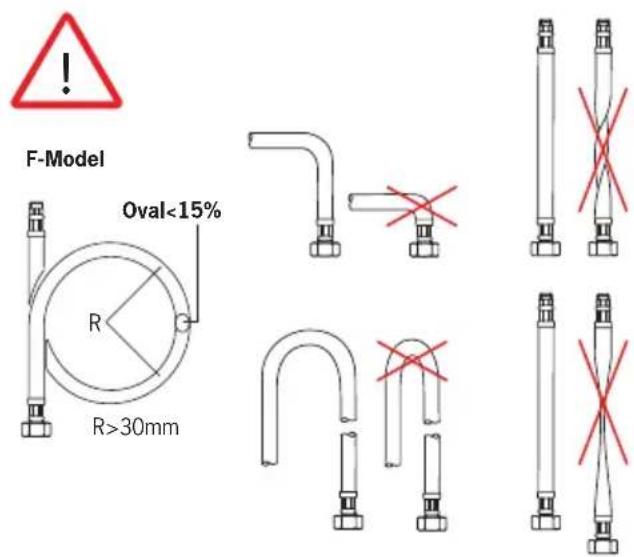

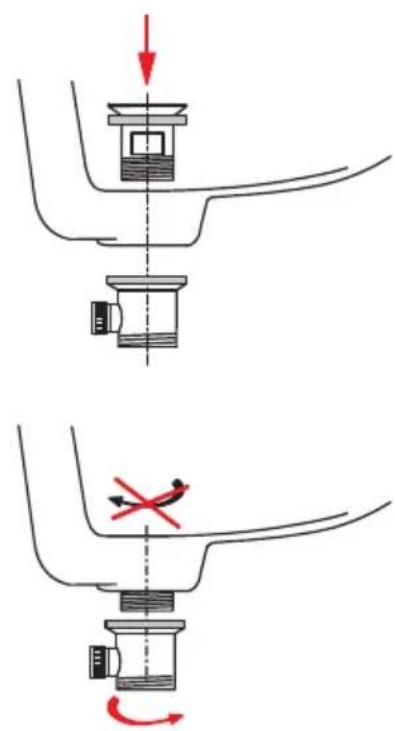

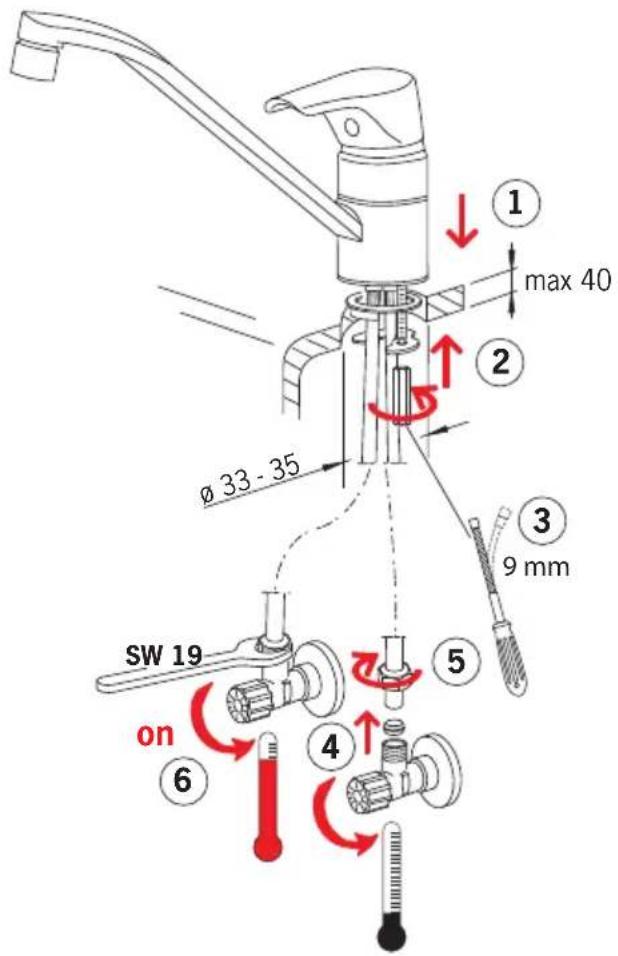

1 max 30 2 ø 33 - 35 3 9 mm SW 19 on 4 6
F-Model
F-Model


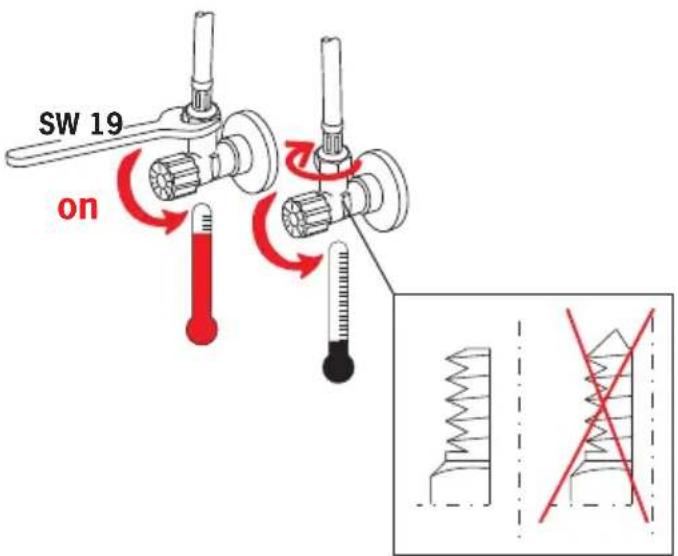

SW 19 onInstallation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas

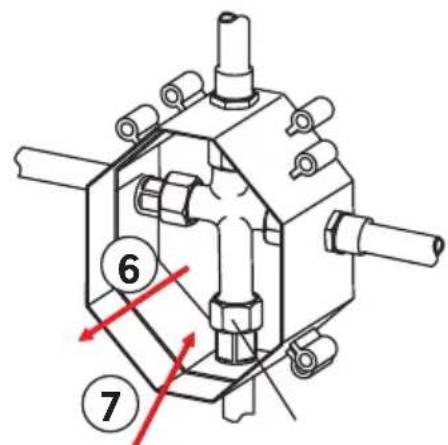

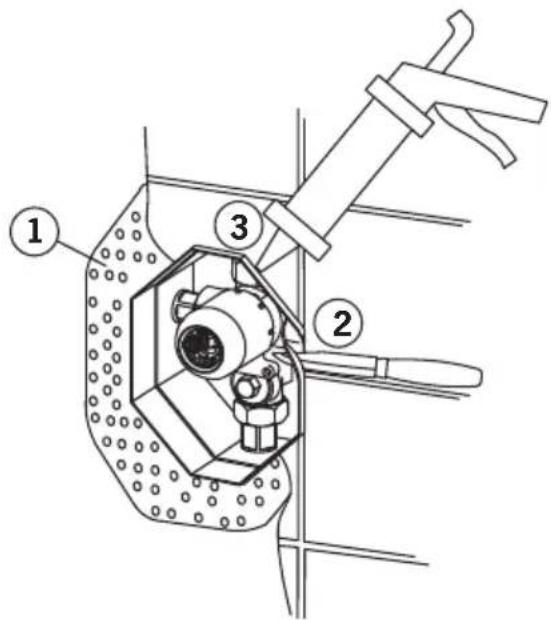

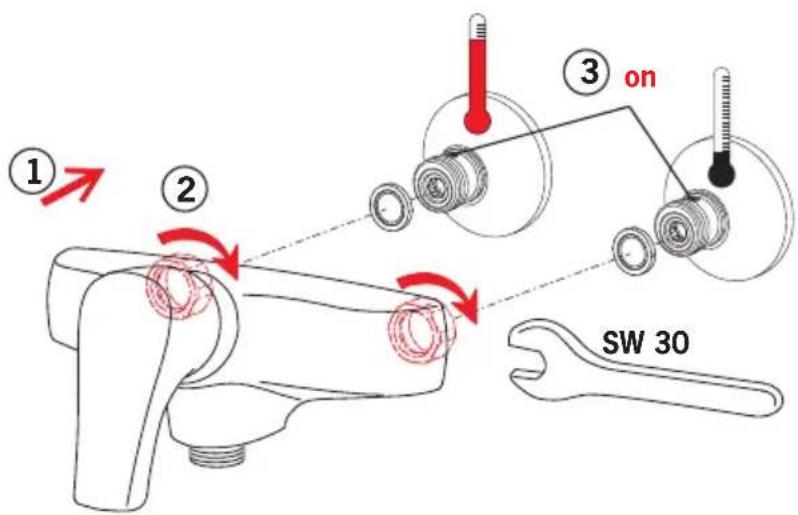

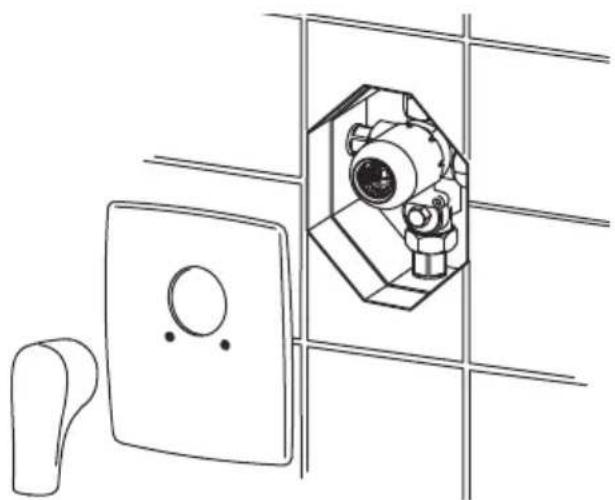

CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia


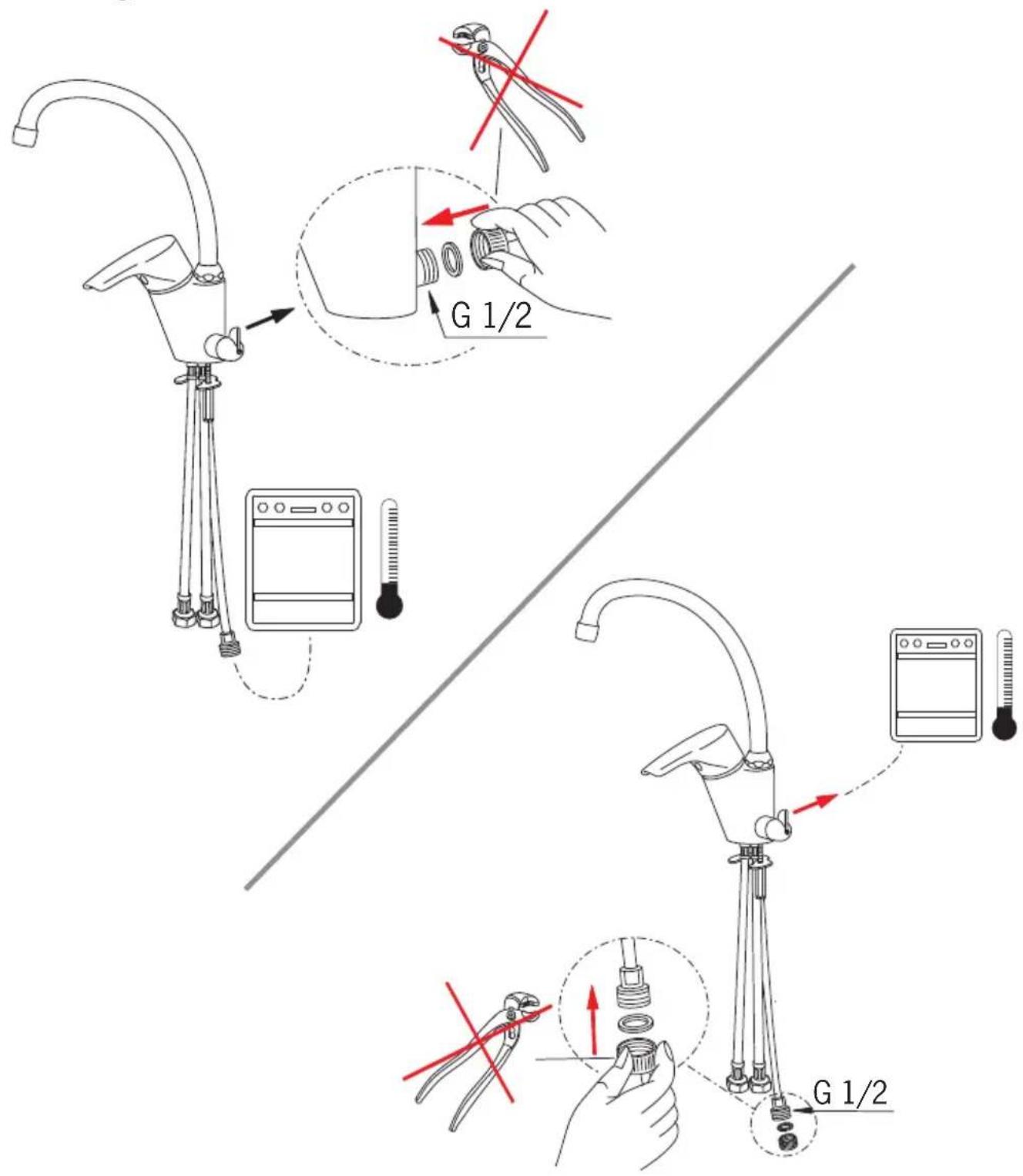

1 max 40 2 ø 33 - 35 3 9 mm SW 19 on 6 4 5F-Model


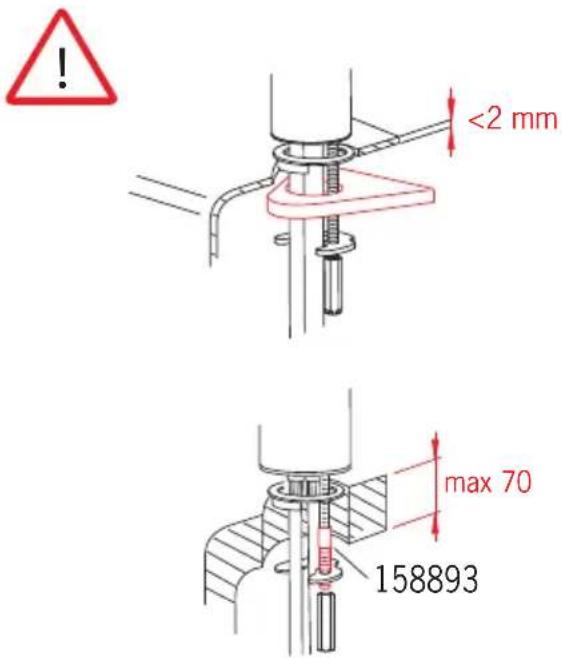

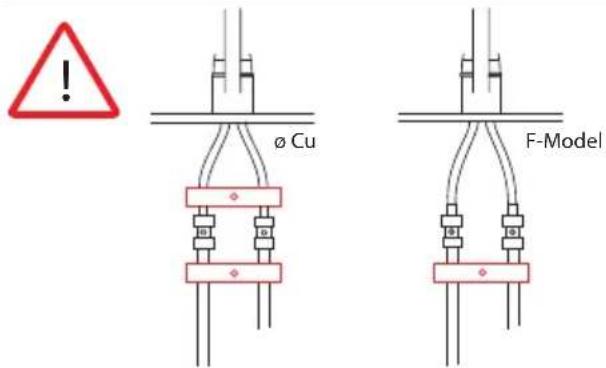

! <2 mm max 70 158893
CZ Montáž
FI Asennus
LV Montāža
RO Instalare
DE Montage
FR Installation
NL Installatie
RU Установка
DK Installation
IT Montaggio
NO Montering
SE Installation
EE Paigaldus
LT Montavimas
PL Instalacja
SK Inštalácia
ES Montaje


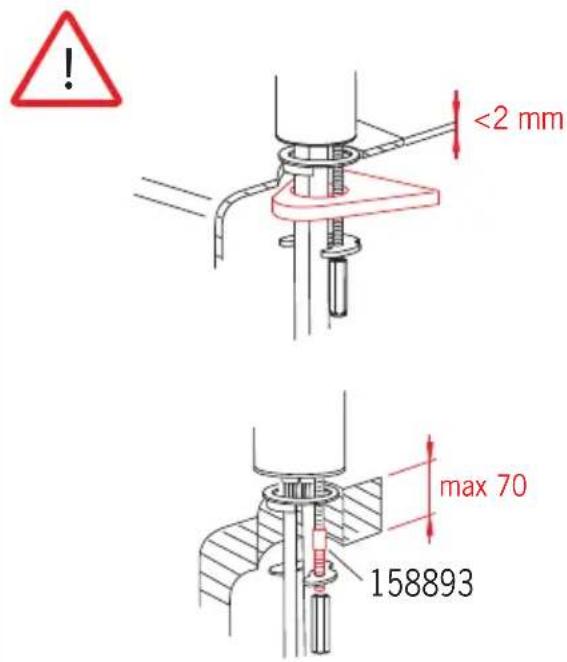

! <2 mm max 70 158893
F-Model
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia

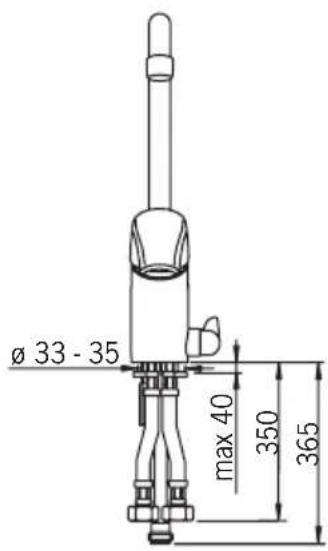

Oras Saga 1939F
CZ Montáž
FI Asennus
LV Montāža
RO Instalare
DE Montage
FR Installation
NL Installatie
RU Установка
DK Installation
IT Montaggio
NO Montering
SE Installation
EE Paigaldus
LT Montavimas
PL Instalacja
SK Inštalácia
ES Montaje


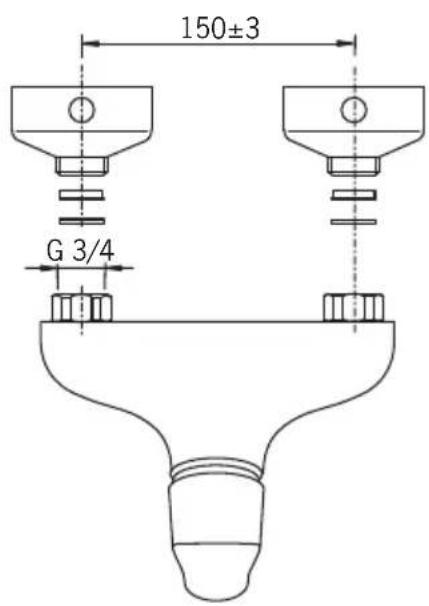

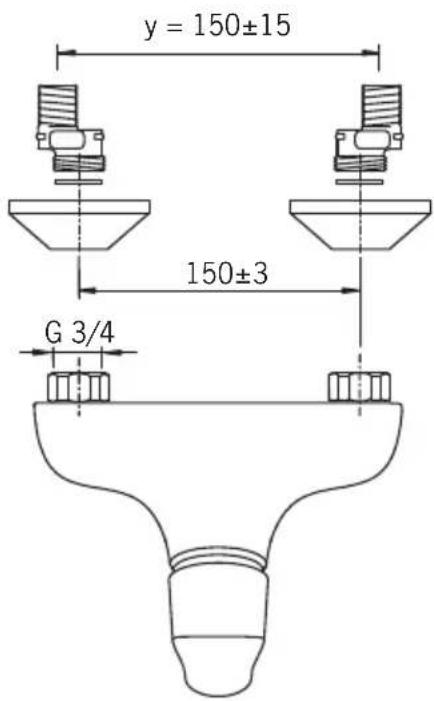

y = 150±15 150±3 G 3/4Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
1990


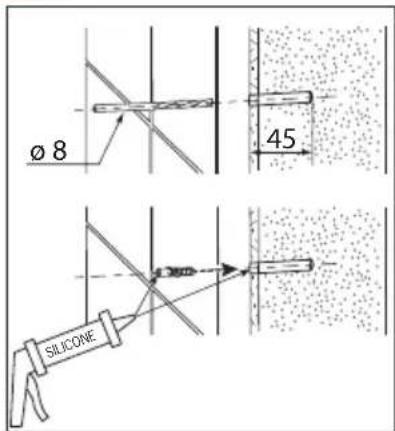

Ø 8 45 SILICONE


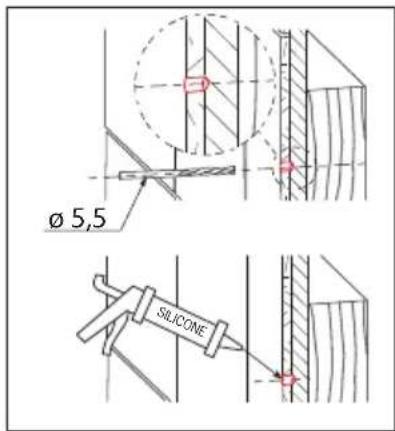

Ø 5,5 SILICONEOperation
CZ Funkce
DE Funktion
DK Betjening
EE Toimimine
ES Servicio
FI Toiminta
FR Utilisation
IT Funzionamento
LT Veikimo principas
CZ Omezeni průtoku


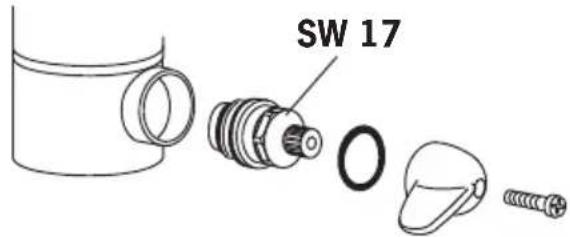

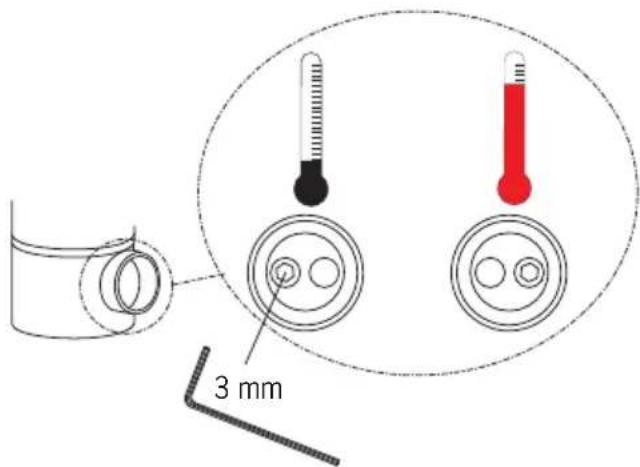

Diagram illustrating the process of cleaning a faucet, showing step-by-step removal and spray application.Changing for hot water
CZ Přestavení na horkou vodu
DE Umstellung auf Warmwasseranschluß
DK Omstilling til varmt vand
EE Paigaldamine külma vee asendisse
ES Cambio para agua caliente
FI Muuttaminen kuumalle vedelle
FR Valvole per lavastoviglie o lavatrici
IT Per miscelatore per lavello
LT Ventilio nustatymas karštam vandeniui
LV Krano nustatymas karštam vandeniui
NL Changement pour arrivée eau chaude
NO Omstilling til varmt vann
PL Zmiana na ciepłą wodę
RO Modificarea pentru apă caldă
RU Перенастройка на подачу горячей вод
SE Omställning till varmt vatten
SK Prestavenie na teplú vodu
1
CZ Výměna těsnění
To change the cartridge
CZ Výména kartuše


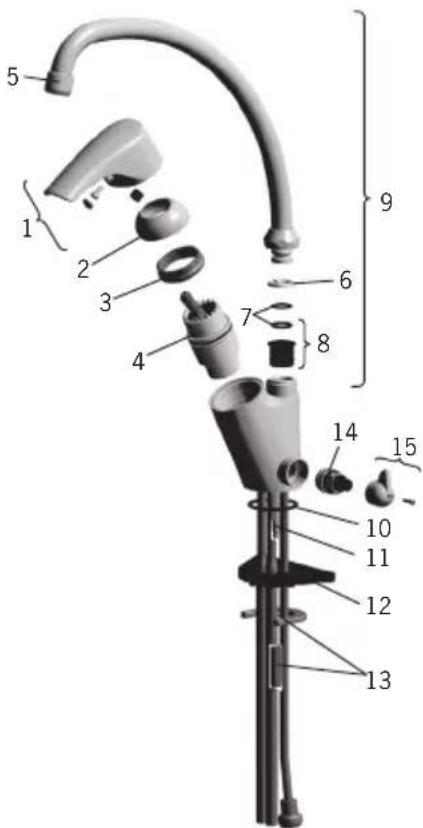

Exploded view diagram of a hairless shower tube with numbered parts for identification1934, 1934F, 1939
1 159260V
2 158174
3 158726
4 158890
5 232201
6 219563/10
7 469360/10
8 219595/10
9 219110V
10 119717/10
11 158747/10
12 158825
13 159607V
14 158203V
15 159206V
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad


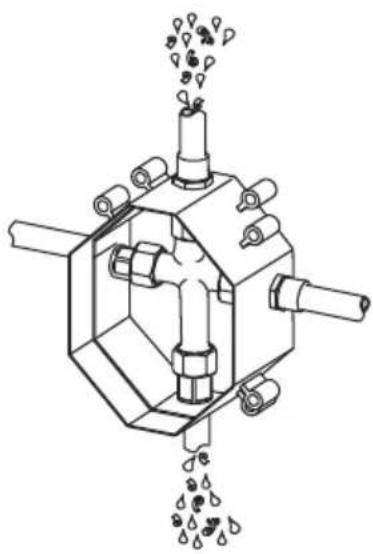

Pure diagram of a T-shaped pipe fitting with threaded ends and base (no text or symbols)Rinsing
CZ Vypláchnutí
DE Spülen
DK Gennemskyldning
EE Loputama
ES Aclarar
FI Huhtelu
FR Rinçage
IT Spurgo
LT Praplovimas
LV Skalošana
NL Spoelen
NO Rengjøring
PL Płukania
RO Spălare
RU Промывка
SE Renspolning
SK Vypláchnutie
Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia


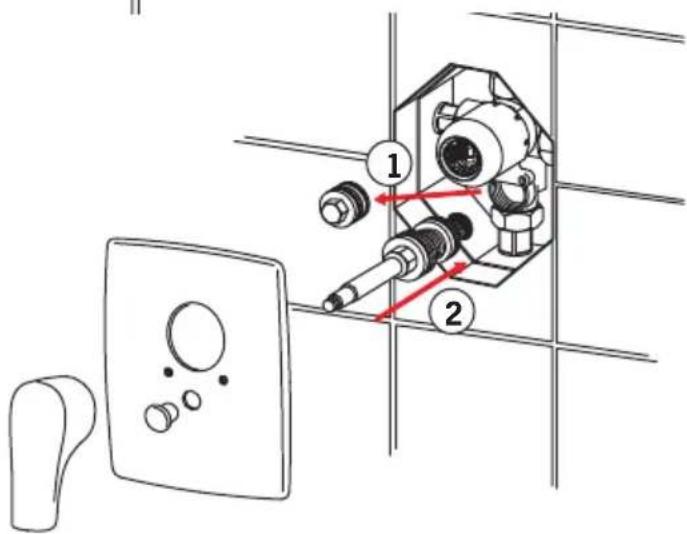

Technical diagram of a mechanical device with numbered components and red arrows indicating motion or flow directions.
SW 32


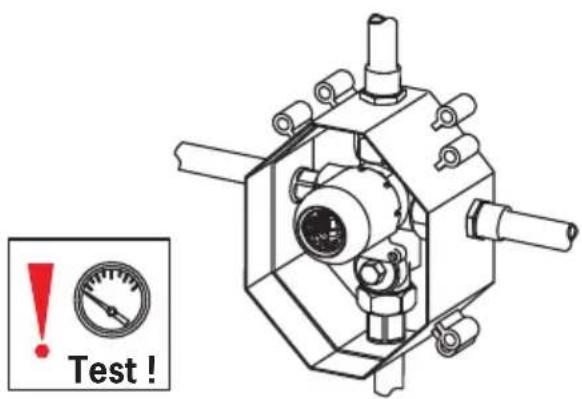

Test !Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
198539


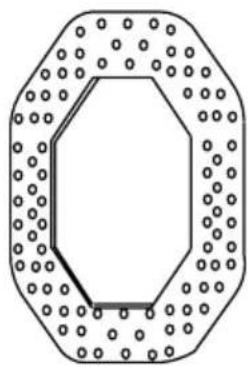

Octagonal frame with dotted circular border and central hole (no text or symbols)
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
1 159260V
2 158174


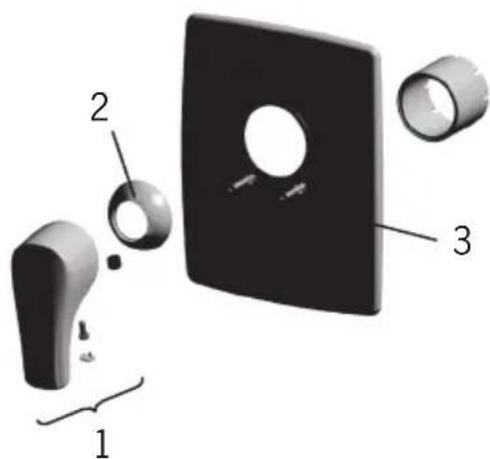

Exploded view diagram of a wall-mounted device with labeled parts 1, 2, and 3Spare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
Oras is owned by Oras Invest, a family company. In September 2013 Oras acquired Hansa Metallwerke AG, a German faucet manufacturer, with its subsidiaries, and together the companies form the new Oras Group. The head office of the Group is located in Rauma, Finland, and the company's factories are located in Rauma, Burglengenfeld (Germany), Kralovice (Czech Republic) and Olesno (Poland). The Group employs about 1 400 people.
Det Norske Veritas Certification OY/AB certifies that the Quality Management System of Oras Oy in Rauma Finland, conforms to the ISO 9001, the Environmental Management System to the ISO 14001 standard and the Occupational Health and Safety System to the OHSAS 18001 standard. The certificates are valid for development, manufacture, marketing, sales and after sales services of faucets, accessories and valves.
The TÜV CERT Certification Body of TÜV NORD Zertifizierungs- und Umweltgutachter Gesellschaft mbH certifies that the Quality Management System of Oras Olesno Sp. z o.o. in Olesno Poland, conforms to the ISO 9001, the Environmental Management System to the ISO 14001 standard and the Occupational Health and Safety System to the OHSAS 18001 standard. The certificates are valid for manufacture, storage, marketing, sales and after sales services of faucets, valves and accessories.
pie
| Category | Value (%) | |---|---| | Top 500 Paks to 2nd | 90 | | Top 500 Paks to 3rd | 140 | | Top 500 Paks to 4th | 140 |ORAS GROUP
Isometsäntie 2, P.O. Box 40
FI-26101 Rauma
Tel. +358 2 83 161
Fax +358 2 831 6300
Info.Finland@oras.com
www.oras.com
