USER MANUAL Vega 1800 Oras
Installation and Maintenance Guide
Oras Vega
GB Thank you for selecting an Oras product. This installation and maintenance guide will introduce you to the installation, functions, and use of the faucet. Please read the guide carefully before installation, and keep it on hand for any potential future maintenance. If an operating malfunction or fault appears in your faucet, a plumbing professional is your best source of assistance. Information on cleaning the faucet, conditions of use, and warranty terms is available in the brochure that came with your product: "Important notes on Oras products".


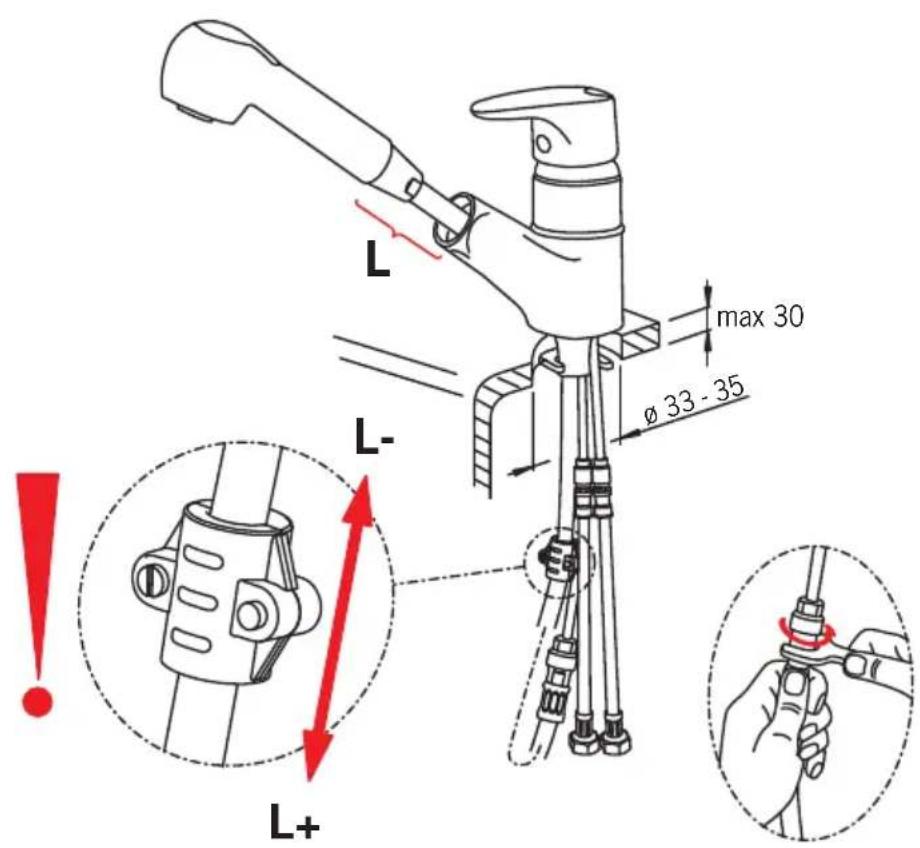

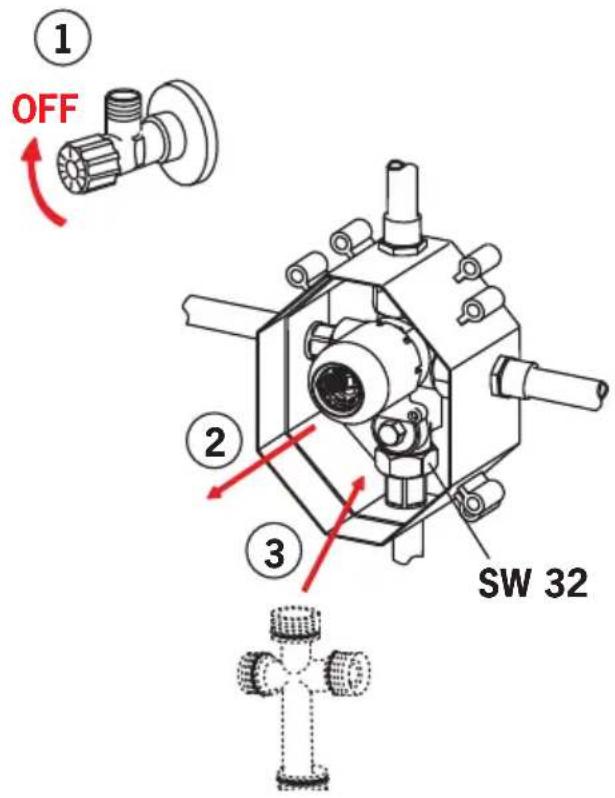

Installation 22
Operation 26
Maintenance 26-27, 29
Spare parts 30-31
Technical data....13
Installation 23-24, 28
Operation 26
Maintenance 26-29
Spare parts 32
Technical data....13-16
Installation 23-24
Operation 26
Maintenance 26-27, 29
Spare parts 32-34
Technical data....17-21
Installation 25
Operation 26
Maintenance 15-17
Spare parts 34-35
Technical data....21
Installation 22
Operation 26
Maintenance 15-17
Spare parts 35
Technical data....36
Installation 37-39
Operation 26
Maintenance 26, 29
Spare parts ....40

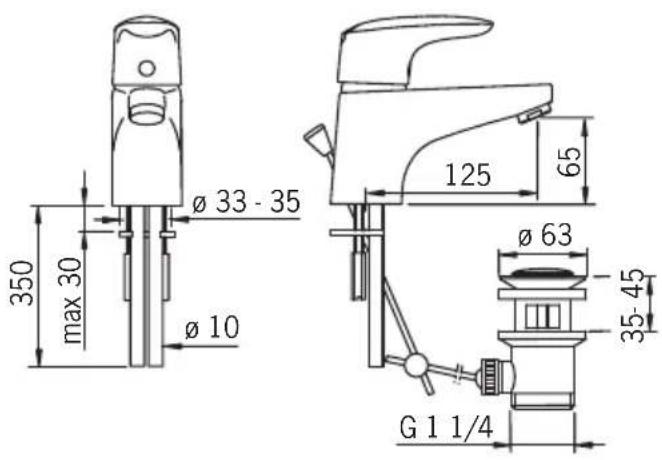

1800
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
75 kPa (0.1 l/s)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-01355-08
KIWA K6345/07
Sintef Nr. 0535

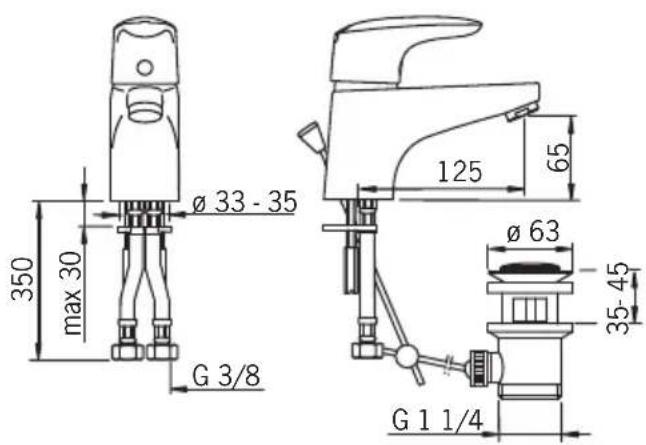

EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
80 kPa (0.1 l/s)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C


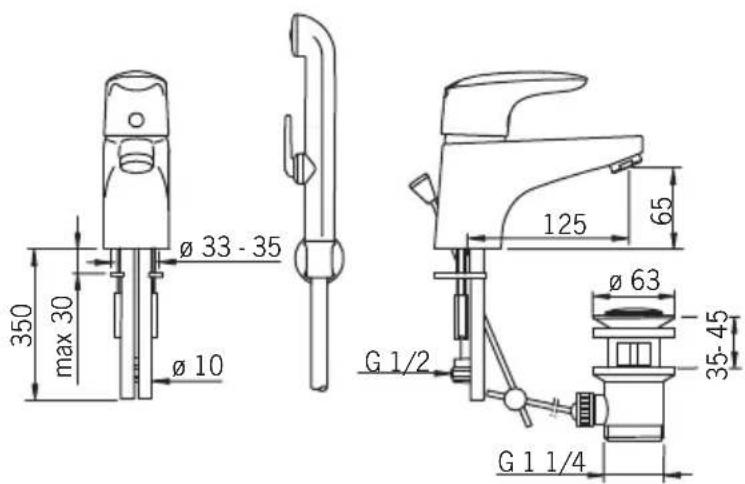

1802
EN 817
I (ISO 3822)
50 - 1000 kPa
0.15 l/s (300 kPa)
130 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-01355-08
Sintef Nr. 0535

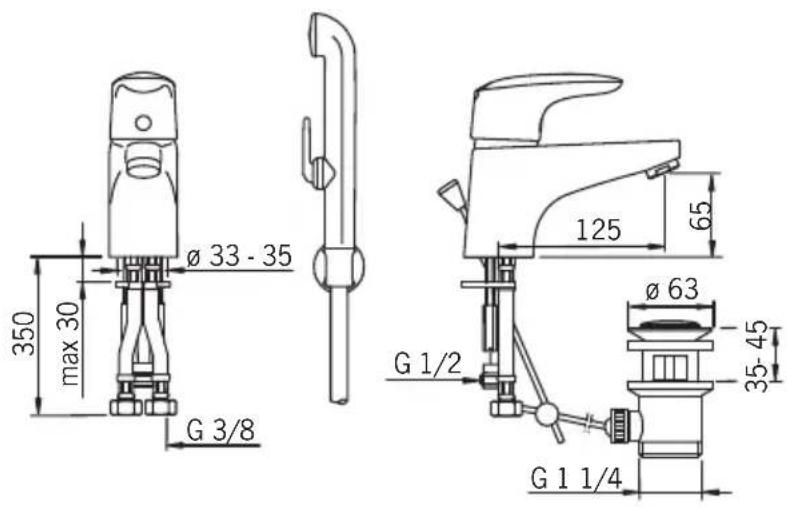

1802F
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.14 l/s (300 kPa)
145 kPa (0.1 l/s)
0.09 l/s (Eco-flow at 300 kPa)
max. +80°C
1804
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
75 kPa (0.1 l/s)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-01355-08
KIWA K6345/07
Sintef Nr. 0535


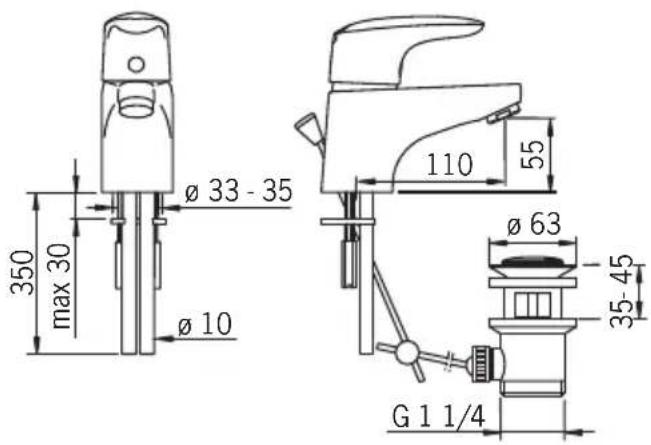

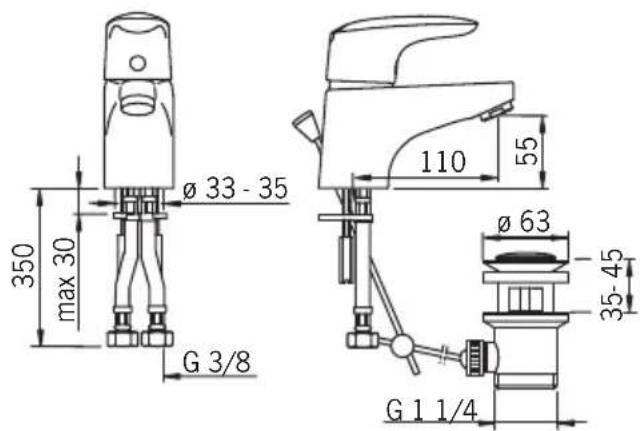

350 max 30 ø 33 - 35 ø 10 110 55 ø 63 35-45 G 1 1/41804F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
80 kPa (0.1 l/s)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C
1805
EN 817
50 - 1000 kPa
max. +80°C


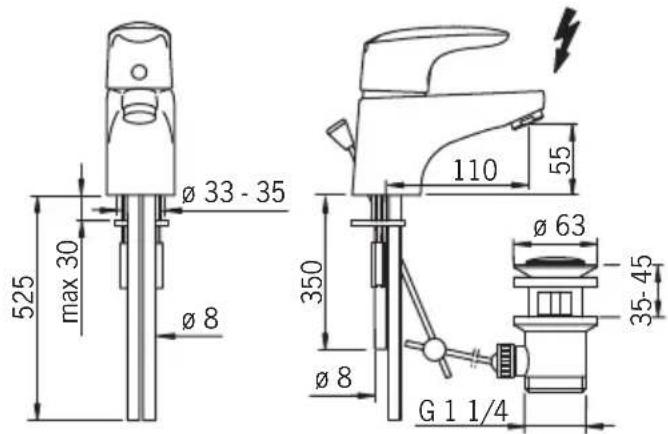

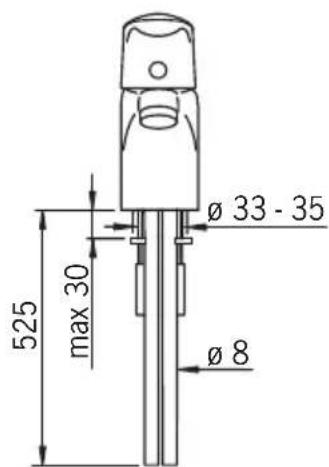

525 max 30 Ø 33 - 35 Ø 8 350 110 55 Ø 63 35-45 Ø 8 G 1 1/4
Sintef Nr. 0535

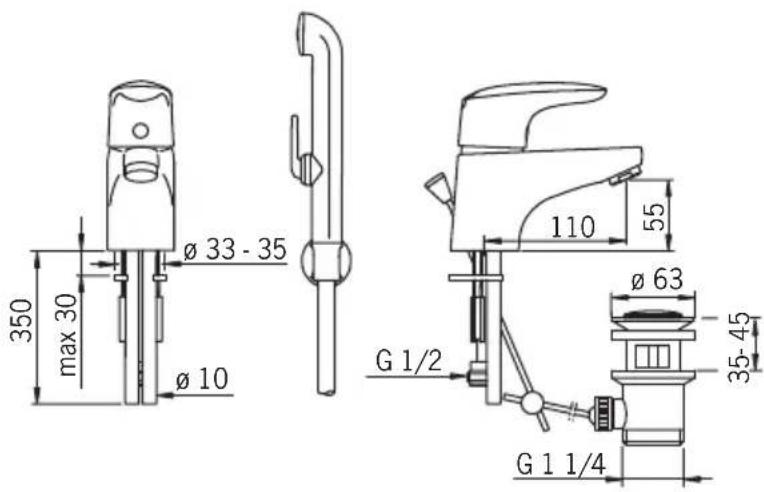

1806
EN 817
I (ISO 3822)
50 - 1000 kPa
0.15 l/s (300 kPa)
130 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-01355-08
Sintef Nr. 0535

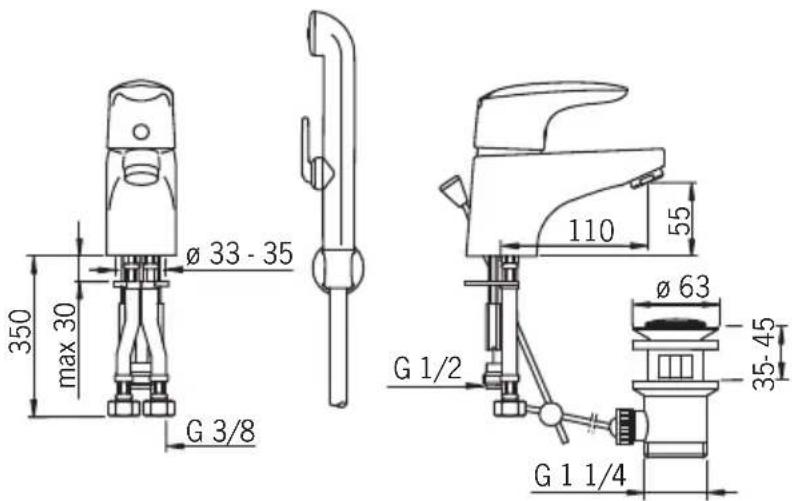

1806F
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.14 l/s (300 kPa)
145 kPa (0.1 l/s)
0.09 l/s (Eco-flow at 300 kPa)
max. +80°C


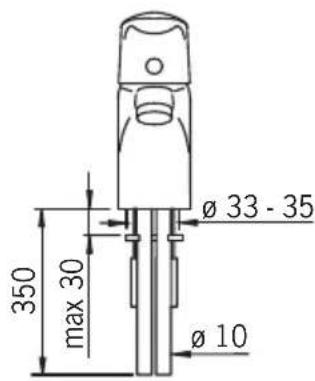

1807E
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.13 l/s (300 kPa)
180 kPa (0.1 l/s)
max. +80°C

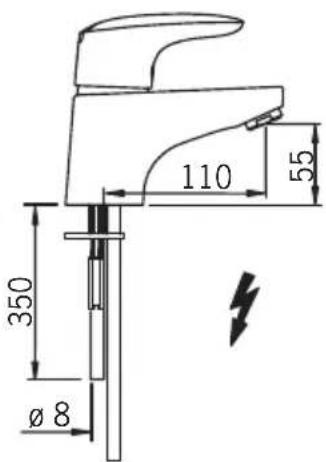

1808E
EN 817
50 - 1000 kPa
max. +80°C
1810
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
75 kPa (0.1 l/s)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-01355-08
Sintef Nr. 0535

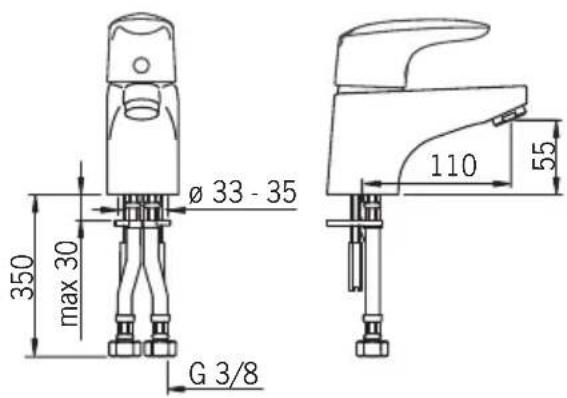

1810F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
80 kPa (0.1 l/s)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C
1812
EN 817
I (ISO 3822)
50 - 1000 kPa
0.15 l/s (300 kPa)
130 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-01355-08
Sintef Nr. 0535

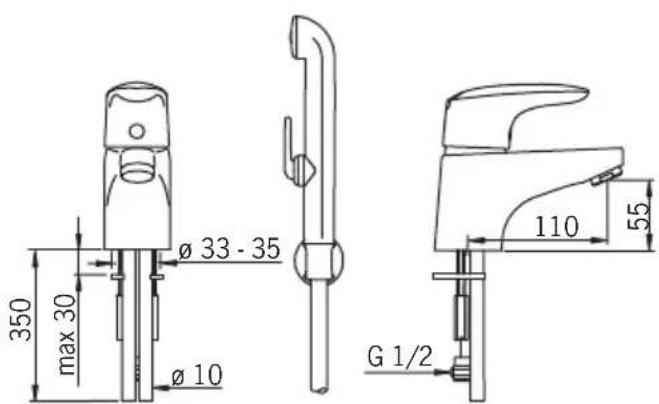

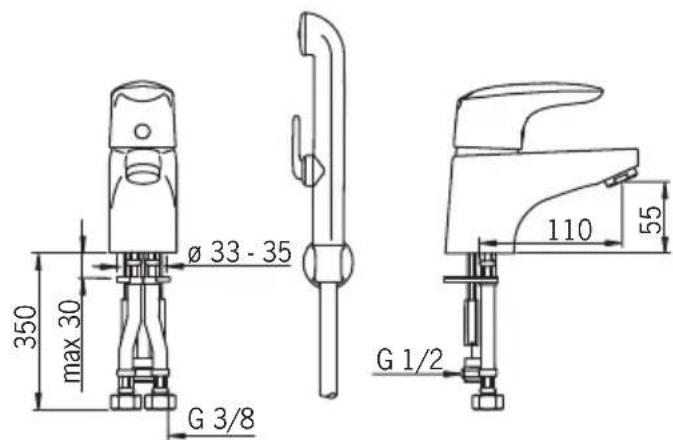

1812F
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.14 l/s (300 kPa)
145 kPa (0.1 l/s)
0.09 l/s (Eco-flow at 300 kPa)
max. +80°C


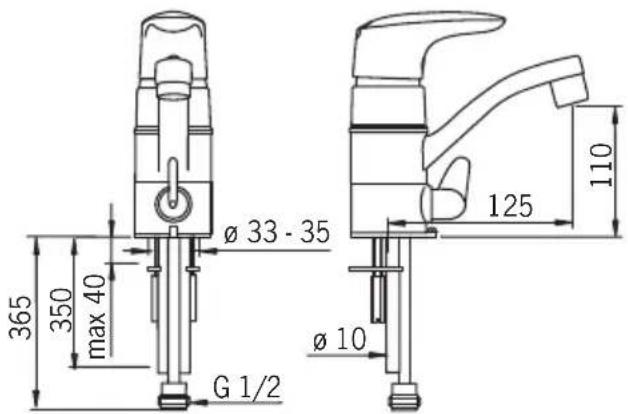

1813
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
75 kPa (0.1 l/s)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-RTH-11360-06
Sintef Nr. 0535


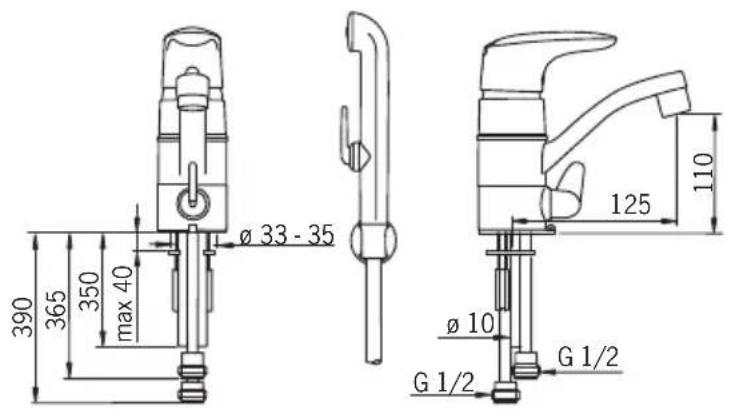

365 350 max 40 Ø 33 - 35 G 1/2 Ø 10 125 1101814
EN 817
I (ISO 3822)
50 - 1000 kPa
0.15 l/s (300 kPa)
130 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-RTH-11360-06
Sintef Nr. 0535

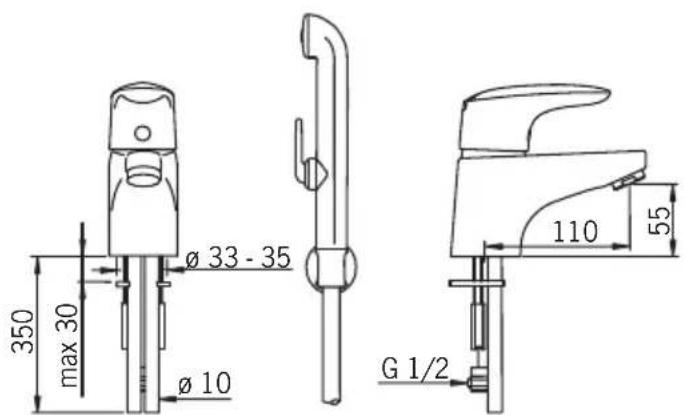

1815
EN 817
I (ISO 3822)
50 - 1000 kPa
0.15 l/s (300 kPa)
130 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-01355-08
Sintef Nr. 0535
1818F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.2 l/s (300 kPa)
80 kPa (0.1 l/s)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C


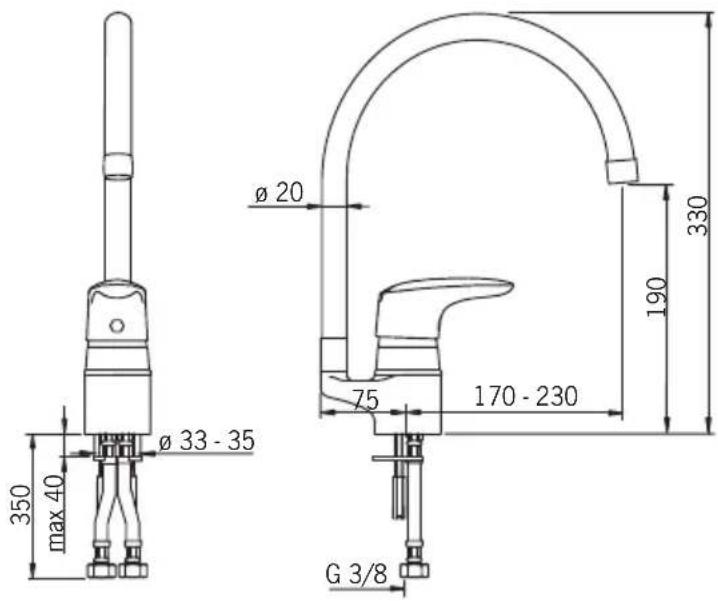

1838F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.26 l/s (300 kPa)
180 kPa (0.2 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
V7A 1.42/18334
Sintef Nr. 0227
STF VTT-RTH-00100-11

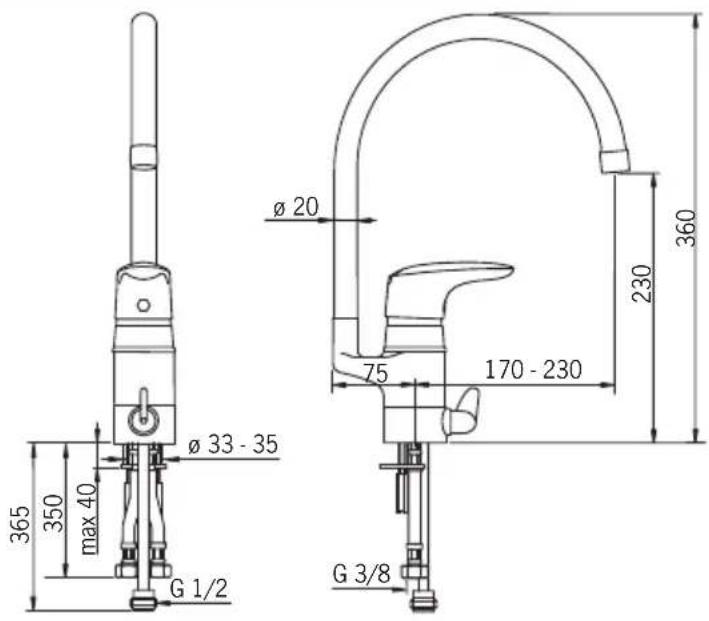

EN 817
I (ISO 3822)
50 - 1000 kPa
0.26 l/s (300 kPa)
180 kPa (0.2 l/s)
0.1 I/s (Eco-flow at 300 kPa)
max. +80°C
1.42/18334
STF VTT-RTH-00100-11
Sintef Nr. 0228

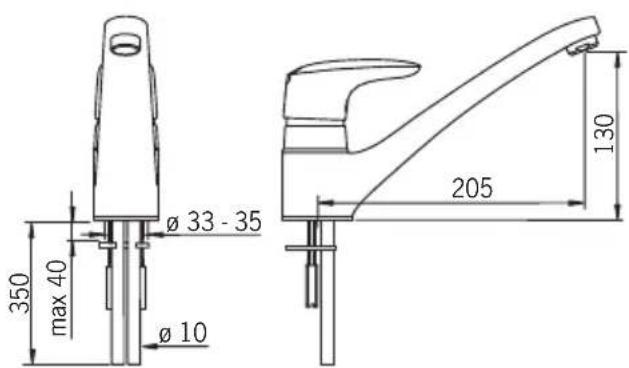

1820
EN 817
I (ISO 3822)
50 - 1000 kPa
0.27 l/s (300 kPa)
160 kPa (0.2 l/s)
0.11 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-RTH-00100-11
KIWA K6345/07

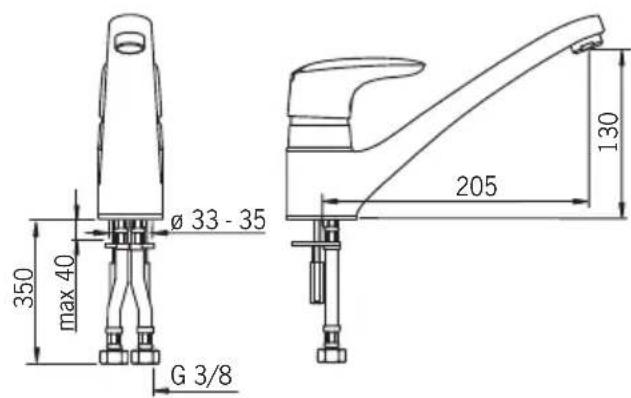

1820F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.26 l/s (300 kPa)
180 kPa (0.2 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
Sintef Nr. 0227
1825
EN 817
I (ISO 3822)
50 - 1000 kPa
0.27 l/s (300 kPa)
160 kPa (0.2 l/s)
0.11 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-RTH-00100-11

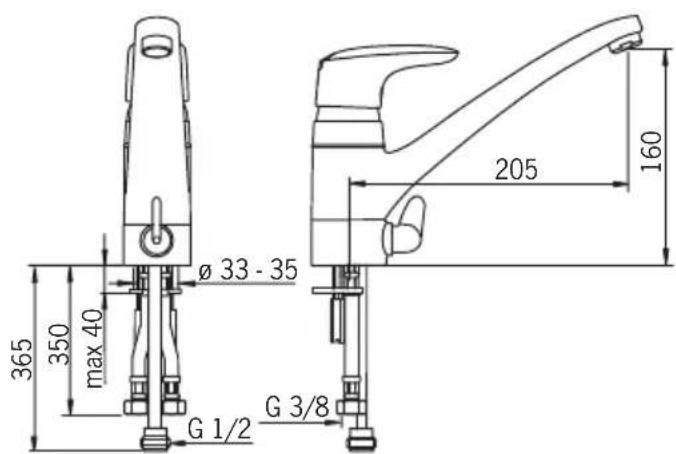

1825F
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.26 l/s (300 kPa)
180 kPa (0.2 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
Sintef Nr. 0228
1832F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.18 l/s (300 kPa)
90 kPa (0.1 l/s)
0.07 l/s (Eco-flow at 300 kPa)
max. +80°C
Sintef Nr. 0229
STF VTT-RTH-00100-11


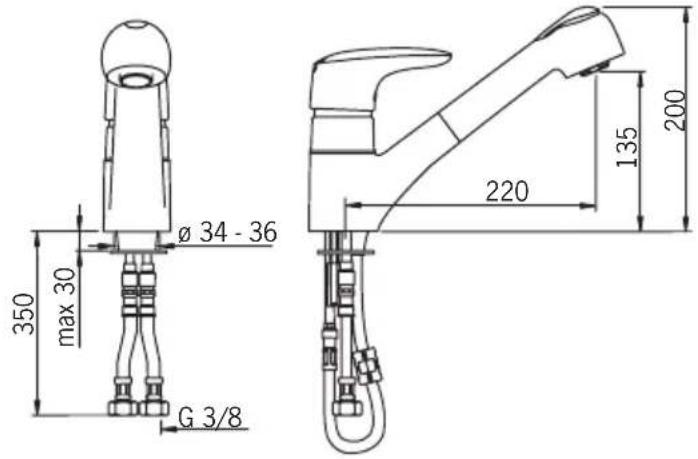

350 max 30 Ø 34 - 36 G 3/8 220 135 2001821
EN 817
50 - 1000 kPa
max. +80°C


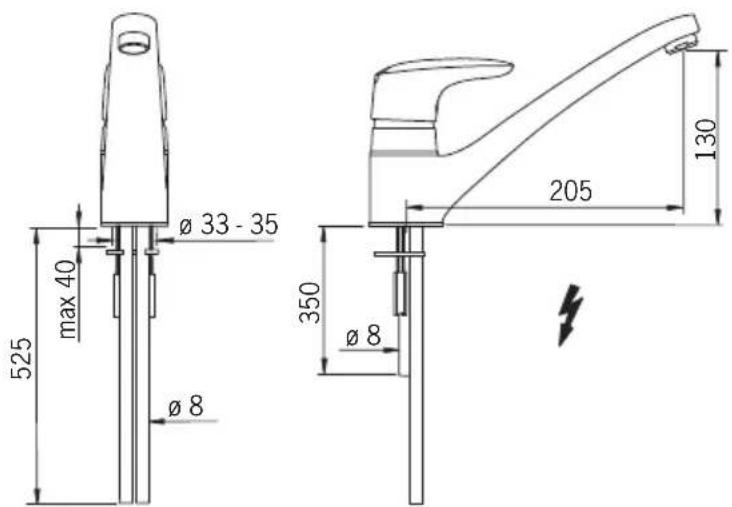

525 max 40 Ø 33 - 35 Ø 8 350 Ø 8 205 130
Sintef Nr. 0227
1821E

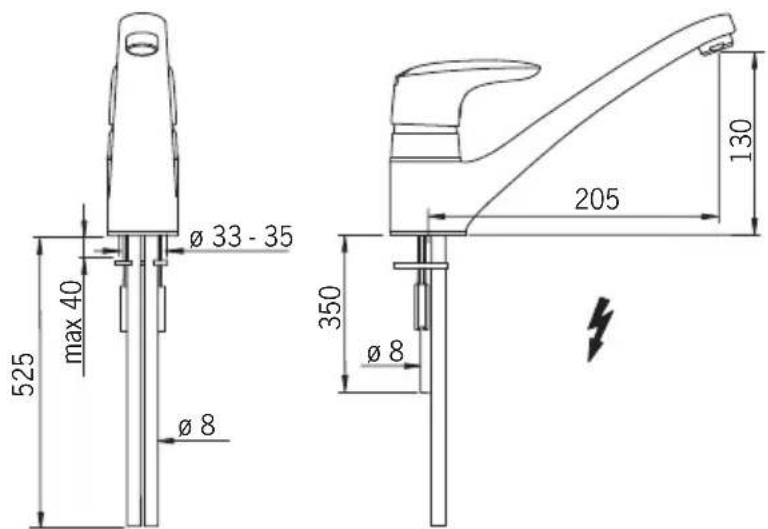

EN 817
50 - 1000 kPa
max. +80°C
1833E
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.13 l/s (300 kPa)
180 kPa (0.1 l/s)
max. +80°C

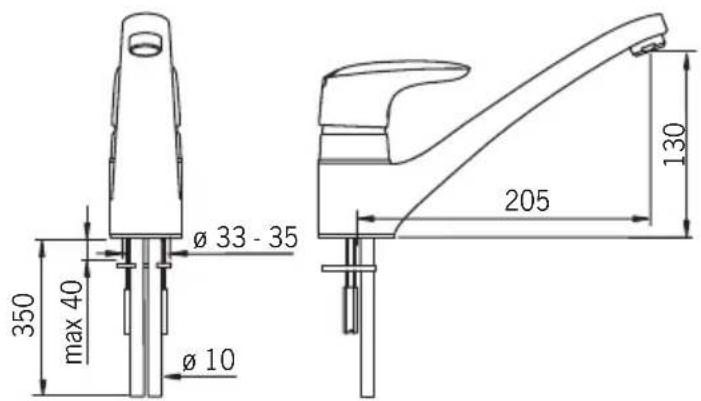

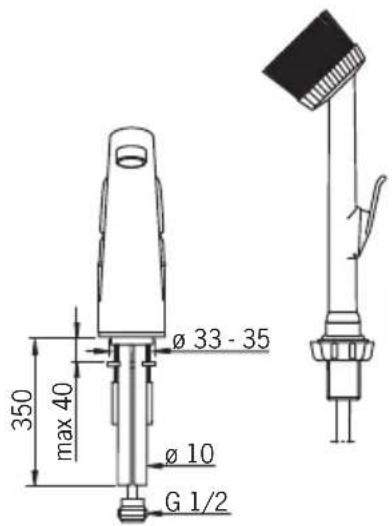

1828
EN 817
I (ISO 3822)
50 - 1000 kPa
0.17 l/s (300 kPa)
100 kPa (0.1 l/s)
0.07 l/s (Eco-flow at 300 kPa)
max. +80°C

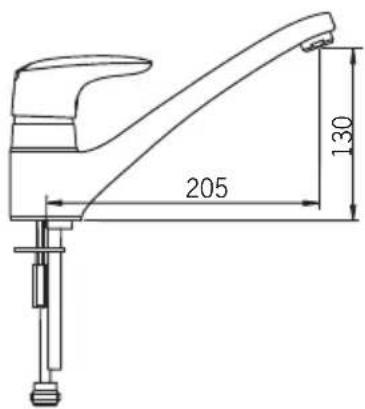

Sintef Nr. 0227
STF VTT-RTH-00100-11

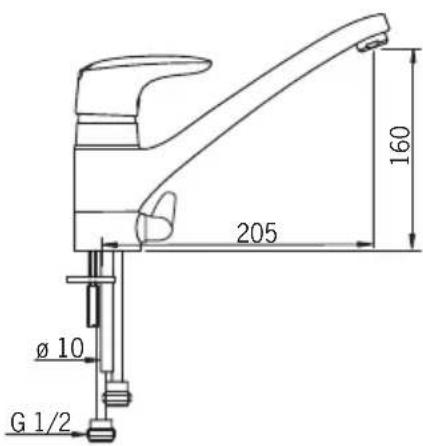

1829
EN 817
I (ISO 3822)
50 - 1000 kPa
0.17 l/s (300 kPa)
100 kPa (0.1 l/s)
0.07 l/s (Eco-flow at 300 kPa)
max. +80°C


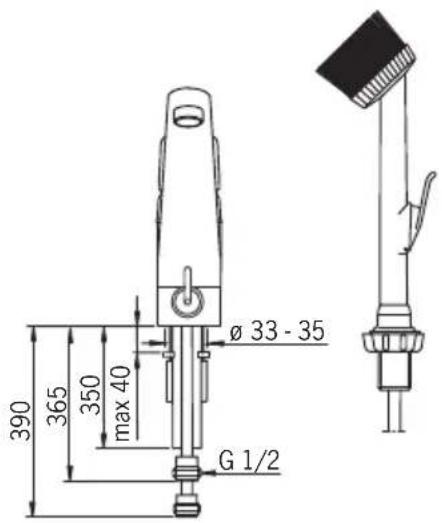

390 365 350 max 40 Ø 33 - 35 G 1/2
Sintef Nr. 0227
STF VTT-RTH-00100-11

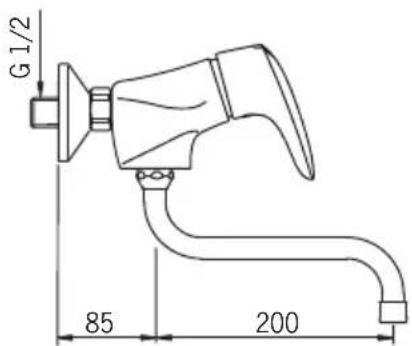

1837U
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.21 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
280 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C


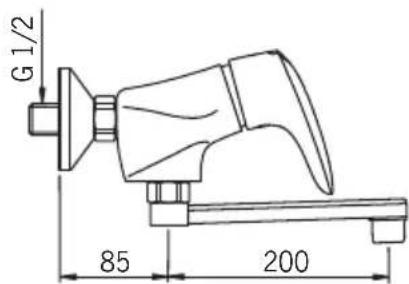

1834EU
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.12 l/s (300 kPa)
200 kPa (0.1 l/s)
max. +80°C


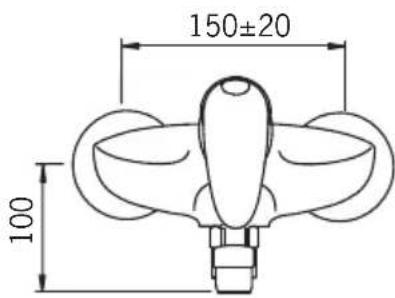

1836EX
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.13 l/s (300 kPa)
180 kPa (0.1 l/s)
max. +80°C


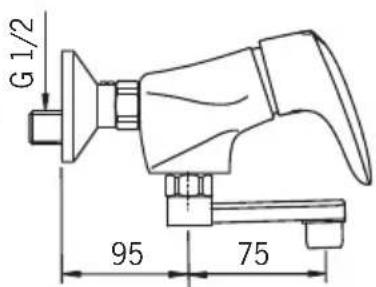

G1/2 95 75
1840
EN 817
II (ISO 3822)
50 - 1000 kPa
0.33 l/s (300 kPa)
260 kPa (0.3 l/s)
0.17 l/s (Eco-flow at 300 kPa)
max. +80°C


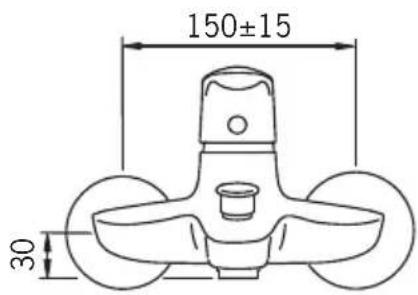

150±3 30
STF VTT-RTH-00100-11
Sintef Nr. 0126

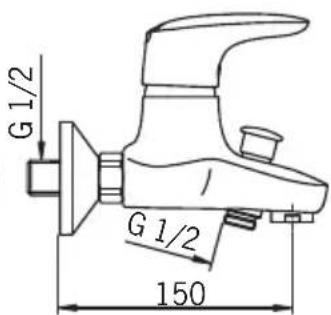

1840U
EN 817
II (ISO 3822)
50 - 1000 kPa
0.33 l/s (300 kPa)
260 kPa (0.3 l/s)
0.17 l/s (Eco-flow at 300 kPa)
max. +80°C
KIWA K6345/07
LGA PA-IX 19363/IIBB

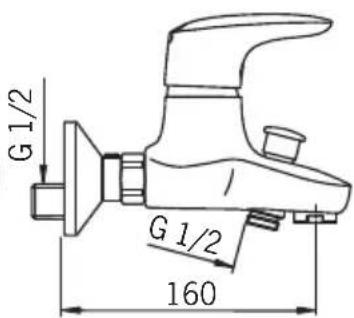

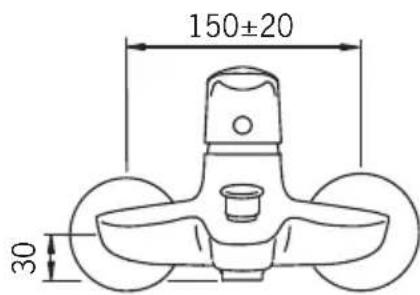

1840X
EN 817
II (ISO 3822)
50 - 1000 kPa
0.33 l/s (300 kPa)
260 kPa (0.3 l/s)
0.17 l/s (Eco-flow at 300 kPa)
max. +80°C
1841U
EN 817
II (ISO 3822)
50 - 1000 kPa
0.33 l/s (300 kPa)
260 kPa (0.2 l/s)
0.17 l/s (Eco-flow at 300 kPa)
max. +80°C


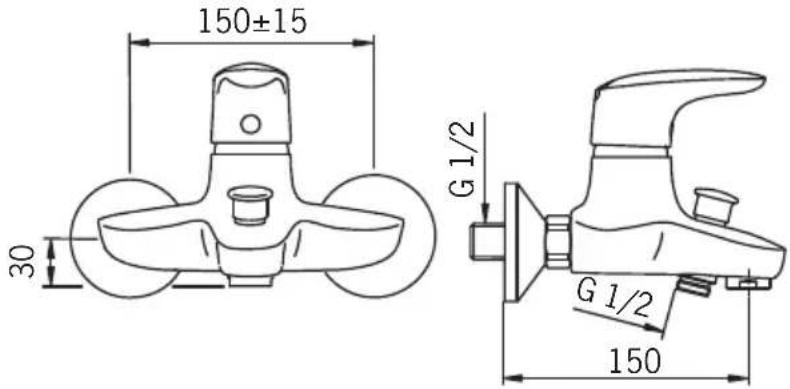

150±15 30 G1/2 G1/2 150
1870
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
50 - 1000 kPa
0.26 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
180 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C


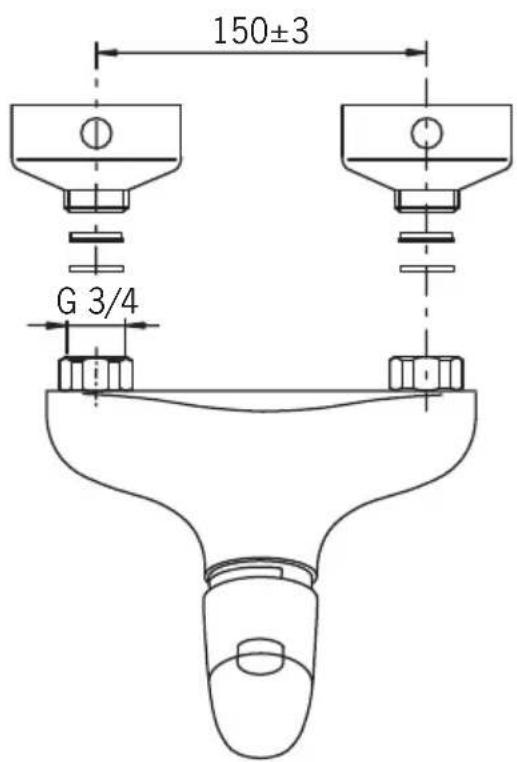

150±3 56 G 3/4 G 3/4 50
STF VTT-RTH-00100-11
1875
EN 817
I (ISO 3822) (0.2 l/s) Oras lab.
50 - 1000 kPa
0.26 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
180 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C

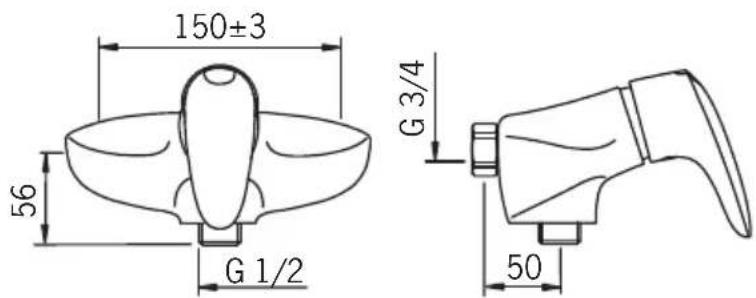

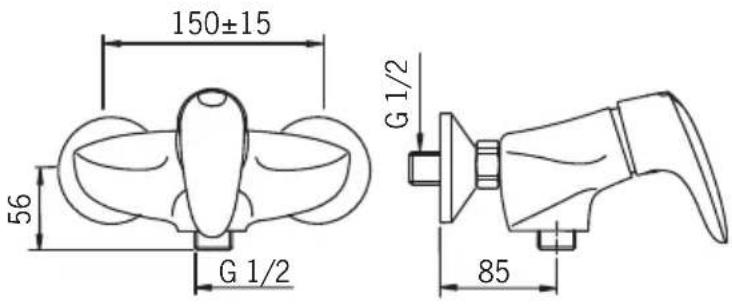

1875U
EN 817
I (ISO 3822) (0.2 l/s)
50 - 1000 kPa
0.26 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
180 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C
1860EX
EN 817
II (ISO 3822) Oras lab.
50 - 1000 kPa
0.27 l/s (300 kPa)
170 kPa (0.2 l/s)
max. +80°C

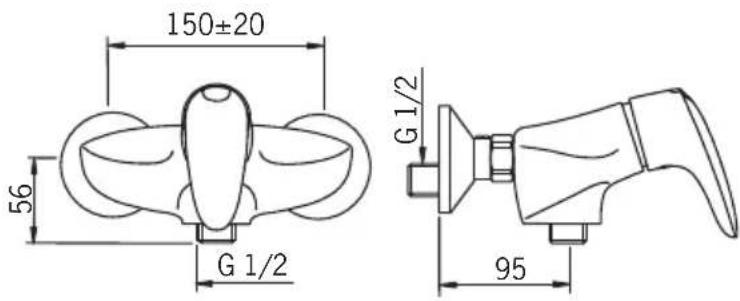

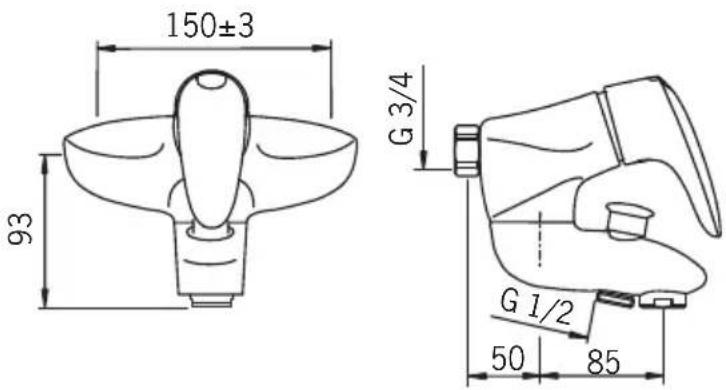

1871
EN 817
I (ISO 3822) (0.2 l/s)
II (ISO 3822) (0.3 l/s)
50 - 1000 kPa
0.33 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
260 kPa (0.3 l/s)
160 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
0.17 l/s (Eco-flow at 300 kPa)
max. +80°C
STF VTT-RTH-00100-11
Sintef Nr. 0126
1872X
EN 817
I (ISO 3822) Oras lab.
I (ISO 3822) (0.2 l/s) Oras lab.
II (ISO 3822) (0.3 l/s) Oras lab.
50 - 1000 kPa
0.25 l/s (300 kPa)
0.2 l/s (300 kPa, with flow reducers)
190 kPa (0.2 l/s)
300 kPa (0.2 l/s, with flow reducers)
0.13 l/s (Eco-flow at 300 kPa)
max. +80°C


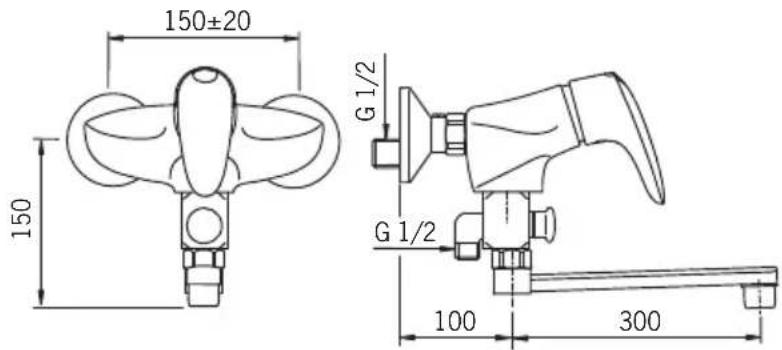

150±20 150 G1/2 G1/2 100 300

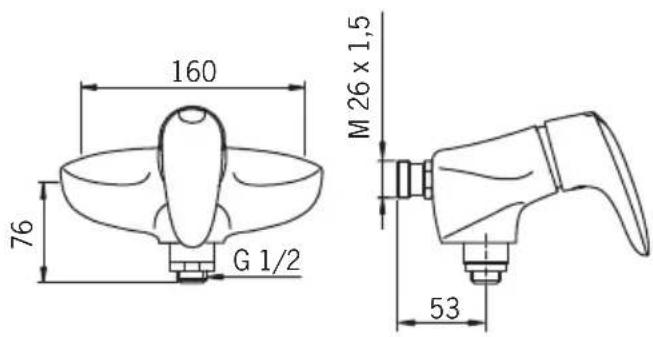

1885
EN 817
II (ISO 3822) Oras lab.
50 - 1000 kPa
0.27 l/s (300 kPa)
170 kPa (0.2 l/s)
0.16 l/s (Eco-flow at 300 kPa)
max. +80°C


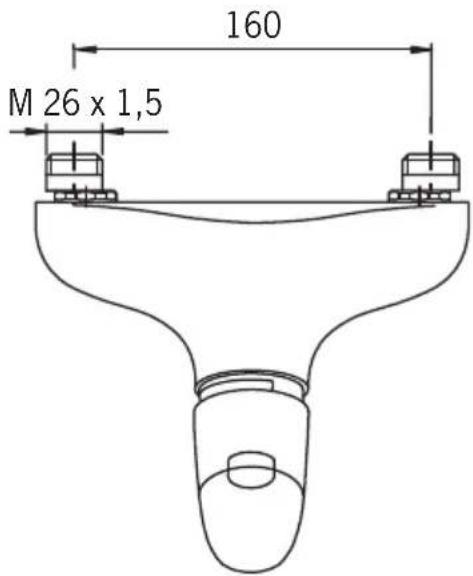

160 76 G 1/2 M 26 x 1,5 53
1846F
EN 817
II (ISO 3822) Oras lab.
50 - 1000 kPa
0.3 l/s (300 kPa)
300 kPa (0.3 l/s)
0.16 l/s (Eco-flow at 300 kPa)
max. +80°C


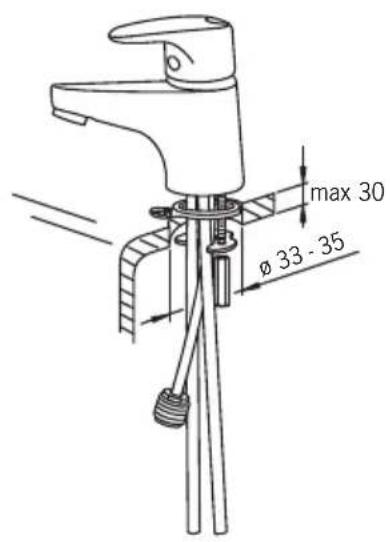

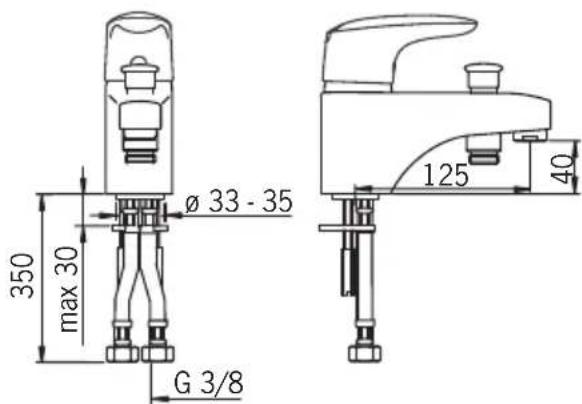

350 max 30 ø 33 - 35 G 3/8 125 40

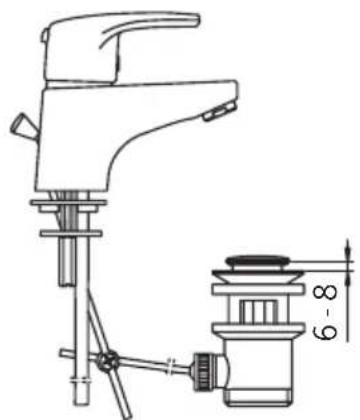

Installation
CZ Montáž
ES Montaje
LT Montavimas
PL Instalacja
DE Montage
FI Asennus
LV Montāža
RO Instalare
DK Installation
FR Installation
NL Installatie
RU Установка
EE Paigaldus
IT Montaggio
NO Montering
SE Installation
SK Inštalácia
F-Model


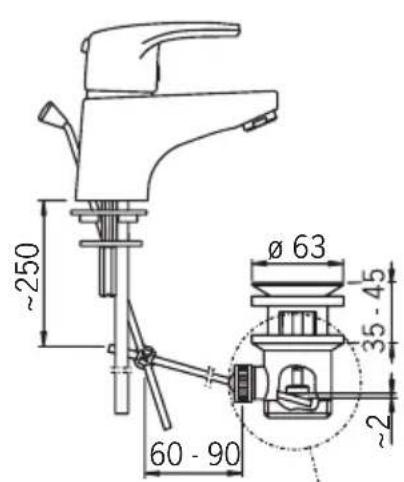

250 60 - 90 Ø 63 35 - 45 2
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia


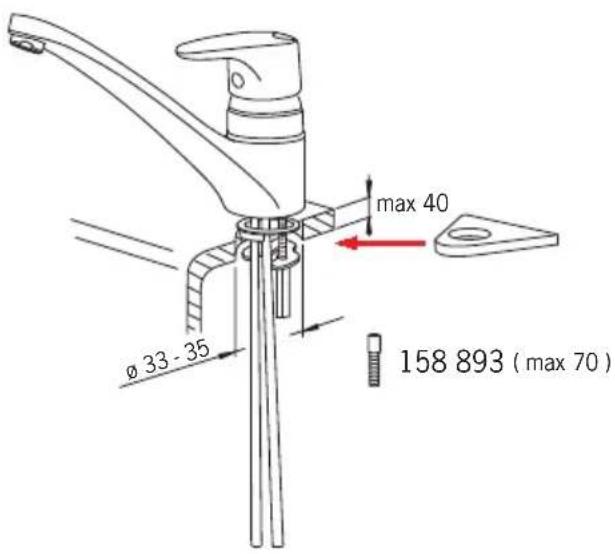

max 40 ø 33 - 35 158 893 ( max 70 )
F-Model


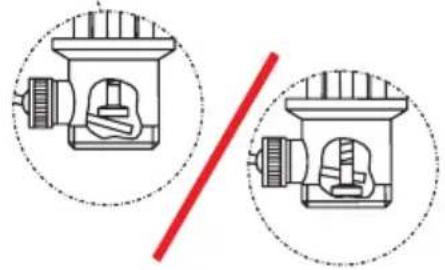

Diagram of two U-shaped pipe fittings with a red X mark indicating a defect or dislocation (no text or symbols present)
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia


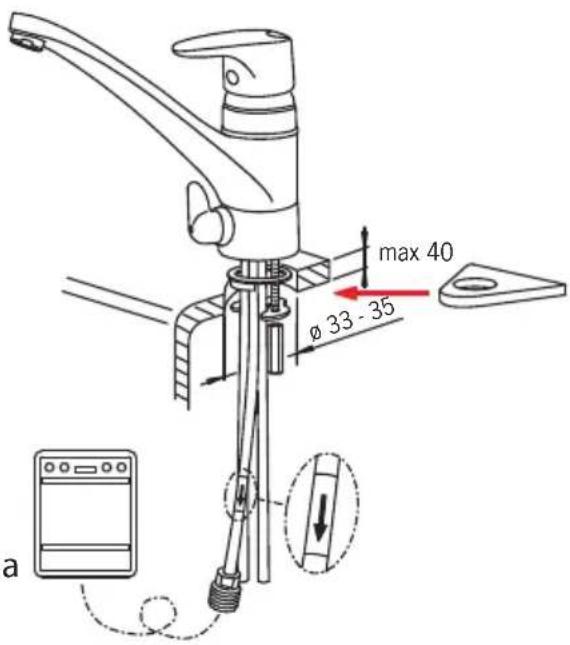

max 40 Ø 33 - 35 acold/hot kalt/warm froid/chaud kallt/varmt kaldt/varmt kylmä/kuuma хол./гор.


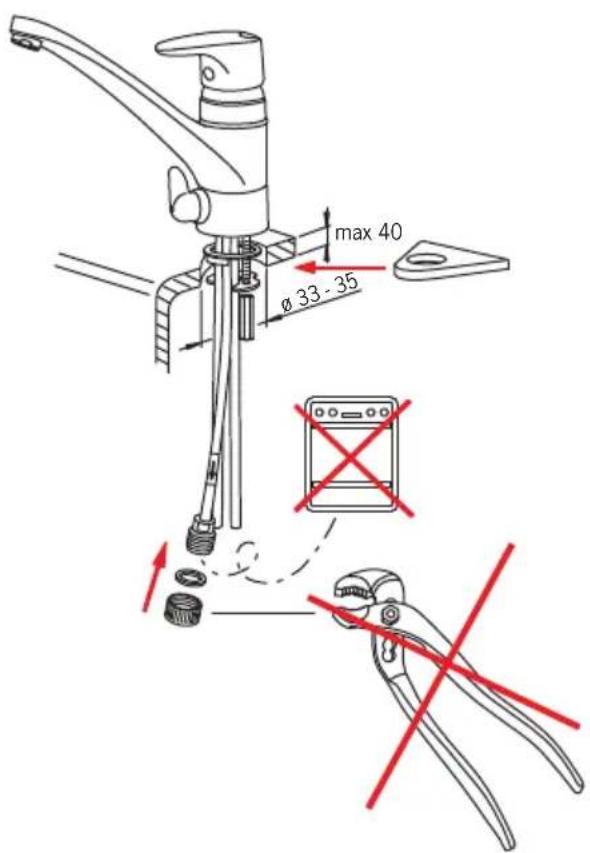

max 40 Ø 33 - 35Installation
CZ Montáž
ES Montaje
LT Montavimas
PL Instalacja
DE Montage
FI Asennus
LV Montāža
RO Instalare
DK Installation
FR Installation
NL Installatie
RU Установка
EE Paigaldus
IT Montaggio
NO Montering
SE Installation
SK Inštalácia


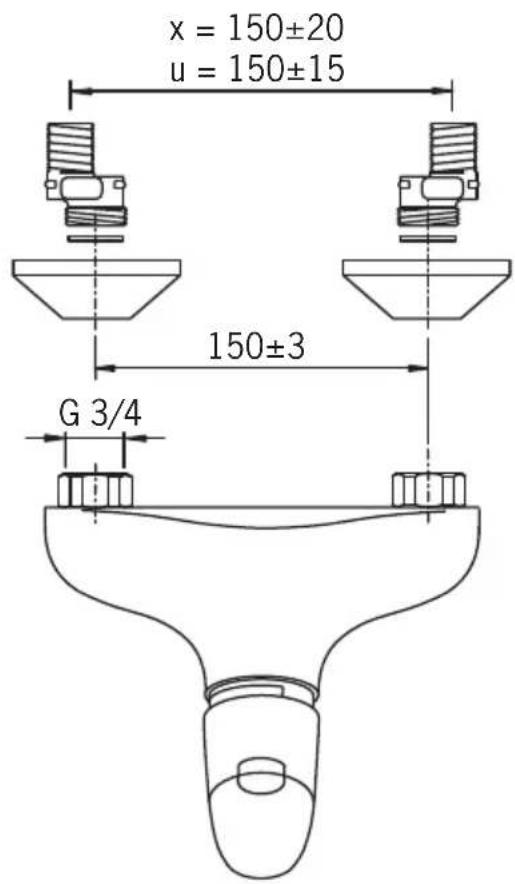

x = 150±20 u = 150±15 150±3 G 3/4Operation
CZ Funkce
DE Funktion
DK Betjening
EE Toimimine
ES Servicio
FI Toiminta
FR Utilisation
IT Funzionamento
LT Veikimo principas
CZ Omezeni průtoku
CZ Omezeni teplé vody
DE Temperaturbegrenzung
DK Forindstilling af vandets max. temperatur
EE Temperatuuri piiramine seadeosast
ES Limitación de la temperatura
FI Lämpötilan rajoitus
FR Limitation de la température
IT Limitazione della temperatura
LT Temperatúros apribojimas
LV Karstā ūdens temperatūras ierobežošana
NL Perlator vervangent
NO Begrenzing temperatuur
PL Ograniczenie temperatury
RO Limitarea temperaturii
RU Ограничение температуы в регулирующем блоке
SE Begränsning av vattnets max. temperatur
SK Obmedzenie teploty

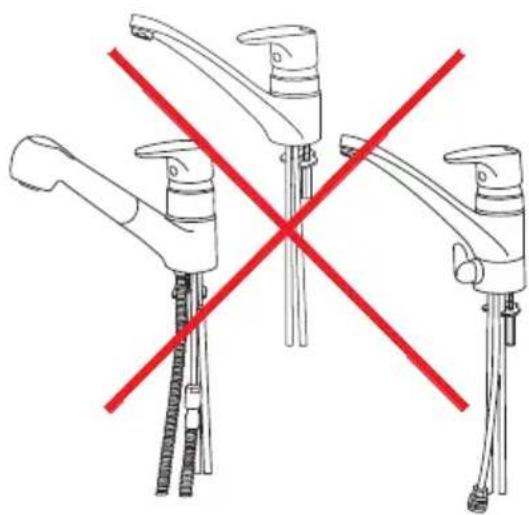

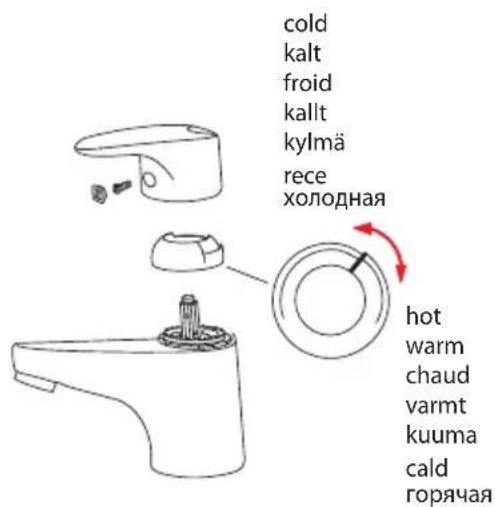

cold kalt froid kallt kylmä rece холодная hot warm chaud varmt kuuma cald горячая
CZ Přestavení na horkou vodu
DE Umstellung auf Warmwasseranschluß
DK Omstilling til varmt vand
EE Paigaldamine külma vee asendisse
ES Cambio para agua caliente
FI Muuttaminen kuumalle vedelle
FR Valvole per lavastoviglie o lavatrici
IT Per miscelatore per lavello
LT Ventilio nustatymas karštam vandeniui
LV Krano nustatymas karštam vandeniui
NL Changement pour arrivée eau chaude
NO Omstilling til varmt vann
PL Zmiana na ciepłą wodę
RO Modificarea pentru apă caldă
RU Перенастройка на подачу горячей вод
SE Omställning till varmt vatten
SK Prestavenie na teplú vodu


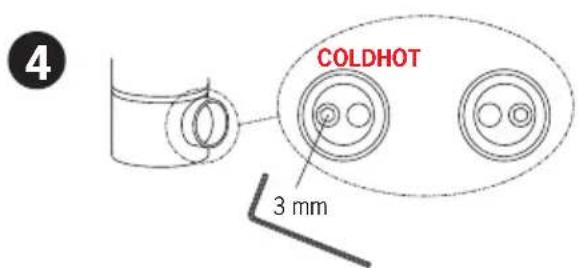

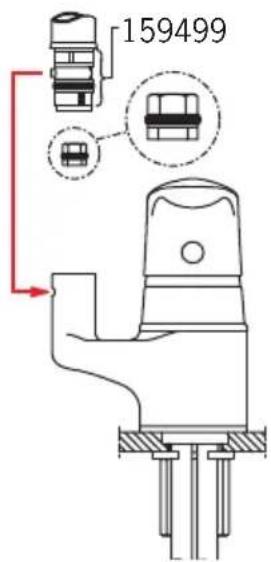

COLDHOT 3 mmSpout installation


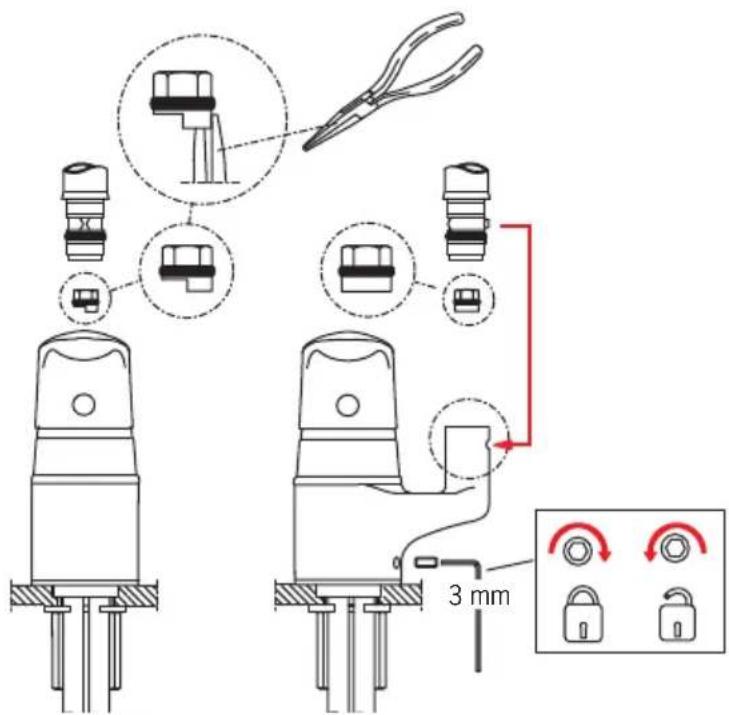

Diagram illustrating a mechanical assembly with labeled components and a magnified inset showing a circular component detail.
CZ Výména kartuše

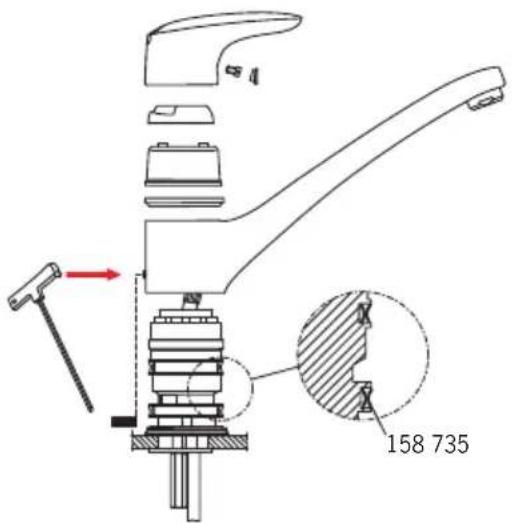

Changing the spout's seals
CZ Výměna těsnění
CZ Náhradní díly
FI Varaosat
LV Rezerves dajas
RO Piese de schimb
DE Ersatzteile
FR Pièces détachées
NL Reserve-onderdelen
RU Запасные части
DK Reservedele
1820, 1820F, 1825, 1825F, 1828, 1829
| 1 | 159319V |
| 2 | 159347V |
| 3 | 159348V |
| 4 | 158726 |
| 5 | 158890 |
| 6 | 159423/10 |
| 7 | 159286V |
| 8 | 232210 |
| 9 | 158735 |
| 10 | 159426/10 (100°) |
| 11 | 159430/10 (40° - 80°) |
| 12 | 158747/10 |
| 13 | 159434 |
| 14 | 158893 |
| 15 | 158825 |
| 16 | 158697 |


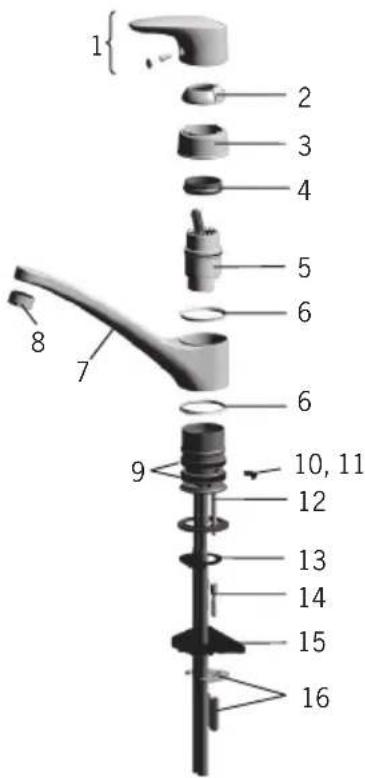

1 2 3 4 5 6 7 8 9 10, 11 12 13 14 15 16Spare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
0.15 l/s (Eco-flow at 300 kPa)
max. +80°C


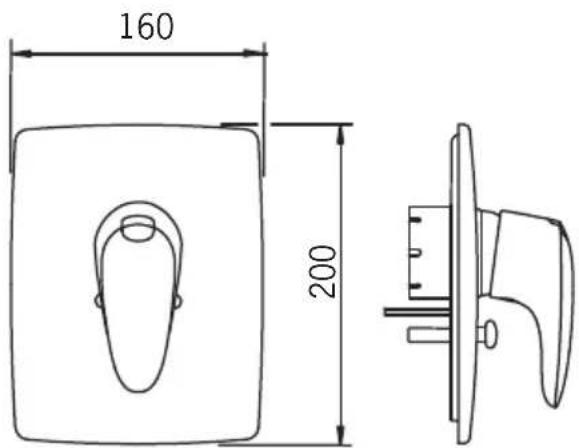

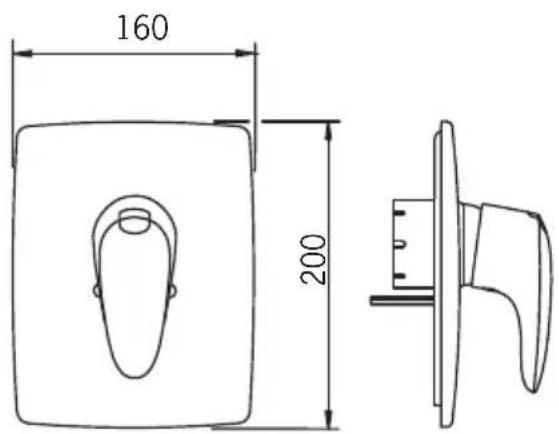

160 200
1888
EN 817
I (ISO 3822) Oras lab.
50 - 1000 kPa
0.3 l/s (300 kPa)
300 kPa (0.3 l/s)
0.16 l/s (Eco-flow at 300 kPa)
max. +80°C
Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia


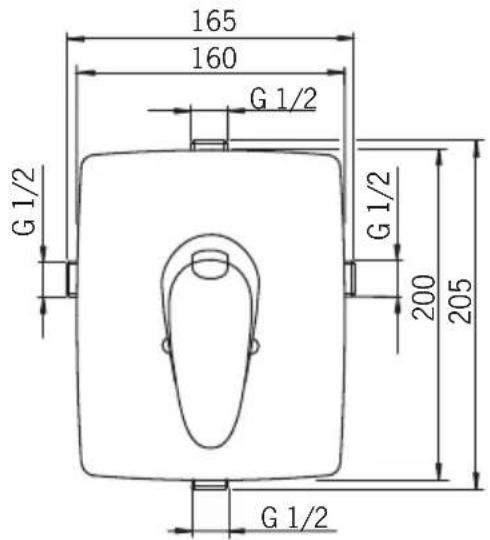

165 160 G 1/2 G 1/2 G 1/2 200 205 G 1/2


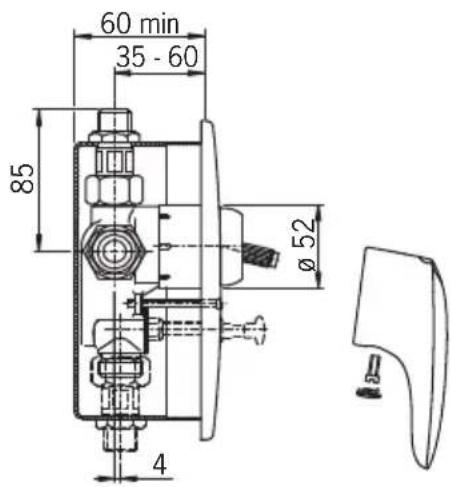

60 min 35 - 60 85 Ø 52 4


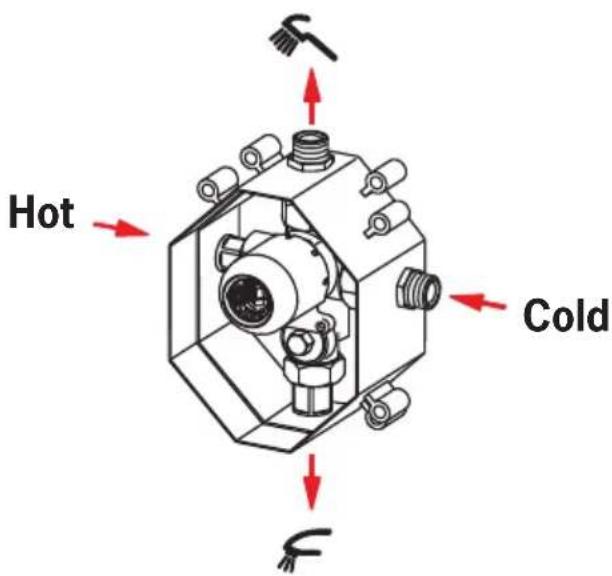

Hot Cold


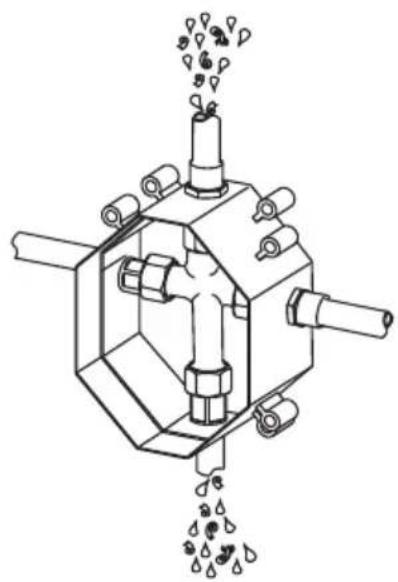

① OFF ② SW 32 ③Rinsing
CZ Vypláchnutí
ES Aclarar
LT Praplovimas
PL Płukania
DE Spülen
FI Huuhtelu
LV Skalošana
RO Spălarea
DK Gennemskyldning
FR Rinçage
NL Spoelen
RU Промывка
EE Loputama
IT Spurgo
NO Rengjøring
SE Renspolning
SK Vypláchnutie


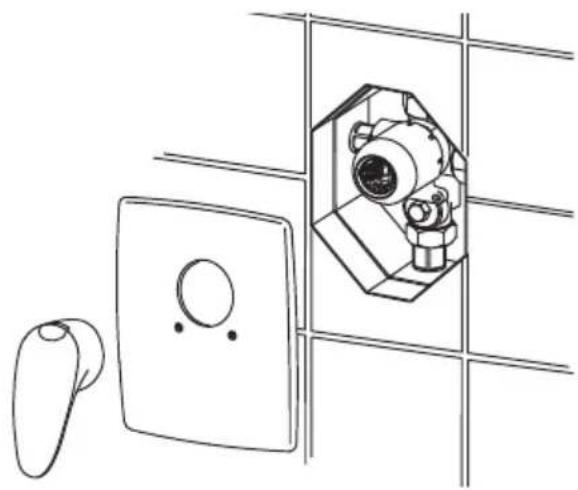

⑤ OFFInstallation
CZ Montáž
ES Montaje
LT Montavimas
PL Instalacja
DE Montage
FI Asennus
LV Montāža
RO Instalare
DK Installation
FR Installation
NL Installatie
RU Установка
EE Paigaldus
IT Montaggio
NO Montering
SE Installation
SK Inštalácia


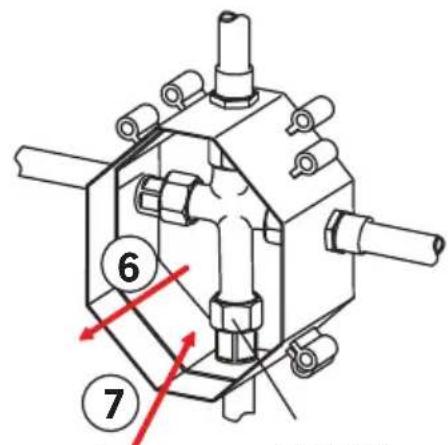

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.SW 32


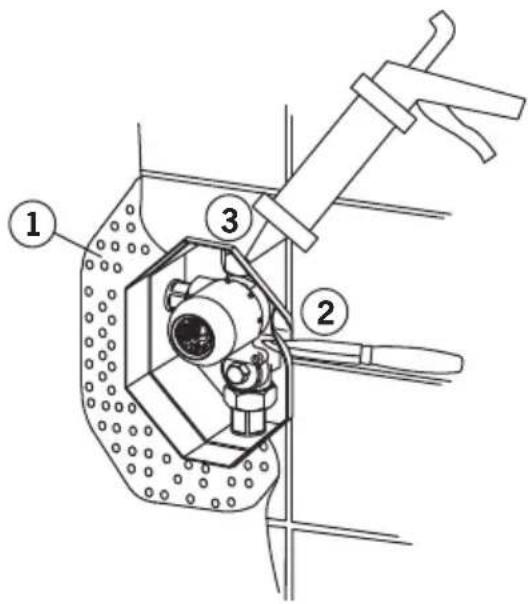

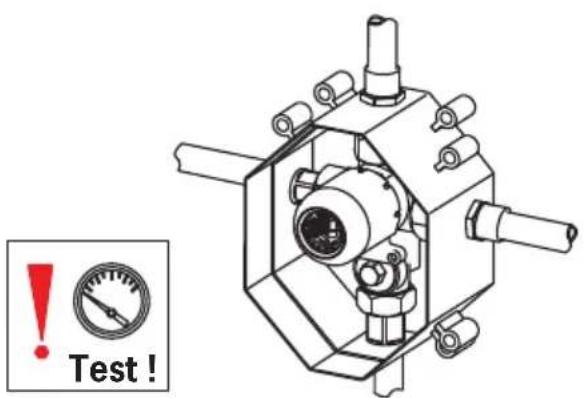

Test !Installation
CZ Montáž
ES Montaje
LT Montavimas
PL Instalacja
DE Montage
FI Asennus
LV Montāža
RO Instalare
DK Installation
FR Installation
NL Installatie
RU Установка
EE Paigaldus
IT Montaggio
NO Montering
SE Installation
SK Inštalácia

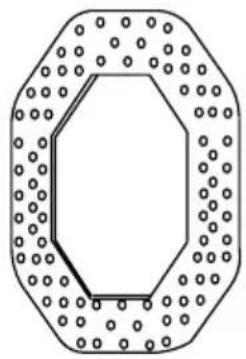

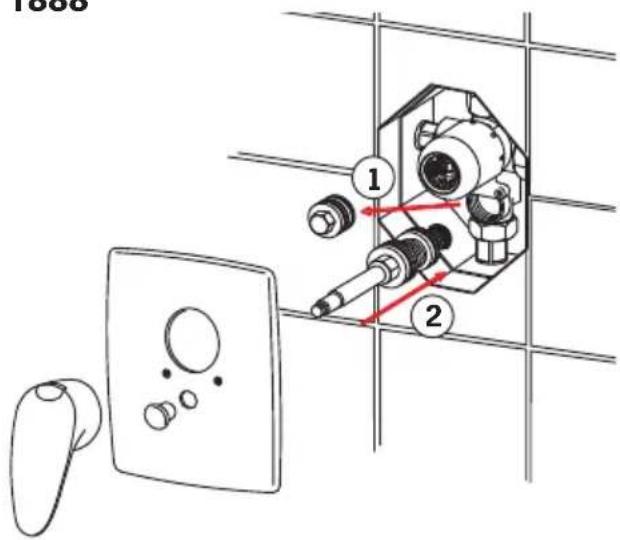

Technical diagram of a mechanical device with numbered components, likely a valve or pump assembly.1887


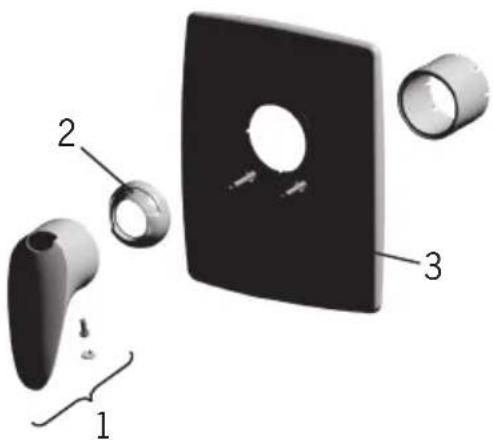

1000 1 2Spare parts
1 159319V
2 159346V
1 159319V
2 159346V
3 209970
Oras is owned by Oras Invest, a family company. In September 2013 Oras acquired Hansa Metallwerke AG, a German faucet manufacturer, with its subsidiaries, and together the companies form the new Oras Group. The head office of the Group is located in Rauma, Finland, and the company's factories are located in Rauma, Burglengenfeld (Germany), Kralovice (Czech Republic) and Olesno (Poland). The Group employs about 1 400 people.
Det Norske Veritas Certification OY/AB certifies that the Quality Management System of Oras Oy in Rauma Finland, conforms to the ISO 9001, the Environmental Management System to the ISO 14001 standard and the Occupational Health and Safety System to the OHSAS 18001 standard. The certificates are valid for development, manufacture, marketing, sales and after sales services of faucets, accessories and valves.
The TÜV CERT Certification Body of TÜV NORD Zertifizierungs- und Umweltgutachter Gesellschaft mbH certifies that the Quality Management System of Oras Olesno Sp. z o.o. in Olesno Poland, conforms to the ISO 9001, the Environmental Management System to the ISO 14001 standard and the Occupational Health and Safety System to the OHSAS 18001 standard. The certificates are valid for manufacture, storage, marketing, sales and after sales services of faucets, valves and accessories.
pie
| Category | Percentage (%) | |---|---| | Top 500 Paks to 2nd | 90 | | Top 500 Paks to 3rd | 140 | | Top 500 Paks to 4th | 140 |ORAS GROUP
Isometsäntie 2, P.O. Box 40
FI-26101 Rauma
Tel. +358 2 83 161
Fax +358 2 831 6300
Info.Finland@oras.com
www.oras.com
