Cubista 2814F-104 - Faucet Oras - Free user manual and instructions

USER MANUAL Cubista 2814F-104 Oras

Maintenance....38-39

Spare parts....13

Technical data 14–19

Installation 20-24

Operation....25

Maintenance....26-28

Spare parts....29–32

Line drawing of a kitchen faucet with curved handle and handle (no text or symbols)

Technical data 33-34

Installation 35-37

Maintenance....38-39

Spare parts....40

Technical data 41-43

Installation 43

Operation....44

Maintenance....44-46

Spare parts....46–47

Technical data 48-49

Installation 50-51, 56

Maintenance....52-54

Spare parts....55

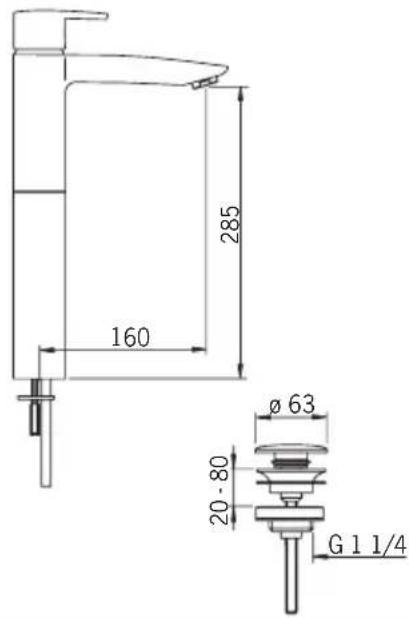

2801

EN 817

I (ISO 3822)

50 - a1000 kPa

0.2 l/s (300 kPa)

75 kPa (0.1 l/s)

max. +80°C

STF VTT-RTH-04951-08

1.42/17872

GODKENDT

TIL DRIKKEVAND

Sintef Nr. 1322

350 max30 Ø 33 - 35 Ø10

285 160 Ø 63 20 - 80 G 1 1/4

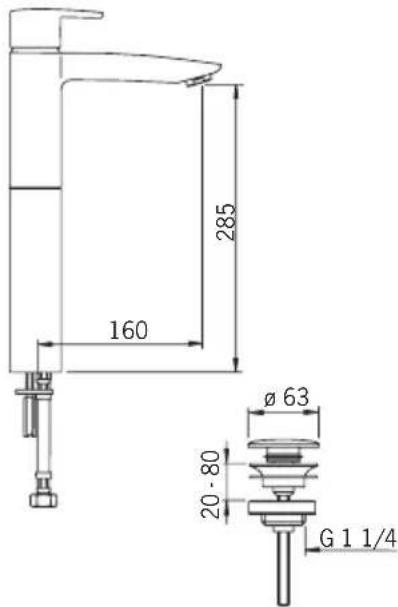

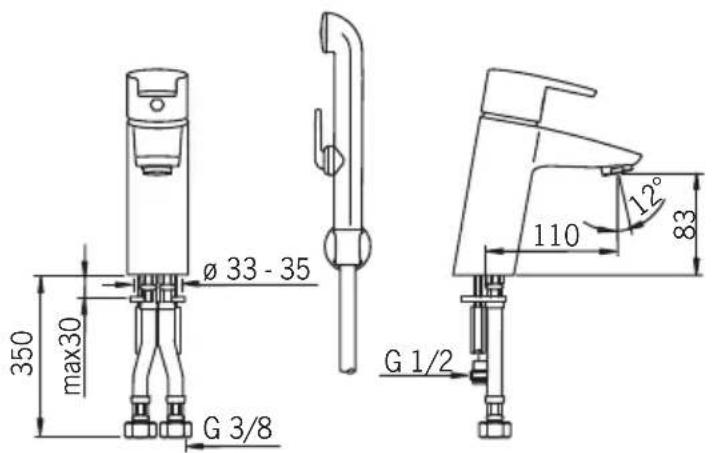

2801F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.18 l/s (300 kPa)

85 kPa (0.1 l/s)

max. +80°C

350 max30 Ø 33 - 35 G 3/8

285 160 Ø 63 20 - 80 G 1 1/4

GODKENDT

TIL DRIKKEVAND

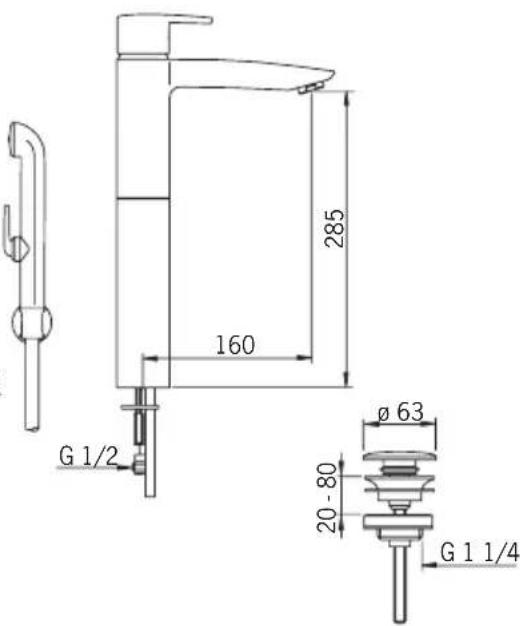

2802

EN 817

I (ISO 3822)

50 - 1000 kPa

0.14 l/s (300 kPa)

150 kPa (0.1 l/s)

max. +80^ C

STF VTT-RTH-04951-08

1.42/17872

GODKENDT

TIL DRIKKEVAND

Sintef Nr. 1322

350 max30 Ø 33 - 35 Ø10

285 160 G 1/2 ø 63 20-80 G 1 1/4

2805

EN 817

I (ISO 3822)

50 - 1000 kPa

0.2 l/s (300 kPa)

70 kPa (0.1 l/s)

max. +80°C

STF VTT-RTH-04951-08

1.42/17872

GODKENDT TIL DRIKKEVAND

Sintef Nr. 1322

350 max30 Ø 33 - 35 Ø10

160 100 80

Ø 63 20-80 G 1 1/4

2805F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.19 l/s (300 kPa)

85 kPa (0.1 l/s)

max. +80°C

350 max30 ø 33 - 35 G 3/8

160 100 80 - 80

Ø 63 20 - 80 G 1 1/4

GODKENDT TIL DRIKKEVAND

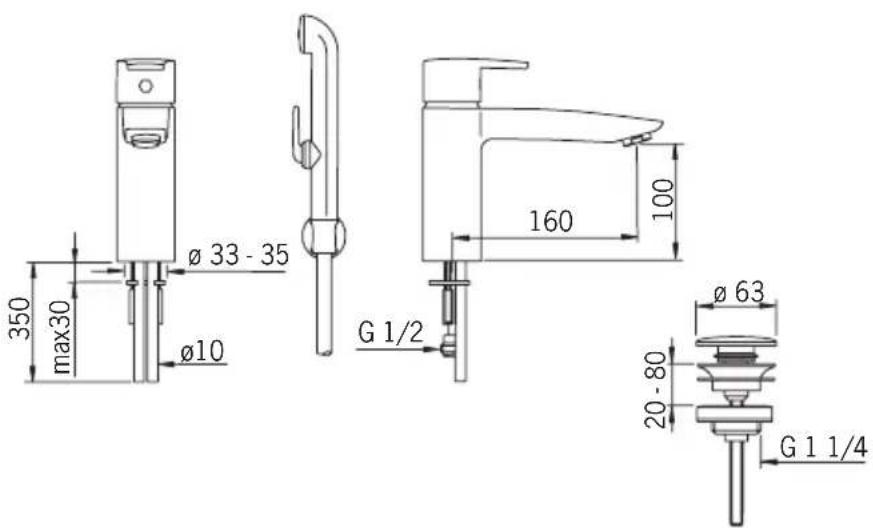

2806

EN 817

I (ISO 3822)

50 - 1000 kPa

0.14 l/s (300 kPa)

150 kPa (0.1 l/s)

max. +80°C

STF VTT-RTH-04951-08

1.42/17872

GODKENDT TIL DRIKKEVAND

350 max30 ø 33 - 35 ø10 G 1/2 160 100 ø 63 20 - 80 G 1 1/4

2804

EN 817

I (ISO 3822)

50 - 1000 kPa

0.2 l/s (300 kPa)

70 kPa (0.1 l/s)

max. +80°C

STF VTT-RTH-04951-08

.42/17873

GODKENDT

TIL DRIKKEVAND

Sintef Nr. 1322

350 max30 ø 33 - 35 ø10

110 83 80 12°

Ø 63 20-80 G 1 1/4

2804F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.19 l/s (300 kPa)

85 kPa (0.1 l/s)

max. +80°C

350 max30 Ø 33 - 35 G 3/8

110 83 12° 0-80

Ø 63 20 - 80 G 1 1/4

GODKENDT

TIL DRIKKEVAND

2808

EN 817

I (ISO 3822)

50 - 1000 kPa

0.14 l/s (300 kPa)

140 kPa (0.1 l/s)

max. +80^ C

STF VTT-RTH-04951-08

.42/17873

GODKENDT

TIL DRIKKEVAND

Sintef Nr. 1322

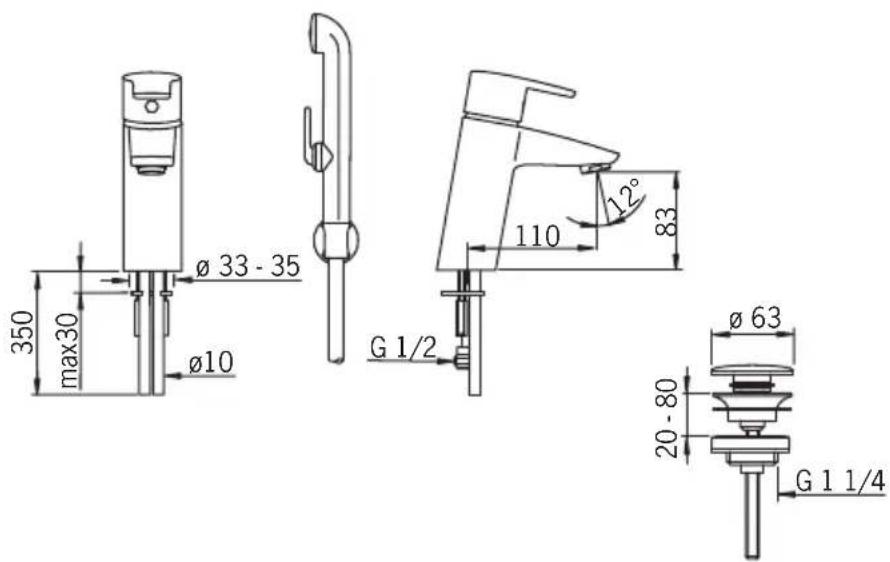

350 max30 ø 33 - 35 ø10 G 1/2 110 12° 83 ø 63 20 - 80 G 1 1/4

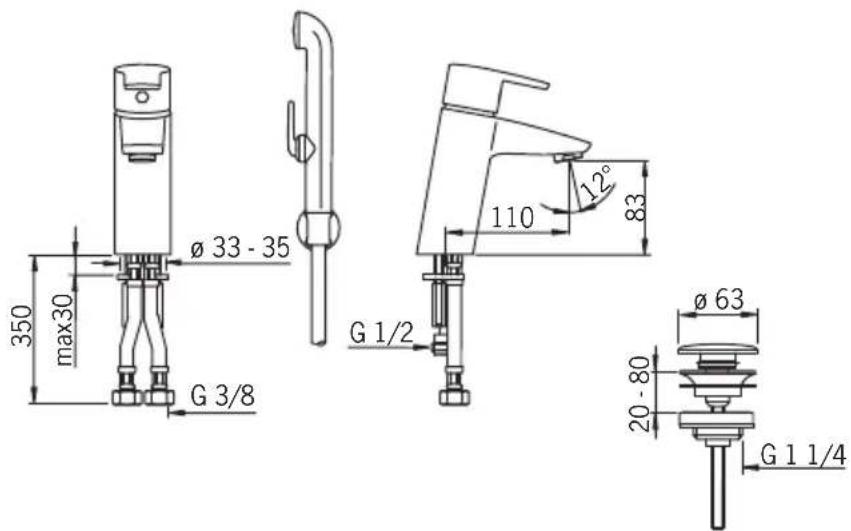

2808F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.13 l/s (300 kPa)

165 kPa (0.1 l/s)

max. +80°C

350 max30 Ø 33 - 35 G 3/8 G 1/2 110 12° 83 Ø 63 20 - 80 G 1 1/4

GODKENDT TIL DRIKKEVAND

2810

EN 817

I (ISO 3822)

50 - 1000 kPa

0.2 l/s (300 kPa)

70 kPa (0.1 l/s)

max. +80°C

350 max30 Ø 33 - 35 Ø10

110 83 12°

STF VTT-RTH-04951-08

1.42/17873

GODKENDT TIL DRIKKEVAND

Sintef Nr. 1322

2810F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.19 l/s (300 kPa)

85 kPa (0.1 l/s)

max. +80°C

Ø 33 - 35 350 max30 G 3/8

110 12° 83

GODKENDT TIL DRIKKEVAND

2812

EN 817

I (ISO 3822)

50 - 1000 kPa

0.14 l/s (300 kPa)

140 kPa (0.1 l/s)

max. +80°C

STF VTT-RTH-04951-08

.42/17873

GODKENDT

TIL DRIKKEVAND

Sintef Nr. 1322

350 max30 ø 33 - 35 ø10 G 1/2 110 12° 83

2812F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.13 l/s (300 kPa)

165 kPa (0.1 l/s)

max. +80°C

350 max30 ø 33 - 35 G 3/8 110 12° 83 G 1/2

GODKENDT

TIL DRIKKEVAND

2818

EN 817

I (ISO 3822)

50 - 1000 kPa

0.2 l/s (300 kPa)

75 kPa (0.1 l/s)

max. +80^ C

STF VTT-RTH-04951-08

1.42/17875

GODKENDT

TIL DRIKKEVAND

350 max30 Ø 33 - 35 Ø10

98 40° 88 80

Ø 63 20 - 80 G 1 1/4

2818F

EN 817

I (ISO 3822)

50 - 1000 kPa

0.18 l/s (300 kPa)

90 kPa (0.1 l/s)

max. +80°C

ø 33 - 35 350 max30 G 3/8

98 40° 88 20 - 80

Ø 63 20 - 80 G 1 1/4

GODKENDT TIL DRIKKEVAND

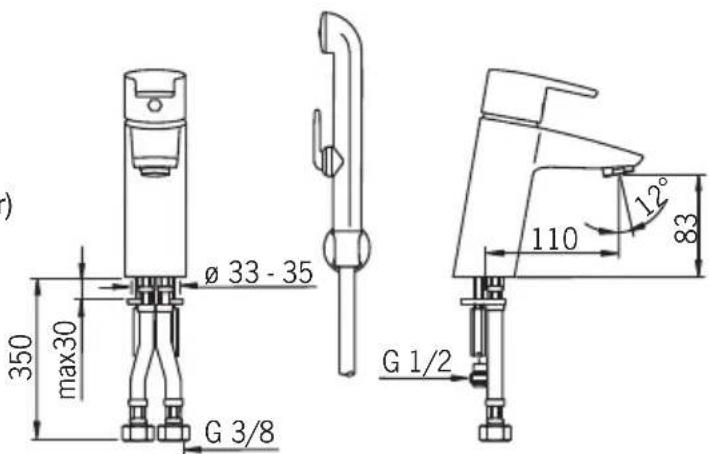

2810F-105

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.083 l/s (300 kPa) (with flow controller)

max. +80°C

350 max30 ø 33 - 35 G 3/8

110 83 12°

GODKENDT TIL DRIKKEVAND

2812F-105

EN 817

I (ISO 3822) Oras lab.

50 - 1000 kPa

0.083 l/s (300 kPa) (with flow controller)

max. +80°C

350 max30 ø 33 - 35 G 3/8 110 12° 83 G 1/2

GODKENDT TIL DRIKKEVAND

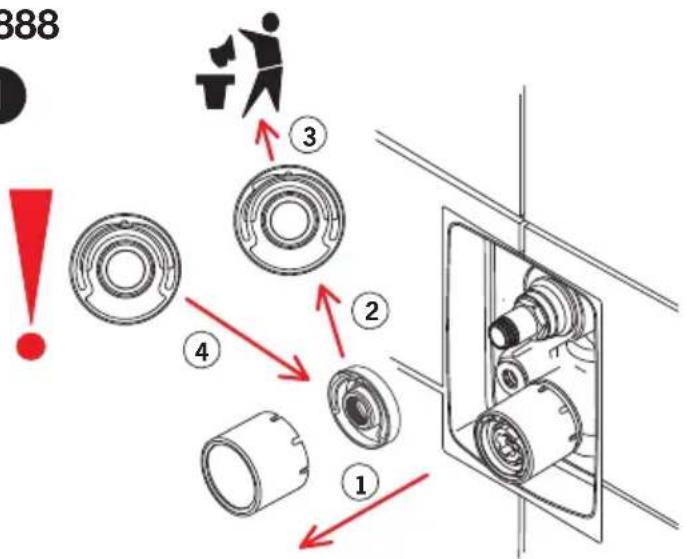

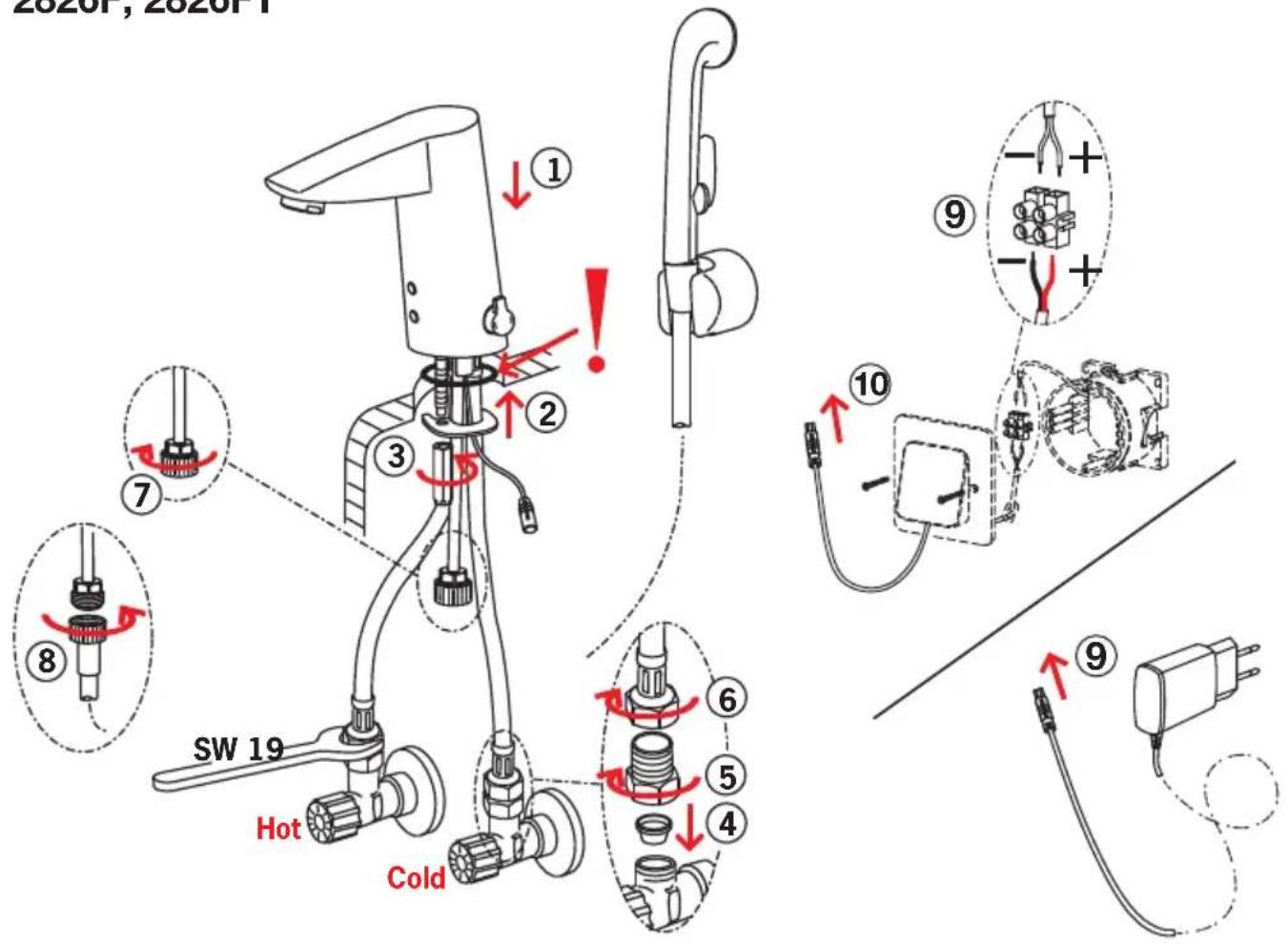

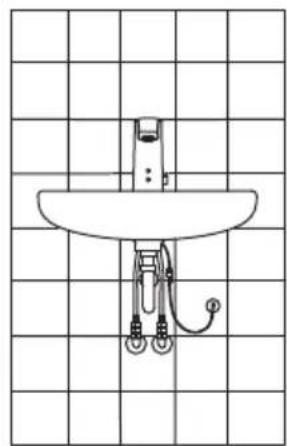

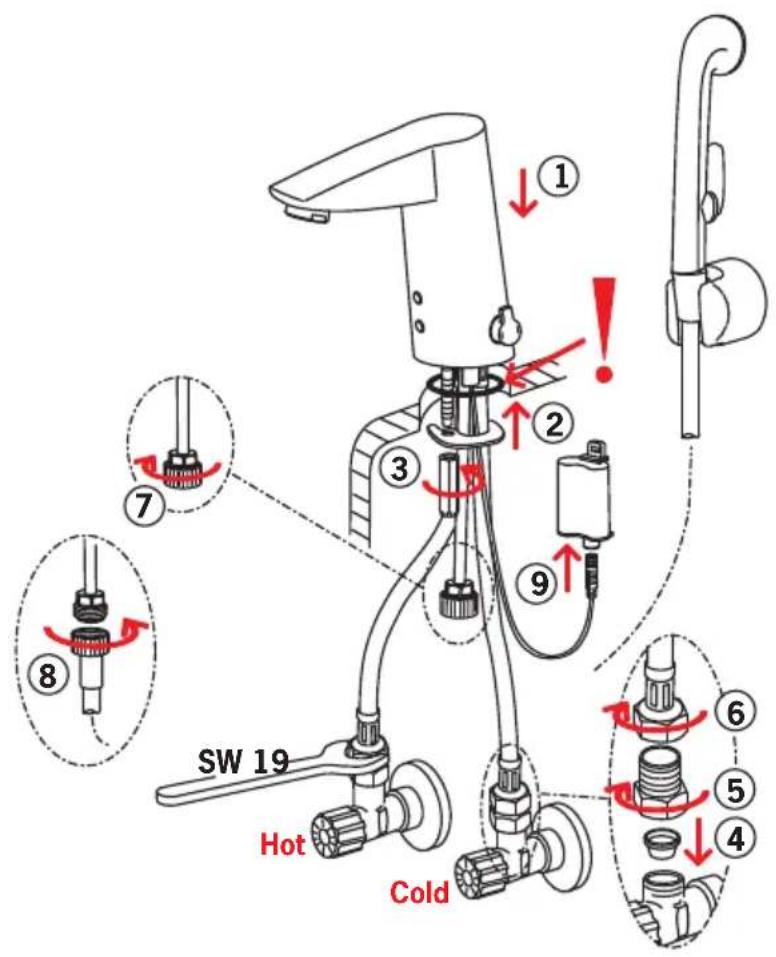

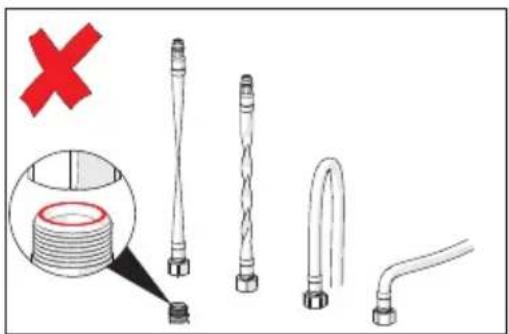

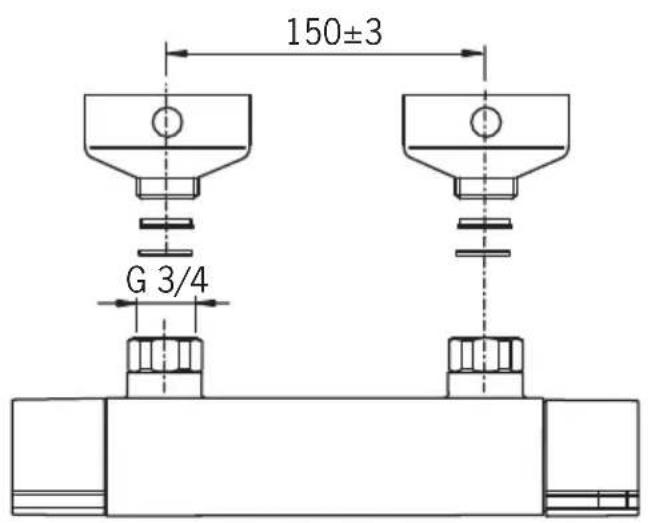

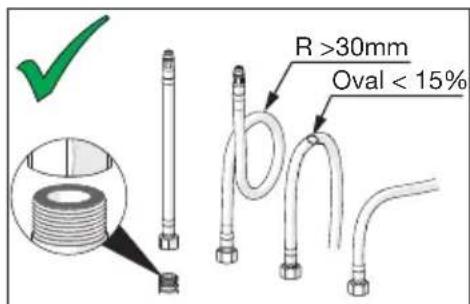

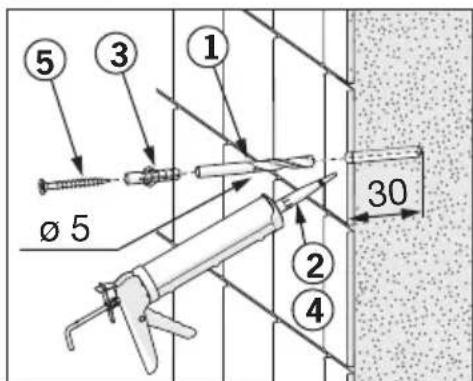

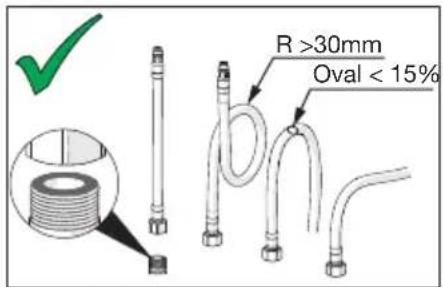

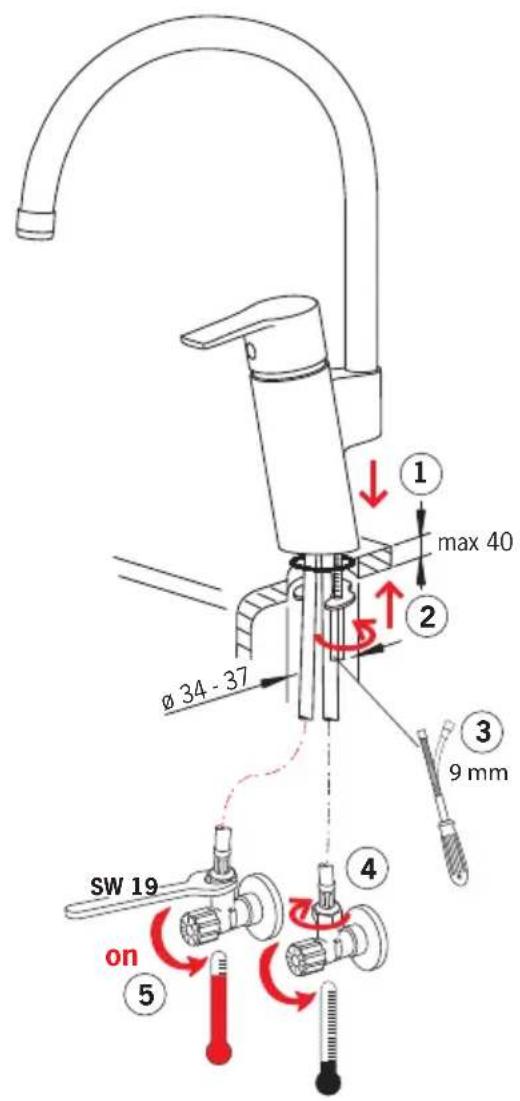

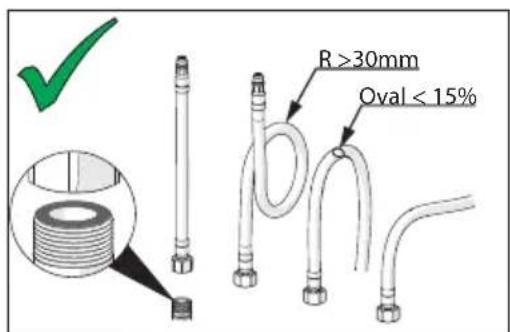

Installation

CZ Montáž

FI Asennus

NL Installatie

RU Установка

DE Montage

FR Installation

NO Montering

SE Installation

DK Installation

IT Montaggio

PL Instalacja

SK Inštalácia

EE Paigaldus

LT Montavimas

RO Instalare

UA Встановлення

ES Montaje

LV Montāža

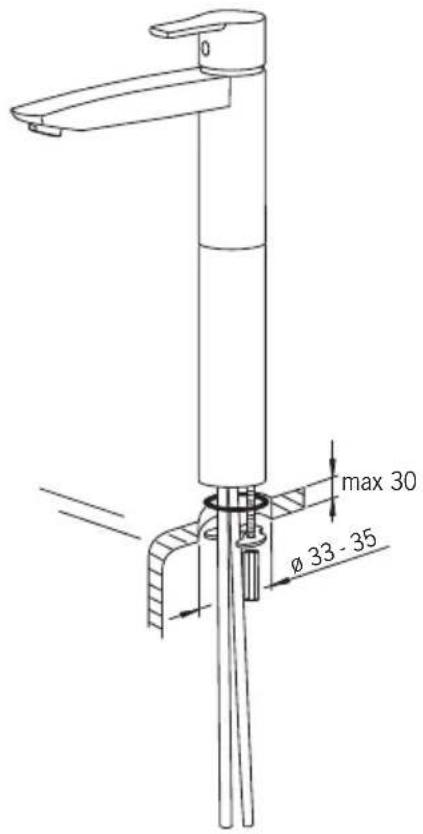

max 30 Ø 33 - 35

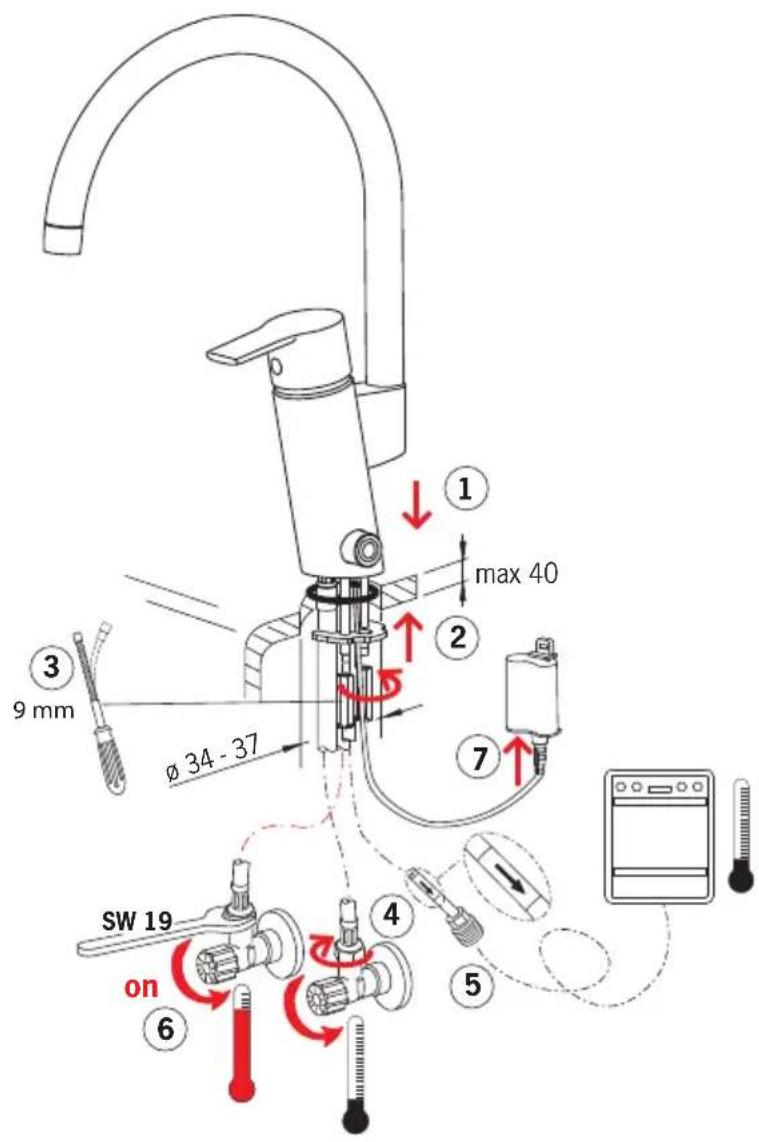

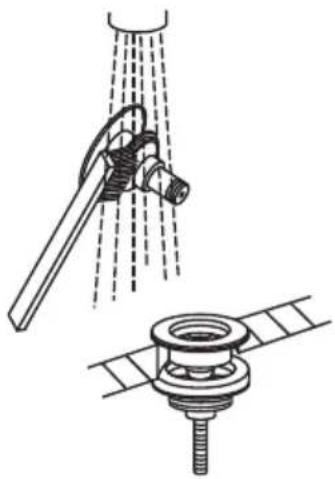

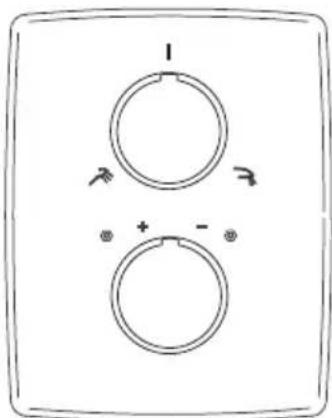

Installation/Operation

CZ Montáž/Funkce

DE Montage/Funktion

DK Installation/Betjening

EE Paigaldus/Toimimine

ES Montaje/Servicio

FI Asennus/Toiminta

FR Installation/Utilisation

Technical diagram of a mechanical assembly with a knob and threaded base (no text or symbols)

Technical line drawing of a showerhead and a mechanical component (no text or symbols)

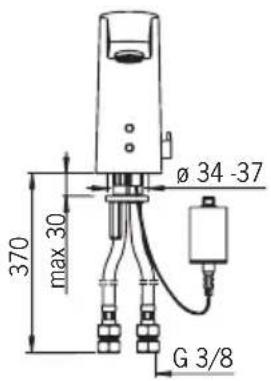

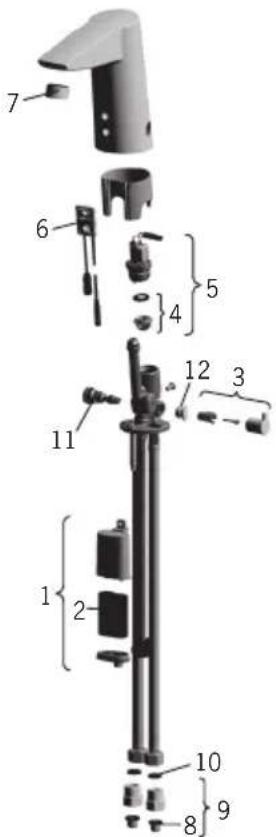

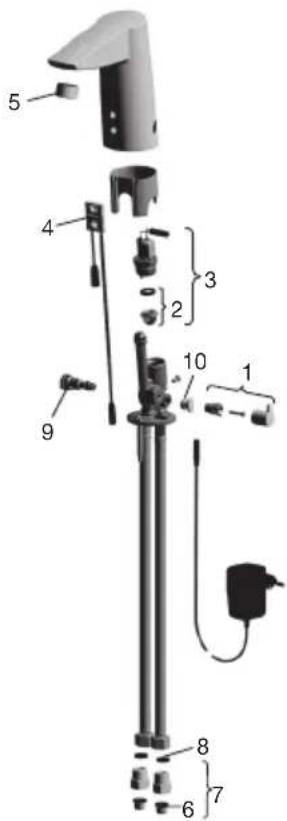

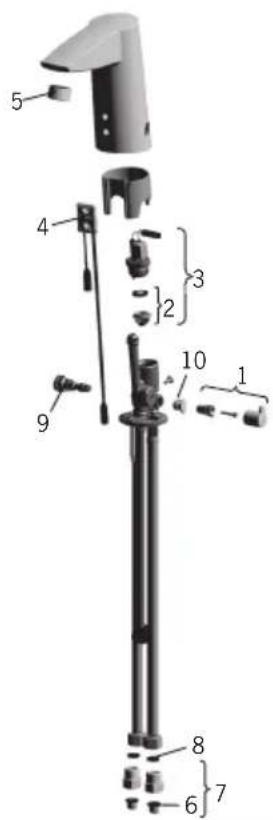

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

0.1 l/s (300 kPa) (with flow controller)

200 kPa (0.1 l/s)

max. +70°C

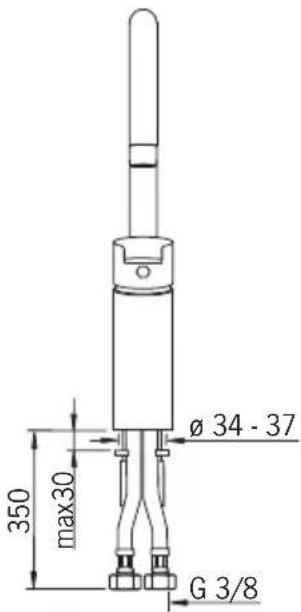

ø 34 -37 370 max 30 G 3/8

115 15° 103

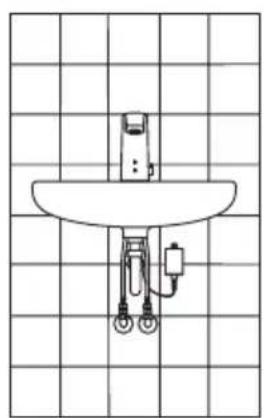

Line drawing of a bathroom sink with faucet and toilet, set against a grid background (no text or symbols)

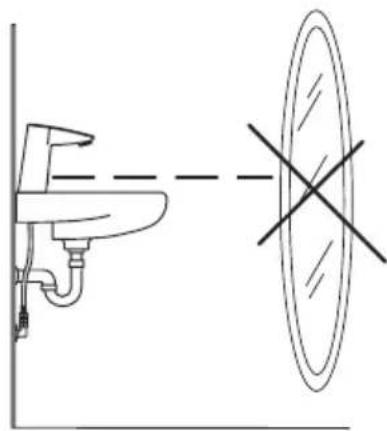

Diagram showing a faucet and a circular dial with a cross symbol (no text or labels)

STF VTT-RTH-00002-10

1.42/19220

GODKENDT TIL DRIKKEVAND

Sintef Nr. 1534

(EMC 2004/108/EY)

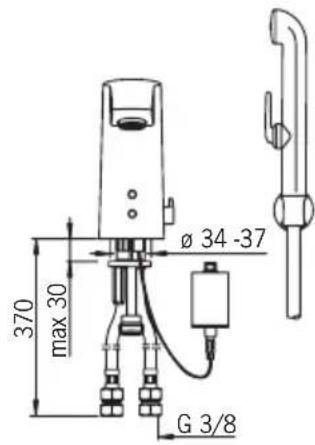

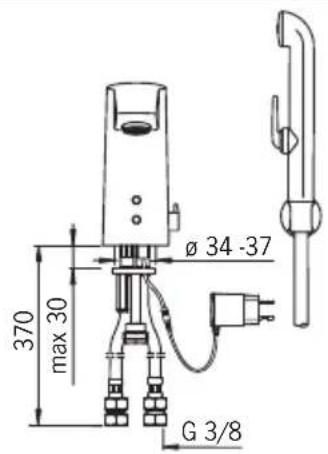

2816F

EN 15091

I (ISO 3822)

100 - 1000 kPa

0.1 l/s (300 kPa) (with flow controller)

250 kPa (0.1 l/s)

max. +70°C

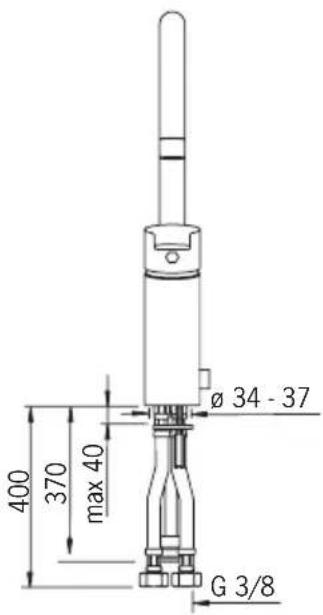

370 max 30 Ø 34 -37 G 3/8

115 G 1/2 15° 103

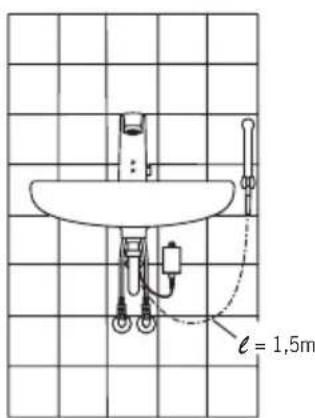

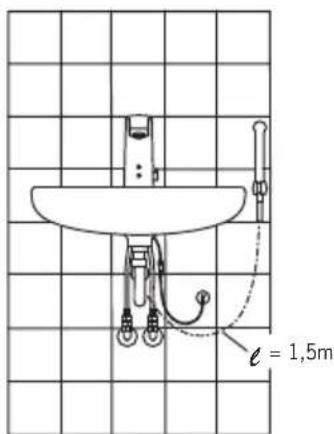

ℓ = 1,5m

Diagram showing a faucet and a circular dial with crosshair lines (no text or symbols)

STF VTT-RTH-00002-10

1.42/19220

GODKENDT TIL DRIKKEVAND

Sintef Nr. 1534

(EMC 2004/108/EY)

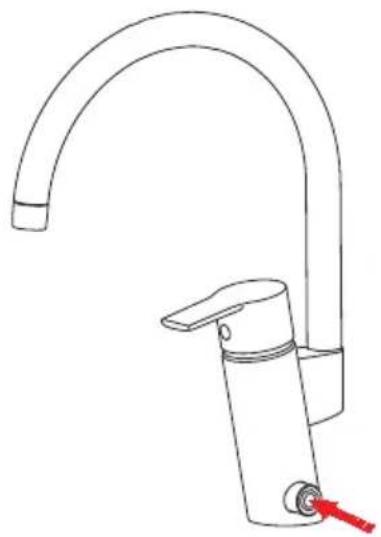

Technical data

CZ Technická data

DE Technische Daten

DK Tekniske data

EE Tehnilised andmed

ES Datos técnicos

FI Tekniset tiedot

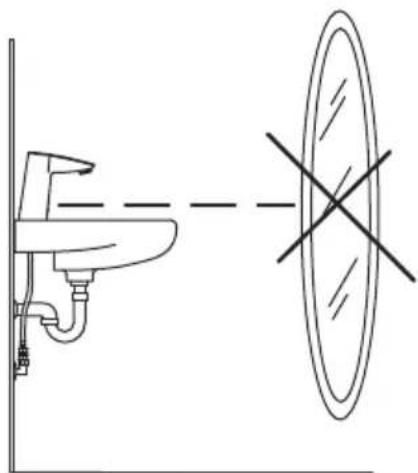

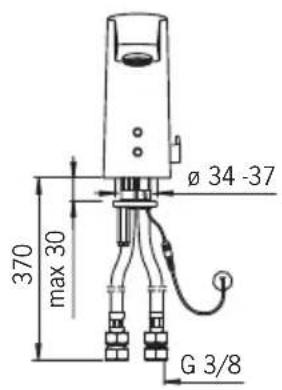

Intelligent afterflow period

0.1 l/s (300 kPa) (with flow controller)

200 kPa (0.1 l/s)

max. +70°C

ø 34 -37 370 max 30 G 3/8

115 15° 103

Line drawing of a bathroom sink with faucet and showerhead, set against a grid background (no text or symbols)

Diagram showing a faucet and a circular dial with crosshair lines (no text or symbols)

(EMC 2004/108/EY)

STF VTT-RTH-00002-10

GODKENDT TIL DRIKKEVAND

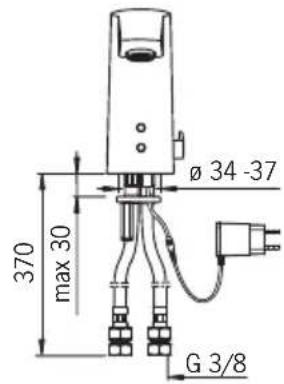

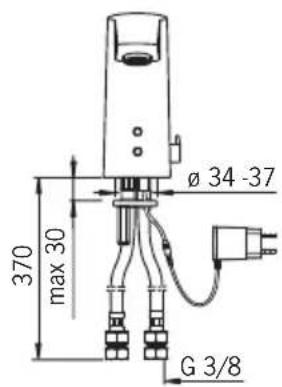

2824FT

EN 15091

I (ISO 3822)

100 - 1000 kPa

0.1 l/s (300 kPa) (with flow controller)

200 kPa (0.1 l/s)

max. +70^ C

ø 34 -37 370 max 30 G 3/8

115 15° 103

Line drawing of a bathroom sink with faucet and fixtures, set against a grid background (no text or symbols)

Diagram showing a faucet and a circular dial with crosshair lines (no text or symbols)

(EMC 2004/108/EY)

STF VTT-RTH-00002-10

GODKENDT TIL DRIKKEVAND

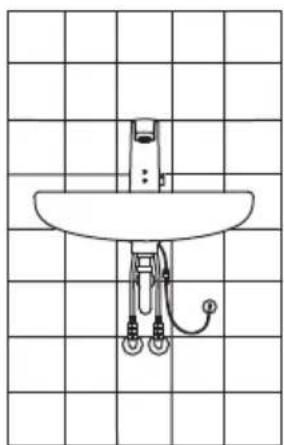

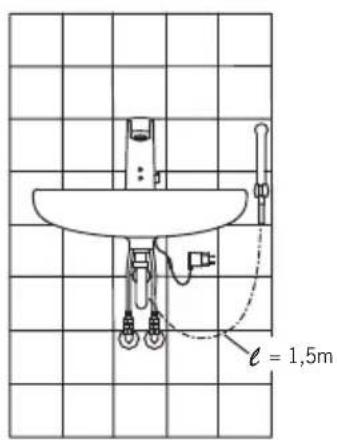

2824FNT

EN 15091

I (ISO 3822)

100 - 1000 kPa

0.1 l/s (300 kPa) (with flow controller)

200 kPa (0.1 l/s)

max. +70°C

ø 34 -37 370 max 30 G 3/8

115 15° 103

Line drawing of a bathroom sink with faucet and fixtures, set against a grid background (no text or symbols)

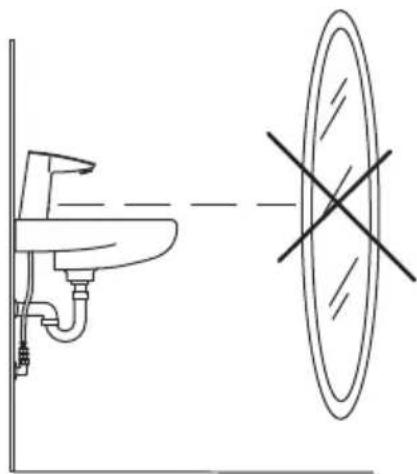

Diagram showing a faucet and a circular dial with crosshair lines (no text or symbols)

CE (EMC 2004/108/EY)

STF VTT-RTH-00002-10

GODKENDT TIL DRIKKEVAND

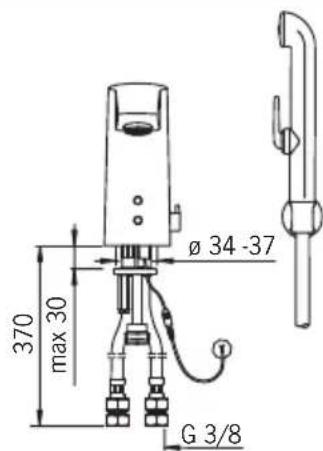

2826F

EN 15091

I (ISO 3822)

100 - 1000 kPa

0.1 l/s (300 kPa) (with flow controller)

250 kPa (0.1 l/s)

max. +70°C

370 max 30 Ø 34 -37 G 3/8

115 15° 103 G 1/2

l = 1,5m

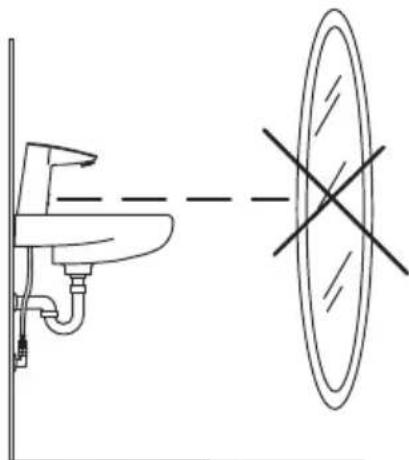

Diagram showing a faucet and a circular dial with crosshair lines (no text or symbols)

CE (EMC 2004/108/EY)

STF VTT-RTH-00002-10

GODKENDT TIL DRIKKEVAND

2826FT

EN 15091

I (ISO 3822)

100 - 1000 kPa

0.1 l/s (300 kPa) (with flow controller)

250 kPa (0.1 l/s)

max. +70°C

370 max 30 Ø 34 -37 G 3/8

115 15° 103 G 1/2

STF VTT-RTH-00002-10

GODKENDT TIL DRIKKEVAND

l = 1,5m

Diagram showing a faucet and a circular dial with crosshair lines (no text or symbols)

CE (EMC 2004/108/EY)

Technical data

CZ	Technická data	EE Tehnilised andmed	FR Données techniques	LV Tehniskie dati	PL Dane techniczne	SE Teknisk information
DE	Technische Daten	ES Datos técnicos	IT Dati tecnici	NL Technische gegevens	RO Date tehnice	SK Technické údaje
DK	Tekniske data	FI Tekniset tiedot	LT Techniniai duomenys	NO Teknisk informasjon	RU Технические данные	UA Технічні дані
GB	Protection class		Recognition range	Max. flow period	Intelligent afterflow period
CZ	Trída bezpečnosti		Rozlišovací rozsah	Max. doba průtoku	Čas dodatečného průtoku
DE	Sicherheitsklasse		Sensorreichweite	Max. Fließdauer	Intelligente Nachlaufzeit
DK	Beskyttelsesklasse		Sensor område	Max. løbetid	Intelligent efterløbetid
EE	Kaitseklass		Toimimiskaugus	Maksimaalne vee vooluaja pikkus	Optimaalne järelvooluaja pikkus
ES	Grado de protección		Alcance del sensor	Período máximo de flujo	Tiempo caudal posterior
FI	Suojausluokka		Tunnistusalue	Max. virtausaika	Älykäs jälkivirtaama-aika
FR	Norme de sécurité		Longueur du faisceau	Durée maximum d'écoulement	Temporisation de débit intelligente
IT	Protezione classe		Raggio d'azione del sensore	Scorrimento mass.	Tempo di scorrimento a posteriori
LT	Saugumo klasė		Atpažinimo atstumas	Maksimali srovės tekėjimo trukmė	Tekėjimo trukmė po prausimosi
LV	Aizsardzības klase		Atpazīšanas diapazpns	Maksimālais plūsmas periods	Skalošanas periods
NL	Veiligheidsklasse		Sensorbereik	Max. looptijd	Intelligente nalooptijd
NO	Tetthetsklasse		Folsomhetsområde	Funksjonstid	Intelligent etterrenningstid
PL	Klasa bezpieczeństwa		Zasięg działania	Max czas przeplywu	Inteligentne opóźnienie zamknięcia
RO	Clasa de protectie		Raza de sesizare	Perioadă max. de curgere	Perioadă de curgere remanentă intelligentă
RU	Степень защиты		Расстояние опознавани	Макс. время подачи воды	Продолжительность окончат. смыва
SE	Kapslingsklass		Känslighetsområde	Max. flödestid	(автоматическая настройка)
SK	Trieda bezpečnosti		Rozlišovacia vzdialenost	Max. doba prietoku	Intelligent efterflödestid
UA	Ступінь захисту		Відстань розпізнавання	Макс. час подачі води	Inteligentná doba po prietoku
	IP 67		optimally preset	2 min	Тривалість кінц. змиву (автоматичне налаштування)
					2 s ± 1 s
GB	Electrical Connection		Nominal current consumption	Min. current consumption	Allowed power supply ripple
CZ	Napájecí napěti		Nominální spotřeba	Minimální spotřeba	Povolená tolerance ripple
DE	Elektr. Anschluß		Nominaler Stromverbrauch	Min. Stromverbrauch	Zulässiger Netzanschluß
DK	Elektrisk tilslutning		Nominelt strømforbrug	Min. strømforbrug	Tilladt udsving strømforsyning
EE	Elektriliides		Nominaalne voolutarve	Min. voolutarve	Lubatud toitepinge hälve
ES	Instalación eléctrica		Consumo nominal	Consumo mínimo	Ondulación fuente alimentación
FI	Sähköliitäntă		Nimellinen virrankulutus	Min. virrankulutus	Sallittu syöttöjännitteen rippeli
FR	Connexion électrique		Consommation courante nominale	Consommation courante mininale	Crête de puissance autorisée
IT	Collegamento elettrico		Consumo di corrente nominale	Consumo di corrente (Min.)	Corrente alternata consentita
LT	Maitinimo šaltinis		Nominalus srovės sunaudojimas	Minimalus srovės sunaudojimas	Leistinas maitinimas
LV	Elektrobarošana		Nominalais energijas patériņš	Min. energijas patériņš	Pielaujamās barošanas svärstības
NL	Electrische aansluiting		Nominaal stroomverbruik	Min. stroomverbruik	Toegestane stroomdeining
NO	Elektrisk tilkobling		Nominelt strømforbruk	Min. strømforbruk	Tillatt rippelspenning
PL	Podlaczenie elektryczne		Nominalne bieżące zużycie	Minimalne bieżące zużycie	Dopuszczalna wiązka dostarczanej energii
RO	Conexiune electrică		Consum nominal de curent	Consum min. de curent	Ondulantă admisă ptr. puterea de alimentare
RU	Электропитание		Номинальное потребление тока	Минимальное потребление тока	Допустимый уровень пульсации напряжения
SE	El-anslutning		Nominell strömförbrukning	Min. strömförbrukning	Max. rippelspänning
SK	Elektrické pripojenie		Nominálna spotreba prúdu	Minimálna spotreba prúdu	Povolenė kolísanie napájania
UA	Електроживлення		Номинальне споживання струму	Минимальне споживання струму	Допустимий рівень пульсації напруги
	12 VDC ± 5 %		0.2 A	0 A	<100 mVpp

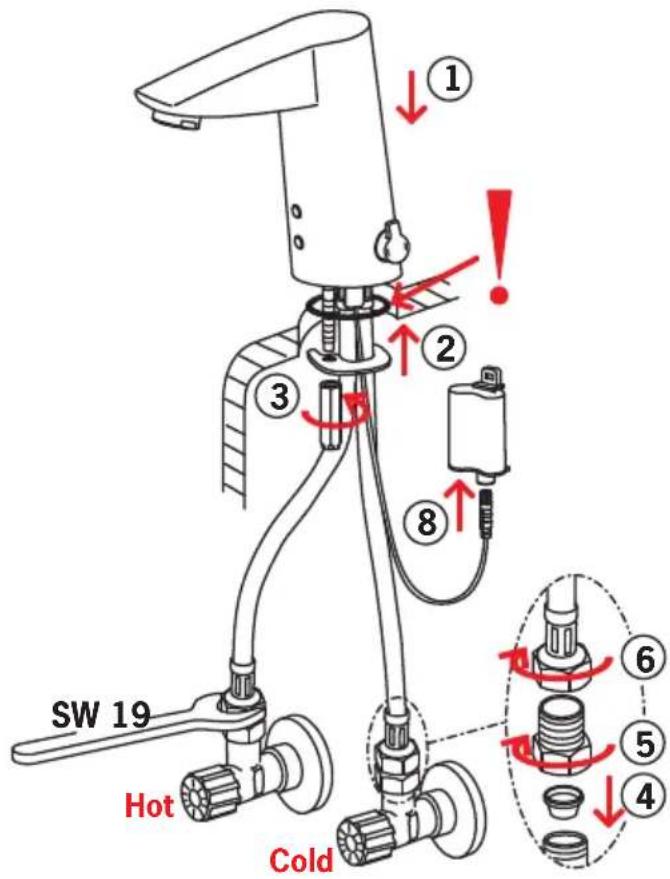

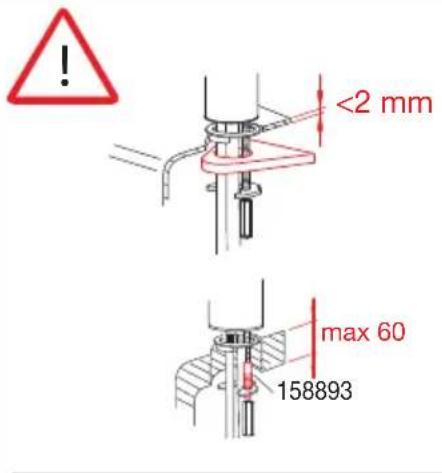

Installation

CZ Montáž

FI Asennus

NL Installatie

RU Установка

DE Montage

FR Installation

NO Montering

SE Installation

DK Installation

IT Montaggio

PL Instalacja

SK Inštalácia

EE Paigaldus

LT Montavimas

RO Instalare

UA Встановлення

ES Montaje

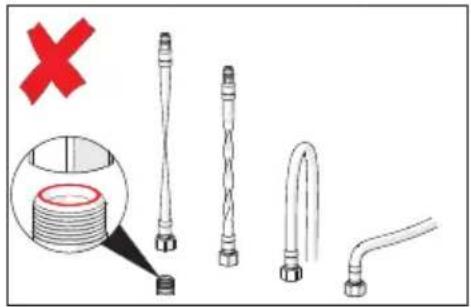

LV Montāža

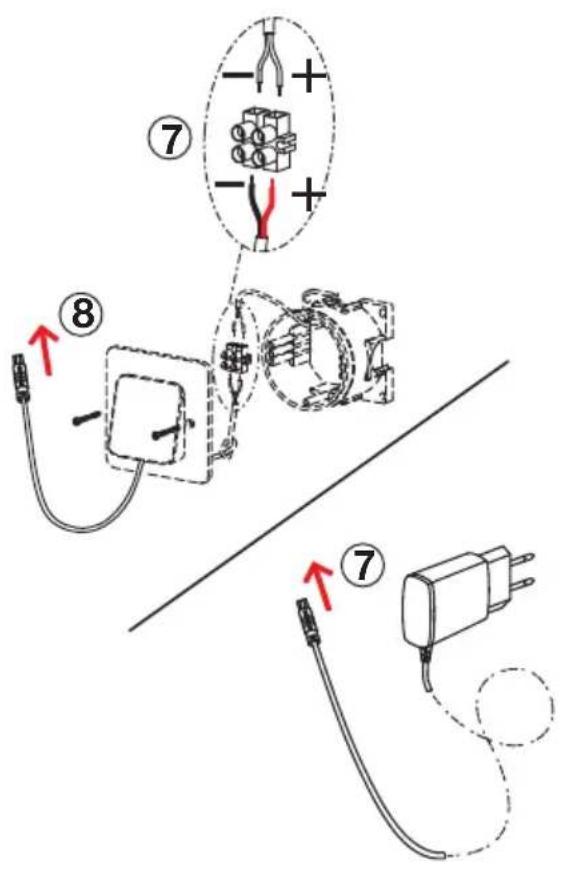

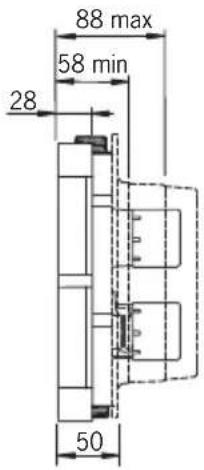

GB Power supply requirement: Power supply output must be short circuit protected
CZ Požadavky týkající se napájecího zdroje: Výstup napájecího zdroje musí být chráněn proti zkratu
DE Stromversorgungsvoraussetzungen: Stromversorgungsspannung muss kurzschlussgeschützt sein
DK Krav til strømforsyning: Strømforsyningsudgang skal være kortslutningsbeskyttet
EE Nõuded vooluallikale: Vooluallika väljund peab olema kaitstud lühise eest
ES Requisitos del suministro eléctrico: el suministro eléctrico debe estar protegido contra cortocircuitos
FI Vaatimukset virtalähteelle: Virtalähteen ulostulon tulee olla oikosulkusuojattu
FR Unité d'alimentation électrique: La sortie de l'unité d'alimentation oit être protégée contre le court-circuit
IT Requisiti dell'alimentazione: L'uscita deve essere protetta da cortocircuiti
LT Reikalavimai maitinimo šaltiniui: turi būti apsauga nuo trumpo jungimo
LV Prasības attiecībā uz barošanas ierīci: ierīces izvadam jābūt aizsargātam pret īsslēgumiem
NL Vereisten voor de voeding: De uitgang van de voeding moet beschermd zijn tegen kortsluitingen
NO Krav til strømforsyning: Strømforsyningsspenning må være kortslutningssikret
PL Wymagania w stosunku do zasilacza: Zasilacz musi być wyposażony w zabezpieczenie przeciwzwarciowe
RO Pentru alimentarea cu putere: borna de putere trebuie să fie protejată la scurtcircuit
RU Требования к источнику тока: Выход источника тока защищен от короткого замыкания
SE Krav på matningsdon: Utspänningen skall vara kortslutningssäker
SK Požiadavka na napájanie: Výstup napájania musí byť chránený voči skratu
UA Вимоги до джерела струму: Вихід джерела струму захищений від короткого замикання

2824F, 2824FT, 2724FNT, 2826F, 2826FT

Oras 199275 12 VDC 230 VAC 1......5 A A - A 2 x >= 0.5 mm²

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

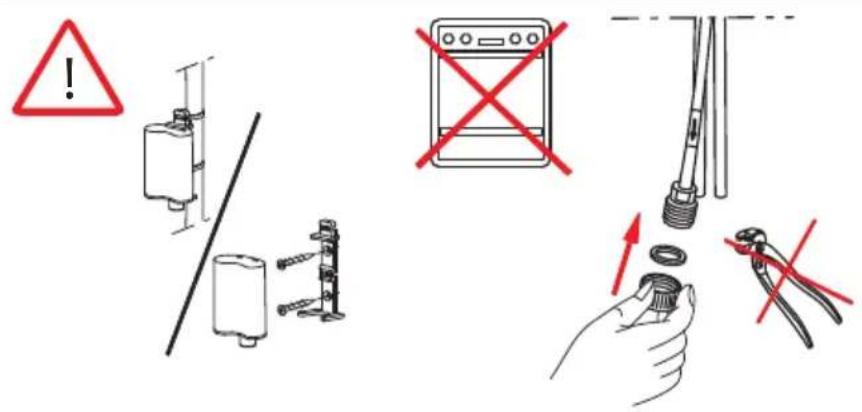

2814F

SW 19 Hot Cold ① ② ③ ④ ⑤ ⑥ ⑧

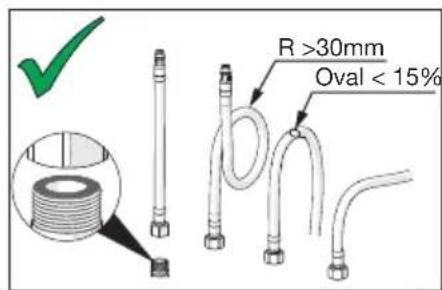

R >30mm Oval < 15%

Technical diagram showing various pipe fittings and a crosshair symbol with red X, indicating a defect or failure.

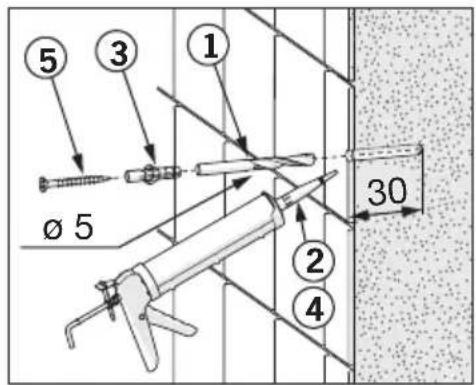

⑤ ③ ① Ø 5 30 ② ④

Technical line drawing of electrical insulator components (no text or symbols)

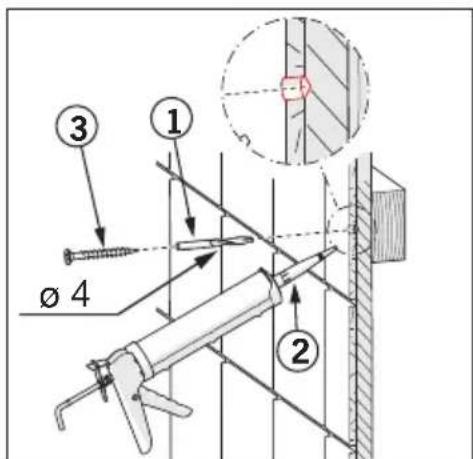

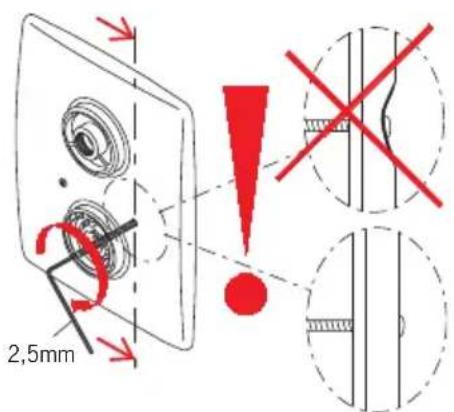

③ ① Ø 4 ②

Installation

CZ Montáž

FI Asennus

NL Installatie

RU Установка

DE Montage

FR Installation

NO Montering

SE Installation

DK Installation

IT Montaggio

PL Instalacja

SK Inštalácia

EE Paigaldus

LT Montavimas

RO Instalare

UA Встановлення

ES Montaje

LV Montāža

2816F

SW 19 Hot Cold ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

R >30mm Oval < 15%

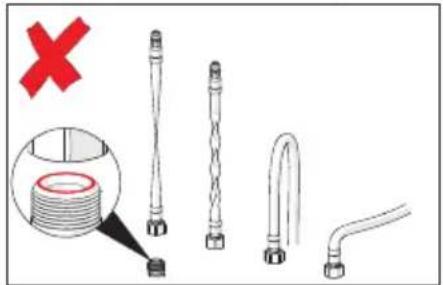

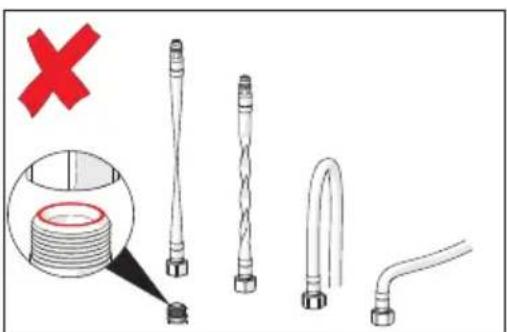

Technical diagram showing various pipe fittings and a red X mark, with an inset magnified view highlighting a threaded component.

⑤ ③ ① Ø 5 30 ② ④

Technical line drawing of electrical insulator components including a cylindrical body, vertical rod, and mounting bracket (no text or symbols)

③ ① Ø 4 ②

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

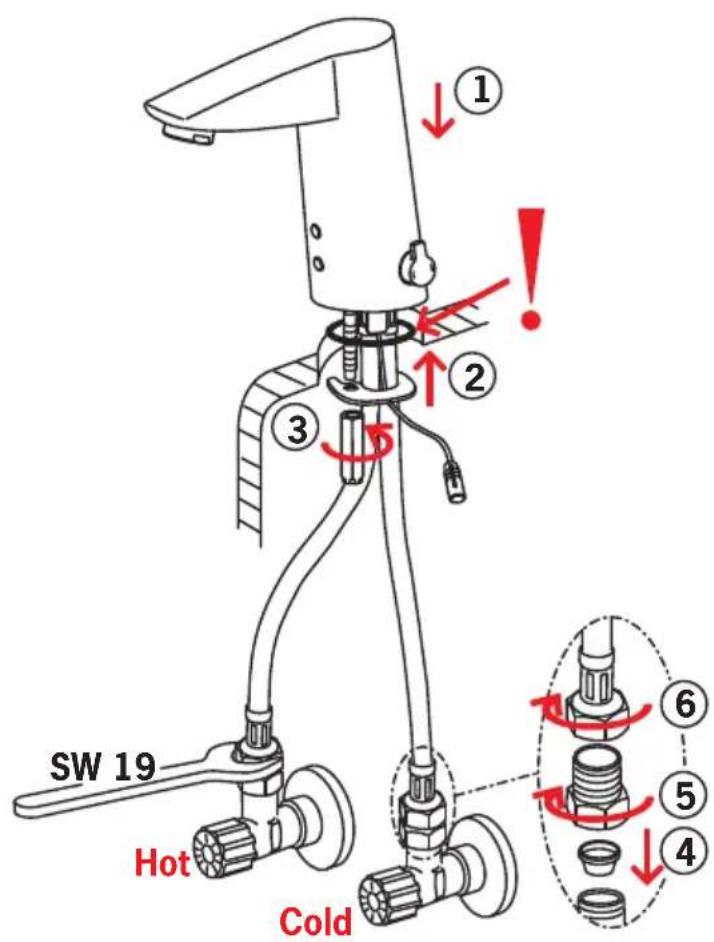

2824F, 2824FT, 2724FNT

SW 19 Hot Cold ① ② ③ ④ ⑤ ⑥

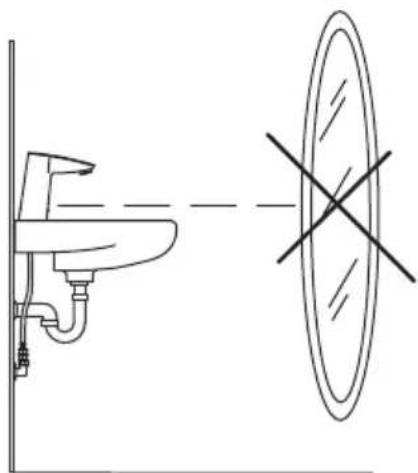

Diagram illustrating cable installation steps with numbered instructions and component diagrams

R >30mm Oval < 15%

Illustration of various pipe fittings and connectors with a red X mark, no text or symbols present

Installation

CZ Montáž

FI Asennus

NL Installatie

RU Установка

DE Montage

FR Installation

NO Montering

SE Installation

DK Installation

IT Montaggio

PL Instalacja

SK Inštalácia

EE Paigaldus

LT Montavimas

RO Instalare

UA Встановлення

ES Montaje

LV Montāža

2826F, 2826FT

20201, 20201 SW 19 Hot Cold ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

R >30mm Oval < 15%

Illustration of various pipe fittings and connectors with a red X mark, no text or symbols present

Operation

CZ Funkce

DE Funktion

DK Betjening

EE Toimimine

ES Servicio

FI Toiminta

FR Utilisation

IT Funzionamento

LT Veikimo principas

Hand holding a showerhead emitting sound waves (no text or symbols)

2816F, 2826F, 2826FT

Simple line drawing of a hand reaching toward a faucet with sound waves (no text or symbols)

max 2 min

Automatic OFF

max 0.5 s

2 min

Manual OFF

Cleaning the faucet

CZ Čištění baterie
DE Reinigung der Armatur
DK Rengøring af armaturet
EE Puhastamine
ES Limpieza de la grifería
FI Puhdistus

FR Nettoyage du robinet
IT Pulizia della rubinetteria
LT Maišytuvo valymas
LV Krāna tīrīšana
NL Reinigen van de kraan
NO Rengjøring av kranen

Line drawing of a faucet handle with a red arrow indicating the change from left to right (no text or symbols)

Changing the battery

CZ Výměna baterie

Diagram illustrating the installation of a portable device with labeled parts and directional arrows indicating assembly or installation steps.

Cleaning/changing the litter filters

SW 19 ① ② ③

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

Exploded view diagram of a mechanical device with numbered parts for identification

2816F

1 199417V

2 198330

3 600493V

4 199205V

5 199206V

6 600657V

7 601166V

8 199257/2

9 198473/2

10 600705/10

11 199201V

12 601141V

1 159684

Exploded view diagram of a mechanical device with numbered parts for identification

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

Labeled diagram of a spray gun assembly with numbered parts for identification

2824FT

1 600493V

2 199205V

3 199206V

4 600839V

5 199266V

6 199257/2

7 198473/2

8 600705/10

9 199201V

10 601141V

Exploded view diagram of a mechanical device with numbered parts for identification

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

Exploded view diagram of a mechanical device with numbered parts for identification

2826F

1 600493V

2 199205V

3 199206V

4 600974V

5 601166V

6 199257/2

7 198473/2

8 600705/10

9 199201V

10 601141V

1 159684

Exploded view diagram of a mechanical device with numbered parts for identification

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

Labeled diagram of a mechanical device with numbered parts for identification

2838F

EN 817

50 - 1000 kPa

I (ISO 3822)

0.24 l/s (300 kPa)

210 kPa (0.2 l/s)

max. +80°C

STF VTT-RTH-04950-08

1.42/17876

GODKENDT TIL DRIKKEVAND

Sintef Nr. 1323

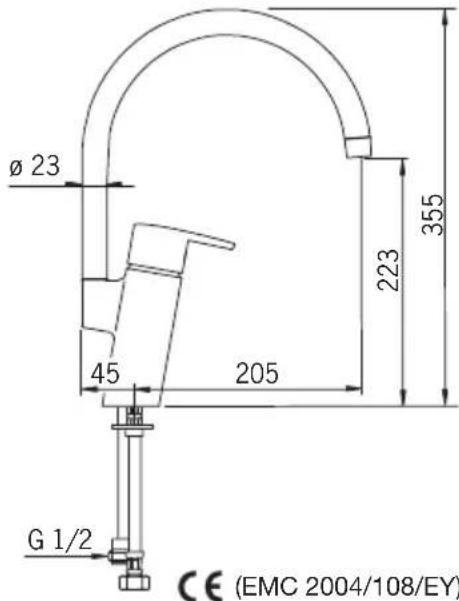

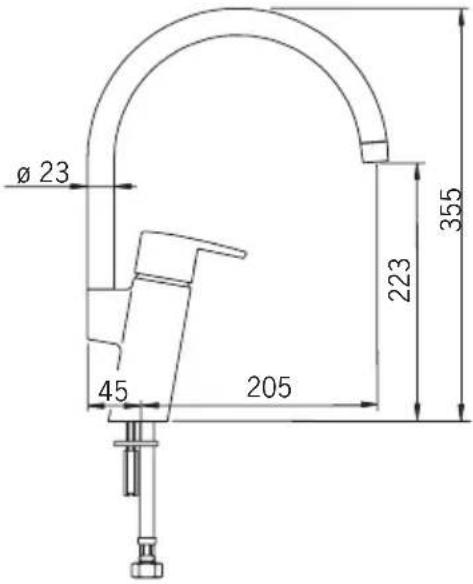

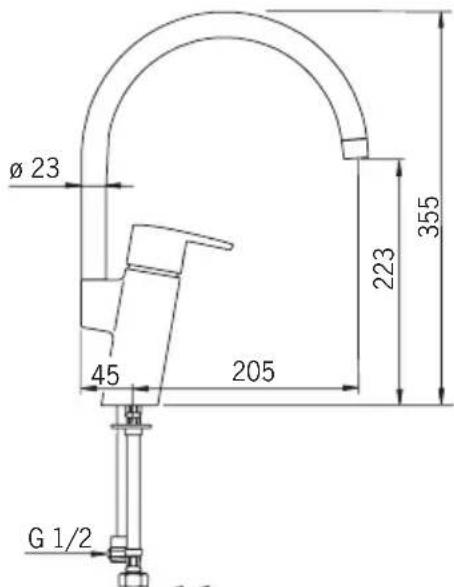

ø 34 - 37 max 40 350 G 3/8

Ø 23 45 205 223 355

2839F

EN 817

50 - 1000 kPa

I (ISO 3822)

0.2 l/s (300 kPa)

300 kPa (0.2 l/s)

max. +80°C

STF VTT-RTH-04950-08

1.42/17876

GODKENDT TIL DRIKKEVAND

Sintef Nr. 1323

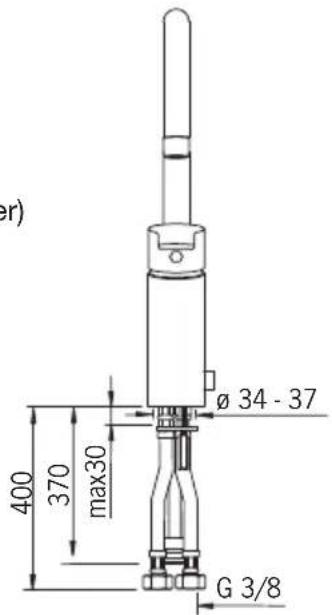

400 370 max 40 Ø 34 - 37 G 3/8

Ø 23 45 205 G 1/2 223 355

(EMC 2004/108/EY)

2838F-105

EN 817

50 - 1000 kPa

I (ISO 3822) Oras lab.

0.083 l/s (300 kPa) (with flow controller)

max. +80°C

GODKENDT TIL DRIKKEVAND

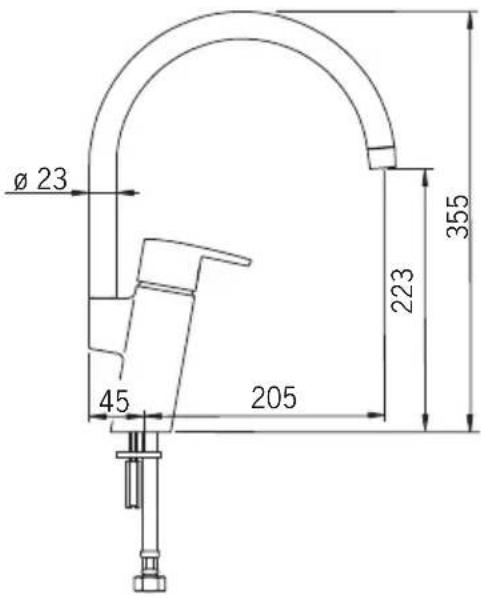

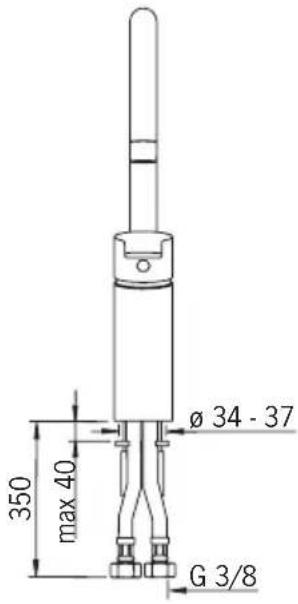

ø 34 - 37 350 max30 G 3/8

Ø 23 45 205 223 355

2839F-105

EN 817

50 - 1000 kPa

I (ISO 3822) Oras lab.

0.083 l/s (300 kPa) (with flow controller)

max. +80^ C

(er) ø 34 - 37 400 370 max30 G 3/8

Ø 23 45 205 G 1/2 223 355 CE (EMC 2004/108/EY)

GODKENDT

TIL DRIKKEVAND

(EMC 2004/108/EY)

Technical data

CZ Technická data

DE Technische Daten

DK Tekniske data

EE Tehnilised andmed

ES Datos técnicos

FI Tekniset tiedot

Dishwasher valve open period

on off hot cold

Line drawing of a kitchen faucet with a handle and valve (no text or symbols)

push→ on 3 h→ automatic off/push off

push 5 s → on 12 h → automatic off/push off

Installation

CZ Montáž

FI Asennus

NL Installatie

RU Установка

DE Montage

FR Installation

NO Montering

SE Installation

DK Installation

IT Montaggio

PL Instalacja

SK Inštalácia

EE Paigaldus

LT Montavimas

RO Instalare

UA Встановлення

ES Montaje

LV Montāža

2838F, 2838F-105

1 max 40 2 ø 34 - 37 3 9 mm SW 19 on 4 5

! <2 mm max 60 158893

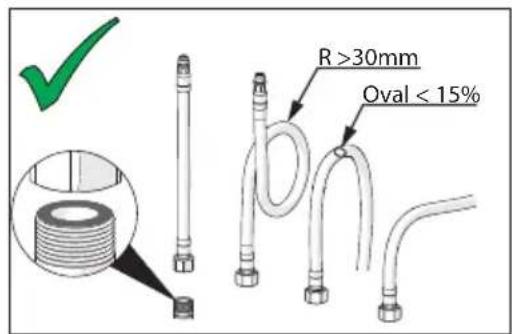

R >30mm Oval < 15%

Diagram showing various pipe fittings with a red X mark and magnified detail, likely illustrating a mechanical or electrical assembly.

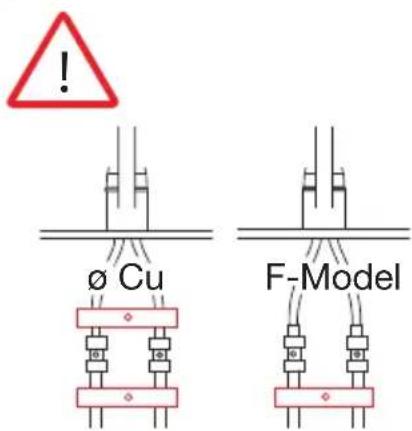

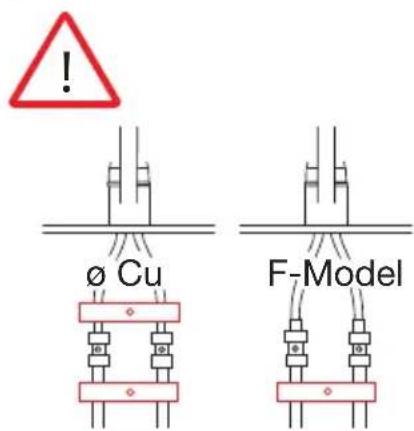

! ø Cu F-Model

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

2839F, 2839F-105

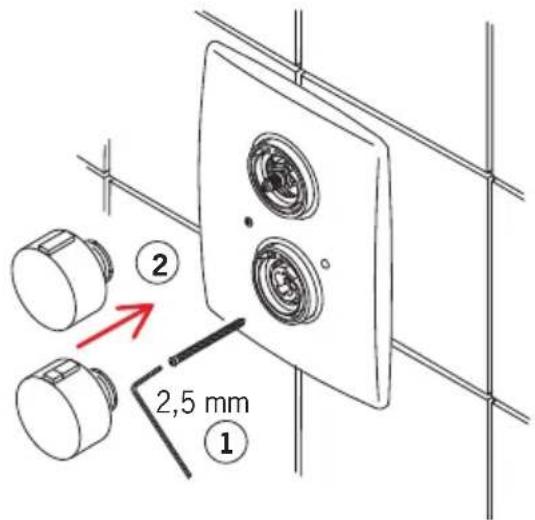

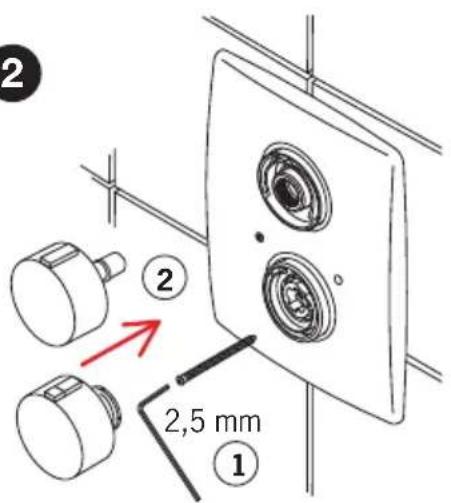

9 mm ø 34 - 37 SW 19 on ③ ① max 40 ② ⑦ ④ ⑤

! <2 mm max 60 158893

R >30mm Oval < 15%

Diagram showing five different types of plumbing fittings with a red X mark, including a magnified inset of a threaded component.

Safety warning illustration showing installation of electrical components with red prohibition signs and warning symbols

! ø Cu F-Model

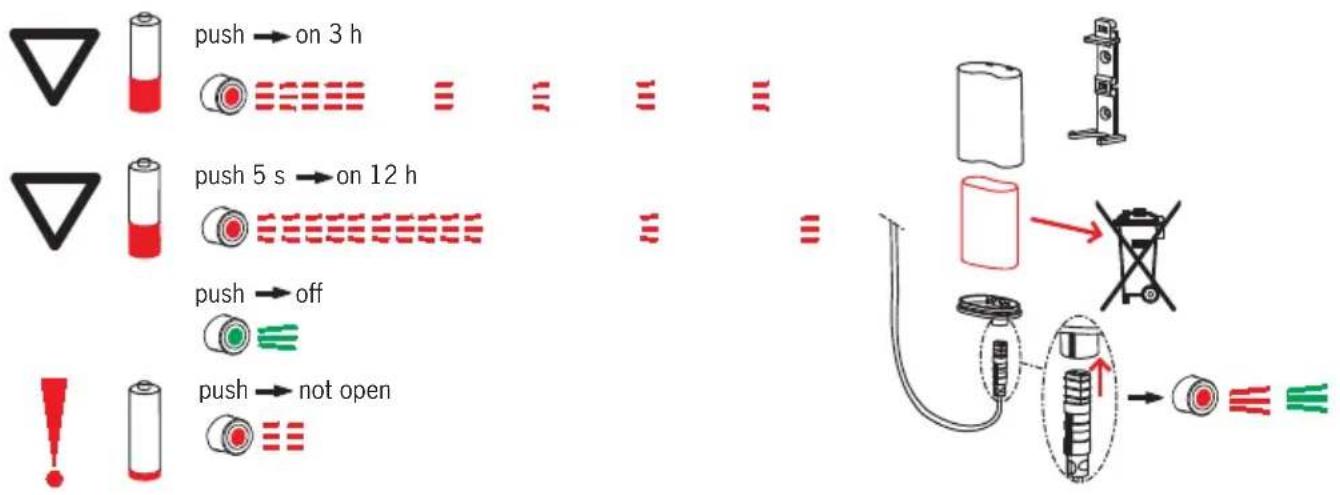

Changing the battery

CZ Výměna baterie
DE Wechsel der Batterie
DK Udskiftning af batteri
EE Patarei vahetamine
ES Cambiar la batería
FI Pariston vaihto
FR Changement de la pile
IT Sostituzione della batteria
LT Baterijos pakeitimas

LV Baterijas maina
NL Batterij vervangen
NO Bytting av batteri
PL Wymiana baterii zasilającej
RO Înlocuirea bateriei electrice
RU Замена батарейки
SE Byte av batteri
SK Výmena batérie
UA Заміна батарейки

2839F, 2839F-105

push → on 3 h push 5 s → on 12 h push → off push → not open

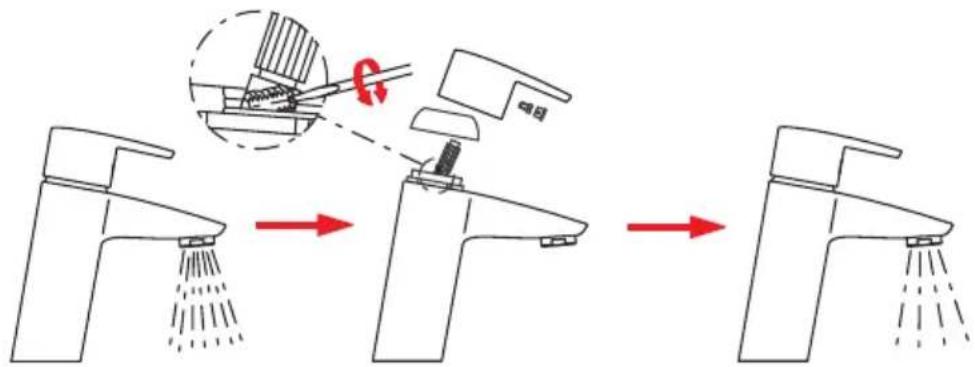

Limiting the flow rate

CZ Omezeni průtoku
DE Bergenzung der Durchflußmenge
DK Begrænsning af vandmængden
EE Vooluhulga piiramine
ES Limitación de la tasa de flujo
FI Virtaaman rajoitus
FR Limitation du débit
IT Limitazione della portata
LT Vandens srovės reguliavimas

LV Ūdens plūsmas ierobežošana
NL Begrenzing van de doorstroomhoeveelheidg
NO Begrensning av vannmengde
PL Ograniczenie wielkości strumienia
RO Limitarea debitului
RU Регулирование потока
SE Flödesbegränsning
SK Obmedzenie prietoku
UA Регулювання потоку

Diagram illustrating the process of disinfection on a kitchen sink, showing spray application and cleaning steps.

To change the cartridge

CZ Výména kartuše

0.12 l/s (300 kPa) (with flow controller)

max. +80°C

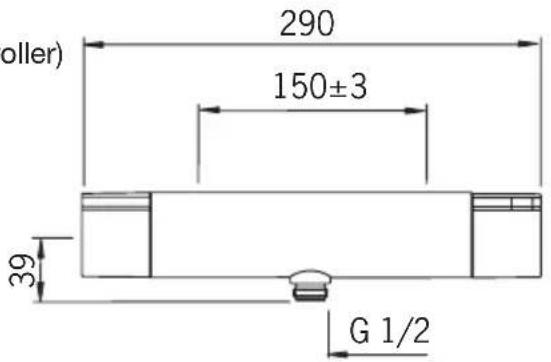

roller) 290 150±3 39 G 1/2

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

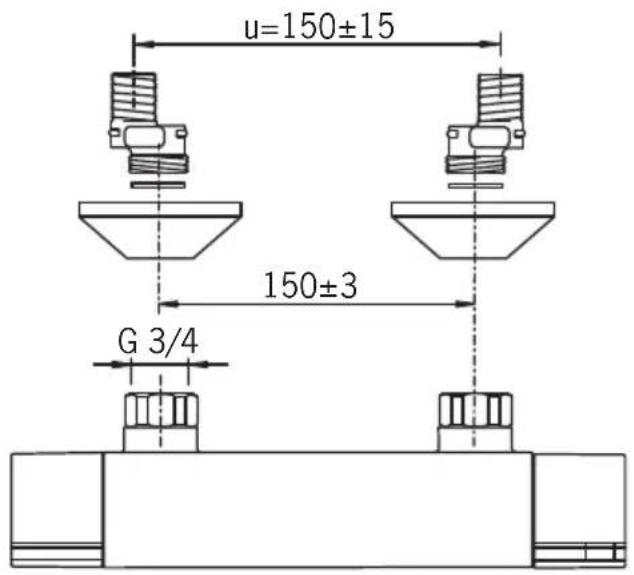

u=150±15 150±3 G 3/4

150±3 G 3/4

Operation

CZ Funkce

DE Funktion

DK Betjening

EE Toimimine

ES Servicio

FI Toiminta

FR Utilisation

IT Funzionamento

LT Veikimo principas

SERVICE 1: Temperature adjustment

Technical diagram illustrating mechanical assembly steps with numbered annotations and a magnified view of the gear mechanism.

Cleaning/changing the litter filters

① on/off ② ③ SW 30

To change the cartridge

CZ Výména kartuše

Changing the operating valve

SW 17 ① on/off ② ③ ④

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

Exploded view diagram of a mechanical device with numbered parts for identification

Spare parts

CZ Náhradní díly

DE Ersatzteile

DK Reservedele

EE Varuosad

Exploded view diagram of a mechanical assembly with numbered parts for identification

2470

1 159045V

2 109898

3 178375V

4 178796V

5 159048V

6 178780V

7 600978 (9 l/min)

8 600977 (6 l/min)

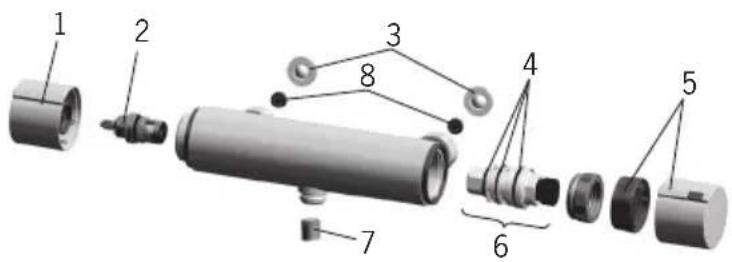

Exploded view diagram of a mechanical assembly with numbered components

7127

EN 1111

II (ISO 3822)

100 - 1000 kPa

0.27 l/s (300 kPa)

165 kPa (0.2 l/s)

0.21 l/s (300 kPa) Eco-flow

max. +80^ C

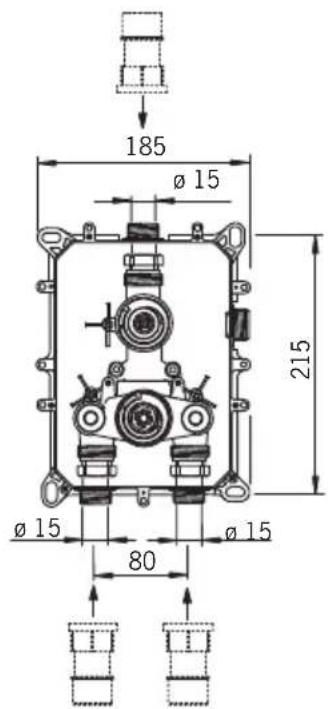

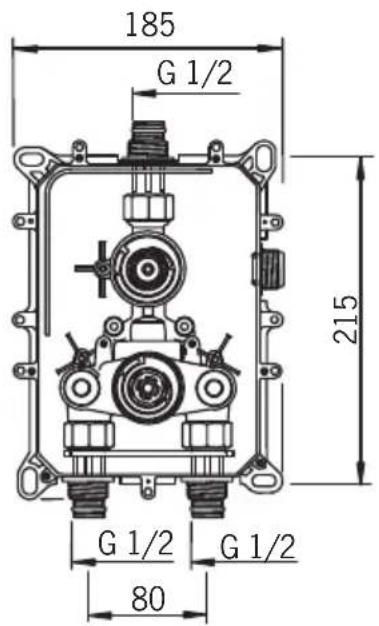

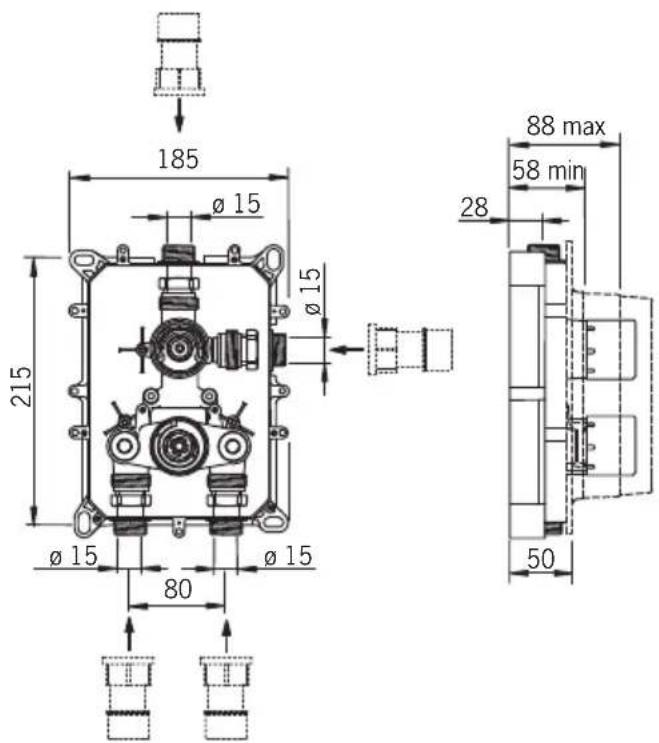

185 G 1/2 215 G 1/2 G 1/2 80

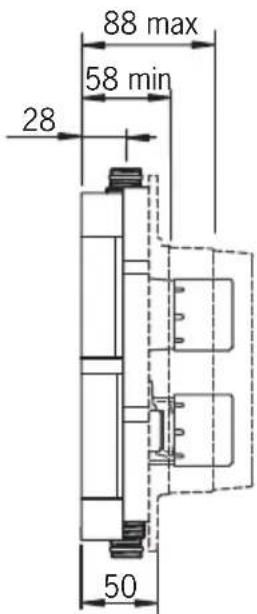

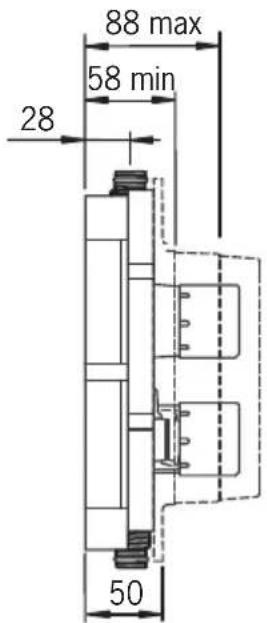

88 max 58 min 28 50

KIWA K13876/03

7128

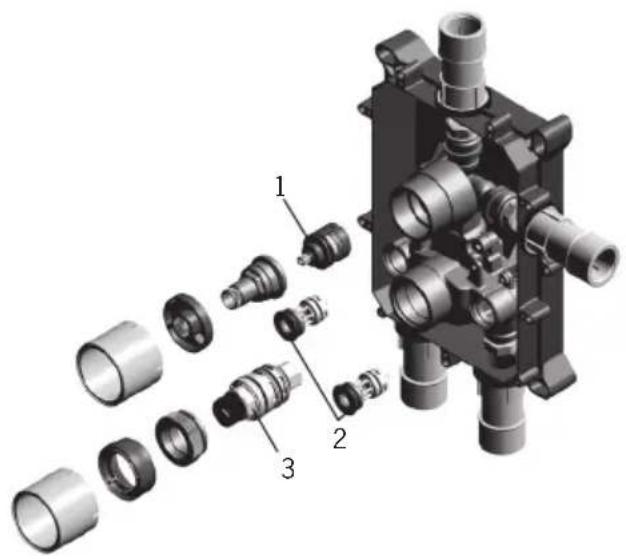

EN 1111

II (ISO 3822)

100 - 1000 kPa

0.33 l/s (300 kPa), 250 kPa (0.3 l/s)

0.27 l/s (300 kPa), 165 kPa (0.2 l/S)

0.24 l/s (300 kPa) Eco-flow

max. +80°C

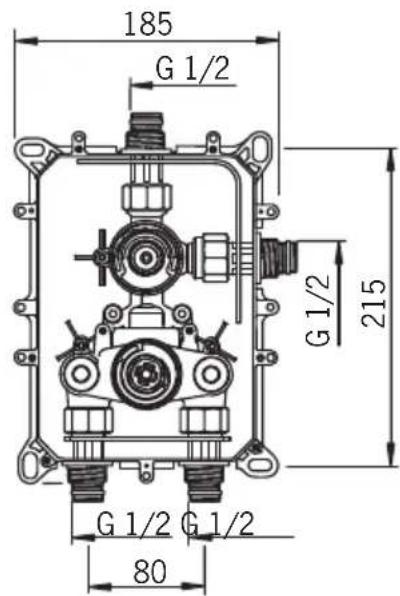

185 G 1/2 G 1/2 215 G 1/2 G 1/2 80

88 max 58 min 28 50

KIWA K13876/03

7117

EN 1111

I (ISO 3822)

100 - 1000 kPa

0.27 l/s (300 kPa)

165 kPa (0.2 l/s)

0.21 l/s (300 kPa) Eco-flow

max. +80°C

Ø 25 70 Ø 28 80

185 Ø 15 215 Ø 15 Ø 15 80

88 max 58 min 28 50

STF VTT-RTH-04952-08

1.43/17988

7118

EN 1111

I (ISO 3822)

100 - 1000 kPa

0.33 l/s (300 kPa), 250 kPa (0.3 l/s)

0.27 l/s (300 kPa), 165 kPa (0.2 l/s)

0.24 l/s (300 kPa) Eco-flow

max. +80°C

Ø 25 70 Ø 28 80

185 Ø 15 Ø 15 215 Ø 15 Ø 15 80 88 max 58 min 28 50

STF VTT-RTH-04952-08

1.43/17988

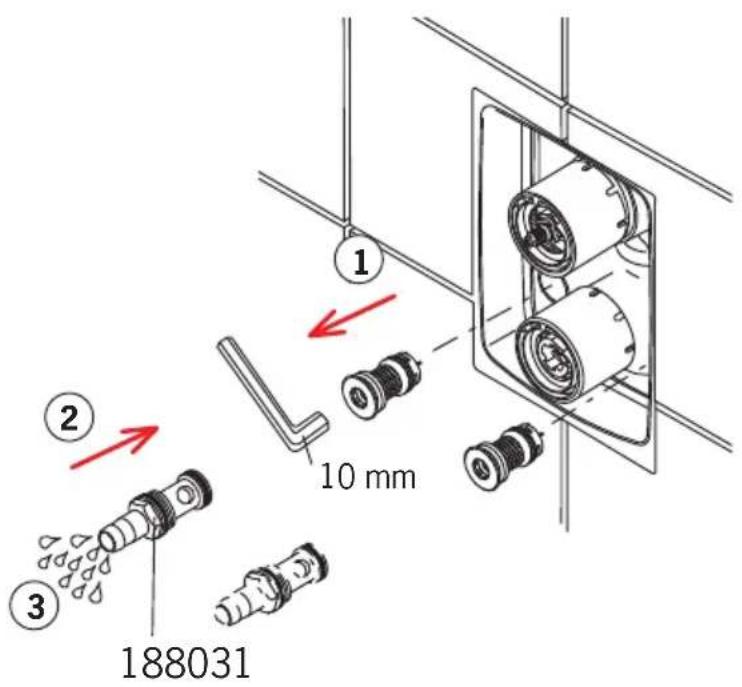

Rinsing

CZ Vypláchnutí

DE Spülen

DK Gennemskyldning

EE Loputama

ES Aclarar

FI Huhtelu

FR Rinçage

IT Spurgo

LT Praplovimas

LV Skalošana

NL Spoelen

NO Rengjøring

PL Płukania

RO Spălare

RU Промывка

SE Renspolning

SK Vypláchnutie

UA Промивання

1 2 3 188031 10 mm

Operation

CZ Funkce

DE Funktion

DK Betjening

EE Toimimine

ES Servicio

FI Toiminta

FR Utilisation

IT Funzionamento

LT Veikimo principas

Simple diagram of two circular components with directional arrows, no text or symbols present

2888

1 + - ®

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

2887

2,5 mm ① ②

2888

1

388 ! ③ ② ④ ①

2

2 2,5 mm 1

3

2,5mm

SERVICE 1: Temperature adjustment

To change the cartridge

CZ Výména kartuše

SW 38 ① ② ③

④ SERVICE 1

Changing the operating valve

SW 17 ① ②

Changing the diverter cartridge

SW 21 198282V

Cleaning/changing the litter filters

Exploded view diagram of a mechanical assembly showing exploded and assembled parts (no text or labels)

7118, 7128

1 198282V

2 178295

3 178780V

Exploded view diagram of a mechanical assembly showing exploded and assembled parts (no text or labels)

Installation

CZ Montáž

DE Montage

DK Installation

EE Paigaldus

ES Montaje

FI Asennus

FR Installation

IT Montaggio

LT Montavimas

LV Montāža

NL Installatie

NO Montering

PL Instalacja

RO Instalare

RU Установка

SE Installation

SK Inštalácia

UA Встановлення

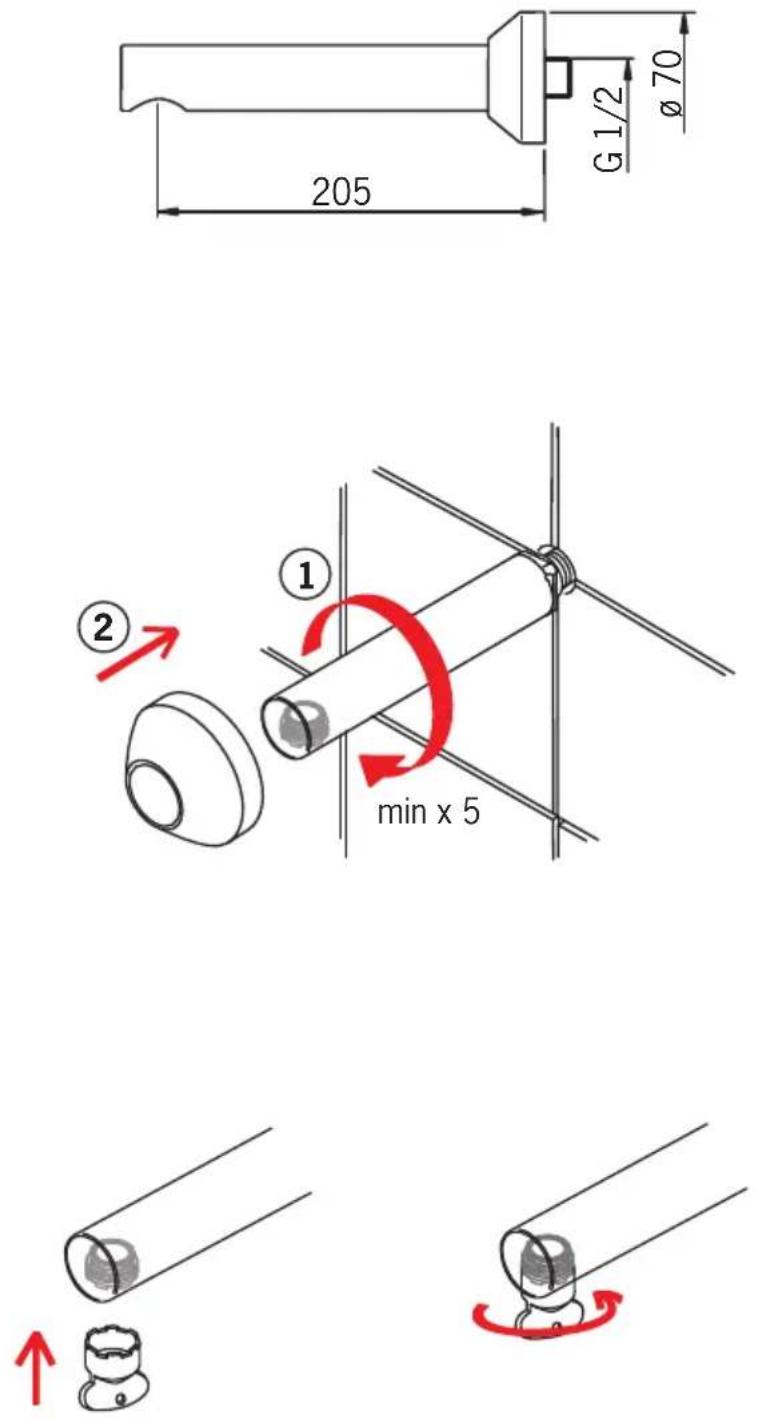

221250

Oras Group is a powerful European provider of sanitary fi ttings: the market leader in the Nordics and a leading company in Continental Europe. The company's mission is to make the use of water easy and sustainable and its vision is to become the European leader of advanced sanitary fi ttings. Oras Group has two strong brands, Oras and Hansa.

The head office of the Group is located in Rauma, Finland, and the Group has four manufacturing sites: Burglengenfeld (Germany), Kralovice (Czech Republic), Olesno (Poland) and Rauma (Finland). Oras Group employs approximately 1400 people in twenty countries. Oras Group is owned by Oras Invest, a family company and an industrial owner.

ORAS GROUP

Isometsäntie 2, P.O. Box 40

FI-26101 Rauma

Tel. [phone]

Fax [phone]

info.fi [e-mail]

www.oras.com

® oras

Water Is Worth Loving.
