USER MANUAL Optima 2701F Oras
CZ Obsah
DE Inhaltsübersicht
Maintenance 26, 28-32
Spare parts....33-35

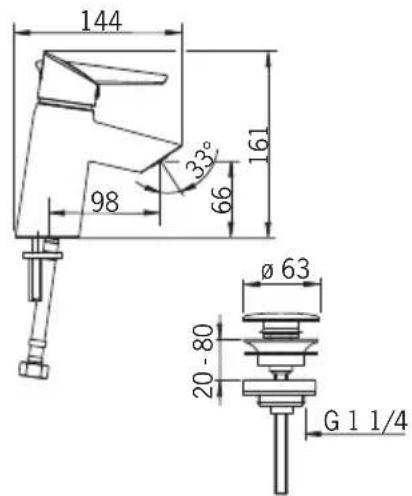

2700F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.18 l/s (300 kPa)
90 kPa (0.1 l/s)
max. +80°C


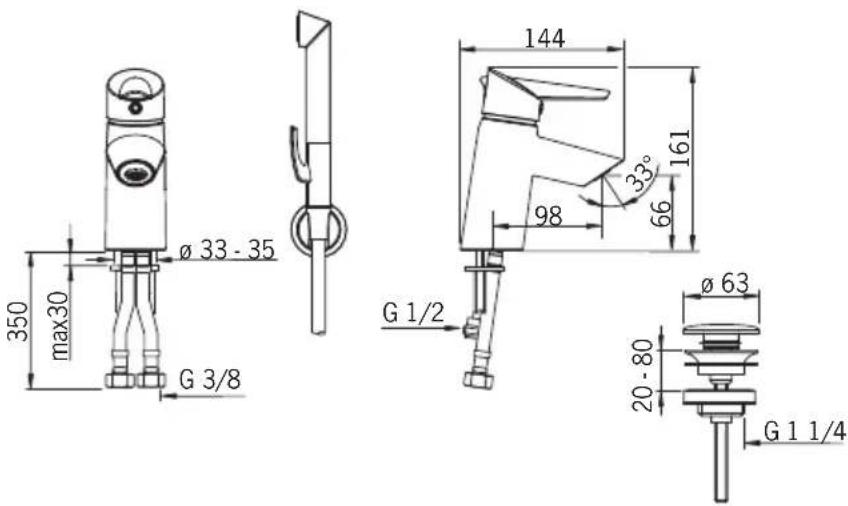

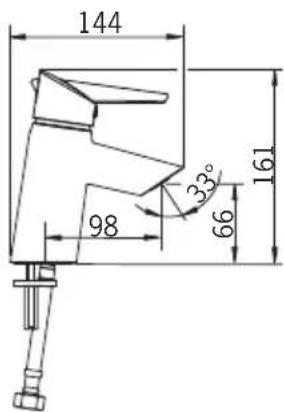

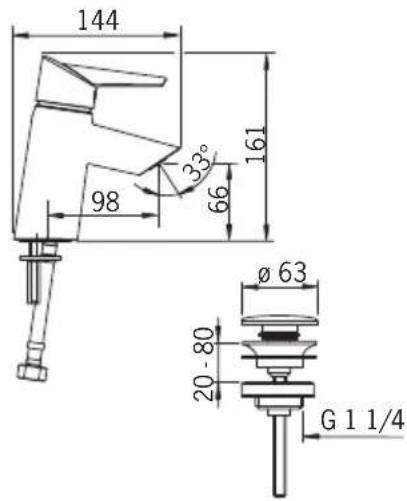

144 98 33° 66 161 Ø 63 20 - 80 G 1 1/4STF VTT-RTH-00007-14
1.42/20420
GÖDKENDT TIL DRIKKEVAND
Sintef Nr. 3081
2710F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.18 l/s (300 kPa)
90 kPa (0.1 l/s)
max. +80°C

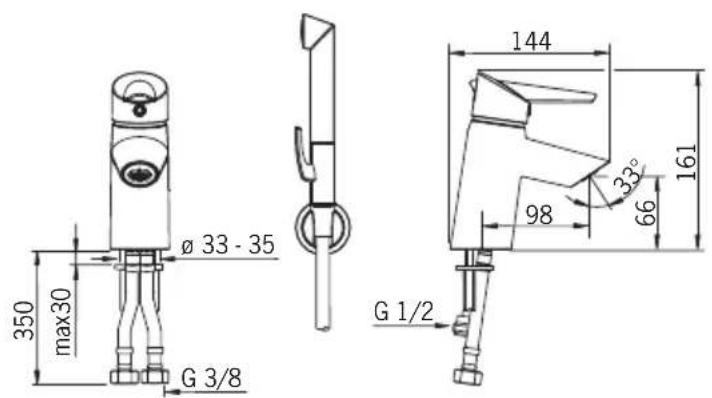

1.42/20420
GODKENDT TIL DRIKKEVAND
Sintef Nr. 3081

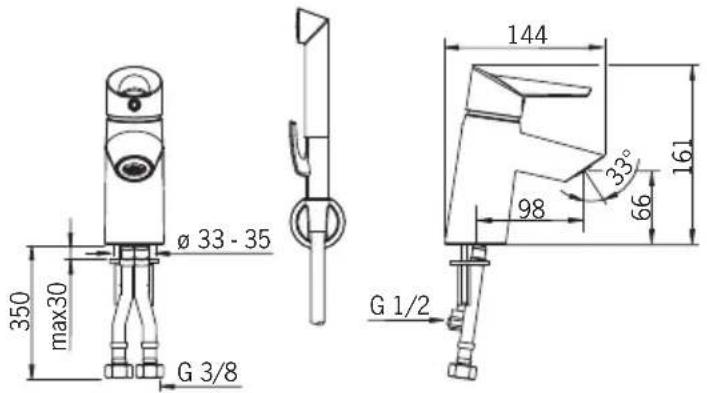

2702F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +80°C
1.42/20420
GODKENDT TIL DRIKKEVAND
Sintef Nr. 3081
2712F
EN 817
I (ISO 3822)
50 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +80°C
1.42/20420
GODKENDT TIL DRIKKEVAND
Sintef Nr. 3081

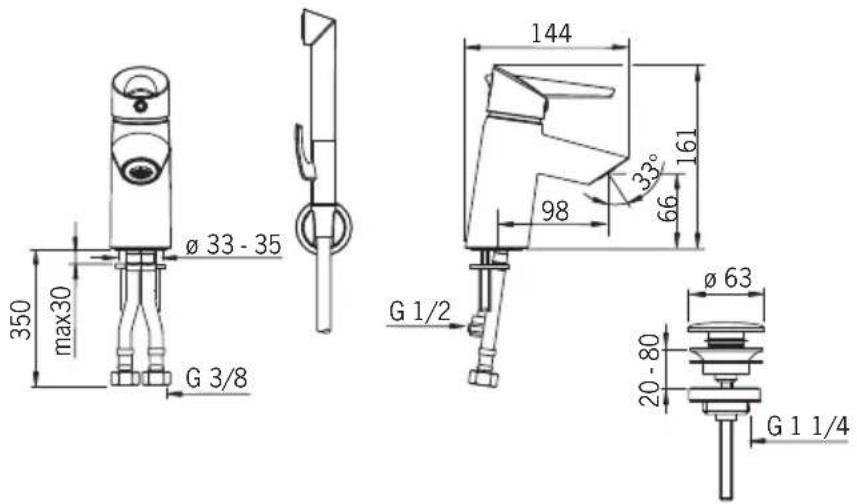

2700FG
EN 817
I (ISO 3822)
50 - 1000 kPa
0.18 l/s (300 kPa)
90 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
1.42/20420
GODKENDT TIL DRIKKEVAND
2710FG
EN 817
I (ISO 3822)
50 - 1000 kPa
0.18 l/s (300 kPa)
90 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
GODKENDT TIL DRIKKEVAND
2702FG
EN 817
I (ISO 3822)
50 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
GODKENDT
TIL DRIKKEVAND
2712FG
EN 817
I (ISO 3822)
50 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
0.1 l/s (Eco-flow at 300 kPa)
max. +80°C
GODKENDT
TIL DRIKKEVAND
Installation
| CZ Montáž | FI Asennus | NL Installatie | SE Installation |
| DE Montage | FR Installation | NO Montering | SK Inštalácia |
| DK Installation | IT Montaggio | PL Instalacja | UA Встановлення |
| EE Paigaldus | LT Montavimas | RO Instalare | |
| ES Montaje | LV Montāža | RU Установка |

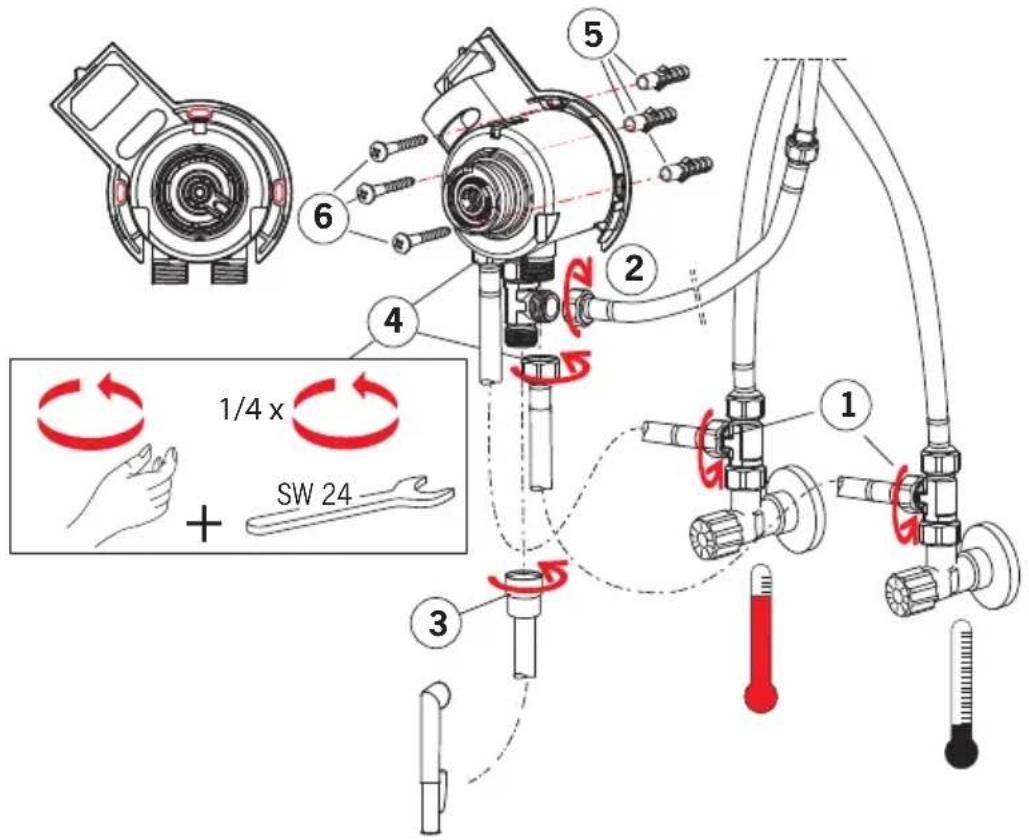

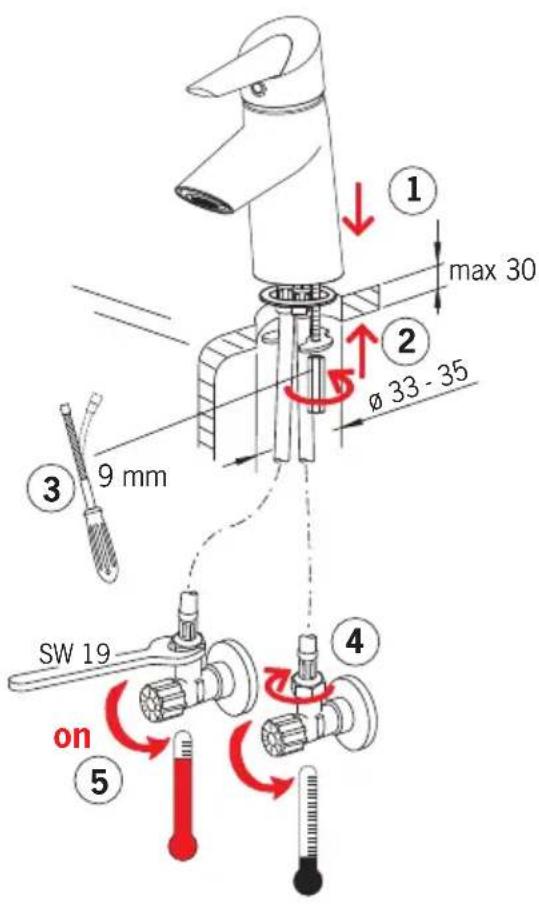

2700F, 2710F, 2700FG, 2710FG


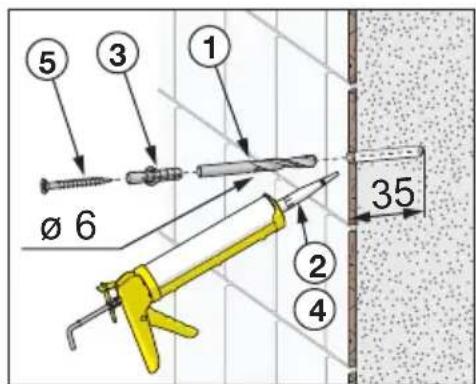

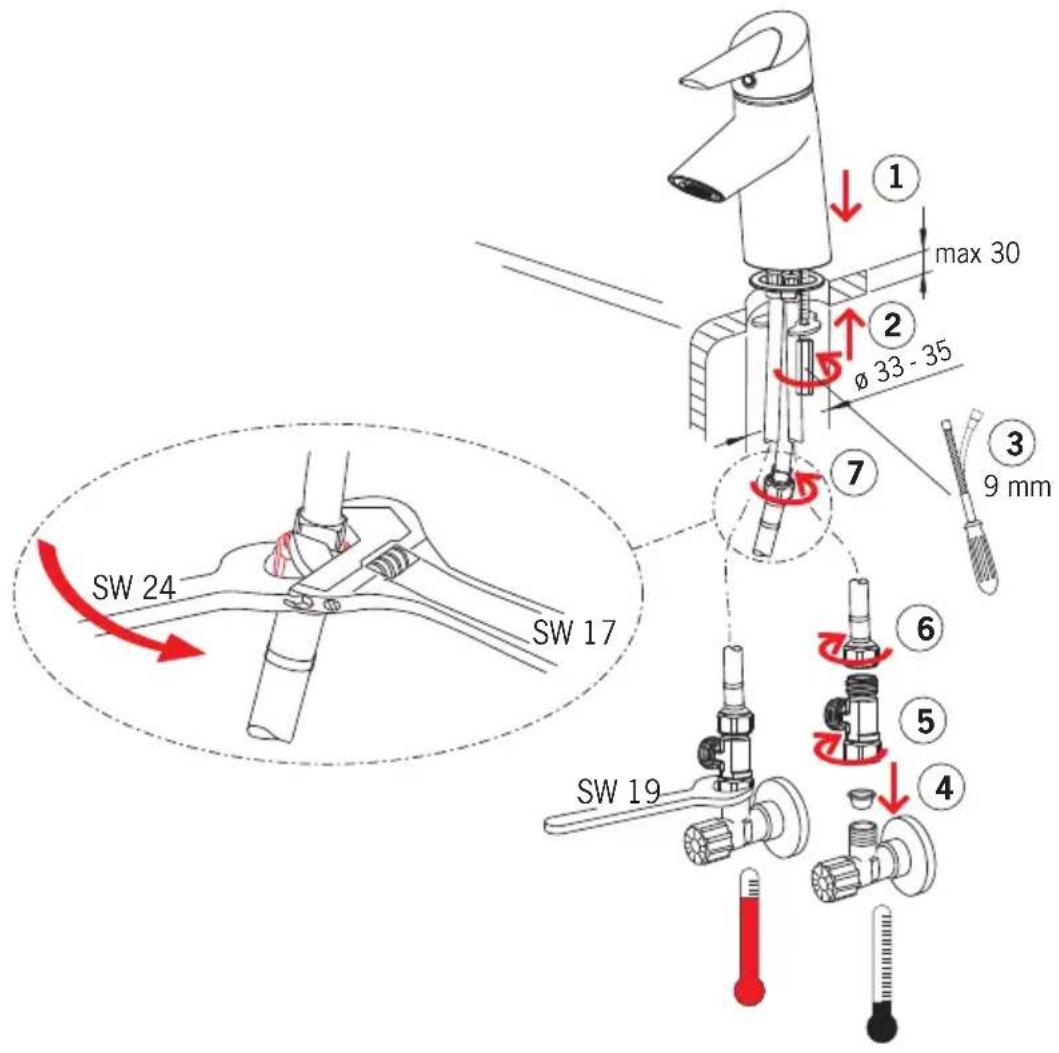

1 max 30 2 ø 33 - 35 9 mm SW 19 on 4 5


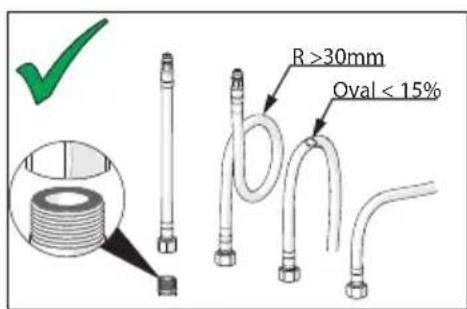

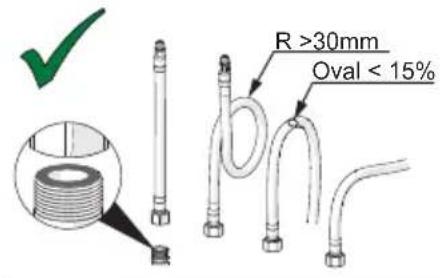

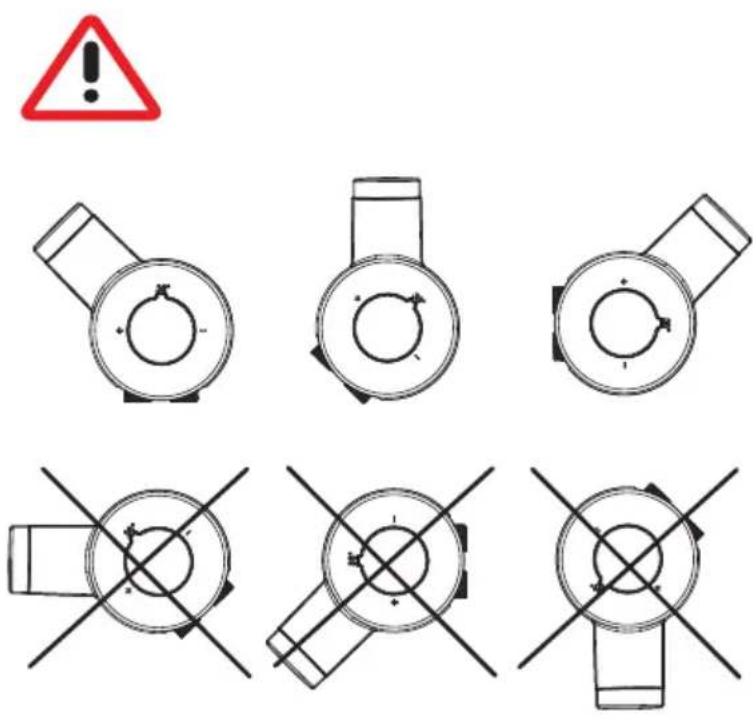

R >30mm Oval < 15% ✓ ✓ ×Installation
CZ Montáž
FI Asennus
NL Installatie
SE Installation
DE Montage
FR Installation
NO Montering
SK Inštalácia
DK Installation
IT Montaggio
PL Instalacja
UA Встановлення
EE Paigaldus
LT Montavimas
RO Instalare
ES Montaje
LV Montāža
RU Установка

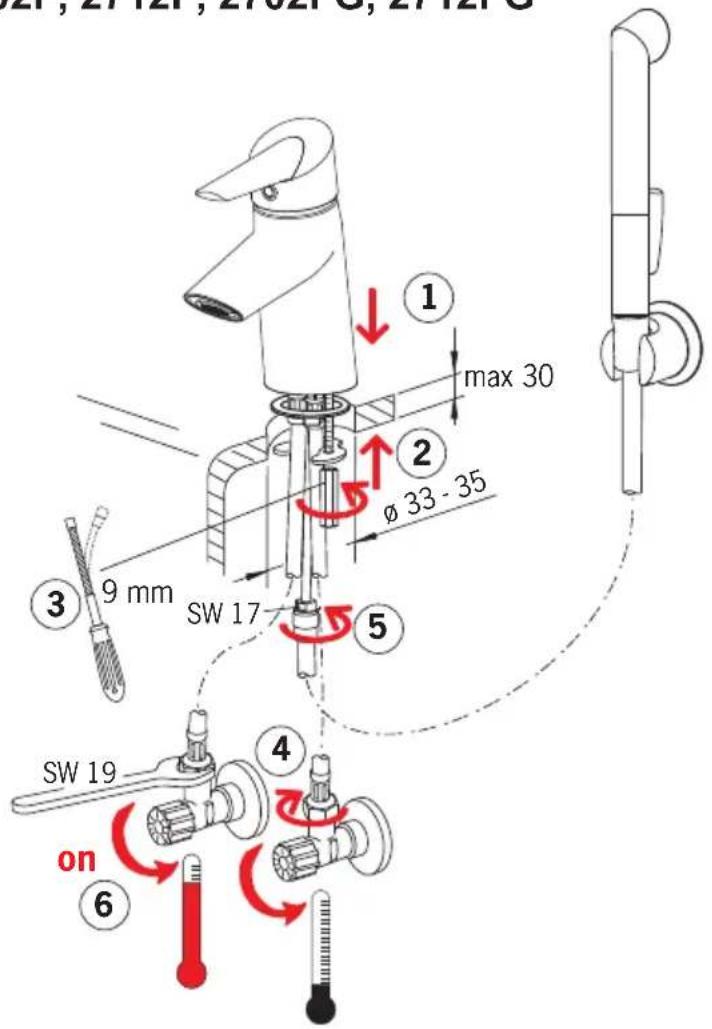

2702F, 2712F, 2702FG, 2712FG


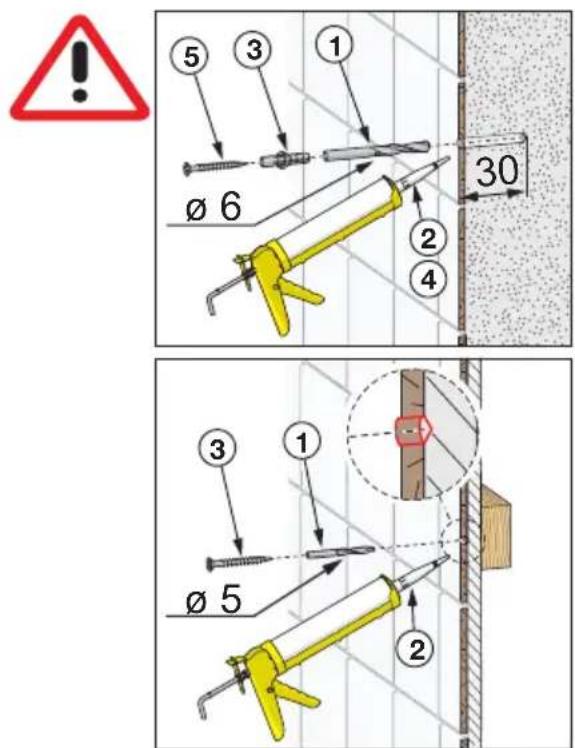

R >30mm Oval < 15%

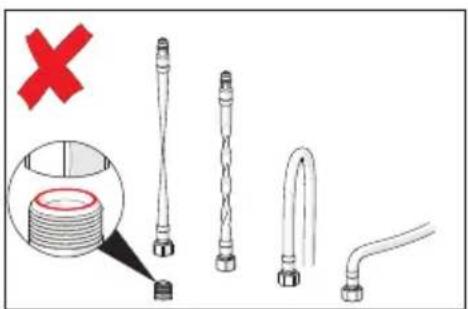

CZ Montáž/Funkce
DE Montage/Funktion
DK Installation/Betjening
EE Paigaldus/Toimimine
ES Montaje/Servicio
FI Asennus/Toiminta
FR Installation/Utilisation


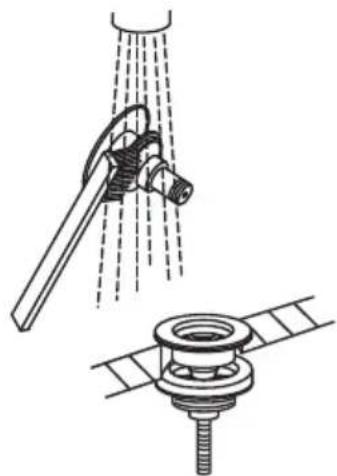

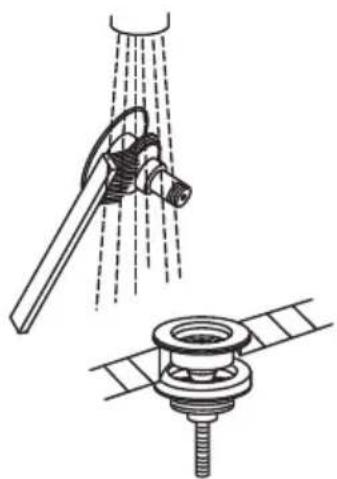

CZ Vypláchnutí
DE Spülen
DK Gennemskyldning
EE Loputama
ES Aclarar
FI Huhtelu
FR Rinçage
IT Spurgo
LT Praplovimas
LV Skalošana
NL Spoelen
NO Rengjøring
PL Płukania
RO Spălare
RU Промывка
SE Renspolning
SK Vypláchnutie
UA Промивання


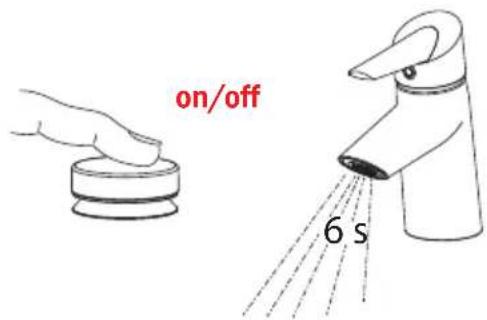

CZ Funkce
FI Toiminta
NL Bediening
SE Funktion
DE Funktion
FR Utilisation
NO Funksjon
SK Prevádzka
DK Betjening
IT Funzionamento
PL Działanie
UA Принцип дії
EE Toimimine
LT Veikimo principas
RO Functionare
ES Servicio
CZ Omezeni teplé vody
DE Temperaturbegrenzung
DK Forindstilling af vandets max. temperatur
EE Temperatuuri piiramine seadeosast
ES Limitación de la temperatura
FI Lämpötilan rajoitus
FR Limitation de la température
IT Limitazione della temperatura
LT Temperatūros apribojimas
LV Karstā ūdens temperatūras ierobežošana
CZ Výména kartuše

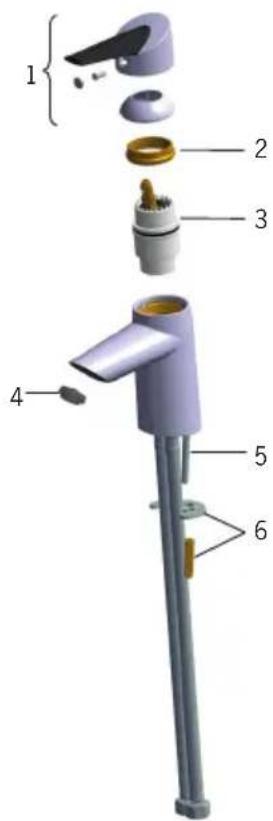

Limiting the flow rate
CZ Omezeni průtoku
| CZ Náhradní díly | FI Varaosat | NL Reserve- | RU Запасные части |
| DE Ersatzteile | FR Pièces détachées | onderdelen | SE Reservdelar |
| DK Reservedele | IT Pezzi di ricambio | NO Reservedeler | SK Náhradné diely |
| EE Varuosad | LT Atsarginès dalys | PL Części zamienne | UA Запасні частини |
| ES Piezas de recambio | LV Rezerves daļas | RO Piese de schimb |

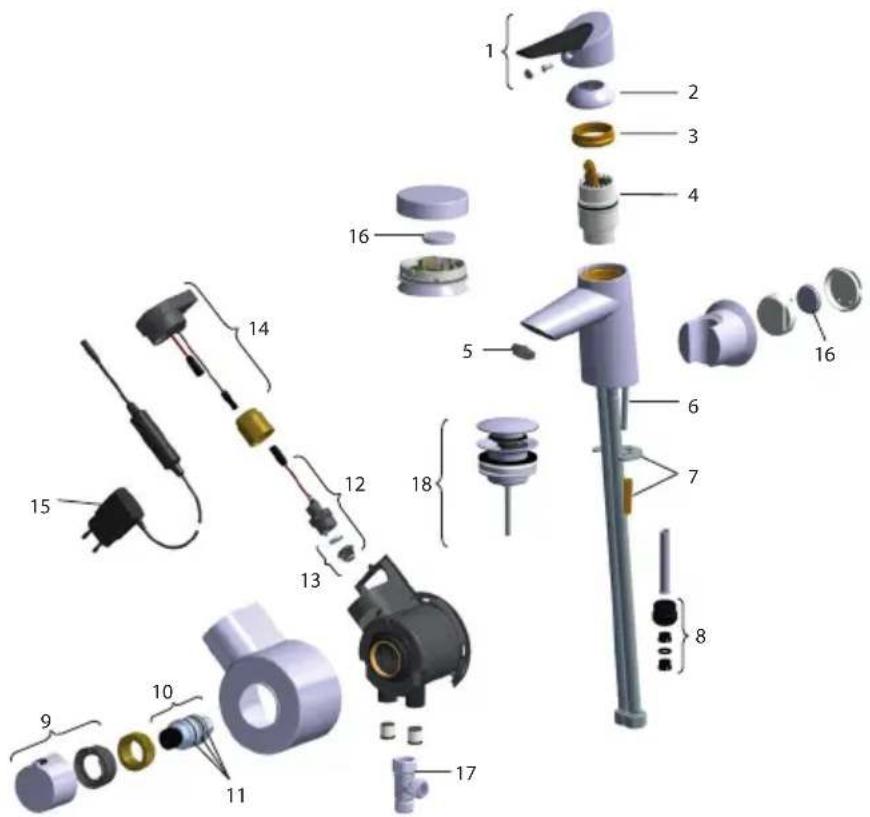

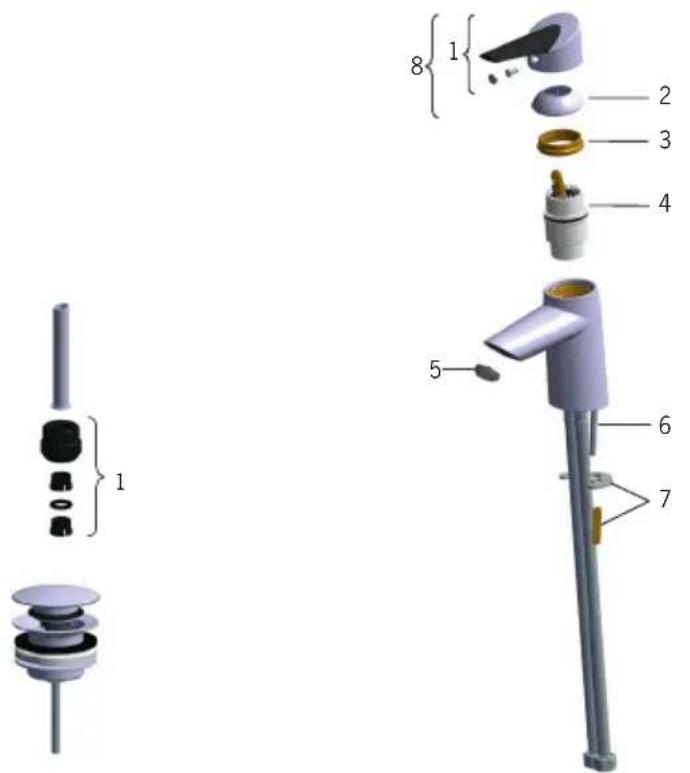

2700F, 2710F, 2702F, 2712F
| 1 | 601319V |
| 2 | 159053V |
| 3 | 158726 |
| 4 | 158890 |
| 5 | 601500V |
| 6 | 158727/10 |
| 7 | 158697 |
| 8 | 601864V (Eco) |
2702F, 2712F
| 1 | 159684 |
2700F, 2702F
| 159056V |
| 1 | 601864V (Eo |
| 2 | 158726 |
| 3 | 158890 |
| 4 | 601500V |
| 5 | 158727/10 |
| 6 | 158697 |
2702FG, 2712FG
| 1 | 159684 |
2700FG, 2702FG
| 159056V |


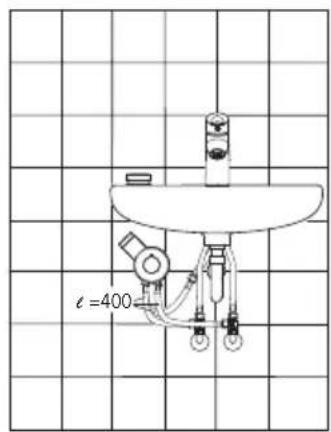

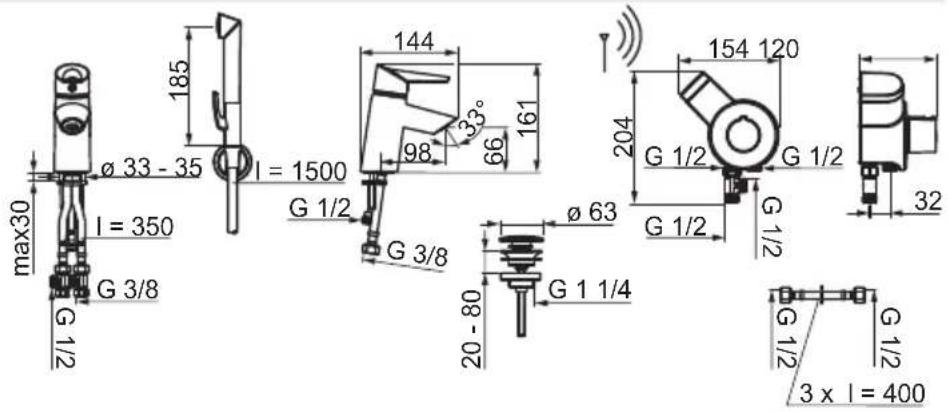

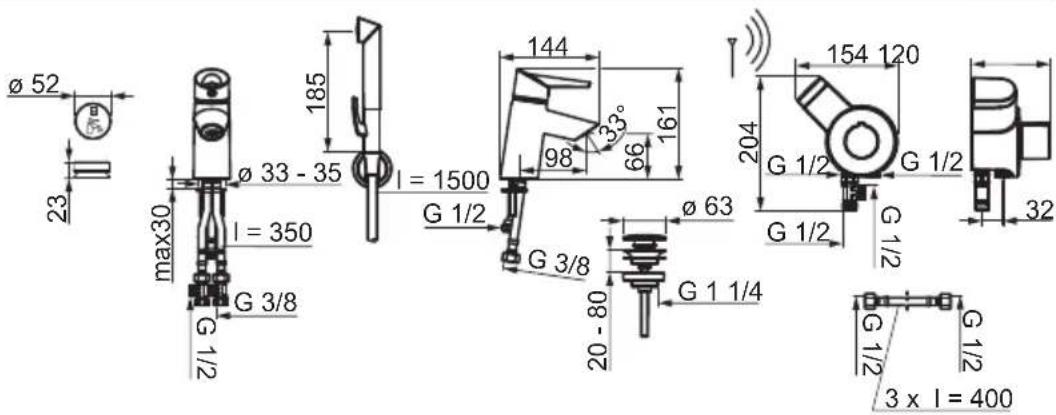

1 2 3 4 5 62701F
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70°C
IP54
AA 1.5V Lithium x 2
CR 2450 3 V
STF VTT-RTH-00063-14
1.42/20420
GODKENDT TIL DRIKKEVAND
Sintef Nr. 3082

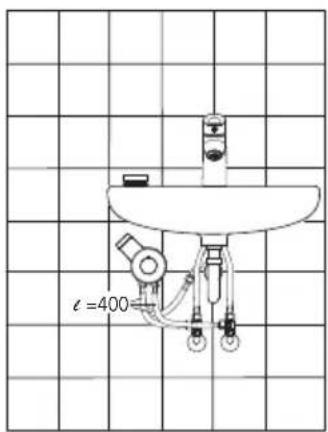

2711F
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70°C
IP54
AA 1.5V Lithium x 2
CR 2450 3 V


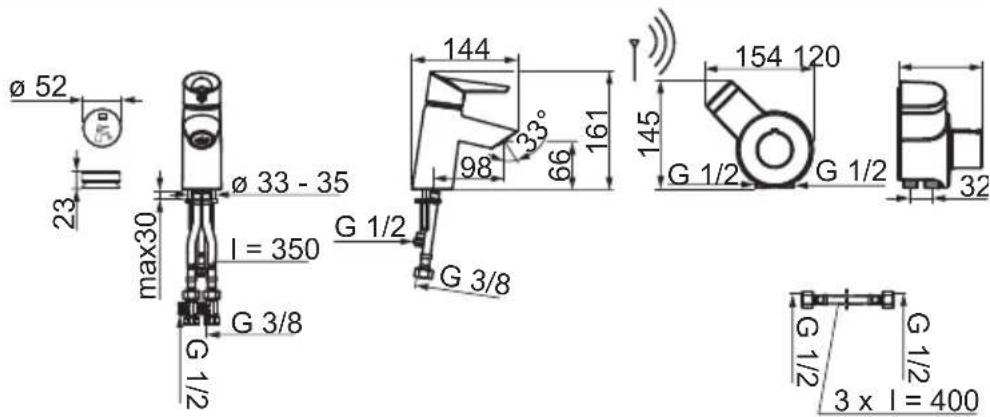

ø 52 23 max30 ø 33 - 35 I = 350 G 1/2 G 3/8 G 1/2 144 98 66 161 145 154 120 G 1/2 G 1/2 32 G 1/2 3 x I = 400
STF VTT-RTH-00063-14
1.42/20420
GODKENDT TIL DRIKKEVAND
Sintef Nr. 3082
2703F
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70°C
IP54
AA 1.5V Lithium x 2
CR 2450 3 V

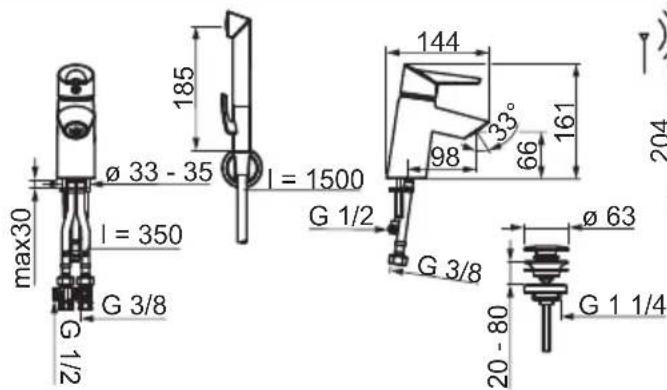

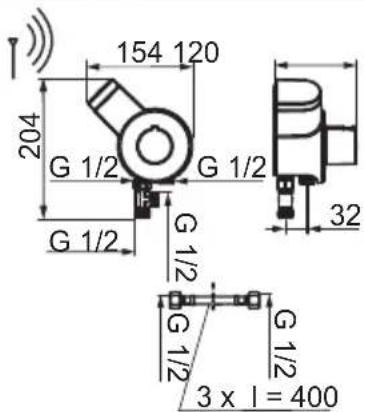

max30 ø 33 - 35 I = 350 G 3/8 G 1/2 185 144 98 66 161 154 120 204 G 1/2 G 1/2 G 1/2 ø 63 G 1 1/4 20 - 80 G 1 1/4 G 1/2 3 x I = 400 32STF VTT-RTH-00063-14
1.42/20420
GODKENDT TIL DRIKKEVAND
Sintef Nr. 3082
(EMC 2004/108/EY)
2713F
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70°C
IP54
AA 1.5V Lithium x 2
CR 2450 3 V


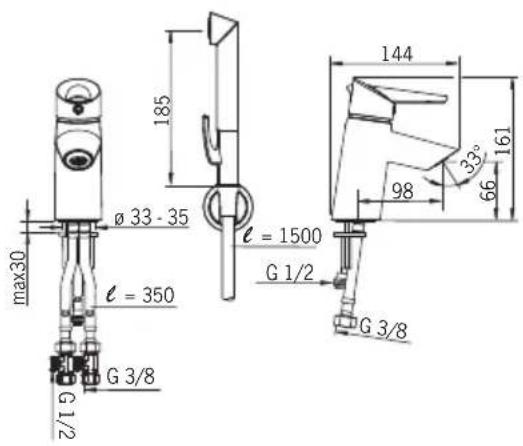

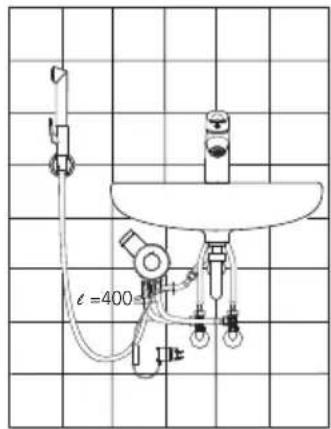

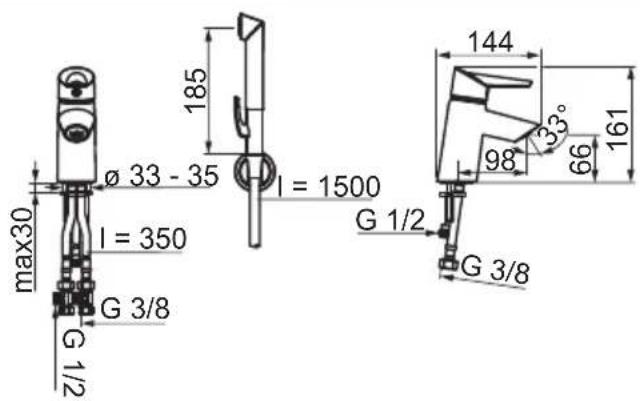

max30 ø 33 - 35 l = 350 G 1/2 G 3/8 185 l = 1500 144 98° 66 33° 161 G 1/2 G 3/8
1.42/20420
GODKENDT TIL DRIKKEVAND
Sintef Nr. 3082
(EMC 2004/108/EY)
2705F
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70°C
IP54
AA 1.5V Lithium x 2
CR 2450 3 V x 2
1.42/20420
GODKENDT
TIL DRIKKEVAND
Sintef Nr. 3082
(EMC 2004/108/EY)
2715F
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70°C
IP54
AA 1.5V Lithium x 2
CR 2450 3 V x 2


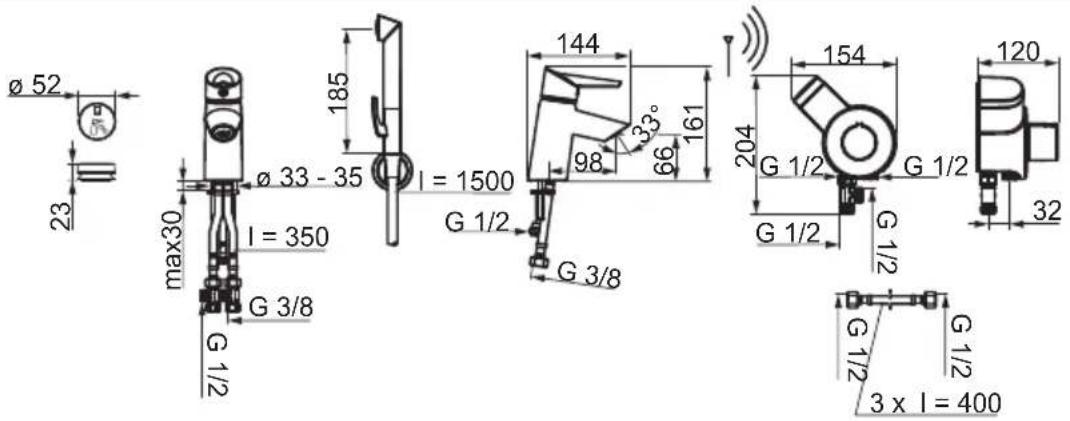

ø 52 23 max30 ø 33 - 35 I = 350 G 3/8 G 1/2 185 144 98 66 161 154 120 G 1/2 G 1/2 G 1/2 G 1/2 3 x I = 400STF VTT-RTH-00063-14
1.42/20420
GODKENDT
TIL DRIKKEVAND
(EMC 2004/108/EY)

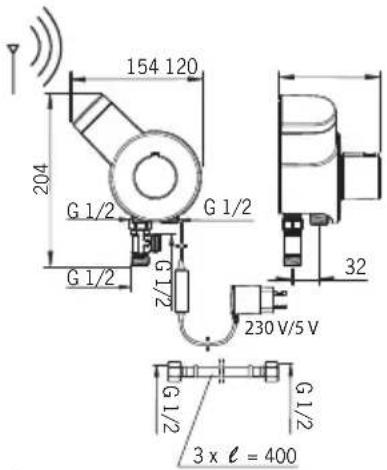

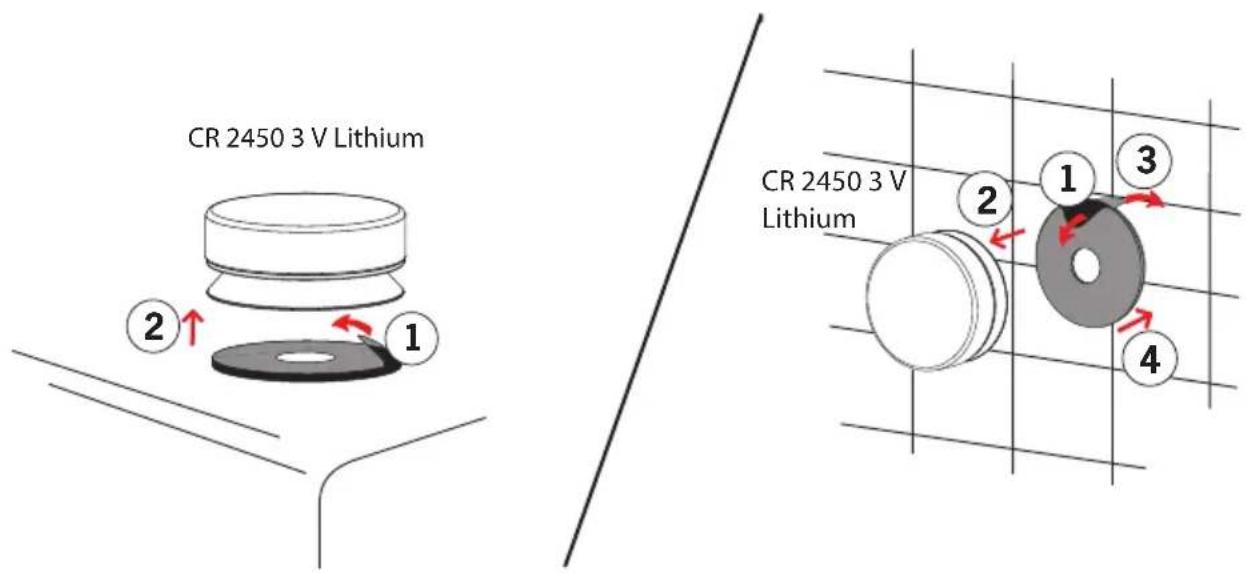

2701FT

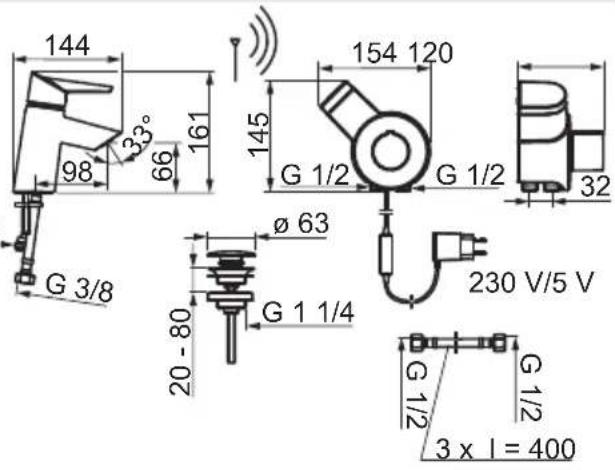

EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70°C
IP54
230 V/5 V
CR 2450 3 V
Sintef Nr. 3082
GODKENDT
TIL DRIKKEVAND
(EMC 2004/108/EY)

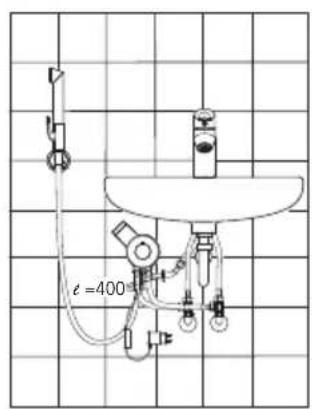

2703FT

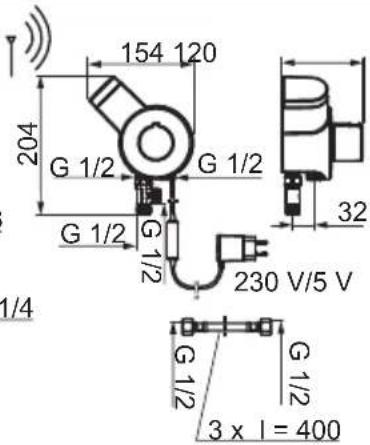

EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70^ C
IP54
230 V/5 V
CR 2450 3 V

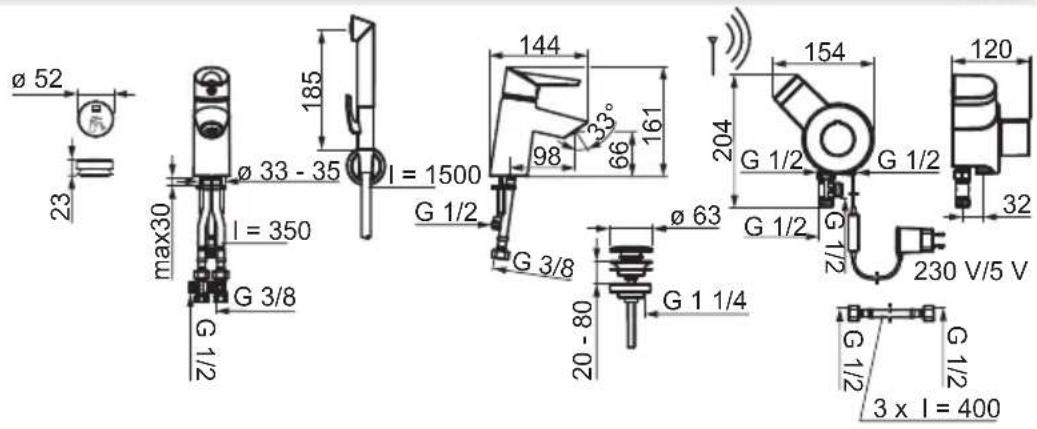

Sintef Nr. 3082
GODKENDT
TIL DRIKKEVAND
(EMC 2004/108/EY)
2705FT
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
max. +70°C
IP54
230 V/5 V
CR 2450 3 V x 2
Sintef Nr. 3082
GODKENDT
TIL DRIKKEVAND
(EMC 2004/108/EY)

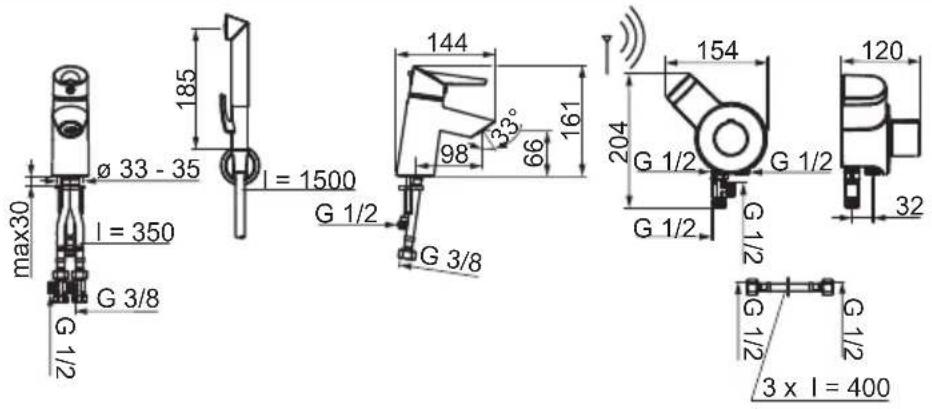

2713FG
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
0.07 l/s (Eco-flow at 300 kPa)
max. +70°C
IP54
AA 1.5V Lithium x 2
CR 2450 3 V
(EMC 2004/108/EY)
1.42/20420
GODKENDT
TIL DRIKKEVAND
2713FGT
EN 817, EN 15091
I (ISO 3822)
100 - 1000 kPa
0.13 l/s (300 kPa)
170 kPa (0.1 l/s)
0.07 l/s (Eco-flow at 300 kPa)
max. +70°C
IP54
230 V/5 V
CR 2450 3 V


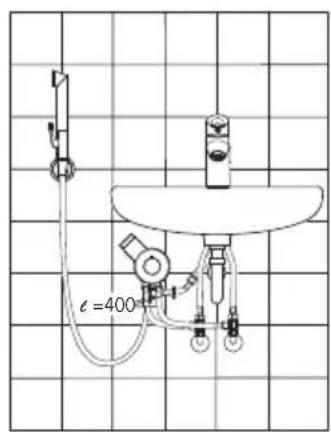

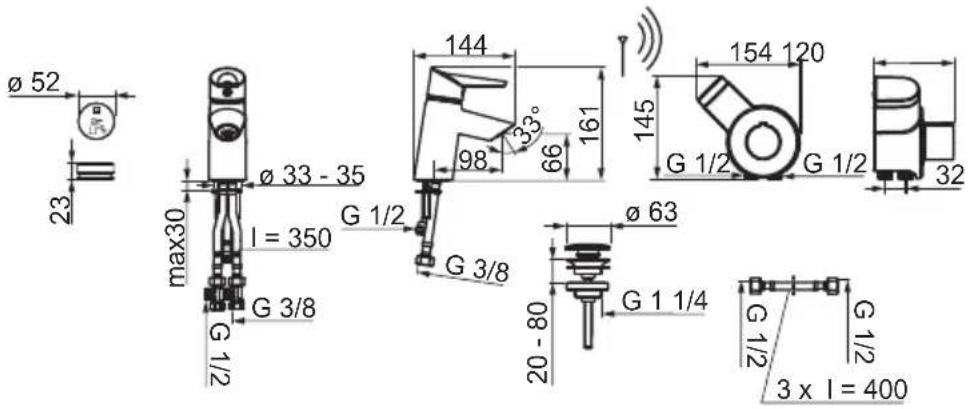

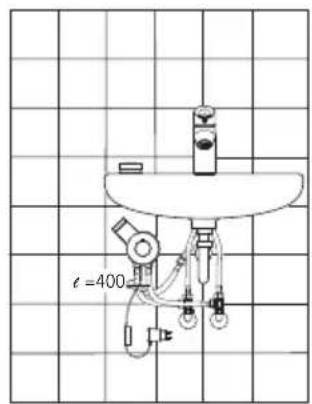

max30 ø 33 - 35 ℓ = 350 G 1/2 G 3/8 185 ℓ = 1500 G 1/2 144 98 33° 66 161 G 3/8


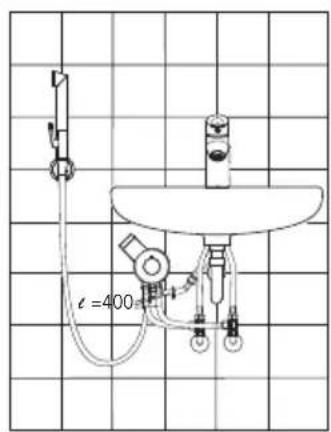

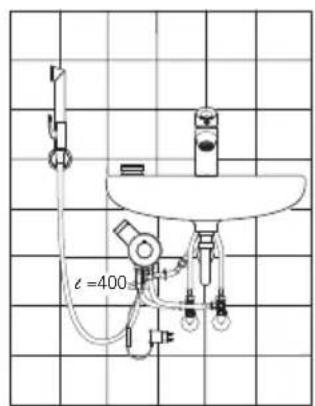

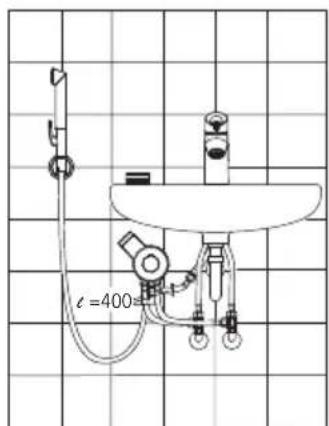

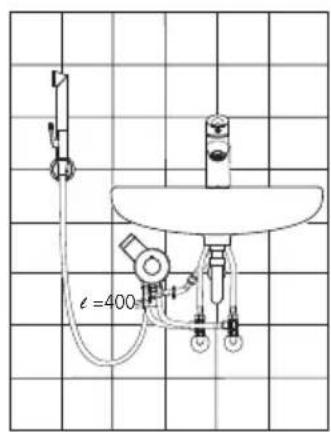

154 120 204 G 1/2 G 1/2 G 1/2 32 230 V/5 V G 1/2 3 x ℓ = 400
(EMC 2004/108/EY)
1.42/20420
GODKENDT TIL DRIKKEVAND

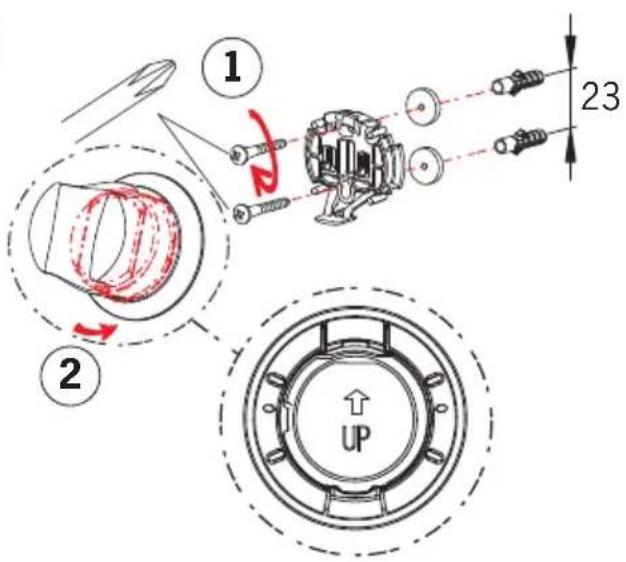

Installation
| CZ Montáž | FI Asennus | NL Installatie | SE Installation |
| DE Montage | FR Installation | NO Montering | SK Inštalácia |
| DK Installation | IT Montaggio | PL Instalacja | UA Встановлення |
| EE Paigaldus | LT Montavimas | RO Instalare | |
| ES Montaje | LV Montāža | RU Установка |

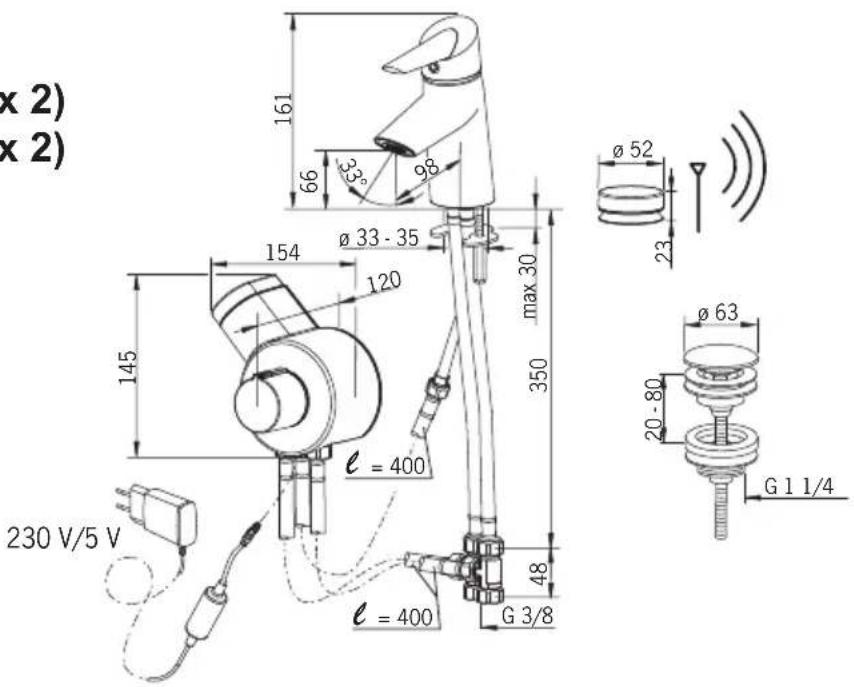

2701F (AA 1.5 V Lithium x 2) 2711F (AA 1.5 V Lithium x 2) 2701FT (230 /5V)
CZ Montáž
FI Asennus
NL Installatie
SE Installation
DE Montage
FR Installation
NO Montering
SK Inštalácia
DK Installation
IT Montaggio
PL Instalacja
UA Встановлення
EE Paigaldus
LT Montavimas
RO Instalare
ES Montaje
LV Montāža
RU Установка
1


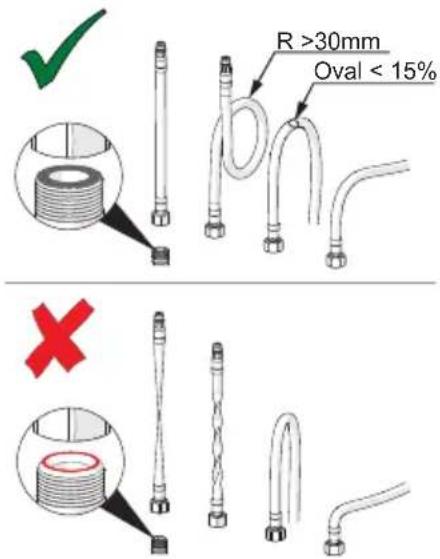

R≥30mm Oval < 15%
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
UA Встановлення

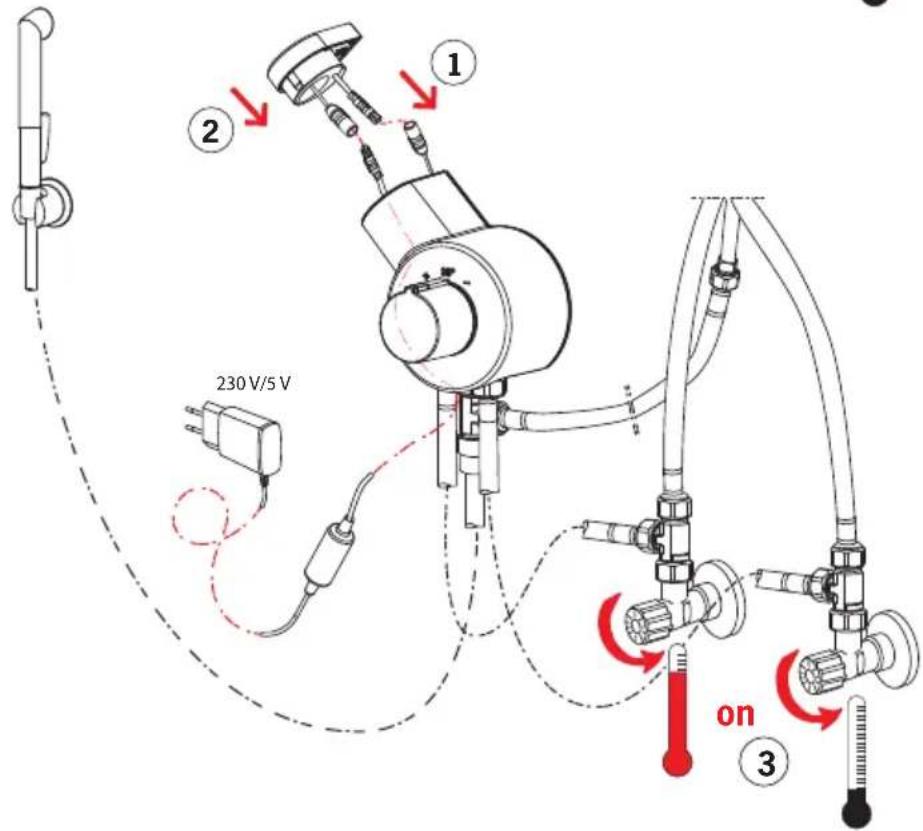

2

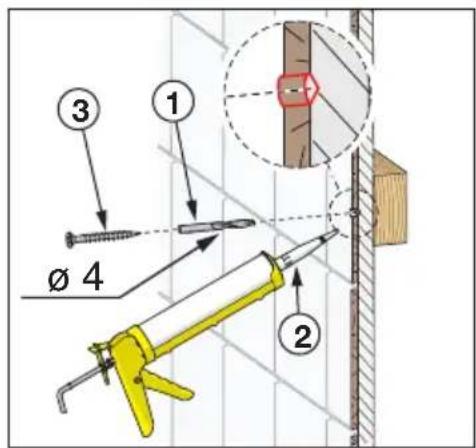

2705F, 2713FG


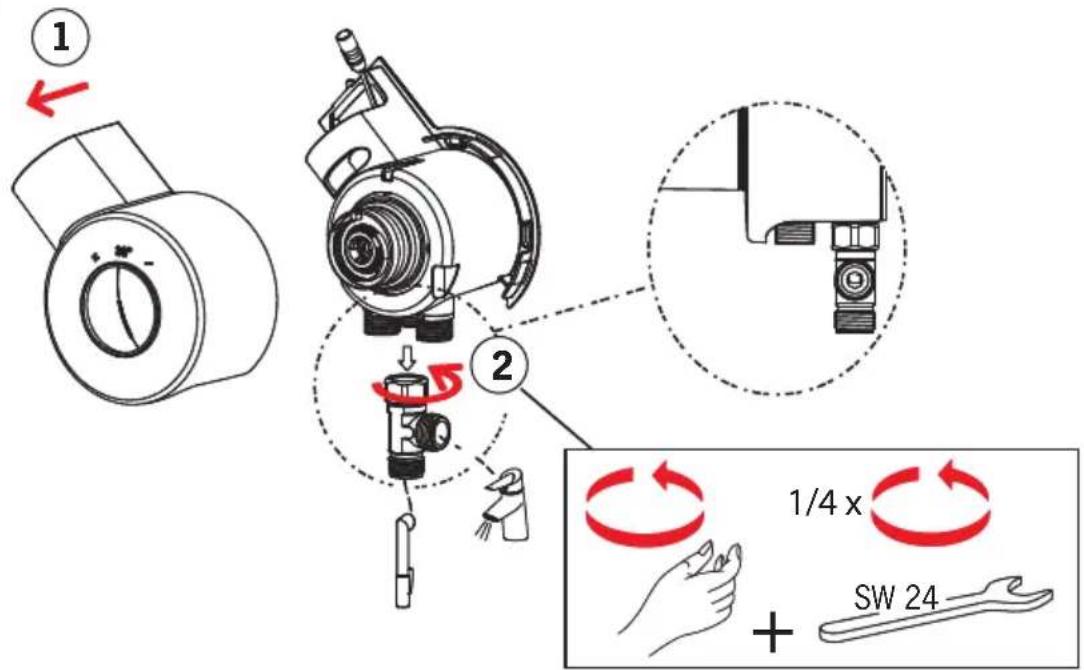

① ② 1/4 x SW 242705FT, 2713FGT


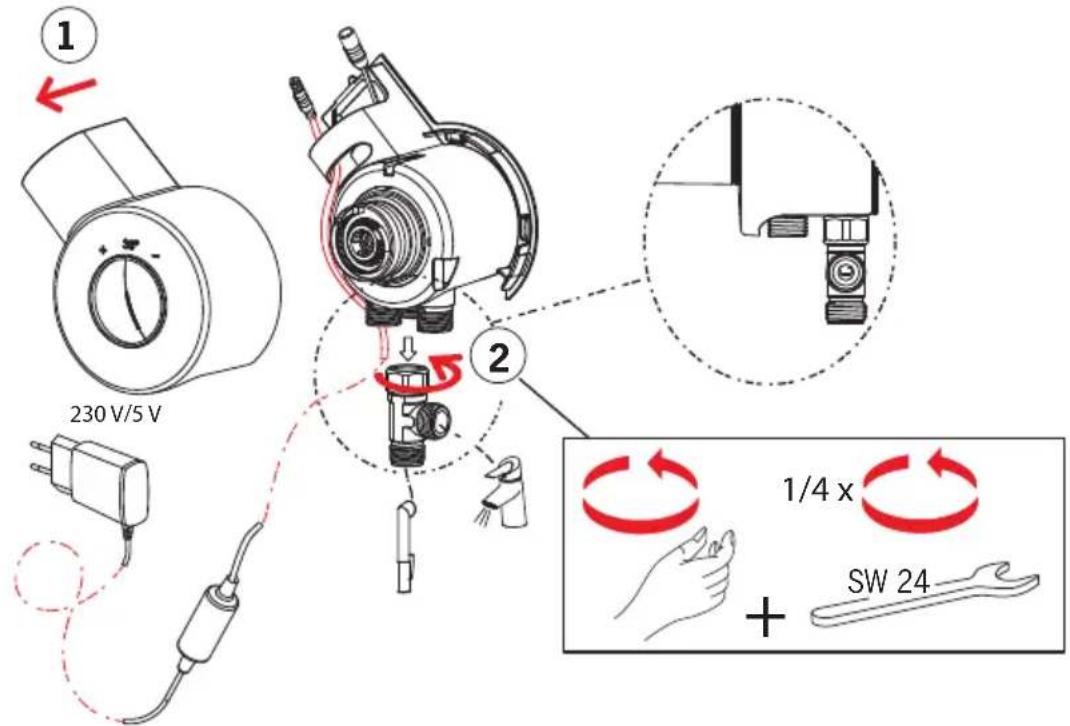

1 230 V/5 V 2 1/4 x SW 24Installation
CZ Montáž
FI Asennus
NL Installatie
SE Installation
DE Montage
FR Installation
NO Montering
SK Inštalácia
DK Installation
IT Montaggio
PL Instalacja
UA Встановлення
EE Paigaldus
LT Montavimas
RO Instalare
ES Montaje
LV Montāža
RU Установка
3


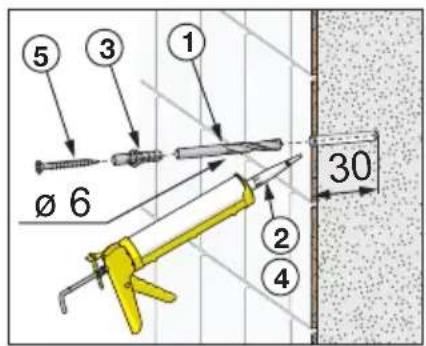

5 3 1 Ø 6 2 4 30 Ø 5 1 2Installation
CZ Montáž
DE Montage
DK Installation
EE Paigaldus
ES Montaje
FI Asennus
FR Installation
IT Montaggio
LT Montavimas
LV Montāža
NL Installatie
NO Montering
PL Instalacja
RO Instalare
RU Установка
SE Installation
SK Inštalácia
UA Встановлення
4


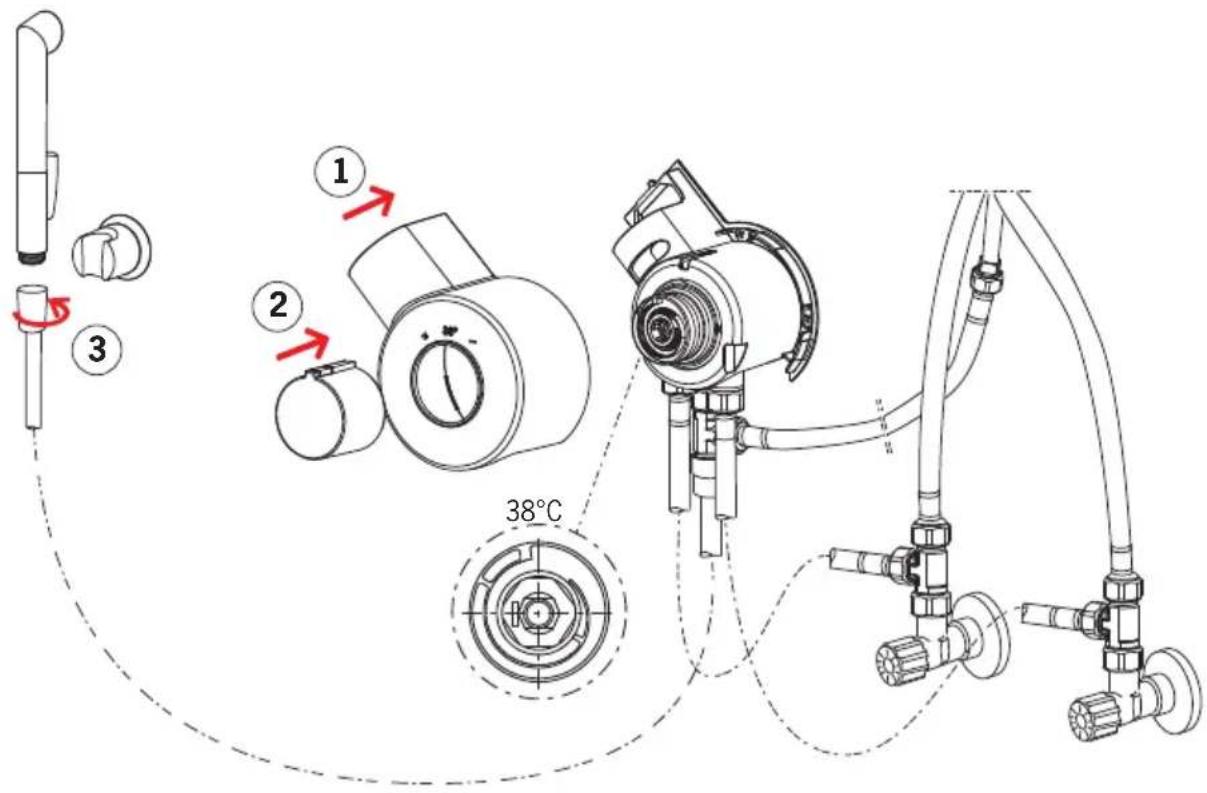

Technical diagram of a mechanical device with numbered components and temperature specificationInstallation
CZ Montáž
FI Asennus
NL Installatie
SE Installation
DE Montage
FR Installation
NO Montering
SK Inštalácia
DK Installation
IT Montaggio
PL Instalacja
UA Встановлення
EE Paigaldus
LT Montavimas
RO Instalare
ES Montaje
LV Montāža
RU Установка

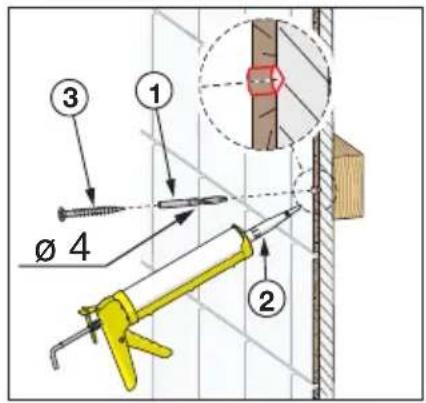

5 2703F, 2713F, 2713FG, 2713FGT, 2703FT, 2705F, 2715F, 2705FT
CR 2450 3 V
Lithium


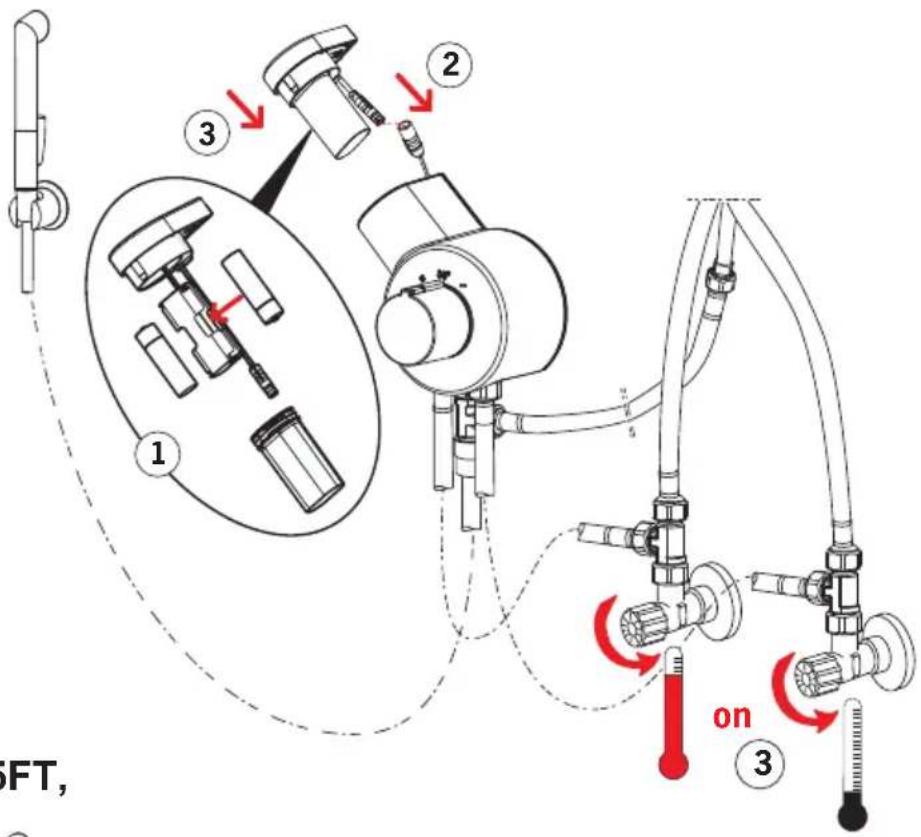

CR 2450 3 V Lithium ② ↑ ① CR 2450 3 V Lithium ① ② ③ ④Installation
| CZ Montáž | FI Asennus | NL Installatie | SE Installation |
| DE Montage | FR Installation | NO Montering | SK Inštalácia |
| DK Installation | IT Montaggio | PL Instalacja | UA Встановлення |
| EE Paigaldus | LT Montavimas | RO Instalare | |
| ES Montaje | LV Montāža | RU Установка |
2701F, 2711F, 2703F, 2713F, 2705F, 2715F, 2713FG (AA 1.5 V Lithium x 2)
CZ Montáž/Funkce
DE Montage/Funktion
DK Installation/Betjening
EE Paigaldus/Toimimine
ES Montaje/Servicio
FI Asennus/Toiminta
FR Installation/Utilisation
CZ Vypláchnutí
DE Spülen
DK Gennemskyldning
EE Loputama
ES Aclarar
FI Huhtelu
FR Rinçage
IT Spurgo
LT Praplovimas
LV Skalošana
NL Spoelen
NO Rengjøring
PL Płukania
RO Spălare
RU Промывка
SE Renspolning
SK Vypláchnutie
UA Промивання
CZ Funkce
DE Funktion
DK Betjening
EE Toimimine
ES Servicio
FI Toiminta
FR Utilisation
IT Funzionamento
LT Veikimo principas
2701F, 2711F, 2701FT, 2705F, 2715F, 2705FT
3
2703F, 2713F, 2703FT, 2713FG, 2713FGT, 2705F, 2715F, 2705FT
CZ Omezeni průtoku
CZ Výména kartuše

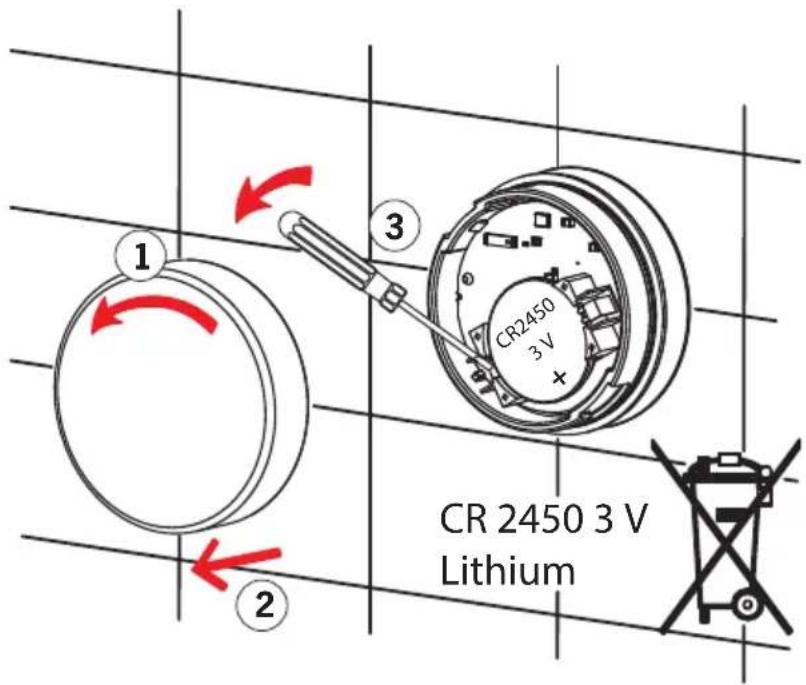

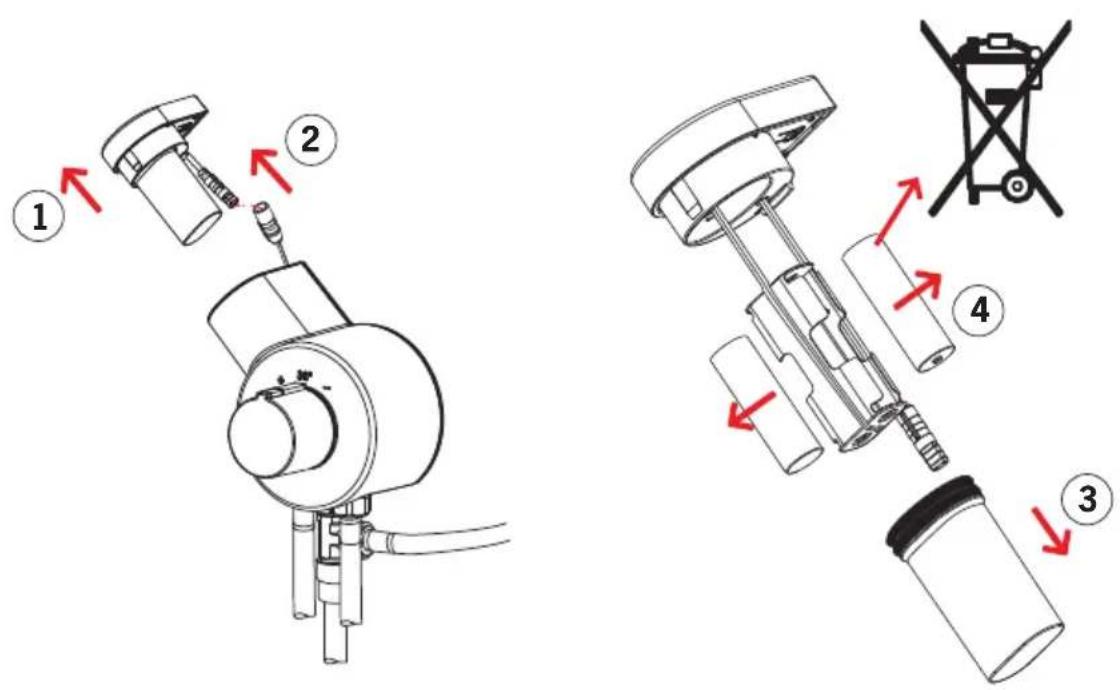

Changing the battery
CZ Výměna baterie


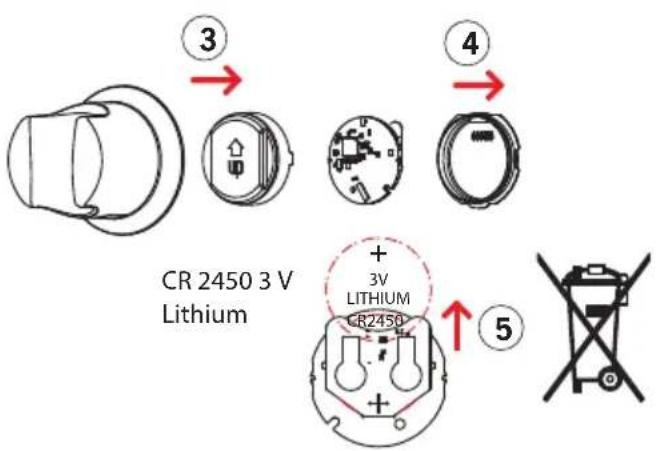

CR 2450 3 V Lithium ③ ④ ⑤ + 3V LITHIUM CR2450Changing the battery
CZ Výměna baterie


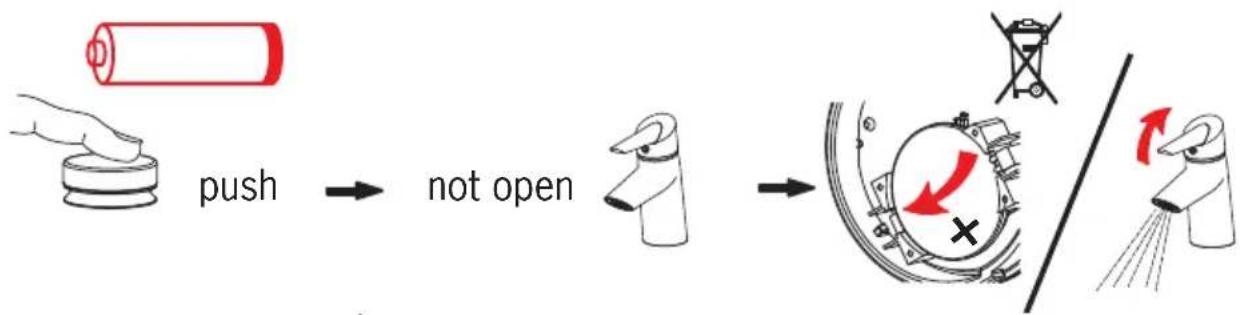

push open
2
CZ Výměna baterie
2
CZ Změna hodnot předem nastavených výrobcem
DE Änderung der Werkseinstellungen
DK Ændring af fabriksindstillinger
EE Tehaseseadete muutmine
ES Cambio de los ajustes de fábrica
FI Tehdasasetusten muuttaminen
FR Changement du réglage d'usine
IT Modifiche delle regolazioni di fabbrica
LT Gamyklinių nustatymų pakeitimas
1 601319V
2 159053V
3 158726
4 158890
5 601500V
6 158727/10
7 158697
8 159684
9 159048V
10 178780V
11 178796V
12 601307V
13 601512V
14 601590V
15 600599V
16 601468V
17 601616V
18 159056V (2703F, 2705F)


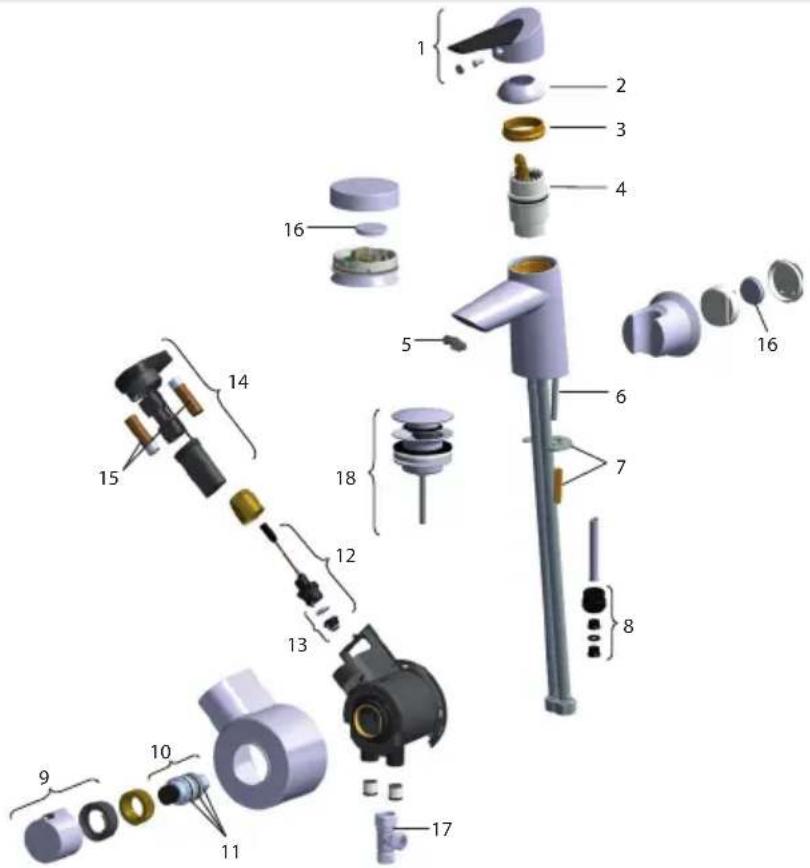

Exploded view diagram of a mechanical device with numbered parts for identificationSpare parts
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad
1 601319V
2 159053V
3 158726
4 158890
5 601500V
6 158727/10
7 158697
8 159684
9 159048V
10 178780V
11 178796V
12 601307V
13 601512V
14 601669V
15 601472V
16 601468V
17 601616V
18 159056V
CZ Náhradní díly
DE Ersatzteile
DK Reservedele
EE Varuosad


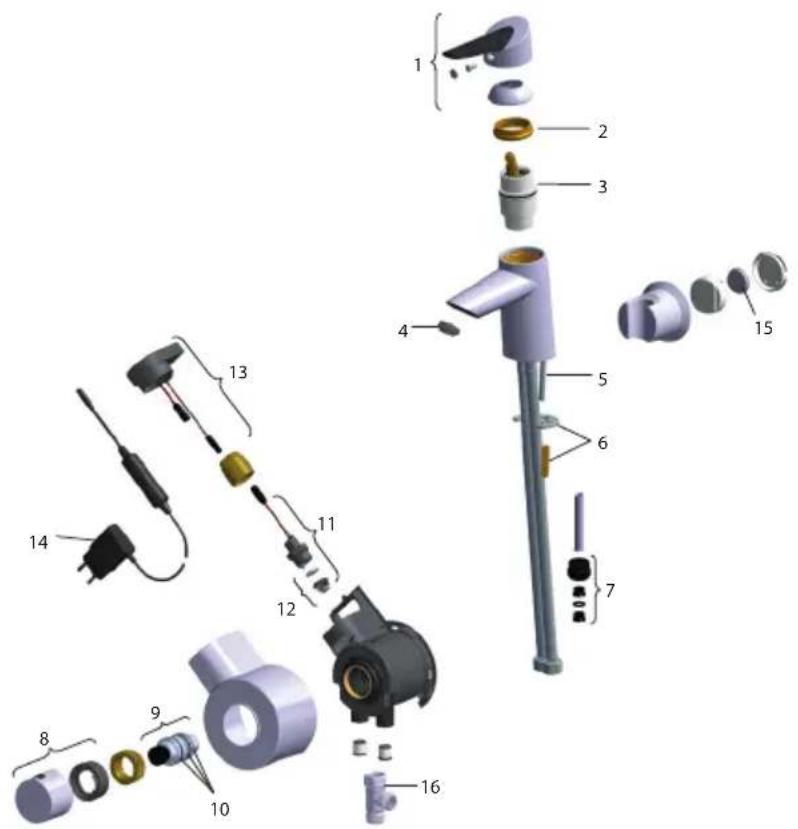

Exploded view diagram of a cleaning or repair device with numbered parts for identification2713FGT
1 601864V (Eco)
2 158726
3 158890
4 601500V
5 158727/10
6 158697
7 159684
8 159048V
9 178780V
10 178796V
11 601307V
12 601512V
13 601669V
14 601472V
15 601468V
16 601616V
The head office of the Group is located in Rauma, Finland, and the Group has four manufacturing sites: Burglengenfeld (Germany), Kralovice (Czech Republic), Olesno (Poland) and Rauma (Finland). Oras Group employs approximately 1400 people in twenty countries. Oras Group is owned by Oras Invest, a family company and an industrial owner.
ORAS GROUP
Isometsäntie 2, P.O. Box 40
Fl-26101 Rauma
Tel. +358 2 83 161
Fax +358 2 831 6300
info.finland@oras.com
www.oras.com
