Product Type	Curved rail for dolly systems
Brand	Libec
Model	CR-90
Number of Rail Sections	4 outer rails, 2 inner rails (curved)
Accessories Included	Rail end rubber caps (2 pcs), wrench (2.5mm)
Compatible Dolly	Libec TR-320 (with caution for leg placement)
Track Configuration	Straight and curved sections joinable; S-curves and cranks not allowed
Adjustment	Pipe height adjustable via wrench on upper/lower screws
Safety Features	Rail fixing bar and rubber caps must be installed to prevent derailment
Usage Surface	Flat ground only
Cleaning	Wipe with damp cloth after use; keep dry, especially after seaside use
Storage	Disassemble rails and store in case; mark orientation for easy assembly
Warranty	Refer to manufacturer
Manufacturer	Heiwa Seiki Kogyo Co., Ltd., Japan
Website	http://www.ibec.co.jp

Frequently Asked Questions - CR-90 Libec

What is the Libec CR-90?

The Libec CR-90 is a curved rail used in dolly track systems, allowing smooth curved camera movements.

How do I install the CR-90 curved rail?

Remove the screw cap, ensure marked colors match between male and female threads, adjust pipe position using the included wrench, and always attach rubber caps at the ends.

Can I use the CR-90 with any dolly?

It is specifically designed for use with the Libec TR-320 dolly. When using TR-320, one leg must be on the inner rail and the rest on the outer rail.

What happens if I ignore the leg placement warning?

Ignoring the leg placement may cause derailing or collapsing of the equipment.

Can I create S-curves or cranks with the CR-90?

No, the CR-90 does not support S-curves or crank configurations.

How do I clean and maintain the CR-90?

After use, wipe with a damp cloth. For seaside use, ensure it is dried thoroughly to prevent salt corrosion.

How should I store the CR-90?

Disassemble the rails and place them in the case. It is recommended to store them with marked indication upwards for easy reassembly.

What accessories are included with the CR-90?

The package includes rail end rubber caps (2 pcs) and a 2.5mm wrench stored in the dolly case pocket.

Is the CR-90 suitable for outdoor use?

Yes, but it must be placed on flat ground and not left unattended. After outdoor use, especially near salt water, clean and dry thoroughly.

Where can I find the full user manual?

The manual is available on notice-facile.com or the manufacturer's website http://www.ibec.co.jp.

USER MANUAL CR-90 Libec

Before operating this equipment, please read this manual carefully and retain this for future reference.

This equipment may cause harmful, if not installed

and used in accordance with this manual.

- Please read careful this manual before using.

- Please follow this instruction for your safety reason.

Attention to users

CAUTION

This equipment may cause harm,

if not installed and used in accordance with following instructions.

■ Make sure that Rail fixing bar and rubber cap is properly installed in both side.

In case not to properly installed which cause derail or harmful to equipments and operators.

■Caution of usage for CR-90 curved rail.

Read the manual before usage of this equipment.

In case not to properly installed which cause derail or harmful to equipments and operators.

■ Not to operate unless otherwise stated on this manual.

■ Do not dismantle or remold which cause breakdown of this equipment or harmful to users.

Caution for users

1. Please check the surrounding safety before install CR-90.

2. Please confirm the place of setup for the rail must be on flat ground.

3.Do not leave the equipments without human attention.

4.Wipe the equipments on wet towel after usage and properly keep. Keep dry after the usage at the sea side which contains salt elements.

Install the CR-90

1. Remove the Screw cap.

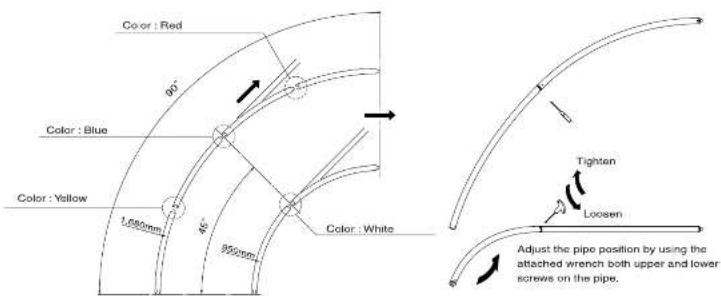

2. The marked color must be same for conjunction between male and female screw.

See the drawings for further application.

3.In case the joined pipes are not parallele to the ground.

Adjust the pipe position by using the attached wrench both upper and lower screws on the pipe.

※ It is necessary to adjust only one time for such event.

1. It is depending on the operation purpose how to put the rail on the ground.

5.Joint to straight rail.

Joint by straight rail male screw into curved rail female screws.

1. Insert the end rubber cap into the edge of curved rail at the end.

2. When install the curved rail into the straight, the rubber cap attachment must be at the end.

3. Make sure that rubber foot is all equipped at the end of pipe and put the fixing brace.

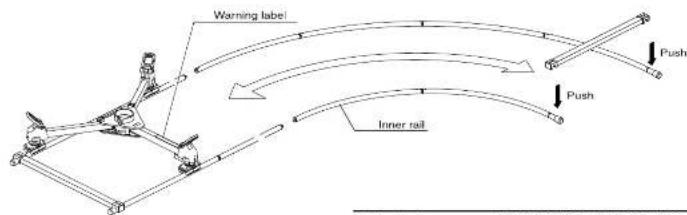

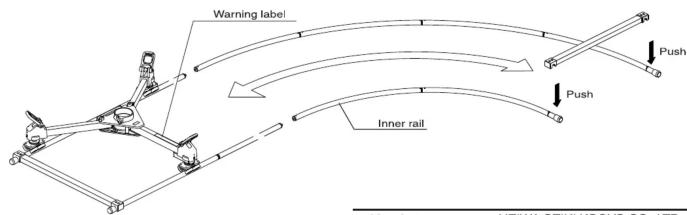

Caution for usage of curved rail CR-90

1. When the TR-320 is used for CR-90, the indicated caution label

dolly leg must be put on to the inner rail. In case ignore this

instruction, it will cause derailing or collapsing of equipments.

1. The rest legs are put on to the outer rail.

WARNING Ignore this instruction may cause derailing or collapsing of equipments. "S" curve and crank cannot be operated by the equipment.

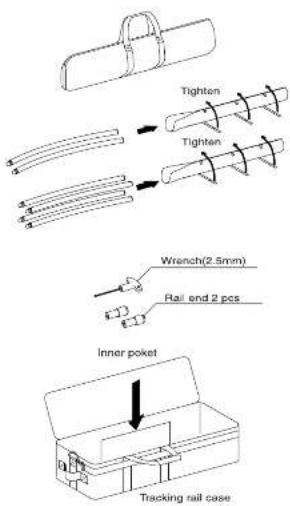

Strage of CR-90

1. Disassemble the rails and put into the case.

※ It is recommended to store marked indication upwards in the case for easy manipulation.

2.A wrench and end cap can be stored inside pocket of dolly case.

Description of CR-90

Install the CR-90

Color positions

Caution for usage of curved rail CR-90

Manufacturer :

http://www.libec.co.jp

HEIWA SEIKI KOGYO CO., LTD.

978-1, Nishibukuro, Yashio, Saitama, Japan 340-0833 TEL: [phone] EAX: 048-997-0804
