Product Type	Studio Softbox
Brand	Quantum
Model	QF76
Dimensions	10 x 24 inches (strip box)
Weight	Approx. 2.5 lbs (1.1 kg)
Material	Fabric with metal frame and rods
Included Components	Softbox, rods, diffuser with silver deflector, speedring with bracket, adjustable shoe mount bracket, swivel bracket
Mount Type	Speedring mount compatible with standard studio flashes; adjustable shoe mount for on-camera flash
Compatibility	Compatible with Quantum and other standard flash units using speedring or shoe mount
Diffuser Type	Front diffuser with silver deflector for softer light
Assembly	Requires insertion of rods diagonally; rear Velcro closure
Disassembly	Pull rods upward to remove
Adjustability	Swivel adjustment via bracket; forward/backward positioning of flash head
Use	For studio photography, video lighting; attaches to light stand or camera bracket
Country of Origin	USA (Quantum Instruments Inc., Hauppauge NY)
Warranty	Refer to manufacturer documentation

Frequently Asked Questions - QF76 QUANTUM

How to assemble the softbox rods?

Insert the rods diagonally into the speedring. When inserting the last rod, press it and insert as shown in fig. 1.

How to attach the speedring?

Check the direction of the speedring before inserting the rods. Ensure the Velcro strap on the rear part of the softbox is correctly placed on the bracket. The black bracket side should face backward of the softbox (fig. 2-4).

How to mount the softbox to a light stand?

After attaching the flash onto the shoe or screw, mount the assembled softbox to a light stand or camera bracket using the adjustable shoe mount bracket (fig. 7).

How to position the flash head inside the softbox?

Move the flash forward or backward into the softbox rear aperture to position it correctly, then secure with the locking screw (fig. 8).

What is the purpose of the diffuser with silver deflector?

The diffuser covers the front of the softbox to soften and spread the light evenly. The silver deflector helps control light direction and reduces spill.

How to disassemble the softbox?

To disassemble, take a rod and pull it upward to remove. Repeat for all rods (fig. 1).

Can I use this softbox with other flash brands?

Yes, as long as the flash has a compatible speedring or shoe mount. The included speedring and adjustable shoe mount bracket are designed for standard studio flashes.

How to close the rear part of the softbox?

Close the rear part of the softbox by using the Velcro strap provided (fig. 4).

What are the dimensions of the QF76 softbox?

The QF76 is a strip box measuring 10 inches by 24 inches.

How to clean and maintain the softbox?

The manual does not specify cleaning instructions. As a general rule, use a soft, dry cloth to gently wipe the fabric and frame. Avoid using solvents or abrasive cleaners. Store in a dry place.

USER MANUAL QF76 QUANTUM

B: Softbox with rods

C: Diffuser with Silver deflector

D: Speedring with bracket

E: Adjustable shoe mount bracket with swivel bracket

2. Assembling order of speedring in the type of softbox

Pure mechanical component diagram without any text, numbers, or symbols

Strip Box (#QF76 10x24")

Pure mechanical component diagram without any text, numbers, or symbols

Octagon Softbox (QF75 26")

Check the direction of the speedring before inserting

the rods.

Check the Velcro strap attached on the rear part of sofbox is on the right place of the bracket.

See the fig. #2, 3 and 4. The black bracket side should face backward of softbox

QUANTUM INSTRUMENTS INC.

1

QUANTUM

©

Fig. 5

Diagram of a mechanical device with a rotating component and lever mechanism (no text or symbols)

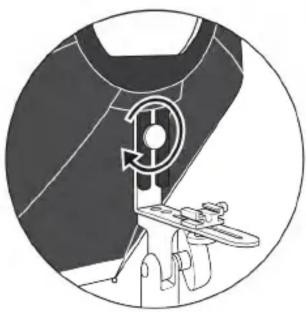

Screw the shoe mounting bracket to the swivel bracket as indicated. See fig. 5
Fig. 6

Line drawing of a 3D studio lighting setup with octagonal frame and camera lens (no text or symbols)

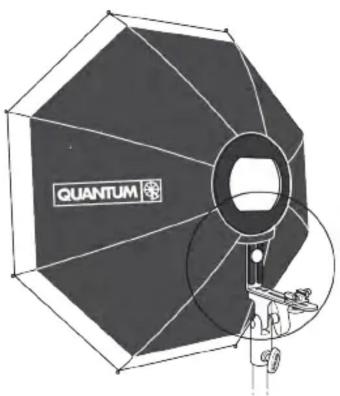

Cover the front of Softbox with the included diffuser with silver deflector. See fig. 6

Fig. 1

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Assembling : Insert rods in diagonal direction and when inserting the last one, press it and insert as the fig. 1 on the left.

Disassembling : Take a rod and pull it by pulling upward.

Close-up of a metallic key inserted into a dark jacket (no text or symbols visible)

Fig. 2

Close-up of a metallic tool with a white head and handle, partially covered by dark fabric (no text or symbols visible)

Fig. 3

Close-up of a dark fabric with two white vertical bars, resembling a stylized lamp or mask (no text or symbols visible)

Fig. 4

Close the rear part of softbox by using the Velcro strap.

QUANTUM INSTRUMENTS INC.

2

QUANTUM

Fig. 7

Diagram of a sewing machine needle with a circular outline, showing no text or symbols

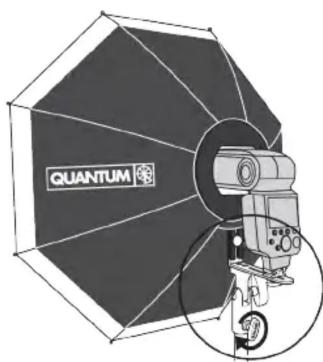

After attaching the flash onto the shoe or screw, mount the assembled softbox to a light stand or camera bracket to use. See fig. 7

Illustration of a hand using a camera to adjust a targeting device labeled 'QUANTUM' (no additional text or symbols)

Fig. 8

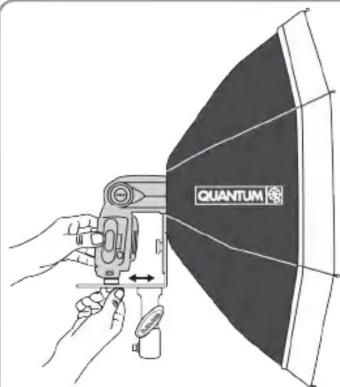

To position the flash head correctly into the softbox rear aperture, move the flash forward or backward and then secure with the locking screw. See fig. 8

To keep pace with our continued design and development this product may be modified by Quantum Instruments, Inc at any time.
