USER MANUAL Casa 3 Stompa

N Gavler
GB Gable ends
D Giebelbretter

Art.nr. A003

N Sengeramme
GB Bedframe
D Bettrahmen

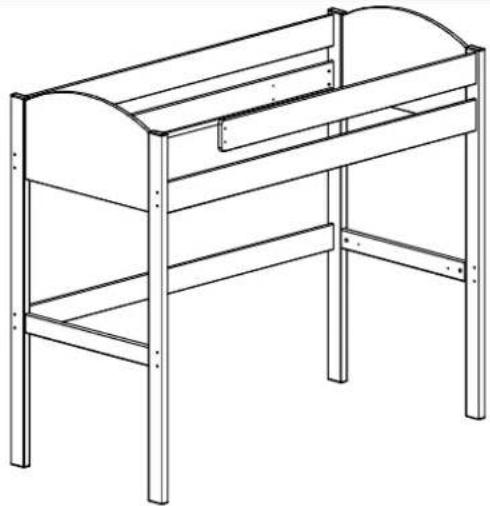

Stompa Casa 3 - Art.nr. A003 - 1

natural_image Line drawing of a simple metal bench structure with no text or symbols

Stompa Casa 3 - Art.nr. A003 - 2

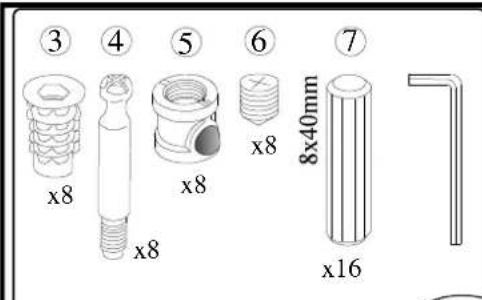

text_image ③ ④ ⑤ ⑥ ⑦ x8 x8 x8 8x40mm x16

Stompa Casa 3 - Art.nr. A003 - 3

natural_image Diagram of two stacked curved panels with a labeled point H (no text or symbols on the panels themselves)

A002

Stompa Casa 3 - Art.nr. A003 - 4

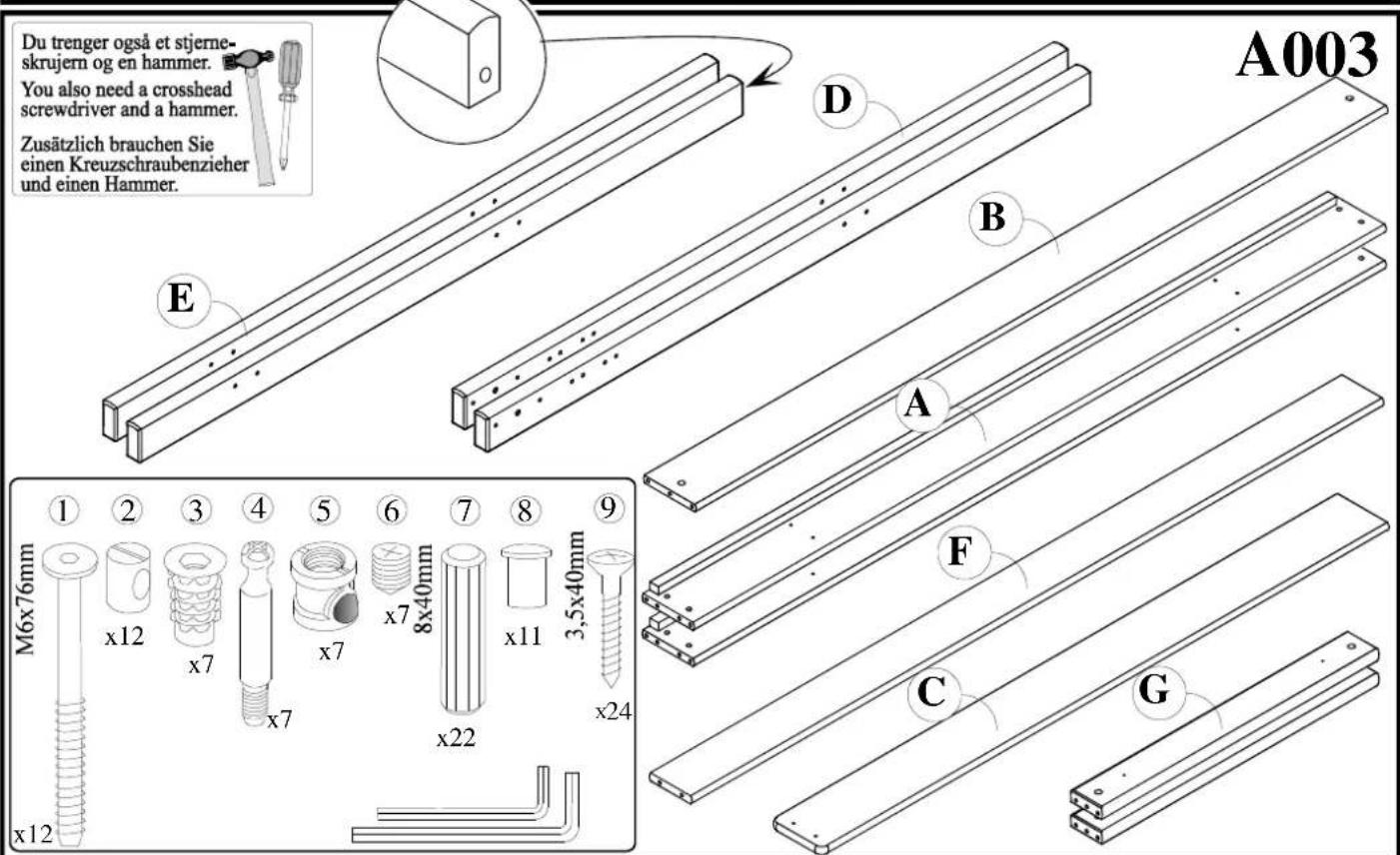

text_image Du trenger også et stjerne- skrujern og en hammer. You also need a crosshead screwdriver and a hammer. Zusätzlich brauchen Sie einen Kreuzschraubenzieher und einen Hammer. A003 D B E A 1 2 3 4 5 6 7 8 9 M6x76mm x12 x7 x7 x7 x7 8x40mm x11 3,5x40mm x22 x24 x12 C G

United Kingdom: If anything should fail to give satisfaction, please contact your STOMPA stockist with details of any problems with the product. Please quote Art number & serial number on any correspondence.

Stompa UK The Old Mill House Dockfield Road, Shipley West Yorkshire, BD17 7AE E-mail: stompa@stompa.co.uk www.stompa.co.uk

Stompa Casa 3 - Art.nr. A003 - 5

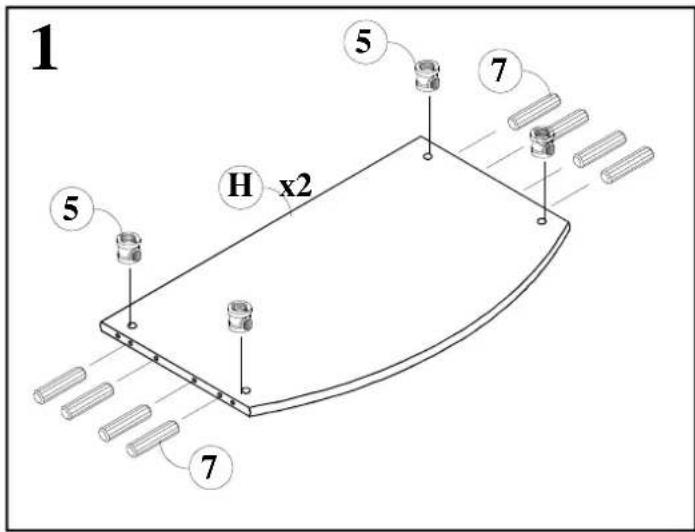

text_image 1 H x2 5 7 5 7

Stompa Casa 3 - Art.nr. A003 - 6

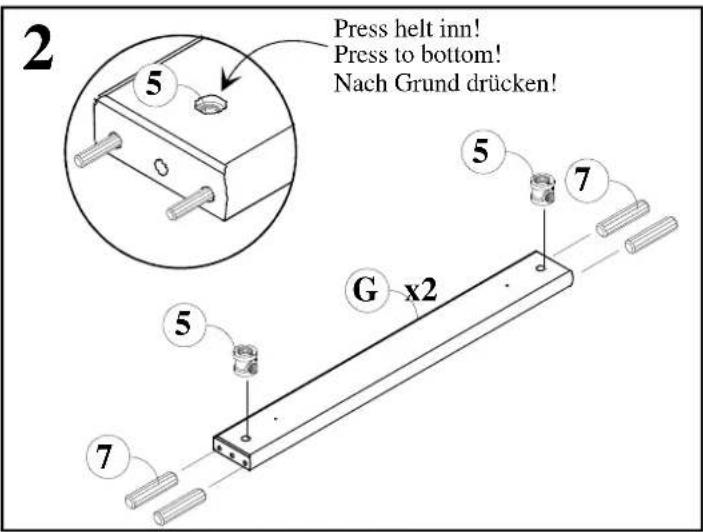

text_image 2 Press helt inn! Press to bottom! Nach Grund drücken! 5 G x2 5 7 5 7

Stompa Casa 3 - Art.nr. A003 - 7

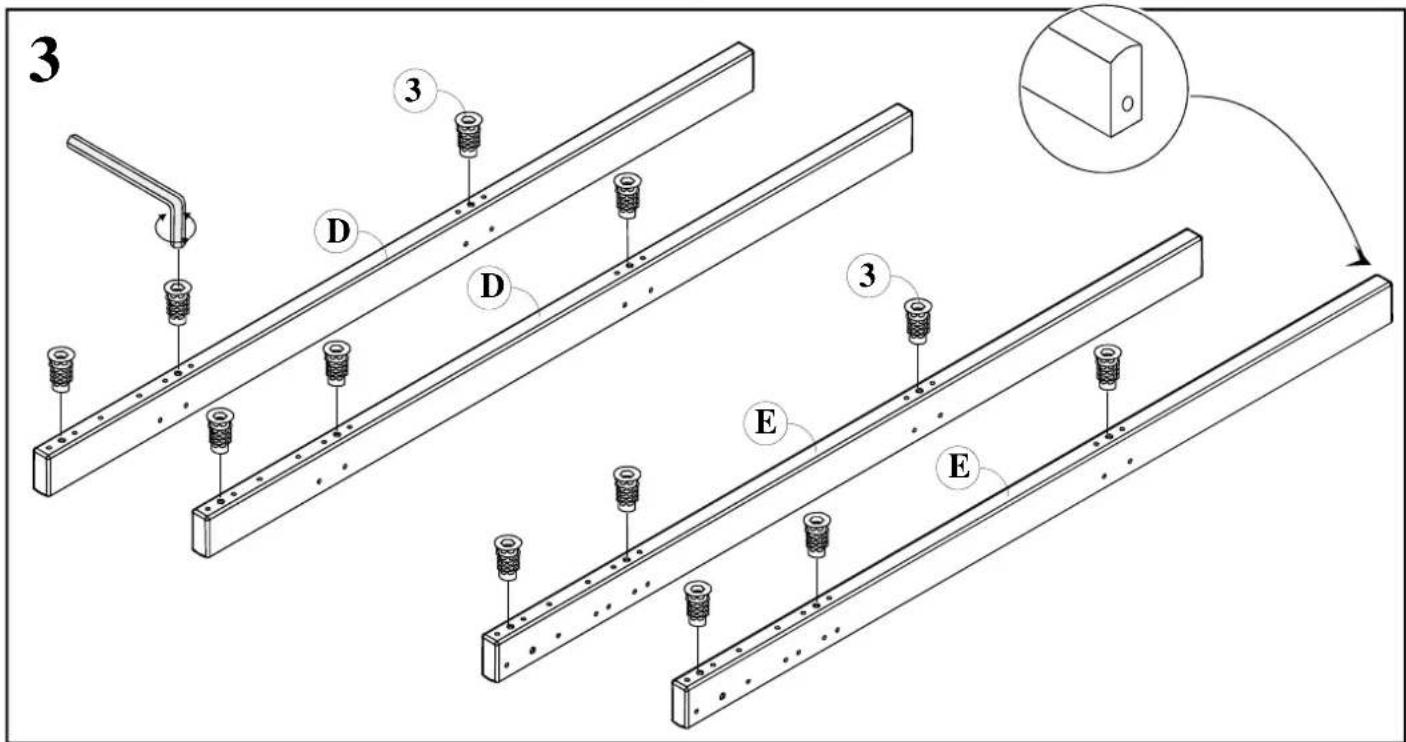

text_image 3 3 D D 3 E E

Stompa Casa 3 - Art.nr. A003 - 8

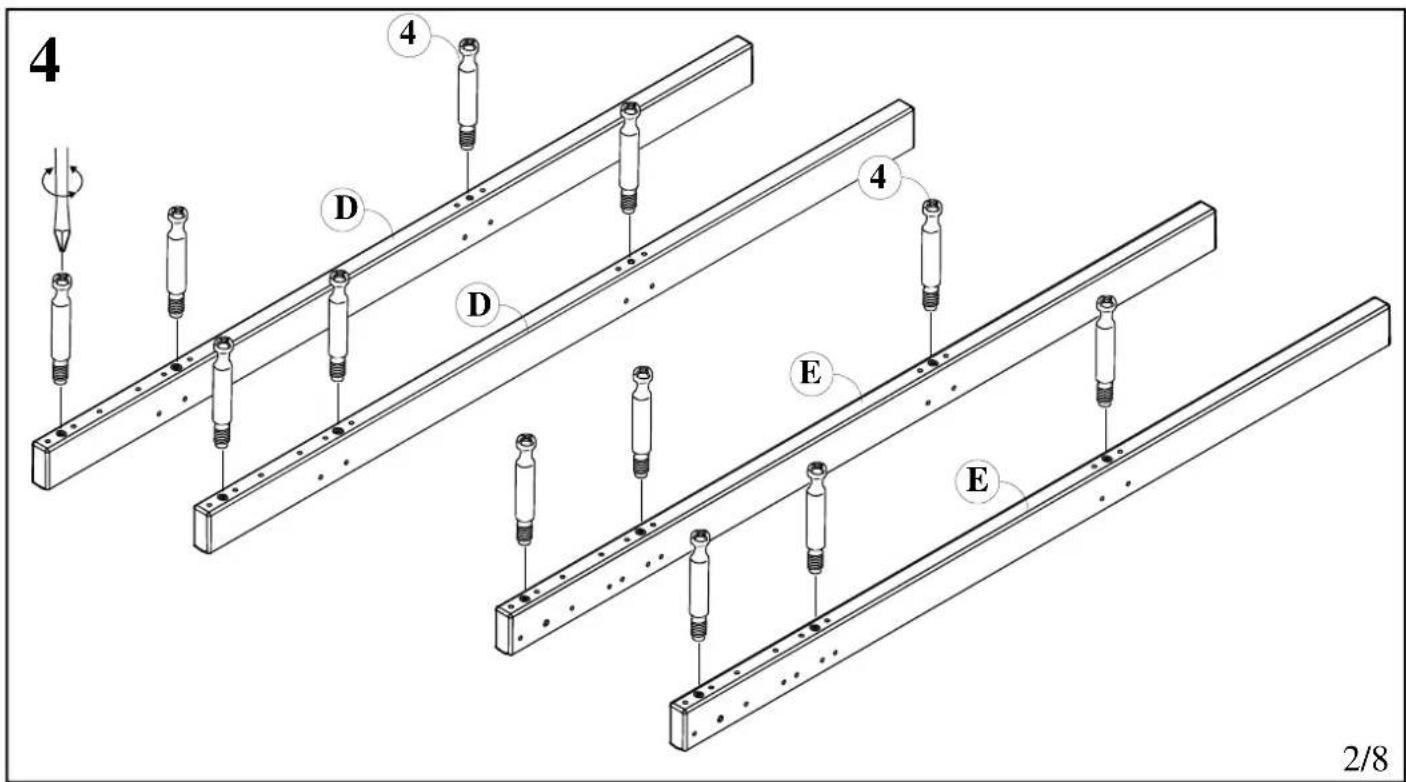

text_image 4 D D 4 E E 2/8

Stompa Casa 3 - Art.nr. A003 - 9

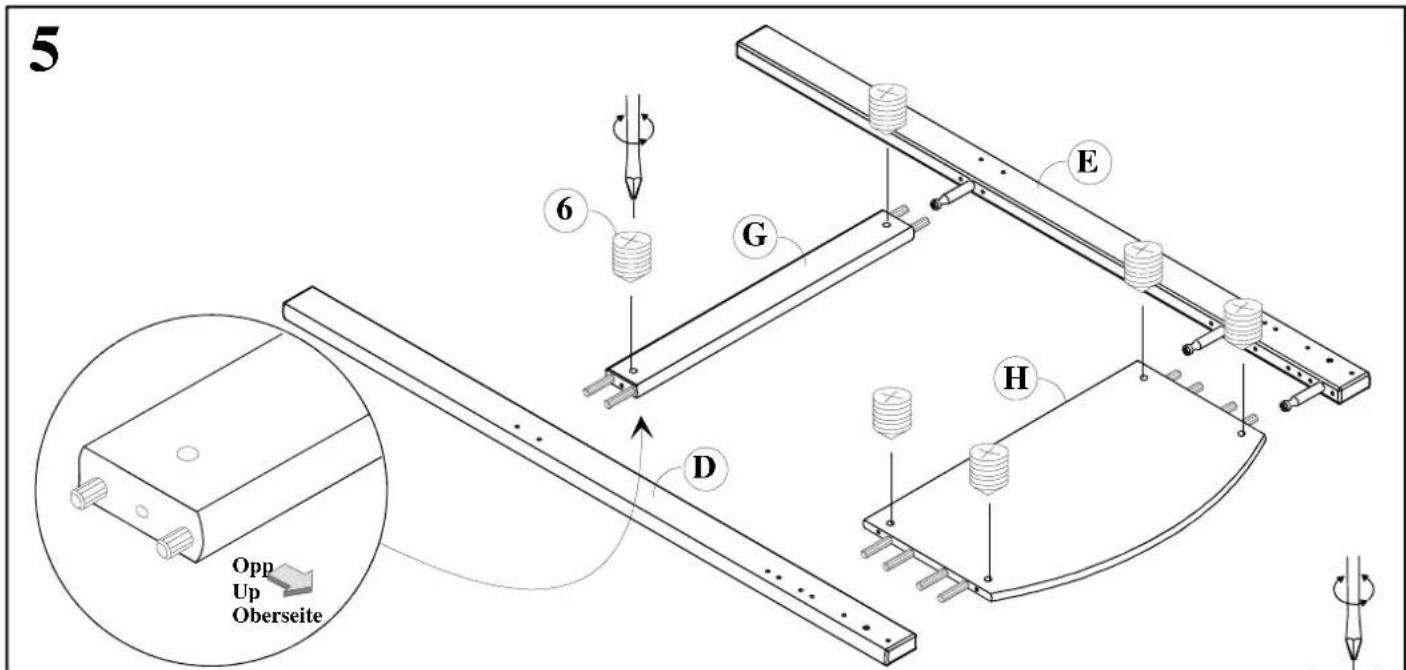

text_image 5 6 G E D H Opp Up Oberseite

Stompa Casa 3 - Art.nr. A003 - 10

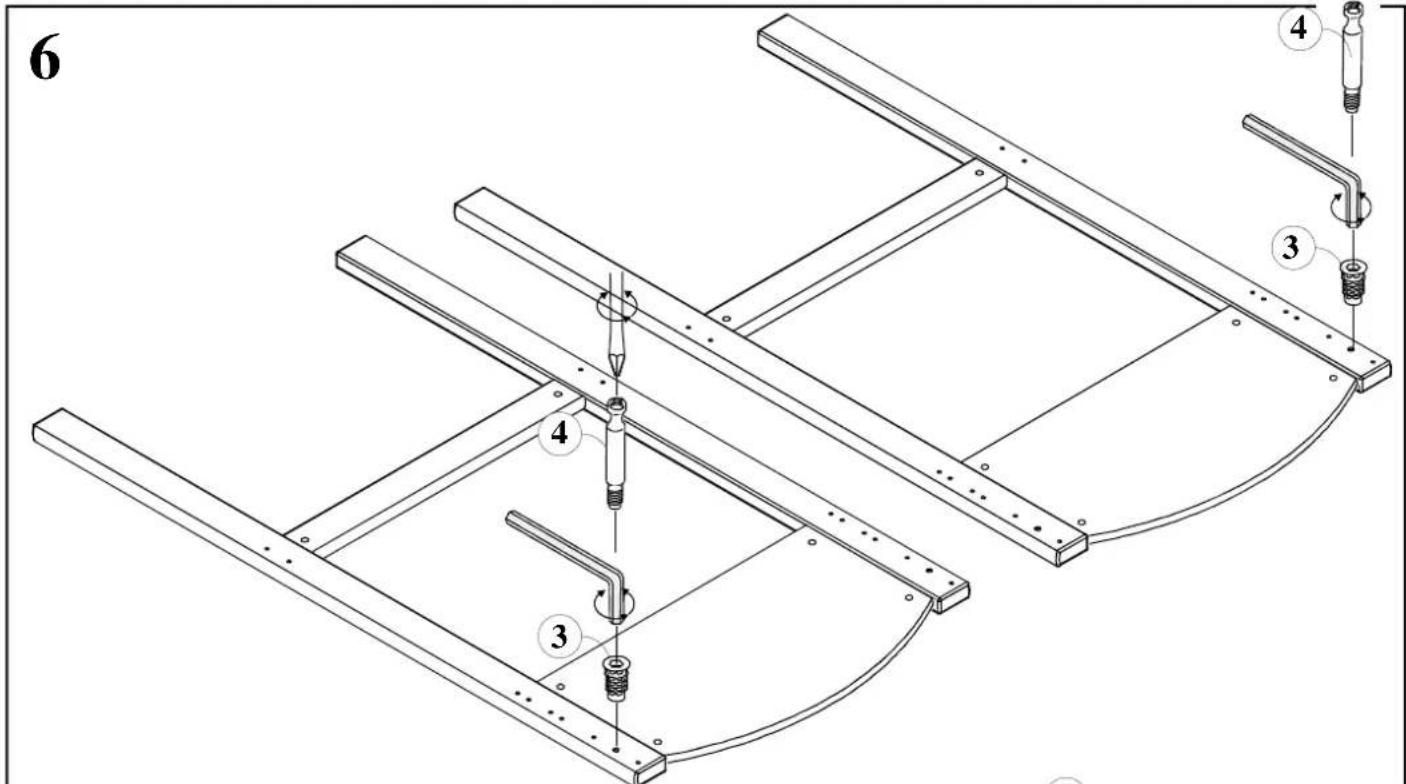

text_image 6 4 3 4 3

Stompa Casa 3 - Art.nr. A003 - 11

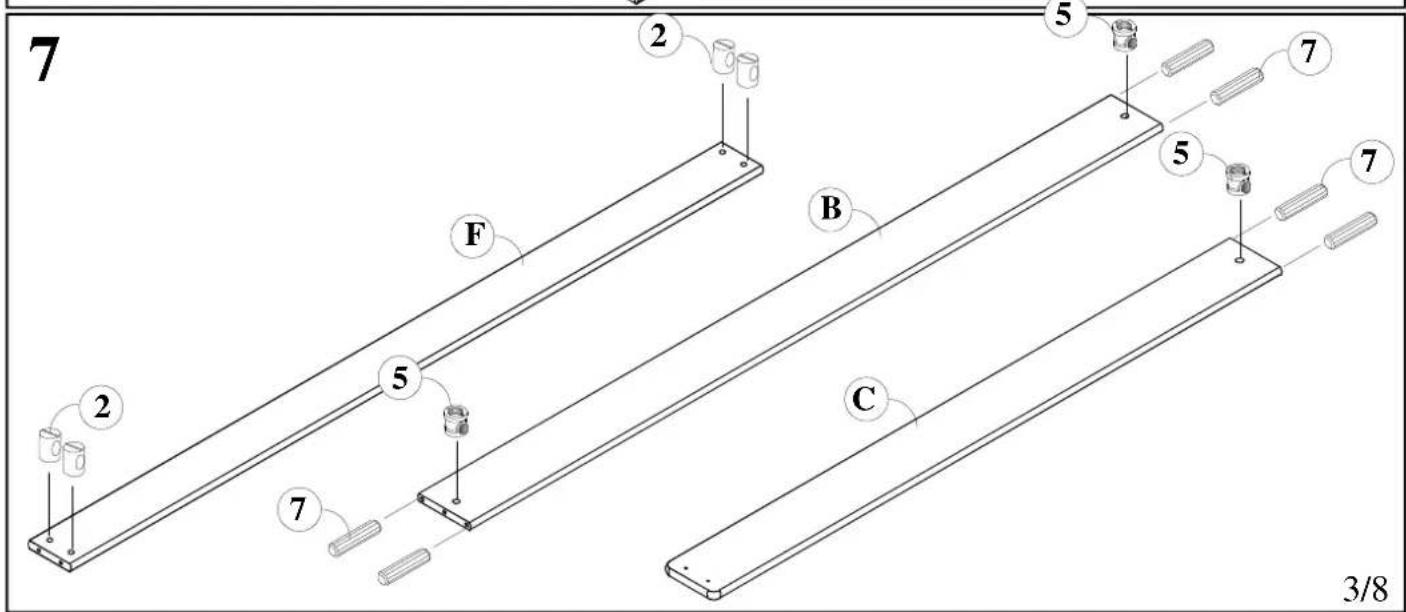

text_image 7 2 5 7 F B 5 7 2 5 C 7 3/8

Stompa Casa 3 - Art.nr. A003 - 12

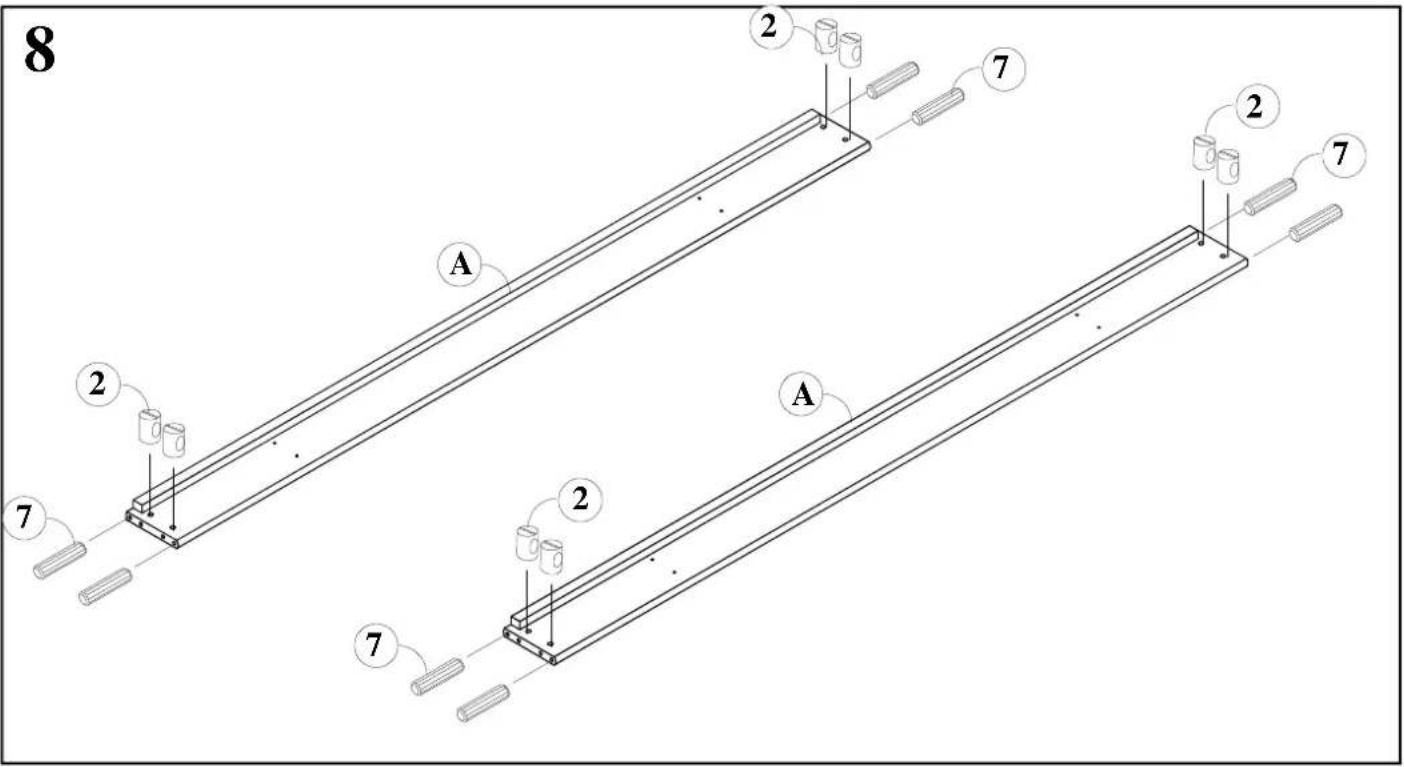

text_image 8 2 7 2 7 A 2 7 A 2 7 7

9

Stompa Casa 3 - Art.nr. A003 - 13

text_image Technical diagram of a structural frame assembly with labeled components A, B, F and numbered parts 1, showing structural elements and connections.

In compliance with EN 747-1 1993

"Furniture - Bunk Beds for Domestic use", please study the following guide lines:

  1. Be aware of the mattress line on the ladder side. Please ensure that the mattress does not extend above the mattress line. Mattress of 90x200 cm is recommended.

  2. Be aware of the danger of young children (under 6) falling from the upper bunk.

  3. Children should be discouraged from playing on the bunk bed.

  4. We recommend that a periodic check is made, to ensure that guard rails, ladder and other components are in correct position, that they are in good condition and that the fittings are tight.

  5. If replacement parts are required, please order these from your furniture dealer. Substitute parts must not be used.

  6. When using a slatted bottom, ensure when securing slats that the gaps between them are no more than 75mm. Each slat must be screwed into place.

natural_image Technical line drawing of a modular dormitory unit with ladder, stairwell, and cabinet (no text or symbols)
natural_image Line drawing of a two-tiered dormitory bunk bed with ladder, seat, and drawer (no text or symbols)

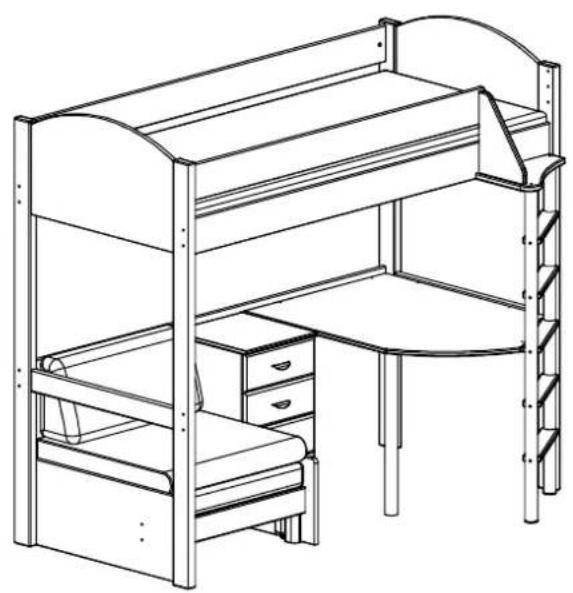

Stompa Casa 3 - Art.nr. A003 - 14

natural_image Line drawing of a two-bedroom dormitory bunk bed with adjustable height and side table (no text or symbols)
natural_image Line drawing of a two-level dormitory bunk bed with ladder and seat (no text or symbols)

Art.nr. A015

N Metallstige
GB Metal ladder
D Metall-Leiter

Stompa Casa 3 - Art.nr. A015 - 1

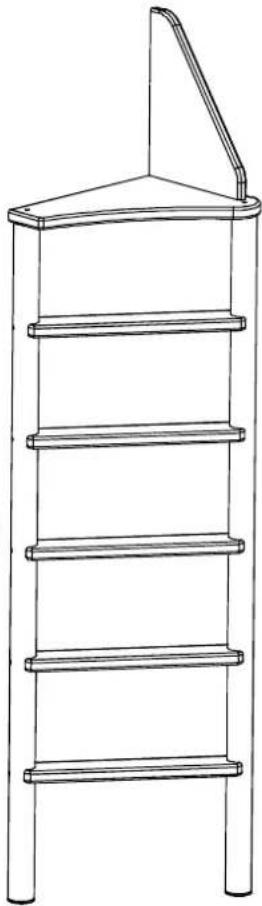

natural_image Line drawing of a ladder structure with a triangular top and four horizontal ladders (no text or symbols)

Stompa Casa 3 - Art.nr. A015 - 2

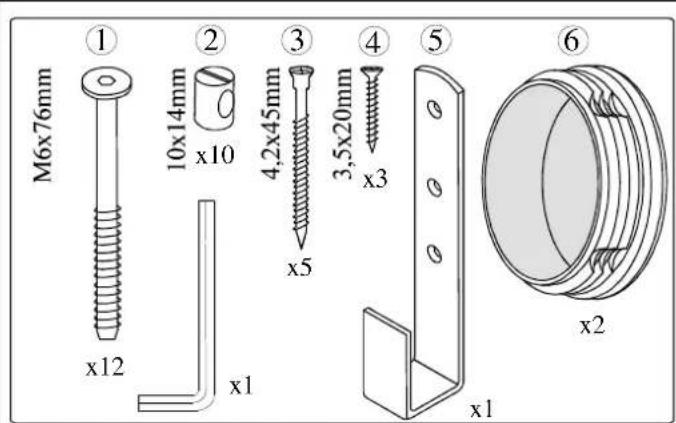

text_image M6x76mm ① 10x14mm ② x10 ③ 4.2x45mm ④ 3.5x20mm ⑤ x3 x5 ⑥ x12 x1 x1 x2
natural_image Simple line drawing of a folded or angled object with a labeled point C (no text or symbols beyond the label)

Stompa Casa 3 - Art.nr. A015 - 3

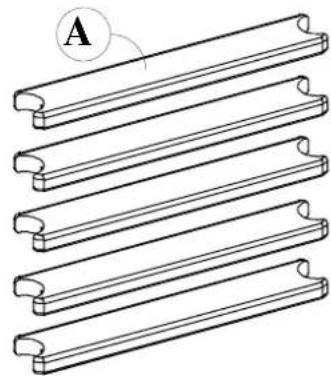

natural_image Diagram of parallel cylindrical pipes with curved ends, labeled A (no text or symbols on the pipes themselves)

United Kingdom:

If anything should fail to give satisfaction, please contact your STOMPA stockist with details of any problems with the product. Please quote Art number & serial number on any correspondence.

Stompa UK

The Old Mill House

Dockfield Road, Shipley

West Yorkshire, BD17 7AE

E-mail: stompa@stompa.co.uk

www.stompa.co.uk

1
Stompa Casa 3 - United Kingdom: - 1

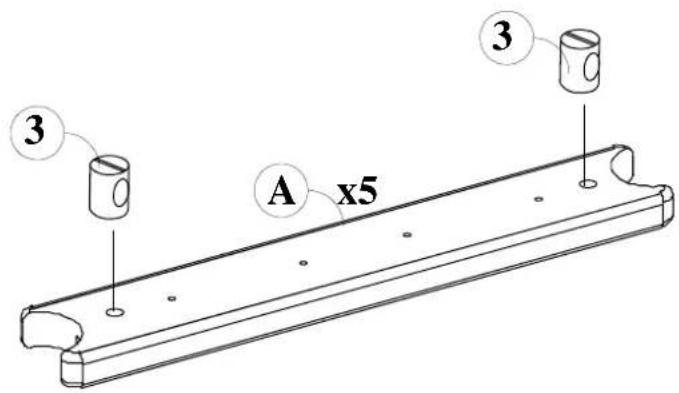

text_image 3 3 A x5 3

2
Stompa Casa 3 - United Kingdom: - 2

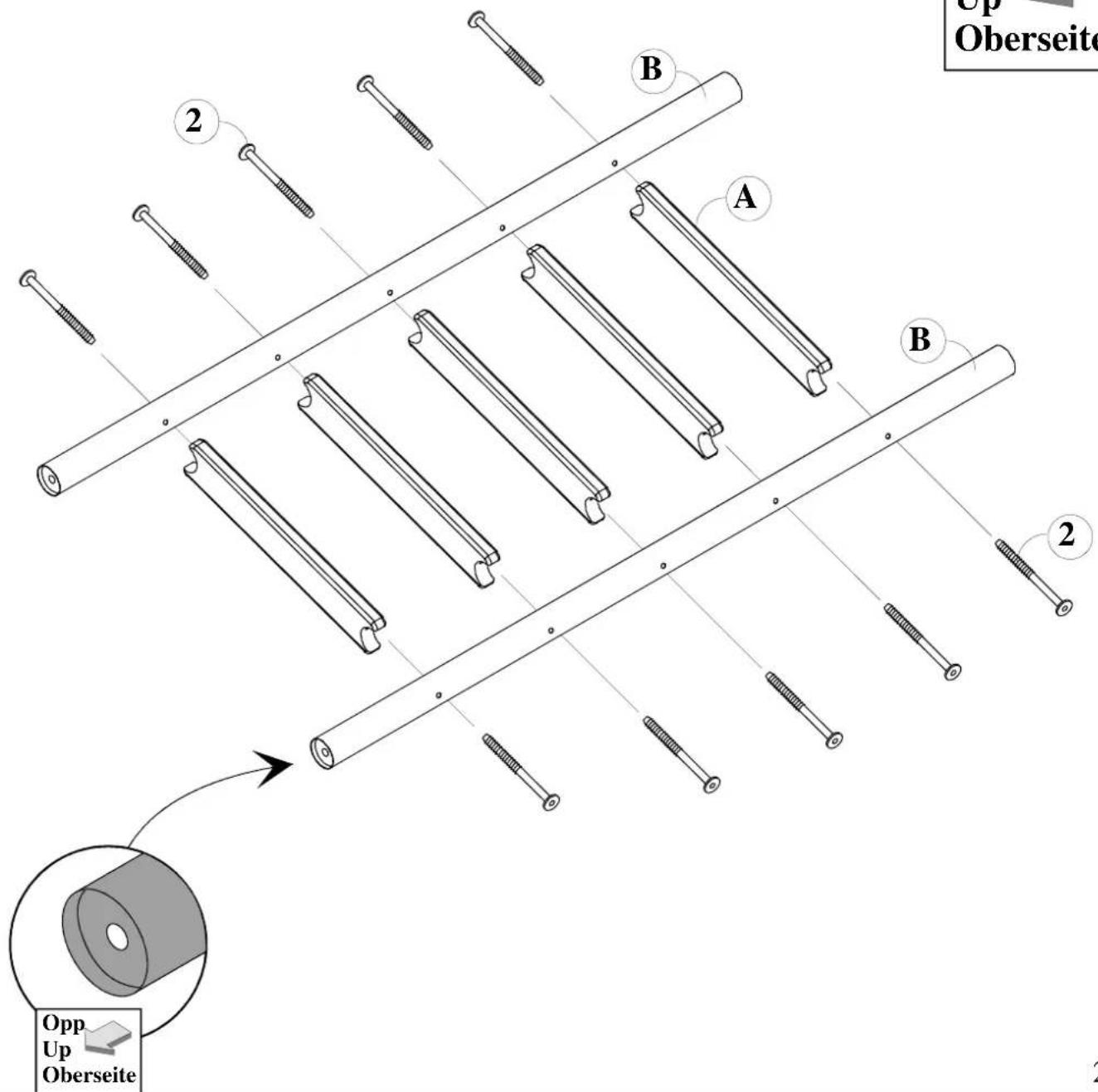

text_image 3b C D 4 Do not use this hole

Stompa Casa 3 - United Kingdom: - 3

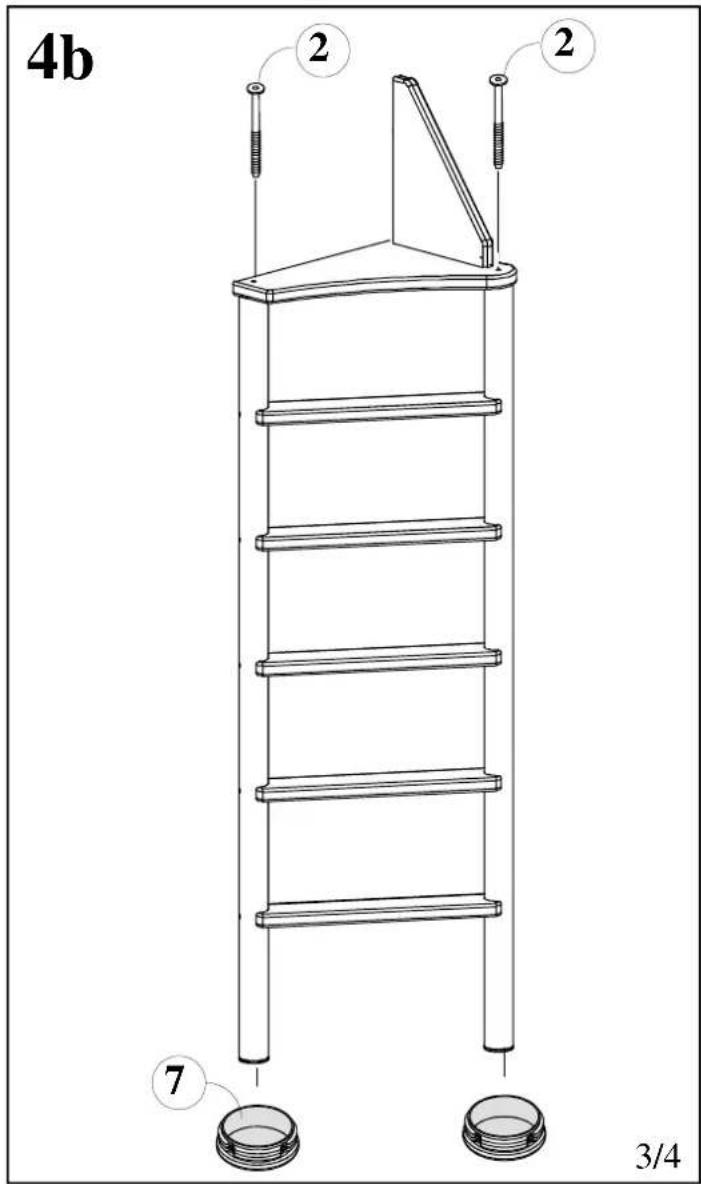

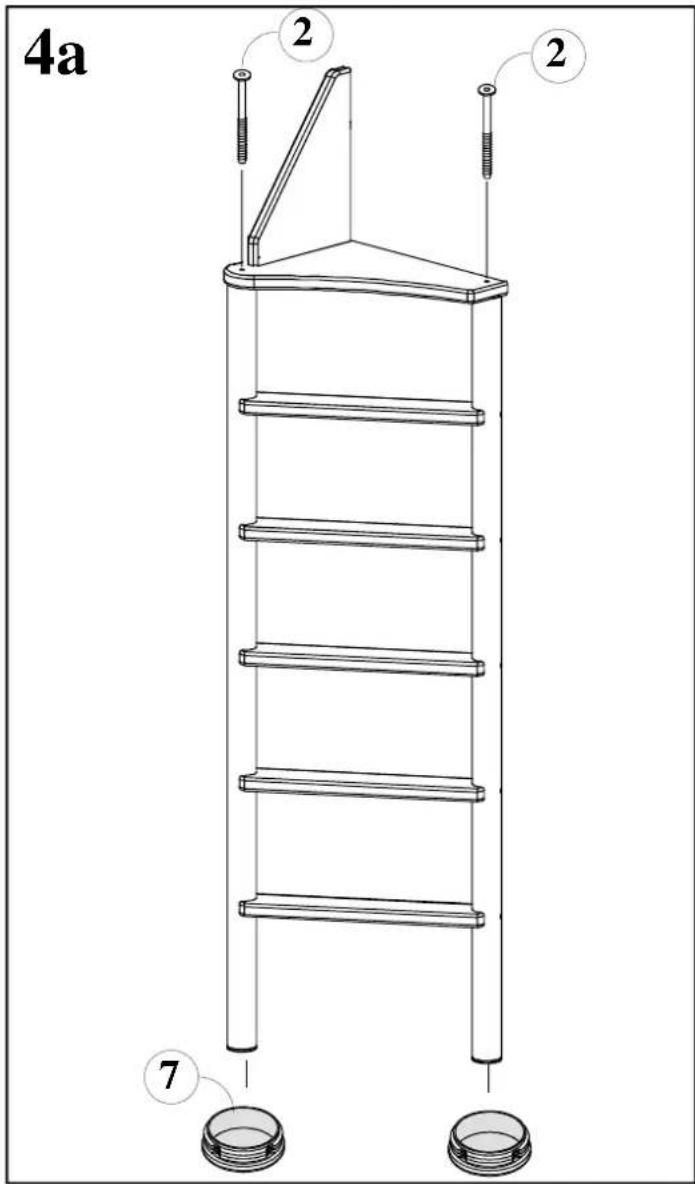

text_image 4a 2 2 7

Stompa Casa 3 - United Kingdom: - 4

text_image 4b 2 2 7 3/4

Stompa Casa 3 - United Kingdom: - 5

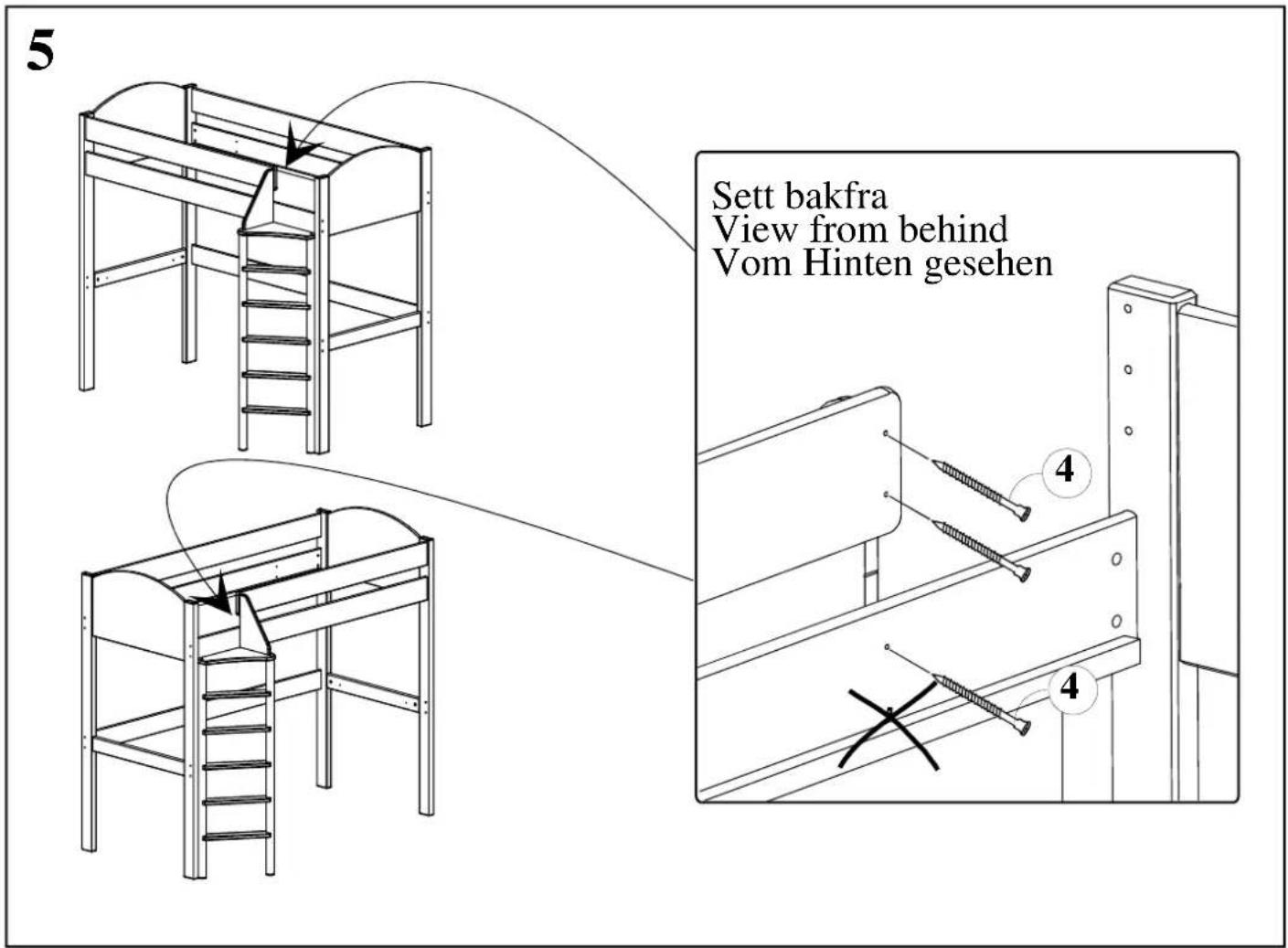

text_image 5 Sett bakfra View from behind Vom Hinten gesehen 4 4

Stompa Casa 3 - United Kingdom: - 6

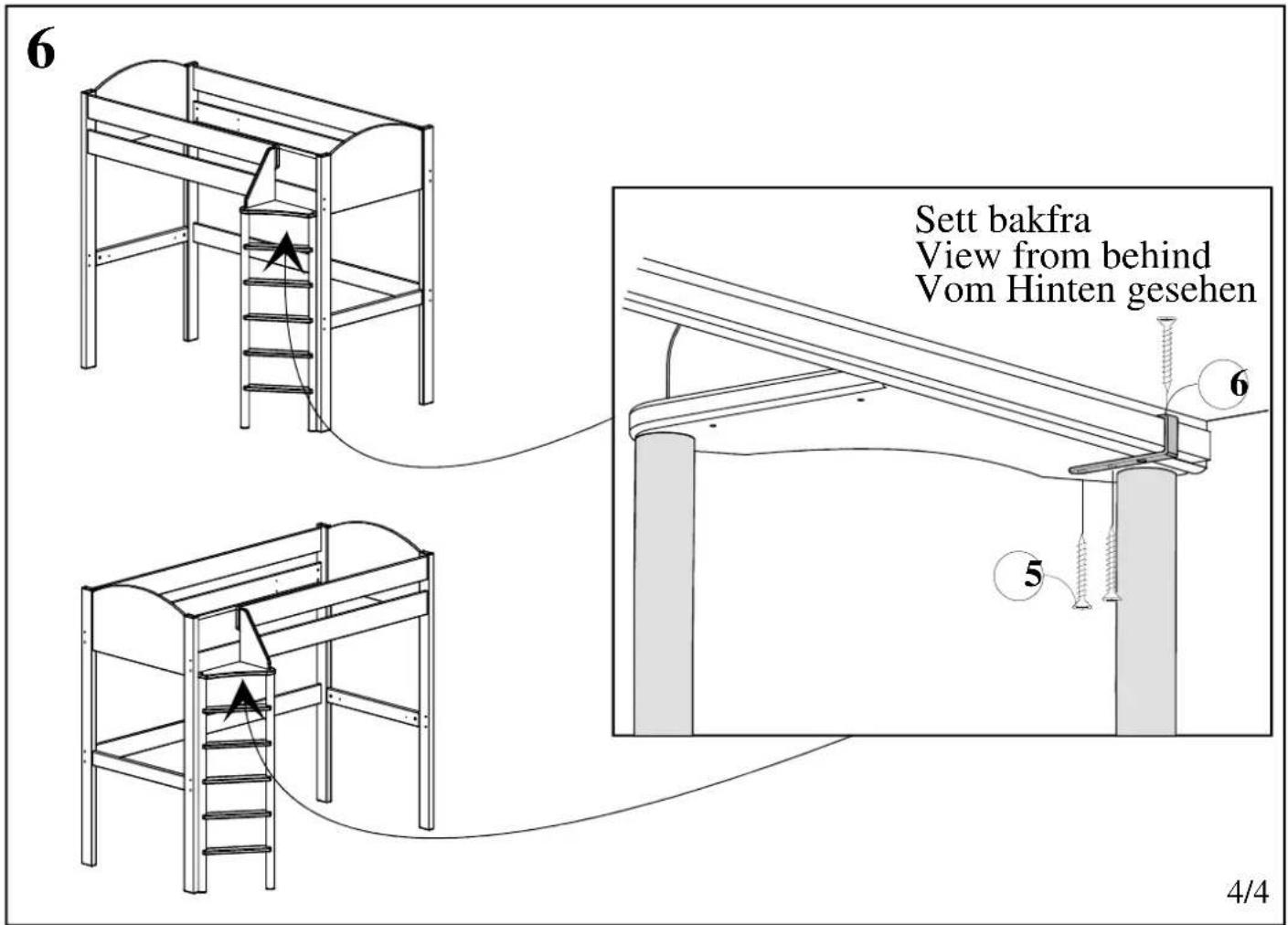

text_image 6 Sett bakfra View from behind Vom Hinten gesehen 6 5 4/4

Stompa®

WWW.STOMPA.COM

Art.nr. A005

text_image ① 34X7mm 15X15mm x6 8x30mm x20 x2 5.0x70mm x6 ② ③ ⑤ ⑥ ⑦ 4.2x45mm x3 x12 x4 ⑧ ⑨ m-m 45 55, x x4 x6
natural_image Isometric view of a diamond-shaped plate with marked points and label B (no text or symbols on the plate itself)

Stompa Casa 3 - Art.nr. A005 - 1

Stompa Casa 3 - Art.nr. A005 - 2

natural_image Diagram of a curved surface with labeled points D and F, no text or symbols present

F

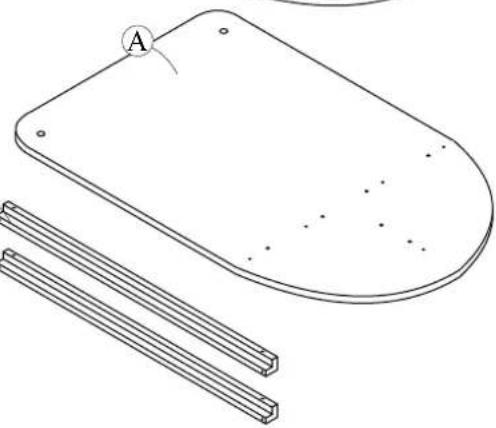

Stompa Casa 3 - Art.nr. A005 - 3

natural_image Technical line drawing of a mechanical part with two parallel rods and a curved top plate, labeled with point A (no text or symbols present)

1

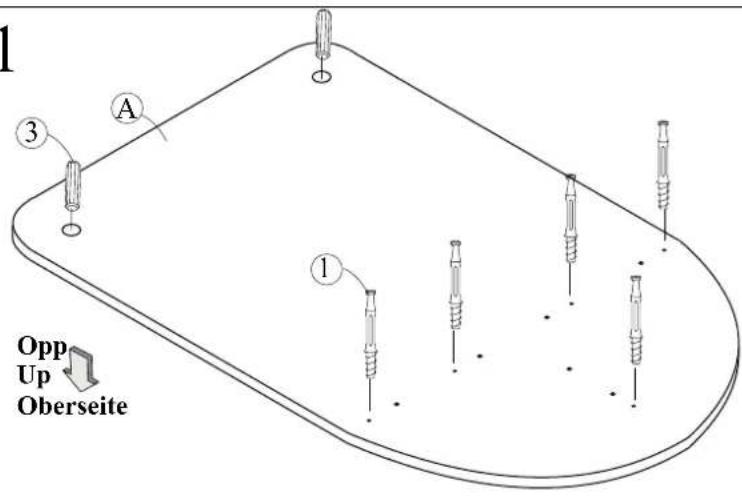

Stompa Casa 3 - Art.nr. A005 - 4

natural_image Line drawing of a simple modular furniture setup with stairs, built-in bookshelves, and a matching table (no text or symbols)

Stompa Casa 3 - Art.nr. A005 - 5

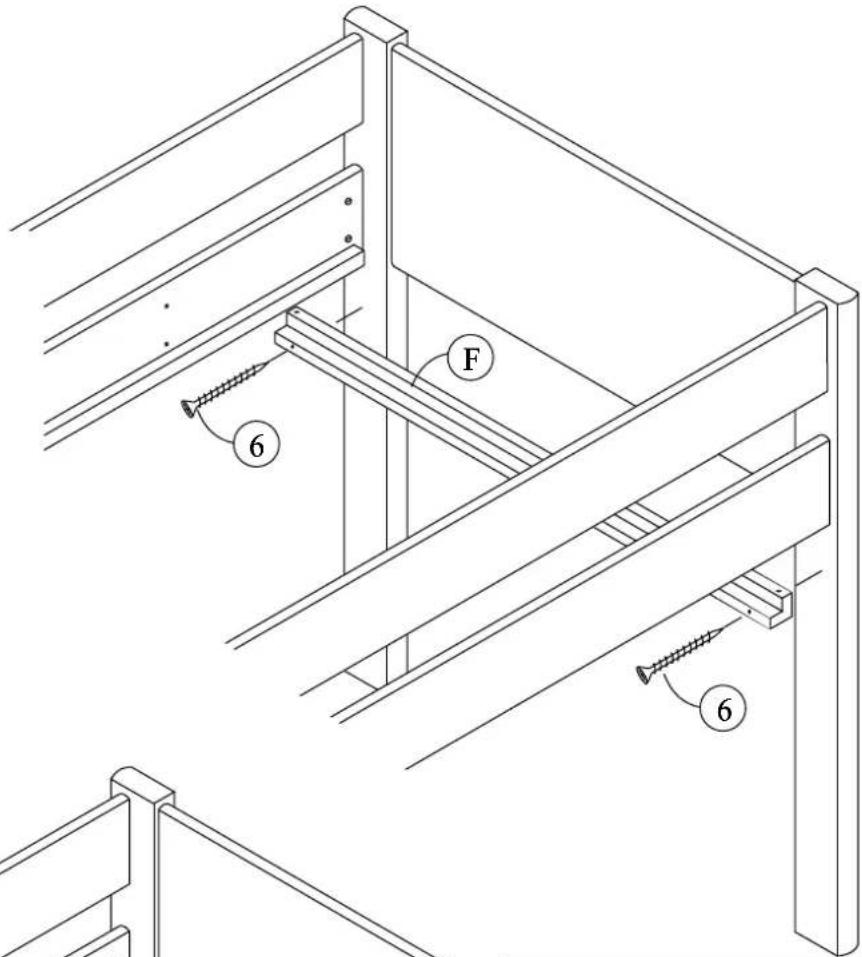

text_image Technical diagram showing structural components with labeled parts and numbered callouts

Stompa Casa 3 - Art.nr. A005 - 6

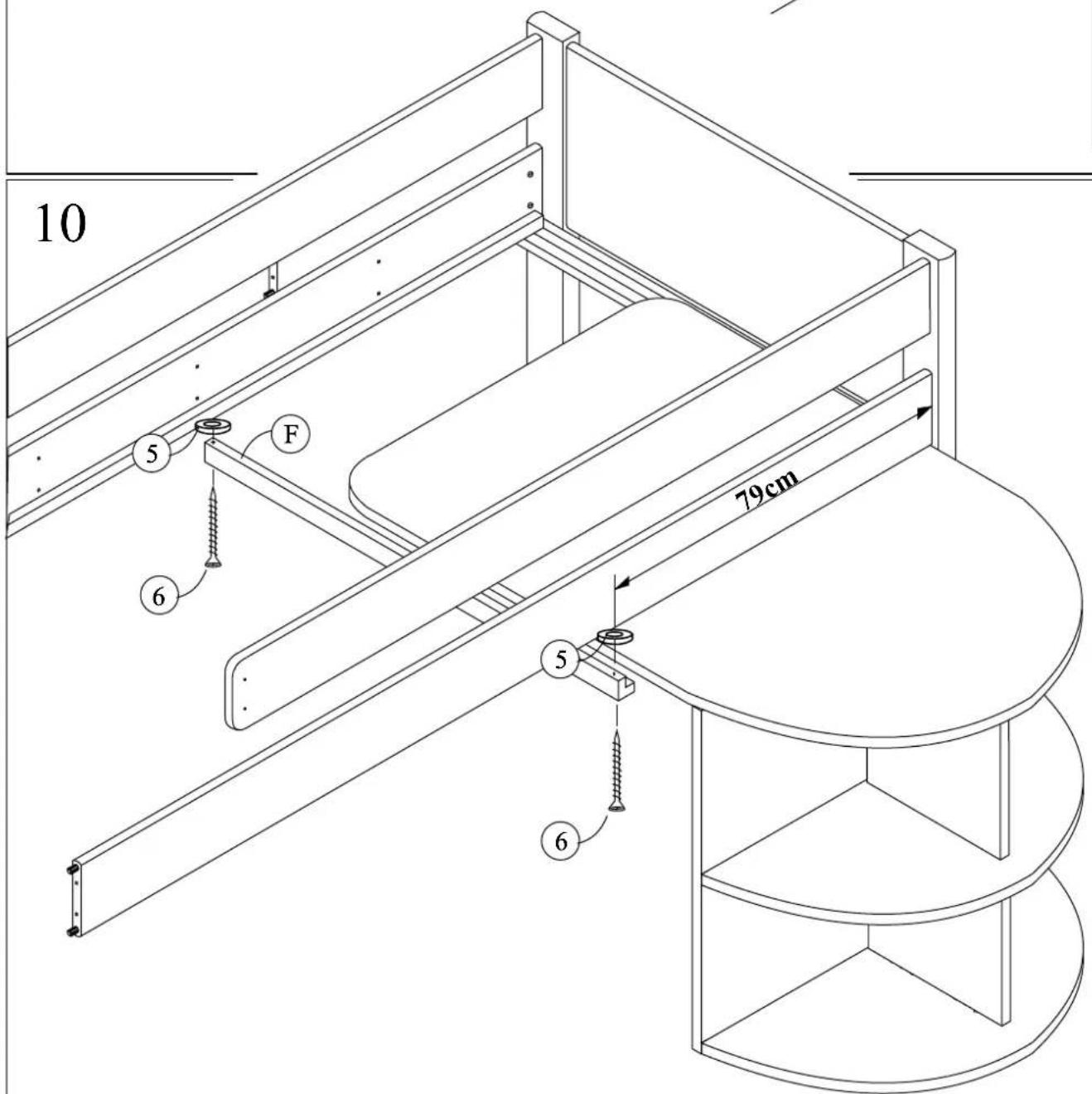

text_image 10 5 F 6 79cm 5 6

11

text_image Technical diagram of a dormitory structure with labeled components and structural details

United Kingdom:

If anything should fail to give satisfaction, please contact your STOMPA stockist with details of any problems with the product. Please quote Art number & serial number on any correspondence.

Stompa UK

The Old Mill House

Dockfield Road, Shipley

West Yorkshire, BD17 7AE

E-mail: stompa@stompa.co.uk

www.stompa.co.uk

Stompa®

www.stompa.com

Art.nr. A017

natural_image Simple line drawing of a 3D box with a flat top and a small side panel (no text or symbols)

Stompa Casa 3 - Art.nr. A017 - 1

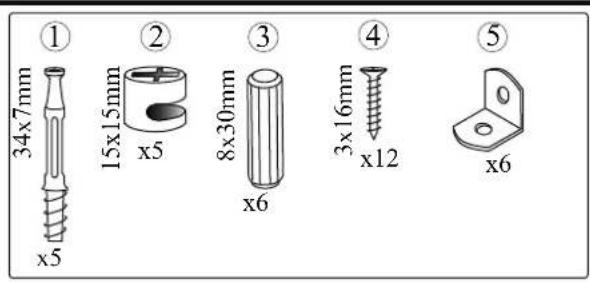

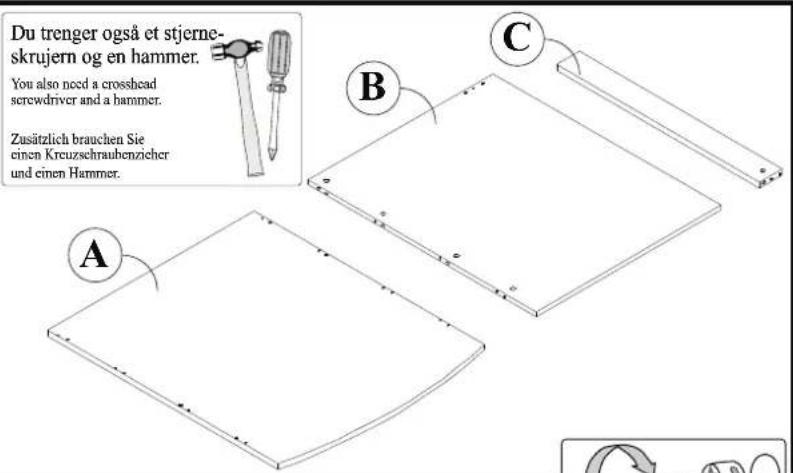

text_image ① 34x7mm 15x15mm x5 ② 8x30mm x6 ③ 3x16mm x12 ④ x6

Stompa Casa 3 - Art.nr. A017 - 2

natural_image Line drawing of a simple bunk bed with ladder, seat, and chair (no text or symbols)

Stompa Casa 3 - Art.nr. A017 - 3

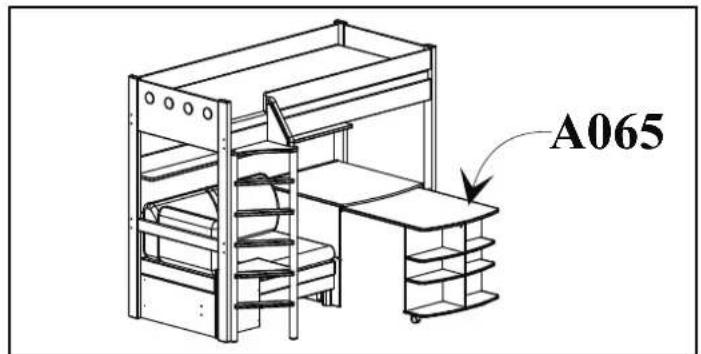

text_image A065

United Kingdom: If anything should fail to give satisfaction, please contact your STOMPA stockist with details of any problems with the product. Please quote Art number & serial number on any correspondence.

Stompa UK

The Old Mill House

Dockfield Road, Shipley

West Yorkshire, BD17 7AE

E-mail: stompa@stompa.co.uk

www.stompa.co.uk

Stompa®

WWW.STOMPA.COM

Art.nr. 185

text_image ① 34x7mm 15x15mm x8 ② x4 ③ x2 ④ 3,5x35mm x2 ⑤
natural_image Technical line drawing of a modular shelving unit with labeled components A and B (no text or symbols beyond labels)

Stompa Casa 3 - Stompa® - 1

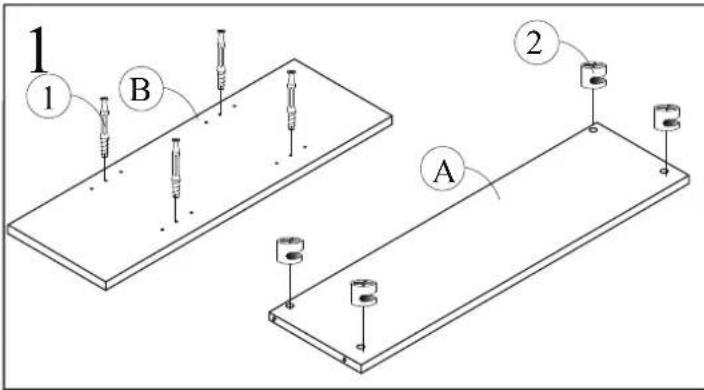

text_image 1 1 B 2 A A

Stompa Casa 3 - Stompa® - 2

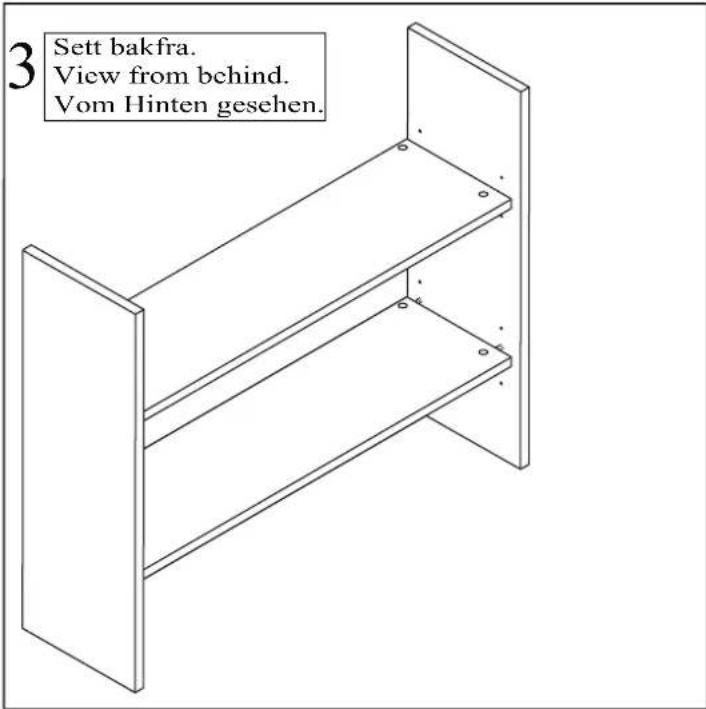

text_image 3 Sett bakfra. View from behind. Vom Hinten gesehen.

Stompa Casa 3 - Stompa® - 3

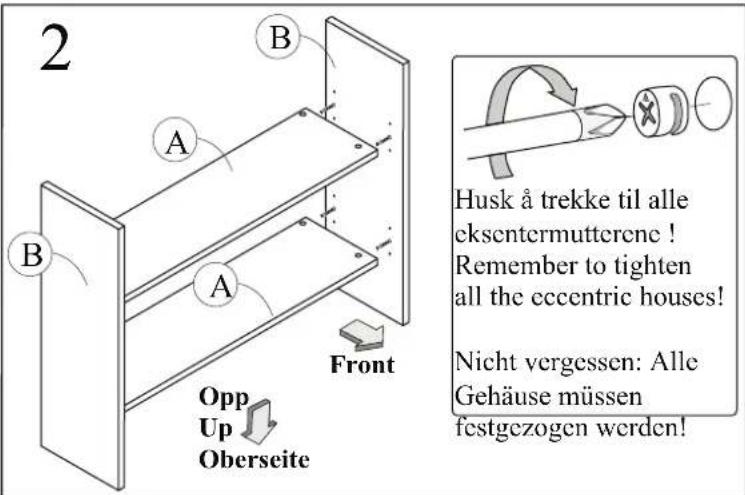

text_image 2 A B A Front Opp Up Oberseite Husk å trekke til alle eksentermutterene ! Remember to tighten all the eccentric houses! Nicht vergessen: Alle Gehäuse müssen festgezogen werden!

Stompa Casa 3 - Stompa® - 4

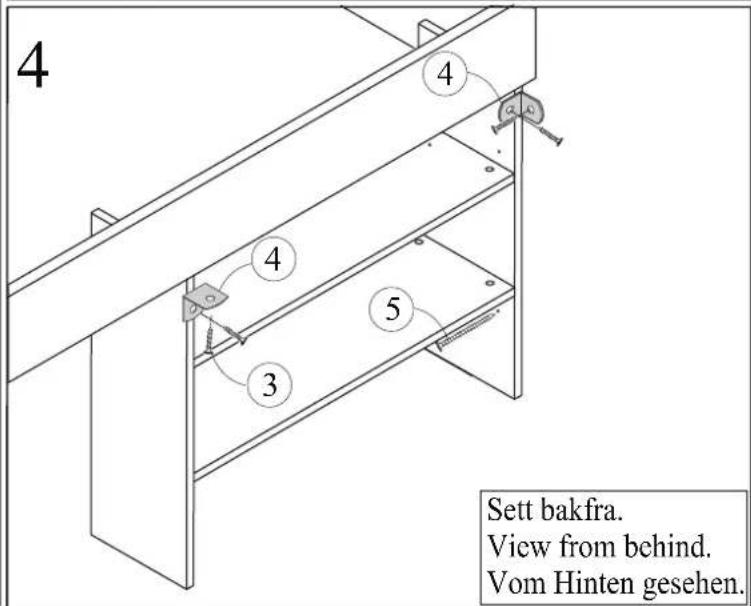

text_image 4 4 4 3 5 Sett bakfra. View from behind. Vom Hinten gesehen.

United Kingdom:

If anything should fail to give satisfaction, please contact your STOMPA stockist with details of any problems with the product. Please quote

Art number & serial number on any correspondence.

Stompa UK

The Old Mill House

Dockfield Road, Shipley

West Yorkshire, BD17 7AE

E-mail: stompa@stompa.co.uk

www.stompa.co.uk

Stompa®

www.stompa.com

Art.nr. A018

N Sofa
GB Sofabed
D Sessel

Stompa Casa 3 - Art.nr. A018 - 1

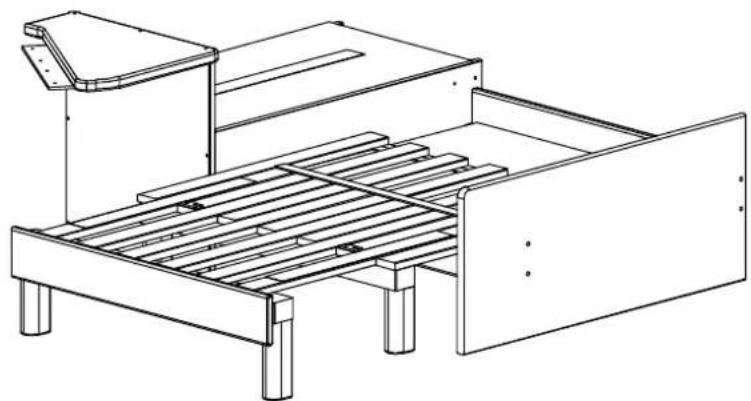

natural_image Technical line drawing of a modular bed or rack system with metal supports and a top shelf (no text or symbols)

Stompa Casa 3 - Art.nr. A018 - 2

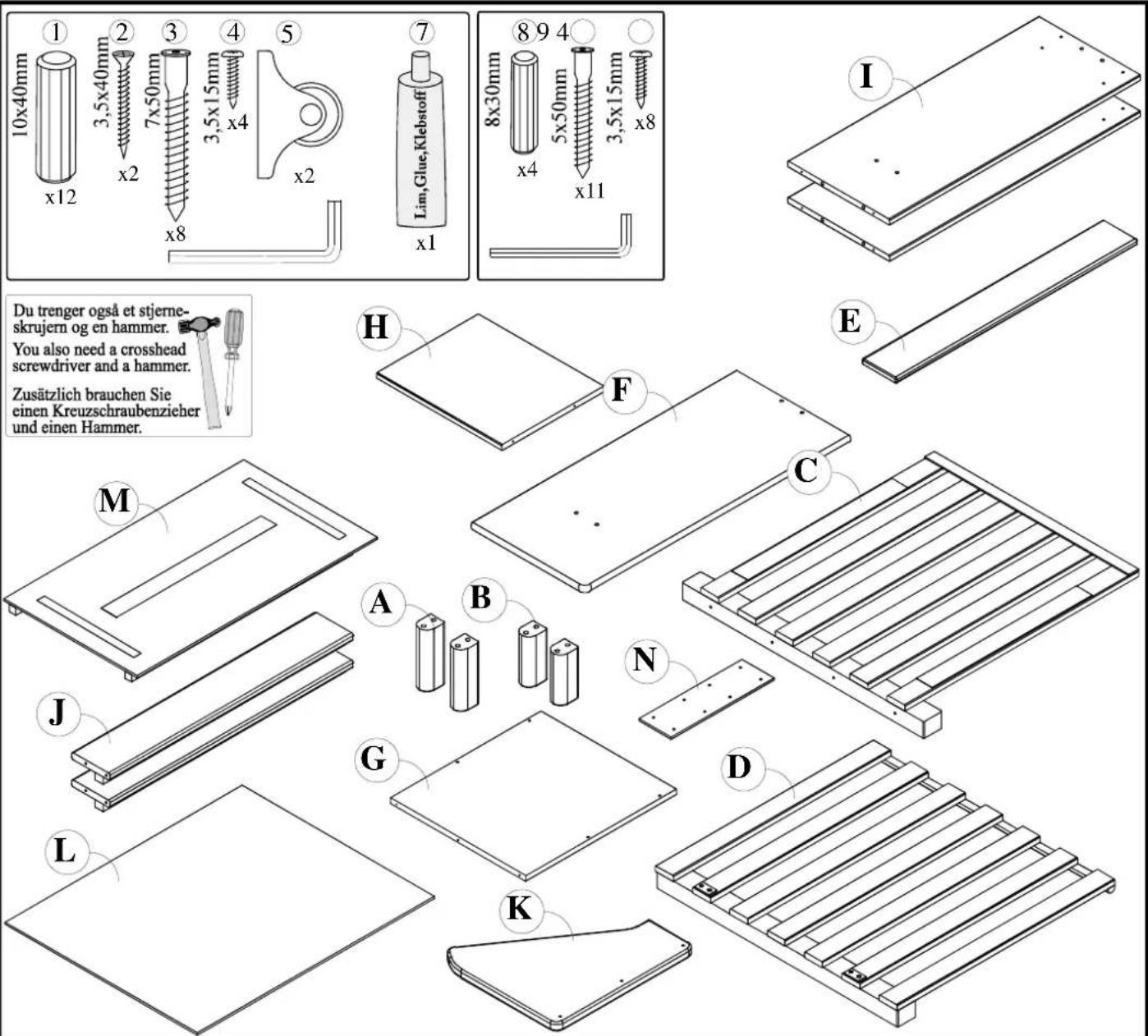

text_image 10x40mm x12 3.5x40mm x2 7x50mm x8 3.5x15mm x4 x2 7 Lim,Glue,Klebstoff x1 8x30mm x4 5x50mm x11 3.5x15mm x8 I Du trenger også et stjerne- skrujern og en hammer. You also need a crosshead screwdriver and a hammer. Zusätzlich brauchen Sie einen Kreuzschraubenzieher und einen Hammer. M H F C A B N J G D L K

United Kingdom: If anything should fail to give satisfaction, please contact your STOMPA stockist with details of any problems with the product. Please quote Art number & serial number on any correspondence.

Stompa UK The Old Mill House Dockfield Road, Shipley West Yorkshire, BD17 7AE E-mail: stompa@stompa.co.uk www.stompa.co.uk

Stompa Casa 3 - Art.nr. A018 - 3

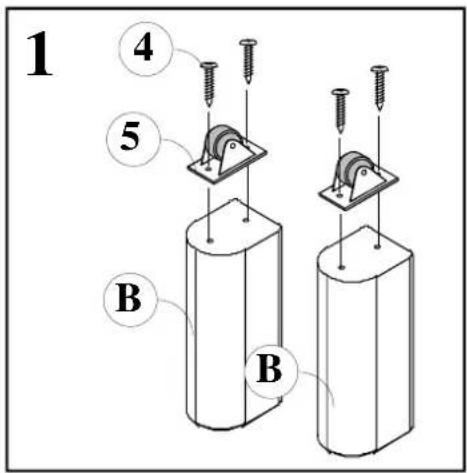

text_image 2 1 Lim,Glue A A 1 Lim,Glue B B

Stompa Casa 3 - Art.nr. A018 - 4

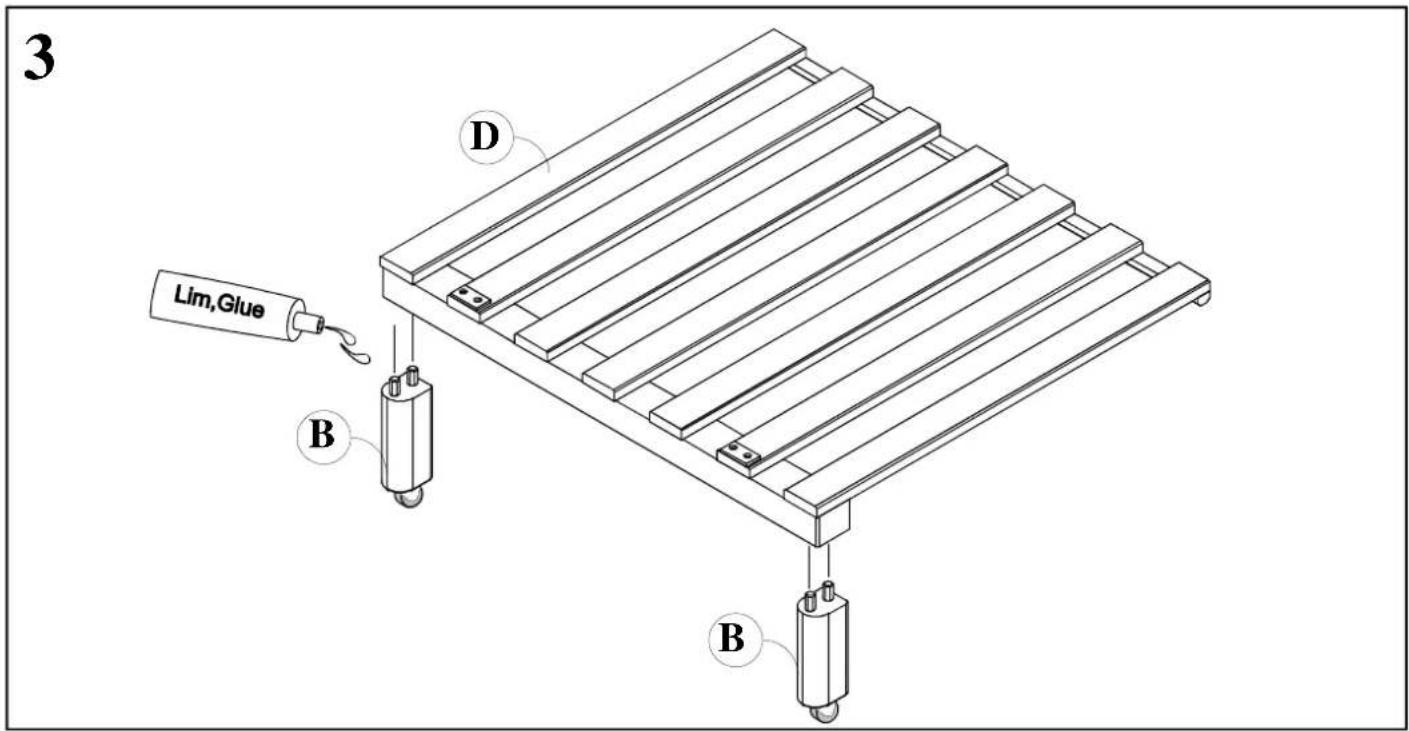

text_image 3 D Lim,Glue B B

Stompa Casa 3 - Art.nr. A018 - 5

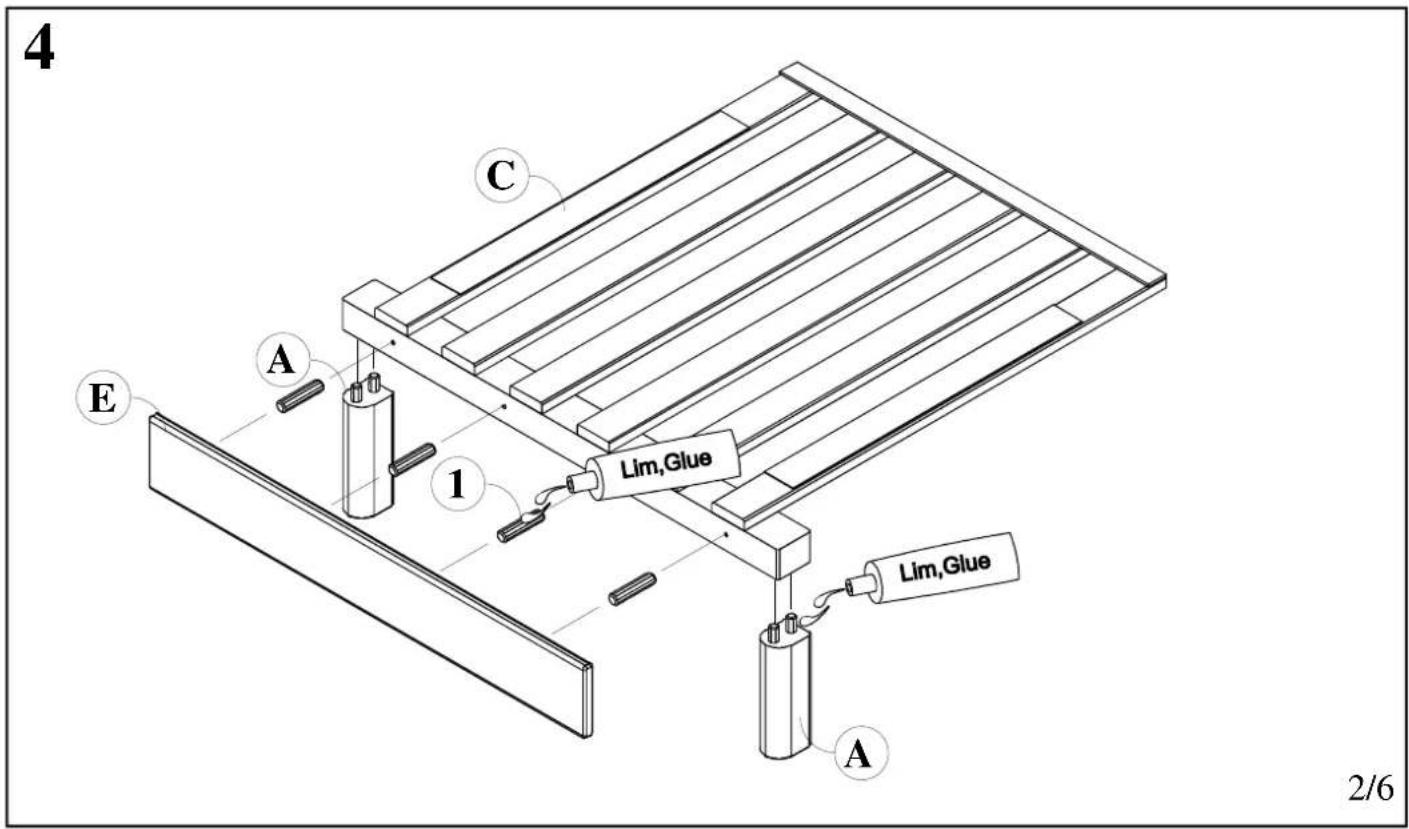

text_image 4 C A E 1 Lim,Glue Lim,Glue A 2/6

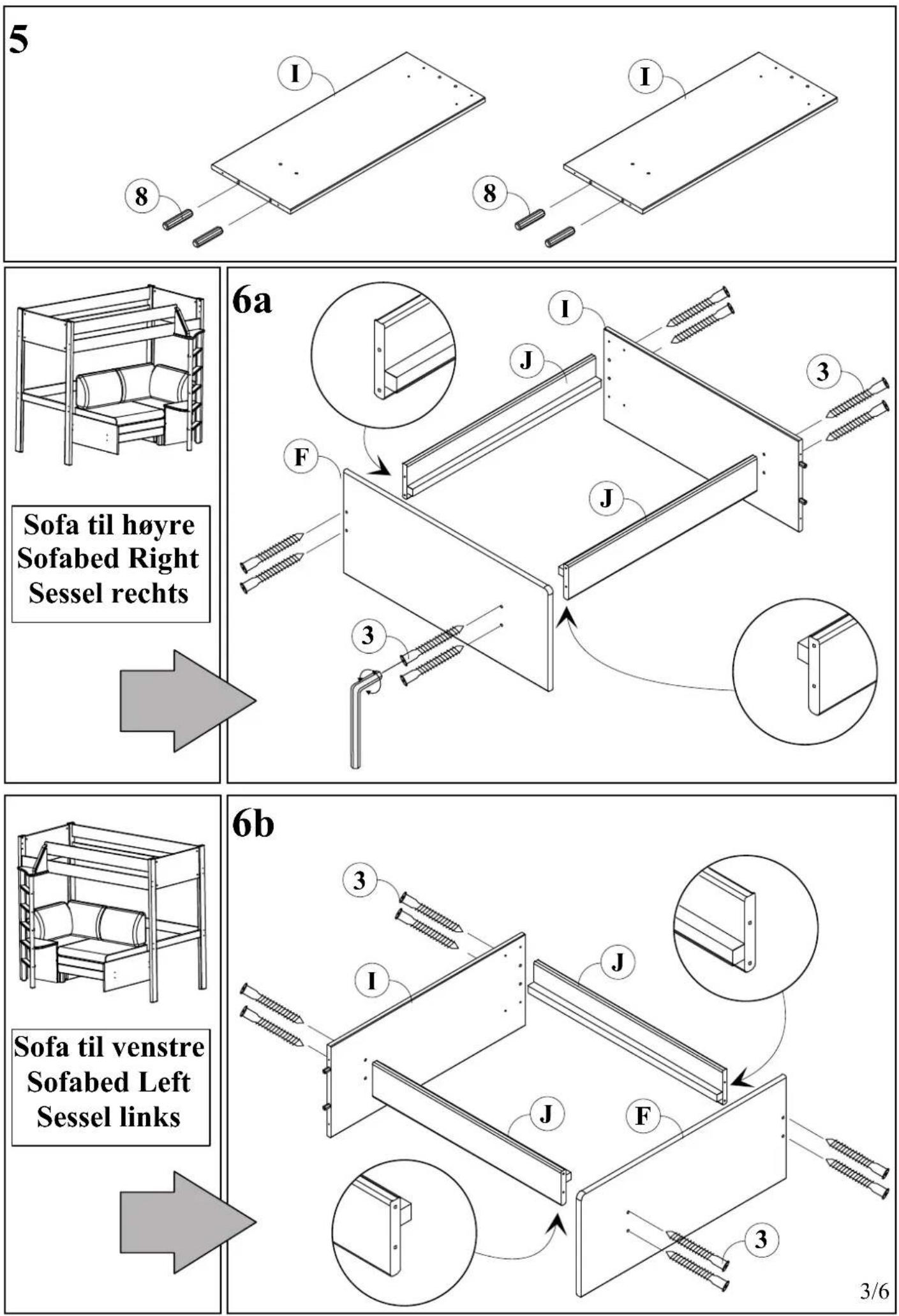

Stompa Casa 3 - Art.nr. A018 - 6

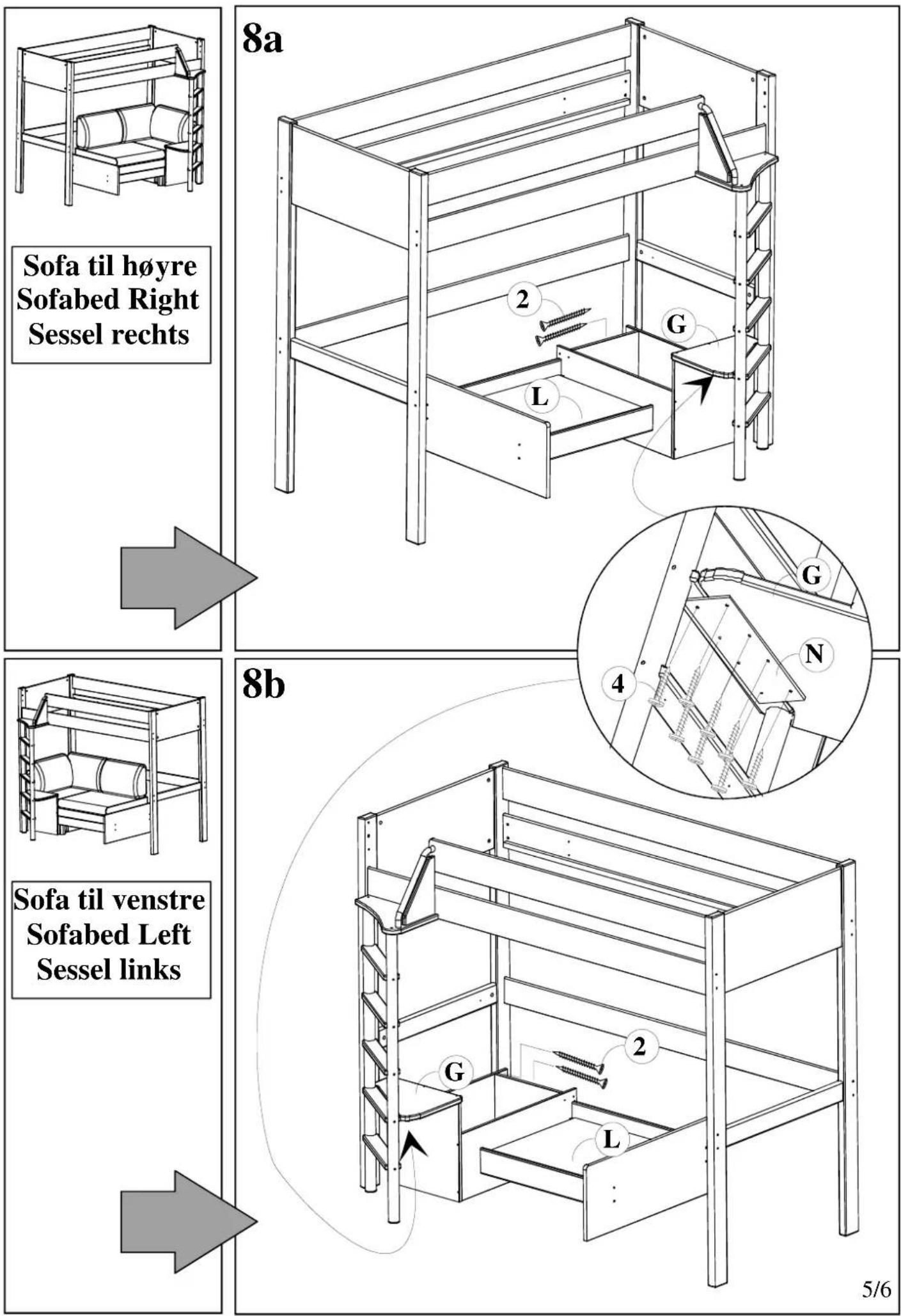

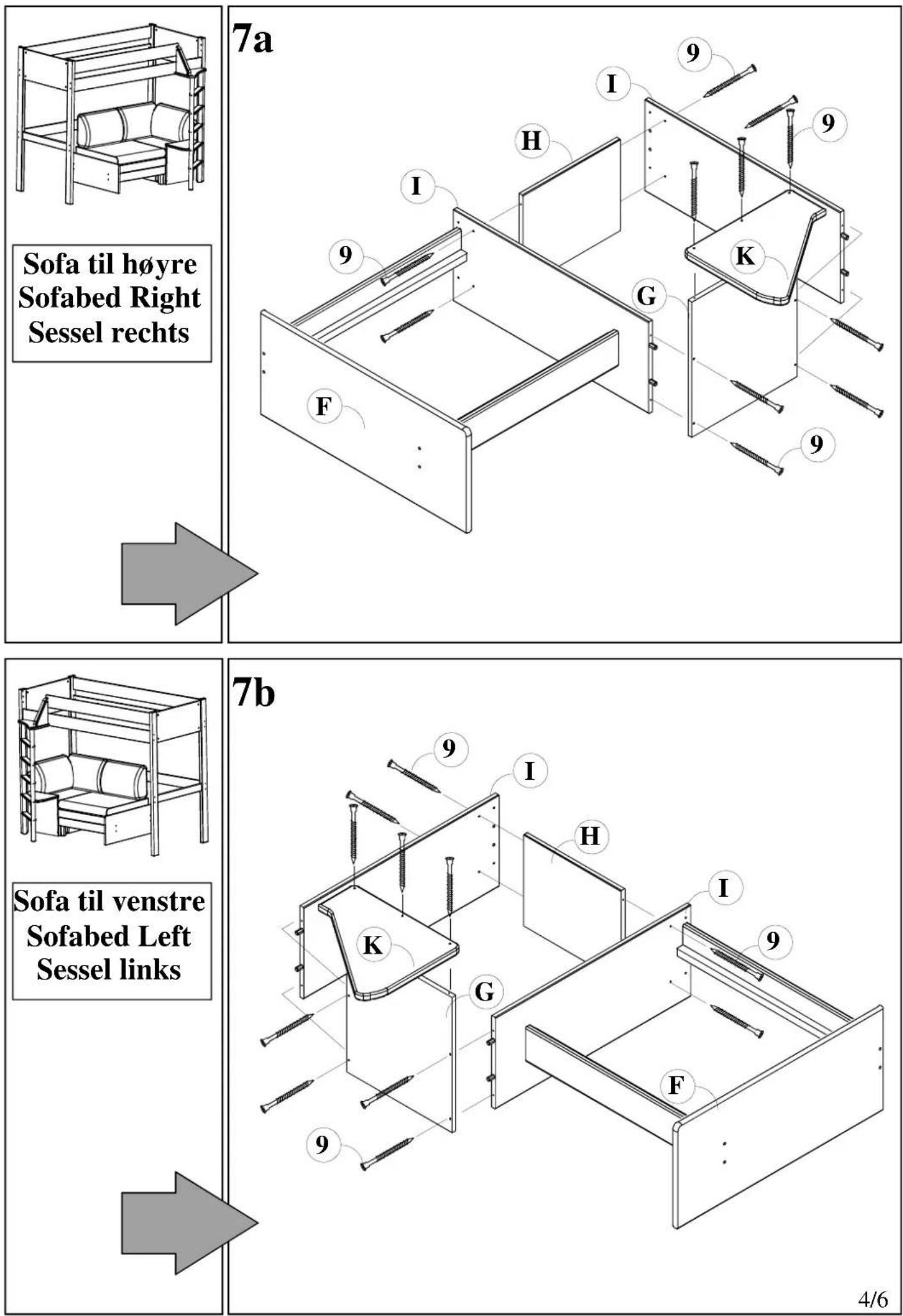

Stompa Casa 3 - Art.nr. A018 - 7

Stompa Casa 3 - Art.nr. A018 - 8

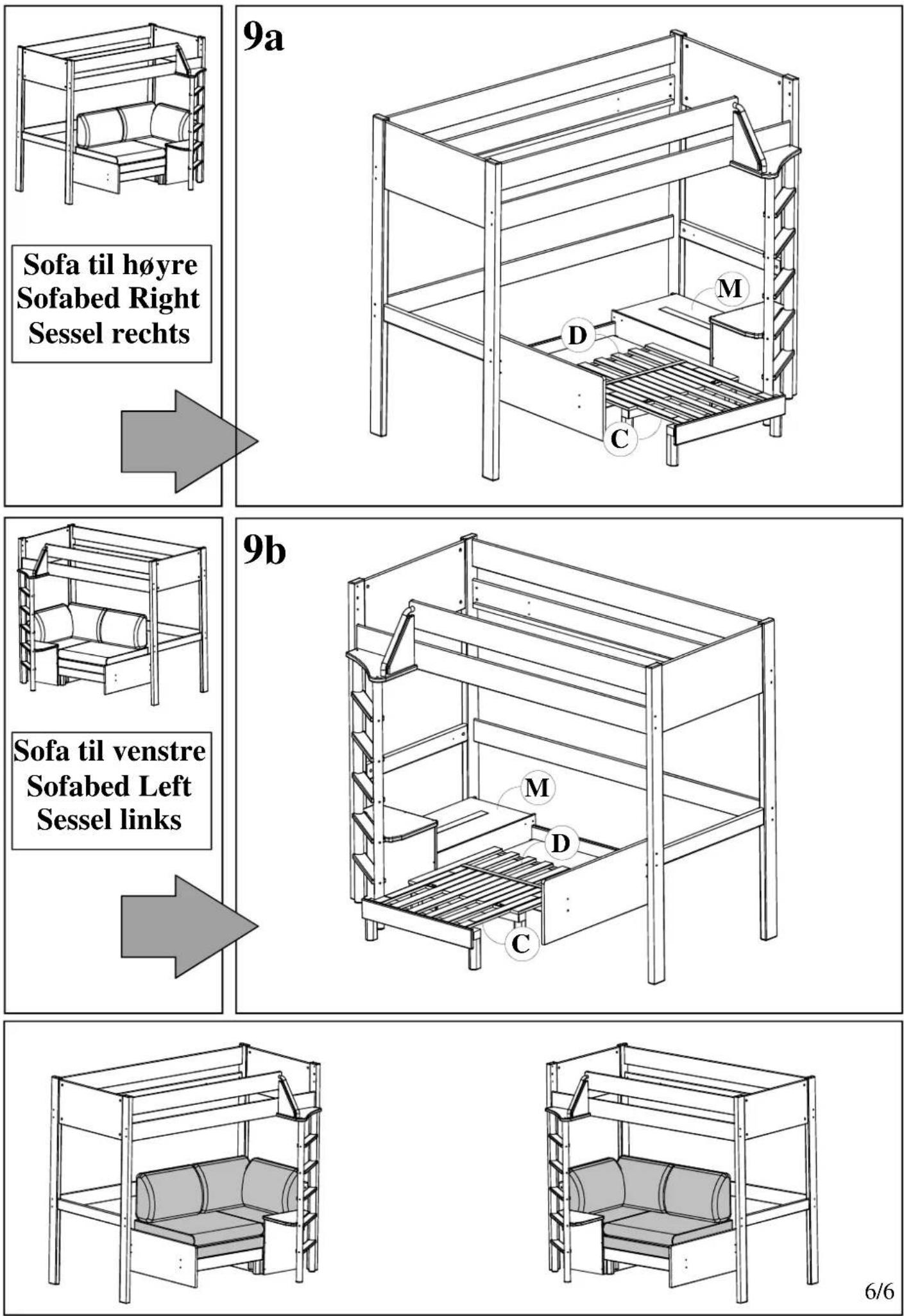

Stompa Casa 3 - Art.nr. A018 - 9
