Product Type	Top-Load Washing Machine
Brand	Speed Queen
Model	DA3100 (also compatible with DA3101)
Power Supply	115 V, 60 Hz, grounded outlet required
Water Supply	Hot and cold water faucets
Fill Levels	Extra Fill (5 min), Large (4 min, 14 gal), Medium (3 min, 10.5 gal), Small (2 min, 7 gal)
Wash Cycles	Normal (14 min wash agitation), Durable Press (7 min wash agitation), Prewash/Soak
Water Temperature Options	Hot Wash/Cold Rinse, Warm Wash/Cold Rinse, Cold Wash/Cold Rinse
Cycle Control	Timer knob with push-pull operation; flexible resetting
Safety Feature	Brake stops tub within seconds if loading door opened during spin
Unbalanced Load Protection	Fluid drive allows completion; respin by rearranging load
Overflow Rinse System	Removes lint and soil during last minute of wash and rinse agitation
Spray Rinse	In Durable Press cycle at start of wash spin to cool fabrics
Sediment Ejector	Forces heavier soil out during spin
Loading Door	Hinged side, can be used as shelf
Bleach Use	Chlorine bleach; dilute with 1 quart water before adding; up to 1 cup for large fill
Fabric Softener	Add to rinse water only, diluted; up to 1 minute before last overflow rinse
Drain	Drain hose inserted into drain receptacle; must not be kinked
Installation	See separate installation instructions
Timer Flexibility	Can be reset to lengthen, shorten, or repeat cycle portions; push knob IN to stop, turn right, pull OUT to start

Frequently Asked Questions - DA3100 Speed Queen

How do I start the Speed Queen DA3100 washing machine?

After loading clothes, adding detergent, and setting the water temperature, turn the timer knob to the desired cycle and fill level, then pull the knob OUT. The washer will start automatically. Ensure the loading door is closed for the spin cycle.

What should I do if the washer stops during a cycle?

If the washer stops, push the timer knob IN to turn it off. To resume, turn the knob to the right to the desired position and pull it OUT. Do not turn the knob left to avoid damaging the timer.

How do I handle an unbalanced load?

If the load is unbalanced, the washer may spin slowly or bump. Push the timer knob IN, rearrange the clothes evenly, and reset the timer to the start of the spin. Pull the knob OUT to respin. Add towels to balance future loads.

How do I add bleach to this washing machine?

Dilute chlorine bleach in 1 quart of water before adding it to the wash water. Never pour undiluted bleach directly on clothes. Use up to 1 cup for a large fill, 3/4 cup for medium, and 1/2 cup for small.

Can I use fabric softener in the DA3100?

Yes, add fabric softener only to the rinse water. Dilute it with water to prevent staining. Add it anytime up to one minute before the last overflow rinse. Do not mix with other laundry products.

What are the water temperature options?

The temperature control offers three combinations: Hot Wash/Cold Rinse, Warm Wash/Cold Rinse, and Cold Wash/Cold Rinse. For durable press loads, always choose cold rinse to prevent wrinkling.

How do I add more water after the fill has stopped?

Push the timer knob IN, turn it to the right to the SMALL setting on the current cycle, then pull the knob OUT. This will add more water.

What is the purpose of the overflow rinse?

The overflow rinse occurs during the last minute of wash and rinse agitation. It removes loose lint, suds, and lighter-than-water soil by floating them over the top of the tub. It helps achieve cleaner laundry.

What are the main wash cycles available?

The DA3100 offers three cycles: Normal (14 minutes wash agitation for sturdy fabrics), Durable Press (7 minutes wash agitation for synthetics and delicate items), and Prewash/Soak (starts with rinse fill for pre-treating stains).

How do I stop the washer and change the timer setting?

To stop, push the timer knob IN. Wait for the tub to stop if spinning. Turn the knob to the right to the new setting, then pull the knob OUT to start. Never turn the knob left to avoid damaging the timer.

USER MANUAL DA3100 Speed Queen

Close-up of a textured fabric with no visible text, numbers, or symbols

MODELS

DA3101 & DA3100

Patterned fabric with checkerboard texture and two vertical lines (no text or symbols)

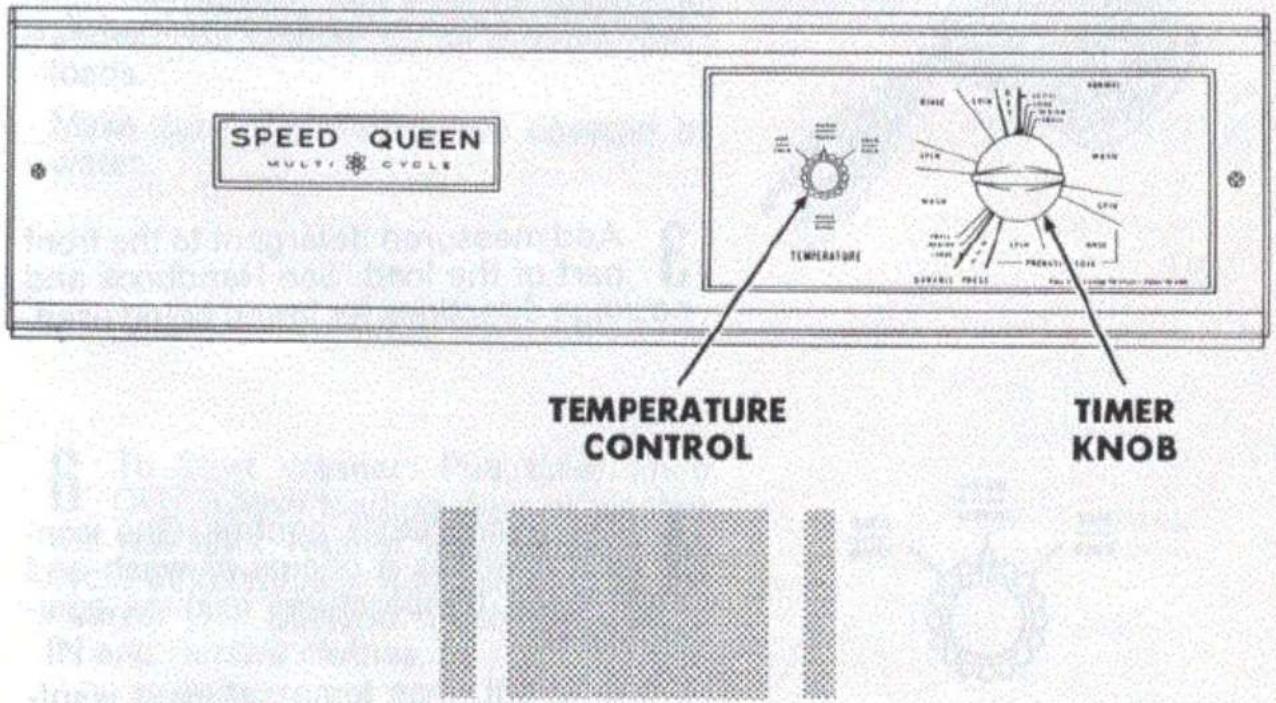

SPEED QUEEN MULTI CYCLE TEMPERATURE CONTROL TIMER KNOB

Use these operating instructions and the Speed Queen Handbook to Better Automatic Washing which provides the necessary information on sorting, pre-treating, detergents and other things you should know to get best washing results.

Before using washer, make sure the three pronged washer cord is plugged into a properly grounded, 115 volt electrical outlet, that washer hoses are connected to hot and cold water faucets, and that faucets are turned on. Be sure the drain hose is not kinked and is inserted into a drain receptacle. See Installation Instructions for details of proper washer installation.

TO WASH CLOTHES

1 Sort clothes into loads of similar fabrics, color and soil. Pre-treat or soak heavy or special stains.

Simple line drawing of a container pouring granular material into a funnel (no text or symbols)

2 Load clothes loosely into tub up to the top of the agitator vanes for a full load. The bulk of the clothes rather than the pounds will determine load size.

3 Add measured detergent to the front part of the load. See Handbook and package directions for brand being used.

HOT COLD WARM WARM COLD COLD WASH RINSE TEMPERATURE

4 Set temperature control. One control provides a choice of wash and rinse water temperatures in three combinations.

If a different rinse temperature is wanted, reset control after the washer has filled with wash water. See Washing

Chart for suggested water temperatures, page 8.

5 To Set: With timer knob pushed IN, turn slowly to the right so the red indicator is at the desired setting as follows:

NORMAL CYCLE

EXTRA FILL — Five minute fill. USE ONLY IF WATER PRESSURE IS SO LOW THAT TUB DOES NOT FILL AT LARGE SETTING.

LARGE — Four minute fill — 14 gallons water — full tub. Use for regular size loads and lint shedding loads.

MEDIUM — Three minute fill — 10½ gallons water — ¾ tub.

SMALL — Two minute fill — 7 gallons water — 12 tub.

DURABLE PRESS CYCLE

Set for LARGE, MEDIUM or SMALL as above. Use LARGE for all durable press loads.

Make sure the clothes are covered by water.

NORMAL RINSE SPIN OFF EX. FILL LARGE MEDIUM SMALL WASH SPIN WASH SPIN RINSE PREWASH - SOAK SMALL MEDIUM LARGE OFF DURABLE PRESS

6 To Start Washer: Pull timer knob OUT. Close loading door or washer will not spin. Washer will complete the cycle automatically and will stop at the nearest OFF position. Push timer knob IN and remove clothes.

THE WASHER WILL STOP (PAUSE) FOR ONE MINUTE BEFORE THE WASH AND RINSE SPIN. DO NOT TURN THE TIMER THROUGH THESE PAUSES. THEY ARE PART OF THE CYCLE.

OPERATING NOTES

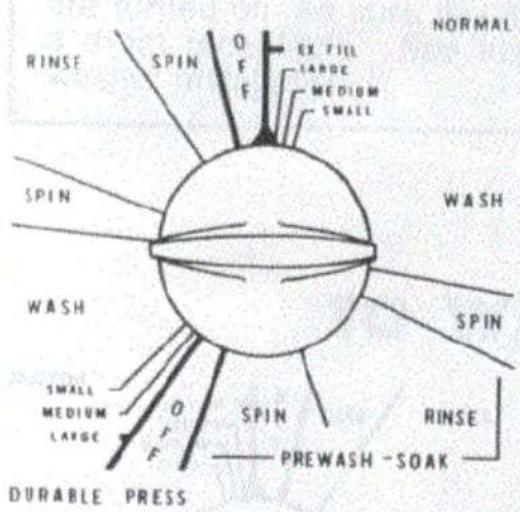

TIMER

Although the washer cycle is automatic, the timer is flexible and it may be reset to lengthen, shorten or repeat a portion of the cycle.

NORMAL RINSE SPIN OFF EX TILL LARGE MEDIUM SMALL WASH SPIN WASH SPIN RINSE PREWASH -SOAK SMALL MEDIUM LARGE OFF DURABLE PRESS

To Do This: Push timer knob IN to stop washer. Turn knob to the right to new position. Pull knob OUT to start washer. If washer is spinning, let it stop before changing the timer setting. DO NOT ATTEMPT TO TURN THE TIMER KNOB TO THE LEFT OR YOU WILL DAMAGE THE TIMER.

To Add More Water After The Fill Has Stopped: Push timer knob IN. Turn it to the right to SMALL on the cycle you are using. Pull timer knob OUT.

To Stop Fill: Turn timer knob slowly to the right until fill stops and agitation starts.

To Shorten Wash Time: With timer knob OUT, turn it to the right after washer has stopped filling.

FOR YOUR SAFETY, A BRAKE WILL STOP THE TUB WITHIN SECONDS IF THE LOADING DOOR IS OPENED DURING SPINNING OR IF THE WASHER IS TURNED OFF. DO NOT PUT YOUR HANDS INTO THE TUB UNTIL ALL MOTION HAS STOPPED.

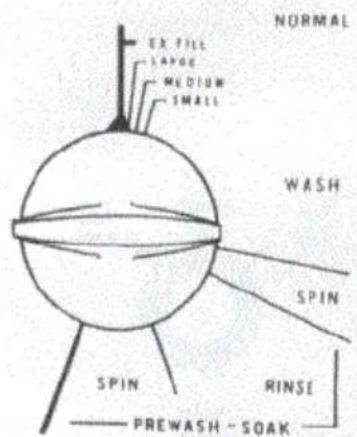

AUTOMATIC CYCLES...

NORMAL CYCLE - 14 minutes wash agitation. A regular cycle for regular loads of sturdy fabrics. During the last minute of wash and rinse agitation, fresh water enters the tub.

NORMAL EX-FILL LARGE MEDIUM SMALL WASH SPIN SPIN RINSE PREWASH-SOAK

At LARGE setting and in the deep rinse, this overflow rinse removes loose lint, suds and lighter than water soil from the water by floating it over the top of the tub. The wash overflow is the same temperature as the wash water and the rinse overflow is the same temperature as the rinse water.

Heavier than water soil settles to the bottom of the tub and is forced out through the "sediment ejector" during spinning. The water in the tub spins over the top of the tub into the outer tub and is then pumped out into the drain.

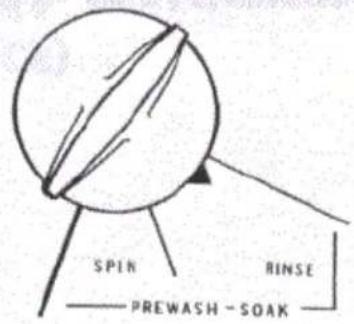

PREWASH-SOAK — This cycle starts at the rinse fill of the NORMAL cycle. The water will be the same temperature as the rinse water. Wash clothes as usual after the prewash-soak. For a longer soak, stop washer. See Handbook for more information on soaking.

SPIN RINSE PREWASH-SOAK

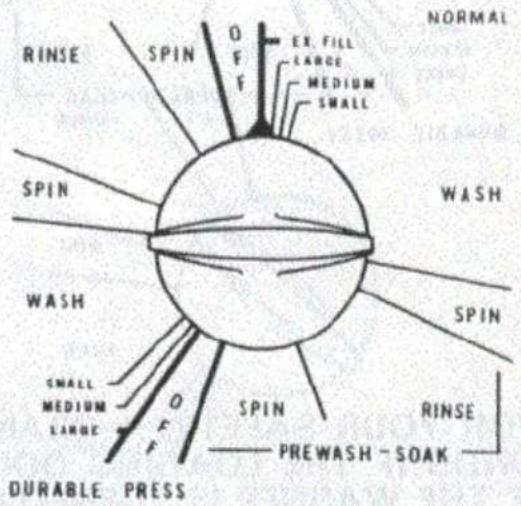

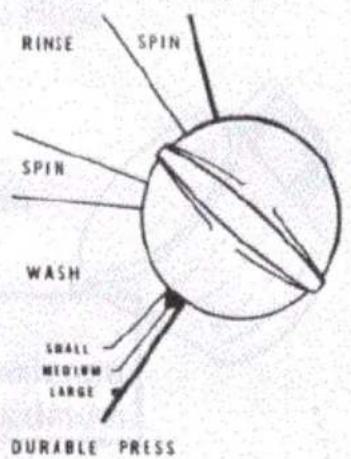

DURABLE PRESS CYCLE—7 minute wash agitation. A special cycle with the shorter wash, rinse and spin times needed for durable press and more delicate loads. It has overflow rinses as in the NORMAL cycle but the wash overflow is the same temperature as the rinse water. In addition, there is a spray rinse of the same temperature at the start of the wash spin to cool durable press loads and items of man-made fibers such as in lingerie. These would be wrinkled if they were spun while hot. Always choose cold rinse for such loads. See Speed Queen Handbook.

RINSE SPIN SPIN WASH SMALL MEDIUM LARGE DURABLE PRESS

Line drawing of a device with a tray and ventilation slots, no text or symbols present

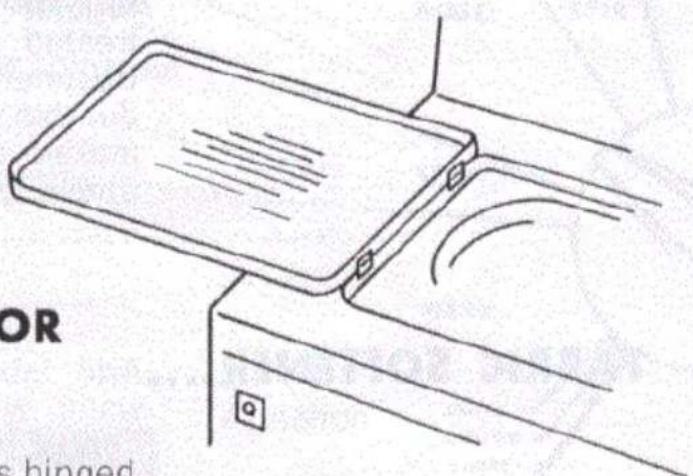

THE LOADING DOOR

The loading door or washer lid is hinged at one side so it will not interfere when the controls are being set. It may be used as a shelf and will hold a load of wet or dry clothes.

UNBALANCED LOAD...

One or two small heavy items, such as small rugs, may slow down the spin speed during spinning or cause the spin tub to bump inside the drain tub. The fluid drive will allow the spin to be completed with no harm to the washer but the clothes will retain more water than usual.

To Respin the Load: Push timer knob IN, rearrange the clothes, then reset the timer knob to the start of the spin. Pull timer knob OUT. In the future, add towels to balance the load.

BLEACH

Simple line drawing of a bucket with handle and spout (no text or symbols)

Chlorine bleach is effective not only for stain removal but also as a disinfectant especially for "sick room" clothes. Dilute liquid bleach in 1 quart water before adding to clothes in the washer. Never pour or spill undiluted bleach on clothes or they will be damaged. Follow bottle directions.

AMOUNT LIQUID BLEACH TO USE:

LARGE fill — up to 1 cupful

MEDIUM fill — up to 34 cupful

SMALL fill — up to 12 cupful

STAIN REMOVAL.....

Some soils are not readily removable by regular wash methods. They must be treated as stains and given special treatment. This is also necessary with durable press clothes. Prompt treatment makes stains easier to remove. See Speed Queen Handbook.

FABRIC SOFTENER....

Add fabric softener only to the rinse water with no other laundry product. It must be diluted with water to prevent clothes staining. It may be added to the rinse water any time up to one minute before the last overflow rinse. See Handbook.

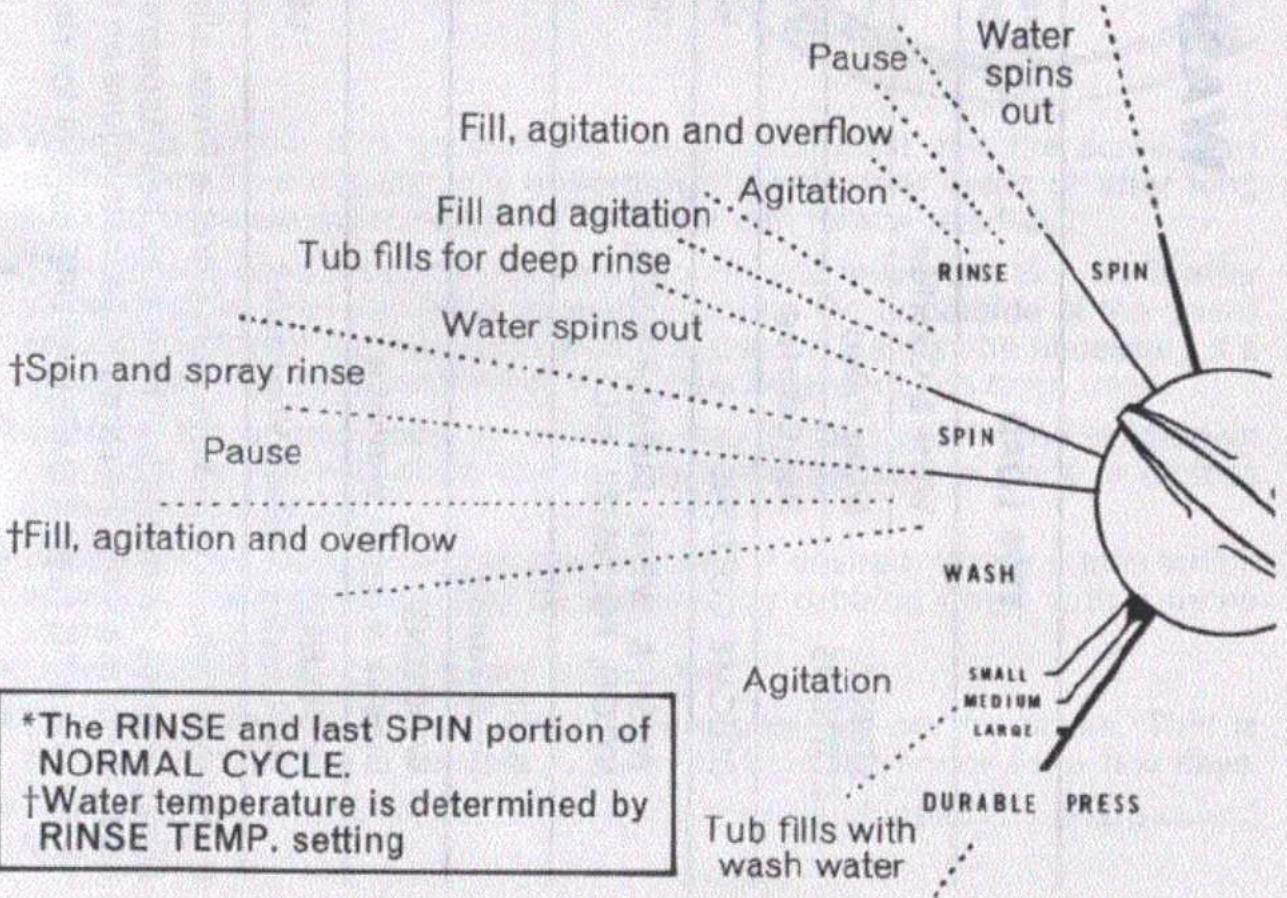

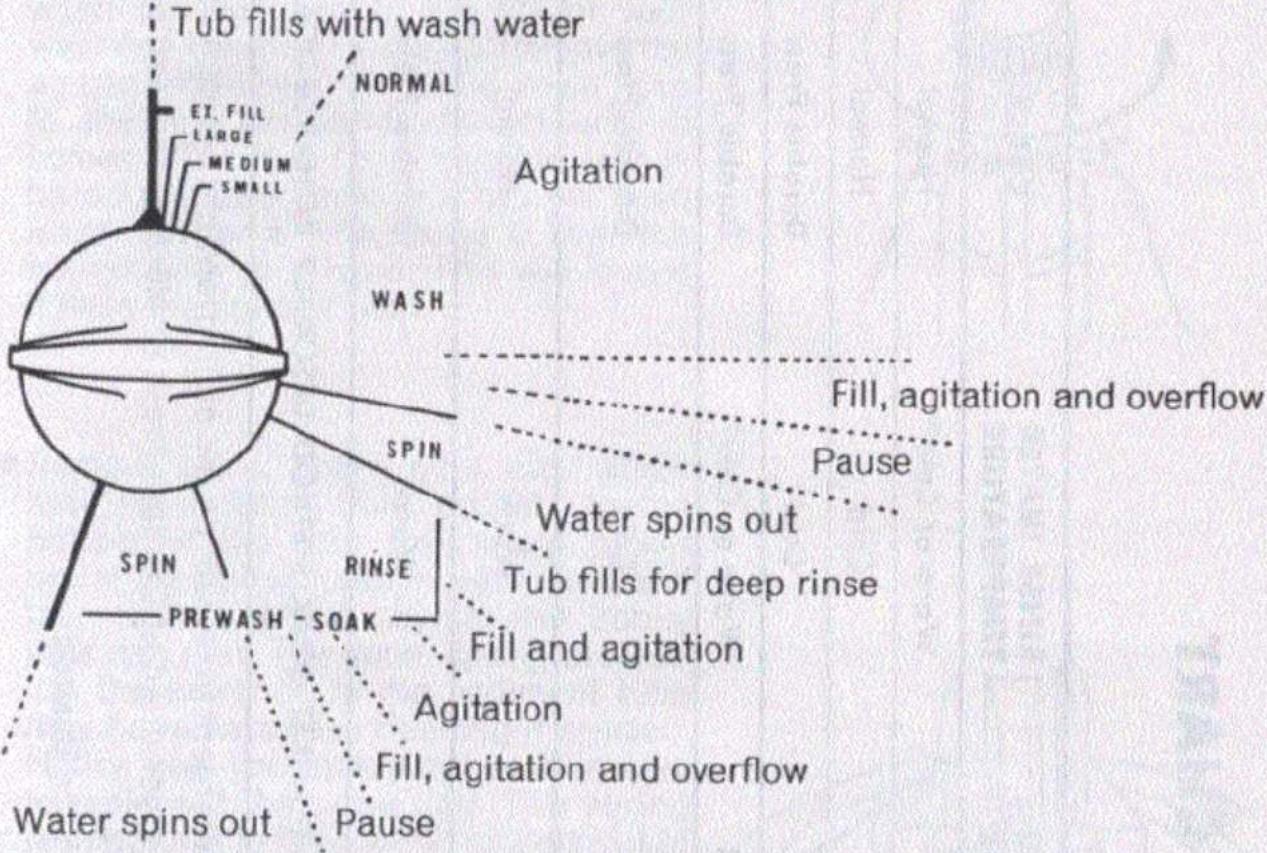

CYCLE CHART

(TIMER SEQUENCE)

NORMAL CYCLE - 40 Minutes maximum

*PREWASH-SOAK CYCLE - 17 minutes maximum

DURABLE PRESS CYCLE-26 minutes maximum
    note right of A
        *The RINSE and last SPIN portion of NORMAL CYCLE.
        †Water temperature is determined by RINSE TEMP. setting
    end
