Product Type	Night Vision Monocular
Brand	Carson
Model	Mini Aura NV-200
Objective Focal Length	13.5 mm
Aperture	F1.6
Field of View	19°
Eyepiece Dioptric Compensation	-4.0 to +2.0 D
Weight (without batteries)	58 g
Power Source	3 AAA batteries (alkaline recommended)
Infrared Illuminator	Yes, with 4 intensity levels (Off, 30%, 60%, 100%)
Auto Power Off	After 5 minutes of inactivity
Focusing Mechanism	Eyepiece and objective lens adjustment
Safety Warning	Do not expose to direct sunlight
Care Instructions	Remove batteries when not in use for long periods
Included Accessories	Strap
Technical Support	Toll-free 1-800-967-8427

Frequently Asked Questions - Mini Aura NV-200 Carson

How do I turn on the Mini Aura NV-200?

Press and hold the Power On/Off Button for 3 seconds. The screen will light up and the device will start.

How do I adjust the infrared intensity?

Press the Infrared On/Off Button repeatedly to cycle through the levels: Off, 30%, 60%, and 100%.

What type of batteries does it use?

It uses 3 AAA batteries. Alkaline batteries are recommended for best performance.

Why does the device get warm during use?

It is normal for the nightscope to get warm when used for prolonged periods. This is due to the internal electronics.

Can I use the night vision monocular in daylight?

No, do not use it under direct sunlight. This may damage the internal electronics. Use it only in low-light or nighttime conditions.

How long does it take to automatically power off?

The device will automatically turn off after 5 minutes of inactivity to save battery.

How do I focus the monocular?

Adjust the Eyepiece Focusing Dial for your eyesight, then turn the Objective Lens Focusing Dial to sharpen the image.

What is the dioptric adjustment for?

The eyepiece dioptric compensation range (-4.0 to +2.0 D) allows users with different vision to focus the image without glasses.

Is the monocular waterproof?

The manual does not specify waterproofing. Avoid exposing it to rain or moisture to prevent damage.

How do I clean the lens?

Use a soft, lint-free cloth to gently wipe the lens. Avoid harsh chemicals. Do not touch the lens with fingers.

USER MANUAL Mini Aura NV-200 Carson

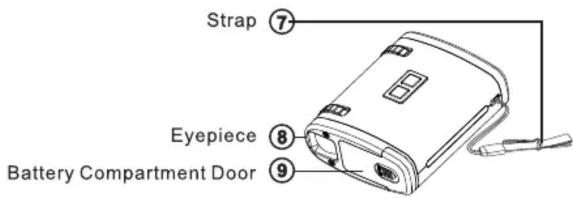

Installing Batteries

1) Open battery compartment door

Diagram of a device interior with internal components and an arrow indicating rotation (no text or symbols)

2) Insert 3 AAA size batteries (we recommend alkaline), matching the polarities as indicated

Diagram of a battery pack with three cylindrical cells and an arrow indicating rotation (no text or symbols)

3) Close battery compartment door

Line drawing of a device with a curved arrow pointing to a top panel (no text or symbols)

Using the NV-200

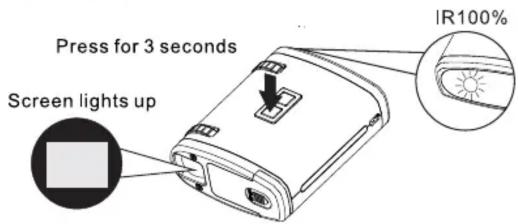

1) Switching On

2) Focusing

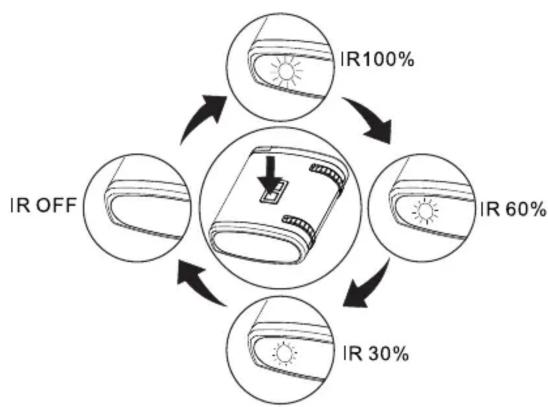

3) Choosing IR intensity – Press button once to cycle through

4) Switching Off
Press for 3 seconds

Diagram showing two device panels with a cursor pointing to a button, connected by an arrow indicating rotation or transformation (no text or symbols present)

5) Automatic Power Off

Automatic power off in 5 mins

Diagram of two open containers with a sun symbol and directional arrow, no text or labels present

Specifications

1. Objective
   ● Focal Length: f=13.5

2. Aperture: F1.6
   ● Field of View: 19°

3. Eyepiece

● Dioptric Compensation: -4.0 \~ +2.0 D

1. Weight: 58g (without Battery)

WARNING: Do not use the Night Vision Monocular under direct sunlight. This may damage the electronics inside.

Remove the batteries from the nightscope when it is not in use for long periods of time.

It is normal for the nightscope to get warm when using it for prolonged periods of time.

For technical support please call us toll-free at 1-800-967-8427.
