MWI 4343 BL - Microwaves INDESIT - Free user manual and instructions

Brand	Indesit
Model	MWI 4343 BL
Product Type	Freestanding Microwave
Control Type	Electronic with selection and adjustment knobs
Display	Digital with clock and function indicators
Microwave Power	10 power levels: 90 W to 1000 W
Grill Power	Not specified (estimated 1000 W)
Combination Cooking	Grill + Microwave
Auto Functions	Auto Defrost (5 categories), Auto Reheat (5 categories), Auto Cook (5 categories)
Rapid Start	30 seconds at full power
Turntable	Glass turntable, removable
Accessories	Glass turntable, turntable support, wire rack, cover (if present)
Safety Lock	Child lock (automatically activated)
Timer	Separate timer function up to 99 minutes 59 seconds
Cooking Capacity	Approximately 25 L (estimated)
Power Supply	230 V ~ 50 Hz (standard)
Cleaning	Interior and exterior with damp cloth; accessories dishwasher safe
Energy Efficiency Class	Not specified (check product fiche)
Product Fiche	Download from docs.indesit.eu

Frequently Asked Questions - MWI 4343 BL INDESIT

How do I set the clock on the Indesit MWI 4343 BL?

Press and hold Stop for at least 3 seconds when the oven is off. The hour digits flash; turn the adjustment knob to set the hour, then press OK. Then set the minutes similarly and press OK.

What is the maximum microwave power?

The maximum microwave power is 1000 W. You can adjust the power level using the adjustment knob when the W icon flashes.

How do I use the grill function?

Select the Grill function using the selection knob. Preheat for 3-5 minutes for best results. Place food on the wire rack on the turntable. Turn food halfway through cooking.

Can I use metal containers in the microwave?

No, metallic containers for food or drink should never be used during microwave cooking. They can cause sparks and damage the oven.

How do I defrost food automatically?

Select Auto Defrost function, choose the category (meat, poultry, fish, vegetables, bread) with the adjustment knob, then set the weight. Press Start. Turn food when prompted.

What should I do if the display shows 'F' followed by a number?

This indicates a software fault. Contact the After-sales Service and provide the number after 'F'.

How do I clean the microwave interior?

Clean with a damp microfiber cloth and a few drops of pH-neutral detergent. Remove the turntable and support to clean the bottom. The grill does not need cleaning as heat burns off residue.

What is the safety lock feature?

The safety lock automatically activates to prevent accidental start. If the display shows a lock icon, open and close the door, then press Start.

Can I use the timer while cooking?

Yes, the timer runs independently. Turn the adjustment knob when the oven is off to set the timer, then press OK. It counts down without affecting any cooking cycle.

Where can I download the full user manual?

Download the Use and Care Guide from docs.indesit.eu by specifying the product's commercial code. You can also find the product fiche there.

USER MANUAL MWI 4343 BL INDESIT

Når ikonet Blinker på displayet, drejer man på justeringsknappen, for at markere det ciffer, som svarer til den ønskede kategori. Tryk herefter på OK, for at bekræfte.

VÄGT

. MANUALISET TOIMINNOT

TAKK FOR AT DU HAR KJ∅PT ET INDESIT PRODUKT

DEKSEL (HVIS DET FINNES)

Simple diagram with a vertical line and circular symbol (no text or labels)

Technical line drawing of a microwave oven with a tray and control panel, no text or symbols present

PRÍRUČKA NA KAŽDODENNÉ POUŽÍVANIE

ĎAKUJEME, ŽE STE SI KÚPILI VÝROBOK INDESIT

. FUNKCIE S MANUÁLNYM NASTAVENÍM

Ked'sa na displeji ukáže štandardné nastavenie a bliká ikonka 9, otočením nastavovacieho gombíka nastavte hmotnosť, stlačením Start potvrdíte a spustíte funkciu.

3. AKTIVUJTE FUNKCIU

THANK YOU FOR PURCHASING AN INDESIT PRODUCT

To receive more comprehensive help and support, please register your product at www.indesit.com/register

You can download the Safety Instructions and the Use and Care Guide by visiting our website docs.indesit.eu and following the instructions on the back of this booklet.

Before using the appliance carefully read the Health and Safety guide.

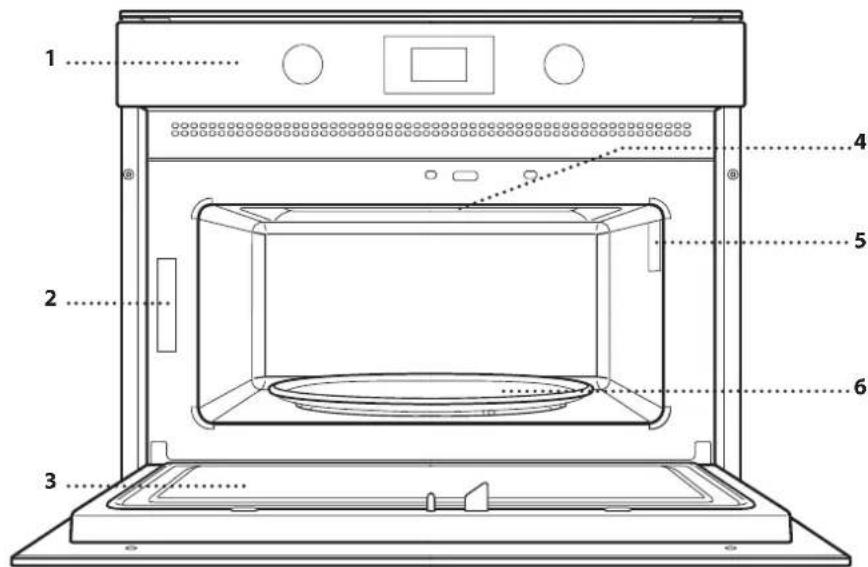

PRODUCT DESCRIPTION

1. Control panel

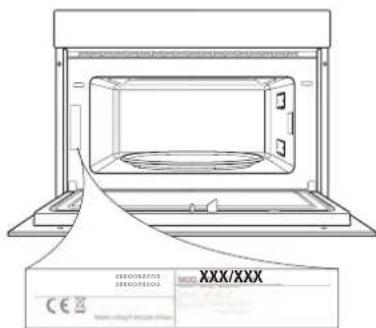

2. Identification plate (do not remove)
3. Door
4. Upper heating element/grill
5. Light
6. Turntable

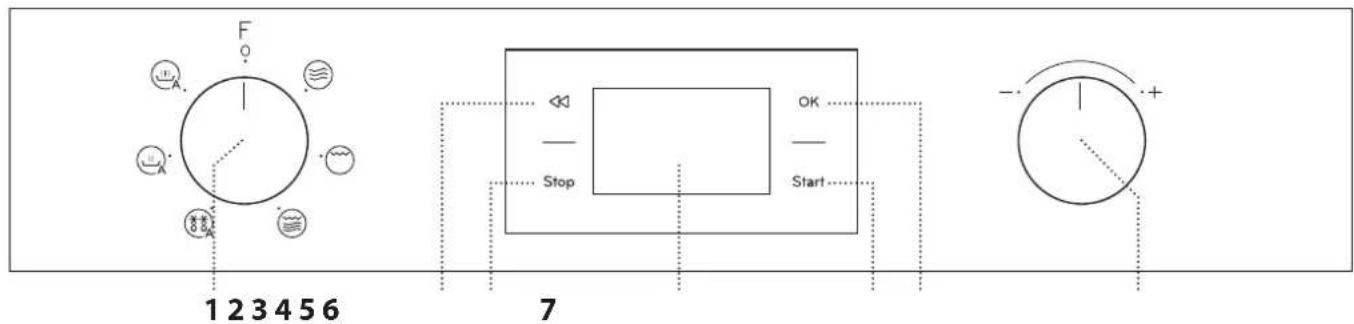

CONTROL PANEL

1. SELECTION KNOB

For switching the oven on by selecting a function. Turn to theO position to switch the oven off.

2.BACK

For returning to the previous settings menu.

3. STOP

For interrupting an active function at any time. Press twice to stop the function and put the oven on stand-by.

4.DISPLAY

5. START

For starting functions and confirming settings. When the oven is switched off, it activates the microwave function.

6.CONFIRM

For confirming a function selection or a set value.

7. ADJUSTMENT KNOB

For scrolling through the menus and applying or changing settings.

ACCESSORIES

GLASS TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods.

The turntable must always be used as a base for other containers or accessories.

TURNTABLE SUPPORT

Only use the support for the glass turntable. Do not rest other accessories on the support.

WIRE RACK

This allows you to place food closer to the grill, for perfectly browning your dish. Place thewire shelf on the turntable.

COVER (IF PRESENT)

Useful for covering containers during microwave cooking and heating. The cover reduces splashes, keeps foods moist and can also be used to create two cooking levels.

It is not suitable for use with any of the grill functions.

The number and type of accessories may vary according to which model is purchased. Other accessories that are not supplied can be purchased separately from the After-sales Service.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used during microwave cooking.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

MICROWAVE

For quickly cooking and reheating food or drinks.

POWER RECOMMENDED FOR

1000 W	Quickly reheating drinks or other foods with a high water content
800 W	Cooking vegetables
650 W	Cooking meat and fish
500 W	Cooking meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes
350 W	Slow, gently cooking. Perfect for melting butter or chocolate
160 W	Defrosting frozen foods or softening butter and cheese
90 W	Softening ice cream

GRILL

For browning, grilling and gratins. We recommend turning the food during cooking. For best results, preheat the grill for 3-5 minutes.

Recommended accessories: Wire rack

GRILL + MW

For quickly cooking and gratinating dishes, combining the microwave and grill functions.

Recommended accessories: Wire rack

AUTO DEFROST \*

For quickly defrosting various different types of food simply by specifying their weight. Food should be placed directly on the glass turntable. Turn the food when prompted.

CATEGORY FOOD WEIGHT

1*	MEAT(mince, cutlets, steaks, roasting joints)	100 g - 2 kg
2*	POULTRY(whole chicken, pieces, fillets)	100 g - 2.5 kg
3*	FISH(whole, steaks, fillets)	100 g - 1.5 kg
4*	VEGETABLES(mixed vegetables, peas, broccoli, etc.)	100 g - 1.5 kg
5*	BREAD(loaves, buns, rolls)	100 g - 1 kg

AUTO REHEAT \*

A For reheating ready-made food that is either frozen or at room temperature.

Place food on a microwave-safe and heatproof dinner plate or dish.

CATEGORY FOOD WEIGHT

	DINNER PLATE 250 - 500 g
	FROZEN PORTION 250 - 500 g
	FROZEN LASAGNA 250 - 500 g
	SOUPS 200 - 800 g
[0608]	BEVERAGES 100 - 500 g

AUTO COOK \*

CA For cooking foods quickly, achieving optimal results. Place food on a microwave-safe and heatproof dinner plate or dish.

CATEGORY FOOD WEIGHT

	BAKED POTATOES(Turn when prompted)	200 g - 1 kg
	FRESH VEGETABLES(Cut into pieces of equal size and add 2 to 4 tablespoons of water. Cover)	200 - 800 g
	FROZEN VEGETABLES(Turn when prompted. Cover)	200 - 800 g
[25W]	CANNED VEGETABLES 200 - 600 g
[17W]	POPCORN 100 g

* With the automatic functions, simply select the type and weight or the quantity of the food items to obtain the best results. The oven will automatically calculate the optimum settings and continue to change them as cooking progresses. Turn or stir the food when prompted.

FIRST TIME USE

. SET THE TIME

You will need to set the time when you switch on the appliance for the first time: The two digits for the hour will flash on the display.

Turn the adjustment knob to set the correct hour and press OK to confirm. The two digits for the minutes will start flashing. Turn the adjustment knob to set the correct hour and press OK to confirm.

Please note: to change the time at a later point, press and hold Shop at least 3 seconds while the oven is off and repeat the steps above. You may need to set the time again following lengthy power outages.

DAILY USE

1. SELECT A FUNCTION

When the oven is off, only the time is shown on the display. Turn the selection knob to select one of the available functions.

2. SET A FUNCTION

. MANUAL FUNCTIONS

After having selected the function you require, you can change its settings.

The display will show the settings that can be changed in sequence.

When the W on flashes on the display, turn the adjustment knob to adjust the power setting and then press OK to confirm and continue to alter the settings that follow (if possible).

In the same way the °C icon flashes on the display, turn the adjustment knob to adjust the temperature setting and then press OK to confirm and continue to alter the settings that follow.

Please note: once the function has been activated, the power can be changed by pressing <two times to access the power settings menu, then turning the adjustment knob to change the setting.

DURATION

When the icon flashes on the display, turn the adjustment knob to set the desired duration. Once the displayed cooking time corresponds with what you desire, pressStart to confirm and start the function.

Please note: During cooking, you can adjust the cooking time by turning the adjustment knob; each time you press the cooking time increases by 30 seconds.

.AUTOMATIC FUNCTIONS / AUTO DEFROST

CATEGORIES

Once you have chosen one of the automatic functions, you will need to select a category for the food you are cooking.

When the on flashes on the display, turn the adjustment knob to select the digit that corresponds to the desired category, then press OK to confirm.

WEIGHT

To achieve the best results, the automatic functions require you to enter the weight of the food, selecting from amongst the default settings: the oven will calculate the ideal length of time for the function to run for each category of food.

When the default setting appears on the display and the 9 icon flashes, turn the adjustment knob to enter the weight, then press Start to confirm and start the function.

3. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press Start to activate the function.

Every time the Start button is pressed again, the cooking time will be increased by a further 30 seconds (only for manual functions).

Please note: You can press service at any time to stop the function that is currently active.

. RAPID START

When the oven is switched off, it is possible to press Start to activate cooking with the microwave function set at full power (1000 W) for 30 seconds.

.SAFETY LOCK

This function is automatically activated to prevent the oven from being switched on accidentally.

Open and close the door, then press star start the function.

4. PAUSE

For pausing an active function, for example to stir or turn the food, simply open the door.

To start it up again, close the door and press Start.

It is also possible to temporarily pause cooking by pressing Stop. To resume the cooking process, close the door and press Start.

AUTOMATIC PAUSE

(STIR OR TURN THE FOOD)

Certain functions will pause to allow you to turn or stir the food.

When the oven pauses the cooking and "Turn food" or "Stir Food" appear on the display, open the door to turn or stir the food, then close the door and press Start to start cooking again.

Please note: after 2 minutes, even if the food has not been turned or stirred, the function will start again automatically.

5.END OF COOKING

An audible signal will sound and "End" will appear on the display to indicate that a cooking function is complete.

For some functions, it is possible to delay cooking while maintaining previously established settings: turn the adjustment knob to set a new cooking time, then press Start.

. TIMER

When the oven is switched off, the display can be used as a timer. The timer does not activate any of the cooking cycles.

To activate the function and set the cooking time you require, turn the adjustment knob.

Press ☐ activate the timer. An audible signal will sound and the display will indicate once the timer has finished counting down the selected time. To make a change to the timer once it has been activated, turn the adjustment knob, then press OK to confirm.

To interrupt it or return to the current time display, turn the adjustment knob until 0:00 is on the display and press OK.

Please note: Once the timer has been activated, you can activate a function as well: The timer will continue to count down the selected time automatically without having any effect on the function. To go back to viewing the timer, wait for the function to finish or stop the oven function by pressing Stop

COOKING TABLE

FOOD	FUNCTION	POWER (W)	DURATION (MIN)	ACCESSORIES
Ready-made meals (250 - 500 g)		800 4 - 7		-
Lasagna/pasta bake		350 - 500 15 - 25
Frozen lasagna (500 - 700 g)		500 - 800 14 - 20		-
Meat (chops, steaks)		500 10 - 15
Poultry (whole, 800 g - 1.5 kg)		350 - 500 30 - 45 *
Chicken fillets or pieces		350 - 500 10 - 17
Roasts (800 g - 1.2 kg)		350 - 500 25 - 40 *
Sausages/kebabs		- 20 - 40 *
Fish (slices or fillets)		160 - 350 15 - 20 *
Whole fish (800 g - 1.2 kg)		160 - 350 20 - 30 *
Baked potatoes (600 g - 1 kg)		350 - 500 30 - 50 *
Baked apples		160 -350	15 - 25

Download the Use and Care Guide from docs.indesit.eu for the table of tested recipes, compiled for the certification authorities in accordance with the standards IEC 60705.

FUNCTIONS	Microwaves	Grill	Grill + Microwaves
ACCESSORIES	Heatproof plate/container suitable for use in microwaves		Wire rack

CLEANING

Make sure that the appliance has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Clean the glass in the door with a suitable liquid detergent.
• At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.
  • The grill does not need to be cleaned as the intense heat burns away any dirt. Use this function on a regular basis.

ACCESSORIES

All accessories are dishwasher safe.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists.
The oven makes noises, even when it is switched off.	Cooling fan active.	Open the door or press Stop
The display shows the letter "F" followed by a number.	Software fault. Contact you nearest Client After-sales ServiceCentre and state the number following the letter "F".

PRODUCT FICHE

www The product fiche with energy data of this appliance can be downloaded from our website docs.indesit.eu

HOW TO OBTAIN THE USE AND CARE GUIDE

www Download the Use and Care guide from our website docs.indesit.eu (you can use this QR code), specifying the product's commercial code.

Alternatively, contact our Client After-sales Service.

CONTACTING OUR AFTER-SALES SERVICE

You can find our contact details in the warranty manual. When contacting our Client After-sales Service, please state the codes provided on your product's identification plate.
