USER MANUAL DSR-3000 Ozito

Pad Size: 93 x 93 x 93mm

Paper Fitment: Hook and Loop

ozito.com.au

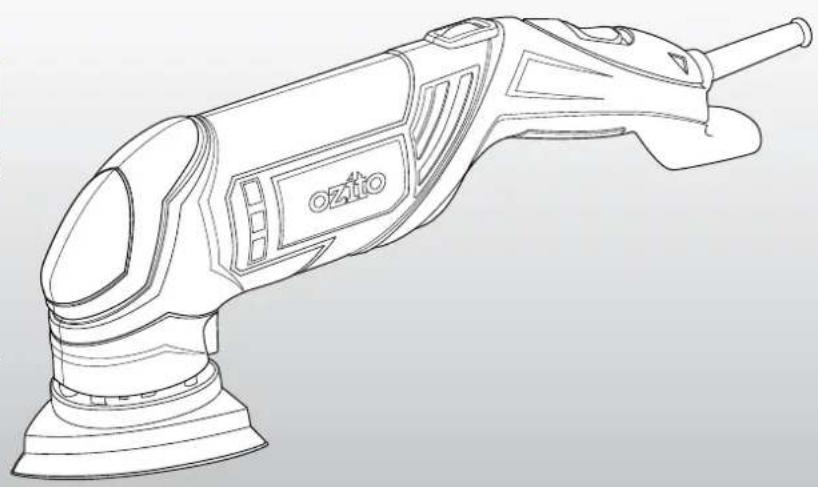

Line drawing of a power tool with brand mark 'ozito' on the handle (no text or symbols beyond branding)

WHAT'S IN THE BOX

Delta Sander

Dust Extraction Adaptor

Sanding Paper x 3

3

YEAR REPLACEMENT WARRANTY

DSR-3000

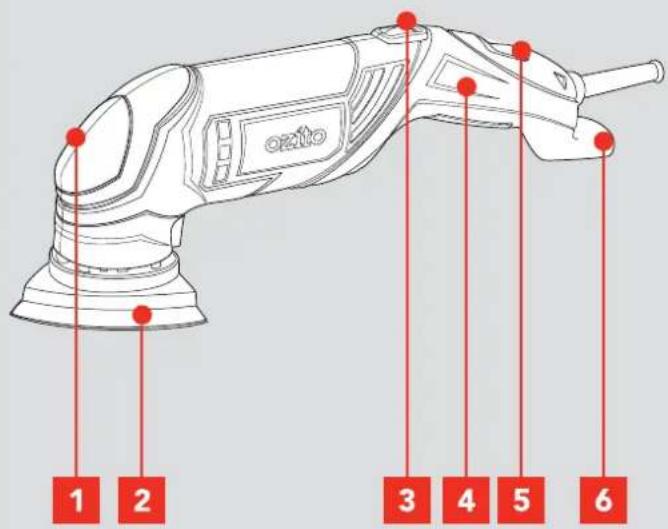

KNOW YOUR PRODUCT

DELTA SANDER

1. Front sure grip handle
2. Hook & loop sanding pad

3. Variable speed dial

4. Rear sure grip handle

5. On/Off switch

6. Dust extraction port

ozto 1 2 3 4 5 6

ACCESSORIES

1. Sanding sheets x 3
2. Dust extraction adaptor

Diagram of two triangular mesh patterns with a red arrow pointing to a numbered label '7' (no text or symbols on the patterns themselves)

8

ONLINE MANUAL
Scan this QR Code with your mobile device to take you to the online manual.

SETUP & PREPARATION

1. HOOK & LOOP SANDING SHEET

Ensure the tool is disconnected from the power supply before performing any of the following operations.

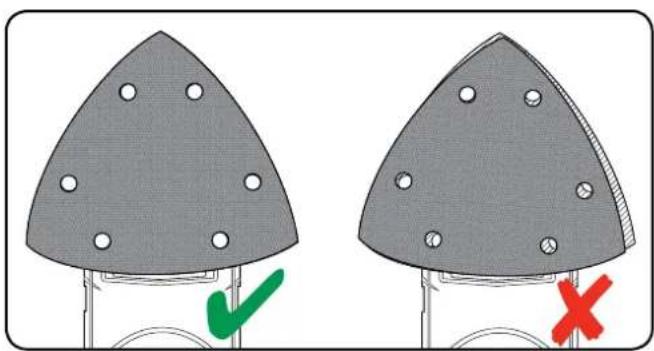

1. When placing the sheet, align the holes on the sanding sheet with the holes on the sanding pad. Press firmly to secure.

Two triangular mechanical components with holes and a checkmark indicator, shown side by side (no text or symbols)

1. To remove, peel the sanding sheet off sanding pad from one corner.

Diagram of a mechanical component with a red arrow indicating upward motion (no text or symbols)

1. Replace hook & loop sanding pad when worn (see maintenance section).

Simple line drawing of a triangular object with circular holes and a base (no text or symbols)

OPERATION

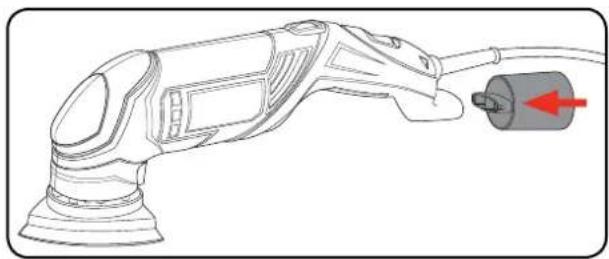

1. Slide the dust extraction adaptor into the dust extraction port.

Line drawing of a power tool with a red arrow pointing to the end of the plug (no text or symbols present)

1. Connect a dust extraction hose to the dust extraction adaptor.

Diagram of a plug connecting two cylindrical components with a red arrow indicating a specific section (no text or symbols present)

1. Run the dust extraction device while operating the delta sander.

Line drawing of a spray gun spraying a cylindrical container (no text or symbols)

WARNING! THE DUST THAT IS PRODUCED WHILE WORKING CAN BE DETRIMENTAL TO HEALTH, INFLAMMABLE OR EXPLOSIVE. SUITABLE SAFETY MEASURES ARE REQUIRED. USE SUITABLE DUST EXTRACTION AND WEAR A DUST RESPIRATOR.

3. CONTROLS2. DUST EXTRACTION ADA

The tool is recommended for use with a residual current device with a rated residual current of 30mA or less.

On/ Off Switch

To turn on, push the ON/OFF switch forward to "1" position.

Top-down diagram of a vehicle interior with a highlighted vent and directional arrow (no text or symbols)

To turn off, push the ON/OFF switch backward to "0" position.

Top-down schematic of a vehicle or car interior with a red arrow indicating direction (no text or symbols)

Variable Speed

1. Turn the delta sander on.

Top-down diagram of a car interior with vent and door, showing airflow direction (no text or symbols)

1. Scroll through variable speed dial to select desired speed setting.

Line drawing of a device control panel with a red arrow pointing to the top-left button (no text or symbols)

Note: The higher the number on the variable speed dial, the faster the oscillation frequency of the delta sander.

Low

High

4. SANDING 5. SANDING TIPS

WARNING! GUIDE THE CORD DURING SANDING TO PREVENT IT BEING CAUGHT ON THE WORKPIECE, OR OTHER TOOLS/OBJECTS.

1. Hold the tool firmly to prevent it from twisting.

Line drawing of hands using a tool to handle a chess piece (no text or symbols)

1. Turn the sander on.

Top-down schematic of a vehicle or device component with internal compartments and directional arrows (no text or symbols)

1. Select desired speed.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

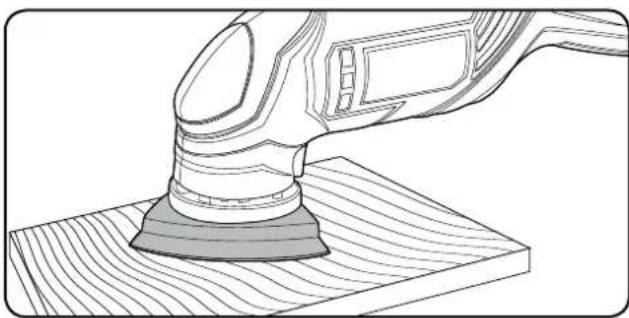

1. Place the sander on the work piece, ensuring the whole area of the base is in contact with the work surface.

Line drawing of a hand using a power tool on a wooden surface (no text or symbols)

1. Move the sander over the surface of the work in a circular motion with an even, moderate pressure.

Diagram of a mechanical component with red curved arrows indicating rotational motion (no text or symbols)

• Never force the sander. The weight of the sander supplies adequate pressure, allowing the sandpaper to do the work. Applying additional pressure can overload the motor, rapidly wear the sandpaper, and greatly reduce the sander speed. This will slow the removal rate and produce an inferior quality surface.
• Be sure to check your workpiece often. The sander is capable of removing material rapidly, especially with coarse paper.
• The orbital action of your sander allows you to sand with the grain, or at any angle across it for most sanding jobs. In the final stages a better finish will be achieved by sanding with the grain.
• Do not sand on one spot for too long. The sander's rapid action may remove too much material, creating an uneven surface.
• Caution: Excessive pressure will overload the motor, causing possible damage to the sander by overheating the motor; or damage to the workpiece.

MAINTENANCE

• Keep the ventilation vents of the sander clean at all times, if possible, prevent foreign matter from entering the vents.
• After each use, blow air through the sander housing to ensure it is free from all dust particles which may build up. Build up of dust particles may cause the sander to overheat and fail.
• If the enclosure of the sander requires cleaning, do not use solvents but a moist soft cloth only. Never let any liquid get inside the sander; never immerse any part of the sander into a liquid.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Carbon Brushes

When the carbon brushes wear out, the sander will spark and/or stop. Discontinue use as soon as this happens. They should be replaced prior to recommencing use of the sander. Carbon brushes are a wearing component of the sander therefore not covered under warranty. Continuing to use the sander when carbon brushes need to be replaced may cause permanent damage to the sander. Carbon brushes will wear out after many uses but when the carbon

brushes need to be replaced, take the sander to an electrician or a power tool repairer for a quick and low cost replacement. Always replace both carbon brushes at the same time.

Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the sander by an unauthorised person or by mishandling of the sander.

Replacing the Hook & Loop Sanding Pad

After considerable use, the velcro hook & loop sanding pad surface will become worn, and must be replaced when it no longer offers a firm grip. The replacement sanding pad can be ordered through the Special Orders Desk at any Bunnings store.

1. To replace, remove the three philips head screws by rotating anti-clockwise.

2. Place new sanding pad on the tool and retighten the three philips head screws by rotating clockwise.

Diagram of a mechanical component with a dome-shaped base and four red pins inserted (no text or symbols)

Cross-sectional diagram of a mechanical component with internal blades and mounting holes (no text or symbols)

Precautions to Take When Sanding Paint

Any finish, such as paint or resin, may soften from frictional heat. This will cause the material to rapidly clog the sandpaper, rendering it useless. A heat gun will remove paint more effectively before sanding.

Environmental Safety

• Paint should be removed in a manner which minimises the amount of dust generated.
• Areas where paint removal is occurring should be sealed with plastic sheeting.
• Sanding should be done in a manner which reduces the tracking of paint dust outside the work area.

CAUTION: Sanding of lead based paint is not recommended due to the dangers of lead poisoning.

Cleaning and Disposal

• All surfaces of the work area should be vacuumed and thoroughly cleaned daily for the duration of the sanding project. Vacuum filter bags should be changed frequently.
• Plastic drop sheets should be gathered up and disposed of along with any dust chips or other debris. They should be placed in sealed refuse receptacles and disposed of through regular garbage pick-up.
• During clean-up, children and pregnant women should be kept away from the immediate work area.
• All toys, washable furniture and utensils used by children should be washed thoroughly before use.

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

TROUBLESHOOTING

Sparking visible through the housing air vents

A small amount of sparking may be visible through the housing vents. This is normal and does not indicate a problem.

Excessive sparking visible through the housing air vents and/or the sander failing to operate

May indicate the carbon brushes have worn out and need to be replaced. Carbon brushes should only be replaced by a qualified electrician or power tool repairer.

Sandpaper Selection

Selecting the correct grit of sandpaper is an important step in achieving optimum results. Coarse grit will remove the most material. Finer grit will produce a smoother finish. The condition of the workpiece will determine the grit of the sandpaper to be used. The higher the grit number, the finer the grade of sandpaper.

If the surface is rough, start with a coarse grit and sand until the surface is uniform. Medium grit may then be used to remove scratches left by the coarser grit. Finer grit is then used to finish the surface. Always continue sanding with each grade of sandpaper until the surface is uniform.

MATERIAL APPROPRIATE GRIT

		Coarse Sanding Fine Sanding
Paintwork 180		400
Wood:	Softwood	60	240
	Hardwood	60	180
	Veneer	240	320

Note: If intermediate sanding is required, choose a grit rating between coarse and fine. The above table is intended as a guide only. To ensure a satisfactory result, a small, inconspicuous area should first be tested to ensure the grit of sandpaper chosen is suitable for the desired finish.

SPARE PARTS

Carbon Brush SPDSR3000-11

Velcro Pad

SPDSR3000-20

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

DESCRIPTION OF SYMBOLS

V Volts	Hz Hertz
~ Alternating current W Watts
/min	Revolutions orreciprocation per minute		Double insulated
S124	Regulator compliancemark	no	No load speed
	Read instruction manual		Wear hearing protectionWear eye protectionWear breathingprotection

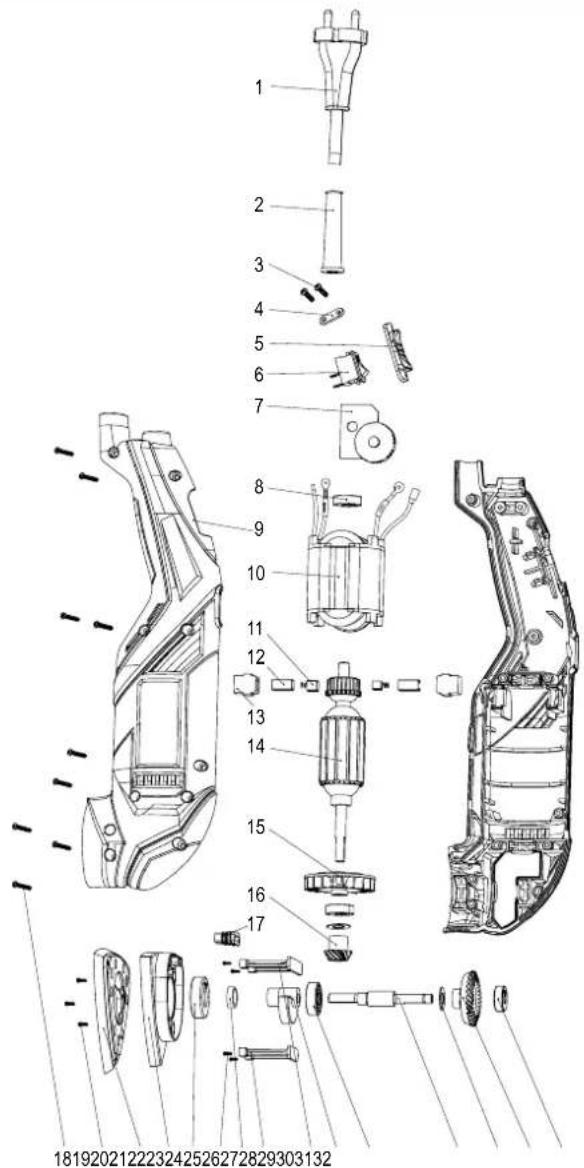

Exploded view diagram of a vehicle's internal components with numbered parts for identification

The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed.

Item No.	Description Part No.
6-7	Switch Assembly	SPDSR3100-06A
11	Carbon Brush (Pair)	SPDSR3100-11
20	Velcro Pad	SPDSR3100-20

Item No.

Description Part No.

How To Order

Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any further questions, please contact Ozito Customer Service on:

Australia: 1800 069 486

New Zealand: 0508 069 486

[e-mail]

!

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

This tool is double insulated in accordance with AS/NZS 60745-1; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.

!

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

!

DELTA SANDER SAFETY WARNINGS

WARNING! Hold power tool by insulated gripping surfaces, because the sanding pad may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

• Recommendation that the tool always be supplied via a residual current device with a rated residual current of 30 mA or less.
• Unplug the sander before changing accessories. Accidental start-ups may occur if the sander is plugged in while changing an accessory.
• Disposing of dust. Be extremely careful of dust disposal, materials in fine particle form may be explosive. Do not throw sanding dust on an open fire. Spontaneous combustion, may in time, result from a mixture of oil or water with dust particles.
• Always wear eye protection and a dust mask for dusty applications and when sanding overhead. Sanding particles can be absorbed by your eyes and inhaled easily and may cause health complications.
• Use special precautions when sanding chemically pressure treated timber, paint that may be lead based, or any other materials that may contain carcinogens. A suitable breathing respirator and protective clothing must be worn by all persons entering the work area. Work should be sealed by plastic sheeting and persons not protected should be kept out until work area is thoroughly cleaned.
• Do not 'wet sand' with this sander. Liquids entering the motor housing are an electrical shock hazard.
• Do not use sandpaper intended for larger sanding pads. Larger sandpaper will extend beyond the sanding pad causing snagging, tearing of the paper or kick-back. Extra paper extending beyond the sanding pad can also cause serious lacerations.

WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints
  • Crystalline silica from bricks and cement and other masonry products
  • Arsenic and chromium from chemically treated timber

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

Take special care to guard against these dusts, including the following:

-- All persons entering the work area must wear an approved mask specially designed for protection against harmful / toxic dusts, in addition to using the dust extraction facility, and keeping work area well ventilated.
-- Children and pregnant women must not enter the work area.
- Some wood and wood type products especially MDF (Medium Density Fibreboard) can produce dust that can be hazardous to your health. We recommend the use of an approved face mask with replaceable filters when using this machine in addition to using the dust extraction facility.
- This sander is designed for two handed operation. Adopt a stable stance and make sure that the mains cable is prevented from coming into contact with the machine or getting caught up on other objects preventing completion of the sanding pass.
- Ensure that you have removed foreign objects such as nails and screws from the workpiece before commencing sanding.

Precautions to Take When Sanding Paint

Any finish, such as paint or resin, may soften from frictional heat. This will cause the material to rapidly clog the sandpaper, rendering it useless. A heat gun will remove paint more effectively before sanding.

Environmental Safety

• Paint should be removed in a manner which minimises the amount of dust generated.
• Areas where paint removal is occurring should be sealed with plastic sheeting.
• Sanding should be done in a manner which reduces the tracking of paint dust outside the work area.

CAUTION: Sanding of lead based paint is not recommended due to the dangers of lead poisoning.

Cleaning and Disposal

• All surfaces of the work area should be vacuumed and thoroughly cleaned daily for the duration of the sanding project. Vacuum filter bags should be changed frequently.
• Plastic drop sheets should be gathered up and disposed of along with any dust chips or other debris. They should be placed in sealed refuse receptacles and disposed of through regular garbage pick-up.
• During clean-up, children and pregnant women should be kept away from the immediate work area.
• All toys, washable furniture and utensils used by children should be washed thoroughly before use.

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts, for example: sand paper, hook & loop base, carbon brushes, etc.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
  • If the tool is disassembled or tampered with in any way.
  • Professional, industrial or high frequency use.
