USER MANUAL Viera TX-26LE7P PANASONIC

Operating Instructions

Wide LCD TV

Model No. TX-26LE7P

TX-32LE7P

VIERA

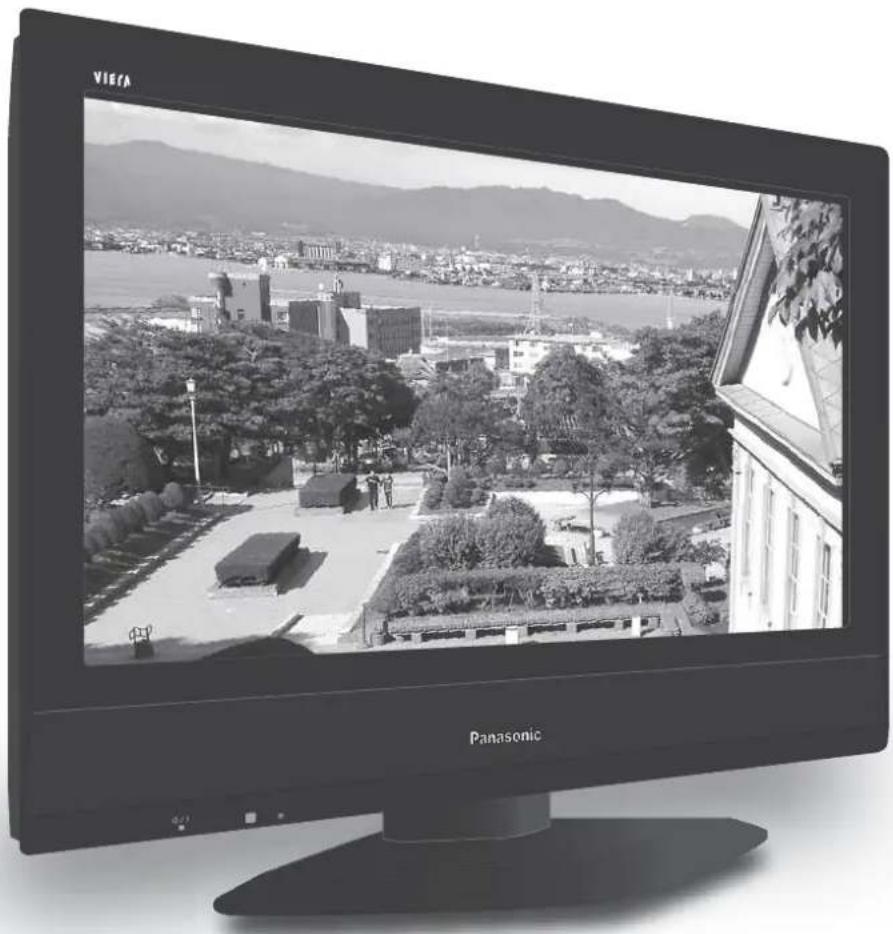

Panasonic TV displaying a cityscape with mountains and a riverside park, no visible text or symbols on the screen.

Panasonic TV

English

Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

TQB0E0404U

Turn your own living room into a movie theatre!

Experience an amazing level of multi-

Illustration of a Panasonic air conditioner unit with a monitor and printer, placed on a bed near plants (no text or symbols)

media excitement

Enjoy rich multi-media Camcorder Set top box Amplifi er with Speaker system VCR DVD recorder DVD player

Contents

Be Sure to Read

Safety Precautions 4 (Warning / Caution)
Notes 5
Maintenance 5

Quick Start Guide

●Accessories / Options …… 6
●Identifying Controls 7
●Connection 8
●Auto Setup 9

Enjoy your TV!

Basic Features

● Watching TV ……10
● Watching Videos and DVDs 11
Viewing Teletext 12

Advanced Features

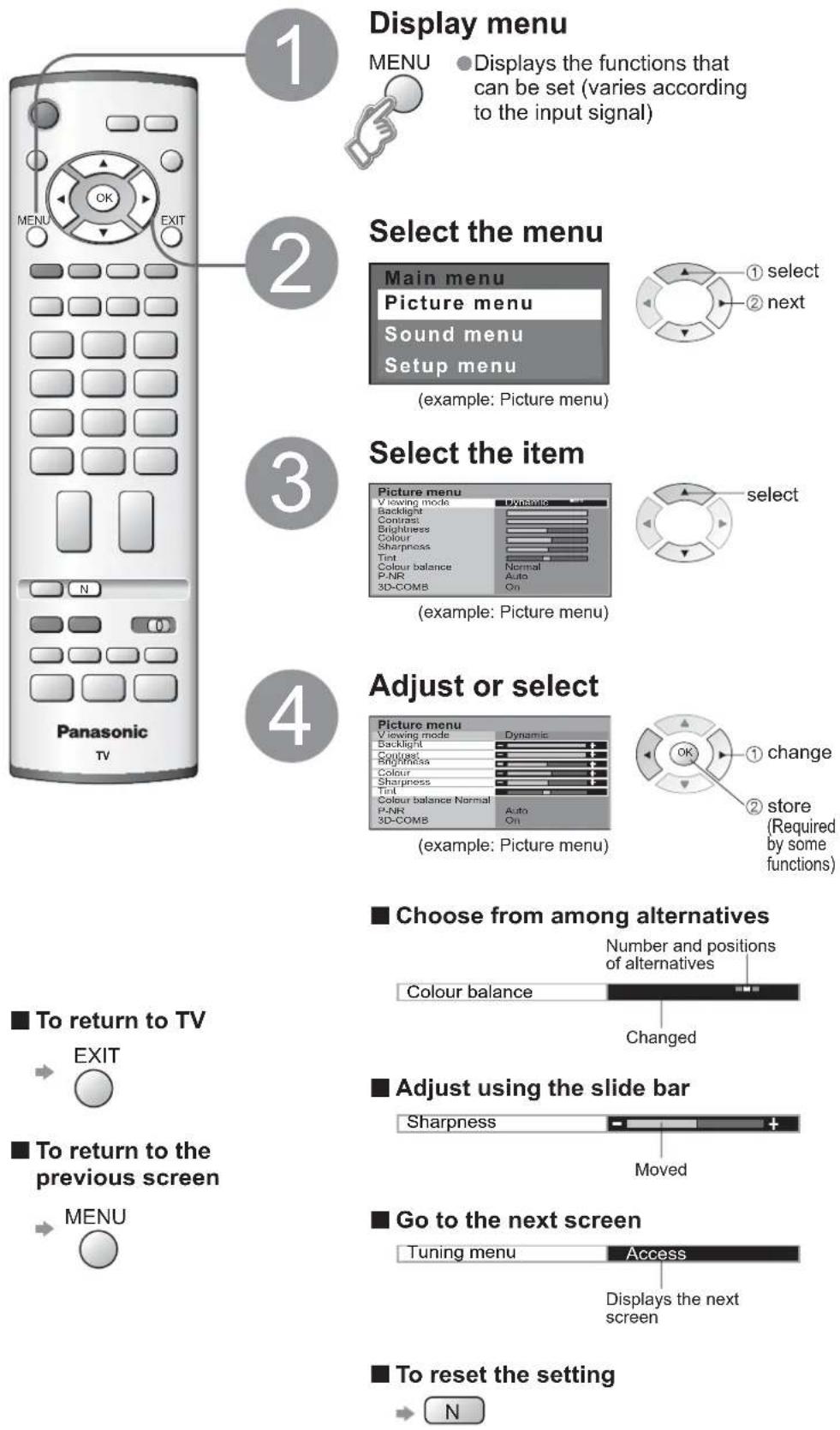

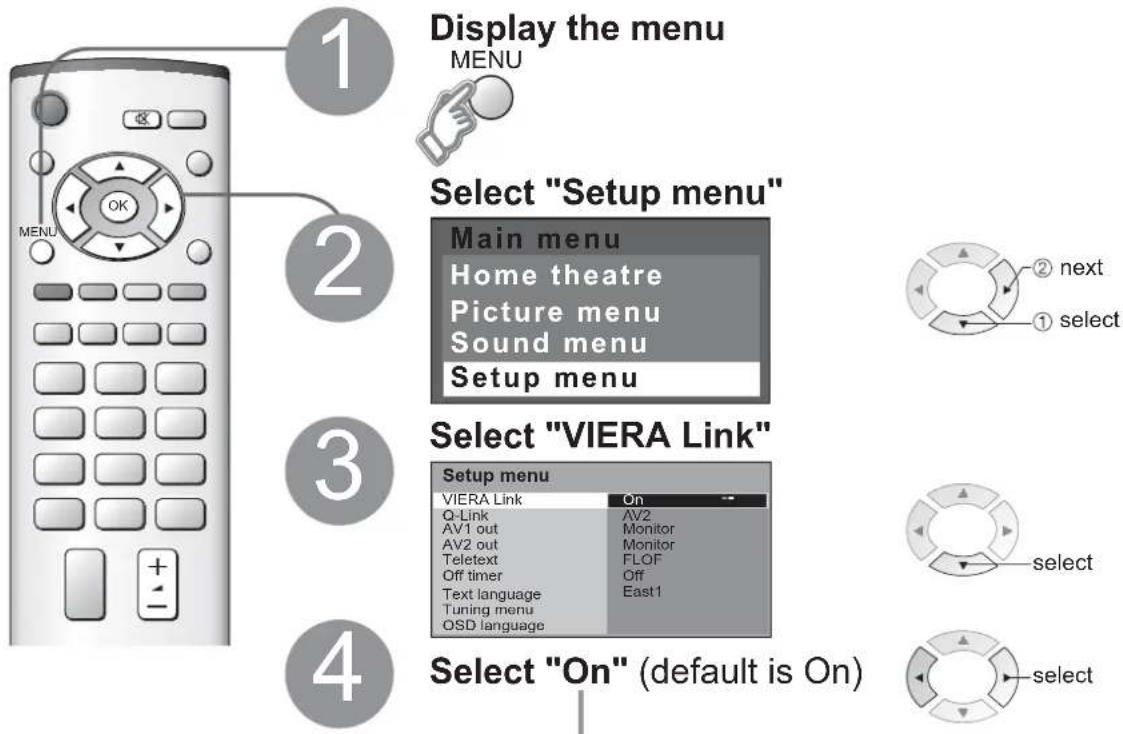

How to Use Menu Functions ……14 (picture, sound quality, etc.)

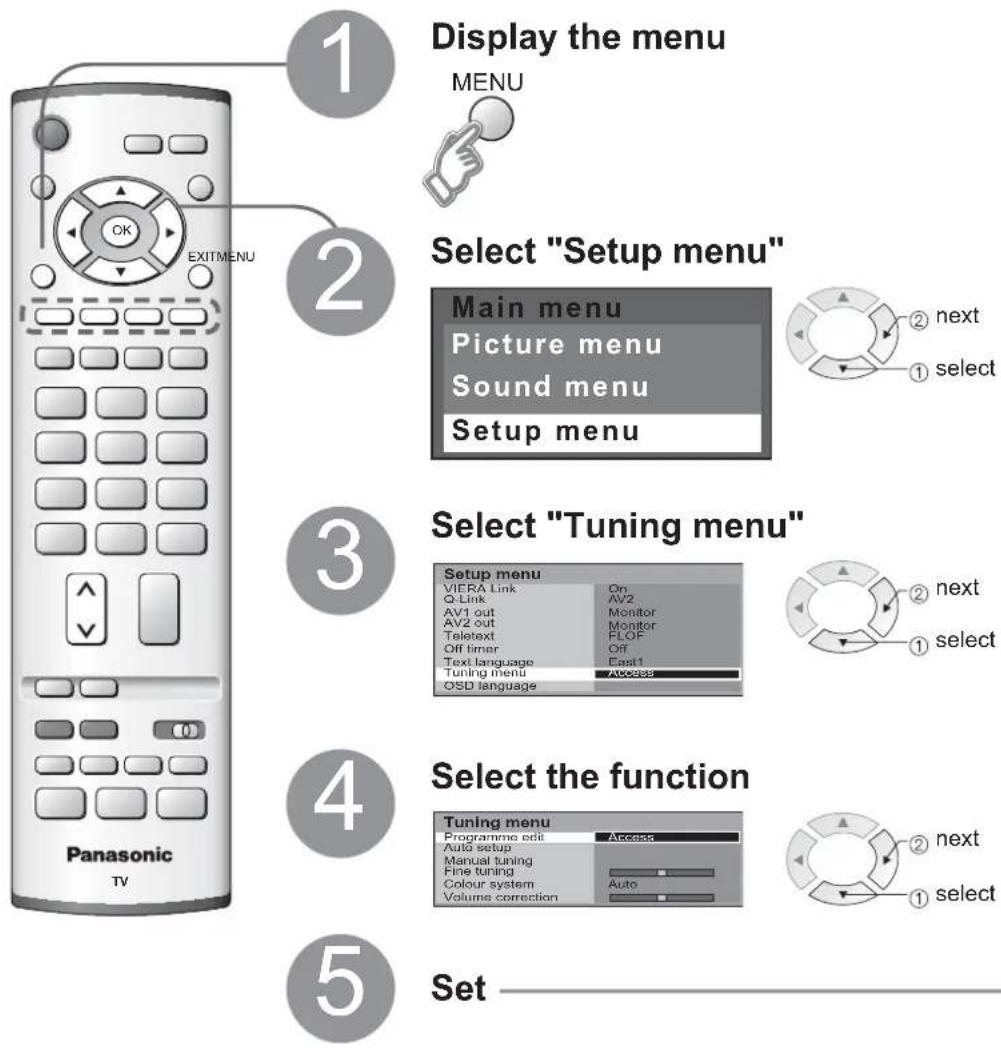

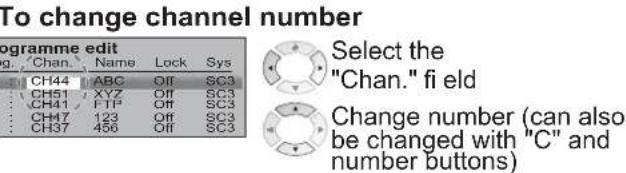

● Editing and Setting Channels 16

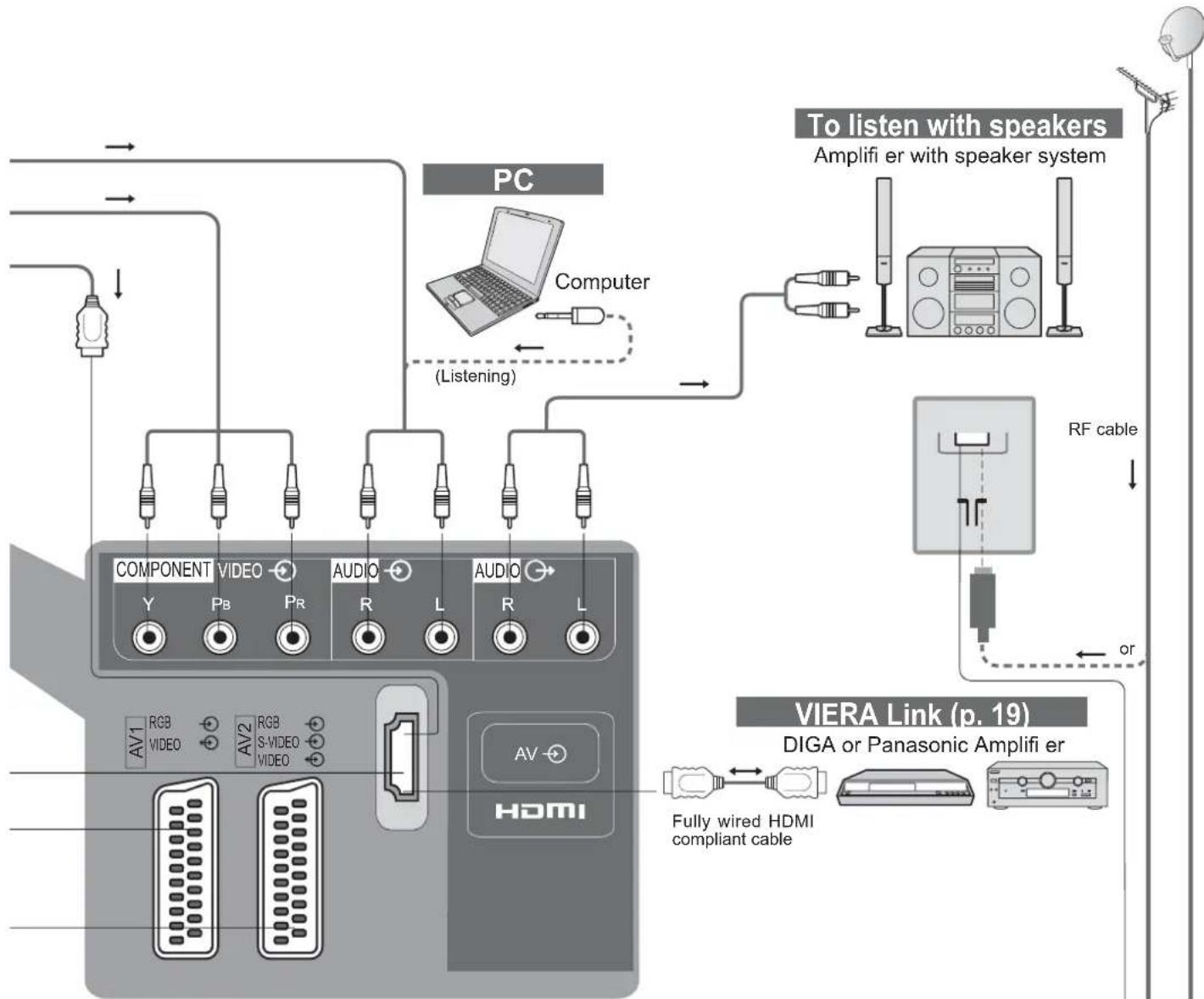

External Equipment 18 (Q-Link / VIERA Link / Connections)

FAQs, etc.

● Technical Information ……24
FAQs 27
Licence 29
- Specifications 29

Safety Precautions

Warnings and Precautions

Handling the mains plug and lead

• Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fi re.)
  ● Ensure that the mains plug is easily accessible.
• Do not touch the mains plug with a wet hand. (This may cause electrical shock.)

• Do not damage the mains lead. (A damaged lead may cause fire or electrical shock.)

• Do not move the TV with the lead plugged in the socket outlet.

• Do not place a heavy object on the lead or place the lead near a high-temperature object.
• Do not twist the lead, bend it excessively, or stretch it.
• Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
• Do not use a damaged mains plug or socket outlet.

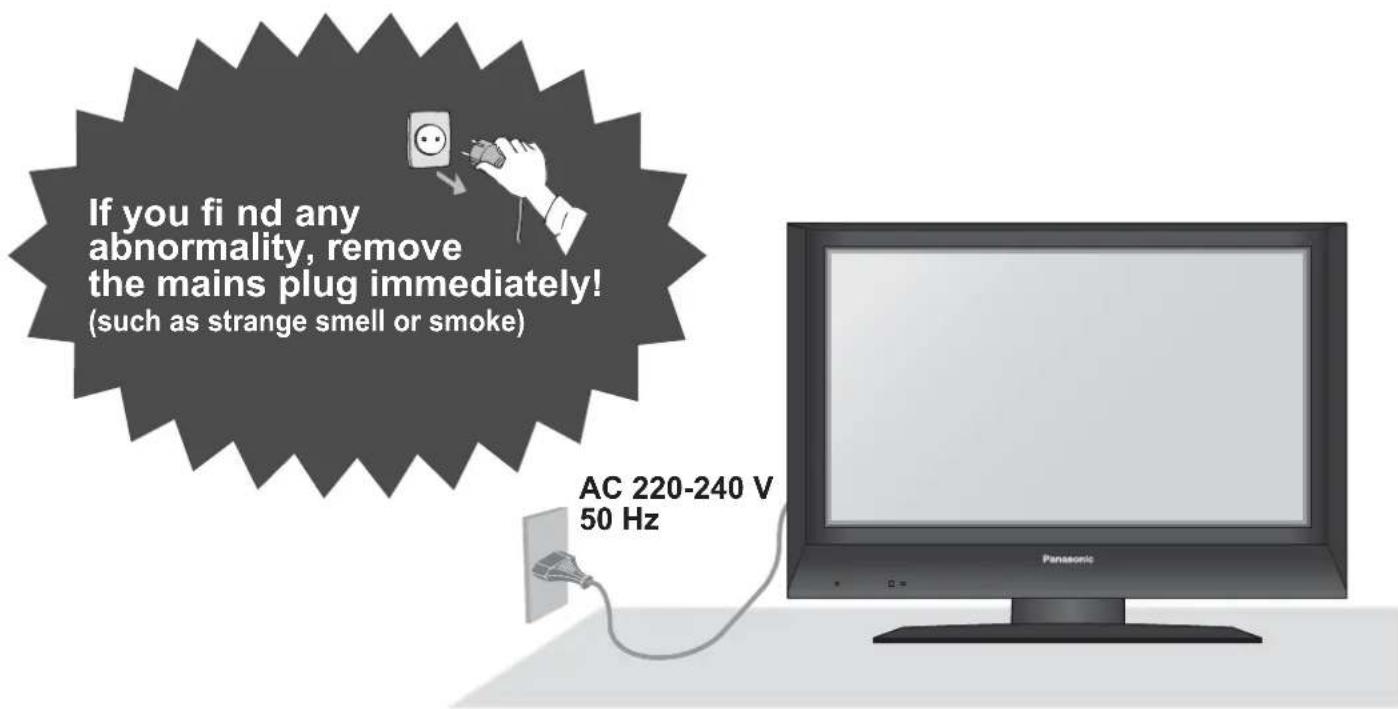

If you find any abnormality, remove the mains plug immediately! (such as strange smell or smoke) AC 220-240 V 50 Hz Panasonic

Do not remove covers NEVER modify the unit yourself

(High-voltage components may cause serious electrical shock.)

● Have the unit checked, adjusted, or repaired at your local Panasonic dealer.

Do not place foreign objects inside the unit

- Do not let any objects drop into the unit through the air vents (fi re or electrical shock may result).

Do not expose to direct sunlight and other sources of heat

● Avoid exposing the TV set to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV set.

Keep liquids away from the TV

● To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping or splashing.
- Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

■Do not place the TV on an unstable surface

■Use only the dedicated stands / mounting equipment

● Using an unauthorized stand or other fixtures may make the unit unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup.
● Use optional stands / mounts (p. 6).

Notes

■When cleaning the TV unit, remove the mains plug

(Cleaning an energized unit may cause electrical shock.)

■Remove the mains plug from the wall socket when TV is not in use for a prolonged period of time. Remove the mains plug from the wall socket before connecting or disconnecting any leads.

- This TV will still consume some power even in the Standby mode, as long as the mains plug is still connected to a live socket outlet. On /Off switch see page 7.

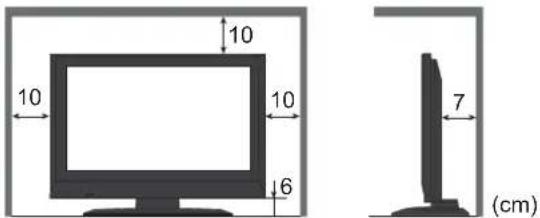

■Allow suffi cient space around the unit for radiated heat

10 10 10 6 7 (cm)

■Do not block the rear air vents

- Blocked ventilation by curtains, etc. may cause overheating, fire or electrical shock.

■ Keep the TV away from this equipment

Electronic equipment

In particular, do not place video equipment too close the TV (electromagnetic interference may distort images / sound).

● Equipment with an infrared sensor

Remote Controller of this TV also emits infrared rays (this may affect operation of other equipment).

■ Do not expose your ears to excessive sound pressure from headphones. Irreversible damage can be caused.

Maintenance

First, remove the mains plug from the socket outlet.

Display panel

Daily care: Gently wipe the surface clean of dirt by using a soft cloth.

Detail: Wipe the surface clean using a soft cloth dampened with clean water or water containing a small amount of neutral detergent. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Caution

The surface of the display panel has been specially treated and may be easily damaged. Do not tap or scratch the surface with your fingernail or other hard object.
- Use care not to subject the surface to bug repellent, solvent, thinner, or other volatile substances (this may degrade surface quality).

Cabinet

Daily care: Wipe the surface clean using a soft dry cloth.

Detail: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Caution

• Use care not to subject the TV unit's surfaces to detergent. (A liquid inside the TV unit could lead to product failure.)
• Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances (this may deteriorate the surface by peeling the paint).
• Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fire or electrical shock.)

Accessories / Options

Standard accessories

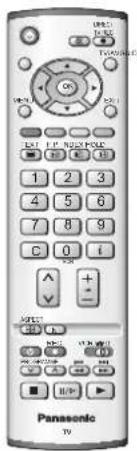

Remote Control Transmitter EUR7651030A

Check that you have the accessories and items shown

□Batteries for the Remote Control Transmitter (2) ●R6 (UM3)

□Operating Instructions □Pan European Guarantee Card

□Clamper

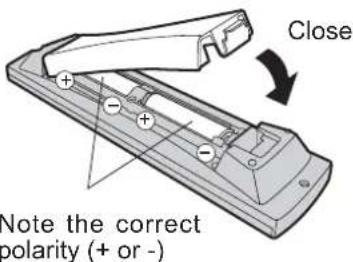

Installing remote's batteries

1

Pull open Hook

2

Close Note the correct polarity (+ or -)

Caution

• Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control unit.
• Do not mix old and new batteries.
• Do not mix different battery types (such as alkaline and manganese batteries).
• Do not use rechargeable (Ni-Cd) batteries.
• Do not burn or breakup batteries (see page 32).

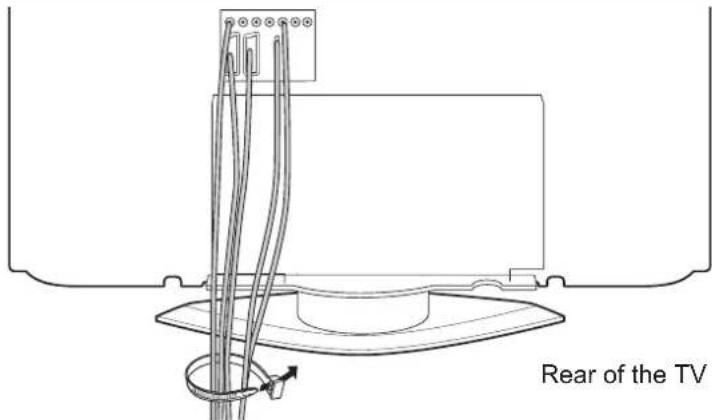

Attaching the clamper

Rear of the TV

Bundle the cables

To tighten:

To loosen:

① Keep the knob pressed

• Do not bundle the RF cable and mains lead together (could cause distorted image).
  ● Fix cables with clampers as necessary.
• When using the optional accessory, follow the option's assembly manual to fix cables.

Optional accessories

Wall-hanging bracket

TY-WK32LX20W

Caution

• In order to maintain the unit's performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets.
  ● Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
  Take care when fi xing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

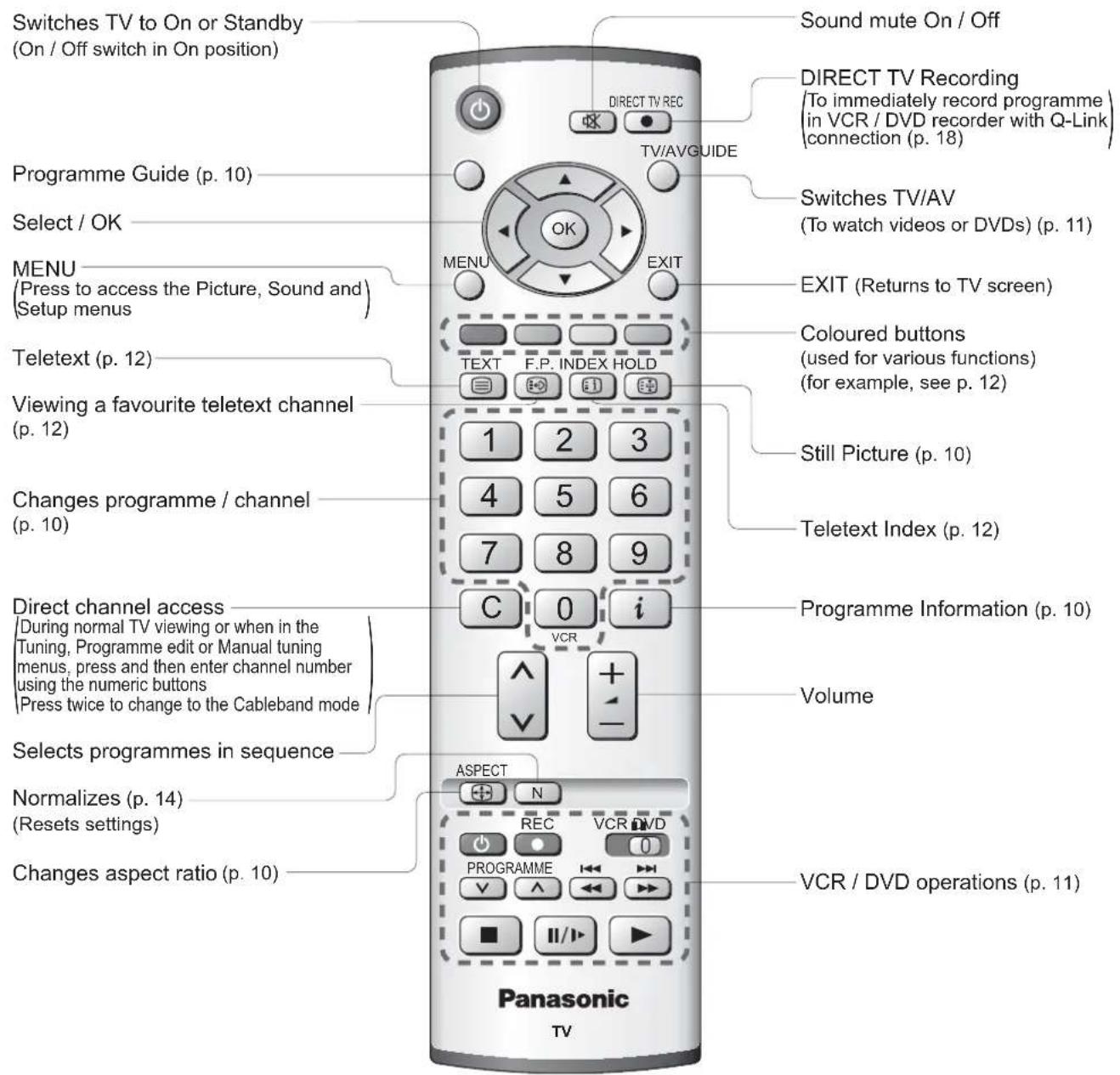

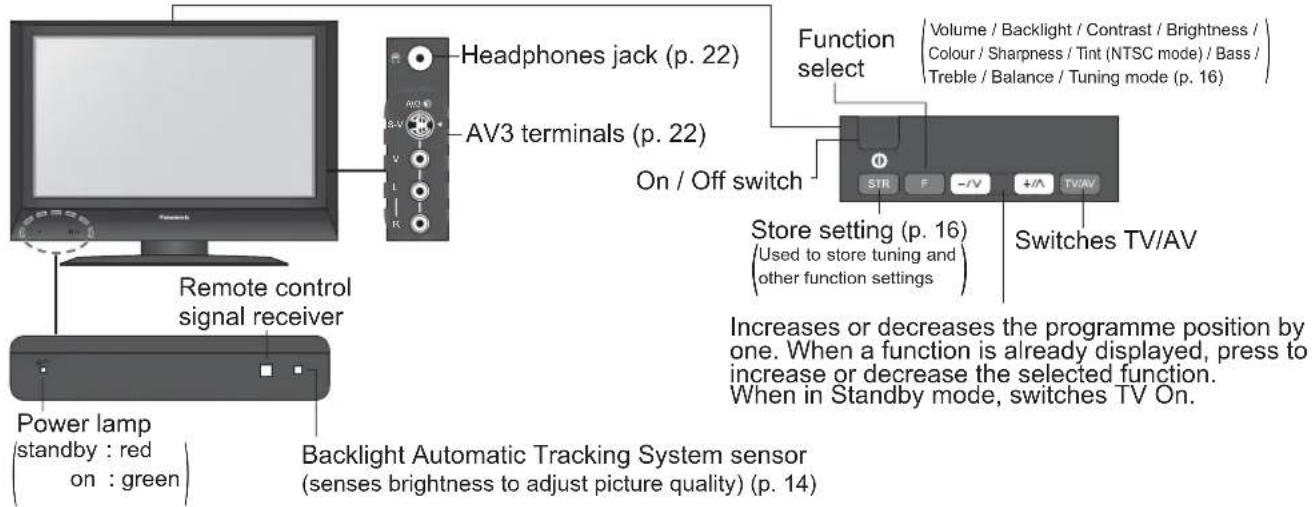

Identifying Controls

Headphones jack (p. 22) AV3 terminals (p. 22) On / Off switch Function select Volume / Backlight / Contrast / Brightness / Colour / Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / Tuning mode (p. 16) Store setting (p. 16) (Used to store tuning and other function settings) Switches TV/AV Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On. Power lamp (standby : red on : green) Backlight Automatic Tracking System sensor (senses brightness to adjust picture quality) (p. 14)

Switches TV to On or Standby (On / Off switch in On position) Programme Guide (p. 10) Select / OK MENU (Press to access the Picture, Sound and Setup menus) Teletext (p. 12) Viewing a favourite teletext channel (p. 12) Changes programme / channel (p. 10) Direct channel access (During normal TV viewing or when in the Tuning, Programme edit or Manual tuning menus, press and then enter channel number using the numeric buttons Press twice to change to the Cableband mode) Selects programmes in sequence Normalizes (p. 14) (Resets settings) Changes aspect ratio (p. 10) Sound mute On / Off DIRECT TV REC TV/AVGUIDE DIRECT TV Recording (To immediately record programme in VCR / DVD recorder with Q-Link connection (p. 18)) Switches TV/AV (To watch videos or DVDs) (p. 11) EXIT (Returns to TV screen) Coloured buttons (used for various functions) (for example, see p. 12) Still Picture (p. 10) Teletext Index (p. 12) VCR C 0 i VCR Information (p. 10) Volume ASPECT N REC VCR DVD PROGRAMME VCR / DVD operations (p. 11) Panasonic TV

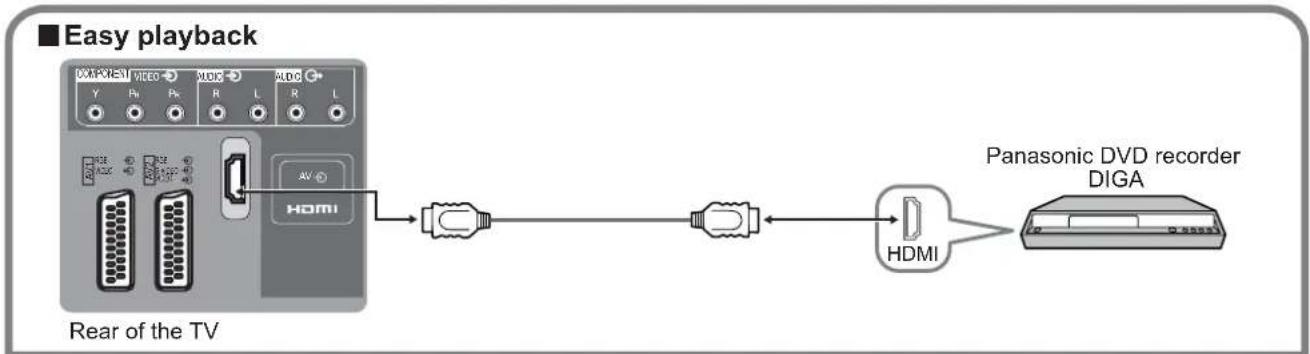

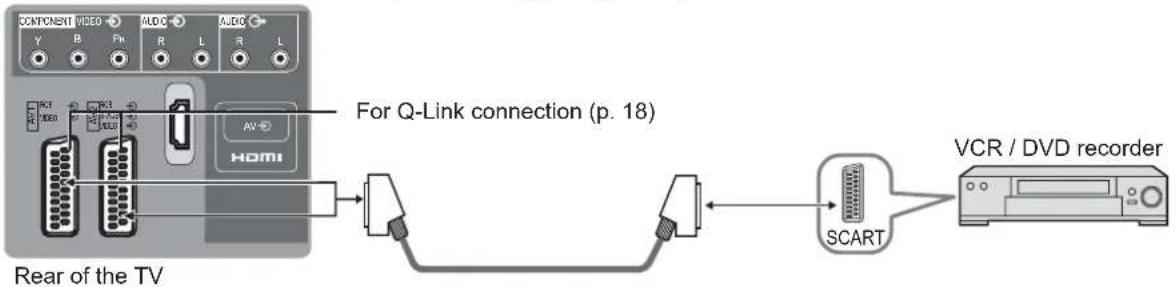

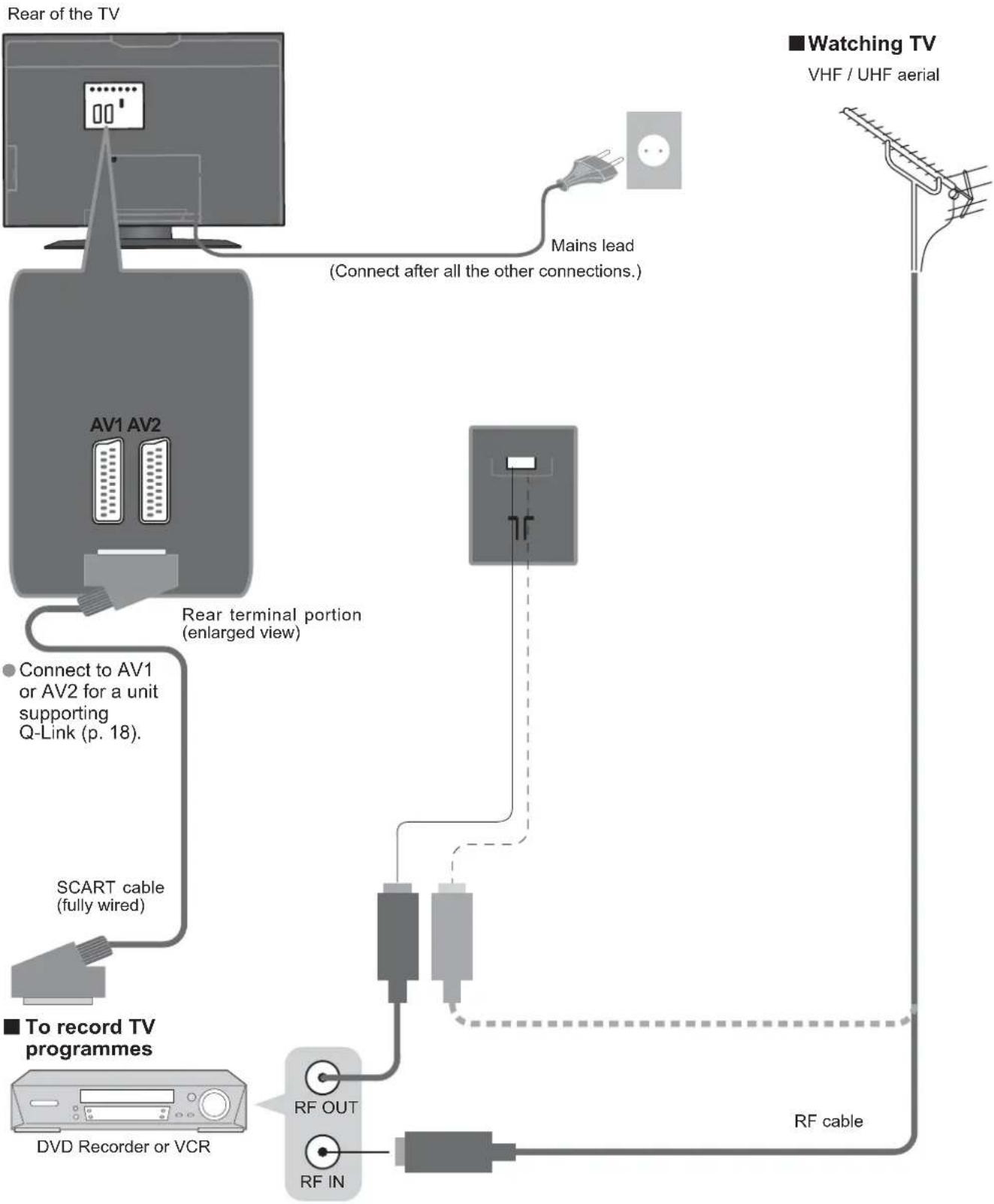

Connection

External equipments and cables shown in this manual are not supplied with this TV. Please ensure that the unit is disconnected from the mains before attaching or disconnecting any leads.


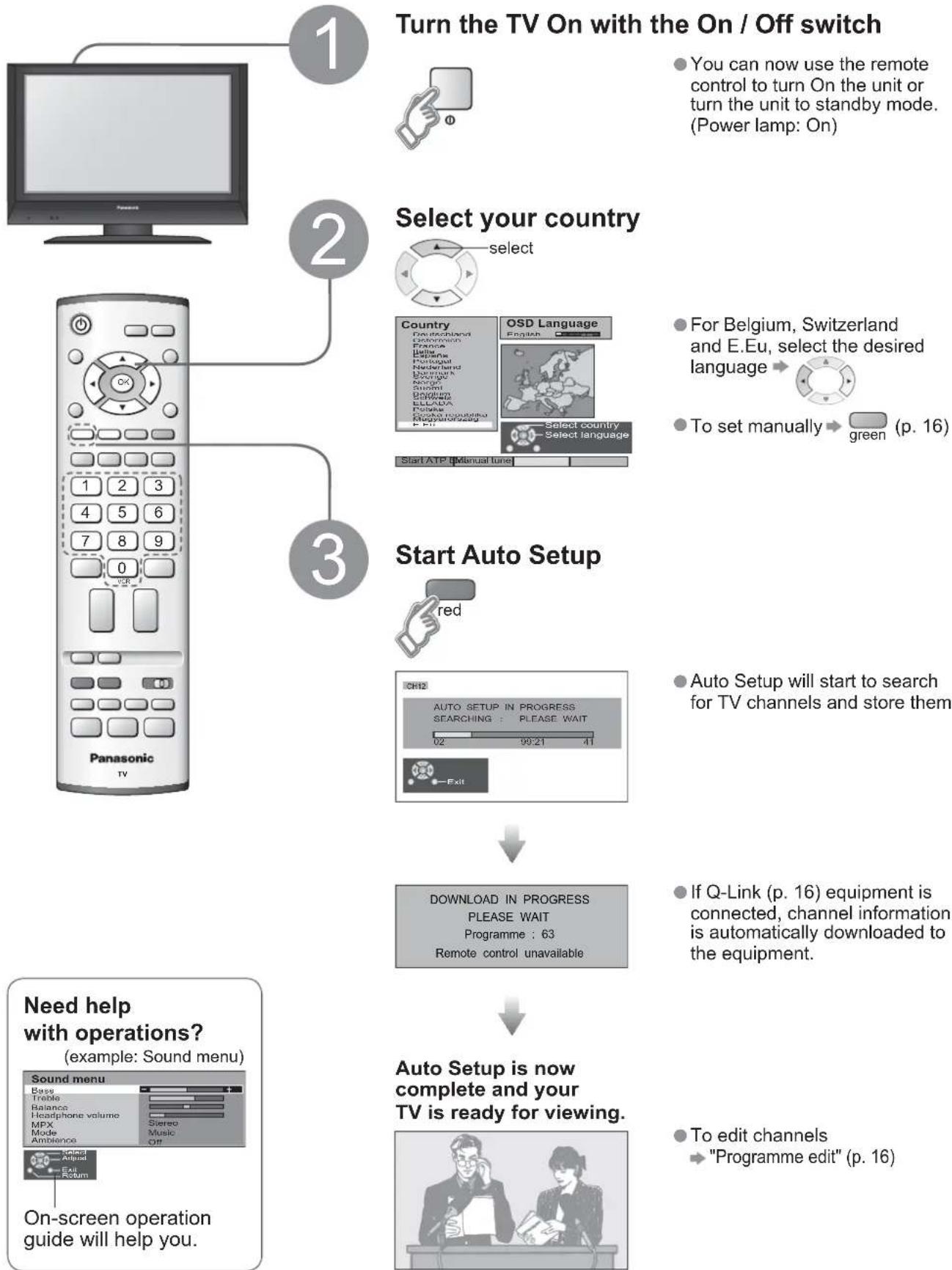

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed your local dealer.

- You can now use the remote control to turn On the unit or turn the unit to standby mode. (Power lamp: On)

- For Belgium, Switzerland and E.Eu, select the desired language → - To set manually → green (p. 16)

● Auto Setup will start to search for TV channels and store them.

- If Q-Link (p. 16) equipment is connected, channel information is automatically downloaded to the equipment.

● To edit channels → "Programme edit" (p. 16)

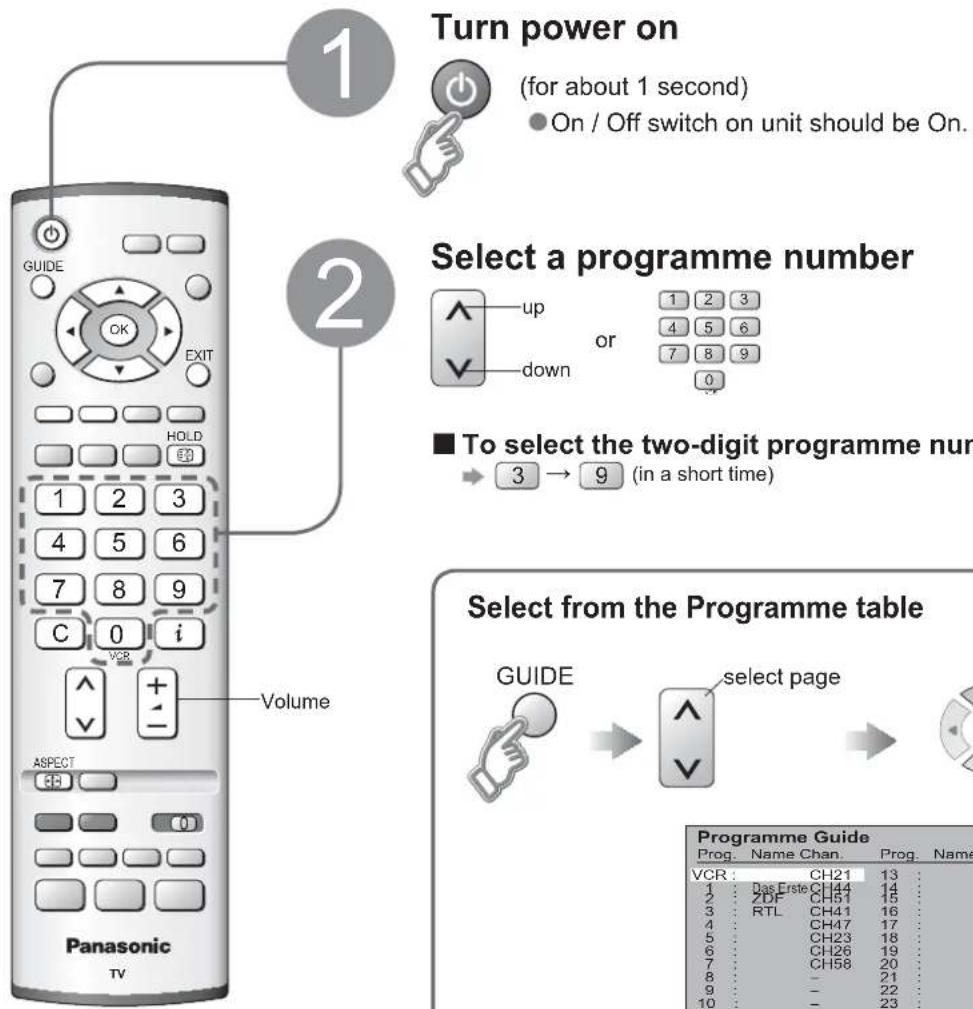

Watching TV

Turn power on (for about 1 second) ● On / Off switch on unit should be On. Select a programme number up down or 1 2 3 4 5 6 7 8 9 0 ■ To select the two-digit programme num → 3 → 9 (in a short time) Select from the Programme table GUIDE → select page VCR: CH21 13 1 Das Erste CH44 14 2 ZDF CH51 15 3 RTL CH41 16 4 CH47 17 5 CH23 18 6 CH26 19 7 CH58 20 8 - 21 9 - 22 10 - 23 Panasonic TV

■ Other Useful Functions (Operate after 2)

Hold	Freeze / unfreeze pictureHOLD
Display status information	Display / hide status information Displayed inform Programme num (p. 14) / Sound s
Change aspect ratio	Change the aspect ratio (p. 24)ASPECT [Auto aspect / 16:9 / 14:9 / Just / 4:3 / 4:3 Full /(Zoom1 / Zoom2 / Zoom3)—While the bar is displayed→ red green

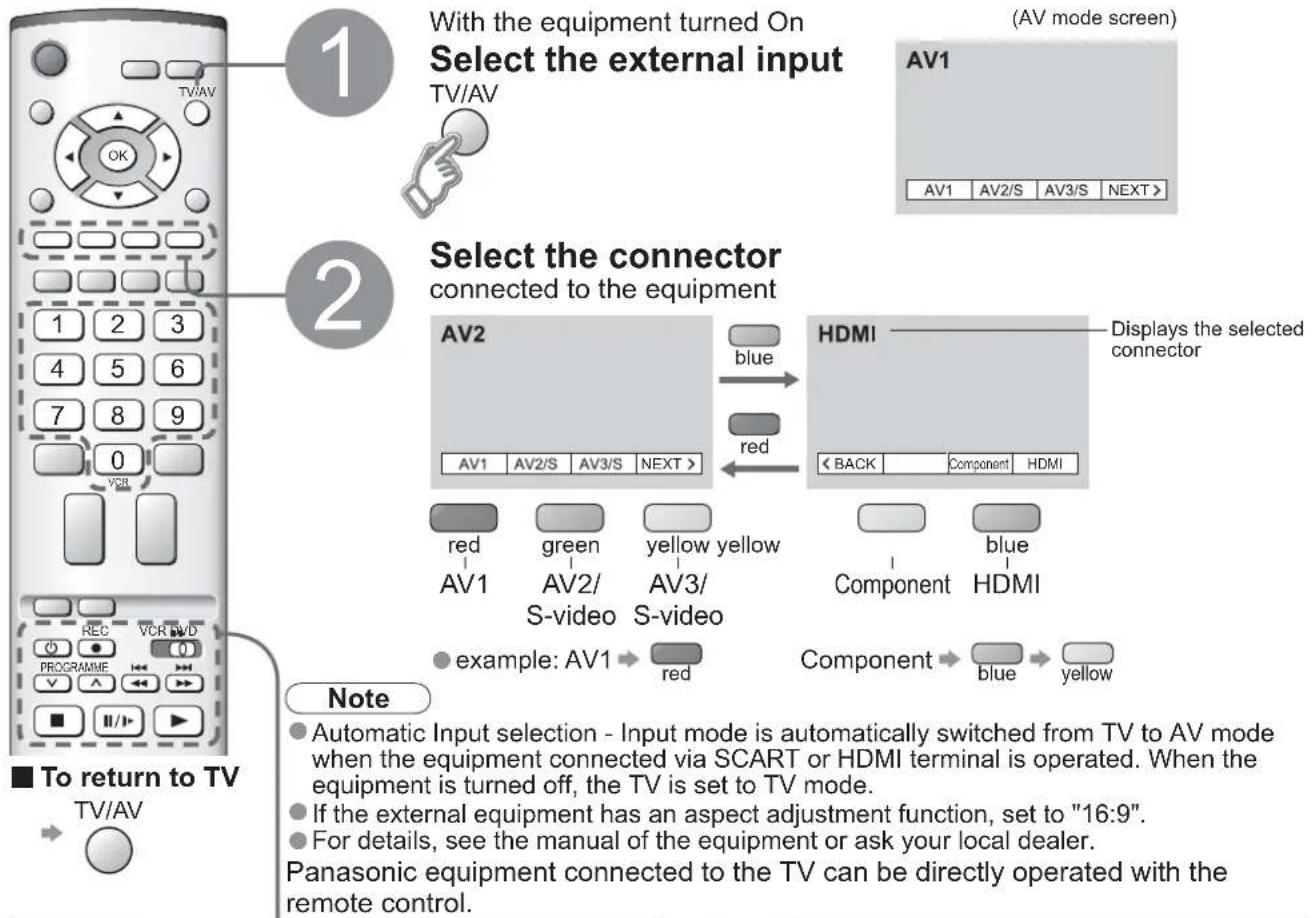

Watching Videos and DVDs

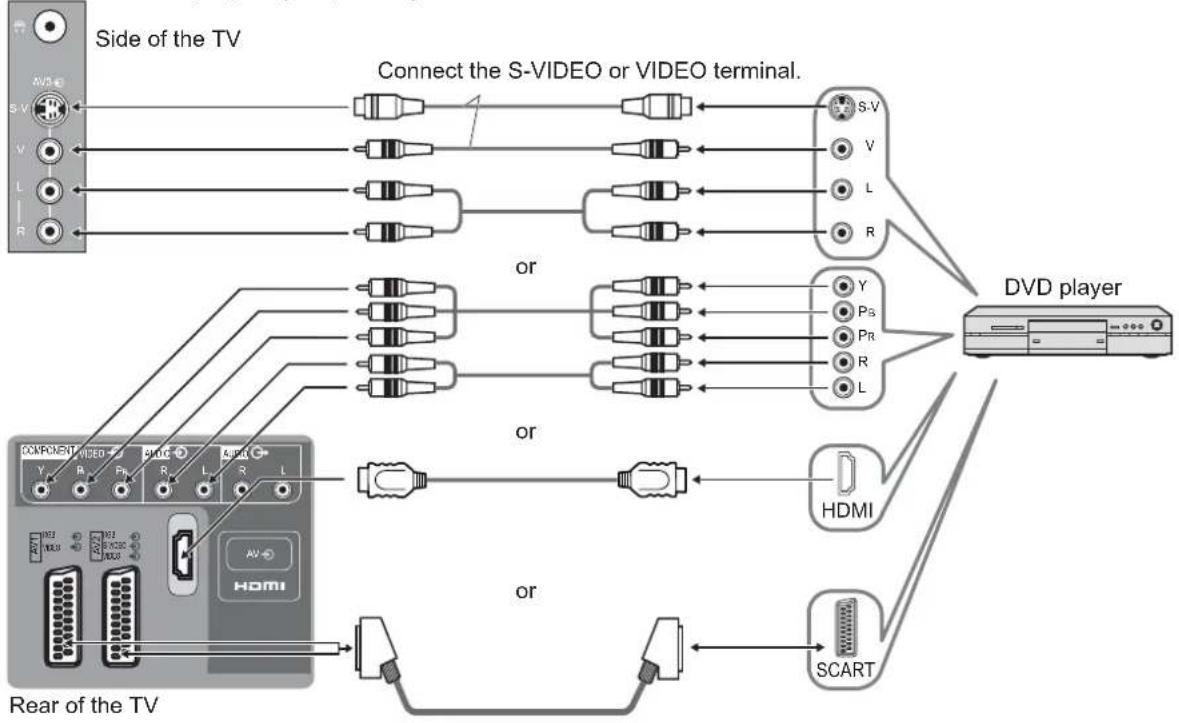

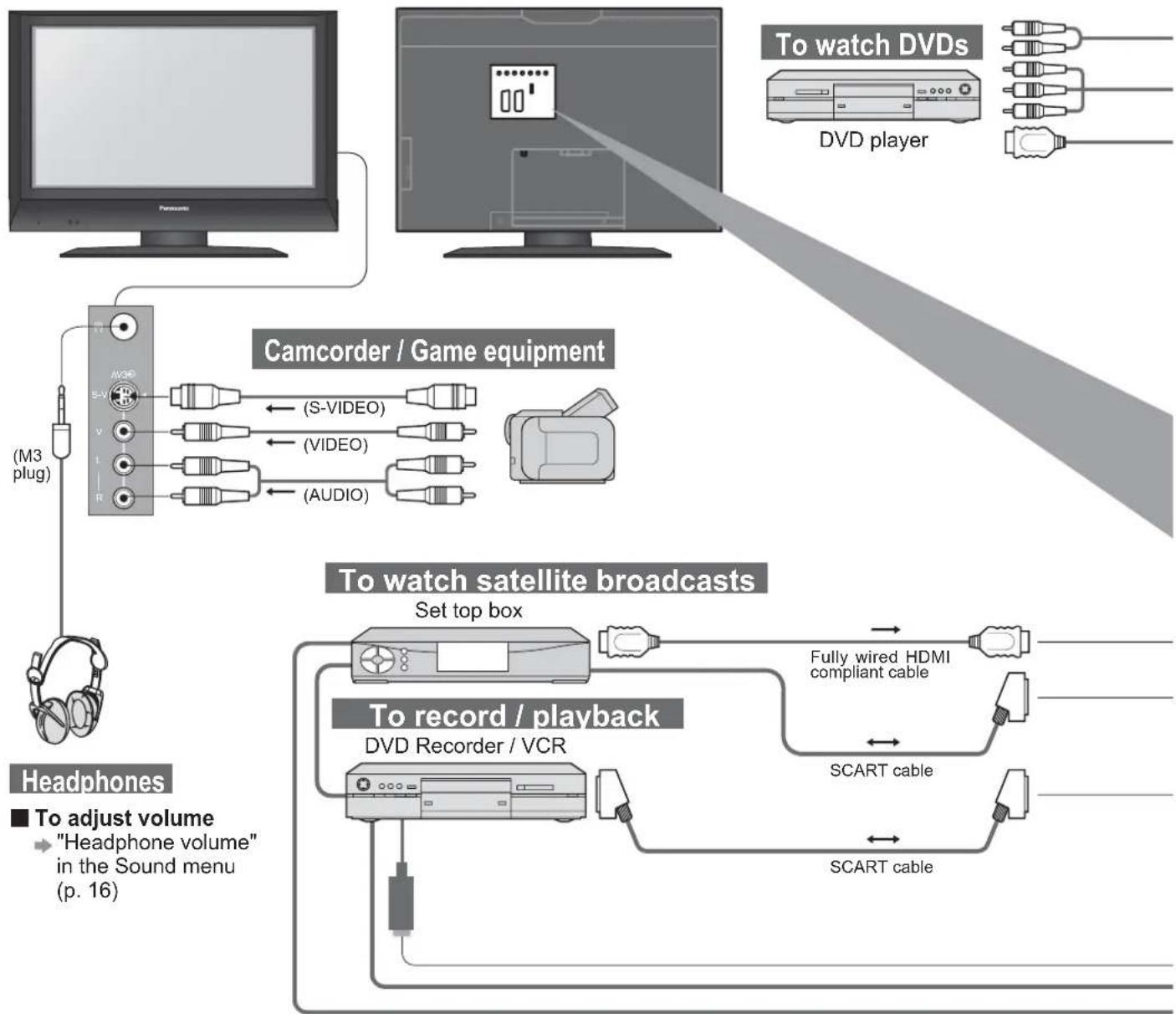

It is possible to connect a variety of external equipment to the TV unit. Once the equipment is connected, use the following procedure to view the input. To connect the equipment (p. 24)

VCR DVD	VCR / DVD switch*Select VCR to operate Panasonic VCR or DVD equipmentSelect DVD to operate Panasonic DVD equipment or Player theatre		Fast-forward / Skip / SearchVCR: Fast-forward, cue (during playback)DVD: Skip to the next track or titlePress and hold to search forward
	StandbySet to Standby mode / Turn on
	PlayPlayback VCR / DVD		PausePause / RestartDVD: Press and hold for slow-motion play
	StopStop the operations
	Rewind / Skip / SearchVCR: Rewind, review (during playback)DVD: Skip to the previous track or titlePress and hold to search backward		Programme Up / DownSelect programme
			RecordStart recording

*The remote control will be available for various Panasonic equipment with the following settings.

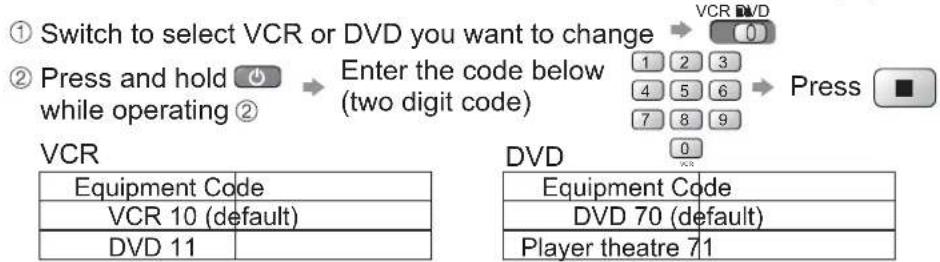

① Switch to select VCR or DVD you want to change ② Press and hold while operating ② Enter the code below (two digit code) VCR Equipment Code VCR 10 (default) DVD 11 DVCR 0 1 2 3 4 5 6 7 8 9 Press 0 DVCD Equipment Code DVD 70 (default) Player theatre 71

Note

● After setting, execute operation confirmation.
● The respective VCR / DVD code is turned to the default when battery has been exchanged. Set it again.
● Depending on the model, operation may not be possible.

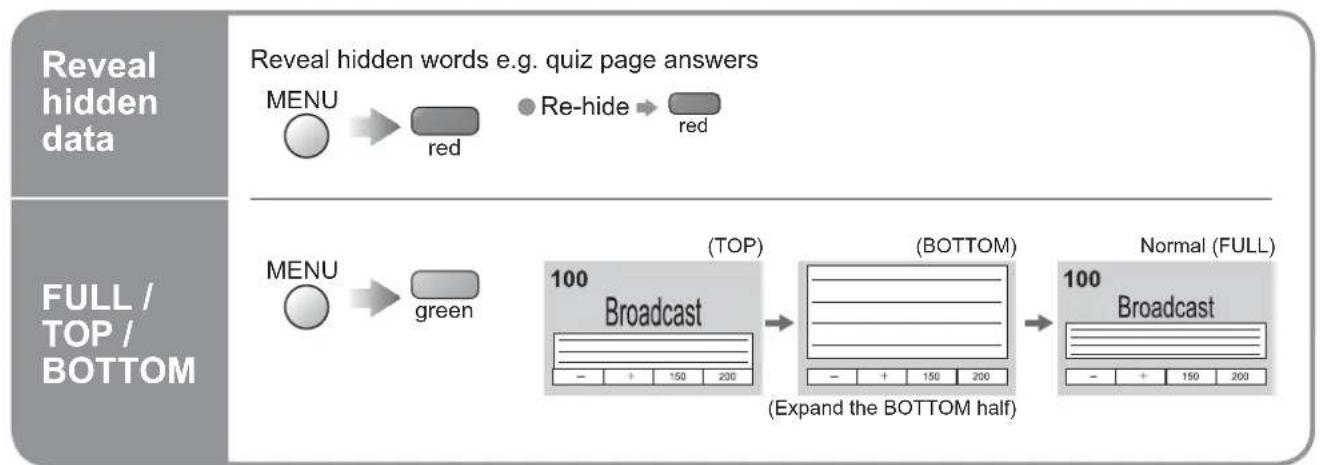

Viewing Teletext

You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is provided by the broadcasters.

What is FLOF mode?

In FLOF mode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory. ("Store Frequently viewed pages", p. 13)

■ To change mode → "Teletext" in Setup menu (p. 14)

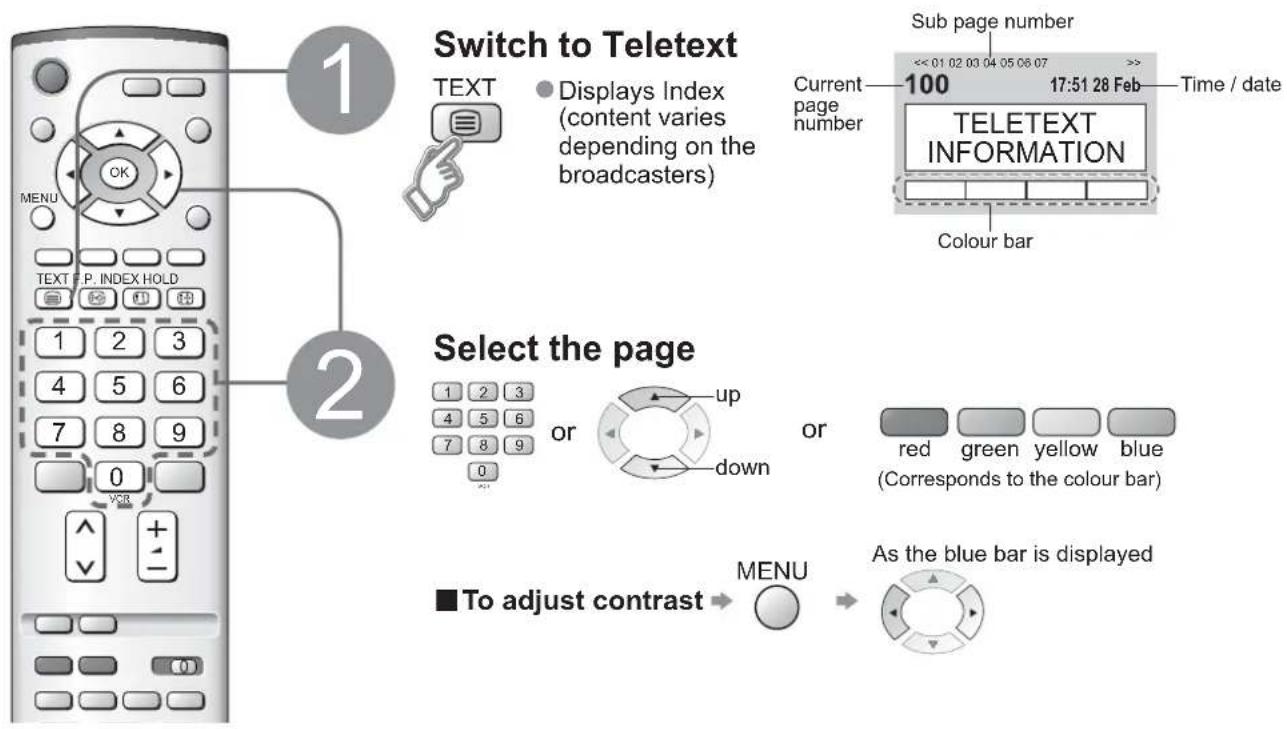


■ To return to TV

■ Using teletext conveniently

HOLD	If y [HDTR] h to hold the current page without updating St resum automatic updating ■ No resume → HOLD INDEX	Re to the main index page ● LOF mode only
	Call up a favourite pages	Call up the page stored in "blue". ● factory setting is "103".
View in multi window	W TV and teletext in two windows at once (Press twice) → Select Picture and text On or Off ● tions can be made only in Teletext screen.
Store frequently viewed pages	St frequently viewed pages (on fi rst 25 channels on Programme Guide) in colour for As dis Correonding colour button → hold down ■ Change stored pages button yo change → Enter new page number 1 2 3 4 5 6 7 8 9 0 100 Broadcast The number changes to white. OK hold down
View sub page	View sub page (Only when teletext is more than one page) <<01 02 03 04 05 Appears at upper-left corner of the screen ■ View specific sub page blue Broadcast → Enter the 4-digit number example: P6 Sub pages: Number of sub pages varies depending on the broadcasters (up to 79 pages). I take some time for searching, during which time you can watch TV.
Watch TV while waiting for update	View TV picture while searching for a teletext page Teletext automatically updates itself when new information becomes available. Changes to TV screen temporarily → yellow → yellow → yellow → View the updated page (You cannot change the channel.) ● News page provides a function that indicates arrival of latest news ("News Flash").

you wis op or HOLD return INDEX i F.P. watch MENU Opera ore fr nly of the c page i played To ch Colour want to ew su To vie MENU Sub pa The nu t may ew th letext a MENU The ne

ot op HC stu IN F at ME Op or nl tr pa pla To C w ev To M Su Th t n ev let ME Th

— tl ne l 1 — m F — C F — l 1 ice n b tl 2 ba d esp r b :oi u — e 10 :ifi [ su ne icl ca — ell p

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV in your own way.

■ Menu list

Menu	Item
Picture menu	Viewing mode
	Adjust by each viewing mode	Backlight,Contrast,Brightness,Colour,Sharpness
		Tint
		Colour balance
		P-NR
		3D-COMB
Sound menu	Bass
	Treble
	Balance
	Headphone volume
	MPX
	Mode
	Ambience
	HDMI input
Setup menu	VIERA Link
	Q-Link
	AV1 out
	AV2 out
	Teletext
	Off timer
	Text language
	Tuning menu	Programme edit
		Auto setup
		Manual tuning
		Fine tuning
		Colour system
		Volume correction
	OSD language
	Colour system
	Volume correction

	Adjustments / Confi gurations (alternatives)
	Basic picture mode (Dynamic / Normal / Cinema)● Set for each input signal	Viewing mode Dynamic
	Adjusts backlight, colour, brightness, etc. for each picture mode to suit your taste	Backlight Contrast Brightness Colour Sharpness
	Adjusts tint of image● For NTSC signal reception only	Tint
	Chooses the colour balance of the entire image (Cool / Normal / Warm)	Colour balance Normal
	Automatically reduces unwanted picture noise (Off / Normal / Dynamic / Auto)● Not valid on HDMI, and HD signal	P-NR Auto
	Automatically makes still pictures and slow pictures look more vivid (Off / On)● For PAL or NTSC signal reception only● Not valid on RGB, S-Video, components and HDMI	3D-COMB On
	Adjusts the output level of deep bass (High ⇔ Low)	Bass
	Adjusts the output level of high-pitch, shrill sound (High Low)	Treble
	Adjusts volume level of right and left speakers	Balance
	Adjusts the volume of the headphones (High Low)	Headphone volume
	Select stereo / monaural (Mono / Stereo)● Normally: Stereo● Stereo signal cannot be received: Mono● M1 / M2: Available while mono signal is transmitted	MPX Stereo
	Improves sound quality for music and dramas (Music / Speech)	Mode Music
	Gives a greater spatial effect by using dynamic enhancer (Off / On)	Ambience Off
	Chooses according to the signal when HDMI is connected (Auto / Digital / Analogue) (p. 25)	HDMI input Auto
	VIERA Link function (Off / On) (p. 19)	VIERA Link On
	Chooses the connector to which a Q-Link compatible equipment is connected (Off / AV1 / AV2) (p. 22)	Q-Link AV2
	Chooses the signal to be transmitted from the TV to Q-Link (TV / AV2 / AV3 / Monitor)● Monitor: Image displayed on screen● Component signals cannot be outputted	AV1 out Monitor
	Chooses the signal to be transmitted from the TV to Q-Link (TV / AV1 / AV3 / Monitor)● Monitor: Image displayed on screen● Component signals cannot be outputted	AV2 out Monitor
	Teletext display mode (FLOF / List) (p. 12)	Teletext FLOF
	Sets the time the unit automatically turns Off. (Off / 15 / 30 / 45 / 60 / 75 / 90) (minutes)	Off timer Off
	Selects teletext language (West / East1 / East2)● West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish● East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian● East2: Czech, Hungarian, Lettish, Polish, Rumanian	Text language East1
	Edits channels (p. 16)	Programme edit Access
	Sets channels automatically (p. 16)	Auto setup Access
	Sets channels manually (p. 16)	Manual tuning Access
	Fine tuning of channels (during rain, etc.)	Fine tuning
	Selects optional colour system depending on video signals (Auto / PAL / SECAM / M.NTSC)	Colour system Auto
	Adjusts volume of individual stations	Volume correction
	Changes language for on-screen displays	OSD language Access
	Selects optional colour system based on video signals in AV mode	Colour system Auto
	Adjusts volume for AV and HDMI mode	Volume correction

• In AV mode, the Sound menu and Setup menu give a smaller number of options.

Editing and Setting Channels

The current channel settings can be changed according to your needs and reception conditions.

Display the menu MENU Select "Setup menu" Main menu Picture menu Sound menu Setup menu Select "Tuning menu" Setup menu VIERA Link Q-Link AV1 out AV2 out Telext Off timer Text language Tuning menu OSD language On AV2 Monitor Monitor FLOF Off East1 Access Next ① select ② next ③ select ④ Select the function Tuning menu Programme edit Auto setup Manual tuning Fine tuning Colour system Volume correction Auto ② next ① select ⑤ Set

■ To exit

- No data is stored if an Auto setup sequence is interrupted.

For Manual tuning, using the buttons on the unit

("Tuning mode" on p. 7)

① (Press repeatedly until "Tuning mode" appears)

② □ or □ (Access "Manual tuning")

③ □ (Search, Change TV system, Change programme)

④ or (Change programme or start searching channels)

⑤ (Store)

⑥ ③-⑤ (Repeat)

■ To return to TV

de" appears) STR F -/V +/A TV/AV

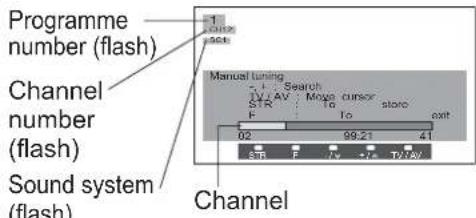

Programme number (flash) Channel number (flash) Sound system (flash) Manual tuning Search To curor store exit 02 99.21 41 STB F T/O +T T/O/AV Channel

Edit channels

Programme edit

Delete

Add

Move

Change channel number

Change name

Lock

Change sound system

■ Download to equipment

Set automatically

Auto setup

Set manually

Manual tuning

① Select the programme number to edit

Programme edit Prog. Chan. Name Lock Sys 1 : CH44 ABC Off SC3 2 : CH51 XYZ Off SC3 3 : CH41 FTP Off SC3 4 : CH47 123 Off SC3 5 : CH37 456 Off SC3 Cursor select

Programme number

Name

② Edit

■

To change channel number programme edit g. / Chan. Name Lock Sys CH44 ABC Off SC3 CH51 XYZ Off SC3 CH41 FTP Off SC3 CH47 120 Off SC3 CH37 456 Off SC3 Select the "Chan." fi eld Change number (can also be changed with "C" and number buttons)

■

To change the name of the broadcaster displayed when selecting channels

Programme edit Prog. Chan. Name Lock Sys 1: CH44 ■ Off SC3 2: CH51 XYZ Off SC3 3: CH41 FTP Off SC3 4: CH47 123 Off SC3 5: CH37 456 Off SC3 ABCDEFGHIJKLMNOPQRSTUVWXYZ+■0123456789 Usable characters

③
Store

To lock

●You cannot select the channel with number buttons or the "C" button when locked.

■To change sound system based on signals

SC1 : PAL B, G / SECAM B, G
SC2: PALI
SC3: PAL D, K / SECAM D, K
F: SECAM L/L'

■ To download channel information to a Q-Link compatible equipment connected to the unit

● For details (p. 18)
● Not available if "Q-Link" is "Off" in the Setup menu. (p. 14)

Automatically set the channels received in the area

① Start Auto setup

WARNIN G All current tuning data will be erased Start ATP Exit Return

② Select your country

③Settings are made automatically

AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT 02 99:21 41 Exit Return

● The settings are downloaded to a Q-Link compatible equipment connected to the unit.
● All previous settings are erased.
- When the sequence is completed, the broadcast of programme number "1" will appear.

To freely change settings after Auto setup

① Select the programme number and search through the channel

1 Guts Manual tuning 02 9921 41 Search shutdown Store Exit Return Direct entry

-Programme number -Channel

● The programme number blinks.
- If a VCR is connected with only the RF cable, select programme number "0".

Note

External Equipment

Q-Link

Q-Link interlocks the TV unit and VCR / DVD recorder, enables easy recording and playback.

Condition

- Use the VCR / DVD recorder with the following logos:

"Q-Link", "NEXTVIEWLINK", "DATA LOGIC", "Easy Link", "Megalogic", or "SMARTLINK"
- Connect the equipment to this unit's AV1 or AV2 terminal via a "fully-wired" SCART cable. (p. 20)
● Q-Link terminal setup in Setup menu (Q-Link, AV1/AV2 out). (p. 14)

■ Download channel settings

● Perform Auto setup. (p. 16)
When first using this unit, see "Auto Setup". (p. 9)
● Perform download to the equipment. (p. 16)

■ Features available

Some recording equipments are not applicable. Read the manuals of the equipment.

What you see is What you record

Direct TV Recording:

Recording the current programme in VCR / DVD recorder immediately.

DIRECT TV REC DIRECT TV REC

• When Direct TV Recording is performed, the recording equipment is automatically turned on if it is in Standby mode.
  ● The recording equipment is recording from its own tuner. You can turn the TV off during recording.
• Do not turn the TV off during recording AV source. Otherwise the recording will be stopped.

Information / Message

Recording information or if recording is not possible, a message is displayed. (Only when the programme number is "0" or "AV mode" for some equipment.)

Power on link and Easy playback

Insert a videocassette or DVD in the recording equipment and it is operated, TV is turned on and input mode is switched automatically so that you can view the content. (Only when TV is in Standby mode.)

Power off link

When TV is set to Standby mode, the recording equipment is also automatically set to Standby. (Only when the videocassette or DVD is not active.)

• "DATA LOGIC" (a trademark of Metz Corporation) • "Megalogic" (a trademark of Grundig Corporation)
• "Easy Link" (a trademark of Philips Corporation) • "SMARTLINK" (a trademark of Sony Corporation) Read the manuals of the equipment too.

VIERA Link "HDAMrol"

*

*Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVI Control" function. HDMI connections to some Panasonic equipments (Panasonic DVD Recorder DIGA, Panasonic Player theatre, Panasonic Amplifier, etc.) allow you to enjoy the easy playback or home theatre.

About connections, see "Connections" (p. 20, 22). Read the manuals of the equipment too. Non-HDMI-compliant cables cannot be utilized.

About applicable equipments, consult your local Panasonic dealer.

Preparations

(For the first time / When adding new equipment, reconnecting equipment or changing setup) After connection turn the equipment on and then switch the TV on.

Select the input mode to HDMI (p. 11, 14), and make sure that an image is displayed correctly.

Display the menu MENU Select "Setup menu" Main menu Home theatre Picture menu Sound menu Setup menu Select "VIERA Link" Setup menu VIERA Link On Q-Link AV2 AV1 out Monitor AV2 out Monitor Teletext FLOF Off timer Off Text language East1 Tuning menu OSD language select select Select "On" (default is On)

Easy playback	Automatic Input switching-When the connected Panasonic equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.
Theatre speaker	You can control the theatre speaker with TV's remote control.This function is available when Panasonic Amplifier or Player theatre is connected.1 Display the menu → MENU2 Select "Home theatre" or "TV speaker"Main menuHome theatrePicture menuSound menuSetup menu	■ Home theatre:Adjustment for equipment (automatically turned on if it is in Standby mode)Volume up / down → +Mute → ☒■ TV speaker:TV speakers are active.
	● When selecting "Home theatre", the sound of TV speakers is mute.● When the equipment is turned off, TV speakers will be active.
Power on link	When the connected Panasonic equipment is operated, TV is also automatically turned on and the content is reproduced. (Only when TV is in Standby mode.)
Power off link	When TV is set to Standby mode, the connected Panasonic equipment is also automatically set to Standby.

External Equipment

Connections

● External equipments and cables shown are not supplied with this TV.

■ Connect VCR / DVD recorder (Recording, Playback)

■ Connect DVD player (Playback)
VIERA Link (p. 19)


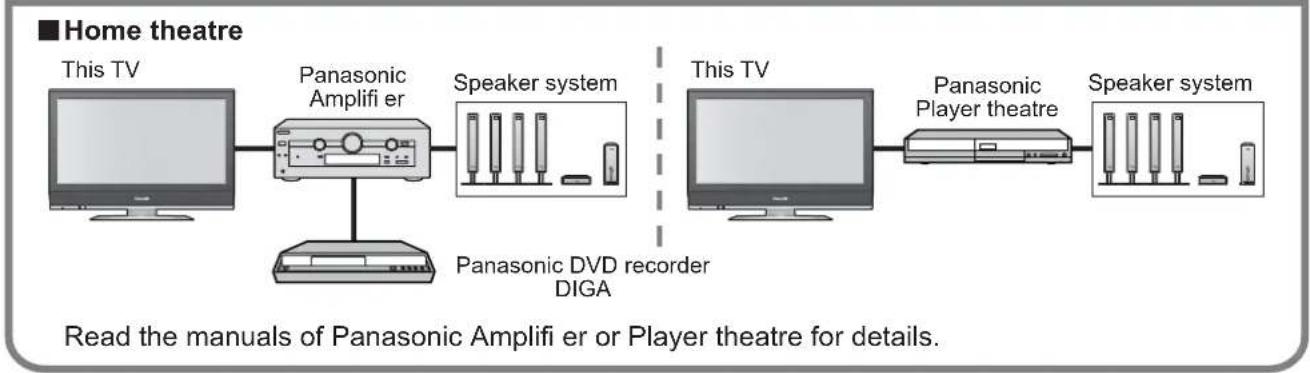


It is recommended that you use Panasonic's HDMI cable.
Recommended part number: RP-CDHG15 (1.5 m)
RP-CDHG30 (3.0 m)
RP-CDHG50 (5.0 m)

External Equipment

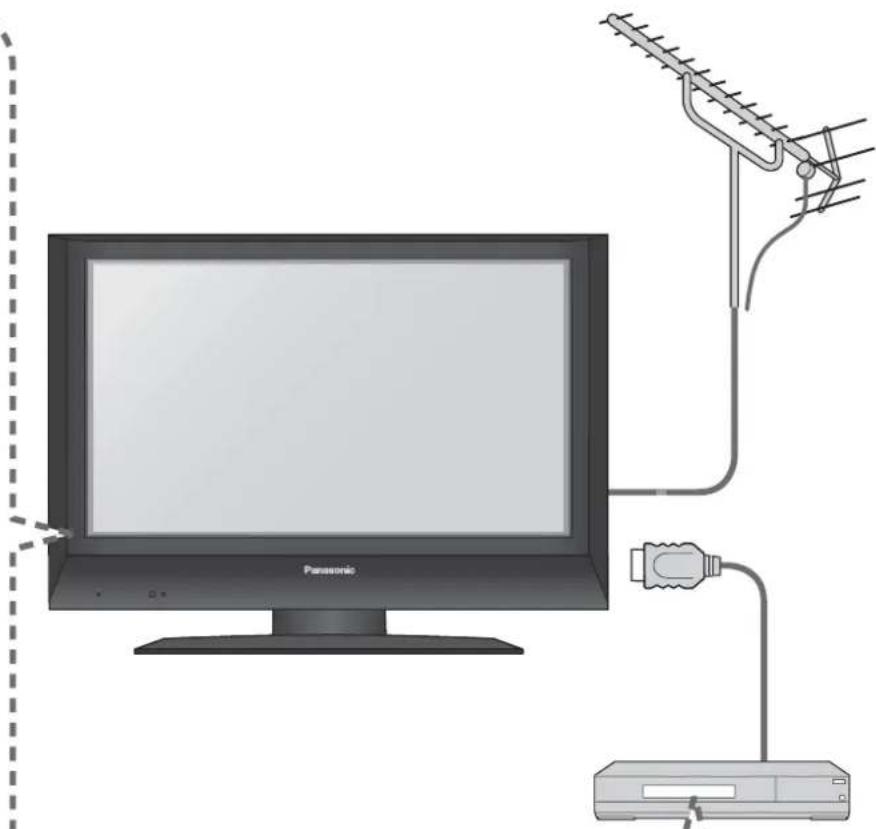

Connections (overview)

These diagrams show our recommendations for how to connect the TV unit to your various equipment. For other connections, consult the instructions of each equipment, the table below, and the specifications (p. 29).

Types of connectable equipment to each connector

ConnectorRecording / Playback (equipment)	AV1 AV2		AV3
■To record / playback videocassettes / DVDs(VCR / DVD recorder)	○	○
■To watch DVDs (DVD player)	○	○	○
■To watch camcorder images (Video camera)	○	○	○
■To watch satellite broadcasts (Set top box)	○	○	○
■To play games (Game equipment)	○	○	○
■Q-Link	○	○
■Direct TV Recording	○	○
■VIERA Link

COMPONENT
Y	P_B	P_R

○: Recommended Connection

Technical Information

Aspect Ratio

The optimum size and aspect can be chosen, and you can enjoy finer images. (p. 10)

■ Auto aspect: Auto aspect determines the best aspect ratio to use to fill your screen. It does this using a four step process to determine if the picture being viewed is a widescreen picture.

If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto aspect does not detect a widescreen signal then this advanced TV set enhances the picture for optimum viewing pleasure.

The text shown on the screen indicates how Auto aspect determined which ratio to use:

"WIDE" appears in the top left of the screen if a widescreen identification signal (WSS) is found or a signal found through a SCART terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This function will also work in any aspect mode. "Auto aspect" appears in the top left of the screen if black stripes above and below the picture are detected. Auto aspect chooses the best ratio and expands the picture to fill the screen. This process can take several minutes, depending on the darkness of the picture.

• The ratio varies depending on the programme, etc. If the ratio is greater than the standard "16:9", black bands may appear at the top and bottom of the screen.
• If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. (See the VCR manual.)
  ● To select the ratio manually:

16:9

Directly displays the image at "16:9" without distortion (anamorphic).

14:9

Displays the image at the standard "14:9" without enlargement.

Just

Displays a 4:3 image full-screen. Stretching is only noticeable at the left and right edges.

4:3

Displays the image at the standard "4:3" without distortion.

4:3 Full

Displays a "4:3" image enlarged horizontally to fit the screen.

Zoom1

Displays a "16:9" letterbox or "4:3" image without distortion.

Zoom2

Displays a "16:9" letterbox (anamorphic) image full-screen without distortion.

Zoom3

Displays a "21:9" letterbox (anamorphic) image full-screen without distortion. At "16:9", displays the image at its maximum (with slight enlargement).

HDMI connection

HDMI (high-defi nition multimedia interface) allows you to enjoy high-defi nition digital images and high-quality sound by connecting the TV unit and the equipment.

HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.

• HDMI is the world's first complete digital consumer AV interface complying with a non-compression standard.
• If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).
• When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.
  ● Audio settings can be made on the "HDMI input" menu screen. (p. 11)
  ● Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(*1): The HDMI logo is displayed on an HDMI-compliant equipment. (*2): Enquire at your local digital equipment retailer shop.

Note

• Use with a PC is not assumed.
  ● The 720p/1080i signals will be reformatted before being displayed on the screen.
• If the connected equipment has an aspect adjustment function, set the aspect ratio to "16:9".
  ● This HDMI connector is Type A.
• An equipment having no digital output terminal may be connected to the input terminal of either "Component", "S-VIDEO", or "Video" to receive analogue signals.
  ● The HDMI input terminal can be used with only the following image signals: 480i, 480p, 576i, 576p, 720p and 1080i. Match the output setting of the digital equipment.
• For details of the applicable HDMI signals, see p. 26.

VIERA Link

HDMI connections to some Panasonic equipments allow you to enjoy the easy playback or home theatre.

• Setup the equipment to enable this function. Read the manual of the equipment.
  ● This function may not work normally depending on the equipment condition.
• Image or sound may not be available for the first few seconds when the playback starts.
• Image or sound may not be available for the first few seconds when Input mode is switched.
  ● Volume function will be displayed when adjusting the volume of the equipment
  ● Easy playback is also available by using the remote control for Amplifi er. Read the manuals of Amplifi er.

Technical Information

SCART, S-video and HDMI terminals information

■ AV1 SCART terminal

(RGB, VIDEO, Q-Link)

Suitable inputs for AV1 include RGB (Red / Green / Blue).

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1 20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -- 10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

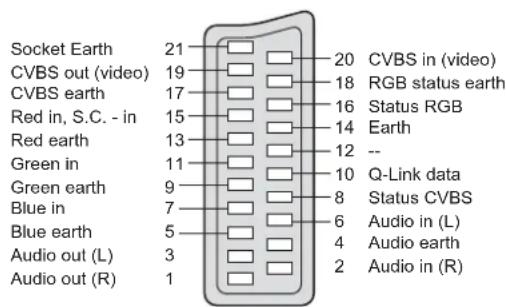

■AV2 SCART terminal

(RGB, VIDEO, S-VIDEO, Q-Link)

Suitable inputs for AV2 include RGB (Red / Green / Blue). AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in, S.C. - in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1 20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -- 10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

■ AV3 S-VIDEO 4 pin terminal

Chrominance in Luminance in Chrominance earth Luminance earth

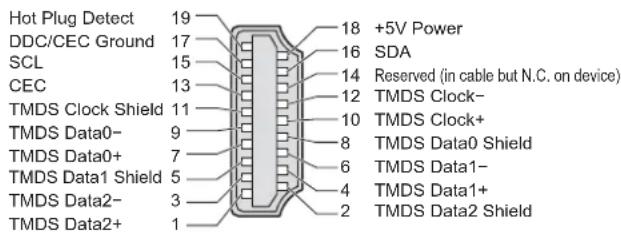

■ HDMI terminal

Hot Plug Detect 19 DDC/CEC Ground 17 SCL 15 CEC 13 TMDS Clock Shield 11 TMDS Data0- 9 TMDS Data0+ 7 TMDS Data1 Shield 5 TMDS Data2- 3 TMDS Data2+ 1 18 +5V Power 16 SDA 14 Reserved (in cable but N.C. on device) 12 TMDS Clock- 10 TMDS Clock+ 8 TMDS Data0 Shield 6 TMDS Data1- 4 TMDS Data1+ 2 TMDS Data2 Shield

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI

Signal name	Horizontal frequency (kHz)	Vertical frequency (Hz)	Component HDMI
525 (480) / 60i 15.73 59.94			*	*
525 (480) / 60p 31.47 59.94			*	*
625 (576) / 50i 15.63 50.00			*	*
625 (576) / 50p 31.25 50.00			*	*
750 (720) / 60p 45.00 60.00			*	*
750 (720) / 50p 37.50 50.00			*	*
1,125 (1,080) / 60i 33.75 60.00			*	*
1,125 (1,080) / 50i 28.13 50.00			*	*

Note

● Signals other than above may not be displayed properly.
● The above signals are reformatted for optimal viewing on your display.

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care Centre for assistance.

White spots or shadow images (noise)

Abstract black-and-white illustration of a stylized insect-like shape on a dotted background (no text or symbols)

Illustration of three penguins standing together (no text or symbols)

- Check the position, direction, and connection of the aerial.

Direct TV record / Q-Link functions not recording

- Please confirm SCART cable and connection. Also please set "AV1/AV2 out" in the Setup menu (p. 16).

There may be red spots, blue spots, green spots and black spots on the screen

This is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel is built with very high precision technology giving you fi ne picture details. Occasionally, a few non-active pixels may appear on the screen as a fi xed point of red, green, blue or black.

Please note this does not affect the performance of your LCD.

The LCD panel moves slightly when it is pushed with a fi nger Clattered sound might be heard

There are some looseness around the panel to prevent the damage to the panel. The panel might move slightly when it is pushed with a fi nger, and clattered sound might be heard. This is not a malfunction.

Panasonic

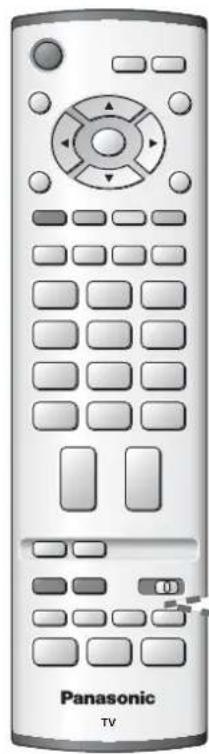

Front view of a Panasonic TV remote control with standard buttons and scroll (no text or symbols on the device itself)

Pictures from an equipment are unusual when the equipment is connected via HDMI

● Is the HDMI cable connected properly? (p. 22)
● Turn Off the TV unit and equipment, then turn them On again.
- Check an input signal from the equipment. (p. 20)
- Use an equipment compliant with EIA/CEA-861/861B.

The remote control does not work

● Are the batteries installed correctly? (p. 6)
● Has the TV unit been switched On?

FAQs

Problem Actions
Screen	Chaotic image, noisy	● Set "P-NR" in the Picture menu (to remove noise). (p. 14)● Check nearby electrical products (car, motorcycle, fluorescent lamp).
	No image can be displayed	● Is "Colour" or "Contrast" in the Picture menu set to the minimum? (p. 14)
	Blurry or distorted image (no sound or low volume)	● Reset channels. (p. 16)
	Neither image nor sound is produced	● Is the unit in "AV mode"?● Is the mains lead plugged into the socket outlet?● Is the TV unit turned On?● Check Picture menu (p. 14) and volume.
Sound Other HDMI	No sound is produced	● Is "Sound Mute" active? (p. 7)● Is the volume set to the minimum?
	Sound level is low or sound is distorted	● Sound signal reception may be deteriorated.● Set "MPX" (p. 14) in the Sound menu to "Mono".
	Sound is unusual	● Set the sound setting of the connected equipment to "2ch L.PCM".● Check the "HDMI input" setting in the Sound menu. (p. 14)● If digital sound connection has a problem, select analogue sound connection. (p. 25)
	An error message appears	● Contact the authorized Service Centre.
	"VIERA Link" function does not work	● Switch the TV unit on again with the equipment on.● Set "VIERA Link" to "Off", then set to "On" again. (p. 19)
	TV unit goes into "Standby mode"	● The sleep function is activated.● The TV unit enters "Standby mode" about 30 min. after broadcasting ends.
	An error message appears	● Follow the message's instructions.● If the problem persists, contact the authorized Service Centre.

Licence

Trademark Credits

● VGA is a trademark of International Business Machines Corporation.
● Macintosh is a registered trademark of Apple Computer, USA.
● S-VGA is a registered trademark of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
- HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
HDAVIControl™ is a trademark of Matsushita Electric Industrial Co., Ltd.

Specifications

			TX-26LE7P TX-32LE7P
Power Source			AC 220-240 V, 50 Hz
Power Consumption	Average use 93 W 144		W
	Standby condition 1 W
Display panel	Aspect Ratio 16:9
	Visible screen size 66 cm 80 cm
	Number of pixels 1,049,088 (1,366 (W) × 768 (H))
Audio Output			2 × 8 W RMS, 8 Ω
Headphones			M3 (3.5 mm) Jack × 1
Receiving Systems / Band name			PAL B, G, I, SECAM B, G SECAM L / L'VHF E2 - E12 VHF H1 - H2 (ITALY)VHF A - H (ITALY) UHF E21 - E69CATV (S01 - S05) CATV S1 - S10 (M1 - M10)CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)PAL D, K, SECAM D, KVHF R1 - R2 VHF R3 - R5VHF R6 - R12 UHF E21 - E69PAL 525/60 :Playback of NTSC tape from some PAL Video recorders (VCR).M.NTSC :Playback from M. NTSC Video recorders (VCR).NTSC (AV input only) :Playback from NTSC Video recorders (VCR).
Aerial - Rear			VHF / UHF
Operating Conditions			Temperature : 5 °C - 35 °CHumidity : 5 % - 90 % RH (non-condensing)
Teletext pages			200
Connection Terminals	AV1 (Scart terminal)		21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
	AV2 (Scart terminal)		21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
	AV3	VIDEO	RCA PIN Type × 1 1.0 V[p-p] (75Ω)
		S-VIDEO	Mini DIN 4-pin Y:1.0 V[p-p] (75Ω) C:0.286 V[p-p] (75Ω)
		AUDIO L - R	RCA PIN Type × 2 0.5 V[rms]
	Others	COMPONENT	YPB, PR 1.0 V[p-p] (including synchronization)±0.35 V[p-p]
		HDMI	TYPE A Connectors
		AUDIO L - R	RCA PIN Type × 2 0.5 V[rms]
	Output	AUDIO L - R	RCA PIN Type × 2 0.5 V[rms] (high impedance)
Dimensions (W × H × D)
	Including TV stand		657 mm × 525 mm × 239 mm	791 mm × 615 mm × 239 mm
	TV set only		657 mm × 473 mm × 107 mm	791 mm × 563 mm × 107 mm
Weight			12,5 kg Net	16 kg Net

Note

• Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.
  ● This equipment complies with the EMC standards listed below.

EN55013:2001+A1:2003, EN55020:2002+A1:2003+A2:2005, EN61000-3-2:2000+A2:2006, EN61000-3-3:1995+A1:2001

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate

waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Customer's Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number
