Product Type	Built-in Microwave with Grill
Brand	Zanker
Model	KAM960X
Installation Type	Built-in
Dimensions (H x W x D)	390 x 595 x 420 mm
Weight	Approx. 18 kg
Power Supply	230 V ~ 50 Hz
Microwave Power	900 W
Grill Power	1000 W
Capacity	30 L
Functions	Microwave, Grill, Combined Cooking, Defrost, Auto Menus (8)
Control Type	Touch Control with LED Display
Child Lock	Yes
Material	Stainless Steel Interior and Exterior
Turntable	Yes, 315 mm diameter
Cleaning	Wipe with damp cloth; avoid abrasive cleaners
Spare Parts	Turntable, Grill Rack, Glass Tray
Warranty	2 years (depending on region)
Energy Efficiency Class	B (typical for this category)

Frequently Asked Questions - KAM960X ZANKER

How do I set the clock on the Zanker KAM960X?

Press the Clock button and use the +/- buttons to set the hour and minute. Confirm with the OK button. The clock will display in 24-hour format.

How do I use the grill function?

Press the Grill button to select the desired grill power level (e.g., Low, Medium, High). Set the cooking time using the Time/Weight dial and press Start. Use the provided grill rack for best results.

What cleaning products can I use for the microwave interior?

Use a soft cloth dampened with warm water and mild dish soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals. For stubborn stains, use a mixture of water and vinegar.

Which types of cookware are safe for microwave use?

Use microwave-safe glass, ceramic, or plastic containers. Avoid metal, aluminum foil, or containers with metallic trim. Always check for a microwave-safe label.

Why won't my microwave start?

Check that the door is fully closed and the Child Lock is deactivated. Ensure the power cord is plugged in and the circuit breaker is on. Also verify that the time has been set; some models require the clock to be set before operation.

How does the defrost function work?

Press the Defrost button, enter the weight of the food using the +/- buttons, and press Start. The microwave will automatically adjust power and time to defrost evenly. Turn or rearrange food halfway for best results.

What is the combined cooking mode used for?

Combined cooking uses both microwave and grill at the same time to cook food faster and achieve a crispy finish. Suitable for dishes like lasagna or roast chicken. Select Combination mode and choose a pre-set program.

How do I activate and deactivate the child lock?

To activate, press and hold the Stop/Cancel button for 3 seconds until a lock icon appears on the display. To deactivate, press and hold the same button again for 3 seconds.

Why is my microwave making unusual noises?

Normal noises include the turntable motor and cooling fan hum. If you hear rattling, check that the turntable and glass tray are properly seated. A high-pitched noise may indicate a magnetron issue; contact service.

How do I replace the microwave's interior light bulb?

Unplug the microwave. Remove the ventilation grille (if applicable) or access the bulb from the top panel (depending on model). The bulb is usually a 20W incandescent or LED type. Replace with the same type and reassemble.

USER MANUAL KAM960X ZANKER

Line drawing of a cabinet or enclosure with front panel and side panels (no text or symbols)

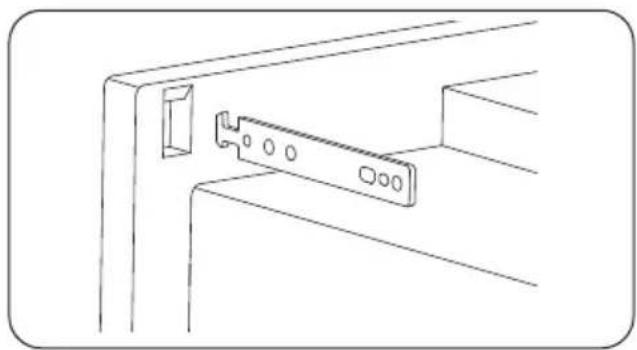

Line drawing of a mechanical bracket or bracket with a handle and mounting hole (no text or symbols)

Line drawing of a microwave oven with two outlets (no text or symbols)

Safety information	23
Product description	—

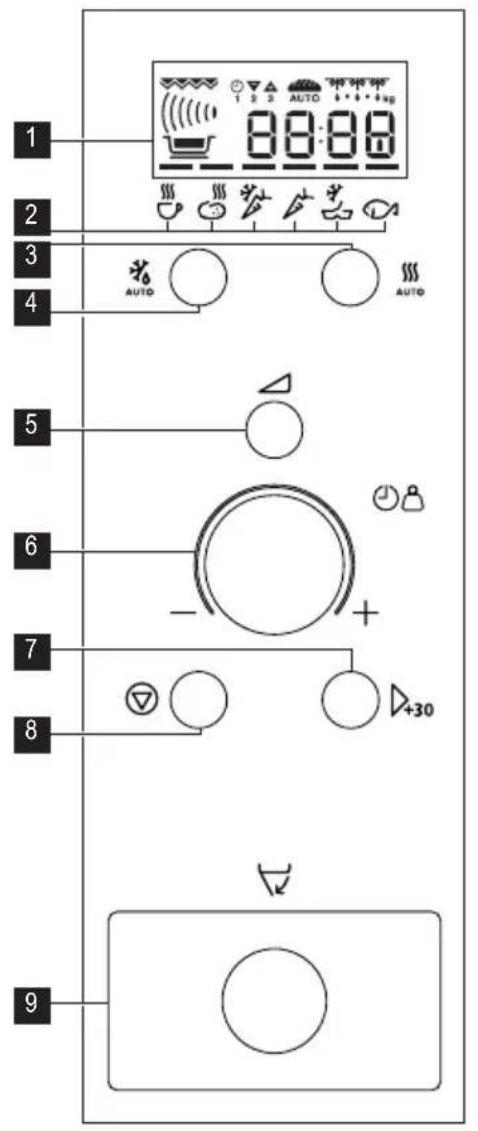

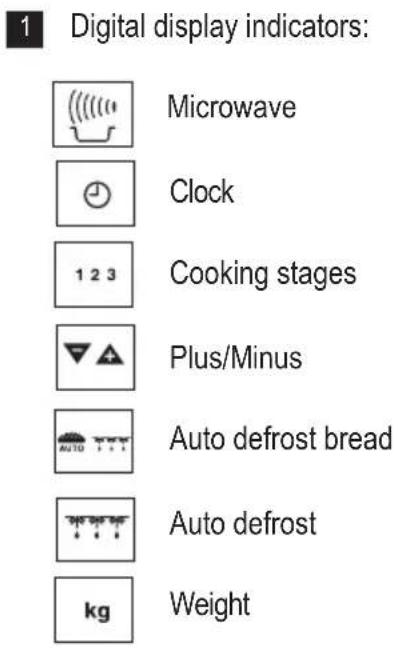

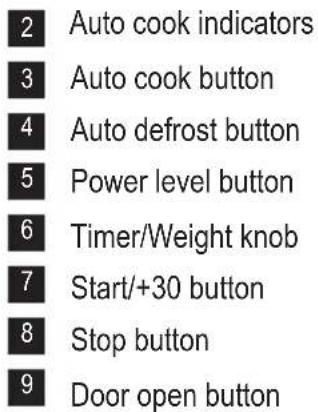

Control panel	28
Before first use	—
Operation	30
Programme charts	34

Care and cleaning	38
Troubleshooting	2 739
Installation
Technical information	2 8 42
Environment concerns	42

Subject to change without notice.

Safety information

IMPORTANT! IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. Only use microwave-safe containers and utensils. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Metallic containers for food and beverages are not allowed during microwave cooking.

Care should be taken not to displace the turntable when removing containers from the appliance.

To avoid the possibility of injury

WARNING!

Do not operate the oven if it is damaged or malfunctioning.

Check the following before use:

a) The door; make sure the door closes properly and ensure it is not misaligned or warped.

b) The hinges and door safety latches; check to make sure they are not broken or loose.
c) The door seals and sealing surfaces; ensure that they have not been damaged.
d) Inside the oven cavity or on the door; make sure there are no dents.
e) The power supply cord and plug; ensure that they are not damaged.

Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for “Care and cleaning”.

Clean the oven at regular intervals and remove any food deposits. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Do not attempt to replace the oven lamp yourself or allow anyone who is not authorised to do so. If the oven lamp fails, please consult your dealer or call an authorised service agent.

To avoid the possibility of explosion and sudden boiling

WARNING!

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container. Do not cook eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs

before reheating them in the microwave oven.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Keep children away from the door to prevent them burning themselves.

To avoid the misuse by children

WARNING!

The appliance and its accessible parts become hot during use. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.

This appliance is not intended for use at altitudes above 2000m.

To avoid the danger of fire

The microwave oven should not be left unattended during operation. Power levels that are too high or cooking times that are too long may overheat foods resulting in a fire. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency. The AC power supply must be 230 V, 50 Hz, with a minimum 10 A distribution line fuse, or a minimum 10 A distribution circuit breaker. It is recommended that a separate circuit serving only this appliance be provided. Do not store or use the oven outdoors.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, only use special microwave popcorn makers. Do not store food or any other items inside

the oven. Check the settings after you start the oven to ensure the oven is operating as desired. Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an object between the door seals and sealing surfaces.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock

Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised service agent. Do not immerse the power supply cord or plug in water or any other liquid. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised service agent.

To avoid the possibility of explosion and sudden boiling

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a buil up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape. To prevent sudden eruption of boiling liquid and possible scalding:

• Stir liquid prior to heating/reheating.
- It is advisable to insert a glass rod or similar utensil into the liquid whilst reheating.
- Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

To avoid the possibility of burns

Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns. Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns.

Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

Never modify the oven in any way. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

To promote trouble-free use of your oven and avoid damage

Never operate the oven when it is empty. Doing so may damage the oven. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dish's instructions must not be exceeded. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven.

Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.

To prevent the turntable from breaking:

• Before cleaning the turntable with water, leave the turntable to cool.
• Do not put hot foods or hot utensils on a cold turntable.
• Do not put cold foods or cold utensils on a hot turntable.

Do not place anything on the outer cabinet during operation.

IMPORTANT! If you are unsure how to connect your oven, please consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

Microwave oven

1 Front trim
2 Oven lamp
3 Control panel
4 Door opening button
5 Waveguide cover
6 Oven cavity
7 Seal packing
8 Door seals and sealing surfaces

Accessories

Check to make sure the following accessories are provided:

1 Turntable
2 Turntable support

• Place the turntable support in the seal packing on the floor of the cavity.
• Then place the turntable on the turntable support.
  • To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven.

When you order accessories, please mention two items: part name and model name to your dealer or an authorised service agent.

Before first use

Econ mode

The oven is set in energy save mode (Econ).

1. Plug in the oven.
2. The display will show: Econ.
3. The display will count down from 3:00 to zero.
4. When zero is reached, the oven goes into Econ mode and the display goes blank.

To cancel Econ mode, set the clock.

Setting the clock

The oven has a 12 and 24 hour clock.
Example: To set the clock to 11:30 (12 hour clock).
1. Open the door.
2. The display will show: Econ.
3. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will
4. Rotate the TIMER/WEIGHT knob to adjust the hour.

1. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.

2. Press the START/+30 button.

3. Check the display:

4. Close the door.

You can rotate the TIMER/WEIGHT knob clockwise or anti-clockwise. If you press the STOP button the clock will not be set. The display will show: Econ.

Example: To set the clock to 23:30 (24 hour clock).

1. Open the door.
2. The display will show: Econ.
3. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will

1. Press the START/+30 button. The display will

1. Rotate the TIMER/WEIGHT knob to adjust the hour.

2. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.

3. Press the START/+30 button.

4. Check the display:

5. Close the door.

You can rotate the TIMER/WEIGHT knob clockwise or anti-clockwise. If you press the STOP button the clock will not be set. The display will show: Econ.

Adjusting the time when the clock is set

Example: To set the clock to 11:45.

1. Open the door.
2. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will

(If you want to change the clock to 24 H, press the START/+30 button again.)

1. Rotate the TIMER/WEIGHT knob to adjust the hour.

2. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.

3. Press the START/+30 button.

4. Check the display: 1145

To cancel the clock and set Econ mode

1. Open the door.
2. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will
   (If you want to change the clock to 24 H, press the START/+30 button again.)

1. Press the STOP button.

2. The display will show: Econ.

3. Close the door.

4. The oven will count down from 3:00 to zero.

5. When zero is reached, the oven goes into Econ mode and the display goes blank.

Child safety lock

The oven has a safety feature which prevents the accidental running of the oven by a child. When the lock has been set, no part of the microwave will operate until the lock feature has been cancelled.

Example: To set the child safety lock.

1. Press and hold the STOP button for 5 seconds.

2. The oven will beep twice and 'LOC' will be displayed:

To cancel the child safety lock, press and hold the STOP button for 5 seconds, the oven will beep twice and the time of day will be displayed. Child safety lock cannot be set if the clock is not set.

Microwave safe cookware

Cookware	Microwave safe	Comments
Aluminium foil/ containers	√/ ✘	Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer. Follow instructions carefully.
China and ceramics	√/ ✘	Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration.
Glassware e.g. Pyrex ®	√	Care should be taken if using fine glassware as it can break or crack if heated suddenly.
Metal	✗	It is not recommended to use metal cookware when using microwave power as it will arc, which can lead to fire.
Plastic/polystyrene e.g. fast food containers	√	Care must be taken as some containers warp, melt or discolour at high temperatures.
Freezer/roasting bags	√	Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal arcing.
Paper - plates, cups and kitchen paper	√	Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire.
Straw and wooden containers	√	Always attend the oven when using these materials as overheating may cause fire.
Recycled paper and newspaper	✗	May contain extracts of metal which will cause arcing and may lead to fire.

Microwave cooking advice

Microwave cooking advice
Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire.
Size For even cooking make all the pieces the same size.
Temperature of food The initial temperature of food affects the amount of cooking time needed. Cut into foods with fillings (e.g. jam doughnuts) to release heat or steam.
Arrange Place the thickest parts of food towards the outside of the dish (e.g. chicken drumsticks).
Cover Use vented microwave cling film or a suitable lid.
Pierce Foods with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode (e.g. potatoes, fish, chicken, sausages). IMPORTANT! Eggs should not be heated using microwave power as they may explode, even after cooking has ended (e.g. poached, hard boiled).
Stir, turn and rearrange	For even cooking it is essential to stir, turn and rearrange food during cooking. Always stir and rearrange from the outside towards the centre.
Stand Standing time is necessary after cooking to enable the heat to disperse equally throughout the food.
Shield Warm areas can be shielded with small pieces of foil, which reflect microwaves (e.g. legs and wings on a chicken).

Microwave cooking

Your oven has 6 power levels.

Power setting Suggested use
800 W/HIGH Used for fast cooking or reheating (e.g. soup, casseroles, canned food, hot beverages, vegetables, fish).
560 W Used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides.
400 W For dense foods which require a long cooking time when cooked conventionally (e.g. beef dishes) it is advisable to use this power setting to ensure the meat will be tender.
240 W/DEFROST To defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.
80 W For gentle defrosting (e.g. cream gateaux or pastry).
0 W	For standing/kitchen timer.

W = WATT

Cooking time Increasing unit

0-5 minutes 15 seconds
5-10 minutes 30 seconds
10-30 minutes 1 minute
30-90 minutes 5 minutes

Example: To heat soup for 2 minutes and 30 seconds on 560 W microwave power.

1. Press the POWER LEVEL button twice.
2. Enter the time by rotating the TIMER/WEIGHT knob clockwise/anti-clockwise until 2.30 is displayed.
3. Press the START/+30 button.

IMPORTANT! If the power level is not selected, 800 W/HIGH is automatically set.

• When the door is opened during the cooking process, the cooking time on the digital display stops automatically. The cooking time starts to count down again when the door is closed and the START/+30 button is pressed.
• If you wish to know the power level during cooking, press the POWER LEVEL button once.
• You can increase or decrease the cooking time during cooking by rotating the TIMER/WEIGHT knob.
• You can change the power level during cooking by pressing the POWER LEVEL button.
• To cancel a programme during cooking, press the STOP button twice.

Reduced power level

Cooking mode	Standard time	Reduced power level
Microwave800 W	20 minutes Microwave560 W

Kitchen timer

Example: To set the kitchen timer for 7 minutes.

1. Press the POWER LEVEL button 7 times.
2. Enter the time by rotating the TIMER/WEIGHT knob clockwise/ anti-clockwise until 7.00 is displayed.
3. Press the START/+30 button.

To pause the timer, press the STOP button. To resume the timer press START/+30, to exit press STOP again.

Add 30 seconds

Direct Start

You can directly start cooking on 800 W/ HIGH microwave power level for 30 seconds by pressing the START/+30 button.

Extend the cooking time

You can extend the cooking time for multiples of 30 seconds if the button is pressed while the oven is in operation.

You cannot use this function during auto cook or auto defrost.

Plus and minus

The PLUS and MINUS function enables you to decrease or increase the cooking time when using the automatic programmes.

Example: To cook 0.3 kg of boiled potatoes, well done.

1. Select the menu required by pressing the AUTO COOK button twice.
2. Turn the TIMER/WEIGHT knob until 0.3 is displayed.
3. Press the POWER LEVEL button once to select the PLUS adjustment.
4. Press the START/+30 button.

To cancel PLUS/MINUS, press the POWER LEVEL button 3 times.

If you select PLUS, the display will show ✝ If you select MINUS, the display will show √

Multiple sequence cooking

A sequence of 3 stages (maximum) can be programmed.

Example: To cook:

Stage 1: 5 minutes 800 W

Stage 2: 16 minutes 240 W

1. Press the POWER LEVEL button once.
2. Enter the desired time by rotating the TIMER/WEIGHT knob clockwise until 5.00 is displayed.
3. Press the POWER LEVEL button 4 times.
4. Enter the desired time by rotating the TIMER/WEIGHT knob clockwise until 16.00 is displayed.
5. Press the START/+30 button.

The oven will begin to cook for 5 minutes at 800 W and then for 16 minutes on 240 W.

Auto cook and auto defrost

Auto cook and auto defrost automatically works out the correct cooking mode and cooking time. You can choose from 6 auto cook and 2 auto defrost menus.

Food Symbol
Beverage
Boiled potatoes/Jacket potatoes
Frozen vegetables	[88ZH]
Fresh vegetables	[27TW]
Frozen ready meals
Fish fillet with sauce
Meat/fish/poultry
Bread

Example: To cook 0.3 kg of boiled potatoes.

1. Select the menu required by pressing the AUTO COOK button twice.
2. Turn the TIMER/WEIGHT knob until 0.3 is displayed.
3. Press the START/+30 button.

When action is required (e.g. to turn food over) the oven stops and the audible bell sounds, remaining cooking time and the indicator will flash on the display. To continue cooking, press the START/+30 button. At the end of the auto cook/auto defrost time, the programme will automatically stop. The audible bell sounds and the cooking symbol will flash. After 1 minute and a reminder beep, the time of day will be displayed.

Programme charts

Auto cook	Weight (increasing unit)/Utensils	Button Procedure
Beverage (Tea/Coffee) 1-4 cups	1 cup = 200 ml		Place cup towards edge of turntable.
Boiled and jacket potatoes 0.1-0.8 kg(100 g) Bowl and lid			Put the boiled or jacket potatoes into a bowl.Add the required amount of water, approx. 2 tbsp per 100 g and a little salt.Cover with lid.When the audible bell sounds, stir and re-cover.After cooking, stand for approx. 2 min.
Frozen vegetables 0.1-0.6 kg(100 g) Bowl and lid			Add 1 tbsp water per 100 g and salt as desired (for mushrooms no additional water is necessary).Cover with lid.When the audible bell sounds, stir and re-cover.After cooking, stand approx. 2 min.If frozen vegetables are compacted together, cook manually.
Fresh vegetables 0.1-0.6 kg(100 g) Bowl and lid			Cut into small pieces, e.g. strips, cubes or slices.Add 1 tbsp water per 100 g and salt as desired (for mushrooms no additional water is necessary).Cover with lid.When the audible bell sounds, stir and re-cover.After cooking, stand for approx. 2 min.
Frozen ready meals(stirrable) 0.3-1.0 kg(100 g) Bowl and lid			Transfer meal to suitable microwave-proof dish.Add some liquid if recommended by the manufacturer.Cover with lid.Cook without cover if the manufacturer instructs.When the audible bell sounds, stir and re-cover.After cooking, stir and stand for approx. 2 min.
Fish fillet with sauce 0.4-1.2 kg(100 g) Gratin dish and microwave cling film			See recipes for 'Fish fillet with sauce'.Total weight of all ingredients.

Auto defrost	Weight (increasing unit)/Utensils	Button Procedure
Meat/fish/poultry(Whole fish, fish steaks, fish fillets, chicken legs, chicken breast, minced meat, steak, chops, burgers, sausages)	0.2-0.8 kg(100 g)Flan dish	Place the food in a flan dish in the centre of the turntable.When the audible bell sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with aluminium foil.After defrosting, wrap in aluminium foil for 15-45 min, until thoroughly defrosted.Minced meat: When the audible bell sounds, turn the food over. Remove the defrosted parts if possible.Not suitable for whole poultry.
Bread 0.1-1.0 kg[3D/3]	(100 g)Flan dish	Distribute in a flan dish in the centre of the turntable. For 1.0 kg, distribute directly on the turntable.When the audible bell sounds, turn over, rearrange and remove defrosted slices.After defrosting cover in aluminium foil and stand for 5-15 min until thoroughly defrosted.

• Chilled foods are cooked from 5 °C, frozen foods are cooked from -18 °C.
• Enter the weight of the food only. Do not include the weight of the container.
• For food weighing more or less than weights/quantities given in the Auto cook and defrost charts, use manual operation.
• The final temperature will vary according to the initial temperature. Check food is piping hot after cooking.
  • After Microwave mode the cooling fan may come on.
  • Steaks and chops should be frozen in one layer.
• Minced meat should be frozen in a thin shape.

Recipes for auto cook

Fish fillet with piquant sauce
0.4 kg	0.8 kg	1.2 kg
140 g	280 g	420 g	canned tomatoes, drained
40 g	80 g	120 g	corn
4 g	8 g	12 g	chilli sauce
12 g	24 g	36 g	onion, finely chopped
			mustard, thyme and cayenne pepper
200 g	400 g	600 g	fish fillet
			salt

1. Mix ingredients for the sauce.

2. Place the fish fillet in a round gratin dish with the thin ends toward the centre and sprinkle with salt.

3. Spread the sauce on the fish fillet.

4. Cover with microwave cling film and cook on auto cook, "Fish fillet with sauce".

5. After cooking, stand for approx. 2 min.

Fish fillet with curry sauce
0.4 kg	0.8 kg	1.2 kg
200 g	400 g	600 g	fish fillet
			salt
40 g	80 g	120 g	banana, sliced
160 g	320 g	480 g	ready-made curry sauce

1. Place the fish fillet in a round gratin dish with the thin ends toward the centre and sprinkle with salt.

2. Spread the banana and the ready-made curry sauce on the fish fillet.

3. Cover with microwave cling film and cook on auto cook, "Fish fillet with sauce".

4. After cooking, stand for approx. 2 min.

Heating food and drink	Quantity -g/ml-	Power Level	Time -Min-	Method
Milk, 1 cup	150	800 W	1 do not cover
Water, 1 cup	150	800 W	1-2	do not cover
6 cups	900	800 W	10-12	do not cover
1 bowl	1000	800 W	11-13	do not cover
One plate meal (vegetables, meat and trimmings)	400	800 W	3-6	sprinkle some water onto the sauce, cover, stir halfway through heating
Soup/stew	200	800 W	1-2	cover, stir after heating
Vegetables	200	800 W	2-3	if necessary add some water, cover, stir halfway through heating
	500	800 W	4-5
Meat, 1 slice ^1)	200	800 W	3-4	thinly spread sauce over the top, cover
Fish fillet ^1)	200	800 W	2-3	cover
Cake, 1 slice 150		400 W	12	place in a flan dish
Baby food, 1 jar	190	400 W	1	transfer into a suitable microwaveable container, after heating stir well and test the temperature
Melting margarine or butter ^1)	50	800 W	12	cover
Melting chocolate 100		400 W	2-3	stir occasionally

1) from chilled

Defrosting	Quantity -g-	Power Level	Time -Min-	Method	Standing time -Min-
Goulash	500	240 W	8-12	stir halfway through defrosting	10-15
Cake, 1 slice	150	80 W	2-5	place in a flan dish	5
Fruit (e.g. cherries, strawberries, raspberries, plums)	250	240 W	4-5	spread out evenly, turn over halfway through defrosting	5

Defrosting and cooking	Quantity -g-	Power Level	Time -Min-	Method	Standing time -Min-
Fish fillet	300	800 W 10-12		cover	2
One plate meal	400	800 W	9-11	cover, stir after 6 minutes	2

Cooking meat and fish	Quantity -g-	Power Level	Time -Min-	Method	Standing time -Min-
Roasts	1000	800 W	19-21^1)	season to taste, place in a shallow flan dish, turn over after ^1)	10
		400 W	11-14
Roast beef (medium)	1000	800 W	9-11^1)	season to taste, place in a flan dish, turn over after ^1)	10
		400 W	5-7
Fish fillet	200	800 W	3-4	season to taste, place in a flan dish, cover	3

The times shown in the table are guidelines which may vary according to freezing temperature, quality and weight of the foodstuffs.

CAUTION!

DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN. CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Control panel

Open the door before cleaning to de-activate the control panel. Care should be taken when cleaning the control panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven interior

For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven. Do not use spray type cleaners on the oven interior.

Turntable and turntable support

Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

IMPORTANT! A steam cleaner should not be used.

Troubleshooting

Problem Check if...
The microwave appliance is not working properly?	· The fuses in the fuse box are working.· There has not been a power outage.· If the fuses continue to blow, please contact a qualified electrician.
The microwave mode is not working? ·	· The door is properly closed.· The door seals and their surfaces are clean.· The START/+30 button has been pressed.
The turntable is not turning? · The turntable support is correctly connected to the drive.· The ovenware does not extend beyond the turntable.· Food does not extend beyond the edge of the turntable preventing it from rotating.· There is nothing in the well beneath the turntable.
The microwave will not switch off? · Isolate the appliance from the fuse box.· Call an authorised service agent.
The interior light is not working? · Call your authorised service agent. The interior light bulb can be exchanged only by a trained authorised service agent.
The food is taking longer to heat through and cook than before?	· Set a longer cooking time (double quantity = nearly double time) or· If the food is colder than usual, rotate or turn from time to time or· Set a higher power setting.

Installation

The microwave can be fitted in position A, B, C or D:

Position	Niche size
	W	D	H
A 562 x 550 x 360
B+C 562 x 300 x 350	562 x 300 x 360
D 562 x 500 x 350	562 x 500 x 360

Measurements in (mm)

Installing the appliance

1. Remove all packaging and check carefully for any signs of damage.
2. This oven is designed to fit into a 360 mm high cupboard as standard. When fitting into a 350 mm high cupboard:- Unscrew and remove the 4 feet from the bottom of the oven. There are 3 tall feet and 1 short foot. Replace the 3 tall feet with those provided in the accessory pack. Do not replace the short foot.
3. Fit the fixing hooks to the kitchen cupboard using the instruction sheet and template supplied.
4. Fit the appliance into the kitchen cupboard slowly, and without force. The appliance should be lifted onto the fixing hooks and then lowered into place. In the case of interference during fitting, this hook is reversible. The front frame of the oven should seal against the front opening of the cupboard.
5. Ensure the appliance is stable and not leaning. Ensure that a 4 mm gap is kept between the cupboard door above and the top of the frame (see diagram).

Line drawing of a cabinet or enclosure with front panel and side panels (no text or symbols)

Line drawing of a mechanical bracket or bracket with a handle and mounting hole (no text or symbols)

Safe use of the appliance

If fitting the microwave in position B or C:

• The cupboard must be a minimum of 500 mm (E) above the worktop and must not be installed directly above a hob.
• This appliance has been tested and approved for use near domestic gas, electric and induction hobs only.
• Sufficient space between hob and microwave should be allowed to prevent overheating of microwave oven, surrounding cupboard and accessories.
• Do not operate the hob without pans when the microwave oven is operating.
• Care should be taken when attending to the microwave oven while the hob is on.

Connecting the appliance to the power supply

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.
• The socket should not be positioned behind the cupboard.
• The best position is above the cupboard, see (A).

Line drawing of a microwave oven with control panel and two outlets (no text or symbols)

• Connect the appliance to a single phase 230 V/50 Hz alternating current via a correctly installed earth socket. The socket must be fused with a 10 A fuse.

• The power supply cord may only be replaced by an electrician.

• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.

• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
• Do not immerse the power supply cord or plug in water or any other liquid.

Electrical connections

WARNING!

THIS APPLIANCE MUST BE EARTHED

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call your authorised service agent.

Technical information

AC Line Voltage 230 V, 50 Hz, single phase
Distribution line fuse/circuit breaker Minimum 10 A
AC Power required: Microwave 1.2 kW
Output power: Microwave 800 W (IEC 60705)
Microwave Frequency 2450 MHz	1) (Group 2/Class B)
Outside Dimensions: KAM960 594 mm (W) x 371 mm (H) x 316 mm (D)
Cavity Dimensions 285 mm (W) x 202 mm (H) x 298 mm (D)	2)
Oven Capacity 17 litres	2)
Turntable ø 272 mm, glass
Weight approx. 16 kg
Oven lamp 25 W/240-250 V

1) This Product fulfils the requirement of the European standard EN55011.

In conformity with this standard, this product is classified as group 2 class B equipment.

Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.

Class B equipment means that the equipment is suitable to be used in domestic establishments.

2) Internal capacity is calculated by measuring maximum width, depth and height.

Actual capacity for holding food is less.

Environment concerns

Recycle materials with the symbol 📋 Put the packaging in applicable containers to recycle it. Help protect the environment and human health and recycle waste electrical and electronic appliances.

Do not dispose of appliances marked with the symbol with household waste. Return the product to your local recycling facility or contact your municipal office.

www.electrolux.com/shop
