USER MANUAL M2450D-PC LG

Please read this manual carefully before operating the your TV and retain it for future reference.

LED LCD TV MODELS TVNEMA 3D TV MODELS

M1950D

M2450D

DM2350D

M2250D

M2550D

DM2350A

M2350D

CONTENTS

5 LICENSES

6 ASSEMBLING AND PREPARING

6 Unpacking

8 Parts and buttons

10 Lifting and moving the TV

10 Setting up the TV

10 - Attaching the Stand Base

10 - Detaching the Stand Base and Body

11 - Mounting on a table

12 - Tidying cables

12 - Mounting on a wall

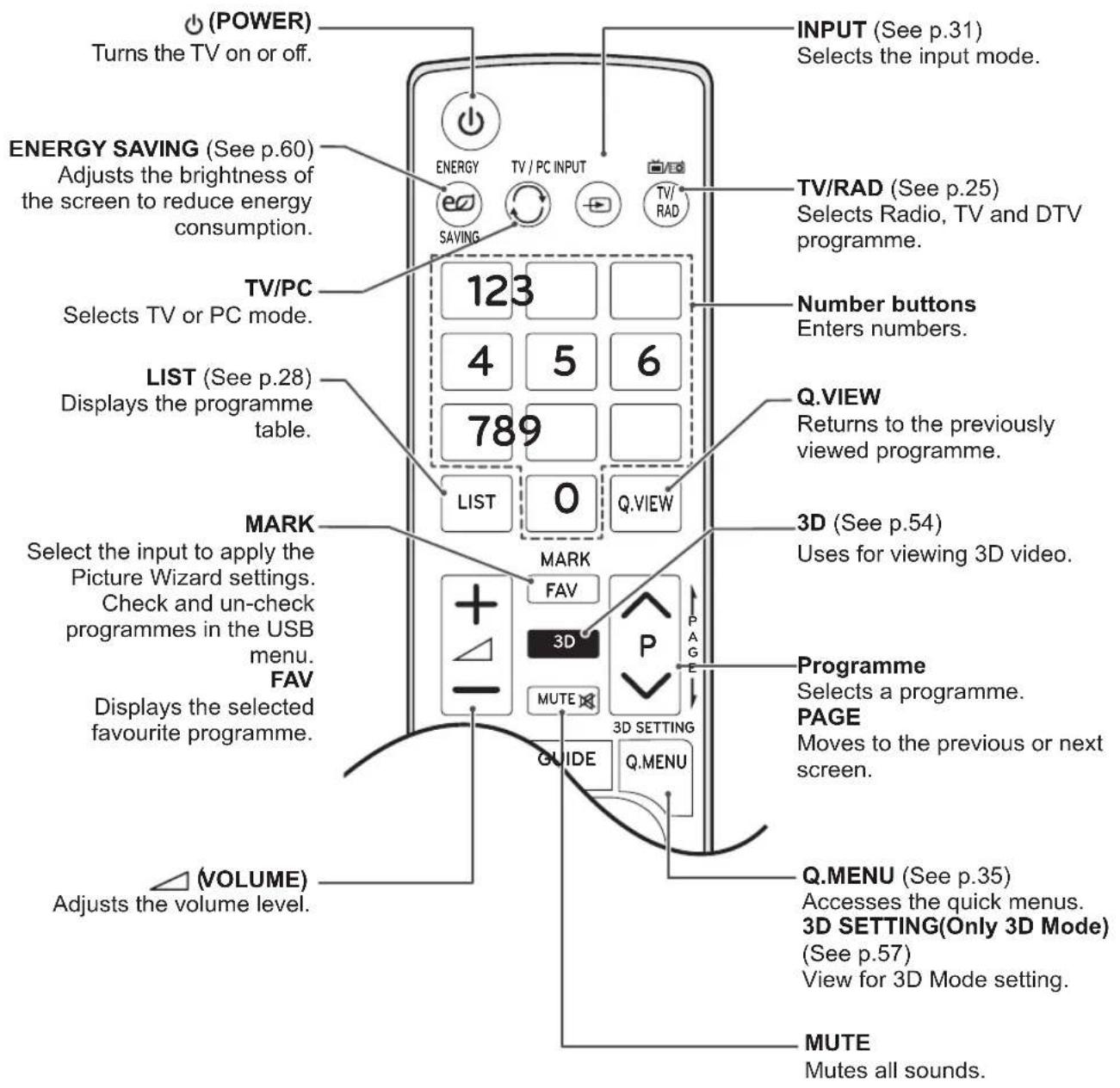

14 REMOTE CONTROL

17 WATCHING TV

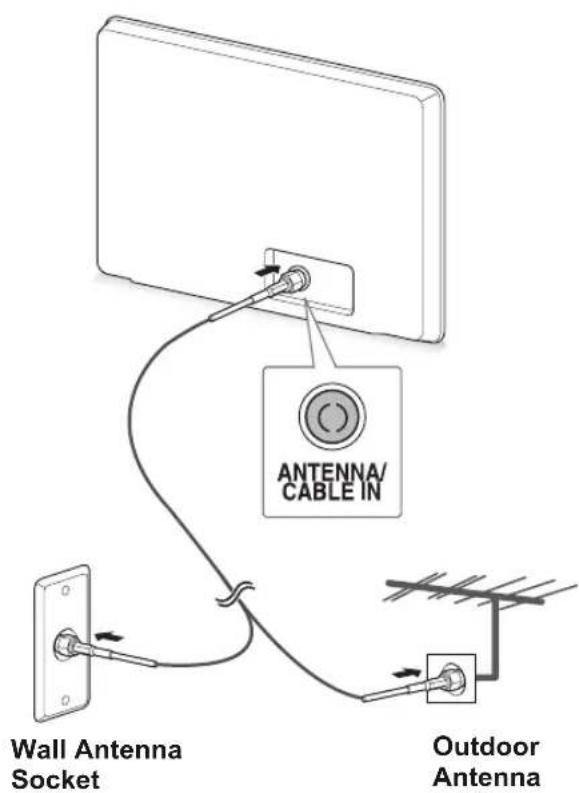

17 Connecting an antenna or cable

17 - Connecting an antenna or basic cable

17 - Connecting with a cable box

18 Accessing the TV for the first time

19 Watching TV

19 Managing programmes

19 - Automatically setting up programmes

22 - Manually setting up programmes (In digital mode) (Only DTV)

23 - Manually setting up programmes (In analogue mode)

24 - Cable DTV Setting (In Cable mode only) (Only DTV)

24 - Editing your programme list

25 - In DTV/RADIO mode (Only DTV)

25 - In TV mode (Only DTV)

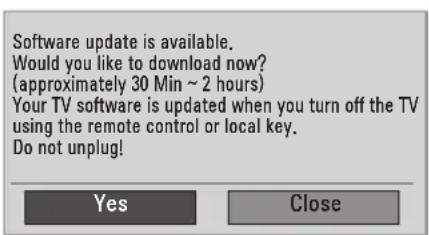

26 - Software Update (Only DTV)

27 - Diagnostics (Only DTV)

27 - CI [Common interface] Information (Only DTV)

28 - Selecting the programme list

28 - Favourite programme setup

29 Using additional options

29 - Adjusting aspect ratio

31 - Using the input list

32 - On-screen menu language / Country selection

33 - Language selection (In digital mode only) (Only DTV)

34 Using the Lock options

34 - Locking the buttons on the TV.

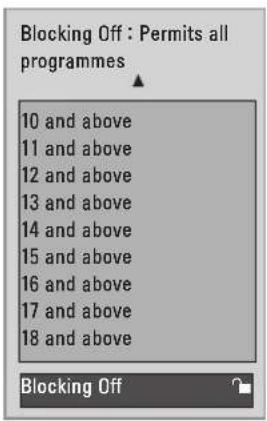

35 - Parental control (In digital mode only) (Only DTV)

35 Using the Quick menu

36 EPG (ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE) (ONLY DTV)

36 Using Electronic Programme Guide

36 - Switch on/off EPG

36 - Select a programme

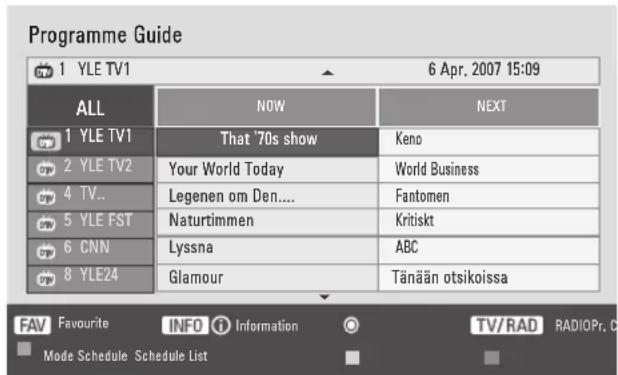

37 - Button Function in NOW/NEXT Guide Mode

37 - Button Function in 8 Day Guide Mode

37 - Button Function in Date Change Mode

38 - Button Function in Extended Description Box

38 - Button Function in Record/Remind Setting Mode

38 - Button Function in Schedule List Mode

39 CONNECTING TO A PC

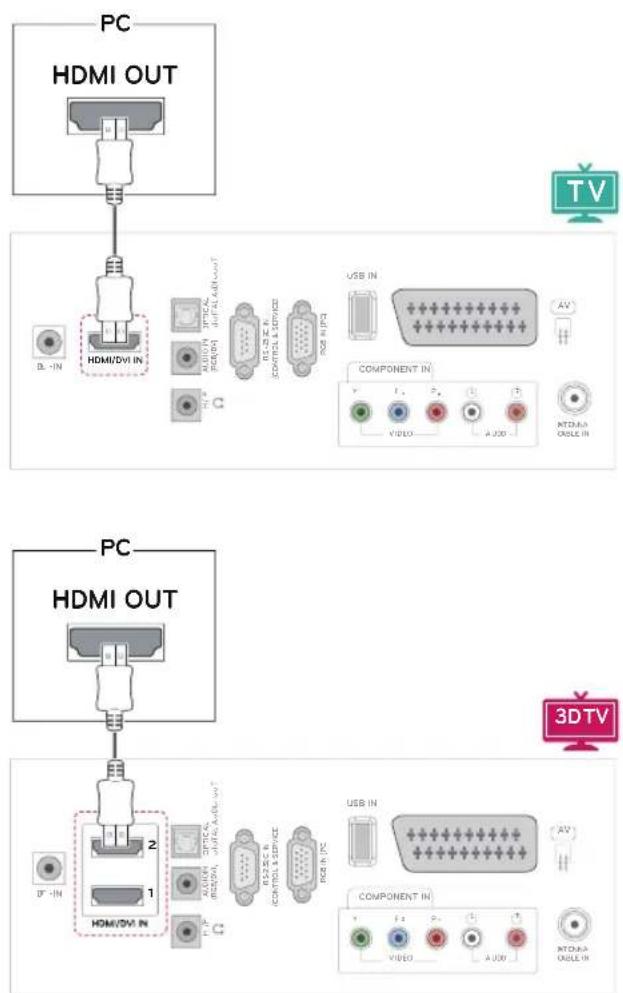

39 HDMI connection

40 DVI to HDMI connection

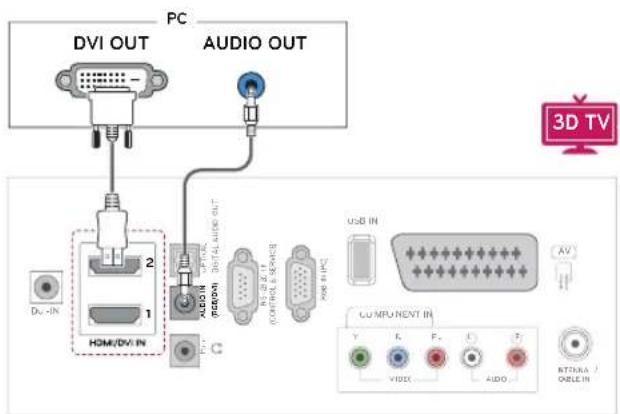

40 RGB connection

41 Adjusting the screen

41 - Selecting an image mode

42 - Customizing image options

42 - Customizing PC display options

43 Adjusting the sound

43 - Selecting an sound mode
43 - Customizing sound options

44 ENTERTAINMENT

44 Using integrated media features
44 - Connecting USB storage devices
46 - Browsing files

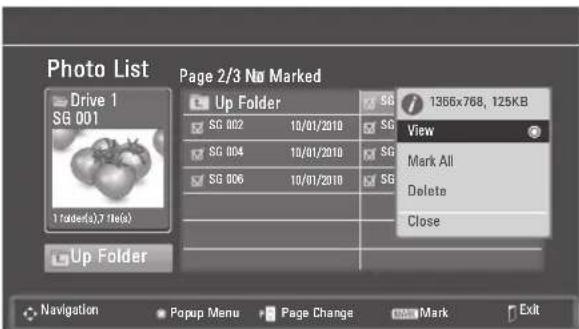

47 - Viewing Photos

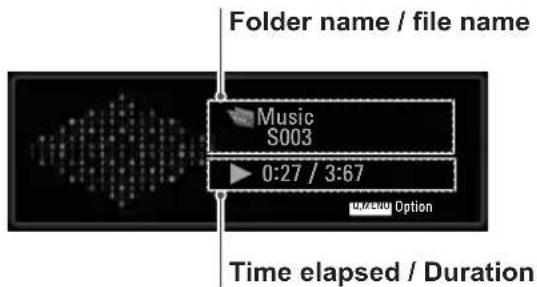

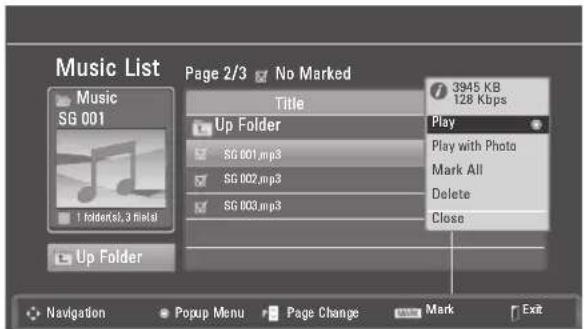

48 - Listening to Music
50 - Viewing Movies
53 - DivX® VOD Guide

54 3D IMAGING(ONLY 3D MODEL)

54 3D Technology
54 Precautions to take when viewing 3D images
55 When using 3D Glasses
56 3D Imaging Viewing Range
56 Viewing 3D Imaging

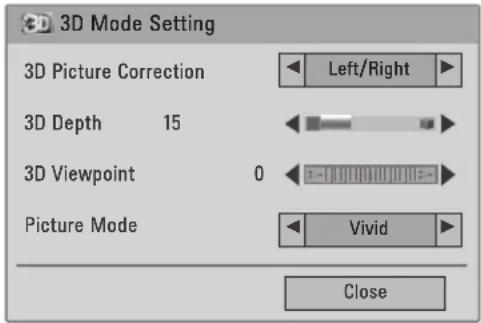

57 3D Mode Setting Option

58 CUSTOMIZING SETTINGS

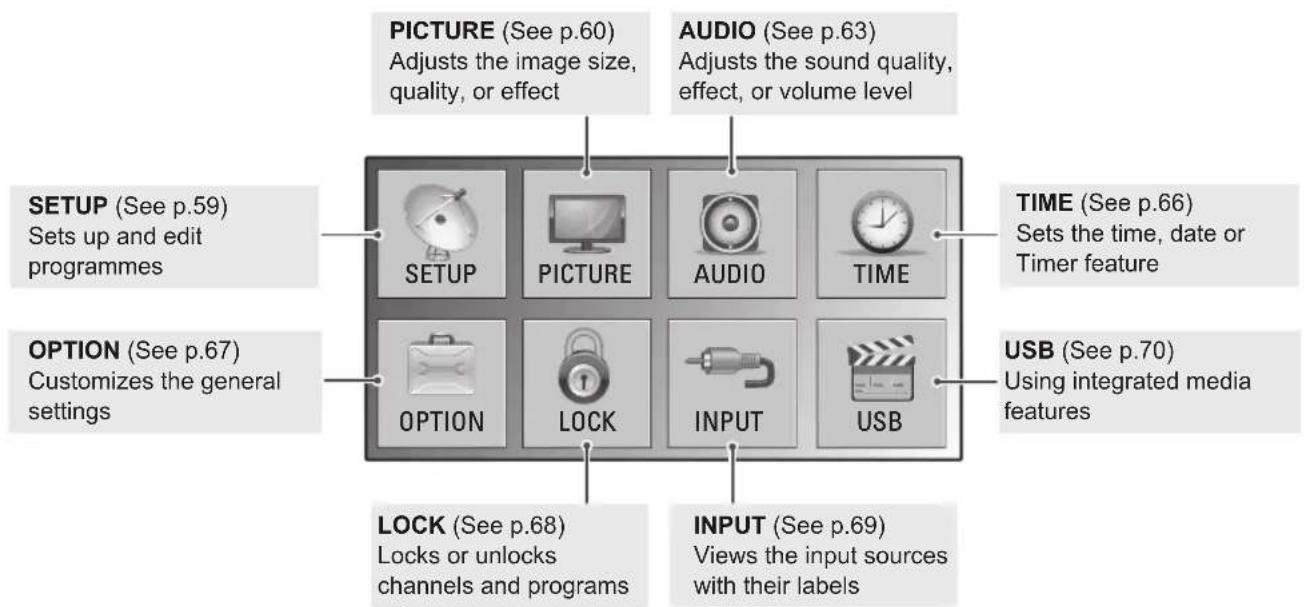

58 Accessing main menus
59 Customizing settings

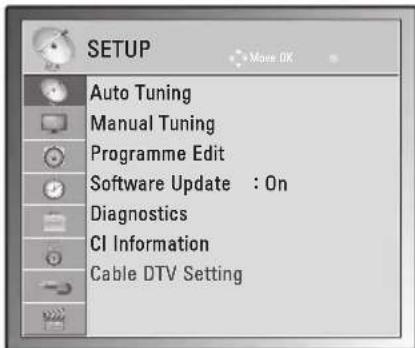

59 - SETUP settings

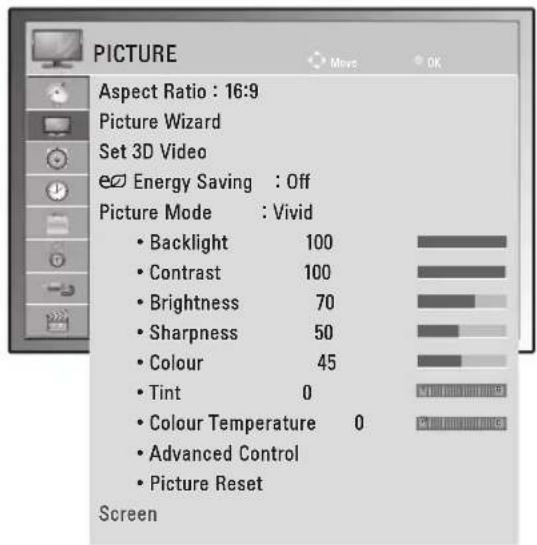

60 - PICTURE settings
63 - AUDIO settings

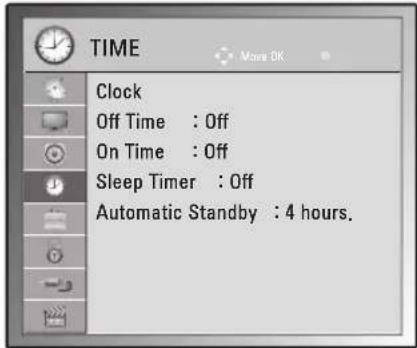

66 - TIME settings
67 - OPTION settings

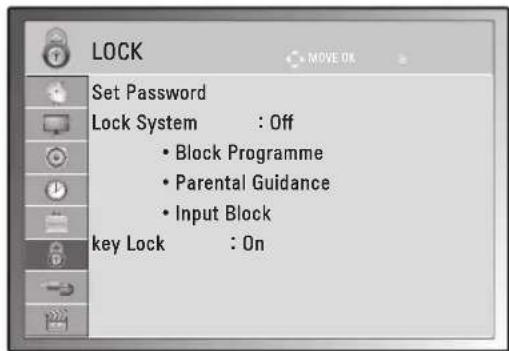

68 - LOCK settings
69 - INPUT settings

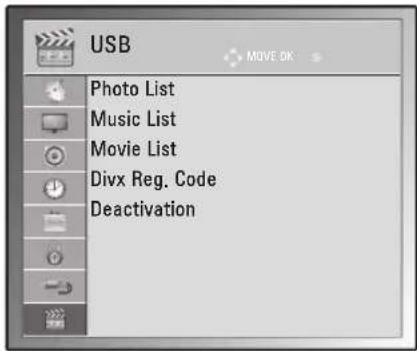

70 - USB settings

71 MAKING CONNECTIONS

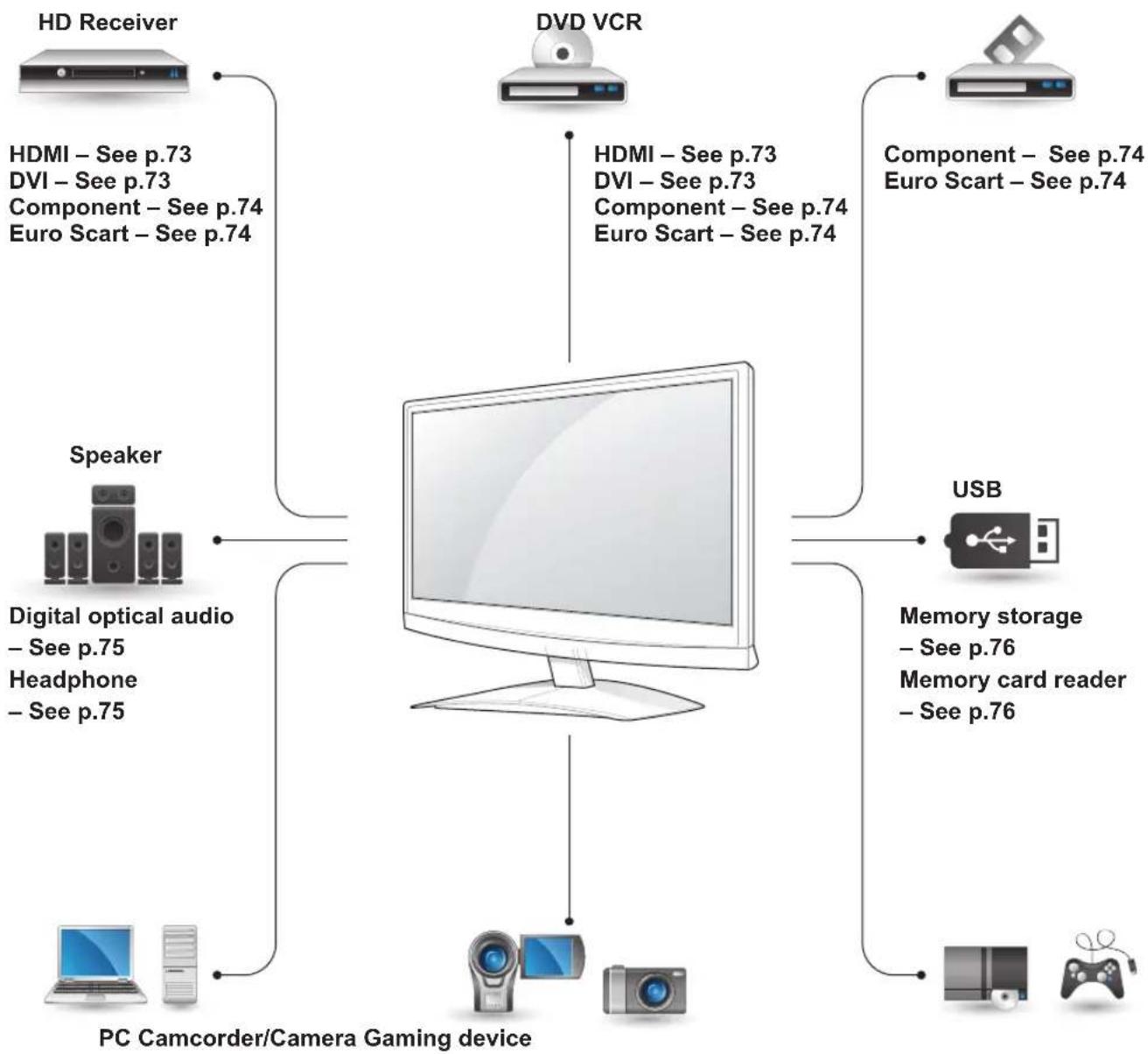

71 Connection overview
73 Connecting to a Camcorder, Camera, HD receiver, DVD, VCR player or Gaming device

73 - HDMI connection

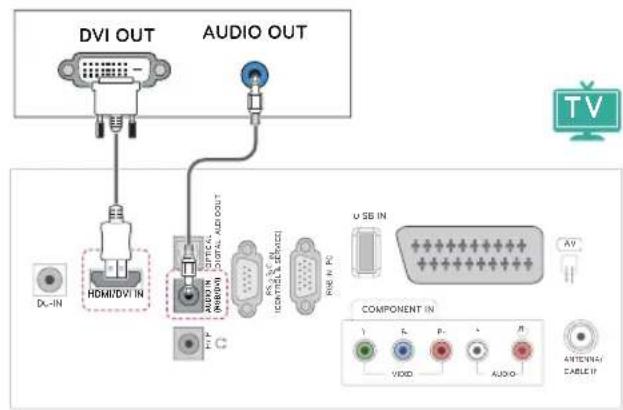

73 - DVI to HDMI connection
74 - Component connection
74 - Euro Scart connection
75 Connecting to an audio system

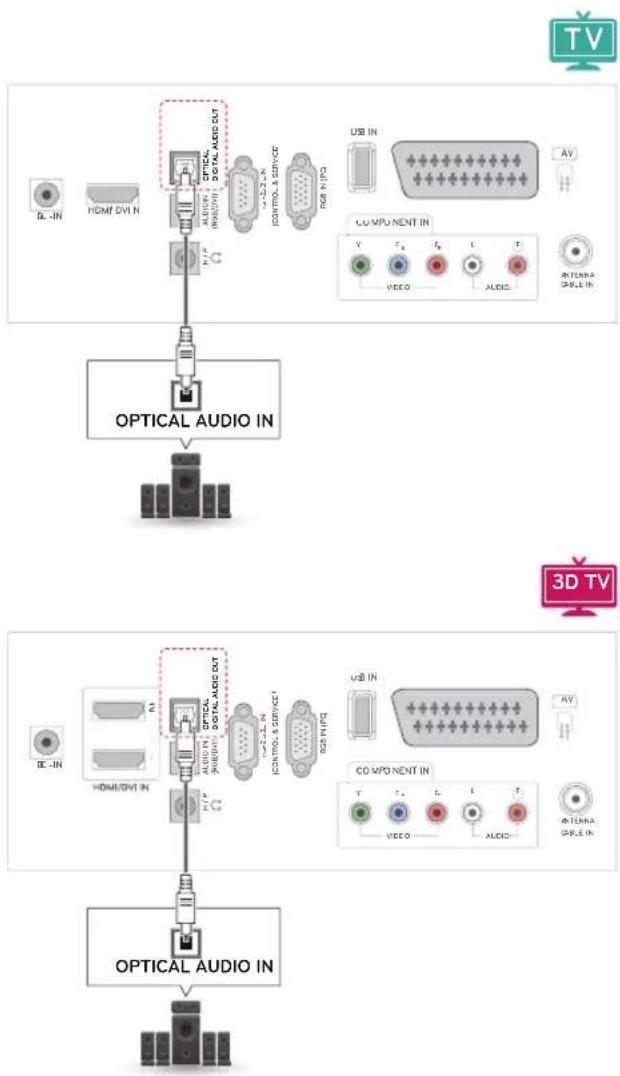

75 - Digital optical audio connection
75 - Headphone connection

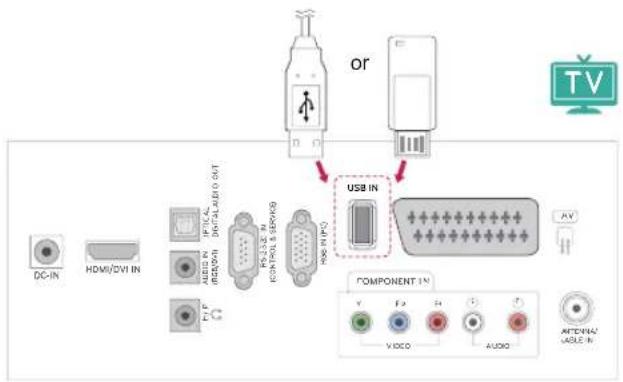

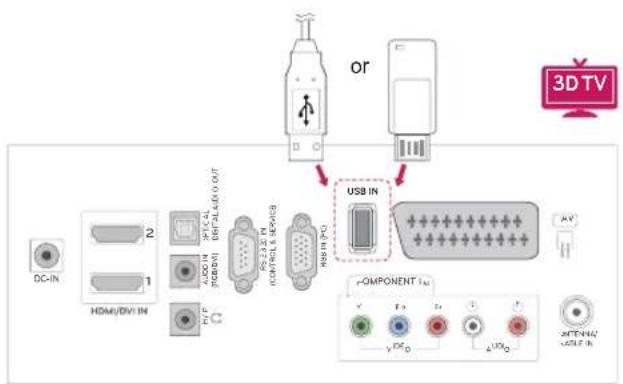

76 Connecting to a USB

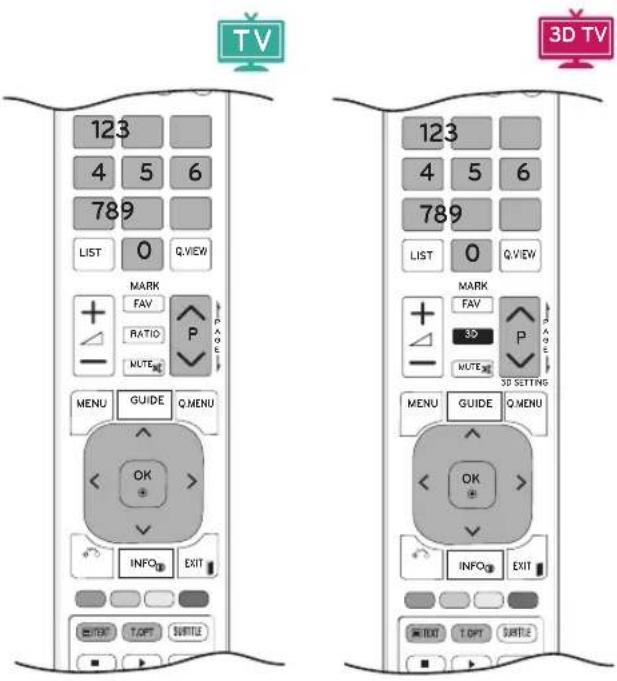

77 TELETEXT

77 Switch On/Off
77 Simple Text
77 - Page selection
77 Top Text
77 - Block / Group / Page Selection
77 - Direct Page Selection
78 Fastext
78 - Page selection
78 Special Teletext Function
78 - Text Option

79 DIGITAL TELETEXT (ONLY DTV)

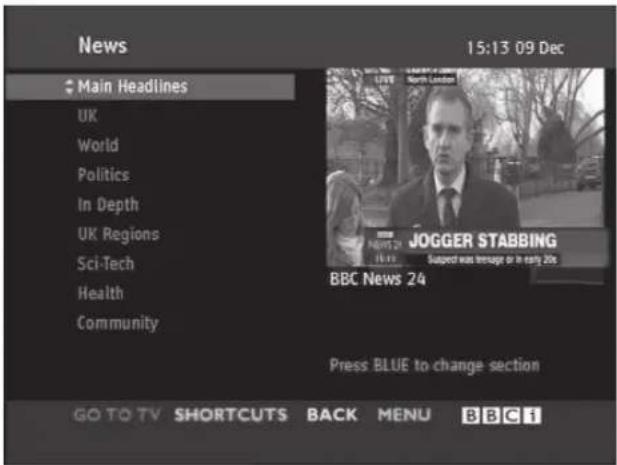

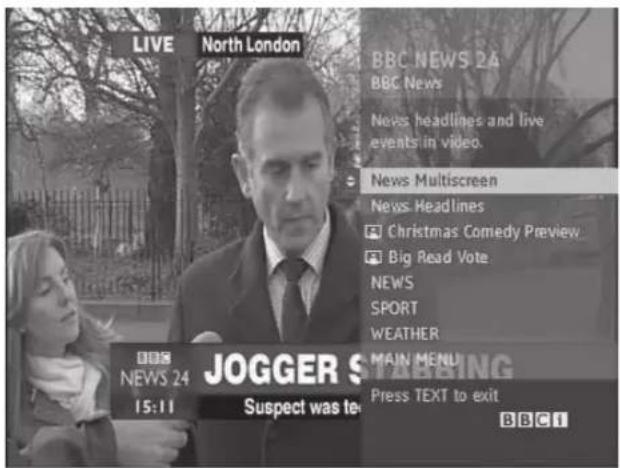

79 Teletext within digital service
79 Teletext in digital service

80 MAINTENANCE

80 Screen and frame
80 Cabinet and stand
80 Power cord

81 TROUBLESHOOTING

81 General
82 PC mode

84 TROUBLESHOOTING WHEN USING 3D MODE

85 SPECIFICATIONS

94 IR CODES

95 EXTERNAL CONTROL DEVICE SETUP

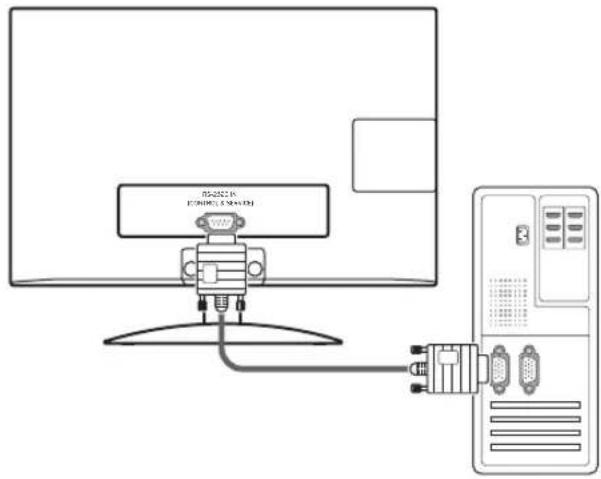

95 RS-232C Setup
95 Type of connector; D-Sub 9-Pin Male
96 RS-232C configurations
97 Communication Parameters
97 Command reference list
98 Transmission / Receiving protocol

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. "Dolby "and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

NOTE

• Image shown may differ from you TV.
- Your TV's OSD(On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

NOTE

• TV : LED LCD TV
3D TV : CINEMA 3D TV

Power Cord

AC-DC Adapter

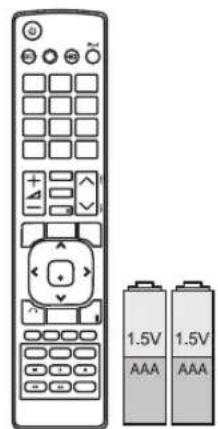

1.5V AAA 1.5V AAA

Remote control and Batteries

Cable Tie

RGB Cable

Illustration of a CD or DVD disc and its corresponding physical object (no text or symbols)

CD (Owner's Manual) / Card

Pure 3D geometric diagram of a curved surface with a small square cutout (no text or symbols)

Stand Base

Illustration of a CD or DVD disc and its corresponding physical object (no text or symbols visible)

TriDef 3D Game Software CD / Quick Installation Guide

Illustration of a pair of eyeglasses and a card (no text or symbols)

3D Glasses (Normal type)

Illustration of a pair of eyeglasses with lenses and a rectangular frame (no text or symbols)

3D Glasses (Clip type)

CAUTION

• Do not use any pirated items to ensure the safety and product life span.
• Any damages or injuries by using pirated items are not covered by the warranty.

NOTE

• The accessories supplied with your product may vary depending on the model.
• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

Parts and buttons

M1950D M2250D M2350D M2450D M2550D

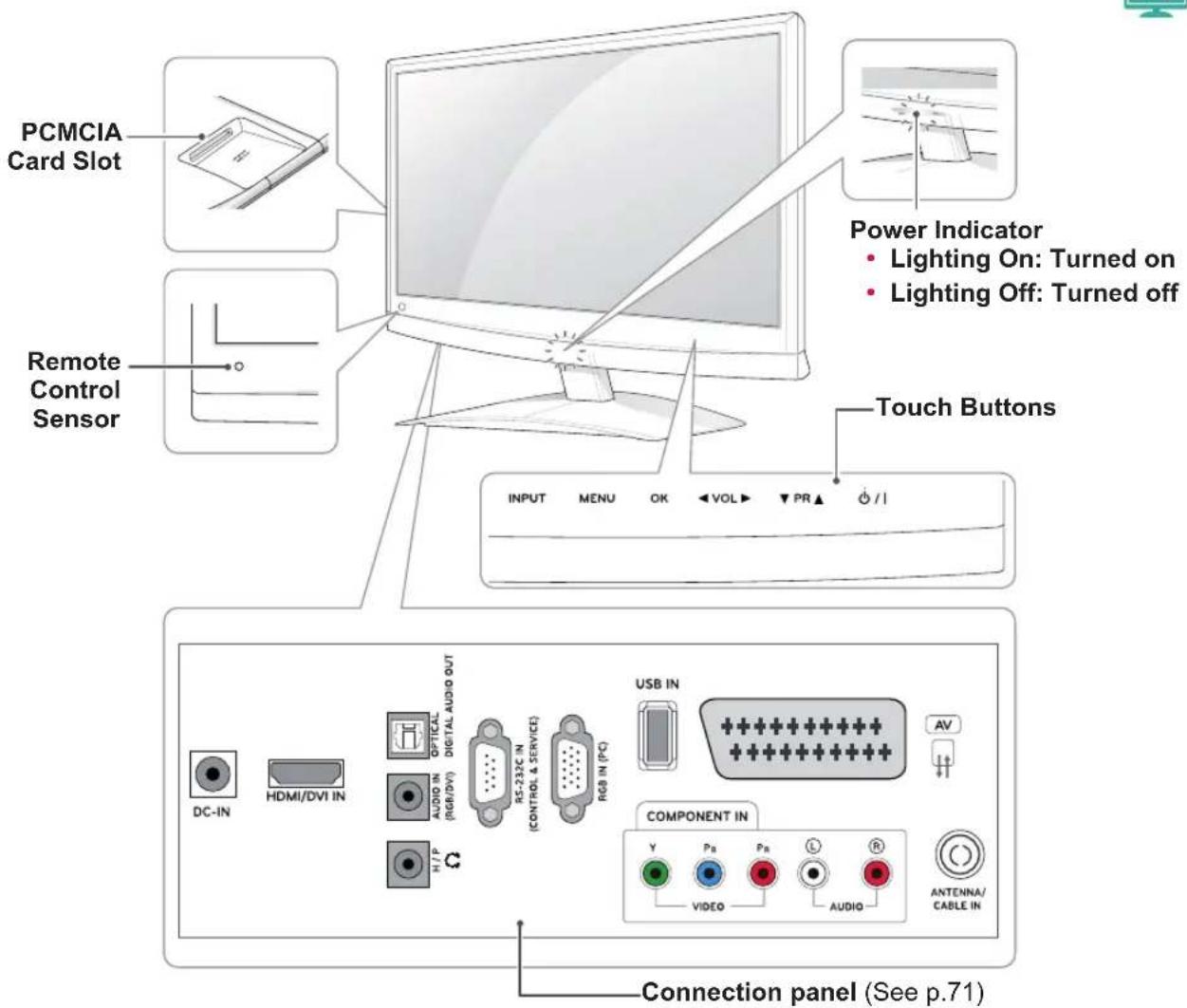

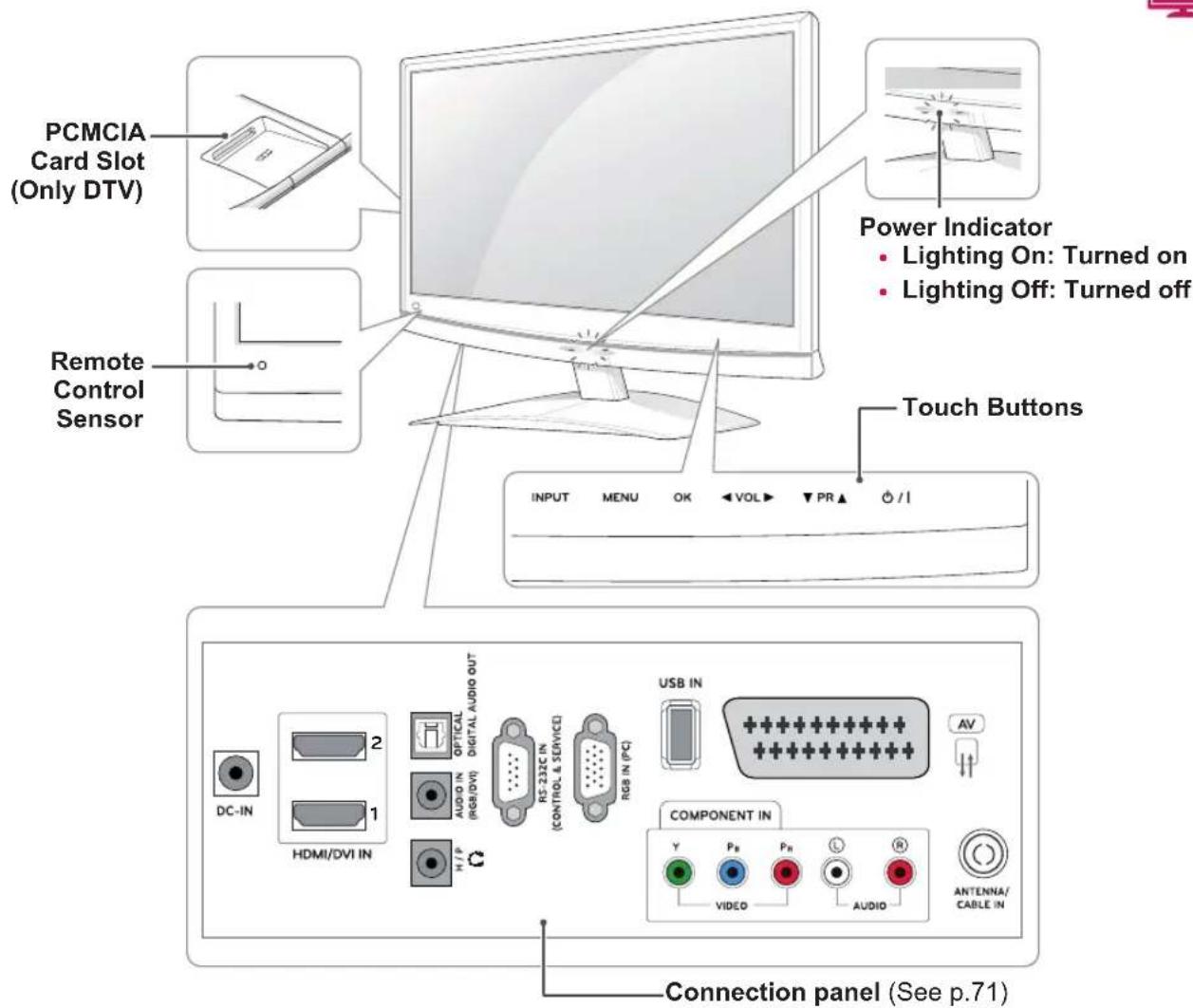

PCMCIA Card Slot Remote Control Sensor Power Indicator • Lighting On: Turned on • Lighting Off: Turned off Touch Buttons INPUT MENU OK VOL PR /I DC-IN HDMI/DVI IN OPTICAL DIGITAL AUDIO OUT AUDIO IN (RGB/Div) RS-232C IN (CONTROL & SERVICE) RGB IN (PC) USB IN COMPONENT IN Y Ps Ps L R VIDEO AUDIO ANTENNA/ CABLE IN Connection panel (See p.71)

Touch button Description
INPUT Changes the input source.
MENU Accesses the main menus, or saves your input and exits the menus.
OK Selects the highlighted menu option or confirms an input.
◀ VOL ▶ Adjusts the volume level.
▼ PR ▲ Scrolls through the saved programmes.
💡/I	Turns the power on or off.

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

- You can set the Power indicator to on or off by selecting OPTION in the main menus.

DM2350D DM2350A

PCMCIA Card Slot (Only DTV) Remote Control Sensor Power Indicator • Lighting On: Turned on • Lighting Off: Turned off Touch Buttons INPUT MENU OK VOL ▼ PR ▲ /1 DC-IN 2 HDMI/DVI IN 1 OPTICAL DIGITAL AUDIO OUT AUDIO IN (RGB/DVI) RS-232C IN (CONTROL & SERVICE) RGB IN (PC) USB IN COMPONENT IN Y PR PR S R VIDEO AUDIO ANTENNA/ CABLE IN Connection panel (See p.71)

Touch button Description
INPUT Changes the input source.
MENU Accesses the main menus, or saves your input and exits the menus.
OK Selects the highlighted menu option or confirms an input.
◀ VOL ▶ Adjusts the volume level.
▼ PR ▲ Scrolls through the saved programmes.
💡 / I	Turns the power on or off.

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

- You can set the Power indicator to on or off by selecting OPTION in the main menus.

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for save transportation regardless of its type and size.

CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen or some of the pixels used to create images.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating hand positioning and movement of a device, with X and Y marks indicating specific positions.

- When holding the TV, the screen should face away from you to prevent the screen from scratches.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side, or tilt towards the left or right.

Setting up the TV

Attaching the Stand Base

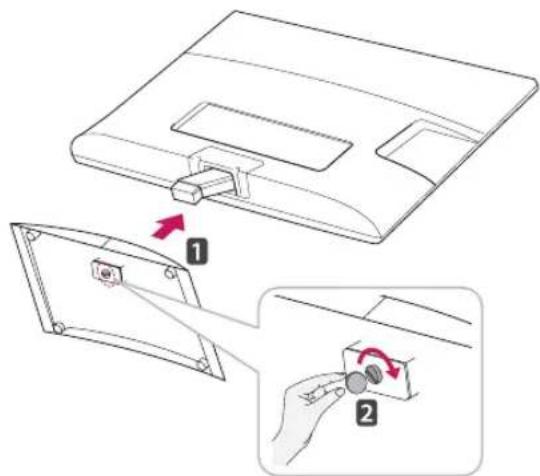

1 Place the TV with the screen side down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

2 Attach the Stand Base from the TV by turning the screw to the right with a Coin.

Diagram showing a device with two labeled parts (1 and 2) indicating adjustment or operation steps.

Detaching the Stand Base and Body

1 Place the TV with the screen side down on a flat and cushioned surface.

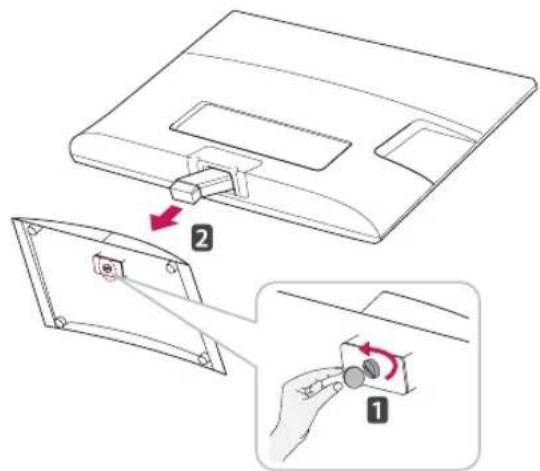

2 Turn the screw to the left, and then pull out the Stand Base from the Stand Body.

Diagram illustrating a device's internal components and adjustment, labeled with parts 1 and 2.

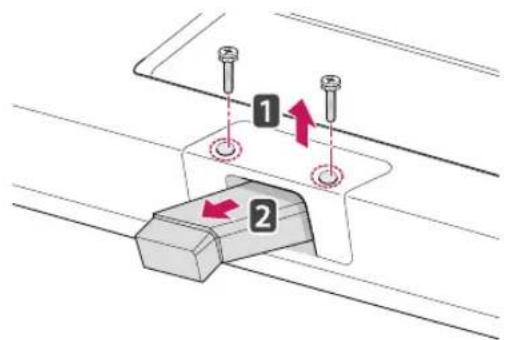

3 Remove 2 screws and pull out the Stand Body from the TV.

Technical diagram showing two mechanical components with labeled parts and directional arrows indicating movement or force.

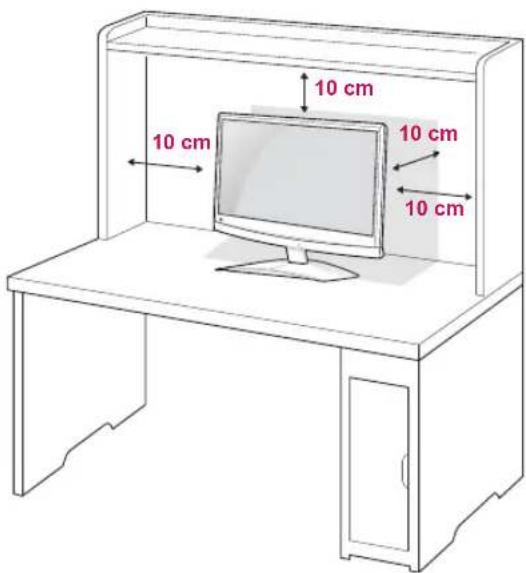

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

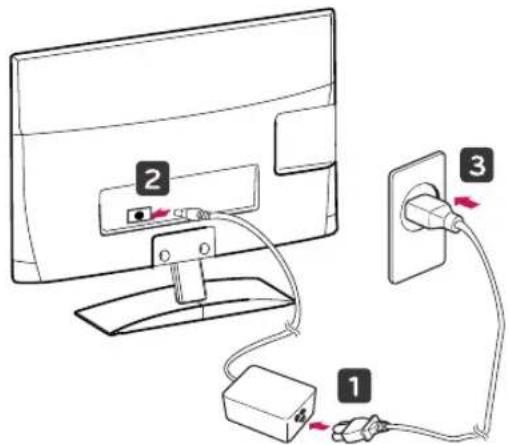

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

Diagram showing cable connection to a monitor with labeled components: power outlet, switch, and plug.

WARNING

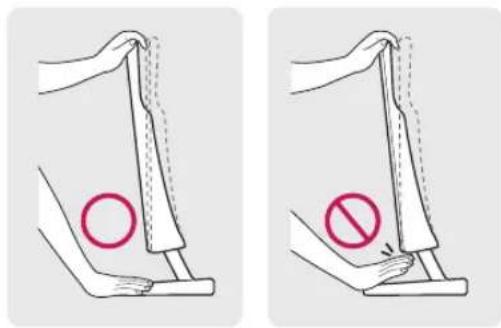

When you adjust the angle, do not hold the bottom of the TV frame as shown on the following illustration, as may injure your fingers.

Two diagrams showing hand positioning with a circular object and a prohibition symbol (no text or labels)

CAUTION

Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.

NOTE

Tilt from +10 or +18 to -5 degrees up or down to adjust the angle of the TV to suit your view.

A B Front Rear

Model		M1950DM2250DM2350DM2450DM2550D	DM2350DM2350A
Tilt Range F	Front (A) - 5°
	Rear (B) 10°	18°

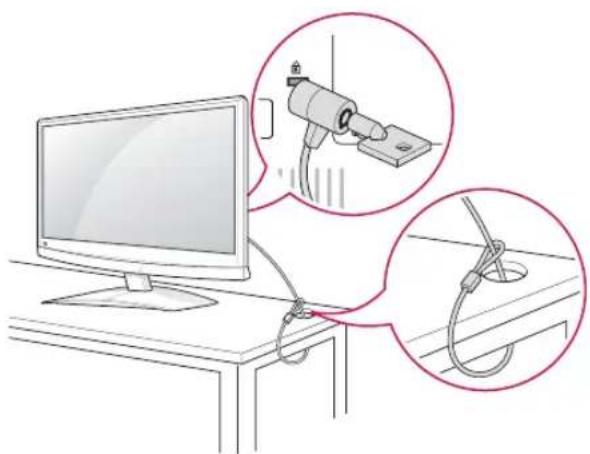

Using the Kensington security system

The Kensington security system connector is located at the back of the TV. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing cable installation details (no text or symbols present)

NOTE

The Kensington security system is optional. You can obtain additional accessories from most electronics stores.

Tidying cables

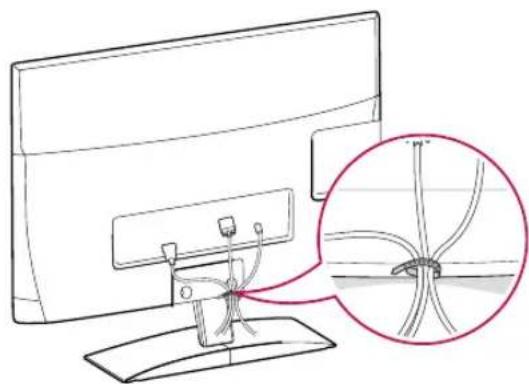

Gather and bind the cables with the supplied cable tie.

Line drawing of a monitor with a close-up inset showing cable routing (no text or symbols)

Mounting on a wall

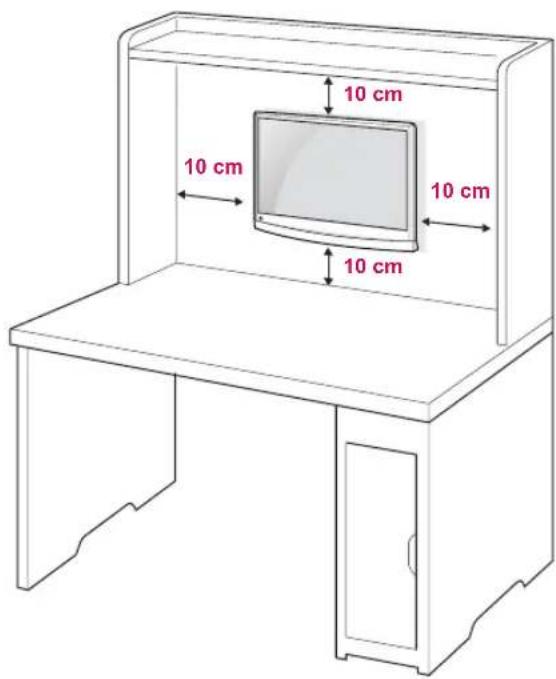

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm 10 cm 10 cm 10 cm

If you intend to mount the TV to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the TV using the wall mounting interface (optional parts), attach it carefully so it will not drop.

1 Please, Use the screw and wall mount interface in accordance with VESA Standards.
2 If you use screw longer than standard, the TV might be damaged internally.
3 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.
4 VESA compatible only with respect to screw mounting interface dimensions and mounting screw specifications.

5 Please use VESA standard as below.

• 784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

• 787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad and screws.

Model	M1950DM2250DM2350DDM2350DDM2350A	M2450DM2550D
VESA (A x B) 75 x	75 200 x 100
Standard screw M4	M4
Number of screws	4 4
Wall mount bracket (optional)	RW120 RW240

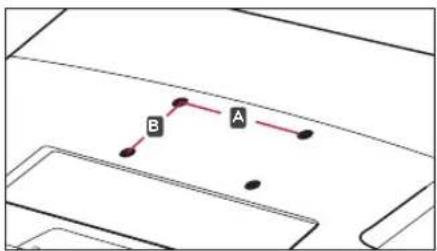

• VESA (A x B)

CAUTION

• Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.
• Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Be sure to use the proper length.
• For more information, refer to the instructions supplied with the wall mount.

REMOTE CONTROL

The descriptions in this manual are based on the buttons of the remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching

⊕ and ⊖ ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.
  • In Analogue TV and some countries, some remote control keys may not work.

Two technical line drawings of a mechanical component with labeled parts (no text or symbols present)

Front view of a classic remote control device with keypad and function buttons (no text or symbols visible)

Make sure to point the remote control to the remote control sensor on the TV.

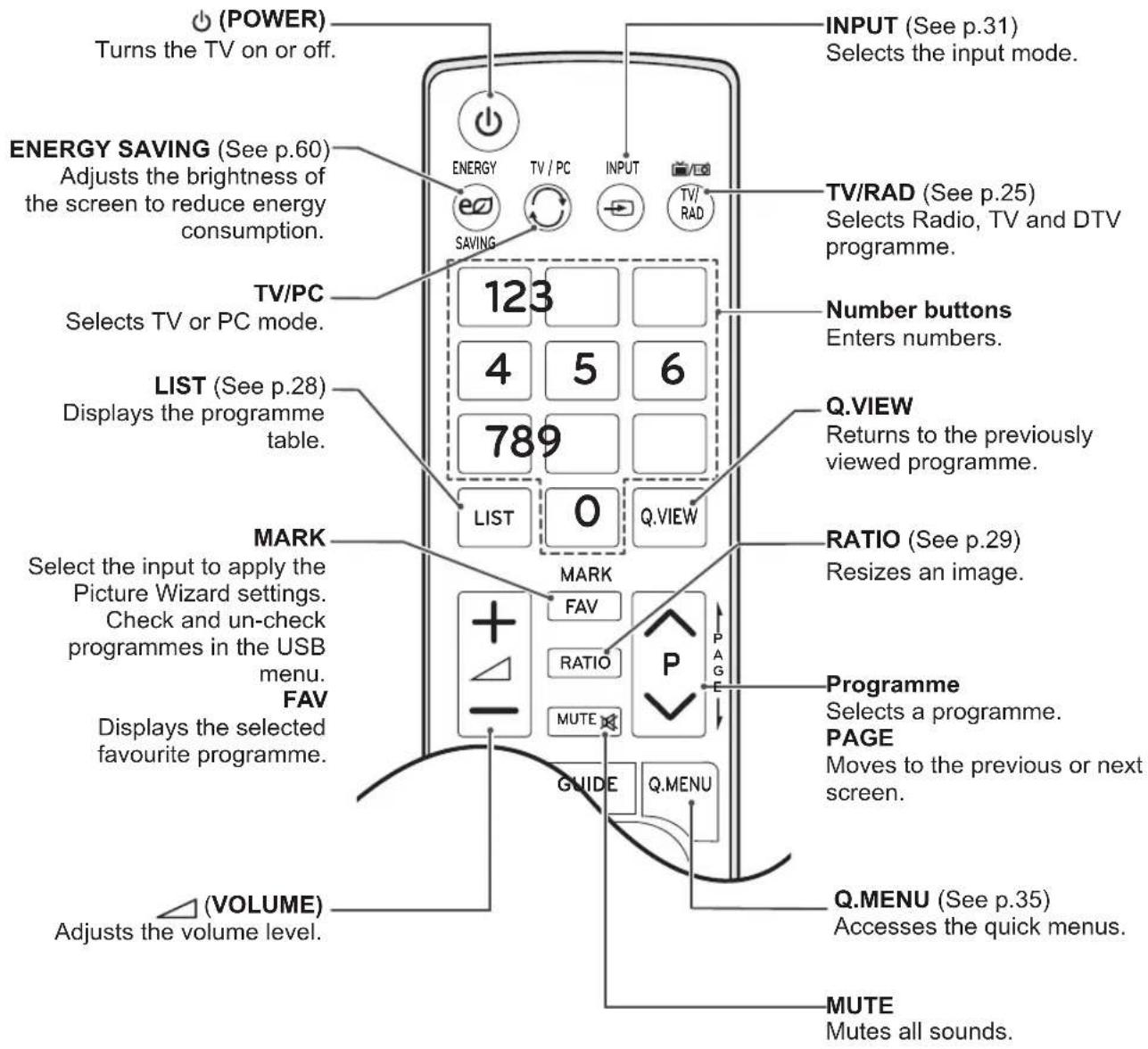

(POWER) Turns the TV on or off. ENERGY SAVING (See p.60) Adjusts the brightness of the screen to reduce energy consumption. TV/PC Selects TV or PC mode. LIST (See p.28) Displays the programme table. MARK Select the input to apply the Picture Wizard settings. Check and un-check programmes in the USB menu. FAV Displays the selected favourite programme. △(VOLUME) Adjusts the volume level. INPUT (See p.31) Selects the input mode. ENERGY TV / PC SAVING 123 4 5 6 789 LIST O Q.VIEW MARK FAV RATIO MUTE GUIDE Q.MENU Number buttons Enters numbers. Q.VIEW Returns to the previously viewed programme. RATIO (See p.29) Resizes an image. Programme Selects a programme. PAGE Moves to the previous or next screen. Q.MENU (See p.35) Accesses the quick menus. MUTE Mutes all sounds.

Image of a remote control device with numeric keypad and control buttons

(POWER) Turns the TV on or off. ENERGY SAVING (See p.60) Adjusts the brightness of the screen to reduce energy consumption. TV/PC Selects TV or PC mode. LIST (See p.28) Displays the programme table. MARK Select the input to apply the Picture Wizard settings. Check and un-check programmes in the USB menu. FAV Displays the selected favourite programme. (VOLUME) Adjusts the volume level. INPUT (See p.31) Selects the input mode. TV/RAD (See p.25) Selects Radio, TV and DTV programme. Number buttons Enters numbers. Q.VIEW Returns to the previously viewed programme. 3D (See p.54) Uses for viewing 3D video. Programme Selects a programme. PAGE Moves to the previous or next screen. Q.MENU (See p.35) Accesses the quick menus. 3D SETTING(Only 3D Mode) (See p.57) View for 3D Mode setting. MUTE Mutes all sounds.

CAUTION

• In Analogue TV and some countries, some remote control keys may not work.

爱LG

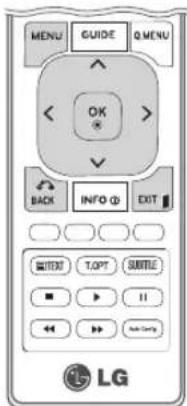

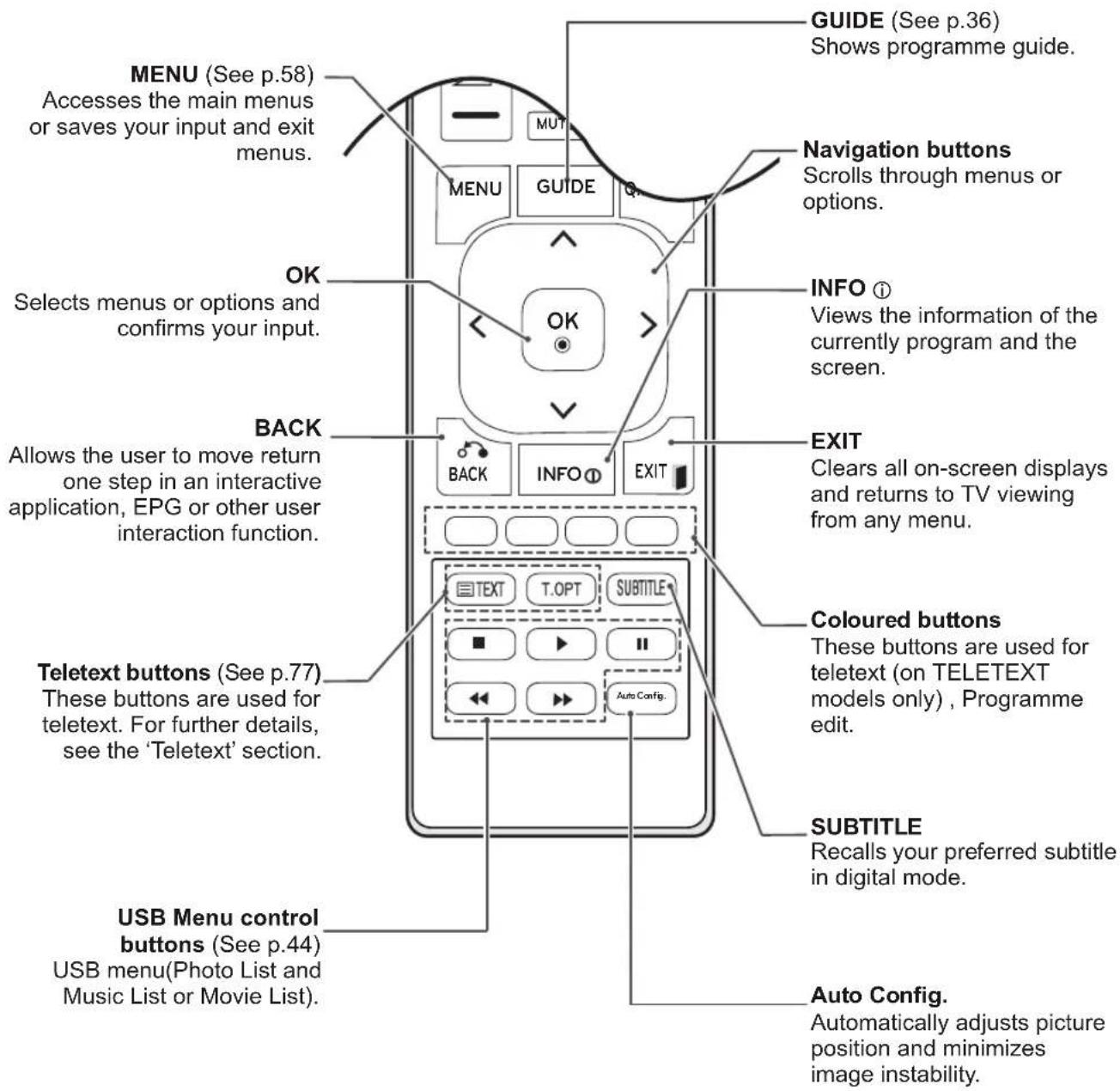

MENU (See p.58) Accesses the main menus or saves your input and exit menus. MANU GUIDE GUIDE (See p.36) Shows programme guide. Navigation buttons Scrolls through menus or options. OK Selects menus or options and confirms your input. INFO ① Views the information of the currently program and the screen. BACK Allows the user to move return one step in an interactive application, EPG or other user interaction function. EXIT Clears all on-screen displays and returns to TV viewing from any menu. Coloured buttons These buttons are used for teletext (on TELETEXT models only), Programme edit. Teletext buttons (See p.77) These buttons are used for teletext. For further details, see the 'Teletext' section. SUBTITLE Recalls your preferred subtitle in digital mode. USB Menu control buttons (See p.44) USB menu(Photo List and Music List or Movie List). Auto Config. Automatically adjusts picture position and minimizes image instability.

CAUTION

• In Analogue TV and some countries, some remote control keys may not work.

WATCHING TV

Connecting an antenna or cable

Connect an antenna, cable, or cable box to watch TV referring to the following. The illustrations may differ from the actual accessories and an RF cable is optional.

Connecting an antenna or basic cable

Connect the TV to a wall antenna socket with an RF cable (75 ohm).

ANTENNA/ CABLE IN Wall Antenna Socket Outdoor Antenna

NOTE

• Use a signal splitter to use more than 2 TVs.
- If the image quality is poor, install a signal amplifier properly to improve the image quality.
- If the image quality is poor with an antenna connected, aim the antenna to the proper direction.
- Visit http://AntennaWeb.org for more information about the antenna and cable connection.

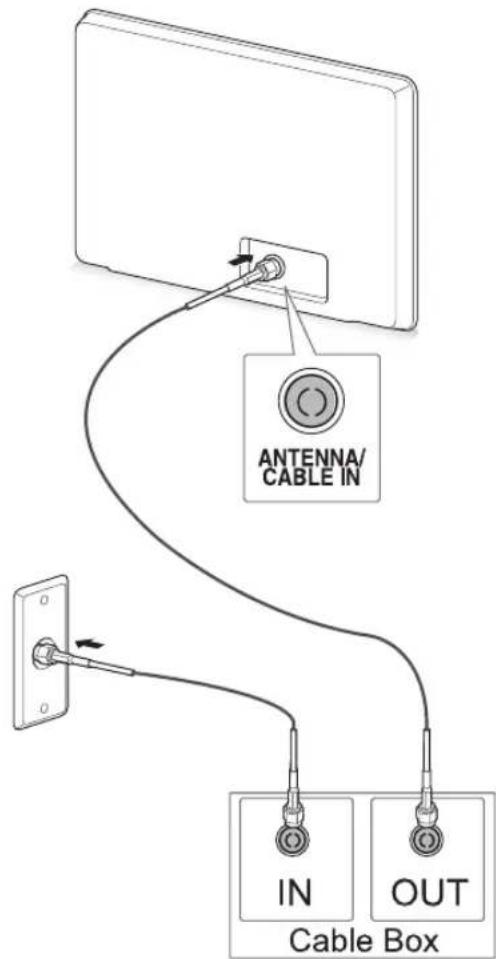

Connecting with a cable box

Connect the TV to a cable box and the cable box to a wall antenna socket with 2 RF cables (75 ohm).

ANTENNA/ CABLE IN IN OUT Cable Box

CAUTION

• Make sure not to bend the copper wire of the RF cable.

Copper wire

- Complete all connections instructions between devices, and then connect the power cord to the power outlet to prevent damages to your TV.

Accessing the TV for the first time

When you access the TV for the first time, the initial setting screen appears. Select a language and customize the basic settings.

1 Connect the power cord to a power outlet.

2 Press/1 on the TV to turn the TV on. The Power indicator lighting is turned on.

Simple line drawing of a cartoon character with a sun-like face, enclosed in a dashed circle on a textured surface (no text or symbols)

NOTE

When the TV is in Power saving mode, the Power indicator lighting blinks.

Simple line drawing of a mechanical component with no text or symbols

3 The initial setting screen appears if you access the TV for the first time.

NOTE

• You can also switch the TV from PC mode to TV mode, press TV/PC.

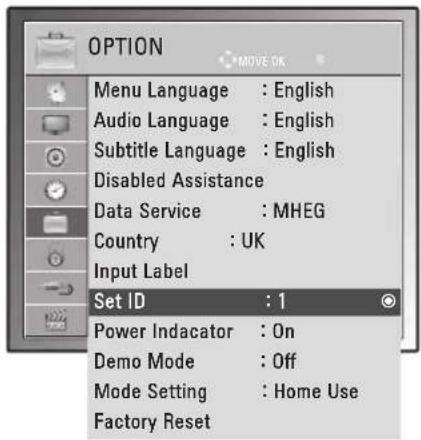

• You can also access Initial Setting by accessing OPTION in the main menus.
• If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting menus will disappear.

4 Follow the on-screen instructions to customize your TV according to your preferences.

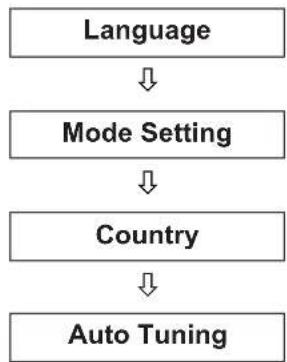


Selects a language for the display.

Selects Home Use for the home environment.

Selects a country to display. (Only DTV)

Scans and saves available programmes automatically.

NOTE

• To display images in the best quality for your home environment, select Home Use mode.
- Store Demo mode is suitable for the retail environment.
- If you select Store Demo mode, the previously customized settings will switch to the default settings of Store Demo mode in 2 minutes.

5 When the basic settings are complete, press OK.

NOTE

If you do not complete the initial setting, it will appear whenever you access the TV.

6 To turn the TV off, press/lon the TV. The Power Indicator turns off.

CAUTION

Disconnect the power cord from the power outlet when you do not use the TV for a long period of time.

Watching TV

1 Press ⏻ on the Remote control or / Ion the TV to turn the TV on.

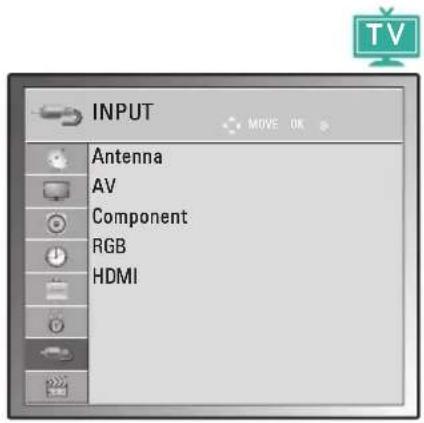

2 Press INPUT and select Antenna.
3 Control the TV using the following buttons and menus while you are watching TV.

Button / Menu Description
P(λ,or/PR (▲,▼)	Scrolls through the saved programmes
Numbers Selects	a programme by entering numbers
(+,-) or VOL (◀,▶)	Adjusts the volume level
MUTE Mutes all sounds
PICTURE Selects	one of the preset image modes (See p.60)
AUDIO Selects one	of the preset audio modes. (See p.63)
RATIO (Except 3D Model)	Resizes an image (See p.29)

4 To turn the TV off, Press on the Remote control or ☑/on the TV.

Managing programmes

Automatically setting up programmes

For countries other than Finland, Sweden, Denmark and Norway)

Use this to automatically find and store all available programmes.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Auto Tuning and press OK.
4 Select Start to start automatic tuning. The TV scans and saves available programmes automatically.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• Use Number buttons to input a 4-digit password in Lock System 'On'.
• Automatic Numbering: Decide whether to use the programme numbers as sent by broadcasting stations for tuning.
• When select Italy in the Country menu, if the pop up is displayed when the conflicted Programme after Auto Tuning, select a broadcaster for conflicting programme number to solve.
• When select UK in the Country menu, if the pop up is displayed when the conflicted Programme after Auto Tuning, select a broadcaster for conflicting programme number to solve.

Only for Finland, Sweden, Denmark and Norway

DVB-C Auto Tuning is a menu for users in countries that support DVB cable.

• If you want to select the Antenna

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Auto Tuning and press OK.
4 Press the Navigation buttons to scroll to Antenna and press OK.
5 Select Start to start automatic tuning. The TV scans and saves available programmes automatically.
6 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• Use Number buttons to input a 4-digit password in Lock System 'On'.
• Automatic Numbering: Decide whether to use the programme numbers as sent by broadcasting stations for tuning.

• If you want to select the Cable

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Auto Tuning and press OK.
4 Press the Navigation buttons to scroll to Cable and press OK.
5 Press the Navigation buttons to scroll to Comhem or Other Operators and press OK.
6 Press the Navigation buttons to scroll to Default, Full or User and press OK.
7 Press the Navigation buttons or Number buttons to scroll make appropriate adjustments (Except for Full mode) and press OK.
8 Press the Navigation buttons to scroll to Close and press OK.
9 Select Start to start automatic tuning. The TV scans and saves available programmes automatically.
10 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• Use Number buttons to input a 4-digit password in Lock System 'On'.
• Automatic Numbering: Decide whether to use the programme numbers as sent by broadcasting stations for tuning.

- When you select the Cable, the Cable

Service Operator selection screen can differ or not exist by the Cable situation of the applicable country.

The popup window to select between Service Operator is only shown initially for the 3 cases when you accessing the Initial Setting menu, when you change from Antenna to Cable or when you access the menu after changing the Country.

When you want to select between Service Operator aside from the above 3 cases, you can do so by selecting SETUP → Cable DTV Setting → Service Operator.

• Acquired certification SO: Sweden(Comhem, Canal Digital), Denmark(YouSee, Canal Digital, Stofa), Norway(Canal Digital).

If there are not any Service Operator that you want, select Other Operators.

If you select "Other Operators", or the selected country supports "Other Operators" only, it may take some time to search all the channels, or it may not search some of the channels.

If some of the channels do not appear, follow the steps below.

1. SETUP → Auto Tuning → Cable

2. Input additional values such as the frequency, symbol rate, modulation, and network ID (You can ask your cable service provider for the above information).

- The following values are needed in order to search all available programmes quickly and correctly. The commonly used values are provided as "default". However, for correct settings, please inquire of the cable service provider. When running Auto Tuning in DVB cable mode, selecting Full will search through all frequencies to find available channels. In the case when the programme is not searched by selecting the Default, perform the searching by selecting the Full. However, in the case when the programme is searched by selecting the Full, the Auto Tuning time can be taken too much.

» Frequency: Enter a user-defined frequency range.

» Symbol rate: Enter a user-defined symbol rate (Symbol rate: Speed at which a device such as modem sends symbols to a channel).

» Modulation: Enter a user-defined

modulation. (Modulation: Loading of audio or video signals onto carrier).

» Network ID: Unique identifier allocated for each user.

If you select the “- -” of Country Setting, (Except for Finland, Sweden, Denmark and Norway)

To watch DVB-C in the countries excluding Finland, Sweden, Denmark and Norway select '-' as the Country in OPTION.

You can select User mode or Full mode in Auto Tuning.

The corresponding home frequency information may need to be changed when tuning the User mode, and the corresponding information depends on the Cable Service Operator (SO) in service.

During Full mode tuning, some channel may be restricted for some Cable Service Operator (SO), and it may take a long time for tuning.

NOTE

- Your cable provider may charge for their services, or require you to agree to its items and conditions of business.

- DVB-C Cable may not operate correctly with some cable providers.

- Compatibility with DVB-C digital cable broadcasts is not guaranteed.

Manually setting up programmes (In digital mode) (Only DTV)

Manual Tuning lets you manually add a programme to your programme list.

(For countries other than Finland, Sweden, Denmark and Norway & When selecting Antenna if Finland, Sweden, Denmark, Norway or “--”country is chosen)

1 Press MENU to access the Main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to DTV.
5 Press the Navigation buttons or Number buttons to scroll Select the desired channel number, and then add programmes.
6 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

- Use Number buttons to input a 4-digit password in Lock System 'On'.

(When selecting Cable (DVB cable mode) if Finland, Sweden, Denmark, Norway or “--” country is chosen)

1 Press MENU to access the Main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to DTV.
5 Press the Navigation buttons or Number buttons to scroll Select the desired Frequency, Symbol rate and Modulation, and then add programmes.
6 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• Use Number buttons to input a 4-digit password in Lock System 'On'.
• Symbol rate: Enter a user-defined symbol rate. (symbol rate: Speed at which a device such as modem sends symbols to a channel.)
• Modulation: Enter a user-defiend modulation.(Modulation: Loading of audio or video signals onto carrier)
• Frequency, Symbol rate, and Modulation mode are needed in order to add a programme correctly in DVB cable mode. Please inquire of the cable service provider about the correct values.

Manually setting up programmes (In analogue mode)

Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to TV and press OK.(Only DTV)
5 Press the Navigation buttons to scroll to System.
6 Press the Navigation buttons to scroll to V/UHF or Cable.
7 Press the Navigation buttons or Number buttons to scroll Select the desired channel number.
8 Press the Navigation buttons to scroll to Commence searching.
9 Press the Navigation buttons to scroll to Store and press OK
10 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• Use Number buttons to input a 4-digit password in Lock System 'On'.
  • L: SECAM L/L (France)
  • BG: PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia)
  • I: PAL I/II (U.K. / Ireland / HongKong / South Africa)
• DK: PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)
  • To store another channel, repeat steps 4 to 9.

Assigning a station name

You can assign a station name with five characters to each programme number.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to TV. (Only DTV)
5 Press the Navigation buttons to scroll to Name and press OK.
6 Press the Navigation buttons to scroll to TV System.
7 Press the Navigation buttons to scroll to V/UHF or Cable.
8 Press the Navigation buttons to scroll Select the position and make your choice of the second character, and so on. You can use an the alphabet A to Z, the number 0 to 9, +/- , and blank and press OK
9 Press the Navigation buttons to scroll to Close and press OK.
10 Press the Navigation buttons to scroll to Store and press OK
11 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Cable DTV Setting (In Cable mode only) (Only DTV)

The range that a user can select from the Service Operator menu differs depending on number of Service Operator supported by each country, and if number of supported Service Operator for each country is 1, corresponding function becomes non-activation. After changing Service Operator, a warning window saying that channel map will be deleted when OK button is pressed or Close is selected, and a Auto-tuning pop-up window appears when 'YES' is selected.

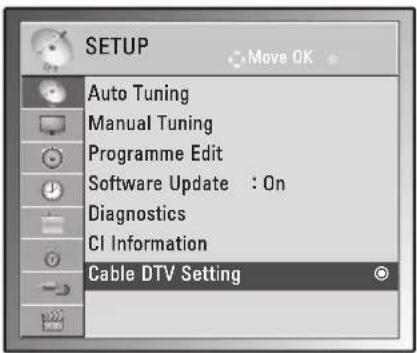

SETUP Auto Tuning Manual Tuning Programme Edit Software Update : On Diagnostics CI Information Cable DTV Setting

1 Press MENU to access the Main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Cable DTV Setting and press OK.
4 Press the Navigation buttons to scroll to Service Operator or Channel Auto update and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• If you select Cable, you can see Cable DTV Setting menu.
• When Channel Auto Update is On, the channel information will be automatically updated whenever the network information changes.
• When Channel Auto Update is Off, the channel information will not be updated.

Editing your programme list

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Programme Edit and press OK.
4 Edit programmes using the following buttons.

Button Description
^	Highlights the programme type
Navigation Scrolls through programme types or programmes
OK Selects a programme to view
P(λ, v)	Moves to the previous or next page

NOTE

- Use Number buttons to input a 4-digit password in Lock System 'On'.

In DTV/RADIO mode (Only DTV)

Skipping a programme number

1 Press the Navigation buttons, scroll to the programme number you wish to skip.
2 Press the Blue button to skip the selected programme number.
3 Press the Blue button again to release.

NOTE

• The skipped programmes are shown in blue on the programme list and these programmes will not appear on the screen when changing programmes using P(∧)v buttons during watching TV.
• If you wish to watch a skipped programme, directly enter the programme number using number buttons or release it in the Programme Edit menu or EPG.

In TV mode (Only DTV)

Deleting a programme

1 Press the Navigation buttons, scroll to the programme number you wish to delete.
2 Press the Red button to delete the selected programme number.
3 Press the Blue button to release.

NOTE

- The selected programme is deleted, all the following programmes are shifted up one.

Moving a programme

1 Press the Navigation buttons, scroll to the programme number you wish to move.
2 Press the Green button with the programme number selected, you wish to move.
3 Press the navigation buttons, move to where you wish to place the programme number, and then press the Green button again.

Auto Sort

1 Press the Yellow button to start Auto Sort.

NOTE

• After activating Auto Sort once, you can no longer edit programmes.

Skipping a programme number

1 Press the Navigation buttons, scroll to the programme number you wish to skip.
2 Press the Blue button to skip the selected programme number.
3 Press the Blue button again to release.

NOTE

• You will be unable to select a skipped programme using P (∧, ∨) buttons during watching TV.
• If you wish to watch a skipped programme, directly enter the programme number using number buttons or release it in the Programme Edit menu or EPG.

Software Update (Only DTV)

Software Update means software can be downloaded through the digital terrestrial broadcasting system.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Software Update and press OK.
4 Select On or Off.

If you select On, a user confirm message box will be displayed to notify that new software is found.

5 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

When setting "Software Update"

- Occasionally, a transmission of updated digital software information will result in the following menu on the TV screen.

Software update is available. Would you like to download now? (approximately 30 Min ~ 2 hours) Your TV software is updated when you turn off the TV using the remote control or local key. Do not unplug! Yes Close

- Simple Update: for current update stream.

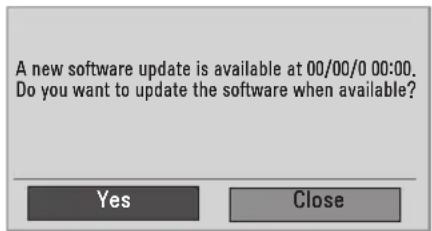

A new software update is available at 00/00/0 00:00. Do you want to update the software when available?

- Schedule Update: for scheduled update stream When the Software Update menu is "Off", the message to change it to "On" appears.

• Select the Yes using the < > button and you will see the following picture.
• When the power is turned off, downloading starts. When the power is turned on while updating, the progress status is displayed.

Software downloading progress. Ver. 03.01.00 Ver. 03.01.00 65 % Hide Stop

• After the Software Update is complete, the System restarts.

! New Software is successfully installed.

NOTE

- During Progress of a Software Update, please note the following

»The TV must not be switched off.
»The antenna must not be disconnected.
»After Software Update, you can confirm the updated software version in Diagnostics menu.
» It may take hours to download the software, so make sure that the power stays on during the download.

Diagnostics (Only DTV)

This function enables you to view information on the Manufacturer, Model/Type, Serial Number and Software Version.

• This displays the information and signal strength of the tuned *MUX.
• This displays the signal information and service name of the selected *MUX.
• *MUX: A higher directory of channels in digital broadcasting (a single MUX contains multiple channels.)

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Diagnostics and press OK.
4 Display Manufacturer, Model / Type, Serial Number and Software Version.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

CI [Common interface] Information (Only DTV)

This function enables you to watch some encrypted services (pay services). If you remove the CI Module, you cannot watch pay services.

When the module is inserted into the CI slot, you can access the module menu. To purchase a module and smart card, contact your dealer. Do not repeatedly insert or remove a CI module from the TV. This may cause a malfunction. When the TV is turned on after inserting a CI Module, you may not have any sound output.

This may be incompatible with the CI module and smart card.

CI (Common Interface) functions may not be possible depending upon the country broadcasting circumstances.

When using a CAM(Conditional Access Module), please make sure it meets fully the requirements of either DVB CI or CI plus.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to CI Information. and press OK.
4 Select the desired item: Module information, smart card information, language, or software download etc and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• This OSD is only for illustration and the menu options and screen format will vary according to the Digital pay services provider.
• It is possible for you to change CI (Common Interface) menu screen and service by consulting your dealer.

Selecting the programme list

You can check which programmes are stored in the memory by displaying the programme list.

Displaying programme LIST

1 Press LIST to access the Programme List.

2 When you are finished, press MENU or EXIT.

NOTE

• You may find some blue programmes. These have been set up to be skipped by auto programming or in the programme edit mode.
• Some programmes with the channel number shown in the programme LIST indicate there is no station name assigned.

Selecting a programme in the programme list

1 Press the Navigation buttons to programme.

2 Switch to the chosen programme number and press OK.

NOTE

- Press TV/RAD in Digital TV. (The mode will be switched between TV, DTV and Radio from the program you are currently watching.)

Paging through a programme list

1 Press the Navigation buttons to turn the pages.
2 Return to normal TV viewing and Press LIST.

Favourite programme setup

Selecting favourite programme

Favourite programme is a convenient feature that lets you quickly scan up to programmes of your choice without having to wait for the TV to scan through all the in-between programmes.

1 Select your desired programme.
2 Press Q.MENU to access the Favourite menu.
3 Press the Navigation buttonsto scroll to Favourite.
4 When you are finished, press OK or Q.MENU.

NOTE

- This will automatically include the selected programme into your favourite programme list.

Displaying the favourite programme list

1 Press FAV to access the Favourite Programme List.
2 When you are finished, press EXIT.

Using additional options

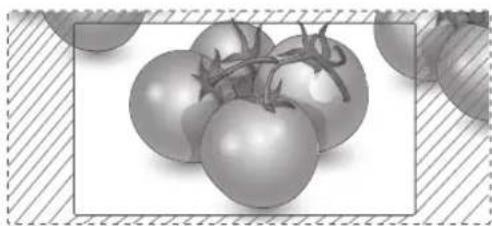

Adjusting aspect ratio

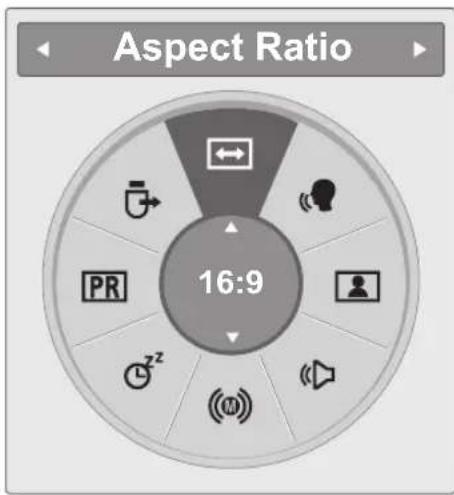

Resize the image to view the image at its optimal size by pressing RATIO(Except 3D Model) or Q.MENU while you are watching TV.

CAUTION

• If a fixed image displays on the screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the warranty.
• If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.

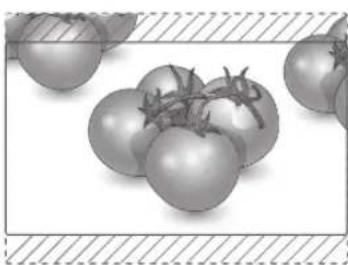

- Just Scan: Following Selection will lead to you view the picture of best quality without loss of original picture in high resolution image. Note: If there is noise in original Picture, You can see the noise at the edge.

Just Scan

- Original: When your TV receives a wide screen signal it will automatically change to the picture format broadcast.

NOTE

You can also change the image size by accessing the quick menus or the main menus.

Original

- 16:9: The following selection will allow you to adjust the picture horizontally, in linear proportion, to fill the entire screen(useful for viewing 4:3 formatted DVDs).

- Full Wide: When TV receives the wide screen signal, it will lead you to adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully.

Black and white illustration of a cluster of tomatoes (no text or symbols)

Full Wide

- 4:3: The following selection will allow you to view a picture with an original 4:3 aspect ratio, gray bars will appear on both the left and right of the screen.

- Cinema Zoom: Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or reducing the picture, the image may become distorted.

Close-up of several tomatoes on a white background (no text or symbols visible)

- 14:9: You can view a picture format of 14:9 or a general TV programme in the 14:9 mode. The 14:9 screen is viewed in the same way as in 4:3, but is magnified to the left and right.

Black-and-white illustration of fresh tomatoes with stems and leaves, set against a striped background (no text or symbols)

• < or > button: Adjust enlarge proportion of Cinema Zoom. The adjustment range is 1 to 16.
• ∧ or ∨ button: Move the screen.

Black and white photo of several tomatoes (no text or symbols visible)

- Zoom: The following selection will allow you to view the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.

NOTE

• You can only select 4:3, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in Component mode.
• You can only select 4:3, Original, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in HDMI mode.
• You can only select 4:3, 16:9 (Wide) in RGB-PC, HDMI-PC mode only.
• In DTV/HDMI/Component (over 720p) mode, Just Scan is available.
  • In Analogue/AV mode, Full Wide is available.

Illustration of several tomatoes with stems and leaves, no text or symbols present

Using the input list

Selecting an input source

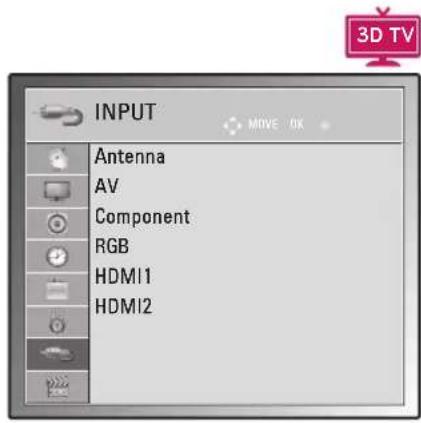

1 Press INPUT to access the input source list.

- The connected device displays on each input source.

2 Press the Navigation buttons to scroll to one of the input sources and press OK.

Input source	Description
Antenna or Cable	Watch TV over the air, cable, and digital cable broadcast
RGB View a PC	C display on the screen
AV Watch the contents in a VCR or other external devices
Component Watch the contents in a DVD or other external devices, or through a digital set-top box
HDMI Watch contents in a PC, DVD or Digital setup box other high definition devices

The connected input sources display in black and the disconnected input sources in grey.

- If you add an input label to each input sources, you can easily identify a device connected to each input source.

Adding an Input label

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press OK.
3 Press the Navigation buttons to scroll to Input Label and press OK.
4 Press the Navigation buttons to scroll to one of the input sources.
5 Press the Navigation buttons to scroll to one of the input label and press OK.
6 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

- If you want to use HDMI-PC mode, you must set the input label to PC mode.

NOTE

- The OSD (On Screen Display) is displayed on the screen as shown below.

» When turning the product on in HDMI input.
» When switching to HDMI input.
» When connecting an HDMI cable with no signal.

Is the input connected to your PC? Yes No Do not show message again.

• If you select "Yes" the size and image quality are optimised for your PC.
• If you select "No" the size and image quality are optimised for the AV device (DVD player, set-top box, gaming device).
• If you select "Do not show message again" this message does not appear until the TV is reset. You can change the set value in Menu ▶ OPTION ▶ Input Label.
• The values set for HDMI1/HDMI2 are saved independently.(Only DM2350D / DM2350A Model)

On-screen menu language / Country selection

The installation guide menu appears on the TV screen when it is switched on for the first time.

1 Press the Navigation buttons to scroll to Desired Language and press OK.
2 Press the Navigation buttons to scroll to Country and press OK.

If you want to change Language / Country selection

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press OK.
3 Press the Navigation buttons to scroll to Menu Language or Country and press OK.
4 Press the Navigation buttons to scroll to Desired Language or Country option you want and press OK.

5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• Country selection : Only DTV Mode
- When France is selected for Country, password is not '0', '0', '0', '0' but '1', '2', '3', '4'.
- If you do not finish the set-up Installation Guide by pressing BACK or if you time out on the OSD (On Screen Display) the installation menu will continuously appear until the set up is completed whenever the TV is switched on.
- If you select the wrong local country, teletext may not appear correctly on the screen and some problems may occur during teletext operation.
- The CI (Common Interface) function may not be applied based on country broadcasting circumstances.
- DTV mode control buttons may not function based on country broadcasting circumstances.
- In country that Digital broadcasting regulation isn't fixed, some DTV function may not work depending on digital broadcasting circumstances.
- The Country Setting "UK" should only be activated in UK.
- If the country setting is set to "--", European terrestrial/cable digital standard broadcasting programmes are available, but some DTV functions may not work properly.

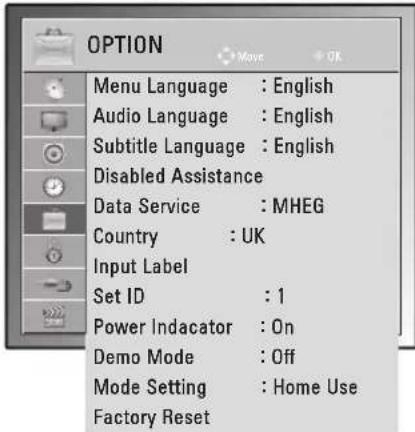

Language selection (In digital mode only) (Only DTV)

The Audio function allows selection of a preferred language.

If audio data in a selected language is not broadcast, the default language audio will be played.

Use the Subtitle function when two or more subtitle languages are broadcast. If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.

When the languages you selected as the primary for Audio Language and Subtitle Language are not supported, you can select language in secondary category.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press OK.
3 Press the Navigation buttons to scroll to Audio Language or Subtitle Language and press OK.
4 Press the Navigation buttons to scroll to Desired Language option you want and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Audio Language Selection

When two or more audio languages are broadcast, you can select the audio language.

1 Press Q.MENU to access the quick menu.
2 Press the Navigation buttons to scroll to Audio.
3 Press the Navigation buttons to scroll to Audio Language option you want and press OK.
4 When you are finished, press Q.MENU or EXIT.

Audio Language OSD Information

Display Status
N.A	Not Available
MHEG	MPEG Audio
DQD	Dolby Digital Audio
→	Audio for “Visual Impaired”
ABC	Audio for “Hearing Impaired”
DQD+	Dolby Digital Plus Audio
AAC	AAC Audio

Subtitle Language Selection

When two or more subtitle languages are broadcast, you can select the subtitle language with the SUBTITLE button on the remote control. Press the Navigation buttons to select a subtitle language.

Subtitle Language OSD Information

Display Status
N.A	Not Available
	Teletext Subtitle
ABC	Subtitle for “Hard of Hearing”

• The audio/subtitles can be displayed in a simpler form with 1 to 3 characters broadcast by the service provider.
• When you select supplementary Audio (Audio for "Visual/Hearing Impaired") the TV may output a part of the Main audio.

Using the Lock options

Locking the buttons on the TV.

Enter the password, press '0', '0', '0', '0' on the remote control handset.

When France is selected for Country, password is not '0', '0', '0', '0' but '1', '2', '3', '4'.

Lock the buttons on the TV to prevent any unwanted operations or accidents by children.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to LOCK and press OK.
3 Press the Navigation buttons to scroll to Key Lock and press OK.
4 Press the Navigation buttons to scroll to On and press OK to activate the Key lock feature. - To deactivate the Key lock feature, select Off.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• The TV is programmed to remember the last setting after you turn the TV off.
• If you turn the TV off while the key lock feature is activated and wish to turn it back on, press the ⏻/φn the TV. You can also switch the device on using the remote control by pressing the ⏻, INPUT ,P ∧,or Number buttons.
• If you press any button on the TV with the Key lock feature activated, ▲Key Lock On appears on the screen.

Parental control (In digital mode only) (Only DTV)

This function operates according to information from the broadcasting station. Therefore if the signal has incorrect information, this function does not operate.

A password is required to gain access to this menu.

This set is programmed to remember which option it was last set to even if you switch the set off.

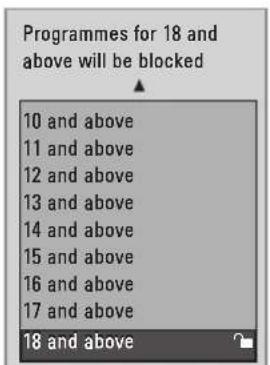

Prevents children from watching certain adult's TV programmes, according to the ratings limit set.

Enter a password to watch a blocked programme.

Blocking Off : Permits all programmes 10 and above 11 and above 12 and above 13 and above 14 and above 15 and above 16 and above 17 and above 18 and above Blocking Off

(Except for France)

Programmes for 18 and above will be blocked 10 and above 11 and above 12 and above 13 and above 14 and above 15 and above 16 and above 17 and above 18 and above

(Only France)

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to LOCK and press OK.
3 Press the Navigation buttons to scroll to Parental Guidance and press OK.
4 Press the Navigation buttons to scroll to Make appropriate adjustments and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Using the Quick menu

Customize the frequently using menus.

1 Press Q.MENU to access the quick menu.
2 Press the Navigation buttons to scroll through the following menus.

Menu Description
	Aspect Ratio	Resizes an image. (16:9, Just Scan, Original, Full Wide, 4:3, 14:9, Zoom, Cinema Zoom1)
	Clear Voice II	By differentiating the human sound range from others, it helps users listen to human voices better.
	Picture Mode	Selects one of the preset image modes (Vivid, Standard, Cinema, Sport, Game)
	Sound Mode	Selects one of the sound modes (Standard, Music, Cinema, Sport, Game)
	Audio	Selects the sound output.
	Sleep Timer	Sets the length of time until the TV to turns off
	Favourite	Selects the favourite programme.
	USB Device	Selects “Eject” in order to eject USB device.

NOTE

The available menus and options may differ from the input source that you are using.

3 Press the Navigation buttons to scroll to an option you want and press OK.

EPG (ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE) (ONLY DTV)

• This feature is not available for all model.

Using Electronic Programme Guide

This system has an Electronic Programme Guide (EPG) to help your navigation through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of these programme details will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for next 8 days.

1 Press INFO ^① to shows the present screen information.

Icon Description
	Displayed with a DTV Programme.
	Displayed with a Radio Programme.
MHEG	Displayed with a MHEG Programme.
AAC	Displayed with a AAC Programme.
4:3	Aspect ratio of broadcasting programme.
16:9
	Displayed with a Teletext Programme.
	Displayed with a Subtitle Programme.
	Displayed with a Scramble Programme.
DD	Displayed with a Dolby Programme.
DD+	Displayed with a Dolby Digital PLUS Programme.

NOTE

Broadcasted programme with the icon may not be displayed in TV Out depending on the information of the programme.

- 576i/p, 720p, 1080i/p: Resolution of broadcasting programme

Switch on/off EPG

1 Press GUIDE to switch on or off EPG.

Select a programme

1 Press the Navigation buttons or PAGE buttons to select desired programme.
2 The EPG will disappear after moving to a selected program, press OK.

Button Function in NOW/NEXT Guide Mode

You can view a program being broadcasted and one scheduled to follow.

Programme Guide 1 YLE TV1 6 Apr. 2007 15:09 ALL NOW NEXT 1 YLE TV1 That '70s show Keno 2 YLE TV2 Your World Today World Business 4 TV.. Legenen om Den.... Fantomen 5 YLE FST Naturtimmen Kritiskt 6 CNN Lyssna ABC 8 YLE24 Glamour Tänään otsikoissa FAV Favourite INFO Information TV/RAD RADIOPr. C Mode Schedule Schedule List

Button Description
Red Button Change EPG mode.
Yellow Button Enter Timer Record/Remind setting mode.
Blue Button Enter Timer Record/Remind list mode.
OK The EPG will disappear after moving to a selected program.
	Select NOW or NEXT Programme.
^ or ∨	Select the Broadcast Programme.
PAGE ∧, ↓	Page Up/Down.
GUIDE Switch off EPG.
BACK
EXIT
TV/RAD Select TV or RADIO Programme.
INFO Detail information on or off
FAV This displays the now/next mode for the programme in the Favourite List.

Button Function in 8 Day Guide Mode

Button Description
Red Button Change EPG mode.
Green Button	Enter Date setting mode.
Yellow Button	Enter Timer Record/Remind setting mode.
Blue Button Enter Timer Record/Remind list mode.
OK The EPG will disappear after moving to a selected program.
	Select NOW or NEXT Programme.
or	Select the Broadcast Programme.
PAGE (, )	Page Up/Down.
GUIDE Switch off EPG.
BACK
EXIT
TV/RAD Select TV or RADIO Programme.
INFO Detail information on or off
FAV This dispays the 8 Day Guide mode for the programme in the Favourite List.

Button Function in Date Change Mode

Button Description
Green Button	Switch off Date setting mode.
OK Change to	the selected date.
	Select a date.
V	Switch off Date setting mode.
GUIDE Switch	off EPG.
BACK
EXIT

Button Function in Extended Description Box

Button Description
^ or ∨	Text Up/Down.
Yellow Button	Enter Timer Record/Remind setting mode.
INFO ☑ The detail information on or off.
BACK
GUIDE Switch	off EPG.

Button Function in Record/Remind Setting Mode

Sets a start or end time for recording, and sets only a start time for the reminder.

This function is available only when recording equipment that use pin8 recording signaling has been connected to the AV terminal, using a SCART cable.

Button Description
BACK Change to Guide or Schedule mode.
	Select Record or Remind.Function setting.
or	Select Date, Start/End time or Programme.
OK Save Timer Record/Remind.

Button Function in Schedule List Mode

If you've created a schedule list, a scheduled program is displayed at the scheduled time even when you are watching a different program at the time.

Only the Up/Down/OK/BACK keys will work when a popup window is open.

Button Description
Red Button Add new Manual Recording setting mode.
Green Button	Add new Timer Watching setting mode.
Blue Button Change to Guide mode.
GUIDE
BACK Switch off EPG.
EXIT
OK Select your desired Option(Modify/Delete/Delete All).
^ or ∨	Select Schedule List.
PAGE ∧, ↓	Page Up/Down.

CONNECTING TO A PC

Your TV supports the Plug & Play* feature and has the built-in speakers with Surround X that reproduces sound clearly with a rich bass.

* Plug & Play: The function when a PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

NOTE

• It is recommended to use the TV with the HDMI connection for the best image quality.
• If you want to use an optional external speaker instead of the built-in speaker, set the TV speaker feature to off (See p.63).

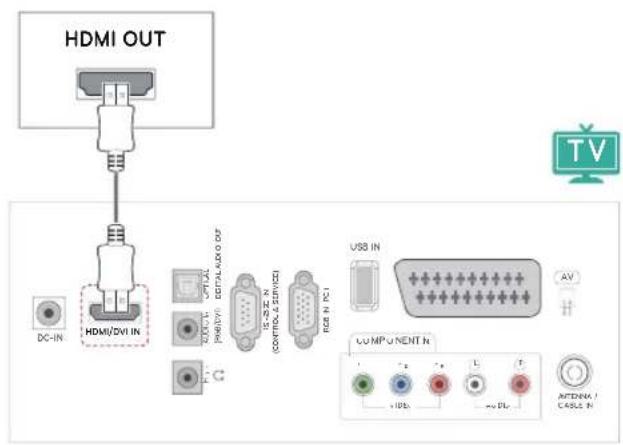

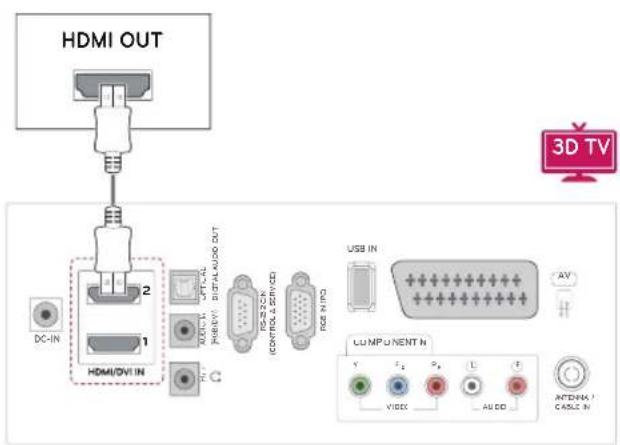

HDMI connection

Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with the HDMI cable as shown in the following illustrations. You should set PC as an input label to connect the PC to the TV with an HDMI connection. To add an input label, see Adding an Input label on See p.31.

PC HDMI OUT B -IN HDMI/DVI IN USB IN COMPONENT IN VIDEO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI AUDI

NOTE

• Use a High Speed HDMI™ Cable.
- Please check the PC environment if you cannot hear the sound in HDMI mode.
- If you want to use HDMI-PC mode, you must set the input label to PC mode.

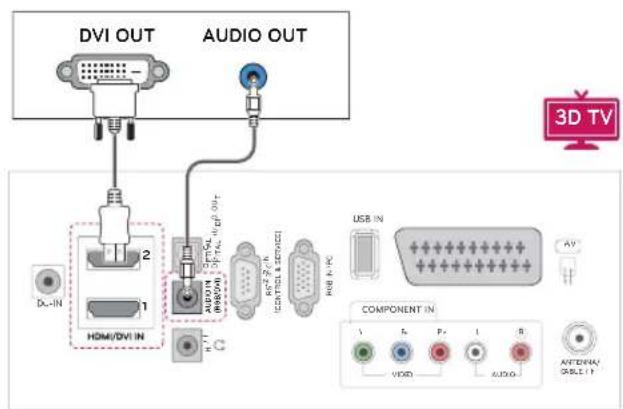

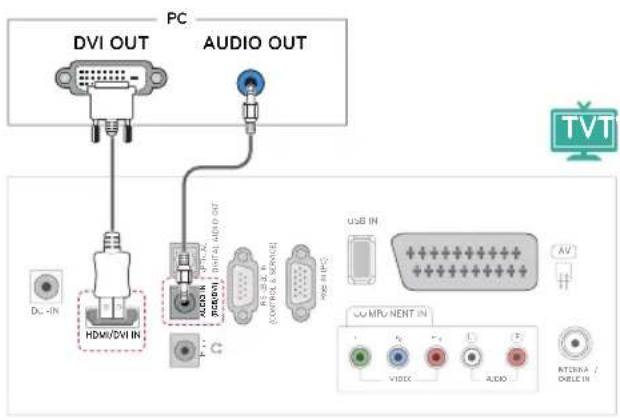

DVI to HDMI connection

Transmits the digital video signal from your PC to the TV. Connect the PC and the TV with the DVI to HDMI cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.

PC DVI OUT AUDIO OUT DTV Dw-In HDMI/DVI IN ACOS C USB IN AV VDDI AUDIO RTG/RA / OBLIN

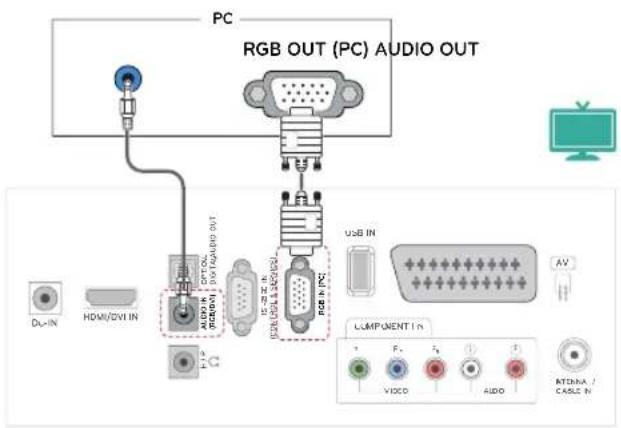

RGB connection

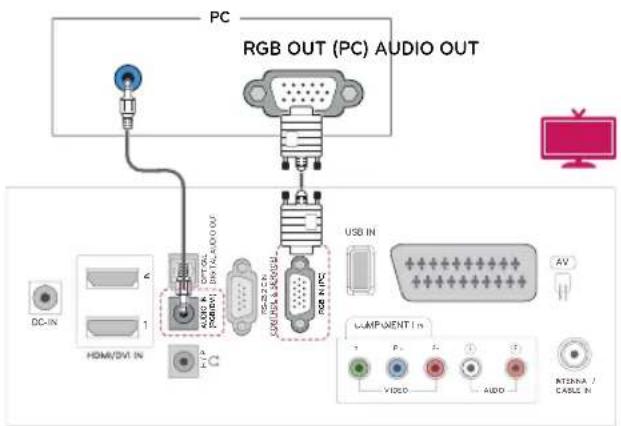

Transmits the analog video signal from your PC to the TV. Connect the PC and the TV with the D-sub 15 pin cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.

PC RGB OUT (PC) AUDIO OUT DLIN HDMI/DVI IN AUDIO IN AUDIO OUT USB IN COMPONENT IN VIDEO AUDIO ATENA / CABLE IN

PC DVI OUT AUDIO OUT 3D TV 2 1 HDMI/DVI IN DV-IN AUDIO (PROVIN) USB IN AV CPU MPU-RENT IN Y L F- E P VIDEO AUDIO ATTARA / ONLEIN

PC RGB OUT (PC) AUDIO OUT DC-IN HDMI/DVI IN USB IN COMPONENT IN 1 P 2 3 4 5 6 7 8 9 VIDEO AUDIO ATENA / CABLE IN

NOTE

- If you want to use HDMI-PC mode, you must set the input label to PC mode.

CAUTION

- Connect the signal input cable and tighten it by turning the screws clockwise.

NOTE

• If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
• If you turn the TV on when the set becomes cold, the screen may flicker. This is normal.
• Use a shielded signal interface cable, such as D-sub 15 pin signal cable and DVI to HDMI cable, with a ferrite core to maintain standard compliance for the product.
• Some red, green, or blue spots may appear on the screen. This is normal.

CAUTION

• Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen.
• Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.

Adjusting the screen

Selecting an image mode

Display images in its optimized settings by selecting one of the preset image modes.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to PICTURE and press OK.
3 Press the Navigation buttons to scroll to Picture Mode and press OK.

4 Press the Navigation buttons to scroll to an image mode you want and press OK.

Mode Description
Vivid Adjusts	the video image for the retail environment by enhancing the Contrast, Brightness, Colour, and Sharpness.
Standard Adjusts	the image for the normal environment.
Cinema Optimizes the video image for the cinematic look and enjoy movies as if you are in a movie theater.
Sport Optimizes the video image for high and dynamic actions by emphasizing primary Colours such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
Expert1/2 Adjusts the detailed video image settings for video experts as well as general viewers.

5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Customizing image options

Customize basic and advanced options of each image mode for the best screen performance.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to PICTURE and press OK.
3 Press the Navigation buttons to scroll to Picture Mode and press OK.
4 Press the Navigation buttons to scroll to an image mode you want and press OK.
5 Select and adjust following options, and then press OK.

Option Description
Backlight Adjusts	the brightness of the screen by controlling the LCD backlight. If you decrease the brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.
Contrast Increases	or decreases the gradient of the video signal. You may use Contrast when the bright part of the image is saturated.
Brightness Adjusts	the base level of the signal in the image. You may use Brightness when the dark part of the image is saturated.
Sharpness Adjusts	the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.
Colour Adjusts	intensity of all Colours.
Tint Adjusts the	balance between Red and Green levels.
Color Temperature	Set to warm to enhance hotter colours such as red, or set to cool to make picture bluish.
Advanced Control	Customizes the advanced options. See more information about advanced options See p.62.
Picture Reset	Restores the options to the default setting.

6 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Customizing PC display options

Customize options of each image mode for the best image quality.

- This function works in the following mode: RGB[PC] mode.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to PICTURE and press OK.
3 Press the Navigation buttons to scroll to Screen and press OK.
4 Select and adjust following options, and then press OK.

Option Description
Resolution Match the resolution of RGB mode.(Resolution menu is Enabled only for the following resolution with 60Hz.)
Vertical resolution : 768
M1950D	1024 x 7681280 x 7681360 x 768(Default)
M2250DM2350DM2450DM2550DDM2350DDM2350A	1024 x 768(Default)1280 x 7681360 x 768
Vertical resolution : 1050
M2250DM2350DM2450DM2550DDM2350DDM2350A	1400 x 10501680 x 1050(Default)
Vertical resolution : 900
M2250DM2350DM2450DM2550DDM2350DDM2350A	1280 x 9601440 x 9001600 x 900(Default)
Auto Configure Sets to adjust the screen Position, Size and Phase automatically. The displayed image may be unstable for a few seconds while the configuration is in progress.
Position/Size/Phase Adjusts the options when the image is not clear, especially when characters are shaky, after the auto configuration.
Reset Restores the options to the default setting.

5 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Adjusting the sound

Selecting an sound mode

Play the sound in its optimized settings by selecting one of the preset sound modes.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to AUDIO and press OK.
3 Press the Navigation buttons to scroll to Sound Mode and press OK.
4 Press the Navigation buttons to scroll to a sound mode you want and press OK.

Mode Description

Standard Selects when you want standard-quality sound.

Music Selects when you listen to music.

Cinema Selects when you watch movies.

Sport Selects when you watch sports events.

Game Selects when you play games.

5 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

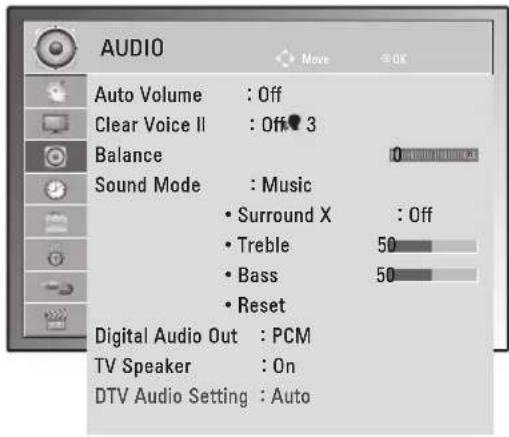

Customizing sound options

Customize options of each sound mode for the best sound quality.

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to AUDIO and press OK.
3 Press the Navigation buttons to scroll to Sound Mode and press OK.
4 Press the Navigation buttons to scroll to a sound mode you want and press OK.
5 Select and adjust following options, and then press OK.

Option Description
Surround X	This option enhances sound depth and clarity by maximizing the Surround effect.
Treble Controls	the dominant sounds in the output. When you turn up the treble, it will increase the output to the higher frequency range.
Bass Controls	the softer sounds in the output. When you turn up the bass, it will increase the output to the lower frequency range.
Reset Resets	the sound mode to the default setting.

6 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

NOTE

- You cannot adjust Treble and Bass in the RGB-PC / HDMI-PC mode. (Except DM2350D / DM2350A Model)

ENTERTAINMENT

Using integrated media features

Connecting USB storage devices

Connect USB storage devices such as a USB flash memory, external hard drive, or MP3 player to the TV and use multimedia features ("Browsing files" See p.46).

Connect a USB flash memory or USB memory card reader to the TV as shown on the following illustration. The USB screen appears.

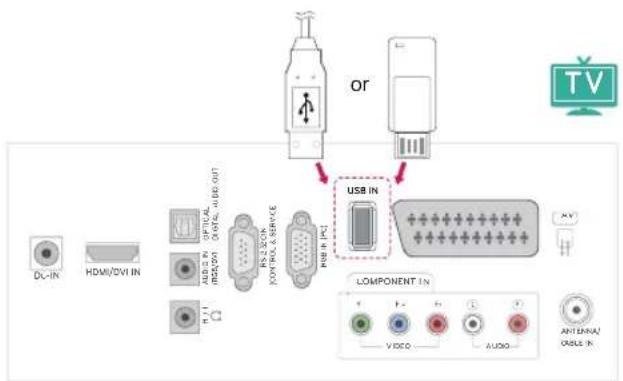

Or USB IN COMPONENT IN VIDEO AUDIO DV-IN HDMI/DVI IN ABS 2.0V OFFICIAL ON OFFIC, 0.00/0.01 RIS 2.0V CONTROL & SERVICE USB IN PCI TV

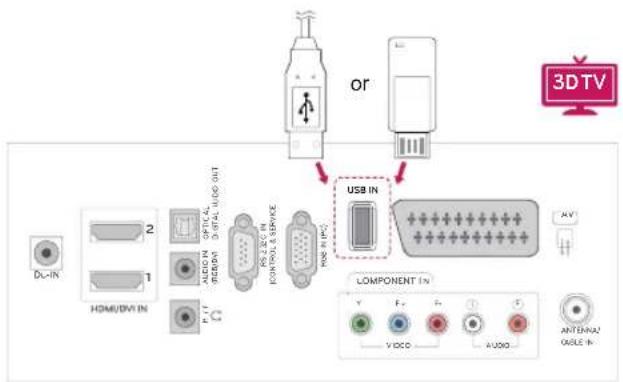

3D TV OR USB IN COMPONENT IN VOCO HUBG ANTONIA/OGLE IN DL-IN HOME/BVI IN 2 1 ALEDEN OPTICAL DRAGON RIS-2.2C IN CONTROL & SERVICE POS IN (PC) AV

To disconnect a USB storage device, make sure to end the connection properly to prevent damages to the TV or files.

1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to USB Device and press OK.
3 Disconnect the USB storage device only when the message says that it is safe to remove.

CAUTION

• Do not turn the TV off or remove a USB storage device while the USB storage device is connected to the TV, as this could result in loss of files or damage to the USB storage device.
• Back up your files saved on a USB storage device frequently, as you may lose or damage the files and this may be not covered by the warranty.

Tips for using USB storage devices

- Only a USB storage device is recognizable.

- If the USB storage device is connected through a USB hub, the device is not recognizable.

- A USB storage device using an automatic recognition programme may not be recognized.

- A USB storage device which uses its own driver may not be recognized.

- The recognition speed of a USB storage device may depend on each device.

- Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.

- Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files, image files or movie files.

- Please use only a USB storage device which was formatted as a FAT, FAT16, FAT32, NTFS file system provided with the windows operating system. In case of a storage device formatted as a different utility programme which is not supported by Windows, it may not be recognized.

- Please connect power to a USB storage device(over 0.5 A) which requires an external power supply. If not, the device may not be recognized.

- Please connect a USB storage device with the cable offered by the device maker.

- Some USB storage devices may not be supported or operated smoothly.

- File alignment method of USB storage device is similar to Window XP and filename can recognize up to 100 English characters.

- Be sure to back up important files since data stored in a USB memory device may be damaged. We will not be responsible for any data loss.

- If the USB HDD does not have an external power source, the USB device may not be detected. So be sure to connect the external power source.

- Please use a power adaptor for an external

power source. We do not guarantee an USB cable for an external power source.

- Data in a USB storage device cannot be deleted in the NTFS file system.

- If your USB memory device has multiple partitions or if you use a USB multi-card reader, you can use up to 4 partitions or USB memory devices.

- Only the FAT, FAT16, FAT32 file system supports the delete function.

- If a USB memory device is connected to a USB multi-card reader, its volume data may not be detected.

- If the USB memory device does not work properly, disconnect and reconnect it.

- How fast a USB memory device is detected differs from device to device.

- If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the TV is turned on.

- The recommended capacity is 1 TB or less for a USB external hard disk and 32 GB or less for USB memory.

- Any device with more than the recommended capacity may not work properly.

- If a USB external hard disk with a “Energy Saving” function does not work, turn the hard disk off and on again to make it work properly.

- USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.

- When a broken file is played in the USB storage, the TV may turn off or work abnormally.

Browsing files

Access the Photo, Music or Movie lists and browse files.

1 Connect a USB storage device.
2 Press the Navigation buttons to scroll to PHOTO LIST, MUSIC LIST or MOVIE LIST and press OK.

3 Select Drive1 to access the connected USB storage device

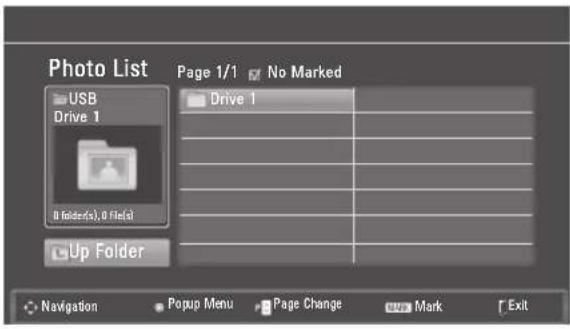

Photo List Page 1/1 No Marked USB Drive 1 0 Folder(s), 0 File(s) Drive 1 Up Folder Navigation Popup Menu Page Change Mark Exit

4 Select a folder you want.

- To return to the previous level, select Up Folder.

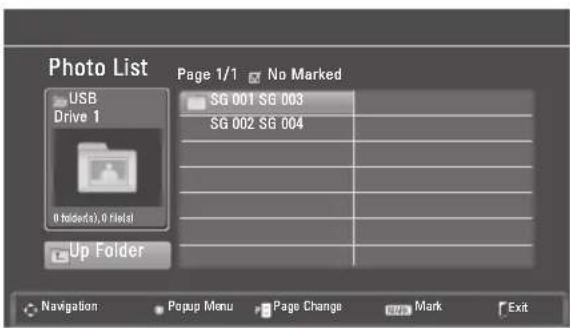

Photo List Page 1/1 No Marked USB Drive 1 SG 001 SG 003 SG 002 SG 004 0 folders(s), 0 files Up Folder Navigation Popup Menu Page Change Mark Exit

5 Press the Navigation buttons to browse files. The highlighted file will display in the preview window.

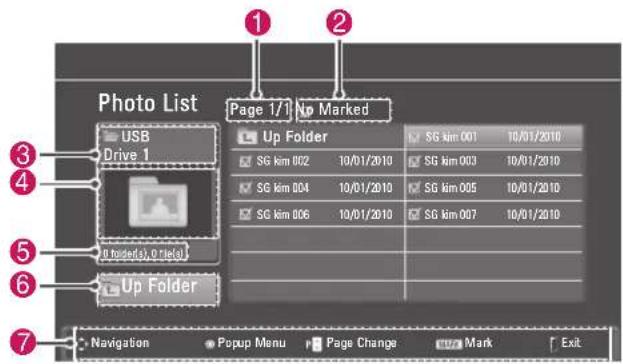

Photo List Page 1/1 No Marked USB Drive 1 Up Folder SG kim 001 10/01/2010 SG kim 002 10/01/2010 SG kim 003 10/01/2010 SG kim 004 10/01/2010 SG kim 005 10/01/2010 SG kim 006 10/01/2010 SG kim 007 10/01/2010 Up Folder Navigation Popup Menu Page Change Mark Exit

No.	Description
1	Current page number/total number of pages
2	The number of selected files
3	File and Folder name
4	Preview window
5	File size, information.
6	Return to the previous level
7	Available buttons on the remote control

Supported file format

Type Supported file format
Photo	JPGAvailable sizeBaseline: 64 pixel (W) x 64 pixel (H) - 15360 pixel (W) x 8640 pixel (H)Progressive: 64 pixel (W) x 64 pixel (H) - 1920 pixel (W) x 1440 pixel (H)
Music	MP3Bit rate range 32 Kbps - 320 KbpsSampling rate (Sampling Frequency)MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHzMPEG2 layer 3: 16 kHz, 22.05 kHz, 24 kHzMPEG2.5 layer 3: 8 kHz, 11.025 kHz, 12 kHz* A copy-protected file will not play.
Video	dat, mpg, mpeg, ts, trp, tp, vob, mp4, mkv, avi, divxMax bit rate of playable movie file: 20Mbps (Mega bit per second)Bit rate of audio format: within 32 - 320kbps (MP3)Supported subtitle format: *.smi, *.srt, *.sub (MicroDVD, SubViewer1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb(PowerDivx)

Viewing Photos

View image files saved in a USB storage device. The displays on the screen may differ from the model.

1 Press the Navigation buttons to scroll to USB and press OK.
2 Press the Navigation buttons to scroll to Photo List and press OK.
3 Press the Navigation buttons to select Drive1 to access the connected USB storage device.
4 Press the Navigation buttons to scroll to a folder you want and press OK.
5 Press the Navigation buttons to scroll to a file you want and press OK.

A pop-up window will appears.

Photo List Page 2/3 No Marked Drive 1 SG 001 17def(s)7 Help) Up Folder Up Folder SG 002 10/01/2010 SG 004 10/01/2010 SG 006 10/01/2010 SG 1356x768, 125KB View Mark All Delete Close Navigation Popup Menu Page Change Mark Exit

6 View photos by using the following menus.

Menu Description
View Displays the selected photo in a full-screen view.Drive: Views photos saved in a USB storage drive.
Mark All or Unmark All	Selects all files or clears all of your selections
Delete Deletes a file saved in a USB storage device.[GBZA]NOTEYou cannot delete the files saved in a shared folder of a PC.
Close Closes the pop-up menu.

Using photo options

Use the following options while viewing photos.

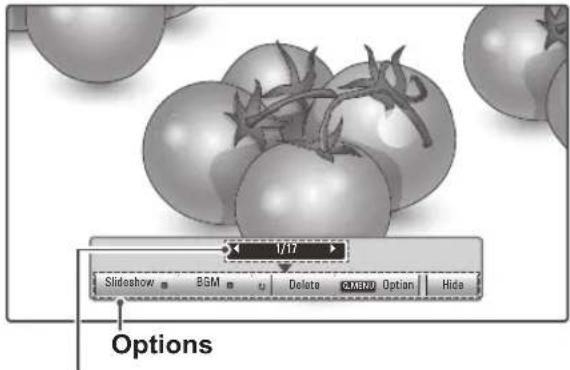

1/17 Slideshow BGM Delete CMNTN Option Hide Options

Number of selected photos

Option Description
Slideshow Starts or stops a slideshow with selected photos.If there are no selected photos, all photos saved in the current folder display during a slideshow.To set a slideshow speed, select Option.
BGM Turns the background music on or off.To set the background music folder, select Option.
(Rotate)	Rotates photos clockwise ( 90^ , 180^ , 270^ , 360^ ).NOTEThe supported photo size is limited.You cannot rotate a photo if the resolution of the rotated width is larger than the supported resolution size.
Delete Deletes a photo.
Option	Slide Speed: Selects a slideshow speed (Fast, Medium, Slow).Music Album: Selects a music folder for the background music.NOTEYou cannot change the music folder while the background music is playing.
Hide	Hides the option window.To display the options, press OK.

Q.MENU options for Photo List.

1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set Photo View or Set Video, Set Audio and Press OK

Choose Options. Set Photo View. Set Video. Set Audio. Previous

When you select the Set Photo View.

1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Slide Speed or Music Folder.
3 Press the Navigation buttons to make appropriate adjustments and press OK.

NOTE

- When "Off" is selected in Repeat menu, replay will stop once the last file in the list finishes playing. But, when "▶" button is pressed while the last file in the list is in the middle of replay and "Repeat" is in "Off" position, the first file in the list will be play.

When you select the Set Video.

1 Press the Navigation buttons to make appropriate adjustments.(See p.61)

When you select the Set Audio.

1 Press the Navigation buttonsto show the Sound Mode, Auto Volume, Clear Voice II, Balance.

2 Press the Navigation buttons to make appropriate adjustments.(See p.63)

Listening to Music

1 Press the Navigation buttons to scroll to USB and press OK.
2 Press the Navigation buttons to scroll to Music List and press OK.
3 Select Drive1 to access the connected USB storage device.
4 Press the Navigation buttons to scroll to a folder you want and press OK.
5 Press the Navigation buttons to scroll to a file you want and press OK.

A pop-up window will appears.

Music List Page 2/3 ▼ No Marked Music SG 001 Up Folder SG 001.mp3 SG 002.mp3 SG 003.mp3 3945 KB 128 Kbps Play Play with Photo Mark All Delete Close Navigation Pop-up Menu Page Change Mark Exit

6 Play music by using the following menus.

Menu Description
Play, Stop Play, or Play Marked	Plays music, stops playback, or plays the selected music file. If you play music without selecting music files, all of the music files saved in the current folder will play.Theicon will appear in front of the duration on the currently playing file.Drive:Listen to music files saved in a USB storage drive.
Play with Photo	Displays photos during playback.
Mark All or Unmark All	Selects all files or clears all of your selections
Delete Deletes a file saved in a USB storage device.
Close Closes the pop-up menu.

7 Control playback by using the following buttons.

Button Description
	Stops playback
	Plays a music file
	Pauses or resumes playback
	Skips to the next file
	Skips to the previous file

NOTE

• A damaged or corrupted file will not play and the duration of the file display as 00:00.
  • A copy-protected file will not play.
• If the TV is not in use for some time during playback, the information box as a screensaver will appear to prevent image burn.
  To return to the Music list screen, press OK or BACK.

Folder name / file name Music S003 0:27 / 3:67 Time elapsed / Duration

Q.MENU options for Music List

1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set Audio Play or Set Audio and Press OK.

Choose Options. Set Audio Play. Set Audio. Previous

When you select the Set Audio Play.

1 Press the Navigation buttons to show the Set Audio Play.
2 Press the Navigation buttons to make appropriate adjustments.

NOTE

- When "Off" is selected in Repeat menu, replay will stop once the last file in the list finishes playing. But, when "▶" button is pressed while the last fine in the list is in the middle of replay and "Repeat" is in "Off" position, the first file in the list will be play.

When you select the Set Audio.

1 Press the Navigation buttons toto show the Sound Mode, Auto Volume, Clear Voice II, Balance.
2 Press the Navigation buttons to to make appropriate adjustments.(See p.63)

Viewing Movies

Play video files on the TV. Your TV displays all of the video files saved in a USB storage device.

• Movie (*.dat / *.mpg / *.mpeg / *.ts / *.trp / *.tp / *.vob/ *.mp4 / *.mkv / *.avi / *.divx) supporting file.
• Video format: DivX3.11, DivX4.12, DivX5.x, DivX6, Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid 1.10-beta-1/beta-2, Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC
• Audio format: Dolby Digital, AAC, Mpeg, MP3, LPCM, HE-AAC
• Bit rate: within 32 kbps to 320 kbps (MP3)
• Subtitle format: *.smi / *.srt / *.sub (Micro DVD, SubViewer1.0/2.0) / *.ass / *.ssa / *.txt (TM Player) / *.psb (Power Divx).
• Some user-created subtitles may not work properly.
• Some special characters are not supported in subtitles.
  • HTML tags are not supported in subtitles.
• Subtitles in languages other than the supported languages are not available.
• Time information in an external subtitle file should be arranged in ascending order to be played.
• The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio language is changed.
• A damaged movie file may not be played correctly, or some player functions may not be usable.
• Movie files produced with some encoders may not be played correctly.
• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
• HD videos with a maximum of 1920 x 1080 @ 25/30P or 1280 x 720 @ 50/60P are supported, depending on the frame.
• Videos with resolutions higher than 1920 x 1080 @ 25/30P or 1280 x 720 @ 50/60P may not work properly depending on the frame.
• Movie files other than the specified types and formats may not work properly.
• Max bit rate of playable movie file is 20 Mbps.
• We do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264

/ AVC.

• DTS Audio codec is not supported.
- A movie file more than 30GB in file size is not supported for playback.
- A DivX movie file and its subtitle file must be located in the same folder.
- A video file name and its subtitle file name must be identical for it to be displayed.
- Playing a video via a USB connection that doesn't support high speed may not work properly.
- Files encoded with GMC (Global Motion Compensation) may not be played.
- When you are watching the movie by Movie List function, you can adjust an image by Energy Saving key on the remote control. User setup for each image mode does not operate.

Video Decoder

• mpeg, vob: MPEG1, MPEG2
• dat: MPEG1
  • ts,trp,tp: MPEG2, H.264 / AVC
• mp4: MPEG4 SP, MPEG4 ASP, Divx 3.11, Dvix 4.12, Dvix 5.x, Dvix 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10–beta 1, Xvid 1.10-beta 2, H.264/AVC
• avi: MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, Divx 4, Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10–beta 1, Xvid 1.10–beta 2, H.264/AVC
• mkv: H.264 / AVC, MPEG 1, MPEG 2, MPEG 4 SP, MPEG4 ASP
• divx: MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, Divx 4, Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10–beta 1, Xvid 1.10–beta 2, H.264 / AVC

Audio Codec

• mpeg, vob: Dolby Digital, MPEG, MP3, LPCM
  • dat: Dolby Digital, MPEG, MP3, LPCM
  • ts,trp,tp: Dolby Digital, AAC, MPEG
• mp4: Dolby Digital, HE-AAC, AAC, MPEG, MP3, LPCM

• avi: Dolby Digital, HE-AAC, AAC, MPEG, MP3, LPCM

• mkv: Dolby Digital, HE-AAC, AAC, MPEG, MP3, LPCM
  • divx: Dolby Digital, HE-AAC, AAC, MPEG, MP3, LPCM

Max Resolution

- 1920 x 1080 @ 30p

1 Press the Navigation buttons to scroll to USB and press OK.
2 Press the Navigation buttons to scroll to Movie List and press OK.
3 Select Drive1 to access the connected USB storage device.
4 Press the Navigation buttons to scroll to a folder you want and press OK.
5 Press the Navigation buttons to scroll to a file you want and press OK.
A pop-up window will appears.

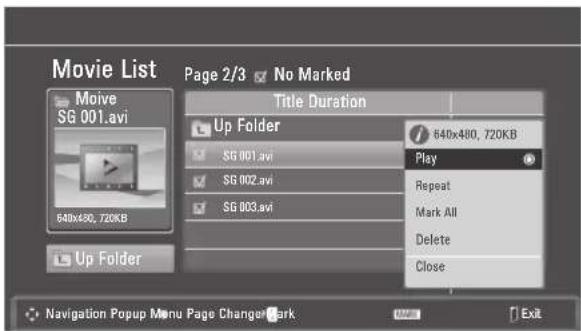

Movie List Page 2/3 □ No Marked Move SG 001.avi 640x480, 720KB Up Folder SG 001.avi SG 002.avi SG 003.avi 640x480, 720KB Play Repeat Mark All Delete Close Navigation Popup Menu Page Change Park Exit

6 Play video by using the following menus.

Menu Description
Play or Play Marked	Plays a movie or plays the selected movie.Drive: Views videos saved in a USB storage drive.
Repeat or Repeat Marked	Repeats a movie or Repeats the marked movie.
Mark All or Unmark All	Selects all files or clears all of your selections.
Delete or Delete marked	Deletes a file formatted on the FAT32 file system and saved in a USB storage device.
Close Closes	the pop-up menu.

NOTE

The image under the preview window will appear if you select a non-supported file.

7 Control playback by using the following buttons.

Button Description
INFO 1	Views the information of the currently playing video
	Stops the playback
	Plays a video
II	Pauses or resumes the playback
	Scans backward in a file
	Scans forward in a file
< or > Skips to specific points in a file during playback. The time of a specific point will appear on the status bar. In some files, this function may not work properly.
or	Plays videos in slow motion
ENERGY e2 SAVING	Press the ENERGY SAVING button repeatedly to increase the brightness of your screen.

Q.MENU options for Movie List

1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation button and OK to scroll to Set Video Play, Set Video or Set Audio.

Choose Options. Set Video Play. Set Video. Set Audio. Previous

When you select the Set Video Play.

Menu Description
Picture Size	Selects your desired picture format during movie play
Audio Language or Subtitle Language	Changes the Language Group of the audio/subtitle during movie play.
Sync Adjusts	the time synchronisation of the subtitle from -10 secs to +10 secs by steps of 0.5 secs during movie play.
Position Changes	changes the position of the subtitle either up or down during movie play.
Size	Selects your desired Subtitle size during movie play.

1 Press the Navigation button to show the Picture Size, Audio Language or Subtitle Language.
2 Press the Navigation button to make appropriate adjustments.

Subtitle Language	Support Language
Latin1 English	Spanish, French, German, Italian, Swedish, Finnish, Dutch, Portuguese, Danish, Romanian, Norwegian, Albanian, Gaelic, Welsh, Irish, Catalan, Valencian
Latin2 Bosnian	Polish, Croatian, Czech, Slovak, Slovenian, Serbian, Hungarian
Latin4 Estonian	Latvian, Lithuanian
Cyrillic	Bulgarian, Macedonian, Russian, Ukrainian, Kazakh
Greek	Greek
Turkish	Turkish

NOTE

• Only the files saved in ASCII CODE is supported for the external subtitles of the movie.
• Only 500 alphabets and 500 numbers are supported for each line of the subtitle.
• Only 10,000 of sync blocks can be supported within the subtitle file.

When you select the Set Video.

1 Press the Navigation button to make appropriate adjustments. (See p.61)

When you select the Set Audio,

1 Press the Navigation button to show the Sound Mode, Auto Volume, Clear Voice II, Balance.
2 Press the Navigation button to make appropriate adjustments.(See p.63) Using the remote control.

Button Description
	When playing,repeatedly, press the REW(◀◀) buttonto speed up ◀◀(x2) ◀◀◀(x4) ◀◀(x8) ◀◀◀◀(x16) ◀◀(x32).repeatedly, press the FF(▶▶) buttonto speed up ▶▶(x2) ▶▶▶(x4) ▶▶(x8) ▶▶▶▶(x16) ▶▶(x32).Pressing these buttons repeatedlyincreases the fast forward/reversespeed.
Pause (II )	During playback, press the Pause (II )button.Still screen is displayed.If no buttons are pressed on theremote control for 10 minutes afterpausing, the TV returns to theplayback state.Press the Pause (II ) button andthen use the FF (▶▶) button for slowmotion.
	When using the < or > button during playback a cursor indicating theposition can be viewed on the screen.
Play (▶)	Press the Play (▶) button to return tonormal playback.
ENERGYe7SAVING	Press the ENERGY SAVING buttonrepeatedly to increase the brightnessof your screen.(See p.60)

DivX® VOD Guide

DivX® VOD Registration

In order to play purchased or rented DivX® VOD contents, you should register your device with 10 digit DivX registration code from your device at www.divx.com/vod.

1 Press MENU to access the USB menus.
2 Press the Navigation button to scroll to DivX Reg. Code and press OK.
3 View the registration code of your TV.

DivX(R) Video On Demand Your registration Code is: xxxxxxxxxxxx To learn more visit www.divx.com/vod. Close

NOTE

• While you are checking the registration code, some buttons may not work.
• If you use the DivX registration code of another device, you cannot play the rented or purchased DivX file. Make sure to use the DivX registration code assigned to your TV.
• The video or audio files that are not converted by the standard DivX codec may be corrupted or not be played.
• The DivX VOD code allows you to activate up to 6 devices under one account.

DivX® VOD Deregistration

You should deregister your device with 8 digit DivX deregistration code from your device at www.divx.com/vod.

NOTE

Once the deregistration is executed, you must register your device again to see DivX® VOD contents.

1 Press MENU to access the USB menus.
2 Press the Navigation button to scroll to Deactivation and press OK.
3 Select Yes to confirm.

DivX(R) Video On Demand Do you want to deactivate your device? NoYes

4 Select Close.

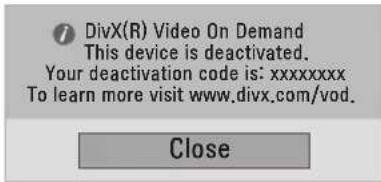

DivX(R) Video On Demand This device is deactivated. Your deactivation code is: xxxxxxxx To learn more visit www.divx.com/vod. Close

5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

3D IMAGING(ONLY 3D MODEL)

3D Technology

This TV can display in 3D via 3D broadcasting or when the TV is connected to a compatible device, such as a Blu-ray 3D Player. The viewer must wear compatible 3D glasses in order to see these images in 3D format.

NOTE

• After powering on the TV, a few seconds may be needed for your TV to calibrate.
- When watching digital TV in 3D imaging mode, TV out signals cannot be output through the SCART cable.
- If you set the 3D mode to On while a scheduled recording is performed on digital TV, TV out signals cannot be output through the SCART cable, and the recording cannot be performed.
- If 3D TV broadcast standard changes in the future and it is not supported by this TV set, you may need a separate device, such as a set-top box.

Precautions to take when viewing 3D images

WARNING

• If you view 3D images from too close a distance, your eyesight may deteriorate.
• If you view images in 3D for a long period of time, you may feel dizzy or experience blurred vision.
• If you are pregnant, elderly, have heart problems, experience severe nausea or if you are under the influence of alcohol, we recommend that you do not view 3D images.
• This is because the 3D images can cause disorientation and confusion.
• Put fragile or breakable objects away when viewing 3D images.
• Such objects may break, or cause personal injuries when you are startled by the realistic 3D images.
• Parents should prevent children who are 5 years or younger from watching 3D images because viewing 3D images can be harmful to vision development.
• Warning about photosensitivity seizures
  Some users may have a seizure or other abnormal reactions when they are exposed to a flashing light or a particular pattern in a video game or film. If anyone in your family has a history of epilepsy or has ever experienced any kind of seizure, please consult your doctor before viewing 3D images. If you exhibit any of the symptoms listed below when viewing 3D images, stop viewing immediately and have a break.
  » Dizziness, blurred vision or facial tics, involuntary movements, twitching, blackouts, confusion and disorientation. Please consult your doctor if such symptoms persist.
• To prevent a photosensitivity seizure, please take the following precautions.
  » Have a 5- to 15-minute break every hour.
  » If your left and right eye sight is significantly different, correct the sight difference first.
  » You should be able to see all of the screen at eye level.
  » If you experience headaches, fatigue or dizziness, stop viewing and have a rest.
  » Do not view 3D images when you are tired or ill.

CAUTION

- Parents/guardians should TV children's viewing of 3D images because they may not be used to the 3D viewing experience and lack knowledge on how to handle potential risks.

When using 3D Glasses

CAUTION

• Do not use the 3D glasses to replace your corrective glasses, sunglasses or protective goggles.
• Do not store the 3D glasses in hot or cold locations.
• Do not drop objects onto the 3D glasses. Do not drop or bend the glasses.
• Since the lenses of the 3D glasses are easily scratched, make sure to clean only with a soft cloth. Shake off any dust before using the cloth
• Do not scratch the surface of the lens(Polarized film) of 3D glasses with a sharp tool or wipe the lens with chemicals.
• The lens of the 3D glasses is different from those of general glasses, and is very thin. Therefore be careful with the glasses as the lens can be popped out easily.
• Be careful of the edges of the glass frame when putting on the 3D glasses.

3D Imaging Viewing Range

TV size, viewing angle & other circumstances may change the viewing distance and the angle of view.

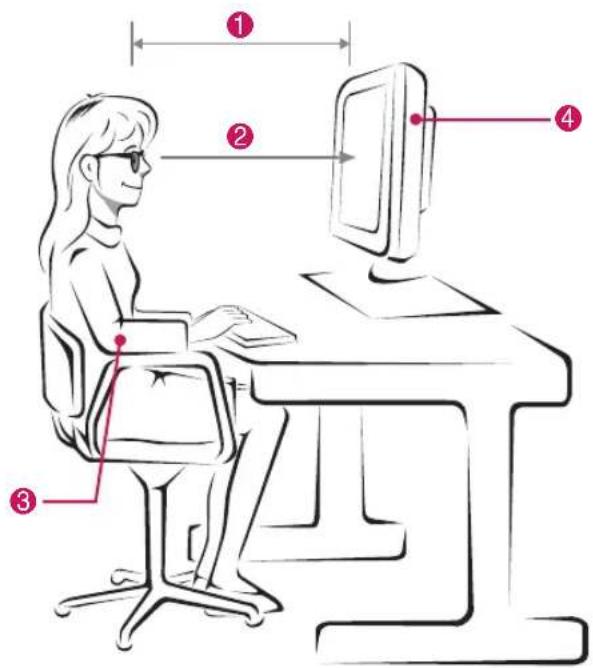

Illustration of a person using a computer with numbered annotations pointing to the screen and keyboard.

No.	Description
1	Adjust your distance from the TV to allow you to view images from the optimal distance (L).
2	Adjust the TV and your posture to allow you to view images at the optimal viewing angle (D).
3	Place your hands gently on the keyboard, keeping your arms bent at the elbows and horizontally outright.
4	Adjust the location of the TV to avoid it reflecting light.

Mode When viewing 3D images
Size(Inch) 584 mm
Optimal viewing distance (L)	50 cm to 90 cm
Up/Down Optimal viewing angle (D)	12°

Viewing 3D Imaging

1 Play the video produced in 3D.

2 Press 3D.

3 Wear the 3D glasses.

4 Press the Navigation buttons to scroll the OK and press OK.

5 Press the Navigation buttons to scroll the shape and press OK.

Mode Description
2D→3D Changed	from 2D imaging to 3D imaging.
Side by Side
Top & Bottom
Checker Board
Frame Sequential

6 Press 3D button to to 2D Off or 3D Off.

Mode Description
3D -2D Displays	images in 2D without any 3D effects.
2D -3D Displays	images in 3D.
3D Off Displays	images in original format.
Cancel Close the	pop-up window.

3D Mode Setting Option

1 Press 3D SETTING to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to one of the following options and press OK

3D Mode Setting 3D Picture Correction Left/Right 3D Depth 15 3D Viewpoint 0 Picture Mode Vivid Close

The available Programme settings are described in the following:

Option Description
3D Picture Correction	Select Left/Right or Right/Left.Select the screen with 3D video with better visibility.
3D Depth Adjusts the stereoscopic effect of the 3D image converted from a 2D image.
3D Viewpoint Moves the 3D image to the front and back to adjust the 3D perspective view.
Picture Mode	Selects one of the preset image or customizes options in each mode for the best TV screen performance. You are also able to customize advanced options of each mode.The available preset picture modes vary depending on the TV.
	Mode
	Vivid Adjusts the video image for the retail environment by enhancing the contrast, brightness, Colour, and sharpness.
	Standard Adjusts the image for the normal environment.
	Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a movie theater.
	Sport Optimizes the video image for high and dynamic actions by emphasizing primary Colours such as white, grass, or sky blue.
	Game Optimizes the video image for a fast gaming screen such as PCs or games.

NOTE

• The Image View Mode option is disabled when 2D images are converted into 3D.
• The 3D Depth option is enabled when 2D images are converted into 3D.
• You cannot enter the Main menu while watching 3D files.

CAUTION

• Some menus may not work while viewing 3D imaging.
• The 3D imaging is disabled automatically when switching DTV channels or input source.
• The screen may not be displayed properly if you view 2D images in 3D imaging mode.
• 3D effect can be seen when 3D Mode is selected appropriately for the 3D input signal supplied to the TV.
• When switching channels, the conversion from 2D to 3D is maintained. If you stay on a channel with no images for 3 seconds, it changes back to 2D.
• When viewing multiple photos stored on the USB device, the conversion from 2D to 3D is maintained.
• When viewing multiple video files stored on the USB device, the 3D mode is also maintained.
• When watching a 3D movie from the USB device, Picture Mode is not supported.

CUSTOMIZING SETTINGS

Accessing main menus

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.
4 When you are finished, press EXIT. When you return to the previous menu, press BACK.

MENU GUIDE Q MENU OK BACK INFO Ⓒ EXIT ITEM TOPT SUBTITLE ← ▶ 11 ←→ Auto Carry LG

PICTURE (See p.60) Adjusts the image size, quality, or effect AUDIO (See p.63) Adjusts the sound quality, effect, or volume level TIME (See p.66) Sets the time, date or Timer feature SETUP (See p.59) Sets up and edit programmes OPTION (See p.67) Customizes the general settings OPTION LOCK INPUT USB (See p.70) Using integrated media features LOCK (See p.68) Locks or unlocks channels and programs INPUT (See p.69) Views the input sources with their labels

NOTE

• Image shown may differ from you TV.
- Your TV's OSD(On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.

Customizing settings

SETUP settings

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.

4 When you are finished, press EXIT. When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

SETUP Auto Tuning Manual Tuning Programme Edit Software Update : On Diagnostics CI Information Cable DTV Setting

The available Programme settings are described in the following:

Setting Description
Auto Tuning	Tunes and stores all available programmes through antennas or cable inputs (See p.19).
Manual Tuning Tunes	Tunes and stores the programmes you want manually (See p.22 to 23).
Programme Edit	Adds or deletes programmes on the programme (See p.24).
Software Update	This automatically updates your TV's software. (See p.26).
Diagnostics	This shows you the manufacturer, model or type number, serial number and software information. (See p.27).
CI information	Enables you to watch some encrypted services (pay services) (See p.27).
Cable DTV Setting(In Cable Mode Only)	You can run the service operator or the programme auto update. (Only in countries where DBV-C is supported). (See p.24).

PICTURE settings

1 Press MENU to access the main menus.

2 Press the Navigation buttons to scroll to PICTURE and press OK.

3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

- To return to the previous level, press BACK.

4 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

PICTURE Aspect Ratio : 16:9 Picture Wizard Set 3D Video Energy Saving : Off Picture Mode : Vivid • Backlight 100 • Contrast 100 • Brightness 70 • Sharpness 50 • Colour 45 • Tint 0 • Colour Temperature 0 • Advanced Control • Picture Reset Screen

The available picture settings are described in the following:

Setting Description
Aspect Ratio Changes the image size to view images at its optimal size. (See p.29)
Picture Wizard	Adjusts the image quality and calibrates the screen by following the on-screen instructions.The customized options will be saved as Expert1 in the picture modes.Picture Wizard → Black Level → White Level → Colour → Dynamic Contrast ← Colour Temperature ← Horizontal/ Vertical Sharpness ← TintColour Gain → Backlight → CompleteNOTEIf you usePicture wizard, the Energy saving feature will turn off automatically.
Set 3D Video(Only 3Dmodel)	Sets the 3D imaging option. (See p.54)
Energy Saving	Reduces the power consumption by adjusting the screen brightness.
	Option
	Off Select if this feature is not necessary.
	Minimum/Medium/Maximum Selects the brightness level.
	Screen off The screen turns off in 3 seconds.Pressing any button of the remote control will turn on the screen again.
Picture Mode	Selects one of the preset image or customizes options in each mode for the best TV screen performance. You are also able to customize advanced options of each mode.The available preset picture modes vary depending on the TV.
	Mode
	Vivid Adjusts the video image for the retail environment by enhancing the contrast, brightness, Colour, and sharpness.
	Standard Adjusts the image for the normal environment.
	Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a movie theater.
	Sport Optimizes the video image for high and dynamic actions by emphasizing primary Colours such as white, grass, or sky blue.
	Game Optimizes the video image for a fast gaming screen such as PCs or games.
	Expert1/2 Adjusts the detailed video image settings for video experts as well as general viewers.
Screen(In RGB-PC Mode Only)	Customizes the PC display options in RGB mode.
	Option
	Resolution Selects a proper resolution. See “Customizing PC display options”, p.42
	Auto Configure Sets to adjust the screen position, clock, and phase automatically.The displayed image may be unstable for a few seconds while the configuration is in progress.
	Position/Size/Phase Adjusts the options when the picture is not clear, especially when characters are shaky, after the auto configuration.
	Reset Restores the options to the default setting.

Basic image options

Setting Description
Backlight	Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.
Contrast	Increases or decreases the gradient of the video signal. You may use Contrast when the bright part of the picture is saturated.
Brightness	Adjusts the base level of the signal in the picture. You may use Brightness when the dark part of the picture is saturated.
Sharpness	Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.
Colour	Adjusts intensity of all Colours.
Tint	Adjusts the balance between red and green levels.
Colour Temperature	Set to warm to enhance hotter colours such as red, or set to cool to make picture bluish.
Advanced Control	Customizes the advanced options.
Reset	Restores the options to the default setting.

NOTE

• You cannot adjust Colour and Tint in the RGB-PC / HDMI-PC mode.
• When the Expert 1/2 is selected, you can select Backlight, Contrast, Brightness, H Sharpness, V Sharpness, Colour or Tint.

Advanced image options

Setting Description
Dynamic Contrast(Off/Low/High)	Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Colour(Off/Low/High )	Adjusts screen colours so that they look livelier, richer and clearer. This feature enhances hue, saturation and luminance so that red, blue, green and white look more vivid.
Noise Reduction(Off/Low/Medium/High)	Reduces screen noise without compromising video quality.
Gamma(Low/Medium/High)	You can adjust brightness of dark area and middle gray level area of the picture.» Low: Make dark and middle gray level area of the picture brighter.» Medium: Express original picture levels.» High: Make dark and middle gray level area of the picture darker.
Black Level(Low/High/Auto)	» Low: The picture of the screen gets darker.» High: The picture of the screen gets brighter.» Auto: Realizing the black level of the screen and set it to High or Low automatically. Set black level of the screen to proper level.This function enables to select 'Low' or 'High' in the following mode: AV(NTSC-M), HDMI or Component. Otherwise, 'Black level' is set to 'Auto'.
Film Mode(On/Off)	You can watch a cinema-like video by eliminating judder effect.Use this function when you watch movies.
Colour Standard(SD/HD)	Converts the colour of a different video to HD colour. This function is set for SD video (BT-601) and HD video (BT-709) colour format.
Expert Pattern(Off/Expert 1/Expert 2)	This is the pattern necessary for expert adjustment.This function is enabled in "Picture Mode - Expert" when you watch DTV.
Colour Filter(Off/Red/Green/Blue)	This is the function to filter the specific colours of the video.You can use the RGB filter to set colour saturation and hue accurately.
Colour Temperature(Medium/Warm/Cool)	This is the function to adjust the overall colour of the screen to the feeling you want.A» Method: 2 Points» Pattern: Inner, Outer» Red/Green/Blue Contrast, Red/Green/Blue Brightness :» The adjustment range is -50 to +50.B» Method: 10 point IRE» Pattern: Inner / Outer» IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and can be set among 10, 20, 30 to 100. You can adjust Red, Green or Blue according to each setting.» Red/Green/Blue: The adjustment range is -50 to +50.
Colour Management System	As the tool used by the experts to make adjustments by using the test patterns, this does not affect other colours but can be used to selectively adjust the 6 colour areas (Red/Green/Blue/Cyan/ Magenta/Yellow). Colour difference may not be distinctive even when you make the adjustments for the general video.Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.» Red/Green/Blue/Yellow/Cyan/Magenta Colour: The adjustment range is -30 to +30.» Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30 to +30.This feature is disable in RGB-PC and HDMI (PC) mode.

AUDIO settings

1 Press MENU to access the main menus.

2 Press the Navigation buttons to scroll to AUDIO and press OK.

3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

- To return to the previous level, press BACK.

4 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

AUDIO Auto Volume : Off Clear Voice II : Off 3 Balance Sound Mode : Music • Surround X : Off • Treble 50 • Bass 50 • Reset Digital Audio Out : PCM TV Speaker : On DTV Audio Setting : Auto

The available audio options are described in the following:

Setting Description
Auto Volume	Activates the Auto Volume feature to keep the volume level consistent whenever you change programmes. The volume level may not be consistent due to different signal conditions of broadcasting stations.
Clear Voice II	By differentiating the human sound range from others, it helps users listen to human voices better.
Balance	Adjusts balance between the left and right speakers according to your room environment.
Sound Mode Select	is one of the preset sound modes or customize each option in each mode.
	Mode
	Standard Select when you want standard-quality sound.
	Music Select when you listen to music.
	Cinema Select when you watch movies.
	Sport Select when you watch sports events.
	Game Select when you play games.
	NOTEIf sound quality or volume is not at the level you want, it is recommended to use a separate home theater system or amplifier to cope with different user environments.
	Option
	Surround X Provides an enveloping surround sound with clear dialog and bass using just two speakers. Surround X is a patented Surround technology that solves the problem of playing 5.1 multichannel contents over two speakers.
	Treble Controls the dominant sounds in the output. When you turn up the treble, it will increase the output to the higher frequency range.
	Bass Controls the softer sounds in the output. When you turn up the bass, it will increase the output to the lower frequency range.
	Reset Resets the sound mode to the default setting.
	NOTEYou cannot adjust Treble and Bass in the RGB-PC / HDMI-PC mode.(Except DM2350D / DM2350A Model)

Setting Description
Digital Audio Out This function allows you to select your preferred Digital Audio Output.When Dolby Digital is available, selecting Auto in the Digital Audio Out menu will set SPDIF(Sony Philips Digital InterFace) output to Dolby Digital.If Auto is selected in the digital audio out menu when Dolby Digital is not available, SPDIF output will be PCM(Pulse-code modulation).Even if both Dolby Digital and Audio language have been set in a channel which broadcast Dolby Digital Audio, only Dolby Digital will be played.
Mode Audio Input Digital Audio output
Auto (Speaker On) MPEGDolby DigitalDolby Digital PlusHE-AAC	PCMDolby DigitalDolby DigitalPCM
Auto (Speaker Off) MPEGDolby DigitalDolby Digital PlusHE-AAC	PCMDolby DigitalDolby DigitalDolby Digital
PCM PCM PCM
TV Speaker	Turns on the internal speaker of the TV when using an external Hi-Fi or SRS system. You can use the TV speaker as an audio output device even if there is no video input.
DTV Audio Setting(In Digital Mode Only)	When different audio types exist in an input signal, this function allows you to select the audio type you want.NOTEAuto: Automatically outputs in the order HE - AAC ▶ Dolby Digital ▶ MPEG.HE - AAC, Dolby Digital, MPEG: Allows users to select the audio type they want.» If MPEG is selected, MPEG is always outputted.» If MPEG is not supported, HE - AAC and Dolby Digital are selected in that order.

Stereo/Dual Reception (In Analogue Mode Only)

When a programme is selected, the sound information for the station appears with the programme number and station name.

1 Press Q. MENU and press the Navigation to access the AUDIO and press OK.
2 Press the Navigation button to scroll to sound output and press OK.

Broadcast On Screen Display
Mono	MONO
Stereo	STEREO
Dual	DUAL I, DUAL II, DUAL I + II

Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarity of sound is improved.

Language selection for dual language broadcast

a programme can be received in two languages (dual language), you can switch to DUAL I, DUAL II or DUAL I + II.

DUAL I Sends the primary broadcast language to the loudspeakers. DUAL II Sends the secondary broadcast language to the loudspeakers. DUAL I+II Sends a separate language to each loudspeaker.

Stereo/Dual Reception (In Analogue Mode Only)

If the TV is equipped with a receiver for NICAM reception, high quality NICAM (Near Instantaneous Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of broadcast received.

1 When NICAM mono is received, you can select NICAM MONO or MONO.
2 When NICAM stereo is received, you can select NICAM STEREO or MONO. If the stereo signal is weak, switch to MONO.
3 When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL I+II or MONO.

Speaker Sound Output Selection

In AV, Component, RGB and HDMI mode, you can select output sound for the left and right loudspeakers. Select the sound output.

L+R: Audio signal from audio L input is sent to the left loudspeaker and audio signal from audio R input is sent to the right loudspeaker.
L+L: Audio signal from audio L input is sent to left and right loudspeakers.
R+R: Audio signal from audio R input is sent to left and right loudspeakers.

TIME settings

1 Press MENU to access the main menus.

2 Press the Navigation buttons to scroll to TIME and press OK.

3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

- To return to the previous level, press BACK.

4 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off Automatic Standby : 4 hours.

The available time settings are described in the following:

Setting Description
Clock	Sets the time, date, time zone, and daylight-saving time feature. The time will be set automatically according to a digital channel signal which includes time information provided by the broadcasting station. If not, set the time and date manually.NOTEIf you turn the power off by disconnecting the power cord, the current time setting will be reset.
Off Time/On Time	Sets the time to turn on or off the TV automatically. To use this function, you should set the current time and date in the Clock menu.NOTEIf you do not press any button within 2 hours after the TV turns on by the On Time feature, the TV enters the Standby mode automatically.If you set the On Time feature and turn the TV off by pressing Main power switch, the On Time feature will not work. To activate the On Time feature, the TV must be in Standby mode.If you set both Off Time and On Time features to the same time, the Off Time function overrides the On Time feature, when the TV is on.
Sleep Timer	Sets the length of time until the TV to turns off. When you turn the TV off and turn it on again, the Sleep Timer will be set to off.
Automatic Standby	If you do not press any button when Automatic Standby function is on, the TV automatically switches to the standby mode.NOTEThis function does not work onStore Demo mode or whileSoftware update.This function does not work on RGB-PC and HDMI-PC mode.

OPTION settings

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

- To return to the previous level, press BACK.

4 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

OPTION Menu Language : English Audio Language : English Subtitle Language : English Disabled Assistance Data Service : MHEG Country : UK Input Label Set ID : 1 Power Indacator : On Demo Mode : Off Mode Setting : Home Use Factory Reset

The available option settings are described in the following:

Setting Description
Language Selects a	language for the display or audio(Only DTV) (See p.33).
Disabled Assistance(In Digital Mode)	Audio commentary or subtitles are provided for those who are hard of hearing or visually impaired
	Option
	Hard of Hearing	This function if for the hearing impaired.If it is set to on, the subtitle is displayed by default.
	Audio Description	This function is for the blind, and provides explanatory audio describing the current situation in a TV programme in addition to the basic audio.When Audio Description On is selected, basic audio and Audio Description are provided only for those programmes that have Audio Description included.
	Volume Changes the Audio Description volume
Data Service(only in Ireland.)	This function allow users to choose between MHEG (Digital Teletext) and Teletext if both exist at the same time.(See p.77 to 79)
Country Selects a desired country.(See p.32)
Input Label	Selects a label for an input source to identify a device connected to each input source.NOTEIf you want to use HDMI-PC mode, you must set the input label to PC mode.
Set ID Adds an ID to the connected devices.(See p.96)
Power Indicator Sets to turn on or off the Power indicator on the TV.
Demo Mode Display the slide show to explain the various logo of this TV.
Mode Setting	Customizes the TV settings to suit your preference. The initial setup screen will appear when you turn on the TV for the first time.
	Setting
	Mode Setting Selects Home Use mode for the home environment.Selects Store Demo mode for the retail environment.
Factory Reset This function initializes all settings.[SZDH]NOTEIn Lock System "On", if you forget your password, press '0', '3', '2', '5' on the remote control handset.

LOCK settings

1 Press MENU to access the main menus.

2 Press the Navigation buttons to scroll to LOCK and press OK.

3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

- To return to the previous level, press BACK.

4 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

LOCK Set Password Lock System : Off • Block Programme • Parental Guidance • Input Block key Lock : On

The available lock settings are described in the following:

Setting Description
Set Password	Changes the 4-digit password. The default password is ‘0’, ‘0’, ‘0’, ‘0’.When France is selected for Country, the default password is not ‘0’, ‘0’, ‘0’, ‘0’ but ‘1’,‘2’,‘3’,‘4’.
	NOTEIf you forget the password, press ‘0’ ‘3’ ‘2’ ‘5’ and set the new password.
Lock System Activates or deactivates the lock system
Key Lock	The TV can be set so that the remote control is required to control it. This feature can be used to prevent unauthorized viewing.
	NOTEIn Key Lock ‘On’, if the TV is turned off, press the INPUT, P ∧ V button on the TV or POWER, INPUT, P ∧ V, TV/PC or NUMBER buttons on the remote control then the set will be turned on.With the Key Lock On, the display ‘Key Lock On’ appears on the screen if any button on the front panel is pressed while viewing the TV.

INPUT settings

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to INPUT and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

- To return to the previous level, press BACK.

4 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

INPUT Antenna AV Component RGB HDMI

3D TV INPUT Antenna AV Component RGB HDMI1 HDMI2

The available input settings are described in the following:

Setting Description
Antenna Select it when watching the DTV/TV.(See p.17).
AV Select it when watching the VCR or external equipment.(See p.74).
Component	Select it when using the DVD or the Digital set-top box depends on connector.(See p.74).
RGB Select it when using PC depends on connector.(See p.40).
HDMI	Select it when using DVD, PC or Digital set-top box depend on connector.(See p.39 or 73).

USB settings

1 Press MENU to access the main menus.

2 Press the Navigation buttons to scroll to USB and press OK.

3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

- To return to the previous level, press BACK.

4 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

USB Photo List Music List Movie List Divx Reg. Code Deactivation

The available usb settings are described in the following:

Setting Description
Photo List You can	view photo files on USB storage device. (See p.47)
Music List You can	play music files on USB storage device. (See p.48)
Movie List You can	play movie files on a USB storage device. (See p.50)
Divx Reg. Code	Check and register the DivX registration code of your TV so that you can rent or purchase the latest movies at www.divx.com/vod.(See p.53).
Deactivation	The purpose of deactivation is to allow deactivation of devices for users who have activated all the available devices through the web server and are blocked from activating more devices.(See p.53)

MAKING CONNECTIONS

Connect various external devices to the TV and switch input modes to select an external device. For more information about an external device's connection, refer to the manual supplied with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, camcorders or cameras, gaming devices, and other external devices.

NOTE

• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the manual supplied with the connected device.
• The external device connection may differ from the model.

Connect external devices to the TV by referring to the following table.

Connection overview

Connection type	Video Audio
	Digital Analog	g Digital Analog
HDMI (highly recommended) ○ - ○	-
Component - ○ - -
RGB - ○ - -
Optical audio - - ○ -
Analog audio - - - ○

Connect various external devices to the ports on the TV's back panel.

1 Find an external device you want to connect to your TV shown on the following illustration.
2 Check the connection type of the external device.
3 Go to the appropriate illustration and check the connection details.

HDMI – See p.39 DVI – See p.40 RGB – See p.40

HDMI – See p.73 DVI – See p.73 Component – See p.74

HDMI – See p.73 Component – See p.73

NOTE

If you connect a gaming device to the TV, use the cable supplied with the gaming device.

Connecting to a Camcorder, Camera, HD receiver, DVD, VCR player or Gaming device

Connect a Camcorder, Camera, HD receiver, DVD, VCR player or Gaming device to the TV and select an appropriate input mode.

HDMI connection

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown on the following illustration.

HDMI OUT DC-IN HDMI/DVI IN OUTPUT PARAMIN DETAILADO OO DUT IS-26.2 N (CONTRO, 4 SUBVCS) USB IN PC USB IN COMPONENT N I L T ADD AV CABLE N ACDENA1 CABLE N

HDMI OUT 3D TV DC-IN HDMI/DVI IN 1 2 OPT.OL DIGITAL AUDIO OUT RIS.22.CN CONTROL & SERVICE RGB INFO USB IN COMPONENT N Y F2 P2 L F VIDEO AUDIO AUDIO CASH N

NOTE

• Use a High Speed HDMI™ Cable.
- High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

DVI to HDMI connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an optional audio cable.

DVI OUT AUDIO OUT TV DC-IN HDMI/DVI IN AUDIO R/WIN OPTICAL R/WIN DIGITAL AUDIO USB IN PC U SB IN COMPONENT IN A7 VIXID P- AUDIO ANTENIAL CABLE IP

DVI OUT AUDIO OUT 3D TV DVI-IN 2 HDMI/DVI IN 1 AUDIO IN (0.0000) (0.0000) USB IN COMPONENT IN A B C VDD P2 I R AUDIO SABLE

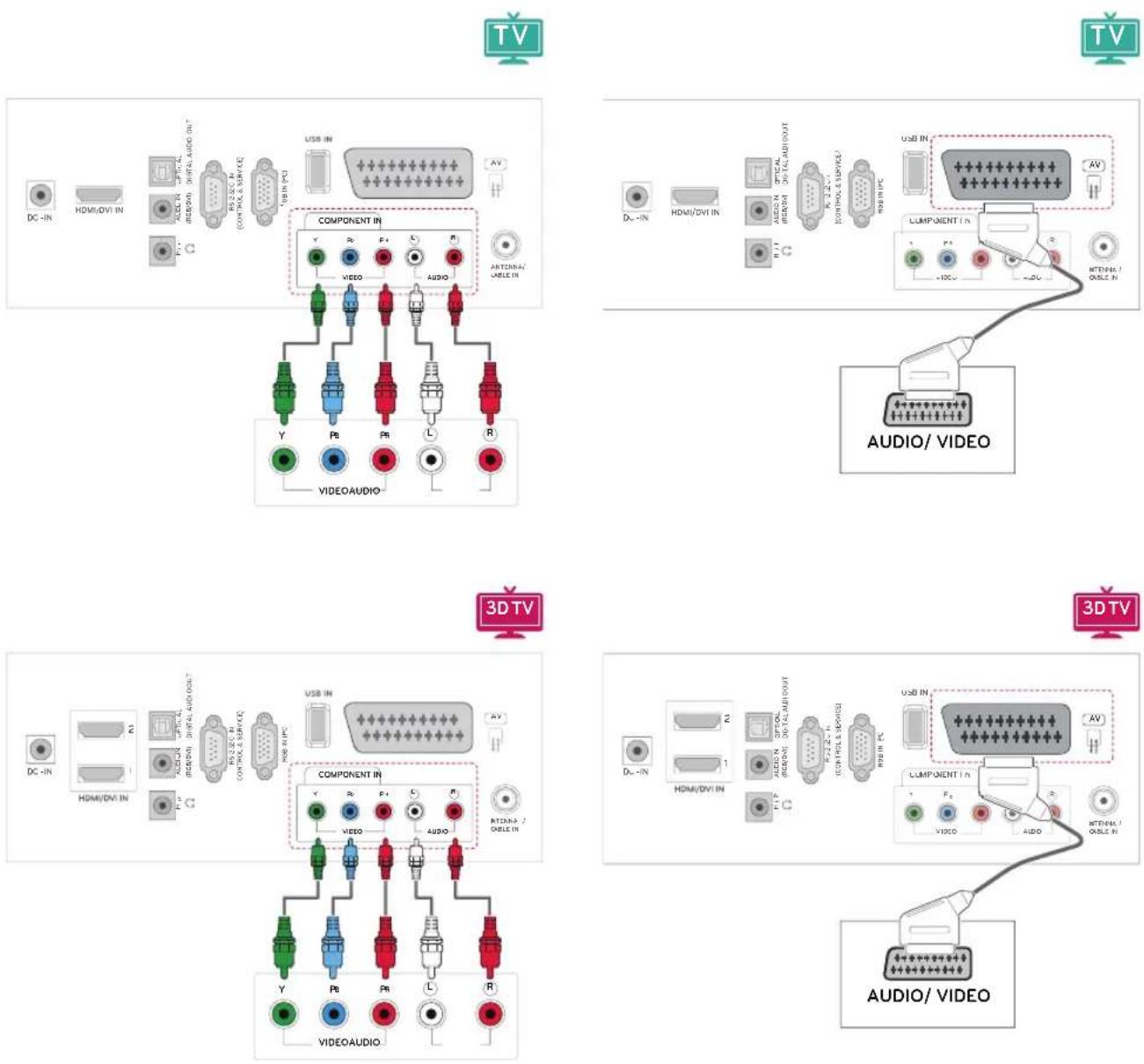

Component connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the component cable as shown on the following illustration. To display images by using progressive scan, make sure to use the component cable.

Euro Scart connection

Transmits the video and audio signals from an external device to the TV. Connect the external device and the TV with the Euro Scart cable as shown on the following illustration. To display images by using progressive scan, make sure to use the Euro Scart cable.

Connecting to an audio system

Use an optional external audio system instead of the built-in speaker.

NOTE

- If you use an external audio device instead of the built-in speaker, set the TV speaker feature to off (See p.63).

Digital optical audio connection

Transmits the digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown on the following illustration

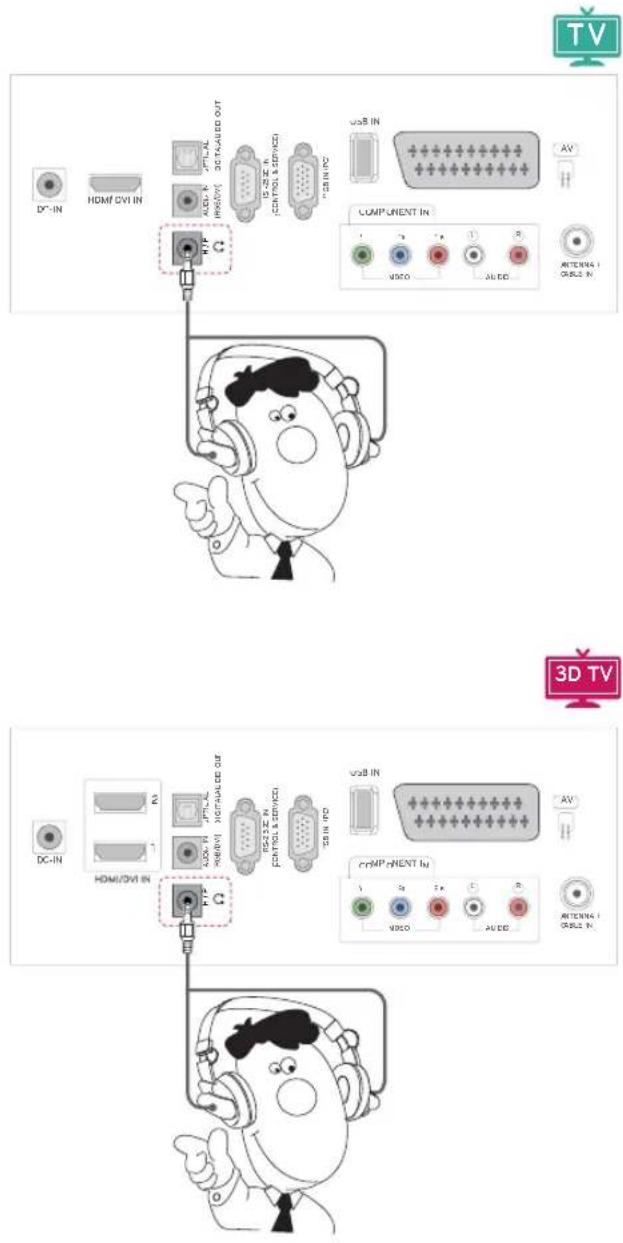

Headphone connection

Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown on the following illustration.

TV DC-IN HDMI GV IN AUDIO 3D RATED OUT INVOICE 15.25" N CONTROL & SERVICE USB IN PC USB IN AV COMPONENT IN VIDEO AUDIO ANTenna CABLE IN 3D TV DC-IN HDMI GV IN AUDIO 3D RATED OUT INVOICE 15.25" N CONTROL & SERVICE USB IN PC USB IN AV CYMP NEXT IN VIDEO AUDIO ANTenna CABLE IN

Connecting to a USB

Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB memory card reader to the TV and access the USB menu to use various multimedia files.

"Connecting USB storage devices" on See p.44 and "Browsing files" on See p.46

DC-IN HDMI/DVI IN AUDIO IN AUDIO/AVI P/F C USB IN USB IN COMPONENT IN VIDEO AUDIO TV

DC-IN HDMI/DVI IN 2 1 A:000 IN (4000) P:0 C USB IN USB IN OR 3D TV +OMponent Iu V F U V V V V V V V V V V V V

TELETEXT

- This feature is not available in all countries. Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. TOP and FASTEXT are more modern methods allowing quick and easy selection of teletext information.

TV 123 4 5 6 789 LIST 0 Q.WEY MARK FAV RATIO P MUTE MENU GUIDE Q MENU OK INFO EXIT INPUT T.OPT SUBTITLE 3D TV 123 4 5 6 789 LIST 0 Q.WEY MARK FAV 3D P MUTE 3D SETTING MENU GUIDE Q MENU OK INFO EXIT INPUT T.OPT SUBTITLE

Switch On/Off

Press the TEXT button to switch to teletext. The initial page or last page appears on the screen. Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number indicates your selection, while the second shows the current page displayed. Press the TEXT or EXIT button to switch off teletext. The previous mode reappears.

Simple Text

Page selection

1 Enter the desired page number as a three-digit number with the Number buttons. If during selection you press a wrong number, you must complete the three-digit number and then re-enter the correct page number.
2 The P ∧ or ∨ button can be used to select the previous or next page.

Top Text

The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field denotes the next group and the blue field indicates the next block.

Block / Group / Page Selection

1 With the Blue button you can progress from block to block.
2 Use the Yellow button to proceed to the next group with automatic overflow to the next block.
3 With the Green button you can proceed to the next existing page with automatic overflow to the next group. Alternatively, the P ∧ button can be used.
4 The Red button permits you to return to previous selection. Alternatively, the P ∧ button can be used.

Direct Page Selection

As with SIMPLE teletext mode, you can select a page by entering it as a three digit number using the Number buttons in TOP mode.

Fastext

The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corresponding coloured button.

Page selection

1 Press the T.OPT button and then use the Navigation button to select E1 menu. Display the index page.
2 You can select the pages which are colour coded along the bottom line with corresponding coloured buttons.
3 AS with SIMPLE teletext mode, you can select a page by entering its three digit page number with the NUMBER buttons in Fastext mode.
4 The P^ or v button can be used to select the preceding or following page.

Special Teletext Function

Text Option

Index

Time

Hold

Reveal

Update

Close

Index

Select the each index page.

Etime

When viewing a TV programme, select this menu to display the time at the top right hand corner of the screen.

In the teletext mode, press this button to select a sub page number. The sub page number is displayed at the bottom of the screen. To hold or change the sub page, press the Red buttons / Green buttons, < > or Number buttons.

Hold

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages.

The number of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this menu is selected the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change is inactive.

Reveal

Select this menu to display concealed information, such as solutions to riddles or puzzles.

Update

Displays the TV picture on the screen while waiting for a new teletext page. The display will appear at the top left hand corner of the screen. When the updated page is available then display will change to the page number. Select this menu again to view the updated teletext page.

DIGITAL TELETEXT (ONLY DTV)

• This function works in UK, Ireland only.

The TV gives you access to digital teletext which is greatly improved in various aspects such as text, graphics etc. This digital teletext can access special digital teletext services and specific services which broadcast digital teletext.

You should select off in the subtitle language menu to display teletext by pressing the SUBTITLE button.

Teletext within digital service

LIVE North London BBC NEWS 24 BBC News News headlines and live events in video. News Multiscreen News Headlines Christmas Comedy Preview Big Read Vote NEWS SPORT WEATHER BBC NEWS 24 15:11 JOGGER S Suspect was te MAIN MENUING STABBING Press TEXT to exit BBC1

1 Press the numeric or P∧ or ∨ button to select a digital service which broadcasts digital teletext.
2 Follow the indications on digital teletext and move onto the next step by pressing TEXT, OK, Navigation button, Red button, Green button, Yellow button, Blue button or Number buttons and etc.
3 To change digital teletext service, select a different service by the numeric or P ∧ or ∨ button.

Teletext in digital service

News 15:13 09 Dec Main Headlines UK World Politics In Depth UK Regions Sci-Tech Health Community JOGGER STABBING Suspect was thereage or it early 20s BBC News 24 Press BLUE to change section GO TO TV SHORTCUTS BACK MENU BBC i

1 Press the numeric or P∧ or ∨ button to select a certain service which broadcasts digital teletext.
2 Press the TEXT or coloured button to switch on teletext.
3 Follow the indications on digital teletext and move onto the next step by pressing OK, Navigation button, Red button, Green button, Yellow button, Blue button or Number buttons and so on.
4 Press the TEXT or colour button to switch off digital teletext and return to TV viewing.

Some services may allow you to access text services by pressing the Red button.

MAINTENANCE

Clean your TV regularly to keep the best performance and to extend the product lifespan.

AUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen and frame

To remove dust, wipe the surface with a dry and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a clean and dry cloth.

AUTION

• Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.
• Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may damage the screen's finish and cause discolorations.

Cabinet and stand

To remove dust, wipe the cabinet with a dry and soft cloth.

To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a small amount of mild detergent.

UTION

• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
• Do not use any chemicals as this may deteriorate the surface.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

General

The operation does not work normally.

Problem Resolution
The remote control doesn’t work	Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote controlEnsure that the batteries are installed with correct polarity(⊕ to ⊕) to ⊖).Ensure that the correct remote operating mode is set: TV, VCR, etc.Install new batteries.
Power is suddenly turned off	Is the sleep timer set?Check the power control settings. Power interrupted.If the TV is switched on and there is no input signal, it will switch off automatically after 15 minutes to save the power consumption.When a broken file was played in the USB mode, the TV may turn off. Please check the file in your usb storage.Except the screen off mode of the energy saving menu.

The video function does not work.

Problem Resolution
No picture & No sound	Check whether the product is turned on.Try another channel. The problem may be with the broadcast.Is the power cord inserted into wall power outlet?Check your antenna direction and/or location.Test the wall power outlet, plug another product's power cord into the outlet where the product's power cord was plugged in.
Picture appears slowly after switching on	This is normal, the image is muted during the product startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No Colour, poor colour, or poor picture	Adjust Colour in menu option.Keep a sufficient distance between the product and the VCR.Try another channel. The problem may be with the broadcast.Are the video cables installed properly?Activate any function to restore the brightness of the picture.
Horizontal / vertical bars or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable product experiencing problems, tune to another station.Station signal is weak, reorient antenna to receive weaker station.Check for sources of possible interference.
Lines or streaks in pictures	Check antenna (Change the direction of the antenna).
No picture when connecting HDMI	• Check that your HDMI cable is High Speed HDMI Cable.If the HDMI cables are not High Speed HDMI Cable, flickering or no screen display can result. Please use the High Speed HDMI Cable.

The audio function does not work.

Problem Resolution
Picture OK & No sound	Press the (+, -) button or VOL (◀, ▶) button.Sound muted? Press MUTE button.Try another channel. The problem may be with the broadcast.Are the audio cables installed properly?
No output from one of the speakers	Adjust Balance in menu option.
Unusual sound from inside the product	A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a problem with the product.
No sound when connecting HDMI or USB	Check HDMI cable is High Speed HDMI Cable.Check USB cable over version 2.0.If the sound is abnormal in the HDMI, check the audio format in your external equipments.» Audio Supported format : Dolby Digital, PCM

There is a problem with PICTURE settings.

Problem Resolution
When the user changes the picture settings, the TV automatically converts back to the initial settings after a certain period of time.	• It means that the TV is currently set toStore Demomode. To switch to Home use mode you should do the followings: From the TV Menu, chooseOPTION→ ChooseMode Setting→ Choose Home use. Now, you have completed switching to the Home use mode.

PC mode

No image is displayed.

Problem Resolution
Power is on, power indicator is blue but the screen appears extremely dark.	Adjust brightness and contrast again.
Does the ‘Invalid format’ message appear?	The signal from the PC (Video card) is out of the vertical or horizontal frequency range of the product. Adjust the frequency range by referring to the Specifications in this user’s guide.
Does the ‘Check signal cable’ message appear?	The signal cable between PC and product is not connected. Check the signal cable.Press the ‘INPUT’ button in the remote control to check the input signal.

'Unknown Product' message appears when the product is connected.

Problem Resolution
Did you install the driver?	• Install the product driver, which is provided with the product, or download it from the web site. (http://www.lg.com)• See if the plug & play function is supported by referring to the video card user's guide.

After-image appears on the product.

Problem Resolution
After-image appears when the product is turned off.	• If you use a fixed image for a long time, the pixels may be damaged quickly. Use the screen saver function.

Screen Colour is abnormal.

Problem Resolution
Screen has poor Colour resolution (16_Colours).	• Set screen Colour resolution to more than 24 bits (true Colour) Select control Pane → Display → Settings → Colour Table menu in Windows.
Screen Colour is unstable or mono Colour.	• Check the connection status of the signal cable.
Do back spots appear on the screen?	• Several pixels (red, green, white or black Colour) may appear on the screen, which can be attributable to the unique characteristics of the LCD panel. It is not a malfunction of the LCD.

The screen image looks abnormal.

Problem Resolution
Is the screen position wrong?	Adjust the Position menu in OSD. From the TV Menu, Choose PICTURE → Choose Screen → Adjusts Position.A See if the video card resolution and frequency are supported by the product. If the frequency is out of range, set to the recommended resolution in the Control Panel → Display → Setting menu.
Do thin lines appear on the background screen?	Adjust the Size menu in OSD. From the TV Menu, Choose PICTURE → Choose Screen → Adjusts Size.
Horizontal noise appears or the characters look blurred.	Adjust the Phase menu in OSD. From the TV Menu, Choose PICTURE → Choose Screen → Adjusts Phase.

TROUBLESHOOTING WHEN USING 3D MODE

I can see a swirling oil-like pattern on the TV when the TV is turned off.

This is caused by the interference of external light in the air layer between the LCD surface and 3D filter.The pattern becomes almost invisible when you turn on the power again.

I cannot see 3D image properly

Problem Resolution
If you are not using the glasses provided with the TV.	When you view 3D images with this TV, it is very important that you use the glasses provided with the TV. The glasses are designed to compensate optically for the 3D filter attached to the surface of the TV. If you wear third-party glasses, you may not see 3D images properly on the TV.
If you view 3D images outside the optimal viewing angle or distance.	The optimal viewing angle of this TV is between 12^ degrees; the optimal viewing distance is between 50 cm to 90 cm from the TV. When you view 3D images outside the optimal viewing angle or viewing distance, the images may look overlapped or not be displayed properly in 3D.

Notes for Viewing 3D Image with 3D Digital Brodcating

*In Analogue Brodcating, 3D Imaging does not work.

Problem Resolution
When switching the 2D image display to the 3D image display with the 3D button on the remote control, the overlapped image may be displayed.	Disable the 3D imaging mode with the 3D button.The 3D imaging mode is disabled automatically if you change the channel.
If the screen is divided into left/right or top/bottom when you change the channel	This channel supports the 3D imaging mode. Select the 3D imaging type displayed on the screen by pressing the 3D button on the remote control.
If your eyes are sore or the screen looks blurry while viewing 3D images.	Select Left/Right or Right/Left option, which you find better for viewing 3D images.

SPECIFICATIONS

M1950D

LCD Panel Screen Type 470.1 mm Wide (18.51 inch) TFT (Thin Film Transistor)LCD (Liquid Crystal Display) Panel.Visible diagonal size : 470.1 mm
Video Signal Max. Resolution 1360 x 768 @ 60 Hz
Input Connector TV, D-Sub Analog, SCART,PC Audio In, Component,HDMI
Power Rated Voltage 19 V 2.0 A	---
	Power Consumption	On Mode : 30 W (typ.)Off Mode ≤ 0.5 W
AC/DC Adapter		Manufacturer: LITE-ON, Model PA-1650-68
Tilt	Tilt Range	-5° to 10°
Dimensions (Width x Height x Depth)Weight		443.9 mm x 365 mm x 164 mm2.96 kg
Environmental conditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

M2250D

LCD Panel Screen Type 546.86 mm Wide (21.53 inch) TFT (Thin Film Transistor)LCD (Liquid Crystal Display) Panel.Visible diagonal size : 546.86 mm
Video Signal Max. Resolution 1920 × 1080 @ 60 Hz
Input Connector TV, D-Sub Analog, SCART, PC Audio In, Component,HDMI
Power Rated Voltage 19 V 2.2 A ---
AC/DC Adapter		Manufacturer: LITE-ON, Model PA-1650-68
Tilt	Tilt Range	-5 to 10°
Dimensions (Width x Height x Depth)Weight		509.1 mm x 404.2 mm x 164 mm3.37 kg
Environmentalconditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

M2350D

LCD Panel Screen Type 584.2 mm Wide (23 inch) TFT (Thin Film Transistor)LCD (Liquid Crystal Display) Panel.Visible diagonal size : 584.2 mm
Video Signal Max. Resolution 1920 × 1080 @ 60 Hz
Input Connector TV, D-Sub Analog, SCART,PC Audio In, Component,HDMI
Power Rated Voltage 19 V 2.4 A---
AC/DC Adapter
Tilt	Tilt Range	-5 to 10°
Dimensions (Width x Height x Depth)Weight		546.7 mm x 423.8 mm x 180 mm3.86 kg
Environmental conditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

DM2350D DM2350A

LCD Panel Screen Type 584.2 mm Wide (23 inch) TFT (Thin Film Transistor)LCD (Liquid Crystal Display) Panel.Visible diagonal size : 584.2 mm
Video Signal Max. Resolution 1920 × 1080 @ 60 Hz
Input Connector TV, D-Sub Analog, SCART,PC Audio In, Component,HDMI*2
Power Rated Voltage 19 V 3.0 A---
AC/DC Adapter		Manufacturer: LITE-ON, Model PA-1650-68
Tilt	Tilt Range	-5 to 18°
Dimensions (Width x Height x Depth)Weight		546.7 mm x 423.8 mm x 180 mm4 kg
Environmental conditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

M2450D

LCD Panel Screen Type 609.7 mm Wide (24 inch) TFT (Thin Film Transistor)LCD (Liquid Crystal Display) Panel.Visible diagonal size : 609.7 mm
Video Signal Max. Resolution 1920 × 1080 @ 60 Hz
Input Connector TV, D-Sub Analog, SCART,PC Audio In, Component,HDMI
Power Rated Voltage 19 V 2.4 A---
AC/DC Adapter
Tilt	Tilt Range	-5° to 10°
Dimensions (Width x Height x Depth)Weight		569.9 mm x 435.8 mm x 180 mm4.43 kg
Environmental conditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

M2550D

LCD Panel Screen Type 634.4 mm Wide (25 inch) TFT (Thin Film Transistor)LCD (Liquid Crystal Display) Panel.Visible diagonal size : 634.4 mm
Video Signal Max. Resolution 1920 × 1080 @ 60 Hz
Input Connector TV, D-Sub Analog, SCART,PC Audio In, Component,HDMI
Power Rated Voltage 19 V 2.8 A---
AC/DC Adapter
Tilt	Tilt Range	-5° to 10°
Dimensions (Width x Height x Depth)Weight		594.9 mm x 451 mm x 180 mm4.85 kg
Environmental conditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

RGB (PC) supported mode

M1950D

Resolution Horizontal Frequency(kHz)			Vertical Frequency(Hz)
640 x 480	31.469	59.940
640 x 480	37.500	75.000
800 x 600	37.879	60.317
800 x 600	46.875	75.000
1024 x 768	48.363	60.004
1024 x 768	60.023	75.029
1280 x 768	47.776	59.870
1280 x 800	49.306	59.910
1360 x 768	47.712	60.015

M2250D M2350D M2450D M2550D

DM2350D DM2350A

Resolution		Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 400	31.468	70.080
640 x 480	31.469	59.940
640 x 480	37.500	75.000
800 x 600	37.879	60.317
800 x 600	46.875	75.000
1024 x 768	48.363	60.004
1024 x 768	60.023	75.029
1152 x 864	67.500	75.000
1280 x 720	45.000	60.000
1280 x 800	49.702	59.810
1280 x 1024	63.981	60.020
1280 x 1024	79.976	75.025
1400 x 1050	65.317	59.978
1440 x 900	55.935	59.887
1600 x 900	60.000	60.000
1680 x 1050	64.674	59.883
1680 x 1050	65.290	59.954
1920 x 1080	67.500	60.000

HDMI (PC) supported mode

M1950D

Resolution		Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 400	31.468	70.080
640 x 480	31.469	59.940
640 x 480	37.500	75.000
800 x 600	37.879	60.317
800 x 600	46.875	75.000
1024 x 768	48.363	60.004
1024 x 768	60.023	75.029
1152 x 864	67.500	75.000
1280 x 960	60.000	60.000
1280 x 1024	63.981	60.020
1280 x 1024	79.976	75.025
1440 x 900	55.935	59.887
1680 x 1050	64.674	59.883
1680 x 1050	65.290	59.954
1920 x 1080	67.500	60.000

M2250D M2350D M2450D M2550D

DM2350D DM2350A

Resolution		Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 400	31.468	70.080
640 x 480	31.469	59.940
640 x 480	37.500	75.000
800 x 600	37.879	60.317
800 x 600	46.875	75.000
1024 x 768	48.363	60.004
1024 x 768	60.023	75.029
1152 x 864	67.500	75.000
1280 x 720	45.000	60.000
1280 x 800	49.702	59.810
1280 x 1024	63.981	60.020
1280 x 1024	79.976	75.025
1400 x 1050	65.317	59.978
1440 x 900	55.935	59.887
1600 x 900	60.000	60.000
1680 x 1050	64.674	59.883
1680 x 1050	65.290	59.954
1920 x 1080	67.500	60.000

HDMI (DTV) supported mode

Resolution		Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 480	31.469	31.500	59.94060.000
720 x 576	31.250	50.000
1280 x 720	37.500	50.000
1280 x 720	44.960	45.000	59.94060.000
1920 x 1080	33.720	33.750	59.94060.000
1920 x 1080	28.125	50.000
1920 x 1080	27.000	24.000
1920 x 1080	33.750	30.000
1920 x 1080	56.250	50.000
1920 x 1080	67.430	67.500	59.94060.000

Component supported mode

Resolution		Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 480	15.730	59.940
720 x 480	15.750	60.000
720 x 576	15.625	50.000
720 x 480	31.470	59.940
720 x 480	31.500	60.000
720 x 576	31.250	50.000
1280 x 720	44.960	59.940
1280 x 720	45.000	60.000
1280 x 720	37.500	50.000
1920 x 1080	33.720	59.940
1920 x 1080	33.750	60.000
1920 x 1080	28.125	50.000
1920 x 1080	56.250	50.000
1920 x 1080	67.432	59.940
1920 x 1080	67.500	60.000

Component port connecting informatio

Component ports on the TV

Y

P_B

P_R

Video output ports on DVD player	Y	P_B	P_R
	Y B-Y R-Y
	Y Cb Cr
	Y Pb Pr

NOTE

• Avoid keeping a fixed image on the set's screen for prolonged periods of time. The fixed image may become permanently imprinted on the screen. Use a screen saver when possible.
• There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode to another resolution or change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
• The synchronization input waveform for Horizontal and Vertical frequencies are separate.
• Connect the signal cable from the TV output port of the PC to the RGB (PC) port of the TV or the signal cable from the HDMI output port of the PC to the HDMI/DVI IN port on the TV.
• Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included with the TV).
• If using a sound card, adjust PC sound as required.
• If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only one of either RGB or HDMI/DVI IN to display the PC output on the TV.
• If the graphic card on the PC does output analogue and digital RGB simultaneously, TV the TV to either RGB or HDMI. (The other mode is set to Plug and Play automatically by the TV.)
• DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
• If you use too long an RGB-PC cable that is too long, there may be interference on the screen. We recommend using under 5 m of cable. This provides the best picture quality.

3D video input format supported. (Only 3D Model)

	Signal Resolution Horizontal Frequency (kHz)				Vertical Frequency (Hz)	Playable 3D video format
HDMI	720p	12	80 x 720	45	60 Top & Bottom, Side by Side
					89.9	59.94
					90	60
					37.5 50 Top & Bottom, Side by Side
					75 HDMI Frame Packing
	1080i	19	20 x 1080	33.7	5 60 Top & Bottom, Side by Side
					28.125 50
	1080p	19	20 x 1080	67.	50 60 Top & Bottom, Side by Side, Checker Board, Single Frame Sequential
					56.250 50 Top & Bottom, Side by Side, Checker Board, Single Frame Sequential
					27 24 Top & Bottom, Side by Side, Checker Board
					53.95	23.98
					54	24
					33.75 30 Top & Bottom, Side by Side, Checker Board
USB	1080p	19	20 x 1080	33.	75 30 Top & Bottom, Side by Side, Checker Board
RGB	1080p	19	20 x 1080	66.	587 59.93 Top & Bottom, Side by Side
	Signal					Playable 3D video format
DTV	720p, 1080i					Top & Bottom, Side by Side

NOTE

• If HDMI input is received in HDMI 3D format, images are automatically converted into 3D.
• 2D → 3D mode is available to watch for all signals.
• If you change 2D → 3D mode, the left and right edges of the screen are clipped.
• If you select HDMI 3D, 3D mode is automatically enabled, which may cause the delay of screen turning on.
• For some 3D content files, if a 3D file is converted into 2D, the left and right edges of the screen may appear truncated.

IR CODES

• This feature is not available for all models.

Code (Hexa) Function Note
95 Energy Saving ( ) R/C	BUTTON
08	(POWER)	R/C BUTTON (POWER ON/OFF)
50 TV / PC R/C BUTTON
0B INPUT R/C BUTTON
79 RATIO R/C BUTTON
F0 TV/RAD R/C BUTTON
45 Q.MENU R/C BUTTON
43 MENU R/C BUTTON
AB GUIDE R/C BUTTON
40 Up ( )	^ R/C BUTTON
41 Down ( )	R/C BUTTON
07 Left (<) R/C BUTTON
06 Right (>)	R/C BUTTON
44 OK( )	◎ R/C BUTTON
28	BACK(♂)	R/C BUTTON
5B EXIT R/C BUTTON
AA INFO	QR/C BUTTON
02	△(+)	R/C BUTTON
03	△(-)	R/C BUTTON
1E FAV ( MARK )	R/C BUTTON
09 MUTE	R/C BUTTON
00 P ( ) R/C BUTTON	^
01 P ( ) R/C BUTTON	√
10 to 19	Number Key 0 to 9	R/C BUTTON
53 LIST R/C BUTTON
1A Q.VIEW	R/C BUTTON
72 Red Key	R/C BUTTON
71 Green Key	R/C BUTTON
63 Yellow Key	R/C BUTTON
61 Blue Key R/C BUTTON
20 TEXT	R/C BUTTON
21 T.OPT (T.Option)	R/C BUTTON
39 SUBTITLE	R/C BUTTON
99 Auto Config. R/C BUTTON
B1	■	R/C BUTTON
B0	▶	R/C BUTTON
BA	II	R/C BUTTON
8F	◀	R/C BUTTON
8E	▶	R/C BUTTON

Only 3D Model

Code (Hexa) Function Note
DC	3D	R/C BUTTON
45 Q.MENU(3D SETTING)	R/C BUTTON

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally.

Connect the serial port of the control device to the RS-232C jack on the product back panel.

ECONOMICS ECONOMICS ECONOMICS

NOTE

RS-232C on this unit is intended to be used with third party RS-232C control hardware and software. The instructions below are provided to help with programming software or to test functionality using telenet software. RS-232C connection cables are not supplied with the product.

Type of connector; D-Sub 9-Pin Male

Diagram of a 16-pin D-sub connector with numbered pins labeled ① to ⑨

RS-232C IN (CONTROL & SERVICE)

No. Pin name
1	No connection
2	RXD (Receive data)
3	TXD (Transmit data)
4	DTR (DTE side ready)
5	GND
6	DSR (DCE side ready)
7	RTS (Ready to send)
8	CTS (Clear to send)
9	No Connection

RS-232C configurations

7-Wire Configuration

(Serial female-female NULL modem cable)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR

DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

3-Wire Configurations(Not standard)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR

DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

Set ID

Set ID number. "Real Data Mapping" on See p.102

• Image shown may differ from your TV.

OPTION Menu Language : English Audio Language : English Subtitle Language : English Disabled Assistance Data Service : MHEG Country : UK Input Label Set ID : 1 Power Indacator : On Demo Mode : Off Mode Setting : Home Use Factory Reset

1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press OK.
3 Press the Navigation buttons to scroll to Set ID and press OK.
4 Scroll left or right to select a set ID number and select Close. The adjustment range is 1-99.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Communication Parameters

• Baud rate: 9600 bps (UART)
• Data length: 8 bits
- Parity : None
- Stop bit: 1 bit
- Communication code: ASCII code
- Use a crossed (reverse) cable.

Command reference list

	COMMAND1 COMMAND2		DATA (Hexadecimal)
01. Power k a 00 to 01
02. Aspect Ratio x c See p.99
03. Screen Mute k d 00 to 01
04. Volume Mute k e 00 to 01
05. Volume Control k f 00 to 64
06. Contrast k g 00 to 64
07. Brightness k h 00 to 64
08. Colour k i 00 to 64
09. Tint	k j	00 to 64
10. Sharpness	k k	00 to 64
11. OSD Select	k l	00 to 01
12. Remote control lock mode	k m 00 to 01
13. Treble	k r	00 to 64
14. Bass	k s	00 to 64
15. Balance	k t 00 to 64
16. Colour Temperature	x u 00 to 64
17. Energy Saving	j q 00 to 05
18. Auto Configuration	j u	01
19. Tune Command	m a	See p.101
20. Programme Add/Skip	m b 00 to 01
21. Key	m c	Key Code
22. Back Light	m g 00 to 64
23. Input select (Main)	x b	See p.102
24. 3D	x t	See p.103
25. Extended 3D	x v	See p.103

• Note : During USB operations such as Dvix or EMF, all commands except Power(ka) and Key(mc) are not executed and treated as NG.

Transmission / Receiving protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1]: First command to control the TV.(j, k, m or x)

[Command 2] : Second command to control the TV.

[Set ID] : You can adjust the set ID to choose desired TV ID number in option menu. Adjustment range is 1 to 99. When selecting Set ID '0', every connected set is controlled. Set ID is indicated as decimal (1 to 99) on menu and as Hexa decimal (0x0 to 0x63) on transmission/receiving protocol.

* [DATA] : To transmit command data.

Transmit 'FF' data to read status of command.

* [Cr] : Carriage Return

ASCII code '0 x 0D'

* [ ] : ASCII code 'space (0 x 20)'

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors. Data 00: Illegal Code

01. Power (Command: k a)

To control Power On/Off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00: Power Off Data 01: Power On

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

To show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

*Similarly, if other functions transmit '0xFF' data based on this format, Acknowledgement data feed back presents status about each function.

*OK Ack., Error Ack. and other message may display on the screen when TV is power On.

02. Aspect Ratio (Command: k c) (Main Picture Size)

To adjust the screen format. (Main picture format) You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen (4:3)

02: Wide screen (16:9)

04:Zoom

06 : Original

07:14:9

09:Just Scan

0B : Full Wide

10 to 1F : Cinema Zoom 1 to 16

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

* Using the PC input, you select either 16:9 or 4:3 screen aspect ratio.
* In DTV/HDMI (1080i 50 Hz / 60 Hz, 720p 50 Hz / 60 Hz, 1080p 24 Hz / 30 Hz / 50 Hz / 60 Hz), Component(720p, 1080i, 1080p 50 Hz / 60 Hz) mode, Just Scan is available.
* Full Wide is supported only for Analogue, AV.

03. Screen Mute (Command: k d)

To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on) Video mute off

01: Screen mute on (Picture off)

10: Video mute on

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

04. Volume Mute (Command: k e)

To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

To adjust volume.

You can also adjust volume with the VOLUME buttons on remote control.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping'. See p.102

Acknowledgement

[f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min: 00 to Max: 64

* Refer to 'Real data mapping'. See p.102

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

To adjust screen brightness. You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to 'Real data mapping'. See p.102

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

08. Colour (Command: k i)

To adjust the screen colour. (Except PC mode) You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to 'Real data mapping'. See p.102

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

To adjust the screen tint. (Except PC mode) You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to 'Real data mapping'. See p.102

Acknowledgement [j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

To adjust the screen sharpness. You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to 'Real data mapping'. See p.102

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

To select OSD (On Screen Display) on/off when controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Acknowledgement [I][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

To lock the front panel controls on the TV and remote control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00: Lock off 01: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this mode. When main power is on/off, external control lock is released.
* Local Power Key will work properly.

13. Treble (Command: k r)

To adjust treble.
You can also adjust treble in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to 'Real data mapping'. See p.102

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

To adjust bass.
You can also adjust bass in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to 'Real data mapping'. See p.102

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

15. Balance (Command: k t)

To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping'. See p.102

Acknowledgement

[t][ ][Set ID][ ][OK/NG][Data][x]

18. Auto Configure(Command: j u)

To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

16. Colour Temperature (Command: x u)

To adjust colour temperature. You can also adjust Colour.

Temperature in the PICTURE menu.

Transmission

[x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to 'Real data mapping'. See p.102

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

17. Energy Saving (Command: j q)

To reduce the power consumption of the TV. You can also adjust Energy Saving in OPTION menu.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Power Saving Function								Level				Description
7	6	5	4	3	2	1	0
0	0	0	0	Low Power			0	0		0	Off
0	0	0	0	Low Power			0	0		1	Minimum
0	0	0	0	Low Power			0	1		0	Medium
0	0	0	0	Low Power			0	1		1	Maximum
0	0	0	0	Low Power			0	1		1	Screen Off

Acknowledgement

[q][ ][Set ID][ ][OK/NG][Data][x]

19. Tune Command (Command: m a)

Select channel to following physical number.

Transmission

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ] [Data2][Cr]

Data00 : High channel data

Data01: Low channel data

ex. No. 47 -> 00 2F (2FH)

No. 394 -> 01 8A (18AH),

DTV No. 0 -> Don't care

Analogue - Min: 00 to Max: 63 (0 to 99)

Digital - Min: 00 to Max: 3E7 (0 to 999)

(Except For Sweden, Finland, Norway, Denmark, Ireland)

Digital - Min: 00 to Max: 270F (0 to 9999)

(Only Sweden, Finland, Norway, Denmark, Ireland)

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

Data Min: 00 to Max: 7DH

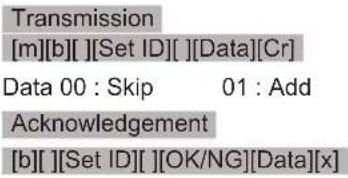

20. Programme Add/Skip (Command: m b)

To set skip status for the current Programme.

Transmission [m][b][ ][Set ID][ ][Data][Cr] Data 00 : Skip 01 : Add Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

Real data mapping

To Control the back light.

Data : data Min: 00 to Max: 64

23. Input select (Command: x b) (Main Picture Input)

To select input source for main picture.

Data Structure Data 00: DTV 40: Component 10: Analogue 60: RGB 20: AV 90: HDMI

24. 3D(Command: x t) (only 3D model)

To change 3D mode for TV.

Transmission

[x][t][ ][Set ID][ ][Data01][ ][Data02][ ][Data03][ ]

[Data04][Cr]

Data01

00:3D On

01:3D Off

02:3D to 2D

03:2D to 3D

Data02

00: Top and Bottom

01:Side by Side

02: Check Board

03 : Frame Sequential

Data03

00: Right to Left

01: Left to Right

Data04

3D Depth : Min: 0 to Max: 14

* Refer to 'Real data mapping'. See p.102

*If data1 is 00(3D On), data4 has no meaning.

*If data1 is 01(3D Off) or 02(3D to 2D), data2, data3 and data4 have no meaning.

*If data1 is 03(2D to 3D), data2 and data3 have no meaning.

Data1 Data2 Data3 Data4
00 O	O X
01 X	X X
02 X	X X
03 X	X O

X : don't care

Acknowledgement

[t][ ][OK][Data01][Data02][Data03][Data04][x]

[t][ ][NG][Data01][x]

25. Extended 3D(Command: x v) (only 3D model)

To change 3D mode for TV.

Transmission

[x][v][ ][Set ID][ ][Data01][ ] [Data02][Cr]

Data01 : 3D option

00:3D Picture Correction

01:3D Depth (2D to 3D Only)

02:3D Viewpoint

Data02 It has own range for each 3D option determined by Data01.

1) When Data01 is 00

00 : Right to Left

01 : Left to Right

2) When Data01 is 01

Data Min: 0 to Max: 14

3) When Data01 is 02

Data Min: 0 to Max: 14

Data Min: 0 to Max: 06

* Refer to 'Real data mapping'. See p.102

Acknowledgement

[v][ ][OK][Data01][Data02][x][v][ ][NG] [Data01][x]

UK Only

When does switchover happen?

Capeland switches on October 17, 2007 The exact date you switch depends on the transmitter you are served by. To check when you switch, go to Digital UK's postcode checker on www.digitaluk.co.uk Check your ITV news service or look at Teletext page 106 to see what TV region you're in.

Visit us at digitaluk.co.uk call us on 0845 6 50 50 50 ^+

*Calls charged at BT rate of 3p per minute daytime and 10 per minute evenings and weekends. Rates may vary for calls from non-BT lines.

Keep this important information about how to re-tune your TV during the digital TV switchover

Keep this leaflet and your instruction manual safe – you'll need them

3D cartoon robot figure with large round eyes and a small number on the body (no text or symbols)

get set for digital √

Television in the UK is going digital, bringing us all more choice and new services. Starting in late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

Please see overleaf to find out when your area switches to digital. Digital UK is the independent, non-profit organisation leading the process of digital TV switchover in the UK. Digital UK provides impartial information on what people need to do to prepare for the move to digital, and when they need to do it.

How the switchover affects your TV equipment:

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply plugging it into your aerial socket (check if you can get digital TV through your aerial now, or whether you'll have to wait until switchover, at www.digitaluk.co.uk).

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels, and also to pick up new ones. Digital UK, the body leading the digital TV switchover, will advise you when you need to re-tune during the switchover.

If you choose to connect your TV to satellite or cable with a digital box then it will not be affected by switchover, and you won't need to re-tune.

How to re-tune:

To find out how to re-tune your TV, check your manufacturer's instructions for details. Or see below for a typical sequence:

1. With your TV in digital TV mode, press 'Menu' on your remote control. (Some TVs will ask you for a code. If you have not already changed it, the default code is usually 0000, or check your instruction book.)

2. From the Menu options on screen, select 'SETUP'. Select 'Auto Tuning' to re-tune your digital TV (not 'add channels'). You may have to wait a couple of minutes for the re-tune to complete.

*Also sometimes referred to as 'Update', 'Rescan', 'Replace', 'Auto-Tuning', 'Channel Search', 'First Time Install', or 'Store Channels'.

1. If you do not re-tune your channels when advised to do so by Digital UK, you may lose some or all of your channels until you do re-tune. You should re-tune your TV every few months to check for any new channels.

If you are missing any channels, it may be that they are not available in your area, or that your aerial needs upgrading.

If you have any questions, please contact your equipment supplier or call Digital UK on 0845 6 50 50 50 or visit www.digitaluk.co.uk

LG

Life's Good

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the TV is located on the back and one side of the TV.

Record it below should you ever need service.

MODEL

SERIAL
