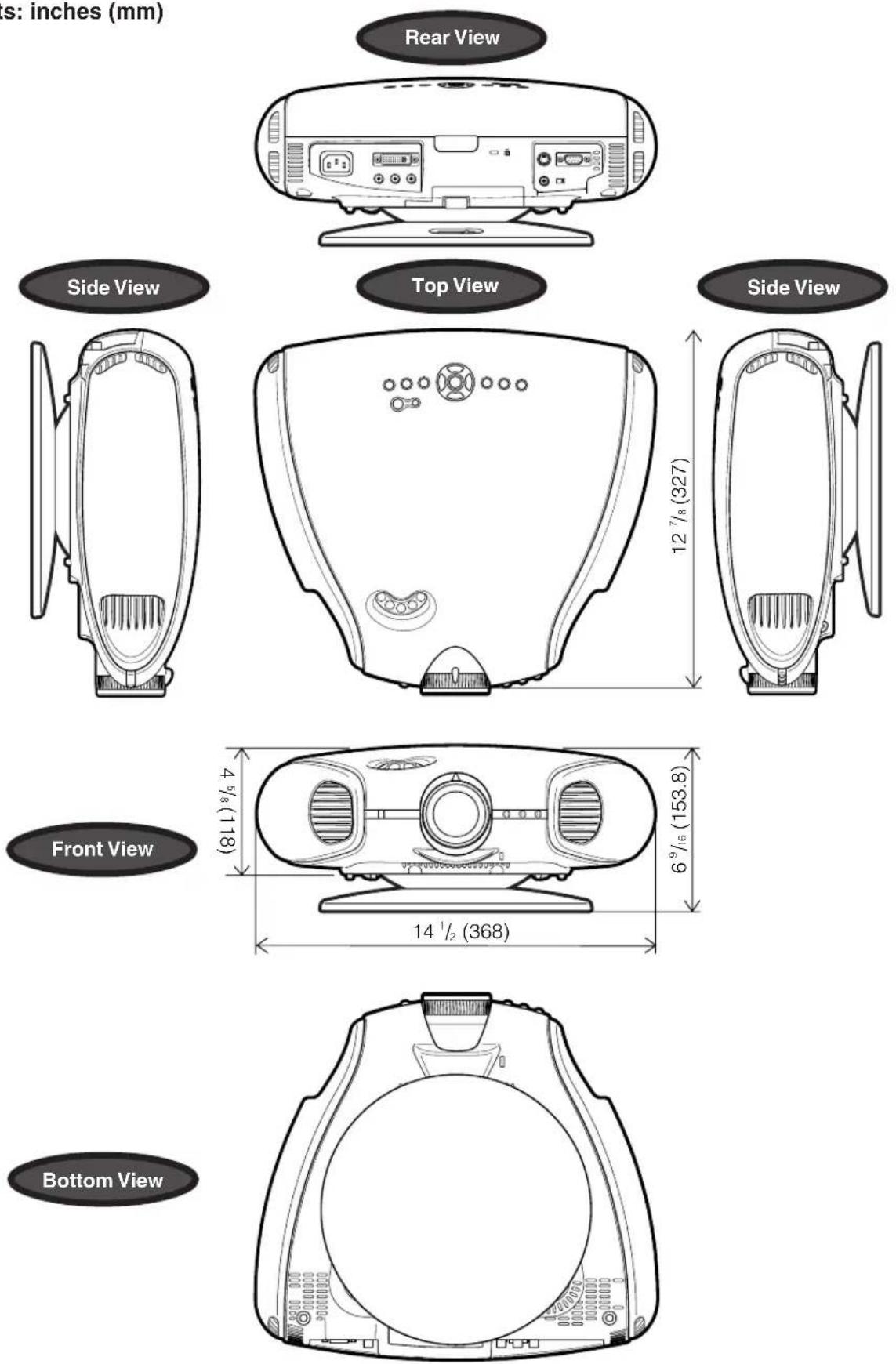

| Dimensions (with Swivel Stand) | 14.5" (W) x 6.9" (H) x 12.9" (D) / 368 x 153.8 x 327 mm |
| Weight (with Swivel Stand) | 10.1 lbs / 4.6 kg |
| Power Requirements | AC 100-240 V, 50/60 Hz, 3.2 A, 285 W (max) |
| Operating Temperature | 41°F to 95°F (+5°C to +35°C) |
| Warranty | 1 year parts and labor (lamp 90 days) |
| Supplied Accessories | Remote control with batteries, power cord, video cable, lens cap, operation manual |
| Spare Parts Available | Lamp unit (BQC-XVZ200++1), remote control (RRMCGA218WJSA), power cord, lens cap |
Frequently Asked Questions - DT-300 SHARP
User questions about DT-300 SHARP
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Video projector in PDF format for free! Find your manual DT-300 - SHARP and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DT-300 by SHARP.
USER MANUAL DT-300 SHARP
FRANÇAIS ..... -70 F
ESPAÑOL ..... ES- -69ES
PORTUGUÊS ..... -P- -69 P


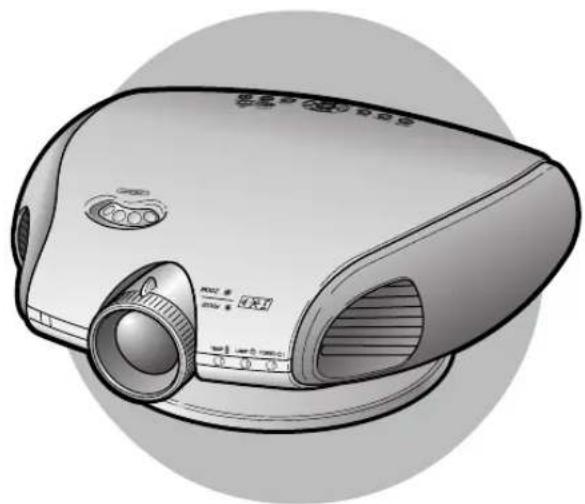

Illustration of a projector device with lens and control buttons (no text or symbols)Before using the projector, please read this operation manual carefully.
Introduction
ENGLISH
IMPORTANT
For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please be sure that you have checked the contents of the carton thoroughly against the list of "Supplied accessories" on page 12.
Model No.: DT-300
Serial No.:
There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT "LIMITED WARRANTY" CLAUSE. U.S.A. ONLY
WARNING:
High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.
The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING:
FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.
PRODUCT DISPOSAL
This product utilizes tin-lead solder, and high intensity discharge lamp (HID lamp) containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
U.S.A. ONLY
Declaration of Conformity
SHARP PROJECTOR, MODEL DT-300
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Responsible Party:
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430
TEL: 1-800-BE-SHARP (1-800-237-4277)
U.S.A. ONLY
WARNING:
The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. During normal operation, when putting the projector into the standby mode always use the STANDBY button on the projector or on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.
Caution Concerning the Lamp Replacement
There is potential glass particles hazard if the lamp ruptures.
LAMP REPLACEMENT CAUTION
BEFORE REMOVING THE SCREW, DISCONNECT POWER CORD. HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL BEFORE REPLACING THE LAMP. REPLACE WITH SAME SHARP LAMP UNIT TYPE BQC-XVZ200++1 ONLY. UV RADIATION: CAN CAUSE EYE DAMAGE. TURN OFF LAMP BEFORE SERVICING. HIGH PRESSURE LAMP: RISK OF EXPLOSION. POTENTIAL HAZARD OF GLASS. PARTICLES IF LAMP HAS RUPTURED. HANDLE WITH CARE. SEE OPERATION MANUAL.
PRECAUTIONS A OBSERVER LORS DU REMPLACEMENT DE LA LAMPE.
DEBRANCHER LE CORDON D'ALIMENTATION AVANT DE RETIRER LES VIS. L'INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD. ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE. NE REMPLACER QUE PAR UNE LAMPE SHARP DE TYPE BQC-XVZ200++1. RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES YEUX. ETEINDRE LA LAMPE AVANT DE PROCEDER A L'ENTRETIEN. LAMPE A HAUTE PRESSION : RISQUE D'EXPLOSION. DANGER POTENTIEL DE PARTICULES DE VERRE EN CAS D'ECLATEMENT DE LA LAMPE. A MANIPULER AVEC PRECAUTION, SE REPORTER AU MODE D'EMPLOI.
WARNING:
Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.
Contents
Introduction
Contents.... 3
IMPORTANT SAFEGUARDS 4
Quick Guide 7
Part Names 8

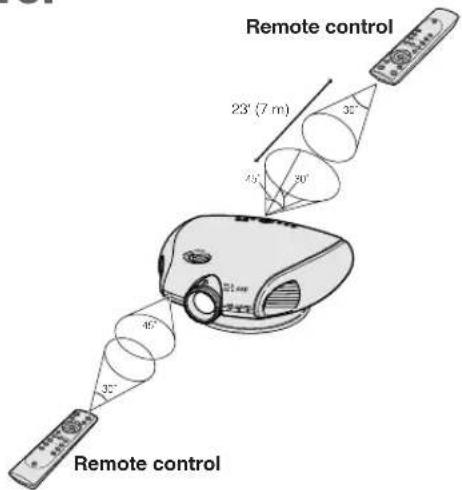

Operating the Remote Control 11
Accessories 12
Connections & Setup
Connecting the Projector to Other Devices ... 14
Connecting the Power Cord 14
Connecting to Video Equipment.... 15

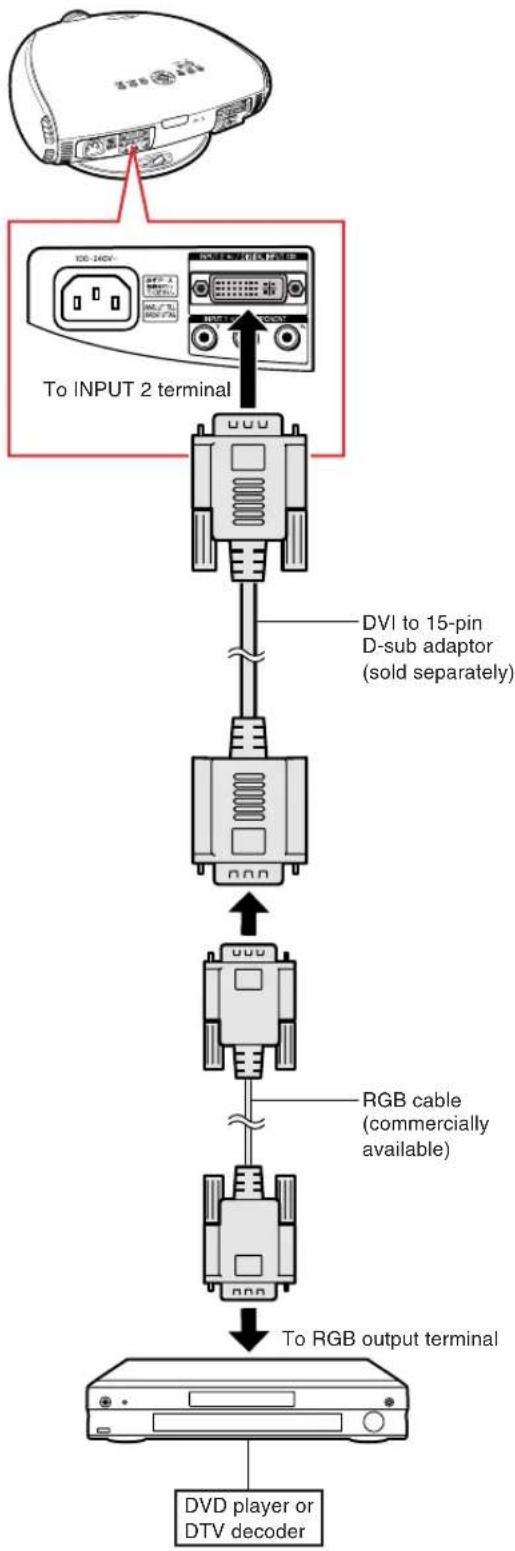

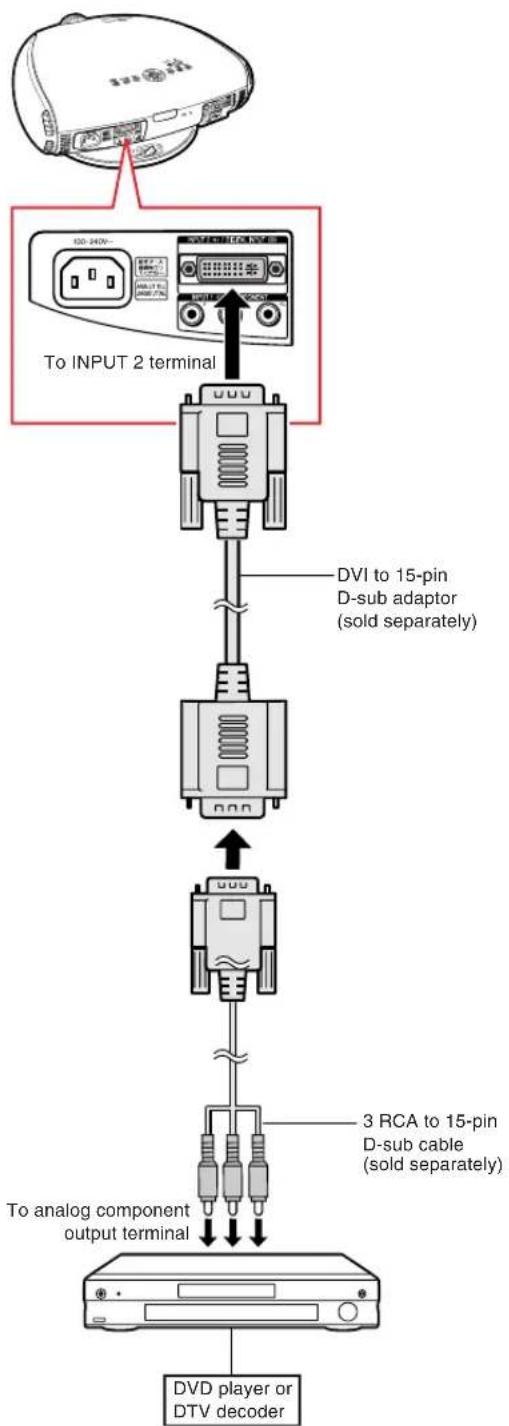

Connecting to a DVD Player and DTV Decoder ..... 17
Connecting to a Computer 21
Setup 23
Using the Swivel Stand 23
Removing the Swivel Stand 24
Attaching the Swivel Stand 24
Focusing and Zooming 25

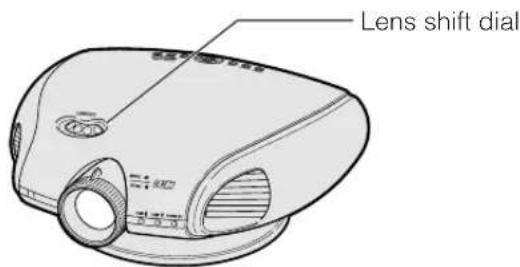

Using the Lens Shift 25

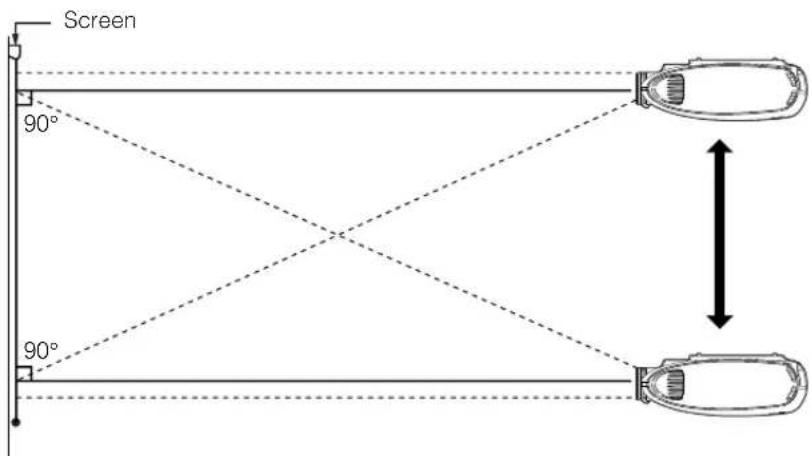

Adjusting the Projection Distance 26
Image Projection....28
Basic Operation
Image Projection 30

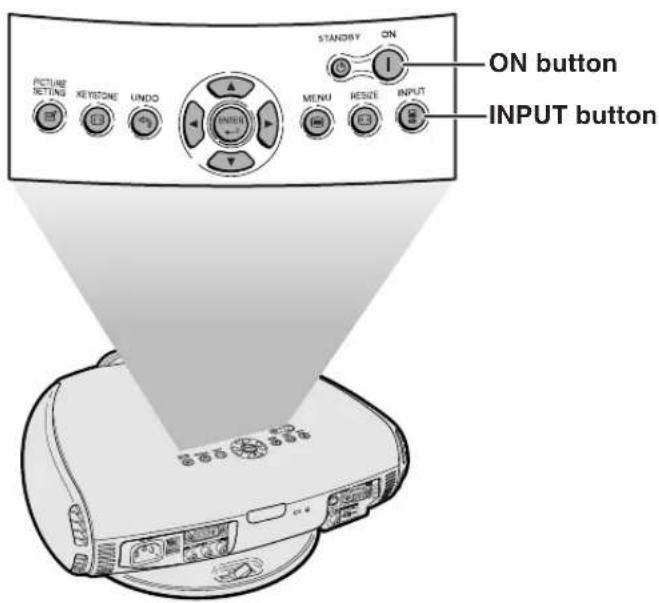

Basic Procedure 30

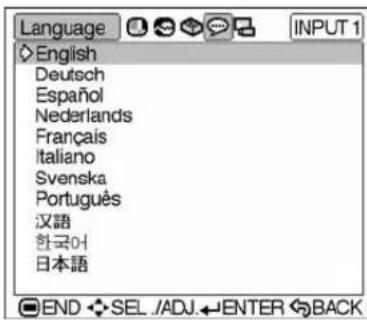

Selecting the On-screen Display Language .....31

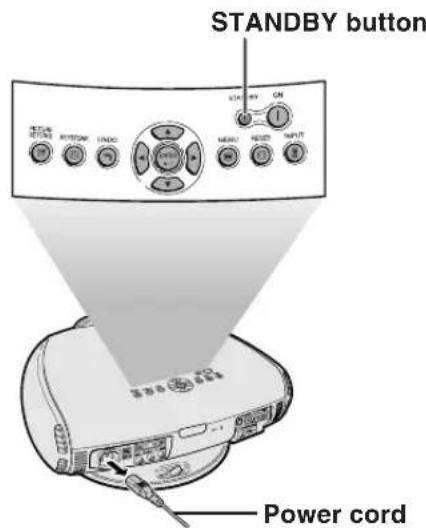

Turning the Power off 32
Keystone Correction 33
Placement of the Projected Image Using the Keystone Correction ....34
Freezing a Moving Image 35

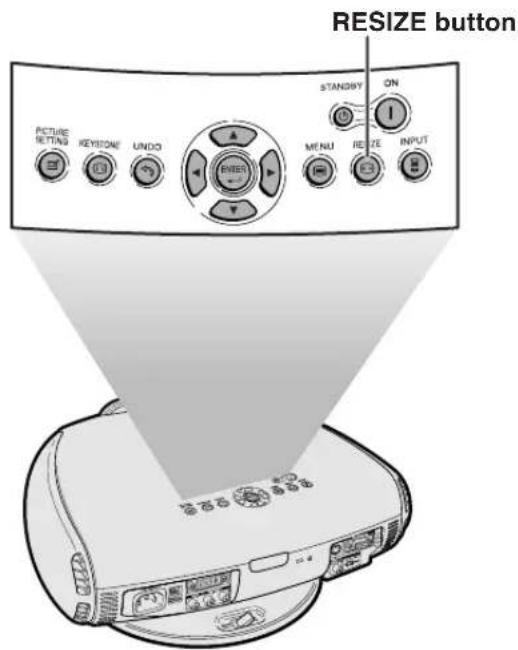

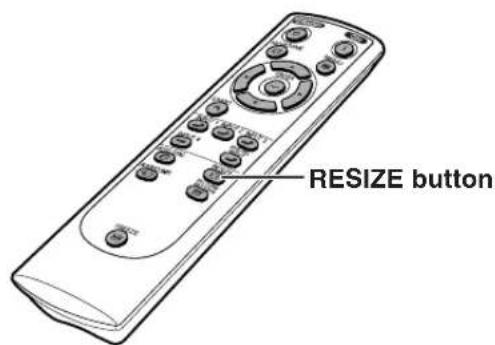

Adjusting the Picture Aspect Ratio 35
Adjustments and Settings
Using the Menu Screen 38
Menu Selections (Adjustment) 38
Menu Selections (Settings) 40

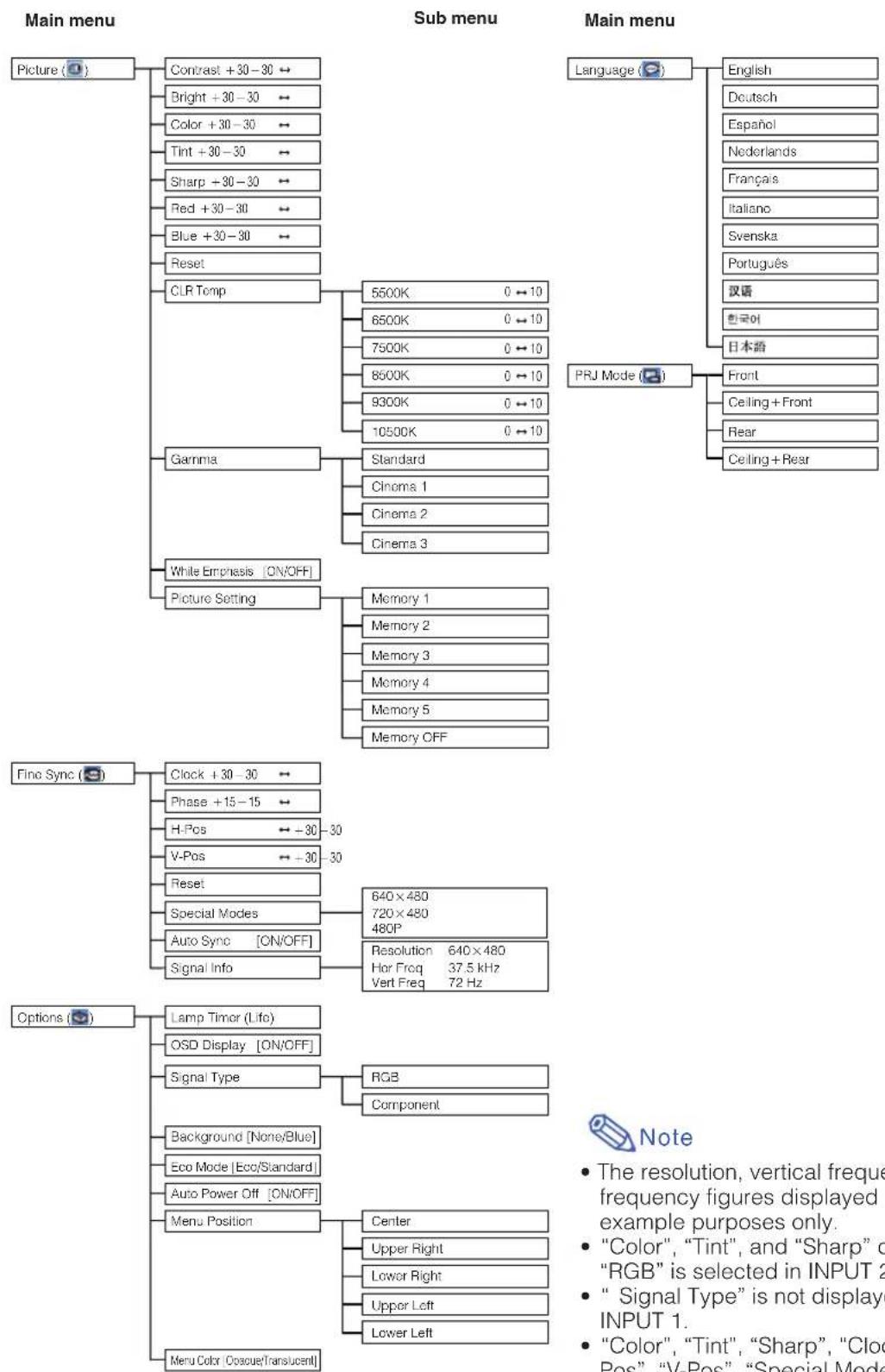

Menu Bar Items 42

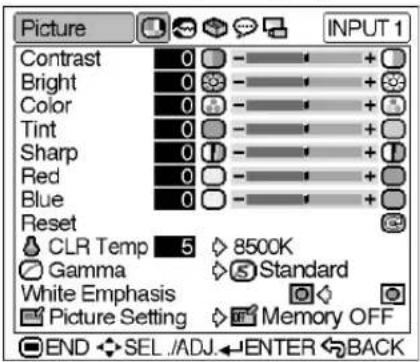

Adjusting the Picture 44
Adjusting Image Preferences 44
Adjusting the Color Temperature 45
Gamma Correction Function 46
Emphasizing the Contrast 46
Picture Setting Function....47
Adjusting the Computer and
DVD/DTV Images 48
When Auto Sync is OFF 48

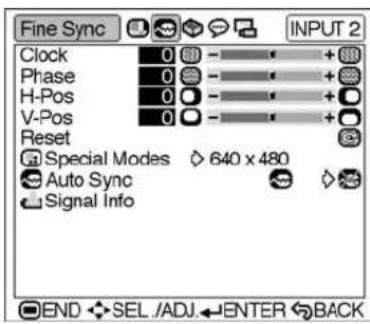

Special Modes Adjustment 49
Auto Sync Adjustment ....50
Checking the Input Signal 50

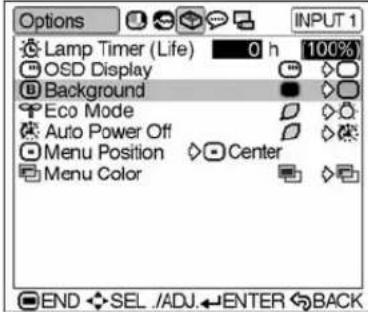

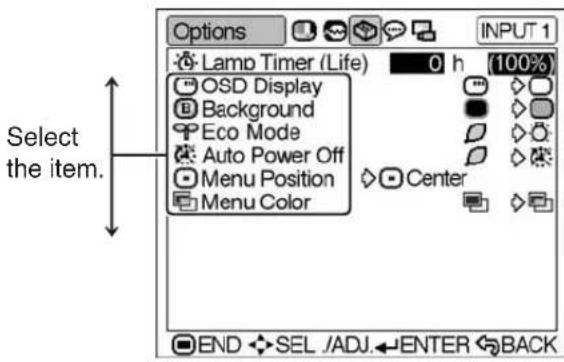

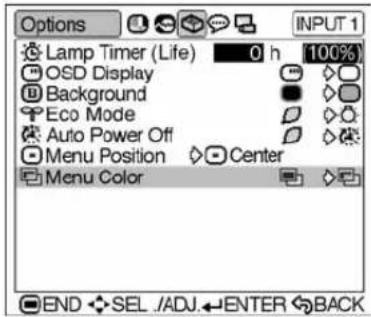

Using the "Options" Menu 51
Checking the Lamp Life Status 51
Turning on/off the On-screen Display 51
Selecting the Signal Type 52
Setting the Video Signal (VIDEO menu only)......52
Selecting a Background Image 53
Setting the Eco Mode ....53
Automatic Power Shut-off Function 54
Selecting the Menu Screen Position ....54
Selecting the Menu Color 55

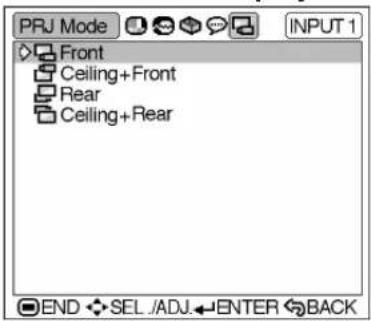

Reversing/Inverting Projected Images .... 56
Appendix
Maintenance Indicators 58
Regarding the Lamp 59
Lamp 59
Caution Concerning the Lamp 59

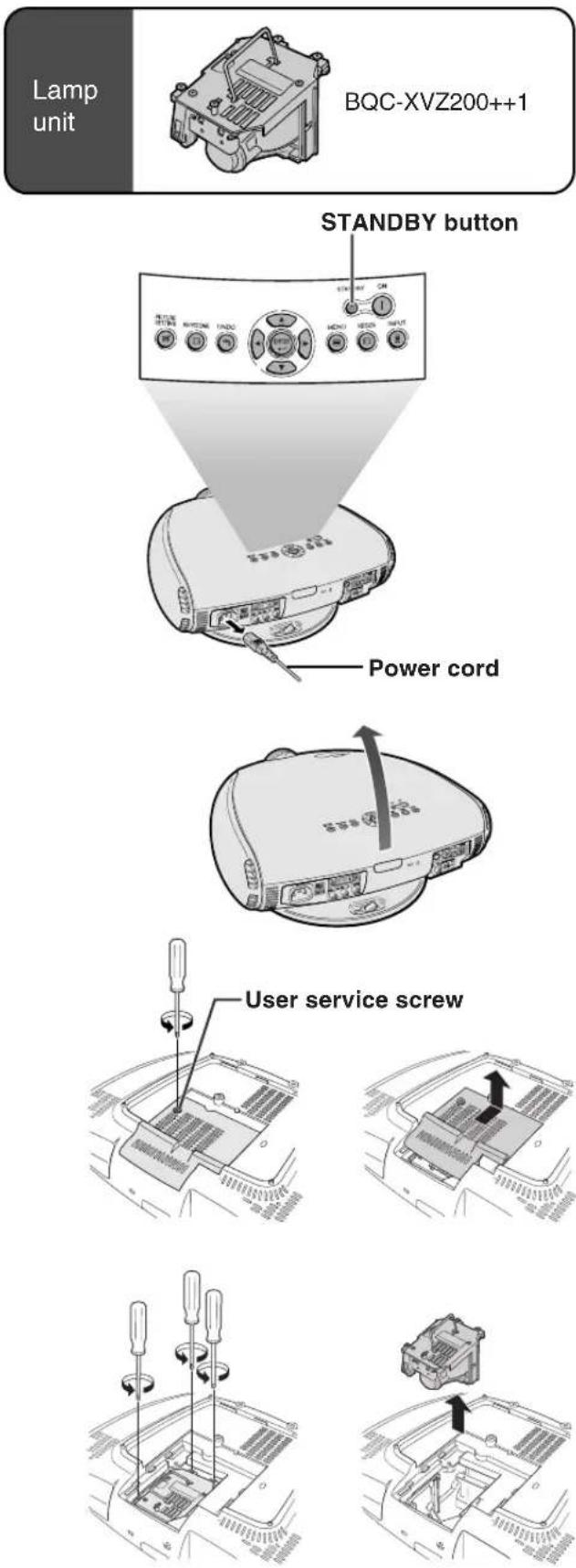

Replacing the Lamp 59
Removing and Installing the Lamp Unit 60
Resetting the Lamp Timer 61
Cleaning the Ventilative Holes 62
Using the Kensington Lock.... 63
Troubleshooting 63
Service Information (For the U.S.) 63
Connecting Pin Assignments 64
Computer Compatibility Chart 65
Specifications 66
Dimensions 67
Glossary 68
Index 69
CONSUMER LIMITED WARRANTY (VALID IN USA ONLY) 70
LIMITED WARRANTY (VALID IN CANADA ONLY) 71
IMPORTANT SAFEGUARDS
CAUTION: Please read all of these instructions before you operate this product and save them for later use.
Electrical energy can perform many useful functions. This product has been engineered and manufactured to ensure your personal safety. However IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this Projector, observe the following basic rules for its installation, use and servicing. For your own protection and reliable usage of your Projector, please be sure to read these “IMPORTANT SAFEGUARDS” carefully before use.
1. Read Instructions
All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water-for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
9. Transportation
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. The openings should never be covered or blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12. Grounding or Polarization
This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
14. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the power cord. This will prevent damage to the product due to lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or damaged in any way.
f. If the product exhibits a distinct change in performance.
19. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
21. Wall or Ceiling Mounting
This product should be mounted to a wall or ceiling only as recommended by the manufacturer.
22. Heat
This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
- Digital Light Processing, DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments.
- Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Macintosh is a registered trademark of Apple Computer, Inc. in the United States and/or other countries. - All other company or product names are trademarks or registered trademarks of their respective companies.
Be sure to read the following safeguards when setting up your projector.
Caution concerning the lamp unit
There is a potential hazard of glass particles if the lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Service Center or Dealer for replacement. See "Replacing the Lamp" on page 59.
Cautions concerning the setup of the projector
■For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the lens and part of filter must be cleaned more often than usual. As long as the projector is properly maintained in this manner, use in these environments will not reduce the overall operation life. Please note that all internal cleaning must be performed by a Sharp Authorized Service Center or Dealer.
Do not set up the projector in places exposed to direct sunlight or bright light.
■Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.
Do not subject the projector to hard impact and/or vibration.
■Take care with the lens so as not to hit or damage the surface of the lens.
Rest your eyes occasionally.
■Watching the screen for long hours continuously will make your eyes tired. Be sure to occasionally rest your eyes.
Do not expose the projector to extreme heat or cold.
■Operating temperature: 41°F to 95°F (+5°C to 35°C)
■Storage temperature: -4°F to 140°F (-20°C to +60°C)
Notes on Operation
■The exhaust ventilative holes, the lamp unit cover and adjacent areas may get extremely hot during projector operation. To prevent injury, do not touch these areas until they have sufficiently cooled down.
■Allow at least 1 foot (30 cm) of space between the exhaust ventilative hole and the nearest wall or obstruction.
If the cooling fan becomes obstructed, a protection device will automatically turn off the projector lamp. This does not indicate a malfunction. Remove the projector power cord from the wall outlet and wait at least 10 minutes. Then turn on the power by plugging the power cord back in. This will return the projector to the normal operating condition.
Cautions regarding the transportation of the projector
■When transporting the projector, be sure not to subject it to hard impact and/or vibration, as this can result in damage. Take extra caution with the lens. Before moving the projector, be sure to unplug the power cord from the wall outlet, and disconnect any other cables connected to it.
Other connected equipment
■When connecting other audio-visual equipment or a computer to the projector, make the connections AFTER turning off the projector and the equipment to be connected.
■Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

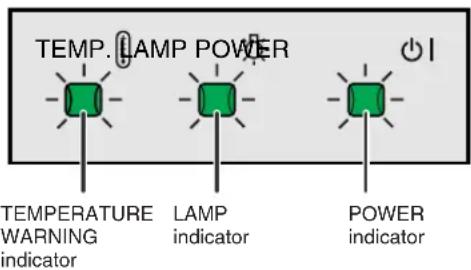

Temperature monitor function
If the projector starts to overheat due to setup problems or blockage of the air vents, "and
"TEMP.ink in the lower left corner of the picture. If the tem-
perature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second cooling-off period the projector will enter the standby mode. Refer to "Maintenance Indicators" on page 58 for details.
Info
- The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.
Quick Guide
In this page, connection of the projector and the video equipment is explained as an example for the procedure from setup to projection. Refer to each page for details.
Required equipments
Projector Remote control
(Page 11)

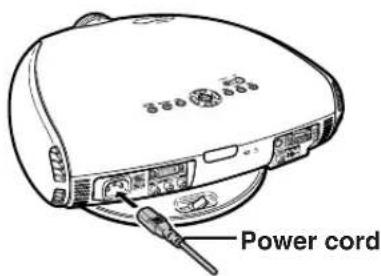

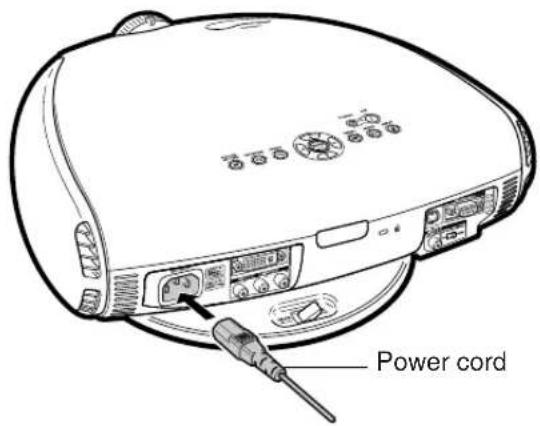

Power cord
Video equipment

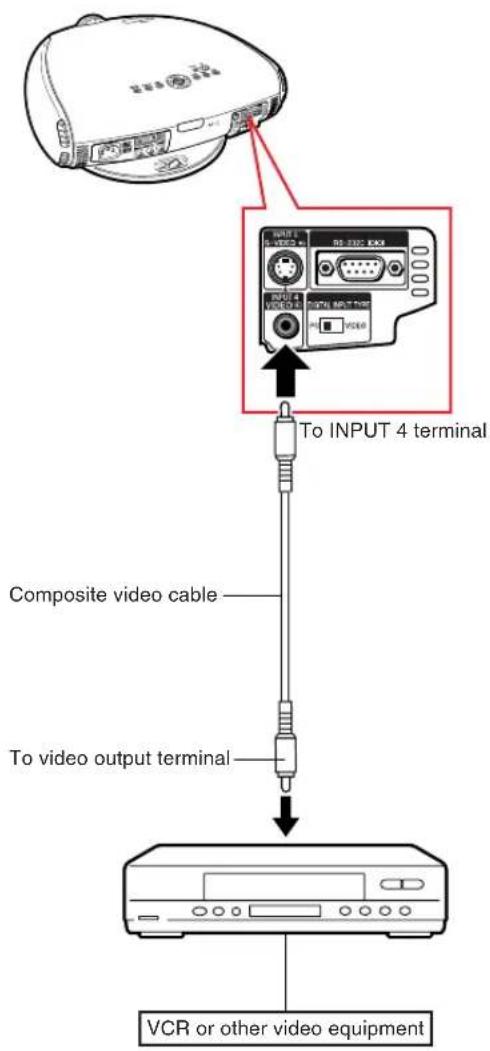

Video cable

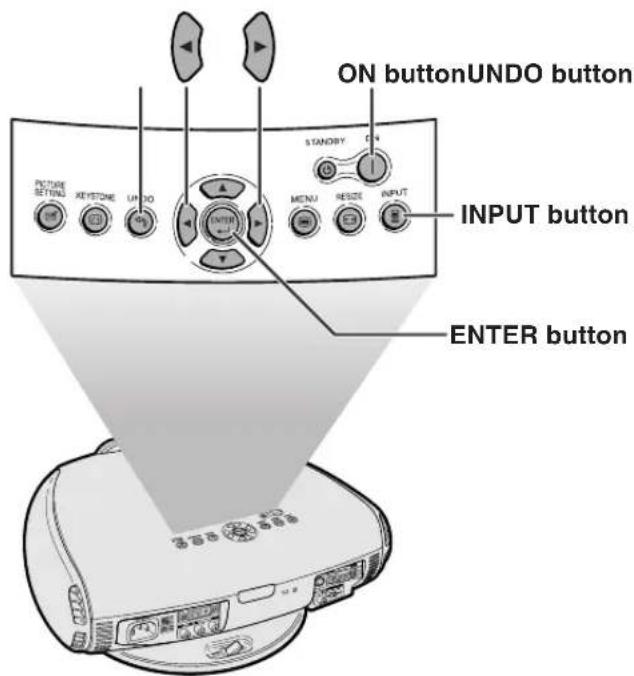

- Place the projector facing a wall or a screen.

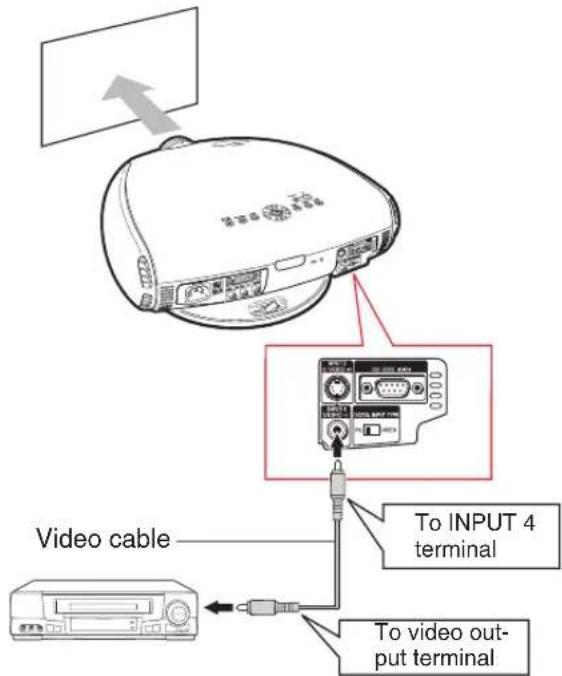

- Connect to video equipment. (Page 16)
- Connect the output terminal of the video equipment to the input terminal of the audio equipment using an audio cable.
- Plug the power cord into the AC socket of the projector and into the wall outlet. (Page 14)
- Remove the lens cap from the lens.
Lens cap

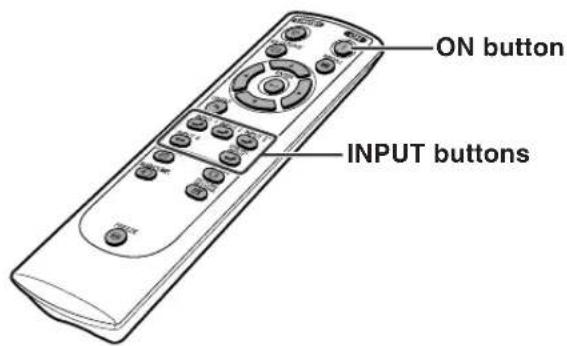

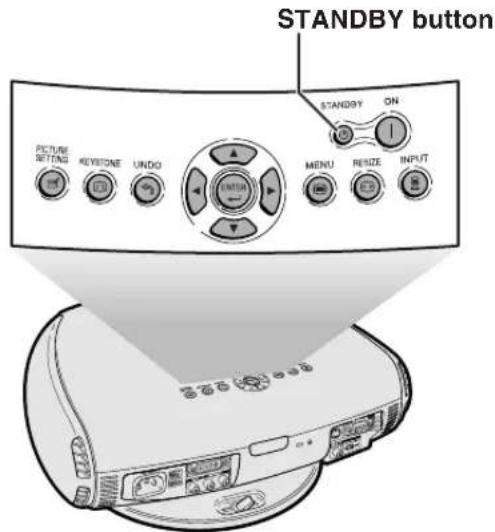

- Turn the projector on using Ⓗ on the remote control. (Page 30)
- Press ☐ on the remote control to select the INPUT 4 mode. (Page 31)

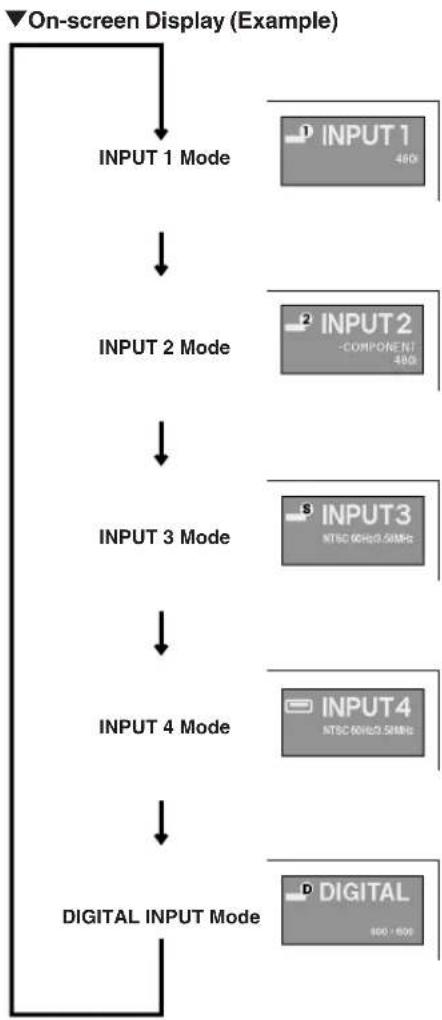

▼On-screen Display
- Turn on the video equipment.
- Play the video.
- Adjust the image size, image position and the focus. (Page 25)
Adjust the zooming by moving the zoom knob.
Adjust the height of the image by rotating the lens shift dial.
Note
- This projector can also be connected to a computer as well as to video equipment. (Page 21)
Part Names
Numbers in refer to the main pages in this operation manual where the topic is explained.

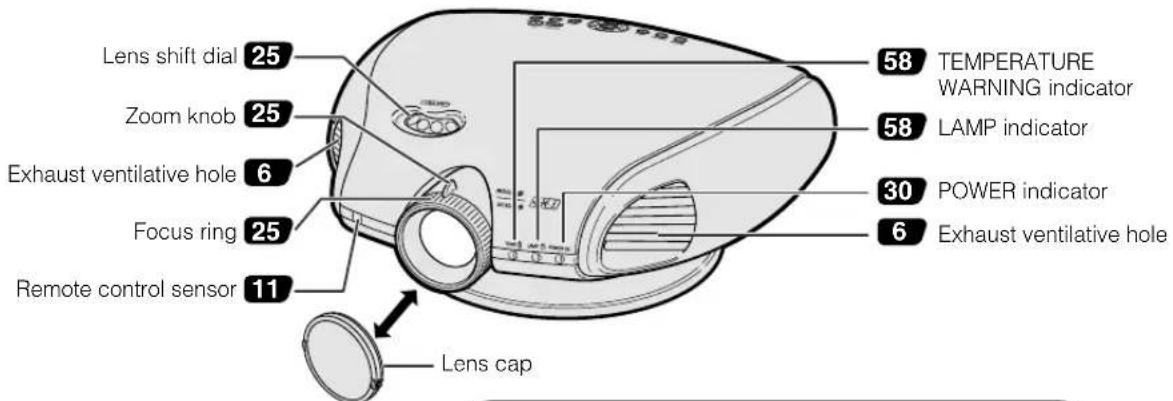

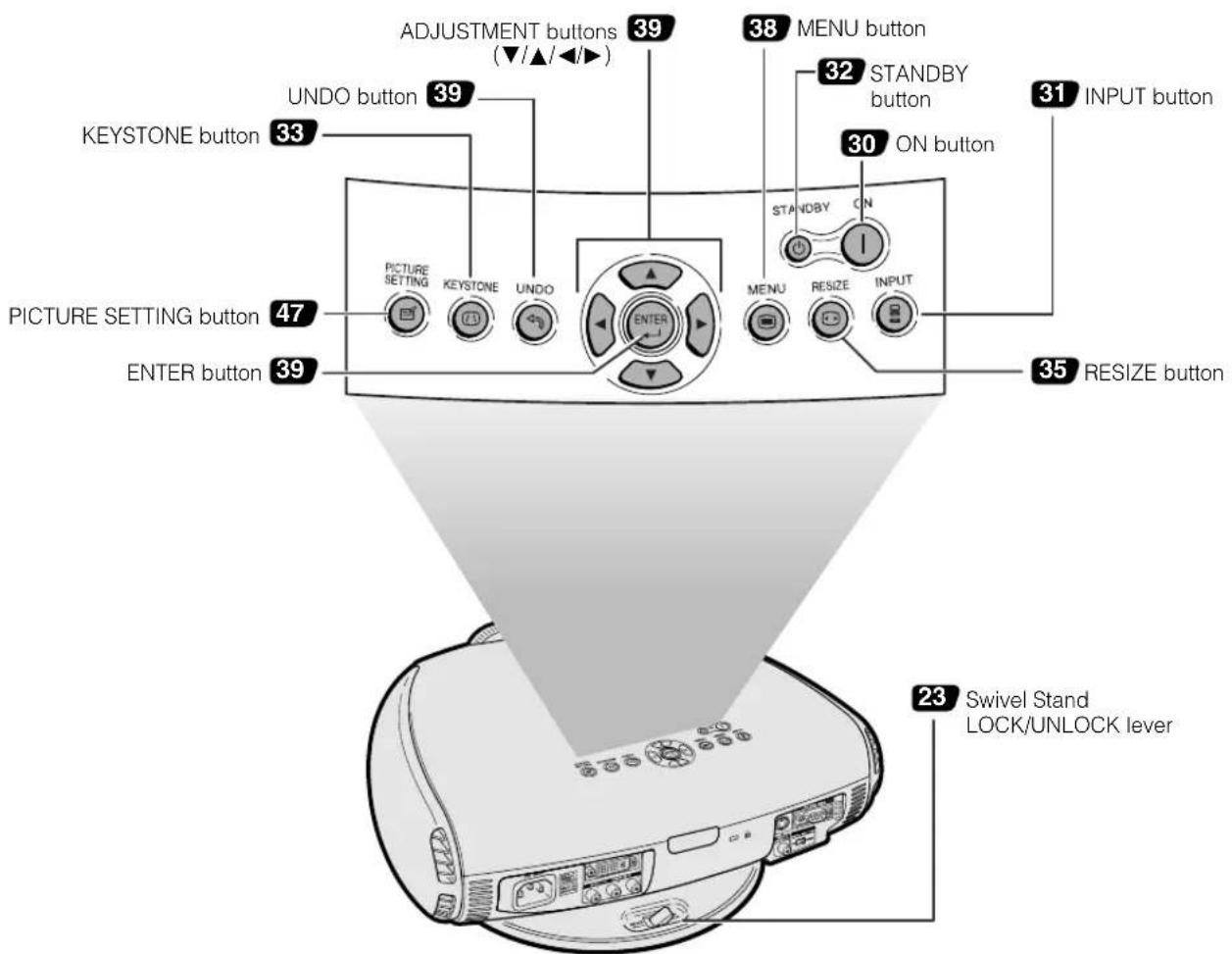

Projector (Front and Top View)
Attaching the Lens Cap
The lens cap can be attached to the projector using commercially available straps (for cellular phones etc.), as shown in the figure.

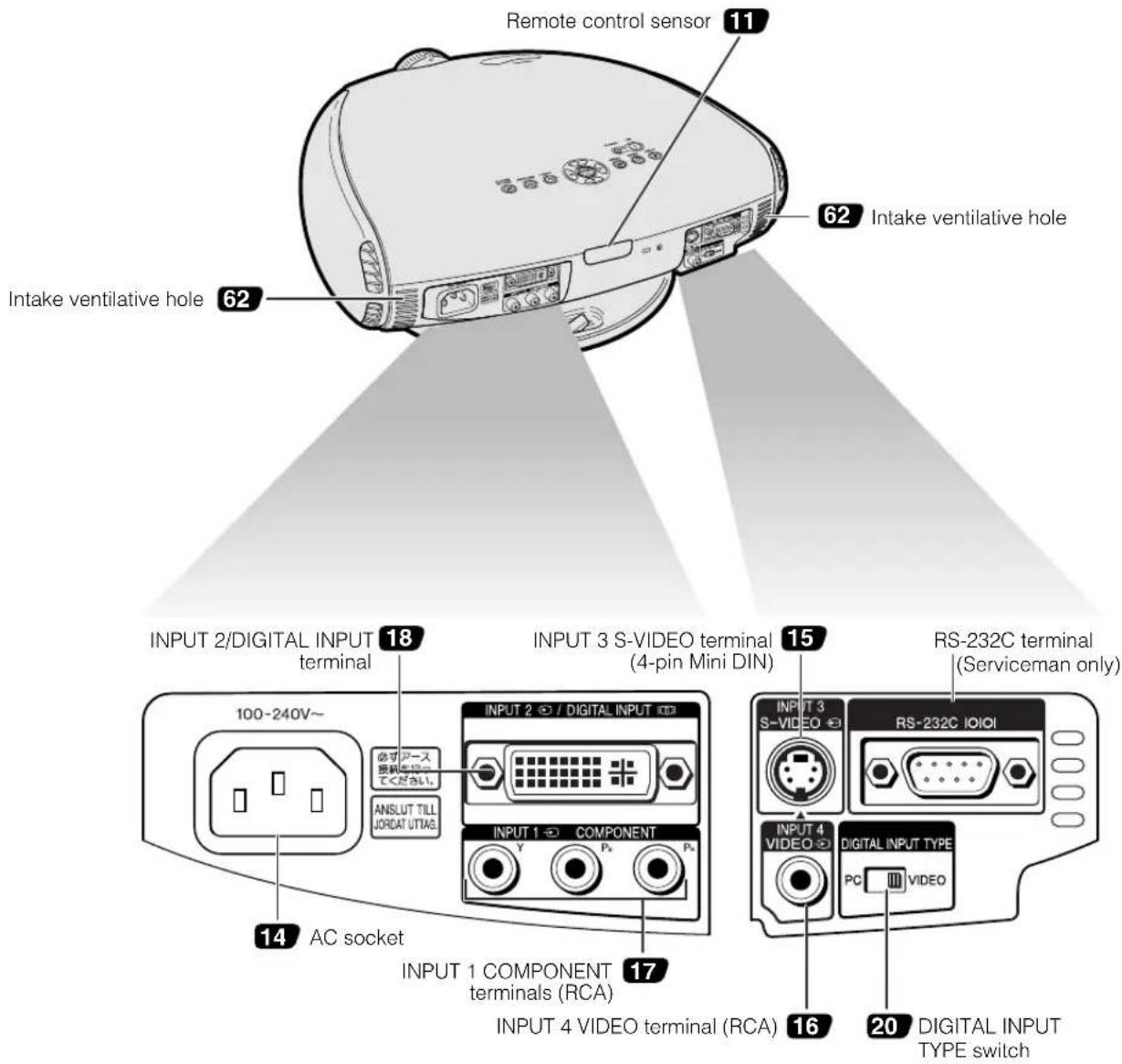

Projector (Side and Rear View)
Projector (Rear View)

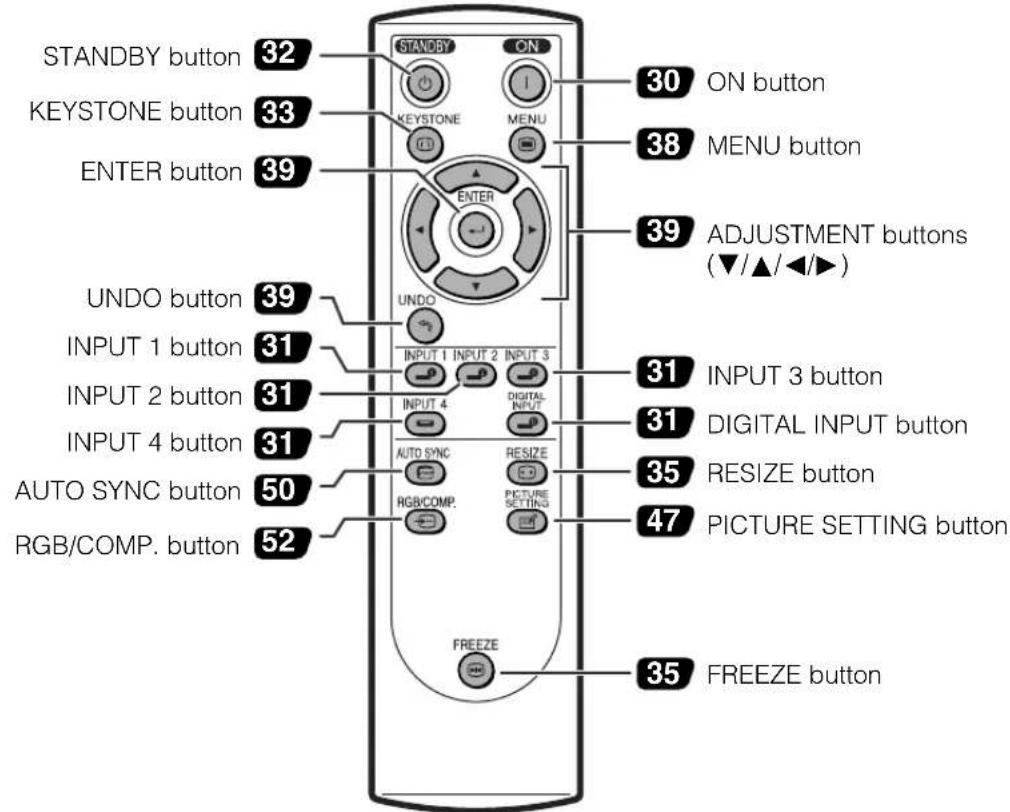

Remote Control (Front View)
Remote Control (Top View)
Remote control signal transmitters
Available Range of the Remote Control
■The remote control can be used to control the projector within the ranges shown in the illustration.
Note
- The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ due to the screen material.
When using the remote control:
- Be sure not to drop, or expose to moisture or high temperature.
- The remote control may malfunction under a fluorescent lamp. Under that circumstance, move the projector away from the fluorescent lamp.
Inserting the Batteries
The batteries (two "AA" size) are included in the package.
1 Pull down the tab on the cover and remove the cover toward the direction of the arrow.
2 Insert the included batteries.
- Insert the batteries making sure the polarities correctly match the Ⓗ and ⏱ marks inside the battery compartment.
3 Insert the lower tab of the cover into the opening, and lower the cover until it clicks in place.
Caution
- Insert the batteries making sure the polarities correctly match the ④ and marks inside the battery compartment.
- Batteries of different types have different properties, therefore do not mix batteries of different types.
- Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
- Remove the batteries from the remote control once they have run out, as leaving them can cause them to leak. Battery fluid from leaked batteries is harmful to your skin, therefore be sure to first wipe them and then remove them using a cloth.
- The batteries included with this projector may exhaust over a short period, depending on how they are kept. Be sure to replace them as soon as possible with new batteries when they have run out.
- Remove the batteries from the remote control if you will not be using the remote control for a long time.
Accessories
Supplied accessories
Remote control RRMCGA218WJSA
Two AA size batteries Video Pabler cord QACCDA007WJPZ
QCNWGA001WJZZ
Lens cap CCAPHA004WJ01
Operation manual TINS-B006WJZZ
Optional accessories
3 RCA to 15-pin D-sub cable (9'10" (3.0 m)) AN-C3CP DVI to 15-pin D-sub adaptor (7.9" (20 cm)) AN-A1DV DVI cable (9'10" (3.0 m)) AN-C3DV
Note
- Some of the cables may not be available depending on the region. Please check with your nearest Authorized SharpVision Service Center or Dealer.
Connections and Setup
Before Connecting
Note
- Before connecting, be sure to unplug the power cord of the projector from the AC outlet and turn off the devices to be connected. After making all connections, turn on the projector and then the other devices.
When connecting a computer, be sure that it is the last device to be turned on after all the connections are made.
- Be sure to read the operation manuals of the devices to be connected before making connections.
This projector can be connected to:
Video equipment:
■A VCR, DVD player or other video equipment (See page 15.)
■A DVD player or DTV* decoder (See page 17.)
*DTV is the umbrella term used to describe the new digital television system in the United States.
A computer using:
■DVI to 15-Pin D-sub adapter (See page 21.)
■A DVI cable (See page 22.)
■An RS-232C cable (See page 23.)
Connecting the Power Cord
Plug in the supplied power cord into the AC socket on the rear of the projector.
Supplied accessory
Power cord
Connecting to Video Equipment
Connecting to Video Equipment Using an S-video Cable (INPUT 3)
Using an S-video cable, a VCR, DVD player or other video equipment can be connected to INPUT 3 input terminal.

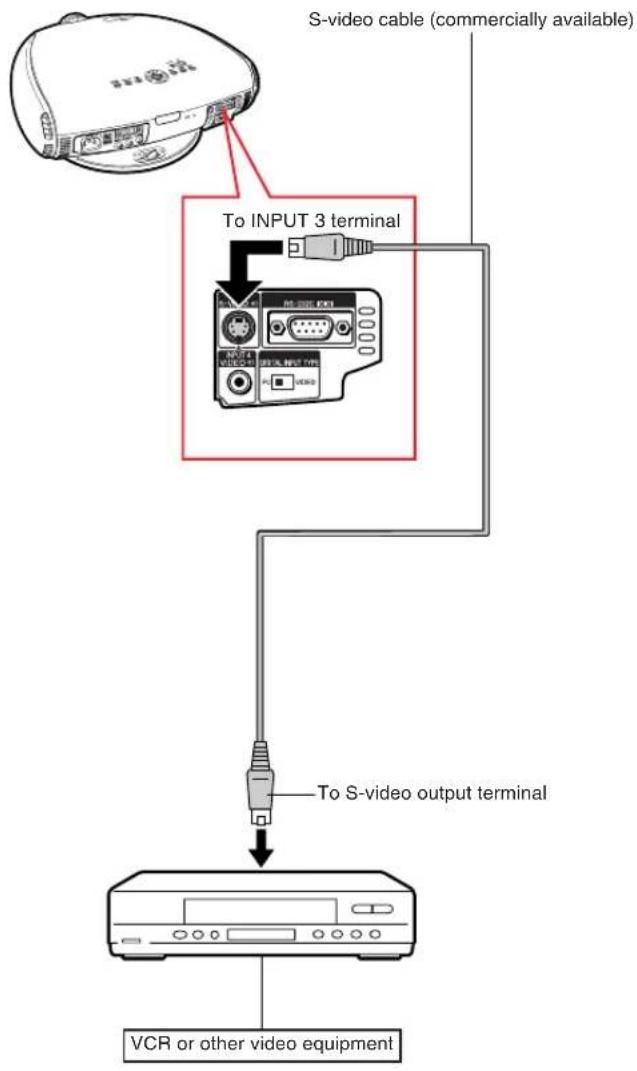

1 Connect an S-video cable to the projector.
2 Connect the S-video cable to the video equipment.
Note
- The INPUT 3 (S-VIDEO) terminal uses a video signal system in which the picture is separated into color and luminance signals to realize a higher-quality image. To view a higher-quality image, use a commercially available S-video cable to connect the INPUT 3 terminal on the projector and the S-video output terminal on the video equipment.
Connecting the Projector to Other Devices
Connecting to Video Equipment Using a Composite Video Cable (INPUT 4)
Using a composite video cable, a VCR, DVD player or other video equipment can be connected to INPUT 4 input terminal.
1 Connect a composite video cable to the projector.
2 Connect the composite video cable to the video equipment.
Connecting to a DVD Player and DTV Decoder

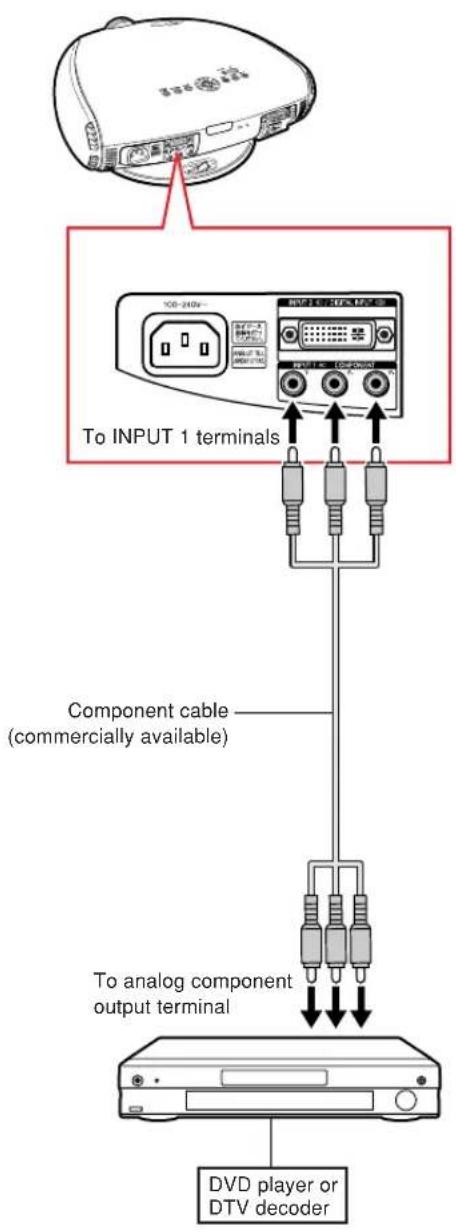

Connecting to Component Video Equipment Using a Component Cable (INPUT 1)
Use a component cable when connecting component video equipment such as DVD players and DTV decoders to INPUT 1 terminals.
1 Connect a component cable to the projector.
2 Connect the above cable to the component video equipment.
Note
- Make sure to turn both the projector and the video equipment off before connecting.
Connecting the Projector to Other Devices
Connecting to Component Video Equipment Using a 3 RCA to 15-pin D-sub Cable and the DVI to 15-pin D-sub Adaptor (INPUT 2)
Use a 3 RCA to 15-pin D-sub cable and the DVI to 15-pin D-sub adaptor when connecting component video equipment such as DVD players and DTV decoders to INPUT 2 terminal.
1 Connect a DVI to 15-pin D-sub adaptor to the projector.
2 Connect a 3 RCA to 15-pin D-sub cable to the above adaptor.
- Secure the connectors by tightening the thumbscrews.
3 Connect the above cable to the video equipment.
Note
- When connecting this projector to component output terminal of the DTV decoder, select "Component" for "Signal Type" on the OSD menu or press on the remote control. (See page 52.)
- Make sure to turn both the projector and the video equipment off before connecting.
Optional accessories
3 RCA to 15-pin
D-sub cable
Type: AN-C3CP
(9'10" (3.0 m))
DVI to 15-pin
D-sub adaptor
Type: AN-A1DV
(7.9" (20 cm))


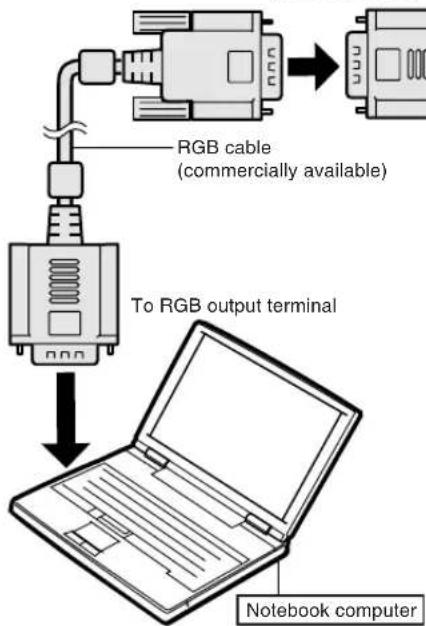

Connecting to RGB Video Equipment Using the DVI to 15-pin D-sub Adaptor and the RGB Cable (INPUT 2)
Use the DVI to 15-pin D-sub adaptor and the RGB cable when connecting RGB video equipment such as DVD players and DTV decoders to INPUT 2 terminal.
1 Connect a DVI to 15-pin D-sub adaptor to the projector.
2 Connect the above adaptor to an RGB cable.
3 Connect the above cable to the video equipment.
- Secure the connectors by tightening the thumbscrews.
Note
- When connecting this projector to DVI output of the DTV decoder, select "RGB" for "Signal Type" on the OSD menu or press on the remote control. (See page 52.)
Optional accessory
DVI to 15-pin D-sub adaptor
Type: AN-A1DV (7.9" (20 cm))
Connecting the Projector to Other Devices

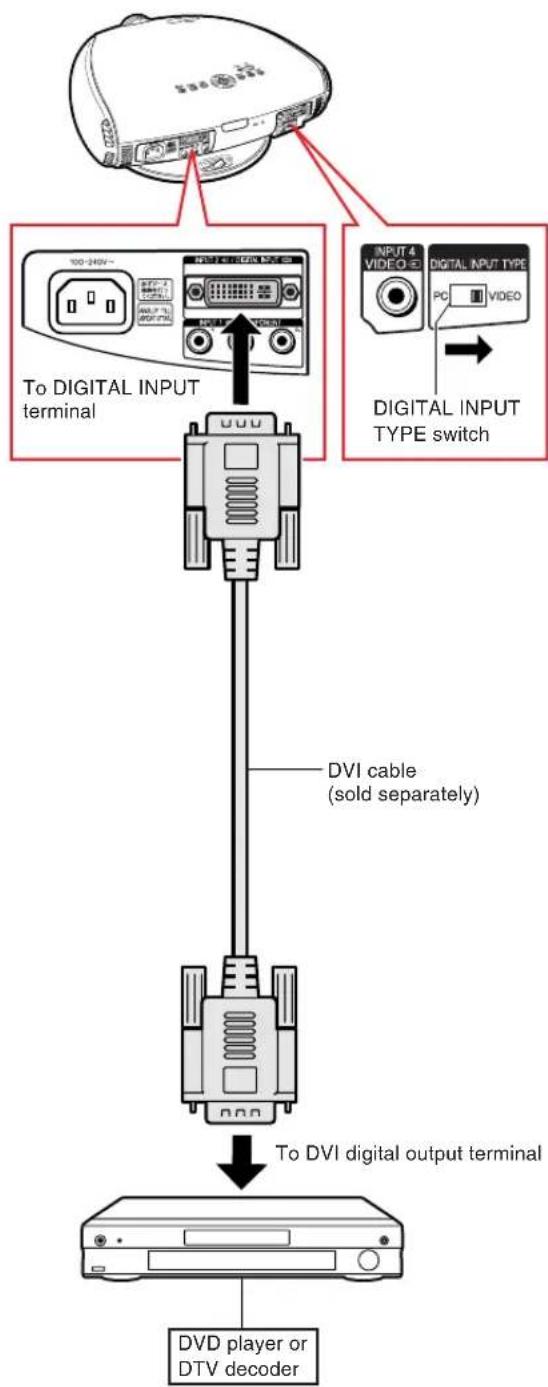

Connecting to Video Equipment with the DVI Output Terminal Using a DVI Cable (DIGITAL INPUT)
Use the DVI cable when connecting video equipment with the DVI output terminal such as DVD players and DTV decoders to DIGITAL INPUT terminal.
1 Slide the "DIGITAL INPUT TYPE" switch on the back terminal board to "VIDEO".
2 Connect the DVI cable to the DIGITAL INPUT terminal.
3 Connect the other end to the corresponding terminal on the DVD player or DTV decoder.
- Secure the connectors by tightening the thumbscrews.
Note
- Select DIGITAL INPUT mode when connecting to video equipment with the digital output terminal. (See page 31.)
- Make sure to turn both the projector and the video equipment off before switching the "DIGITAL INPUT TYPE" switch and connecting.
Optional accessory
DVI cable Type: AN-C3DV (9'10" (3.0 m))
Connecting to a Computer
Connecting to a Computer Using the DVI to 15-pin D-sub Adaptor and the RGB Cable (INPUT 2)
1 Connect a DVI to 15-pin D-sub adaptor to the projector.
2 Connect the above adaptor to an RGB cable.
3 Connect the above cable to the computer.
- Secure the connectors by tightening the thumbscrews.
Note
- Refer to "Computer Compatibility Chart" on page 66 for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions not to work.
- When connecting the projector to a computer in this way, select "RGB" for "Signal Type" on the OSD menu or press 📄 on the remote control. (See page 52.)
- A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Sharp Authorized Service Center or Dealer.
- Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer operation manual for switching the computer signal output settings.
Optional accessory
DVI to 15-pin D-sub adaptor (sold separately)
Connecting the thumbscrew cables
■Connect the thumbscrew cable making sure that it fits correctly into the terminal. Then, firmly secure the connectors by tightening the screws on both sides of the plug.
■Do not remove the ferrite core attached to the RGB cable.
Connecting the Projector to Other Devices

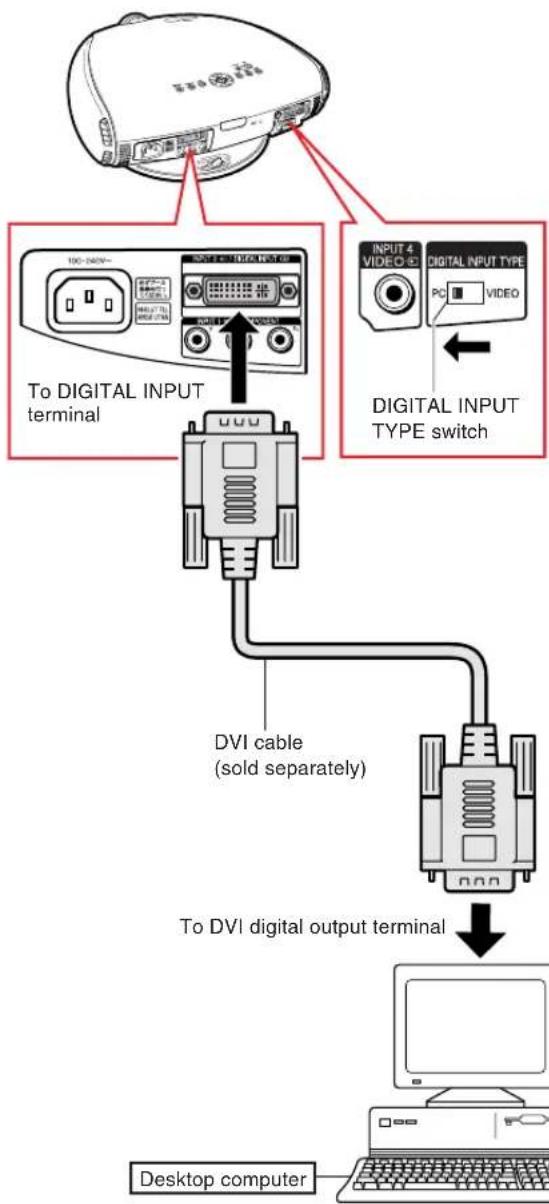

Connecting to a computer with DIGITAL RGB output Terminal (DIGITAL INPUT)
1 Slide the "DIGITAL INPUT TYPE" switch on the back terminal board to "PC".
2 Connect a DVI cable to the projector.
3 Connect the above cable to the computer.
- Secure the connectors by tightening the thumbscrews.
Note
- Select DIGITAL INPUT mode when connecting to digital output terminal of the computer. (See page 31.)
- Before switching the "DIGITAL INPUT TYPE" switch and connecting, be sure to unplug the power cord of the projector from the AC outlet and turn off the computer to be connected. After making all connections, turn on the projector and then the computer.
- Be sure that the computer is the last device to be turned on after all the connections are made.
Optional accessory
DVI cable Type: AN-C3DV (9'10" (3.0 m))
"Plug and Play" function
This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy setup.
Before using the "Plug and Play" function, be sure to turn on the projector first and the connected computer last.
Note
- The DDC "Plug and Play" function of this projector operates only when used in conjunction with a VESA DDC compatible computer.
Setup
Using the Swivel Stand

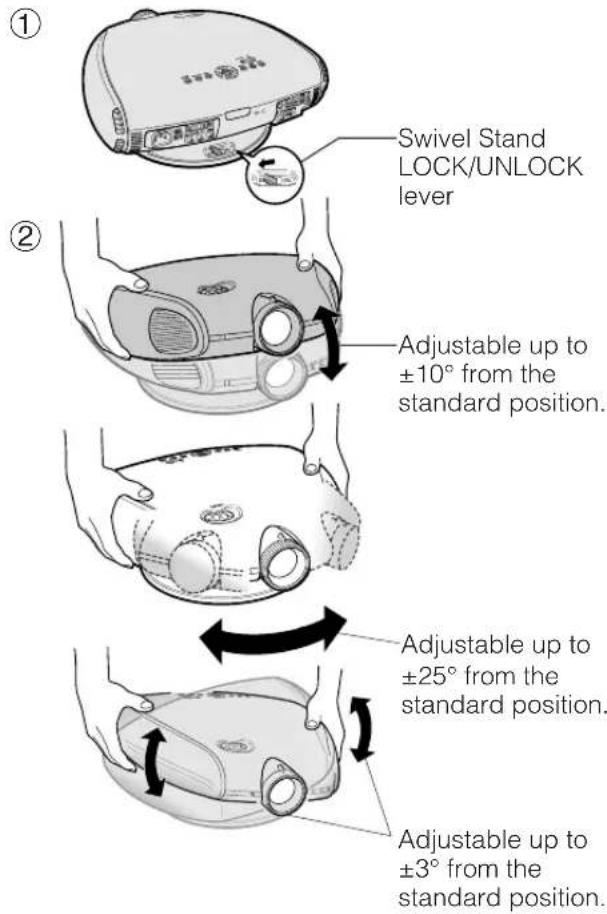

You can adjust the angle and direction of the projected image by using the Swivel Stand.
1 Unlock the lever on the Swivel Stand.
2 Adjust the angle and direction of the projected image as you want by lifting up the projector and rotating the projector on the Swivel Stand.
Caution
- Do not hold the lens when lifting, lowering or rotating the projector.
- When lowering the projector, be careful not to get your fingers caught in the area between the Swivel Stand and the projector.
Note
- When the height or direction of the projector is adjusted, the image may become distorted (keystoned), depending on the relative positions of the projector and the screen. See page 33 for details on the keystone correction.
3 Lock the lever on the Swivel Stand.
Setup
Removing the Swivel Stand

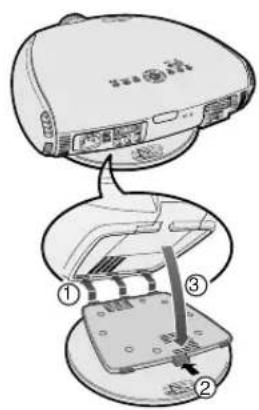

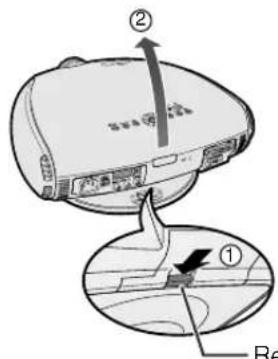

1 Lift the projector (②) with pressing the removing-stand button on the back of the projector (①).
Attaching the Swivel Stand
1 Align the tabs on the front bottom of the projector (①).
2 While holding down the button (②), place the projector onto the Swivel Stand (③) to attach.
3 Press the projector down firmly to attach it to the Swivel Stand to make sure it is securely attached to the Swivel Stand.
Removing- stand button
Focusing and Zooming

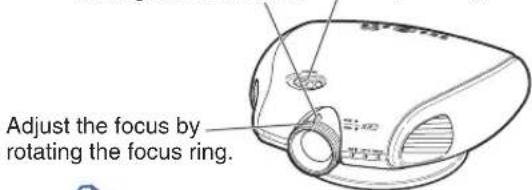

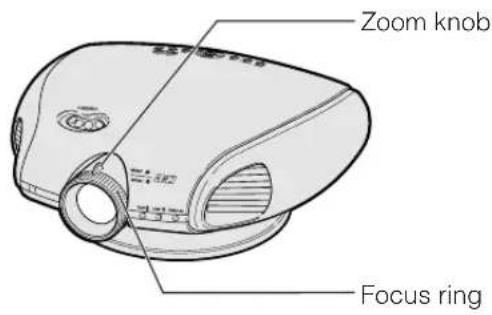

The picture can be focused and zoomed in or out by using the Focus ring and the Zoom knob.
1 Rotate the Focus ring until the image on the screen comes into focus.
2 Slide the Zoom knob. The image can be adjusted to the desired size within the zoom range.
Using the Lens Shift
The picture can be adjusted within the shift range of the lens by rotating the lens shift dial on the top of the projector using your finger.
Setup
Adjusting the Projection Distance

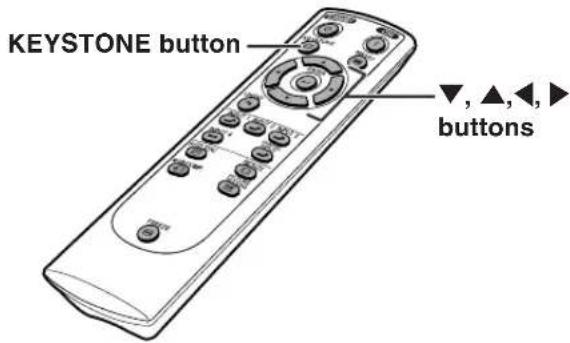

- Refer to pages 33 and 34 about the function of Keystone correction and placement of projector using the correction.

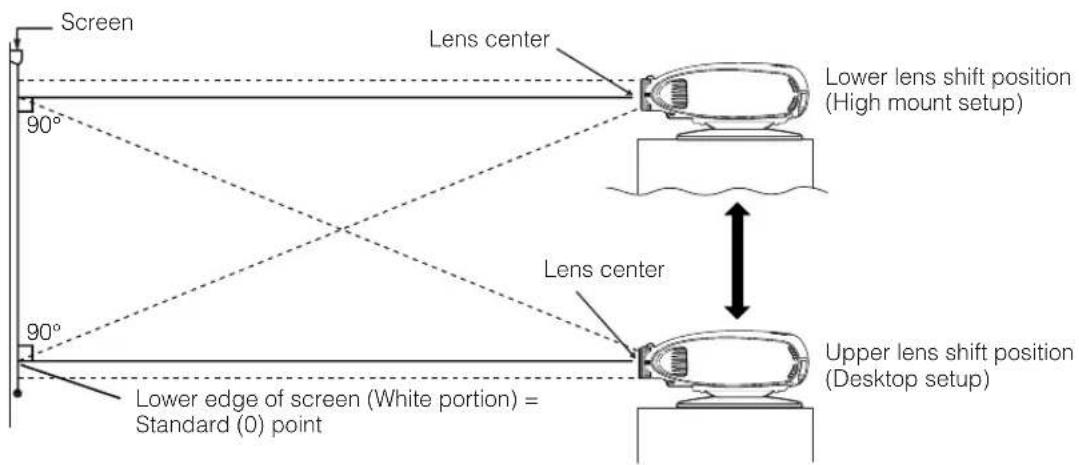

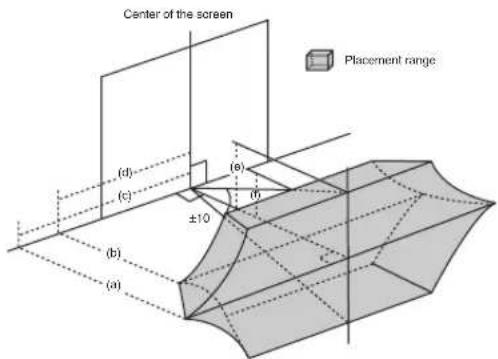

- Decide the placement of the projector referring to the figures on the table and the diagram below according to the size of your screen and input signal.
(a) Maximum projection distance
(b) Minimum projection distance
(c) Horizontal placement range when projection distance is maximum.
(d) Horizontal placement range when projection distance is minimum.
(e) Vertical placement range when projection distance is maximum.
(f) Vertical placement range when projection distance is minimum.
Note
- The aspect ratio of the projected image shifts slightly when the lens shift is at a position other than the top position.
- The aspect ratio of the projected image also shifts slightly when the "H Keystone" and "V Keystone" functions are adjusted simultaneously.

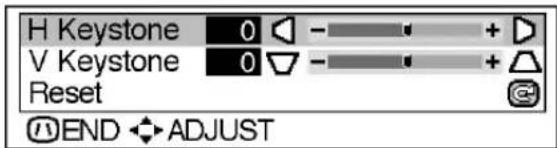

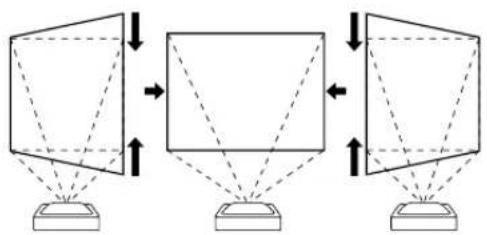

- When adjusting "H Keystone" and "V Keystone" at the same time, the values of adjustable angles for each setting become smaller.
- Keystone correction cannot be applied to On-screen Display.
- When Keystone correction is applied, the resolution of image can be deteriorated to some extent.
• There are errors of ±3% in the formulas below.
When using a wide screen (16:9)
In case of displaying the 16:9 picture on the whole of the 16:9 screen.
| Screen size(16.9)(x) | Projection distance and Keystone correction | |||||||||||||
| Maximum projection distance | Minimum projection distance | |||||||||||||
| Diag. | Projectiondistance (s) | Horizontal Placement range (o) | Verteaplacement range(o) | Projectiondistance (b) | Horizontal Placement range (d) | Verticalplacement range(l) | ||||||||
| Composite, 3 video48Q.P, 109Q | 720P | RGB | Composite, 5 video480P, 108Q | 720P | RGB | |||||||||
| 200° | 20 10" (6.4m) | 4" 3" (1.3m) | 4" 11" (1.5m) | 3" 7" (1.1m) | 3" 7" (1.1m) | 17" 4" (5.3m) | 2 11 (0.9m) | 3 3 (1.0m) | 2 4" (0.7m) | 2" 11" (0.9m) | ||||
| 150° | 15" 7" (1.8m) | 2 11" (0.9m) | 3" 7" (1.1m) | 2" 7" (0.8m) | 2" 7" (0.8m) | 12" 11" (3.9m) | 1 12 (0.6m) | 2 4 (0.7m) | 1 8" (0.5m) | 1" 12" (0.6m) | ||||
| 133° | 13" 10" (4.2m) | 2 7" (0.8m) | 2" 11" (0.9m) | 2" 4" (0.7m) | 2" 4" (0.7m) | 11" 6" (3.5m) | 1 12 (0.6m) | 1 12" (0.6m) | 1 4" (0.4m) | 1" 12" (0.6m) | ||||
| 106° | 11" (3.4m) | 1 12" (0.9m) | 2" 4" (0.7m) | 1" 12" (0.6m) | 1" 8" (0.5m) | 9" 1" (2.8m) | 1 4" (0.4m) | 1 8 (0.5m) | 12" (0.3m) | 1" 4" (0.4m) | ||||
| 100° | 10 4" (3.2m) | 1 12" (0.8m) | 2" 4" (0.7m) | 1" 8" (0.5m) | 1" 8" (0.5m) | 8" 7" (2.6m) | 1 4" (0.4m) | 1 8 (0.5m) | 12" (0.3m) | 1" 4" (0.4m) | ||||
| 92° | 9" 6" (2.9m) | 1 8" (0.5m) | 1" 12" (0.6m) | 1" 8" (0.5m) | 1" 8" (0.5m) | 7" 11" (2.4m) | 1 4" (0.4m) | 1 4" (0.4m) | 12" (0.3m) | 1" 4" (0.4m) | ||||
| 84° | 8" 8" (2.7m) | 1 8" (0.5m) | 1" 12" (0.6m) | 1" 4" (0.4m) | 1" 4" (0.4m) | 7" 2" (2.2m) | 12" (0.3m) | 1 4 (0.4m) | 12" (0.3m) | 12" (0.3m) | ||||
| 72° | 7 5" (2.3m) | 1 4" (0.4m) | 1" 8" (0.5m) | 1" 4" (0.4m) | 1" 4" (0.4m) | 6" 2" (1.9m) | 12" (0.3m) | 12" (0.3m) | 5" (0.2m) | 12" (0.3m) | ||||
| 60° | 6" 2" (1.9m) | 12" (0.3m) | 1" 4" (0.4m) | 12" (0.3m) | 12" (0.3m) | 5" 1" (1.6m) | 8" (0.2m) | 12" (0.3m) | 8" (0.2m) | 8" (0.2m) | ||||
| 40° | 4" 1" (1.2m) | 8 (0.2m) | 8" (0.2m) | 8" (0.2m) | 8" (0.2m) | 3" 4" (1.0m) | 4" (0.1m) | 4" (0.1m) | 4" (0.1m) | 4" (0.1m) | ||||
(a) = (0.031954888 x - 0.034080187) x: Screen size (diag.)
(b) = (0.026528341x - 0.034846716)
When using a normal screen (4:3)
In case of setting the 16:9 picture to the full horizontal width of the 4:3 screen.
| Screen size(4:3)(v) | Projection distance and Keystone correction | ||||||||||||
| Maximum projection distance | Minimum projection distance | ||||||||||||
| Diag. | Projectiondistance (s) | Horizontal Placement range (c) | Verticalplacement range(e) | Projectiondistance (b) | Horizontal Placement range (d) | Verticalplacement range(f) | |||||||
| Composite Video48Q/F, 108Q | 720P | RGB | Composite Video48Q/F, 108Q | 720P | RGB | ||||||||
| 900° | 15' 10" (4.8m) | 2 7" (0.8m) | 2 11" (0.9m) | 1 12" (0.6m) | 2' 7" (0.8m) | ||||||||
| 150° | 14 4" (1.4m) | 2 7" (0.8m) | 3' 3" (1.0m) | 2' 4" (0.7m) | 2' 4" (0.7m) | 11' 10" (3.6m) | 1 12" (0.6m) | 2 4 (0.7m) | 1 8" (0.5m) | 1' 12" (0.6m) | |||
| 100° | 9 6" (2.9m) | 1' 8" (0.5m) | 1' 12" (0.6m) | 1' 8" (0.5m) | 1' 8" (0.5m) | 7' 11" (2.4m) | 1 4" (0.4m) | 1 4 (0.4m) | 12" (0.3m) | 1' 4" (0.4m) | |||
| 84° | 7' 12" (2.4m) | 1' 4" (0.4m) | 1' 8" (0.5m) | 1' 4" (0.4m) | 1' 4" (0.4m) | 6' 7" (2.0m) | 12" (0.3m) | 1 4 (0.4m) | 8" (0.2m) | 12" (0.3m) | |||
| 72° | 6' 10" (2.1m) | 1' 4" (0.4m) | 1' 4" (0.4m) | 12" (0.3m) | 12" (0.3m) | 5' 8" (1.7m) | 12" (0.3m) | 12" (0.3m) | 8" (0.2m) | 12" (0.3m) | |||
| 60° | 5' 8" (1.7m) | 12" (0.3m) | 1' 4" (0.4m) | 12" (0.3m) | 12" (0.3m) | 4' 8" (1.4m) | 8" (0.2m) | 8" (0.2m) | 4' (0.1m) | 8" (0.2m) | |||
| 40° | 3' 9" (1.1m) | 8 (0.2m) | 8' (0.2m) | 8" (0.2m) | 8" (0.2m) | 3' 1" (0.9m) | 4" (0.1m) | 4" (0.1m) | 4' (0.1m) | 4' (0.1m) | |||
(a) = (0.029330688 x - 0.028639669) x: Screen size (diag) (b) = (0.02434978 x - 0.034646716)
Upper and Lower Lens Shift Position
- This projector is equipped with a lens shift function that lets you adjust the projection height
- Adjust the projection height to match the setup configuration.

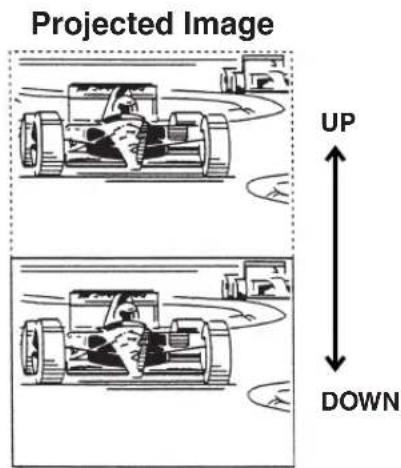

- The screen can be moved maximum the length of one screen vertically using the lens shift.
Note
- Optimal image quality is produced with the projector positioned perpendicular to the screen with all feet flat and level. Tilting or angling the projector will reduce the effectiveness of the lens shift function.
Screen size: 100 inches (254 cm)
Aspect ratio: 16:9
Upper and Lower Lens Shift Position (Ceiling Mount)
When the projector is in the inverted position, use the upper edge of the screen as the base line, and exchange the lower and upper lens shift values.
Screen size: 100 inches (254 cm)
Aspect ratio: 16:9
Setup
Image Projection
Rear Projection
■Place a translucent screen between the projector and the audience.
■ Use the projector's menu screen to reverse the projected im-
age. (See page 56 for use of this function.)
Note
- Optimal image quality can be achieved when the projector is positioned perpendicular to the screen with all feet flat and leveled.
Projection using a mirror
■Place a mirror (normal flat type) in front of the lens.
Info
- When using a mirror, be sure to carefully position both the projector and the mirror so the light does not shine into the eyes of the audience.
Ceiling-mount setup
■It is recommended that you use the optional Sharp ceiling-mount bracket for this installation.
■Before mounting the projector, remove the Swivel Stand. (See pages 24 and 25 for removing and attaching the Swivel Stand.)
■Before mounting the projector, contact your nearest Sharp Authorized Service Center or Dealer to obtain the recommended ceiling-mount bracket (sold separately). (AN-CM260 ceiling-mount bracket, AN-EP101B extension tube for AN-CM260.)
■When the projector is in the inverted position, use the upper edge of the screen as the base line.
■ Use the projector's menu screen to select the appropriate projection mode. (See page 56 for use of this function.)
When using the default setting.
▼On-screen Display
The image is reversed.
When using the default setting.
▼On-screen Display
The image is inverted.
Basic Operation
Basic Procedure
Connect the required external equipment to the projector before operating the following procedures.
Info
- The language preset at the factory is English. If you want to change the on-screen display to another language, reset the language according to the procedure on page 31.
1 Plug the power cord into the wall outlet.

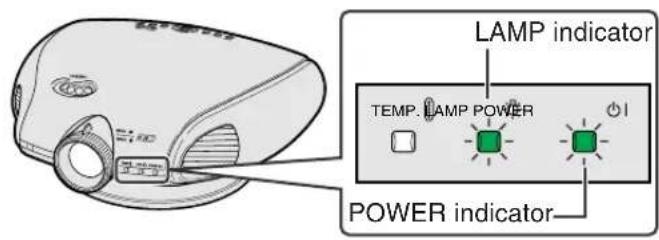

•The POWER indicator illuminates red, and the projector enters standby mode.
2 Press ON the remote control or ON on the projector.
- The blinking green LAMP indicator shows that the lamp is warming up. Wait until the indicator stops blinking before operating the projector. - If the power is turned off and then immediately turned on again, it may take a short while before the lamp turns on.
Note
•After the projector is unpacked and turned on for the first time, a slight odor may be emitted from the exhaust ventilative holes. This odor will soon disappear with use.
When the power is on, the LAMP indicator illuminates, indicating the status of the lamp. Green: Lamp is ready. Green blinking: Warming up. / Cooling down. Red: Change the lamp.
3
Press
on the remote control or on the projector to select the INPUT mode.
- After pressing INPUT once on the projector, use INPUT to select the desired input mode.
Note
- When no signal is received, "NO SIGNAL" will be displayed. When a signal that the projector is not preset to receive is received, "NOT REG." will be displayed.
About the INPUT modes
| INPUT 1 (Component) | Used for projecting images from equipment connected to INPUT 1 terminals. |
| INPUT 2 (Component/RGB) | Used for projecting images from equipment connected to INPUT 2 terminal. |
| INPUT 3 (S-Video) | Used for projecting images from equipment connected to INPUT 3 terminal. |
| INPUT 4 (Video) | Used for projecting images from equipment connected to INPUT 4 terminal. |
| DIGITAL | Used for projecting images from equipment connected to DIGITAL INPUT terminal. |
Selecting the On-screen Display Lan-
guage
English is the preset language for the On-screen Display; however, this can be changed to German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Chinese, Korean or Japanese.
Display the "Language" menu and select the desired Language.
→For operating the menu screen, see pages 38 to 41.
On-screen Display
Image Projection
Turning the Power off
1
Press on the remote con-
on the projector,
STANDBY
STANDBY
then press ⏻ or 🟢 again while the confirmation message is displayed, to put the projector into the standby mode.
- A dimly-lit screen is displayed for a short time to reduce lamp damage.
Note
- If you accidentally pressed and do not want to put the projector into the standby mode, wait until the confirmation message disappears.
2
Unplug the power cord from the AC outlet after the cooling fan stops.
Info
- Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to the rise in internal temperature, as the cooling fan also stops.
- When connected to equipment such as an amplifier, be sure to turn off the power to the equipment connected first and then to the projector.
STANDBY button
Enter STANDBY mode?
Yes: Press Again. No: Please Wait.
Shutting down. Please wait.
Keystone Correction
This function can be used to adjust the Keystone settings.
Note
- For details about using the menu screen, see pages 38 to 41.

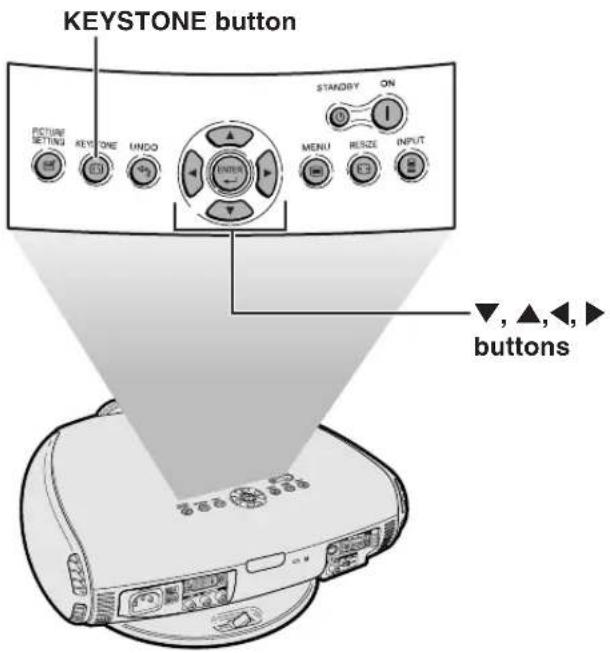

1
Press on the projector or on the remote control.
2
Press ▲/▼ to select "H Keystone" or "V Keystone".
| Selected Item | Description |
| H Keystone | Horizontally adjusts the keystone settings. |
| V Keystone | Vertically adjusts the keystone settings. |
| Reset | V and H Keystone adjustments are returned to the factory preset settings. |
3
Press /to move the mark on the selected adjustment item to the desired setting.
Note
- Straight lines and the edges of the displayed image may appear jagged, when adjusting the Keystone setting.
- When adjusting "H Keystone" and "V Keystone" at the same time, the values of adjustable angles for each setting become smaller.
- The adjustable value of the "V Keystone" becomes extremely small when "H Keystone" is made to be the maximum value.
- Keystone correction is disabled while the picture mode is set to "SMART STRETCH". (See page 35.)
4
To return to the normal screen, press Ⓤ again.

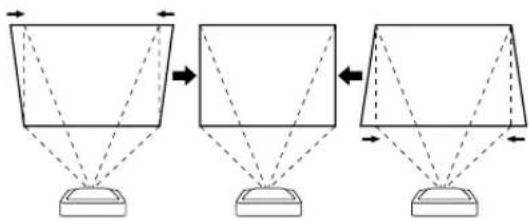

Horizontal Keystone Correction
Vertical Keystone Correction
Placement of the Projected Image Using the Keystone Correction

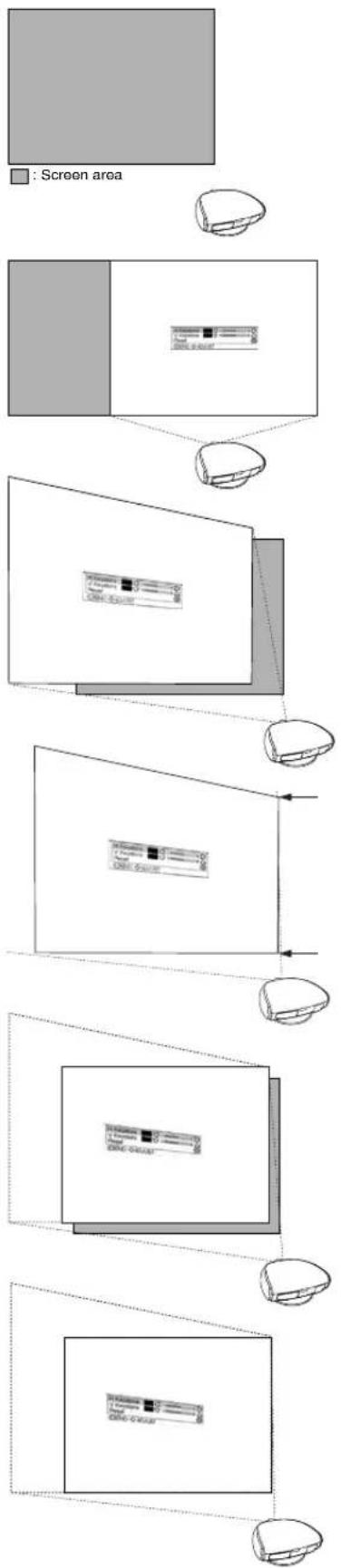

Place the projector at a distance from the screen that allows images to be projected onto the screen by referring to “Adjusting the Projection Distance” on pages 26 and 27.
1 Project the test pattern of the Keystone correction function onto the screen. Rotate the Focus ring until the image on the screen comes into focus. (See page 25.)
2 Change the projection angle using the Swivel Stand to properly project images onto the screen. (See page 23).
3 Align the edge of the screen closest to the projector with the test pattern by adjusting the zoom and the Swivel Stand. (See pages 23 and 25.)
4 Adjust the Keystone function so that the size of the projected image matches the screen size. (See page 33.)
5 Align the image on the screen by adjusting the zoom function and the Swivel Stand.
6 Adjust the focus so that the projected image is in focus at the center of the screen. (See page 25.)
Note
- The aspect ratio of the projected image shifts slightly when the lens shift is at a position other than the top position.
- The aspect ratio of the projected image also shifts slightly when the "H Keystone" and "V Keystone" functions are adjusted simultaneously.
Freezing a Moving Image
You can instantly freeze a moving image with the remote control.

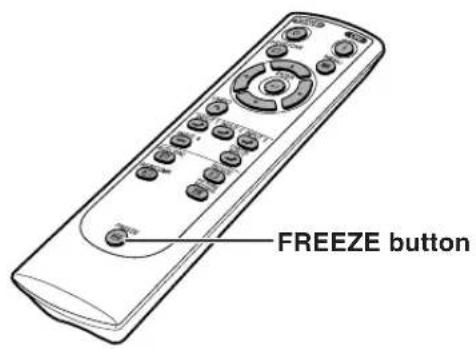

1 Press FREEZE
•The projected image is frozen.
2 Press again to return to the moving image from the currently connected device.
Adjusting the Picture Aspect Ratio
This function allows you to modify or customize the picture display mode to enhance the input image. Depending on the input signal, you can choose SIDE BAR, SMART STRETCH, CINEMA ZOOM or STRETCH image.
Press Each time is pressed, the picture mode changes as shown on the next page.
Image Projection
| SIDE BAR STRETCH | SMART STRETCH | CINEMA ZOOM | |||
| For 4:3 aspect ratio | 480I480P576I VGA576P SVGANTSC XGAPALSECAM | 768 × 576 1024 | × 576 | 1024 × 576 | 1024 × 576 |
| For 16:9 aspect ratio | 768 × 576 1024 | × 576480P | 1024 × 576 | 1024 × 576 | |
| - | - | 7 | 1024 × 576 | ||
| - | - | - | 1024 × 5761080I | ||
- "STRETCH" is fixed when 540P, 720P or 1080I signal is entered.
- "SMART STRETCH" cannot be selected while input signal from a computer (VGA, SVGA or XGA) is entered.
| Input Signal | Output screen image | ||||
| SIDE BAR SMART STRETCH | STRETCHCINEMA ZOOM | ||||
| 4801 480P 5761 576P NTSC PAL SECAM | 4:3 aspect ratio | ||||
| Letterbox | |||||
| Squeeze | |||||
| 540P 10801 | 16:9 aspect ratio | ||||
| 720P | |||||
| VGA SVGA XGA | 4:3 aspect ratio | ||||
Note
- "SMART STRETCH" cannot be selected while the Keystone correction (page 33) is being adjusted.
- Keystone correction (page 33) is disabled while the picture mode is set to "SMART STRETCH".
- 580I/580P is displayed on the screen when signal 576I/576P is input.
Adjustments and Settings


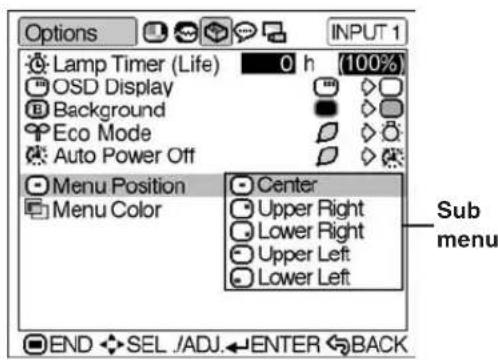

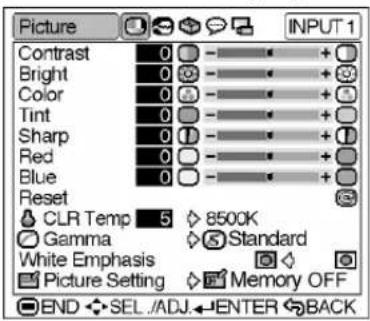

The menu screens allow you to adjust the image and various projector settings.
The menu can be operated to achieve two functions, adjustment and setting.
(For adjusting the menu items, see pages 38 and 39. For setting the menu items, see pages 40 and 41.)

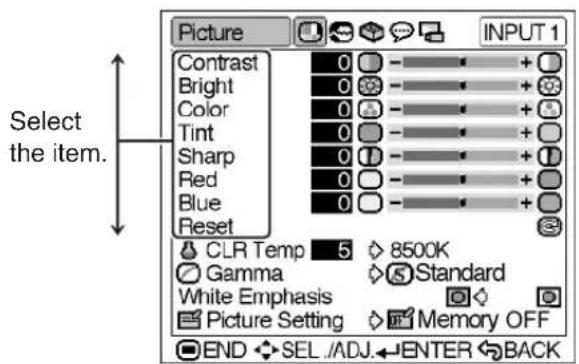

Menu screen (example)

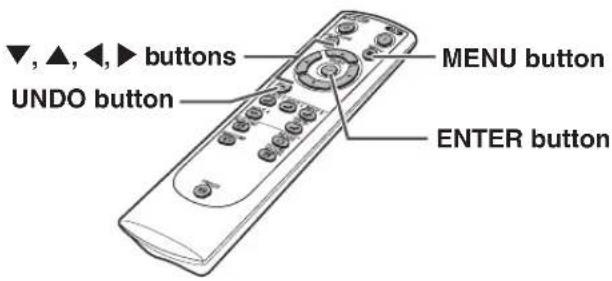

Menu Selections (Adjustments)

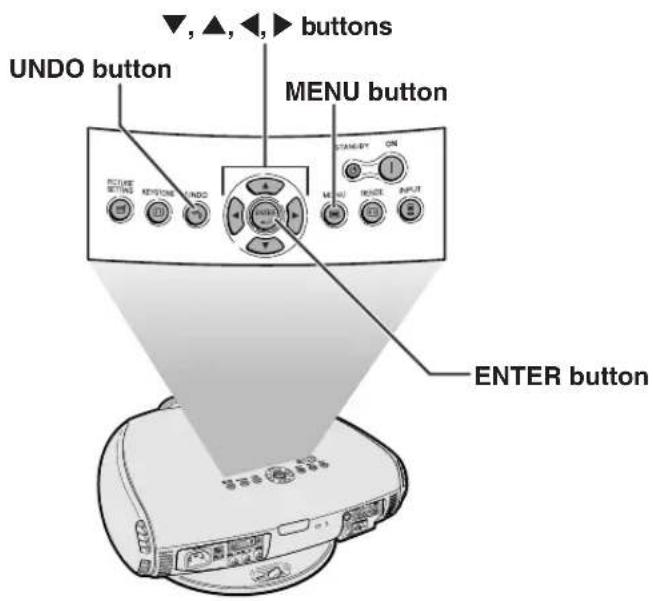

1
Press
•The menu screen is displayed.
Note

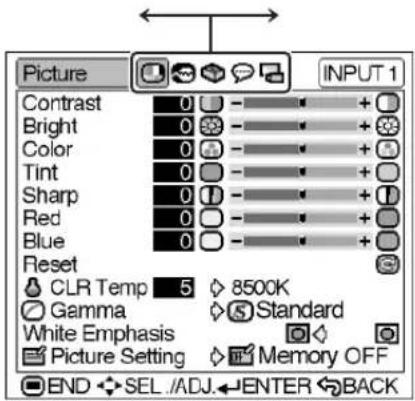

- The "Picture" menu screen for the selected input mode is displayed.
2 Press ◀ or ▶ to display the other menu screens.
- The menu icon for the selected menu screen is highlighted.
| Menu icon Menu screen | |
| Picture | |

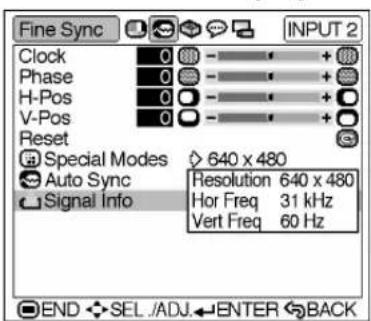

| Fine Sync | |

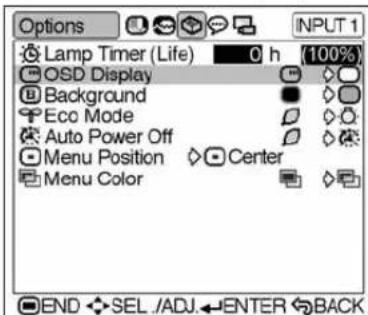

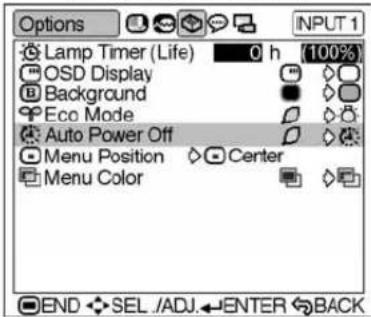

| Options | |
| Language | |
| PRJ Mode | |
Note
- The "Fine Sync" menu is not available for INPUT 3 or 4.

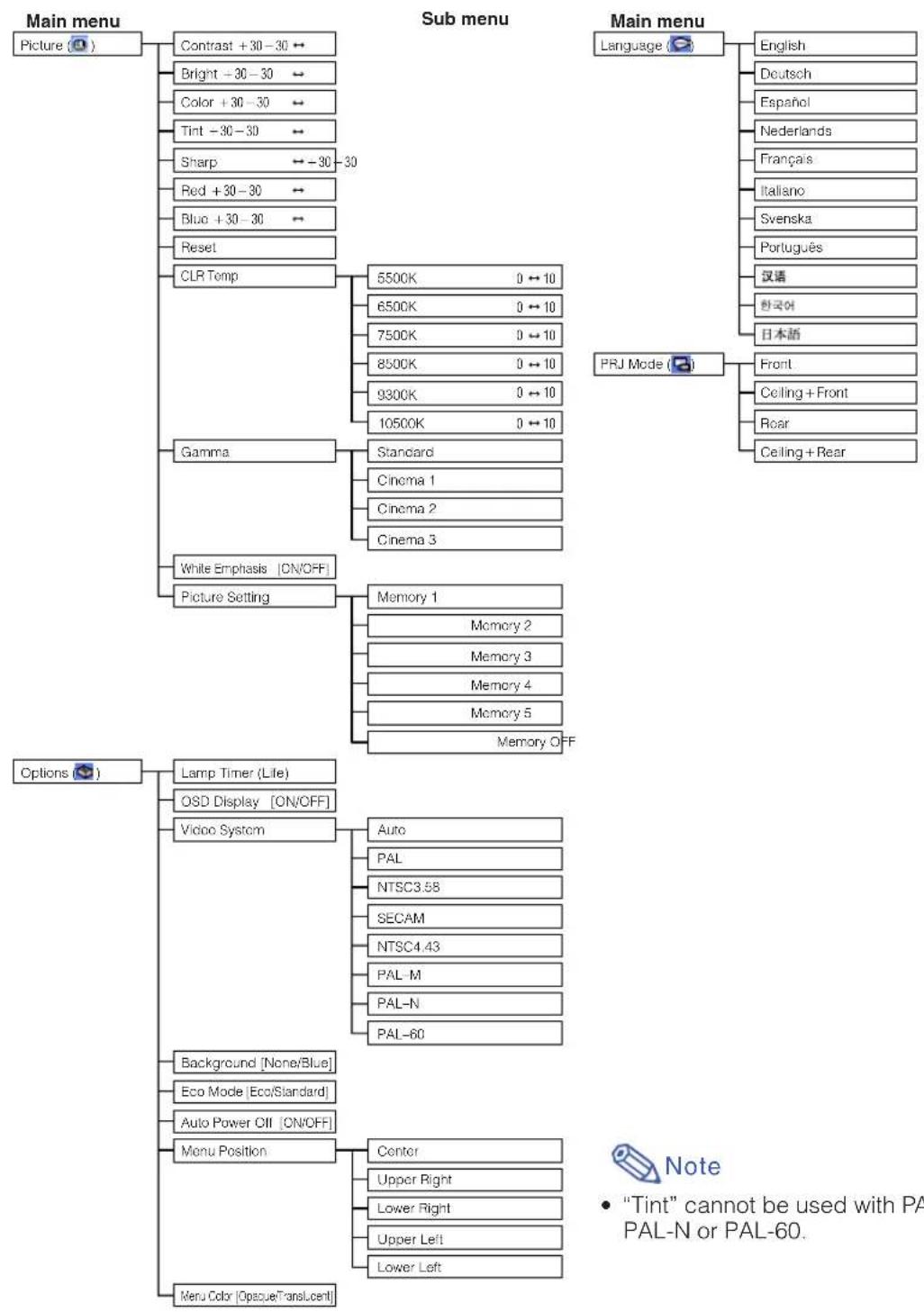

- For items on the menus, see the tree charts on pages 42 and 43.
3 Press ▼ or ▲ to select the item you want to adjust.
Note
• To display a single adjustment item, press after selecting the item. Only the menu bar and the selected adjustment item will be displayed.
Then if you press ▼ or ▲, the following item ("Bright" after "Contrast") will be displayed.
- Press Ⓤ to return to the previous screen.

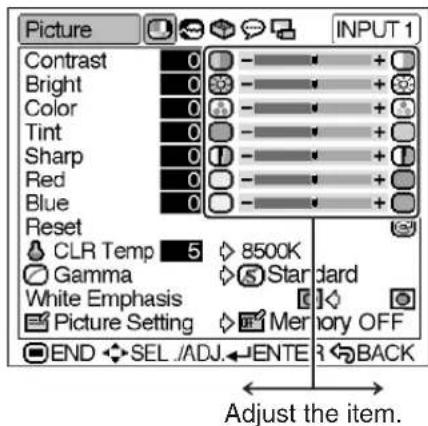

4 Press ◀ or ▶ to adjust the item selected.
•The adjustment is stored.
5 Press
•The menu screen will disappear.
Using the Menu Screen
Menu Selections (Settings)

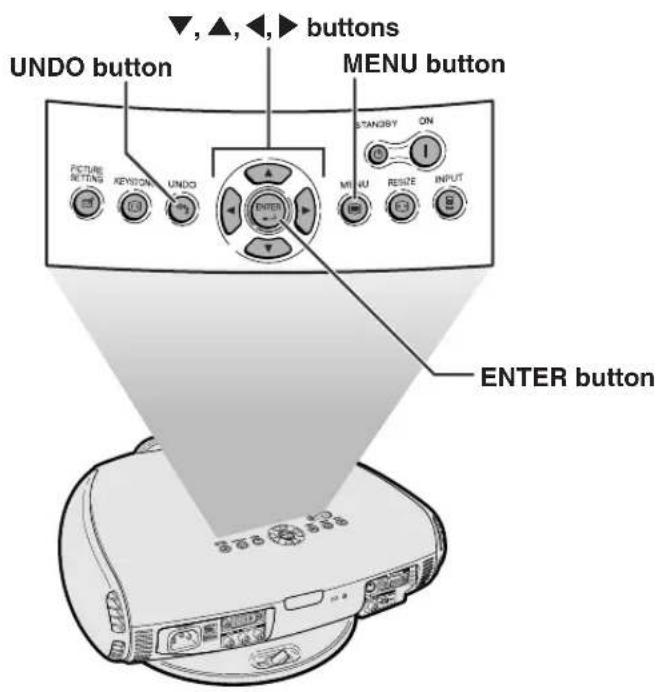

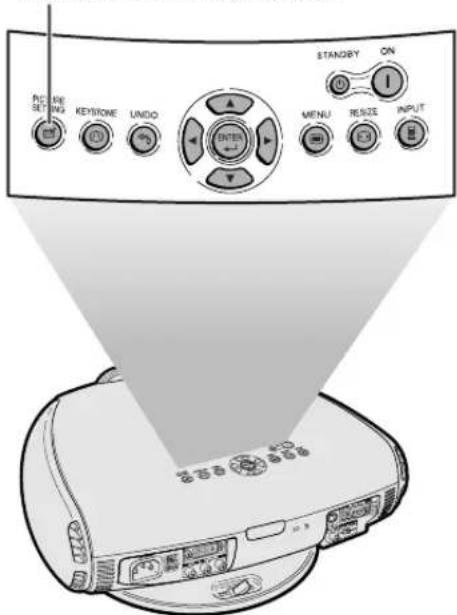

1 Press
•The menu screen is displayed.
Note
- The "Picture" menu screen for the selected input mode is displayed.
2 Press ◀ or ▶ to display the other menu screens.
- The menu icon for the selected menu screen is highlighted.
| Menu icon Menu screen | |
| Picture | |
| Fine Sync | |
| Options | |
| Language | |
| PRJ Mode | |
Note
- The "Fine Sync" menu is not available for INPUT 3 or 4.
- For items on the menus, see the tree charts on pages 42 and 43.

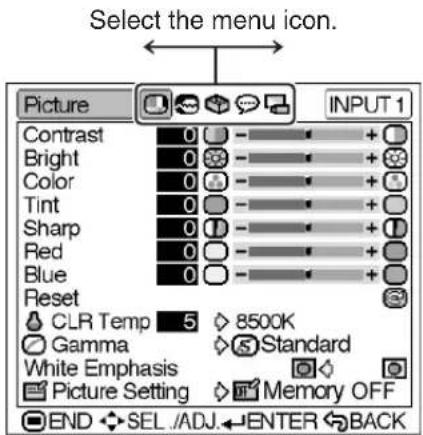

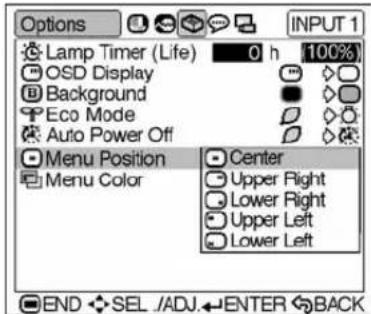

Select the menu icon.
3 Press ▼▼ or ▲▲ select the item you want to set.

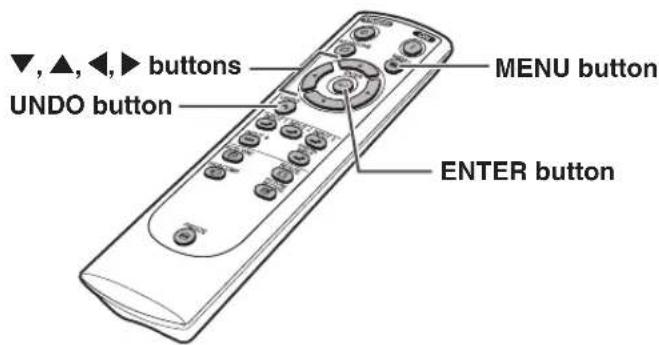

- Press UNDO to return to the previous screen.
- In some menus, select the icon using “→”.

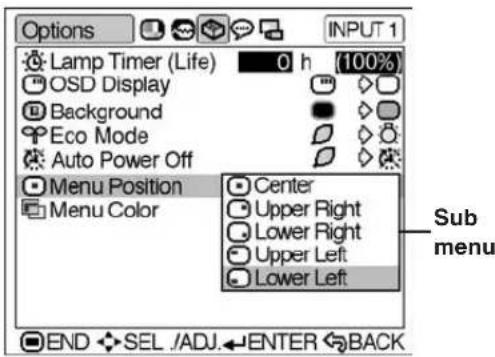

4 Press ▶.
•The sub menu is displayed.
5 Press ▼▼r ▲▲ select the setting of the item displayed in the sub menu.
6 Press ENTER
•The item selected is set.
7 Press MENU
•The menu screen will disappear.
Menu Bar Items
■ INPUT 1 / 2 / DIGITAL INPUT Mode
note right of AB
Note
• The resolution, vertical frequency figures displayed are examples purposes only.
• "Color", "Tint", and "Sharp" is selected in INPUT 2.
• "Signal Type" is not displayed in INPUT 1.
• "Color", "Tint", "Sharp", "Clou Pos", "V-Pos", "Special Mode"
end
Note
- The resolution, vertical frequency and horizontal frequency figures displayed above are for example purposes only.
- "Color", "Tint", and "Sharp" do not appear when "RGB" is selected in INPUT 2 mode.
- "Signal Type" is not displayed when using INPUT 1.
- "Color", "Tint", "Sharp", "Clock", "Phase", "H-Pos", "V-Pos", "Special Modes" and "Auto Sync" cannot be used in the DIGITAL INPUT mode.
- "Clock", "Phase" and "Auto Sync" cannot be used in the Component mode.
■ INPUT 3 / 4 Mode
direction TB
A --> A1["Lamp Timer (Life)"]
A1 --> A2["OSD Display [ON/OFF"]]
A2 --> A3["Vidoo System"]
A3 --> A4["Background [None/Blue"]]
A4 --> A5["Eco Mode [Eco/Standard"]]
A5 --> A6["Auto Power Off [ON/OFF"]]
A6 --> A7["Menu Position"]
A7 --> A8["Menu Color [Opaque/Transient"]]
A8 --> A9["Center"]
A9 --> A10["Upper Right"]
A9 --> A11["Lower Right"]
A9 --> A12["Upper Left"]
A9 --> A13["Lower Left"]
A9 --> A14["Upper Left"]
A9 --> A15["Lower Left"]
A9 --> A16["Upper Left"]
A9 --> A17["Lower Left"]
A9 --> A18["Upper Left"]
A9 --> A19["Lower Left"]
A9 --> A20["Upper Left"]
A9 --> A21["Lower Left"]
A9 --> A22["Upper Left"]
A9 --> A23["Lower Left"]
A9 --> A24["Upper Left"]
A9 --> A25["Lower Left"]
A9 --> A26["Upper Left"]
A9 --> A27["Lower Left"]
A9 --> A28["Upper Left"]
A9 --> A29["Lower Left"]
A9 --> A30["Upper Left"]
A9 --> A31["Lower Left"]
A9 --> A32["Upper Left"]
A9 --> A33["Lower Left"]
A9 --> A34["Upper Left"]
A9 --> A35["Lower Left"]
A9 --> A36["Upper Left"]
A9 --> A37["Lower Left"]
A9 --> A38["Upper Left"]
A9 --> A39["Lower Left"]
A9 --> A40["Upper Left"]
A9 --> A41["Lower Left"]
A9 --> A42["Upper Left"]
A9 --> A43["Lower Left"]
A9 --> A44["Upper Left"]
A9 --> A45["Lower Left"]
A9 --> A46["Upper Left"]
A9 --> A47["Lower Left"]
A9 --> A48["Upper Left"]
A9 --> A49["Lower Left"]
A9 --> A50["Upper Left"]
A9 --> A51["Lower Left"]
A9 --> A52["Upper Left"]
A9 --> A53["Lower Left"]
A9 --> A54["Upper Left"]
A9 --> A55["Lower Left"]
A9 --> A56["Upper Left"]
A9 --> A57["Lower Left"]
A9 --> A58["Upper Left"]
A9 --> A59["Lower Left"]
A9 --> A60["Upper Left"]
A9 --> A61["Lower Left"]
A9 --> A62["Upper Left"]
A9 --> A63["Lower Left"]
A9 --> A64["Upper Left"]
A9 --> A65["Lower Left"]
A9 --> A66["Upper Left"]
A9 --> A67["Lower Left"]
A9 --> A68["Upper Left"]
A9 --> A69["Lower Left"]
A9 --> A70["Upper Left"]
A9 --> A71["Lower Left"]
A9 --> A72["Upper Left"]
A9 --> A73["Lower Left"]
A9 --> A74["Upper Left"]
A9 --> A75["Lower Left"]
A9 --> A76["Upper Left"]
A9 --> A77["Lower Left"]
A9 --> A78["Upper Left"]
A9 --> A79["Lower Left"]
A9 --> A80["Upper Left"]
A9 --> A81["Lower Left"]
A9 --> A82["Upper Left"]
A9 --> A83["Lower Left"]
A9 --> A84["Upper Left"]
A9 --> A85["Lower Left"]
A9 --> A86["Upper Left"]
A9 --> A87["Lower Left"]
A9 --> A88["Upper Left"]
A9 --> A89["Lower Left"]
A9 --> A90["Upper Left"]
A9 --> A91["Lower Left"]
A9 --> A92["Upper Left"]
A9 --> A93["Lower Left"]
A9 --> A94["Upper Left"]
A9 --> A95["Lower Left"]
A9 --> A96["Upper Left"]
A9 --> A97["Lower Left"]
A9 --> A98["Upper Left"]
A9 --> A99["Lower Left"]
style Options fill:#f0f0f0,stroke:#333,stroke-width:2px

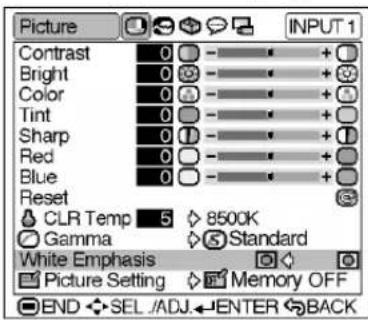

Adjusting the Picture
You can adjust the projector's picture to your preferences with the following picture settings.
Adjusting Image Preferences
Note
- First select "Memory 1-5" or "Memory OFF" when you want to save the "Picture" menu settings. See page 47 for details.
Adjust the "Picture" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.

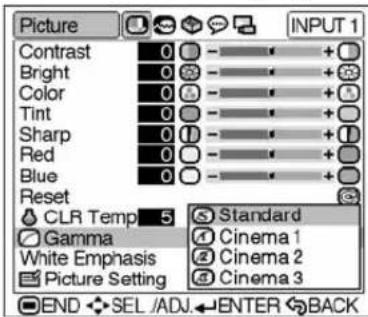

On-screen Display
| Selected Item | Description | ◀button | ▶button |
| Contrast | For adjusting the contrast level | For less contrast | For more contrast |
| Bright | For adjusting the brightness of an image | For less brightness | For more brightness |
| Color | For adjusting the color intensity of an image | For less color intensity | For more color intensity |
| Tint | For adjusting the tones of an image | Skin tones become purplish | Skin tones become greenish |
| Sharp | For making sharper or softer the contour of an image | For less sharpness | For more sharpness |
| Red | For adjusting the redness of an image | For weaker red | For stronger red |
| Blue | For adjusting the blueness of an image | For weaker blue | For stronger blue |
Note
- "Color", "Tint" and "Sharp" do not appear for RGB input in INPUT 2 mode.
- To reset all adjustment items, select "Reset" on the "Picture" menu screen and press 📄.
- "Tint" cannot be used with PAL, SECAM, PAL-M, PAL-N or PAL-60.
- "Color", "Tint" and "Sharp" cannot be used in the DIGITAL INPUT mode.
Adjusting the Color Temperature
This function allows for selecting the desired color temperature. With the lower value selected, the projected image becomes warmer, reddish and incandescent-like while with the higher value, the image becomes cooler, bluish and fluorescent-like.
Select "CLR Temp" in the "Picture" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| 5500K | The less the value is set to, the warmer, reddish, incandescent-like the image becomes.↑The more the value is set to, the cooler, bluish, fluorescent-like the image becomes. |
| 6500K | |
| 7500K | |
| 8500K | |
| 9300K | |
| 10500K |
"CLR Temp" is fine adjusted by following the procedure below.

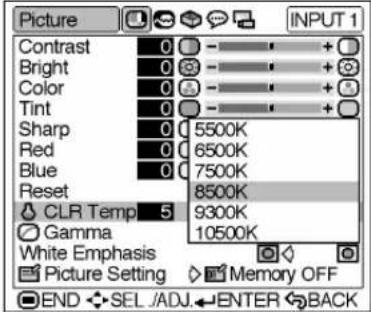

1 Select "CLR Temp" in the "Picture" menu on the menu screen and press 📋.
- A single menu bar of "CLR Temp" is displayed.
2 Press ▲▲r ▼▼b fine adjust the color temperature.
- With the lower value selected, the projected image becomes magenta-tinged. With the higher value selected, the projected image becomes green-tinged.
- Pressing ◀ or ▶ changes the value of the color temperature in the sub menu.
Note
- Values on "CLR Temp" are only for general standard purposes.
On-screen Display
CLR Temp 5 8500K
Gamma Correction Function
Gamma is an image quality enhancement function.
Four gamma settings are available to allow for differences in the brightness of the room.
Select "Gamma" in the "Picture" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| Standard | Standard picture without gamma correction |
| Cinema 1 | Gives greater depth to darker portions of images. |
| Cinema 2 | Brightness is toned down and the image becomes more balanced. |
| Cinema 3 | Brighten the darker portions of images for easier viewing in a dimly lit room. |
Emphasizing the Con- trast
This function emphasizes the bright portions of images to obtain a higher contrast image.
Select "White Emphasis" in the "Picture" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| (ON) | For emphasizing the bright portions of images |
| (OFF) | For disabling “White Emphasis” |
On-screen Display
On-screen Display

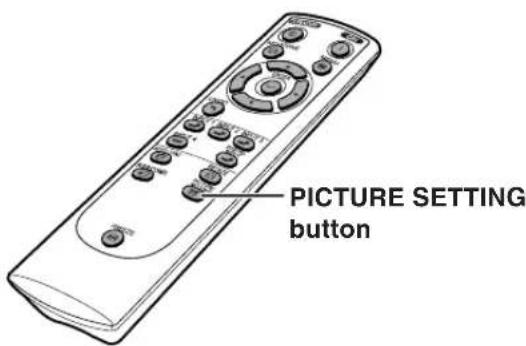

Picture Setting Function
This function stores all items set in "Picture". Five settings can be stored separately in "Memory 1" to "Memory 5". Each stored setting is reassigned to each input mode (INPUT 1 to INPUT 4 and DIGITAL).
Even when the input mode or signal is changed, you can easily select optimal settings from the stored settings.
■Storing the Adjustment Values for Each Memory Number

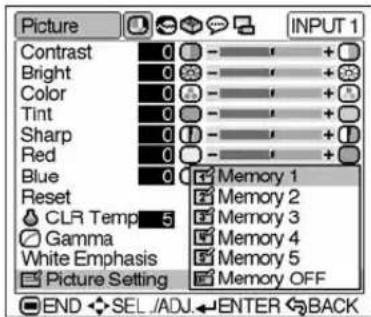

Select "Picture Setting" on the "Picture" menu and the memory location where you want to store the settings. Then adjust the setting items on the "Picture" menu.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| Memory 1-5 | Settings of all items in “Picture” can be stored for the respective input modes. The stored settings can be selected in any input modes. |
| Memory OFF | Besides “Memory 1” to “Memory 5”, other settings on the “Picture” menu can be stored for each input mode. The settings stored in “Memory OFF” cannot be applied when another input mode is selected. |
■ Applying the Stored Settings
If you want to apply the stored settings on the "Picture" menu, select "Picture Setting" on the "Picture" menu and the memory location where you have stored the settings.
Note
- This function can be operated using the on the projector or on the remote control, as well as the OSD menu screen. Each time or is pressed, the memory number changes as shown below.
→ Memory 1 Memory 2 Memory 3 Memory OFF ← Memory 5 Memory 4
On-screen Display
PICTURE SETTING button
Adjusting the Computer and DVD/DTV Images
Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen.
When Auto Sync is OFF
When "Auto Sync" is "OFF", interference such as flickering or vertical stripes may occur if displaying tilings or vertical stripes. Should this occur, adjust "Clock", "Phase", "H-Pos" and "V-Pos" for obtaining an optimum image.
Select "Clock", "Phase", "H-Pos" or "V-Pos" in the "Fine Sync" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.

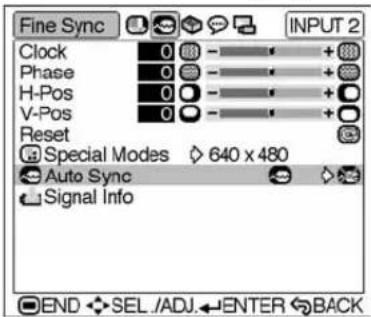

On-screen Display
| Selected Item Description | |
| Clock | Adjusts vertical noise. |
| Phase | Adjusts horizontal noise (similar to tracking on your VCR). |
| H-Pos | Centers the on-screen image by moving it to the left or right. |
| V-Pos | Centers the on-screen image by moving it up or down. |
Note
- "Clock", "Phase", "H-Pos" and "V-Pos" cannot be used in the DIGITAL INPUT mode.
- "Clock" and "Phase" cannot be used in the Component mode.
- Computer image adjustments can be made easily by pressing AUTO SYNC on the remote control. See page 50 for details.
- To reset all adjustment items, select "Reset" on the "Fine Sync" menu screen and press 📄.
•The adjustable area of each item may be changed according to the input signal.

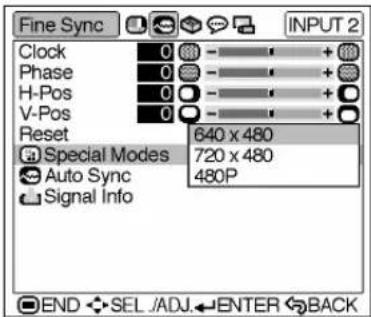

Special Modes Adjustment
Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in "Special Modes" on the "Fine Sync" menu screen may need to be selected to match the computer display mode.
Set the resolution by selecting "Special Modes" in the "Fine Sync" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
Note
- Avoid displaying computer patterns which repeat every other line (horizontal stripes). (Flickering may occur, making the image hard to see.)
- When inputting DTV 1080I signal, select the corresponding type of signal.
- When inputting 720P signal from the video equipment, select "720P". When inputting 1280 × 720 signal from the computer, select "HTPC".
- "Special Modes" cannot be used in the DIGITAL INPUT mode.
On-screen Display
Adjusting the Computer and DVD/DTV Images
Auto Sync Adjustment
Used to automatically adjust a computer image.
Select whether the image is to be synchronized automatically when switching the signal with "ON" or "OFF".
Select "Auto Sync" in the "Fine Sync" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
 (ON) | Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer. |
 (OFF) | Auto Sync adjustment is not automatically performed. |
Note
- When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 48.)
- The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.
- "Auto Sync" cannot be used in the DIGITAL INPUT mode.

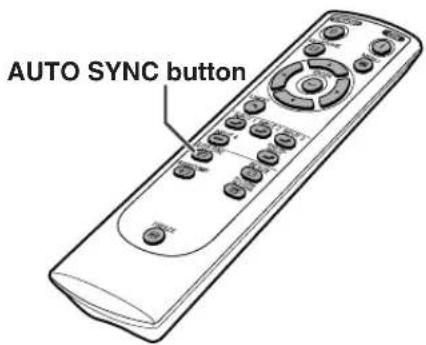

- Auto Sync adjustment is also performed by pressing AUTO SYNC on the remote control.
Checking the Input Signal
This function allows you to check the current input signal information.
Select "Signal Info" in the "Fine Sync" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
Note
- 540P is displayed on the screen when signal 1080I is inputted during DVI connection.
On-screen Display
On-screen Display
Using the "Options" Menu
Checking the Lamp Life Status
You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).
Display the "Options" menu to check the lamp life status.
→For operating the menu screen, see pages 38 to 41.
| Lamp usage condition | Remaining lamp life | |
| 100% | 5% | |
| Operated exclusively in Eco mode ( ) | Approx. Approx. 4,000 hours | 200 hours |
| Operated exclusively in Standard mode ( ) | Approx. Approx. 3,000 hours | 150 hours |
Note
- It is recommended that the lamp be changed when the remaining lamp life becomes 5%.
For lamp replacement, contact your nearest Sharp Authorized Service Center or Dealer. - The table above indicates rough estimates in the case of using only in each mode shown. Remaining lamp life changes within the range of the values shown depending on the frequency at which "Eco Mode" is switched to "☐" (Eco mode) and "☐" (Standard mode) (see page 53).
Turning on/off the On-screen Display
This function allows you to turn on or off the on-screen messages that appear during input select.
Select "OSD Display" in the "Options" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| (ON) | All On-screen Displays are displayed. |
| (OFF) | INPUT/FREEZE/AUTO SYNC/“An invalid button has been pressed.” are not displayed. |

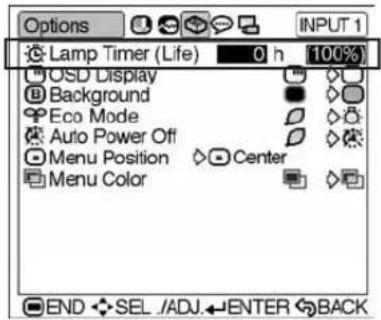

On-screen Display
![Options Lamp Timer (Life) 0 h [100%] OSD Display Background Eco Mode Auto Power Off Menu Position Center Menu Color END SEL /ADJ ENTER BACK](/content/2026/05/759427/images/e78fcff62841941f2df572e78e89eabcf4054203fca062e6c0a9cbdc11f20623.jpg)
On-screen Display

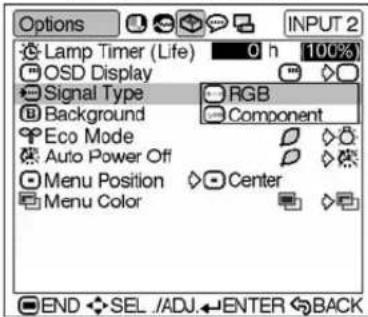

Selecting the Signal Type
This function allows you to select the input signal type Component or RGB for INPUT 2.
Select "Signal Type" in the "Options" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| RGB | Set when RGB signals are received. |
| Component | Set when Component signals are received. |

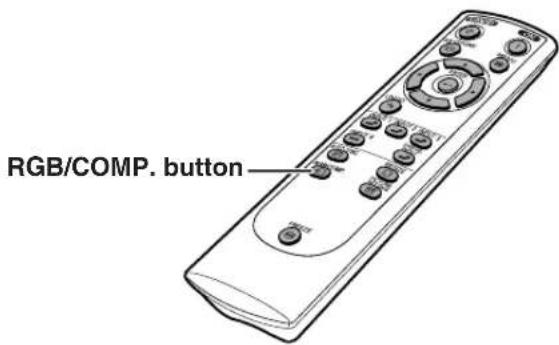

Note
- "RGB" or "Component" can be selected with RGBCOMP. on the remote control only in INPUT 2.
Setting the Video Signal (VIDEO menu only)
The video input system mode is preset to "Auto"; however, it can be changed to a specific system mode if the selected system mode is not compatible with the connected audiovisual equipment.
Select "Video System" in the "Options" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
Note
- When the system mode is set to "Auto", you may not receive a clear picture due to signal differences. Should this occur, switch to the video system of the source signal.
- "Auto" cannot be set for PAL-M and PAL-N input signals. Select "PAL-M" or "PAL-N" in "Video System" menu for PAL-M and PAL-N input signals.

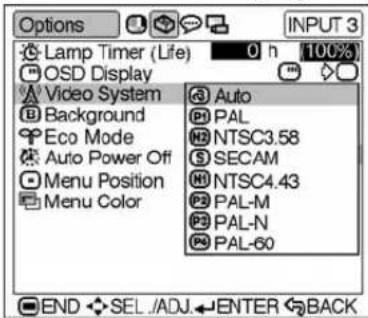

On-screen Display
On-screen Display
Selecting a Background Image
This function allows you to select the image displayed when no signal is being sent to the projector.
Select "Background" in the "Options" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| (Blue) | Blue screen |
| (None) | Black screen |

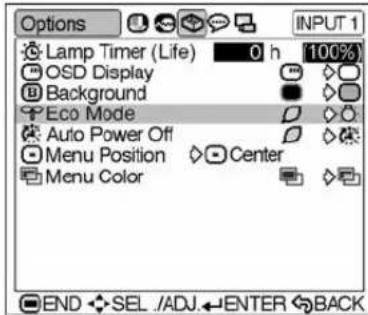

Setting the Eco Mode
This function allows you to select the desired power consumption mode.
Select "Eco Mode" in the "Options" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Brightness | Power consumption | Lamp life |
| (Eco mode) | 80% | 230 W | Approx. 4,000 hours |
| (Standard mode) | 100% | 285 W | Approx. 3,000 hours |
Note
- Although lamp life and noise are improved when "Eco Mode" is set to "D" (Eco mode), brightness decreases by 20%.
- "Eco Mode" is factory preset to "☐" (Standard mode).
On-screen Display
On-screen Display
Automatic Power Shut-off Function
When no input signal is detected for more than 15 minutes, the projector will automatically enter the standby mode if set to “☐” (ON).
Select "Auto Power Off" in the "Options" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| Projector automatically enters the standby mode after 15 minutes without an input signal. | |
| Automatic Power Shut-off disabled. |
Note
- "Auto Power Off" is factory preset to "☐".
- When the Auto Power Off function is set to “(ON)”, 5 minutes before the projector enters the standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.
Selecting the Menu Screen Position
This function allows you to select the desired position of the menu screen.
Select "Menu Position" in the "Options" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| Center | The menu is displayed on the center of the image. |
| Upper Right | The menu is displayed on the upper right of the image. |
| Lower Right | The menu is displayed on the lower right of the image. |
| Upper Left | The menu is displayed on the upper left of the image. |
| Lower Left | The menu is displayed on the lower left of the image. |
On-screen Display
Enter STANDBY mode in 1 min.
On-screen Display
Selecting the Menu Color
This function allows you to select the color of the menu screen.
Select "Menu Color" in the "Options" menu on the menu screen.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| (Opaque) | The menu is displayed opaquely. |
| (Translucent) | The menu is displayed translucently. The part of the menu on the image becomes transparent. |
On-screen Display
Reversing/Inverting Projected Images
This projector is equipped with a reverse/invert image function that allows you to reverse or invert the projected image for various applications.
Setting the Projection Mode
Display the "PRJ Mode" menu and select the desired projection mode.
→For operating the menu screen, see pages 38 to 41.
| Selected Item | Description |
| Front | Normal image |
| Ceiling + Front | Inverted image |
| Rear | Reversed image |
| Ceiling + Rear | Reversed and inverted image |
Note
- This function is used for the reversed image and ceiling-mount setups. See page 28 for these setups.
On-screen Display
Appendix
■The warning lights on the projector indicate problems inside the projector.
If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter the standby mode. After the projector has entered the standby mode, follow the procedures given below.
About the temperature warning indicator
If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, "TEMP." will
TEMP.
illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and then the projector will enter the standby mode. After
“TEMPARS, be sure to perform the following measures.
About the lamp indicator
Change The Lamp.
■The lamp life becomes 0%, when used for approximately 4,000 hours with “Eco mode” or when used for approximately 3,000 hours with “Standard mode” (see page 53).
When the remaining lamp life becomes 5% or less, “☒” (yellow) will be displayed on the screen. When the percentage becomes 0%, “☒” will change to “☒” (red), the lamp will automatically turn off and then the projector will automatically enter the standby mode. At this time, the lamp indicator will illuminate in red.
If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.
| Maintenance indicator | Condition | Problem Possible Solution | ||
| Normal | Abnormal | |||
| Temperature warning indicator | Off | Red on/ Standby | The internal temperature is abnormally high. | • Blocked air intake |
| •Cooling fan break-down•Internal circuit failure•Clogged air intake | ||||
| Lamp indicator | Green on Green blinks when the lamp is warming up. | Red on | Time to change the lamp. | •Remaining lamp life becomes 5% or less. |
| Red on/ Standby | The lamp does not illuminate. | •Burnt-out lamp•Lamp circuit failure | ||
| Power indicator | Green on/ Red on | Off | The power is not turned on. | •The lamp unit cover is open. |
Info
- If the temperature warning indicator illuminates, and the projector enters the standby mode, follow the possible solutions on the previous page and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 5 minutes.)
- If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.
- If you want to clean the air vents during projector operation, be sure to put the projector into the standby mode. After the cooling fan has stopped, clean the vents.
- The cooling fan keeps the internal temperatures of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.
- Do not unplug the power cord after the projector has entered the standby mode and while the cooling fan is running. The cooling fan runs for about 90 seconds.
Regarding the Lamp
Lamp
It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. See page 51.
■ For lamp replacement, please consult your nearest Sharp Authorized Service Center or Dealer.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Service Center or Dealer. For the name of the nearest Sharp Authorized Service Center or Dealer, please call toll-free: 1-800-BE-SHARP (1-800-237-4277). U.S.A. ONLY
Caution Concerning the Lamp
This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.
When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.
■ Should the lamp break, the glass particles may spread inside the lamp unit or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Service Center or Dealer to remove the damaged lamp and assure safe operation.
Replacing the Lamp
Caution
- Do not remove the lamp unit immediately after operation of the projector. The lamp will be hot and touching it can lead to burn or injury.
- Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit.
If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Service Center or Dealer for repair. Purchase a replacement lamp unit of type BQC-XVZ200++1 from your nearest Sharp Authorized Service Center or Dealer. Then carefully change the lamp by following the instructions described in this section. If you wish, you may have the lamp replaced at your nearest Sharp Authorized Service Center or Dealer.
Regarding the Lamp
Removing and Install- ing the Lamp Unit
Caution
- Be sure to remove the lamp unit by the handle. Do not touch the glass surface of the lamp unit or the inside of the projector.
• To avoid injury to yourself and damage to the lamp, carefully follow the steps below. - Replace the lamp after turning off the power and unplugging the power cord.
1 Put the projector into the standby mode.
•Press . STANDBY
- Wait until the cooling fan stops.
2 Unplug the power cord.
- Unplug the power cord from the AC socket.
- Leave the lamp until it has fully cooled down (about 1 hour).
3 Remove the Swivel Stand. (See page 24.)
4 Remove the lamp unit cover.
- Loosen the user service screw that secures the lamp unit cover.
- Slide the lamp unit cover in the direction of the arrow.
5 Remove the lamp unit.
- Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow.
6 Insert the new lamp unit.
- Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.
7 Attach the lamp unit cover.
- Slide the lamp unit cover in the direction of the arrow.
- Fasten the user service screw.
Reset the lamp timer after replacing the lamp.
1 Plug the power cord.
- Confirm that the POWER indicator illuminates red.
2 Reset the lamp timer.
-Press
in order. Then press ⚠!
- "LAMP 0000H" is displayed on the screen.
Info
- Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, the lamp may become damaged or explode.
Cleaning the Ventilative Holes
- This projector is equipped with ventilative holes to ensure the optimal operating condition of the projector.
• Periodically clean the ventilative hole by vacuuming it off with a vacuum cleaner.
• The ventilative holes should be cleaned every 100 hours of use. Clean the ventilative holes more often when the projector is used in a dirty or smoky location.
Side and Rear view
m view
Intake ventilative holes
Swivel stand
Cleaning the Ventilative Holes
1 Put the projector into the standby mode.
•Press . STANDBY
- Wait until the cooling fan stops.
2 Unplug the power cord.

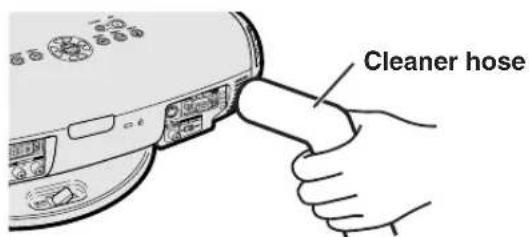

3 Clean the dust off by putting the cleaner hose on the intake ventilative holes.

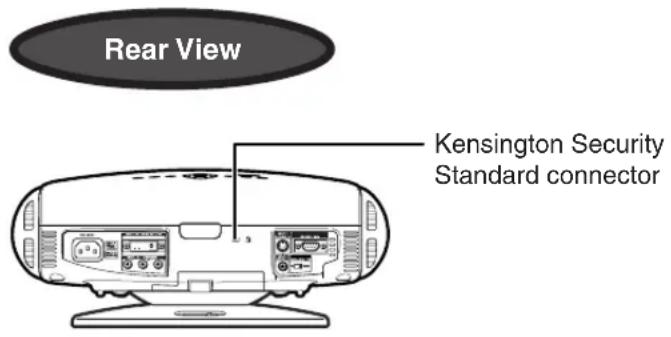

Using the Kensington Lock
This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.
Troubleshooting
| Problem | Check |
| No picture appears. | Projector power cord is not plugged into the wall outlet.Selected input is wrong. (See page 31.)Cables incorrectly connected to back panel of the projector. (See pages 14–23.)“Contrast” and “Bright” adjustments are set to minimum position. (See page 44.) |
| Color is faded or poor. | Picture adjustments are not correct. (See page 44.) |
| Picture is blurred. | Adjust the focus. (See page 25.)Projection distance is too long or too short to allow for proper focus. (See pages 26 and 27.) |
| No OSD appears. | OSD Display is set to “OFF”, preventing to display some or all On-screen Displays. (See page 51.) |
| An unusual sound is occasionally heard from the cabinet. | If the picture is normal, the sound is due to cabinet shrinkage caused by temperature changes. This will not affect operation or performance of the projector. |
| Maintenance indicator illuminates. | Refer to “Maintenance Indicators” on page 58. |
| Picture noise appears. | Adjust the “Phase” setting. (See page 48.) |
| Image is green on INPUT 2 Component.Image is pink (no green) on INPUT 2 RGB. | Change the input signal type. (See page 52.) |
Service Information (For the U.S.)
For the location of the nearest Sharp Authorized Service Center, or to obtain product literature, accessories, supplies or customer assistance, please call 1-800-BE-SHARP (1-800-237-4277) or visit SHARP's website (http://www.sharpusa.com).
Connecting Pin Assignments

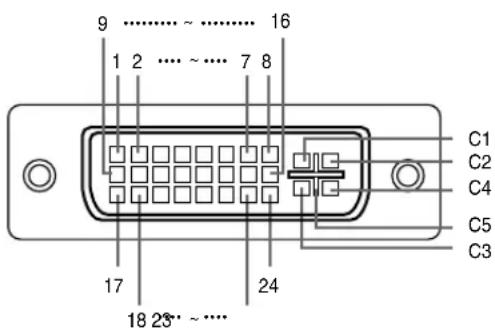

DVI-I (INPUT 2 / DIGITAL INPUT) port : 29 pin connector
• DVI Digital INPUT
Pin No. Signal Pin No. Signal
1 T.M.D.S data 2–16 Hot plug detection
2 T.M.D.S data 2+ 17 T.M.D.S data 0-
3 T.M.D.S data 2 shield 18 T.M.D.S data 0+
4 Not connected 19 T.M.D.S data 0 shield
5 Not connected 20 Not connected
6 DDC clock 21 Not connected
7 DDC data 22 T.M.D.S clock shield
8 Not connected 23 T.M.D.S clock+
9 T.M.D.S data 1–24 T.M.D.S clock–
10 T.M.D.S data 1+ C1 Not connected
11 T.M.D.S data 1 shield C2 Not connected
12 Not connected C3 Not connected
13 Not connected C4 Not connected
14 +5V power C5 Ground
15 Ground
• DVI Analog RGB Input
Pin No. Signal
| 1 Not connected | 16 Hot plug detection |
| 2 Not connected | 17 Not connected |
| 3 Not connected | 18 Not connected |
| 4 Not connected | 19 Not connected |
| 5 Not connected | 20 Not connected |
6 DDC clock 21 Not connected
7 DDC data 22 Not connected
8 Vertical sync 23 Not connected
9 Not connected 24 Not connected
10 Not connected C1 Analog input Red
11 Not connected C2 Analog input Green
12 Not connected C3 Analog input Blue
13 Not connected C4 Horizontal sync
14 +5V power C5 Ground
15 Ground
• DVI Analog Component Input
Pin No. Signal
| 1 Not connected | 16 Not connected |
| 2 Not connected | 17 Not connected |
| 3 Not connected | 18 Not connected |
| 4 Not connected | 19 Not connected |
| 5 Not connected | 20 Not connected |
| 6 Not connected | 21 Not connected |
| 7 Not connected | 22 Not connected |
| 8 Not connected | 23 Not connected |
| 9 Not connected | 24 Not connected |
| 10 Not connected | C1 Analog input Pr/Cr |
| 11 Not connected | C2 Analog input Y |
| 12 Not connected | C3 Analog input Pb/Cb |
| 13 Not connected | C4 Not connected |
| 14 Not connected | C5 Ground |
| 15 Ground |
Computer Compatibility Chart
Horizontal Frequency: 15–70 kHz
Vertical Frequency: 43–75 Hz
Pixel Clock: 12–80 MHz
Compatible with sync on green
XGA compatible in intelligent compression
| PC/MAC/WS | Resolution | Horizontal Frequency (kHz) | Vertical Frequency (Hz) | VESA Standard | DVI Support | Display | |
| PC | VGA | 640 × 350 | 27.0 60 | Upscale | |||
| 31.5 70 | |||||||
| 720 × 350 | 27.0 60 | ||||||
| 31.5 70 | |||||||
| 640 × 400 | 27.0 60 | ||||||
| 31.5 70 | |||||||
| 720 × 400 | 27.0 | 60 | |||||
| 31.5 | 70 | ||||||
| 640 × 480 | 26.2 | 50 | √ | ||||
| 31.5 | 60 | √ | √ | ||||
| 34.7 | 70 | √ | |||||
| 37.9 | 72 | √ | √ | ||||
| 37.5 | 75 | √ | √ | ||||
| SVGA | 800 × 600 | 31.4 50 | √ | Intelligent Compression | |||
| 35.1 56 | √ | √ | |||||
| 37.9 60 | √ | √ | |||||
| 44.5 70 | √ | ||||||
| 48.1 72 | √ | √ | |||||
| 46.9 75 | √ | √ | |||||
| XGA | 1,024 × 768 | 35.5 43 | √ | √ | |||
| 40.3 50 | √ | ||||||
| 56.5 | 70 | √ | √ | ||||
| 58.1 72 | √ | ||||||
| — | 1,280 × 720 | 45.0 60 | √ | ||||
| PC/MAC 13* | VGA | 640 × 480 | 34.9 67 | Upscale | |||
| MAC 16* | SVGA | 832 × 624 | 46.8 75 | Intelligent Compression | |||
| 49.6 75 | |||||||
| PC/MAC 19* | XGA | 1,024 × 768 | 48.4 60 | √ | |||
| 60.0 | 75 | √ | |||||
Note
- This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in "CRT only" mode. Details on how to change display modes can be found in your notebook computer's operation manual.
Specifications
| Product type | Projector |
| Model | DT-300 |
| Video system | PAL/PAL 60/PAL-M/PAL-N/SECAM/NTSC 3.58/NTSC 4.43DTV 480I/480P/720P/1080I |
| Display method | DLP chip, RGB optical shutter method |
| DLP panel | Panel size: 0.6" |
| Display method: Single Panel Digital Micromirror Device (DMDTM) by Texas Instruments | |
| Drive method: Digital Light Processing (DLPTM) | |
| No. of dots: 589,824 dots (1,024 [H] × 576 [V]) | |
| Lens | 1-1.2 × zoom lens, F2.0-2.4, f=16.9-20.2 mm |
| Projection lamp | 210 W/168 W SHP lamp |
| Video input signal | RCA Connector: VIDEO (INPUT 4), composite video, 1.0 Vp-p, sync negative, 75 Ω terminated |
| S-video input signal | 4-pin Mini DIN connector (INPUT 3)Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminatedC (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated |
| Component input signal(INPUT 1) | RCA ConnectorY: 1.0 Vp-p, sync negative, 75 Ω terminatedPB: 0.7 Vp-p, 75 Ω terminatedPR: 0.7 Vp-p, 75 Ω terminated |
| Component input signal(INPUT 2) | 29-pin connectorDVI input signal: Digital 250-1,000 mV 50 ΩAnalog 0.7 Vp-p 75 ΩY: 1.0 Vp-p, sync negative, 75 Ω terminatedPB: 0.7 Vp-p, 75 Ω terminatedPR: 0.7 Vp-p, 75 Ω terminated |
| Horizontal resolution | 520 TV lines (NTSC 3.58 input) |
| RGB input signal | DVI-I terminal |
| Input impedance 50 ΩInput level 250-1000 mV | |
| Input impedance 75 ΩInput level 0.7 Vp-p | |
| Separate sync/Composite syncInput level TTL levelInput impedance 1 KΩGreen on syncInput level (Synchronizing input) 0.286 Vp-pInput impedance 75 Ω | |
| Pixel clock | 12-80 MHz |
| Vertical frequency | 43-75 Hz |
| Horizontal frequency | 15-70 kHz |
| Rated voltage | AC 100-240 V |
| Input current | 3.2 A |
| Rated frequency | 50/60 Hz |
| Power consumption | 285 W |
| Heat dissipation | 1,070 BTU/hour |
| Operating temperature | 41°F to 95°F (+5°C to +35°C) |
| Storage temperature | -4°F to 140°F (-20°C to +60°C) |
| Cabinet | Plastic |
| I/R carrier frequency | 38 kHz |
| Dimensions (approx.) | 141⁄2" (W) × 69⁄16" (H) × 127⁄8" (D) (368 × 153.8 × 327 mm) (including swivel stand) |
| 141⁄2" (W) × 45⁄6" (H) × 127⁄8" (D) (368 × 118 × 327 mm) (main body only) | |
| Weight (approx.) | 10.1 lbs. (4.6 kg) (including swivel stand) |
| 9.0 lbs. (4.1 kg) (main body only) | |
| Supplied accessories | Remote control, Two AA size batteries, Power cord, Video cable, Lens cap (attached on the body), Operation manual |
| Replacement parts | Lamp unit (Lamp/cage module) (BQC-XVZ200++1), Remote control(RRMCGA218WJSA), AA size batteries, Power cord (QACCDA007WJPZ), Video cable(QCNWGA001WJZZ), Lens cap (CCAPHA004WJ01), Operation manual (TINS-B006WJZZ) |
This SHARP projector uses a DMD chip. This very sophisticated chip contains 589,824 pixels. As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit. If you have any questions about this matter, please call toll free 1-800-BE-SHARP (1-800-237-4277). U.S.A. ONLY
Dimensions
Units: inches (mm)
Glossary
Aspect Ratio
Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4:3. There are also wide images with an aspect ratio of 16:9 and 21:9.
Auto Sync
Optimizes projected computer images by automatically adjusting certain characteristics.
Background
Initial setting image projected when no signal is being output.
Clock
Clock adjustment is used to adjust vertical noise when clock level is incorrect.
CLR Temp (Color temperature)
Function that can be used to adjust the color temperature to suit the type of image input to the projector. Decrease the color temperature to create warmer, reddish images for natural flesh tones, or increase to create cooler, bluish images for a brighter picture.
Composite sync
Signal combining horizontal and vertical sync pulses.
Digital keystone correction
Function to digitally correct a distorted image when the projector is set up at an angle, smoothes out jaggies on keystone images and compresses the image not only horizontally but vertically keeping the 16 : 9 aspect ratio.
DVI (Digital Visual Interface)
Display digital interface that also supports analog interfaces.
Gamma
Image quality enhancement function that offers a richer image by brightening the darker portions of the image without altering the brightness of the brighter portions. You can select from four different modes: Standard, Cinema 1, Cinema 2 and Cinema 3.
Intelligent compression and expansion
High quality resizing of lower and higher resolution images to fit the projector's native resolution.
Phase
Phase shift is a timing shift between isomorphic signals with the same resolution. When phase level is incorrect, the projected image typically displays horizontal flicker.
Resize
Allows you to modify or customize the picture display mode to enhance the input image. You can select from four different modes: SIDE BAR, SMART STRETCH, CINEMA ZOOM and STRETCH.
Stretch
Mode that stretches the 4:3 image horizontally to display it on the wide screen.
Sync on green
Video signal mode of a computer which overlaps horizontal and vertical sync signal to green color signal pin.
Index
A
AC socket 14
Adjusting the Picture 44
ADJUSTMENT buttons 39
Aspect ratio 35
Automatic power shut-off function 54
Auto sync adjustment 50
AUTO SYNC button 50
B
Background 53
C
Ceiling-mount 28
Ceiling+Rear 56
Clock 48
COMPONENT terminals 17
D
DIGITAL INPUT terminal 20
DVI 20
E
Eco mode 53
ENTER button 39
Exhaust ventilative hole 6
F
Focus ring 25
FREEZE button 35
|
INPUT buttons.... 31
K
Kensington Lock 63
KEYSTONE button.... 33
L
LAMP indicator 58
Lens shift 25
M
MENU button.... 38
0
ON button 30
On-screen display 51
On-screen display language 31
P
Phase 48
Power cord 14
POWER indicator 30
R
Rear projection 28
Remote control 10
Remote control sensor 11
Remote control signal transmitter 10
RESIZE button 35
S
STANDBY button 32
STRETCH 36
S-VIDEO INPUT terminal 15
Sync on green 66
T
TEMPERATURE WARNING indicator 58
U
UNDO button.... 39
V
VIDEO INPUT terminal 16
Video System 52
Z
Zoom knob 25
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
| Model Specific Section (In-Home Service) | DT-300 Projector |
| Your Product Model Number & Description: | (Be sure to have this information available when you need service for your Product.) |
| Warranty Period for this Product: | One (1) year parts and labor from date of purchase except for the Projector Lamp for which the warranty period is ninety (90) days from date of purchase. After the ninety (90) day warranty period on the Projector Lamp, parts and labor for a lamp replacement are the responsibility of the consumer. |
| Additional Item(s) Excluded from Warranty Coverage (if any): | Cleaning of Optical System and/or replacement of any filter.Labor & materials required to remove and reinstall a suspended projector in installations not accessible with a standard (8' step) ladder or ceilings exceeding 12' in height. |
| Where to Obtain Service: | Labor & materials required to remove and reinstall a projector in complex systems including, but not limited to, projectors installed in custom enclosures, projectors connected to third party control and automation systems, and realignment of projectors installed in "mirrored" rear projection enclosures. |
| What to do to Obtain Service: | |
| From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.Contact your Sharp Authorized Servicer to obtain in-home service for this Product. The Servicer will come to your home and if necessary to remove the Product for repair at the Servicer's facility, the Servicer will reinstall it upon completion of repair. Be sure to have Proof of Purchase available. |
TO OBTAIN PRODUCT INFORMATION, CALL 1-800-BE-SHARP (1-800-237-4277) OR VISIT www.sharpusa.com.
SHARP®
LIMITED WARRANTY
Consumer Electronics Products
Congratulations on your purchase!
Sharp Electronics of Canada Ltd. (hereinafter called Sharp) gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:
Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein.
This warranty shall not apply to:
(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate use as outlined in the owner's manual.
(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres or Sharp's Authorized Servicing Dealers.
(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to head cleaning tapes and chemical cleaning agents.
(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and paper.
(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.
(f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid spillage.
(g) Any product received without appropriate model, serial number and CSA/cUL markings.
(h) Any products used for rental or commercial purposes.
(i) Any installation, setup and/or programming charges.
Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp's discretion on any Sharp television with the screen size of 27 or larger and on any Sharp Over The Range Microwave Oven.
This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.
WARRANTY PERIODS
Projector 1 year (bulb 90 days)
To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:
SHARP ELECTRONICS OF CANADA LTD.
SHARP ELECTRONICS OF CANADA LTD.
335 Britannia Road East
Mississauga, Ontario
L4Z 1W9
(905) 568-7140
Web site: www.sharp.ca
