USER MANUAL HD 7/122 Kränzle

High-pressure cleaner

HD 7/122

HD 7/122 TS

HD 10/122

HD 10/122 TS

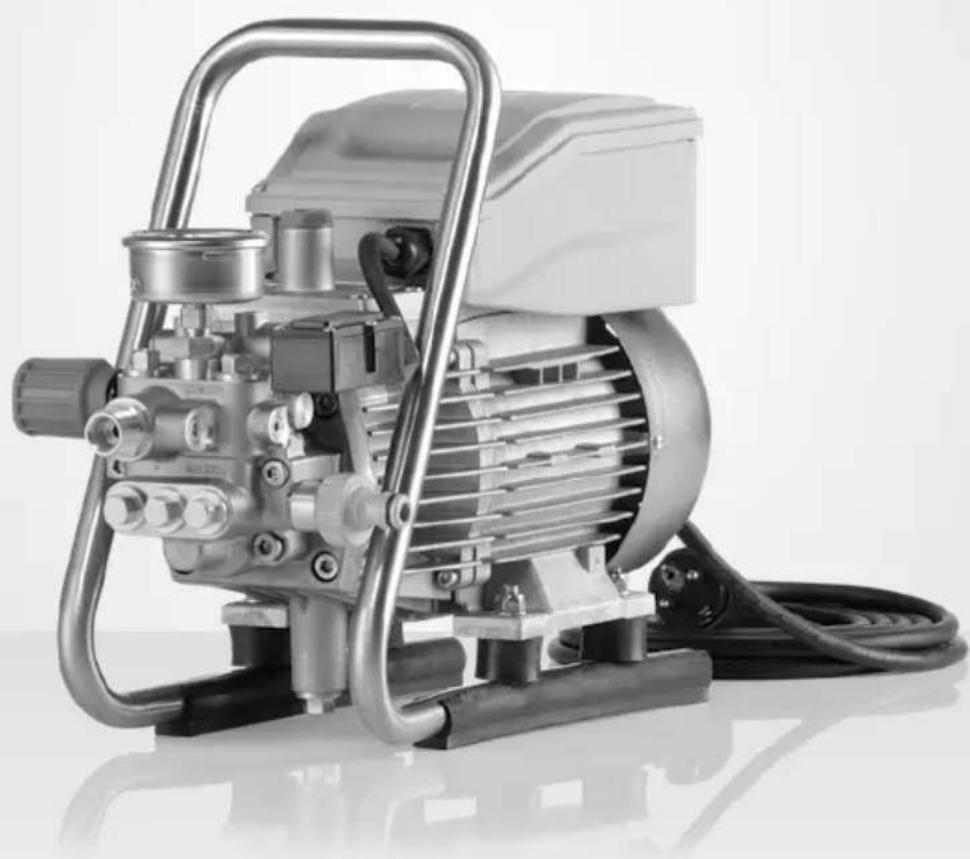

Industrial pressure pump with metallic housing and hoses, no visible text or symbols

Operating manual

EN

High-pressure cleaner

HD 7/122

HD 7/122 TS

HD 10/122

HD 10/122 TS

Operating manual!

This manual is a translation of the original manualRead and conform safety instructions before use! Technical data will be found in the Spare parts list. Please be aware that the spare part list is part of the operating manual. Keep both leaflets for later use or any subsequent owners.

Dear customer:

We would like to congratulate you on the purchase of your new high-pressure cleaner and thank you for your confidence in our products!

Your choice has fallen on an absolute quality product! Kränzle high-pressure cleaners are characterized by their convenient and compact design as well as their high suitability for everyday use.

Highest precision and dimensional accuracy in addition to a technology package consisting of a multitude of details mark the difference when it comes to performance, safety and durability.

In order to facilitate handling of the high-pressure cleaner, the following pages are intended to further explain its use. The illustrations may be subject to deviation depending on the type of equipment or accessory of high-pressure cleaner purchased by you.

Contents 4

Explanatory symbols 5

Safety notes 6

Description of high-pressure cleaner 10

General rules 12

Functional details 14

Putting into operation 18

Direct suction 22

Taking out of operation 23

Small repairs - do it yourself 24

Kränzle accessories 30

EU Declaration of Conformity 32

Warranty 33

Inspection reports 34

Explanatory symbols used in the operating manual

Failure to observe this note may entail environmental damage.

Note on the use of the high-pressure cleaner that failure to adhere to the instructions may cause excessive wear or total breakdown of the HD 7/122, HD 7/122 TS, HD 10/122 and HD 10/122 TS.

Warning! Failure to observe this note may result in serious injuries!

Explanatory symbols affixed to the high-pressure cleaner

In case of improper use, the high-pressure jets can be very dangerous. Do not direct high-pressure jet at persons, animals or active electrical equipment or the high-pressure cleaner itself.

The high-pressure cleaner may not be connected directly to the public drinking water supply network.

Risk of burns due to hot surfaces!

Products marked with this symbol may contain constituents posing a risk to health or the environment if incorrectly disposed of. These products must never be disposed of as household waste.

Explanatory symbols affixed on the packaging

This symbol denotes recyclable packaging materials which must not be disposed of as household waste. Information on proper disposal will be gathered from the recycling directives issued by your local authority.

User operating the high-pressure cleaner should wear the necessary protective clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection headwear etc. It is prohibited to use the high-pressure cleaner in close vicinity to people lacking suitable protective clothing.

Use of high-pressure cleaners may result in aerosols being generated. An aerosol is a mixture of floating solid or liquid particles in a gas. Inhaling aerosol particles may cause damage to health. Employers are under obligation to carry out a hazards assessment in order to determine the necessary protective measures to prevent inhalation of aerosols as governed by the surface due to be cleaned in each case. Respiratory masks, Class FFP 2 or higher, are suitable for protection against aqueous aerosols.

Whenever the high-pressure cleaner is left unattended, the mains disconnect switch must always be switched off.

Do not spray against matter containing asbestos or other hazardous substances!

Never spray flammable liquids or liquids containing solvents such as paint thinners, petrol, oil or similar liquids! Explosion hazard due to spraying such materials!

Due to the high-pressure jet, damage may occur on the objects to be cleaned, e.g. car tires; therefore, a minimum distance of 30 cm is to be kept!

Prior to putting the high-pressure cleaners into operation, check its components (High-pressure hose, power supply cables, safety trigger gun) for any damage. Replace defect or damaged components!

Only use high-pressure hoses, couplings and fittings recommended by Kränzle. Only these accessories ensure safety of the equipment.

If use is made of an extension cable, this must be suitable for outdoor use. In addition care needs to be taken to ensure that the cable is kept dry and that it is situated above the ground. We recommend the use of a cable drum capable of keeping the socket at least 60 mm above the ground.

Replacement of the power supply cables is only permitted by use of an original power supply cable of the manufacturer and must be performed by a qualified electrician.

Safety devices serve to protect the user and must never be de-activated or their function bypassed.

The high-pressure cleaner is to be properly used. The user is required to adhere to local requirements and to watch out for the persons in the danger zone!

If used in elevated positions where there is a risk of the unit falling to the ground, it must be secured against rolling away or tipping over.

The high-pressure cleaner is not designed for use by persons with restricted physical, sensory or mental abilities (including children)!

Line drawing of a person using a hose to clean water, no text or symbols present

When using high-pressure water for cleaning, make sure that there is a clearly noticeable recoil effect on the lance. Therefore ensure a firm footing (see technical data).

Illustration of a child spraying water with a syringe, crossed out by a cross symbol (no text or labels)

Never allow children or untrained persons to use the high-pressure cleaner or to play with it! Children must be kept under supervision to prevent them from playing with the equipment.

Illustration of a person in protective suit using a power shaver with a cross symbol (no text or symbols present)

Never direct the high-pressure jet at the high-pressure cleaner itself! The high-pressure cleaner may not be placed within reach of the high-pressure jet spray mist!

Diagram showing a hand spraying water onto a surface with a cross mark (no text or symbols)

Never direct the high-pressure jet at power sockets or any other electrical installations! Within the working area, all live parts are to be protected from both water jet and spray mist.

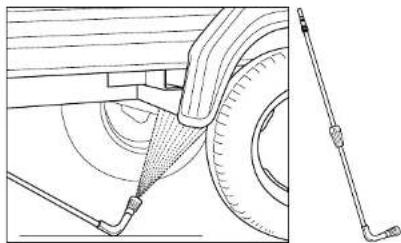

Technical diagram of a vehicle's wheel and suspension system with directional arrows indicating motion (no text or labels)

Always pay attention to the underbody lance resting on the surface! Bear in mind when using a curved or angled spraying lance that there is a significant amount of torque in the recoil!

(The underbody lance is available as optional accessory).

Line drawing of a spray gun with a handle and lever (no text or symbols)

Apply the safety catch on the safety trigger gun after each use in order to prevent unintentional spraying!

Illustration of a person and two children walking with a dog, no text or symbols present

Never direct the high-pressure jet at people or animals! Never direct the high-pressure jet at yourself or other persons, not even to clean clothing or shoes.

Simple line drawing of a plug inserted into a wall with a cable and a cross mark symbol (no text or labels)

Only use a power supply cable in perfect working order! Do not damage or improperly repair the power cable (tearing, squeezing, running over, ...).

Simple line drawing of a person holding a tool, with no text or symbols present.

Never pull the high-pressure hose if it has formed kinks or "nooses"! Never pull the high-pressure hose over sharp edges!

Description of high-pressure cleaner Description of high-pressure cleaner

kranzle®

Design:

The HD 7/122, HD 7/122 TS, HD 10/122 and the HD 10/122 TS are portable type high-pressure cleaners. Please see construction scheme for more details.

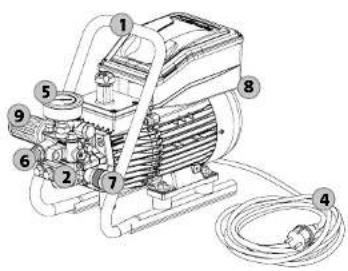

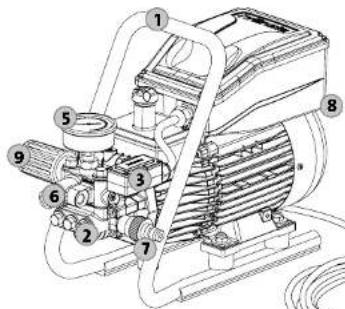

Technical diagram of an industrial pressure pump with numbered components and wiring connections

HD 7/122, HD 10/122

1. Shaped handle
2. Pump head made of special brass

3. Start/Stop switch (HD 7/122 TS, HD 10/122 TS)

4. Power supply cable with mains plug

5. Large stainless steel pressure gauge

6. Pump outlet / high-pressure hose connection

7. Supply including water inlet filter

8. On/Off switch with motor protection

9. Infinitely variable pressure and quantity regulation

Technical diagram of an electric motor with numbered components for identification

HD 7/122 TS, HD 10/122 TS

1. Supply including water inlet filter

2. On/Off switch with motor protection

3. Infinitely variable pressure and quantity regulation

This is what you have purchased:

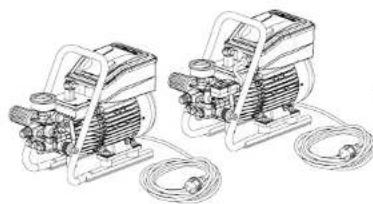

Two identical industrial motors with hoses and control valves, no visible text or symbols

1. Kränzle high-pressure cleaner HD 7/122
   HD 7/122 TS HD 10/122 HD 10/122 TS

Line drawing of a handheld spray gun (no text or symbols)

1. Safety trigger gun with plug coupling

1. Dirtkiller lance with stainless steel pipe and quick release coupling

1. Stainless steel lance with flat jet nozzle and quick release coupling

1. Operating manual Spare parts list

1. High-pressure hose

General rules

General rules

Intended use

This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents (e.g. with a foam injector or washing brush).

Environmental, refuse disposal and water protection regulations must be observed!

Inspections

The high-pressure cleaner must be inspected according to the "Guidelines for Liquid Spray Devices" at least once every 12 months by a qualified person, to ensure that continued safe operation is guaranteed. The results of the inspection are to be recorded in writing (see Inspection reports).

High-pressure cleaners used for commercial purposes have to be checked by a qualified person at least every 12 months!

Accident prevention

The high-pressure cleaner is designed for accidents to be impossible if used correctly. The user is to be notified of the risk of injury from hot machine parts and the high-pressure jet. The "Guidelines for Liquid Spray Devices" must be complied with.

Oil change

Technical line drawing of a mechanical assembly with no visible text or symbols

The first oil change should be carried out after approximately 50 operating hours, then every year or after 250 operating hours. If the oil turns grey or white, you must change the oil. In case of exchanging oil being required, the oil drain screw must be opened above a container and the high-pressure cleaner be emptied. The oil is to be caught in the reservoir and disposed of in an approved manner.

New oil: 0.25 l

Kränzle High Performance Gear Oil (Ord. no.: 400932)

Oil leakage

If oil leaks contact your nearest after-sales service (dealer) at once. Failure to observe this instruction may cause damage to the environment and/or transmission gearbox.

In case of increased humidity or fluctuations in temperature development of condensed water is possible. If the oil turns grey or white, you must change it.

Please note: Lack of water

Line drawing of hands interacting with a bucket containing a sensor or sensor, no text or symbols present

Lack of water occurs more often than you probably believe. The more powerful a high-pressure cleaner is the greater is the danger that a lack of water occurs. If there is only an insufficient amount of water available, cavitation (water-gas mixture) arises inside the high-pressure pump, which is normally noticed too late or even not at all. The high-pressure pump will be destroyed. Please check the available quantity of water by filling a bucket with liter scale for one minute.

Required minimum quantity of water (see technical data).

If the metered quantity of water is too small, you have to use a different water connection, guaranteeing the necessary output. Lack of water leads to an accelerated wear of the joints (no warranty).

Never let the high-pressure pump run dry for more than 60 seconds.

Water supply

Please pay attention to the regulations of your waterworks company! In accordance with DIN EN 61770, the high-pressure cleaner may not be directly connected to the public drinking water supply lines. A brief connection however is permissible according to DVGW (German Association for Gas and Water Affairs) if a non-return valve with tube ventilator (Kränzle item no.: 410164) is built into the water supply. Once the water has passed through the non-return valve it is no longer considered as drinking water. Also indirect connection to the public drinking water supply lines is permissible by way of free emission in accordance with EN 61770; e.g. by using a reservoir with a float valve. Direct connection to a non-drinking water supply line is permissible.

Insufficient quantity of electricity

226

If there are too many collectors in your proximity connected to the network at the same time, the available voltage and the current intensity may decline. Consequently the motor of the high-pressure cleaner does not start or even blows. The power supply may also be insufficient if the power supply cable is too long or too thin. If extension cables are too long, this may lead to a voltage drop causing malfunctions or start-up difficulties.

Check the line fusing and have the voltage and the available current intensity checked by an expert in case of uncertainty (see technical data).

Electrical connection

The high-pressure cleaner is supplied with a 5 meters long power supply cable. The mains plug must be fitted to a standard grounded socket with a 30 mA residual current operated device. Connection up to the mains must be carried out by a properly trained electrician and must comply with the requirements of IEC60364-1. The socket must be protected with a 16 A fuse on the mains side. When using an extension cable, this must have an earthed lead which is properly connected to the socket. The conductors in the extension cable must have a minimum cross section of 1.5 mm ^2 . Plug connections must be of a spray-proof design, and may not be located on a wet floor. For extension cables of more than 10 m in length, the minimum cross-section must be 2.5 mm ^2 ! When using a cable drum, the power supply cable always must be unwound all the way.

Water and cleaning system

Water must be supplied to the high-pressure pump under pressure or directly sucked in out of a pressureless container. The water is then forced under pressure by the high-pressure pump to the lance. The high-pressure jet is formed by the nozzle at the end of the lance.

Environmental, refuse disposal and water protection regulations must be observed!

Safety jet pipe with safety trigger gun (HD 7/122, HD 10/122)

The high-pressure cleaner can only be operated when the trigger of the safety deactivation trigger gun's trigger is actuated. When the trigger is pulled, the safety deactivation trigger gun opens. The liquid is then transported to the nozzle. The spray pressure increases and quickly reaches the operating pressure. When the trigger is released, the safety deactivation trigger gun closes and any further spraying of liquid from the safety jet pipe is prevented. The stainless steel pressure gauge must show 0 bar. The increase in pressure when the safety deactivation trigger gun is closed causes the pressure control valve-safety valve to open. The high-pressure pump remains switched on and continues to operate unpressurized via the bypass. When the trigger gun with safety catch is opened, the pressure control valve/safety valve closes, the motor is started and the high-pressure pump resumes pressure spraying from the safety jet pipe with the selected operating pressure.

Safety jet pipe with safety trigger gun (HD 7/122 TS, HD 10/122 TS)

The high-pressure cleaner can only be operated when the trigger of the safety deactivation trigger gun's trigger is actuated. When the trigger is pulled, the safety trigger gun opens. The liquid is then transported to the nozzle. The spray pressure increases and quickly reaches the operating pressure. When the trigger is released, the safety trigger gun closes and any further spraying of liquid from the safety jet pipe is prevented. The stainless steel pressure gauge must show 0 bar. The increase in pressure when the safety trigger gun is closed causes the pressure control valve/safety valve to open. The motor is switched off by the pressure switch. When the safety trigger gun is opened, the pressure control valve/safety valve closes, the motor is started and the high-pressure pump resumes pressure spraying from the safety jet pipe with the selected operating pressure.

The safety trigger gun is a safety device. Repairs should only be performed by qualified persons. Should replacement parts be required, use only components authorized by the manufacturer.

Pressure control valve/safety valve

The pressure control valve/safety valve protects the high-pressure cleaner from a build up of excess pressure, and is designed not to permit an excess pressure to be selected for operation. The limit nut on the handle is sealed with a spray coating. The operating pressure and spray rate can be steplessly adjusted by turning the handle.

Replacements, repairs, new adjustments and sealing should only be performed by qualified persons.

Motor protection switch

Motor is protected against overload by means of a motor protection switch. In case of motor overload or blocking, the motor of the high-pressure cleaner switches off automatically. If motor tends to switch off repeatedly, make sure to detect appears. Make sure to detect and remedy the cause of the failure.

Replacements and inspection work should only be performed by qualified persons when the high-pressure cleaner is disconnected from the power supply, i.e. with plug pulled out from the electrical socket.

Totalstop-System

The HD 7/122 TS and the HD 10/122 TS features a totalstop system. If the main switch is switched on, the motor is started via a pressure switch when opening the safety trigger gun. When closing the safety trigger gun the motor is switched off immediately.

High-pressure hose and spray device

The high-pressure hose and spray device which are part of the HD 7/122, HD 7/122 TS, HD 10/122 and the HD 10/122 TS equipment, are made of high quality material and engineered to conform with the operating conditions of the high-pressure cleaner and are duly labeled.

If replacement parts are required, only such parts that are authorized by the manufacturer may be used. The warranty is automatically void if spare parts of third-party providers are used! The high-pressure hose and spray device must be connected in a pressure-light manner (without leakage).

The high-pressure hose may not be driven over, pulled excessively, or twisted. The high-pressure hose may under no circumstances be pulled over sharp edges. Defective high-pressure hoses must not be repaired (acc. to DIN 20022) but have to be replaced by new hoses approved by the manufacturer.

1. Carry the HD 7/122, HD 7/122 TS, HD 10/122 or the HD 10/122 TS to its their place of use and ensure secure footing of the high-pressure cleaner.

Do not place the HD 7/122, HD 7/122 TS, HD 10/122 and the HD 10/122 TS on rough surface because the high-pressure cleaner tends to vibrate during operation.

When carrying the HD 7/122, HD 7/122 TS, HD 10/122 and the HD 10/122 TS, make sure to bear in mind the weight of the high-pressure cleaner (see technical data).

It is imperative that safety instructions be observed during use of the high-pressure cleaner.

Neither set up or operate the HD 7/122, HD 7/122 TS, HD 10/122 and the HD 10/122 TS in rooms where there is a risk of fire or explosion nor put it into puddles. Do not use the high-pressure cleaner under water. If, none the less, the high-pressure cleaner is operated in a hazardous area, the applicable safety regulations are to be observed.

1. Unwind high-pressure hose straight and without nooses. The high-pressure hose may leave signs of abrasion on some floors. Alternatively, please also find non-marking high-pressure hoses in our range.

1. Plug screw high-pressure hose included in scope of delivery at pump outlet and tightly screw pressure-tight.

1. Mount the grey rotating screw connection of the high-pressure hose onto the trigger gun incorporating a safety catch. Afterwards screw together ensuring a snug and pressure-tight fit.

1. First pull back the retaining sleeve of the safety trigger gun, then insert lance into the plug coupling sconnection of the safety trigger gun.

1. After insertion of the lance, release retaining sleeve and make sure that the lance is in a secure position. Grease quick release nipple regularly using acid-free grease.

The plug coupling must not be actuated/handled during operation! Igh risk of injury!

Prior to insertion, check plug coupling connection of lance for cleanliness (sand, dirt ..) and use clear water to clean, if necessary. Impurities may damage the sealing in the plug coupling.

When using high-pressure hose extensions take care that the max. length of 20 m is not exceeded!

Accessories may only be connected to a Kränzle-approved trigger gun with safety catch.

Mechanical assembly diagram showing a tool interacting with components (no text or symbols visible)

7. Check water inlet filter for cleanliness prior to putting the high-pressure cleaner into operation.

Manually unscrew plug-in coupling. Take out the water inlet filter using needle nose pliers and thoroughly

rinse it with clear water and clean it with the other parts. If the sieve is dirty, water can not get through and pressure will not build up.

Check the water inlet sieve for damage. Do not operate the high-pressure cleaner without or with a damaged filter.

Mechanical assembly diagram showing a gear and shaft assembly with directional arrows (no text or symbols)

1. Connect water hose to water inlet (minimum requirements; 5 m hose length, cross-section 14 ", 10 bar). The high-pressure cleaner may be connected to a water mains (1-10 bar pre-pressure) with either cold or hot water (up to 60 °C). The HD 7/122 and the HD 7/122 TS provides the opportunity of sucking in water out of a container (see direct suction).

Be careful when using hot water!

When running your high-pressure cleaner with hot water of 60 °C raised temperatures occur. Do not touch the metal parts of the high-pressure cleaner without safety gloves!

9. Each time check oil level of the oil slight glass prior to putting the high-pressure cleaner into operation.

Oil level must be visible in the middle of the oil sight glass.

1. Connect to circuit (see technical data).

Do not touch the mains plug or any live parts with wet or moist hands.

Illustration of a vehicle and a worker in protective gear, both without any text or symbols

1. Switch on high-pressure cleaner with opened safety trigger gun. Bleeding of the high-pressure cleaner: Pull and release trigger of safety trigger gun several times. Start cleaning task.

Diagram showing a tool interacting with a surface, forming a circular motion (no text or symbols)

1. When using the dirtkiller lance make sure that lance points downward when starting.

1. Adjust operating pressure infinitely using the rotary handle. The maximum pressure is factory-set.

Direct water extraction with HD 7/122 and HD 7/122 TS

Due to the suction capacity of its high-pressure pump (up to 1 m suction height, max. hose length 3 m) this high-pressure cleaner can suck in water for cleaning purposes from separate containers or ponds.

Mechanical assembly diagram showing gear and shaft components (no text or labels)

1. Mount suction hose with suction filter (Ord. no.: 150383).

Line drawing of a container with a coiled tube and a handle, no text or symbols present

1. Put filled suction hose into the water-filled container and start the cleaning job. Use clean water only! Never suck in water containing chlorine! Do not suction air!

Prior to starting the first suction the high-pressure pump and the suction hose has to be filled with water!

Note

Depending on the water quality it may occur after a prolonged standstill that the valves get sticky. Consequently the high-pressure cleaner cannot properly suck in water from a container. In this case connect a hose with pressurized water to the pump inlet. Having started the high-pressure cleaner the pressurized water opens the valves and the machine resumes sucking in water from the container. Now you can carry on with your cleaning task as usual.

1. Switch off the high-pressure cleaner
2. Cut off the water supply
3. Open the safety trigger gun catch briefly until the pressure is released
4. Apply safety catch on the trigger gun
5. Remove high-pressure hose and safety trigger gun
6. Emptying high-pressure pump: Hold high-pressure hose and switch motor on until water jet stops escaping at the outlet.
7. Pull the plug from the socket
8. Clean high-pressure hose and wind up without loops
9. Clean and wind up the power supply cable
10. Clean the water inlet sieve
11. Store high-pressure cleaners in frost-free rooms in winter

Frost protection

For protecting the high-pressure cleaner against frost please empty it completely. Separate high-pressure cleaner from water supply and switch it on By opening the trigger gun the high-pressure pump presses water out of the high-pressure cleaner. However, do not allow the device to operate without water for more than one minute.

Line drawing of a vintage mechanical device next to a rope and wheel (no text or symbols)

Due to their small base, the compact and mobile Kränzle high-pressure cleaners are easy to store.

Problem

No water from nozzle although the high-pressure cleaner is running. The stainless steel pressure gauge shows full pressure.

Cause

Most likely the nozzle is blocked.

Illustration showing a person using a tool to measure a large pressure gauge with numerical markings and a worker observing it.

The stainless steel pressure gauge shows full pressure, but from the nozzle comes only little water or no water at all.

(Inside the stainless steel pressure gauge is no water but a filling with glycerin to damp the vibration of the pointer.)

Proceeding:

Switch off the high-pressure cleaner. Pull plug from the socket. Operate safety trigger gun catch several times to decrease the pressure.

Remove safety trigger gun and lance first, then rinse high-pressure hose to remove possible soiling.

Check water inlet filter for soiling.

If the problem still exists, take wire (paper clip) and push through nozzle opening. If this procedure is not successful, the nozzle has to be replaced.

Pull plug from socket prior to starting any repair work!

Problem

Irregular jet from nozzle.

The stainless steel pressure gauge shows low pressure.

Cause

Most likely the valves are soiled or sticky.

Illustration showing a worker using a water spray to clean a large pressure gauge, with a magnified view of the gauge indicating temperature and volume.

The stainless steel pressure gauge shows low pressure despite fully turned up pressure regulation. The water from the lance comes in squirts. The high-pressure hose vibrates.

(Inside the stainless steel pressure gauge is no water but a filling with glycerin to damp the vibration of the pointer.)

Proceeding:

Unscrew all 6 valves, one after the other (hexagonal brass screws, 3 in a row, vertically and horizontally)

Take out valve body and O-ring by means of needle nose pliers. Check O-ring for damage. In case of a damage the O-ring has to be replaced.

Take a wire (paper clip) and clean valves under running water.

Do not forget the O-ring during reassembly!

HD 7/122, HD 10/122

Problem

After closing the safety trigger gun, the pressure control valve-safety valve keeps switching. The stainless steel pressure gauge continuously displays full pressure.

Possible cause No. 1 Leckage.

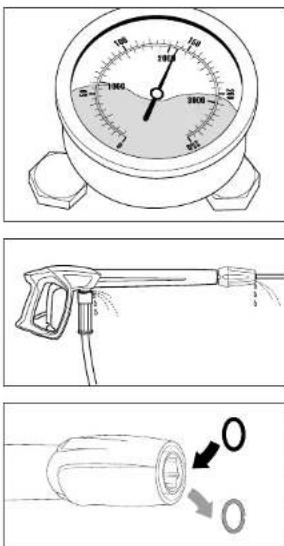

Technical diagram showing three different mechanical or pressure gauges with labeled dimensions and a close-up of a tool with a water bottle.

Having closed the safety trigger gun, the pressure control valve/safety valve must switch and the stainless steel pressure gauge must show „0“ bar. Failing to switch and with the stainless steel pressure gauge continuously showing full pressure, this could be due to leakage at the high-pressure pump, at the pressure switch, at the high-pressure hose or at the safety trigger gun.

Proceeding:

Check connections from the high-pressure cleaner to the high-pressure hose and from the high-pressure hose to the safety trigger gun and also the connection between lance and safety trigger gun for tightness.

Switch off the cleaner. Shortly press the trigger of the trigger gun with safety catch to decrease the pressure. Remove high-pressure hose, trigger gun with safety catch and lance and check the O-rings. If the O-rings are damaged they have to be replaced.

In case of a leakage there is no guarantee for possible consequential damages.

HD 7/122, HD 10/122

Problem

After closing the safety trigger gun, the pressure control valve-safety valve keeps switching. The stainless steel pressure gauge continuously displays full pressure.

Possible cause No. 2

The non-return valve is defective.

Mechanical assembly diagram showing gears and shafts with a downward arrow indicating motion (no text or symbols)

Proceeding:

Switch off the high-pressure cleaner and pull plug from socket. Stop water supply. Operate safety trigger gun catch several times to decrease the pressure. Unscrew pump outlet.

Technical line drawing of a mechanical assembly with no visible text or symbols

Remove check body and check O-Ring for soiling or damage. Also check seal seat inside pump housing for soiling or damage.

Diagram showing a mechanical component with labeled parts including threaded fastener, washer, and nut

If sealing rings are defective replace O-rings at once.

There is no guarantee if the high-pressure pump is damaged by defective O-rings due to air induction or lack of water (cavitation).

HD 7/122 TS, HD 10/122 TS

Problem

After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.

Possible cause No. 1 Leakage.

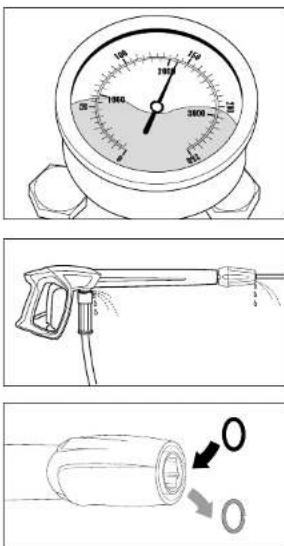

Technical diagram showing three different pressure gauges and a tool, with Chinese labels indicating measurement or operation steps.

Having closed the trigger gun with safety catch, the high-pressure cleaner must shut down and the stainless steel pressure gauge must show "0" bar. If not shut down and the stainless steel pressure gauge continuously shows full pressure, this could be due to leakage at the high-pressure pump, at the pressure switch, at the high-pressure hose or at the trigger gun with safety catch.

Proceeding:

Check connections from the high-pressure cleaner to the high-pressure hose and from the high-pressure hose to the safety trigger gun and also the connection between lance and safety trigger gun for tightness.

Switch off the cleaner. Shortly press the trigger of the trigger gun with safety catch to decrease the pressure. Remove high-pressure hose, trigger gun with safety catch and lance and check the O-rings. If the O-rings are damaged they have to be replaced.

In case of a leakage there is no guarantee for possible consequential damages.

HD 7/122 TS, HD 10/122 TS

Problem

After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.

Possible cause No. 2

The non-return valve is defective.

Mechanical assembly diagram showing gears and shafts with a downward arrow indicating motion (no text or labels)

Proceeding:

Switch off the high-pressure cleaner and pull plug from socket. Stop water supply. Operate safety trigger gun catch several times to decrease the pressure. Unscrew pump outlet.

Mechanical assembly diagram showing gears and shafts with directional arrows (no text or labels)

Remove check body and check O-Ring for soiling or damage. Also check seal seat inside pump housing for soiling or damage.

Diagram showing a mechanical component with labeled parts including a threaded fitting, rubber, and ring, with an arrow indicating direction.

If sealing rings are defective replace O-rings at once.

There is no guarantee if the high-pressure pump is damaged by defective O-rings due to air induction or lack of water (cavitation).

Kränzle accessories Kränzle accessories

kranzle®

Line drawing of a worker spraying a bucket onto a surface next to a cleaning brush (no text or symbols)

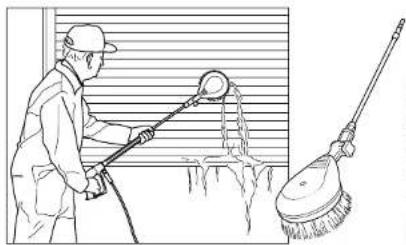

Rotating washing brush

■ Stainless steel pipe
500 mm
■ Brush head ∅ 180 mm
■ Nozzle size 3.2 mm
■ With anti-twist protection
■ With plug-in nipple

Ord. no.: 410506

Illustration of a person cleaning a circular tool next to a mounted machine (no text or symbols present)

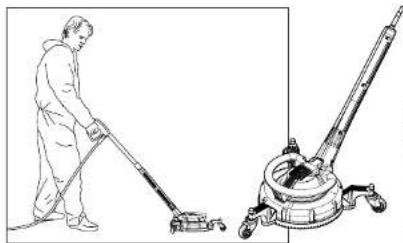

Floor washer

Round Cleaner UFO\*

∅ 300 mm

■ Nozzle system 045

■ With wheels

■ With plug-in nipple

* Not suited for HD 7/12 and for HD 7/12.15

Ord. no.: 41881

Technical line drawing of a vehicle wheel assembly with hoses and spray gun (no text or symbols)

Underbody lance

■ Stainless steel pipe
1000 mm
■ Nozzle system 4007
■ With anti-twist protection
■ With plug-in nipple

Ord. no.: 410755

The high-pressure cleaner accessories are safety components! Any warranty will be void if parts not authorised by Kränzle are used.

Illustration of a person using a spray gun to spray a car, with a spray can nearby (no text or symbols)

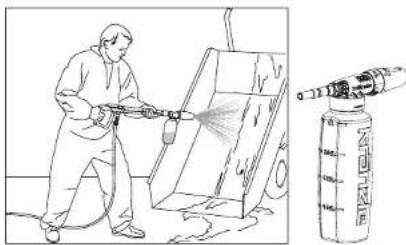

Foam injector

■ 1 litre, with container
■ Dosage in 5 levels
■ With plug-in nipple

Ord. no.: 135303

Line drawing of a person cleaning a tiled floor next to a vacuum cleaner (no text or symbols)

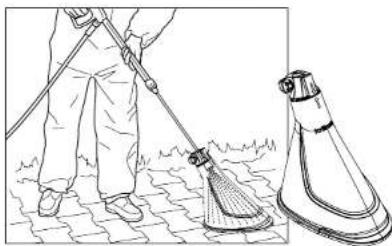

Splash guard

■ L: 280 mm x W: 190 mm
■ For all washing lances

Ord. no.: 132600

Illustration of a worker spraying water near a hose, with a coiled hose nearby (no text or symbols)

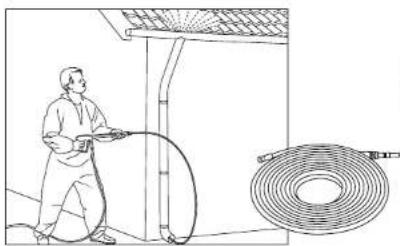

Pipe cleaning hose with nozzle

■ In different lengths
■ Nozzle system KN 055
■ With plug-in nipple

10 m Ord. no.: 12550
15 m Ord. no.: 125501
20 m Ord. no.: 125502
25 m Ord. no.: 125503
30 m Ord. no.: 125504

Please indicate the technical data of the high-pressure cleaner (device type) when placing your order.

WarrantyEU Declaration of Conformity

We here by declare that the design of the high-pressure cleaners:

HD 7/122 HD 7/122 TS HD 10/122 HD 10/122 TS

Nominal flow:

HD 7/122, HD 7/122 TS: 420 l/h HD 10/122, HD 10/122 TS: 600 l/h

technical specifications available from:

comply with the following guidelines and their amendments for high-pressure cleaners:

Machinery Directive 2006/42/EC EMC Directive 2014/30/EU ROHS Directive 2011/65/EU Outdoor Directive 2000/14/EC

Noise pressure level, typical:

HD 7/122, HD 7/122 TS: 81.7 dB (A) HD 10/122, HD 10/122 TS: 88.1 dB (A) HD 7/122, HD 7/122 TS: 83 dB (A) HD 10/122, HD 10/122 TS: 90 dB (A)

Noise pressure level, guaranteed:

Annex V, Outdoor Directive 2000/14/EC

Applied conformity assessment procedure:

EN 60335-1:2012/A13:2017
EN 60335-2-79:2012
EN 62233:2008
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013

Applied specifications and standards:

The warranty obligation of Josef Kränzle GmbH & Co. KG towards the dealer from whom you have purchased this Kränzle high-pressure cleaner (= product) applies to material faults only such as material and manufacturing defects.

Defects attributable to long and frequent use of the product, typically arising due to the age of the high-pressure cleaner and intensity of its use are defined as normal wear in respect of product components. Purchaser's rights to assert claims for such defects are ruled out. Parts subject to wear include in particular the pressure gauge, nozzle, valves, sleeves, high-pressure hose and spray equipment

The product is to be operated in conformity with this operating manual. The operating manual is deemed to be part of the warranty provisions.

Any changes made to the safety devices of the product or instances of maloperation – such as exceeding the temperature and speed limits, undervoltage, insufficient water supply and sewage water, or failure to use the product for the intended purpose – may result in damage occurring to the product. Such damage is not deemed to constitute any material defect.

Should the use of accessories or spares other than original Kränzle component parts and original Kränzle replacement parts be the cause of defects on our product, this may lead to all warranty claims becoming null and void. Only the use of original Kränzle replacement parts matching the relevant Kränzle high-pressure cleaner provides adequate assurance for safe and trouble-free operation of the Kränzle high-pressure cleaner.

With regard to legal warranty claims, the limitation periods of the respective countries shall apply.

Where warranty claims apply to any other defects, please contact your local dealer, presenting the accessories together with your purchase receipt, or the nearest authorised service centre. This can also be found on the internet under www.kraenzle.com.

Inspection reports Inspection reports

kränzle®

High-pressure cleaners for industrial use have to be checked by an expert every

12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!)

Krânzle-test seals: Item no.: LVV200108

Owner:	Type:
Address:	Serial no.:
	Repair order no.:

Scope of inspection	o.k.	yes	no	repaired
Type plate (on hand)
Operating manual (on hand)
Protective covering, Protective device
Pressure line (tightness)
Stainless steel pressure gauge (function)
Float valve (tightness)
Spraying device (marking)
High-pressure hose / connector (damage, marking)
Safety valve opens at 10 % / 20 % exceeding
power supply cable (damage)
Protective conductor (connected)
On / Off switch
Used chemicals
Allowed chemicals

Inspection data determined value set value

High-pressure nozzle
Operating pressure......bar
Switch off pressure......bar
protective conductor resistance not exceeded /value
Insulation
Leakage current
Safety Trigger gun locked

Inspection result (check)

☐ The high-pressure cleaner was checked by an expert according to the Guidelines for Liquid Spray Equipment, the defects found have been rectified so that the Labour Safety can be confirmed.
☐ The high-pressure cleaner was checked by an expert according to the Guidelines for Liquid Spray Equipment. The Labour Safety cannot be confirmed unless the defects found are rectified by repair or replacement of the faulty parts.

The next retest according to the Guidelines for Liquid Spray Equipment has to be carried out by: Month ____ Year ____

Place, Date ____ Signature ____

High-pressure cleaners for industrial use have to be checked by an expert every

12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!)

Kränzle-test seals: item no.: LVV200106

Owner:	Type:
Address:	Serial no.:
	Repair order no.:

Scope of inspection	o.k.	yes	no	repaired
Type plate (on hand)
Operating manual (on hand)
Protective covering, Protective device
Pressure line (tightness)
Stainless steel pressure gauge (function)
Float valve (tightness)
Spraying device (marking)
High-pressure hose / connector (damage, marking)
Safety valve opens at 10 % / 20 % exceeding power supply cable (damage)
Protective conductor (connected)
On / Off switch
Used chemicals
Allowed chemicals

Inspection data determined value set value

High-pressure nozzle
Operating pressure......bar
Switch off pressure......bar
protective conductor resistance not exceeded / value
Insulation
Leakage current
Safety trigger gun locked

Inspection result (check)

☐ The high-pressure cleaner was checked by an expert according to the Guidelines for Liquid Spray Equipment, the defects found have been rectified so that the Labour Safety can be confirmed.
☐ The high-pressure cleaner was checked by an expert according to the Guidelines for Liquid Spray Equipment. The Labour Safety cannot be confirmed unless the defects found are rectified by repair or replacement of the faulty parts.

The next retest according to the Guidelines for Liquid Spray Equipment has to be carried out by: Month ____ Year ____

Place, Date .... Signature ....

89257 Illertissen (Germany)

[e-mail]

Made
in
Germany
