Product Type	Refrigerator-Freezer (Multi-zone)
Total Net Volume	Approx. 500 L (based on model series)
Energy Class	A+ (estimated)
Annual Energy Consumption	Approx. 350 kWh (estimated)
Cooling System	Frost-free (No Frost)
Temperature Control	Touch control panel with digital display
Freezer Capacity	4.5 kg/100 L per 24 h
Water Dispenser	Internal and door dispenser (depending on model)
Ice Maker	Automatic icematic with ice storage
Special Compartments	Wine cellar, Cool Control, Chiller, Humidity-controlled crisper
Lighting	Blue light in crisper, interior LED
Odour Filter	Yes, in air duct
Child Lock	Key lock function
Door Alarm	Audible warning if door left open
Refrigerant	R600a (flammable)
Power Supply	220-240 V, 50 Hz
Dimensions (H x W x D)	Approx. 185 x 60 x 65 cm
Net Weight	Approx. 85 kg
Noise Level	~42 dB (estimated)

Frequently Asked Questions - GWN 21210 X GRUNDIG

How do I set the temperature on my Grundig GWN 21210 X?

Use the touch control panel. Press the Select button to choose the compartment (fridge or freezer), then press Set + or Set - to adjust. For fridge: 33°F to 47°F (1°C to 8°C). For freezer: -24°F to -18°F (-24°C to -18°C).

How to use the Quick Freeze function?

Press the Quick Freeze button on the panel. The indicator lights up. The freezer will cool to a lower temperature for 24 hours to rapidly freeze fresh food. It cancels automatically after 24 hours or when the set temperature is reached.

Why is my water dispenser leaking?

After installation or filter replacement, air trapped in the system may cause dripping. Dispense 2 liters of water (about 7-10 glasses) to bleed the air. If leaking persists, check the water line connections and the coupler at the back.

How does the vacation mode work?

Press the Quick Fridge button for 3 seconds to activate Vacation mode. The fridge compartment warms to about 50°F (10°C) to save energy. Remove perishable food from the fridge before activating. Freezer temperature remains unchanged.

What should I do if the 'Filter Reset' icon lights up?

The icon indicates the water filter needs resetting after replacement. Press the Quick Freeze button for 3 seconds to reset it. The icon should turn off.

How do I clean the refrigerator?

Unplug the fridge. Use a solution of 1 teaspoon baking soda in 0.5 L water. Wipe interior with a soft cloth, then dry. Do not use abrasive cleaners, gasoline, or chlorine. Clean door gaskets regularly.

The compressor is not running - is this normal?

Yes. The compressor may delay starting after a power interruption or when the thermic protector is triggered. Wait about 6 minutes. If it doesn't restart, check the power cord and fuse.

How to activate the ice maker?

Press the FN button until the ice maker icon flashes, then press OK. The ice maker will start making ice. To turn off, repeat the process. Water supply must be connected.

Is the refrigerator frost-free?

Yes, it features automatic defrosting. The freezer compartment defrosts automatically; no manual defrosting is needed.

What does the 'Alarm Off' button do?

When a door open or high temperature alarm sounds, press Alarm Off to mute it. For high temperature, check food in the freezer first. The alarm will reactivate if the condition persists.

USER MANUAL GWN 21210 X GRUNDIG

Simple line drawing of a pear and a carrot (no text or symbols)

GQN21220X-GQN21225X-GN1416231ZX-GN1416221ZX-GQN21225GB

Contents

1. Safety and environment instructions 2

1. Your Freezer 6

2. Your Freezer 7

3. Installation 8

3.1 Right place for installation .....8
3.2 Attaching the plastic wedges .8
3.3 Electrical connection .....8

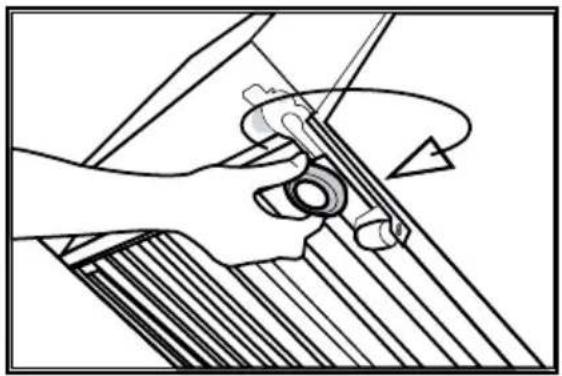

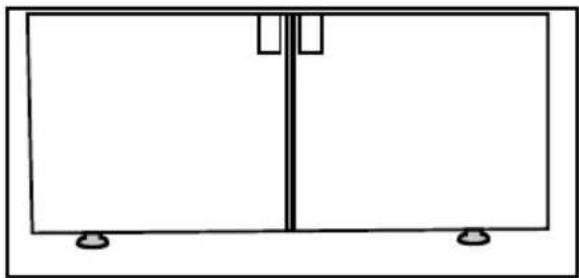

3.4 *Adjusting the stands .....10
3.5 Water connection....10

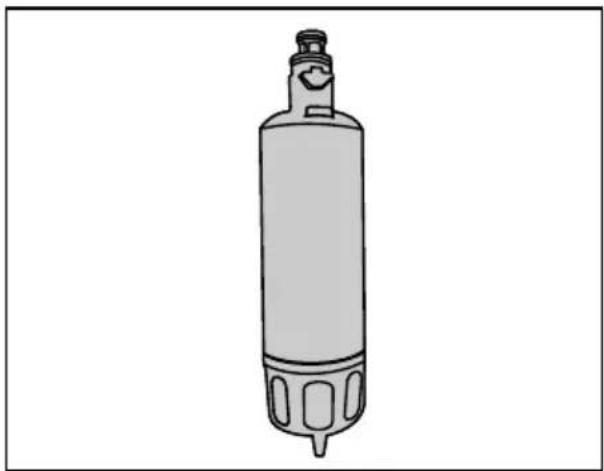

3.5.1 Before Installation .....11

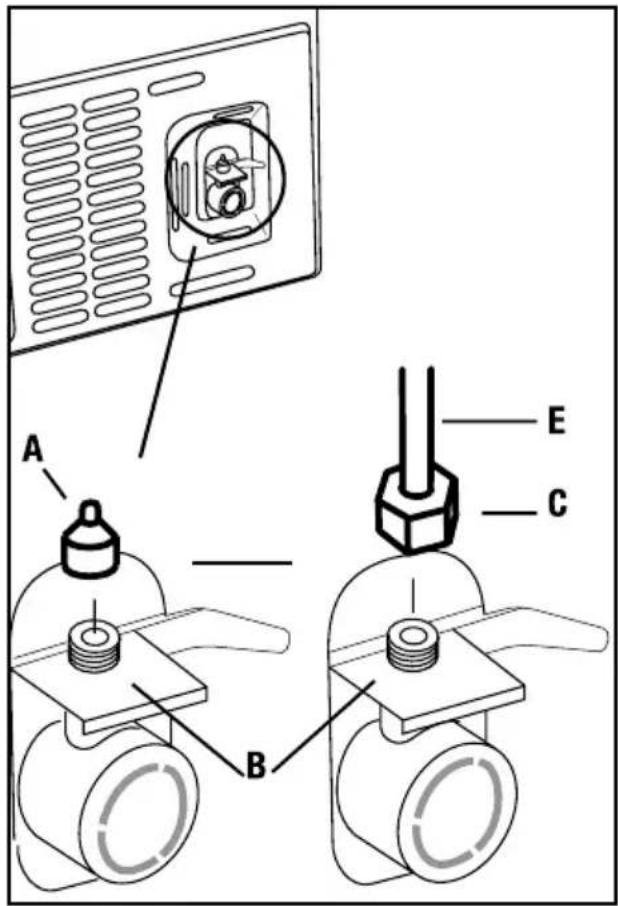

3.6 Connecting the water hose to the refrigerator .....11
3.7 Connecting the water line to the water supply .....11

4 Preparation 12

4.1 Things to be done for saving energy ....12

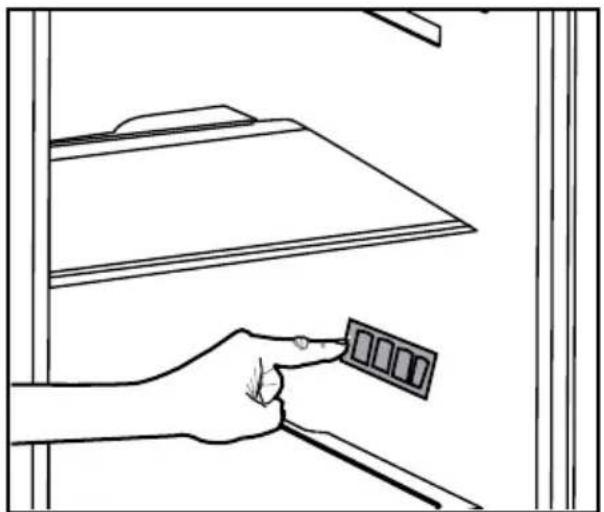

4.2 Recommendations about the fresh food compartment .....13
4.3 Initial use....13

5. Operating the product 14

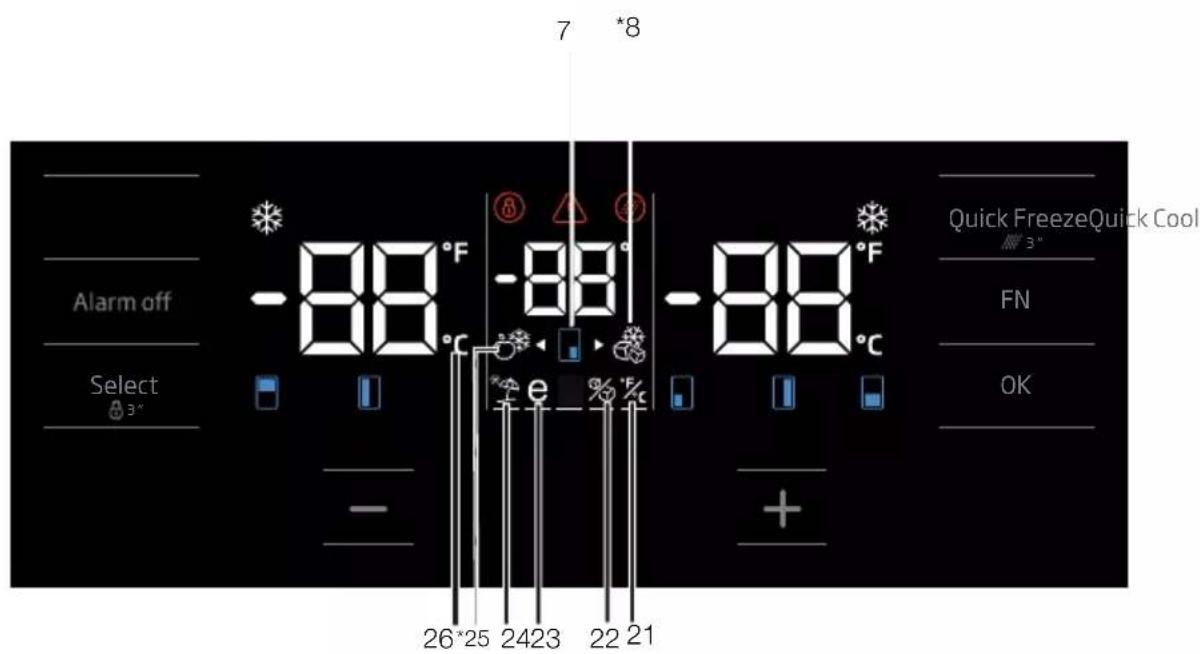

5.1 Indicator panel .....14
5.2 Indicator panel .....20
5.3 Freezing fresh food......23
5.4 Recommendations forpreserving the frozen food ...... 24
5.5 Deep-freeze information .....24
5.6 Placing the food 25
5.7 Door open warning 25
5.8 Chiller compartment .....25
5.9 Crisper 25
5.10 Humidity-controlled crisper 26
(FreSHelf)....26
5.11 Egg tray 26

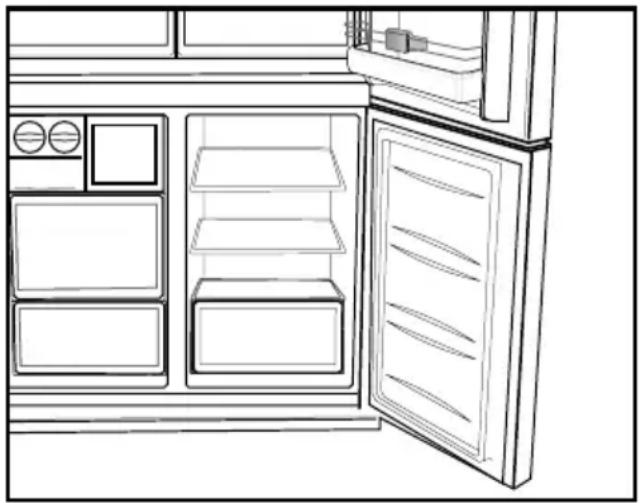

5.12 Movable Middle Section .....26
5.13 Cool Control Storage Compartment ......27
5.14 Blue light 27
5.15 Odour filter......27

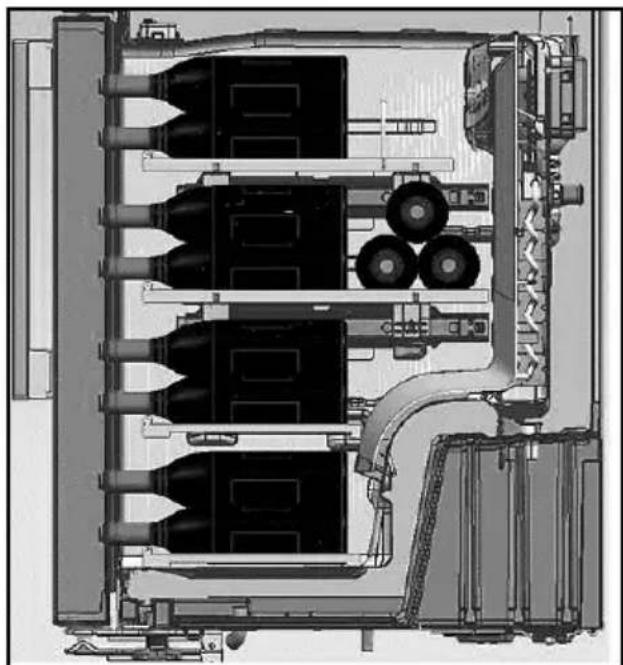

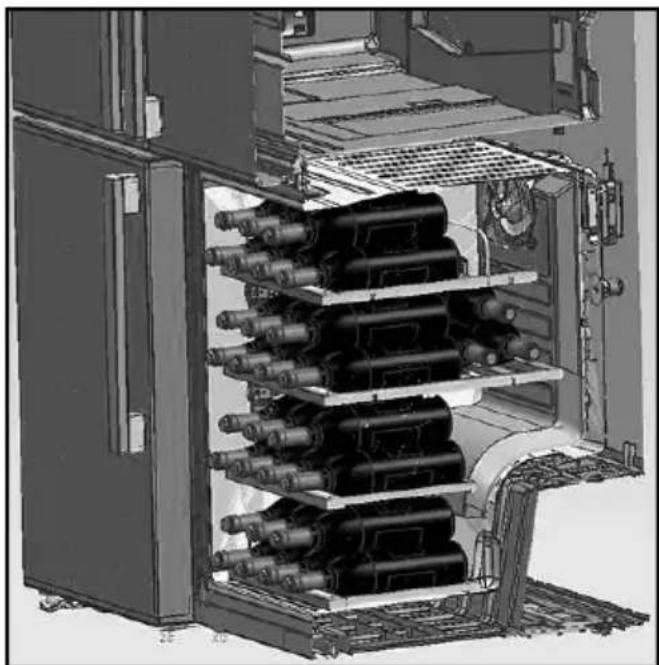

5.16 Wine cellar compartment ..28
5.17 Using internal water dispenser ....30
5.18 Dispensing Water .....30
5.19 For using water dispenser .31
5.20 Icematic 31

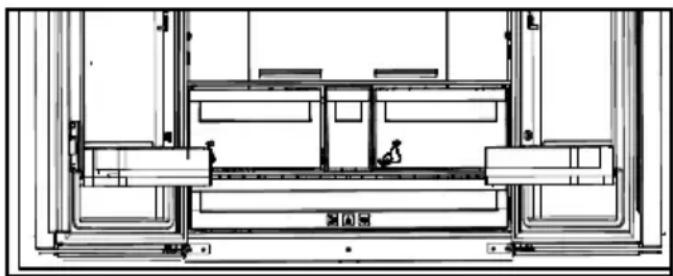

5.21 Icematic and ice storage container ....32

6 Maintenance and cleaning 33

6.1 Avoiding bad odours......33
6.2 Protecting the plastic surfaces ....33

7. Troubleshooting 34

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

The user manual will help you use the product in a fast and safe way.

Will help you use your appliance in a fast and safe way.

Read the manual before installing and operating your product.

Follow the instructions, especially those for safety.

Keep the manual in an easily accessible place as you may need it later.

Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

	Important information or useful usage tips.
	Warning against dangerous conditions for life and property.
	Warning against electric voltage.
	Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

1. Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

– farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

1.1. General safety

- This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

In case of malfunction, unplug the device.

After unplugging, wait at least 5 minutes before plugging in again.

Unplug the product when not in use.

Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.

Do not plug in the refrigerator if the socket is loose.

Unplug the product during installation, maintenance, cleaning and repair.

• If the product will not be used for a while, unplug the product and remove any food inside.

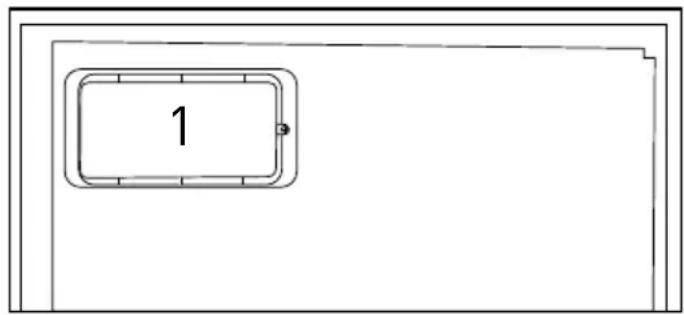

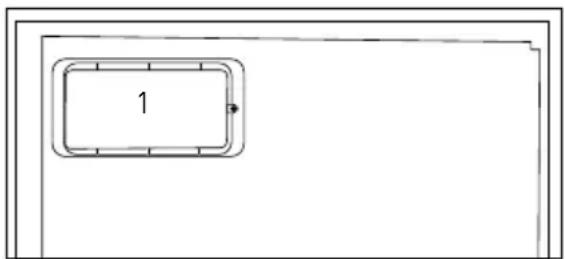

• Do not use the product when the compartment with circuit cards located on the upper back part of the product

(electrical card box cover) (1) is open.

Simple line drawing of a rectangular frame with a numbered label '1' and a small dot, no text or symbols present.

Simple line drawing of a rectangular structure with a base and an arrow pointing to it (no text or symbols)

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.
• If the product has LED type lighting, contact the authorised service for replacing or in case of any problem.
• Do not touch frozen food with wet hands! It may adhere to your hands!
• Do not place liquids in bottles and cans into the freezer

compartment. They may explode.

• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
  • Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.

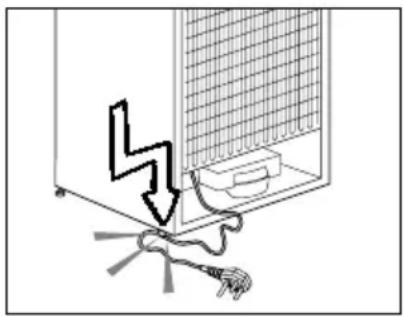

  • Take care not to trap the power cable.

Diagram showing a lightning bolt striking down on a wall-mounted device, with a cable and plug inserted (no text or symbols)

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

- Pressure for cold water inlet shall be maximum 90 psi (620 kPa). If your water pressure exceeds 80 psi (550 kPa), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.

• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33^ F ( 0.6^ C) minimum and 100^ F ( 38^ C) maximum.
  • Use drinking water only.

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years, following the product purchasing date.

1.3. Child safety

• Keep packaging materials out of children's reach.
• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Pure electrical circuit lines without any symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

- This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

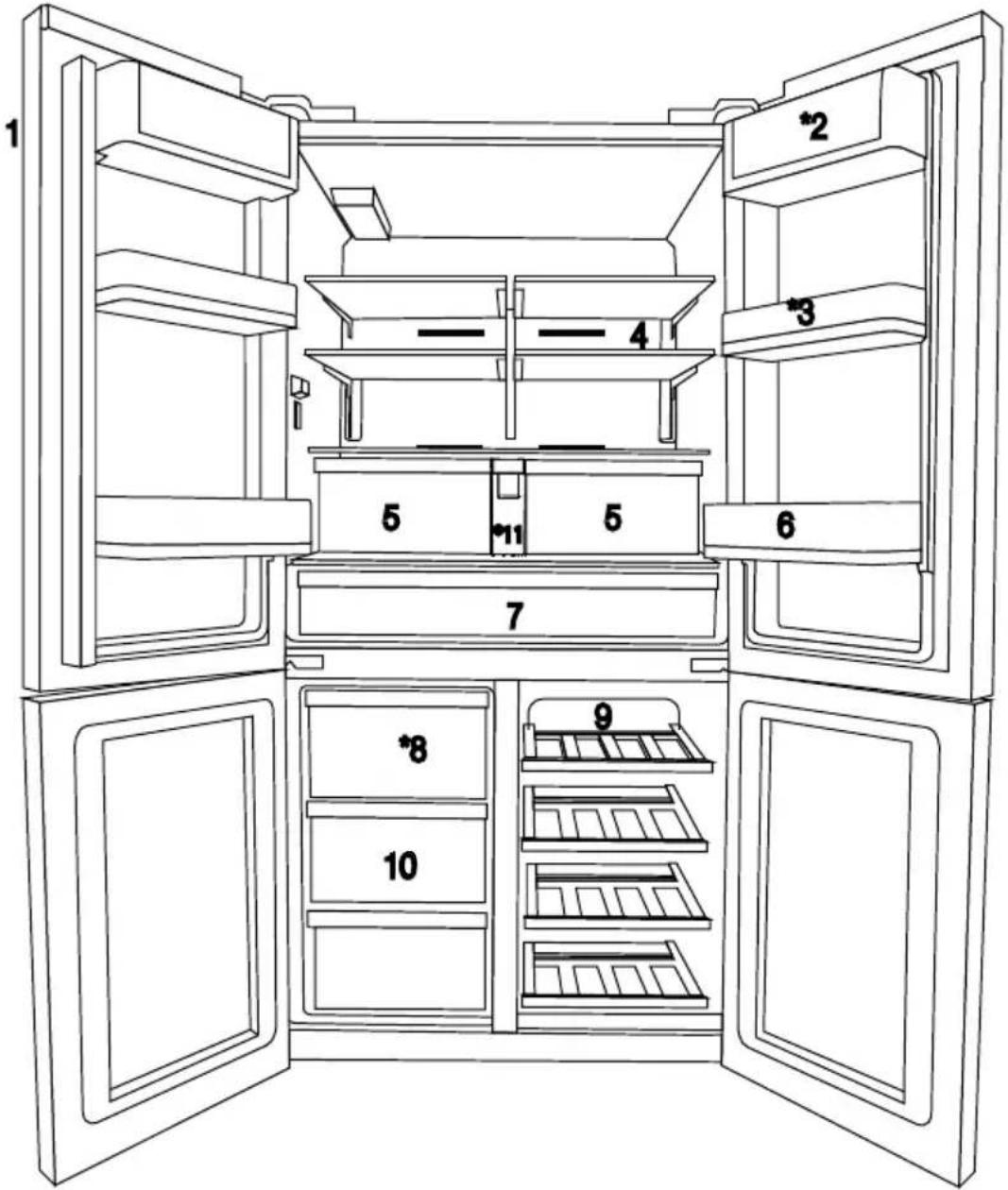

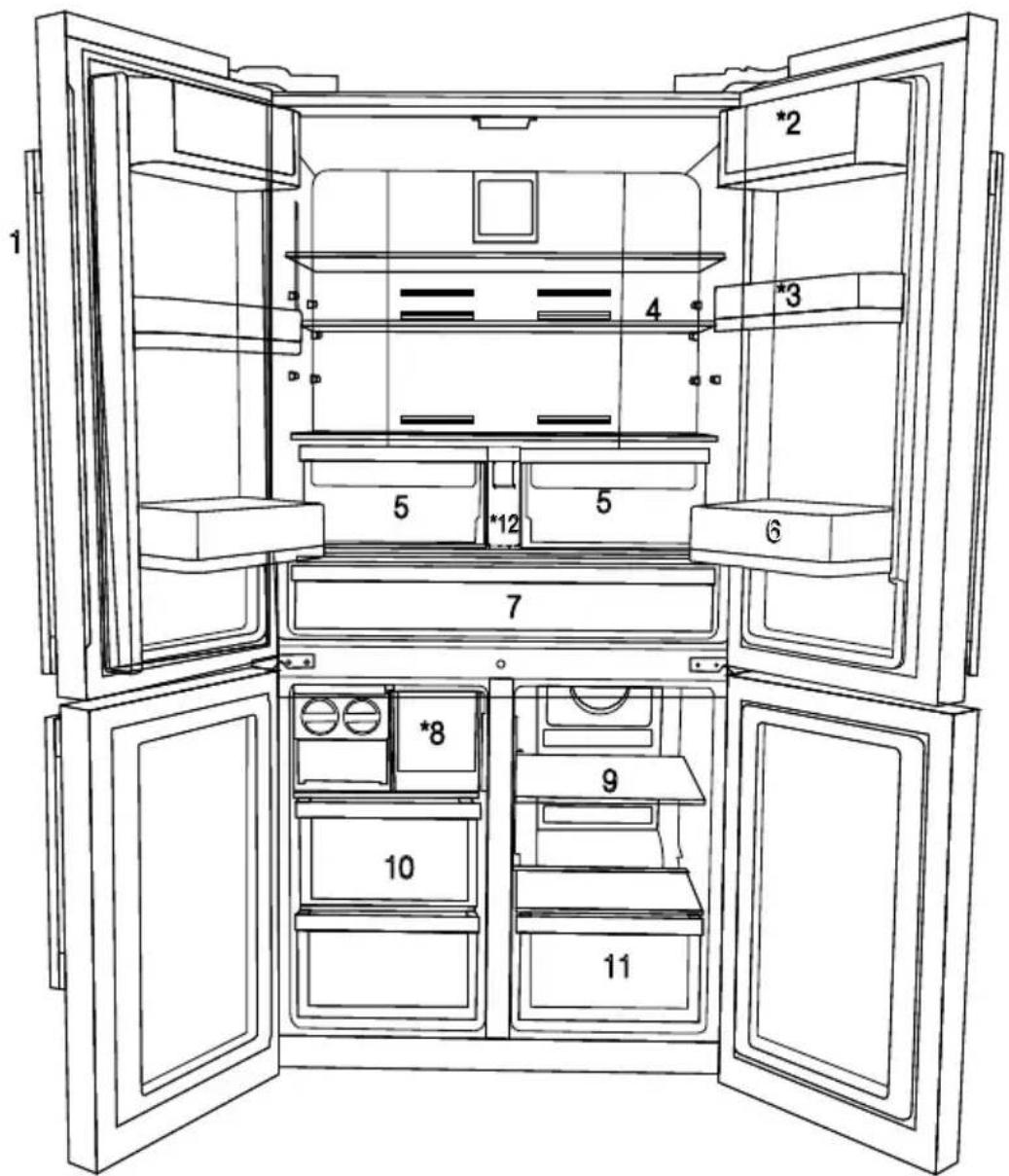

2. Your Freezer

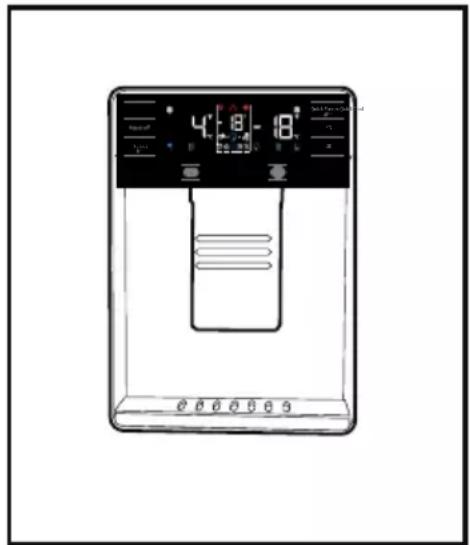

1. Control and indicator panel
2. Butter & Cheese section
3. 70 mm moving door shelf
4. Fridge compartment glass shelf
5. Fridge compartment crisper
6. Gallon door shelf

7. Chiller compartment

8. Icebox drawer

9. Multizone compartment glass shelf/cooler
10. Freezer compartment drawers
11. Multizone Compartment's drawer
12. Water tank

*Optional

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

2. Your Freezer

1. Control and indicator panel
2. Butter & Cheese section
3. 70 mm moving door shelf
4. Fridge compartment glass shelf
5. Fridge compartment crisper
6. Gallon door shelf

7. Chiller compartment

8. Icebox drawer

9. Multizone compartment glass shelf/cooler
10. Freezer compartment drawers
11. Water tank

*Optional

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

3. Installation

3.1 Right place for installation

Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.

	WARNING: The manufacturer assumes no responsibility for any damage caused by the work carried out by unauthorized persons.
	WARNING: The product's power cable must be unplugged during installation. Failure to do so may result in death or serious injuries!

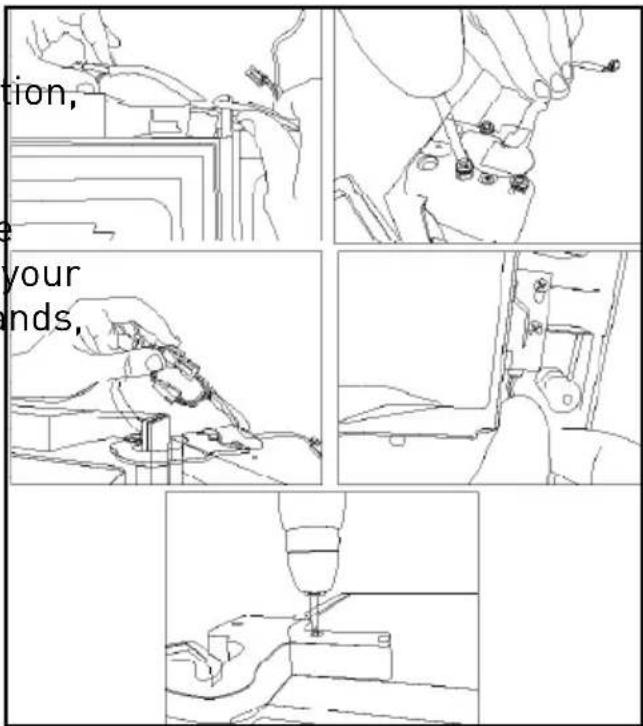

	WARNING: If the door span is too narrow for the product to pass, remove the door and turn the product sideways; if this does not work, contact the authorized service.

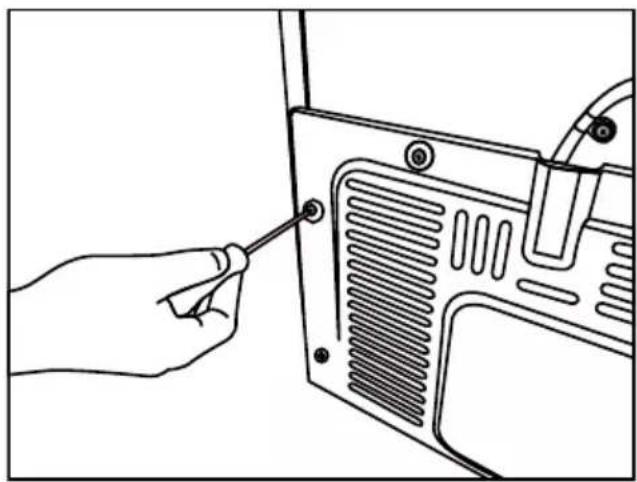

3.2 Attaching the plastic wedges

Plastic wedges are used to create the distance for the air circulation between the product and the rear wall.

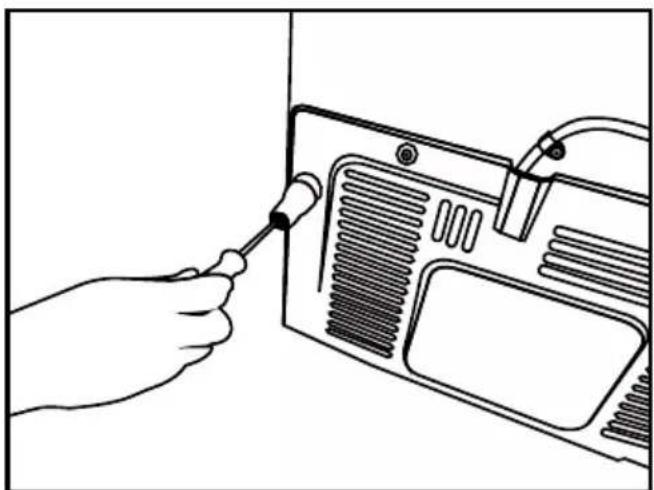

1. To install the wedges, remove the screws on the product and use the screws supplied together with the wedges.

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

1. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure.

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

3.3 Electrical connection

Connect the product to a grounded outlet protected by a fuse complying with the values in the rating plate. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Electrical connection must comply with national regulations.
- Power cable plug must be within easy reach after installation.

• The voltage and allowed fuse or breaker protection are specified in the Rating Plate which is affixed to interior of the product. If the current value of the fuse or breaker in the house does not comply with the value in the rating plate, have a qualified electrician install a suitable fuse.
• The specified voltage must be equal to your mains voltage.
• Do not make connections via extension cables or multi-plugs.

	WARNING: Damaged power cable must be replaced by the Authorised Service Agents.
	WARNING: If the product has a failure, it should not be operated unless it is repaired by the Authorised Service Agent! There is the risk of electric shock!

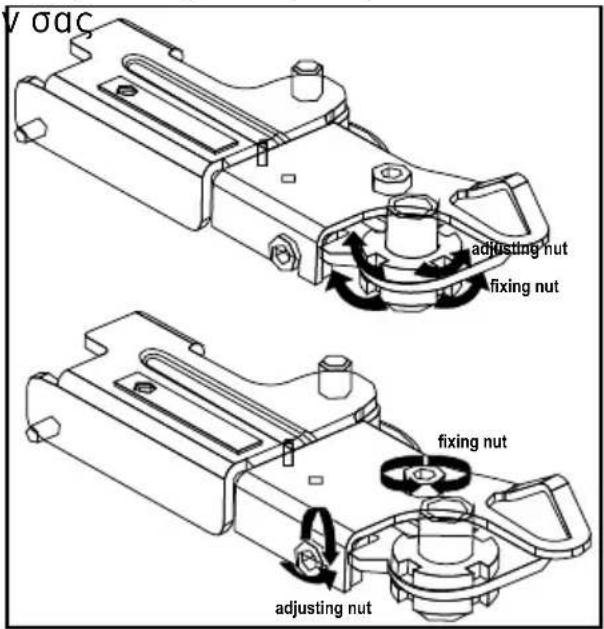

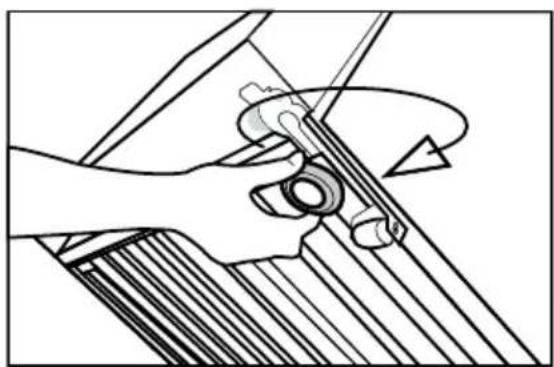

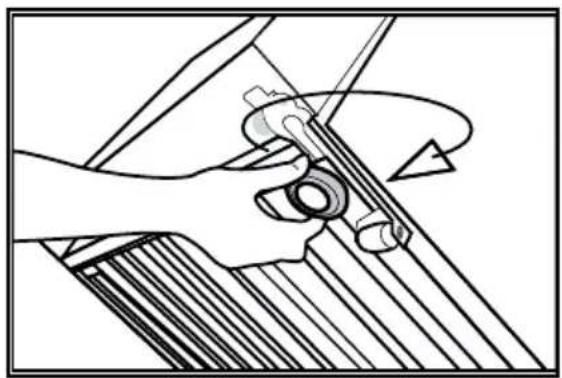

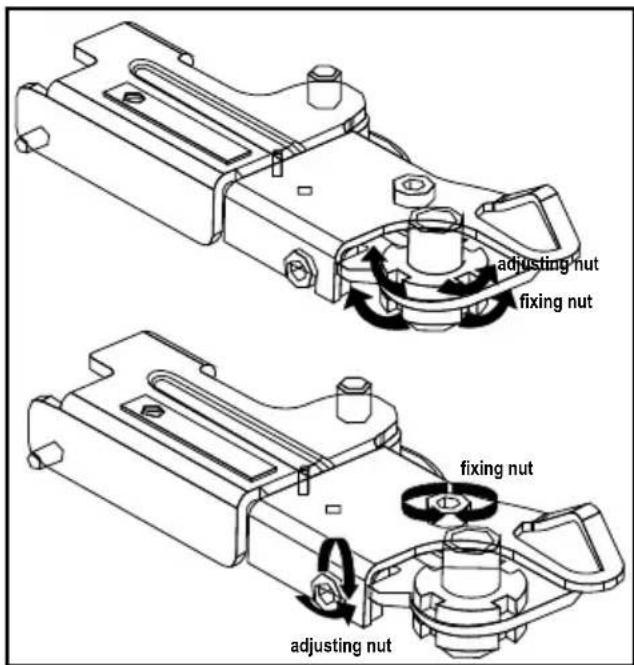

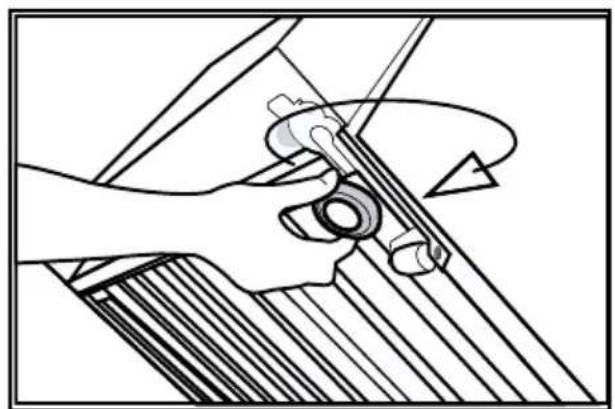

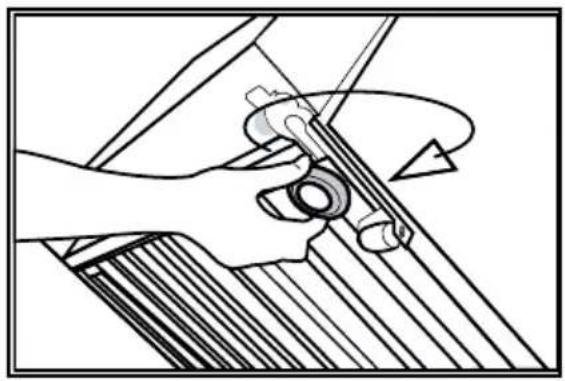

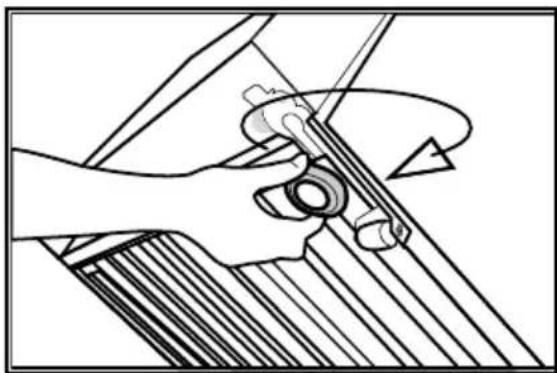

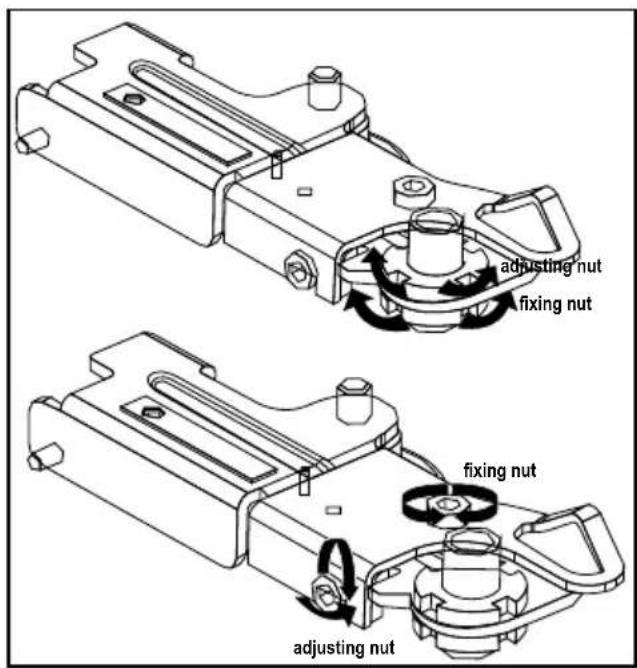

To adjust the doors vertically,

Loosen the fixing nut located at the bottom.

Rotate the adjusting nut according to the position of the door (clockwise/counter-clockwise).

Tighten the fixing nut in order to fix the position.

To adjust the doors horizontally, Loosen the fixing nut located at the top.

Rotate the side adjusting nut according to the position of the door (clockwise/counter-clockwise).

Tighten the fixing nut which is at the top in order to fix the position.

3.4 \*Adjusting the stands

If the product is not in balanced position, adjust the front adjustable stands by rotating right or left.

*If your product does not have a wine compartment or is not a glass door, y product does not have adjustable sta the product has fixed stands.

Simple line drawing of a two-panel cabinet or enclosure with two side supports (no text or symbols)

Mechanical diagram showing hands operating a tool with a circular component, no text or symbols present

- Upper hinge group is fixed with 3 screws.

-The hinge cover is attached after the sockets are installed.

- Then the hinge cover is fixed with two screws.

3.5 Water connection

Depending on the model of the refrigerator, you can connect it either to a demijohn or water mains. First you must connect the water hose to the refrigerator.

	In cases where a demijohn is used, a separate pump must also be used.
	WARNING: Refrigerator and the pump, if any, must be unplugged during connection.
	Following parts may not be supplied with your product since they are not required when using a demijohn.

Check that following part have been delivered together with the product: External water filter. (If there is a demijohn connection; it is not necessary to use a water filter.)

3.5.1 Before Installation

Make sure that you have everything necessary to ensure proper installation before proceeding, including:

Your product comes with an internal water filter for use inside the fridge. Part number of the filter is 4918450200 and you can use this part number when ordering replacement filters.

Line drawing of a cylindrical mechanical device with a flanged top and side ports (no text or symbols)

3.6 Connecting the water hose to the refrigerator

1. Slip the union (B) onto the water hose (A).
2. Push the water hose downwards firmly to slip it onto the water inlet valve (C).
3. Tighten the union (C) by hand to secure it onto the water inlet valve.

Normally, you are not required to tighten the union with a tool. However, you can use a spanner or pliers to tighten the union if there is a leakage.

3.7 Connecting the water line to the water supply

Connect the water line to a water supply valve. If a valve is not present or you are not sure, consult a qualified plumber.

4 Preparation

4.1 Things to be done for saving energy

Connecting your refrigerator to systems that save energy is dangerous as they may cause damage on the product.

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload the refrigerator. Cooling capacity will fall when the air circulation in the refrigerator is hindered.
• Do not place the refrigerator in places subject to direct sunlight. Install the product at least 30 cm away from heat sources such as hobs, ovens, heater units and stoves and at least 5 cm away from electrical ovens.
• Pay attention to store your food in refrigerator in closed containers.

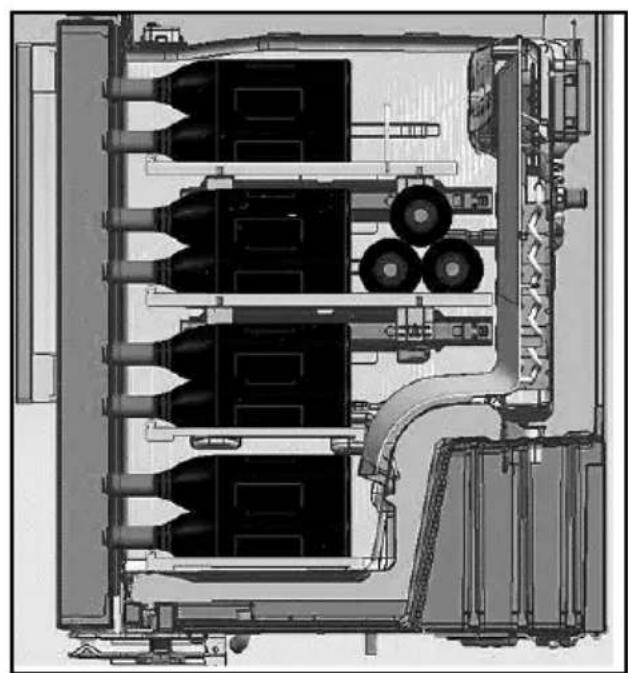

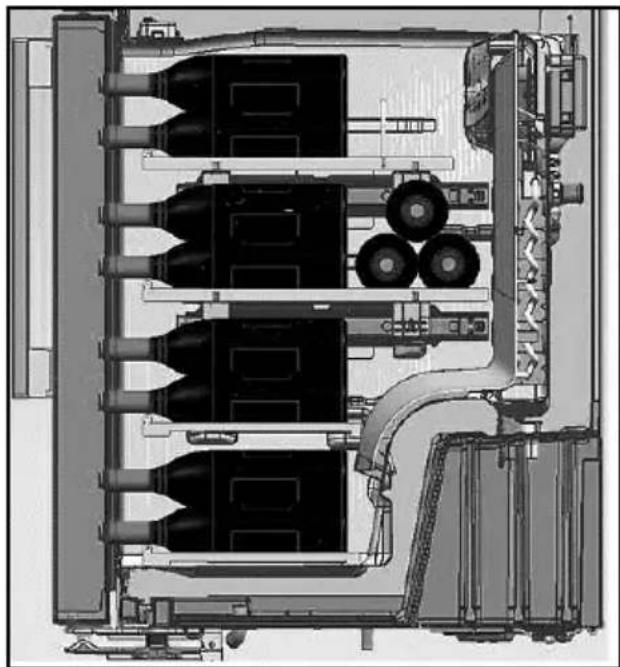

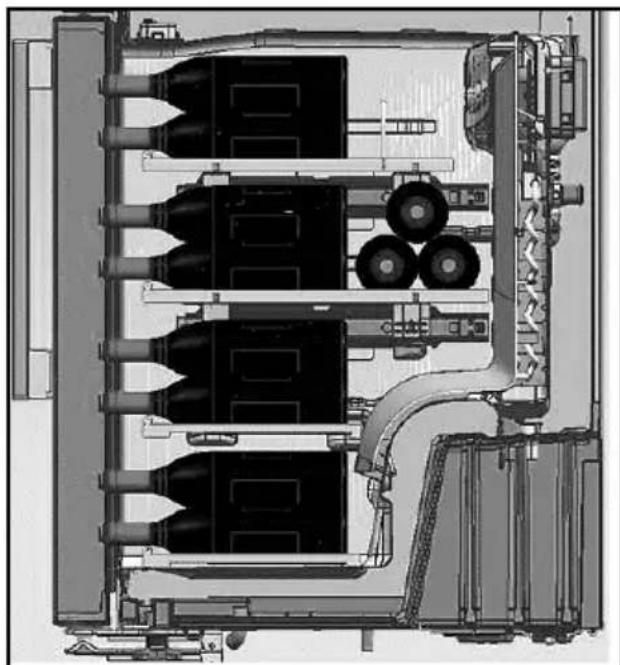

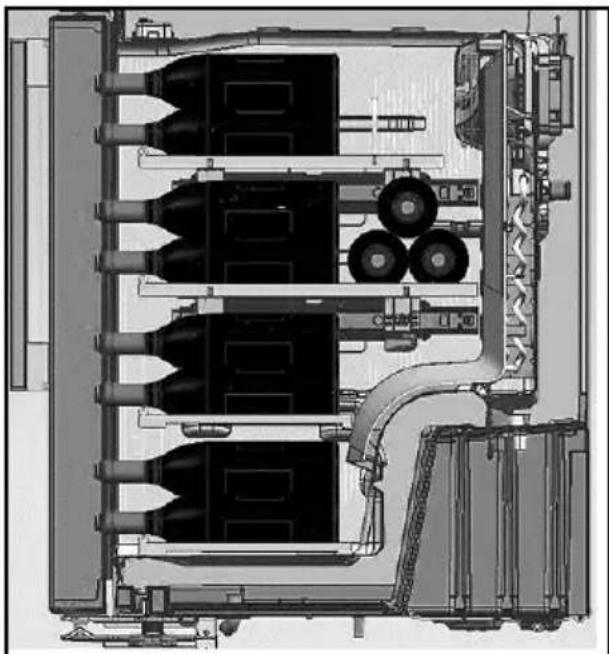

• To be able to store maximum food in the freezer compartment of your refrigerator, the upper drawer has to be removed and placed on top of glass shelf. Power consumption stated for your refrigerator has been determined after removing the icematic and the upper drawers as to allow maximum loading. It is strongly recommended to use the lower drawers in the freezer and the multizone compartment while loading.

- Airflow should not be blocked by placing foods in front of the freezer and the multizone compartment fans. Foods should be loaded by leaving minimum 5 cm space in front of the protective fan grid.

- Thawing the frozen foods in the fridge compartment both saves energy and reserves the quality of the foods.

	Temperature of the room where your refrigerator is located should at least be 10°C /50°F. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
	Inside of your refrigerator must be cleaned thoroughly.
	If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

4.2 Recommendations about the fresh food compartment

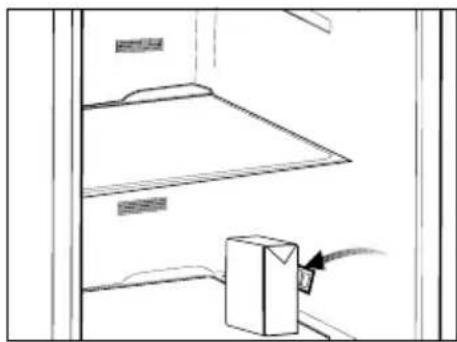

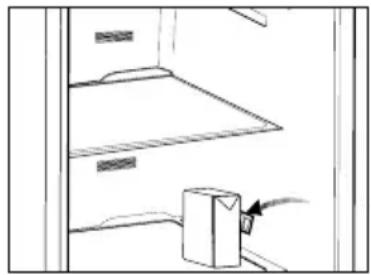

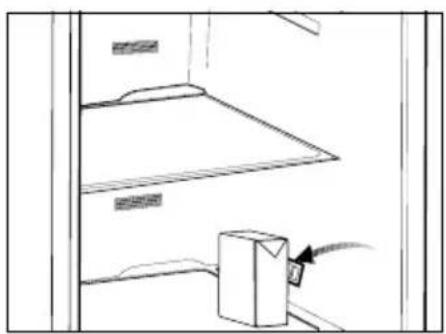

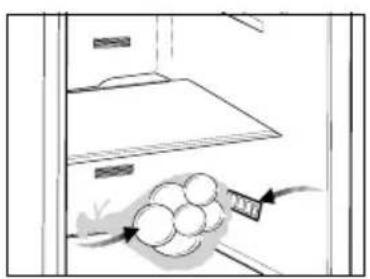

- Make sure that the food does not touch the temperature sensor in fresh food compartment. To allow the fresh food compartment to keep its ideal storage temperature, the sensor must not be hindered by food.

Line drawing of a hand holding a small object above a shelf (no text or symbols)

- Do not place hot foods or beverages inside the product.

Simple line drawing of a kitchen appliance with a handle and wheels, no text or symbols present

Simple line drawing of a cabinet with an arrow pointing to the front panel (no text or symbols)

4.3 Initial use

Before using the product, make sure that all preparations have been made in accordance with the instructions given in the "Important instructions regarding safety and environment" and "Installation" chapters.

• Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section. Before you start the refrigerator, make sure that the interior is dry.
• Plug the refrigerator in a grounded socket. The interior illumination is lit when the door of the refrigerator is opened.
• Operate the refrigerator for 6 hours without placing any food in it and do not open its door unless it is necessary.

You will hear a noise when the compressor starts up. The liquids and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

5. Operating the product

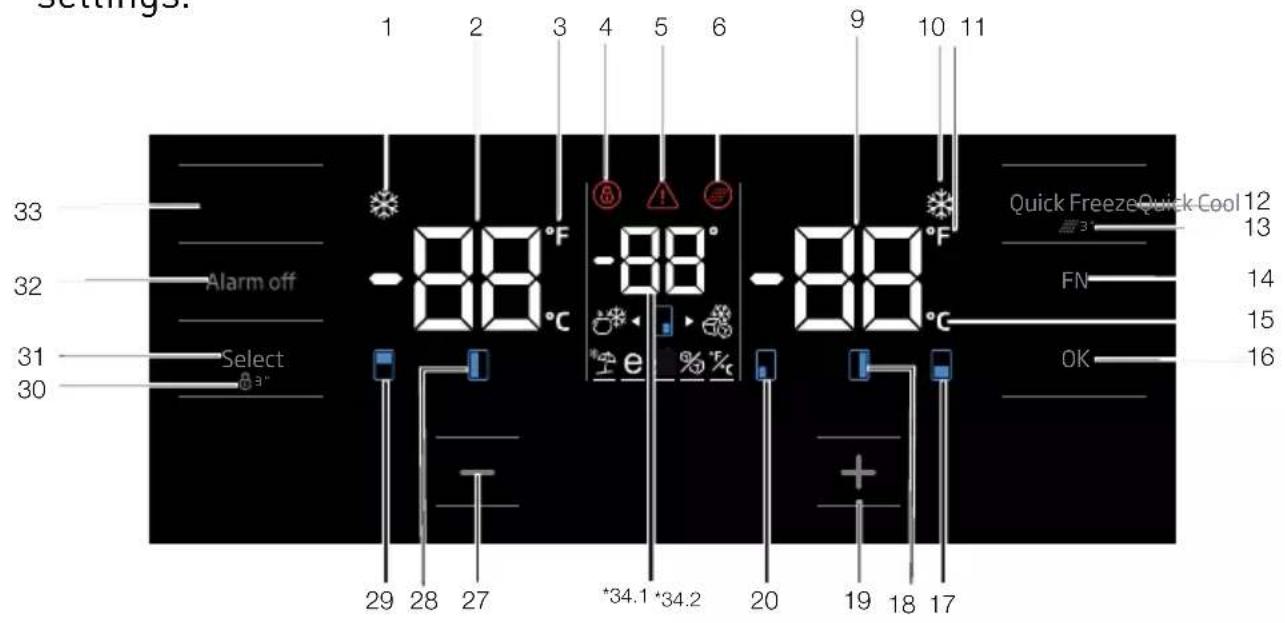

5.1 Indicator panel

Touch-control indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the refrigerator. Just press the relevant buttons for function settings.

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

1. Quick cooling function indicator

It turns on when the quick fridge function is activated.

2. Fridge compartment temperature indicator

Temperature of the fridge compartment is shown; it can be set to 8,7,6,5,4,3,2,1.

It is a Fahrenheit indicator. When the Fahrenheit indication is activated, the temperature set values are shown in Fahrenheit and the relevant icon turns on.

4. Key lock

Press key lock button simultaneously for 3 seconds. Key lock symbol will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator.

5. Power failure/High temperature / error warning

This indicator illuminates during power failure, high temperature failures and error warnings. During long-term power failures, the highest temperature value that the freezer compartment reaches will blink on the digital display. After checking the food located in the freezer compartment, press the alarm off button to clear the warning.

Please refer to "solutions recommended for troubleshooting" section on your manual if you observe that this indicator is illuminated.

6. Filter reset icon

This icon turns on when the filter needs to be reset.

7. Temperature change cabin icon

Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

8. Joker freezer icon

Hover over the Joker freezer icon using the FN button; the icon will start to flash. When you press the OK key, joker cabin freezer icon turn on and operates as a freezer.

9. Freezer compartment temperature indicator

Temperature of the fridge compartment is shown; it can be set to -18, -19, -20, -21, -22, -23, -24.

10. Quick freeze function indicator It turns on when the quick freeze function is activated.

11. Fahrenheit indicator

It is a Fahrenheit indicator. When the Fahrenheit indication is activated, the temperature set values are shown in Fahrenheit and the relevant icon turns on.

12. Quick freeze function button

Press this button to activate or deactivate the quick freeze function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value.

Use the quick freeze function when you want to quickly freeze the food placed in freezer compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, Quick Freeze will cancel itself automatically after 24 hours at the most or when the fridge compartment reaches to the required temperature.

This function is not recalled when power restores after a power failure.

13. Filter reset

The filter is reset when the quick freeze button is pressed for 3 seconds. Filter reset icon goes off.

14. FN button

Using this key, you can switch between the functions that you want to select. Upon pressing this key, the icon, whose function is required to be activated or deactivated, and this icon's indicator starts flashing. The FN button gets deactivated if not pressed for 20 seconds. You need to press this button to change the functions again.

15. Celsius indicator

It is a Celsius indicator. When the Celsius indication is activated, the temperature set values are shown in Celsius and the relevant icon turns on.

16. OK button

After navigating the functions using the FN button, when the function is cancelled via the OK button, the relevant icon and the indicator flashes. When the function is activated, it remains on. The indicator continues to flash in order to show the icon it is on.

17. Temperature change cabin icon

Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

18. Temperature change cabin icon

Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

19. Set increasing button

Select the relevant cabin with the select button; the cabin icon representing the relevant cabin will start to flash. If you press the set increasing button during this process, the set value gets increased. If you keep pressing it in a loop, the set value returns to the beginning.

20. Temperature change cabin icon

Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

21. Setting the Celsius and Fahrenheit indicator

Hover over this key using the FN key and select Fahrenheit and Celsius

via the OK key. When the relevant temperature type is selected, the Fahrenheit and Celsius indicator turns on.

22. Ice machine off icon

Press the FN key (until it reaches the ice icon and the lower line) to switch off the ice machine. The ice machine off icon and the ice machine function indicator start flashing when you hover over them, thus you can understand whether the ice machine will be turned on or off. When you press the OK button, the ice machine icon lights continuously and the Indicator continues to flash during this process. If you do not press any button after 20 seconds, the icon and the indicator remains on. Thus, the ice machine is switched off. In order to switch on the ice machine again, hover over the icon and the indicator; thus, both the ice machine off icon and the indicator will start flashing. If you do not press any button within 20 seconds, the icon and the indicator will go off and thus the ice machine will be switched on again.

Indicates whether the icematic is on or off.

Water flow from water tank will stop when this function is selected. However, ice made previously can be taken from the icematic.

23. Eco fuzzy function icon

Press the FN key (until it reaches the letter e icon and the lower line) to activate the eco fuzzy. When you hover over the eco fuzzy icon and the eco fuzzy function indicator, they start flashing. Thus, you can understand whether the eco fuzzy function will be activated or deactivated. When you press the OK button, the eco fuzzy function icon lights continuously and the Indicator continues to flash during this process. If you do not press any button after 20 seconds, the icon and the indicator remains on. Thus, the eco fuzzy function is activated. In order to cancel the eco fuzzy function, hover over the icon and the indicator again and press the OK key. Thus, both the eco fuzzy function icon and the indicator will start flashing. If you do not press any button within 20 seconds, the icon and the indicator will go off and the eco fuzzy function will be cancelled.

24. Vacation function icon

Press the FN key (until it reaches the umbrella icon and the lower line) to activate the vacation function. When you hover over the vacation function icon and the vacation function indicator, they start flashing. Thus, you can understand whether the vacation function will be activated or deactivated. When you press the OK button, the vacation function icon lights continuously and thus the Vacation function is activated. The Indicator continues to flash during this process. Press the OK key to cancel the vacation function. Thus, both the vacation function icon and the indicator will start flashing and the vacation function will be cancelled.

25. Joker fridge icon

When you select the joker fridge icon using the FN button and press the OK key, the joker cabin turns into a fridge cabin and operates as a cooler.

26. Celsius indicator

It is a Celsius indicator. When the Celsius indication is activated, the temperature set values are shown in Celsius and the relevant icon turns on.

27. Set decreasing function

Select the relevant cabin with the select button; the cabin icon representing the relevant cabin will start to flash. If you press the set decreasing button during this process, the set value gets decreased. If you keep pressing it in a loop, the set value returns to the beginning.

28. Temperature change cabin icon

Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

29. Temperature change cabin icon

Indicates the cabin whose temperature is to be changed. When the temperature change cabin icon starts flashing, it is understood that the relevant cabin has been selected.

30. Key lock

Press key lock button simultaneously for 3 seconds. Key lock symbol will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator.

31. Select button

Use this button to select the cabin whose temperature you want to change. Switch between the cabins by pressing this button. The selected cabin can be understood from the cabin icons (7,17,18,20,28,29). Whichever cabin icon is flashing, the cabin, whose temperature set value you want to change, is selected. Then, you can change the set value by pressing the cabin set value decreasing button (27) and the cabin set value increasing button (19). If you do not press the select button for 20 seconds, the cabin icons will go off. You need to press this key to select a cabin again.

32. Alarm off warning

In case of power failure/high temperature alarm, after checking the foods in the freezer compartment, press the alarm off button to clear the warning.

33. Quick cooling function button

The button has two functions. To activate or deactivate the quick cool function, press it briefly. Quick Cool indicator will turn off and the product will return to its normal settings.

Use quick cooling function when you want to quickly cool the food placed in the fridge compartment. If you want to cool large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, quick cooling will cancel itself automatically after 1 hours at the most or when the fridge compartment reaches to the required temperature.

If you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

34. 1 Joker temperature indicator

Temperature set values of the joker cabin are displayed.

34. 2 Wine cooler compartment temperature indicator

Tempature set values of the winecabin are displayed.

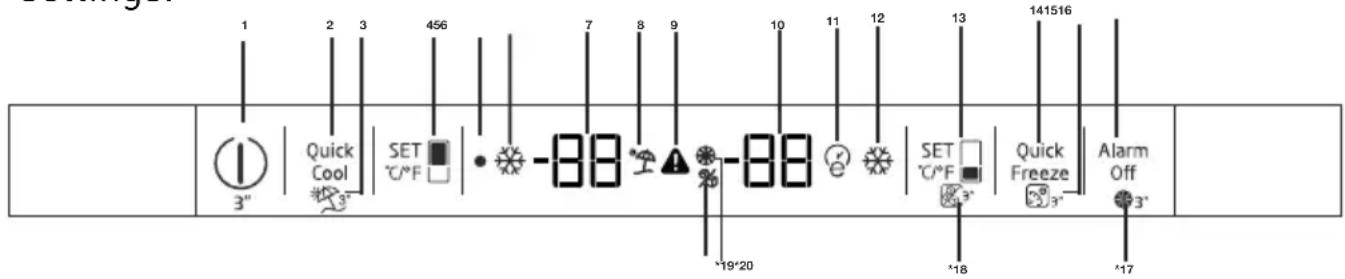

5.2 Indicator panel

Touch-control indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the refrigerator. Just press the relevant buttons for function settings.

1-On/Off function

Press the On/Off button for 3 seconds to turn off or turn on the fridge.

2-Quick Fridge Function

When you press Quick Fridge button, the temperature of the compartment will be colder than the adjusted values.

This function can be used for food placed in the fridge compartment and required to be cooled down rapidly.

If you want to cool large amounts of fresh food, it is recommended to active this feature before putting the food into the fridge. Quick Fridge indicator will remain lit when the Quick Fridge function is enabled. To cancel this function press Quick Fridge button again. Quick Fridge indicator will turn off and return to its normal settings.

If you do not cancel it, Quick Fridge will cancel itself automatically after 1 hours or when the fridge compartment reaches to the required temperature. This function is not recalled when power restores after a power failure.

3-Vacation Function

Press the Quick Fridge\Vacation button for 3 seconds to activate Vacation function."--" icon comes on when the function is active. Function is deactivated by pressing the same button for 3 seconds again or by pressing Fridge set button.

When vacation mode is activated, set values does not seem for fresh food cabin. Line is occurred on segments of fresh food.

When vacation mode is activated, tempature of fresh food is hotter than 50 Fahrenheit degree(10 celcius degree) so please do not keep foods in fresh food cabinet.

Tempature of freezer is not affected.

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

4-Fridge Set Function

This function allows you to make the fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 47, 45, 43, 41, 39, 37, 35 or 33° respectively.

5-Off Indicator

Off Indicator lits when the fridge is "Off" mode.

6-Quick Fridge Indicator

This icon lits when the Quick Fridge function is active.

7-Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for the Fridge Compartment.

8-Vacation Indicator

This icon lits when the Vacation function is active.

9-High Temperature Error / Warning Indicator

This icon comes on during high temperature failures and error warnings.

10-Freezer Compartment

Temperature Setting Indicator Indicates the temperature set for the Freezer Compartment.

11-Eco-Extra Indicator

Eco-Extra Indicator lits when the Eco Extra function is active.

12-Quick Freeze Indicator

This indicator lits when the Quick Freezer function is active.

13-Freezer Set Function

This function allows you to make the freezer compartment temperature setting. Press this button to set the temperature of the freezer compartment to 0, -2, -4, -6, -8, -10 and -12 respectively.

14-Quick Freeze Function

Quick Freeze indicator turns on when the Quick Freeze function is on. To cancel this function press Quick Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Quick Freeze will cancel itself automatically after 24 hours or when the freezer compartment reaches to the required temperature.

If you want to freeze large amounts of fresh food, press the Quick Freeze button before putting the food into the freezer compartment. If you press the Quick Freeze button repeatedly with short intervals, the electronic circuit protection will be activated immediately.

This function is not recalled when power restores after a power failure.

15-Eco-Extra (Special Economic Usage) Function

Press the Quick Freeze\Eco Extra button for 3 seconds to activate the Eco Extra Function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active. Press the Quick Freeze button for 3 seconds again to deactivate the Eco Fuzzy Function.

16-Alarm Off

When the fridge door is opened for 2 minutes or when there a sensor failure, a sound alarm turns on. Alarm can be turned off by pressing "Alarm Off" button.

Sensor failure alarm will not sound till power failure. If you close the door and then open again “Door open alarm” will be activated again after 2 minutes later.

17-Filter reset button (\*optional)

The filter is reset when the alarm off button is pressed for 3 seconds. Filter reset icon goes off.

18-Ice machine off button (\*optional)

Ice machine active or deactive when freezer set button is pressed for 3 seconds.

19. Filter reset icon (\*optional)

This icon turns on when the filter needs to be reset.

20-Ice machine off icon (\*optional)

This icon lits when the ice machine is deactive, this icon power off when the ice machine is active.

5.3 Freezing fresh food

• In order to preserve the quality of the food, it shall be frozen as quickly as possible when it is placed in the freezer compartment, use the fast freezing feature for this purpose.
• You may store the food longer in freezer compartment when you freeze them while they are fresh.
• Pack the food to be frozen and close the packing so that it would not allow entrance of air.

• Ensure that you pack your food before putting them in the freezer. Use freezer containers, foils and moisture-proof papers, plastic bags and other packing materials instead of traditional packing papers.

• Label each pack of food by adding the date before freezing. You may distinguish the freshness of each food pack in this way when you open your freezer each time. Store the food frozen before in the front side of compartment to ensure that they are used first.

• Frozen food must be used immediately after they are thawed and they should not be re-frozen.
• Do not freeze too large quantities of food at one time.

Freezer Compartment Setting	Fridge Compartment Setting	Remarks
-18°C 4°C		This is the normal recommended setting.
-20, -22 or -24°C	4°C	These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C		Use when you wish to freeze your food in a short time. Your product will return to its previous mode when the process is over.
-18°C or colder	2°C	Use these settings if you think that your fridge compartment is not cold enough because of the hot ambient conditions or frequent opening and closing of the door.

5.4 Recommendations for preserving the frozen food

• Compartment shall be set to -18°C at least.
• Put packages in the freezer as quickly as possible after purchase without allowing the to thaw.
• Check whether the "Use By" and "Best Before" dates on the packaging are expired or not before freezing it.
• Ensure that the package of the food is not damaged.

5.5 Deep-freeze information

According to IEC 62552 standards, the product shall freeze at least 4.5 kg of food at 25°C ambient temperature to -18°C or lower within 24 hours for every 100-litres of freezer volume.

It is possible to preserve the food for a long time only at -18^ C or lower temperatures.

You can keep the freshness of food for many months (at -18^ C or lower temperatures in the deep freeze).

Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially. Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health.

5.6 Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Refrigerator compartment shelves	Food in pans, covered plates and closed containers, eggs (in closed container)
Door shelves of fridge compartment	Small and packaged food or beverage
Crisper	Vegetables and fruits
Fresh zone compartment	Delicatessen (breakfast food, meat products that shall be consumed in a short time)

5.7 Door open warning

(This feature is optional)

An audio warning signal will be given when the door of your product is left open for 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

5.8 Chiller compartment

Chiller compartments allow you to prepare the food for freezing. You can also use these compartments to store your food at a temperature a few degrees below the fridge compartment.

You can increase the inner volume of your refrigerator by removing any of the chiller compartments:

1. Pull the compartment towards yourself until it stops.
2. Lift the compartment about 1 cm up and pull towards yourself to remove it from its seating.

5.9 Crisper

Crisper of the refrigerator is designed specially to keep the vegetables fresh without loosing their humidity. For this purpose, cool air circulation is intensified around the crisper in general. Remove the door shelves that stand against the crisper before removing the crisper.

5.10 Humidity-controlled crisper

(FreSHelf)

(This feature is optional)

Humidity rates of fruits and vegetables are kept under control thanks to the humidity-controlled crisper and thus the food is ensured to stay fresh for a longer period.

We recommend that you place leafy vegetables such as lettuce and spinach and vegetables sensitive to humidity loss as horizontally as possible when putting them in the crisper; not in a horizontal position on their roots.

While the vegetables are being replaced, their specific weights should be taken into consideration. Heavy and hard vegetables must be placed at the bottom of the crisper and light and soft vegetables must be on the upper part.

Never leave the vegetables in their plastic bags in the crisper. If they are left in their plastic bags, this will cause them to rot in a little while. If you not prefer the vegetable to get in contact with other vegetables for hygienic reasons, use perforated paper or a similar material instead of plastic bags.

Do not place pears, apricots, peaches etc., especially those fruits that generate large amounts of ethylene, in the same crisper with other fruits and vegetables. The ethylene gas emitted by these fruits cause other fruits to ripen sooner and to rot in a shorter span of time.

5.11 Egg tray

You can install the egg holder to the desired door or body shelf. Never keep the egg holder in the freezer compartment.

5.12 Movable Middle Section

Movable middle section is intended to prevent the cold air inside your refrigerator from escaping outside.

1- Sealing is provided when the gaskets on the door presses on the surface of the movable middle section while the fridge compartment doors are closed.
2- Another reason that your refrigerator is equipped with a movable middle section is that it increases the net volume of the fridge compartment. Standard middle sections occupy some non-usable volume in the refrigerator.
3-Movable middle section is closed when the left door of the fridge compartment is opened.
4-It must not be opened manually. It moves under the guidance of the plastic part on the body while the door is closed.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

5.13 Cool Control Storage Compartment

The Cool Control Storage Compartment of your refrigerator may be used in any desired mode by adjusting it to fridge (2/4/6/8 °C) or freezer (-18/-20/-22/-24) temperatures. You can keep the compartment at the desired temperature with the Cool Control Storage Compartment's Temperature Setting Button. The temperature of the Cool Control Storage Compartment may be set to 0 and 10 degrees in addition to the fridge compartment temperatures and to -6 degrees in addition to the freezer compartment temperatures. 0 degree is used to store the deli products longer, and -6 degrees is used to keep the meats up to 2 weeks in an easily sliceable condition.

The feature of switching to a Fridge or Freezer compartment is provided by a cooling element located in the closed section (Compressor Compartment) behind the refrigerator. During operation of this element, sounds similar to the sound of seconds heard from an analogue clock may be heard. This is normal and is not fault cause.

5.14 Blue light

(in some models)

Crisper of the refrigerator are illuminated with a blue light. Foodstuff stored in the crisper continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

5.15 Odour filter

Odour filter in the air duct of the fridge compartment prevents build-up of unpleasant odours in the refrigerator.

5.16 Wine cellar compartment

(This feature is optional)

1 - Fill your cellar compartment

Wine cellar was built to contain up to 28 front bottles + 3 bottles accessible using a telescopic rack. These maximum quantities declared are given for information purpose only and correspond to tests carried out with a “Bordelaise 75cl” standard bottle.

Interior view of a mechanical oven with multiple cylindrical components mounted on shelves (no visible text or labels)

Technical cross-section diagram of an industrial machine or processing unit with multiple cylindrical components and piping (no visible text or labels)

2- Suggested optimum service temperatures

Our advice: If you mix different types of wines, choose a 12 ° Celsius setting just like in a real cellar. For white wines, which are to be served between 6 and 10 °, think of putting your bottles in the refrigerator 1/2 hour before serving, the refrigerator will be able to maintain the bottles at the preferred temperature. As regards red wines, they will heat up slowly at room temperature when serving.

- 16 -17°C

• Fine Bordeaux wines - Red

15 -16°C Fine Burgundy wines- Red

14 -16°C Grand crus (great growth) of dry white wines

11 -12°C Light, fruity and young red wines

10 -12°C Provence rosé wines, French wines

10 -12°C Dry white wines and red country wines

8 - 10°C White country wines
7 - 8°C Champagnes
6-°C Sweet white wines

3- Suggestions relating to the opening of a wine bottle before tasting:

White wines About 10 minutes before serving

Young red wines About 10 minutes before serving

Thick and mature red wines About 30 to 60 minutes before serving

4- How long can an open bottle be preserved?

Unfinished bottles of wine must be cocked properly and can be preserved in a cold and dry place during the following periods:

Whitewines Red wines

75 % full bottle 3 to 5 days 4 to 7 days

50 % full bottle 2 to 3 days 3 to 5 days

Less than 50 % 1 day 2 days

5.17 Use of internal water dispenser and water dispenser at the door

(in some models)

After connecting the refrigerator to a water source or replacing the water filter, flush the water system. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser paddle (5 seconds on, 5 seconds off) until a total of 4 gal. (15L) has been dispensed. This will flush air from the filter and water dispensing system, and prepare the water filter for use. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser.

Allow 24 hours for the refrigerator to cool down and chill water. Dispense enough water every week to maintain a fresh supply.

After 5 minutes of continuous dispensing, the dispenser will stop dispensing water to avoid flooding. To continue dispensing, press the dispenser paddle again.

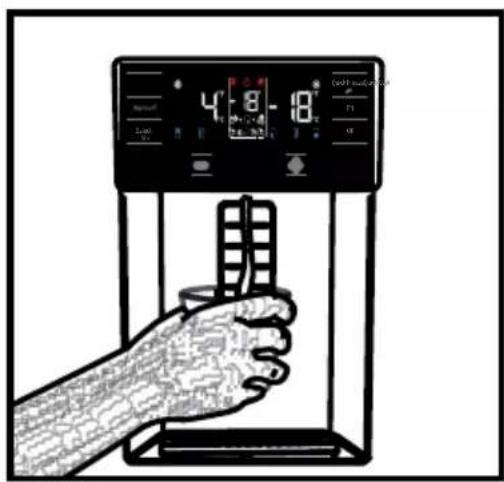

Water dispenser at the door (in some models)

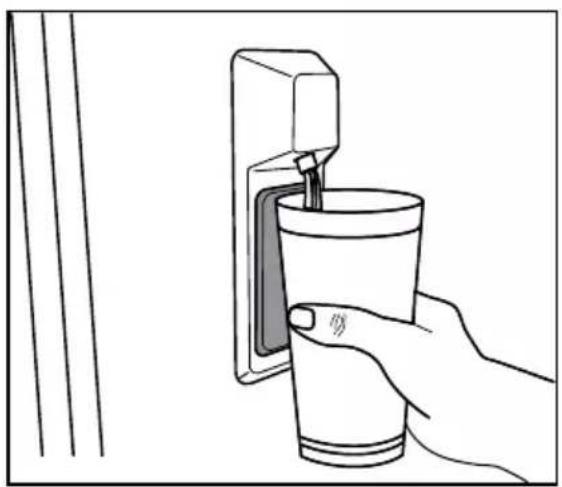

5.18 Dispensing Water

Hold a container under the dispenser spout while pressing the dispenser pad.

Release the dispenser pad to stop dispensing.

	It is normal for the first few glasses of water taken from the dispenser to be warm.
	If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

During initial use, you will have to wait approximately 24 hours for the water to cool down.

Take out the glass a little while after you pull the trigger.

Built-in water dispenser (in some models)

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

5.19 For using water dispenser

Before using your fridge first time and after replacing your water filter, water dispenser may drip drops of water. To prevent water dripping or leaking from dispenser, please bleed the air from the system by dispensing 7-0 gallons (about 2 liter) of water through the water dispenser before the first use and every time after you change the water filter. This will remove any air trapped in the system and stop the water dispenser from leaking. Checking coupler position and the straightness of water line at the back of the unit will be required if there's an obstruction in water flow.

If your water dispenser is leaking just a few drops of water after you have dispensed some water, this is normal.

5.20 Icematic

(in some models)

Ice cubes in the ice drawer may stick to each other and become a bulk due to hot and humid air in approximately 15 days. This is normal. If you cannot break the bulk apart, you can empty the ice container and make ice again.

It is recommended to change the water in the water tank if it remains in the water tank for more then 3-7 weeks.

Strange noises you hear from the refrigerator at 120-minute intervals are the sounds of ice-making and pouring. This is normal.

If you do not want to make ice, press the ice off icon to stop the icematic to save energy and prolong the service life of your refrigerator.

It is normal that a few drops of water drop from the dispenser after you have taken water.

5.21 Icematic and ice storage container

(in some models)

^t Using the Icematic

Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

Turn the knobs on the ice reservoirs clockwise by 90 degrees.

Ice cubes in the reservoirs will fall down into the ice storage container below.

You may take out the ice storage container and serve the ice cubes.

If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

Architectural floor plan showing room layouts and structural elements (no text or labels)

6 Maintenance and cleaning

Cleaning your fridge at regular intervals will extend the service life of the product.

WARNING: Unplug the product before cleaning it.

•

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• Dissolve one teaspoon of bi-carbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of its contents.
• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.
• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

6.1 Avoiding bad odours

Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:

• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with bi-carbonate dissolved in water every few months. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Never keep food that have passed best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7. Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid.

  Do not install the product in humid environments.

• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

- In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard.

The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

- Food packages may be blocking the door. >>> Relocate any items blocking the doors.

• The product is not standing in full upright position on the ground.

  Adjust the stands to balance the product.

• The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

Simple line drawing of a rectangular object with a labeled section '1' (no text or symbols on the object itself)

Diagram showing a lightning bolt striking a wire with a plug, next to a grid-patterned object (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-decker cabinet with two doors and two base feet (no text or symbols)

Mechanical diagram showing hands operating a tool with a curved arrow indicating rotation (no text or symbols present)

Six-panel line drawing showing a hand operating a tool, with no visible text or symbols.

Line drawing of a cylindrical mechanical device with a flanged top and base (no text or symbols)

Line drawing of a hand interacting with a wall-mounted device (no text or symbols)

Interior view of a chemical reactor with multiple cylindrical tanks and cooling fans (no visible text or labels)

Technical schematic of an industrial equipment or processing unit with multiple cylindrical components and piping (no visible text or labels)

2- Empfohlene optimale Temperaturen

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

Architectural floor plan showing room layout and furniture placement (no text or labels)

Simple line drawing of a pear and a carrot (no text or symbols)

GQN21220X-GQN21225X-GN1416231ZX-GN1416221ZX-GQN21225GB

Simple line drawing of a rectangular frame with a numbered label '1' on the top left corner (no other text or symbols)

Simple line drawing of a rectangular structure with a central trapezoidal base and an arrow pointing to the top section (no text or symbols)

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a rotating arrow (no text or symbols)

Five-panel line drawing showing a hand operating a tool, with no visible text or symbols.

Line drawing of a cylindrical mechanical device with a flanged top and side ports (no text or symbols)

Line drawing of a hand holding a small object above a shelf (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Interior view of a laboratory apparatus with multiple cylindrical equipment units (no visible text or labels)

Technical schematic of an industrial equipment enclosure with multiple cylindrical components and piping (no visible text or labels)

Line drawing of a digital water level meter device with control panel and display (no text or symbols)

5.19 Dozowanie wody

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Empty white rectangle with black border (no text or symbols)

Simple line drawing of a rectangular structure with a labeled section (1), no text or symbols present.

Simple line drawing of a rectangular frame with a numbered label '1' at the center (no other text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a rotating arrow (no text or symbols)

Five-panel line drawing showing a hand operating a tool, with no visible text or symbols.

Line drawing of a cylindrical mechanical device with a pointed tip and side port (no text or symbols)

Simple line drawing of a kitchen appliance with a bag and fan inside (no text or symbols)

Simple line drawing of a cabinet with an arrow pointing to the cabinet (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical illustration of a mechanical device with multiple cylindrical components inside a chamber (no visible text or symbols)

Technical cross-section diagram of a mechanical or electrical enclosure with internal components and piping (no visible text or labels)

Line drawing of a digital water level meter device with control panel and display (no text or symbols)

5.19 Dispensar agua

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Simple line drawing of a pear and a carrot (no text or symbols)

X-GQN21225X-GN1416231ZX-GN1416221ZX-GQN21225GB

CONTEÚDO

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing hands operating a tool with a rotating wheel (no text or symbols)

Six-panel line drawing showing a hand operating a tool, with no visible text or symbols.

Line drawing of a cylindrical mechanical device with a flanged base and top cap (no text or symbols)

Simple line drawing of a kitchen appliance with smoke and a hanging item (no text or symbols)

Simple line drawing of a cabinet with shelves and a box, no text or symbols present

Line drawing of a refrigerator interior showing front and back doors, shelves, and compartments (no text or symbols)

Interior view of a mechanical oven with multiple cylindrical components mounted on shelves (no visible text or symbols)

Cross-sectional technical diagram of an industrial machine or processing unit with multiple cylindrical components and piping (no visible text or labels)

2- Temperaturas ideais recomendadas

Line drawing of a hand pouring liquid into a glass cup (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Simple line drawing of a rectangular object with a triangular cutout on top, labeled '1' (no text or symbols on the object itself)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the number)

Diagram showing a device with wires and plug, no text or symbols present

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a rotating arrow (no text or symbols)

3.4 Elektrisk tilslutning

Line drawing of a cylindrical mechanical device with a flanged base and top cap (no text or symbols)

Simple line drawing of a cabinet interior with a cloud-shaped object inside and an arrow pointing to it (no text or symbols)

Simple line drawing of a cabinet shelf with a box and an arrow pointing to the door (no text or symbols)

4.3 Første brug

Line drawing of an open refrigerator with doors, shelves, and a door (no text or symbols)

Technical illustration of a mechanical device with multiple cylindrical components inside a chamber (no visible text or symbols)

Technical schematic of an industrial equipment enclosure with multiple cylindrical components and piping (no visible text or labels)

2- Forslag til optimale brugstemperaturer

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Simple line drawing of a pear and a carrot (no text or symbols)

GQN21220X-GQN21225X-GN1416231ZX-GN1416221ZX-GQN21225GB

Technical line drawing of a mechanical component with a base and top view, labeled with number 1 (no text or symbols beyond label)

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

3.3 Elektrisk anslutning

Simple line drawing of a rectangular frame with vertical and horizontal lines, two small circular base markers at the bottom (no text or symbols)

Mechanical diagram showing a hand operating a tool with a circular component, no text or symbols present

Six-panel line drawing showing a hand operating a tool, with no visible text or symbols.

3.5 Vattenanslutning

Simple line drawing of a cylindrical mechanical device with a flanged base and top cap (no text or symbols)

Simple line drawing of a kitchen appliance with a bag and fan inside (no text or symbols)

Simple line drawing of a cabinet or storage unit with an arrow pointing to the cabinet (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Interior view of a mechanical industrial machine with multiple cylindrical components (no visible text or symbols)

Technical schematic of an industrial equipment or processing unit with multiple cylindrical components and piping (no visible text or labels)

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

5.21 Isbehållare

(på vissa modeller)

Vrid ratten 90 grader moturs.

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

Simple line drawing of a rectangular frame with a numbered label '1' inside, no text or symbols present.

Diagram showing a lightning bolt striking a wall-mounted device with a cable and plug, no text or symbols present

1.1.1HC-advarsel

Pure electrical circuit lines without any symbols

1. Kontroll- og indikatorpanel
2. Hylle for smør og ost
3. 70 mm bevegelig dørhylle
4. Kjøleskapets glasshylle
5. Kjøleskapets grønnsaksskuff
6. Dørhylle

7. Kjøledel

8. Isboks-skuff

9. Glasshylle/kjøledel i multisonen
10. Skuffer i fryserdelen
11. Skuff i multisonen
12. Vanntank

* VALGFRITT

1. Kontroll- og indikatorpanel
2. Hylle for smør og ost
3. 70 mm bevegelig dørhylle
4. Kjøleskapets glasshylle
5. Kjøleskapets grønnsaksskuff
6. Dørhylle

7. Kjøledel

8. Isboks-skuff

9. Glasshylle/kjøledel i multisonen
10. Skuffer i fryserdelen
11. Vanntank

* VALGFRITT

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a circular component, no text or symbols present

3.4 Elektrisk tilkobling

Five-panel line drawing showing a hand operating a tool, with no visible text or symbols.

3.5 Vanntilkobling

Line drawing of a cylindrical mechanical device with a flanged base and top port (no text or symbols)

Simple line drawing of a kitchen appliance with a bag and fan inside (no text or symbols)

Simple line drawing of a cabinet shelf with an arrow pointing to the door (no text or symbols)

11 Eco-Extra-indikator

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Interior view of a mechanical oven with multiple cylindrical components mounted on shelves (no visible text or labels)

Technical cross-section diagram of an industrial machine or processing unit with multiple cylindrical components and piping (no visible text or labels)

Line drawing of a hand pouring liquid into a glass cup on a wall-mounted device (no text or symbols)

5.18 Dispensere vann

Hold en beholder under dispensertuten mens du trykker på dispenserspaken.

Simple line drawing of a pear and a carrot (no text or symbols)

X-GQN21225X-GN1416231ZX-GN1416221ZX-GQN21225GB

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

1.1.2 HC-varoitus

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

3.3 Sähköliitännät

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a rotating arrow (no text or symbols)

Six-panel line drawing showing a hand operating a tool, with no visible text or symbols.

3.5 Vesiliitäntä

Line drawing of a cylindrical mechanical device with a flanged top and side ports (no text or symbols)

Simple line drawing of a refrigerator with a bag and a cable inserted into the cup (no text or symbols)

Simple line drawing of a cabinet shelf with a box and cable inserted (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Interior view of a chemical reactor with multiple cylindrical tanks and cooling fans (no visible text or labels)

Technical schematic of an industrial equipment or processing unit with multiple cylindrical components and piping (no visible text or labels)

5.18 Veden annosteleminen

Line drawing of a hand pouring liquid into a glass cup (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

Diagram of a refrigerator interior with a lightning bolt indicating the down-left pan, and a plug inserted into the seat (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a computer monitor panel (no text or symbols visible)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Five-panel line drawing showing a hand operating a tool, with no visible text or symbols.

3.5 Σύνδεση νερού

Line drawing of a cylindrical mechanical device with a pointed top and base, no text or symbols present.

Line drawing of a hand inserting a small rectangular object into a cabinet (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Interior view of a mechanical industrial machine with multiple cylindrical components (no visible text or symbols)

Technical schematic of an industrial machine or processing unit with multiple cylindrical components and piping (no visible text or labels)

5.13 Διανομή νερού

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

Architectural cross-section diagram of a building facade with structural elements and furniture (no text or labels)

Simple line drawing of a pear and a carrot (no text or symbols)

GQN21220X-GQN21225X-GN1416231ZX-GN1416221ZX-GQN21225GB

- Hotely typu Bed & breakfast, penziony,

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a circular arrow indicating rotation (no text or symbols present)

Five-panel line drawing showing a hand operating a tool, with no visible text or symbols.

3.5 Připojení vody

Simple line drawing of a cylindrical mechanical device with a flanged base and top cap (no text or symbols)

Simple line drawing of a kitchen appliance with a bag and fan inside (no text or symbols)

Simple line drawing of a cabinet with an arrow pointing to the front panel (no text or symbols)

4.3 První použití

Line drawing of an open refrigerator with multiple compartments and doors (no text or symbols)

Interior view of a mechanical or industrial device with multiple cylindrical components and a central rack (no visible text or symbols)

Cross-sectional technical diagram of a mechanical or electrical assembly with multiple cylindrical components and piping (no visible text or labels)

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

3.3 \*Nastavenie stojanov

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a circular component, no text or symbols present

3.4 Pripojenie napájania

Line drawing of a person using a tool on a device (no text or symbols)

Line drawing of hands using a tool to adjust or install components (no text or symbols visible)

Line drawing of a hand using a tool to adjust or install a component (no text or symbols present)

Line drawing of a hand holding a door handle, no text or symbols present

Technical line drawing of a drill bit on a workpiece (no text or symbols)

Line drawing of a cylindrical mechanical device with a flanged base and top port (no text or symbols)

3.6 Pripojenie vodovodnej hadice k chladničke

1. Spojku (B) nasuňte na vodovodnú hadicu (A).
2. Vodovodnú hadicu załlačte pevne nadol, aby sa skízla na vstupný vodný ventil (C).
3. Spojku (c) zatiahnite ru-kou, aby ste ju upevnili k vstup-nému vodnému ventilu.

Simple line drawing of a kitchen appliance with a bag and fan inside (no text or symbols)

Simple line drawing of a cabinet or storage unit with shelves and a door, no text or symbols present

4.3 Prvé použitie

Line drawing of an open refrigerator with doors, shelves, and a front panel (no text or symbols)

Interior view of a chemical reactor with multiple cylindrical tanks and cooling fans (no visible text or labels)

Cross-sectional technical diagram of a mechanical or electrical enclosure with multiple cylindrical components and piping (no visible text or labels)

5.18 Dávkovanie vody

Line drawing of a hand inserting a cup into a wall-mounted device (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

5.21 Icematic a nádoba na skladovanie l'adu
