Product Type	AV Receiver
Brand	HEOS by Denon
Model	AVR
Dimensions (W x H x D)	Approx. 434 x 167 x 382 mm
Weight	Approx. 10.5 kg
Power Consumption	750 W (standby: 0.1 W)
HDMI Inputs	8 (including 1 front)
HDMI Outputs	3 (ARC supported)
Audio Formats	Dolby Atmos, DTS:X, Auro-3D
Wireless Connectivity	WiFi 802.11 a/b/g/n/ac, Bluetooth 4.2
HEOS Multi-Room	Built-in
Amplifier Power	125 W per channel (8 ohms, 20 Hz–20 kHz, 0.05% THD)
Speaker Impedance	4–16 ohms
Supported Streaming Services	Spotify, Tidal, Amazon Music, etc.
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Maintenance	Wipe with dry soft cloth; do not use solvents
Cleaning	Unplug before cleaning; avoid liquid entry
Safety	Use in well-ventilated area; do not block vents
Spare Parts & Repairability	Contact authorized service center; check HEOS website for compatibility
General Information	Supports 4K/60Hz, HDR, Dolby Vision

Frequently Asked Questions - AVR HEOS

How do I set up the HEOS AVR receiver for the first time?

Connect the receiver to your TV via HDMI (ARC recommended). Plug into power, turn on, and follow the on-screen setup wizard. Use the HEOS app to configure network and add speakers.

Can I use the HEOS AVR without the HEOS app?

Yes, basic functions like volume and input selection work via the remote or front panel. However, multi-room features and streaming require the HEOS app.

How do I update the firmware?

Ensure the receiver is connected to the internet. Go to Setup > General > Firmware Update in the menu, or use the HEOS app under Settings > Check for Updates.

Why is there no sound from the HEOS AVR?

Check speaker connections, input source, and volume level. Ensure the correct HDMI input is selected and that the TV's audio output is set to ARC or eARC. Also, verify the receiver is not muted.

How do I add HEOS speakers to the receiver?

Open the HEOS app, tap the 'Music' tab, then the gear icon. Select 'Add New Device' and follow the prompts. The receiver and speakers must be on the same WiFi network.

What are the supported audio formats for HEOS streaming?

The HEOS AVR supports MP3, WMA, AAC, FLAC, ALAC, WAV, AIFF, DSD (2.8/5.6 MHz). For high-resolution audio, FLAC and DSD are recommended.

Can I control the HEOS AVR with voice assistants?

Yes, it works with Amazon Alexa, Google Assistant, and Apple Siri. Enable the HEOS skill in your voice assistant app and link your account.

How do I reset the HEOS AVR to factory settings?

While the unit is on, press and hold the Power and Input Mode buttons simultaneously for 5 seconds. Alternatively, use the menu: Setup > General > Reset.

What is the maximum power output per channel?

The receiver delivers 125 watts per channel (8 ohms, 20 Hz–20 kHz, 0.05% THD) for surround sound with all channels driven.

How do I clean and maintain the HEOS AVR?

Unplug the unit. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or sprays. Ensure ventilation grills are free of dust.

USER MANUAL AVR HEOS

Contents Setup Use Troubleshooting Status LED Appendix

HEOS® BY DENON

WIRELESS AV RECEIVER

Owner's Manual

HEOS AVR

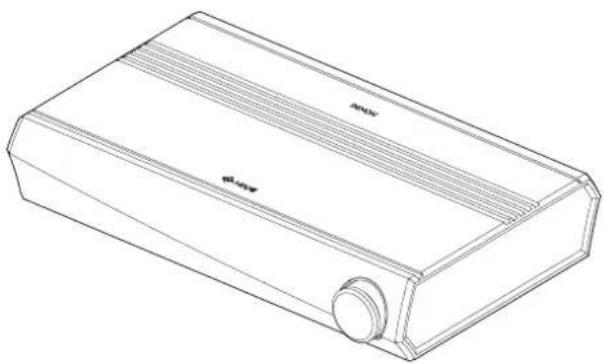

Line drawing of a rectangular electronic device with a button and ventilation slots (no text or symbols)

Contents

Setup

Use

Troubleshooting

Status LED

Appendix

Introduction 5

Before your begin 6

System requirements 6

Network requirements 6

Controller requirements 7

Getting to know your HEOS AVR 8

Front panel 10

Bottom 11

Back panel 11

Remote control unit 12

Placing your HEOS AVR 13

Connecting speakers 14

About the cable labels for channel identification 15

Before using the remote control unit 16

Replacing the battery 16

Operating range of the remote control unit 17

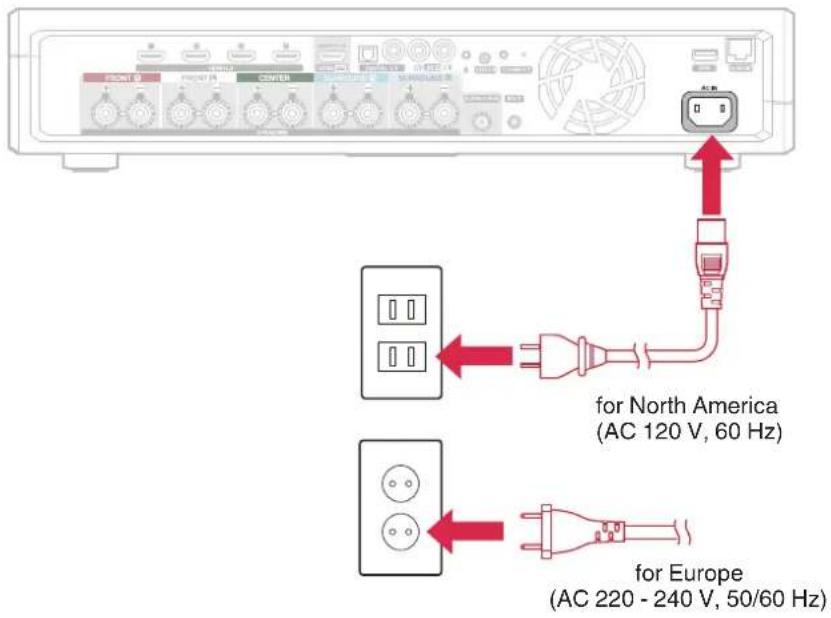

Powering your HEOS AVR 18

Getting the HEOS app 19

Setting up your first HEOS AVR 20

Adding more HEOS devices 21

Adding wired HEOS devices 21

Adding wireless HEOS devices 21

Connecting devices 22

Connecting to your TV 22

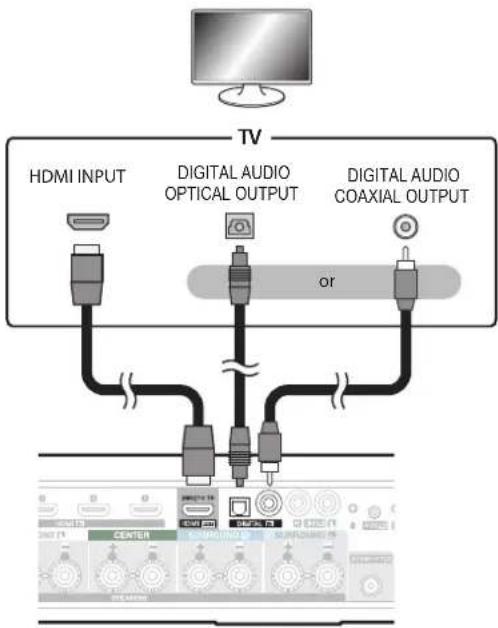

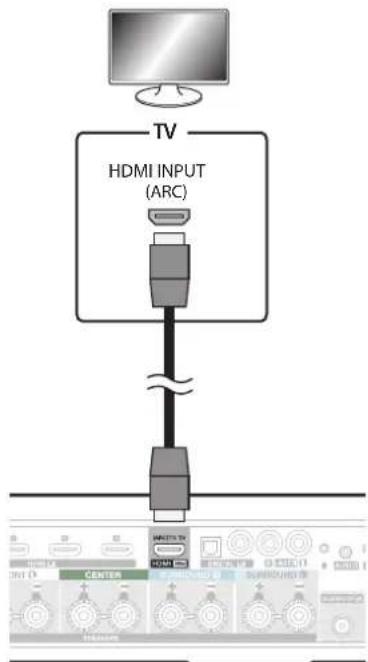

HDMI connection 22

Setting the HDMI control function 22

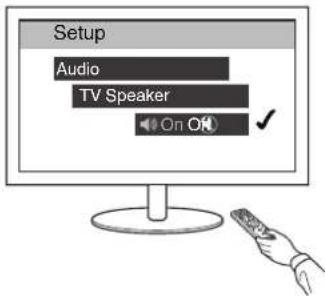

Disable your television's speakers 23

Playing HDMI (ARC) - Best choice 24

Playing HDMI (without ARC) - Better choice 25

Connectiong an other devices 26

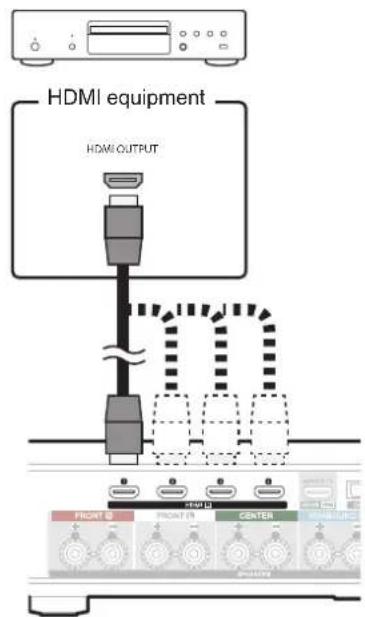

Connecting to your HDMI equipment 26

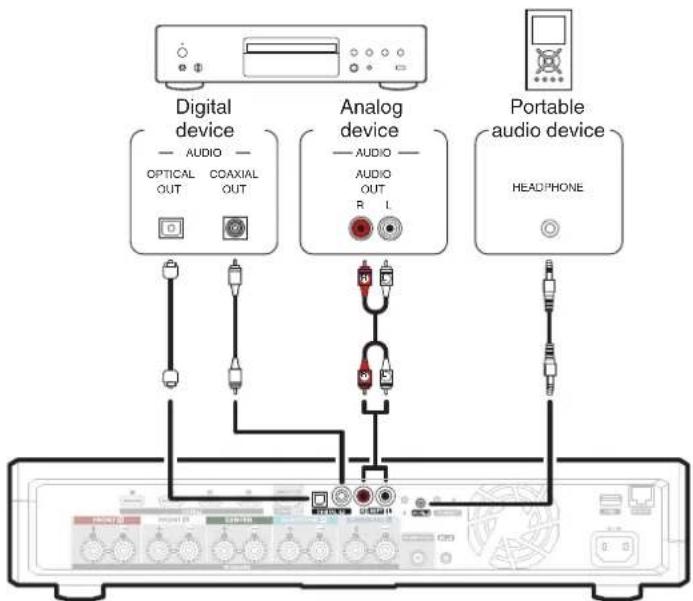

Connecting an audio playback device 26

Connecting a USB storage device 27

IR repeater 27

Pairing a HEOS Subwoofer and Surrounds 28

Pairing the HEOS Subwoofer 29

Adding surround speakers 29

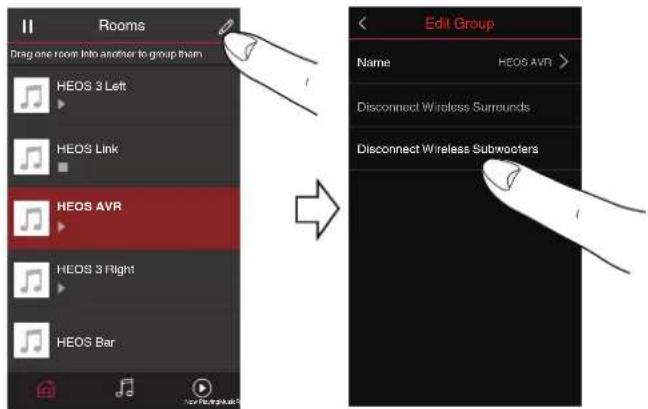

Unpairing HEOS Subwoofer and Surrounds 30

Contents Setup Use Troubleshooting Status LED Appendix

Using your HEOS AVR 31

HEOS account 31

What is a HEOS account? 31

Why do I need a HEOS account? 31

Signing up for a HEOS account 31

Selecting a room/device 31

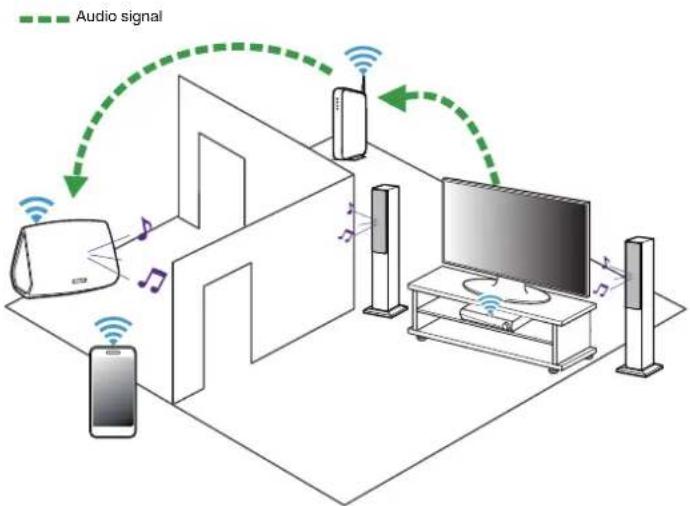

Listening to the same music in multiple rooms 32

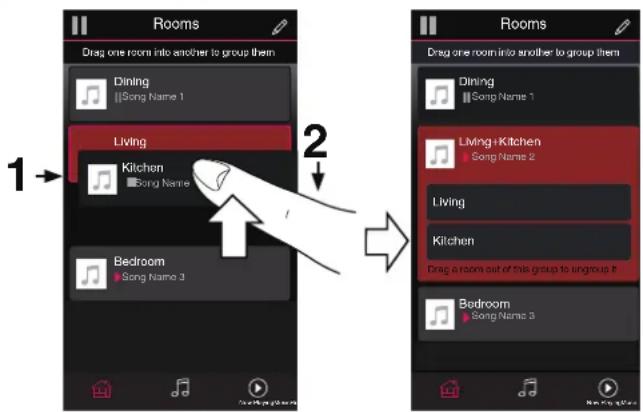

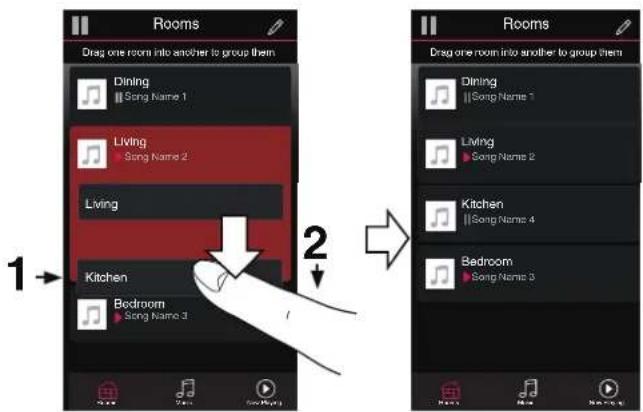

Grouping rooms 32

Ungrouping rooms 33

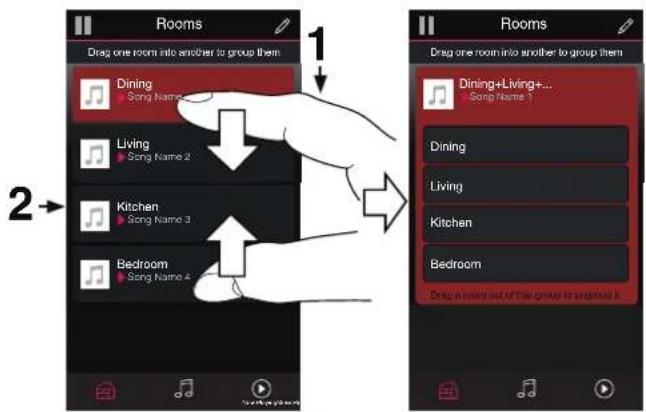

Grouping all rooms (party mode) 34

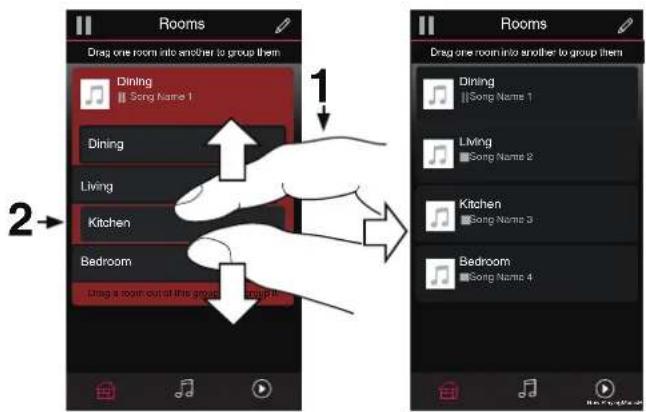

Ungrouping all rooms 35

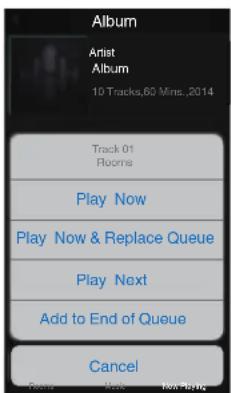

Selecting the music track or station from music sources 36

Rearranging the now playing queue 38

Deleting songs from the play queue 38

Deleting all songs from the play queue 39

Saving playlists 39

Quick Select function 40

Watching TV 41

Watching other device 42

Listening to radio 43

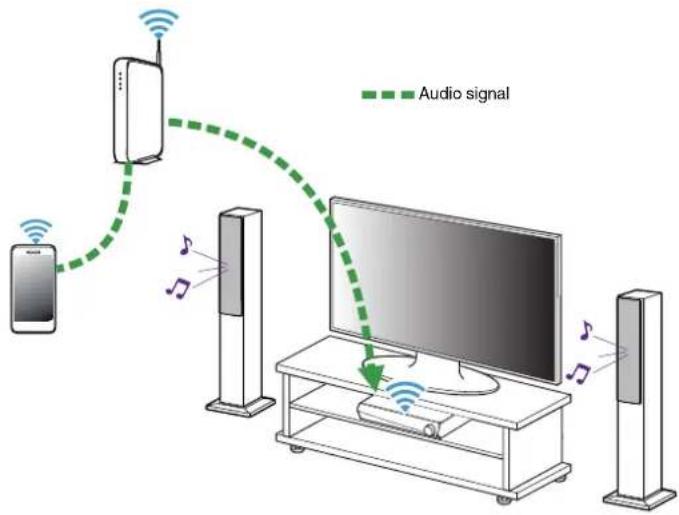

Playing music stored on your mobile device 44

Playing music from your networked PC or NAS 45

Streaming an external audio device to any HEOS device 46

Playing music from a USB device 47

Playing music from Bluetooth device 48

Pairing the HEOS device with your Bluetooth devices 48

Playing from streaming music services 49

Adding a music service 49

Changing music service settings 49

Managing inputs 50

Changing the name of the inputs 50

Hiding an input 50

Managing your phone 51

Using the favorite 52

Adding to HEOS favorite 52

Deleting station from the HEOS favorite 52

Contents Setup Use Troubleshooting Status LED Appendix

Making adjustments 53

Adjusting the audio quality 53

Changing the TV connection 54

Adjusting the TV input 54

TV Sound Grouping 54

Changing the name of Quick Select 55

Adjusting the status light brightness 55

Updating your system 56

Advanced features 57

Wireless performance 57

Power management 58

Power modes 58

Quick Start Mode 58

Deep Standby 58

Off 58

Basic troubleshooting 59

My HEOS device won't connect to my network using the audio cable 59

Cannot pair a Bluetooth mobile device with the HEOS device 59

Cannot hear Bluetooth music 59

My HEOS device turns off and the status LED flashes in red 60

Music cuts out or delays sometimes 60

I hear a delay when using the external input with my TV 60

I hear distortion when using the AUX input 61

Connecting to a WPS network 61

Resetting your HEOS device 62

Restoring the HEOS device to factory defaults 62

Contact Denon 63

Status LED table 64

Supported file types and codecs 72

Supported audio formats (Coaxial/Optical) 72

Specifications 73

Information 76

Trademarks 76

License 77

License information for the software used in the unit 77

Contents Setup Use Troubleshooting Status LED Appendix

Thank you for purchasing this HEOS product. To ensure proper operation, please read this owner's manual carefully before using the product.

NOTE

• THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.
  For latest information, please visit http://www.HEOSbyDenon.com

Introduction

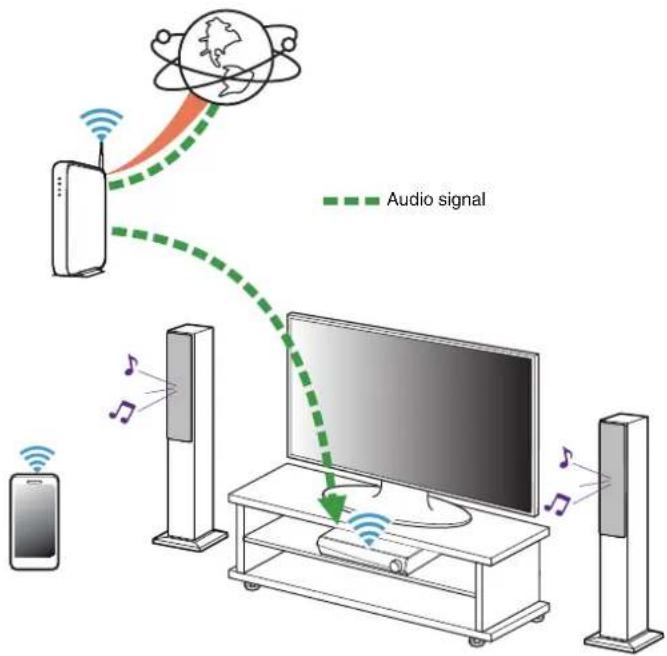

The HEOS AVR is part of the HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere around your home. By utilizing your existing home network and the HEOS app on your iOS or Android™ device, you can explore, browse, and play music from your own music library or from many online streaming music services.

• True multi-room audio - play different songs in different rooms or the same song in every room
• Utilizes your existing home wireless network for quick and easy setup
• Industry leading microsecond audio synchronization between HEOS device
  • Legendary Denon audio quality
• If you are in a hurry, you can be enjoying great sounding music in no time by following the steps outlined in the HEOS Quick Start Guide (packaged with your HEOS device).

HEOS® ■ DENON HEDS AVR QUICK START GUIDE

Please continue reading this Owner's Manual for more detailed information about the features and benefits of your HEOS AVR.

Contents Setup Use Troubleshooting Status LED Appendix

Before your begin

NOTE

- If you have already installed at least one HEOS device, please skip to the section "Adding more HEOS devices" (p. 21).

System requirements

Before you begin installing your first HEOS device, please make sure you understand and meet a few basic requirements.

■ Network requirements

Wireless Router - In order to use your HEOS music system, you must have a working wireless (Wi-Fi) or ethernet network in your home. Even when connected to an Ethernet network, a Wi-Fi connection to the router is required to control the system using the HEOS Control app. If you do not have a wireless network, please contact your local Denon dealer or electronics retailer to assist you with purchasing and installing a wireless network in your home.

High Speed Internet Connection - HEOS accesses the Internet to stream music to your home from many popular online music services. HEOS is also designed to provide you with software updates, which are delivered via your home Internet connection. DSL, Cable, and Fiber services will provide the best experience and reliability. You may experience performance issues with slower Internet connections like satellite based services.

Contents Setup Use Troubleshooting Status LED Appendix

■ Controller requirements

You can control your HEOS wireless multi-room sound system using the free HEOS app on any iOS or Android mobile device that meets these minimum requirements:

Download on the

App Store

iOS Minimum Requirements

• iOS version 7.0 or later
• iPhone® 4 or newer
• iPad® 2 or newer
• iPod touch® (5th generation) or newer

GETITON

Google Play

Android Minimum Requirements

• Android OS version 4.0 or later
• All resolutions

Contents Setup Use Troubleshooting Status LED Appendix

Getting to know your HEOS AVR

Unpack your HEOS AVR from the box and verify that the following items are included:

HEOS AVR Quick Start Guide

Line drawing of a rectangular electronic device with ventilation slots and a central button (no text or symbols)

Cable labels Extended Protection Plan

(North America model only)

Thank you note

Warranty

(North America model only)

Safety instructions

Contents Setup Use Troubleshooting Status LED Appendix

Power cord 1/8 inch (3.5 mm) setup cable Ethernet cable

HDMI cable

Optical cable

Remote control unit (include battery)

NOTE

- Please use the power cord included in the box for your device.

Contents Setup Use Troubleshooting Status LED Appendix

Front panel

Diagram of a device with numbered components, likely a control or indicator panel

① Volume knob

This adjusts the volume level.

② Volume LED

Lights according to the volume.

③ Status LED

Please refer to the "Status LED table" for LED color and state meaning. (17 p. 64)

4 Remote control sensor

This receives signals from the remote control unit.

Contents Setup Use Troubleshooting Status LED Appendix

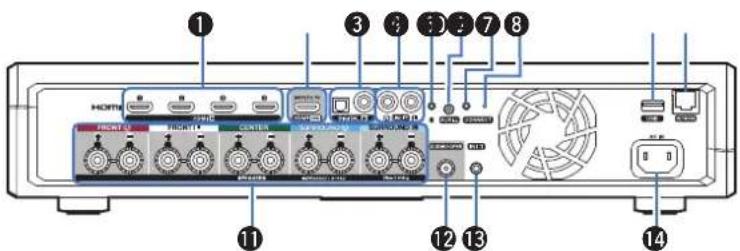

■ Back panel

Labeled diagram of a server rack with numbered ports and internal components including HORTM, USB drive, and fan.

① HDMI connectors (HDMI IN)

Used to connect to the HDMI equipment with an HDMI cable. (P. 26)

② HDMI connector to TV (HDMI OUT)

Used to connect to the TV with an HDMI cable. (Compatible with the ARC function) (p. 22)

③ Digital audio connectors (DIGITAL IN)

Used to connect devices equipped with digital audio outputs. (17 p. 26)

④ Analog audio connectors (LINE IN)

Used to connect audio devices with a stereo RCA cable. (P. 26)

⑤ Bluetooth button (*)

Used in the Bluetooth pairing settings. (p. 48)

⑥ AUX jack (AUX IN)

Used to connect audio devices with a 1/8 inch (3.5 mm) cable. (17 p. 26)

Used to add the HEOS device to your wireless network. (省 p. 20)

⑦ CONNECT button

Used for Wi-Fi setup.

8 Connect in status LED

Indicates the status of this unit. (1 p. 64)

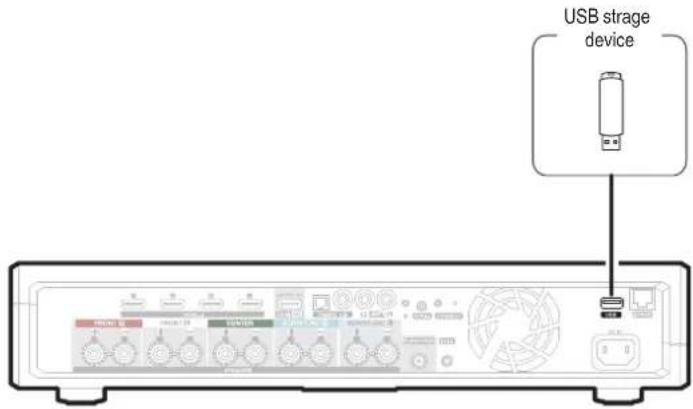

9 USB port

Used to connect USB storage devices. (p. 27)

⑩ NETWORK connector

Used to connect this unit to a wired Ethernet network. (p. 21)

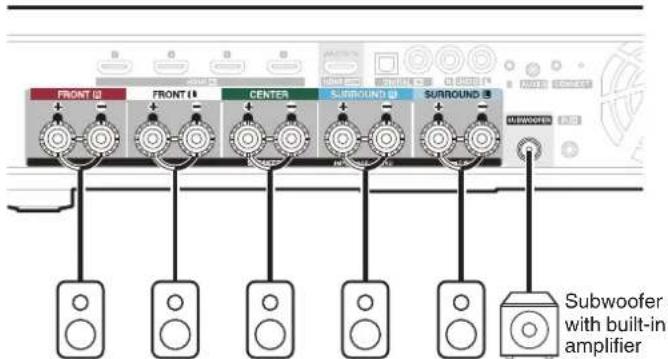

⑪ Speaker terminals (SPEAKERS)

Used to connect speakers. (p. 14)

⑫ Subwoofer connector (SUBWOOFER)

Used to connect this unit to a powered subwoofer. (p. 14)

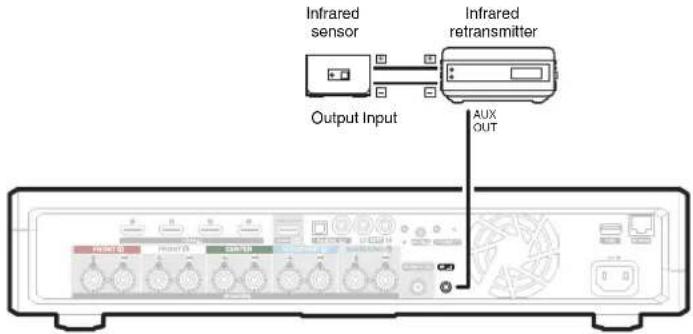

13 REMOTE CONTROL jack (IR IN)

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. (p. 27)

⑭ AC inlet (AC IN)

Used to connect the power cord. (17 p. 18)

Contents Setup Use Troubleshooting Status LED Appendix

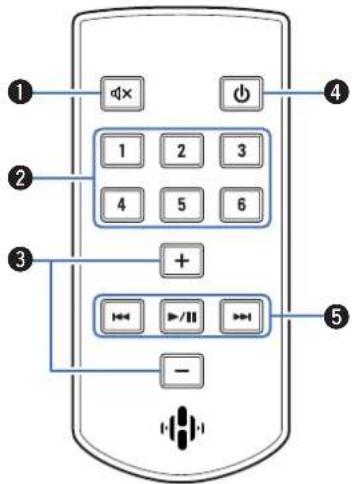

■ Remote control unit

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

① Mute button (OK)

This mutes the output audio.

② Quick Select buttons (1 - 6)

These call up settings registered to each button, such as input source, volume level and sound mode settings. (☐ p. 40)

③ Volume up/down buttons (+, -)

These adjusts the volume level.

④ Power button (⏻)

This toggles the power mode of this unit.

- Press the Power button on the remote control unit to switch to Quick Start Mode.

- Press and hold the Power button on the remote control unit for more than 3 seconds to switch to Deep Standby.

⑤ System buttons

These perform playback related operations.

- Reverse-skip / Forward-skip buttons (I◄◄, ►►I)

- Play/pause button (▶/III)

Used in the Bluetooth pairing settings. (☐ p. 48)


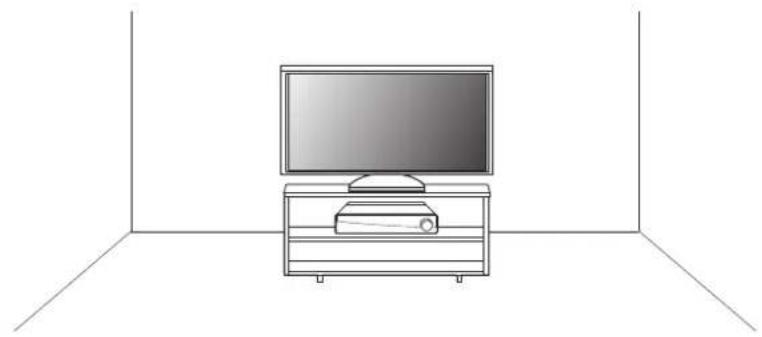

Placing your HEOS AVR

The HEOS AVR is designed to add HEOS multi-room audio functionality to an external device which offers audio amplification. You should place your HEOS AVR in a convenient location near the speakers you are connecting it to.

- The HEOS AVR must be within range of your wireless network.

Line drawing of a flat-screen TV set mounted on a cabinet, positioned in a room with no text or symbols.

Contents

Troubleshooting Status LED Appendix

Connecting speakers

Carefully check the left (L) and right (R) channels and + (red) and - (black) polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.

1 Peel off about 3/8 inch (10 mm) of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it.

2 Turn the speaker terminal counterclockwise to loosen it.

3 Insert the speaker cable's core wire to the hilt into the speaker terminal.

4 Turn the speaker terminal clockwise to tighten it.

NOTE

• Disconnect this unit's power plug from the power outlet before connecting the speakers. Also, turn off any connected powered subwoofers.
• Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and - sides touch each other.
• Never touch the speaker terminals while the power cord is connected. Doing so could result in electric shock.
• Use speakers with an impedance of 4 – 16 Ω/ohms. The protection circuit may be activated if speakers with an impedance other than specified are used.

FRONT (I) FRONT (K) CENTER SURROUND (S) SURROUND (B) SUBWOOFER Subwoofer with built-in amplifier

FR FL C SR SL

Contents

Troubleshooting Status LED Appendix

■ About the cable labels for channel identification

The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable.

Attach the cable label corresponding to each speaker to each speaker cable.

This makes it easy to connect the correct cable to the speaker terminals on the rear panel.

Speaker terminals Color
FRONT R	Red
FRONT L White
CENTER	Green
SURROUND R Blue
SURROUND L	Light blue
SUBWOOFER	Black

Attach the cable label for each channel to its speaker cable as shown in the diagram.

Refer to the table and attach the label to each speaker cable.

Then, make connection so that the color of the speaker terminal matches that of the cable label.

[How to attach the cable labels]

Speaker HEOS AVR FRONT

Contents

e Troubleshooting Status LED Appendix

Before using the remote control unit

The remote control unit has a built-in lithium battery. Pull out the insulation sheet before use.

■ Replacing the battery

1. Pull the groove on the left side of the battery case at the bottom of the reverse side of the remote control unit to the right.
2. In this state, pull the battery case downwards.

1. Insert the lithium battery (CR2025) correctly into the battery compartment as indicated.
2. Replace the battery case in the original position.

NOTE

• When inserting the lithium battery, be sure to do so in the proper direction, following the and marks in the battery compartment.
• If the battery should have a leakage, immediately replace and dispose of the battery. In this case, there is a risk of burn when the liquid comes in contact with skins or clothes, so a great care should be taken. If the liquid accidentally comes in contact, wash with tap water and consult a doctor.
• Remove the battery from the remote control unit if it will not be in use for long periods.

Contents

Use Troubleshooting Status LED Appendix

■ Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it. The HEOS AVR remote sensor is installed on the front right foot of the set.

Approx. 23 ft/7 m 30°30°

NOTE

- To ensure the remote control unit operates correctly, make sure there is nothing obstructing the remote sensor.

Contents

ng Status LED Appendix

Powering your HEOS AVR

Connect the power cord included in the box to the back of the HEOS AVR and the plug to a wall outlet.

FRONT 9 CONVER for North America (AC 120 V, 60 Hz) for Europe (AC 220 - 240 V, 50/60 Hz)

Contents

ng Status LED Appendix

Getting the HEOS app

The HEOS app is the heart of the HEOS experience. Using your mobile device and the HEOS app, you can setup, browse, explore, and control your HEOS system right in the palm of your hand, from anywhere in your home.

Download the HEOS app for iOS or Android by searching App Store®, Google Play™ store or Amazon for "HEOS".

For the purpose of improvement, the specifications and design are subject to change without notice.

Contents

Troubleshooting Status LED Appendix

Setting up your first HEOS AVR

Once you have placed your HEOS AVR in your listening room and have downloaded the HEOS app, you are ready to configure your HEOS AVR for music playback. This involves following a few simple steps to get the HEOS AVR connected to your existing home network:

Caution

- DO NOT connect the Ethernet cable if you are connecting your HEOS AVR to a wireless network. If you are connecting the HEOS AVR to a wired network, use an Ethernet cable to connect the HEOS AVR to your network or router.

1 Make sure your mobile device is connected to your wireless network (the same network you want your HEOS AVR connected to).

You can check this in the Settings - Wi-Fi menu of your iOS or Android device.

NOTE

- If your wireless network is secure, make sure you know the password to join your network.

2 Make sure you have the included 1/8 inch (3.5 mm) setup cable handy.

3 Launch the HEOS app on your mobile device.

Illustration of a smartphone displaying a red audio jack with a hand pointing to it, enclosed in a circular frame (no text or symbols)

4 Tap the "Setup Now" button at the top of the screen.
5 Follow the instructions to add the HEOS AVR to your wireless network.

The Wi-Fi settings from your mobile device will be copied to the HEOS AVR via the audio cable.

NOTE

- If you have any problems connecting your HEOS device, jump to the Troubleshooting section. (1-7 p. 59)

Contents

Troubleshooting Status LED Appendix

Adding more HEOS devices

The HEOS wireless multi-room sound system is a true multiroom audio system that automatically synchronizes audio playback between multiple HEOS devices so that the audio coming from different rooms is perfectly in sync and always sounds amazing! You can easily add up to 32 devices to your HEOS system.

Adding wired HEOS devices

Just connect the HEOS devices to your home network using an Ethernet cable and the HEOS devices will appear on your HEOS app as a new room in the "Rooms" screen.

At your convenience, you can assign a name to the HEOS devices to indicate which room you have it placed in.

• Use only a shielded STP or ScTP LAN cable which is easily available at electronics stores (CAT-5 or greater recommended).
• Do not connect a Network Connector directly to the LAN port/Ethernet connector on your computer.

Adding wireless HEOS devices

You can add additional wireless HEOS devices to your HEOS system by selecting "Add Device" from the HEOS app's settings menu and follow the instructions:

Hand pointing at a button with a gear icon (no text or symbols)

SettingsMusic Add Device >

Contents

Use Troubleshooting Status LED Appendix

Connecting devices

When you run HEOS AVR for the first time, "Setup Assistant" will be executed automatically.

You can start "Setup Assistant" anytime from setup menu, when you want to change the configurations. "Changing the TV connection" (p. 54)

Connecting to your TV

■ HDMI connection

You can enjoy high quality audio and video playback by connecting this unit and a TV or this unit and a device such as a Blu-ray Disc recorder or game console using a HDMI cable to transmit high resolution digital video signals and Blu-ray Disc audio signals.

- ARC (Audio Return Channel) function The TV audio can be played back through this unit using the HDMI cable used to connect this unit to the TV (*).

* The TV also needs to be compatible with the ARC function.

■ Setting the HDMI control function

Enable the HDMI control function on the TV.

If the TV is compatible with the ARC function, enable the ARC function on the TV.

(See the TV Owner's Manual for details.)

Contents

Troubleshooting Status LED Appendix

■ Disable your television's speakers

Disable your television's built-in speakers when using HEOS AVR. Usually, this is done with an on-screen setup menu on your television. Look for an "Audio" or "Sound" sub-menu, and a "Speakers Off", "Disable Speakers", "External Speakers" or similar menu item. Some televisions have a switch on the rear panel to disable the built-in speakers.

Setup Audio TV Speaker On Off

Contents

ing Status LED Appendix

■ Playing HDMI (ARC) - Best choice

If your TV has an ARC (Audio Return Channel) HDMI connector, connect it to the HDMI output of the HEOS AVR. This will provide the best sound and several other benefits.

1 Connect your TV with an ARC (Audio Return Channel) HDMI connector to the HDMI OUT (ARC) connector on your HEOS AVR using the included HDMI cable.
2 Select "TV" from the music tab.
3 Select the name of the HEOS AVR to which you connected the TV in step 1.
4 The sound from your TV can be played directly on the HEOS AVR.

NOTE

• The TV also needs to be compatible with the ARC function.
Turn the TV HDMI control function on. See the TV Owner's Manual for details.
- To change the input automatically, you can set the default TV input in the setup menu. "Adjusting the TV input" (p. 54)

TV HDMI INPUT (ARC)

Contents

Troubleshooting Status LED Appendix

■ Playing HDMI (without ARC) - Better choice

Connect to a TV that is not compatible with the ARC (Audio Return Channel) function using the HDMI cable and audio input cable.

1 Connect your TV with an HDMI connector to HDMI OUT (ARC) connector on your HEOS AVR using the included HDMI cable.
2 Connect your TV to your HEOS AVR using either an included optical cable or a coaxial cable (not included).
3 Select "TV" from the music tab.
4 Select the name of the HEOS AVR to which you connected the TV in step 1 and 2.
5 The sound from your TV can be played directly on the HEOS AVR.

NOTE

• The TV audio cannot be played back on this unit when it is only connected with the HDMI cable.
• To change the input automatically, you can set the default TV input in the setup menu. "Adjusting the TV input" (p. 54)

Contents

Troubleshooting Status LED Appendix

Connectiong an other devices

■ Connecting to your HDMI equipment

You can play back from a device that has a HDMI terminal, such as a Bluray disc recorder or game console.

HDMI equipment HDMI OUTPUT

■ Connecting an audio playback device

Connect the LINE IN, AUX IN or DIGITAL IN input to an audio playback device (CD player, portable music player, etc...) using the appropriate cables.

Digital device AUDIO OPTICAL OUT COAXIAL OUT Analog device AUDIO AUDIO OUT R L Portable audio device HEADPHONE

Contents

ng Status LED Appendix

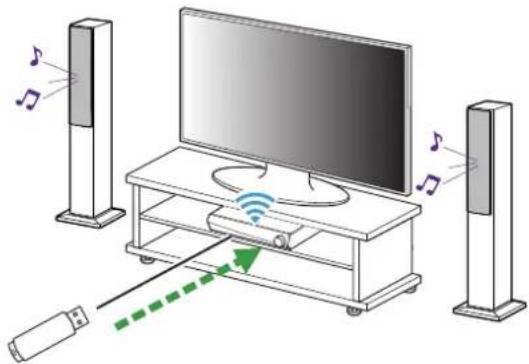

■ Connecting a USB storage device

Connect a FAT32 formatted USB storage device containing digital music files to any available USB port.

USB strage device

■ IR repeater

When this unit is installed in a location where the remote control signals cannot reach (installation in a cabinet etc.), it can still be controlled by the remote control by connecting a remote control receiver unit (sold separately).

Infrared sensor Output Input Infrared retransmitter AUX OUT

Contents

e Troubleshooting Status LED Appendix

Pairing a HEOS Subwoofer and Surrounds

HEOS AVR can be used as a multi-channel system by pairing with HEOS speakers or a HEOS Subwoofer.

1 Select the Settings 📋 icon located in the upper left corner of the main "Music" menu to display the Settings menu.

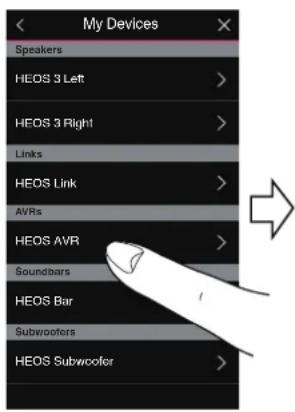

2 Select "HEOS AVR" from "My Devices".

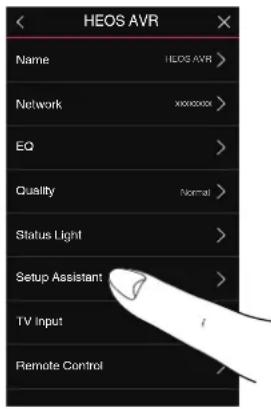

3 Run Setup Assistant and add HEOS Subwoofer.

Setup assistant guides the HEOS AVR to pair

NOTE

- A HEOS Subwoofer and surround speakers need to connect your wireless network before pairing.

- It cannot be used as a front speaker or center speaker.

My Devices Speakers HEOS 3 Left > HEOS 3 Right > Links HEOS Link > AVRs HEOS AVR > Soundbars HEOS Bar Subwoofer HEOS Subwoofer >

HEOS AVR Name HEOS AVR > Network xxxxxxx> EQ > Quality Normal > Status Light > Setup Assistant > TV Input Remote Control

Contents

Troubleshooting Status LED Appendix

Setup Assistant TV Connection Subwoofer Surrounds Inputs

■ Pairing the HEOS Subwoofer

1 Select "Subwoofer".
2 Select "HEOS Subwoofer", then tap NEXT.

NOTE

- Configure the HEOS Subwoofer settings after pairing is complete. Select "Optimized for HEOS AVR" for normal configuration. Settings are optimized for the HEOS AVR.

■ Adding surround speakers

1 Select "Surrounds".
2 Select "Wireless HEOS Speakers" or "HEOS Amp" and tap NEXT. Select the device that you want to add and tap NEXT.

Contents

Use Troubleshooting Status LED Appendix

■ Unpairing HEOS Subwoofer and Surrounds

1 Tap the pencil 🔒 icon in the upper right from the "Rooms" menu.
2 Select "HEOS AVR".
3 Select the device that you want to disconnect from the list.

Rooms Drag one room into another to group them HEOS 3 Left HEOS Link HEOS AVR HEOS 3 Right HEOS Bar Edit Group Name HEOS AVR > Disconnect Wireless Surrounds Disconnect Wireless Subwooters

Contents Setup

Troubleshooting

Use

dix

Using your HEOS AVR

Once you have your HEOS device connected to your network and the HEOS app installed on your mobile device, it's easy to start enjoying your favorite music. You can listen to something different in every room or the same music perfectly synchronized in all rooms. It's up to you!

HEOS account

■ What is a HEOS account?

A HEOS account is master account or "keychain" for managing all of your HEOS music services with one single username and password.

■ Why do I need a HEOS account?

With the HEOS account you just have to enter your music services login names and passwords one time. This allows you to easily and quickly use multiple controller apps on different devices. You just log into your HEOS account on any device and you will have access to all of your associated music services, play history and custom playlists, even if you are at a friend's house listening to music on their HEOS system.

■ Signing up for a HEOS account

You will be instructed to signup for a HEOS account the first time you try to access any music service from the main "Music" menu of the HEOS app.

Selecting a room/device

1 Tap the "Rooms" tab, and select HEOS AVR if there are multiple HEOS devices.

- Tap the pencil icon at the top right to switch edit mode. You can change the displayed name.

Rooms Drag one room into another to group them Dining L + Dining R Song Name 1 Kitchen Song Name 2 HEOS AVR Song Name 3

Contents Setup

Troubleshooting

Status LED Appendix

Listening to the same music in multiple rooms

The HEOS system is a true multiroom audio system that automatically synchronizes audio playback between multiple HEOS devices so that the audio coming from different rooms is perfectly in sync and always sounds amazing!

You can easily add up to 32 HEOS devices to your HEOS system.

You can join or group up to 16 individual HEOS devices into a group of HEOS devices that function as if they were a single HEOS device.

■ Grouping rooms

1 Press and hold your finger on room that is not playing music.
2 Drag it into the room that is playing music (indicated by the red outline) and lift your finger.

The two rooms will be grouped together into a single device group and both rooms will be playing the same music in perfect sync.

• When audio from the device connected to this unit is played back in a group, only 2-channel PCM input from the HDMI, digital or analog terminals can be played back.
• Grouping cannot be used when this unit is playing TV audio or external input audio. Enable "TV Sound Grouping" to use grouping. (T B p. 54)

Rooms Drag one room into another to group them Dining ||Song Name 1 Living Kitchen Song Name Bedroom Song Name 3 2 Rooms Drag one room into another to group them Dining ||Song Name 1 Living + Kitchen Song Name 2 Living Kitchen Drag a room out of this group to singroup it Bedroom Song Name 3

Contents Setup

Troubleshooting

Status LED Appendix

■ Ungrouping rooms

1 Press and hold your finger on room that you want to remove from the group.
2 Drag it out of the group and lift your finger.

Music will stop playing in the room you dragged out of the group but will continue playing in any remaining rooms.

NOTE

- You can not remove the first room that started playing the music before grouping.

Rooms Drag one room into another to group them Dining ||Song Name 1 Living →Song Name 2 Living Kitchen Bedroom Song Name 3 1 → 2 → Rooms Drag one room into another to group them Dining ||Song Name 1 Living →Song Name 2 Kitchen ||Song Name 4 Bedroom →Song Name 3

Contents Setup

Troubleshooting

Status LED Appendix

■ Grouping all rooms (party mode)

You can easily group 16 rooms together into Party Mode by using a "pinch" gesture.

1 Place two fingers on the screen over the list of rooms.
2 Quickly pinch your two fingers together and release.

All of your rooms will be joined together and begin playing the same music in perfect sync.

Rooms Drag one room into another to group them Dining Song Name 1 Living Song Name 2 Kitchen Song Name 3 Bedroom Song Name 4 1 2 Rooms Drag one room into another to group them Dining+Living+... Song Name 1 Dining Living Kitchen Bedroom Drag a room out of the group to group it

Contents Setup

Troubleshooting

Status LED Appendix

■ Ungrouping all rooms

You can easily ungroup all of your rooms and exit Party Mode by using a "spread" gesture.

1 Place two fingers close together on the screen over list of rooms.
2 Quickly spread your two fingers apart from each other and release.

All of your rooms will be ungrouped.

Rooms Drag one room into another to group them Dining Song Name 1 Dining Living Kitchen Bedroom Drag a room out at this group 1 2 Rooms Drag one room into another to group them Dining Song Name 1 Living Song Name 2 Kitchen Song Name 3 Bedroom Song Name 4

Contents Setup

Troubleshooting

Status LED Appendix

Selecting the music track or station from music sources

1 Tap the "Music" tab and select a music source.

Music + tunein DEEZER Snapster SeriesXM This Phone Music Servers USB Music Playlists History

- All music services displayed may not be available in your location.

Contents Setup

Troubleshooting

Status LED Appendix

2 Browse the music to play.

After selecting a music track or radio station the app will automatically change to the "Now Playing" screen.

- When you select a music track to play you will be asked how you want to queue up your music.

Play Now:	Inserts the item into the queue after the currently playing track and plays the selected item immediately.
Play Now & Replace Queue:	Clears the queue and plays the selected item immediately.
Play Next:	Inserts the item into the queue after the current song and plays it when the current song ends.

Add to End of Queue: Adds the item to the end of the queue.

- When you select a radio station the following items are displayed.

Play Now: Plays the selected item immediately.

Add to HEOS Favorites: Adds to HEOS Favorites.

Album Artist Album 10 Tracks,60 Mins, 2014 Track 01 Rooms Play Now Play Now & Replace Queue Play Next Add to End of Queue Cancel

Now Plaing 0:50 2:51 Track 01 Artist Album MusicRooms Now Plaing

Contents Setup

Troubleshooting

Status LED Appendix

Rearranging the now playing queue

Once you have songs lined up in your queue, you might want to rearrange the order or remove some songs:

1 Tap the "Now Playing" tab.
2 Tap the Queue 📋 icon in the upper right corner of the screen.
3 Tap the Pencil 📋 icon to enter Edit mode.
4 Rearrange the order of your queue by dragging the list icon (on the right side of each track row) up or down.

Deleting songs from the play queue

You can remove songs one at a time from the Now Playing Queue:

1 Tap the "Now Playing" tab.
2 Tap the Queue 📁 icon in the upper right corner of the screen.
3 Tap the Pencil 📋 icon to enter Edit mode.
4 Tap the track(s) that you want to delete.
5 Tap the Delete 📄 icon to delete all of the selected tracks from the play queue.

Contents Setup

Troubleshooting

Status LED Appendix

Deleting all songs from the play queue

You can remove all of the songs from the Now Playing Queue:

1 Tap the "Now Playing" tab.
2 Tap the Queue 📋 icon in the upper right corner of the screen.
3 Tap the Delete 📋 icon to confirm that you want to delete all songs from the queue.

Saving playlists

You can save the Now Playing Queue as a HEOS Playlist that you can recall later. The new playlist will be available from the Playlists button on the "Music" tab on every controller app connected to your HEOS system.

1 Tap the "Now Playing" tab.
2 Tap the Queue 📁 icon in the upper right corner of the screen.
3 Tap on the Save ★ icon.
4 Enter a name for your Playlist and tap the Save ★ icon.

Contents Setup

Troubleshooting

Status LED Appendix

Quick Select function

Input source, volume level and surround mode settings can be registered to the Quick select buttons (1 - 6).

1 To register the current setting, point the remote control unit at this unit and then press and hold the Quick Select button you want to register (1-6) for 3 seconds.

• The status LED on the main unit flashes once when registration is complete.
• You can also register using the HEOS app.
• You can change the Quick Select name of the HEOS app. (r ^1 p. 55)

[Default settings]

Button/Default Name Input Source Volume Sound Mode
Quick Select 1 HDMI 1 35 AUTO
Quick Select 2 HDMI 2 35 AUTO
Quick Select 3 HDMI 3 35 AUTO
Quick Select 4 HDMI 4 35 AUTO
Quick Select 5 HDMI ARC 35 AUTO
Quick Select 6 OPT 35 AUTO

Contents Setup

Troubleshooting

Status LED Appendix

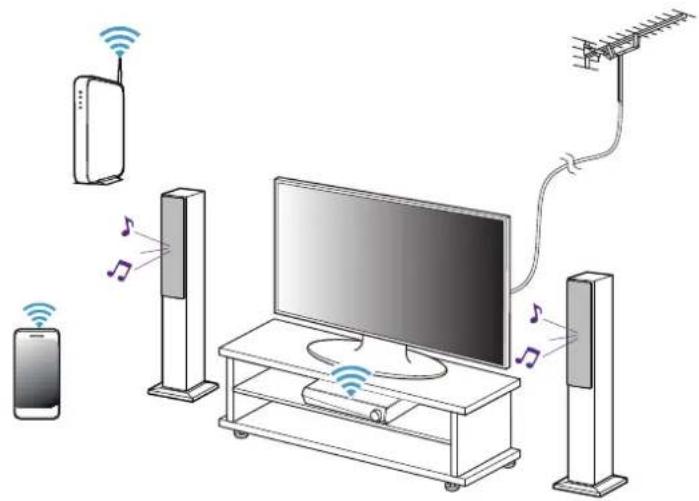

Watching TV

1 Turn on the TV.

Automatically HEOS AVR changes the input to TV.

• If you can not hear the audio on HEOS AVR, please tap the "Inputs" in Music tab, then select the input which you want to enjoy.
• To change the input automatically, you can set the default TV input in the setup menu. "Adjusting the TV input" (p. 54)

Diagram illustrating wireless connectivity setup with devices like a router, speaker tower, and TV, showing signal paths and connections.

Contents Setup

Troubleshooting

Status LED Appendix

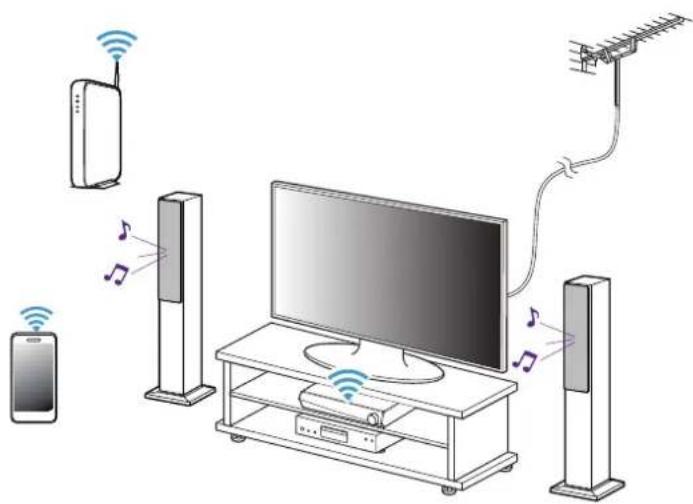

Watching other device

1 Turn on the TV.
2 Turn on the power of the HDMI device, such as a Bluray player or game console.

Automatically the input of the HEOS AVR switches to the HDMI device.

• If HEOS AVR does not switch the input automatically, please tap the "Inputs" in Music tab, then select the input which you want to enjoy.
• Set the HDMI control on the TV to On to enable automatic switching of the HEOS AVR input. (17 p. 22)

Diagram illustrating wireless communication setup with a TV, wireless speakers, and signal transmission via radio

Contents Setup

Troubleshooting

Status LED Appendix

Listening to radio

The HEOS system includes access to more than 100,000 free internet radio streams from all corners of the globe via the Tuneln radio service. Just select the Tuneln logo from the main "Music" menu and browse among the 100,000 stations neatly organized into popular categories and select a station that appeals to your mood.

NOTE

- If you have a TuneIn account, you can sign into the TuneIn service under Settings - Music Sources - TuneIn, and access all of your "My Favorites" TuneIn stations.

Audio signal Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless

Contents Setup

Troubleshooting

Status LED Appendix

Playing music stored on your mobile device

1 Tap the "Music" tab.
2 Select "This iPhone/iPod/iPad/Phone".
3 Browse the local music on your phone and select something to play.

Audio signal

Contents Setup

Troubleshooting

Status LED Appendix

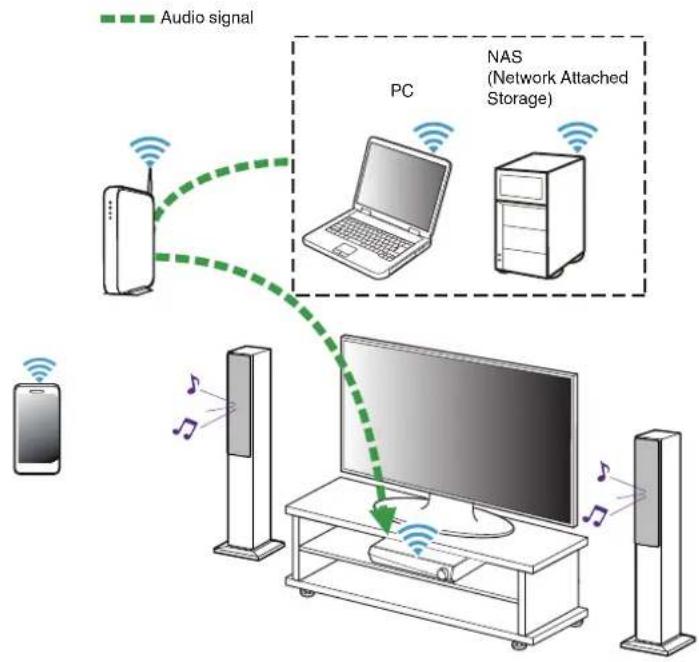

Playing music from your networked PC or NAS

1 Select "Music Servers" from the "Music" tab.
2 Select the name of your networked PC or NAS (Network Attached Storage) server.
3 Browse the music on your PC/NAS and select something to play.

Contents Setup

Troubleshooting

Status LED Appendix

Streaming an external audio device to any HEOS device

The sound from the audio device can be played directly on the selected device or digitized and sent over your network to other HEOS devices.

1 Connect an external audio device to the digital optical, analog RCA stereo or analog 1/8 inch (3.5mm) stereo inputs on the back of the HEOS AVR.
2 Select "Inputs" from the "Music" tab.
3 Select the name of the HEOS AVR and which input to which you connected the audio device in step 1.
4 Initiate playback on the audio device.

NOTE

- When a stereo audio cable is connected to AUX IN, the source automatically switches to Inputs.

Contents Setup

Troubleshooting

Status LED Appendix

Playing music from a USB device

1 Insert a FAT32 formatted USB device into the USB port on the back of the HEOS AVR.
2 Select "USB Music" from the "Music" tab.
3 Select the name of your HEOS device.
4 Browse the music on your USB device and select something to play.

NOTE

• It may take several minutes for the name of your HEOS device to appear in the "USB Music" list if you have a large number of files on your USB device.
• It is not possible to connect and use a computer via the USB port of this unit using a USB cable.

Audio signal

Illustration of a smart TV setup with speakers, a monitor, and a USB device connected via a green signal path (no text or symbols)

Contents Setup

Troubleshooting

Status LED Appendix

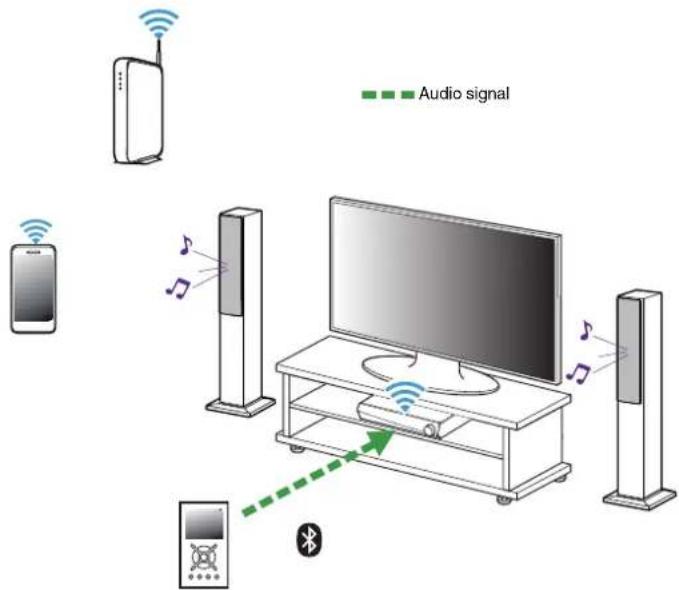

Playing music from Bluetooth device

■ Pairing the HEOS device with your Bluetooth devices

1 Activate the Bluetooth setting on your mobile device.
2 Press and hold the Play/Pause button located on the remote control unit for 3 seconds and release the button when you see a pattern of two green flashes on the status LED.
3 Select "HEOS AVR" from the list of available Bluetooth devices.

In a few seconds your mobile device will indicate that it is connected to your HEOS AVR.

4 Play music using any app on your device. The sound will now play from the HEOS AVR.

NOTE

• Disconnect and reconnect Bluetooth connections from your Bluetooth device.
• You can also pair devices by pressing and holding the Bluetooth button on the back of the HEOS AVR.

Audio signal

Contents Setup

Troubleshooting

Status LED Appendix

Playing from streaming music services

A music service is an online music company that provides access to vast music collections via free and/or paid subscriptions. Depending upon your geographical location, there are several options to choose from. For more information about which services are available in your area please visit http://www.HEOSbyDenon.com

■ Adding a music service

Once you've setup your HEOS account, you can add supported music services to your HEOS system by tapping on the music service logo in the "Music" tab.

Follow the instructions on the screen to add your username and password for the selected music service. You only have to enter your account information once as the HEOS account service will securely remember your login information so you don't have to enter it each time you want to play music from the music service.

Additional music services may be available under Settings - Music Sources - Online Music.

■ Changing music service settings

1 Tap the "Music" tab.
2 Select the Settings 📋 icon in the upper left corner of the screen.
3 Select "Music Sources".
4 Select "Online Music".
5 Select the name of the online music service you want to edit.
6 Sign out, then sign in again to associate your username and password with your HEOS account.
7 Select "Hide for Now" to prevent the service logo from appearing on the main "Music" menu.

Contents Setup

Troubleshooting

Status LED Appendix

Managing inputs

If you connected external audio source components to any of your HEOS devices inputs, you can rename the default input names to describe the actual source or hide any inputs that are not being used.

1 Select the Settings 📋 icon located in the upper left corner of the main "Music" menu to display the Settings menu.
2 Select "Music Sources".
3 Select "Inputs".
4 Select the HEOS devices which you connect your external audio source device to.

■ Changing the name of the inputs

1 Select the name of the input you want to edit.
2 Select "Name".
3 Select or enter a new name to describe the source that you connected.
4 Select the Save button to save your changes.

■ Hiding an input

1 Select the name of the input you want to edit.
2 Toggle "Hide Input" to ON to prevent this input from appearing under the Inputs tile on the main "Music" menu.

Contents Setup

Troubleshooting

Status LED Appendix

Managing your phone

Your smartphone or tablet can be hidden if it does not need to be in the "Music Sources" menu.

1 Select the Settings 📋 icon located in the upper left corner of the main "Music" menu to display the Settings menu.
2 Select "Music Sources".
3 Select "This iPhone/iPod/iPad/Phone".
4 Toggle "This iPhone/iPod/iPad/Phone" to OFF to prevent the service logo from appearing on the main "Music" menu.

Contents Setup

Troubleshooting

Status LED Appendix

Using the favorite

HEOS uses a "HEOS Favorites" to line up station you want to start play quickly the favorite stations.

Station can be selected from online music sources such as "Radio" or "Station" type streams. "HEOS Favorites" will display a list of the stations of various services.

■ Adding to HEOS favorite

Inserts the item into the queue after the currently playing track and plays the selected item immediately.

NOTE

- This can also be done by selecting "Add Station to HEOS Favorites" from the station menu of the station being played.

■ Deleting station from the HEOS favorite

1 Tap the "Music" tab.
2 Select "Favorites".
3 Tap the Pencil 📋 icon to enter Edit mode.
4 Tap the "Delete" that you want to delete station.

Contents Setup

Troubleshooting

Status LED Appendix

Making adjustments

You can adjust specific settings for each of your HEOS device in your system:

1 Select the Settings 📋 icon located in the upper left corner of the main "Music" menu to display the Settings menu.
2 Select "My Devices" to display a list of your HEOS devices.
3 Select the HEOS device you want to adjust.

Adjusting the audio quality

Selects the transcoding option for rebroadcasting audio from one HEOS device to another HEOS device (or group of devices) across the network. When set to high bit rate audio sources originating from the first device (such as Analog input, WAV, FLAC and PCM) will be transcoded to ensure the highest level of reliability for the audio stream. (17 p. 46)

1 Select "Quality".

2 Select "Normal" (default) or "High".

- If you have selected High and you experience audio dropouts when streaming sources from one device to other devices, please select Normal (default).

Contents Setup

Troubleshooting

Status LED Appendix

Changing the TV connection

"Setup Assistant" can be re-executed when changing the TV connection.

1 Select "Setup Assistant".

2 Turn on your TV.

Select which input you want to use to connect your TV.

Adjusting the TV input

It will be able to automatically switch to TV mode once the TV is turned on.

1 Select "TV Input".

Default Input

Select the input to use when the TV tile is selected from the Music Tab.

Auto-Play

Enabled to automatically switch to the default input when a signal is detected on the default input line

TV Sound Grouping

Set when you want to play TV audio or external input audio from this unit through a different HEOS device.

1 Select "TV Sound Grouping".

Enable

Enables grouping.

□ Audio Delay

Sets the delay for the audio.

NOTE

- The audio may cut out if the amount of delay is too short. Lengthen the amount of delay if the audio cuts out.

Contents Setup

Troubleshooting

Status LED Appendix

Changing the name of Quick Select

1 Select "Quick Select Names".
2 Select or enter a new name to describe the registered Quick Select.
3 Tap the Save √ button to save your changes.

Adjusting the status light brightness

1 Select "Status Light". Adjust the brightness up or down or set the slider to the OFF position to completely disable the status light.

Contents Setup

Troubleshooting

Status LED Appendix

Updating your system

HEOS has the ability to add enhancements and updated functionality via your high speed Internet connection. Follow the instructions on the screen to update the HEOS device and/or your controller App.

1 Select the Settings 📄 icon located in the upper left corner of the main "Music" menu to display the Settings menu.

2 Select "Software Update".

□ Check for Update

Follow the instructions on screen to install any available updates to your HEOS system.

Auto-Update

ON:	Valid updates are performed automatically.
OFF:	You will be notified of valid updates on the HEOS app.

Contents Setup

Troubleshooting

Status LED Appendix

Advanced features

There are a few advanced features of the HEOS system that you may want to explore once you become familiar with the basic operations. You can access the advanced features of the HEOS system by following these steps:

1 Select the Settings 📋 icon located in the upper left corner of the main "Music" menu to display the Settings menu.
2 Select "Advanced Settings" to display a list the available settings.

Wireless performance

You can check the wireless connection status of your HEOS device.

Quality

Excellent / Good / Poor

NOTE

- If the quality level of your HEOS device is "Poor", make sure your HEOS devices are not located near other electronic devices that could interfere with it's wireless connectivity (like microwave ovens, cordless phones, TVs, etc...)

Signal

Excellent / Good / Poor

NOTE

- If the signal level of your HEOS device is "Poor", make sure your HEOS devices are within range of your wireless network.

Contents Setup

Troubleshooting

Status LED Appendix

Power management

Power modes

Quick Start Mode

To save power, the device will automatically enter “Quick Start Mode” whenever there is no network access or playback for 20 minutes and will automatically resume to full power whenever the device is selected and playing music.

The status LED dims when the mode is switched to Quick Start Mode.

- Press the Power button on the remote control unit to switch to Quick Start Mode.

■ Deep Standby

The device also has the ability to automatically enter “Deep Standby” whenever the wired and wireless network connections are removed for more than 60 minutes in Quick Start Mode. Status LED will turn off during Deep Standby.

To "wake" a HEOS device from Deep Standby, you must press the power button on the remote control unit which will immediately turn on status LED.

The Device may need to "find" the network before it can operate properly.

NOTE

- Please note that the HEOS cannot be operated as intended when in Deep Standby as there is no network connection.

- Press and hold the Power button on the remote control unit for more than 3 seconds to switch to Deep Standby.

Off

To completely turn off the power to the device you must remove the mains plug from the power outlet.

Contents

Setup

Use

Troubleshooting

Status LED

Appendix

Basic troubleshooting

My HEOS device won't connect to my network using the audio cable

Solution Refer to Page
Make sure your mobile device is connected to your wireless network before setting up your device.Alternatively, you can connect your device to your network router using the included Ethernet cable. Once connected via Ethernet, the HEOS App should recognize the device and you can manually move it to your wireless network using Settings/My Devices/Device_Name/Advanced/Network Settings.	2021

Cannot pair a Bluetooth mobile device with the HEOS device

Solution Refer to Page
• The connection from the Bluetooth mobile device is malfunctioning. Power cycle the mobile device, remove the pairing information and re-pair the HEOS AVR to the mobile device.	-

Cannot hear Bluetooth music

Solution Refer to Page
·Your Bluetooth mobile device is not paired with HEOS device. Re-pair the HEOS device to the mobile device.	48
·The HEOS device is Wi-Fi mode or Aux-in mode etc. Pair and connect Bluetooth device to HEOS device.	—
·The Bluetooth mobile device is connected to another audio device. Make sure your Bluetooth device is connected to HEOS device.	—
·The volume on Bluetooth mobile device is too low. Check the volume on the Bluetooth mobile device. Check the volume on the HEOS device.	—

Contents Setup Use

Status LED Appendi

My HEOS device turns off and the status LED flashes in red

Solution Refer to Page
The protection circuit has been activated due to a rise in temperature within your HEOS device. Turn the power off, wait about an hour until this device cools down sufficiently, and then turn the power on again.	-
Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a core wire was disconnected from the connector and came in contact with the rear panel of this device. After unplugging the power cord, take corrective action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire.	14

Music cuts out or delays sometimes

Solution Refer to Page

Make sure your Internet connection is operating correctly. If you are sharing your network with other users or devices, they may be using most of your bandwidth (especially if they are streaming video).Make sure your HEOS devices are within range of your wireless network.Make sure your HEOS devices are not located near other electronic devices that could interfere with it's wireless connectivity (like microwave ovens, cordless phones, TVs, etc...).

65757

I hear a delay when using the external input with my TV

Solution Refer to Page

If you are connecting the External input with your cable or satellite box for enjoying TV audio through multiple HEOS devices, you may hear a delay between when you see someone speak and when you hear the audio. This is because the HEOS system must buffer the audio before it sends it out to the HEOS devices so that it arrives at all devices at the same time.You can avoid this delay by listening only to the device which is directly connected to the set top box.

—

Contents Setup Use

Status LED Appendi

I hear distortion when using the AUX input

Solution Refer to Page
The analog output signals from some sources can be fairly strong. If the input level of the source device is turned up high, it could overload the inputs of the HEOS device. This is unlikely to cause damage, but can cause distorted sound. Initially, set the volume of the source to a medium – low level, then turn it up as needed. If you hear distortion, turn down the device’s volume control.	—

Connecting to a WPS network

Solution Refer to Page
If your wireless router support WPS (Wi-Fi Protected SetupTM) your HEOS wireless device can optionally connect to your network using the “Push Button” method by following these steps:Wi-Fi Protected SetupTM is trademarks of Wi-Fi Alliance.	6
Press the WPS button on your router.Within 2 minutes, press and hold the Connect button on the rear panel of the HEOS device for 3 seconds.The LED on the front of the device will flash green for several seconds as it connects to your WPS router.When the connection is complete, the LED on the front of the device will turn solid blue.

Contents Setup Use

Status LED Appendi

Resetting your HEOS device

Solution Refer to Page

• Resetting your HEOS device will clear out the wireless network info, EQ, and name but retain it's current software. You will have to use Settings - Add Device to reconnect the HEOS device to your home network before it can be used.To reset your HEOS device, press and hold the Connect and Bluetooth buttons located on the back of the HEOS device for 5 seconds until the front LED begins to flash amber.

-

Restoring the HEOS device to factory defaults

Solution Refer to Page

Restoring the HEOS device to its factory defaults will clear all of the settings and restore the original software which was installed at the factory.CautionAll settings will be erased and the software will likely be downgraded!To restore your HEOS device to the factory defaults, unplug the power cable from the power outlet. Press and hold the Bluetooth button located on the back of the HEOS device, reconnect the power cable, and hold it in until the front LED begins to flash amber.

-

* For further information, please visit http://www.HEOSbyDenon.com

Contents Setup Use

Status LED Appendi

Contact Denon

For U.S. & Canada only:

If you need further assistance with your HEOS product, please contact HEOS Customer Support Services below:

Website: www.HEOSbyDenon.com/Support

Email: [e-mail]

Live Chat: www.HEOSbyDenon.com/LiveChat

Telephone: Toll Free [phone]

(M-F 10:00AM to 10:00PM EST / Sat 12:00PM to 8:00PM EST)

For the other region:

If you need additional help in solving problems, please contact Denon customer service in your area or visit http://www.HEOSbyDenon.com

Contents

Setup

Use

Troubleshooting

Status LED

Appendix

Status LED table

Device Operation Description Front LED Action Rear LED Action
Off No AC power or Deep Standby		(off)	(off)
Plug in Booting		(blink)	(off)
On Ready-Configured and connected to your network		(solid)	(off)
On Not Connected to your network		(solid)	(solid)
Change Network Connecting to your network		(blink)	(off)

Contents Setup Use Troubleshooting

Appendix

Device Operation Description Front LED Action Rear LED Action
Setup	Not connected	(solid)	(solid)
	Connect button was pressed	(blink)	(blink)
	Cable connection is OK	(solid)	(solid)
	Connecting to your network	(blink)	(off)

Contents Setup Use Troubleshooting

Appendix

Device Operation Description Front LED Action Rear LED Action
Setup	Configured and connected to your network	(solid)	(off)
	Error	(solid)	(solid)
Update	Updating	(blink)	(blink)
	Rebooting	(blink)	(off)
	Ready-Configured and connected to your network	(solid)	(off)

Contents Setup Use Troubleshooting

Appendix

Device Operation Description Front LED Action Rear LED Action
Reset	Soft reset - Clear user settings	(fast blink)	_______(solid)
	Hard reset - Factory restore	(blink)	______(solid)
	Rebooting	(blink)	______(off)
	Ready-Not Configured	(solid)	______(solid)

Contents Setup Use Troubleshooting

Appendix

Device Operation Description Front LED Action Rear LED Action
Errors	Firmware Error	(slow blink (NOT fade))	(off)
	Hardware Error	(fast blink)	(off)
	Network Error	(solid)	(solid)

Contents Setup Use Troubleshooting

Appendix

Device Operation Description Front LED Action Rear LED Action
WPS	a WPS session is active	(fast blink)	(fast blink)
	WPS connected	(for 3 sec. solid)	(solid)
	WPS time-out	(for 3 sec. solid)	(solid)
Power Management	Quick Start Mode	(dimmed solid)	(off)
	Deep Standby	(off)	(off)

Contents Setup Use Troubleshooting

Appendix

Device Operation Description Front LED Action Rear LED Action
Bluetooth	Bluetooth pairing is active	(two blinks)	(two blinks)
	Connected (No Network)	(one blink)	(off)
	Bluetooth pairing is failed	(for 3sec. solid)	(for 3sec. solid)

Contents Setup Use Troubleshooting

Appendix

Device Operation Description LED Action
Volume Change		(solid)
Mute		(slow blink)

Contents

Setup

Use

Troubleshooting

Status LED

Appendix

Supported file types and codecs

Frequency Sample Rate File Extension		Codec Bit Rates
32/44.1/4888.2/96/176.4192 kHz	16/24 bit wav PCM ---
32 kHz44.1 kHz48 kHz	16 bit mp3		MPEG-1 Audio Layer 3 CBR/VBR	32 - 320 kbps
32 kHz44.1 kHz48 kHz	16 bit	m4a aac	AAC-LC 48 - 320 kbps
32 kHz44.1 kHz48 kHz	16 bit wma		wma9 CBR	CBR:48 - 192 kbps
44.1/4888.2/96/176.4192 kHz	16/24 bit flac flac ---
44.1/4888.2/96/176.4192 kHz	16/24 bit m4a ALAC ---
2.8/5.6 MHz 1 bit		dff dsf	DSDIFF DSF	---

NOTE

• Files protected by DRM such as Apple's Fairplay DRM, are not supported.
• The ALAC decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0)

Supported audio formats (Coaxial/Optical)

2-channel Linear PCM:2-channel, 32 kHz – 192 kHz, 16/20/24 bit

Contents Setup Use Troubleshooting Status LED

Specifications

■ Audio section

Power amplifier Rated output: Front:

100 W + 100 W (4 Ω/ohms, 20 Hz - 20 kHz with 0.1 % T.H.D.)

65 W + 65 W (6 Ω/ohms, 20 Hz - 20 kHz with 0.1 % T.H.D.)

50 W + 50 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.05 % T.H.D.)

Center:

100 W (4 Ω/ohms, 20 Hz – 20 kHz with 0.1 % T.H.D.)

65 W (6 Ω/ohms, 20 Hz – 20 kHz with 0.1 % T.H.D.)

50 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05 % T.H.D.)

Surround:

100 W + 100 W (4 Ω/ohms, 20 Hz - 20 kHz with 0.1 % T.H.D.)

65 W + 65 W (6 Ω/ohms, 20 Hz - 20 kHz with 0.1 % T.H.D.)

50 W + 50 W (8 Ω/ohms, 20 Hz - 20 kHz with 0.05 % T.H.D.)

Output connectors: 4 - 16 Ω/ohms

S/N ratio: ANALOG IN: 96 dB(IHF-A weighted, Direct mode)

Frequency response: 10 Hz to 40 kHz: +1, -3 dB

■ Wireless LAN section

Network type: Conforming to IEEE 802.11a/b/g/n/ac

Used frequency range: 2.4 GHz, 5 GHz

Contents Setup Use Troubleshooting Status LED

General

Operating temperature: 41 °F - 95 °F (5 °C - 35 °C)

Power supply: AC 120 V, 60 Hz (for North America)

AC 220 - 240 V, 50/60 Hz (for Europe)

Power consumption: 110 W

Power consumption in Quick Start Mode: 4.5 W

Power consumption in Deep Standby Mode: 0.3 W

Contents Setup Use Troubleshooting Status LED

■ Dimensions (Unit : in. (mm))

1/8 (3) 10 1/2 (266) 11 (277) 3/8 (8)

2 (49) 6 1/2 (164) 2 1/8 (53)

1 7/8 (45) 13 5/8 (344) 1 7/8 17 1/8 (434) 1 1/4 (30) (45) 1/2 (10) 3 1/4 (80) 3 5/8 (90)

■ Weight : 11 lbs (5.0 kg)

For the purpose of improvement, the specifications and design are subject to change without notice.

Contents Setup Use Troubleshooting Status LED

Information

Trademarks

DOLBY

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

GETITON

Google Play

Google Play is a trademark of Google Inc.

Download on the

App Store

Apple, the Apple logo, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Available at

amazon

Amazon, Kindle, Echo, Alexa, Dash, Fire and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license. Other trademarks and trade names are those of their respective owners.

Contents Setup Use Troubleshooting Status LED

License

■ License information for the software used in the unit

About GPL (GNU-General Public License), LGPL (GNU Lesser General Public License) License

This product uses GPL/LGPL software and software made by other companies.

After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in the product.

Denon provides the source code based on the GPL and LPGL licenses at the actual cost upon your request to our customer service center. However, note that we make no guarantees concerning the source code. Please also understand that we do not offer support for the contents of the source code.

This section describes software license used for this unit. To maintain the correct content, the original (English) is used.

GPL

Open Source Used Version
bridge-utils 2.8
busybox 1.21.1
ebtables 2.0.10-4
Linux kernel 3.10.74
mtd-utils 1.4.3
ntfs-3g_ntfsprogs 2011.4.12
ntpclient 2007
u-boot 2015.01
wireless-tools version 29

LGPL

Open Source Used Version
ffmpeg 0.8.3
glibc 2.9
libmms 0.6.2

□ curl-7.24.0

COPYRIGHT AND PERMISSION NOTICE

Copyright (c) 1996 - 2014, Daniel Stenberg, [e-mail] All rights reserved.

Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.

Contents Setup Use Troubleshooting Status LED

☐ e2fsprogs-libs-1.40.8/lib/uuid

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, and the entire permission notice in its entirety, including the disclaimer of warranties.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ALL OF WHICH ARE HEREBY DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

□ expat-2.0.1

Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper

Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.

IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Contents Setup Use Troubleshooting Status LED

□ getopt

http://cvsweb.netbsd.org/bsdweb.cgi/src/lib/libc/stdlib/

Copyright (c) 1987, 1993, 1994 The Regents of the University of California. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

jQuery

Copyright 2014 jQuery Foundation and other contributors http://jquery.com/

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Contents Setup Use Troubleshooting Status LED

□ libpcap-1.4.0

License: BSD

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. The names of the authors may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED "AS IS" AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

libtar-1.2.11

Copyright (c) 1998-2003 University of Illinois Board of Trustees Copyright (c) 1998-2003 Mark D. Roth All rights reserved.

Developed by: Campus Information Technologies and Educational Services, University of Illinois at Urbana-Champaign

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal with the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimers.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimers in the documentation and/or other materials provided with the distribution.
* Neither the names of Campus Information Technologies and Educational Services, University of Illinois at Urbana-Champaign, nor the names of its contributors may be used to endorse or promote products derived from this Software without specific prior written permission.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.

IN NO EVENT SHALL THE CONTRIBUTORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS WITH THE SOFTWARE.

Contents Setup Use Troubleshooting Status LED

□ mDNS 320.10.80

The majority of the source code in the mDNSResponder project is licensed under the terms of the Apache License, Version 2.0, available from:

http://www.apache.org/licenses/LICENSE-2.0

To accommodate license compatibility with the widest possible range of client code licenses, the shared library code, which is linked at runtime into the same address space as the client using it, is licensed under the terms of the “Three-Clause BSD License”.

The Linux Name Service Switch code, contributed by National ICT Australia Ltd (NICTA) is licensed under the terms of the NICTA Public Software Licence (which is substantially similar to the “Three-Clause BSD License”, with some additional language pertaining to Australian law).

□ mongoose

https://github.com/cesanta/mongoose/ Copyright (c) 2004-2013 Sergey Lyubka

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the

"Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Contents Setup Use Troubleshooting Status LED

□ openssl-1.0.0d

Copyright (c) 1998-2011 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson ([e-mail]).

Contents Setup Use Troubleshooting Status LED

portmap-6.0

Copyright (c) 1990 The Regents of the University of California.

* All rights reserved.

* Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. A II advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

* THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

pstdint.h-0.1.12

* BSD License:

* Copyright (c) 2005-2011 Paul Hsieh

* All rights reserved.

* Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

* THIS SOFTWARE IS PROVIDED BY THE AUTHOR "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.

* IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Contents Setup Use Troubleshooting Status LED

□ rl78flash 2000.3.1

License

[EMPTY]

The MIT License (MIT)

Copyright (c) 2012 Maxim Salov

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the

“Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

□ sqlite 2003.5.7

SQLite Copyright

SQLite is in the

Public Domain

All of the code and documentation in SQLite has been dedicated to the public domain by the authors. All code authors, and representatives of the companies they work for, have signed affidavits dedicating their contributions to the public domain and originals of those signed affidavits are stored in a firesafe at the main offices of Hwaci. Anyone is free to copy, modify, publish, use, compile, sell, or distribute the original SQLite code, either in source code form or as a compiled binary, for any purpose, commercial or non-commercial, and by any means.

The previous paragraph applies to the deliverable code and documentation in SQLite - those parts of the SQLite library that you actually bundle and ship with a larger application. Some scripts used as part of the build process (for example the "configure" scripts generated by autoconf) might fall under other open-source licenses. Nothing from these build scripts ever reaches the final deliverable SQLite library, however, and so the licenses associated with those scripts should not be a factor in assessing your rights to copy and use the SQLite library.

All of the deliverable code in SQLite has been written from scratch. No code has been taken from other projects or from the open internet. Every line of code can be traced back to its original author, and all of those authors have public domain dedications on file. So the SQLite code base is clean and is uncontaminated with licensed code from other projects.

Contents Setup Use Troubleshooting Status LED

□ strlcpy.c, v1.11

* Copyright (c) 1998 Todd C. Miller [e-mail]
* Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies.
* THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

□ taglib-1.5

copyright : (C) 2002 - 2008 by Scott Wheeler

email : [e-mail]

"The contents of this file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/

Software distributed under the License is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License.

□ tinyxml 2002.4.3

www.sourceforge.net/projects/tinyxml

Original file by Yves Berquin.

This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.

Contents Setup Use Troubleshooting Status LED

Tremor

http://wiki.xiph.org/index.php/Tremor

Copyright (c) 2002, Xiph.org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

zlib

http://www.zlib.net/

zlib.h -- interface of the 'zlib' general purpose compression library version 1.2.3, July 18th, 2005

Copyright (C) 1995-2004 Jean-loup Gailly and Mark Adler

This software is provided ‘as-is’, without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.

Jean-loup Gailly [e-mail], Mark Adler [e-mail]

Contents Setup Use Troubleshooting Status LED

☐ The Spotify software is subject to third party licenses found here:

www.spotify.com/connect/third-party-licenses

DENON®

HEOSbyDenon.com

3520 10490 00AD

Copyright © 2017 D&M Holdings Inc. All Rights Reserved.
