WRK1100 - Hand blender Eldom - Free user manual and instructions

Product Type	Food Processor with Bowl
Power	600 W
Supply Voltage	230 V ~ 50 Hz
Bowl Capacity	4.2 L
Speed Settings	8 speeds + pulse (P)
Maximum Continuous Operation	10 minutes
Required Idle Time	15 minutes
Display	Digital LED timer with automatic countdown
Attachments Included	Mixing, kneading, whisking attachment, and spatula
Cover	With dispensing opening for adding ingredients
Safety Features	Lock button, safety arm switch, automatic stop when arm is raised
Cleaning	Removable parts dishwasher safe; base and arm wipe with damp cloth only
Warranty	For private domestic use only; professional use voids warranty

Frequently Asked Questions - WRK1100 Eldom

How do I clean the base and arm of the food processor?

Never immerse the base (1) or base arm (5) in water. Clean them with a damp cloth or towel. All removable parts can be washed in a dishwasher.

What is the maximum continuous operation time?

The maximum continuous operation time is 10 minutes. After use, allow the appliance to idle for at least 15 minutes before restarting to avoid engine damage.

Why doesn't the device start?

The device will not start if the base arm (5) is not lowered and locked, or if the selector switch (2) is not set to '0' when the arm is being lowered. Ensure both conditions are met.

How do I set the automatic countdown timer?

With the device connected to mains and selector switch set to '0', use the '+' and '-' buttons below the display to set a time in 10-second intervals (max 10:00). Start the device with the selector switch; countdown will begin. To disable, set switch to '0' and press '+' and '-' simultaneously.

Can I add ingredients during operation?

Yes, you can add ingredients through the dispensing opening in the cover (12) while the appliance is running. Alternatively, you can add them before mounting the bowl.

What attachments are included with the WRK1100?

The package includes a mixing attachment, kneading attachment, whisking attachment, and a spatula. A cover with a dispensing opening is also provided.

Is the food processor suitable for commercial use?

No, the appliance is intended for private domestic use only. Using it for professional purposes voids the warranty.

What should I do if the device blocks during operation?

Immediately disconnect from the mains and wait until the attachment stops moving. If the device slows down during mixing, stop and thin the mixture. Do not fill the bowl above 2/3 of its volume to prevent overflow.

Can I use the food processor for kneading bread dough?

Yes, the kneading attachment is designed for kneading dough. Select an appropriate speed (refer to fig. 2 in the manual) and do not exceed the maximum continuous operation time of 10 minutes.

How do I release the attachments?

After use, set the selector switch to '0' and unplug. Press the lock button to swing out the base arm, then remove the attachment by turning it right. Hold the arm from top to avoid rapid opening.

USER MANUAL WRK1100 Eldom

Exterior view of a modern kitchen mixer with digital display (no text or symbols on the main body)

Eldom Sp. z o.o. • ul. Pawła Chromika 5a • 40-238 Katowice, POLAND tel: [phone] • fax: [phone] • www.eldom.eu

WSKAZÓWKI BEZPIECZEŃSTWA

Close-up of a mechanical press or cutting tool with directional arrows indicating motion (no text or symbols visible)

Close-up of a kitchen sink with a lid and side bowl, no visible text or symbols

OBSŁUGA

• Before using the appliance for the first time, please read carefully these Instructions for Use.
• The appliance should be connected to sockets compliant with current parameters given on the casing.
• The appliance must always be disconnected before cleaning and maintenance as well as in case of malfunction or after operation.
• The appliance should be disconnected by pulling the plug, not the power cord.
• Do not use in the open air.
• Do not touch the appliance with wet or moist hands or feet.
• The appliance must not be immersed in or sprinkled with water.
• Keep out of children's and animals' reach.
• In no case do press the release button for whisks and dough hooks during the operation.
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• When in operation, do not leave the appliance unattended.
• Do not exceed the maximum time of continuous operation of the appliance.
• Before switching the appliance on, make sure all its elements are installed correctly.
• Do not switch the appliance on without any products.
• Do not raise the mixer head (1) while operation
• Do not use the appliance, if the knife is damaged.

• Do not sharpen blades. Replace them, if they do not cut properly or if they are worn out.

• Do not touch the knife when the appliance is in operation. When the appliance is unplugged, wait until the knife stops revolving before touching it.

• Use only with the originally included accessories.
• The power cord and the whole appliance should be regularly checked for damage. Do not switch the appliance on, if any damage has been found.
• Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired by an authorised Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu.
• The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
• The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

CLEANING AND MAINTENANCE

Before cleaning, disconnect the device from the mains.

The device is easiest to clean immediately after use. All the removable parts can be washed in a dishwasher. Clean the base (1) and the base arm (5) with a damp cloth. Never immerse the base (1) nor the base arm (5) in water nor rinse them with running water. These elements should be cleaned with a damp cloth or towel.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be reprocessed or recycled.
• The appliance should be disposed of only in authorised disposal centres which deal with collecting and recycling electrical and electronic appliances.

GUARANTEE

• The appliance is intended for private domestic use only.
• The appliance may not be used for professional purposes.
• The guarantee ceases to be valid in case of inappropriate handling.

Detailed guarantee conditions can be found in the attachment.

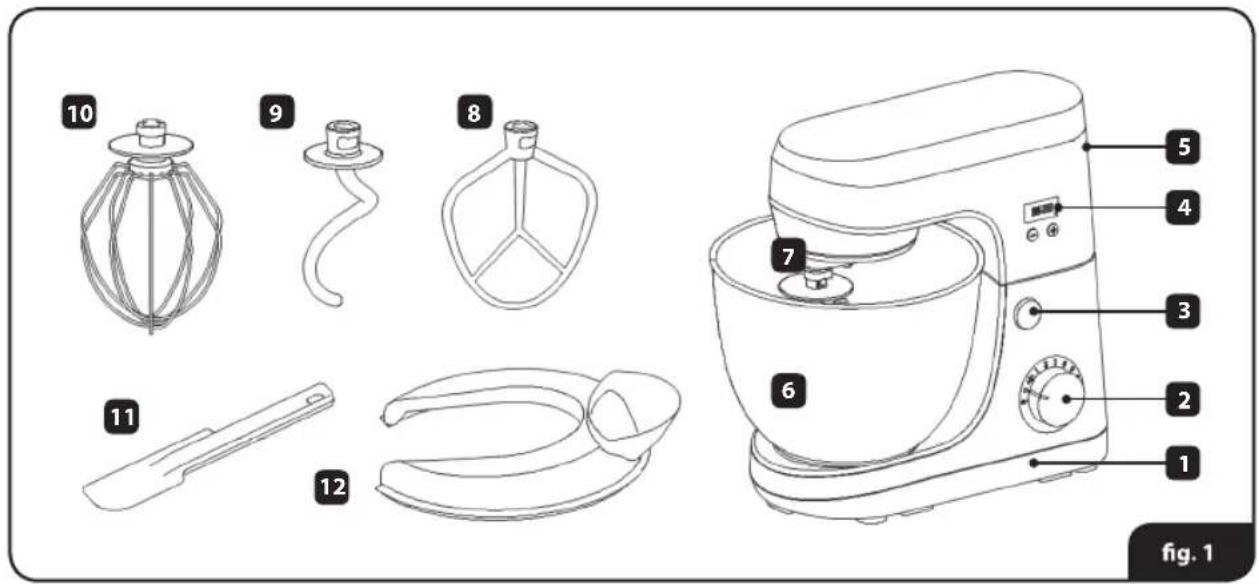

GENERAL DESCRIPTION

1. Basics
2. Variable speed switch
3. Lock button
4. Display
5. Base arm
6. Bowl
7. Head
8. Mixing attachment
9. Kneading attachment
10. Whisking attachment
11. Spatula
12. Cover with a dispensing opening

TECHNICAL DATA

• power: 600 W
• supply voltage: 230 V \~50 Hz
• max. time of continuous operation: 10 minutes
• idle time before recommencing operation: 15 minutes
• bowl capacity 4.2 litres

Recommended speed of operation for various attachments

MIN-MAX

MIN - 4 MIN

fig. 2

■ INTENDED PURPOSE OF WRK1100 FOOD PROCESSOR

Different speeds, attachments for kneading and mixing dough, and for whisking make this food processor an indispensable aid in many time-consuming and cumbersome kitchen tasks. The processor is efficient, durable, easy to use and to keep clean, as well as safe, provided that the SAFETY TIPS are observed.

BEFORE USE

Before starting the food processor for the first time:

• read this instruction
• make sure that no components are damaged
• clean the parts that come into contact with food
• place the device on a flat, hard and stable surface

INSTALLATION

• make sure that the device is disconnected from the mains, and the selector switch (2) is set to "0"
• press the lock button (3) and swing out the base arm (5) until it locks
• place the bowl (6) on the base (1) in its intended place and lock the bowl by turning it right
• fix one of the attachments (8,9,10) into the head (7). by inserting the attachment in the head and locking it by turning it left

photo 1

• press the button (3) and lower the base arm (5)

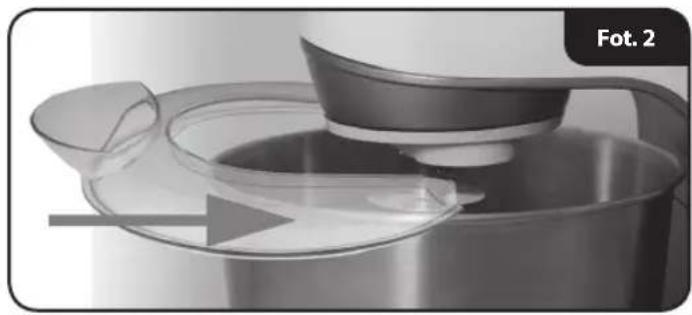

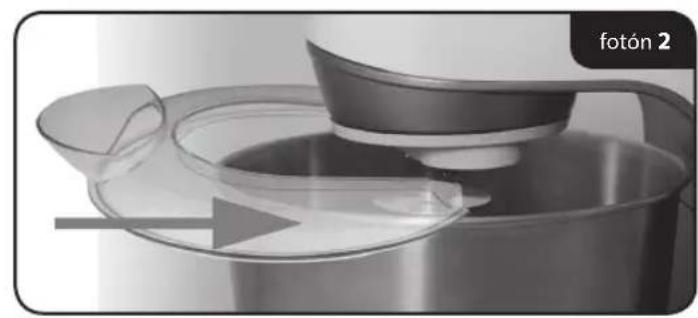

• place the cover (12) by sliding it onto the bowl (6) photo 2

Close-up of a mechanical assembly with directional arrows indicating motion or movement (no text or symbols)

Close-up of a kitchen sink with a lid and side bowl, no visible text or symbols

HOW TO USE

• before starting the device, make sure that all the components are properly installed
• connect the device to the mains – the display (4) will show "00.00"
• to start the food processor use the selector switch (2). To choose one of 8 different speeds of operation change the position of the selector switch (2).
• the device is equipped with the "slow start" function – it reaches the desired speed after a few seconds.
• during work, the display shows the time of operation. To reset the time set the selector switch (2) in position "0"
• to activate pulsed operation turn the selector switch (2) in position "P".Releasing the selector switch automatically returns it to position "0".
• the ingredients may be added both before mounting the bowl on the base, and during the operation of the device via the opening in the cover (12)

NOTE:

Choose the speed adequate for the type of the attachment fig. 2

The speed should be also adjusted to the consistency of the processed ingredients.

After use carry out the following:

• set the selector switch (2) in position "0" and wait until the attachment stops moving
• remove the cover (12)
• swing out the base arm (5) by pressing the lock button (3)
  Exercise caution when opening the base arm (5). It is recommended to hold it from top so as not to open it too rapidly
• remove the attachment by turning it right
• unlock the bowl (6) by turning it left and remove it from the base (1)

NOTE

The device will not start if the base arm (5) is not lowered and locked.

The device will also not start if the selector switch (2) is not set to "0" when the arm (5) is being lowered. To start the device in this case, after releasing the arm, turn the selector switch (2) to "0", and then select the speed.

If the base arm (5) is raised during the operation, the device will stop. To resume the operation of the device, lower the arm (5), turn the selector switch (2) to "0", and then select the speed.

AUTOMATIC COUNTDOWN

This function allows you to set the time after which the food processor will automatically stop operation.
- this function can be activated only when the device is connected to the mains, and the selector switch (2) is set to "0"
- use the "+" and "-" buttons located below the display (4) to set the time in 10 second intervals
- the maximum setting is 10:00 min
- after starting the device with the selector switch (2), the display (4) will show the elapsed time every 1 second
- rotating the selector switch (2) to "0" turns the device off and freezes the countdown. The countdown will be continued after resuming operation
- to disable this function set the selector switch (2) to "0" and press the buttons '+' and '-' simultaneously. The display (4) will show '00:00'.

NOTE

Do not exceed the maximum time of continuous operation of the device. Any failure to comply with the above, as well as any failure to keep the device idle for the required time may irreparably damage the engine and render the warranty void. If the device blocks during operation, before cleaning, disconnect it from the mains and wait until the attachment stops moving. If the device slows down during mixing or whisking, stop the operation and thin the mixed or whisked product. To prevent the ingredients from flowing out of the bowl during mixing, do not fill the bowl above 2/3 of its volume.

Place the device on a flat, hard and stable surface.

BEZPEČNOSTNÍ DOPORUČENÍ

Close-up of a mechanical press or cutting tool with directional arrows indicating motion (no text or symbols visible)

Close-up of a kitchen sink with a lid and side bowl, no visible text or symbols

OBSLUHA

Close-up of a mechanical press or cutting tool with directional arrows indicating motion (no text or symbols visible)

Close-up of a kitchen sink with a lid and side bowl, no visible text or symbols

BEDIENUNG

Close-up of a mechanical press or cutting tool with directional arrows indicating motion (no text or symbols visible)

Close-up of a kitchen sink with a lid and side bowl, no visible text or symbols

ЭКСПЛУАТАЦИЯ

Close-up of a mechanical assembly with directional arrows indicating motion or movement (no text or symbols)

Close-up of a kitchen sink with a lid and side bowl, no visible text or symbols

OBSLUHA

Close-up of a mechanical press or cutting tool with directional arrows indicating motion (no text or symbols)

Close-up of a kitchen pot with a lid and side bowl, no visible text or symbols

KEZELÉS

Close-up of a mechanical press or cutting tool with directional arrows indicating motion (no text or symbols visible)

Close-up of a kitchen sink with a lid and side bowl, no visible text or symbols

MANEJO
