Product Type	Docking Station for Getac F110 Rugged Tablet
Model	DS-GTC-211 (part of DS-GTC-200 Series)
Dimensions	11.1" H x 8.7" W x 4.4" D (28.2 cm x 22.2 cm x 11.1 cm)
Weight	2.1 lbs (0.95 kg)
Power Input	19.0V DC-In (requires external power supply, e.g., Havis LPS-116 or Getac approved 95W adapter)
Operating Environment	-20°C to 60°C (-4°F to 140°F)
Storage Environment	-40°C to 71°C (-40°F to 160°F)
Port Replication	HDMI, VGA, Ethernet (RJ45), USB 3.0 (x1), USB 2.0 (x3), Serial (x2 DB9), Microphone/Speaker, Antenna (optional), Power Input
Mounting	VESA 75 pattern (4x M4 screws, torque 20 in-lbs)
Security Lock	Barrel lock with 2 supplied keys
Compatible Tablet	Getac F110 Rugged Tablet (landscape orientation)
Certifications	FCC Part 15 Class B, CE (EN 50498, RoHS compliant)
Materials	Durable plastic/metal construction
Cable Management	Strain relief points, zip ties included for securing cables
Installation Requirements	#2 Phillips screwdriver, M4 screws (included)
Included Accessories	Hardware kit (6 zip ties, 2 keys, 5 M4 screws, 5 lock washers, 5 washers)
Optional Accessories	DS-DA-311 side exiting USB cable, LPS-116 95W power supply, DS-DA-102 Night Eyes II, DS-DA-218 desktop stand, DS-DA-501 replacement keys
Manufacturer	Havis, Inc. (Warminster, PA, USA)

Frequently Asked Questions - DS-GTC-211 Havis

How do I properly dock the Getac F110 tablet into the DS-GTC-211?

Ensure the docking station is unlatched by lifting the latch handle. Hold the tablet in landscape orientation with the bottom angled toward the dock. Lower the tablet into the bottom of the dock, then pivot the top toward the locator pin. Lower the latch handle to secure. For theft deterrence, lock with the supplied key. Do not force the tablet if resistance is felt; check alignment.

What power supply is required for the DS-GTC-211?

The DS-GTC-211 requires a certified, automotive-grade Getac approved 95W power source rated for continuous, regulated 19VDC output. For models without a bundled power supply (like DS-GTC-211), use Havis part LPS-116 or equivalent. Do not connect directly to vehicle voltage.

Can I charge the tablet while docked?

Yes, the tablet battery will charge when docked, but only between 0°C and 50°C (32°F to 122°F). Refer to the Getac F110 manual for more details.

What mounting options are available?

The docking station mounts using a VESA 75 pattern (four M4 screws). Torque screws to 20 in-lbs (2.3 Nm) ±10%. The mounting device is not included.

How do I maintain the docking station?

Keep the docking station clean and dry. Avoid placing metal objects or liquids on top. Do not store in high humidity or temperatures above 85°C (185°F) for extended periods. Use only the specified power supply.

Is the DS-GTC-211 compatible with other tablets?

No, the DS-GTC-200 series is specifically designed for the Getac F110 Rugged Tablet. It may not fit other tablets due to unique alignment posts and connector placement.

What should I do if the tablet does not undock easily?

First, unlock if locked. While holding the tablet with one hand, lift the latch handle. Once unlatched, grab both sides of the tablet, rock the top forward, and carefully lift out top end first. Do not force; check alignment if resistance persists.

Does the docking station include USB ports?

Yes, it has multiple ports: 1 USB 3.0, 3 USB 2.0, plus optional side USB extension cable (DS-DA-311). Additional ports include HDMI, VGA, Ethernet, and serial.

Can I mount the docking station in a vehicle with airbags?

Warning: Never stow or mount the docking station directly in a vehicle airbag deployment zone. Ensure it is installed in a safe location.

How do I obtain replacement parts or keys?

Replacement keys (DS-DA-501) and other accessories are available from Havis. Visit www.havis.com or call 1-800-524-9900 for support and ordering.

USER MANUAL DS-GTC-211 Havis

Owner's Manual Havis Docking Station For Getac F110 Rugged Tablet

DS-GTC-200 Series

DS-GTC-201

DS-GTC-202

DS-GTC-203

DS-GTC-201-3

DS-GTC-202-3

DS-GTC-203-3

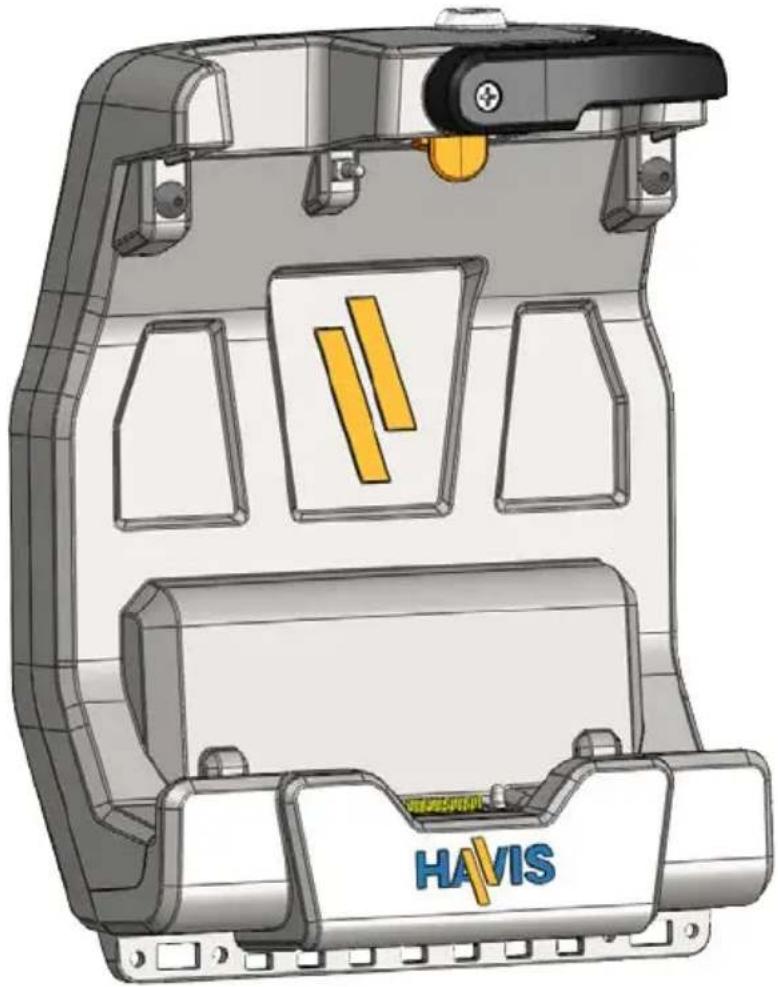

3D CAD model of a mechanical device with internal compartments and mounting holes, featuring HAVIS branding (no readable text or symbols beyond branding)

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-GTC-200 Series Docking Station for the Getac F110 Rugged Tablet.

For questions regarding the set-up of your DS-GTC-200 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

DS-GTC-201

DS-GTC-202

DS-GTC-203

DS-GTC-201-3

DS-GTC-202-3

DS-GTC-203-3

WARNING

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
  • DO NOT USE COMPUTER WHILE DRIVING.

CAUTION

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT DAMAGE.
• FOR THE DS-GTC-201, DS-GTC-201-3, DS-GTC-202 & DS-GTC-202-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Getac approved 95W power source rated for a continuous, regulated 19VDC output (Havis Part Number LPS-116 or equivalent). Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.
• FOR THE DS-GTC-203 & DS-GTC-203-3 DOCKING STATION: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac F110 tablet requires a certified, Getac approved power source rated for a continuous, regulated 19VDC output. Getac recommends using the power adapter included with the tablet; failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.

NOTICE

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-202, DS-GTC-202-3) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.
• WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 0°C to 50°C (32°F to 122°F). PLEASE REFER TO GETAC F110 OWNER'S MANUAL FOR MORE INFORMATION.

Specifications 3

Parts Included 4

Port Replication Capability....5

Installation 6

Cable Management 7

Operation - Docking 8

Operation - Undoing 10

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specified Power Supply (Part # LPS-116) with this Docking Station
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specified for
• Do not leave the Docking Station in a high temperature environment (greater than 85^, 185^ ) for a long period of time

Specifications

Power Supply Input 19.0V DC-In

Dimensions 11.1” (28.2 cm) H x 8.7” (22.2 cm) W x 4.4” (11.1 cm) D

Weight 2.1 lbs (0.95 kg)

Operating Environment -20°C to 60°C (-4°F to 140°F)

Storage Environment -40°C to 71°C (-40°F to 160°F)

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 47801 Anchor Court, Plymouth Twp, MI 48170 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Getac F100 Fully Rugged Tablet Model: DS-GTC-20X, where 'X' may be any alphanumeric character and which describes product options. May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) - 2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles

Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.

Plymouth twp, MI, USA April 11, 2014

Bruce Jonik, Director of Engineering, Havis, Inc.

FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-20X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment.

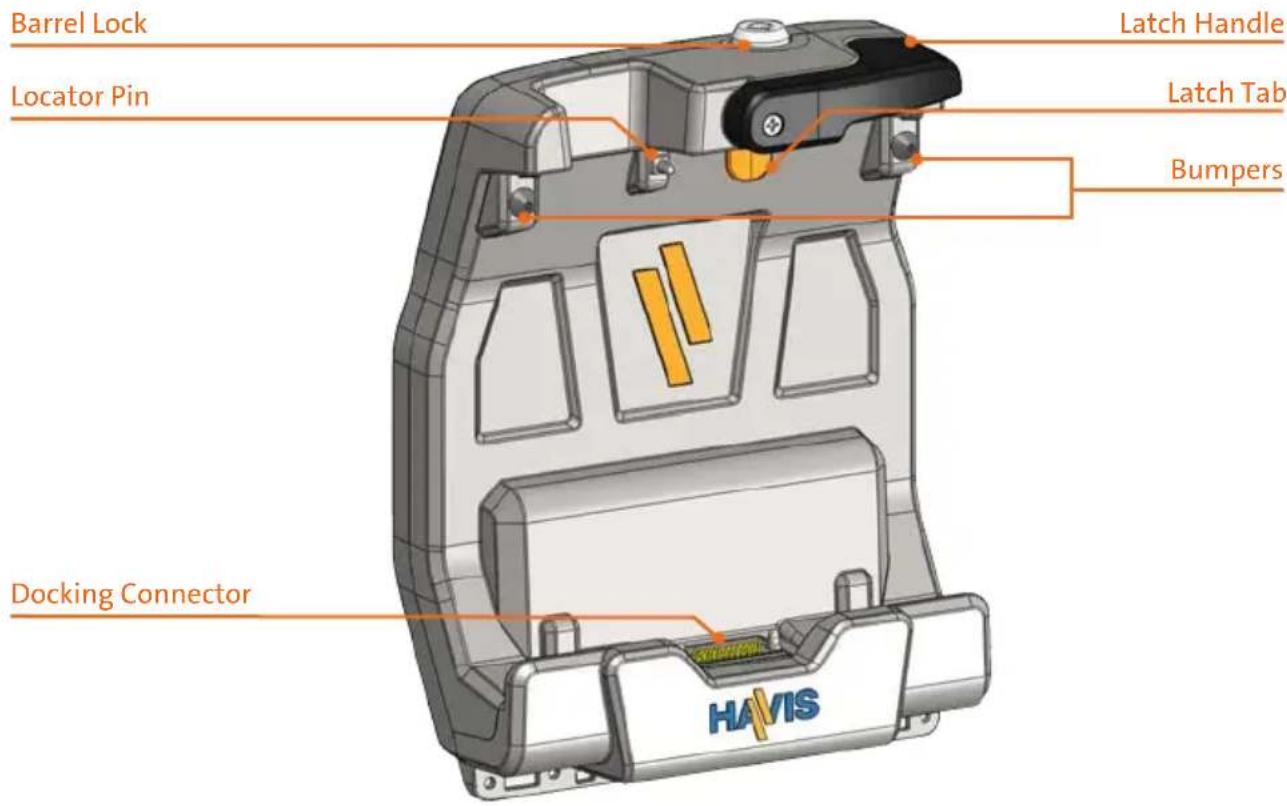

Docking Station

Barrel Lock Locator Pin Latch Handle Latch Tab Bumpers Docking Connector HAVIS

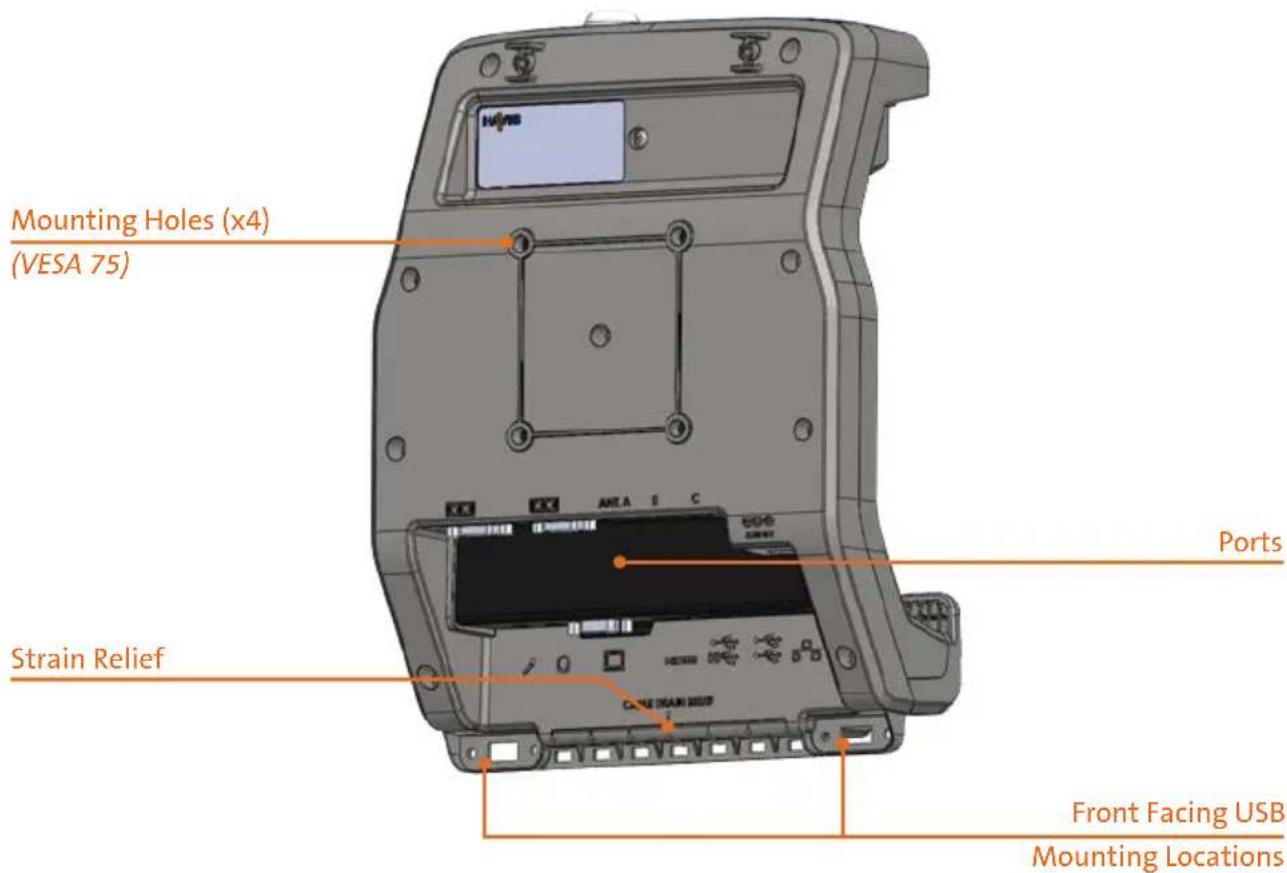

Mounting Holes (x4) (VESA 75) Strain Relief Ports Front Facing USB Mounting Locations

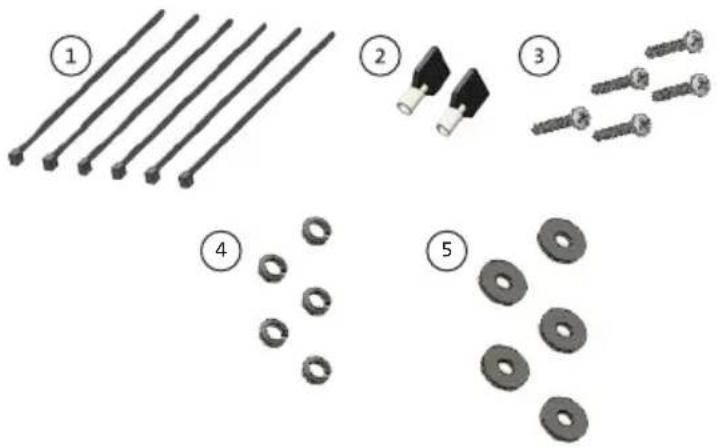

Hardware Kit

This Hardware Kit includes:

1. Zip Ties (6)
2. Keys (2)
3. M4 x 0.7 x 25mm long Pan Head Screws (5)
4. Split Lock Washers (5)
5. Washers, M4 (5)

Tools required for installation:

- #2 Phillips

(For M4 Pan Head Screws)

Illustration of five different types of mechanical components: rods, screw, washers, and washers (no text or symbols present)

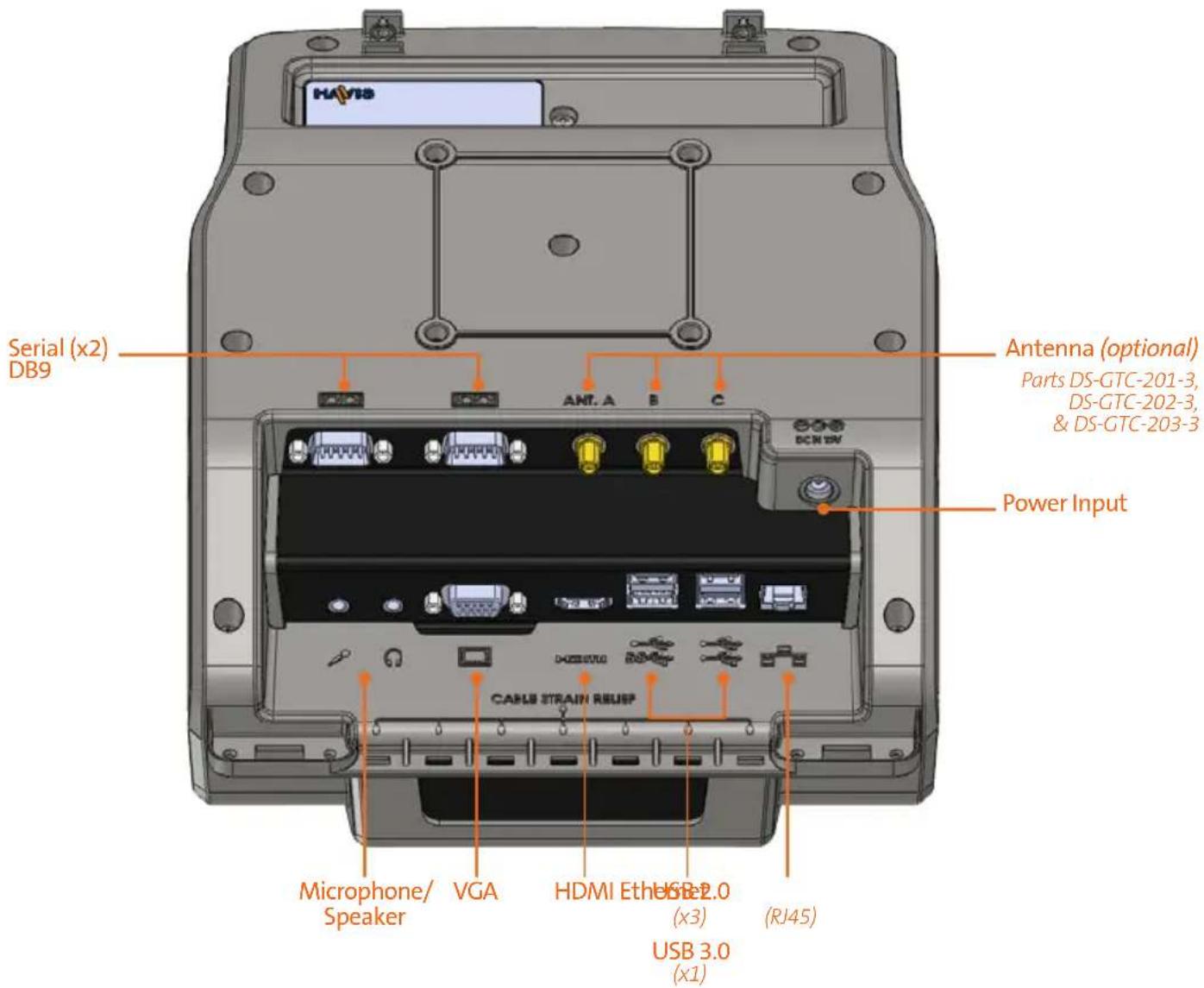

Port Replication Capability

HAYIS Serial (x2) DB9 Antenna (optional) Parts DS-GTC-201-3, DS-GTC-202-3, & DS-GTC-203-3 Power Input Microphone/ Speaker VGA HDMI Etho USB 2.0 (x3) (RJ45) USB 3.0 (x1)

NOTE: If you are mounting the optional Front Exiting USB Cable (Part # DS-DA-311), please refer to page 11 before beginning Installation.

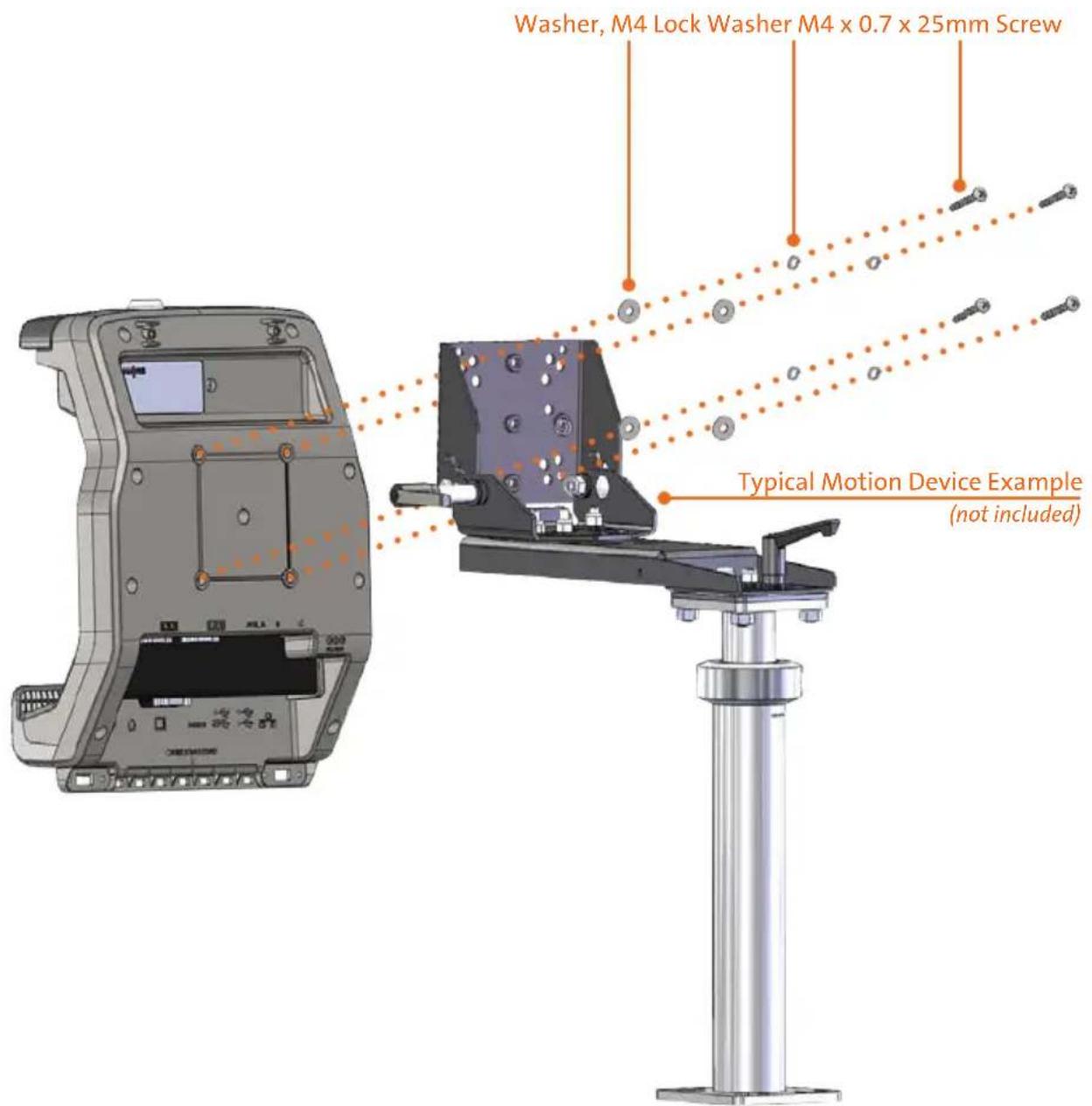

1) Install the Docking Station to the Motion Device using four (4) M4 x 0.7 x 25mm long Pan Head Screws (Hardware Kit Item 3), four (4) Split Lock Washers (Hardware Kit Item 4), and four (4) Washers, M4 (Hardware Kit Item 5). Torque screws to 20 in-lbs (2.3Nm) ± 10%.

Washer, M4 Lock Washer M4 x 0.7 x 25mm Screw Typical Motion Device Example (not included)

1) Tip the Docking Station to a position that is comfortable to work with.
2) Install all cables that are necessary for computing needs.

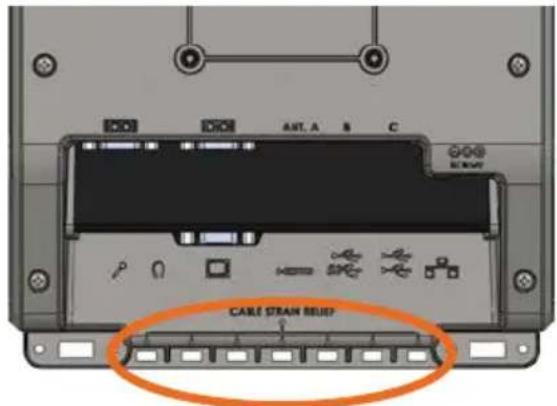

3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points on teh bottom of the Docking Station to secure cables and reduce risk of accidental disconnects.

DIO ANT. A B C CARE STRAIN BUEP

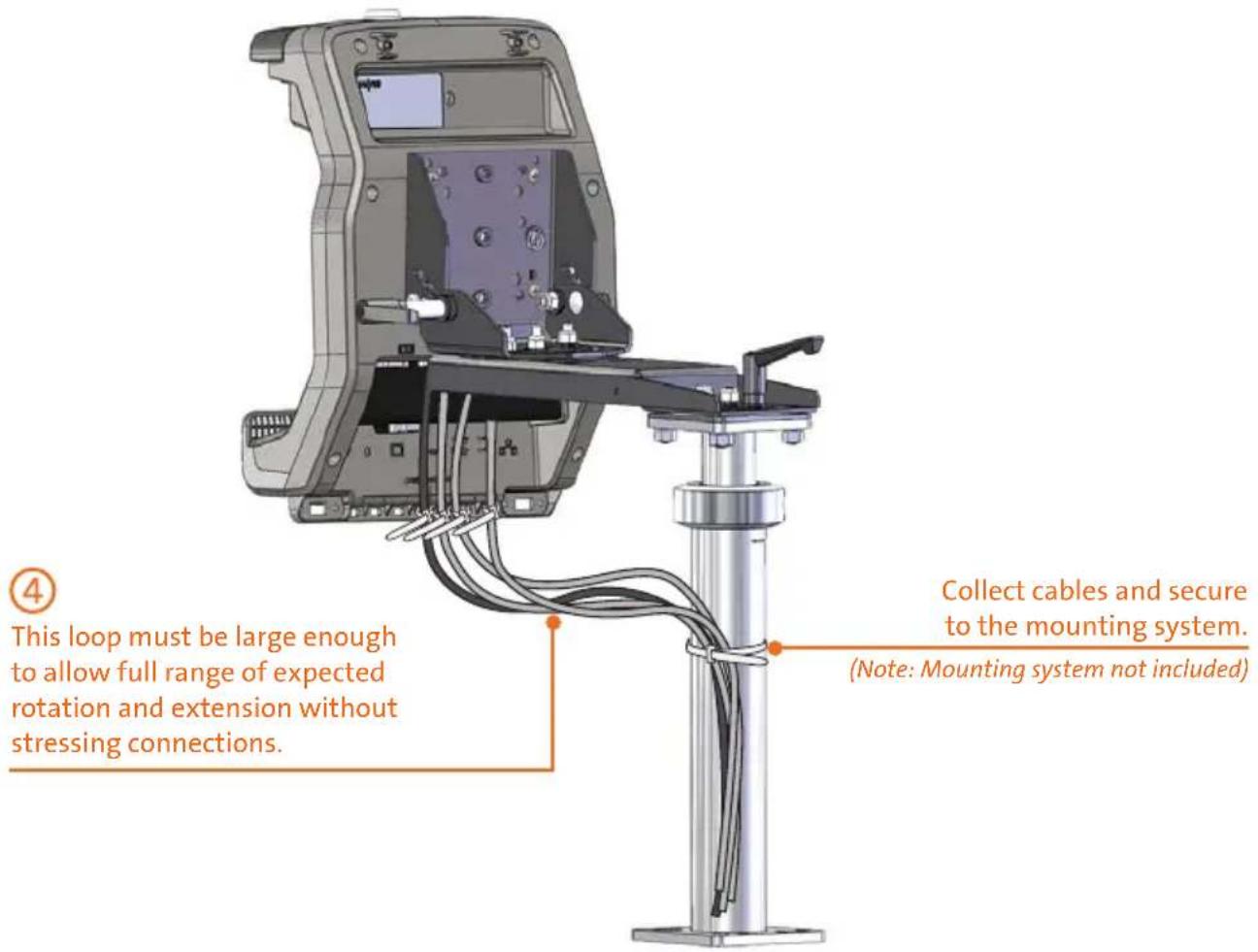

4) Create a service loop with cables to ensure that no tension is on the connectors and to enable intended motion.
5) Tie off cables onto a stationary part of the mounting system.

④ This loop must be large enough to allow full range of expected rotation and extension without stressing connections. Collect cables and secure to the mounting system. (Note: Mounting system not included)

CAUTION

DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION.

NOTE: Ensure a proper connection by aligning the tablet's Alignment Sockets with the Docking Station's Alignment Posts

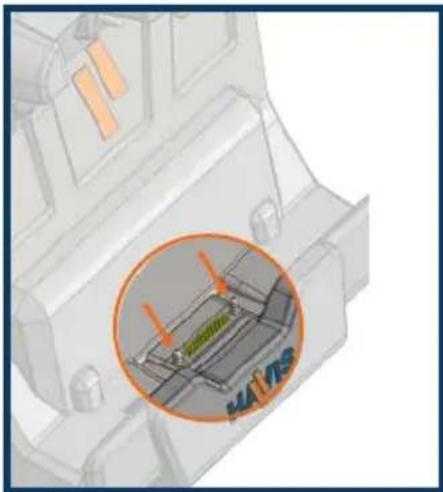

3D mechanical component diagram with highlighted internal structure and orange annotation (no readable text or symbols)

Alignment Posts DS-GTC-200 Series Docking Station

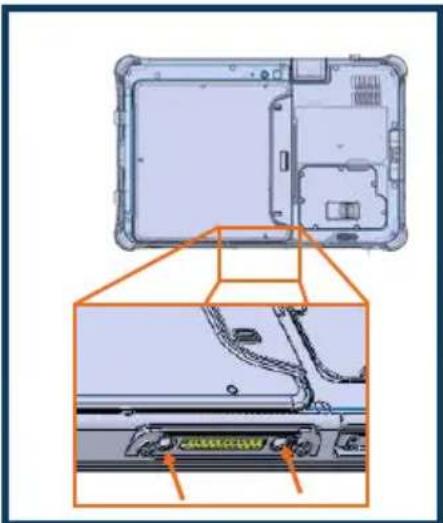

Diagram of a laptop rear panel showing internal components and cable routing (no text or symbols)

Alignment Sockets Back Side of Getac F110 Rugged Tablet

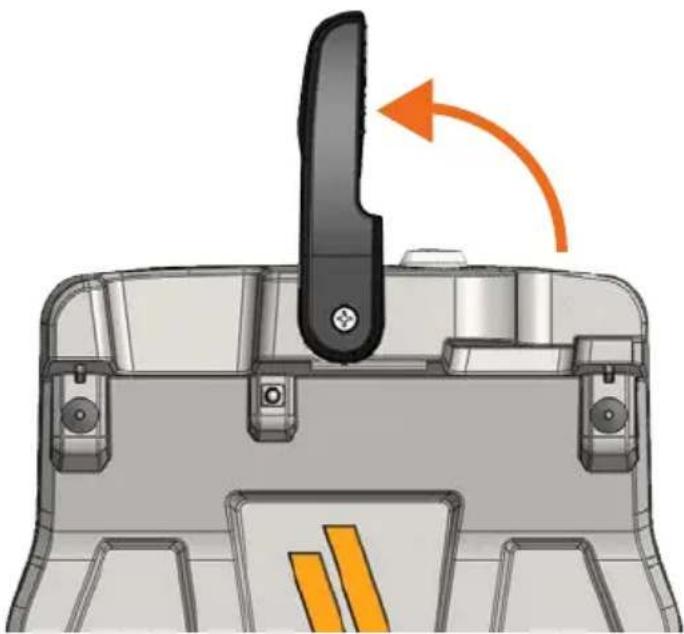

1) Ensure Docking Station is unlatched by lifting Latch Handle.

3D mechanical component diagram showing a lever mechanism with an orange arrow indicating rotation (no text or symbols)

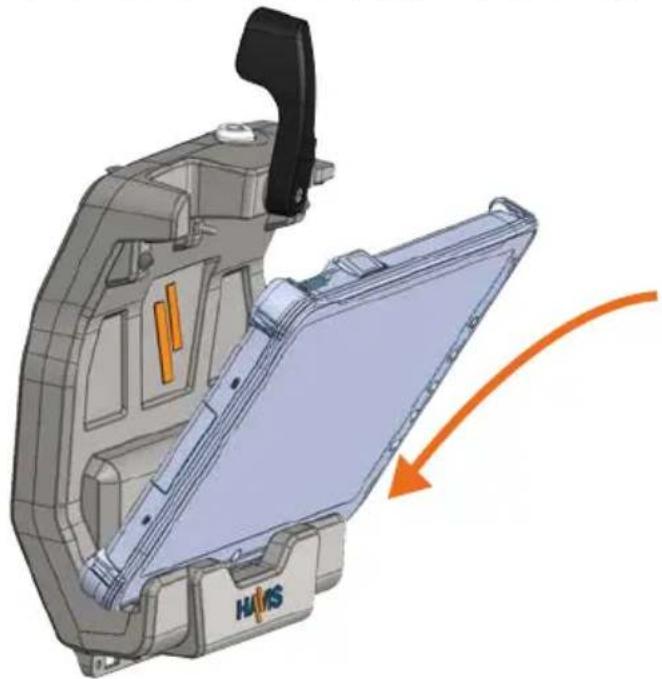

2) Hold tablet in landscape orientation, with bottom angled toward Docking Station. Lower tablet into the bottom of the Docking Station.

3D CAD model of a mechanical assembly with orange arrow indicating motion, no visible text or symbols

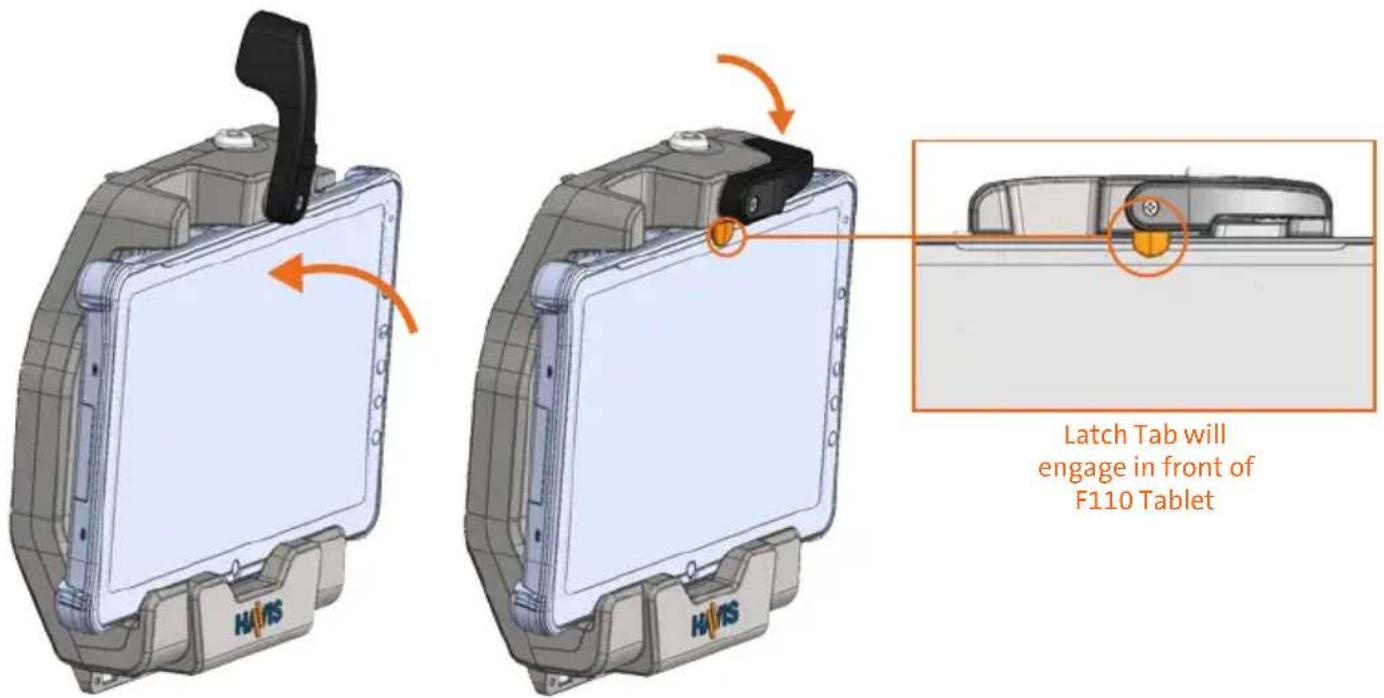

3) Pivot tablet so the top aligns with the Locator Pin at the top of the Docking Station. Lower the Latch Handle to secure tablet in place.

Latch Tab will engage in front of F110 Tablet

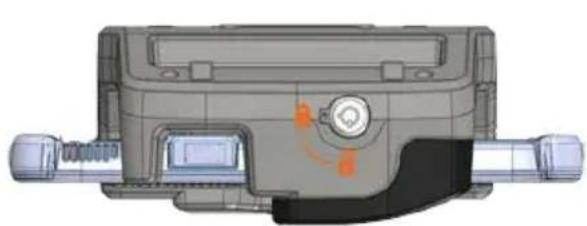

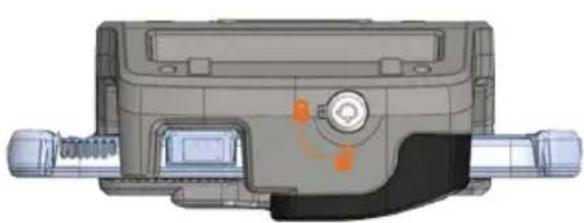

4) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2).

Technical diagram of a mechanical component with orange arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with orange arrows indicating motion or force direction (no text or symbols)

1) If previously locked, unlock Docking Station using supplied key.

Technical diagram of a vehicle front panel with no visible text or symbols

Diagram of a mechanical component with orange arrows indicating motion or force direction (no text or symbols)

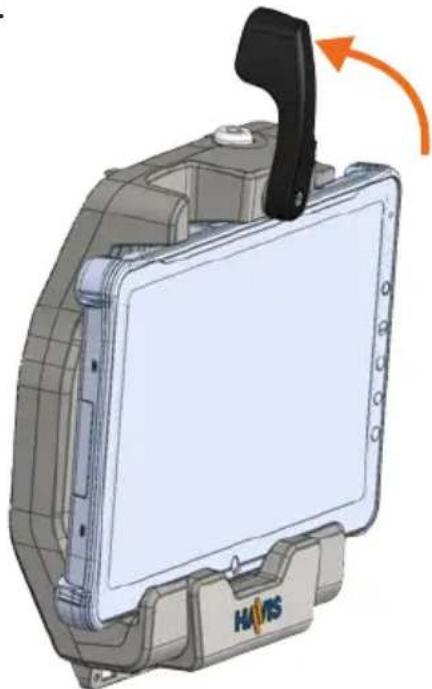

2) While holding tablet with one hand, lift the Latch Handle on the top of Docking Station.

3D CAD model of a mechanical device with a lever and base mount, showing internal components and a rotation arrow (no text or symbols)

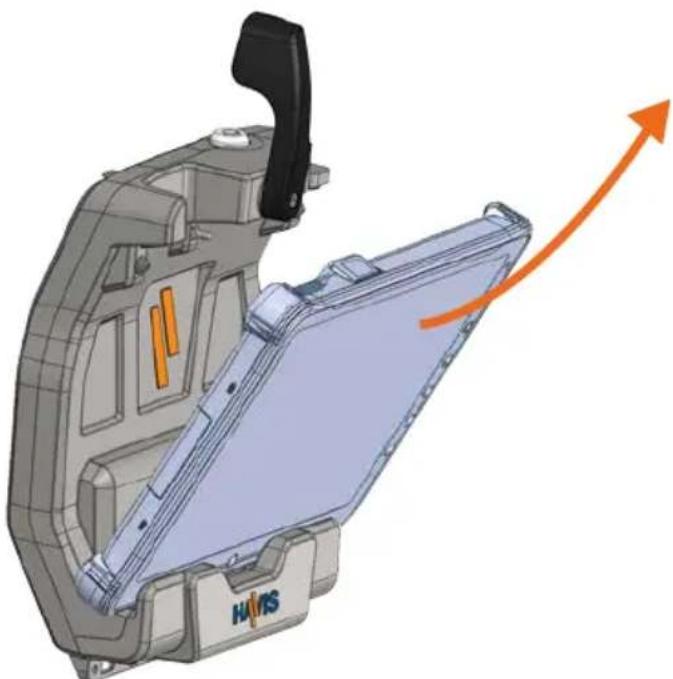

3) Once unlatched grab both sides of tablet, rock the top forward and carefully lift out of Docking Station, top end first.

3D mechanical assembly diagram showing internal components and a rising orange arrow (no text or symbols)

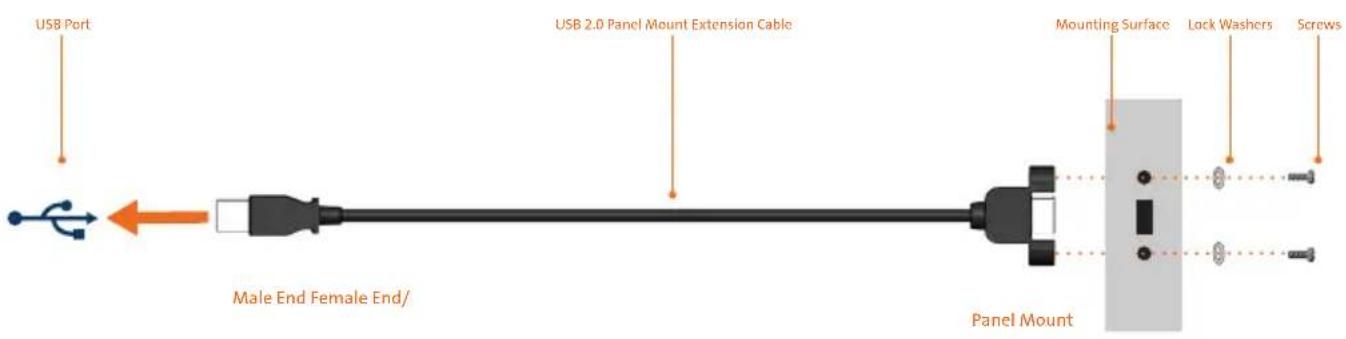

DS-DA-311 - Remote USB Extension Cable

(For further Installation Instructions, refer to the Instructions included with DS-DA-311)

1) Determine if USB will exit the left or right side of Docking Station.
2) Remove the Screws from USB Cable.
3) Align the female end of the USB Cable with mounting surface hole pattern. Insert Screws and Lock Washers and tighten Screws.
4) Plug male end of USB Cable into USB Port.
5) Strain Relief cable as needed.
6) If the connected peripheral has a cable requiring strain relief, use Int. Zip Tie (Hardware Kit Item #1) by snapping into hole just below port.
7) Continue on with Installation on Page 6.

CAUTION: DO NOT OVERTIGHTEN SCREWS

USB Port USB 2.0 Panel Mount Extension Cable Mounting Surface Lock Washers Screws Male End Female End/ Panel Mount

Related Products

Havis offers a wide variety of accessory products specifically for use with the DS-GTC-200 Series Docking Station. For more information or to order, please visit www.havis.com.

Simple black line drawing of a curved cable or wire with two connectors (no text or symbols)

DS-DA-311

Side Exiting USB Cable

Allows for more convenient access for up to two (2) of the available USB 2.0 ports. Can be mounted to the right, left, or both sides on DS-GTC-200 Series Docking Stations.

Black electronic device with multiple cables and connectors (no visible text or symbols)

LPS-116

95W Power Supply

External in-vehicle power supply and cable for Getac F110 Rugged Tablet with cigarette lighter adaptor.

Simple line drawing of a curved object with a looped end (no text or symbols)

DS-DA-102

Night Eyes II

In-vehicle night time viewing from six long lasting, soft true, red LED lights on a flexible steel gooseneck.

Metal mechanical support bracket with four circular holes, no text or symbols visible

DS-DA-218

Desktop Stand for Tablet Docking Stations

Durable stand for mounting tablet Docking Stations for use in the home or office.

Close-up of a metallic key with a handle and metal bracket (no visible text or symbols)

DS-DA-501

Replacement Keys

Set of two (2) replacement keys for DS-GTC-200 Series Docking Stations.

Havis, Inc.

75 Jacksonville Road Warminster, PA 18974

www.havis.com 1-800-524-9900
