USER MANUAL HT-BD1250R SAMSUNG

Home Cinema System user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

Key features of your new Blu-ray Home Cinema

PLAYER FEATURES

Playback of many disc types, plus an FM Tuner

The HT-BD1250/HT-BD1252/HT-BD1255 allows you to play various discs, including BD-ROM, DVD-VIDEO, DVD-RW/-R(V mode), CD, MP3-CD, DivX and CD-R/RW, with a sophisticated FM tuner, all in a single player.

Full HD Audio Decoding Support (Dolby Digital, Dolby Pro Logic II, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD HRA, DTS-HD MA Essential)

Please refer to www.DOLBY.COM and DTS.COM for more detail.

TV Screen Saver Function

If the main unit remains in stop mode for 10 minutes, the logo appears on TV screen. The HT-BD1250/HT-BD1252/HT-BD1255 automatically switches itself into the power saving mode after 30 minutes in the Screen Saver mode.

Power Saving Function

The HT-BD1250/HT-BD1252/HT-BD1255 automatically shuts itself off after 40 minutes in Stop mode.

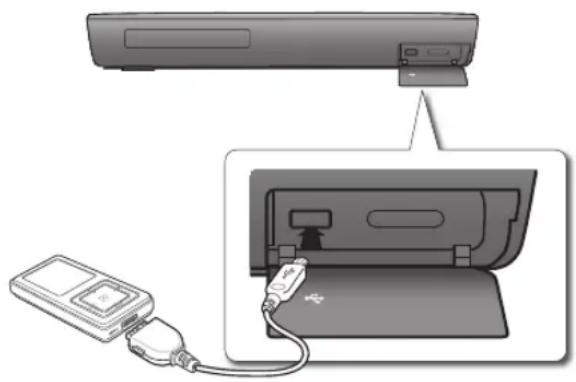

USB Host support

You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Home Cinema's USB HOST function.

HDMI

HDMI transmits Blu-Ray/DVD video and audio signals simultaneously, and provides a clearer picture. The 1080p(Full HD) resolution provides even clearer pictures.

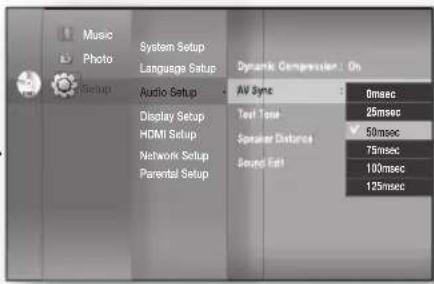

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video.

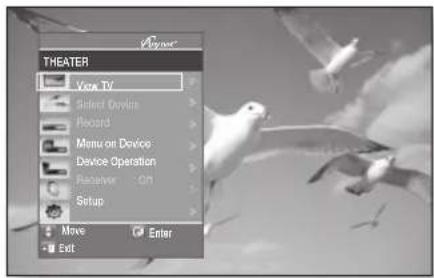

Anynet+(HDMI-CEC) Function

Anynet+ is a function that can be used to operate the main unit of this system using a Samsung TV remote control, by connecting the Blu-ray Home Cinema to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TV's that support Anynet+.)

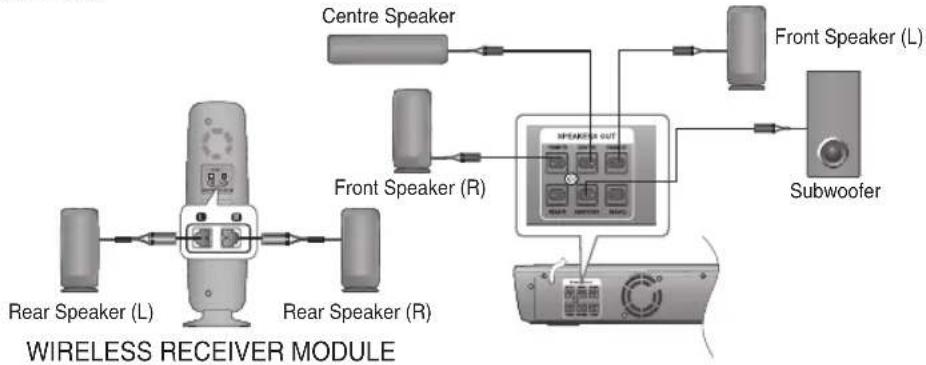

Wireless receiver amplifier

Samsung's rear-channel wireless module does away with cables running between the main unit and rear-channel speakers. Instead, the rear speakers connect to a compact wireless module that communicates with the main unit.

iPod & iPhone support

You can enjoy music files by connecting your iPod to the home cinema with the supplied iPod dock.

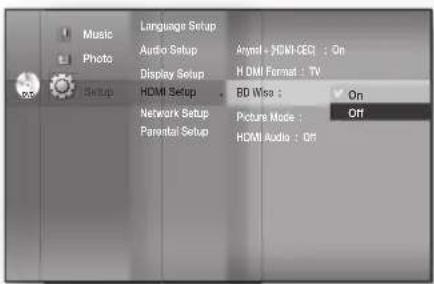

BD Wise

BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them. This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an HDMI cable.

Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.

* The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will also vary from disc to disc. Not all discs will have the features described below.

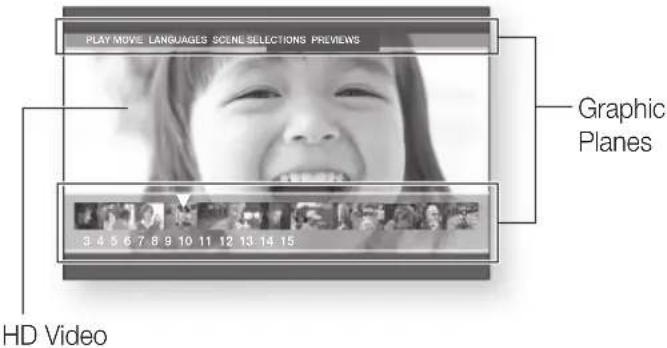

Video highlights

The BD-ROM format for movie distribution supports three highly advanced video codecs, including AVC, VC-1, and MPEG-2.

HD video resolutions are also available:

- 1920 x 1080 HD

- 1280 x 720 HD

For High-Definition Playback

To view high-defi nition contents on a Blu-ray disc, an HDTV (High Defi nition Television) is required. Some discs may require using the player's HDMI OUT to view high-defi nition content. The ability to view high-defi nition content on Blu-ray disc may be limited depending on the resolution of your TV.

Subtitles

You may be able to select different font styles, sizes and colours for the subtitles. Subtitles may also be animated, scrolled or faded in and out, depending on what is contained on the Blu-ray Disc.

BD-LIVE

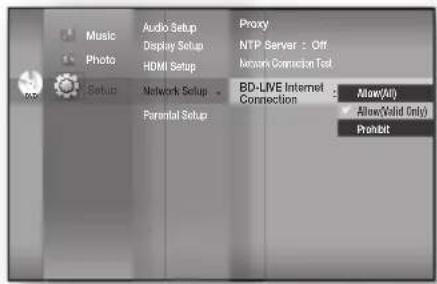

You can use a Blu-ray Disc supporting BD-LIVE through network connection to enjoy various contents provided by the disc manufacturer.

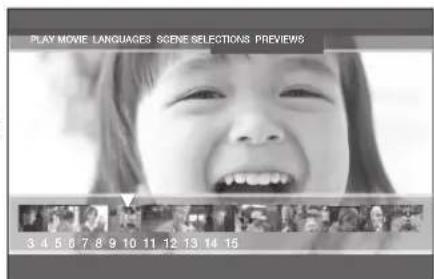

PLAY MOVIE LANGUAGES SCENE SELLLECTIONS PREIVIEWS Graphic Planes 3 4 5 6 7 8 9 10 11 12 13 14 15 HD Video

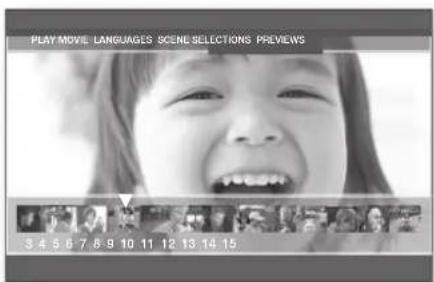

PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS 3 4 5 6 7 8 9 10 11 12 13 14 15

Key features of your new Blu-ray Home Cinema

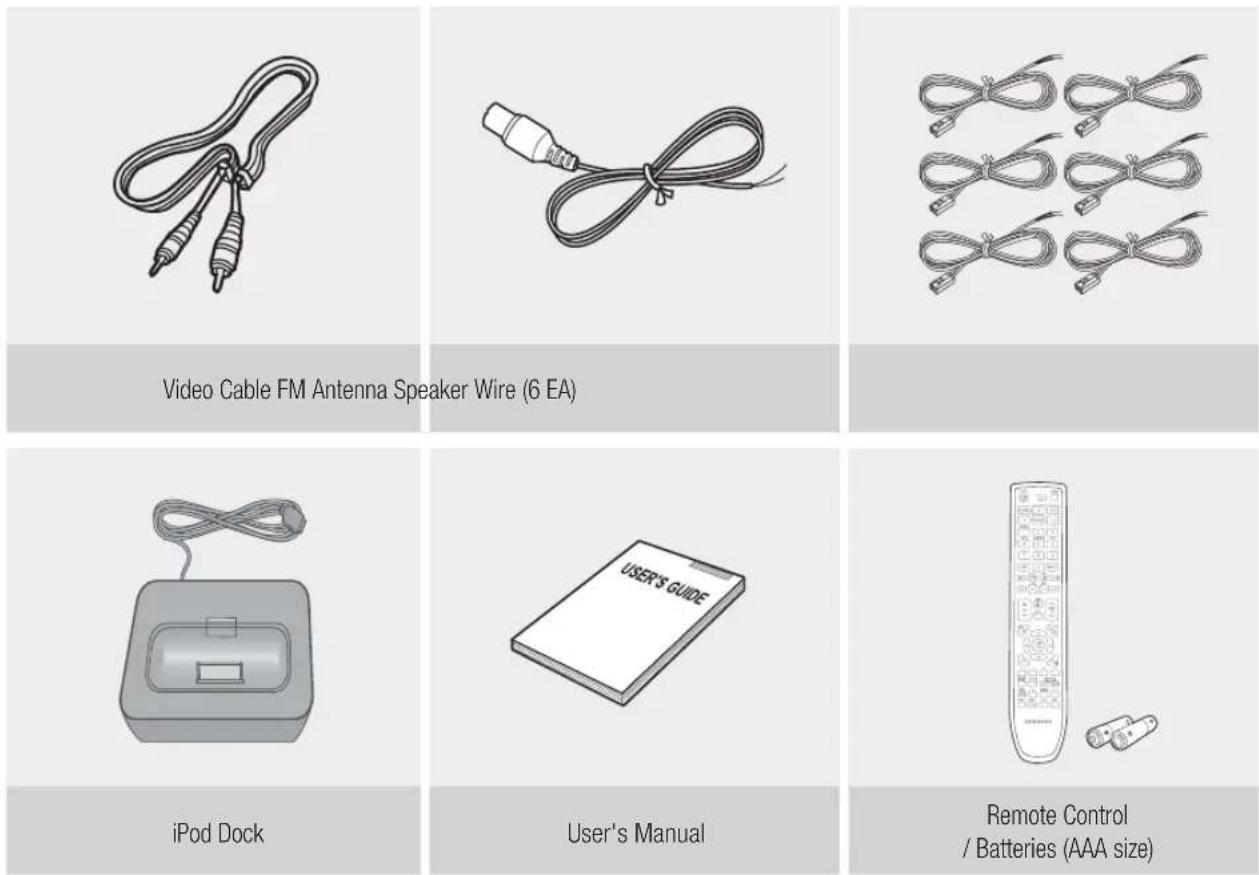

WHAT'S INCLUDED

Check for the supplied accessories below.

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.

Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:-- BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:-- The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.

The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL, OR COLOURED GREEN OR GREEN AND YELLOW.

Safety information

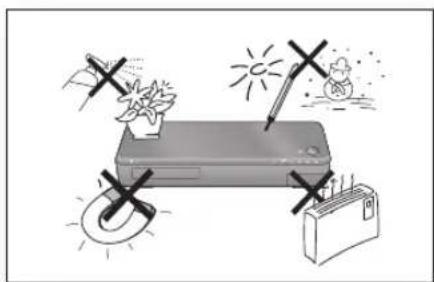

PRECAUTIONS

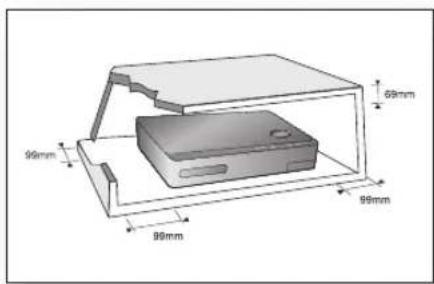

65mm 99mm 99mm 99mm

Illustration of a portable electronic device with a crossed-out black X symbol, emitting steam (no text or labels)

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5\~10cm). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the Disc Insert Hole is empty. This player is designed for continuous use. Switching off the Blu-ray Home Cinema to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

Line drawing of a device on a desk with a lightning bolt visible through the window (no text or symbols)

During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Simple line drawing of a printer placed on a desk with a black X symbol, next to a window and sun (no text or symbols)

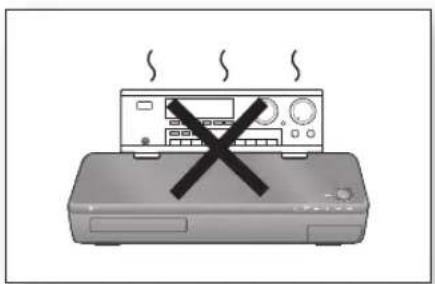

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and malfunction of the unit.

Illustration of a device with no visible text, numbers, or symbols, featuring crossed-out icons and no readable text.

Protect the player from moisture (i.e. vases), and excess heat (e.g. fireplace) or equipment creating strong magnetic or electric fields (i.e. speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.

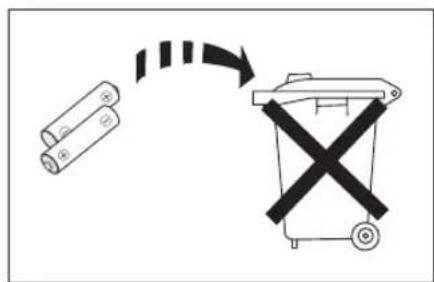

Diagram showing a battery with three segments and a trash bin marked with a cross, indicating a recycling or disposal process.

The batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash.

Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

Key featUreS Of yOUr neW BIU-ray HOME CineMa

Safety infOrMatiOn

getting Started

deSCriPtiOn

reMOte COntrOI

COnneCtiOnS

BaSiC fUnCtiOnS Of yOUr BIU-ray HOME CineMa

SySteM SetUP

langUage SetUP

2 Player Features
3 Blu-ray Disc Features
4 What's Included

5 Safety Warnings
6 Precautions

10 Before Reading the User's Manual
11 Disc Type and Characteristics

14 Front Panel
15 Rear Panel

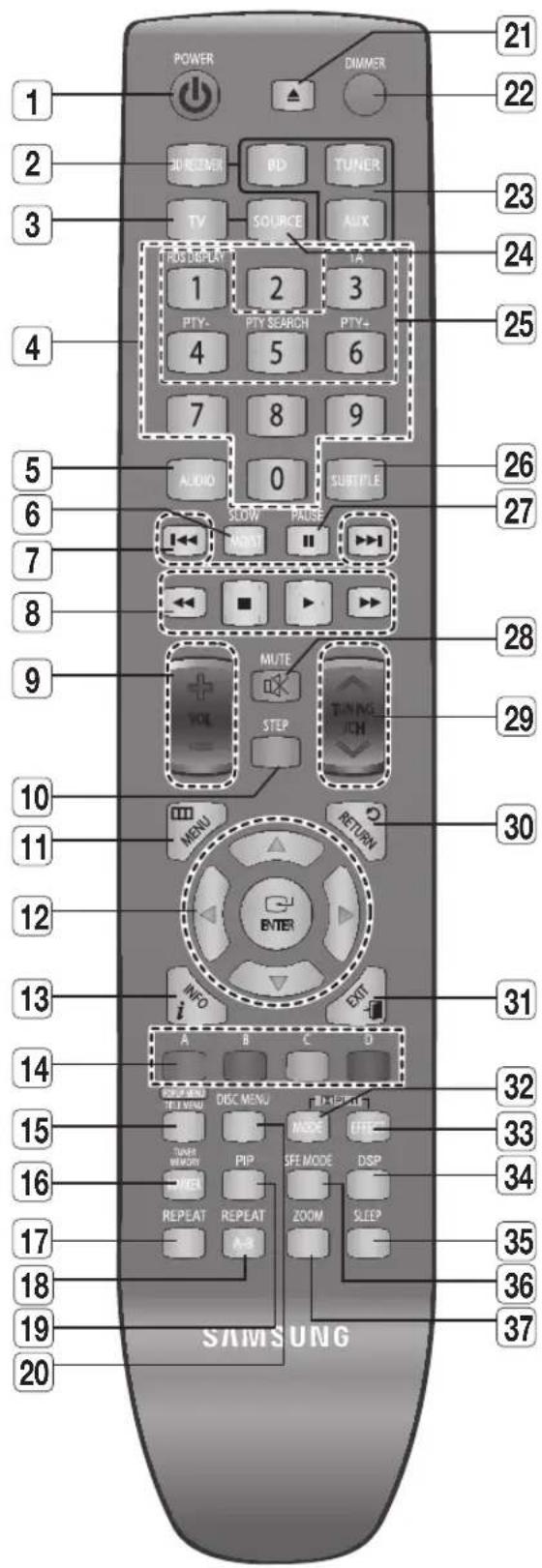

16 Tour of the Remote Control

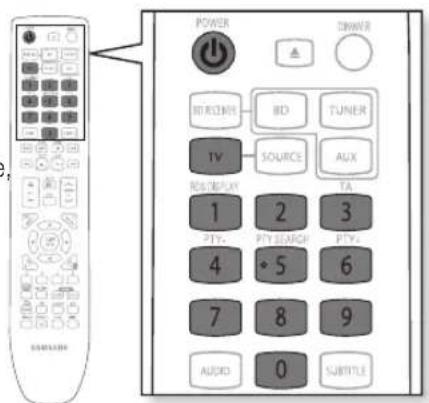

18 Setting the Remote Control

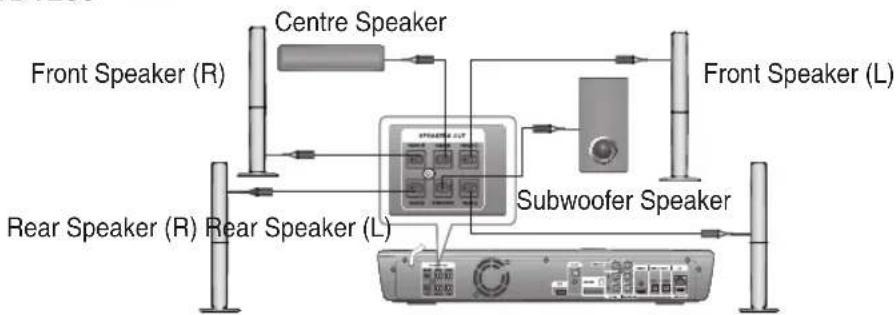

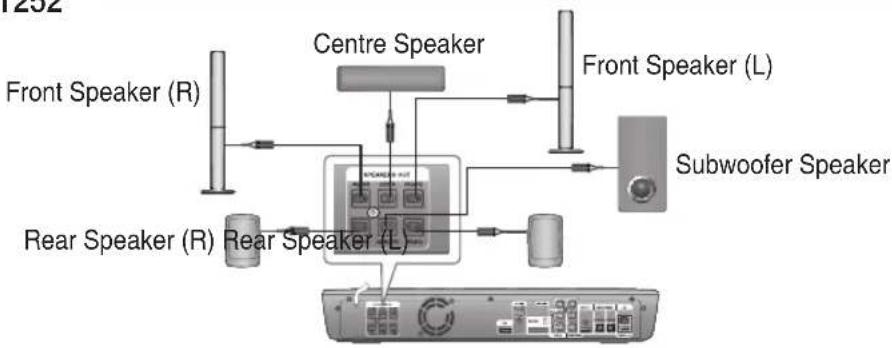

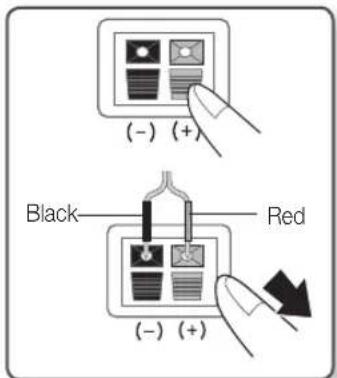

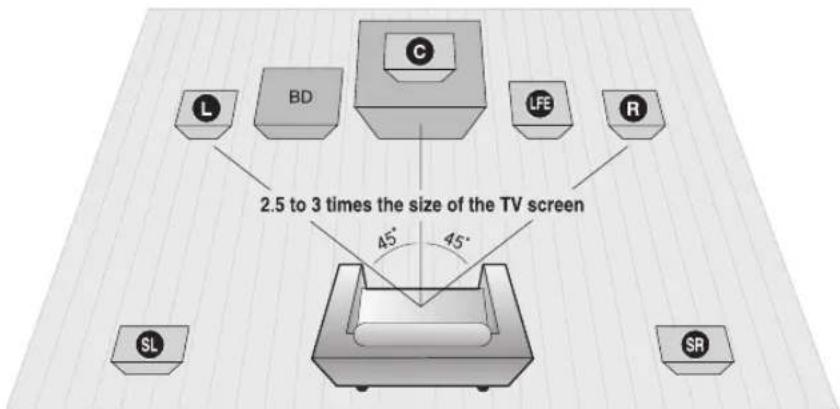

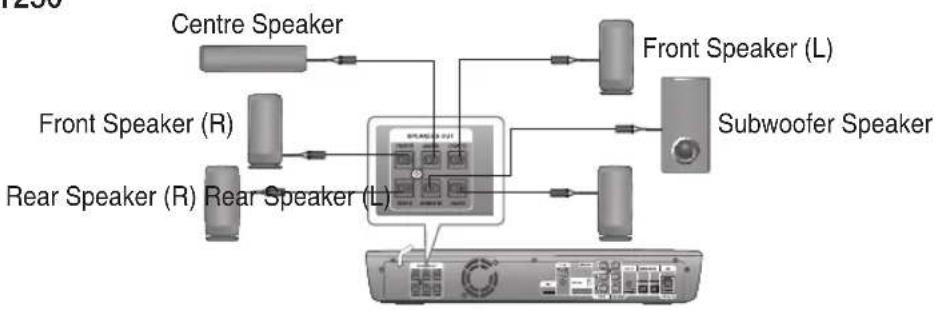

20 Connecting the Speakers

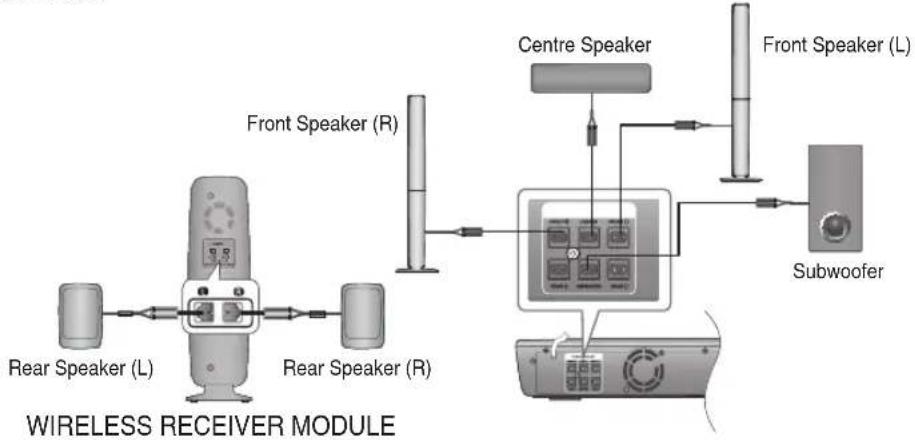

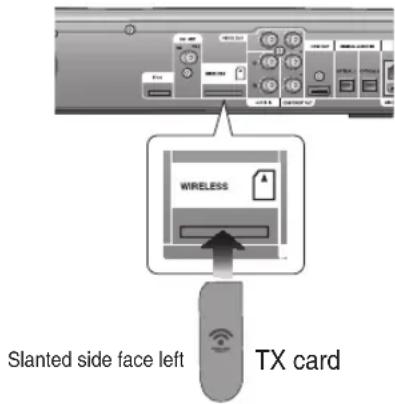

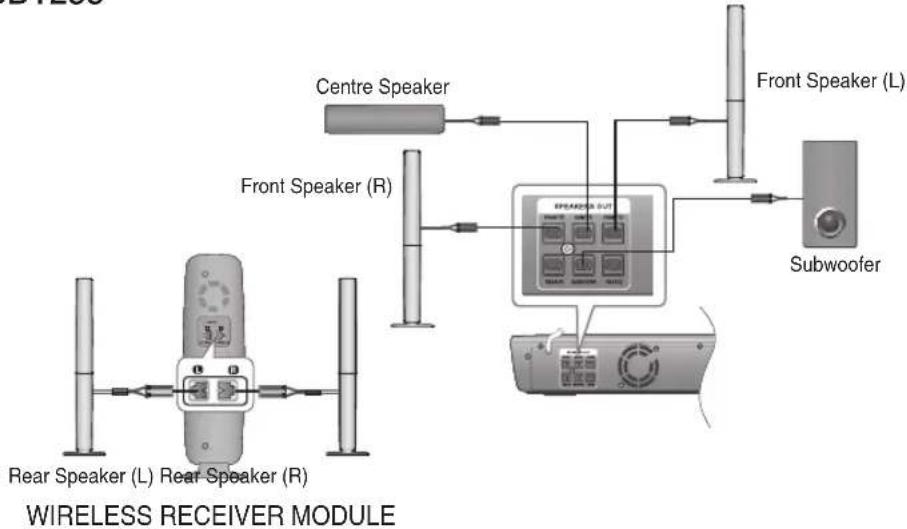

22 Connecting the Optional Wireless Receiving Module

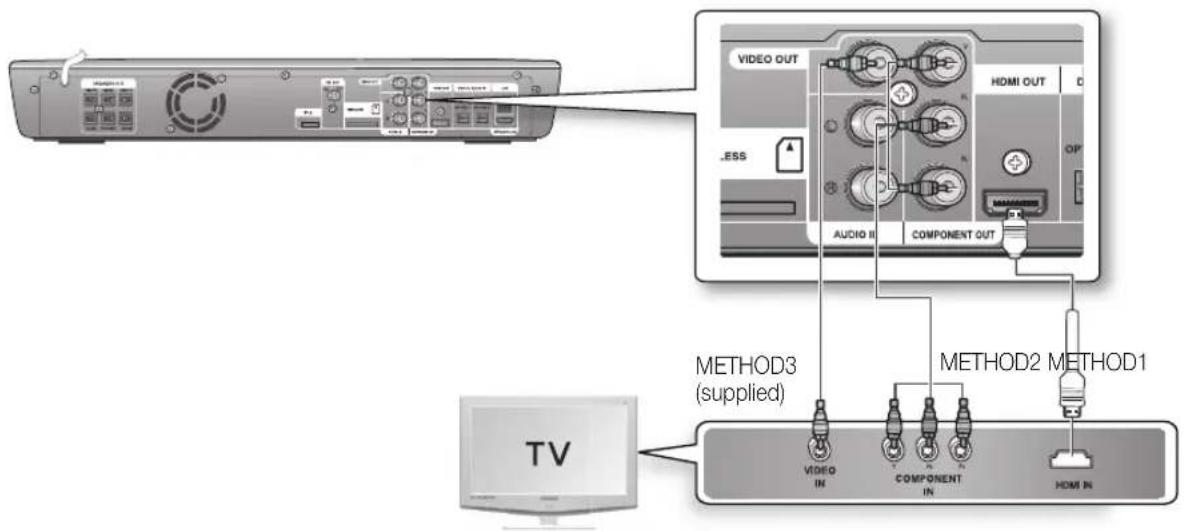

24 Connecting the Video Out to Your TV

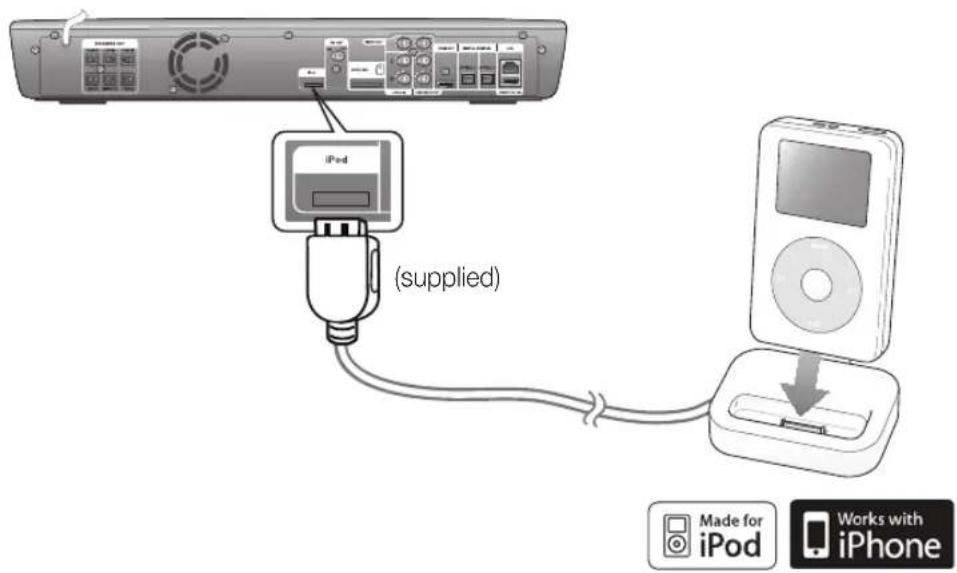

26 Connecting an iPod

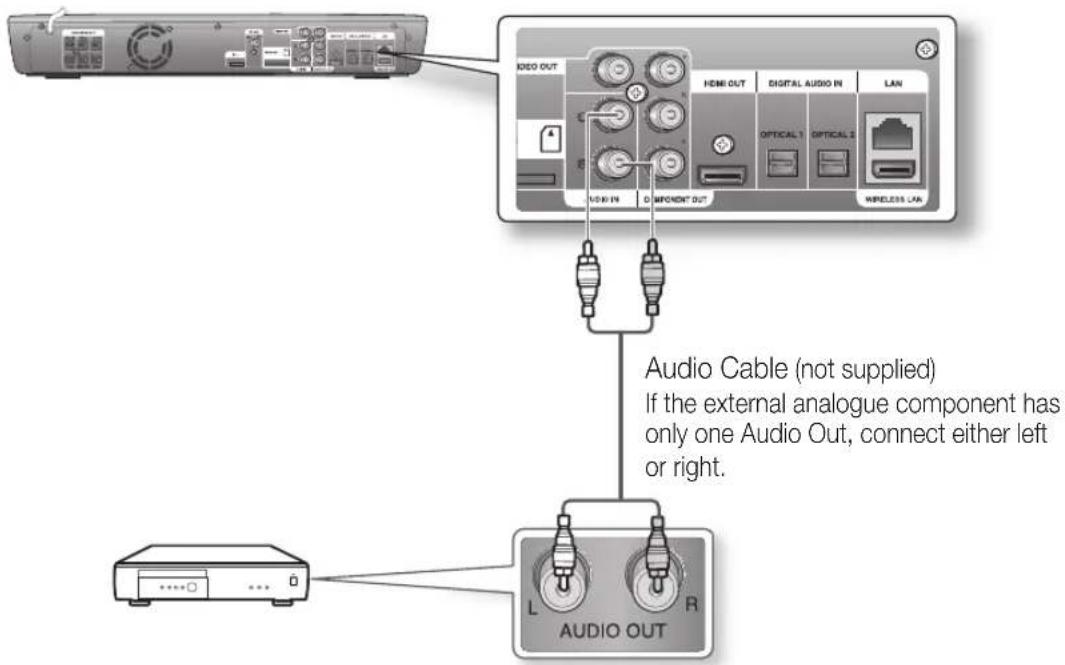

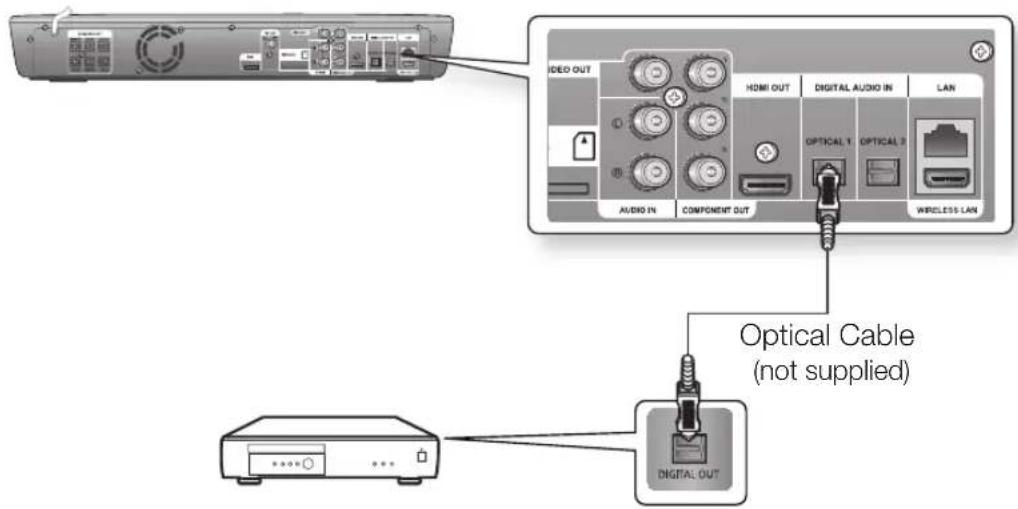

28 Connecting Audio from External Components

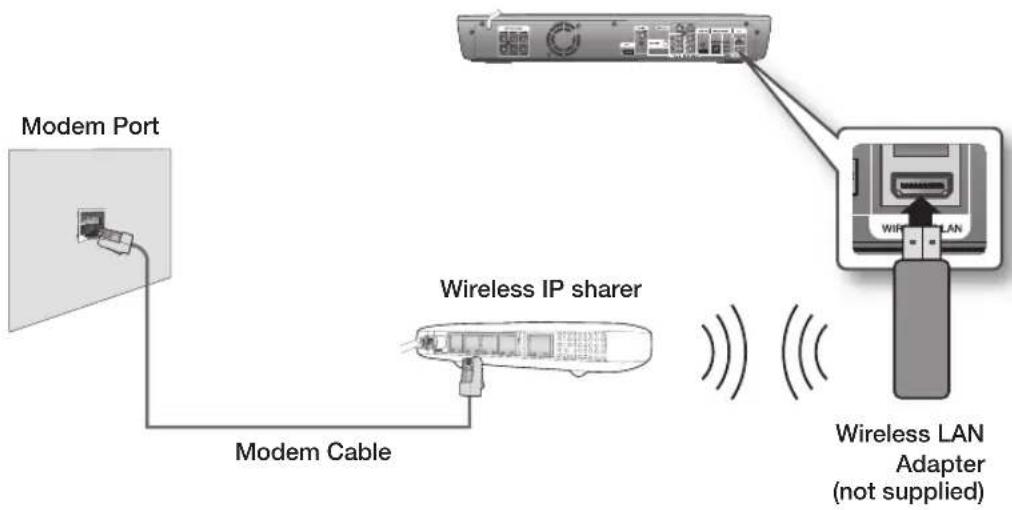

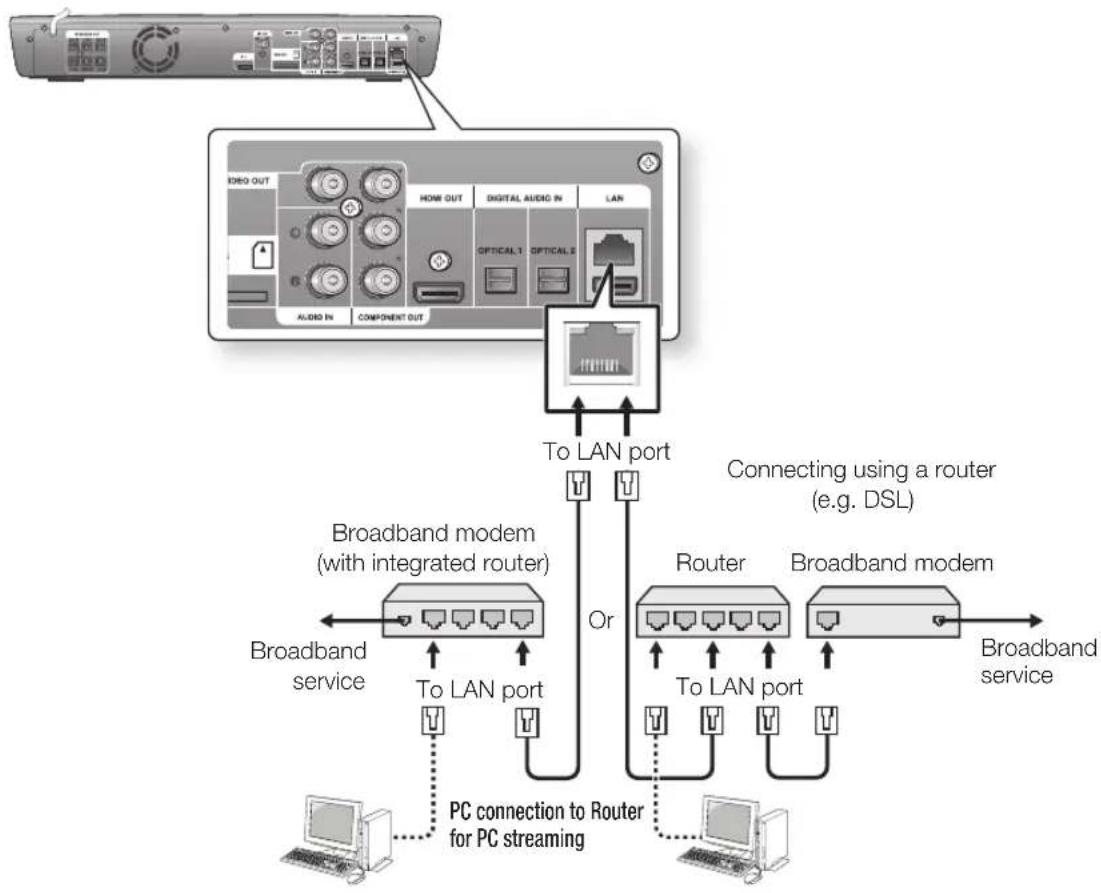

30 Connecting to the Network

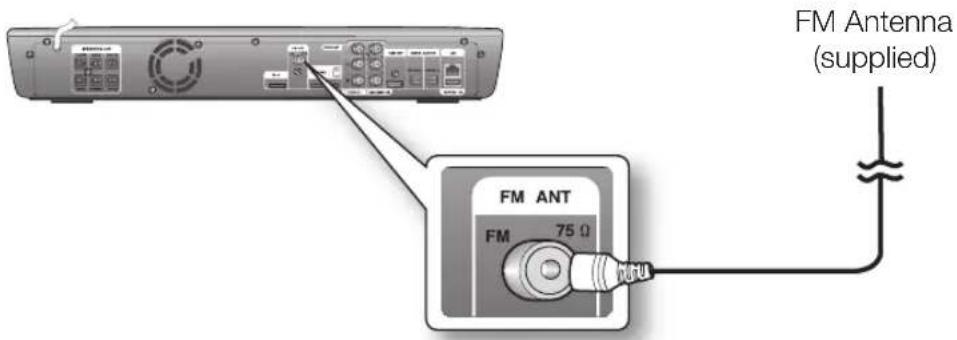

32 Connecting the FM Antenna

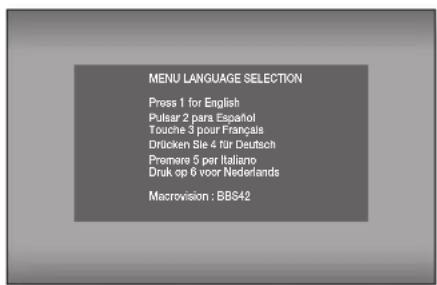

33 Before Playing

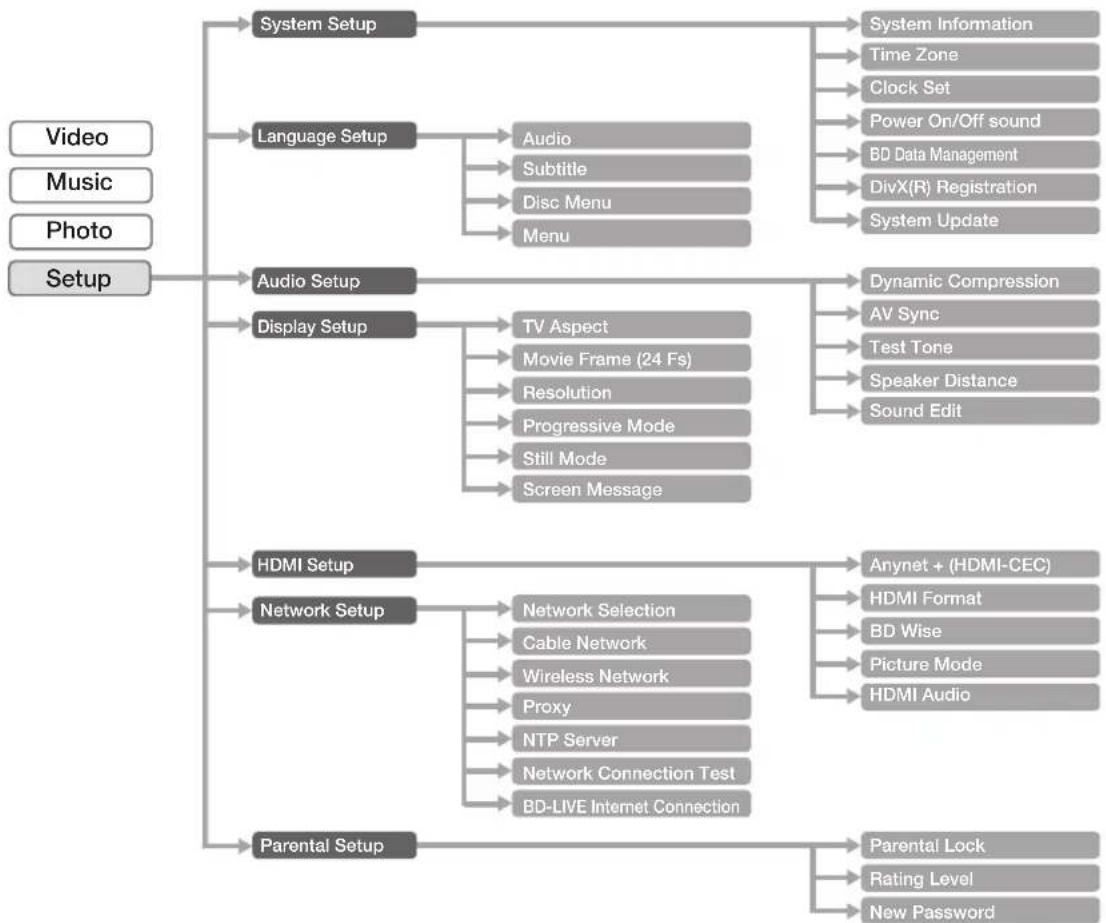

34 On-Screen Menu Navigation
34 Playing a Disc

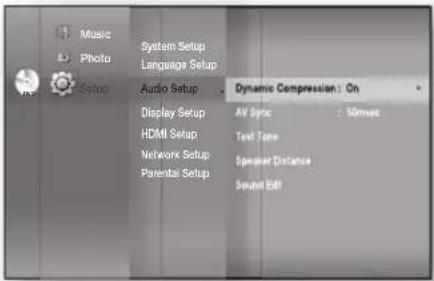

35 Setting the Sound
35 Using the Search and Skip Functions
36 Slow Motion Play/Step Motion Play

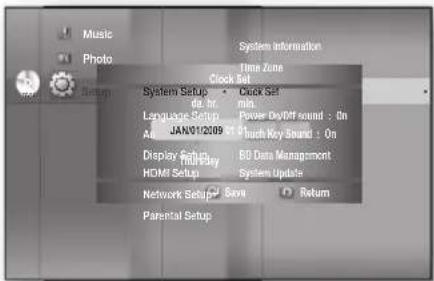

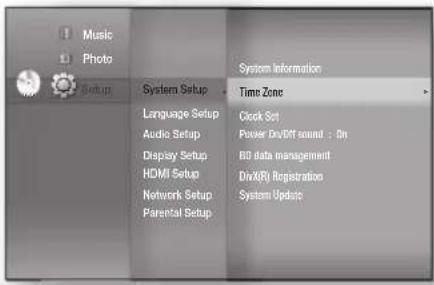

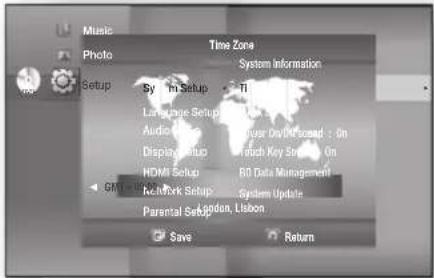

37 Setting the Clock

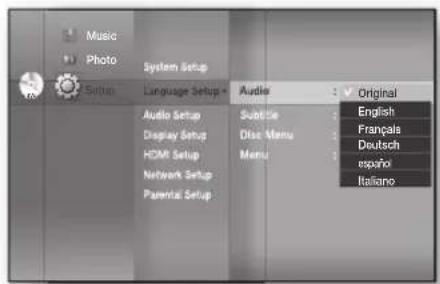

38 Setting up the Language Options

aUdiO Setup

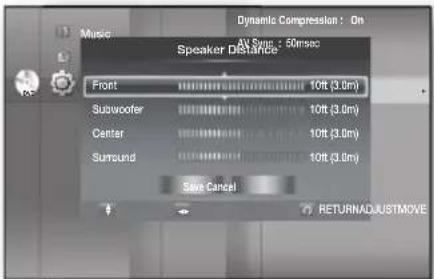

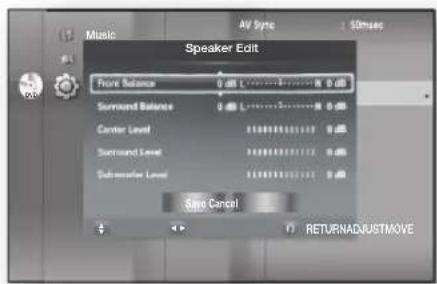

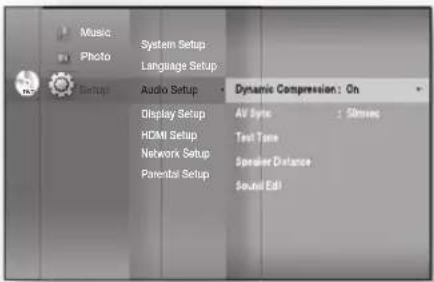

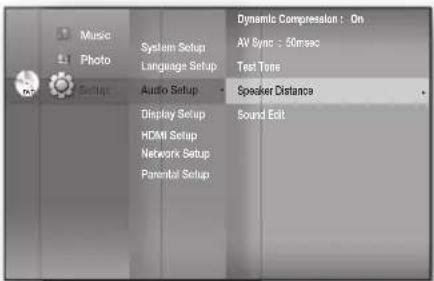

39 Setting up the Speaker Options

diSPlay SetUP

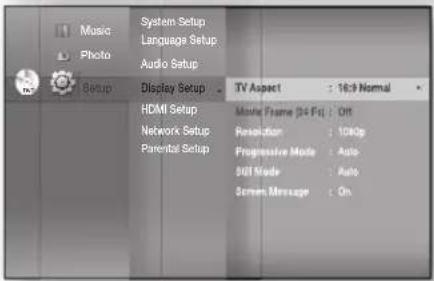

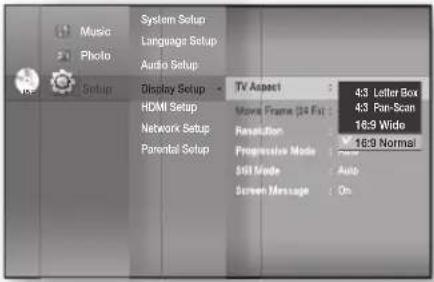

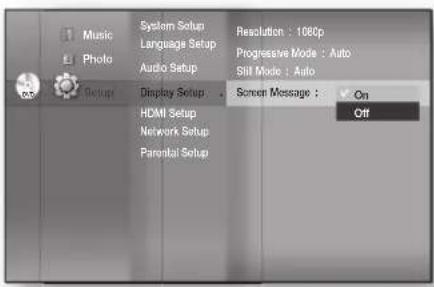

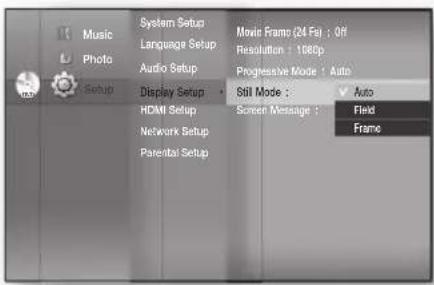

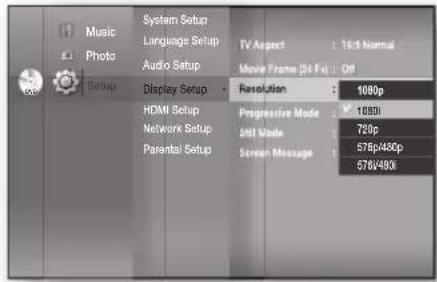

42 Setting up the Display Options

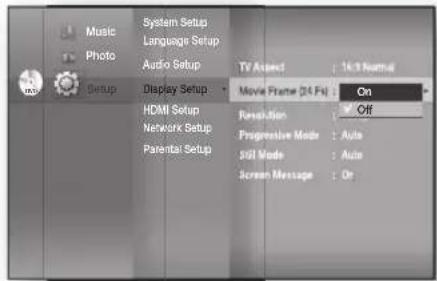

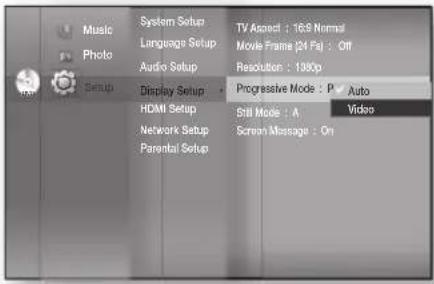

44 Setting up the Video Display/Output Options

HdMi SetUP

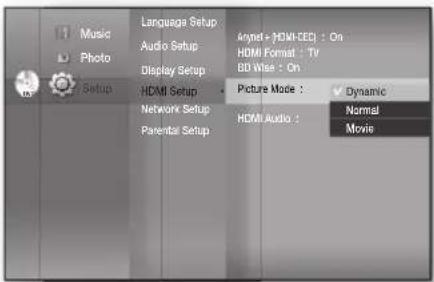

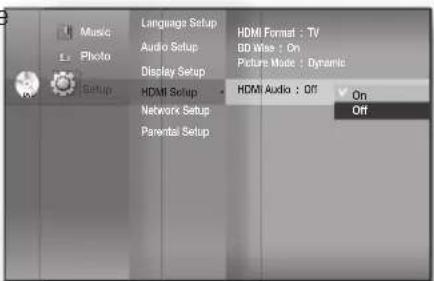

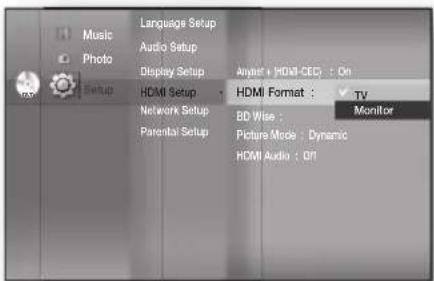

46 Setting up the HDMI Setup Options

Parental SetUP

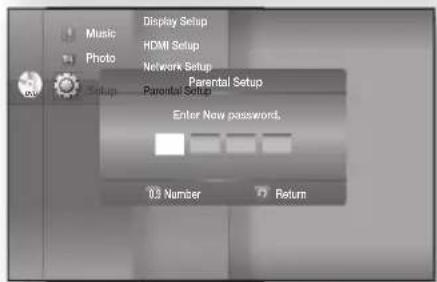

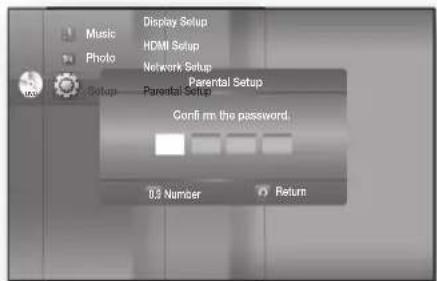

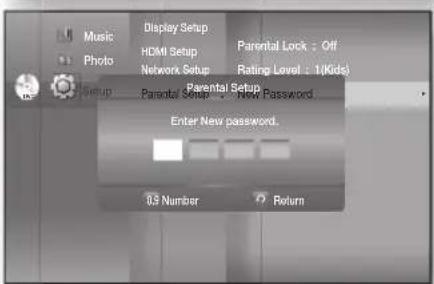

49 Setting up the Parental Lock

netWOrK SetUP

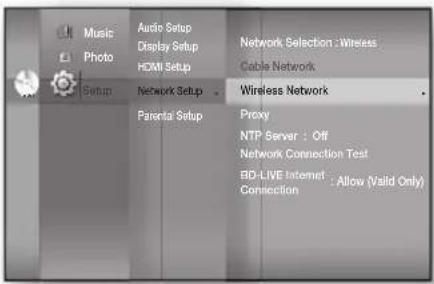

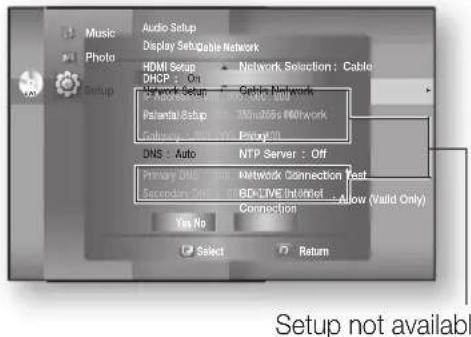

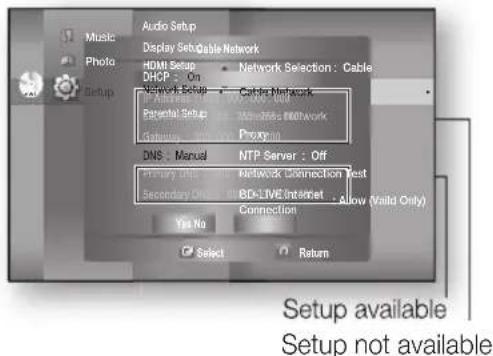

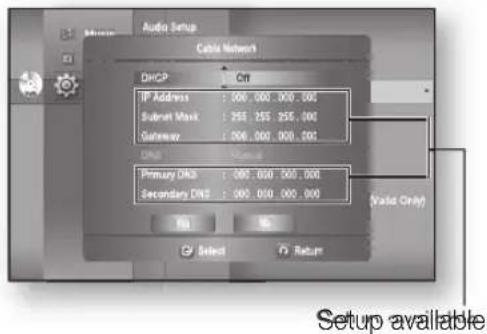

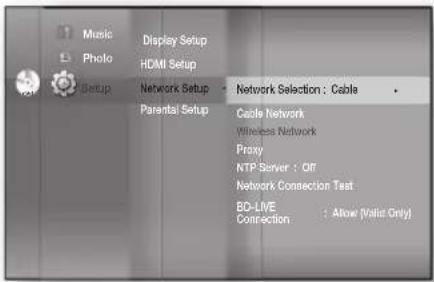

51 Setting up the Network Setup Options

Bd data ManageMent

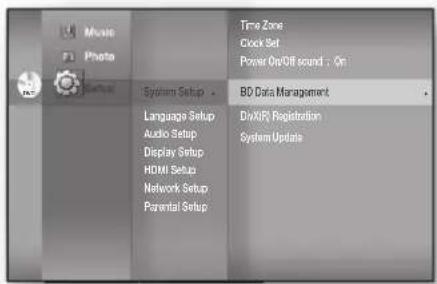

56 System Device Management

SySteM UPgrade

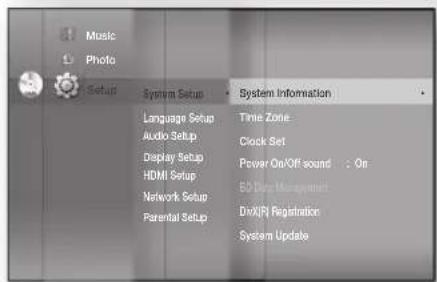

57 Firmware Upgrade

59 System Information

59 Firmware Upgrade Notification

59 DivX (R) Registration

WatCHing a MOVie

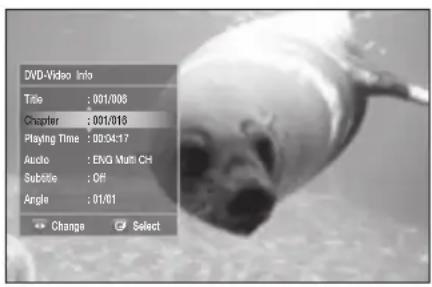

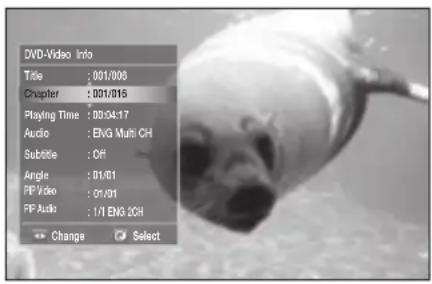

60 Using the Display Function

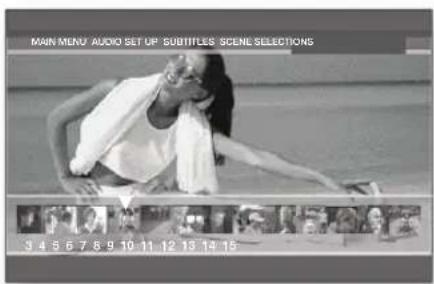

61 Using the Disc Menu & Popup/Title Menu

62 Repeat Play

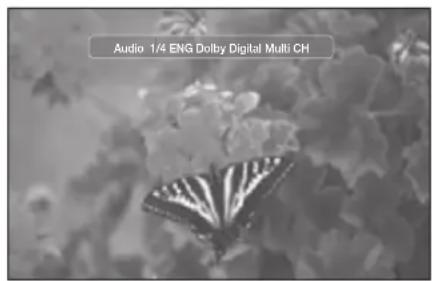

63 Selecting the Audio Language

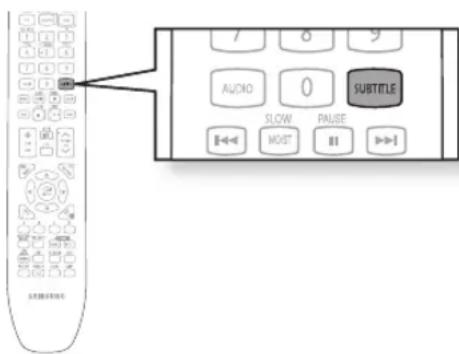

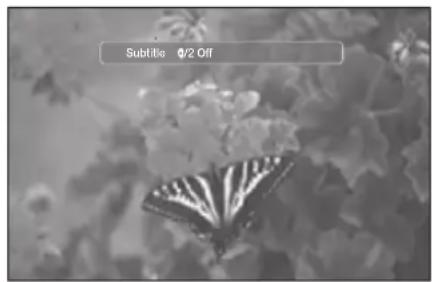

63 Selecting the Subtitle Language

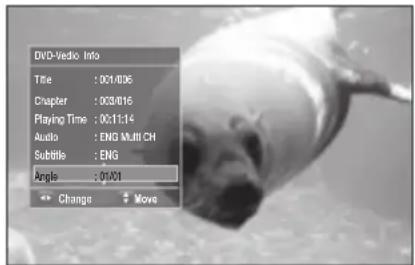

64 Changing the Camera Angle

65 PIP (Picture In Picture) Settings

65 BD-LIVE™

66 DivX Playback

LISTENING TO MUSIC

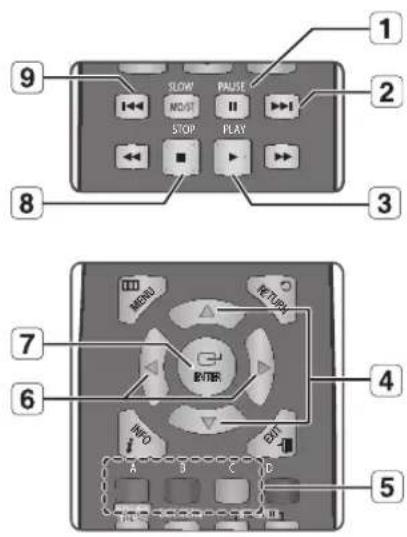

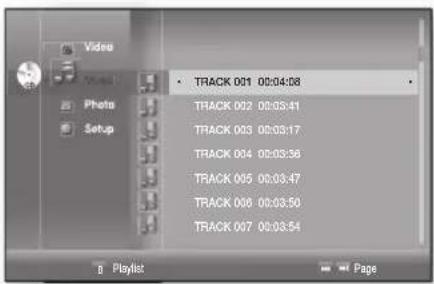

68 Buttons on the Remote Control Used for Audio CD(CD-DA)/ MP3 Disc Playback
68 Repeat Audio CD(CD-DA) & MP3

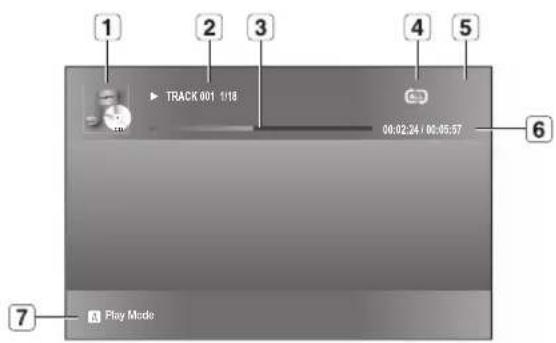

69 Playing an Audio CD(CD-DA)/MP3

VIEWING A PICTURE

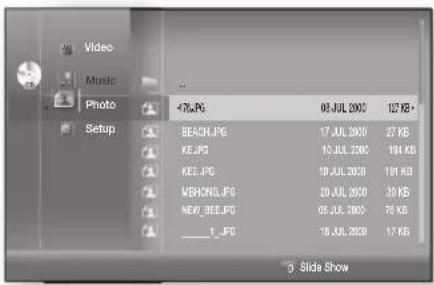

71 Viewing a Picture

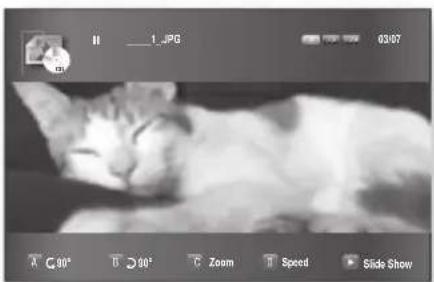

71 Slide Show/Speed
71 Rotate

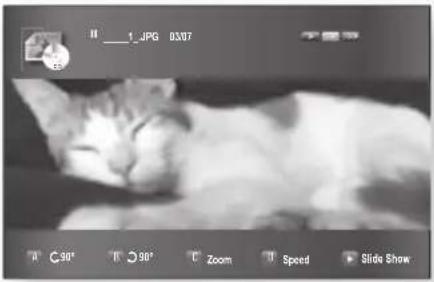

72 Zoom

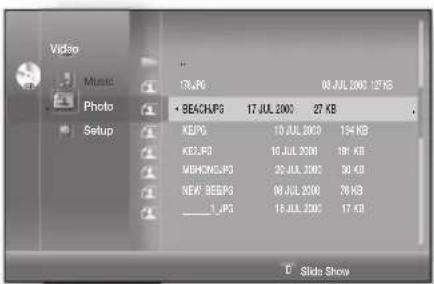

72 Go To Photo List

SOUND MODE

73 SFE(Sound Field Effect) Mode
73 Dolby Pro Logic II Mode

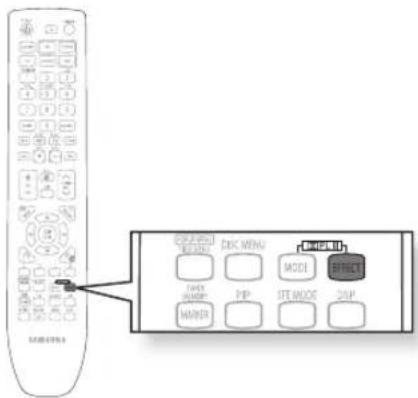

74 Dolby Pro Logic II Effect

USING THE USB FUNCTION

75 Playing Media Files Using the USB Host Feature

RADIO

77 Listening to Radio
77 Presetting Stations
78 About RDS Broadcasting

USING AN iPod

80 Listening to Music
82 Watching a Movie

PC STREAMING FUNCTION

83 Connecting to a PC and Playing MP3, JPEG or DivX Content

85 Sleep Timer Function
85 Adjusting Display Brightness
85 Mute Function

CONVENIENT FUNCTION

88 Cautions on Handling and Storing Discs
89 Specifications

TROUBLESHOOTING

APPENDIX

BEFORE READING THE USER'S MANUAL

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Definition
	BD-ROM This involves a function available on a BD-ROM.
	BD-RE This involves a function available on the BD-RE.
	BD-R This involves a function available on the BD-R.
	DVD-VIDEO	This involves a function available on DVD-Video or DVD-RW/-R discs that have been recorded and finalized in Video Mode.
	DVD-RW This involves a function available on DVD-RW. (V mode and finalized only)
	DVD-R This involves a function available on DVD-R. (V mode and finalized only)
	Audio CD This involves a function available on an audio CD-RW/CD-R (CD-DA format).
	MP3	This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.
	JPEG	This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.
	DivX	This involves a function available with MPEG4 discs.(DVD±R/RW, CD-R or CD-RW)
	USB storage device	This involves a function available on USB storage device.
	Caution	This involves a case where a function does not operate or settings may be cancelled.
	Note This	involves tips or instructions on the page that help each function operate.

About the use of this user's manual

1) Be sure to be familiar with Safety Information before using this product. (See pages 5\~6)
2) If a problem occurs, check the Troubleshooting. (See pages 86\~87)

Copyright

©2009 Samsung Electronics Co., Ltd.

All rights reserved; No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co., Ltd.

Disc types that can be played

Disc Types Disc	Logo Recorded content Disc Shape Max. Playing minute
BD-ROMBD-RE/BD-R		AUDIO + VIDEO	Single sided	Playing time depends on the Title
DVD-VIDEO AUDIO + VIDEO			Single sided(12 cm) 240
			Double sided(12 cm) 480
			Single sided(8 cm) 80
			Double sided(8 cm) 160
AUDIO-CD AUDIO			Single sided(12 cm) 74
			Single sided(8 cm) 20
DivX AUDIO + VIDEO			12 cm	—
			8 cm	—
DVD-RW(V mode and finalized only)		AUDIO + VIDEO 12	cm (4.7GB)	480(EX : Extended Play)
DVD-R(V mode and finalized only)		AUDIO + VIDEO 12	cm (4.7GB)	480(EX : Extended Play)

• This player is compatible with the PAL colour system only.
  • NTSC discs will not play.

Logos of Discs that can be played

Blu-rayDisc	DIGITAL PLUS	High Resolution Audio
PAL broadcast system in U.K, France, Germany, etc.	Dolby TrueHD	DTS-HD Master Audio | Essential
Digital Audio	MP3	Stereo

■ Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

Getting started

Discs that cannot be played

- HD DVD Disc

• DVD-ROM/PD/MV-Disc, etc

- DVD-RAM

• CVD/CD-ROM/CDV/CD-G/CD-I/LD

• 3.9 GB DVD-R Disc for Authoring.

- 8cm MD (mini disc)

- DVD-RW(VR mode)

- Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either "No disc." or "Please check the regional code of the disc." will be displayed.

If a DVD-R/-RW disc has not been recorded properly in DVD video format, it will not be playable.

Region code

Both the Blu-ray Home Cinema and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this Blu-ray Home Cinema is described on the rear panel of the Blu-ray Home Cinema.

BD Region Code Area
A	North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia
B Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.
C India, China, Russia, Central and South Asia.

DVD-Video Region Code	Area	DVD-Video Region Code	Area
1	USA, Canada	6	China
2	Japan, Europe, South Africa, Middle East, Greenland	7 Unspecified Special Use
3	Korea, Taiwan, Hong Kong, parts of South East Asia	8 Airlines/Cruise Ships (including Mexico)
4	Australia, New Zealand, Latin America (including Mexico)	9 Region free
5 Eastern Europe, Russia, India, Africa

Blu-ray Disc Compatibility

Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care centre.

■ Playback may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary.

- Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback.

■ Discs with NTSC programs recorded on them cannot be played using this product.

- When a BD-Java title is played, loading may take longer than a normal title, or some functions may perform slowly.

Disc Types

BD-RE/BD-R

Blu-ray Disc Rewritable/Blu-ray Disc Recordable. BD-RE/BD-R is the ideal format for making backups, or recording personal video.

BD-ROM

Blu-ray Disc Read Only Memory. A BD-ROM disc contains pre-recorded data. Although a BD-ROM may contain any form of data, most BD-ROM discs will contain movies in High Definition format, for playback on Blu-ray Home Cinemas. This unit can play back pre-recorded commercial BD-ROM discs.

DVD-Video

• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround, allowing you to enjoy vivid and clear theatre quality images.
• When switching from the first layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-RW/-R recorded in Video Mode is finalized, it becomes DVD-Video. Pre-recorded (pre-stamped) commercial DVDs with movies are also referred to as DVD-Videos. This unit can play back pre-recorded commercial DVD discs (DVD-Video discs) with movies.

Audio CD

• An audio disc on which 44.1kHz PCM Audio is recorded.
• This unit can play back CD-DA format audio CD-R and CD-RW discs.
• The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-R/-RW

• Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.
• If the CD-R/-RW disc was not recorded as a closed session, you may experience delays when playing back the beginning of the disc or all recorded files may not play.
• Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.

DVD-R Disc Playback

• Once a DVD-R recorded in Video Mode is finalized, it becomes DVD-Video.
• This unit can play back DVD-R discs recorded and finalized with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

DVD-RW Disc Playback

• Playback can be performed with DVD-RW discs in the Video Mode and finalized only.
• Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video. Ability to play back may depend on recording conditions.

Disc Format

◆ Using MP3 disc

• CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.
• Only MP3 files with the “.mp3” or “.MP3” extension can be played.
• Playable bit-rate range is from 56 Kbps to 320 Kbps.
• Playable sample-rate is 32KHz to 48KHz.
• The unit can handle a maximum of 1500 files and folders under a parent folder. For MP3 files recorded with a VBR(Variable Bit Rates), the sound may cut in and out.

◆ Using JPEG disc

• CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.
• Only JPEG files with the ".jpg", ".JPG", ".jpeg" or "JPEG" extension can be displayed.
  • Progressive JPEG is supported.

DVD-RW/-R (V)

• This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by this Blu-ray Home Cinema once it has been finalized.
• If a disc that has been recorded in Video Mode by a different maker's recorder but has not been finalized, it cannot be played by this Blu-ray Home Cinema.

FRONT PANEL

123456789 10 11

1 POWER BUTTON	Turns the Blu-ray Home Cinema on and off.
2 STANDBY INDICATOR	When the unit is fi rst plugged in, this indicator lights.
3 OPEN/CLOSE BUTTON	Opens and closes the disc tray.
4 FUNCTION BUTTON	The mode switches as follows:BD/DVD → D.IN 1 → D.IN 2 → AUX → FM.
5 TUNING DOWN & SKIP ( [←→ ] ) BUTTON	Goes back to the previous title/chapter/track.Tunes down the FM frequency band.
6 STOP BUTTON	Stops disc playback.
7 Volume Control BUTTON	Volume adjustment.
8 PLAY/PAUSE BUTTON	Plays a disc or pauses playback.
9 TUNING UP & SKIP( [→→ ] ) BUTTON	Goes to the next title/chapter/track.Tunes up the FM frequency band.
10 DISC TRAY	Opens to accept a disc.
11 USB HOST	A USB storage device can be connected here and used as storage when connected to BD-LIVE. It can also be used for fi rmware upgrades and MP3/JPEG playback.

- You must use the USB HOST on the rear panel of the Blu-ray Home Cinema to connect a wireless LAN Adapter.

2 4 8 5 6 7 9 1 10 P-4 VHCCS VIDEO OUT HOW OUT DIGITAL AUDIO IN Laser AUTEN IN COMPONENT OUT OPTICAL OPTICAL WIRELESS LAN SPEAKERS OUT 11 12

1	iPod JACK	Connect the iPod dock connector here.
2	FM 75Ω COAXIAL JACK	Connect the FM antenna.
3	TX CARD CONNECTION (WIRELESS)	The TX card enables communication between the main unit and the optional wireless receiver amplifi er.
4	AUX IN JACKS	Connect to the 2CH analogue output of an external device (such as a VCR)
5	VIDEO OUTPUT JACK	Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on this unit.
6	COMPONENT VIDEO OUTPUT JACKS	Connect a TV with Component video inputs to these jacks.
7	HDMI OUT JACK	Use the HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.
8	EXTERNAL DIGITAL OPTICAL INPUT JACKS (OPTICAL1, OPTICAL2)	Use this to connect external equipment capable of digital output.
9	LAN TERMINAL	Can be used for connection to BD-LIVE.It can be also used for fi rmware upgrades.
10	WIRELESS LAN JACK	A USB storage device can be connected here and used as storage when connected to BD-LIVE. It can also be used for fi rmware upgrades and MP3/JPEG playback, as well as for connecting to BD-Live with a wireless LAN adapter.
11	5.1 CHANNEL SPEAKER OUTPUT CONNECTORS	Connect the front, centre, surround, subwoofer speakers.

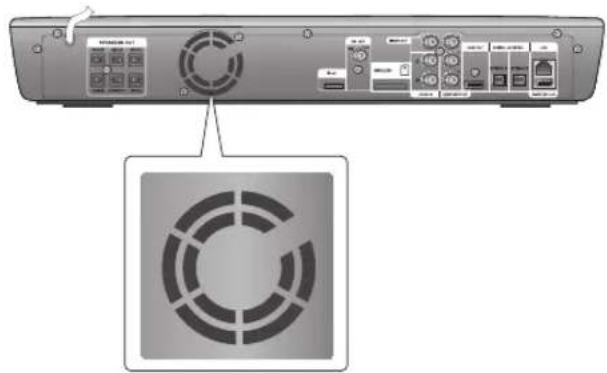

12	COOLING FAN	The fan always revolves when the power is on. Ensure a minimum of 10cm of clear space on all sides of the fan when installing the product.

■ Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.

TOUR OF THE REMOTE CONTROL

POWER DIMMER 21 22 30 BD TUNER TV SOURCE AUX TRUST DISPLAY 1 2 3 PTY- PTY SEARCH PTY+ 4 5 6 7 8 9 AUDIO 0 SUBTITLE 26 27 7 Slow PAGE MUTE VOL STEP TUNING JICH 28 29 10 MENU RETURN 30 11 ENTER 31 12 INFO EXIT A B C D 14 POTOM MENU TELE MENU DISC MENU ID SPECTRUM 32 15 TAXIS MEMORY PIP MODE EFFECTS 33 16 WATER SFE MODE DSP 34 17 REPEAT REPEAT ZOOM SLEEP 35 18 19 SAMSUNG 36 37 20

1	POWER button
2	BD RECEIVER button
3	TV button
4	Number (0~9) buttons

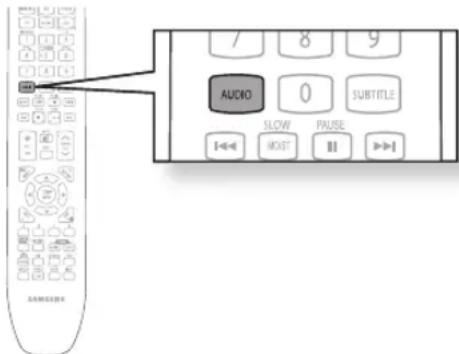

5	AUDIO button
6	SLOW, MO/ST button
7	Tuning Preset/CD Skip buttons
8	PLAY buttonSTOP buttonSEARCH buttons
9	VOLUME button
10	STEP button
11	MENU button

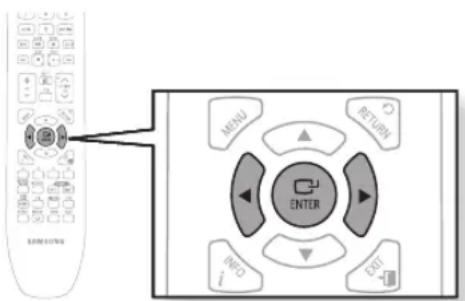

12	Cursor/ENTER button
13	INFO button
14	COLOUR Buttons : RED(A), GREEN (B), YELLOW(C), BLUE(D)
15	POPUP MENU, TITLE MENU button
16	TUNER MEMORY, MARKER button
17	REPEAT button
18	REPEAT A-B button

19	PIP button
20	DISC MENU button
21	OPEN/CLOSE button
22	DIMMER button
23	BD buttonTUNER buttonAUX button
24	SOURCE button
25	RDS Selection buttons
26	SUBTITLE button
27	PAUSE button
28	MUTE button
29	TUNING/CH button
30	RETURN button
31	EXIT button
32	PL II MODE button
33	PL II EFFECT button
34	DSP button
35	SLEEP button
36	SFE MODE button
37	ZOOM button

Installing batteries in the Remote Control

Line drawing of a mechanical device with a cylindrical component inserted, showing motion direction (no text or symbols)

1. Lift the cover at the back of the remote control upward as shown.

2. Install two AAA size batteries.

Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

Assuming typical TV usage, the batteries last for about one year.

SETTING THE REMOTE CONTROL

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

1. Press the TV button to set the remote to TV mode.
2. Press the POWER button to turn on the TV.
3. While holding down the POWER button, enter the code corresponding to your brand of TV.

- If there is more than one code listed for your TV in the able, enter one at a time to determine which code works.

Example : For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

1. If the TV turns off, the setting is complete.

- You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0\~9).

POWER DRINKER BD TUNER TV SOURCE AUX RESOPLAY TA 1 2 3 PTY. PTY.5MPOR PTY. 4 5 6 7 8 9 AUDIO 0 SUBTITLE

• The remote control may not work on some brands of TV's. Also, some operations may not be possible depending on your brand of TV.
  If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.

Operation Range of the Remote Control

The remote control can be used up to approximately 7 meters in a straight line. It can also be operated at a horizontal angle of up to 30^ from the remote control sensor.

Diagram showing a device with a test tube labeled 'Test' inserted into it, with an arrow pointing to it and a pointer labeled 'Input'.

TV Brand Code List

No.	Brand	Code	No.	Brand	Code
1	Admiral (M.Wards)	56, 57, 58	44	MTC	18
2	A Mark	01, 15	45	NEC	18, 19, 20, 40, 59, 60
3	Anam	01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14	46	Nikei	03
			47	Onking	03
4	AOC	01, 18, 40, 48	48	Onwa	03
5	Bell & Howell (M.Wards)	57, 58, 81	49	Panasonic	06, 07, 08, 09, 54, 66, 67, 73, 74
6	Brocsonic	59, 60	50	Penney	18
7	Candle	18	51	Philco	03, 15, 17, 18, 48, 54, 59, 62, 69, 90
8	Cetronic	03	52	Philips	15, 17, 18, 40, 48, 54, 62, 72
9	Citizen	03, 18, 25	53	Pioneer	63, 66, 80, 91
10	Cinema	97	54	Portland	15, 18, 59
11	Classic	03	55	Proton	40
12	Concerto	18	56	Quasar	06, 66, 67
13	Contec	46	57	Radio Shack	17, 48, 56, 60, 61, 75
14	Coronado	15	58	RCA/Proscan	18, 59, 67, 76, 77, 78, 92, 93, 94
15	Craig	03, 05, 61, 82, 83, 84	59	Realistic	03, 19
16	Croslex	62	60	Sampo	40
17	Crown	03	61	Samsung	00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 98
18	Curtis Mates	59, 61, 63
19	CXC	03	62	Sanyo	19, 61, 65
20	Daewoo	02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90	63	Scott	03, 40, 60, 61
			64	Sears	15, 18, 19
21	Daytron	40	65	Sharp	15, 57, 64
22	Dynasty	03	66	Signature 2000 (M.Wards)	57, 58
23	Emerson	03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85	67	Sony	50, 51, 52, 53, 55
24	Fisher	19, 65	68	Soundesign	03, 40
25	Funai	03	69	Spectricon	01
26	Futuretech	03	70	SSS	18
27	General Electric (GE)	06, 40, 56, 59, 66, 67, 68	71	Sylvania	18, 40, 48, 54, 59, 60, 62
28	Hall Mark	40	72	Symphonic	61, 95, 96
29	Hitachi	15, 18, 50, 59, 69	73	Tatung	06
30	Inkel	45	74	Techwood	18
31	JC Penny	56, 59, 67, 86	75	Teknika	03, 15, 18, 25
32	JVC	70	76	TMK	18, 40
33	KTV	59, 61, 87, 88	77	Toshiba	19, 57, 63, 71
34	KEC	03, 15, 40	78	Vidtech	18
35	KMC	15	79	Videch	59, 60, 69
36	LG (Goldstar)	01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44	80	Wards	15, 17, 18, 40, 48, 54, 60, 64
37	Luxman	18	81	Yamaha	18
38	LXI (Sears)	19, 54, 56, 59, 60, 62, 63, 65, 71	82	York	40
39	Magnavox	15, 17, 18, 48, 54, 59, 60, 62, 72, 89	83	Yupiteru	03
40	Marantz	40, 54	84	Zenith	58, 79
41	Matsui	54	85	Zonda	01
42	MGA	18, 40	86	Dongyang	03, 54
43	Mitsubishi/MGA	18, 40, 59, 60, 75

Connections

This section involves various methods of connecting the Blu-ray Home Cinema to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

CONNECTING THE SPEAKERS

2.5 to 3 times the size of the TV screen 45° 45°

Position of the Blu-ray Home Cinema

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.

Example: For 32" TV's 2\~2.4m

For 55" TV's 3.5\~4m

Front Speakers L R

Place these speakers in front of your listening position, facing inwards (about 45°) toward you.

Place the speakers so that their tweeters will be at the same height as your ear.

Align the front face of the front speakers with the front face of the centre speaker or place them slightly in front of the centre speakers.

Centre Speaker ©

It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.

Surround Speakers SL SR

Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Place them about 60 to 90cm above your ear, facing slightly downward.

★ Unlike the front and centre speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.

Subwoofer LFE

The position of the subwoofer is not so critical. Place it anywhere you like.

Connecting The Speakers

1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (−) and the red wire into the red (+) terminal, and then release the tab.
3. Connect the connecting plugs to the back of the Blu-ray Home Cinema by matching the colours of the speaker plugs to the speaker jacks.

(- ) (+) Black Red (- ) (+)

How to Install the Speaker on the Stand (HT-BD1252/HT-BD1255)

1. Turn the STAND upside-down and connect it to the STAND BASE.

2. Insert fi ve small SCREWS into the fi ve holes marked with arrows using a screwdriver as shown in the illustration.

3. Connect upper SPEAKER to the assembled STAND.

4. Insert another large SCREW into the hole on the rear of the speaker marked with arrow using a screwdriver.

1 STAND BASE STAND

Diagram of a mechanical assembly with a rotating component and internal components (no text or symbols)

3 SPEAKER STAND

4

HT-BD1250

HT-BD1252

HT-BD1255

Centre Speaker Front Speaker (R) Front Speaker (L) Subwoofer Speaker Rear Speaker (R) Rear Speaker (L)

• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• When connecting the speaker wires to the speakers, make sure that the polarity (+/−) is correct.
• Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker.
  Do not hang the subwoofer on the wall through the duct (hole).

If you place a speaker near your TV set, screen colour may be distorted because of the magnetic fi eld generated by the speaker. If this occurs, place the speaker away from your TV set.

CONNECTING THE OPTIONAL WIRELESS RECEIVING

To connect the rear speakers by wireless, you have to purchase the wireless receiving module and TX card from your Samsung retailer.

When you have Purchased the Wireless Receiving Module (SWA-4000)

This product (HT-BD1250/HT-BD1252/HT-BD1255) should be connected with the SWA-4000 only.

HT-BD1250

HT-BD1252

HT-BD1255

1. Connect the front, centre and Subwoofer speakers to the Blu-ray Home Cinema, referring to page 22.

2. With the Blu-ray Home Cinema turned off, insert the TX card into the TX Card Connection(WIRELESS) on the back of the main unit.

3. Hold the TX card so that the slanted side faces to the left and insert the card into the port.

4. The TX card enables communication between the main unit and the wireless receiver.

5. Connect the left and right rear speakers to the wireless receiving module.

6. Plug the power cord of the wireless receiving module in the wall outlet.
7. Turn on the Blu-ray Home Cinema The main unit and wireless module will now communicate with each other and you will hear sound from the rear speakers.

• Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the main unit, some sound interruption may be heard due to interference.
  If you use a device such as a microwave oven, wireless LAN Card or any other device that uses the same frequency (5.8GHz) near the system, some sound interruption may be heard due to interference.
• The transmission distance from the main unit to the wireless receiving module is about 10m, but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.
  If the main unit doesn't make wireless connection, the system needs ID Setting between main unit and wireless receiver module. With the main unit turned off, press the remote control's number button buttons "0"→"1"→"3"→"5" and the main unit will turn on. With the wireless receiver module turned on, press "ID SET" button on the back of the unit for 5 seconds.

- Do not insert any other card except the TX card dedicated to the product.

If a different TX card is used, the product may be damaged or the card may not be removed easily.

• Do not insert the TX card upside down or in the reverse direction.
• Insert the TX card when the Blu-ray Home Cinema is turned off. Inserting the card when it is turned on may cause a problem.
• If the TX Card is inserted and wireless receiving module setting is complete, sound is not output from the Rear Speaker connectors on the main unit.
• The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions.
  If no sound is heard from the wireless rear speakers, switch the mode to DVD 5.1 channel or Dolby ProLogic II.
  In 2-CH mode, no sound will be heard from the wireless rear speakers.

WIRELESS Slanted side face left TX card

CONNECTING THE VIDEO OUT TO YOUR TV

Choose one of the three methods for connecting to a TV.

VIDEO OUT HDMI OUT .ESS OP AUDIO II COMPONENT OUT METHOD3 (supplied) METHOD2 METHOD1 VIDEO IN COMPONENT IN HDMI IN TV

METHOD 1 : HDMI (BEST)

Connect the HDMI cable from the HDMI OUT (not supplied) jack on the back of the Blu-ray Home Cinema to the HDMI IN jack on your TV.

■ Certain HDMI output resolutions may not work, depending on your TV.
If an HDMI cable is connected from the player to a TV, the Blu-ray Home Cinema's output is set to HDMI automatically within 10 seconds.
If you are using the Anynet + feature (see page 46) and Component and HDMI are both connected, HDMI mode is automatically selected.
- When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI output resolution will automatically be set to the highest provided by the TV.
If you connect a Samsung TV to the Blu-ray Home Cinema using an HDMI cable, the player can be easily operated using the TV remote control. (This is only available with Samsung TV's that support the Anynet+ feature.) (See page 46)
If the HDMI cable is connected or removed during playback of a CD-DA, MP3 or JPEG file, the player will stop playing.
■ After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your Blu-ray Home Cinema. See your TV owner's manual for more information on how to select the TV's Video Input source.
If you have set the remote control to operate your TV, press the SOURCE button on the remote control and select HDMI as the external source of the TV.

HDMI Auto Detection Function

The player's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on. For possible HDMI resolutions, see page 44.

• HDMI (High Definition Multimedia Interface)

HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.

Using HDMI, the Blu-ray Home Cinema transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

• HDMI connection description

HDMI connector - Supports video and digital audio data.

• HDMI outputs only a pure digital signal to the TV.
• If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

• Why does Samsung use HDMI?

Analogue TV's require an analogue video/audio signal. However, when playing a BD/DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analogue converter (in the Blu-ray Home Cinema) or an analogue-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.

• What is the HDCP?

HDCP (High-band width Digital Content Protection) is a system for protecting BD/DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD, etc) and a display device (TV, projector, etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

• What is Anynet+?

Anynet+ is a convenient function that offers linked operation of this unit through Samsung TV's with the Anynet+ feature.

• If your Samsung TV has an A logo, then it supports the Anynet+ function.
• If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode.
• If you turn on the player and press the PLAYbutton with a disc already inserted, the TV will immediately turn on and switch to HDMI mode.

• What is BD Wise?

BD Wise is Samsung's latest inter-connectivity feature.

- When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

METHOD 2 : Component Video (BETTER)

If your television is equipped with Component Video inputs, connect a Component video cable (not supplied) from the Component Video Output (Pr, Pb and Y) Jacks on the back of the Blu-ray Home Cinema to the Component Video Input Jacks on your TV.

• You can select from a variety of resolution settings such as 1080i, 720p, 576p(480p) and 576i(480i), depending on the disc type. (See page 44)
  The actual resolution may differ from the setting in the SETUP menu if both Component and HDMI cables are connected. The resolution may also be different depending on the disc. (See page 44)
  ■ After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your Blu-ray Home Cinema. See your TV owner's manual for more information on how to select the TV's Video Input source.
  If you have set the remote control to operate your TV, press the SOURCE button on the remote control and select COMPONENT as the external source of the TV.
  In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or 720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu. The resolution is actually 576i(480i).

METHOD 3 : Composite Video (GOOD)

Connect the supplied Video cable from the VIDEO OUT jack on the back of the Blu-ray Home Cinema to the VIDEO IN jack on your TV.

The VIDEO source is always output in 576i(480i) resolution regardless of the resolution set in the SETUP menu. (See page 44)
■ After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your Blu-ray Home Cinema. See your TV owner's manual for more information on how to select the TV's Video Input source.
If you have set the remote control to operate your TV, press the SOURCE button on the remote control and select VIDEO as the external source of the TV.
- Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

CONNECTING AN iPod

You can enjoy music, video files from an iPod through the main unit. For iPod operation with this Blu-ray Home Cinema, see pages 27 and 80 \~ 82.

iPod (supplied) Made for iPod Works with iPhone

1. Connect the iPod Dock to the iPod Jack on the rear side of the main unit.

2. Place the iPod in the dock.

- "iPod Connected" message appears on the TV screen.

- You must have the VIDEO output connected to your TV to view iPod video (See page 25).

As the cable ports are close together, be sure to remove the USB memory drive before disconnecting the ipod docking cable.

- Adjust the volume to a moderate level before you connect your iPod and Blu-ray Home Cinema.

- When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.

■ Make sure to connect the dock connector so that the label "SAMSUNG" faces upward.

- “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

iPod models that can be used with the HT-BD1250/HT-BD1252/HT-BD1255

[TK0Y]	iPod nano 3rd generation (video)4GB 8GB		iPod 5th generation (video) 30GB 60GB 80GB		iPod classic80GB 120GB 160GB
	iPod touch1st generation4GB 16GB 32GB		iPod nano4th generation(video)8GB 16GB		iPhone 3G8GB 16GB
	iPod touch2nd generation8GB 16GB 32GB		iPhone4GB 8GB 16GB

■ "Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
- "Works with iPhone" means that an electronic accessory has been designed to connect specifically to an iPhone and has been certified by the developer to meet Apple performance standards.
- Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

CONNECTING AUDIO FROM EXTERNAL COMPONENTS

OPTICAL: Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

1. Connect the Digital Input (OPTICAL 1 or OPTICAL 2) on the main unit to the Digital Output of the external digital component.
2. Press the FUNCTION button on the main unit to select D.IN input.

- The mode switches as follows: BD/DVD → D.IN 1 → D.IN 2 → AUX → FM.

VIDEO OUT HDMI OUT DIGITAL AUDIO IN LAN AUDIO IN COMPONENT OUT OPTICAL 1 OPTICAL 2 WIRELESS LAN Optical Cable (not supplied) DIGITAL OUT

- To see video from your Cable Box/Satellite receiver, you must connect it's video output to a TV.

This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.
This system supports only DTS and Dolby digital audio, MPEG audio which is bitstream cannot be supported.

AUX : Connecting an External Analogue Component

Analogue signal components such as a VCR.

1. Connect AUX IN (Audio) on the main unit to the Audio Out of the external analogue component.

- Be sure to match connector colours.

1. Press the AUX button on the remote control to select AUX input.

- You can also use the FUNCTION button on the main unit.

The mode switches as follows : BD/DVD → D.IN 1 → D.IN 2 → AUX → FM.

VIDEO OUT HOME OUT DIGITAL AUDIO IN LAN OPTICAL 1 OPTICAL 2 WIRELESS LAN VDD IN COMPONENT OUT Audio Cable (not supplied) If the external analogue component has only one Audio Out, connect either left or right. AUDIO OUT L R

- You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.

CONNECTING TO THE NETWORK

To access network service or upgrade the current firmware, you must make one of the following connections. By connecting to a network, you can access the BD-LIVE service and software upgrades from Samsung's update server.

Case 1 : Connecting a Direct LAN Cable to your Modem

1. Using the Direct LAN Cable (UTP cable, not supplied), connect the LAN terminal of the Blu-ray Home Cinema to the LAN terminal of your modem.

• To use the PC streaming function (see pages 83\~84), please make a network between your PC and router.
• Internet access to Samsung's update server may not be allowed, depending on the router you use or the ISP's policy.
  For more information, contact your ISP (Internet Service Provider).
• For DSL users, please use a router to make a network connection.

Case 2 : Connecting to a Wireless IP sharer

You can connect to network with a Wireless IP sharer. See page 52 for Wireless Network Setup.

Modem Port Modem Cable Wireless IP sharer Wireless LAN Adapter (not supplied)

This unit is compatible with only Samsung Wireless LAN Adapter. (not supplied) (Model name: WIS09ABGN).

- The Samsung Wireless LAN Adapter is sold separately.

- Contact a Samsung Electronics agent or service center for purchasing.

• You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the wireless network.)
• Wireless LAN, in its nature, may cause interference, depending on the use condition (AP performance, distance, obstacle, interference by other radio devices, etc).
• Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
• When applying the security key for the AP (wireless IP sharer), only the following is supported.

1) Authentication Mode : WEP, WPAPSK, WPA2PSK

2) Encryption Type : WEP, TKIP, AES

CONNECTING THE FM ANTENNA

1. Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

FM Antenna (supplied) FM ANT FM 75 Ω

This unit does not receive AM broadcasts.

Cooling Fan

The cooling fan supplies cool air to the unit to prevent overheating. Please observe the following cautions for your safety.

• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fi re may result.)

Diagram of a computer monitor rear panel with labeled ports and a circular fan base, showing internal components and control buttons.

Basic functions of your Blu-ray Home Cinema

This section introduces basic playback functions and playback by disc type.

BEFORE PLAYING

• Turn on your TV and set it to the correct Video Input (the input the Blu-ray Home Cinema is connected to).
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the first time you press the POWER button, this screen comes up:

If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the STOP (■) button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the MENU LANGUAGE SELECTION window appears again where you can reset your preferred language.

MENU LANGUAGE SELECTION Press 1 for English Pulsar 2 para Español Touche 3 pour Français Drücken Sie 4 für Deutsch Premere 5 per Italiano Druk op 6 voor Nederlands Macrovision : BBS42

- Discs which can be played on this player (For the following discs, the ability to play back may depend on recording conditions.)

• BD-ROM
• BD-RE
• BD-R
• DVD-R • DVD-RW (V mode) • CD-RW/CD-R
• The unit may not play certain CD-RW/CD-R and DVD-R due to the disc type or recording conditions.

■ Discs which cannot be played on this player.

• HD DVD
• DVD+RW
• DVD+R
• DVD-ROM
• DVD-RAM
• CDV
• CD-ROM
• CVD
• CD-I
• Super Audio CD(except CD layer) - CDGs play audio only, not graphics.

■ Blu-ray is a new and evolving format. Accordingly, disc compatibility issues with new and existing format discs are possible. Not all discs are compatible and not every disc will playback.

For additional information, refer to the Disc Type and Characteristics and Compliance and Compatibility Notice sections of this Manual. If you encounter compatibility problems, please contact SAMSUNG customer care center

Basic functions of your Blu-ray Home Cinema

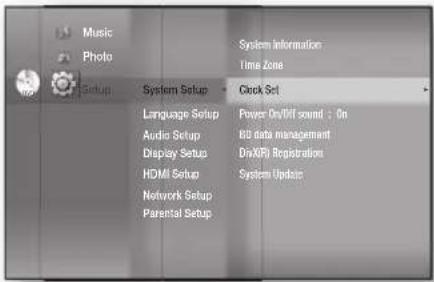

ON-SCREEN MENU NAVIGATION


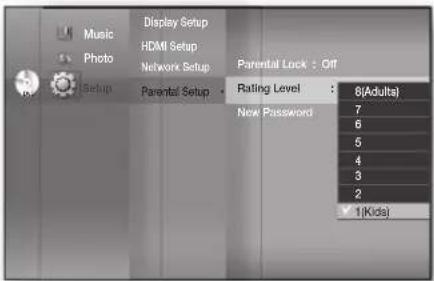

    A --> H["Parental Setup"]

    B --> I["System Information"]
    B --> J["Time Zone"]
    B --> K["Clock Set"]

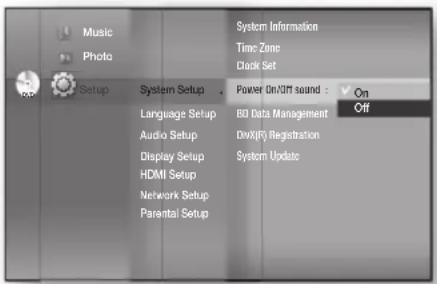

    B --> L["Power On/Off sound"]
    B --> M["BD Data Management"]
    B --> N["DivX(R) Registration"]

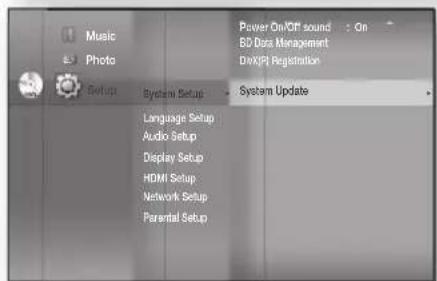

    B --> O["System Update"]

    C --> P["Audio"]
    C --> Q["Subtitle"]
    C --> R["Disc Menu"]
    C --> S["Menu"]

    D --> T["TV Aspect"]
    D --> U["Movie Frame (24 Fs)"]
    D --> V["Resolution"]
    D --> W["Progressive Mode"]
    D --> X["Still Mode"]
    D --> Y["Screen Message"]

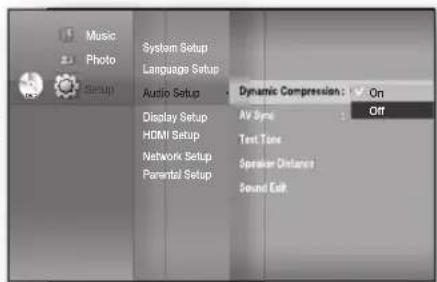

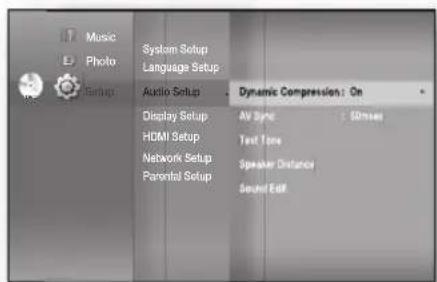

    E --> Z["Dynamic Compression"]
    E --> AA["AV Sync"]

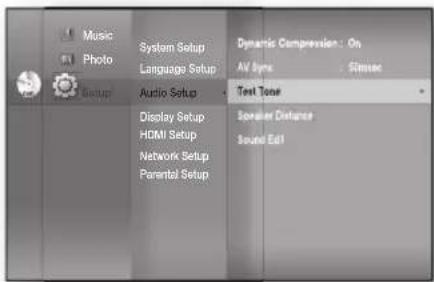

    E --> AB["Test Tone"]
    E --> AC["Speaker Distance"]
    E --> AD["Sound Edit"]

    F --> AE["Anynet + (HDMI-CEC)"]
    F --> AF["HDMI Format"]
    F --> AG["BD Wise"]
    F --> AH["Picture Mode"]
    F --> AI["HDMI Audio"]

    G --> AJ["Network Selection"]

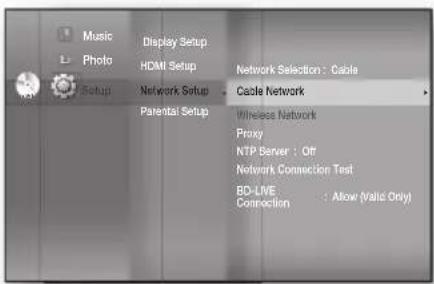

    G --> AK["Cable Network"]

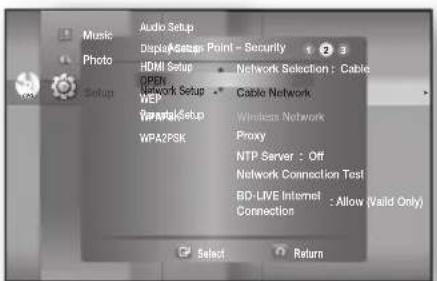

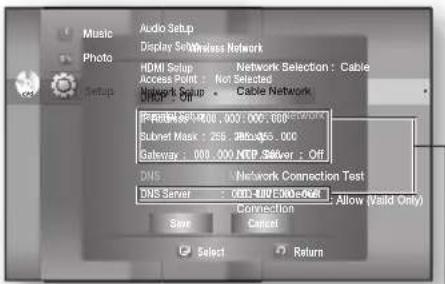

    G --> AL["Wireless Network"]
    G --> AM["Proxy"]
    G --> AN["NTP Server"]

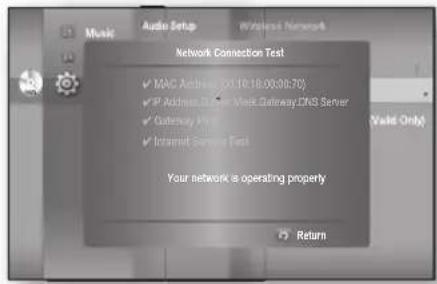

    G --> AO["Network Connection Test"]
    G --> AP["BD-LIVE Internet Connection"]

    H --> AQ["Parental Lock"]
    H --> AR["Rating Level"]

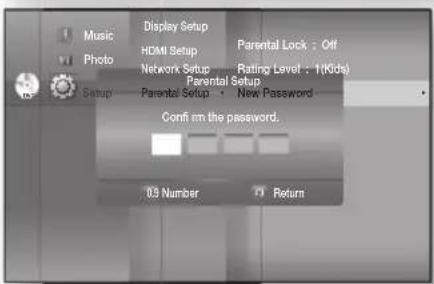

    H --> AS["New Password"]

PLAYING A DISC

1. Press the OPEN/CLOSE button.
2. Place a disc gently into the tray with the disc's label facing up.
3. Press the PLAY button or OPEN/CLOSE button to close the disc tray.

- When you stop disc play, the player remembers where you stopped, so when you press PLAY button again, it will pick up where you left off. This is called the "Resume" function. With some Blu-ray discs(BD-J), this function may not work.

• Press the STOP button twice during playback to disable the Resume function.
• To pause the playback, press the PAUSE button during playback. To resume, press the PLAY button.
  If the player is left in the stop mode more than 5 minutes without any user interface, a screen saver will appear on your TV. If the player is left in the screen saver mode for more than 30 minutes, the power will automatically turn off except during playback of an CD-DA (Automatic Power-Off Function).
  If no buttons are pressed on the unit or remote control for more than 5 minutes when the unit is in Pause mode, operation will stop (except for some Blu-ray Discs).

Setting the Power On / Off Melody Sound

A Melody sound can be set so it is heard each time you turn the player on or off.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select System Setup, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Power On/Off sound, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select On or Off, then press the ENTER or ▶ button.
6. Press the MENU button to exit the setup menu.

Music Photo System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup System Information Time Zone Clock Set Power On/OFF sound : BD Data Management DWX(F) Registration System Update Off

USING THE SEARCH AND SKIP FUNCTIONS

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

During playback, press the SEARCH (◀◀) button.

Each time you press the SEARCH button, the playback speed will change as follows.

BD-ROM, BD-RE, BD-R, DVD-VIDEO, DVD-RW, DVD-R

X 2 X 4 X 8 X 16 X 32 X 128 X 2 X 4 X 8 X 16 X 32 X 128

• You can scan the program in reverse.
• To return to normal speed playback, press the PLAY button.

■ No sound is heard during search mode.

Skipping Tracks

During playback, press the SKIP (◀) button.

When playing a Blu-ray Disc/DVD, if you press the SKIP (▶) button, it moves to the next chapter. If you press the SKIP (◀) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.

Basic functions of your Blu-ray Home Cinema

In pause or step mode, press the SLOW button on the remote control for Slow Motion play.

• If you press the SLOW button, 1/8 1/4 1/2
• To return to normal speed playback, press the PLAY button.

SLOW PULSE STOP PLAY

This (icon indicates an invalid button press.
■ No sound is heard during slow mode.
■ Slow motion operates only in the forward direction.

Step Motion Play

Press the STEP button on the remote control during play for Step Motion play.

• Each time the button is pressed a new frame will appear.
- When the STEP button is pressed, the next frame will be activated.
- Press the PLAY button to resume normal play.

Diagram showing a remote control with labeled buttons including VOL, STEP, and TURNING, alongside a separate navigation panel.

■ No sound is heard during step mode.
■ Step motion operates only in the forward direction.

Choose your time zone

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select System Setup, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Time Zone, then press the ENTER or ▶ button.
5. Use the ◀▶ button to place the cursor to the appropriate time zone for your area and press the ENTER button.

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup System Information Time Zone Clock Set Power Dev/Off sound : In BD data management DirX(R) Registration System Update

Music Photo Setup Time Zone System Information Sy - In Setup TI Language Setup Audio Setup Diver On/Dist sound : On Display Setup Ranch Key Setup HDMI Setup BD Data Management Network Setup System Update Parental Setup, Lisbon Save Return

■ To set the time automatically, set the NTP server to On (see page 57).

Set the clock

To setup, follow steps 1 through 3 above.

1. Press the ▲▼ buttons to select Clock Set, then press the ENTER or ▶ button.

Music Photo System Setup Clock Set Language Setup Power On/Off sound : On Audio Setup BD data management Display Setup DnX(R) Registration HDMI Setup System Update Network Setup Parental Setup

1. Press the ◀▶ buttons to move to "da."(date), "hr" (hour), "min" (minute) and "am/pm". Set the date and time by pressing the ▲▼ buttons, then press the ENTER button.

Music Photo Clock Set System Setup on, hr Language Setup A# JANW10209 Display Setup HDMI Setup Network Setup Save Parental Setup Clock Set min. Power Day/Off sound : in Touch Key Sound : On BD Data Management System Updates Return

Language setup

SETTING UP THE LANGUAGE OPTIONS

Once you set the audio, subtitle, disc menu and player menu language options, they will be applied automatically every time you watch a movie.

If you want to choose a different audio and subtitle language while playing a disc, you can also use the disc menu to make the selection.

1. With the unit in Stop mode, press the MENU button.

2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.

3. Press the ▲▼ buttons to select Language Setup, then press the ENTER or ▶ button. Language setup menu will be displayed.

4. Press the ▲▼ buttons to select the desired language option, press the ENTER or▶ button.

• Audio : For the disc audio language.
- Subtitle : For the disc subtitles.
• Disc Menu : For the disc menu contained on the disc
- Menu : For the on-screen menu of your Blu-ray Home Cinema.

Music Photo System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup

Music Photo System Setup Settings Language Setup * Audio : Original * Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Subtitle : Auto Disc Menu : English Menu : Auto

Music Photo System Setup Sirtus Language Setup + Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Audio Subtitle Olc Menu Menu Original English Français Deutsch españo Italiano

1. Press the ▲▼ buttons to select the desired language, then press the ENTER button.

- Press the RETURN or ◀ button to return to the previous menu. Press the MENU button to exit the menu.

■ The selected language will only appear if it is supported on the disc.

SETTING UP THE SPEAKER OPTIONS

Dynamic Compression

This is only active when a Dolby Digital signal is detected.

• On: When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.
• Off: You can enjoy the movie with the standard Dynamic Range.

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Dynamic Compression : On Air Sync Text Tone Speaker Distance Sound Exit Off

AV Sync

Video may look slower than the audio when the player is connected to a digital TV. If this occurs, adjust the audio delay time to match the video.

- You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Dynamic Compression : On AV Sync Text Tone Speaker Distance Sound Edit 0msec 25msec 50msec 75msec 100msec 125msec

Setting the Test Tone

Use the Test Tone feature to check the speaker connections.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Audio Setup, then press the ENTER or ▶ button.

• Audio setup menu will be displayed.

Music Photo Setup System Setup Language Setup Audio Setup Dynamic Compression: On Display Setup HDMI Setup Network Setup Parental Setup AV Sync Text Tone Speaker Distance Sound Edit

1. Press the ▲▼ buttons to select Test Tone, then press the ENTER or ▶ button.
2. Press the RED(A) button

- A test tone will be sent to L→C→R→SR→SL→LFE in order so you can make sure the speakers are set up correctly.

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Dynamic Compression: On AV Bytes Text Tone Speaker Defiance Sound Edit

1. To end the test tone, press the RED (A) button again.

• Press the RETURN button to return to the previous menu.
• When playing a BD/DVD or CD, this will work only in Stop mode.
  ■ Use this function to check that each speaker is correctly connected and that there is no problem.
• When HDMI AUDIO is on (audio is produced through TV speakers), the TEST TONE function is not available.

Music Test Tone Front : Present Subwoofer : Present Center : Present Surround : Present A Start Return

SETTING UP THE SPEAKER OPTIONS

Setting the Speaker Distance

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the front, subwoofer, centre, surround speakers.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.

3. Press the ▲▼ buttons to select Audio Setup, then press the ENTER or▶ button.
   • Audio setup menu will be displayed.

4. Press the ▲▼ buttons to select Speaker Distance, then press the ENTER or▶ button.

5. Press the ▲▼ buttons to select the desired Speaker, then press the ◀▶ buttons to set the Speaker Distance.

- You can set the Speaker Distance between 0.3m and 9m.

1. When done, use the ▲▼◀▶ buttons to select Save, then press the ENTER button. If you don't want to save your settings, use the ▲▼◀▶ buttons to select Cancel, then press the ENTER button.

Music Photo System Setup Language Setup Audio Setup Dynamic Compression: On Display Setup HDMI Setup Network Setup Parental Setup All Bytes : 500mm Text Tape Speaker Distance Sound Edit

Dynamic Compression : On AV Sync : 50msac Test Tone Audio Setup Speaker Distance Display Setup Sound Edit HDMI Setup Network Setup Parental Setup

Dynamic Compression : On Music AV Sync : 50msec Speaker Distance Front 10ft (3.0m) Subwoofer 10ft (3.0m) Center 10ft (3.0m) Surround 10ft (3.0m) Save Cancel RETURNADJUSTMOVE

■ Press the RETURN button to return to the previous menu.

Setting the Sound Edit

You can adjust the balance and level for each speaker.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Audio Setup, then press the ENTER or▶ button.
   • Audio setup menu will be displayed.

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Dynamic Compression: On AV fps: 50ms Text Tape Speaker Distance Sound Edit

Setting the Sound Edit

1. Press the ▲▼ buttons to select Sound Edit, then press the ENTER or ▶ button.
2. Press the ▲▼ buttons to select the desired Speaker, then press the ◀▶ button to adjust the settings.
3. When done, use the ▲▼◀▶ buttons to select Save, then press the ENTER button. If you don't want to save your settings, use the ▲▼◀▶ buttons to select Cancel, then press the ENTER button.

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup AV Sync : 50msac Text Tone Speaker Distance Sound Edit

- Press the RETURN butt on to return to the previous menu.

Adjusting Front/Surround Speaker Balance

• You can select between 0, -6, and OFF.
• The volume decreases as you move closer to -6.

Adjusting Centre/Surround/Subwoofer Speaker Level

• The volume level can be adjusted in steps from +6dB to 6dB.
• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Music AV Sync 50ms Speaker Edit Front Balance 0 dB L 0 dB Surround Balance 0 dB L 0 dB Center Level 0 dB Surround Level 0 dB Subserver Level 0 dB Save Cancel RETURNADJUSTMOVE

DSP(Smart Sound) Function

This will regulate and stabilize the volume level against a drastic volume change when changing channels or during a scene transition.

Press the DSP button.

• Each time the button is pressed, the selection changes as follows:

S.SOUND ON → S.SOUND OFF

Diagram showing a remote control with labeled buttons including MARKET, REPEAT, A-B, ZOOM, and Sleep, alongside a zoomed-in view of the main device.

Display setup

SETTING UP THE DISPLAY OPTIONS

This function allows you to setup the TV screen settings. This function depends on the disc or TV type. It may not work with some discs or TV's.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Display Setup, then press the ENTER or ▶ button.
   Video setup menu will be displayed.
4. Press the ▲▼ buttons to select the desired display option from the options on the following pages.
5. Press the ▲▼ buttons to select the desired sub-menu item from a video display option, then press the ENTER button.
6. Each video option is described in detail below.

- Press the RETURN or ◀ button to return to the previous menu. Press the MENU button to exit the menu.

Music Photo System Setup Language Setup Audio Setup Setup - Display Setup - HDMI Setup Network Setup Parental Setup

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup TV Aspect : 16:9 Normal Movie Frame (3x4 Fc) : Off Resolution : 100Kp Progressive Mode : Auto- 50F Mode : Auto- Screen Message : On

TV Aspect

You may want to adjust the screen setting, depending on the type of television you have. (aspect ratio)

Illustration of three figures in a meeting or discussion setting, with no visible text or symbols.

• 4:3 Letter Box :
Select when you want to see the total 16:9 ratio screen a Blu-ray Disc/DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 4:3 Pan-Scan :
Select when you want to see the 16:9 video supplied by the Blu-ray Disc/DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).

Music Photo System Setup Language Setup Audio Setup Setup Display Setup HDMI Setup Network Setup Parental Setup TV Aspect Movie Frame (34 fps) Resolution Progressive Mode 500 Mode Screen Message 4:3 Letter Box 4:3 Pan-Scan 16:9 Wide 16:9 Normal Auto

Illustration of two people in a meeting, one holding a glass over a table (no text or symbols visible)

• 16:9 Wide :

You can view the full 16:9 picture on your widescreen TV.

Illustration of two people in a meeting or consultation setting (no text or symbols visible)

• 16:9 Normal :

Certain movies(4:3 source) will be displayed in 4:3 Pillarbox (black bars on sides of picture) if 16:9 normal is selected.

■ Some aspect ratios may not be available, depending on the disc type.
If you select an aspect ratio which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted.

Movie Frame (24 Fs)

Movies are usually fi lmed at 24 frames per second. Some Blu-ray Discs have the capability of playing back at this frame rate. Setting the Movie Frame (24Fs) feature to ON allows you to adjust the Blu-ray Home Cinema's HDMI output to 24 frames per second for improved picture quality.

You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate.

This menu can only be selected in 1080i or 1080p HDMI output resolution modes.

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup TV Aspect : 14.1 Normal Movie Frame (24 fps) : On Revolution : Off Progressive Mode : Auto SUI Mode : Auto Screen Message : Or

Two types of frame rates may be included, depending on the disc: Movie material (24 frame) and Video material (30 frame). When the setting switches between Movie (24 frame) and Video (30 frame), the screen may blink for a few seconds.

Resolution

Sets the output resolution of the HDMI and Component video signal.

• The number in 576i/480i, 576p/480p, 720p, 1080p and 1080i indicates the number of lines of video. The i and p indicate interlace and progressive scan, respectively.
• BD Wise : Automatically sets the optimal resolution when connected via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.)

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup TV Aspect 16.9 Normal Movie Frame (54 fps) Off Resolution 1080p Progressive Mode 1080p Intel Mode 720p Screen Message 578p/480p 578v/480p

- 1080p : Outputs 1080 lines of progressive video (HDMI only).

- 1080i : Outputs 1080 lines of interlaced video.

- 720p : Outputs 720 lines of progressive video.

- 576p/480p : Outputs 576(480) lines of progressive video.

- 576i/480i : Outputs 480 lines of interlaced video (Component only).

If the connected TV does not support Movie Frame or the selected resolution, you will see the following message:

If you select Yes and the resolution is not supported, the TV's screen will be blank. Please wait for 15 seconds and the resolution will revert to the previous value automatically.

Music Photo Setup System Setup Language Setup Audio Setup if no pictures are shown after the selection. Displays Europe for 15 seconds. And then the installation will be available HDMI Setup to the product value automatically Network Setup Would you like to make a selection? Parental Setup Yes No.

If the screen is blank, press and hold the STOP (■) button on the front of the player for more than 5 seconds (no disc inserted). All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support.
- When the factory default settings are restored, all the user data stored in the BD data will be deleted.

SETTING UP THE VIDEO DISPLAY/OUTPUT OPTIONS

Resolution according to the output mode

• Blu-ray Disc playback

Setup\Output	HDMI	Component(HDMI&Comp. connected / Comp. connected only)	VIDEO
1080p, Movie Frame(24Fs) off	1080p@60F	1080i 576i(480i)
1080p/1080i, Movie Frame (24Fs) on	1080p@24F	576i(480i) / 1080i 576i(480i)
1080i, Movie Frame (24Fs) off	1080i 1080i	576i(480i)
720p 720p 720p	576i(480i)
576p(480p) 576p(480p)	576p(480p)	576i(480i)
576i(480i) 576p(480p)	576i(480i)	576i(480i)

• DVD playback

Setup\Output	HDMI	Component(HDMI&Comp. connected / Comp. connected only)	VIDEO
1080p 1080p@60F	576i(480i) / 576p(480p) 576i(480i)
1080i	1080i	576i(480i) / 576p(480p) 576i(480i)
720p 720p	576i(480i) / 576p(480p) 576i(480i)
576p(480p) 576p(480p)	576i(480i) / 576p(480p) 576i(480i)
576i(480i) 576p(480p) 576i(480i) 576i(480i)

In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or 720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu. The resolution is actually 576i(480i).

This player has the HDMI Auto Detect Feature. When the player is first connected to a TV via HDMI, the player's output will be set automatically to HDMI.
- If the HDMI Auto Detection feature does not work, you can't select the 1080p resolution or Movie Frame (24Fs).
- The Blu-ray Disc must have the 24 frame feature in order to use the Movie Frame (24Fs) mode.

Progressive Mode

The Progressive Mode helps to improve picture quality when viewing 576i(480i) resolution DVD discs.

• Auto : Select this to have the player automatically set the best picture for the DVD you're watching.
  • Video : Select this for the best picture from Concert or TV show DVDs.

Music Photo System Setup Language Setup Audio Setup TV Aspect : 16:9 Normal Movie Frame (24 Pa) : Off Resolution : 1380p Setup Display Setup HDMI Setup Network Setup Parental Setup Progressive Mode : P Auto Still Mode : A Video Screen Massage : Oni

Frame & Field bar

Still Mode

Set the Auto, Field or Frame setting for the best possible still picture (pause mode) from a DVD.

• Auto: Select this setting to have the player automatically display the best Still picture depending on the content.
• Field Mode: Select this when pausing a scene with a lot of action.
• Frame Mode: Select this to increase the resolution of the Still picture.

Music Photo System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Movie Frame (24 Fs) : Off Resolution : 1086p Progressive Mode : Auto Still Mode : Screen Message : Auto Field Frame

Screen Message

• On : Displays messages related to operation mode.
• Off: Does not display messages related to operation mode.

Music Photo System Setup Language Setup Audio Setup Resolution : 1080p Progressive Mode : Auto Still Mode : Auto Display Setup HDMI Setup Network Setup Parental Setup Screen Message : On Off

Setting up the hdMi Setup optionS

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select HDMI Setup, then press the ENTER or ▶ button.

HDMI setup menu will be displayed.

1. Press the ▲▼ buttons to select the desired display option, then press the ENTER or▶ button.

Music Photo Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup

- Press the RETURN or ◀ button to return to the previous menu. Press the MENU button to exit the menu.

Anynet+ (HDMI-CEC)

Samsung products only

What is Anynet+?

Anynet+ is a convenient function that offers linked operations with other Samsung products with the Anynet+ feature.

You can operate this unit using a Samsung TV remote control or power on your Samsung TV and Home cinema and start disc playback simply by pressing the PLAY button on the TV's remote.

This function is not available if the HDMI cable does not support CEC.

To use Anynet+

1. Connect the Blu-ray Home Cinema to a Samsung TV with an HDMI cable. (See pages 24\~25)
2. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)

Anynet+ Functions

• One touch play
  You can power on your Samsung TV and Home Cinema, and play the disc in this unit simply by pressing the PLAY button on the TV's remote.
• One touch watching
  Select "Watching Blu-ray Home Theater" or "Connected to Blu-ray Home Theater" (depending on your TV's menu) in the Anynet+ menu on the TV. The Blu-ray Home Cinema will automatically turn on and the TV will be switched to HDMI mode.

• Remote control Link
  You can operate this player with your Samsung TV remote control.
  • Available buttons on the Samsung TV remote: These buttons work the same as this Blu-ray Home Cinema's remote control.

• Playback control buttons :

• Menu operation button :
• Numeric buttons : 0\~9
• Colour buttons : A B C D

TV Anynet+ Menu

When you press the Anynet+ button on your Samsung TV's remote control, the following On-Screen Display (OSD) will be shown.

- Blu-ray Home Cinema Menu

• When playing a movie : brings up the disc's menu (same as DISC MENU button on the Blu-ray Home Cinema's remote control)
• In Stop mode : brings up the SETUP menu (same as the MENU button on the Blu-ray Home Cinema's remote control.)

THEATER Voice TV Select Device Record Menu on Device Device Operation Receiver : On Setup Move Enter Exit

• Blu-ray Home Cinema Operation Menu

- When playing a DVD VIDEO, DVD-RW/-R, BD-ROM, BD-RE : shows INFO OSD (same as INFO button on the player's remote control)

■ These menus may look different depending on your Samsung TV.

HDMI Format

You can optimize the HDMI output for connection to a TV or Monitor.

• TV : Select if connected to a TV via HDMI.
- Monitor : Select if connected to a Monitor via HDMI. If the player is connected to a TV, the Monitor option is unavailable.

Music Photo Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Anyest: HDMI-CEO : On HDMI Format : TV BD Wise : Picture Mode : Dynamic HDMI Audio : Off Monitor

■ TV or monitor has to be connected to the player before you select this option.

BD Wise

Samsung products only

BD Wise is Samsung's latest inter-connectivity feature. When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

• On : The original resolution of the BD/DVD disc will be output to the TV direct.
• Off: The output resolution will be fixed according to the Resolution previously set, regardless of the resolution of the disc.

Music Photo Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Analog : HDMI GEO : On H DMI Format : TV BD Wise : On Picture Mode : Off HDMI Audio : Off

If you want to change the resolution when you set BD Wise on, you must set BD Wise to Off in advance.
If you set BD Wise to off, the resolution of the connected TV will be automatically adjusted to its maximum resolution.
If the player is connected to a device that does not support BD Wise, you can not use the BD wise function.
- For a proper operation of BD Wise, set BD Wise to ON in the menus of the player and the TV.

SETTING UP THE HDMI SETUP OPTIONS

Picture Mode

This function enables you to adjust video quality when you are connected to a TV via HDMI.

• Dynamic : Choose this setting to increase Sharpness.
- Normal : Choose this setting for most viewing applications.
- Movie: This is the best setting for watching movies.

Music Photo Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Anymf + HDMI-EDC : On HDMI Format : TV BD Wise : On Picture Mode : Dynamic HDMI Audio : Normal Movie

HDMI Audio

The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.

- On: Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only.

- Off: Video is transmitted over the HDMI connection cable only, and audio is output through the Blu-ray Home Cinema speakers only.

Music Photo Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup HDMI Format : TV GO Wash : On Picture Music : Dynamic HDMI Audio : Off On Off

The default setting of this function is HDMI Audio Off. HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.

SETTING UP THE PARENTAL LOCK

The Parental Lock function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating which helps you control the types of Blu-ray Disc/DVDs that your family watches. There are up to 8 rating levels on a disc.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Parental Setup, then press the ENTER or ▶ button.

When you operate your Blu-ray Home Cinema for the first time, the "Enter New password." message will be displayed.

Music Photo Display Setup HDMI Setup Network Setup Setup Parental Setup

Music Photo Display Setup HDMI Setup Network Setup Parental Setup Parental Setup Enter New password. 0.9 Number Return

1. Enter the 4-digit password using the number buttons on the remote control.

The "Confir rm the password." message will be displayed. Enter your password again.

Music Photo Display Setup HDMI Setup Network Setup Parental Setup Parental Setup Confl m the password. 0.3 Number Return

1. Press the ENTER or ▶ button to select Parental Lock.
2. Press the ▲▼ buttons to select On or Off, then press the ENTER button.

Music Photo Display Setup HDMI Setup Network Setup Parental Setup • Parental Lock : Off Rating Level : 1(Kds) New Password

- Press the RETURN or ◀ button to return to the previous menu. Press the MENU button to exit the menu.

SETTING UP THE PARENTAL LOCK

If you forgot your password

1. Remove the disc.
2. Press and hold the STOP (■) button on the front panel for 5 seconds or more.
3. All settings will revert to the factory settings.

- When the factory default settings are restored, all the user data stored in the BD data will be deleted.

Setting the Rating Level

1. Press the ▲▼ buttons to select Rating Level, then press the ENTER or ▶ button.
2. Press the ▲▼ buttons to select the rating level you want, then press the ENTER button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the program is intended for adult use only.
   Level 1 is the most restrictive and Level 8 is the least.

Music Photo Display Setup HDMI Setup Network Setup Parental Lock : Off Setup Parental Setup Rating Level : 8(Adults) New Password 7 6 5 4 3 2 1(Kids)

Changing the Password

1. Press the ▲▼ buttons to select New Password, then press the ENTER or ▶ button.

2. Enter the 4-digit password using the number buttons on the remote control. The "Enter New password." message will be displayed.

3. Enter your password again using the number buttons on the remote control.

Music Photo Display Setup HDMI Setup Network Setup Parental Lock : Off Rating Level : 1(Kids) Setup Parental Setup New Password

Music Photo Display Setup HDMI Setup Network Setup Parental Lock : Off Rating Level : 1(Kids) Parental Setup Parental Setup - New Password Enter New password. 8.9 Number Return

Music Photo Display Setup HDMI Setup Parental Lock : Off Network Setup Rating Level : 1(Kids) Parental Setup Parental Setup New Password Confir rn the password. 0.9 Number Return

SETTING UP THE NETWORK SETUP OPTIONS

To obtain information on the proper settings, check the network settings on your computer or contact your Internet provider.

To set the network of your Blu-ray Home Cinema, follow the steps below.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Network Setup, then press the ENTER or ▶ button.

4. Press the ▲▼ buttons to select the desired network option from the options described below, then press the ENTER or ▶ button.

5. Press the ▲▼ buttons to select the desired item, then press the ENTER button. Each network option is described in detail below.

Music Photo Display Setup HDMI Setup Setup Network Setup Parental Setup

Network Selection

Select Cable or Wireless as the method to connect to network.

To setup, follow steps 1\~3 above.

1. Press the ▲▼ buttons to select Network Selection, then press the ENTER or ▶ button.

2. Cable : Select this to connect to the network using a cable. (see page 30)

3. Wireless : Select this to connect to the network wirelessly. (see page 31)

Music Photo Setup Display Setup HDMI Setup Network Setup Parental Setup Network Selection : Cable Cable Network Wireless Network Proxy NTP Server : Off Network Connection Test BD-LIVE Connection : Allow (Valid Only)

Cable Network

To setup, follow steps 1\~3 above.

1. Press the ▲▼ buttons to select Cable Network, then press the ENTER or ▶ button.
2. Press the ▲▼ buttons to select DHCP, then press the ENTER button.

If DHCP is set to On, you can't select IP Address, Subnet Mask or Gateway.
If DNS is set to Auto, you can't select Primary/Secondary DNS.

Music Photo Display Setup HDMI Setup Network Selection : Cable Cable Network Setup Network Setup Parental Setup Wireless Network Proxy NTP Server : Off Network Connection Test BD-LIVE Connection : Allow (Valid Only)

Music Photo Setup Audio Setup Display Set-Gable Network HDMI Setup Network Selection : Cable DHCP : On Network Setup Cable Network Parental Setup All rights Network Gateway Server: 100% Proxy/100 DNS : Auto NTP Server : Off Primary DNS : DNS Network Connection Test Secondary DNS : NCD-LIVE Internet Connection : Allow (Valid Only) Save Cancel Select Return

SETTING UP THE NETWORK SETUP OPTIONS

1. Press the ▲▼ buttons to select a desired item, then press the ENTER button.

- If DHCP is set to Off and, DNS to Manual, enter your IP Address, Subnet Mask, Gateway and Primary DNS settings (Secondary DNS is optional).

Audio Setup Cable Network DHCP IP Address : 000,000,000,000 Subnet Mask : 255,255,255,000 Gateway : 000,000,000,001 Primary Disk : 000,000,000,000 Secondary Disk : 000,000,000,000 Find Select Return (Valid Only) Setup available

- If DHCP is set to On and, DNS to Manual, enter your Primary DNS setting (Secondary DNS is optional).

Music Photo Setup Audio Setup Display Set/Cable Network HDMI Setup DHCP - On Network Setup Cable Network Parental Setup Modifica Network Gateway - Open Proxy DNS - Manual NTP Server - Off Primary Grid Network Connection Test Secondary Grid BD-LIVE Internet Connection Allow (Valid Only) Yes No Select Return Setup available Setup not available

- If DHCP is set to On and, DNS to Auto, you don't need further or additional settings.

■ When you select an item, use the number and ▲▼◀▶ buttons.
If the automatic settings don't work, contact your ISP.

Music Photo Setup Audio Setup Display Setup/Cable Network HDMI Setup DHCP : On Network Setup Cable Network Paternal Setup 350x355x Network Goltping : 2000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000 DNS - Auto NTP Server : Off Primary DNS - 888 Network Connection Test Secondary DNS - 888 BD-LIVE Internet - Allow (Valid Only) Connection Yes No Select Return Setup not available

1. When done, use the ▲▼ buttons to select Save, then press the ENTER button.
2. If you don't want to save your work, use the ▲▼◀▶ buttons to select Cancel, then press the ENTER button.

• The IP address used in this manual is for illustrative purposes only. You must refer to your network settings for the actual IP address.
• To obtain settings for IP address, Subnet mask, Gateway and Primary DNS, check the network settings in your computer or contact your internet service provider.

Wireless Network

To setup, follow steps 1\~3 on page 51.

1. Press the ▲▼ buttons to select Wireless Network, then press the ENTER or▶ button.

Music Photo Audio Setup Display Setup HDMI Setup Network Selection : Wireless Cable Network Setup Network Setup Wireless Network Parental Setup Proxy NTP Server : Off Network Connection Test BD-LIVE Internet : Allow (Valid Only) Connection

1. Press the ▲▼ buttons to select DHCP, then press the ENTER button.

If DHCP is set to On, you can't select IP Address, Subnet Mask or Gateway.
If DNS is set to Auto, you can't select Primary/Secondary DNS.

Music Photo Audio Setup Display Setupless Network HDMI Setup Access Point : Not Selected Network Setup : Cable Network DNS Server : On Cable Network Parmalial Setup Subnet Mask : AltExo 5, 000 Subway : Off DNS : AltNetwork Connection Test DNS Server : EBO-LIVE Internet Connection : Allow (Valid Only) Save Cancel Select Return

1. Press the ▲▼ buttons to select a desired item, then press the ENTER button.

- Select an Access Point, and then press the ENTER button to display available list of APs. (It may take several seconds to search.)

• When you select an AP and press the ENTER button, it tries to connect to the designated AP.
• If successful, a notification appears. (If selected AP shows a Lock icon, you may need to provide security authentication.)
• Select your appropriate Security Access Point if it is known. If it is not, select WEP, WPAPSK or WPA2PSK from the list below and enter in the password. Keep trying each Security Access Point and enter the Password until a connection is made.
• Enter in the Password then press the BLUE (D) button to connect to your access point (Router).

Music Photo Setup Audio Setup Display Soft Wireless Network HDMI Setup Access Point : Not Selected Network Setup DHock On Cable Network Parental Setup Subnet Mask: 200 MHz 500 Gateway: 1000 MHz NTP Server : Off DNS DNS Server: AllNetwork Connection Test BD-LIVE Internet Connection : Allow (Valid Only) Save Cancel Select Return

Music Photo Setup Audio Setup Display Setup Point - Security HDMI Setup OPEN Network Setup WTP RadioLinkSetup WPA2PSK Network Selection : Cable Cable Network Wireless Network Proxy NTP Server : Off Network Connection Test BD-LIVE Internet : Allow (Valid Only) Connection Select Return

Music Photo Audio Setup Display Setup/Password HDMI Setup Network Selection : Cable Setup Network Setup Cable Network A B C D E F G H I J K L M N O P G R S T U V W X Y Z Z Y Z Z G H I J K L M N O P G M Y Z Z Z Z Z Z Z Z G A B C D E F G H I J K L M N O P G B C D E F G H I J K L M N O P G C D E F G H I J K L M N O P G D E F G H I J K L M N O P G E F G H I J K L M N O P G F E F G H I J K L M N O P G G E F G H I J K L M N O P G H I J K L M N O P G I J K L M N O P G J K L M N O P G K E F G H I J K L M N O P G L I J K L M N O P G M J K L M N O P G N J K L M N O P G O E F G H I J K L M N O P G P E F G H I J K L M N O P G Q E F G H I J K L M N O P G R E F G H I J K L M N O P G S E F G H I J K L M N O P G T E F G H I J K L M N O P G U E F G H I J K L M N O P G V E F G H I J K L M N O P G W E F G H I J K L M N O P G X E F G H I J K L M N O P G Y E F G H I J K L M N O P G Z E F G H I J K L M N O P G AA E F G H I J K L M N O P G AB E F G H I J K L M N O P G AC E F G H I J K L M N O P G AD E F G H I J K L M N O P G AE E F G H I J K L M N O P G AF E F G H I J K L M N O P G AG E F G H I J K L M N O P G AH E F G H I J K L M N O P G AI E F G H I J K L M N O P G AJ E F G H I J K L M N O P G AK E F G H I J K L M N O P G AL E F G H I J K L M N O P G AM E F G H I J K L M N O P G AN E F G H I J K L M N O P G AO E F G H I J K L M N O P G AP E F G H I J K L M N O P G AQ E F G H I J K L M N O P G AR E F G H I J K L M N O P G AS E F G H I J K L M N O P G AT E F G H I J K L M N O P G AU E F G H I J K L M N O P G AV E F G H I J K L M N O P G AW E F G H I J K L M N O P G AXE E F G H I J K L M N O P G AY E F G H I J K L M N O P G AZE E F G H I J K L M N O P G BAF E F G H I J K L M N O P G CAV E F G H I J K L M N O P G CBF E F G H I J K L M N O P G CCN E F G H I J K L M N O P G CEK E F G H I J K L M N O P G CEK A B C D E F F G H I J K L M N O P G CEK B C D E F F G H I J K L M N O P G CEK C D E F F G H I J K L M N O P 8.9 Number Select Return

For further details on AP security, refer to the AP's (Router) user manual.

- If DHCP is set to Off and, DNS to Manual, enter your IP Address, Subnet Mask, Gateway and DNS Server.

Music Photo Audio Setup Display Soft Wireless Network HDMI Setup Access Point : Not Selected Network Setup Cable Network For example, 000, 000, 000, 000 Subnet Mask : 255, 255, 455, 000 Gateway : 000, 000, NTP Server : Off DNS Network Connection Test DNS Server : 000, 000, 000, 000 Connection Cancel Allow (Valid Only) Save Select Return

Setup available

SETTING UP THE NETWORK SETUP OPTIONS

- If DHCP is set to On and, DNS to Manual, enter your DNS Server.

Music Photo Setup Audio Setup Display Security Network HDMI Setup Access Point : Not Selected Network Setup DNSP : Off Network Selection : Cable Cable Network Panese Setup Subnet Name: Proxy's 000 Gateway: 000 TCP Server : Off DNS : Manual DNS Server : 000 000-800-600 Internet Connection Save Cancel Select Return Setup available Setup not available

- If DHCP is set to On and, DNS to Auto, you don't need further or additional settings.

- When you select an item, use the number and ▲▼◀▶ buttons.

If the automatic settings don't work, contact your ISP.

Music Photo Setup Audio Setup Display Setup Wireless Network HDMI Setup Access Point : Not Selected Network Selection : Cable Other Setup Cable Network Camera Setup Subnet Main ProxyCS, 000 Gateway NTP Server ; Off DNS : Manual Network Connection Test DOS: Manual ED-SURF Internet Connection Allow (Valid Only) Save Cancel Select Return Setup not available

1. When done, use the ▲▼ buttons to select Save, then press the ENTER button.
2. If you don't want to save your work, use the ▲▼◀▶ buttons to select Cancel, then press the ENTER button.

• The IP address used in this manual is for illustrative purposes only. You must refer to the your network settings for the actual IP address.
• To obtain settings for IP address, Subnet mask, Gateway and DNS Server, check the network settings in your computer or contact your internet service provider.

Proxy Setting

A proxy server services requests by forwarding them to other servers. If you are required to configure the proxy setting, enter the settings specified by the ISP.

To setup, follow steps 1\~3 on page 51.

1. Press the ▲▼ buttons to select Proxy, then press the ENTER or ▶ button.

2. Server

3. Port
4. User
5. Password

Audio Setup Proxy Proxy : on Save Cancel Select Return

■ For more information, contact your ISP (Internet Service Provider).

NTP Server (Used to Retrieve Time Information from NTP Server)

To setup, follow steps 1\~3 on page 51.

1. Press the ▲▼ buttons to select NTP Server, then press the ENTER or ▶ button.

2. On: the player automatically connects to the Internet server in order to adjust the time setting.

3. Off: the player does not connect to the Internet server to adjust the time setting.

Music Photo Audio Setup Display Setup HDMI Setup Cable Network Whitout Network Proxy NTP Server On Off Network Connection BD-LIVE Internet Connection Allow (Valid Only)

Network Connection Test

Use this menu to check whether your network connection is working or not.

To setup, follow steps 1\~3 on page 51.

1. Press the ▲▼ buttons to select Network Connection Test, then press the ENTER or ▶ button.

Music Audio Setup Windows Network Network Connection Test ✓ MAC Address (01.10.18.05.30-70) ✓ IP Address (Server Port Gateway DNS Server) ✓ Gateway Port ✓ Internet Server Test Your network is operating property Return

BD-LIVE Internet Connection

The Blu-ray Home Cinema supports BD-LIVE which enables you to enjoy a variety of interactive service contents provided by the disc manufacturer through a network connection. To enjoy this feature, you must first perform the LAN connection (see page 30) or Wireless Lan adapter connection to the USB slot.

* You must have a minimum 1 GB USB Memory device inserted in one of the USB slots in order to download content from BD-LIVE.

The Internet connection may be restricted while you are using BD-LIVE contents.

To setup, follow steps 1\~3 on page 51.

1. Press the ▲▼ buttons to select BD-LIVE Internet

Connection, then press the ENTER or▶ button.

• Allow (All): The Internet connection will be allowed for all BD-LIVE contents.
• Allow (Valid Only) : The Internet connection will be allowed only for BD-LIVE contents containing a valid certifi cate.
• Prohibit: No Internet connection will be allowed for any BD-LIVE content.

Music Photo Setup Audio Setup Display Setup HDMI Setup Proxy NTP Server : Off Measuring Connection Test Network Setup Parental Setup BD-LIVE Internet Connection Allow(All) Allow(Valid Only) Prohibit

• What is a valid certifi cate? When the Blu-ray Home Cinema uses BD-LIVE to send the disc data and request to the server to certify the disc, the server uses the transferred data to check if the disc is valid and sends the certifi cate back to the player.
  ■ The Internet connection may be restricted while you are using BD-LIVE contents.

BD data management

BD Data (stored in external USB flash memory) is Blu-ray Disc content such as trailers and other special features downloaded from the BD-LIVE service or Blu-ray Discs.

* You must have a minimum 1GB USB Memory device inserted in one of the USB slots in order to download content from BD-LIVE.

SYSTEM DEVICE MANAGEMENT

You can manage user data stored in BD data.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select System Setup, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select BD Data Management, then press the ENTER or▶ button.

- To delete the flash memory -

1. Press the ENTER button to select BD Data Delete. The message "All BD data will be deleted. Do you want to continue?" will be displayed.
2. Press the ◀▶ button to select Yes, then press the ENTER button.

Description of Device(Storage) Information on the Player

• Total Size : Total size of the Device(Storage).
• Available Size : Available size of the Device(Storage).

Movie Photo System Setup - Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Time Zone Clock Set Power On/Off sound : On BO Data Management DivXIR Registration System Update

Music Photo Time Zone Clock Set Power On/Off sound : On Setup System 92 Data Management / Management Current Audio Setup External Flash Control Total Audio 340 MB Average Display 880 MB Display Setup HDMI Setup 800 MHz Delete Network Setup Parential Setup Select Return

■ Memory size information on the current device(storage) is located to the right of the BD Data Management menu.
- In the external memory mode, disc playback will be stopped if you disconnect the USB device in the middle of the playback.
We recommend using an USB device that supports USB 2.0 protocols, FAT32 format and 4MB or more read /write speed.
■ The Resume Play function may not work after formatting the storage device.

System upgrade

Samsung may offer upgrades to your Blu-ray Home Cinema's firmware in the future. To upgrade this firmware you must :

1. Go to samsung.com and refer to the 'SUPPORT' page to download the latest firmware.

You can use a CD-R or a USB flash drive to perform the firmware upgrade. For more information, see "Upgrade Manual" at the website mentioned above.

or

1. Connect the network (see pages 30\~31) and follow the steps below.

FIRMWARE UPGRADE

1. With the unit in Stop mode/No Disc mode, press the MENU button.

2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.

3. Press the ▲▼ buttons to select System Setup, then press the ENTER or ▶ button.

4. Press the ▲▼ buttons to select System Update, then press the ENTER or ▶ button.

5. The player will check the cable or network connection status automatically. The connection checking window will be displayed.

■ If the upgrade is possible: You will see information on the current and new versions of firmware in a message box.

■ If the upgrade is not possible : You will see the following description in the message box.

- If the cable is not connected: "Ethernet cable is not connected. Please, check the Ethernet cable"

- If the network connection has failed: "This system can not connect to internet for update. Please, check the network setup"

- If no latest version is released (the latest version has been already installed) : "The latest version of the firmware is already installed. There is no need to update."

- If there is a disc in the player: "Please maintain "No Disc" state for network update." This indicates that you must remove all discs from the unit to perform the update.

- If the server service is not available: "Update Server is under maintenance. Please try again later."

Music Photo Setup - System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup Power On/OFF sound ED Data Management DiXPI Registration System Update

Music Photo System Update & API Registration Setup System Setup 1 2 3 4 System Update Language Setup Audio Setup Now, Checking... Display Setup Base wait... HDMI Setup Network Setup Parental Setup

Music Photo System Update Registration Setup System Setup 3.4 System Update Language Setup Active SetupUpdate data was found. Display Capture Version : XXXXXX New Version : XXXXXX HDMI Setup Network Setup Permitted Setup CancelStart

Music Photo System Update/Registration Setup System Setup 12.3.4 System Update Language Setup Audio/BeaSystem can not connect to internet for update. Display Setup Please, check the network setup. HDMI Setup Network Setup Parental Setup OK

System upgrade

fiRmWARe uPGRAde

1. To perform the system upgrade, press the◀▶ buttons to select Start and then press the ENTER button.
2. The system update gets started.
3. If you select Cancel during the download process, you are prompted to confirm your selection in a message box. If you want to cancel the download, select Yes and press the ENTER button.
4. Verification will proceed. When download is done, the firmware update process will begin automatically.
5. When the installation is done, the player will automatically turn off in 5 seconds. All settings will revert to the factory settings. The next time you start the system and you will see the menu language selection window.

If you want to cancel the upgrade in the process of downloading the upgrade data, press the ENTER button. You will see a confirmation message. Selecting Yes will end the upgrade process, and selecting No will continue the upgrade process.

• When the system upgrade is done, check the firmware details in the System Upgrade menu.
• Do not turn off the player during the System Upgrade, as it may cause the player to not work properly.
• You must use a USB Flash Drive to do software upgrades using the USB Host jack. Other USB devices(ex. MP3 player) are not guaranteed to work.
  There should be only one firmware upgrade file in USB flash drive for the player to properly perform an upgrade.
• Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.

Music Photo System Update System Update Setup System Setup P3.3.4 Language Setup The set update data was found. A000X Current Version : XXXXX Display A000X/Version : XXXXX HDMI Setup Network Setup Start Cancel Personal Setup Power On/Off sound ED Data Management On

Music Photo System Update Setup System Setup Language Setup Auto/Distribuiding update data... Please, co not turn off the power. Display Setup HDMI Setup Network Setup Parental Setup Cancel Power On/Off sound 60 Data Management On OK Subscription

Music Photo System Update Registration Power On/Off sound BD Data Management On Setup System Setup a System Update Language Setup Audio Setup Do You want to cancel the update operation? Display Setup HDMI Setup Network Setup Yes Do Parental Setup

Music Photo System Upgrade Registration Setup System Setup Package Update Language Setup Audio Supplying update data Display Setup HDMI Setup Network Setup Parental Setup

Music Photo System Update System Subscription Setup System Setup 2.1.3 System Update Language Software Update. Audio Setup Processing... Please do not turn off the power. Product Tool will be off automatically HDMI Setup update is if missed. Network Setup Parental Setup

When the fi rmware upgrade is done, check the fi rmware details by following the steps below.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.

3. Press the ▲▼ buttons to select System Setup, then press the ENTER or ▶ button.

4. Press the ▲▼ buttons to select System Information, then press the ENTER or ▶ button. You can see detailed information about the current firmware.

5. Press the ENTER button to select OK. System Setup menu will be displayed.

Music Photo Setup - System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup

Music Photo Setup System Setup Language Setup Audio Setup Display Setup HDMI Setup Network Setup Parental Setup System Information Time Zone Clock Set Power On/Off sound : On ED Data Management DrX/R Registration System Update

Music Photo Setup System Information SW: XXXXXXX Loader: XXXXXXX Region: B/2 (BD/DVD) ESN: XXXX OK

FIRMWARE UPGRADE NOTIFICATION

This popup menu appears when a newer fi rmware version is available from SAMSUNG's update server than what is currently on the Blu-ray Home Cinema.

• Yes : Select this to upgrade now.
- No : Select this if you plan to upgrade later.

System Update New Firmware is available. Do you want to update now? Yes No

DIVX (R) REGISTRATION

Please use the Registration code to register this Home Cinema System with the DivX(R) Video On Demand format. For more information, visit www.divx.com/vod

1. During playback, press the INFO button on the remote control.

- If the Blu-ray Disc has the PIP feature, press the INFO button in the PIP section to display PIP-related information.

1. Press the ▲▼ buttons to select the desired item.

2. Press the ◀▶ buttons to make the desired setup change and then press the ENTER button.

- You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from a desired time.

1. To make the screen disappear, press the INFO button again.

DVD-Video Info Title : 001/008 Chapter : 001/018 Playing Time : 00:04:17 Audio : ENG Multi CH Subtitle : Off Angle : 01/01 Change Select

DVD-Video Info Title : 001/006 Chapter : 001/016 Playing Time : 00:04:17 Audio : ENG Multi CH Subtitle : Off Angle : 01/01 PP Video : 01/01 PP Audio : 1/1 ENG 2CH Change Select

If you are playing contents from the info menu, some functions may not be enabled depending on the disc.

■ Title : To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a Blu-ray Disc/DVD, each movie will be identified as a Title.

■ Chapter: Most Blu-ray Disc/DVD discs are recorded in chapters so that you can quickly find a specific chapter.

- Audio : Refers to the film's soundtrack language. A Blu-ray Disc can contain up to 32 audio languages and a DVD up to 8.

- Playing Time : Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs.

- Subtitle : Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A Blu-ray Disc can contain up to 255 subtitle languages, and a DVD up to 32.

- Angle : When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.

- PIP Video/ PIP Audio : You can make PIP Video or PIP Audio settings if the current title of a Blu-ray Disc appears in the PIP section. The PIP Video / PIP Audio options, however, will be disabled with a Blu-ray Disc that does not support the PIP feature.

Using the Disc Menu

1. During playback, press the DISC MENU button on the remote control.
2. Press the ▲▼◀▶ buttons to make the desired selection, then press the ▶ or ENTER button.
3. The Disc menu setup items may vary from disc to disc.

PLAY MOVIE LANGUAGES SCENE SELECTIONS PREIVIEWS 3 4 5 6 7 8 9 10 11 12 13 14 15

■ The Disc Menu may not be available, depending on the disc.

Using the Title Menu

1. During playback, press the TITLE MENU button on the remote control.
2. Press the ▲▼◀▶ buttons to make the desired selection, then press the ENTER button.
3. The Title menu setup options may vary from disc to disc.

■ The Title Menu may not be available, depending on the disc.
■ Title Menu will only be displayed if there are at least two titles on the disc.

Playing the Title List

1. With the unit in Stop mode/Playback mode, press the DISC MENU or TITLE MENU button.
2. Press the ▲▼ buttons to select an entry you want to play from Title List, then press the▶ or ENTER button. The selected entry (title) will be played back.

- Go to Playlist - To go to the Playlist, press the RED(A) button.

Video Music Photo Setup Title 008 00:04:36 Title 009 00:04:17 Title 010 00:04:11 Title 011 00:04:07 Title 012 00:04:46 Title 013 00:04:21 Title 014 00:03:43 Page

Using the Popup Menu

1. During playback, press the POPUP MENU button on the remote control.
2. Press the ▲▼◀▶ buttons or ENTER button to select the desired menu.
3. The Popup menu setup options may vary from disc to disc.

MAIN MENU AUDIO SET UP SUBTITLES SCENE SELECTIONS 3 4 5 6 7 8 9 10 11 12 13 14 15

■ The Popup Menu may not be available, depending on the disc.

Watching a movie

REPEAT PLAY

Repeat the current chapter or title.

Repeat playback

1. During playback, press the REPEAT button on the remote control. Repeat screen appears.

2. Press the ▲▼ buttons to select Chapter or Title.

3. Blu-ray Disc/DVD repeats play by chapter or title.

4. To return to normal play, press the REPEAT button again, then press the ▲▼ buttons to select Off.

Repeat Off

The Repeat function may not be available, depending on the disc.

Using the A-B Repeat function

1. Press the REPEAT A-B button on the remote control during playback.

2. Press the REPEAT A-B button at the point where you want repeat play to start (A).

3. Press the REPEAT A-B button at the point where you want repeat play to stop (B).

4. To return to normal play, press the CANCEL button.

Repeat A-B 00:18:41 / 01:24:37 REPEAT A-B Off Exit

- Point B cannot be set until 5 seconds of playback has elapsed from point A.

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button

1. Press the AUDIO button during playback. The Audio changes when the button is pressed repeatedly.

2. The audio languages are represented by abbreviations.

3. To remove the Audio bar, press the CANCEL or RETURN button.

Audio 1/4 ENG Dolby Digital Multi CH

Using the INFO button

1. During playback, press the INFO button on the remote control.

2. Press the ▲▼ buttons to select Audio language.

3. Press the ◀▶ buttons on the remote control to select the desired audio language.

This function depends on what audio languages are encoded on the disc and may not be available.
A Blu-ray Disc can contain up to 32 audio languages and a DVD up to 8.
- You can use the AUDIO button to change the audio soundtrack as well as the audio language, depending on the disc type.

Some Blu-ray Discs may allow you to select either the multi-channel LPCM or Dolby digital audio soundtrack in English.

Information about the primary / secondary mode will be also displayed if the Blu-ray Disc has a PIP section.

Use the ◀▶ button to switch between primary and secondary audio modes.

- The ◀▶ indicator will not be displayed on the screen if the PIP section does not contain any PIP audio settings.

SELECTING THE SUBTITLE LANGUAGE

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button

1. Press the SUBTITLE button. The subtitle changes when the button is pressed repeatedly. The subtitle languages are represented by abbreviations.

2. To remove the Subtitle bar, press the CANCEL or RETURN button.

3. Press the SUBTITLE button. The subtitle changes when the button is pressed repeatedly. The subtitle languages are represented by abbreviations.

4. To remove the Subtitle bar, press the CANCEL or RETURN button.

Subtitle 0/2 Off

SELECTING THE SUBTITLE LANGUAGE

Using the INFO button

1. During playback, press the INFO button on the remote control.
2. Press the ▲▼ buttons to select Subtitle.
3. Press the ◀▶ buttons on the remote control to select the desired subtitle language.

- You may be able to change the desired subtitle in the Disc Menu, depending on the Blu-ray Disc / DVD. Press the DISC MENU button.

This function depends on what subtitles are encoded on the disc and may not be available on all Blu-ray Discs/DVDs.
- A Blu-ray Disc can contain up to 255 subtitle languages and a DVD up to 32.
Information about the primary / secondary mode will be also displayed if the Blu-ray Disc has a PIP section.
This function changes both the primary and secondary subtitles at the same time.
- The total number of subtitles is the sum of the primary and secondary ones.

CHANGING THE CAMERA ANGLE

When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE function

1. During playback, press the INFO button on the remote control.
2. Press the ▲▼ buttons to select Angle.
3. Press the ◀▶ buttons or you can use the number buttons on the remote control to select the desired angle.

DVD-Vedio Info Title : 001/036 Chapter : 003/016 Playing Time : 00:11:14 Audio : ENG MULTI CH Subtitle : ENG Angle : 01°01 ← Change ↑ Move

If the disc has only one angle, this feature won't work. Currently, very few discs have this feature.
■ These functions may not work, depending on the disc.

PIP (PICTURE IN PICTURE) SETTINGS

The PIP feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing.

Using the PIP button

1. If the current Blu-ray Disc features the PIP function, you can use the PIP button to turn PIP On or Off.

Black-and-white photo of seagulls in flight with wings spread (no text or symbols visible)

1. Each time you press the PIP button, you can toggle between PIP On and PIP Off.

Black-and-white photo of a bird in flight with an inset close-up of a sleeping cat (no text or symbols visible)

• You can change detailed settings of the PIP feature in the INFO menu (see page 60: selection of secondary audio, video stream and subtitle etc.).
  If you switch from PIP Video, PIP Audio will change automatically in accordance with PIP Video.
  If the Blu-ray Disc supports only PIP Audio, you can just press the PIP button to turn the secondary audio on or off.

BD-LIVE™

The Blu-ray Home Cinema supports BD-LIVE which enables you to enjoy a variety of interactive service contents provided by the disc manufacturer through network connection.

Using the BD-LIVE Disc

1. Connect the network (see pages 30\~31) and check the network setup (see pages 51\~55).
2. Insert a Blu-ray disc that supports BD-LIVE.
3. Select the contents provided by the disc manufacturer to enjoy the BD-LIVE.

■ The way you use BD-LIVE and the features may differ, depending on the disc.
- To use BD-LIVE, you must insert a minimum 1GB USB memory device into one of the USB slots.

DIVX PLAYBACK

The functions discussed on this page apply to DivX disc playback only.

Skip Forward/Back

During playback, press the ◀◀, ▶▶ button.

• Goes to the next file whenever you press the▶I button, if there are over 2 files on the disc.
• Goes to the previous fi le whenever you press the ◀◀ button, if there are over 2 fi les on the disc.

SLOW MOIST PUASE STOP PLAY

Fast Playback

During playback, press the ◀◀, ▶▶ button.

To play back the disc at a faster speed, press the ◀ or ▶ button during playback.

• Each time you press either button, the playback speed will change as follows:

$$ 2 x \rightarrow 4 x \rightarrow 8 x. $$

Audio Display

Press the AUDIO button.

• If there are multiple audio languages on a disc, you can toggle between them.
• Each time you press the button, your selection will toggle between AUDIO (1/N, 2/N ...).

is displayed when there is one supported language on the disc.

AUDIO SLOW FAUSE SUBTITLE MOST

Subtitle Display

Press the SUBTITLE button.

• Each time you press the button, your selection will toggle between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF.
• If the disc has only one subtitle file, it will be played automatically.
• See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX discs.

7 8 9 AUDIO 0 SUBTITLE SLOW PAUSE MOST II

If the disc has more than one subtitle file, the default subtitle may not match the movie and you will have to select your subtitle language as follows:

1. In Stop mode, press the Cursor ▲, ▼ button, select the desired subtitle □ from the TV screen, and then press the ENTER button.

2. When you select the desired DivX file from the TV screen, the movie will be played normally.

ENTER MENU RETURN I EXIT

DivX(Digital internet video eXpress)

DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

1. Supported Formats

This product only supports the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Supported Video Formats

Format AVI
Supported Versions DivX3.11~DivX5.1, XviD

Supported Audio Formats

Format MP3 AC3 DTS
Bit Rate 80~384kbps 128~384kbps		1.5Mbps
Sampling Frequency 44.1khz 44.1/48khz		44.1khz

• DivX fi les, including audio and video fi les, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.
• Qpel and gmc is not supported.

2. Caption Function

• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption fi le (*.smi) in the same fi le name as that of the DivX media fi le (*.avi) within the same folder.
  Example. Root Samsung_007CD1.avi Samsung_007CD1.smi

- Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.

- ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an offi cial DivX Certifi ed or DivX Ultra Certifi ed device that plays DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX® Certifi ed device must be registered in order to play DivX Video-on-Demand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certifi ed devices. If you try to play DivX VOD content not authorized for your device, the message "Authorization Error" will be displayed and your content will not play.] Learn more at www.divx.com/vod

DivX® is a registered trademark of DivX, Inc., and is used under licence

Listening to music

BUTTONS ON THE REMOTE CONTROL USED FOR AUDIO CD (CD-DA)/ MP3 DISC PLAYBACK

1 2 SLOW MASS STOP PHASE PLAY 3 8 7 6 4 5 A J C D INFO NOTER

1. PAUSE button: Pauses playback.
2. SKIP (button: During playback, moves to the next page in the Music List or moves to the next track in the Playlist.
3. PLAY button : Plays the currently selected track.
4. ▲▼ buttons : Selects a track(song) in the Music List or Playlist.
5. COLOUR buttons
6. RED(A) button : Selects the Play Mode(Repeat) during playback.

7. GREEN(B) button : Go to Playlist from Music List.
   • YELLOW(C) button : Playlist play.

8. ◀▶ buttons
   ◀: Plays the applicable track, according to the current position.
   ▶ : Moves to the menu.

9. ENTER button : Plays the selected track (song).

10. STOP button : Stops a track(song).

11. SKIP (button: If you pressed this button after three seconds of playback, the current track will be replayed from the beginning. But, if you pressed this button within three seconds after playback starts, the previous track will be played. Used to move to the previous page in the Music List or Playlist.

During playback, press the REPEAT or RED(A) button repeatedly to select the repeat mode you want.

When playing an Audio CD(CD-DA) :→ → → →

When playing an MP3 disc : → 📄 → 📄 → ✗

• Normal (Audio CD(CD-DA)/MP3): Tracks on a disc are played in the order in which they were recorded on the disc.
  • Repeat Track (Audio CD(CD-DA)/MP3)
• Repeat Folder (MP3)
  • Random (Audio CD(CD-DA)/MP3)
• When playing an Audio CD(CD-DA)The random option plays a disc's tracks in random order.
• When playing an MP3 disc: The random option plays a folder's file in random order.
• Repeat All (Audio CD(CD-DA)): All tracks are repeated.

- To return to normal playback -

Press the REPEAT orRED(A) button repeatedly to return to normal playback.

1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray.

2. For an Audio CD, the first track will be played automatically.

3. For an MP3 disc, press the ▲▼ buttons to select Music, then press the ENTER button.

(You can listen to mp3 files using a USB storage device)

1. To move to the Music List, press the STOP or RETURN button.

The Music List screen is displayed on your TV.

1. Press the ▲▼ buttons to select the track you want to play, then press the ENTER button.

TRACK 001 1/18 00:02:24 / 00:05:07 Play Mode

TRACK 001 00:04:08 TRACK 002 00:03:41 TRACK 003 00:03:17 TRACK 004 00:03:36 TRACK 005 00:03:47 TRACK 006 00:03:50 TRACK 007 00:03:54 Playlet Page

◆ Audio CD(CD-DA)/MP3 Screen Elements

1 2 3 4 5 TRACK 001 1/18 06:02:24 / 06:05:57 6 Play Mode 7

1 Displays the media type.
2 Current track (song) Displays the number of the track currently being played.
3 Play Status Bar.
4 Displays the repeat status.
5 Displays the current play index, total track number.
6 Current /Total Play Time.
7 Displays available COLOUR buttons.

Listening to music

Playlist

You can create a playlist with up to 99 tracks.

1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray.

2. For an Audio CD, the first track will be played automatically.

3. For an MP3 disc, press the▲▼ buttons to select

Music, then press the ENTER button.

(You can listen to mp3 files using a USB storage device)

1. To move to the Music List, press the GREEN(B) or RETURN button.

The Music List screen is displayed.

1. Press the GREEN(B) button to go to the Playlist.
2. Press the ▲▼ buttons to select a track, then press the ENTER button to add it to the Playlist. Repeat this procedure to add additional tracks.
3. If there is an undesired track in the playlist, press the

▶▲▼ button to select that track, and then press the ENTER button.

• The selected track will be deleted.

1. Press the YELLOW(C) button to play the selected tracks. When the track is finished, the next track will automatically play.

2. To edit the Playlist, press the STOP or RETURN button.

3. To go to the Music List, press the RETURN button.

TRACK 001 00:04:06 TRACK 002 00:03:41 • TRACK 003 00:03:17 • TRACK 004 00:03:36 TRACK 005 00:03:47 TRACK 006 00:03:50 TRACK 007 00:03:54 TRACK 008 00:03:57 TRACK 009 00:03:59 Playlist Page

Original ★ - Playlist Track 001 TRACK 002 TRACK 003 TRACK 004 TRACK 005 TRACK 006 TRACK 007 Music List Playlist play Add Play

Original ★ Playlist TRACK 001 TRACK 002 • TRACK 003 TRACK 004 TRACK 005 TRACK 006 TRACK 007 01.TRACK 001 02.TRACK 002 03.TRACK 003 Music List Playlist play Add Play

Viewing a picture

VIEWING A PICTURE

1. Insert a JPEG disc into the Disc Slot.

• The Menu screen is displayed.

1. Press the ▲▼ buttons to select Photo, then press the ENTER button.

• The Photo List is displayed.

1. Press the ▲▼ buttons to select a picture.

- To see the next page, press the SKIP button.

• To see the previous page, press the SKIP button.

Video Music Photo Setup 476.JPG 03 JUL 2000 127 KB BEACH.JPG 17 JUL 2000 27 KB KE.JPG 10 JUL 2000 194 KB KEZ.JPG 18 JUL 2000 194 KB MBHORN.JPG 20 JUL 2000 30 KB NEW_DEE.JPG 05 JUL 2000 76 KB _1.JPG 18 JUL 2000 17 KB Slide Show

SLIDE SHOW/SPEED

To setup, follow steps 1 and 2 above.

1. Press the BLUE(D) button.

- The slide show starts.

1. When the SlideShow starts, press the BLUE(D) button to adjust the play speed.

• Each time you press the button, the play speed will increase accordingly.

- To stop the Slide Show -

Press the STOP or RETURN button.

Black-and-white photo of a person walking on a wooden path, no visible text or symbols

To setup, follow steps 1 and 3 above.

1. Press the ENTER button.

2. Use the RED(A) and GREEN(B) buttons to rotate the image in a desired direction.

Black-and-white photo of a sleeping cat with visible eye and face, no text or symbols present.

A B C D DOX MENG MODE EFFECT

Viewing a picture

ZOOM

To setup, follow steps 1 to 3 in "Viewing a Picture" on page 71.

1. Press the ENTER button.

2. Press the YELLOW(C) button.

3. Use the YELLOW(C) or ENTER button to zoom the image in/out.

- To move the area -

Press the ▲▼◀▶ buttons to the area you want to enlarge.

- To stop the Zoom -

Press the YELLOW(C) button.

Black-and-white photo of a fluffy kitten resting on a surface, with no visible text or symbols.

Black-and-white photo of a cat sleeping on a surface, with an inset showing a small image labeled 'x2' (no readable text or symbols in the main scene)

Diagram of a remote control interface with labeled buttons and icons

GO TO PHOTO LIST

To setup, follow steps 1 to 3 in "Viewing a Picture" on page 71.

1. Press the ENTER button.
2. To go Photo List, press the RETURN or STOP button.

BEACH.JPG 90° 90° Zoom Speed Slide Show

Video Music Photo Setup 17u.PG 03 JUL 2000 12 KB BEACHPG 17 JUL 2000 27 KB KEPO 10 JUL 2000 194 KB KE2.PG 10 JUL 2000 19' KB MEKONG.PG 25 JUL 2000 30 KB NEW BEEPG 08 JUL 2000 70 KB _1.JP3 18 JUL 2000 17 KB Slide Show

sfe(sound field effeCt) mode

You can set the SFE best suited for the type of music you are listening to.

Press the sfe mode button.

• SFE MODE appears on the display panel.
• Each time the button is pressed, the selection changes as follows

HALL1 → HALL2 → JAZZ → CHURCH → ROCK → SFE OFF.

TAXI MODE PIP SFE MODE DSP MARKER REPEAT A-B REPEAT ZOOM SLEEP

• HALL: Provides a clear vocal as if listening in a concert hall.
  • JAZZ : Recommended setting for Jazz.
• ROCK: Recommended setting for Rock.
• CHURCH: Gives the feel of being in a grand church.
• SFE OFF: Select this for normal listening.

dolBy PRo loGiC ii mode

You can select the desired Dolby Pro Logic II audio mode.

Press the P1ii mode button.

• Each time the button is pressed, the mode changes as follows.
MUSIC → MOVIE → PRO LOGIC → MATRIX → STEREO.

OFF/MAIN TECHNO. DEC MENU INDEX AVG/VSP P/F MODE SFT MODE DAP MARKET EQUIPL 1

• MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.
  • MOVIE : Adds realism to the movie soundtrack.
• PRO LOGIC: You will experience a realistic multi-channel effect, as if using six speakers, while using just the front left and right speakers.
  • MATRIX : You will hear multi channel surround sound.
• STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.

• When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.
  ■ This mode is available only with 2 channel audio.

Sound mode

dolBy PRo loGiC ii effeCt

This function works only in Dolby Pro Logic MUSIC mode.

1. Press the ☐ PI ii mode button to select musiC mode.
2. Press the ☐ PI ii effeCt button.

• Each time the button is pressed, the mode changes as follows.

1. Press the ◀▶ buttons to select the desired effect setting.

2. PAnoRAmA : This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging. You can select either 0 or 1.

3. C- Width : Sound is output to the centre speaker only. The front left and right speakers produce phantom sound.

You can select between 0 and 7.

- dimens : Incrementally adjusts the sound fi eld (DSP) from the front or rear. You can select between 0 and 6.

NEW MODE 1 NEW MODE 2

PLAYING MEDIA FILES USING THE USB HOST FEATURE

You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel Home Cinema sound by connecting the storage device to the USB port of the Home Cinema.

1. Connect the USB device to the USB port on the side of the unit.
2. USB Connected appears on the display screen and then disappears.
3. USB icon is displayed on the Setup Menu.

Diagram showing a device connected to a monitor with an attached cable, no text or symbols present

Safe USB Removal

To prevent damage to the data stored in the USB device, perform safe removal before disconnecting the USB cable.

• Press the YELLOW(C) button. The display will show Now. You can remove USB safely.
• Remove the USB cable.

To listen to your music files with 5.1 channel home cinema sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 73)

Skip Forward/Back

During playback, press the ◀◀, ▶▶ button.

• When there is more than one file and you press the ▶▶I button, the next file is selected.
• When there is more than one file and you press the button, the previous file is selected.

SLOW MODE STOP PLAY

USB Host Specification

USB Host Specification	Supports USB 1.1 or USB 2.0 compliant devices.Supports devices connected using the USB A type cable.Supports UMS (USB Mass Storage Device) V1.0 compliant devices.Supports the device of which the connected drive is formatted in the FAT(FAT, FAT16, FAT32) file system.
Non-compliance	Does not support a device that requires installing a separate driver on the PC (Windows)Does not support connection to a USB hub.A USB device that is connected using the USB extension cable may not be recognized.A USB device requiring a separate power source needs to be connected to the player with the separate power connection.
Operational Limitations	If the connected device has multiple drives (or partitions) installed, only one drive (or partition) can be connected.A device supporting USB 1.1 alone may cause a difference in the picture quality, depending on the device.

USB Devices that can be used with the Home Cinema

1. USB Storage Device
2. MP3 Player
3. Digital Camera

4. Removable HDD

5. Removable HDDs equipped with less than 160 Gbytes are supported. Removable HDDs equipped with 160Gbytes or more may not be recognized, depending on the device.

6. If the connected device does not work due to insufficient power supply, you can use a separate power cable to supply power so that it can work properly. The connector of the USB cable may differ, depending on the manufacturer of the USB device.

7. USB card Reader: One slot USB card reader and Multi slot USB card reader.

8. The USB card reader may not be supported, depending on the manufacturer.

9. If you install multiple memory devices into a multi card reader, you may experience problems.

Supported file Formats

Format File	name	File extension	Bit rate Version	Pixel		Sampling Frequency
Still Picture	JPG JPG	.JPEG -- 640	k480 -
Music	MP3 .MP	3 80~384kbps	-- 44.1kHz

• CBI (Control/Bulk/Interrupt) is not supported.
- Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not supported.
- A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file system is supported.)
- Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.

LISTENING TO RADIO

1. Press the TUNER button to select the FM band.

2. Tune in to the desired station.

3. Automatic Tuning 1: When the SKIP (O button is pressed, a preset broadcast station is selected.

4. Automatic Tuning 2 : Press and hold the TUNING/CH(^^) button to automatically search for active broadcasting stations.
5. Manual Tuning : Briefly press the TUNING/CH(^^) button to increase or decrease the frequency incrementally.

BD RECENTER BD TUNER TV SOURCE AUX

Main Unit

1. Press the FUNCTION button to select the FM band.

2. Select a broadcast station.

3. Automatic Tuning 1 : Press the STOP (■) button to select PRESET and then press the SKIP (☐) button to select the preset station.

4. Automatic Tuning 2 : Press the STOP (■) button to select MANUAL and then press and hold the SKIP (☐) button to automatically search the band.
5. Manual Tuning : Press the STOP (■) button to select MANUAL and then briefly press the SKIP (☐) button to tune in to a lower or higher frequency.

Mono/Stereo

Press the MO/ST button to listen in Mono/Stereo.

• Each time the button is pressed, the sound switches between STEREO and MONO.
- In a poor reception area, select MONO for a clear, interference-free broadcast.

SLOW PAUSE STOP PLAY

PRESETTING STATIONS

Example : Presetting FM 89.10 in the memory

1. Press the TUNER button to select the FM band.

2. Press the TUNING/CH (^^) button to select <89.10>.

3. Press the TUNER MEMORY button.

- PRGM fl ashes in the display.

1. Press the SKIP (☐) button to select preset number.

- You can select between 1 and 15 presets.

1. Press the TUNER MEMORY button again.

2. Press the TUNER MEMORY button before PRGM disappears from the display.

3. PRGM disappears from the display and the station is stored in memory.

4. To preset another station, repeat steps 2 to 5.

- To tune in to a preset station, press the SKIP (Button

TREM RUNON PIP STE MODE DSP REPEAT REPEAT ZOOM SLEEP A-B

on the remote control to select a channel.

Radio

ABOUT RDS BROADCASTING

Using the RDS (Radio Data System) to receive FM stations

RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

When tuned to an FM station which provides the RDS service, the RDS indicator lights up on the display.

Description on RDS function

• PTY (Program Type) : Displays the type of programme currently being broadcast
• PS NAME (Program Service Name): Indicates the name of broadcasting station and is composed of 8 characters.
• RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64 characters.
• CT (Clock Time) : Decodes the real time clock from the FM frequency. Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases.
• TA (Traffic Announcement): When this symbol flashes it shows that the traffic announcement is in progress.

- RDS may not operate correctly if the station tuned is not transmitting RDS signal properly or if the signal strength is weak.

To show the RDS signals

You can see the RDS signals the station sends on the display.

Press the RDS DISPLAY while listening to an FM station.

- Each time you press the button, the display change to show you the following information: PS NAME → RT → CT → Frequency

• PS (Program Service) : While searching, appears and then the station names will be displayed. appears if no signal is sent.
• RT(RadioText) : while searching, appears and then text messages the station sends will be displayed. appears if no signal is sent.
  • Frequency : station frequency (non-RDS service)

About characters shown in the display

When the display shows PS, or RT signals, the following characters are used.

• The display window cannot differentiate upper case and lower case letters and always uses upper case letters.
• The display window cannot show accented letters, for instance, may stands for accented like <À, Â, Ä, Á, Ä and Ā.>

One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes

To search for a program using the PTY codes

Before you start, remember...

• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press PTY SEARCH while searching.
• There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.

• When pressing the buttons on the primary remote control, make sure that you have selected the FM station using the primary remote control.

• Press the PTY SEARCH while listening to an FM station.

• Press the PTY- or PTY+ until the PTY code you want appears on the display.

- The display gives you the PTY codes described to the right.

1. Press the PTY SEARCH again, while the PTY code selected in the previous step is still on the display.

- The centre unit searches 15 preset FM stations, stops when it finds the one you have selected, and tunes in that station.

TV ROB DISPLAY 1 PTY- 4 SOURCE 2 PTY SEARCH 5 AUX TA 3 PTY+ 6 7 8 9

Display Program Type
NEWS	News including an announced opinion and report
AFFAIRS	Several matters including a current incident, documentary, discussion and analysis.
INFO	Information including weights and measures, returns and forecast, matters interesting the customer, medical information, etc.
SPORT Sports
EDUCATE Education
DRAMA Drama-Radio serial, etc.
CULTURE	Culture-National or local culture including the religious problem, social science, language, cinema, etc.
SCIENCE Natural science and technology
VARIED	Others-Speech, amusing program (quiz, game), interview, comedy and satirical play, etc.
POP M Pop music
ROCK M Rock music
M.O.R.M	Current contemporary music considered to be “easy listening.”

Display Program Type
LIGHT M	Light classical music- Classical music and instrumental and chorus music
CLASSICS	Heavy classical music-Orchestra music, symphony, chamber music and opera
OTHER M	Other music - Jazz, R&B country music
WEATHER	Weather
FINANCE	Finance
CHILDREN	Children's programmes
SOCIAL A	Social affairs
RELIGION	Religion
PHONE IN	Phone in
TRAVEL	Travel
LEISURE	Leisure
JAZZ	Music
COUNTRY	Country Music
NATION M	National Music
OLDIES	Oldies Music
FOLK M	Folk Music
DOCUMENT	Documentary

Using an iPod

You can enjoy playback of your iPod using the supplied remote control.

LISTENING TO MUSIC

You can play music files stored in the iPod player by connecting it to the Blu-ray Home Cinema.

1. Connect the iPod dock connector to the iPod jack on the Blu-ray Home Cinema.
2. Place the iPod in the Dock.

- Your iPod is automatically turned on.

- "iPod Connected" message appears on the TV screen.

1. Press the MENU button on the remote control.
2. Press the ◀,▼ buttons on the remote control to select iPod mode.
3. Press the ▶,▲,▼ buttons on the remote control to select Music and press the ENTER button.

• The Music categories appear.

1. Press the ▲,▼ buttons desired category and press the ENTER button.

• The music list appears on your TV.

1. Press the ▲,▼ buttons to select the music file to play and press the ENTER button.

- The music will start with a new screen which shows the song title, time, artist, and progress bar.

1. You can use the remote control or main unit to control simple playback functions such as PLAY, PAUSE, STOP, / , and REPEAT.

- Press the RED(A) button to select a desired play mode.

Illustration of a hand inserting a CD into a device (no text or symbols visible)

iPod ✓ OK to disconnect.

TRACK 001 TRACK 002 TRACK 003 TRACK 004 TRACK 005 TRACK 006 TRACK 007

◆ iPod Playback Screen Elements

1 2 3 4 5 My love 6'86 00:00:11 / 00:00:34 6 7 Play Mode

1	Displays the media type.
2	Current track (song)Displays the number of the track currently being played.
3	Play Status Bar.
4	Displays the repeat status.
5	Displays the current play index, total track number.
6	Current /Total Play Time.
7	Displays available COLOUR buttons.

To move to the Music List and select a track:

1. Press the MENU or STOP button.
2. It stops playing and returns to the music list.
3. Press the ▲,▼ buttons to select the file you want to play and press the ENTER button.
4. Press the RETURN or ◀ button to return to the parent menu.

iPod Music categories

File information including the artist name, album name, music title and genre will be displayed according to the ID3 Tag information on the appropriate music file.

Now Playing: Plays a recently played file or moves to the playback screen of the current file.

Artists : To play by artist.

Songs : To play in numeric or alphabetical order

Playlists : To play by Playlist.

Albums : To play by album.

Genres : To play by genre.

Composer : To play by composer.

■ See page 27 for compatible iPods.

Compatibility depends on the software version of your iPod.

■ The category list may differ, depending on the iPod model.
■ What is an ID3 Tag?

This is what is attached to an MP3 to carry information relevant to the file such as the title, artist, album, year, genre and a comment field.

WATCHING A MOVIE

You can play video files stored in the iPod player by connecting it to the Blu-ray Home Cinema.

1. Connect the iPod dock connector to the iPod jack on the Blu-ray Home Cinema.

2. In the iPod screen, move to Videos > Settings and set the TV Out option to On.

3. Place the iPod in the Dock.

- "iPod Connected" message appears on the TV screen.

1. Press the ◀,▼ buttons on the remote control to select iPod mode.

2. Press the ▶,▲,▼ buttons on the remote control to select Video and press the ENTER button.

3. Press the ▲,▼ buttons on the remote control to select Movies and press the ENTER button.

• The video list appears on your TV.

1. Press the ▲,▼ buttons to select the video file to play and press the ENTER button.

• Video file of the iPod player will be played on the TV screen.

1. You can use the remote control or main unit to control simple playback functions such as PLAY, PAUSE, STOP, 📄/▶ and ▶/▶.

- If you press the PREV button within 2 seconds after the playback, the player will play previous file.

If you press the PREV button 2 seconds or later after the playback, the player will move to the start screen of the current file.

- Press the NEXT button to play next file.

Settings TV Out On

Illustration of a hand inserting a CD into a device (no text or symbols visible)

To move to the Video List and select a file:

1. Press the MENU or STOP button.

- It stops playing and returns to the video list.

1. Press the ▲,▼ buttons to select the file you want to play and press the ENTER button.

- Press the RETURN or ◀ button to return to the parent menu.

MOVIE 001 MOVIE 002 MOVIE 003 MOVIE 004 MOVIE 005 MOVIE 006 MOVIE 007 Music Photo Setup E Playlist Page

■ See page 26 for compatible iPods.

Compatibility depends on the software version of your iPod.

- You must have the VIDEO output connected to your TV to view iPod video (See page 25).

If you want to iPod video via VIDEO output, change HDMI CEC off first in case of HDMI CEC is on.

- When the current fi le is played to the end, the next fi le will not be played automatically.

To play the next file, select a file to play in the list screen of the iPod player.

- No other screen than the playback one will appear on the TV screen. Check other screens on the iPod player.

If connected iPod does not support video playback, "Cannot play video fi les saved on this iPod" message appears when you select the Video menu.

CONNECTING TO A PC AND PLAYING MP3, JPEG OR DIVX CONTENT

You can connect the Blu-ray Home Cinema to a PC and play mp3, jpeg or DivX file content in a shared folder. (Refer to pages 30\~31 for the connection)

1. Use a router and LAN cable or wireless LAN adapter to connect between the PC and Blu-ray Home Cinema.
2. Create a shared folder in the PC and store desired mp3, jpeg or DivX fi les there.
3. Press the MENU button.
4. Press the RED(A) button.
   You will see a window where you can select a network search type.

Music Music Photo Setup Network Search

1. Use the ◀▶ button to select a network search type. A list of shared servers will appear.

• Auto : Automatically searches for an available PC.
- Manual : You must enter the IP address, folder name, windows user name and password before you can find a desired PC.

Network Search Type Please select network search type Auto Manual Select Return Network Search

6. To search a shared folder

There are 2 methods to access shared folders on a PC. (If you search a folder in Auto mode, it must contain

less than 12 characters. You must select manual to search for folders with 12 or more characters.)

- Auto Mode

1. Press the ▲▼ button to select a desired PC and press the ENTER button.
   (When first connected, you must enter the window user name and password to display the shared folder.)

Music Photo Disk + Disc Setup B C Network Search

1. Enter the PC's user name in the window.

DISC User A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f q h l j x l m n o p q r e i v w x y z 1 2 3 4 5 6 7 8 9 0 - + = - = + & | i ? | #Back Space # Space # Clear #Save 10 Number Select Return Network Search

1. Enter the PC's password in the window. The shared folder will be displayed.

DISC Password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 - + = - * * * * / 7 / Back Spice Space Clear: Sam Number Select Return Network Search

pc streaming function

1. Press the ▲▼ button to select a desired folder.

Select Folder ADMIN$ CS DS FS GS print$ SharedD Save Return Network Search

- Manual Mode

1. Enter in the IP address of the PC that has the shared folders.

Manual Search Please input IP address 0 0 0 0 20 Number Select Return Network Search

1. Type in the name of the shared folder in the window then press the BLUE (D) button to Save.

MANUAL SEARCH Please Input shared folder name - ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdef ghijklmnopqrstuvwxyz wxyz1234567890- +:-1@8%&1/? Back Space Space Clear Save Number Select Return Network Search

1. Type in the PC's password then press the BLUE (D) button to Save.

MANUAL SEARCH Please input password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A b c d e f b x y z 1 2 3 4 5 6 7 8 9 0 - ? + = - 1 2 3 4 5 6 7 8 9 0 - ? Back Scan Backs Clear Save Number Select Return Network Search

1. Press the ▶ button, then press the ▲▼ button to select Video, Music or Photo. (For playing a Video, Music or Photo, refer to pages 68\~70)

Music Binto $up

■ The PC name should be in English, excluding characters such as symbols.

- You can search up to 4 PCs connected to the network to play content over. You may experience connection problems depending on your PC environment.

Convenient function

sleeP timeR funCtion

You can set the time that the Blu-ray Home Cinema will shut itself off.

Press the sleeP button.

• Each time the button is pressed, the preset time changes as follows: 10 20 30 60 90 120 150 OFF.

To confirm the sleep timer setting, press the sleeP button.

- The remaining time before the Blu-ray Home Cinema will shut itself off is displayed.

- Pressing the button again changes the sleep time from what you have set earlier.

To cancel the sleep timer, press the sleeP button until off appears on the display.

SAMSUNG TIME MANNER PIP REPEAT A-B SPE MODE DSP SLEEP

AdJustinG disPIAy BRiGhtness

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press the dimmeR button.

- Each time the button is pressed, the brightness of front display will be adjusted.

POWER DIMMER BD RESENDER BD TUNER

mute funCtion

This is useful when answering a doorbell or telephone call.

Press the mute button.

• mute appears in the display.
• To restore the sound, press the mute button again.

MUTE VOL STEP TUNING /CH

Troubleshooting

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Centre.

SYMPTOM Check/Remedy
I cannot eject the disc.	Is the power cord plugged securely into the outlet?Turn off the power and then turn it back on.
Playback does not start.	Check the region number of the BD/DVD.BD/DVD discs purchased from abroad may not be playable.CD-ROMs and DVD-ROMs cannot be played on this Blu-ray Home Cinema.Make sure that the rating level is correct.
Playback does not start immediately when the Play/Pause button is pressed.	Are you using a deformed disc or a disc with scratches on the surface?Wipe the disc clean.
Sound is not produced.	No sound is heard during fast playback, slow playback, and step motion playback.Are the speakers connected properly? Is the speaker setup correctly customized?Is the disc severely damaged?
Sound can be heard only from a few speakers and not all 6.	On certain BD/DVD discs, sound is output from the front speakers only.Check if the speakers are connected properly.Adjust the volume.When listening to a CD or radio, sound is output to the front speakers only.
Dolby Digital 5.1 CH Surround Sound is not produced.	Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?
The remote control does not work.	Is the remote control being operated within its operation range of angle and distance?Are the batteries drained?Have you selected the mode(TV/BD) functions of the remote control (TV or BD) correctly?
Disc is rotating but no picture is produced.Picture quality is poor and picture is shaking.	Is the TV power on?Are the video cables connected properly?Is the disc dirty or damaged?A poorly manufactured disc may not be playable.
Audio language and subtitles do not work.	Audio language and subtitles will not work if the disc does not contain them.
Menu screen does not appear even when the menu function is selected.	Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.	You can play 16:9 BD/DVDs in 16:9 Wide mode, 4:3 Letter Box mode, or 4:3 Pan - Scan mode, but 4:3 BD/DVDs can be seen in 4:3 ratio only.Refer to the Blu-ray Disc jacket and then select the appropriate function.
The main unit is not working.(Example: The power goes out or a strange noise is heard.)The Blu-ray Home Cinema is not working normally.	Tum off the power and hold the STOP (■) button on the main unit for longer than 5 seconds.Using the RESET function will erase all stored settings.Do not use this unless necessary.
The password for rating level has been forgotten.	While (NO DISC) message appears on the display of main unit, hold the main unit's STOP (■) button for longer than 5 seconds.INITIAppears on the display and all settings will return to the default values.Press the POWER button.Using the RESET function will erase all stored settings.Do not use this unless necessary.
Can't receive radio broadcasts.	Is the antenna connected properly?If the antenna's input signal is weak, install an external FM antenna in an area with good reception.
While listening to TV audio through the Blu-ray Home Cinema, no sound is heard.	If the EJECT button is pressed while listening to TV audio using the D.IN or AUX functions, the BD/DVD functions are turned on and this mutes the TV audio.
The ☐con appears on screen.	The features or action cannot be completed at this time because:1. The BD/DVD's software restricts it.2. The BD/DVD's software doesn't support the feature (e.g., angles)3. The feature is not available at the moment.4. You've requested a title or chapter number or search time that is out of range.
If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV.	Press the STOP (■) uton (in front panel) for more than 5 seconds with no disc inside. All settings will revert to the factory settings.
No HDMI output.	Check the connection between the TV and the HDMI jack of the Blu-ray Home Cinema.Check if your TV supports 576p(480p)/720p/1080i/1080p HDMI input resolution.
Abnormal HDMI output screen.	If random noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection).
Cannot search for other access points using USB wireless	Check the Proxy is Off(Setup -> Network Setup -> Proxy)

CAUTIONS ON HANDLING AND STORING DISCS

Small scratches on the disc may reduce sound and picture quality or cause skipping.

Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not get on the surface.

Do not stick paper or tape on the disc.

Disc Storage

Do not keep in direct sunlight	Keep in a cool ventilated area	Keep in a clean Protection jacket. Store vertically.

- Do not allow the discs to become contaminated with dirt.

■ Do not load cracked or scratched discs.

Handling and Storing Discs

If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc

- Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

General	Power Consumption 85 W
	Weight 4.4 Kg
	Dimensions 440(W) x 345(D) x 63(H) mm
	Operating Temperature Range +5°C~+35°C
	Operating Humidity Range 10 % to 75 %
Disc	BD (Blu-ray Disc) Reading Speed: 4.917m/sec
	DVD (Digital Versatile Disc)	Reading Speed: 3.49 ~ 4.06 m/sec.
		Approx. Play Time (Single Sided, Single Layer Disc): 135 min.
	CD: 12 cm (COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.
		Maximum Play Time: 74 min.
	CD: 8 cm (COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.
		Maximum Play Time: 20 min.
Video Output	Composite Video	1 channel: 1.0 Vp-p (75 Ω load)
		Blu-ray Disc: 576i(480i) DVD: 576i(480i)
	Component Video	Y: 1.0 Vp-p (75 Ω load)
		Pr: 0.70 Vp-p (75 Ω load)
		Pb: 0.70 Vp-p (75 Ω load)
		Blu-ray Disc: 1080i, 720p, 576p(480p), 576i(480i) DVD: 576p(480p), 480i
Video/Audio HDMI		1080p, 1080i, 720p, 576p(480p)
		PCM multichannel audio, Bitstream audio, PCM audio
Amplifier	Front speaker output	165W x 2(3Ω)
	Centre speaker output 170W(3	Ω)
	Surround speaker output	165W x 2(3Ω)
	Subwoofer speaker output 170W(3	Ω)
	Frequency response	Analogue input	20Hz~20kHz (±3dB)
		Digital input	20Hz~44kHz (±3dB)
	S/N Ratio 70dB
	Channel separation 60dB
	Input sensitivity (AUX)500mV

sPeCifiCAtions

ht-Bd1250

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Centre	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~50kHz	140Hz~20kHz	140Hz~20kHz	40Hz~160Hz
	Output sound pressure level	87dB/W/M	87dB/W/M	87dB/W/M	90dB/W/M
	Rated input	165W	165W	170W	170W
	Maximum input	330W	330W	340W	340W
	Dimensions (W x H x D)	Front/Surround : 100.5 x 210 x 99 mmCentre : 300 x 59 x 50 mmSubwoofer : 201 x 403 x 410 mm
	Weights	Front/Surround : 0.70 Kg, Centre : 0.33 KgSubwoofer : 5.39 Kg

ht-Bd1252

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Centre	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~20kHz	140Hz~20kHz	140Hz~20kHz	40Hz~160Hz
	Output sound pressure level	87dB/W/M	87dB/W/M	87dB/W/M	88dB/W/M
	Rated input	165W	165W	170W	170W
	Maximum input	330W	330W	340W	340W
	Dimensions (W x H x D)	Front : 260 x 1120x 260 mmSurround : 100 x 151 x 89 mmCentre : 300 x 59 x 50 mmSubwoofer : 201 x 403 x 410 mm
	Weights	Front : 2.88 Kg, Surround : 0.42 KgCentre : 0.32 Kg, Subwoofer : 5.39 Kg

ht-Bd1255

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Centre	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~50kHz	140Hz~20kHz	140Hz~20kHz	40Hz~160Hz
	Output sound pressure level	87dB/W/M	87dB/W/M	87dB/W/M	88dB/W/M
	Rated input	165W	165W	170W	170W
	Maximum input	330W	330W	340W	340W
	Dimensions (W x H x D)	Front/Surround : 260 x 1202 x 260 mmCentre : 300 x 59 x 50 mmSubwoofer : 201 x 403 x 410 mm
	Weights	Front/Surround : 2.88 Kg,Centre : 0.34 Kg, Subwoofer : 5.39 Kg

*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.

This product uses parts of the software from the Independent JPEG Group.
This product uses parts of the software owned by the Freetype Project (www.freetype.org).
This product uses some software programs which are distributed under the GPL/LGPL license.
This Product uses some software programs which are distributed under the OpenSSL license.
Accordingly, the following GPL and LGPL software source codes that have been used in this product can be provided after asking to [e-mail].
GPL software: Linu Kernel, Busybox, Binutilis
LGPL software: uClibc, directfb

The GNU General Public License (GPL)

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.

59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and th at you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

One line to give the program's name and a brief idea of what it does.

Copyright (C)

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59

Temple Place, Suite 330, Boston, MA 02111-1307 USA

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.

The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License.

GNU Lesser General Public License (LGPL)

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom.

The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.)

“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machinereadable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

3. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found.

Copyright (C) This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 59

Temple Place, Suite 330, Boston, MA 02111-1307 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

signature of Ty Coon, 1 April 1990

Ty Coon, President of Vice

That's all there is to it!

OpenSSL License

Copyright (c) 1998-2007 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment:
   "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Region Country Customer Care Centre Web Site
North America	CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca
	MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx
	U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us
Latin America	ARGENTINE 0800-333-3733 www.samsung.com/ar
	BRAZIL 0800-124-421, 4004-0000 www.samsung.com/br
	CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl
	NICARAGUA 00-1800-5077267 www.samsung.com/latin
	HONDURAS 800-7919267	www.samsung.com/latin
	COSTA RICA 0-800-507-7267	www.samsung.com/latin
	ECUADOR	1-800-10-7267	www.samsung.com/latin
	EL SALVADOR	800-6225	www.samsung.com/latin
	GUATEMALA	1-800-299-0013	www.samsung.com/latin
	JAMAICA 1-800-234-7267	www.samsung.com/latin
	PANAMA	800-7267	www.samsung.com/latin
	PUERTO RICO	1-800-682-3180	www.samsung.com/latin
	REP. DOMINICA	1-800-751-2676	www.samsung.com/latin
	TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864) www.samsung.com/latin
	VENEZUELA 0-800-100-5303	www.samsung.com/latin
	COLOMBIA	01-8000112112	www.samsung.com.co
Europe	BELGIUM	02 201 2418	www.samsung.com/be (Dutch) www.samsung.com/be_fr (French)
	CZECH REPUBLIC	800-SAMSUNG(800-726786)	www.samsung.com/cz
	DENMARK	8-SAMSUNG(7267864)	www.samsung.com/dk
	FINLAND 30-6227 515	www.samsung.com/fi
	FRANCE	01 4863 0000	www.samsung.com/fr
	GERMANY	01805 - SAMSUNG(726-7864 € 0,14/Min)	www.samsung.de
	HUNGARY	06-80-SAMSUNG(726-7864) www.samsung.com/hu
	ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it
	LUXEMBURG	02 261 03 710	www.samsung.com/lu
	NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com/nl
	NORWAY	3-SAMSUNG(7267864)	www.samsung.com/no
	POLAND	0 801 1SAMSUNG(172678), 022-607-93-33	www.samsung.com/pl
	PORTUGAL	80820-SAMSUNG(726-7864)	www.samsung.com/pt
	SLOVAKIA	0800-SAMSUNG(726-7864)	www.samsung.com/sk
	SPAIN	902-1-SAMSUNG (902 172 678)	www.samsung.com/es
	SWEDEN	075-SAMSUNG(726 78 64)	www.samsung.com/se
	U.K	0845 SAMSUNG (7267864)	www.samsung.com/uk
	EIRE	0818 717 100	www.samsung.com/ie
	AUSTRIA	0810-SAMSUNG(7267864, € 0.07/min)	www.samsung.com/at
	SWITZERLAND	0848-SAMSUNG(7267864, CHF 0.08/min)	www.samsung.com/ch
CIS	RUSSIA	8-800-555-55-55	www.samsung.ru
	KAZAKHSTAN	8-10-800-500-55-500	www.samsung.com/kz_ru
	UZBEKISTAN	8-10-800-500-55-500	www.samsung.com/kz_ru
	KYRGYZSTAN	00-800-500-55-500
	TADJIKISTAN	8-10-800-500-55-500
	UKRAINE	8-800-502-0000	www.samsung.ua
	LITHUANIA 8-800-77777	www.samsung.com/lt
	LATVIA	8000-7267	www.samsung.com/lv
	ESTONIA	800-7267	www.samsung.com/ee
Asia Pacific	AUSTRALIA	1300 362 603	www.samsung.com/au
	NEW ZEALAND	0800 SAMSUNG (0800 726 786)	www.samsung.com/nz
	CHINA	800-810-5858, 400-810-5858, 010-6475 1880	www.samsung.com/cn
	HONG KONG	3698-4698	www.samsung.com/hk
	INDIA	3030 8282, 1800 110011, 1-800-3000-8282	www.samsung.com/in
	INDONESIA	0800-112-8888	www.samsung.com/id
	JAPAN	0120-327-527	www.samsung.com/jp
	MALAYSIA	1800-88-9999	www.samsung.com/my
	PHILIPPINES	1-800-10-SAMSUNG(726-7864) 1-800-3-SAMSUNG(726-7864), 02-5805777	www.samsung.com/ph
	SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg
	THAILAND	1800-29-3232, 02-689-3232	www.samsung.com/th
	TAIWAN	0800-329-999	www.samsung.com/tw
	VIETNAM	1 800 588 889	www.samsung.com/vn
Middle East & Africa	TURKEY	444 77 11	www.samsung.com/tr
	SOUTH AFRICA	0860-SAMSUNG(726-7864 )	www.samsung.com/za
	U.A.E 800-SAMSUNG (726-7864), 8000-4726 www.samsung.com/ae

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
