DV-BD507 - Blu-ray player ONKYO - Free user manual and instructions

Product type	Blu-ray player
Model	DV-BD507
Brand	Onkyo
Dimensions (W x H x D)	435 x 69.3 x 310 mm
Weight	3.0 kg
Power supply	AC 110-240 V, 50/60 Hz
Power consumption	25 W (standby: 0.3 W)
Signal system	NTSC / PAL
Playable discs	BD-Video, DVD-Video, CD-DA, BD-RE/R, DVD±R/RW, CD-R/RW, AVCHD, MP3, JPEG, DivX
HDMI output	1 x HDMI (up to 1080p/24fps)
Component video output	1 x RCA (Y, Pb, Pr)
Composite video output	1 x RCA
Digital audio output	1 x optical, 1 x coaxial
Analogue audio output	1 x stereo RCA (L/R)
Ethernet	10BASE-T/100BASE-TX (for BD-Live)
SD card slot	SD/SDHC memory card (for BD-Live and media playback)
Audio decoding	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD Master Audio
Video upscaling	Up to 1080p via HDMI
Special features	BD-Live, BonusView (PIP), HDMI CEC, x.v.Color, 1080p/24fps output, Deep Color
Remote control	RC-732DV (with batteries)
Supplied accessories	Remote control, batteries, RCA audio/video cable, AC cord, instruction manual, quick start guide
Maintenance	Clean with soft cloth; do not use solvents
Safety	Class 1 laser product; do not open casing

Frequently Asked Questions - DV-BD507 ONKYO

How do I connect the DV-BD507 to my TV?

Use an HDMI cable for best quality. Connect the HDMI OUT jack to your TV's HDMI input. Alternatively, use component or composite video cables along with audio cables. Refer to the connection diagrams in the manual.

Why is there no picture on my TV?

Ensure the TV is set to the correct input. Check the HDMI or video cable connection. If using HDMI, try pressing the RESOLUTION button to cycle through output modes. If still no picture, reset the video output by pressing and holding PLAY on the front panel for 5 seconds.

Can I play DVD discs on this player?

Yes, the DV-BD507 is compatible with DVD-Video, DVD±R/RW discs (finalized). It also upscales standard DVDs to near-HD quality via HDMI.

How do I use the BD-Live feature?

Connect the player to the internet via Ethernet. Insert an SD card (up to 8GB) into the SD slot for local storage. On BD-Live discs, you can access extra content such as commentaries, games, and downloads.

Why is the remote control not working?

Check if batteries are installed correctly (polarity +,-). Replace with new batteries if necessary. Ensure there are no obstructions between the remote and the player's infrared sensor. Strong sunlight or fluorescent lights can interfere.

What audio formats are supported?

The player supports Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD Master Audio, and LPCM. You can output via HDMI or digital optical/coaxial. For 2-channel analogue, use the RCA L/R outputs.

How do I clean the player or discs?

For the player, unplug it and dust with a soft cloth. For stubborn dirt, use a cloth slightly dampened with mild detergent, then dry. For discs, wipe from center outward with a soft cloth; never use solvents.

What is the region code for this Blu-ray player?

The region code is printed on the rear panel. Typically, for Europe it is Region B for Blu-ray and Region 2 for DVD. Only discs with matching codes will play.

Can I play MP3 or JPEG files from a USB drive?

No, this player does not have a USB port. However, you can play MP3 and JPEG files from CD, DVD, or SD memory card (SDHC up to 8GB). Insert the media and use the file list to select files.

What should I do if the player freezes or malfunctions?

Unplug the AC cord from the wall outlet for 5-10 seconds, then plug it back in. If the problem persists, contact your Onkyo dealer. Do not attempt to open the casing as there are no user-serviceable parts inside.

USER MANUAL DV-BD507 ONKYO

Thank you for purchasing an Onkyo BLU-RAY DISC PLAYER. Please read this manual thoroughly before making connections and plugging in the unit.

Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new BLU-RAY DISC PLAYER.

Please retain this manual for future reference.

PRECAUTIONS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

AVIS

RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

The caution marking is located on the rear or bottom of the cabinet.

Caution

1. Do not attempt to open the cabinet. There are no parts you can service inside. Refer all servicing to qualified service personnel.
2. Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered.
   Avoid installation in enclosed spaces such as bookcases unless proper ventilation is provided.
3. Keep the unit away from radiators and other heat sources.
4. Avoid use near strong magnetic fields.
5. Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.
6. To prevent fire or shock hazard, do not expose this apparatus to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the apparatus.
7. Do not stand the unit up vertically. Use this unit in a horizontal (flat) position only.
8. This product is in Stand-by mode when it turns off while the power cord is connected.
9. Do not place any combustible objects on the device (candles, etc.).
10. Before moving the unit, be sure to remove any discs and unplug the mains cable from the AC outlet.
11. Disconnect the mains plug to shut off when find trouble or not in use.
12. The mains plug shall remain readily operable.
13. Read the manual instructions to ensure correct and safe installation and interconnection of the unit in multimedia systems.
14. Keep the distances 20 cm around apparatus of ventilation openings.

Positioning

Do not place the unit directly on top of, or underneath, your TV set. Ensure that there is at least 20 cm between the unit and the TV set, and that air can circulate freely through the ventilation openings of the unit.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

A Note about Recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. This product consists of materials which can be recycled and reused if disassembled by a specialised company.

Following information is only valid EU-member States: Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

Pb, Hg, Cd

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

1. Recording Copyright—Unless it's for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user-serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don't use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit's rear panel (AC110-240V, 50 / 60Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times. Some models have a voltage selector switch for compatibility with power systems around the world. Before you plug in such a model, make sure that the voltage selector is set to the correct voltage for your area.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—

Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes

- If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.

- Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

- This unit's top and rear panels may get warm after prolonged use. This is normal.

- If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

- When you've finished using this unit, remove all discs and turn off the power.

9. Installing this Unit

• Install this unit in a well-ventilated location.

- Ensure that there's adequate ventilation all around this unit, especially if it's installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.

- Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.

- Avoid damp and dusty places, and places subject to vibrations from loudspeakers.

- Never put the unit on top of, or directly above a loud-speaker.

- Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.

- If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

1. To Obtain a Clear Picture—This unit is a high-tech, precision device. If the lens on the optical pickup, or the disc drive mechanism becomes dirty or worn, the picture quality may be affected. To maintain the best picture quality, we recommend regular inspection and maintenance (cleaning or worn part replacement). Contact your Onkyo dealer.

11. Moisture Condensation

Moisture condensation may damage this unit.

Read the following carefully:

Moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.

- Moisture condensation can occur in the following situations:

- The unit is moved from a cold place to a warm place.

- A heater is turned on, or cold air from an air conditioner is hitting the unit.

- In the summer, when this unit is moved from an air conditioned room to a hot and humid place.

– The unit is used in a humid place.

• Do not use this unit when there's the possibility of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit. If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any condensation will have evaporated.
• RegionCodes—The BD/DVD standard uses region codes to control how discs can be played around the world, the world being divided into three regions (BD) or six regions (DVD). This unit will only play BD/DVD discs that match its region code, which can be found on its rear panel.
• About this Manual—This manual explains how to use all of this unit's functions. Although the BD/DVD standard offers many special features, not all discs use them all, so depending on the disc being played, this unit may not respond to certain functions. See the disc's sleeve notes for supported features.

This unit contains a semiconductor laser system and is classified as a "CLASS 1 LASER PRODUCT". So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit.

To prevent being exposed to the laser beam, do not try to open the enclosure.

DANGER:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM.

CAUTION:

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The label on the right is applied on the rear panel.

1. This unit is a CLASS 1 LASER
   PRODUCT and employs a laser inside the cabinet.
2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.

For European Models

Declaration of Conformity

We. ONKYO EUROPE

ELECTRONICS GmbH

LIEGNITZERSTRASSE 6.

82194 GROEBENZELL,

GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

ONKYO EUROPE ELECTRONICS GmbH

Supplied Accessories

remote control with batteries (R6x2)

instruction manual

RCA audio/video cables

AC cord

quick start guide

Note about Recycling

• This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Maintenance

Servicing

• Please refer to relevant topics on "TROUBLESHOOTING" on page 52 before returning the product.
• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit to the standby mode, unplug the power plug, and contact your Onkyo dealer.

Disc handling

- For best results, keep your discs clean. Fingerprints and dust can affect the sound and picture quality and should be removed as follows. Using a clean, soft cloth, wipe from the centre outwards, as shown. Never wipe in a circular direction.

• To remove stubborn dust or dirt, wipe the disc with a damp, soft cloth, and then dry it with a dry cloth.
- Never use solvent-based cleaning fluids, such as thinner or benzine, commercially available cleaners, or antistatic sprays intended for vinyl records, because they may damage the disc.

IR signal check

• If the remote control is not working properly, you can use an AM radio or digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.
• With an AM radio:

Tune the AM radio station to a non-broadcasting frequency. Point the remote control towards it, push any button and listen. If the sound from the

radio flutters, it is receiving the remote control's infrared signal.

- With a digital camera (including built-in cell phone cameras):

Point a digital camera towards the remote control. Push any button on the remote control and look through the digital camera. If the infrared light appears through the camera, the remote control is working.

Copyright

- It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission. Commercial BD-video/ DVD-video discs are copy-protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision. Reverse engineering or disassembly is prohibited.

Trademark Information

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

BONUS VIEW™

"BONUSVIEW" is trademark of Blu-ray Disc Association.

"BD-LIVE" logo is trademark of Blu-ray Disc Association.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio | Essential are trademarks of DTS, Inc. ©1996-2008 DTS, Inc. All Rights Reserved.

x.v.Color

"x.v.Color" and "x.v.Color" logo are trademarks of Sony Corporation.

"Blu-ray Disc" and are trademarks.

DVD is a trademark of DVD Format/Logo Licensing Corporation.

Java and all other Java trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and/or other countries.

DivX®, DivX Certified®, and associated logos are trademarks of DivX, Inc. and are used under license.

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

CONTENTS

Introduction

PRECAUTIONS 2

FEATURES 8

Features 8

Symbols Used in this Manual 8

FUNCTION OVERVIEW 9

Front Panel 9

Rear Panel 9

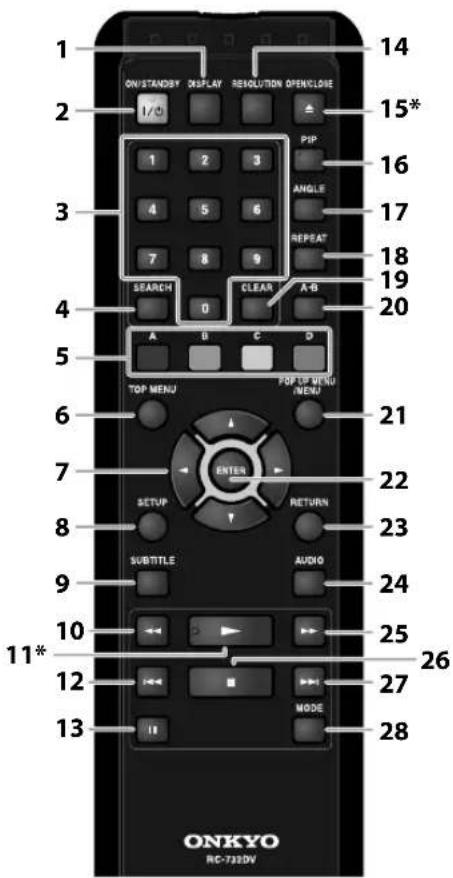

Remote Control 10

Front Panel Display 12

Connections

CONNECTIONS ......13

Connection to the TV 13

Connection to an Audio System ....16

Connecting the AC Cord ....17

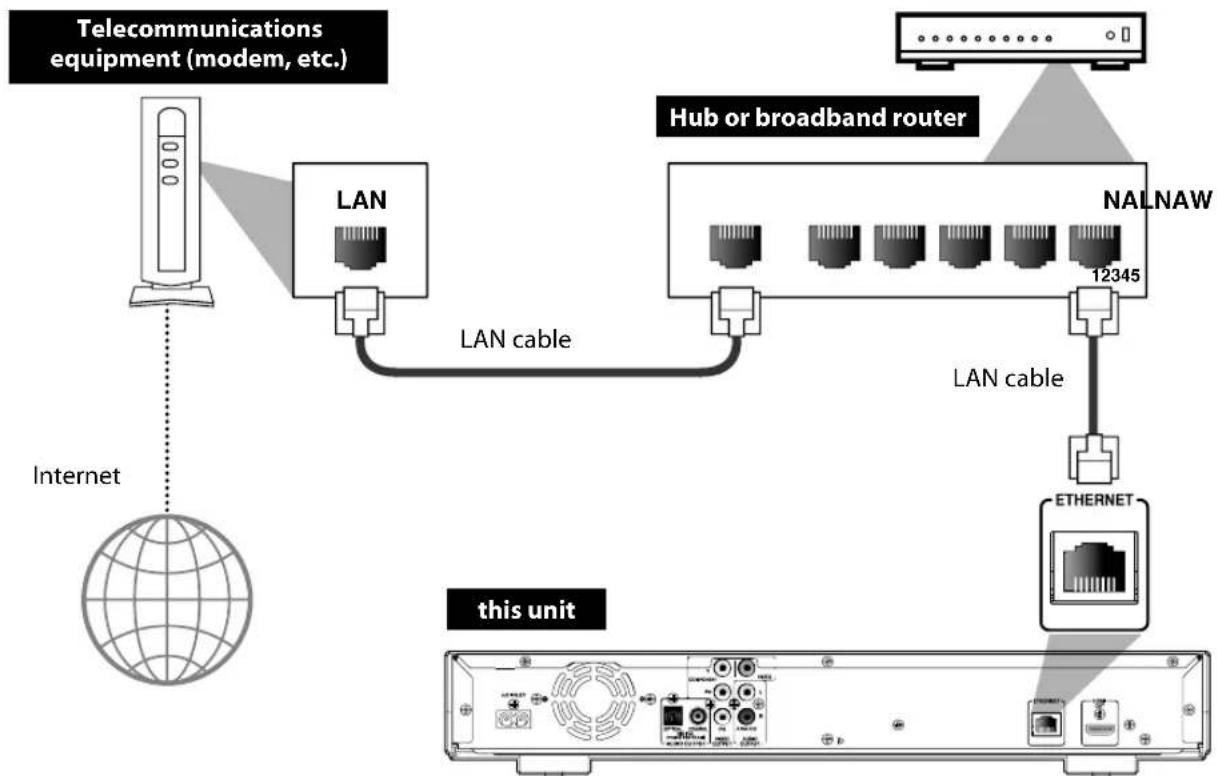

Network Connection with LAN 18

Playback

INFORMATION ON PLAYBACK ....19

BASIC PLAYBACK 22

Playing Back a BD, DVD or a Disc with AVCHD files ... 22

Operations Using Title Menu, Disc Menu, and Pop-up Menu 23

Pause 23

Resume Playback 23

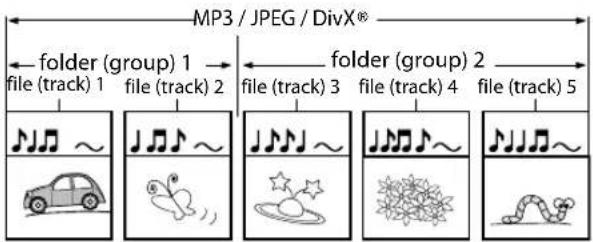

Playing Back an audio CD or a MP3, JPEG and DivX® File 24

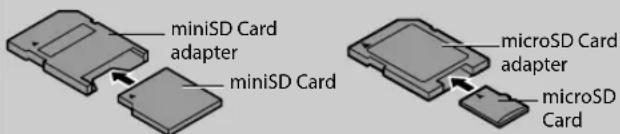

Reading the SD Memory Card 26

Inserting the SD Memory Card and Playback .....27

Removing the SD Memory Card 27

SPECIAL PLAYBACK 28

Fast Forward / Fast Reverse 28

Slow Forward Playback 28

Step by Step Playback 28

Repeat Playback 28

A-B Repeat 29

PIP (Picture in Picture) (BONUSVIEW) Setting ...... 29

Programme Playback 29

Random Playback 30

Rapid Playback 31

Camera Angle 31

Enjoying BD-Live Discs with Internet 31

SEARCH 32

SPECIAL SETTINGS ....33

Switching Subtitles 33

Switching Audio Soundtrack 33

Setting the BD Audio Mode ....34

Adjusting the Picture 34

Function Setup

FUNCTION SETUP 35

Using the Setup Menu 35

Network Connection 47

Software Upgrade ....50

Others

TROUBLESHOOTING 52

GLOSSARY 54

LANGUAGE CODE 56

SPECIFICATIONS ....57

FEATURES

Features

Full high-definition video playback

Watch movies in the highest picture quality available for your HDTV. This unit offers full high-definition video playback up to 1080p resolution for an amazing viewing experience. A highly detailed picture and increased sharpness delivers a more true-to-life picture.

Upconvert DVD for enhanced picture quality

Your current DVD will look even better than before thanks to video upconversion. Upconversion will increase the resolution of standard definition DVD to high definition up to 1080p over an HDMI connection. The picture will be less jagged and more realistic for a near high definition experience.

Enjoy your content on different kinds of media

Full backwards compatibility with DVD, CD and SD Card ensures that you can continue to enjoy your current audio-video collection. Additionally, you can enjoy JPEG / MP3 / DivX® files.

Listen to the rich multi-channel surround sound

Multi-channel surround sound, which realises real-to-life sound and makes you feel that you are really there.

Easy and simple connection to your HDTV via HDMI

Connect this unit to your HDTV with one single HDMI (high definition multimedia interface) cable. It is recommended to use High Speed HDMI Cable for better compatibility. The high definition video output signal will be transferred to your HDTV without conversion to analogue signals, so you will get an excellent picture and sound quality, completely free from noise.

Thanks to other multiple outputs, you can also easily connect to your home theatre system or amplifier.

About HDMI CEC (consumer electronics control)

This unit supports HDMI CEC, which allows integrated system control over HDMI and is part of the HDMI standard. Onkyo does not guarantee 100% interoperability with other brands of HDMI CEC compliant devices.

PIP (picture in picture) (BONUSVIEW) setting

Some BD-video have the PIP (picture-in-picture) function which enables you to display the secondary video in the primary video. You can call up the secondary video by pressing [PIP] whenever the scene contains the secondary video.

BD-Live

BD-Live (BD-ROM Ver. 2 (Profile 2.0/Profile 1.1)) that allows interactive functions to be used when this unit is connected to the Internet in addition to be BONUSVIEW function. The various functions differ depending on the disc.

Pop-up menu

Some BD-video have pop-up menu which is a navigation menu that can be called up and be operated on the TV screen without interrupting the playback. You can call up the pop-up menu by pressing [POP UP MENU/MENU]. Contents in the pop-up menu vary depending on the disc.

Rapid playback

Playback in slightly faster speed while keeping the sound output.

Rapid playback is available only on discs recorded in the Dolby Digital format.

HDMI Deep Color

Deep Color reduces the posterisation effect of the playback image. Refer to "HDMI Deep Color" in "FUNCTION SETUP" on page 38.

HDMI 1080p/24fps output (BD only)

This unit is equipped with the feature which can provide the smooth movement in the playback of film originated material with the frame rate of 24 frames per second with progressive. (Available only when the TV is connected by an HDMI cable and compatible with 1080p24 frame input.) Refer to "HDMI Video Resolution" in "FUNCTION SETUP" on page 38.

Playing back the contents in SD Memory Card

You can play back AVCHD/MP3 and JPEG stored in an SD Memory Card.

You can store picture-in-picture commentary, subtitles or other extras for BD-ROM Ver.2 (Profile 2.0/Profile 1.1) files in an SD Memory Card and play back with the BD-video.

Playing back AVCHD files

This unit supports playback of AVCHD format files (new format for high definition video camcorders) recorded on disc/SD card. Your high definition personal archive is playable in HD quality.

Playing Back DivX® / D i v XHD File

You can enjoy DivX® files which are recorded on BD-RE/-R, DVD-RW/-R or CD-RW/-R.

• Official DivX ® Certified product

- Plays all versions of DivX ^® video (including DivX ^® 6/DivX ^® HD) with standard playback of DivX ^® media files.

x.v.Color

This unit supports playback of video contents on discs recorded with "x.v.Color" technology. To watch this video content with the "x.v.Color" space, a TV or other display device supporting both video image reproduction using "x.v.Color" standard and capability of manual switching of its colour space setting is required. Please refer to the owner's manual of your display device for further information.

Symbols Used in this Manual

To specify for which media type each function is, we put the following symbols at the beginning of each item to operate.

Symbol Description

BD-V	Description refers to BD-video and BD-RE (ver. 2.1) / BD-R (ver. 1.1/ 1.2/ 1.3) recorded in BDMV format
DVD-V	Description refers to DVD-video
AVCHD	Description refers to DVD and SD Card / SDHC Card with AVCHD files
CD	Description refers to audio CD / DTS-CD
MP3	Description refers to BD, DVD, CD-RW/-R and SD Memory Card with MP3 files
JPEG	Description refers to BD, DVD , CD-RW/-R and SD Memory Card with JPEG files
DivX	Description refers to BD, DVD and CD-RW/-R with DivX® files

If you do not find any of the symbols listed above under the function heading, the operation is applicable to all media.

FUNCTION OVERVIEW

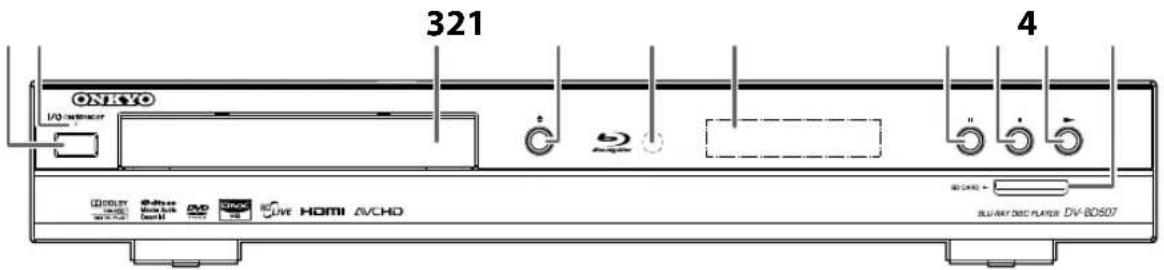

Front Panel

(*) The unit can also be turned on by pressing these buttons.

1. I/ON/STANDBY button

- Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord)

2. STANDBY indicator

- This indicator lights up in red when the unit is in standby mode and turns off when the unit is active.

3. Disc tray

- Place a disc when opening the disc tray.

4. OPEN/CLOSE ▲ button\*

- Press to open or close the disc tray.

5. Infrared sensor window

- Receive signals from your remote control so that you can control the unit from a distance.

6. Display

- Refer to "Front Panel Display" on page 12.

7. PAUSE II button

- Press to pause playback.

8. STOP ■ button

- Press to stop playback.

9. PLAY ▶ button\*

- Press to start or resume playback.

10. SD CARD slot

- Insert an SD Memory Card, and play back the contents in it.

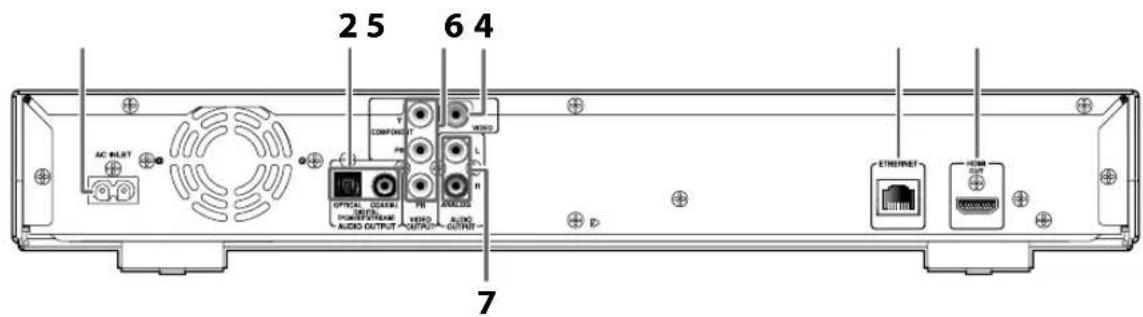

Rear Panel

3

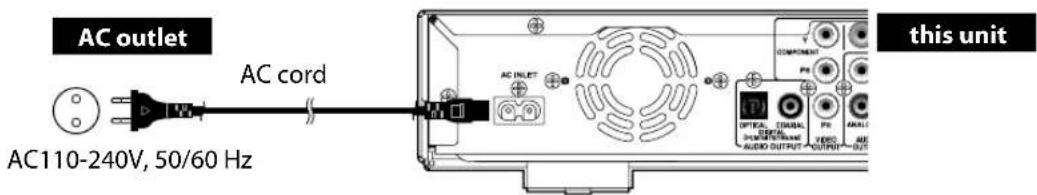

1. AC INLET terminal

• Use to connect the AC outlet with the AC cord.
• Unplug the AC cord from the AC outlet to completely shut down the unit.

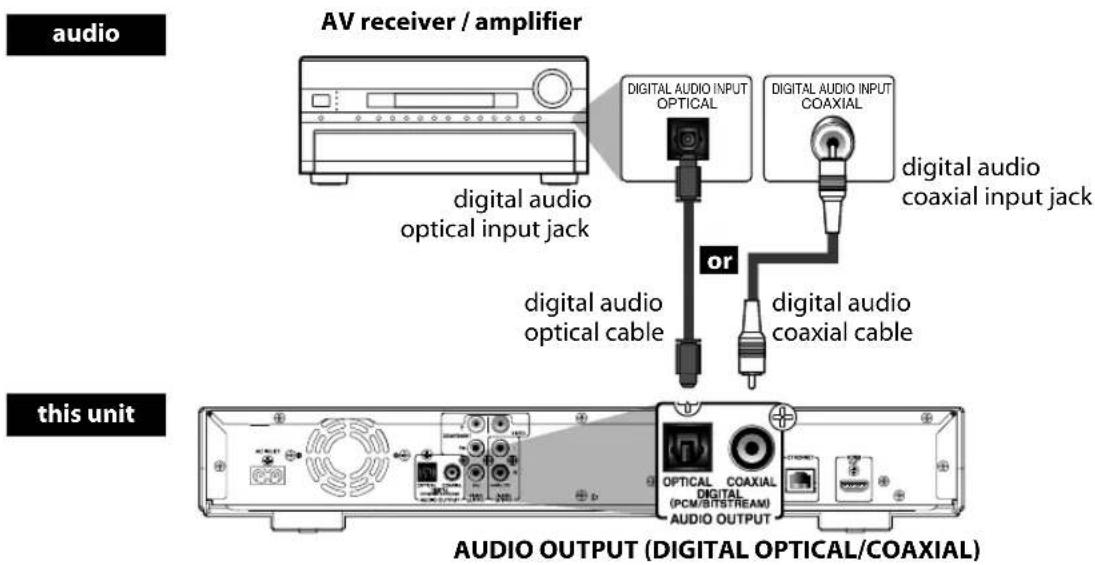

2. AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks

- Use to connect an AV receiver / amplifier, Dolby Digital / DTS decoder or other device with a digital audio optical/coaxial input jack with a digital audio optical/coaxial cable.

3. VIDEO OUTPUT (COMPONENT) jacks

- Use to connect a TV or AV receiver with component video inputs with an RCA component video cable.

4. VIDEO OUTPUT (VIDEO) jack

- Use to connect a TV, an AV receiver or other device with an RCA video cable.

5. ETHERNET terminal

- Use to connect a telecommunications equipment with LAN cable.

6. HDMI OUT jack

- Use to connect a TV with an HDMI compatible port with an HDMI cable.

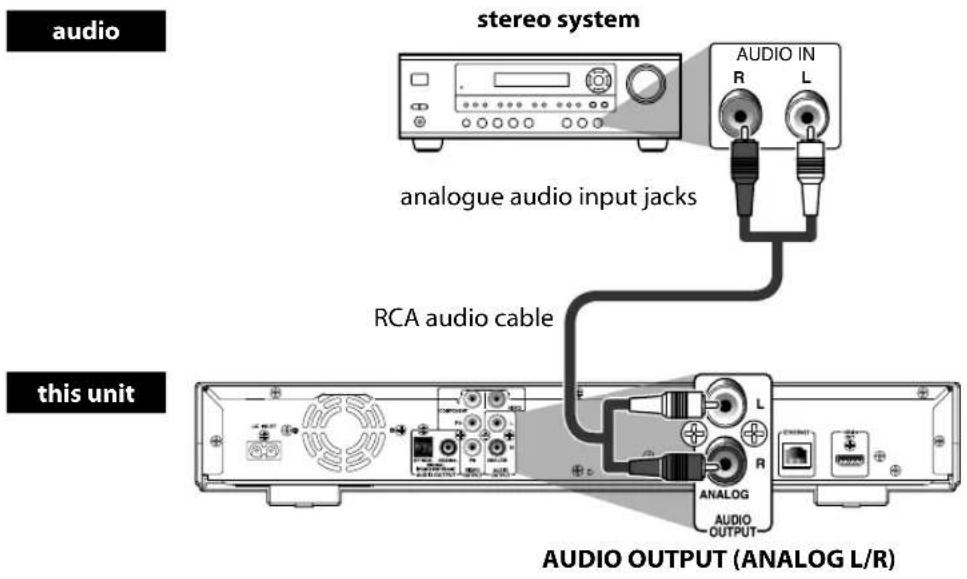

7. AUDIO OUTPUT (ANALOG L/R) jacks

- Use to connect a TV, an AV receiver / amplifier or other device with an RCA audio cable.

Note

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
  • This unit does not have the RF modulator.

Remote Control

(*) The unit can also be turned on by pressing these buttons.

1. DISPLAY button

- Press to display the on-screen display menu.

2. ON/STANDBY I /⏻ button

- Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord)

3. Number buttons

- Press to enter the title, chapter, track or file number.

- Press to enter values in the input field.

4. SEARCH button

- Press to display the search menu.

5. A / B / C / D button

- Press to select items on some BD menus.

- When file list / thumbnail list is shown, press to switch between pages.

6. TOP MENU button

- Press to display the top menu.

7. Cursor ▲ / ▼ / ◀ / ▶ buttons

- Press to select items or settings.

8. SETUP button

- Press to display the setup menu.

9. SUBTITLE button

- Press to display the subtitle menu.

10. REV ◀ button

- During playback, press to fast reverse the playback.

11. PLAY▶ button\*

- Press to start playback or resume playback.

12. SKIP |◀◀ button

- During playback, press once to return to the beginning of the current title, chapter, track or file.

• During playback, press twice to return to the previous title, chapter, track or file.
• During the JPEG playback, press to return to the previous file.

13. PAUSE || button

• Press to pause playback.
• When playback is in pause mode, press repeatedly to forward the playback step by step.

14. RESOLUTION button

- Press to set the HDMI output mode.

15. OPEN/CLOSE ▲ button\*

- Press to open or close the disc tray.

16. PIP button

- Press to switch picture-in-picture feature on or off (only applicable to BD-video which supports the PIP function).

17. ANGLE button

• Press to access various camera angles on the disc.
• Press to rotate the JPEG files clockwise by 90 degrees.

18. REPEAT button

- Press to toggle between various repeat modes.

19. CLEAR button

- Press to clear the information once entered, to clear the marker settings, or to cancel the programming for audio CD, etc.

20. A-B button

- Press to play back a defined section between point A and B repeatedly.

21. POP UP MENU/MENU button

- Press to display the pop-up menu / disc menu.

22. ENTER button

- Press to confirm or select menu items.

23. RETURN button

- Press to return to the previously displayed menu screen.

24. AUDIO button

- Press to display the audio menu.

25. FWD▶▶ button

- During playback, press to fast forward the playback. - In pause mode, press to slow forward the playback.

26. STOP ■ button

- Press to stop playback.

27. SKIP ▶▶| button

- During playback, press to skip to the next title, chapter, track or file.

28. MODE button

• During BD, DVD or AVCHD files playback, press to display the setting for the rapid playback and the picture adjustment.
• During BD playback, press to turn the picture-in-picture feature on or off (only applicable to BD-video which supports the PIP function).
• During the JPEG playback, press to display menus for changing the visual effect for switching the image or changing the size of the image.
• In stop mode with BD inserted, press to display a menu for setting the BD audio mode.
• In stop mode with audio CD, a disc with MP3 or JPEG files inserted, press to display menus for programme and random playback.

Installing the Batteries in the Remote Control

Install the batteries (R6x2) matching the polarity indicated inside battery compartment of the remote control.

1) Open the cover.

Diagram of a device being inserted into a slot, showing mechanical components (no text or symbols)

2) Insert batteries.

Diagram of a battery inside a circular housing, showing internal components and polarity indicators (no text or labels)

Make sure to match + and - on the batteries to the marks indicated in the battery compartment.

3) Close the cover.

Diagram of a device being inserted into a slot, showing mechanical components and a circular outline (no text or symbols)

Note

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Do not mix new and old batteries together.
• Do not use different kinds of batteries together. Although they may look similar, different batteries may have different voltages.
• Make sure that the + and - ends of each battery match the indications in the battery compartment.
• Remove batteries from battery compartment that is not going to be used for a month or more.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
• Do not recharge, short-circuit, heat, burn or disassemble batteries.

Using a Remote Control

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the infrared sensor window of the unit.
• Remote control for different devices can interfere with each other. Avoid using remote control for other device located close to the unit.
• Replace the batteries when you notice a fall off in the operating range of the remote control.

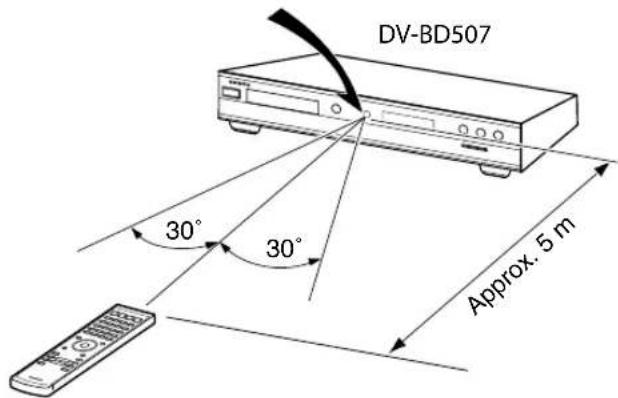

• The maximum operable ranges from the unit are as follows.

Infrared sensor window

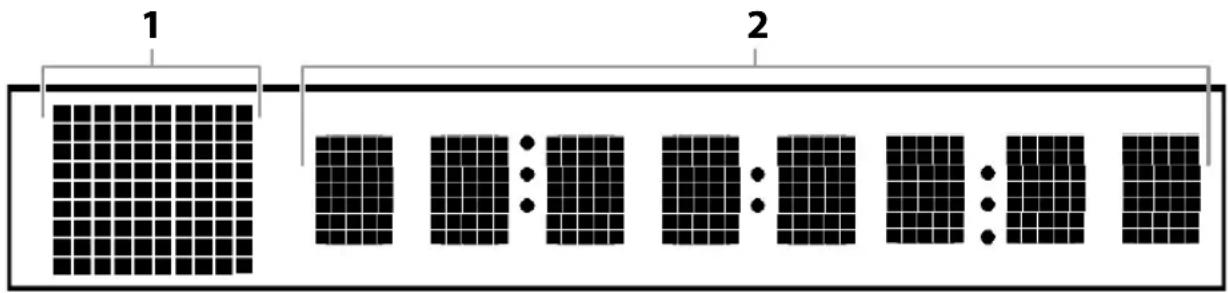

Front Panel Display

* Brightness of the display can be adjusted. Refer to "Panel Display" in "FUNCTION SETUP" on page 45.

1. Displays playback status icon. Refer to the table below.
2. Displays various kinds of information such as title number, elapsed time, repeat mode, etc.

Playback Status Icon		Mode
Disc SD Memory Card
		Playback is in progress
[1024]		Stop mode
		Pause mode
		Fast forward mode
		Fast reverse mode
	(for AVCHD only)	Slow forward mode
[1025]		Appears while repeat function is set

Example of Display Message

Title is being played back. Indicating the current title number and the elapsed time.

Loading a disc.

Current chapter is in chapter repeat mode.

Dolby Digital audio is being played back.

DTS audio is being played back.

CONNECTIONS

Connection to the TV

- Make one of the following connections, depending on the capabilities of your existing device.

*1) This unit is compatible with the progressive scan system. The feature provides you with the higher quality pictures than traditional output system does. To utilise this feature, a component or an HDMI connection is required. Refer to "HDMI Video Resolution" or "Component Output" setting on page 38 to set the video resolution.
*2) Analogue audio connection is not required for this connection.

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1
- RCA video cable x 1

Please purchase the rest of the necessary cables at your local store.

Note

• Connect this unit directly to the TV. If the RCA audio / video cables are connected to a VCR, pictures may be distorted due to the copy-protection system.
• If the picture is not output properly to the TV because of "HDMI Video Resolution" or "Component Output" setting, press and hold [PLAY▶] on the front panel for more than 5 seconds. "HDMI Video Resolution" and "Component Output" setting will be reset to the default automatically. You cannot change the video resolution during Blu-ray Disc playback. To change the resolution, stop playback.
• A simple 1-cable connection with a device having an HDMI (high-definition multimedia interface) jack allows digital transfer of both digital video signals and multi-channel audio signals.

HDMI Output Mode and Actual Output Signals

Press [RESOLUTION] to change the resolution of the video signal being output from HDMI OUT jack. The video resolution changes as follows every time [RESOLUTION] is pressed.

Front Panel Display HDMI Video Resolution

480p*	480 Progressive
576p	576 Progressive
Press [RESOLUTION] ↓
720p	720 Progressive
Press [RESOLUTION] ↓
1080i	1080 Interlaced
Press [RESOLUTION] ↓
1080p	1080 Progressive
Press [RESOLUTION] ↓
1080p24	1080 Progressive 24 frame

Copyright protection system

To play back the digital video images of a BD / DVD via an HDMI connection, it is necessary that both the unit and the TV (or an AV receiver) support a copyright protection system called HDCP (high-bandwidth digital content protection system). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV device. This unit supports HDCP. Please read the operating instructions of your TV (or AV receiver) for more information.

Press [RESOLUTION]

* "480p" will be displayed only when an NTSC disc or a 1080p/24 frame material is being played back.

Note

• When using HDCP-incompatible TV, the image will not be viewed properly.
• The audio signals from HDMI OUT jack (including the sampling frequency, the number of channels and bit length) maybe limited by the device that is connected.
• Among the devices that support HDMI, some do not support audio output (e.g. projectors). In connections with device such as this unit, audio signals are not output from HDMI OUT jack.
  • Video and audio signals may be distorted temporarily when switching to / from the HDMI output mode.
• You cannot change the video resolution during Blu-ray Disc playback. To change the resolution, stop playback.
• You can also change the HDMI output mode from "HDMI Video Resolution" setting in "Video" menu. In this menu, you can confirm what HDMI video resolutions are supported by connected TV. Refer to page 38.
• In order to get natural and high quality film reproduction of 24-frame film material, use an HDMI cable (High Speed HDMI Cable is recommended) and select "1080p24" if the connected TV is compatible with 1080p24 frame input.
• Even if you set "HDMI Video Resolution" setting to "1080p24", when the contents of the disc is not compatible for 1080p24 frame, 1080p60 frame will be output.
• It is recommended to use High Speed HDMI Cable (also known as HDMI category 2 cable) for better compatibility.

HDMI Audio Setting

When using HDMI connections make "HDMI Audio Out" setting in "Audio" menu according to the specifications of the device to be connected. Refer to page 40.

Device to be connected	“HDMI Audio Out” setting	Output HDMI audio signal
Device compatible with Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD decoding	HDMI Multi(Normal)	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, or DTS-HD bitstream are output from HDMI OUT jack. Make the speaker settings on the connected AV amplifier, etc.
Device compatible with 3 or more channels of audio inputs (not Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD compatible)	HDMI Multi(LPCM)	Multi-channel audio signals are output from HDMI OUT jack. Make the speaker settings with the speaker setting items appear after you select “HDMI Multi(LPCM)”. Refer to page 40.
Device compatible with 2-channel audio input or device not compatible with audio input	HDMI 2ch	Down-mixed 2-channel audio signals are output from HDMI OUT jack.
HDMI connection to a TV, and digital audio connection (coaxial/optical) to an AV amplifier	Audio Mute	HDMI audio will be muted, and Dolby Digital / DTS bitstream or LPCM will be output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks depending on “Digital Out” setting. Refer to page 41.

■Audio signals output from HDMI OUT jack

	“HDMI Audio Out” setting →	“HDMI Multi(Normal)” “HDMI Multi(LPCM)” “HDMI 2ch”
	“BD Audio Mode” setting →	“HD Audio Output”	“Mix Audio Output”	“HD Audio Output”	“Mix Audio Output”	“HD Audio Output”	“Mix Audio Output”
Media ↓	Audio Source ↓	Which audio format can be output depends on the compatibility of the connected device.
BD-video	Dolby Digital Dolby Digital Dolby Digital Plus	Digital Multi PCM	Multi PCM		Downmix 2ch PCM	Downmix 2ch PCM
	Dolby Digital Plus	Dolby Digital Plus	Multi PCM *1	Multi PCM*2	Downmix 2ch PCM *1	Downmix 2ch PCM*2
	Dolby TrueHD Dolby TrueHD Dolby Digital Multi PCM *3	Digital Multi PCM	Multi PCM*4		Downmix 2ch PCM *3	Downmix 2ch PCM*4
	DTS DTS DTS	Multi PCM	Multi PCM*7	Multi PCM*7	Downmix 2ch PCM	Downmix 2ch PCM
	DTS-HD	DTS-HD	Multi PCM*5,7	Multi PCM*6,7	Downmix 2ch PCM *5	Downmix 2ch PCM*6
	LPCM	Multi LPCM	Multi PCM	Multi PCM	Downmix 2ch PCM	Downmix 2ch PCM
AVCHD	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	LPCM	Multi PCM		Multi PCM		Downmix 2ch PCM
DVD-video	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	DTS	DTS		Multi PCM		Downmix 2ch PCM
	LPCM	2ch PCM		2ch PCM		2ch PCM
	MPEG	MPEG		Multi PCM		Downmix 2ch PCM
Audio CD / MP3	PCM	2ch PCM		2ch PCM		2ch PCM
DivX®	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	PCM	2ch PCM		2ch PCM		2ch PCM
DTS-CD	DTS	DTS		Multi PCM		Downmix 2ch PCM

*1 Full decoded.

^*2 Only the independent substream is decoded.

*3 Dolby TrueHD stream is decoded.

*4 Only the Dolby Digital substream is decoded.

*5 Full decoded.

^*6 Only the core substream is decoded.

*7 When audio source is Multi-channel, decoded as 7.1ch. However, number of the output audio channel will depend on the number of the connected speakers.

- If the connected device is not compatible with the HDMI BITSTREAM, audio will be output as multi LPCM or 2-channel down-mixed LPCM depending on the capability of the connected device even if you select "HDMI Multi(Normal)" in "HDMI Audio Out" setting. Refer to page 40.

- When playing back a BD-video which only contains the primary audio, the audio output will be the same case as the "HD Audio Output" even if the "BD Audio Mode" is set to "Mix Audio Output".

Note

- The audio signals from HDMI OUT jack (including the sampling frequency, the number of channels and bit length) maybe limited by the device that is connected.

- Among the devices that support HDMI, some do not support audio output (e.g. projectors). In connections with device such as this unit, audio signals are not output from HDMI OUT jack.

- Video and audio signals may be distorted temporarily when switching to / from the HDMI output mode.

Connection to an Audio System

• When you change the connections, all devices should be turned off.
  • Refer to the manual accompanying external devices for more information.

2-Channel Analogue Audio Connection

Digital Audio Connection

Supplied cables used in these connections are as follows:

• RCA audio cable (L/R) x 1

Please purchase the rest of the necessary cables at your local store.

Note for Digital Audio Optical Cable

• Digital audio optical cable may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 15cm or more when storing them.
• Use a cable which is 3m or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.

CONNECTIONS

■ Audio signals output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks

For the settings in the "Digital Out" to take effect, "HDMI Audio Out" should be set to "Audio Mute". Otherwise, the settings made in the "HDMI Audio Out" will have a priority, and the same signal as being output from the HDMI OUT jack will be output from the AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks as well. (Except that Dolby Digital will be output instead of Dolby Digital Plus and Dolby TrueHD, and DTS signal will be output instead of DTS-HD.)

	“Digital Out” setting→	“Bitstream” “LPCM”
	“BD Audio Mode” setting→	“HD Audio Output”	“Mix Audio Output”	“HD Audio Output”	“Mix Audio Output”
Media↓	Audio Source↓	Which audio format can be output depends on the compatibility of the connected device.
BD-video	Dolby Digital Dolby	Digital Dolby Digital Do	Downmix 2ch PCM Downmix 2ch PCM
	Dolby Digital Plus Do	by Digital Dolby Digital	Downmix 2ch PCM	*1	Downmix 2ch PCM*2
	Dolby TrueHD Dolby	Digital Dolby Digital Do	Downmix 2ch PCM	*3	Downmix 2ch PCM*4
	DTS DTS DTS	Downmix 2ch PCM	Downmix 2ch PCM
	DTS-HD	DTS DTS	Downmix 2ch PCM	*5	Downmix 2ch PCM*6
	LPCM	Downmix 2ch PCM	Downmix 2ch PCM	Downmix 2ch PCM	Downmix 2ch PCM
AVCHD	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	LPCM	Downmix 2ch PCM		Downmix 2ch PCM
DVD-video	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	DTS	DTS		Downmix 2ch PCM
	LPCM	2ch PCM		2ch PCM
	MPEG	MPEG		Downmix 2ch PCM
Audio CD / MP3	PCM	2ch PCM		2ch PCM
DivX®	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	PCM	2ch PCM		2ch PCM
DTS-CD	DTS	DTS		Downmix 2ch PCM

*1 Full decoded.
*4 Only the Dolby Digital substream is decoded.
*2 Only the independent substream is decoded.
*5 Full decoded.
*3 Dolby TrueHD stream is decoded.
*6 Only the core substream is decoded.
- When playing back a BD-video which only contains the primary audio, the audio output will be the same case as the "HD Audio Output" even if the "BD Audio Mode" is set to "Mix Audio Output".

Note

- In order to output LPCM signal from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks while outputting the HDMI audio signal, set "HDMI Audio Out" setting to "HDMI Multi(LPCM)".

Connecting the AC Cord

After you made all necessary connections, connect the AC cord to the AC INLET. Then connect the AC cord to the AC outlet.

Insert the plugs securely. Incomplete connections will result in the generation of noise.

Supplied cables used in this connection are as follows:

- AC cord x 1

Network Connection with LAN

- You can use a disc which offers BD-Live function by connecting the unit to the Internet. (For BD-Live information, please refer to page 31)

Make sure to connect the telecommunications equipment (modem, etc.) to the ETHERNET terminal via Hub or broadband router.

No supplied cables are used in this connection: Please purchase the necessary cables at your local store.

Note

• After connecting to the Internet, set up necessary network settings.
- Do not insert any cable other than a LAN cable to the ETHERNET terminal to avoid damaging the unit.
- If your telecommunications equipment (modem, etc.) does not have broadband router functions, connect a broadband router.
- If your telecommunications equipment (modem, etc.) has broadband router functions, use a hub.
- For a broadband router, use a router which supports 10BASE-T/100BASE-TX.
- Do not connect your PC directly to the ETHERNET terminal of this unit.
- For the network setup, refer to "Network Connection" on pages 47-50.
- For more information about cables or connections, see the manual accompanying modem, broadband router and hub you use.

INFORMATION ON PLAYBACK

Before you start playing back a disc, read the following information.

playable Discs and Files

This unit is compatible to play back the following discs / files. To play back a disc / file, make sure that it meets the requirements for region codes as described on the back page and colour systems as described below. You can play back discs that have the following logos.

Other disc types are not guaranteed to play back.

playable discs Logos

Blu-ray Disc

- BD-video

(single / double layer)

- BD-RE* (ver. 2.1)

(single / double layer)

(recorded in BDMV format)

- BD-R (ver. 1.1/ 1.2/ 1.3)

(single / double layer)

(recorded in BDMV format)

(Unclosed discs may not be played back.)

DVD-video	DVDVIDEO
DVD+RW (single layer)	RDWDVD+ReWritable
DVD+R (single/double layer)(finalised discs only)	RDWDVD+R	RDWDVD+R DL
DVD-RW (single layer)(finalised video mode discs only)	RDWR W
DVD-R (single/double layer)(finalised video mode discs only)	RDDR
CD-DA (audio CD)	COMPACTDISCDIGITAL AUDIO
CD-RW	COMPACTDISCDIGITAL AUDOReWritable	COMPACTDISCReWritable
CD-R	COMPACTDISCDIGITAL AUDORecordable	COMPACTDISCRecordable
DTS-CD	-

* Due to the intentional progression of the Blu-ray Disc format by its standard setting authority, the company cannot guarantee or warrant the playability of future extensions of the Blu-ray Disc format with this product.

playable files Media

AVCHD	DVDSD Memory Card (including SDHC)miniSD CardmicroSD Card
MP3 BD, DVD, CD-RW/-R, SD Memory
JPEG	Card (including SDHC), miniSD Card, microSD Card
DivX®	BD, DVD, CD-RW/-R

Note

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.
  • Official DivX® Certified product.
• Plays all versions of DivX® video (including DivX® 6/DivX® HD) with standard playback of DivX® media files.
• Discs containing the DivX® files with the DivX® GMC (Global Motion Compensation) playback feature, which is DivX® supplemental function, cannot be played back on this unit.

Readable cards Playable files / data

SD Memory Card (8MB - 2GB)	AVCHD, MP3, JPEG, picture-in-picture commentary, subtitles or other extras for BD-ROM Ver. 2 (Profile 2.0/Profile 1.1)
SDHC Memory Card (4GB - 8GB)
miniSD Card (8MB - 2GB)
microSD Card (8MB - 2GB)

Note for SD Memory Cards

• Do not remove the SD Memory Card or turn the unit to the standby mode while the contents of the card is in playback. It may result in malfunction or loss of the card's data.
• Please keep the SD Memory Cards in their cases when you are not using them.
• Do not try to open or modify the card.
• Do not touch the terminal surface with your fingers or any metals.
• Do not attach additional labels or stickers to cards.
• Do not remove the label of the SD Memory Cards.
• This unit supports SD Memory Card with FAT12/FAT16 file system, and SDHC Memory Card with FAT32 file system.
• This unit may not read the SD Memory Cards formatted on computer. If that is the case, please reformat the SD Memory Cards in this unit and try again.
• This unit does not support miniSDHC and microSDHC Memory Card.
• For miniSD Card and microSD Card, the adapter is necessary.

- Portions of this product are protected under copyright law and are provided under license by ARIS / SOLANA / 4C.

INFORMATION ON PLAYBACK

Unplayable Discs and Files

The following discs will not be played back in this unit.

• CD-ROM • CD-I (compact disc-interactive)
  • DVD-RAM • VSD (video single disc)
  • DVD-audio • video CD
  • HD DVD • SVCD
• unfinalised disc
• BD / DVD / CD / SD Memory Card contains Windows Media™ Audio files.
• Multi-session burn BD/DVD with DivX® files.
• Multi-session burn BD-RE/-R with MP3/JPEG files.
• DVD-RW/-R recorded in VR mode or non compatible recording format.
• Super audio CD - Only the sound on the CD layer can be heard. The sound on the high-density super audio CD layer cannot be heard.
• Playability of dual discs are not guaranteed.
• BD-RE/-R recorded in BDAV format or non compatible recording format.

Colour Systems

BD and DVD are recorded in different colour systems throughout the world. The most common colour system, used primarily in the U.K. and other EU countries, is PAL. This unit uses the PAL system. However, it is also possible to play back BD and DVD using other colour systems, such as NTSC.

Structure of Disc / SD Memory Card Contents

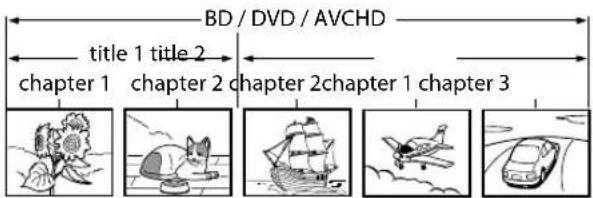

The contents of BD/DVD are generally divided into titles. Titles may be further subdivided into chapters.

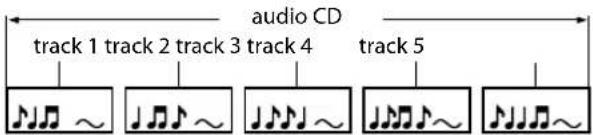

Audio CDs are divided into tracks.

Data discs or SD Memory Cards containing MP3 / JPEG / DivX® are divided into folders, and the folders are subdivided into files.

On-Screen Display

You can check information about the current disc by pressing [DISPLAY].

To call the on-screen display menu, press [DISPLAY] during playback. Every time you press [DISPLAY], the information changes. Depending on the media, available information varies.

BD-V AVCHD

off → Title / Chapter information

→ Title information (elapsed time)
→ Title information (remaining time)
→ HDMI information → off

DVD-V

off → Chapter information (elapsed time)

→ Chapter information (remaining time)
→ Title information (elapsed time)
→ Title information (remaining time)
→ Bit rate information → HDMI information → off

CD

off (Track information (elapsed time))

→ Track information (remaining time)
→ Disc information* (elapsed time)
→ Disc information* (remaining time)
→ off (Track information (elapsed time))
(* not available during programme/random playback)

MP3

off (File information (elapsed time))

→ File name information
→ off (File information (elapsed time))

JPEG

off → File information
→ File name information → off

DivX

off → File information (elapsed time)

→ File information (remaining time)
→ File name information → HDMI information → off

■Chapter information
