USER MANUAL LT8-M40BB FUNAI

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION

RISKOFELECTRICSHOCK DONOTOPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

POWER SUPPLY

The main power supply is engaged when the main plug is plugged in a 220-240 V\~, 50 Hz AC outlet. To operate the unit, press [∅ (standby-on)] to turn on the unit.

WARNING: LIVE PARTS INSIDE. DO NOT REMOVE ANY SCREWS.

To aid reporting in case of loss or theft, please record the unit's model and serial numbers in the space provided. The numbers are located at the rear of the unit.

Model number: ____

Serial number : ____

WARNING:

To prevent the spread of fire, keep candles or other open flames away from this product at all times

CAUTION

1) Do not attempt to open the cabinet. There are no user serviceable parts inside. Refer all servicing to qualified service personnel.
2) Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered. Avoid installation in enclosed spaces such as bookcases unless proper ventilation is provided.

3) Keep the unit away from radiators and other heat sources.

4) Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.

5) To prevent fire or shock hazard, do not expose this unit to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the unit.

6) Use the unit on a horizontal (flat) surface only.

7) Do not place any combustible objects on the unit (candles, etc.).

8) The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks. The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the TV screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

9) Disconnect the mains plug to switch off when the unit becomes faulty or not in use.

10)The mains plug shall remain readily operable.

11) Read the manual instructions to ensure correct and safe installation and interconnection of the unit in multimedia systems.

12) Keep a distance of 20 cm around the ventilation openings of the unit.

13) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Do not place the unit on the furniture that is capable of being tilted by a child or an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

WHEN CARRYING THIS UNIT

• At least 2 people are required when carrying this unit.
• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.

Two silhouettes of people holding a large rectangular object, no text or symbols visible

A Note about Recycling

This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. This product consists of materials which can be recycled and reused if disassembled by a specialised company.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Following information is only valid EU-member States: Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Features

• Integrated Digital Terrestrial Tuner (DVB-T)
• EPG (Electronic Programme Guide)
- Stereo Sound System
- On-Screen Display
- Sleep Timer
- Teletext
• TV Screen Mode Selection
- Auto Shut Off
- Parental Lock
• HDMI Input x 3, SCART x 2
- COMPONENT Input
- S-VIDEO Input
- P C I n p u t

Supplied Accessories

• Remote control
  • Battery (R6/AA, 1.5V) x 2
• Owner's Manual
  • Phillips pan screw for attaching the base x 6
• AC power cord

Trademark Information

• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • DVB is a registered trademark of the DVB Project.
• The “HD ready 1080p” qualifier Logo is trademark of DIGITALEUROPE.

Symbols Used in this Manual

The followings are the description for the symbols used in this manual.

Contents

PRECAUTIONS 2

INTRODUCTION.... 3

A Note about Recycling 3

Features.... 3

Supplied Accessories.... 3

Trademark Information.... 3

Symbols Used in this Manual.... 3

THINGS TO DO FOR THE FIRST TIME 5

Attaching the Base.... 5

Fixing the Unit on Your Furniture 5

OPERATING CONTROLS AND FUNCTIONS ...... 6

Control Panel 6

Remote Control....6

Rear Panel 7

PREPARATION FOR USE 8

Installing the Batteries....8

Antenna Connection 8

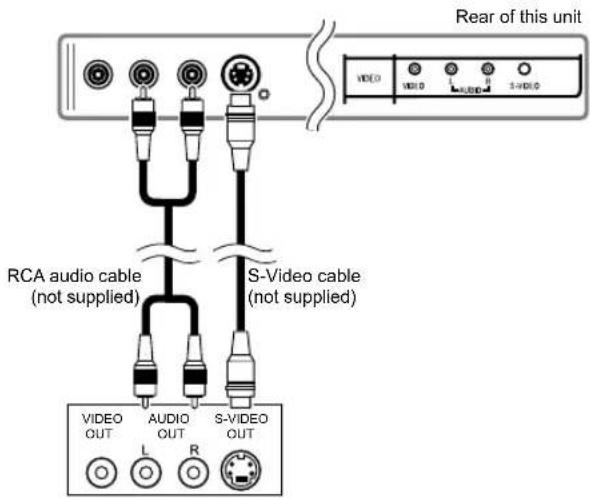

External Connection....8

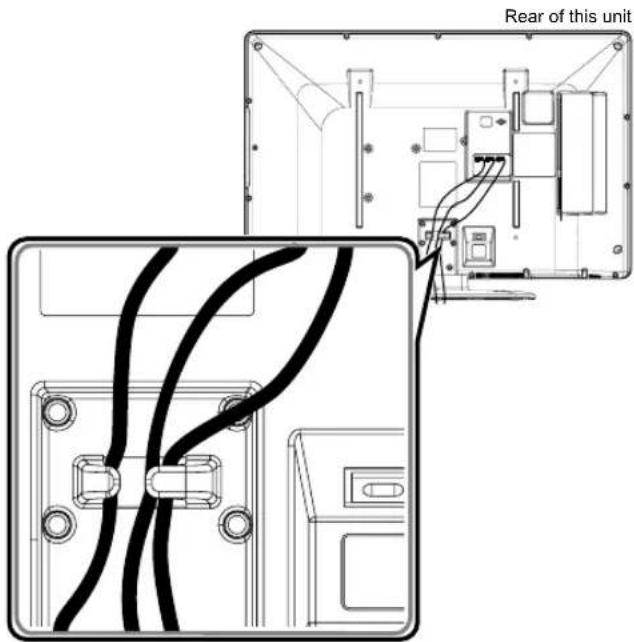

Cable Management.... 10

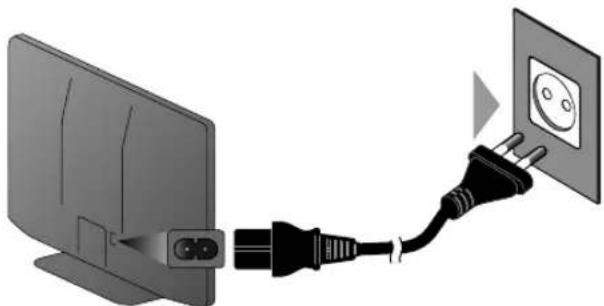

Plug In the AC Power Cord.... 10

SETUP FOR USE 11

Initial Setting 11

OPERATIONS.... 12

Watching a TV Programme.... 12

Sleep Timer.... 12

Switching the Input Mode.... 12

Sound Select.... 13

TV Screen Information 13

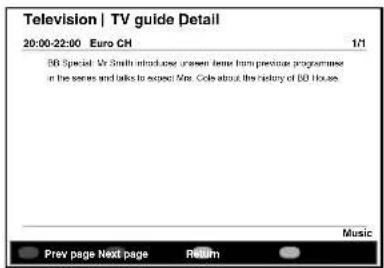

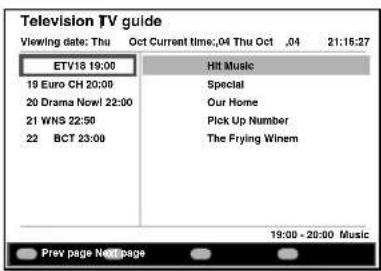

EPG (Electronic Programme Guide).... 14

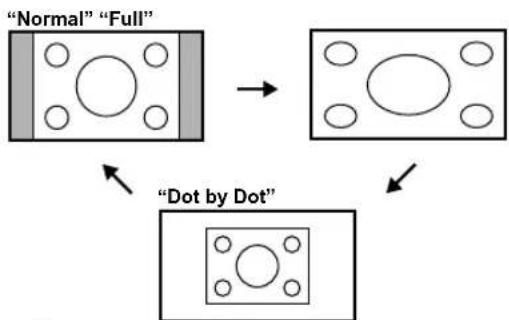

Changing the TV Screen Display Mode.... 15

OTHER SETTINGS 16

Picture Adjustment 16

Advanced Picture Adjustment 17

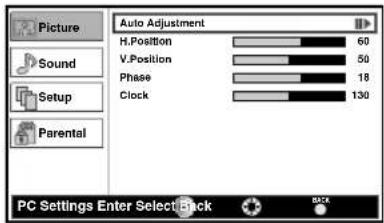

PC Settings 18

Sound Adjustment 18

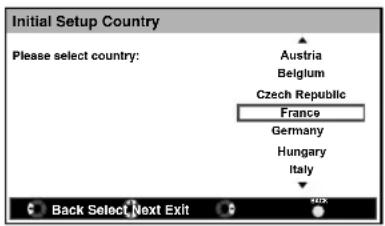

Country Setting.... 19

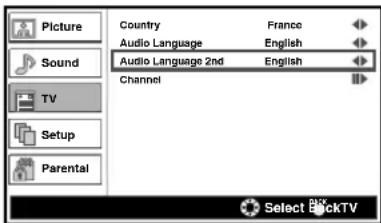

Audio Language Selection 20

Auto Scan....20

Analogue Manual Scan 21

Single RF Scan 21

Update Scan.... 21

Channel List 21

Channel Skip 22

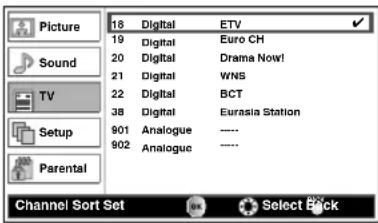

Channel Sort 22

Channel Edit....23

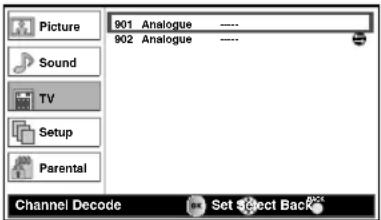

Channel Decode.... 23

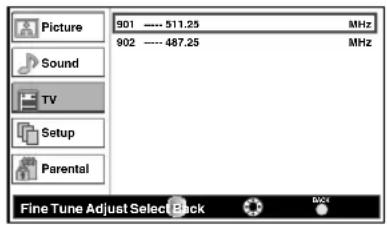

Fine Tune 24

Menu Language Selection.... 24

Time Zone 24

Auto Shut Off.... 24

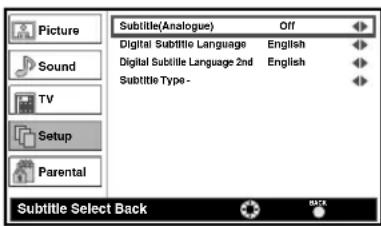

Subtitle Settings 25

Teletext....25

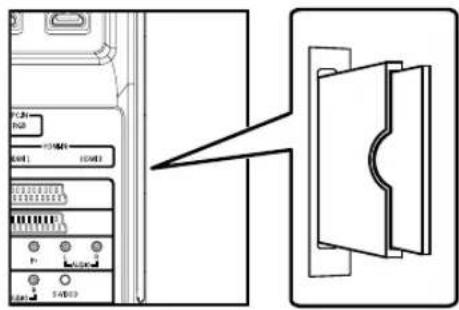

C.I. (Common Interface).... 26

Reset Default.... 26

Parental Setting.... 26

Software Download 27

MAINTENANCE 28

Panel Cleaning 28

Servicing....28

Cabinet Cleaning.... 28

TROUBLESHOOTING GUIDE 28

SPECIFICATIONS.... 29

General Specifications 29

Other Specifications 29

DECLARATION OF CONFORMITY.... 29

Attaching the Base

You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction.

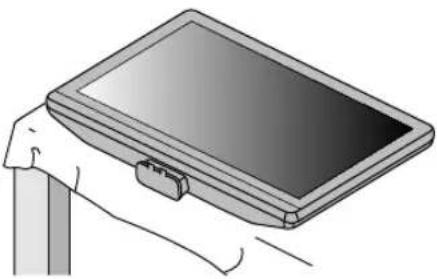

1) Spread a thick and soft cloth over a table as shown. Place the main unit face up onto it. Make sure not to damage the screen. At least 2 people are required for this step.

Illustration of a hand holding a rectangular electronic device with a cable connector (no text or symbols visible)

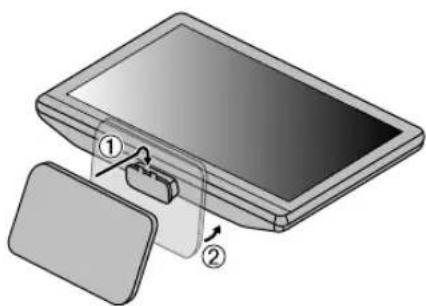

2) Insert 2 hooks under the bottom of the main unit into base holes. (shown by arrow ①), then move the base in the direction as shown by arrow ② until it stops and the 6 mounting holes are aligned.

Diagram of a device with two labeled parts, showing internal components and directional arrows (no text or symbols)

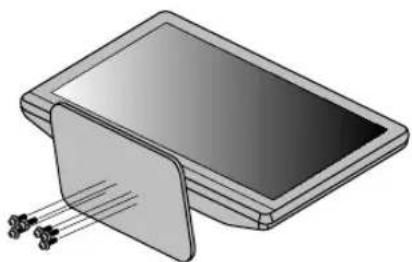

3) Drive Phillips pan screws into the 6 threaded holes at the bottom of the base until they are tight.

3D illustration of a rectangular electronic device with a reflective panel and connector pins (no text or symbols)

To remove the base from this unit

Unscrew the Phillips pan screws on step 3. After the screws are removed, move the base in the opposite direction as shown by arrow ② on step 2, then pull the base up toward the front of the unit. Be careful not to drop the base when you remove it.

Note: • When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.
• Make sure to use the table which can support the weight of this unit and is larger than this unit.
- Make sure the table is in a stable location.
- When attaching the base, ensure that FRONT ↑ written on the base is upward. If it's not upward, the 2 hooks don't fit in the base.

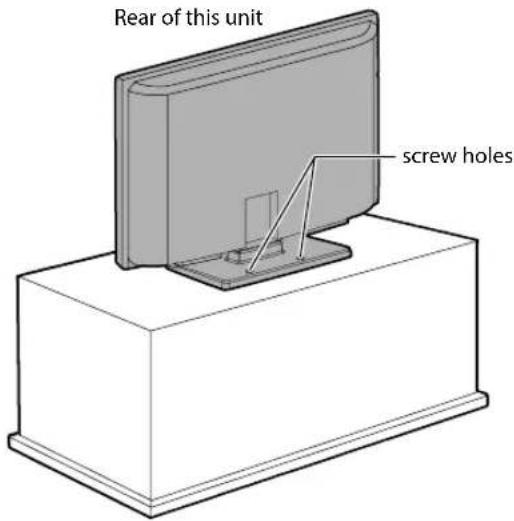

Fixing the Unit on Your Furniture

Screw this unit on your furniture tightly using wood screws (not supplied) in the 2 holes at the back of the base as shown.

Recommended screw dimension : 5.1 x 20 mm

Note: When you remove this unit make sure to unscrew the wood screws from your Wood Stand, Furniture and other wood item.

Rear of this unit screw holes

All operations described are based on the use of the remote control. Some operations can be carried out using the buttons on the control panel.

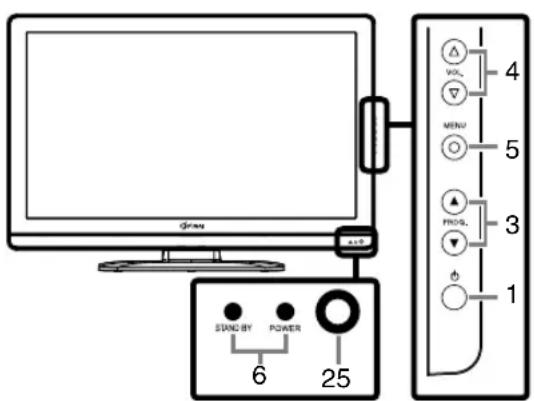

Control Panel

SUNGBY POWER 6 25 VOL MENU 4 5 PROSL 3 φ 1

1. ⏻(standby-on) (p. 8)

Press to turn on or off (standby) the unit.

1. INPUT (p. 12)

Press to switch TV or external input mode.

3.PROG. ▲ / ▼ (control panel) (p. 12)

Press to select the setting on the menu.

Press to select the item you want to adjust in the picture control mode.

Press to go to the next page or the previous page of teletext.

Same function as Cursor ▲ / ▼ (remote control) on the menu.

PROG. ▲ /▼ (control panel) / P (remote control)

Press to select memorised channel or other modes.

1. VOL. △ / ∇ (control panel) / ▶ +/− (remote control) (p. 12)

Press to control the volume level.

VOL. △ (control panel)

Same function as Cursor ▶ (remote control) on the menu.

VOL. ▽ (control panel)

Same function as Cursor ◀ (remote control) on the menu.

1. MENU ○ (control panel) / MENU (remote control) (p. 16)

Press to display the menu.

6.STAND BY / POWER indicator

Lights up in green when power is on.

Lights up in red when power is in standby mode.

7.Number buttons (p. 12)

Press three digits to directly access the desired channel in TV mode.

Press to enter the password in the password input field.

1. Cursor ▲ / ▼ / ◀ / ▶ buttons (p. 11)

Press to select the setting on the menu.

Press to select item you want to adjust in the picture control mode.

Press to go to the next page or the previous page of teletext.

9.BACK (p. 11)

Press to return to the previous display.

10.(mute) (p. 12)

Press to mute the sound.

Press this button again or press VOL. ∧ / ∨ on the control panel or ⬆ on the remote control to restore sound.

11.(reveal) (p. 25)

Press to call up the hidden information of teletext.

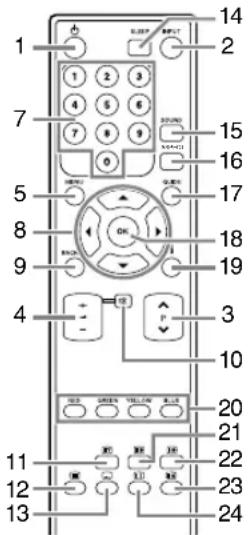

Remote Control

1 2 3 4 5 6 7 8 9 0 14 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

12.(text) (p. 25)

Press to display the teletext information.

13.(subtitle) (p. 25)

Press to change the available subtitle languages.

14.SLEEP (p. 12)

Press to set the sleep timer.

Press to hide the teletext.

15.SOUND (p. 13 / p. 20)

Press to change the sound modes.

16.ASPECT (p. 15)

Press to switch the aspect ratio available for the TV screen.

1. GUIDE (p. 14)

Press to display EPG (Electronic Programme Guide) in digital mode.

18.0K

Press to determine the setting on the menu.

Press to select or adjust from a particular menu.

Press to display the channel list while watching a programme.

1. i (information) (p. 13)

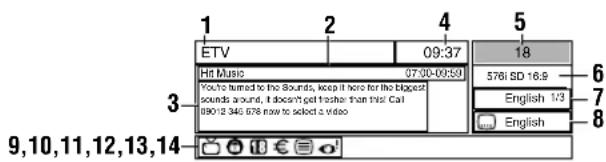

Press to display the TV screen information.

20.RED/GREEN/YELLOW/BLUE (p. 25)

Press to directly select the page numbers of teletext.

21.(expand) (p. 25)

Press to enlarge fonts of teletext.

22.(subpage) (p. 25)

Press to select subpages of teletext.

23.(hold) (p. 25)

Press to hold the current page of teletext.

24.(index) (p. 25)

Press to go back to the start page of teletext.

25.Infrared sensor window

Receives the infrared rays transmitted from the remote control.

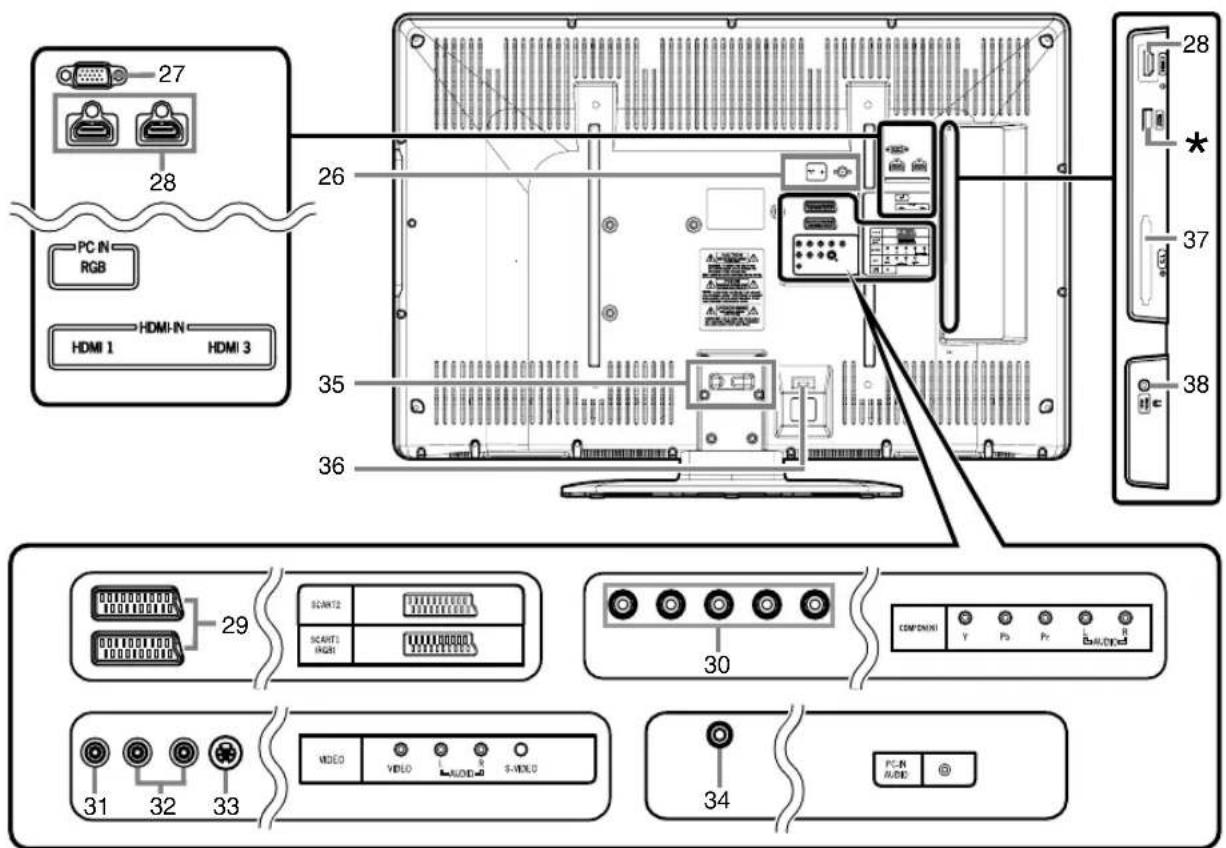

27 28 PC IN RGB HDMI 1 HDMI 3 26 35 36 28 * 37 38 COMPONENT Y P0 P1 S+VDD 29 SCANT2 SCANT3 I/O/IO 30 31 32 33 VIDEO VIDEO AUDIO S-VDD 34 PC-IN AUDIO

26.(Aerial) input jack (p. 8)

Connect an RF coaxial cable (not supplied) to an antenna or RF output jack of a cable system.

27.PC-IN (RGB) input jack (p. 10)

Connect a VGA cable (not supplied) to the monitor jack of a PC.

28.HDMI (HDMI 1 / HDMI 2 / HDMI 3) input jack (p. 8)

Connect an HDMI cable (not supplied) to the HDMI output jack of an external device.

29.SCART (SCART1 / SCART2) jack (p. 8)

Connect a scart cable (not supplied) to the scart jack of an external device.

1. COMPONENT (Y/Pb/Pr) / AUDIO (L/R) input jack (p. 9)

Connect an RCA component video and an RCA audio cable (not supplied) to the component video and audio output jack of an external device.

31.VIDEO input jack (p. 9)

Connect an RCA video cable (not supplied) to the video output jack of an external device.

1. AUDIO (L/R) input jack (p. 9)

Connect an RCA audio cable (not supplied) to the audio output jack of an external device.

Note: The AUDIO (L) jack is for monaural input. The sound is heard from both speakers. Use this jack for a monaural audio device.

33.S-VIDEO input jack (p. 9)

Connect an S-Video cable (not supplied) to the S-Video output jack of an external device.

1. PC-IN AUDIO input jack (p. 10)

Connect a mini-plug audio cable (not supplied) to the audio line out jack of a PC.

35.Cable management (p. 10)

Use this holder to bundle the cables.

36.AC power cord Inlet (p. 10)

Connect the supplied AC power cord for a standard AC outlet.

37.C.I. (Common Interface) slot (p. 26)

Common Interface (CI) Module: Insert the CI module.

1. HEAD PHONE jack

Connect a headphone.

Note: ★ service terminal (service use only)

- Use this terminal only when a software update is necessary.

- User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work).

- The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software upgrade themselves.

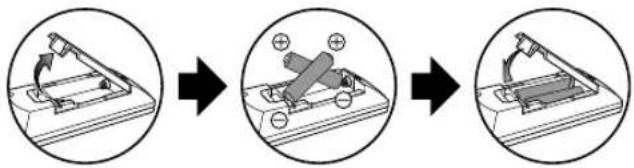

Installing the Batteries

1) Open the battery compartment cover.
2) Insert "R6/AA, 1.5V" penlight batteries into battery compartment in the direction as indicated by the polarity (+/-) markings. Batteries installed with incorrect polarity may damage the remote unit.
3) Close the cover.
4) Push the cover on its top side until it clicks in order to fit the cover completely to the compartment.


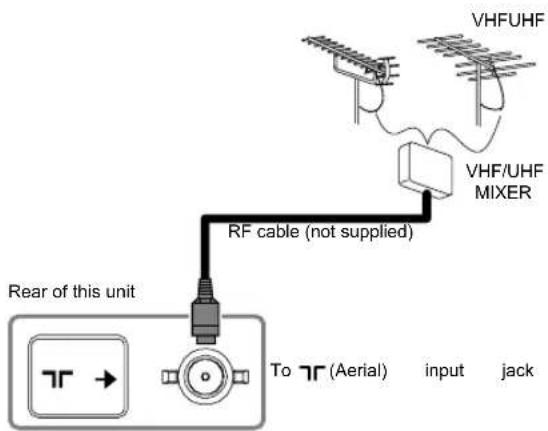

Antenna Connection

VHFUHF VHF/UHF MIXER RF cable (not supplied) Rear of this unit To ↗ (Aerial) input jack

1) Connect an RF cable (not supplied) to 7F (Aerial) input jack at the rear of this unit.
2) Plug this unit into an AC outlet.
3) The STAND BY / POWER indicator on the front panel lights red, then press [☐ (standby-on)] to turn on the unit.

Note: If you like to connect an active DVB-T antenna, the antenna must have its own power supply. It is not possible to power the antenna from the TV.

External Connection

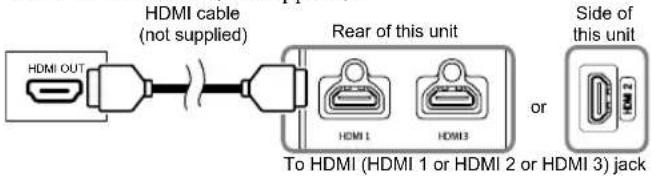

[HDMI CONNECTION]

HDMI connection offers the highest picture quality. HDMI (High Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable.

Connect the HDMI output jack of your video device and the HDMI-IN (HDMI 1 or HDMI 2 or HDMI 3) jack of this unit. Use an HDMI cable (not supplied).

HDMI OUT HDMI cable (not supplied) Rear of this unit HDMI 1 HDMI3 or Side of this unit To HDMI (HDMI 1 or HDMI 2 or HDMI 3) jack

Dear Customer,

By connecting an HDMI cable to your Funai LCD TV, you have to use only a certified HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

A certified HDMI cable can be identified by the HDMI logo on the cable or the cable package.

Note:

• This unit accepts 480i / 480p / 576i / 576p / 720p / 1080i / 1080p video signals and 32 kHz / 44.1 kHz / 48 kHz audio signals for HDMI connection.
• This unit accepts only 2 channel audio signals (LPCM).
• You need to select "PCM" for the digital audio output of the device you connect. Make sure the device outputs the digital audio. Audio sometimes makes no sound if you select "Bitstream", etc.

[SCART CONNECTION]

Scart connection offers better picture quality.

Connect the scart jack of your video device and the SCART (SCART1 or SCART2) jack of this unit. Use a scart cable (not supplied).

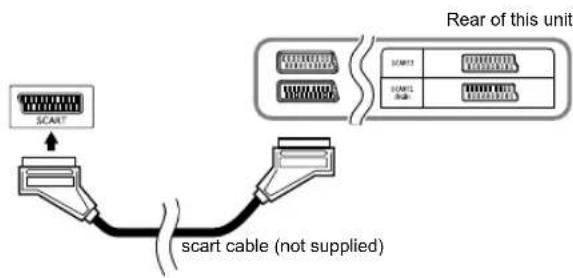

SCART scart cable (not supplied) Rear of this unit SCART SCART SCART

Connector	INPUT OUTPUT
	S-VIDEO	AUDIO (L/R)	CVBS	RGB	VIDEO and AUDIO (L/R)
SCART 1	Yes Yes Yes Yes				only ATV or DTV output is available.
SCART 2	Yes Yes Yes No				output you can choose

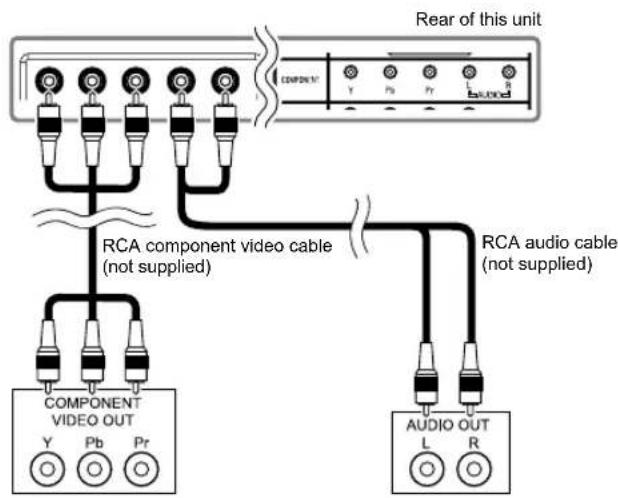

[COMPONENT CONNECTION]

RCA component video connection offers better picture quality.

1) Connect the component video output jack (Y, Pb, Pr) of your video device and the COMPONENT video (Y, Pb, Pr) input jack of this unit. Use an RCA component video cable (not supplied).

2) Connect the audio output jack of your device and the AUDIO (L/R) input jack of this unit. Use an RCA audio cable (not supplied).

Rear of this unit COMPONENT Y Pb Pr R bound RCA component video cable (not supplied) COMPONENT VIDEO OUT Y Pb Pr RCA audio cable (not supplied) AUDIO OUT L R

Note: This unit accepts 480i / 480p / 576i / 576p / 720p / 1080i video signals for component connection.

[S-VIDEO CONNECTION]

S-Video connection offers good picture quality.

1) Connect the S-Video output jack of your video device and the S-VIDEO input jack of this unit. Use an S-Video cable (not supplied).

2) Connect the audio output jack of your device and the AUDIO (L/R) input jack of this unit. Use an RCA audio cable (not supplied).

Rear of this unit RCA audio cable (not supplied) S-Video cable (not supplied) VIDEO OUT AUDIO OUT S-VIDEO OUT L R

Note: If you connect to the S-VIDEO jack and the VIDEO jack at the same time, S-Video connection will have priority.

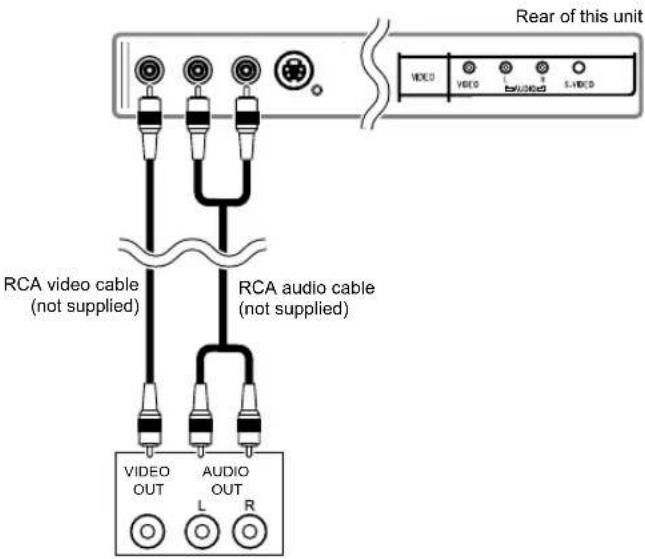

[VIDEO CONNECTION]

RCA video connection offers standard picture quality.

1) Connect the video output jack of your video device and the VIDEO input jack of this unit. Use an RCA video cable (not supplied).
2) Connect the audio output jack of your video device and the AUDIO (L/R) input jack of this unit. Use an RCA audio cable (not supplied).

Rear of this unit RCA video cable (not supplied) RCA audio cable (not supplied) VIDEO OUT AUDIO OUT L R VIDEO VIDEO L S-VI/DED

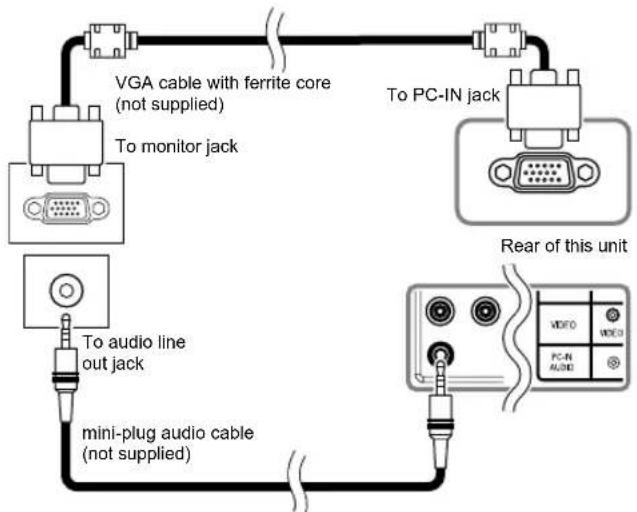

[PC CONNECTION]

If you connect this unit and your PC, you can use this unit as a computer monitor.

1) Connect the monitor jack of your PC and the PC-IN (RGB) jack of this unit. Use a VGA cable with ferrite core (not supplied).

2) Connect the audio line out jack of your PC and the PC-IN (AUDIO) jack of this unit. Use a mini-plug audio cable (not supplied).

Precautions for the connection to other devices:

- Please use the VGA cable that has a ferrite core.

The following signals can be displayed:

Format Resolution Refresh rate
VGA 640 x 480	60 Hz
SVGA 800 x 600
XGA 1,024 x 768
WXGA 1,360 x 768
WXGA+ 1,440 x 900
SXGA 1,280 x 1,024
SXGA+ 1,400 x 1,050
WSXGA+ 1,680 x 1,050
HDTV 1,920 x 1,080

Note: Other formats or non-standard signals will not be displayed correctly.

Cable Management

Keep the cables through this holder to avoid tangling them.

Rear of this unit

Plug In the AC Power Cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed.

Illustration of a cable being inserted into a wall-mounted power outlet (no text or symbols)

Note: Each time you plug in the AC power cord, no operations will be performed for a few seconds. This is not a malfunction.

Initial Setting

DTV AT

You need to set the followings to use the unit appropriately for the first time you turn on the unit.

1) Press [⏻ (standby-on)] to turn on the unit.

- "Initial Setup" language menu will appear.

Note: The settings may be limited by the location you purchased.

2) Press [▲ / ▼] repeatedly to select the menu language you want, then press [OK].

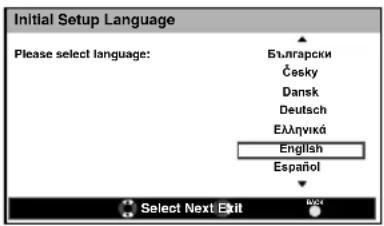

Initial Setup Language Please select language: Български Česky Dansk Deutsch Еллгникá English Español Select Next Exit

3) Press [▲ / ▼] to select the country you want, then press [OK].

Initial Setup Country Please select country: Austria Belgium Czech Republic France Germany Hungary Italy Back Select Next Exit

- Scan confirmation menu will appear.

4) Press [▲ / ▼] to select "Scan", then press [OK].

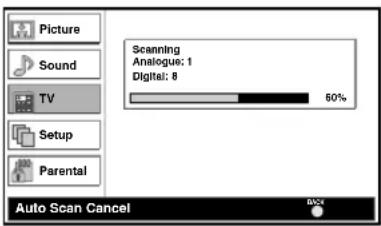

- Channel scanning will start automatically.

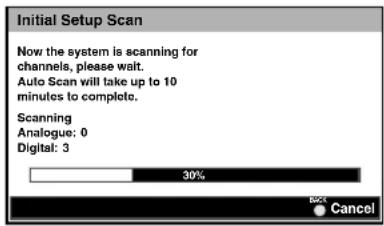

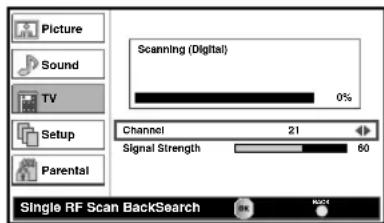

Initial Setup Scan Now the system is scanning for channels, please wait. Auto Scan will take up to 10 minutes to complete. Scanning Analogue: 0 Digital: 3 30% Cancel

- When the scanning is completed “Congratulations !!” message will appear.

Note: • If you select "Skip" in scan confirmation menu, the operation will be cancelled.

- If you press [BACK] during auto scanning, the operation will be cancelled.

Watching a TV Programme

DTV AT

To select a channel

Press [PROG. ▲ / ▼] (control panel) or [P ∧ / ∨] (remote control) repeatedly to select your desired channel.

or

Press [the Number buttons] to enter a channel number then [OK] for quicker access.

- If you want to select the channel 24 without pressing [OK], press [2] first, then press [4] within 3 seconds.

To adjust the volume

Press [VOL. ∧ / ∨] (control panel) or [▲ +/−] (remote control) to adjust the audio volume.

- You can see the volume bar while adjusting the volume.

Press [Qmute] to turn on or off the sound right away.

- You can recover the original volume by pressing [OK (mute)] again or [▲ + / - ] .

Sleep Timer

DTV AT

You can set the unit to be turned off automatically after a set time period (from 10 to 120 minutes).

1) Press [SLEEP].

- Sleep timer display will appear.

2) Press [SLEEP] repeatedly to change the sleep time period.

- Between Off and 60 minutes, the interval of time is 10 minutes. After 60 minutes, the timer increases by 30 minutes until Off.

Sleep

min

To cancel the sleep timer

1) Press [SLEEP].

- Sleep timer display will appear.

2) Press [SLEEP] repeatedly until "Sleep Off" appears.

SleepOff

Note: If you disconnect the unit from the AC outlet or if a power failure occurs, the sleep timer will be cancelled.

Switching the Input Mode

DTV AT

You can switch the input mode to TV mode or external input mode.

1) Press [INPUT].

- "Select Input" menu will appear.

Select Input TV VIDEO COMPONENT SCART 1 SCART 2 PC HDMI 1 HDMI 2 HDMI 3

2) Press [▲ / ▼] to select the input mode you want, then press [OK].

Note: • To watch TV, select "TV".

- To use the video or S-VIDEO input jack on the unit, select "VIDEO".

- To use the COMPONENT (Y/Pb/Pr) input jack on the unit, select "COMPONENT".

- To use the SCART (SCART1) jack on the unit, select "SCART 1".

- To use the SCART (SCART2) jack on the unit, select "SCART 2".

- To use the PC-IN (RGB) jack on the unit, select "PC".

- To use the HDMI-IN (HDMI 1) jack on the unit, select "HDMI 1".

- To use the HDMI-IN (HDMI 2) jack on the unit, select "HDMI 2".

- To use the HDMI-IN (HDMI 3) jack on the unit, select "HDMI 3".

Sound Select

DTV

1) Press [SOUND] to display the currently selected audio language and the number of available languages.
2) Press [SOUND] repeatedly to cycle through the available audio languages.

ATV

1) Press [SOUND] to display the currently selected audio mode.
2) Press [SOUND] repeatedly to cycle through the available audio mode.

1. Nicam Stereo Mono
2. Nicam Dual1 Nicam Dual2 Mono

1. Nicam Mono Mono
2. Stereo Mono
3. Dual1 Dual2
4. Mono

TV Screen Information

DTV AT

You can see the broadcasting information.

1) Press [i (information)].
- Fewer information menu will appear.
2) Press [i (information)] again to display more informations.

1 2 3 4 5 ETV 09:37 18 Hi Music 07:00-00:59 You're turned to the Sounds, keep it here for the biggest sounds around, it doesn't get smoother than that. Call 69012 346 578 now to select a video 578i SD 16:9 English 1/3 English 6 7 8 9,10,11,12,13,14

	Items
1	Channel name
2	Present programme name / time
3	Programme information
4	Current time
5	Channel number
6	Resolution / Format / TV aspect ratio
7	Audio mode (ATV)
	Audio language (DTV)
8	Subtitle (p. 25)•isdisplayed if the subtitle of the TV programme is available.
9	ATV broadcast•isdisplayed when it receives analogue TV broadcast.
	DTV broadcast•isdisplayed when it receives digital TV broadcast.
	Radio service•isdisplayed when it receives digital audio broadcast.
10	Lock status (p. 26)•isdisplayed when you are watching the TV programme which you set the parental lock or channel lock.
11	Parental rating (p. 27)•isdisplayed if the parental rating of TV programme is available.* The icon may differ depending on the ratings.
12	Pay TV•isdisplayed, when you are watching the pay TV.
13	Teletext (p. 25)•isdisplayed if the teletext of TV programme is available.
14	Audio Description (p. 19)•isdisplayed when the TV programme provides additional audio description for visually impaired.

Note: When the programme information consists of more than 3 lines, press [▲ / ▼] to scroll.

3) Press [BACK] to exit.

- TV Screen information menu will automatically disappear in a few seconds.

DTV

You can easily find a channel or see the detailed channel information. EPG gives you scheduled information of the TV programmes.

1) Press [GUIDE].

- EPG will appear.

Television TV guide Viewing date: Thu Oct Current time:,04 Thu Oct ,04 21:16:27 ETV18 19:00 19 Euro CH 20:00 20 Drama Nowl 22:00 21 WNS 22:50 22 BCT 23:00 Hit Music Special Our Home Pick Up Number The Frying Winem 19:00 - 20:00 Music Prev page Next page

2) Press [▲ / ▼] to select a channel, then press [▶].

• Press [RED] or [GREEN] to move the channel list to the previous or next page.
• Press [OK] to watch the selected channel.

3) Press [▲ / ▼] to select a programme.

• Press [RED] or [GREEN] to move the programme list to the previous or next day.
• Press [OK] to watch the selected programme if it is currently available.

4) Press [YELLOW] to display more detailed programme information.

Television | TV guide Detail 20:00-22:00 Euro CH 1/1 BB Special: Mr Smith introduces unseen items from previous programme in the series and talks to expect Mrs. Code about the history of BB House. Music Prev page Next page Return

Note: When the programme information consists of more than 2 pages, press [RED] or [GREEN] to move to the previous or next page.

5) Press [GUIDE] to exit.

Changing the TV Screen Display Mode

DTV AT

You can select your favourite TV screen size.

Press [ASPECT] repeatedly to switch the TV screen display mode.

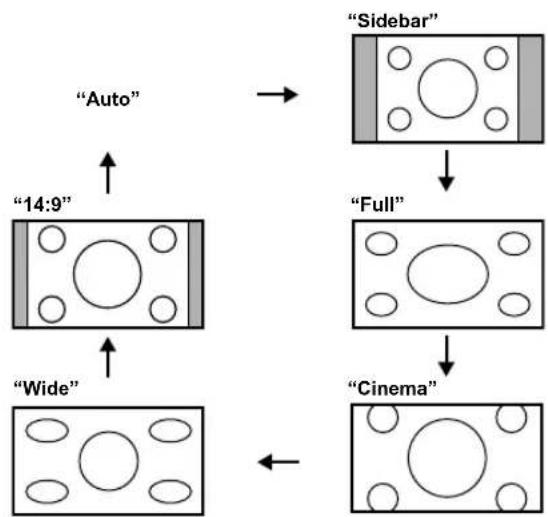

For SD (Standard Definition) video signal

"Auto"

Selects the TV screen display mode automatically. This is the default.

"Sidebar"

Displays a 4:3 picture at its original size. Sidebars appear on both edge of the TV screen.

"Full"

Displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the TV screen.

"Cinema"

Displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the TV screen. This crops out the top and bottom of the picture.

"Wide"

Displays a 4:3 picture at a 16:9 size; the centre of the picture is at its original size and the edges stretched horizontally to fill the TV screen.

"14:9"

Displays a 4:3 picture at a 14:9 size. Sidebars will be displayed on both edge of the TV screen.

For HD (High Definition) video signal

"Auto"

Selects the TV screen display mode automatically. This is the default.

"Full"

Displays a 16:9 picture at its original size.

"Zoom"

Displays a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

"Cinema"

Displays a vertically stretched picture.

"Expand"

Displays a horizontally stretched picture.

For PC input signal

"Normal"

Displays a proportionally stretched picture. Mainly sidebars appear on both edges of the TV screen.

"Full"

Displays a picture that is stretched out of proportion to fill the TV screen.

"Dot by Dot"

Displays a picture at its original size.

Picture Adjustment

DTV AT

You can adjust the picture settings according to your personal preference. These settings are automatically stored after exiting the picture menu.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Picture", then press [OK].

"Picture Mode"

3) Press [▲ / ▼] to select "Picture Mode".
4) Press [◀/▶] to select the setting ("Standard, Dynamic, Movie, News, Personal") you want.

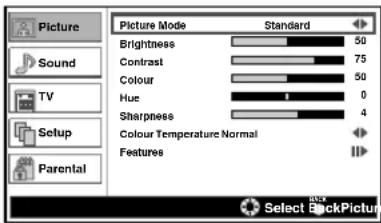

Picture Mode Standard Brightness 50 Contrast 75 Colour 50 Hue 0 Sharpness 4 Colour Temperature Normal Features Select BackPicture

"Colour Temperature"

3) Press [▲ / ▼] to select "Colour Temperature".
4) Press [◀/▶] to select the setting ("Cool, Normal, Warm") you want.

Picture Sound TV Setup Parental Picture Mode Standard Brightness 50 Contrast 75 Colour 50 Hue 0 Sharpness 4 Colour Temperature Normal Features Select BackPicture

5) Press [MENU] to exit.

"Brightness, Contrast, Colour, Hue, Sharpness"

3) Press [▲ / ▼] to select the item you want, then press [OK].

Note: Press [▲ / ▼] to change the items.

4) Press [◀ / ▶] to adjust, then press [OK].

Note: • When this unit is connected to PC, you can not select "Colour", "Hue" and "Sharpness".
- If you adjust the settings in other than “Personal” mode, “Picture Mode” will be changed to “Personal”.

Setting	[◀]	[
Brightness	decrease brightness	increase brightness
Contrast	decrease contrast	increase contrast
Colour	decrease colour	increase colour
Hue	add red add green
Sharpness	make soft make clear

▶]

DTV AT

You can adjust the detailed picture settings according to your personal preference.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Picture", then press [OK].
3) Press [▲ / ▼] to select "Features", then press [OK].
- "Features" menu will appear.

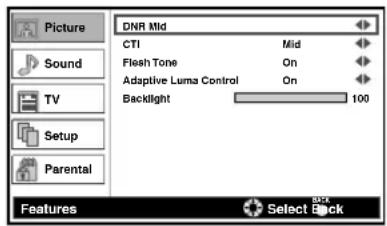

Picture Sound TV Setup Parental DNR Mid CTI Mid Flash Tone On Adaptive Luma Control On Backlight 100 Features Select Back

"DNR (Digital Noise Reduction)"

You can adjust to reduce the appearance of digitizing error caused by the compression.

4) Press [▲ / ▼] to select "DNR".
5) Press [◀/▶] to select the setting (“Low, Mid, High”) you want.

"CTI (Colour Transient Intensity)"

You can adjust the picture for colour errors.

4) Press [▲ / ▼] to select "CTI".
5) Press [◀/▶] to select the setting (“Low, Mid, High”) you want.

"Flesh Tone"

You can set to activate the flesh colours or not.

4) Press [▲ / ▼] to select "Flesh Tone".
5) Press [◀/▶] to select the setting ("On, Off") you want.

"Adaptive Luma Control"

You can adjust changes in the luminance of the picture.

4) Press [▲ / ▼] to select "Adaptive Luma Control".
5) Press [◀/▶] to select the setting ("On, Off") you want.

"Backlight"

4) Press [▲ / ▼] to select "Backlight", then press [OK].

5) Press [◀ / ▶] to adjust, then press [OK].

6) Press [MENU] to exit.

PC Settings

You can adjust the PC screen position, clock and phase. Make sure your PC is connected.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Picture", then press [OK].
3) Press [▲ / ▼] to select "PC Settings", then press [OK].

"Auto Adjustment"

4) Press [▲ / ▼] to select "Auto Adjustment", then press [OK].

Picture Sound Setup Parental Auto Adjustment H.Position 60 V.Position 50 Phase 18 Clock 130 PC Settings Enter Select Back

• Each setting will be adjusted automatically.

"H.Position, V.Position, Phase, Clock"

4) Press [▲ / ▼] to select the item you want, then press [OK].

Note: Press [▲ / ▼] to change the items.

5) Press [◀/▶] to adjust, then press [OK].

Setting	[◀]	[
H.Position	move PC screen left	move PC screen right
V.Position	move PC screen down	move PC screen up
Phase	decrease setting value	increase setting value
Clock

6) Press [MENU] to exit.

Sound Adjustment

DTV ATV

You can adjust the sound settings according to your personal preferences. These settings are automatically stored after exiting the sound menu.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Sound", then press [OK]. • "Sound" menu will appear.

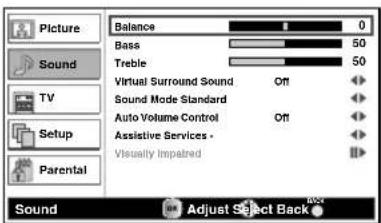

Picture Sound TV Setup Parental Balance 0 Bass 50 Treble 50 Virtual Surround Sound Off Sound Mode Standard Auto Volume Control Off Assistive Services - Visually Impaired Sound Adjust Select Back

"Balance, Bass, Treble"

3) Press [▲ / ▼] to select the item you want, then press [OK].
Note: Press [▲ / ▼] to change the items.
4) Press [◀ / ▶] to adjust, them press [OK].

Setting	[◀]	[
Balance Balance 0	decrease increase
Bass Bass 50
Treble Treble 50

▶]

"Virtual Surround Sound"

Virtual Surround Sound gives you the stereo phonic virtual space through your existing 2-channel stereo system.

3) Press [▲ / ▼] to select "Virtual Surround Sound".
4) Press [◀/▶] to select the setting ("On, Off") you want.

"Sound Mode"

3) Press [▲ / ▼] to select "Sound Mode".
4) Press [◀ / ▶] to select the setting ("Standard, Movie, Music, News") you want.

Country Setting

"Auto Volume Control"

You can set to keep a constant loudness differential between the TV commercials and the programs.

3) Press [▲ / ▼] to select "Auto Volume Control".
4) Press [◀/▶] to select the setting ("On, Off") you want.

"Assistive Services"

DTV

You can adjust the audio type.

3) Press [▲ / ▼] to select "Assistive Services".
4) Press [◀ / ▶] to select the setting (“-, Hearing Impaired, Visually Impaired”) you want.
Visually Impaired : provides additional audio description for visually impaired.

Hearing Impaired : provides audio service for hearing impaired.

Note: If you select "Visually Impaired", you can adjust the audio volume for "Visually Impaired".

5) Press [MENU] to exit.

"Visually Impaired"

DTV

Make sure “Visually Impaired” is selected at “Assistive Services” setting.

3) Press [▲ / ▼] to select "Visually Impaired" then press [OK].
4) Press [▲ / ▼] to select "Volume" then press [OK].
5) Press [◀ / ▶] to adjust, then press [OK].

6) Press [MENU] to exit.

Note: You may not select the country depending on the location you purchased.

DTV AT

You can select the channels according to the country you select.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Country".
4) Press[◀/▶] to select the country you want.

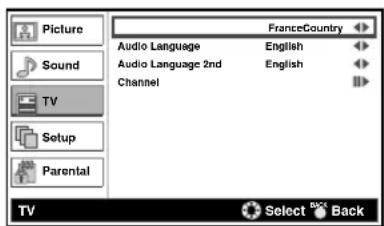

DTV

Picture Sound TV Setup Parental FranceCountry Audio Language English Audio Language 2nd English Channel TV Select Back

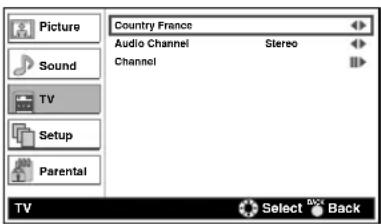

ATV

Picture Sound TV Setup Parental Country France Audio Channel Stereo Channel TV Select Back

5) Press [MENU] to exit.

DTV AT

You can select the main language.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].

DTV

"Audio Language"

3) Press [▲ / ▼] to select "Audio Language".
4) Press [◀ / ▶] to select the language you want.

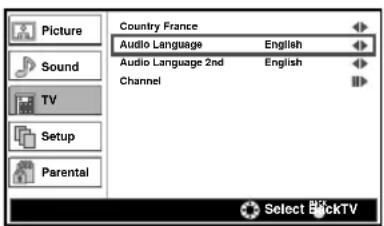

Picture Sound TV Setup Parental Country France Audio Language English Audio Language 2nd English Channel Select BackTV

"Audio Language 2nd"

3) Press [▲ / ▼] to select "Audio Language 2nd".
4) Press [◀ /▶] to select the language you want.

Picture Sound TV Setup Parental Country France Audio Language English Audio Language 2nd English Channel Select BackTV

5) Press [MENU] to exit.

Note: While watching a programme, you can change the audio language easily using [SOUND] when it is available.

ATV

"Audio Channel"

3) Press [▲ / ▼] to select "Audio Channel".
4) Press [◀/▶] to select the setting ("Dual1, Dual2, Stereo, Mono") you want.

Country France Audio Channel Stereo Channel TV Sound Setup Parental Select Back

Note: While watching a programme, you can change the audio mode easily using [SÖUND] when it is available.

Auto Scan

DTV AT

You can scan the channels receivable in your area automatically.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Auto Scan", then press [OK]. • Scanning will start automatically.

Picture Sound TV Setup Parental Scanning Analogue: 1 Digital: 8 60% Auto Scan Cancel

• When the scanning is completed, "Scan Completed" message will appear.
• If you press [MENU] during the scanning, this operation will be stopped and the lowest memorised digital channel will be displayed.
• Please note that after tuning, the analogue channels will be stored in the order that they are broadcast by your local transmitter. This may not be in the same order in which you would like them to be stored. If this is the case, you can change the order according to your preference. (Refer to “Channel Sort” on page 22.)

ATV

You can adjust an analogue channel individually.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select “Manual Scan (Analogue)”, then press [OK].
5) Press [the Number buttons] to enter the frequency.
• To select 24, enter [0] first, then press [2] and [4].
6) Press [▲ / ▼] to select “Scan Up” or “Scan Down”, then press [OK].
- Scanning will start automatically.

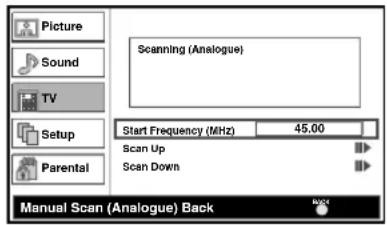

Picture Sound TV Setup Parental Scanning (Analogue) Start Frequency (MHz) 45.00 Scan Up Scan Down Manual Scan (Analogue) Back

- When this scanning is completed, "Scan Completed" message will appear.

7) Press [MENU] to exit.

Single RF Scan

DTV

You can adjust a digital channel individually.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Single RF Scan", then press [OK].
5) Press [◀/▶] to select the channel number you want to scan, then press [OK].
- Scanning will start automatically.

Picture Sound TV Setup Parental Scanning (Digital) 0% Channel 21 Signal Strength 60 Single RF Scan BackSearch

- When this scanning is completed, "Scan Completed" message will appear.

6) Press [MENU] to exit.

Update Scan

DTV AT

You can scan the updated channels automatically.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Update Scan", then press [OK].
- Scanning will start automatically.

Picture Sound TV Setup Parental Scanning Analogue: 1 Digital: 8 60% Update Scan Cancel

- When this scanning is completed, "Scan Completed" message will appear.

5) Press [MENU] to exit.

Channel List

DTV AT

You can easily find a channel you want.

1) Press [OK] while watching a programme.

- "Channel List" will appear.

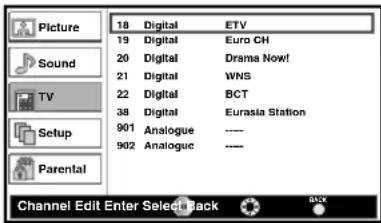

Channel List 18 ETV 19 Euro CH 20 Drama Now! 21 WNS 22 BCT 25 Starcast 38 Eurasia Station Page up Page down

	ATV
	Digital radio service
no icon	DTV

2) Press [▲ / ▼] to select the channel you want to watch.

• Press [RED] or [GREEN] to move to the previous or next page.
• Press [OK] to watch the selected programme if it is currently available.

3) Press [BACK] to exit.

Note: You can edit the channel list. (Refer to page 22 to page 23.)

Channel Skip

DTV AT

When using [P /] , the channel you selected will be skipped.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Channel Skip", then press [OK].
- "Channel List" will appear.
5) Press [▲ / ▼] to select the channel you want to skip, then press [OK]. • “?” will appear on the right of the channel.

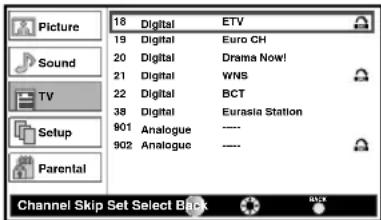

Picture Sound TV Setup Parental 18 Digital ETV 19 Digital Euro CH 20 Digital Drama Now! 21 Digital WNS 22 Digital BCT 38 Digital Eurasia Station 901 Analogue ---- 902 Analogue ---- Channel Skip Set Select Block

6) Press [MENU] to exit.

If you want to cancel

5) Press [▲ / ▼] to select the channel set to be skipped, then press [OK].
• “ ” will disappear.
6) Press [MENU] to exit.

Channel Sort

DTV AT

You can change the channel order.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select “Channel Sort”, then press [OK]. • “Channel List” will appear.
5) Press [▲ / ▼] to select the channel you want to move, then press [OK]. • “ √” will appear on the right of the channel.

Picture Sound TV Setup Parental 18 Digital ETV 19 Digital Euro CH 20 Digital Drama Now! 21 Digital WNS 22 Digital BCT 38 Digital Eurasia Station 901 Analogue ---- 902 Analogue ---- Channel Sort Set Select Back

6) Press [▲ / ▼] to select the channel you want to switch, then press [OK].
• The channel order will be changed.

7) Press [MENU] to exit.

Channel Edit

DTV AT

You can edit channel information.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Channel Edit", then press [OK]. • "Channel List" will appear.

Picture Sound TV Setup Parental 18 Digital ETV 19 Digital Euro CH 20 Digital Drama Now! 21 Digital WNS 22 Digital BCT 38 Digital Eurasia Station 901 Analogue ---- 902 Analogue ---- Channel Edit Enter Select Back

5) Press [▲ / ▼] to select the channel you want to edit, then press [OK].

6) Press [▲ / ▼] to select your desired item.

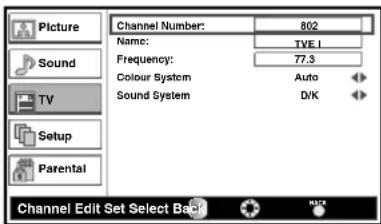

Picture Sound TV Setup Parental Channel Number: 802 Name: TVE.1 Frequency: 77.3 Colour System Auto Sound System D/K Channel Edit Set Select Back

"Channel Number"

7) Press [the Number buttons] to enter a channel number you want, then press [OK].

"Name"

7) Press [the Number buttons] to enter a channel name you want, then press [OK]. (Refer to the following character table.)

1	A	B	C	1
2	D	E	F	2
3	G	H	I	3
4	J	K	L	4
5	M	N	O	5
6	P	Q	R	6
7	S	T	U	7
8	V	W	X	8
9	Y	Z	9
0	+	-	.	0

"Frequency"

ATV

7) Press [the Number buttons] to enter a frequency you want, then press [OK].

"Colour System, Sound System"

ATV

7) Press [◀/▶] to select the setting you want.

8) Press [MENU] to exit.

Channel Decode

ATV

Some TV stations transmit encoded TV signals which can only be viewed with a purchased or hired decoder. You can connect such a decoder to SCART jack of the unit. This function will automatically activate the connected decoder for the channel.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select “Channel Decode”, then press [OK]. • “Channel List” will appear.
5) Press [ / ] to select the channel you want to allocate the decoder, then press [OK].
- “”will appear on the right of the channel.

Picture Sound TV Setup Parental 901 Analogue ---- 902 Analogue ---- Channel Decode Set Select Back

6) Press [MENU] to exit.

If you want to cancel

5) Press [▲ / ▼] to select the channel set to decoder off. • “ 📊will disappear.

6) Press [MENU] to exit.

Fine Tune

ATV

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "TV", then press [OK].
3) Press [▲ / ▼] to select "Channel", then press [OK].
4) Press [▲ / ▼] to select "Fine Tune", then press [OK]. • "Channel List" will appear.

Picture Sound TV Setup Parental 901 ---- 511.25 MHz 902 ---- 487.25 MHz Fine Tune Adjust Select Back

5) Press [▲ / ▼] to select a channel you want, then press [OK].

6) Press [◀/▶] to select a frequency you want, then press [OK]. 7) Press [MENU] to exit.

Menu Language Selection

DTV AT

You can select the menu language.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Menu Language".
4) Press [◀/▶] to select the language you want.

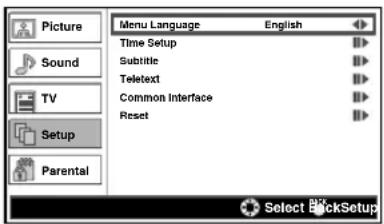

Picture Sound TV Setup Parental Menu Language English Time Setup Subtitle Teletext Common Interface Reset Select BlackSetup

5) Press [MENU] to exit.

Time Zone

DTV AT

You can set the time zone according to the resident area.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Time Setup", then press [OK].
4) Press [▲ / ▼] to select "Time Zone".
5) Press [◀/▶] to select the time difference you want.

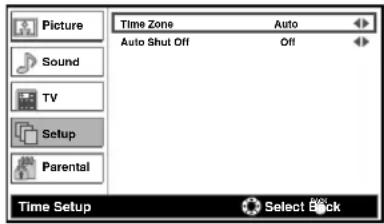

Picture Sound TV Setup Parental Time Zone Auto Auto Shut Off Off Time Setup Select Back

Auto : Automatically selects the time zone of your area to ensure the proper performance of the time.

Note: • Although you select "Auto", the correct time may not be displayed on the TV Screen Information (p. 13) depending on DTV broadcasting.
- Clock function in this unit is not available.

6) Press [MENU] to exit.

Auto Shut Off

DTV AT

You can set the unit to be shut down automatically if no activity is detected after the power is turned on for 4 hours.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Time Setup", then press [OK].
4) Press [▲ / ▼] to select "Auto Shut Off".
5) Press [◀/▶] to select ("On, Off"), then press [OK].

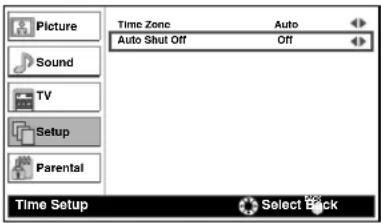

Picture Sound TV Setup Parental Time Zone Auto Auto Shut Off Off Time Setup Select Back

6) Press [MENU] to exit.

Subtitle Settings

DTV AT

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Subtitle", then press [OK]. • "Subtitle" menu will appear.

Picture Sound TV Setup Parental Subtitle(Analogue) Off Digital Subtitle Language English Digital Subtitle Language 2nd English Subtitle Type - Subtitle Select Back

"Subtitle(Analogue)"

ATV

4) Press [▲ / ▼] to select "Subtitle(Analogue)".
5) Press [◀/▶] to select the setting (“Muting, On, Off”) you want.

"Digital Subtitle Language, Digital Subtitle Language 2nd"

DTV

4) Press [▲ / ▼] to select the item you want.

5) Press [◀/▶] to select the language you want.

Note: While watching a programme, you can change the subtitle language easily using [☐ (subtitle)] when it is available.

"Subtitle Type"

DTV

4) Press [▲ / ▼] to select "Subtitle Type".
5) Press [◀/▶] to select the setting (“-, Hearing Impaired”) you want.
6) Press [MENU] to exit.

Teletext

DTV AT

You can change the teletext settings.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Teletext", then press [OK]. • "Teletext" menu will appear.

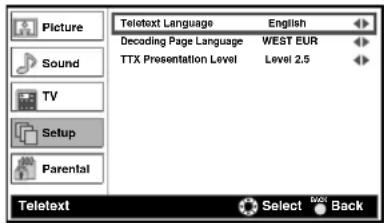

Picture Sound TV Setup Parental Teletext Language English Decoding Page Language WEST EUR TTX Presentation Level Level 2.5 Teletext Select Back

"Teletext Language"

4) Press [▲ / ▼] to select "Teletext Language".
5) Press [◀/▶] to select the language you want.

"Decoding Page Language"

You can adjust the decoding paging language.

4) Press [▲ / ▼] to select "Decoding Page Language".
5) Press [◀ / ▶] to select the language you want.

"TTX Presentation Level"

You can adjust the teletext presentation level. Level 2.5 offers more colours and better graphics than Level 1.5.

4) Press [▲ / ▼] to select "TTX Presentation Level".
5) Press [◀/▶] to select the setting ("Level 2.5, Level 1.5") you want.

6) Press [MENU] to exit.

To show the teletext

1) Press [☐ (text)] to turn on the teletext decoder.
- “Teletext” information will appear.
2) Press [☐ (text)] repeatedly to show the teletext in transparent mode or picture and teletext mode.

Note: • If you want to select other pages, press [the Number buttons] or [▲ / ▼].
- To enlarge fonts, press [图标 (expand)].
- To select the teletext subpages, press [ (subpage) ], then press [the Number buttons] to enter the subpage number.
- To directly select the page numbers shown at the bottom of the TV screen, use [RED/GREEN/YELLOW/BLUE].
- To call up the hidden information, press [(reveal)].
- To hold the current page, press [☐ (hold)].
• To go back to the start page, press [ (index)].
- To hide the teletext, press [SLEEP].

3) Press [☐ (text)] to turn off the teletext decoder.

C.I. (Common Interface)

DTV

This unit is equipped with a C.I. slot. You can enjoy additional services with this function, for example Pay TV. The access restrictions menu will appear on the TV screen when a CI module is installed.

1) Turn off the unit and unplug from an AC outlet.

2) Insert the CI module straight to the C.I. slot of this unit.

- Some CI modules may be a two-piece design consisting of a card reader with the viewing card. When using this kind of card, insert the card reader firmly into the C.I. slot on the unit first. Then, insert the viewing card into the reader.

Diagram showing a device panel with labeled ports and a close-up of its internal structure, likely illustrating a mechanical or electrical component.

3) Plug this unit into an AC outlet and press [∅ (standby-on)] to turn on the unit.

4) Press [MENU] to display the menu.

5) Press [▲ / ▼] to select "Setup", then press [OK].

6) Press [▲ / ▼] to select "Common Interface", then press [OK].

7) Follow the instructions on the TV screen.

Note: In case of failure, you need to call your CI service provider. Menu operations may vary depending on the viewing card. Refer to the manual accompanying the viewing card.

Reset Default

You can restore all the settings to the default except the memorised channels and parental settings.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Setup", then press [OK].
3) Press [▲ / ▼] to select "Reset", then press [OK].
- Confirm message box will appear.
4) Press [◀/▶] to select [OK].
- All the settings are restored to the default except the memorised channels and parental settings.
5) Press [MENU] to exit.

Parental Setting

DTV AT

You can set the maturity rating, lock the channel, or set the password.

1) Press [MENU] to display the menu.
2) Press [▲ / ▼] to select "Parental", then press [OK].
3) Press [the Number buttons] to enter the 4-digit number.

Picture PIN Code Sound TV Setup Parental Parental Back

• If you have not set up your password, enter 0000.
• After entering the password, "Parental" menu will appear.

Note: If you select "Reset", all the settings (except the memorised channels) are reset to the default.

"Channel Lock"

You can set particular channels to be invisible.

4) Press [▲ / ▼] to select "Channel Lock", then press [OK].
- "Channel List" will appear.
5) Press [▲ / ▼] to select the channel you want to lock, then press [OK].
• “will appear on the right of the channel.

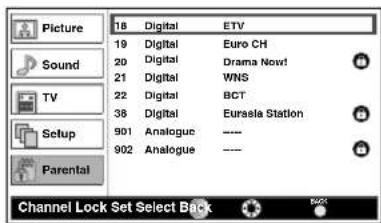

Picture Sound TV Setup Parental 18 Digital ETV 19 Digital Euro CH 20 Digital Drama Now! 21 Digital WNS 22 Digital BCT 35 Digital Eurasia Station 901 Analogue ---- 902 Analogue ---- Channel Lock Set Select Back

6) Press [MENU] to exit.

- When you select the locked channel, you need to enter the password to watch.

If you want to unlock

4) Press [▲ / ▼] to select "Channel Lock", then press [OK].
- "Channel List" will appear.

5) Press [▲ / ▼] to select the channel you want to unlock, then press [OK].

• “will disappear.

6) Press [MENU] to exit.

"Maturity Rating"

You can set the parental rating to avoid watching an inappropriate programme for your children.

4) Press [▲ / ▼] to select "Maturity Rating", then press [OK].
5) Press [▲ / ▼] to select "Parental Rating".
6) Press [◀ / ▶] to select the age restriction.

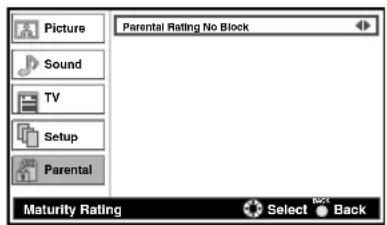

Picture Sound TV Setup Parental Parental Rating No Block Maturity Rating Select Back

7) Press [MENU] to exit.

"Enter PIN Code"

You can set your own password.

4) Press [▲ / ▼] to select "Enter PIN Code", then press [OK].
5) Press [the Number buttons] to enter the new 4-digit number.
6) Press [the Number buttons] to enter the same 4-digit number again.

Picture Sound TV Setup Parental Enter new PIN code Confirmation Enter PIN Code Back

7) Press [MENU] to exit.

DTV

You can update the current software when this unit detects a new version of software.

1) When this unit receives software updates automatically, the following message will appear.

Software Download Software Version : 00000000 A New Version of software is detected. Do you want to upgrade it ? Accept Remind me Later Select Next

2) Press [▲ / ▼] to select "Accept", then press [▶].

- Updating will start automatically.

Note: This process may take up to 60 minutes.

3) After the "Software Download" is completed, press [▶] to restart this unit.

Software Download Software Version :00000000 Software upgrades successfully! Restart the TV now? Accept Next

Panel Cleaning

- If the LCD panel should require cleaning, wipe it with a cotton or soft cloth. Before cleaning the panel, disconnect the power cord.

Servicing

- Should your unit become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit off, unplug the power cord, and take the unit to a Service Centre for servicing.

Cabinet Cleaning

- Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry.

- Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

TROUBLESHOOTING GUIDE

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save you time and money.

QUICK SERVICE CHECK LIST

PROBLEM

Remote Control Doesn't Work

Bars On TV Screen

Picture Distorted

Picture Rolls Vertically

No Colour

Poor Reception on Some Channels

Weak Picture

Lines or Streaks in Picture

Ghosts in picture

Picture Blurred

Sound OK, Picture Poor

Picture OK, Sound Poor

No Picture or Sound

Different colour marks on TV screen

Black or Luminous point on TV screen

Forget the password

POSSIBLE REMEDY

T r y a n e w c h a n n e l , i f O K , t

h

e

n

p

o

s

s

i

b

l

y

d

u

e

t

o

Is unit plugged in?Power at outlet?

x

x

Is unit's [∅ (standby-on)] on?

x

Is antenna connected to terminal on the back of the unit? x x x x x x

I f o u t s i d e a n t e n n a i s b e i n

g

u

s

e

d

,

c

h

e

c

k

f

o

r

b

r

Check for local interference. x x x x x x x

Turn off with [∅ (standby-on)] and then turn it on after about a minute.

x

Adjust “Colour” control.

x

Adjust “Contrast” & “Brightness” control.

x

x

Check batteries in remote control.

x

Surrounding temperature is too low.

x

x

x

It is quality of the LCD Panel.

x

Enter the default password “4737”.

x

General Specifications Other Specifications

Television system: PAL B/G TV standard

PAL D/K TV standard

SECAM L TV standard

SECAM L' TV standard

SECAM B/G TV standard

SECAM D/K TV standard

Terminals

S-Video input: Mini DIN 4pin jack x 1

Video input: RCA jack x 1

Audio input: RCA jack x 4

PC input: D-Sub 15pin x 1 (RGB)

Mini jack ∅3.5 mm x 1 (AUDIO)

AUDIO/VIDEO: 21pin scart jack x 2

Component Video

input: RCA jack x 3

HDMI input: HDMI 19pin x 3

Headphone: Mini jack

∅3.5 mm x 1

USB input (service use only)

Stereo Sound System

Sound output: 10 W, 8 ohm x 2

Remote control: Digital encoded infrared light system

Power requirements: AC 220-240 V\~, 50 Hz

Power consumption: 168W (Standby: less than 1W)

LCD: 40 inches

Dimensions (H x W x D)

(without base): 637.0 mm x 994.0 mm x 107.0 mm

(with base): 691.7 mm x 994.0 mm x 260.0 mm

Weight

(without base): 17.2 kg

(with base): 19.1 kg

- Designs and specifications are subject to change without notice and without our legal obligation.

DECLARATION OF CONFORMITY

This product complies with the requirement of the related directives.

We: Funai Electric (Polska) Sp. z o.o.

ul. Inżynierska 1

Nowa Sól, 67-100 / Poland

declare that the following product:

LCD Television

Model LT8-M40BB

Trade Name: Funai

is in compliance with the related regulations.
