Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure that any persons handling the vacuum cleaner are also familiar with this Operating Manual.

TECHNICAL PARAMETERS
Voltage 220 - 240 V ~ 50/60 Hz
Power input 1000 W
Noise level < 86 dB(A)
Suction power 23,5 kPa

IMPORTANT SAFETY PRECAUTIONS:

• Do not use the appliance in a different manner than described in this manual.
- Remove all packaging and marketing materials from the appliance before you use it for the first time.
• Make sure that the connecting voltage corresponds to the values on the appliance type label.
- Do not leave the appliance unattended when turned on, or plugged into the electrical socket.
- Disconnect the appliance from the electrical socket when you are not using it.
- Never pull the supply cable when disconnecting the appliance from the electrical socket; pull the plug instead.
- Do not allow children or irresponsible people to handle the appliance. Use the appliance out of the reach of these persons.
- Handicapped persons, persons with impaired faculties or mental capabilities, or persons unfamiliar with the appliance operation are only allowed to use it when supervised by responsible, knowledgeable persons.
• Take extra care when using the appliance near children.
• Do not allow the appliance to be used as a toy.
- Do not use the appliance outdoors or on wet surfaces, as there is a risk of electric shock in these places.
- Do not use any other accessories except those recommended by the manufacturer.
- Never use the appliance if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.
- Never run over the power supply cable with the floor attachment or the appliance itself.
- When the rotary brush is used, it may be dangerous to run the appliance over the supply cable.
- Do not pull or carry the appliance by the power supply cable.
- Keep the appliance away from any sources of heat, such as radiators, ovens and others. Protect the appliance against direct sunlight and humidity.
• Do not touch the appliance with damp or wet hands.
- Do not insert any items into the openings. Do not use the appliance if any of the openings is obstructed.
- When unplugging the appliance from the wall socket, first turn off the main switch, then pull the plug out of the electric voltage socket.
• Take extra care when using the appliance on stairs.
- If the appliance's suction inlet becomes obstructed, turn off the appliance and remove any obstructing dirt before turning the appliance on again.
- Hold the supply cable when winding to avoid uncontrolled whipping back and forth.
- Before fixing any accessories, performing cleaning, or in the event of a defect, turn off the appliance and pull the plug out of the electrical socket.
- Unwind the necessary length of power supply cord before using the appliance. The ideal length of the power supply

cord is marked by a yellow dot on the cord. Do not unwind the power supply cord past the red mark.

• The appliance is intended for household use only and not for commercial use.
• Do not vacuum any burning items such as cigarettes, matches, or hot ash.
- Do not use the appliance in damp rooms, do not vacuum any wet items or liquids, fl ammable liquids (such as petrol), and do not use the appliance in places where these substances may be present.
- Never vacuum without using the dust collection bag and the appliance's filters. Before each use of the appliance, make sure the dust collection bag and the appliance's filters are mounted properly.
- Do not immerse the supply cable, the plug, or the appliance itself in water or any other liquid.
- Check the appliance and the supply cable regularly for any damage. Never turn the appliance on when damaged.
- Prior to cleaning and after using the appliance, turn it off, disconnect it from the electrical socket, and let it cool.
- Before vacuuming, remove large or sharp items from the surface you want to vacuum as these items may damage the dust collection bag or the appliance's f liters.
• Do not use the appliance if the fi Iters are dirty.
• Never repair the appliance by yourself. Instead, contact an authorised service centre for repair.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

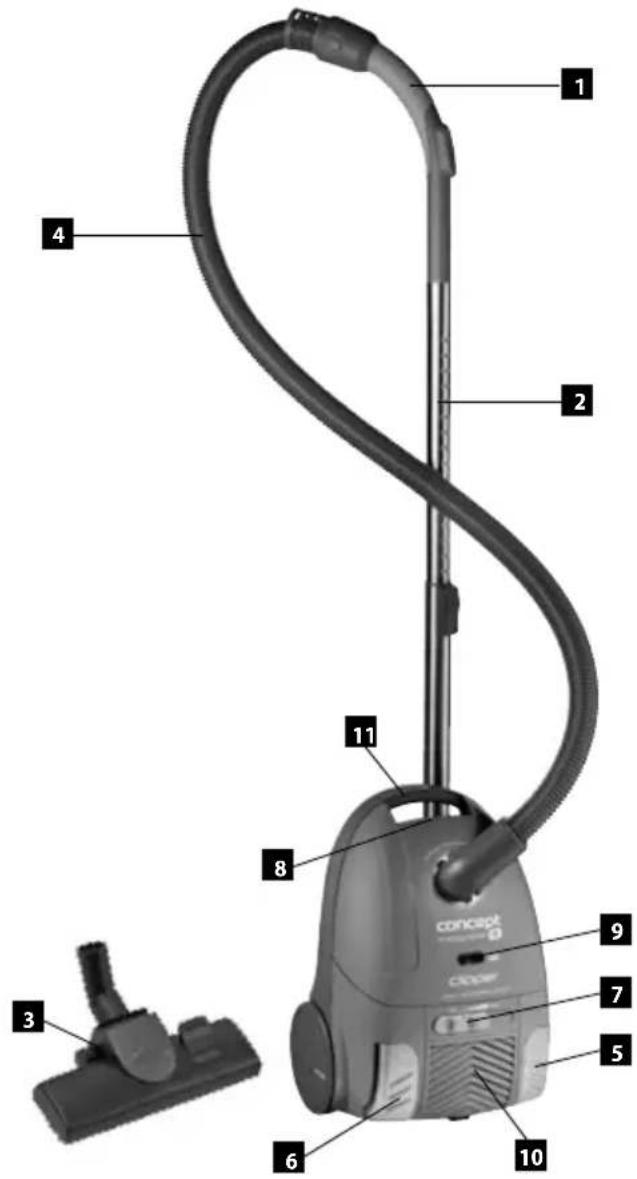

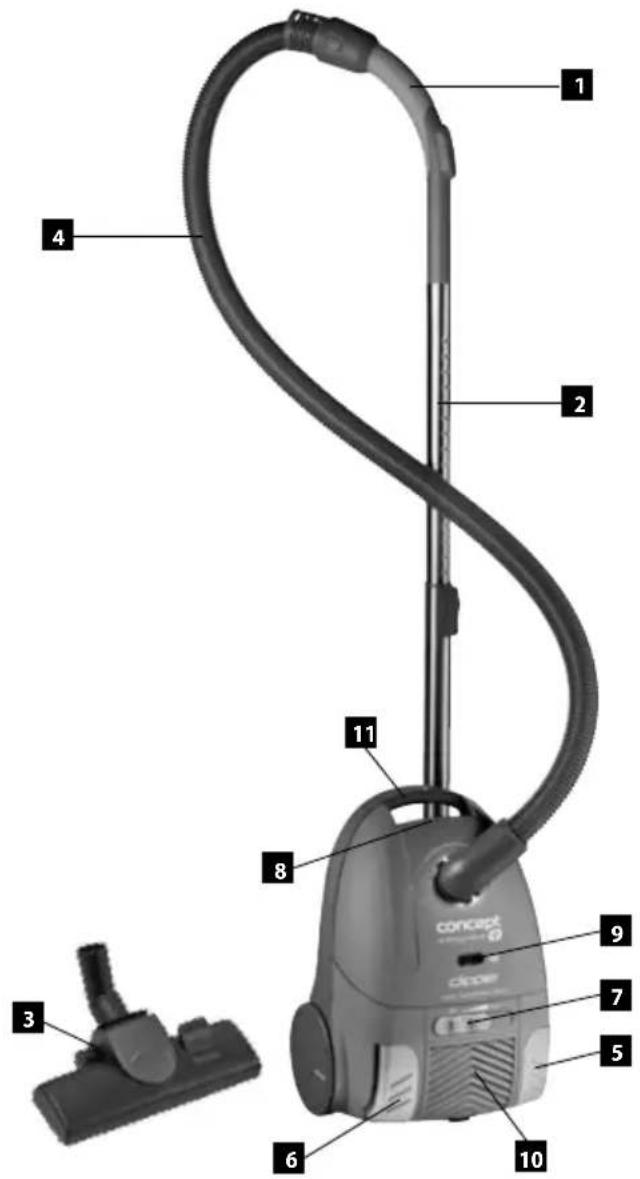

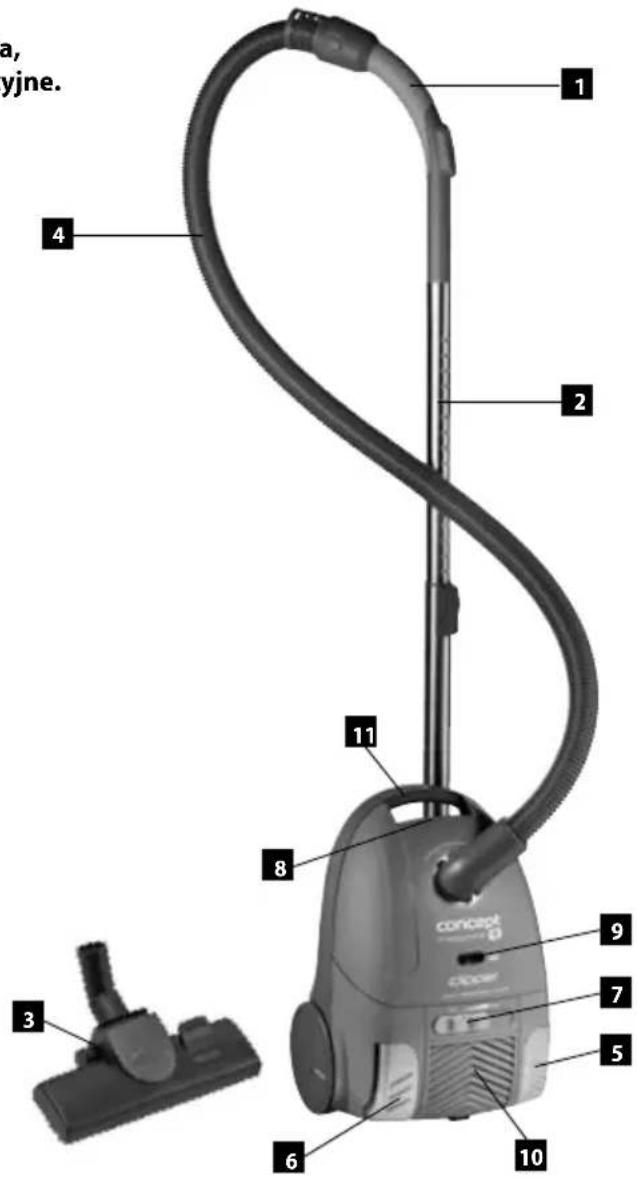

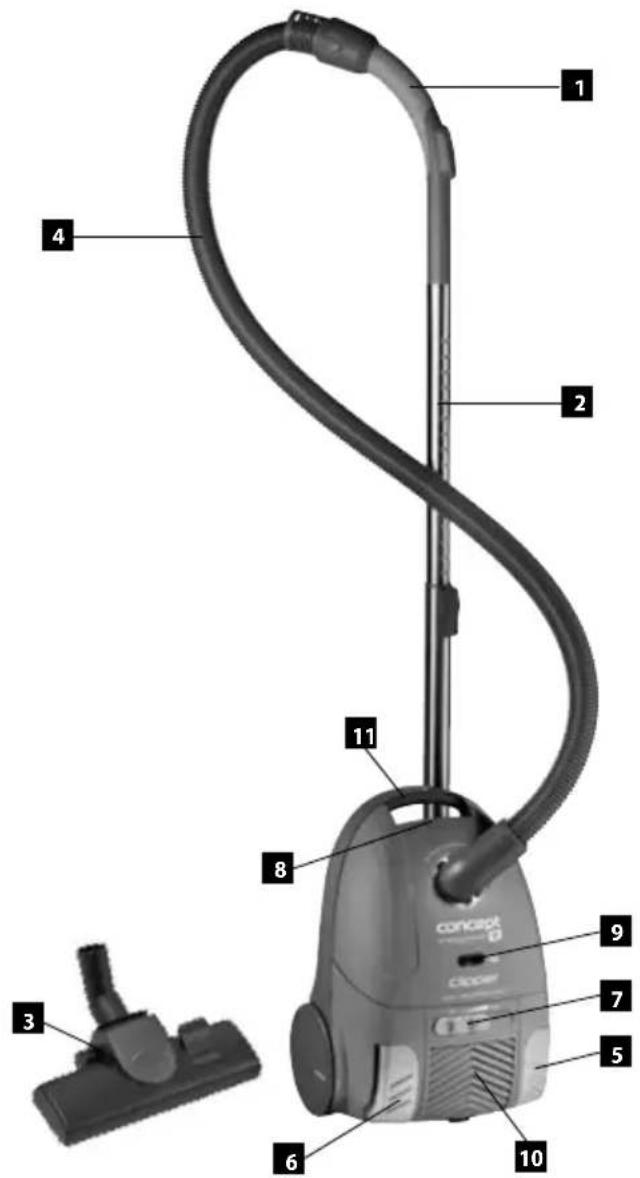

PRODUCT DESCRIPTION

1. Hose holder
2. Telescopic tube
3. Floor attachment
4. Flexible hose
5. Power cord winding button
6. ON/OFF button
7. Power controller
8. Dust bag housing cover fl ap
9. Dust collection bag fi II indicator
10. Air discharge fi Iter
11. Carrying handle

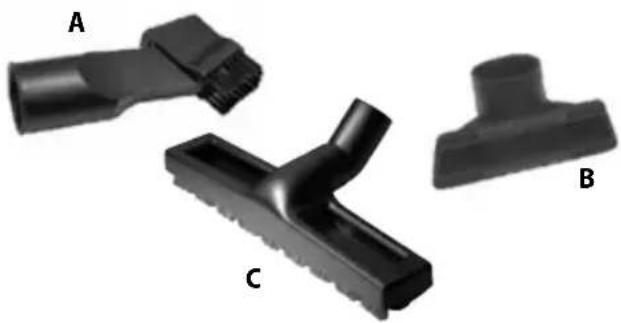

Accessories

A Slotted nozzle with a brush
B Upholstery nozzle
C Nozzle for wooden floors

Three black industrial vacuum cleaner components labeled A, B, and C (no text or symbols on parts)

1 2 4 8 9 3 5 6 10 11 CONCEPT CLIPER

OPERATING INSTRUCTIONS - VACUUM CLEANER ASSEMBLY

NOTE:

Before fixing or removing accessories, always pull the plug out of the electrical socket!

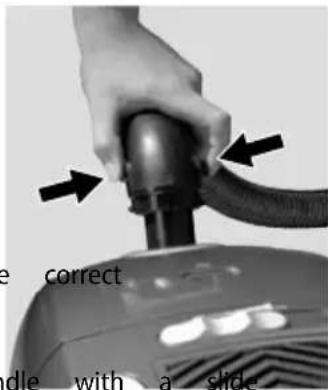

1. Connecting the fl exible hose to the appliance

Insert the fl exible hose into the appliance's air suction inlet.

Continue pushing until you hear a clicking sound, which indicates that the position has been reached.

To remove the fl exible hose, press both stopper buttons and remove the hose (Fig. 1).

The suction power can be controlled manually on the hose handle with throttle. Fig. 1

When the slide throttle is closed, the air flow is stronger.

Slide throttle in open position - weaker air flow.

e correct dle with a slide

Fig. 1

2. Attaching the telescopic tube to the hose adapter

Put the telescopic tube on the hose adapter and turn it slightly.

3. Extending the telescopic tube

Press the plastic latch and pull the smaller tube outwards.

Close-up of a black mechanical component with a black arrow pointing to a small feature (no text or symbols visible)

Fig. 2

4. Fixing the floor attachment to the telescopic tube

Insert the telescopic tube into the floor attachment and turn it slightly.

The flap (Fig. 2) is used for setting the floor attachment to brushing (for smooth floors), or to smooth vacuuming (for carpets).

ACCESSORIES

1. Slotted nozzle with a brush

The slotted nozzle adapter is used for vacuuming the places that are difficult to access, such as radiators, slots, corners, pedestals, spaces between upholstery, and others.

1. Upholstery nozzle

This upholstery nozzle attachment can be used for smaller upholstered areas.

1. Nozzle for wooden floors

This nozzle, with a brush made of horsehair, is designed for vacuuming wooden and floating floors.

APPLIANCE USE

NOTE

Before using the appliance, make sure that the filters and the dust collection bag are properly positioned and mounted. Unwind the supply cable length you need. The yellow mark on the supply cable indicates the optimum cable length. Do not unwind the supply cable beyond the red mark!

1. Adjust the power controller to the minimum setting.

2. Insert the plug into the electrical socket.

3. Press the ON/OFF switch to start the appliance.

4. Set the suction power you need by using the power controller.

5. After you have stopped vacuuming, switch off the appliance and disconnect it from the electrical socket.

6. To wind the supply cable, press the winding button with one hand and hold the supply cable with the other hand to prevent uncontrolled whipping back and forth.

DUST COLLECTION BAG FILL CHECK

When the bag level indicator turns red, replace the dust bag immediately.

If the dust collection bag fill indicator is still red after the bag is replaced, it may be due to several causes:

• Some of the air passages (hose, telescopic tube, suction inlet, brush adapter, or other adapters) are obstructed;
• Motor filter is dirty;
• Air outlet filter is dirty.

Check for each of the above possible causes and eliminate the problem before you resume vacuuming. If the cause of the problem cannot be identified, hand over the product to the nearest service centre. Never use the vacuum cleaner if the bag fill level indicator is completely red. The motor could be damaged irreparably.

CLEANING AND MAINTENANCE

You can clean the accessories and the appliance with a wet cloth. Never immerse the appliance

in water! Do not use any aggressive substances such as solvents or abrasives for cleaning!

REPLACING THE DUST COLLECTION BAG

1. Disconnect the appliance from the mains, pull the hose out of the suction inlet, and open the appliance's cover (Fig. 3).
2. Remove the holder with the dust collection bag from the vacuum cleaner. Press the safety flap on the dust collection bag holder (Fig. 4). Remove the used dust collection bag from the holder. Dispose of a paper or SMS dust collection bag. Be careful not to tear the bag when handling. If the bag is made of fabric, empty it and close it carefully - it can be used repeatedly.
3. Insert a new or emptied bag by inserting the plate into the holder. Remove a used paper bag and dispose of it.
4. Insert a new bag by sliding the pasteboard plate into the bag holder and insert the holder into the appliance. The bag opening should be aligned with the hole in the vacuum cleaner cover (see Fig. 4).
5. Only use the appliance when a dust collection bag has been inserted into it! If you forget to insert the dust collection bag, or you place it incorrectly, you will not be able to fully close the appliance cover.
6. Close the cover by pushing it until it clicks into the right position.

FILTER REPLACEMENT

• The filters should be cleaned or replaced when they are visibly dirty, or if the appliance's suction power is reduced. Check them after every use of the appliance.
• In order to avoid damage of the appliance, do not use it with incorrectly mounted filters.
  • Before replacing the filters, disconnect the appliance from the electrical socket.
• You can buy suitable types of filters from your dealer, or you can order them from the manufacturer.

Close-up of a mechanical device with an arrow pointing to a component (no visible text or symbols)

Fig. 3

Close-up of a mechanical component with an arrow pointing to a specific part (no visible text or symbols)

Fig. 4

Close-up of a black plastic container with a grid pattern and an arrow pointing to it (no text or symbols visible)

Fig. 5

MOTOR FILTER CLEANING AND REPLACEMENT

1. Disconnect the flexible hose and open the appliance cover.
2. Pull the dust collection bag out of its holder so that you can access the motor filter more easily.
3. Remove the motor filter (Fig. 5). You can clean the filter by tapping and shaking. If the filter is heavily soiled, you can wash it in lukewarm water and let it dry properly.
4. Insert the cleaned or new motor filter into the appliance and close the cover.

Close-up of a black electronic device with a grid display and control buttons (no visible text or symbols)

Fig. 6

CLEANING AND REPLACEMENT OF THE AIR OUTLET FILTER

1. Open the air outlet grid in the appliance's rear section (Fig. 6).
2. Remove the air outlet filter. This type of vacuum cleaner is equipped with an H.E.P.A. filter in the outlet, which is capable of catching even very fine dust particles. You can clean this filter by tapping and shaking, and then with a soft brush.
3. Insert the cleaned or new air outlet filter into the appliance and close the air outlet grid.

TROUBLESHOOTING

Problem Cause Solution
The motor isn’t running.	The plug is inserted into the socket incorrectly or insufficiently.	Check the plug connection.
	The socket isn't live.	Check to make sure voltage is present, e.g. by using another appliance.
Motor has stopped operating.	The air flow is improper or too low and, consequently, the motor overheating fuse has been activated.	Disconnect the power supply cable from the socket. Check and release the air suction and discharge passages and the dirt filters, or replace the dust collection bag. Let the appliance cool down.
Front cover cannot be closed	The dust collection bag is inserted incorrectly.	Check to make sure that the dust collection bag has been inserted properly.
Reduced suction power	The dust collection bag is full or clogged.	Replace the dust collection bag.
	The filter is clogged. Clean or replace the filter.
	The attachment, tube, or hose is clogged.	Check and clear the air suction and exhaust passages.
Vacuum cleaner heats up	Slight heating of the vacuum cleaner is normal and cannot be considered a failure.

OPTIONAL ACCESSORIES

The following appliance accessories can be purchased additionally:

Paper dust bags

(5 bags + 2 motor filter) Order code sms9000 Price according to the applicable price list

Textile dust bag, 1 Ord. code ts9140 Price according to the applicable price list

Motor filter Order code 44291322 Price according to the applicable price list

H.E.P.A. air outlet filter Order code 44291323 Price according to the applicable price list

SERVICE

Any larger maintenance or repairs requiring intervention into the internal parts of the product shall only be performed by an authorized service

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Recycling the product at the end of its service life

The symbol affixed to the product or its packaging indicates that the product may not be disposed of as household waste. It must be taken to the collection facility authorized for recycling electric and electronic waste. By ensuring that this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about the treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

DANKSAGUNG

Three black plastic showerheads labeled A, B, and C, shown from different angles (no text or symbols on the shapes themselves)

1 2 3 4 5 6 7 8 9 10 11 Concept Chipses

Close-up of a black electronic device casing with a grid pattern and an arrow pointing to it (no text or symbols visible)

Abb. 5

Close-up of a black electronic device with a grid display and metallic buttons (no visible text or symbols)

Abb. 6

Warranty Certificate

CZ

ZÁRUČNÍ PODMÍNKY

Model:
Production number:
Date of purchase:	Seal and signature of vendor:

The vendor is obliged to inform the consumer of the features and parameters of the product and fill in the Warranty Certificate fully and legibly on the day of purchase.

The Certificate is not valid without all the prescribed data correctly filled in!

In addition to the general guarantees on appliances now we also provide special vacuum cleaners warranty to motor for the additional 36 months to the statutory 24 month warranty under the terms as below.

The manufacturer (or importer) is responsible for the features of the product under the applicable technical standards and conditions for the warranty period.

The warranty period is 24 months from the date of purchase, unless stated otherwise by the manufacturer (or importer).

Under the warranty the consumer is entitled to the free, timely and duly executed remedy of faults (see below), or to receive a replacement of the defective part of the product, provided it is not disproportionate with regards to the nature of the fault. The right to replacement of the product or termination of the purchase contract can be exercised only if all the legal preconditions have been met, on the condition that the product was not excessively worn or damaged.

The validity of the guarantee is subject to:

• Observance of the instructions mentioned in the Operating Manual;
• A document proving payment including all the prerequisites, or a valid Warranty Certificate;

Any claims with regards to product liability shall be exercised by the consumer with the vendor where the product was purchased.

The right to repair can be exercised at the location where you purchased the product or at an authorized service centre; a list of the centres is included in the product package or you may find it on the website www.my-concept.com.

Notice for consumers

The consumer is obliged to keep the Warranty Certificate and cash voucher to demonstrate payment for the product. When exercising a claim on a product, it has to be cleaned and packed in order to prevent any damage during transport to an authorized centre. The manufacturer (or importer) reserves the right not to accept a product which is not cleaned duly. Additional cleaning of the product will be charged.

The manufacturer (or importer) reserves the right not to pay the cost of false claims and to require that the claiming party cover all the necessary costs related to the examination of the qualification and solution of the claim.

The right to free repair of the product, or refund, shall not be exercised in the following cases:

• The conditions of the installation, operation and handling of the product, mentioned in the Operating Manual, were not observed;
• The fault occurred due to mechanical, thermal or chemical damage, short circuit or overvoltage;
• The fault is due to the unauthorized intervention of a third party;
• The fault is due to force majeure;
• The fault is due to insufficient or undue maintenance in conflict with the Operating Manual, including faults caused by limescale and other sediments;
• Wear and tear of the product, or its part, caused by regular use;
• Change of the colour of heating surfaces, or scratched surfaces due to regular use;
• Changes of appearance and function due to sunshine, thermal radiation, or limescale and other sediments;
• Expired service life of some parts of the product, e.g. accumulators, bulbs etc.

The nature of the fault can be determined only by the manufacturer, importer, authorized centre, or authorized expert, not by the vendor or consumer.

The consumer shall have no claim to faulty spare parts replaced within a warranty repair.

In the case of termination of the purchase contract, the consumer is obliged to return the complete product, including the accessories and documents supplied.

There is no warranty related to promotional items supplied with the product, the price of which was not charged to the consumer.

The consumer has all the minimum rights under the applicable laws.

Note: Claims regarding products damaged during transport shall be governed by the complaint procedure of the freight forwarder.

Manufacturer:

Jindřich Valenta - ELKO Valenta, Vysokomýtská 1800, 565 01 Choceň, Czech Republic,

tel: [phone], fax: [phone], email: [e-mail], www.my-concept.com

Importer:

Jindřich Valenta - ELKO Valenta Czech Republic, Vysokomýtská 1800,

565 01 Choceň, Tel. [phone], Fax: [phone], www.my-concept.com

concept

CZ SEZNAM SERVISNÍCH MÍST

SK ZOZNAM SERVISNÝCH STREDISIEK

PL WYKAZ PUNKTÓW SERVISOVYCH

www.my-concept.com

concept

Česká republika
