USER MANUAL I2470PWQU AOC

LCD Monitor User Manual

I2470S WD /I2470S WQ /I2470R _WQU

(LED Backlight)

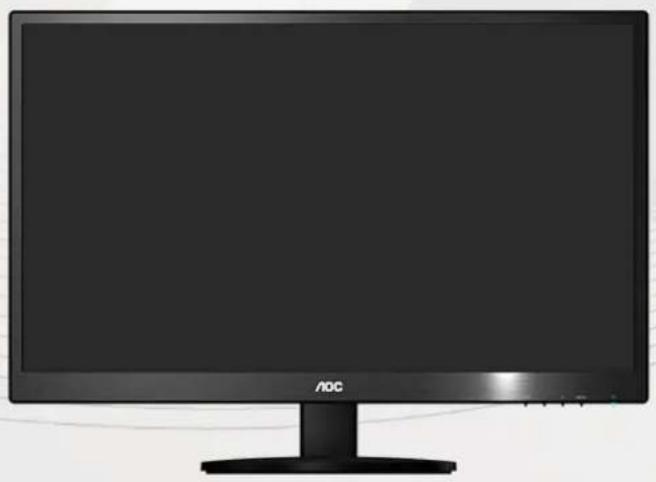

Front view of a black AOC computer monitor with a stand (no visible text or symbols on the screen)

Safety....4

National Conventions....4

Power 5

Installation....6

Cleaning....7

Other 8

Setup 9

Contents of Box 9

Setup Stand....10

Adjusting Viewing Angle....11

Connecting the Monitor....12

Adjusting 15

Setting Optimal Resolution 15

Windows 8....15

Windows Vista....17

Windows XP 19

Windows ME/2000....20

Hotkeys....21

Using"Mobile High-Definition Link" 23

OSD Setting....24

Luminance.... 25

Image Setup 27

Color Setup....29

Picture Boost....31

OSD Setup 33

Extra 35

Exit....37

LED Indicator 38

Driver 39

Monitor Driver 39

Windows 8....39

Windows 2000 43

Windows ME....43

Windows XP 44

Windows Vista 47

Windows 7....49

i-Menu 53

e-Saver 54

Screen+ 55

Troubleshoot....56

Specification....58

General Specification....58

Preset Display Modes....60

Pin Assignments 62

Plug and Play....63

Regulation....64

FCC Notice 64

WEEE Declaration 65

WEEE Declaration for India 65

EPA Energy Star .... 66

EPEAT Declaration 67

Service....68

EU WARRANTY FOR AOC MONITORS 68

Warranty Statement for North & South America (excluding Brazil)....70

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

The wall socket shall be installed near the equipment and shall be easily accessible.

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

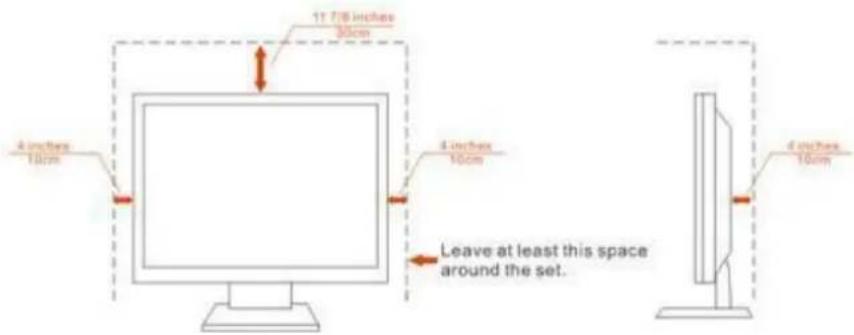

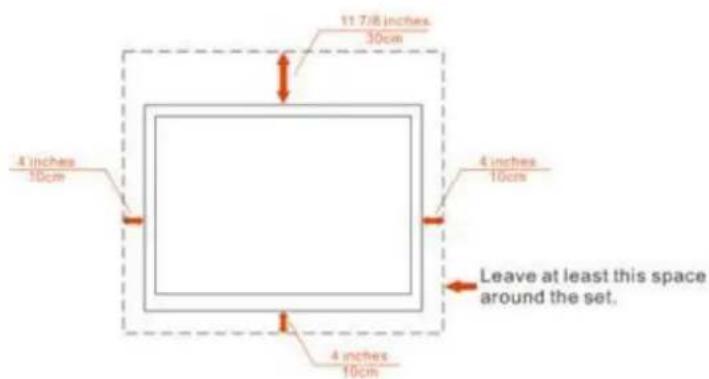

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Installed on the wall

11.7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

Installed with stand

11 7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

Cleaning

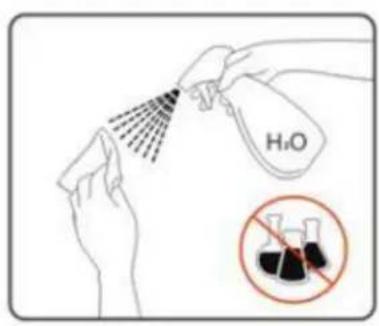

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.

H₂O No No

Simple line drawing of a computer monitor with a cable and a switch, no text or symbols present.

Illustration of a hand interacting with a computer monitor displaying a curved line graph (no text or symbols)

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Setup

Contents of the Box

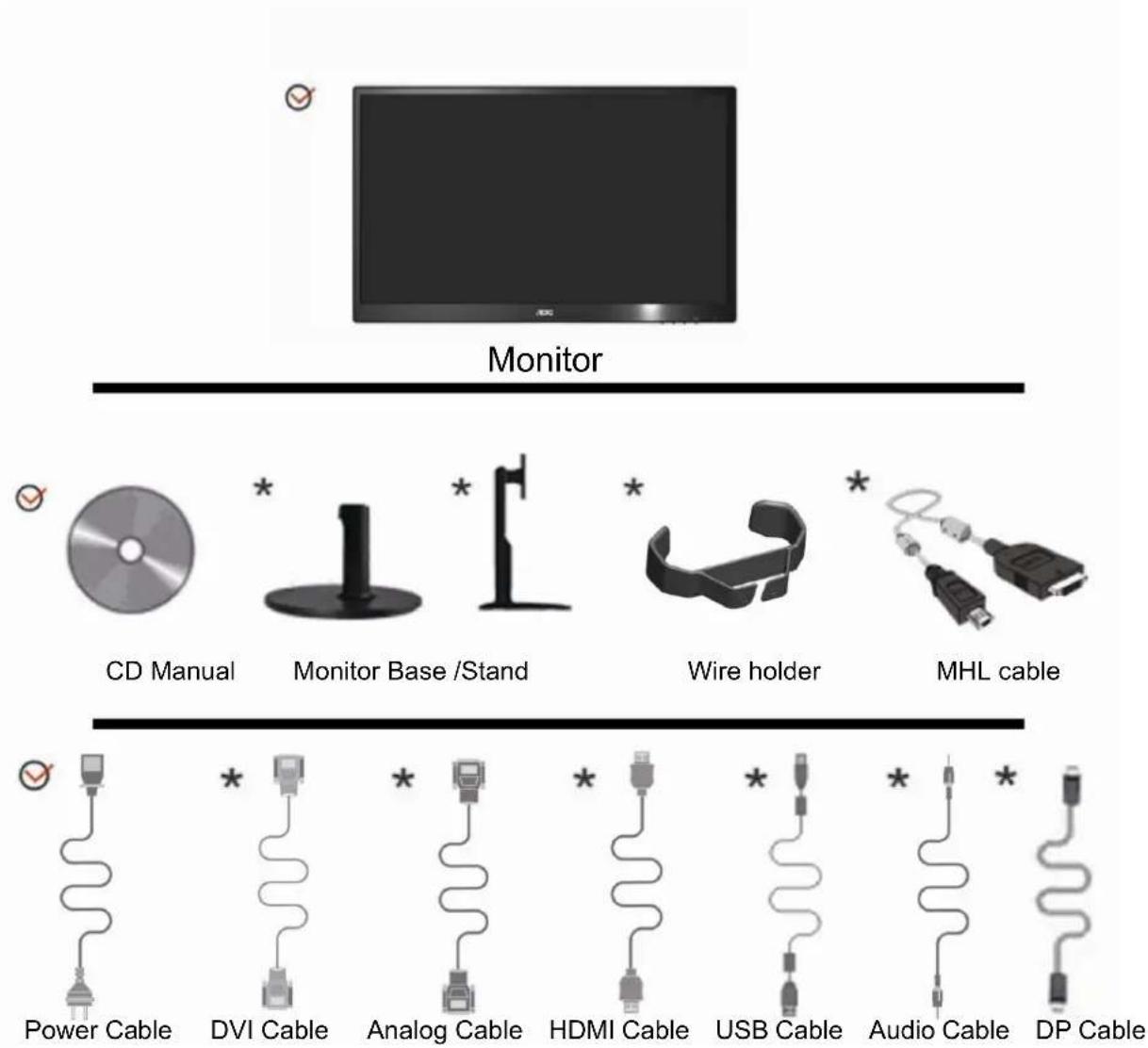

Monitor CD Manual Monitor Base /Stand Wire holder MHL cable Power Cable DVI Cable Analog Cable HDMI Cable USB Cable Audio Cable DP Cable

* Not all signal cables (Analog, Audio, DVI, USB, DP, MHLand HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

Setup Stand

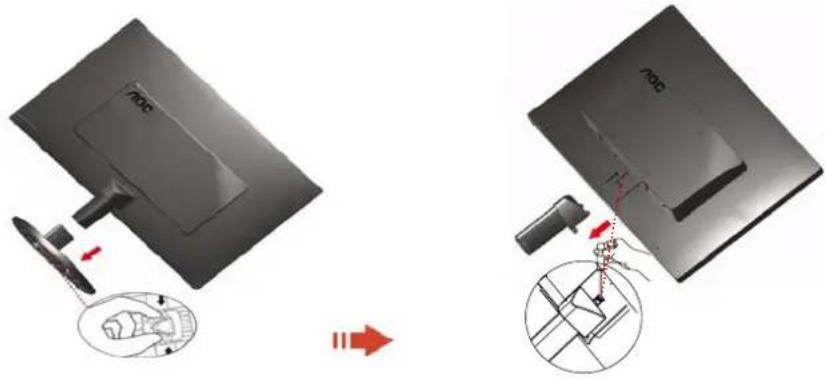

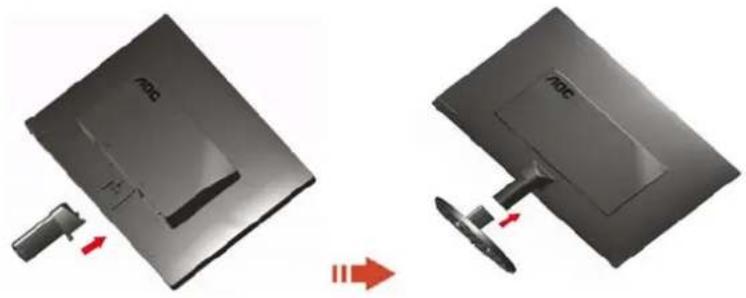

Please setup or remove the Stand following the steps as below.

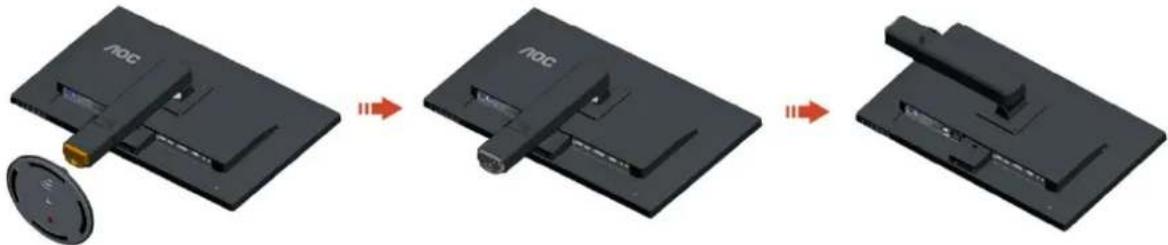

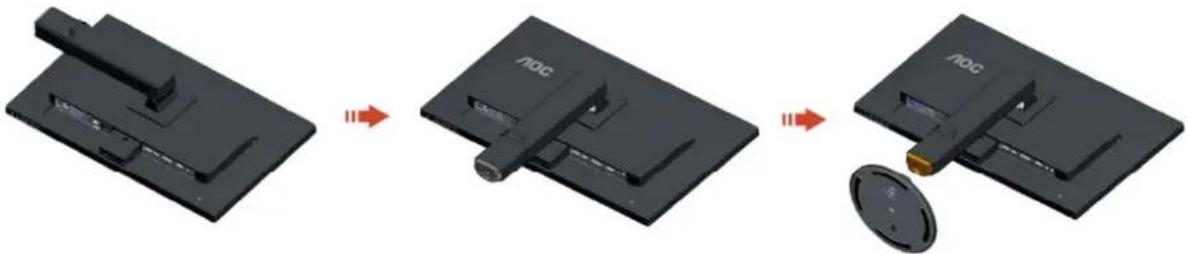

Setup:

Two black electronic devices with red arrows indicating a change or transformation, showing internal components and a close-up of the final device (no text or symbols visible)

Remove:

Diagram illustrating the process of a device's internal components before and after assembly, with labeled parts and directional arrows.

Setup:

3D rendering of a device assembly process showing transformation from a black component to a blue device with a yellow connector (no text or symbols visible)

Remove:

Three-step diagram showing a device being processed, with no visible text or symbols.

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

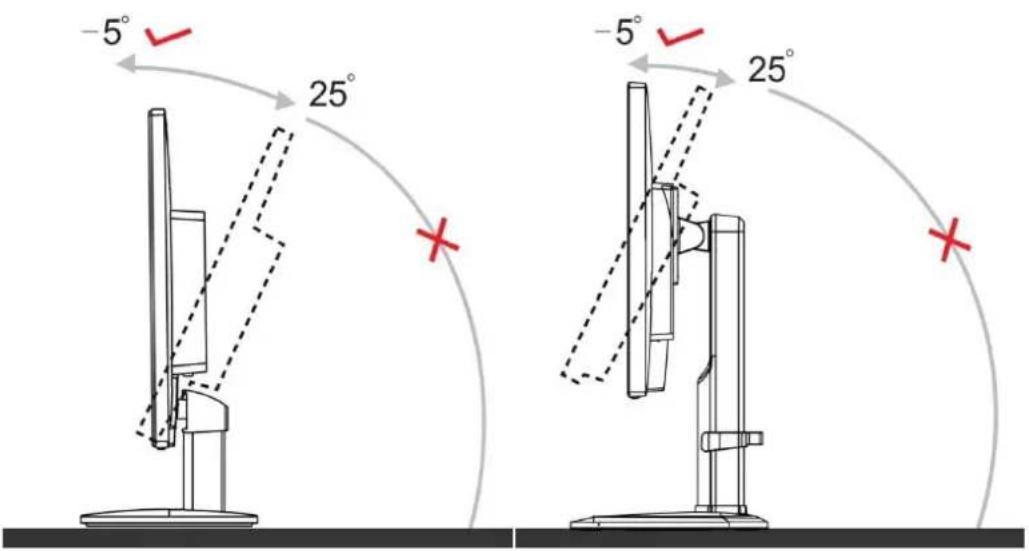

1> You are able to adjust the monitor's angle from -5^ to 25^ .

-5° 25° -5° 25°

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Do not adjust the viewing angle over 25 degrees in order to avoid damage.

Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting the viewing angle.

Connecting the Monitor

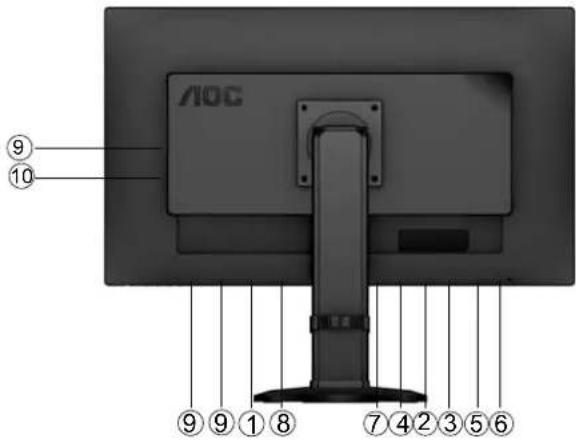

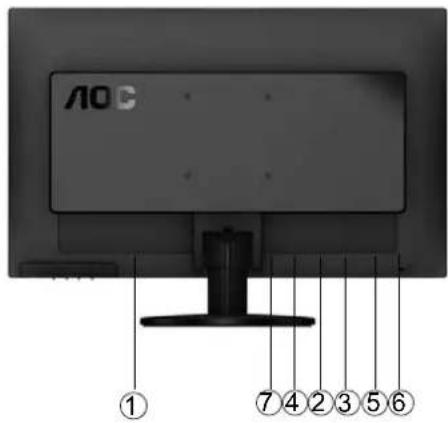

Cable Connections In Back of Monitor and Computer:

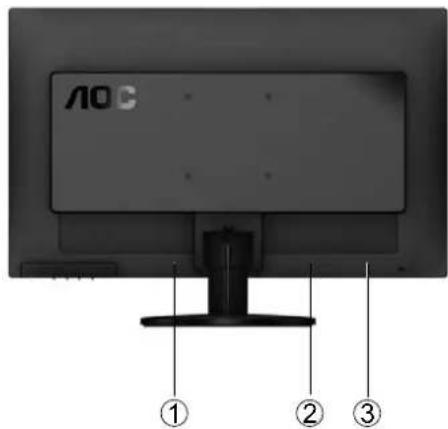

AOC ① ② ③

12470SWD

AOC ① ⑦④②③⑤⑥

12470S _wQ

AOC ⑨ ⑩ ⑨ ⑨ ① ⑧ ⑦ ④ ② ③ ⑤ ⑥

I2470Pwqu

1. Power
2. DVI
3. Analog (D-Sub 15-Pin VGA cable)
4. HDMI/MHL
5. Audio in
6. Earphone out
7. Display port
8. AC power switch
9. USB
10. USB fast charging

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
3. (Optional – Requires a video card with DVI port) Connect one end of the DVI cable to the back of the monitor and connect the other end to the computer's DVI port.
4. (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer's HDMI port.
5. (Optional – Requires a video card with DP port) - Connect one end of the DP cable to the back of the monitor and connect the other end to the computer's DP port.
6. (Optional – Requires a video card with MHL port) - Connect one end of the MHL cable to the back of the monitor and connect the other end to the computer's MHL port.
7. (Optional)Connect the audio cable to audio in port on the back of the monitor
8. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

12470S

12470P

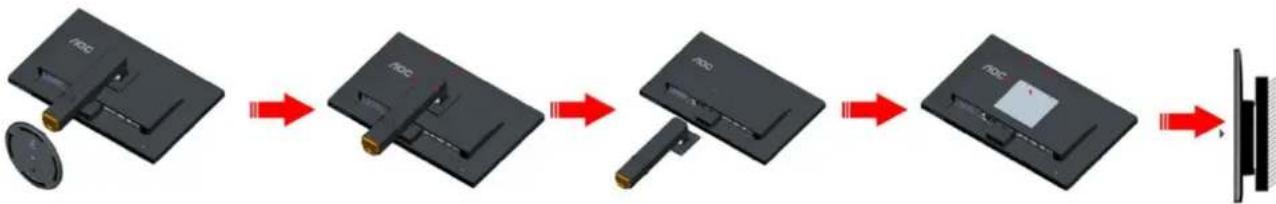

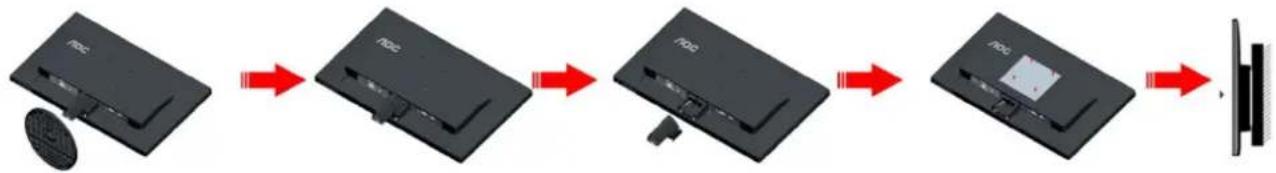

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps:

1 Remove the base.
2 Follow the manufacturer's instructions to assemble the wall mounting arm.
3 Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
4 Insert the 4 screws into the holes and tighten.
5 Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

Adjusting

Setting Optimal Resolution

Windows 8

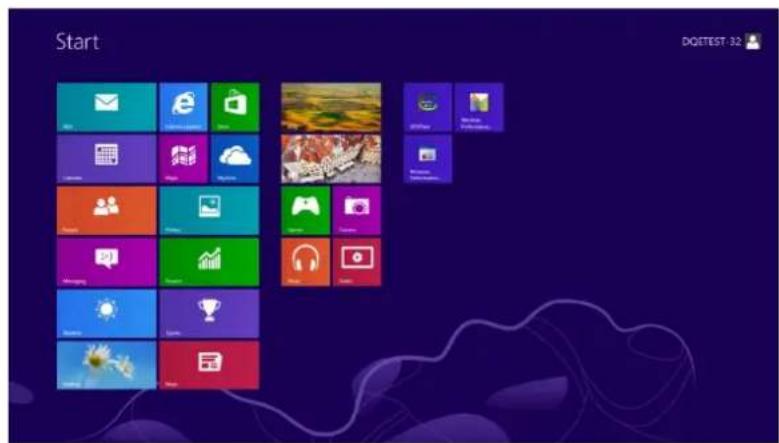

For Windows 8:

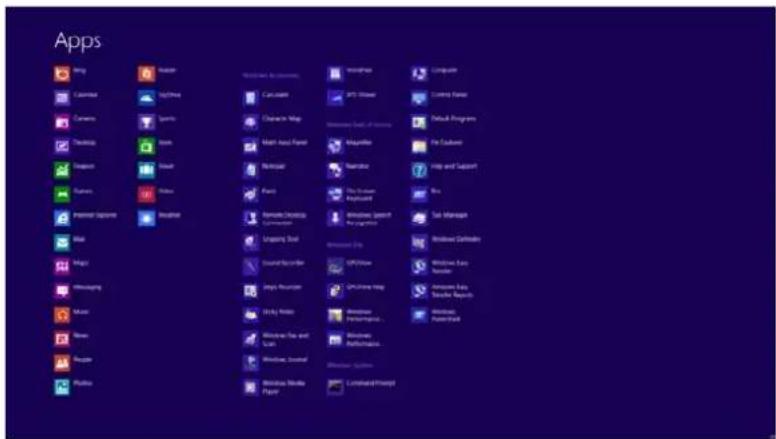

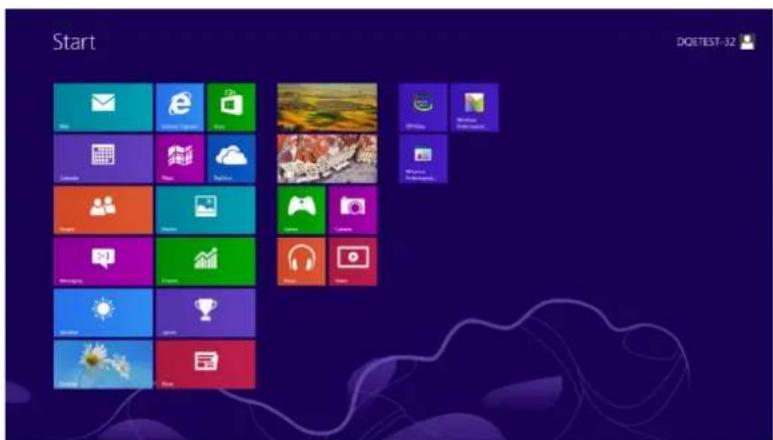

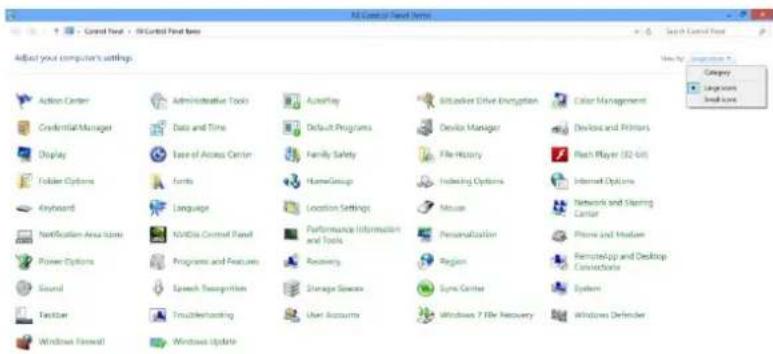

1. Right click and click All apps at the bottom-right of the screen.

Start DOETEST 32

Apps Ring Calendar Camera Desktop Session iTunes Internet Explorer Cyclasys Class in Web Main New Panel Watchbox Flash Smartwatch Language Instantaneous Streaming Searcher Searcher Link Searcher Link Play Music Windows Play and Live Windows Install Windows Window Help Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master Paper Watchbox Master paper

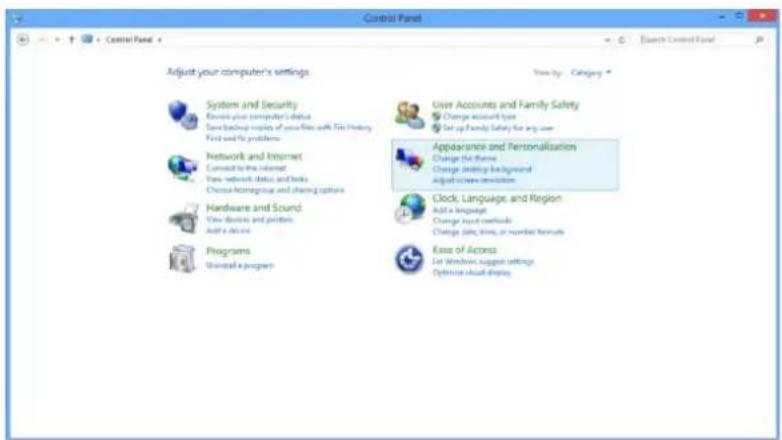

1. Set the "View by" to "Category".
2. Click Appearance and Personalization.

Control Panel Adjust your computer's settings System and Security Encase your computer's default Save backup copies of your file with File History Find and/or problems Network and Internet Connect to the Internet View network status and links Choose homegroup and sharing options Hardware and Sound View Devices and phones Add a device Programs Unrealized a program User Accounts and Family Safety Change account type Set up family safety for any user Appearance and Personalization Change the theme Change building background Adjust to new version Clock, Language, and Region Add a language Change input methods Change jobs, time, or number formats Ease of Access Get Windows support settings Optimize visual display

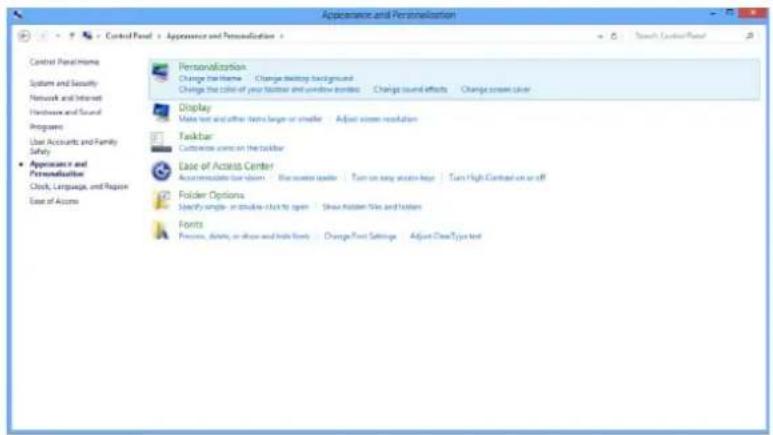

4. Click DISPLAY.

Appearance and Personalization Control Panel Help Appearance and Personalization Control Panel Name System and Security Network and Internet Desktop and Council Programs User Accounts and Family Safety Appearance and Personalization Clock, Language, and Region Ease of Access Personalization Change the Home Change desktop background Change the color of your folder and window colors Change sound effects Change screen color Display Make text and other types larger or smaller Adjust screen resolution Taskbar Customize screens on the toolbar Ease of Access Center Accummodate user screen Blue screen speaker Turn on easy access key Turn High Contrast use or off Folder Options Specify simple in double-click to open Show folder Sites and folders Fonts Personalities, Delights, or above and Inside Books Change Print Settings Adjust Class Type text

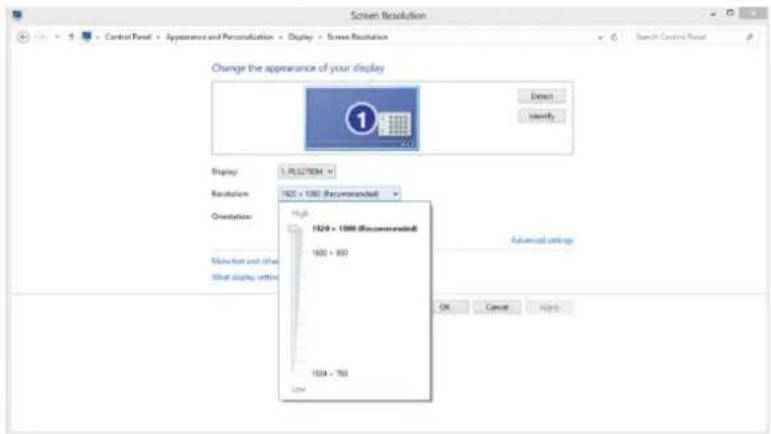

5. Set the resolution SLIDE-BAR to 1920x1080.

Screen Resolution Change the appearance of your display Display: 1.36327804 Resolution: 100 × 1000 (Recommended) Orientation: Maximize and other What displays, within High H2/9 × 1000 (Recommended) 1600 × 100 1504 × 700 Low Advanced settings OK Cancel Apply

Windows Vista

For Windows Vista:

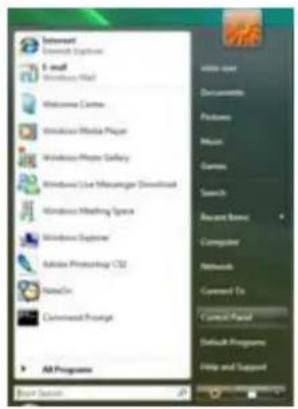

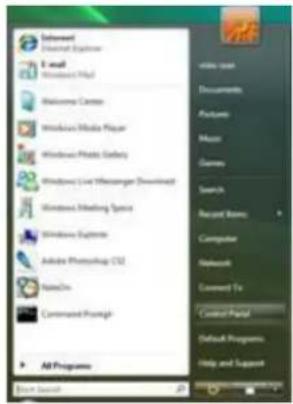

1 Click START.
2 Click CONTROL PANEL.

Start Menu Microsoft Internet Explorer E-mail Microsoft Word Welcome Center Microsoft Mobile Player Windows Phone Gallery Windows Live Wireless Download Windows Networking Script Windows Express Adobe Photoshop CS2 NameOn Command Prompt All Programs Create Partial Default Programs Help and Support

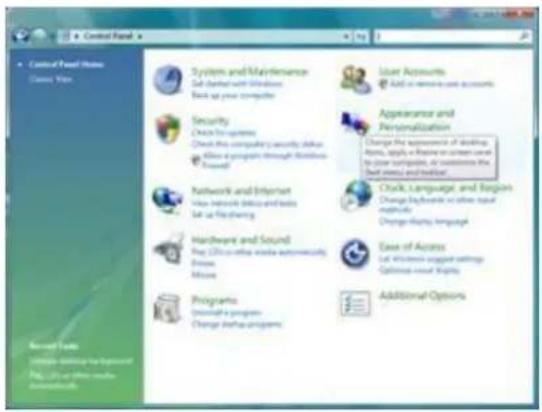

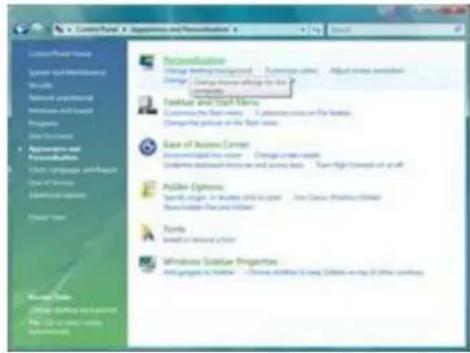

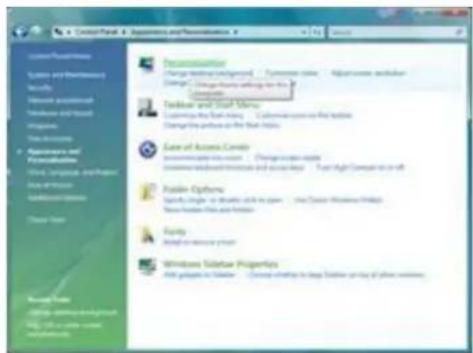

3 Click Appearance and Personalization.

Control Panel Options Class: View System and Maintenance Get AppWizard Windows Back up your computer Security Check for updates Check the computer's weekly status Show a program through database Formup Network and Internet Your network data and tools Set up thising Hardware and Sound Play CDs to other media successfully Show Windows Programs Supervisory programs Change sharing programs User Accounts Add to contact your accounts Appliances and Personalization Change the appearance of existing doses, apply a scheme or update tool to your linkages, or console the Part-time personalization. Clock, Language, and Region Change keywords of other key methods Change sharing language Ease of Access Let Windows support settings Options your interface Additional Options Second Techs Close starting background Play CDs or other media passwords

4 Click Personalization

C:\Control Panel 1\Applications and Preferences Description Change in network configuration - Customize user access Change in the following settings for the Settings Settings and Staff Marks Customizing the basic needs - Customize user access to the Settings Change the access to the basic needs. Case of Access Control Incomplete the user - Change user access Increase database resources and access levels - Play Right Command on your own Options Skills: Single or double with a key point - Live Control Windows Help Make new file as functions Fuzzy Send to an important project Windows Database Properties Ask questions to dialog - Create existing to log these on any of those services.

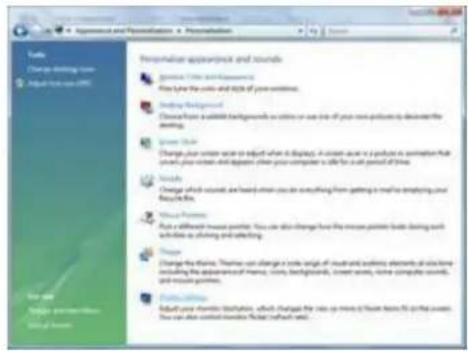

5 Click Display Settings.

Personal appearance and sounds Games: 1000 times Face like the parts and bits of your voice. Setting background Choose from available backgrounds as colors or use one of your own patterns to deliver the meeting. Green Color Change your voice uses to adjust when it displays. A screen uses a product in animation that provides your voice and appara, where your computer is able for a tool of time. Sounds Change which sounds are ready when you are everything from getting a mask to displaying your resources. Visual Patterns Look a different image picture. You can also change how the image picture looks during each activity as clicking and clicking. Change Change the themes. That's can change a note length of visual and auditory elements at all home including the appearance of memory, screen, background, screen views, name computer sounds, and audio sounds. Details: Adjust your character distributions, which change the size up more than from home will be used. You can also control the video file format.

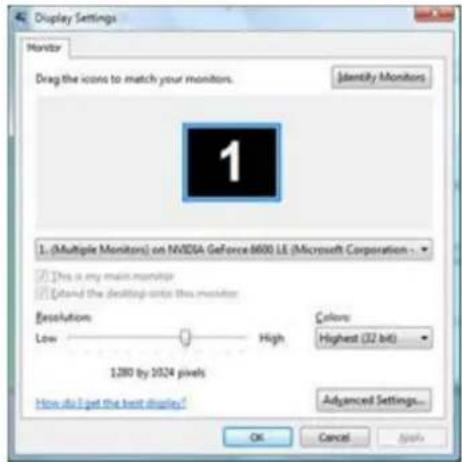

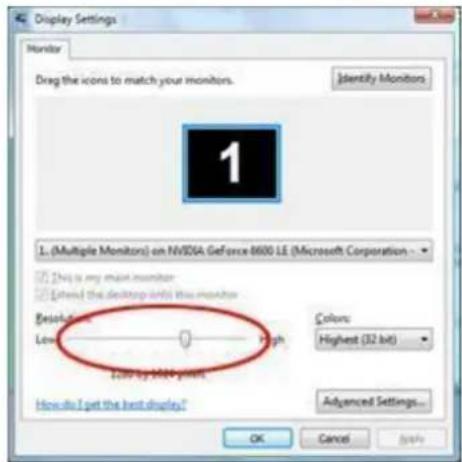

6 Set the resolution SLIDE-BAR to 1920x1080.

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 L. (Multiple Monitors) on NVIDIA GeForce 8600 LE (Microsoft Corporation - This is my main monitor Entered the desktop units this monitor Resolution: Low High Color: Highest (32 bit) Load by 9600 points How do I get the best display? Advanced Settings... OK Cancel Apply

Windows XP

For Windows XP:

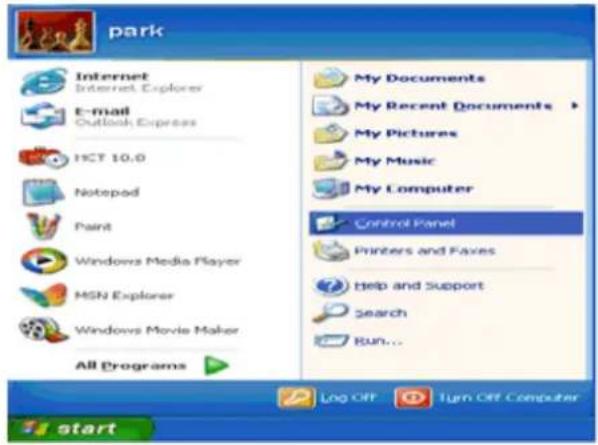

1 Click START.

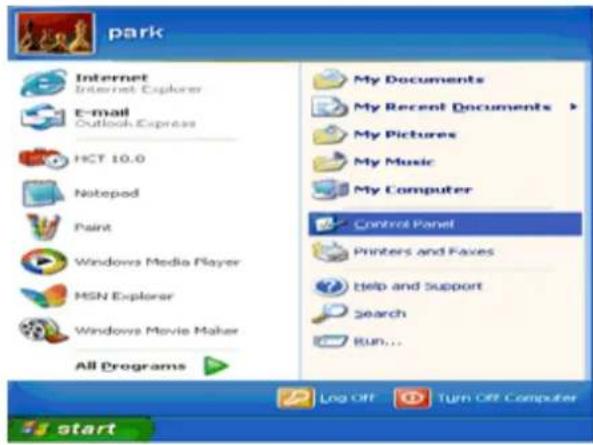

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer start

2 Click SETTINGS.

3 Click CONTROL PANEL.

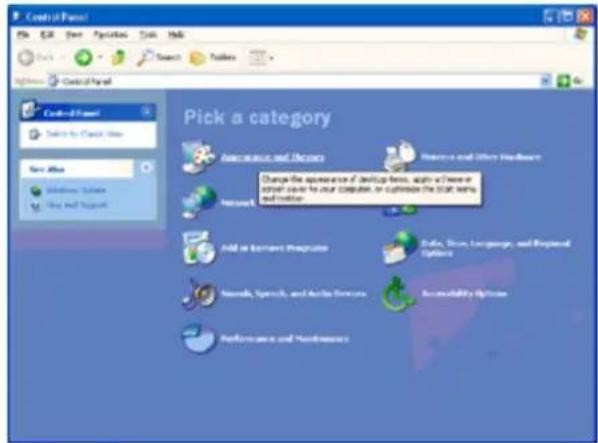

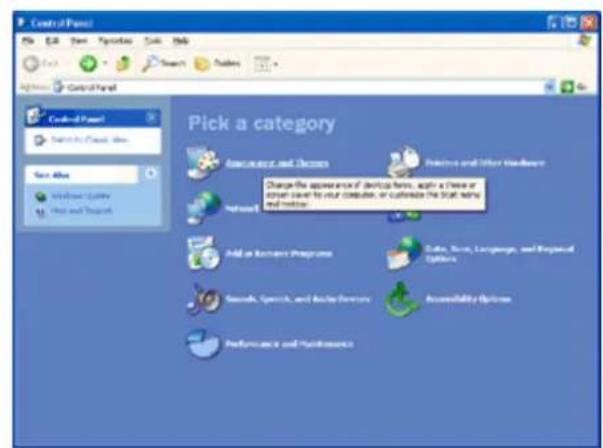

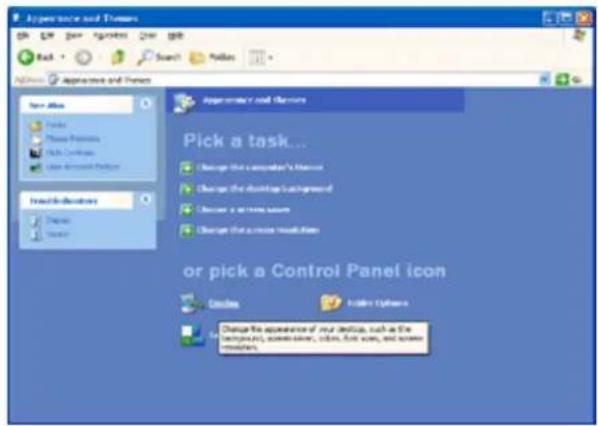

4 Click Appearance and Themes.

Control Panel File Edit View Edit Tools Help Search Favorites Actions Control Panel Control Panel Search to Control Panel Save All Windows Active Help and Support Pick a category Accessories and Decisions Protects and Other Trackers Change the appearance of device types, apply a Time or user travel to your computer, or customize the Start Name and Monitor Add or Increase Programs Delete, Save, Langering, and Environmental Options Smooth, Speech, and Audio Devices Accessibility Options Performance and Maintenance

5 Double click DISPLAY.

Approve and Features New Access Tools Please Properties Help Controls Use Microsoft Teams Find Preferences Preview Search Approve and Features Pick a task... Change this computer's features Change the desktop background Change it's more resources Change that a more resources or pick a Control Panel icon Creates Folder Options To Change the appearance of your details, such as the userfiles, user files, users, users, users, and users members.

6 Click SETTINGS.

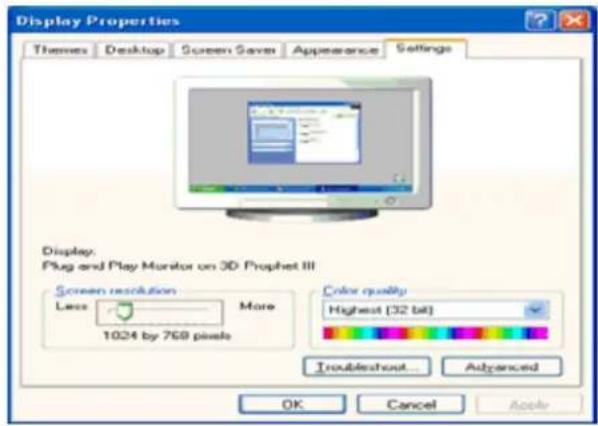

7 Set the resolution SLIDE-BAR to 1920x1080.

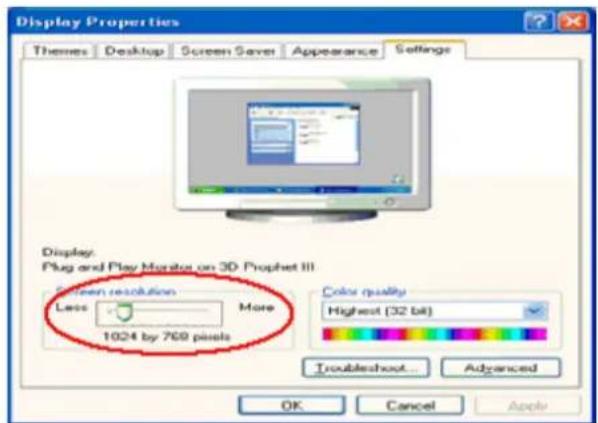

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Troubleshoot... Advanced OK Cancel Apply

Windows ME/2000

For Windows ME/2000:

1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.
6 Set the resolution SLIDE-BAR to 1920x1080.

Hotkeys

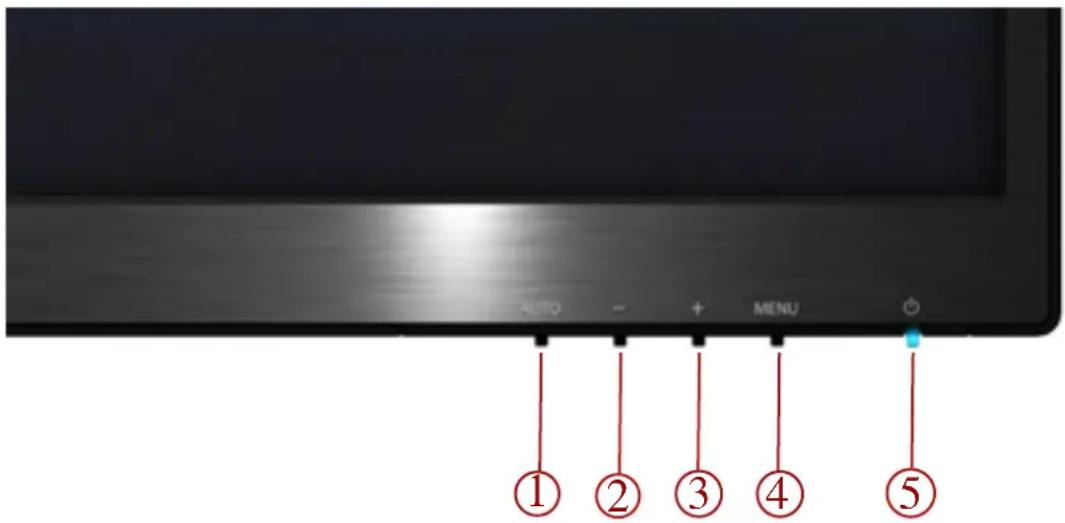

AUTO - + MENU ① ② ③ ④ ⑤

I2470S _WD

1	Source/Auto/Exit
2	Clear Vision/-
3	4:3 or wide / +
4	Menu/Enter
5	Power

I2470S wQ /I2470P wQU

1	Source/Auto/Exit
2	Clear Vision/-
3	Volume/+
4	Menu/Enter
5	Power

Power

Press the Power button to turn on/off the monitor.

Menu/Enter

Press to display the OSD or confirm the selection.

Volume A

When there is no OSD, press Volume adjust volume.

4:3 or wide image ratio /+

When there is no OSD, press + hotkey continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust.)

Auto / Exit / Source hot key

When there is no OSD, press Auto/Source button continuously about 2 second to do auto configure.

When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

Clear Vision/-

1. When there is no OSD, Press the “-” button to activate Clear Vision
2. Use the " " or "- " buttons to select between weak, medium, strong, or off settings. Default setting is always "off"
3. Press and hold “-” button for 5 seconds, the vertical line will display while no vertical line screen; Press and hold “-” button for 5 seconds, the vertical line will disappear while the vertical line is moving in screen; Press the “-” Button to turn the monitor clear vision Off / Strong / Medium / Weak, the left of vertical line will be the effect demo and right of vertical line will be clear vision off; When display picture in screen will be more obviously.

Clear Vision function will provide the best image viewing experience by converting low resolution and blurry images into clear and vivid images.

Clear vision AOC

Clear Vision Demo: On AIDC

Front view of a black desktop computer monitor with a blue gradient screen (no visible text or symbols)

Using "MHL(Mobile High-Definition Link)" (Optional)

1."MHL" (Mobile High-Definition Link)

This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screen of the product.

• To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website. To find a list of MHL-certified devices, visit the official MHL website (http://www.mhlconsortium.org).
  ● To use the MHL function, the latest version of software must be installed on the mobile device.
• On some mobile devices, the MHL function may not be available depending on the device's performance or functionality.
  ● Since the display size of the product is larger than those of mobile devices, the picture quality may degrade
• This product is officially MHL-certified. If you encounter any problem when using the MHL function, please contact the manufacturer of the mobile device.
• The picture quality may degrade when content (imported from the mobile device) with a low Resolution is played on the product.

Using "MHL"

1. Connect the micro USB port on the mobile device to the [HDMI / MHL] port on the product using the MHL cable.

HDMI/MHL Micro USB MHL Cable

• When the MHL cable is used, [HDMI / MHL] is the only port on this monitor that supports the MHL function.

• Mobile device must be purchased separately.

• Press the source button and switch to HDMI/MHL to activate MHL mode.

• After about 3 seconds, the MHL screen will be displayed if MHL mode is active.

Remark: The indicated time "3 sec later" may vary depending on the mobile device.

When the mobile device is not connected or does not support MHL

• If MHL mode is not activated, check the connection of the mobile device.
• If MHL mode is not activated, check if the mobile device supports MHL.
• If MHL mode is not activated even though the mobile device supports MHL, update the firmware of the mobile device to the latest version.
• If MHL mode is not activated even though the mobile device supports MHL, check if mobile device MHL port is MHL standard port otherwise an additional MHL-enabled adapter is required.

OSD Setting

Basic and simple instruction on the control keys.

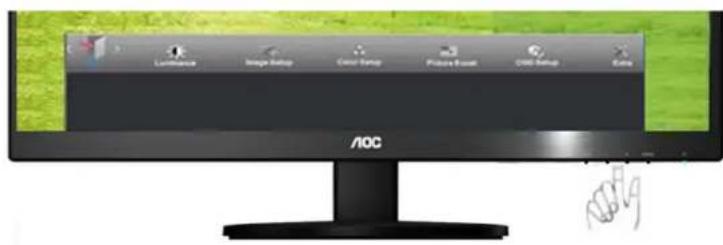

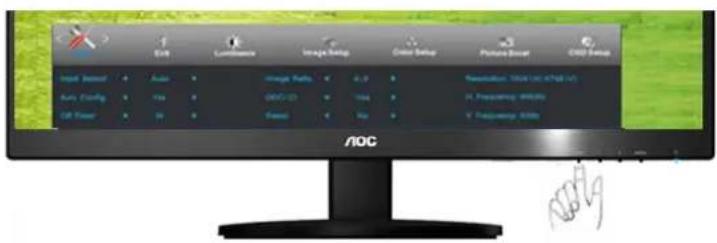

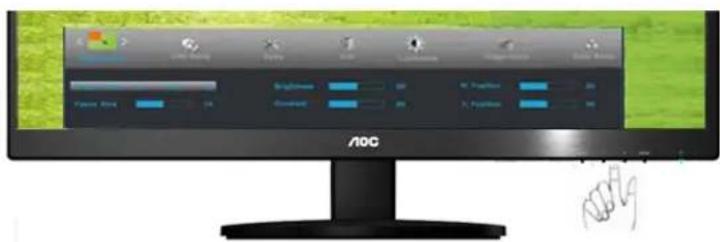

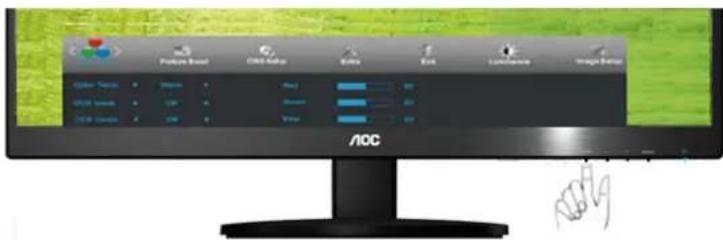

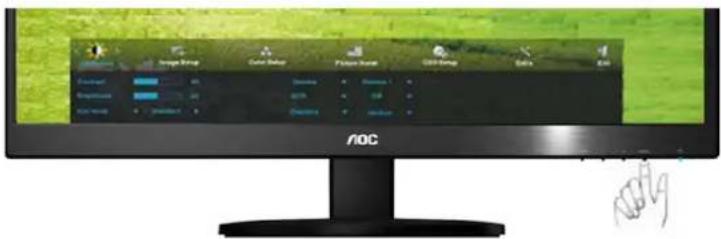

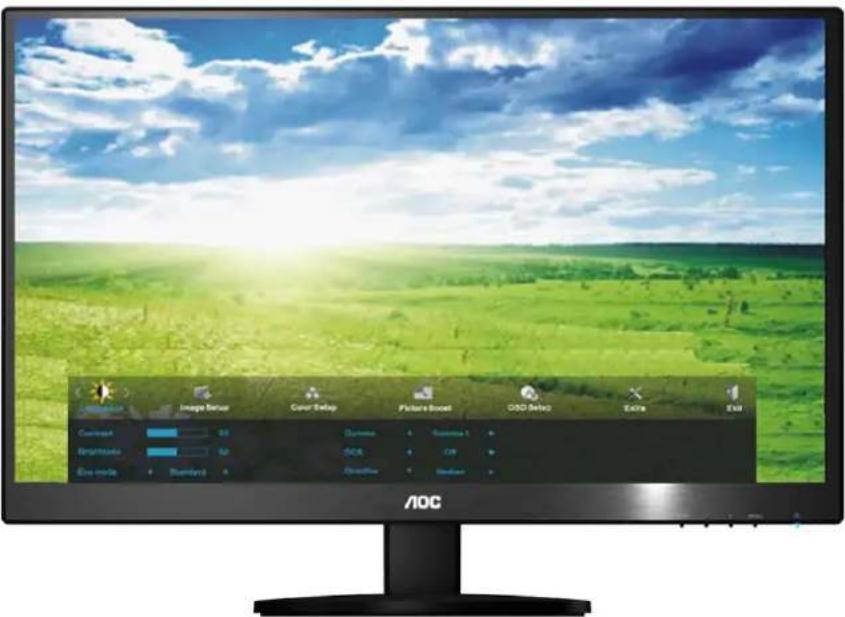

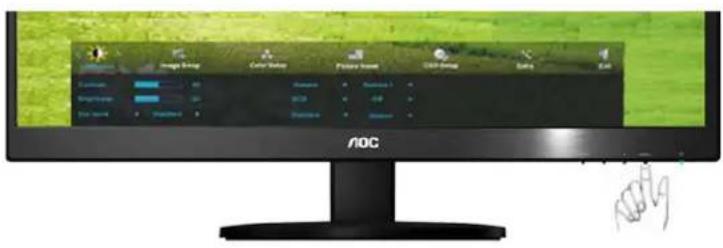

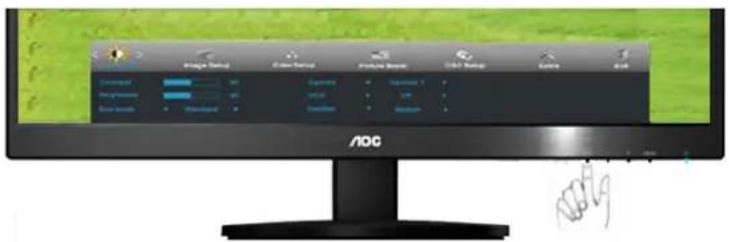

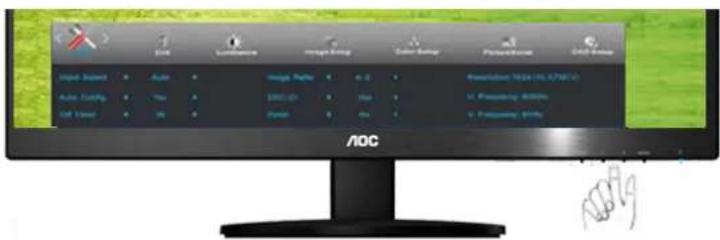

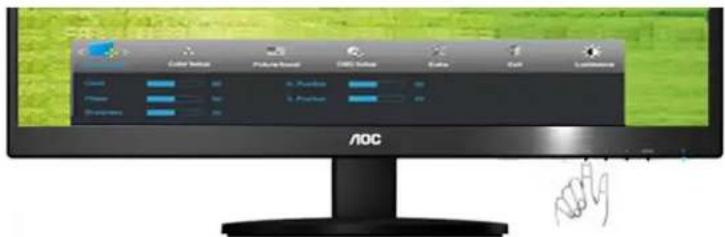

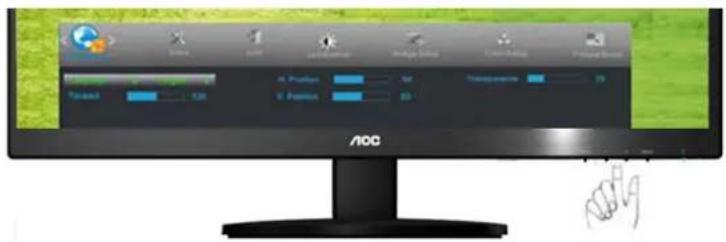

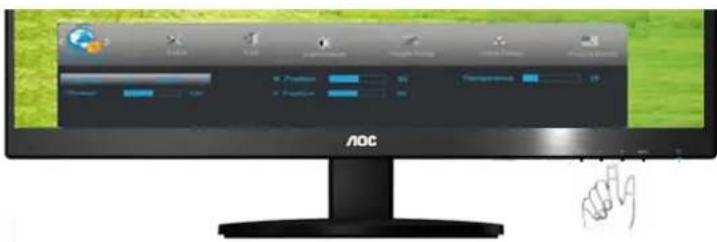

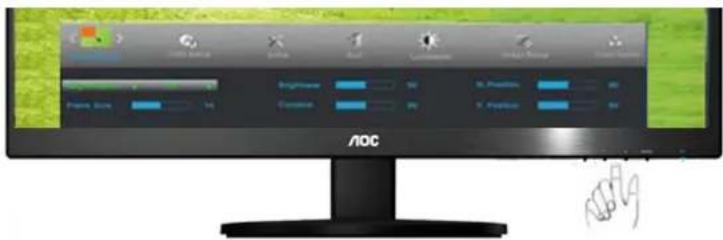

AOC Image Setup Color Setup Picture Setup OSS Setup Extra Exit Contrast 80 Customs Customs 1 Brightness 80 FCA Off Era mode Standard Default Standard

1) Press the MENU-button to activate the OSD window.
2) Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it . press - or + to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
3) Press - or + to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.

Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to adjust.
3) One of non-standard ECO, DCR, DCB, Picture Boost is activated, the other three of functions are turned off accordingly.

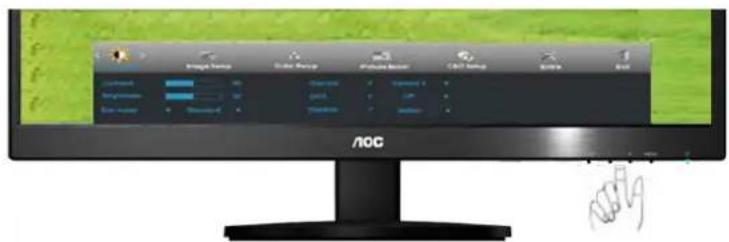

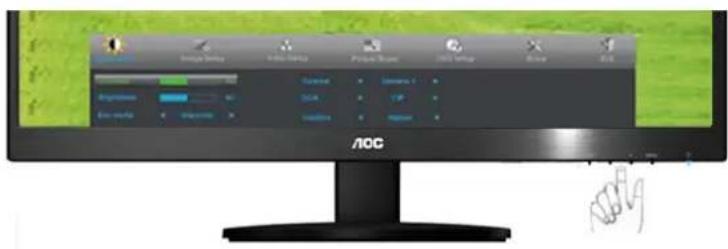

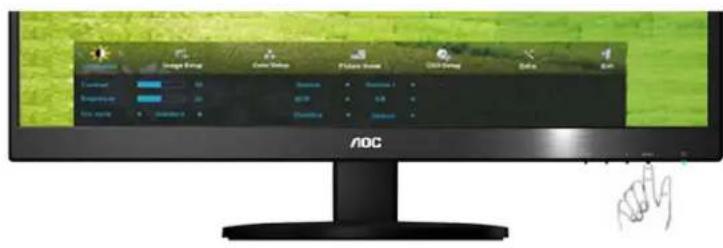

Luminance

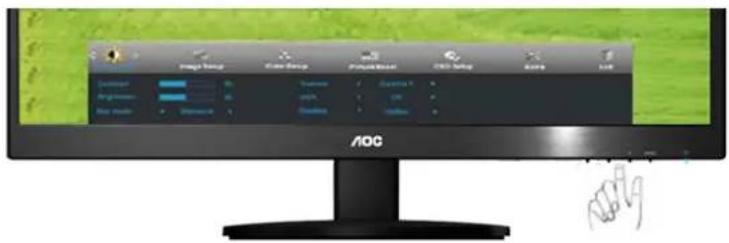

Image Wing Color Shadow Picture Sound RGB Color Color Audio Residuals Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio AOC

1. Press MENU (Menu) to display menu.

AOC Image Setup Image Range Project Reset CNS Setup Control Auto Background Background New Audio Environment Quality Quality OK OK

1. Press - or + to select (Luminance), and press MENU to enter.

Image Tools Display Tools Product Setup CBO Settings Button Back AOC

1. Press - or + to select submenu, and press MENU to enter.

AOC

1. Press to adjust.

AOC Image Setup Color Setup Product Settings CD4 Setup Actions Audio Continuous Continuous Continuous Continuous Continuous Audio

1. Press AUTO to exit.

	Brightness	0-100		Backlight Adjustment
	Contrast	0-100		Contrast from Digital-register.
	Eco mode	Standard		Standard Mode
		Text		Text Mode
		Internet		Internet Mode
		Game		Game Mode
		Movie		Movie Mode
		Sports		Sports Mode
	Gamma	Gamma1 Adjust to Gamma1
		Gamma2 Adjust to Gamma 2
		Gamma3 Adjust to Gamma 3
	DCR	Off Disable dynamic contrast ratio
		On		Enable dynamic contrast ratio
	Overdrive	Weak		Adjust the response time (12470SWQ/12470PWQ)
		Medium
		Strong
		Off
	DPS	Off		Dynamic Power saving (12470SWQ/12470PWQ)
		On

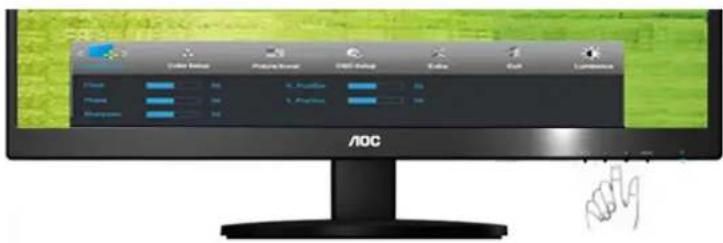

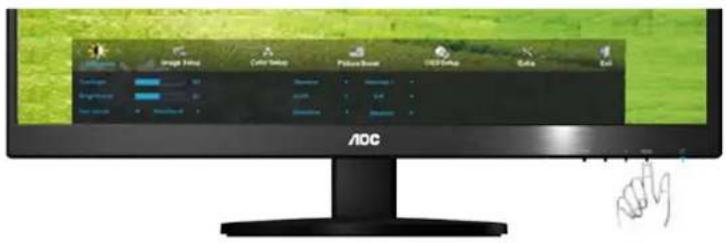

Image Setup

AOC Image History Color History Print Screen USB Format Grid Exit

1. Press MENU (Menu) to display menu.

Color Mode Picture Mode GND Mode Color Color Mode Photo Photo 100% 100% 100% Background AOC

1. Press - or + to select

(Image Setup), and press MENU to enter.

AOC 4.000 Positive Step 4.000 Positive Positive Positive Positive AOC

1. Press - or + to select submenu, and press MENU to enter.

AOC

1. Press - or +to adjust.

Cutter Wizard Product Response DAR100 Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color Color AOC

1. Press AUTO to exit.

	Clock	0-100	Adjust picture Clock to reduce Vertical-Line noise.
	Phase	0-100	Adjust Picture Phase to reduce Horizontal-Line noise
	Sharpness	0-100	Adjust picture sharpness
	H.Position	0-100	Adjust the horizontal position of the picture.
	V.Position	0-100	Adjust the vertical position of the picture.

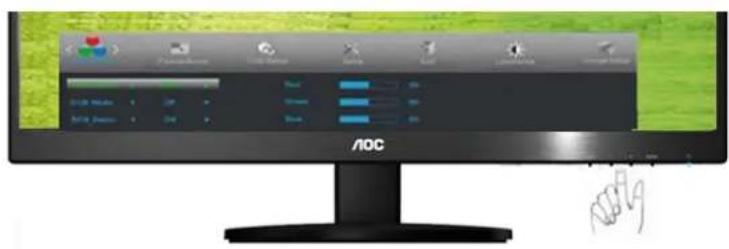

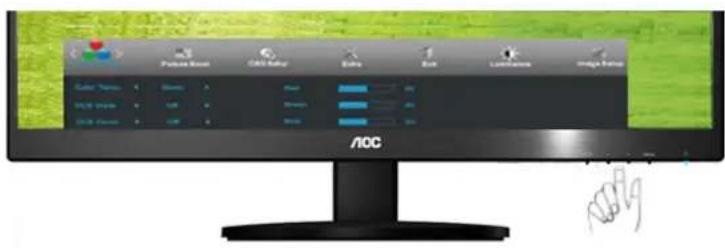

Color Setup

AIOC Image Setup Color Status Preview Setup CBD Setup Status Exit Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance AOC

1. Press MENU (Menu) to display menu.

Picture Reset GAS Ratio OK Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/Lock/ Color Options: GAS Ratio: OK GAS Ratio: OK OK AOC

1. Press - or + to select (Color Setup), and press MENU to enter.

AOC

1. Press - or + to select submenu, and press MENU to enter.

AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC AOC aoc19

1. Press - or + to adjust.


Picture Based GIB Value Extra Exit Luminance Image Editor Color Options Window Gray RGB Orange Blue Dark Light Blue AOC

1. Press AUTO to exit.

	Color setup.	Warm		Recall Warm Color Temperature from EEPROM.
		Normal		Recall Normal Color Temperature from EEPROM.
		Cool		Recall Cool Color Temperature from EEPROM.
		sRGB		Recall SRGB Color Temperature from EEPROM.
		User	Red	Red Gain from Digital-register
			Green	Green Gain Digital-register.
			Blue	Blue Gain from Digital-register
	DCB Mode	Full Enhance	on or off	Disable or Enable Full Enhance Mode
		Nature Skin	on or off	Disable or Enable Nature Skin Mode
		Green Field	on or off	Disable or Enable Green Field Mode
		Sky-blue	on or off	Disable or Enable Sky-blue Mode
		AutoDetect	on or off	Disable or Enable AutoDetect Mode
	DCB Demo		On or off	Disable or Enable Demo

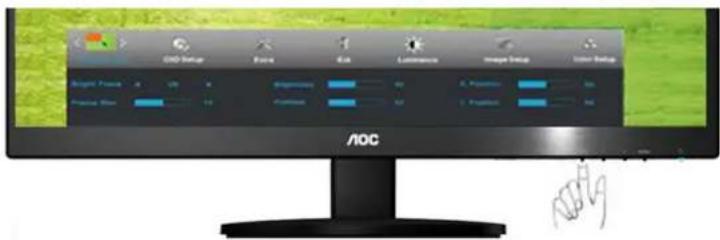

Picture Boost

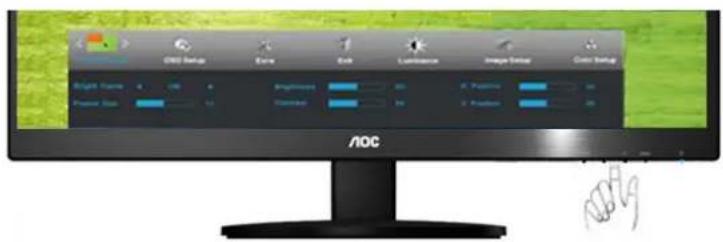

AOC Image Help Color Help Picture Room CBD-Serial Sales Exit Background Background Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name Name None

1. Press MENU (Menu) to display menu.

CNS Setup Extra Exit Lightwave Image Setup Color Setup Bright Image 100 200 300 400 500 600 700 800 900 AOC

1. Press - or + to select (Picture Boost), and press MENU to enter.

AOC Figure Edit 14 Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio

1. Press - or + to select submenu, and press MENU to enter.

AOC AOC Display Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto AOC

1. Press - or +to adjust.


AOC RGB Setup Face RGA Lockiness Image Setup Color Setup Bright Pulse 100% Continuous 40 A. Positance 100% Positive Blue +2 Continuous 50 A. Positance 100%

1. Press AUTO to exit.

	Frame Size	14-100	Adjust Frame Size
	Brightness	0-100	Adjust Frame Brightness
	Contrast	0-100	Adjust Frame Contrast
	H. position	0-100	Adjust Frame horizontal Position
	V.position	0-100	Adjust Frame vertical Position
	Bright Frame	on or off	Disable or Enable Bright Frame

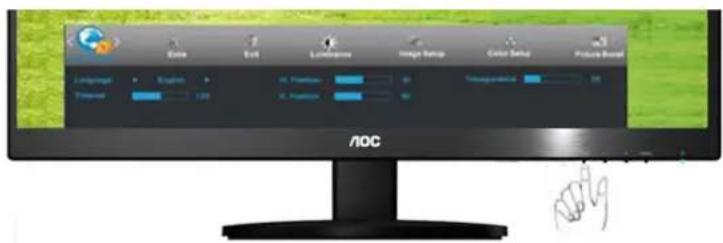

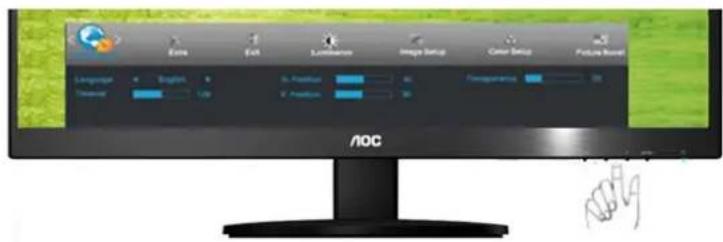

OSD Setup

AOC Image Bring Color Sorter Picture Touch CBO Format Sales Exit

1. Press MENU (Menu) to display menu.

AOC Extra Edit Lockdown Image Setup Center Setup Picture Mount Language English Visual Positive Positive Continuous

1. Press - or + to select

(OSD Setup), and press MENU to enter.

AOC

1. Press - or + to select submenu, and press MENU to enter.

AOC 100% 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79

1. Press - or + to adjust.


Eate Exit Luminance Image Setup Color Setup Physics Barrel Language English M. Premium Transgenderless Diameter 100 A. Uniform AOC

1. Press AUTO to exit.

	H.Position	0-100	Adjust the horizontal position of OSD
	V.Position	0-100	Adjust the vertical position of OSD
	Timeout	5-120	Adjust the OSD Timeout
	Transparence	0-100	Adjust the transparence of OSD
	Language Select the OSD language
	Break Reminder	Off	Break reminder if the user continuously work for more than1hrs
		On

Extra

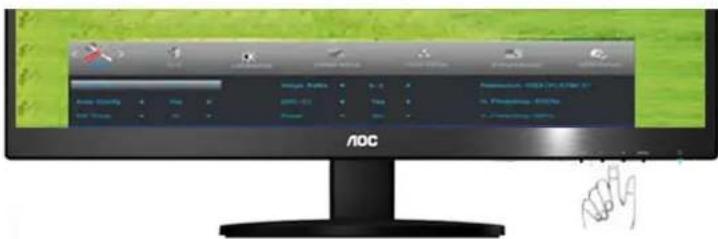

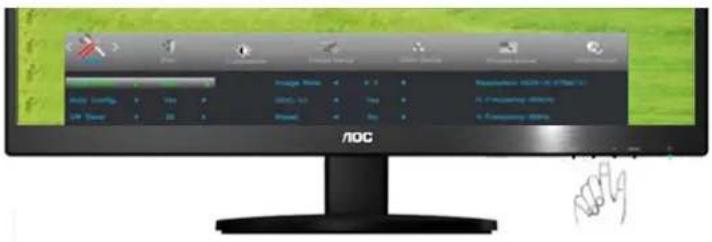

rioc Image Strip Color Filter Picture Scan Edit View Add Default Preview Add View Create Edit View

1. Press MENU (Menu) to display menu.

AOC Edit Customize Image Settings Custom Settings PictureButton AOC Setup Input Select Auto Image Filter + 2 Configuration: 1004-105.0738/1 Auto Coding Yes BLOGD Yes Fogging Tools Get Clean OK Cancel No

1. Press - or + to select (Extra), and press MENU to enter.

AOC Image Panel 6.2 AOC: 100% (R/C/30) vs. Fosfostog - 810/9x vs. Fosfostog - 810/9x

1. Press - or + to select submenu, and press MENU to enter.

AOC 168/9

1. Press - or + to adjust.

Exit Lockdowns Image Setup Grid Setup Picture Book COLD Setup Input Select Auto Image Paths 0.2 Presentation: 100% (AC, 6754-1) Auto Config Yes GND-23 Yes Hi, Preprocessing: 100% Ctrl Power No Format No V Frequency Options AOC

1. Press AUTO to exit.

	Input Select	Auto / Analog / DVI / HDMI(MHL) /DP	Select input signal source. (I2470Sw0/I2470Pwou)
	Input Select Auto / Analog / DVI		Select input signal source. (I2470Sw0)
	Auto Config yes or no Auto adjust the picture to default.
	Off timer 0-24hrs Select DC off time.
	Image Ratio wide or 4:3 Select wide or 4:3 format for display.
	DDC-CI	yes or no	Turn ON/OFF DDC-CI Support.
	Reset	yes or no	Reset the menu to default.
	Information		Show the information of the main image and sub-image source.

Exit

AOC Image Setup Color Setup Picture Stream USB Connection OK Exit Appearance Background Key Name Add/Remove Baseline Standard 1.0 Baseline Standard AOC

1. Press MENU (Menu) to display menu.

Lockbase Image Setup Color Setup Mouse Excel COS Setup Edit AOC

1. Press - or + to select

(Exit), and press MENU or AUTO to exit.

Exit Exit the main OSD

LED Indicator

Status

Full Power Mode

Active-off Mode

LED Color

Green

Orange

Two colored circles (green and orange) on a gray background, no text or symbols present.

Driver

Monitor Driver

Windows 8

1. Start Windows® 8
2. Right click and click All apps at the bottom-right of the screen.

Apps Start Save Watch Search View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Engine View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Service View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Services View Search Service

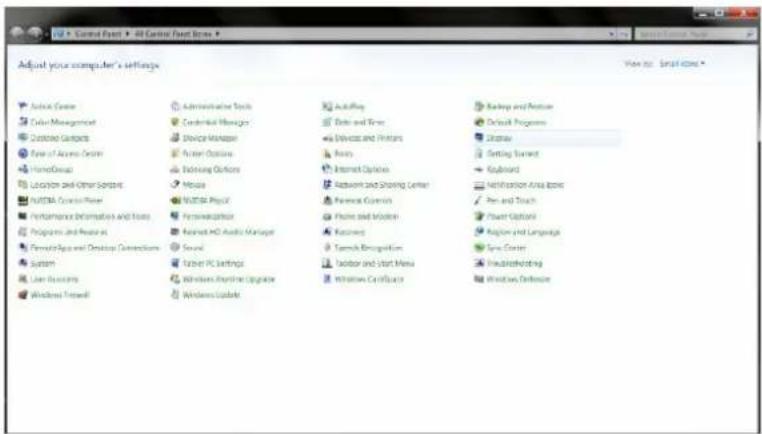

1. Click on the "Control panel" icon
2. Set the "View by" to "Large icons" or "Small icons".

Add Control Panel Item Adjust your computer's Settings Action Center Credential Manager Display Folder Options Keyboard Notification Area Style Power Options Sound Desktop Windows Firewall Administrative Tools Data and Time Tase of Access Center Fonts Language NVIDIA Control Panel Programs and Features Speech Recognition Troubleshooting Windows Update AutoPlay Default Programs Family Safety HomeGroup Location Settings Performance Information and Tools Recovery Storage Space User Accounts Bitennial Drive Encryption Device Manager File History Indexing Options Mouse Personalization Region Sync Center Windows 7 File Recovery Color Management Devices and Printers Patch Player (32 Grid) Internet Options Network and Sharing Center Phone Unit Medium RemoteApp and Desktop Connections System Windows Defender

5. Click on the "Display" icon.

Adjust your computer's settings Action Center Covid Management Desktop Segments Case of Active Center HomeGroup Location and Other Services WISDA Control Panel Performance Information and Tools Programs and Features Electronic App and Desktop Connections System User Accounts Windows Interface Administrative Tools Credential Manager Device Manager Yellow Options Editing Options Mouse WISDA PopX Personalization Orange HD Audio Manager Sound Elast PC Settings Windows Anypter Upgrade Workset Update AutoPlay Data and Time Device and Process Fonts Internet Options Networks and Starting Center Parental Controls Primo and Modem Severely Speech Recognition Textile and Start Menu Windows CardSpace Business and Service Database Programs Display Getting Started Knotaried Notification New Boxes Press and Touch Power Options English and Language Eye Center Troubleshooting Windows Defender

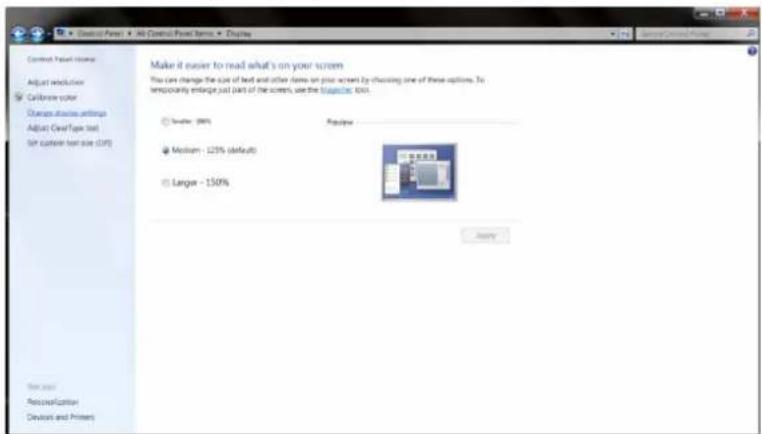

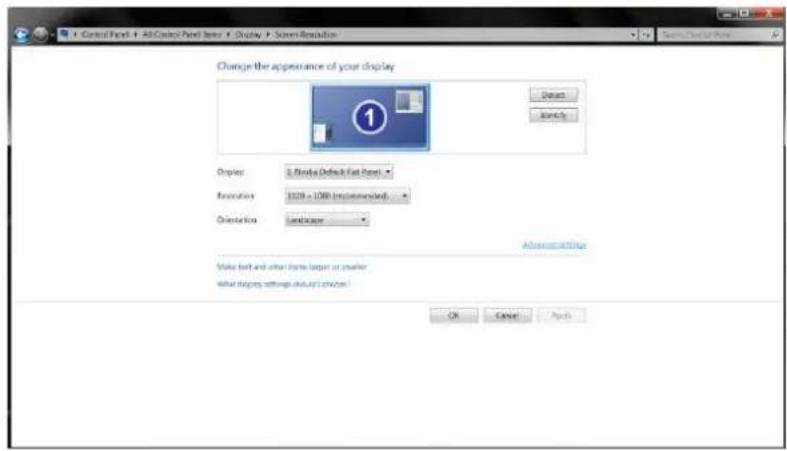

6. Click on the "Change display settings" button.

Control Panel Interface Adjust resolution Calculate color Change settings: settings Adjust Clear Type test SIF custom test size (SIF) Make it easier to read what's on your screen You can change the size of text and other items on plot screen by choosing one of these options. To temporarily enlarge just part of the screen, use the 'lographic' tool. Number: 100% Medium: 125% (default) Large: 150% Assay Set out Process/Option Devices and Printers

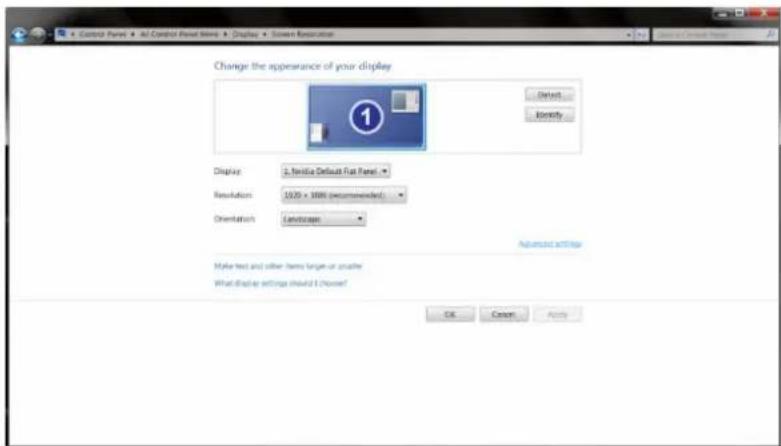

7. Click the "Advanced Settings" button.

Change the appearance of your display Display: 2. No extra Default Flat Panel Resolution: 1000 x 1000 (recommended) Orientation: Landscape Advanced settings Make text and other items larger or smaller What display settings should I Power? OK Cancel Apply

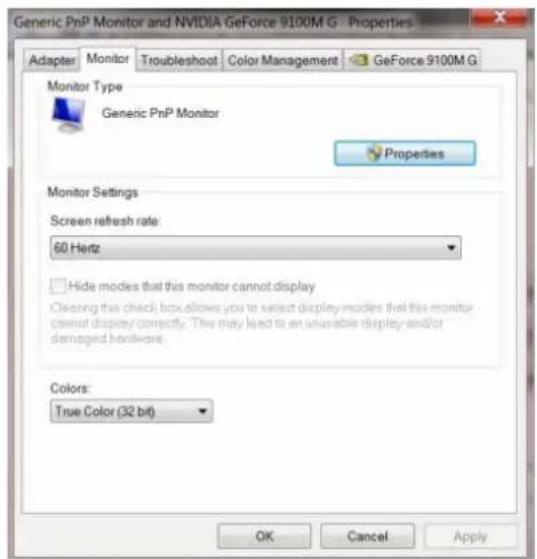

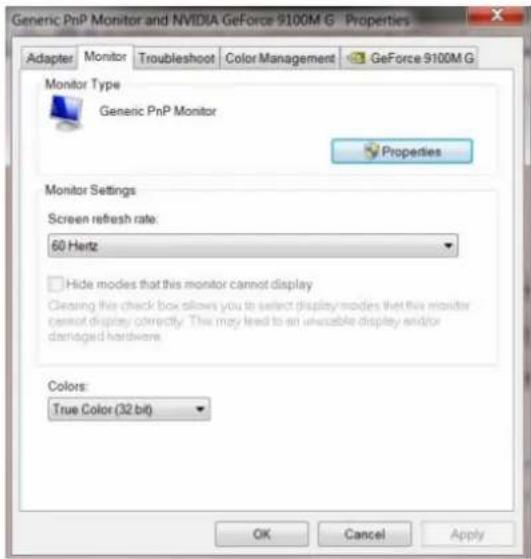

8. Click the "Monitor" tab and then click the "Properties" button.

Generic PnP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PnP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Cleaning this checkbox allows you to select display modes that this monitor cannot display correctly. This may lead to an irreversible display and/or damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

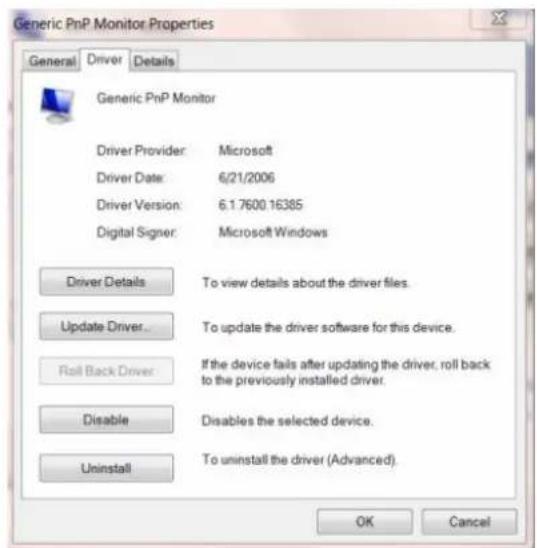

1. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced) OK Cancel

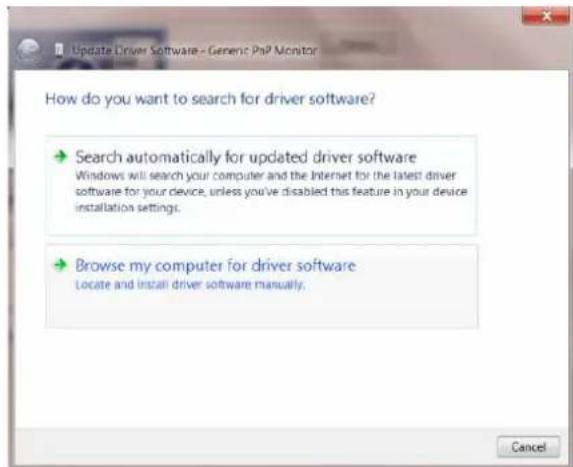

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver..." and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic PoP Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

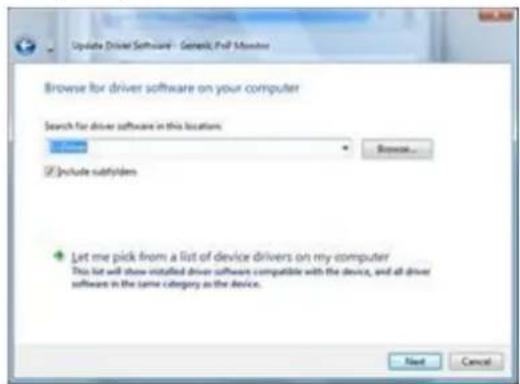

1. Select "Let me pick from a list of device drivers on my computer".

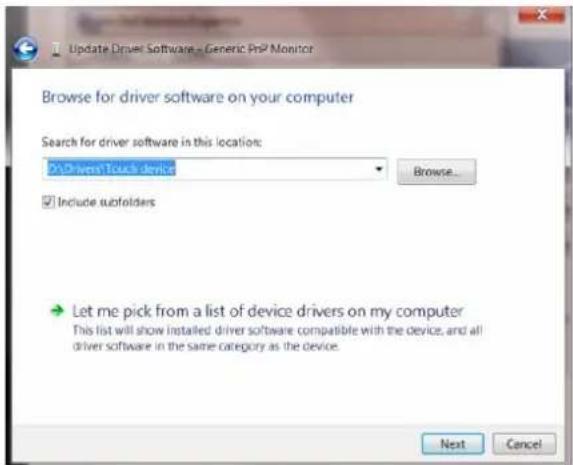

Update Driver Software - Generic Proc Monitor Browse for driver software on your computer Search for driver software in this location: D:\Drivers\Touch device Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

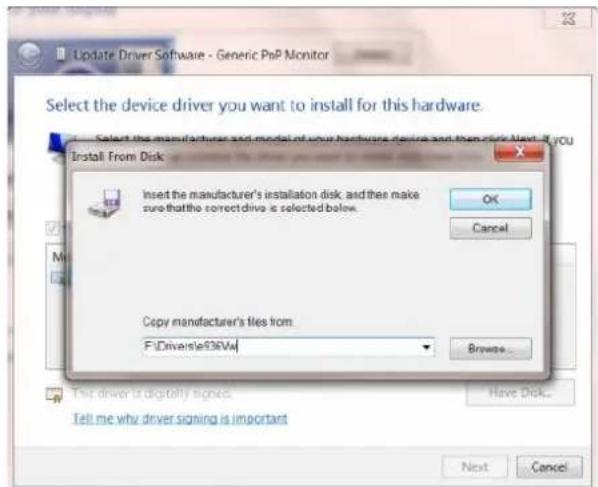

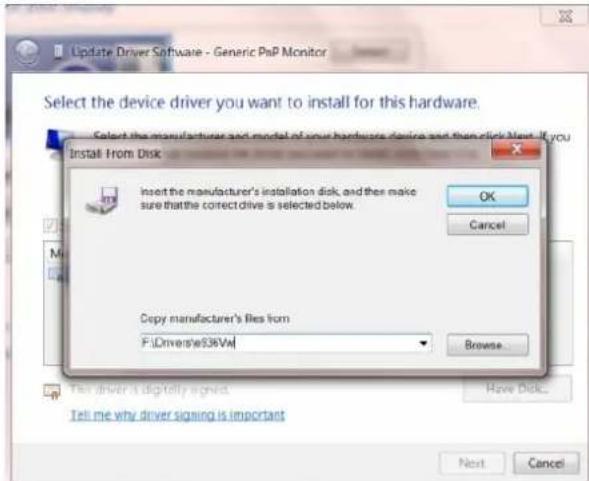

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PsP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next if you Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from F:\Drivers\e336Va\ Browse... This driver is digitally signed. Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows 2000

1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'
6. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
7. If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.
8. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
9. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
10. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
11. Click on the 'Open' button, then click on the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
13. Click on the 'Finish' button then the 'Close' button.
    If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

Windows XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes help and Support Search Run... Log Off Turn Off Computer start

1. Select and click on the category 'Appearance and Themes'

Control Panel File Edit View Favorites Tools Help Control Panel Check-Off Panel Select to Check Web Save Asse Settings Update Log and Support Pick a category Remove your and Morecam Remove and Other Hardware Change the appearance of desktop fans, again a Time or user cover for your computer, or common the track driving and morecam Network Add or Remove Programs Sales, Sales, Language, and Programming Options Smooth, Specific, and Audio Services Accessibility Options Performance and Maintenance

1. Click on the 'Display' Item.

Approve and Perform Take All Tools Show Preferences Help Settings Save As/Download Format Show In-Description Display Show Approve and Perform Pick a task... Change the computer's Monitor Change the Desktop Background Change a screen space Change the screen resolution or pick a Control Panel icon Show Make options Change the appearance of your desktop, such as the background, screen server, icons, hot icons, and screen resolutions.

1. Select the 'Settings' tab then click on the 'Advanced' button.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 768 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

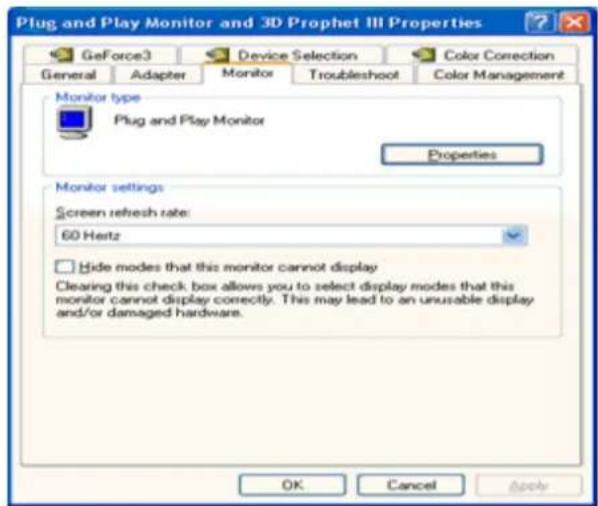

6. Select 'Monitor' tab

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

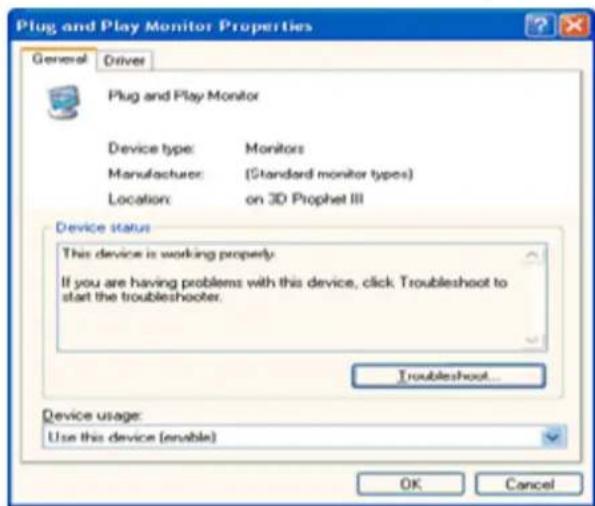

- If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

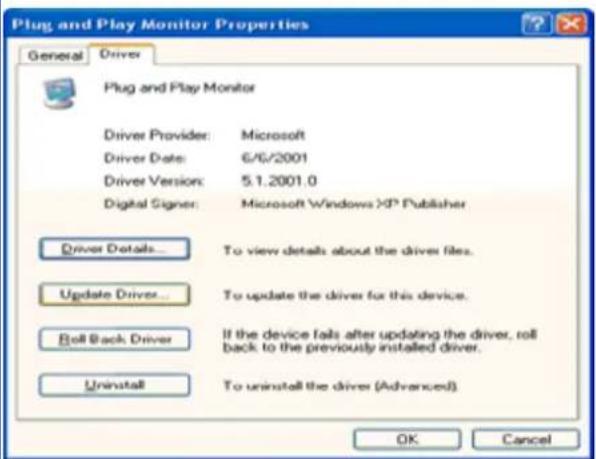

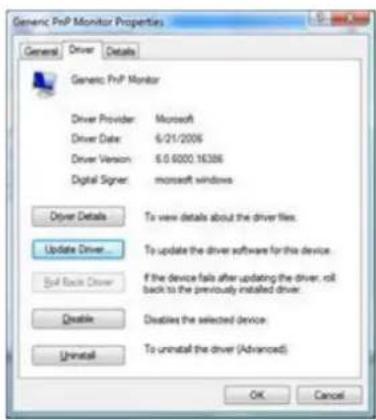

1. Click on the 'Driver' tab and then click on 'Update Driver...' button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signer: Microsoft Windows XP Publisher Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced) OK Cancel

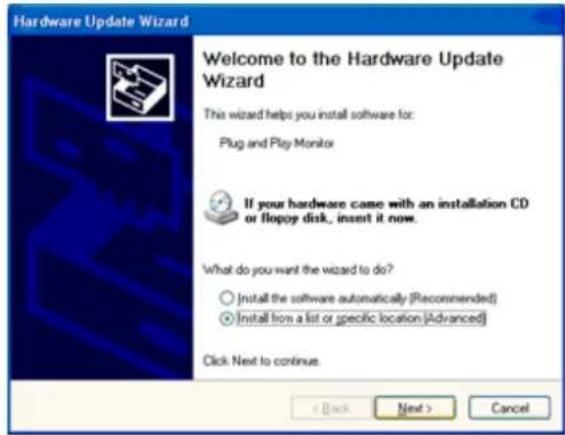

1. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

1. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

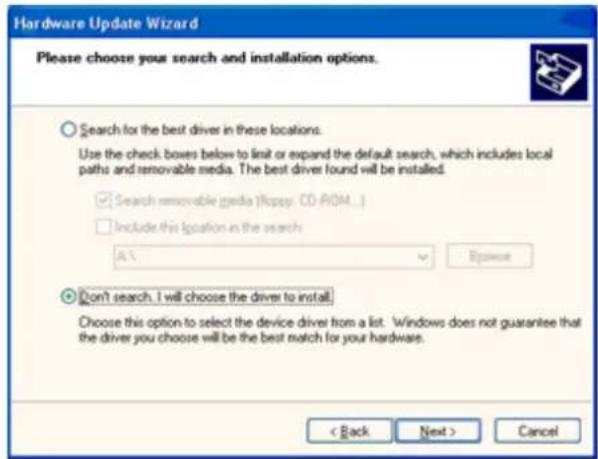

Hardware Update Wizard Please choose your search and installation options. Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. ✓ Search removable media (Kopy, CD-ROM...) Include this location in the search A:\ Browse Don't search. I will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

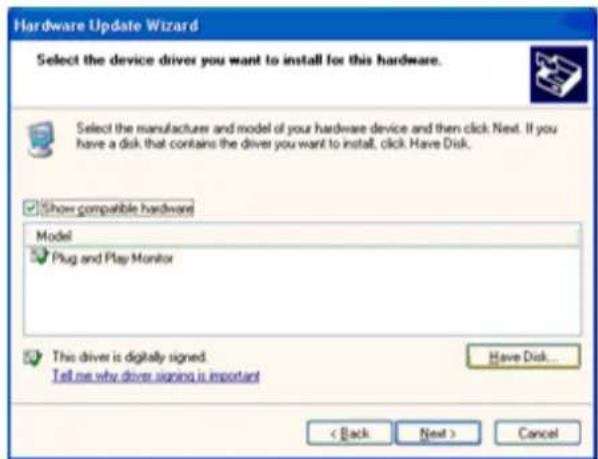

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

Hardware Update Wizard Select the device drivers you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me why driver signing is important Have Disk... < Back Next > Cancel

1. Click on the 'Open' button, then click the 'OK' button.
2. Select your monitor model and click on the 'Next' button.
3. If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.
4. Click on the 'Finish' button then the 'Close' button.
5. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows Vista

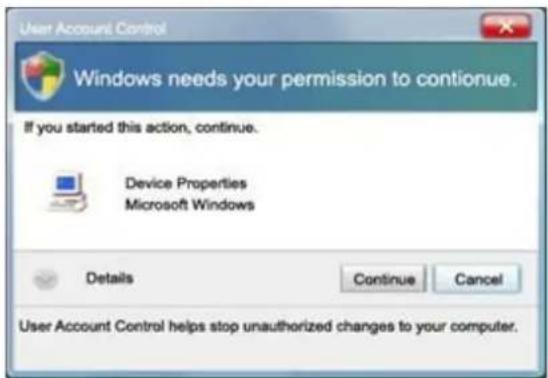

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

Internet E-mail Windows Media Welcome Centre Windows Media Player Windows Photo Security Windows Live Monitoring Download Windows Infacing Space Windows Explorer Adobe Photoshop CS2 NameOn Command Prompt All Programs Home Search Content Documents Packages Music Games Search About Memory Computer Networks Comment To Control Panel Default Programs Help and Support

Control Panel Options Class: Film Systems and Maintenance Set desktop with Windows Back up your workspeople Security Check for updates Check this computer's security dash Allow a copyright through Windows Buses! Network and Internet View network links and links Set up freshing Hardware and Sound Play Linux to other media automatically Remove Programs Download programs Change features programs User Accounts Add to new user accounts Appearance and Personalization Change the appointment of banking Apps, apply a license or service tool to your services, or satisfaction the best apps and tools. Clock, Language, and Region Change blockchain or other textual methods Change Android language Ease of Access Get Wireless support settings Options - read rights Additional Options

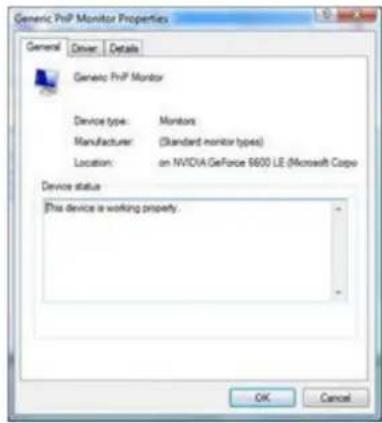

1. Click "Personalization" and then "Display Settings".

Control Panel 6 Apparices and Personalization Design/Power Usage System architecture Security Advanced architecture Access to Web Programs Data Management Apparices and Personalization User Geography Analysis Data Science Application System Clear View Microsoft Tools Windows Server and Control File Edit or Insert Window Automatically Recommendation Change (using background) - Autozone sites - Adjust areas: settings Change / Change (without setting for the) Community applications Feature/Start Items Customize the Start items - Software sites on the features Change the functions on the Start items Case of Access Center Recommended the user - Change database Database-based structure and service tools - Top Right Connection of growth Problem Options Spreads single, in local, static, and open - New Course: wireless network Show better than and better Fords Build or install your role Wireless Database Properties Add further to a website - Windows addition to new software on log & other functions

Personal appearance and sounds Questions: I can't be answered. Find how the color and style of your objects. Display Background Choose from available backgrounds or other use of your new pattern to create the sound. Power Book Change your sound use in object when it displays. In current use is a particle or assumption that draws your sound and appuy, where your computer will be able to add a part of time. Actions Change which sounds are found when you are anything from getting a wind to implying your visual fit. Visual History Make a different sound pattern. You can also change the sound pattern body during built and write as clicking and clicking. Tanger Change the colors. Think user change a color range of visual and audio elements at any time, including the appearance of noise, noise, background noise, noise level, some compatible sounds, and mixed sounds. Quality Window Adjust your music features, which change the size as time as front menu is on the people. You can also construct sound file (software.txt).

1. Click "Advanced Settings...".

Display Settings Monitor Drag the icons to match your monitors. Identity Monitors 1 (Multiple Monitors) on NVIDIA GeForce 8600 LE (Microsoft Corporation - This is my main monitor Stand the desktop units this monitor Resolution Low High 1280 by 1024 pixels Colors Highest (32 bit) How did I get the best display? Advanced Settings... OK Cancel Apply

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

Generic PrIP Monitor and NVIDIA GeForce 6600 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrIP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

User Account Control Windows needs your permission to continue. If you started this action, continue. Device Properties Microsoft Windows Details Continue Cancel User Account Control helps stop unauthorized changes to your computer.

1. Click "Update Driver..." in the "Driver" tab.

Generic PhIP Monitor Properties General Driver Details Generic PhIP Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:,on NVIDIA GeForce 6600 LE (Microsoft Corp) Device status This device is working property. OK Cancel

Generic PhIP Monitor Properties General Driver Details Generic PhIP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.0 6000 16386 Digital Signer: microsoft windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Build Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

Update Driver Software - Samski, Full Monitor Browse for driver software on your computer Search for driver software in this location Browse... ✓ Include subthyden Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device. Next Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).
2. Select your monitor model and click on the 'Next' button.
3. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Windows 7

1.Start Windows® 7

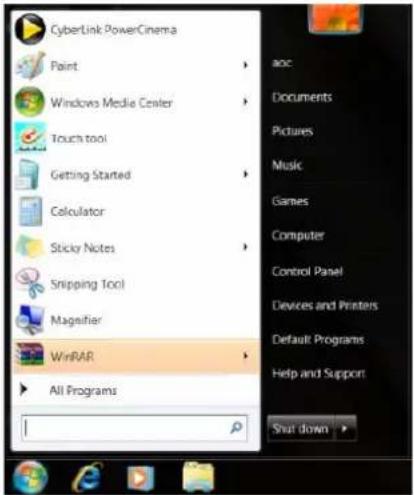

1. Click on the 'Start' button and then click on 'Control Panel'.

CyberLink PowerCinema Point Windows Media Center Touch tool Getting Started Calculator Sticky Notes Snipping Tool Magnifier WinRAR All Programs aoc Documents Pictures Music Games Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

1. Click on the 'Display' icon.

Control Panel - All Computer Panel Series Adjust your computer's settings Action Course Color Management Customs Groups Face of Audio Control HomeGroup Location and Other Settings NUTRAL Control Power Performance Information and Issues Programs and Features Personalize and Desktop Connections System Line Resources Windows Forward Administrative Tools Centennial Manager Device Manager User Options Existing Options Mouse NUTRAL Plugin Performance Automotive MD Audio Manager Serial Fisher PC Settings Windows Active Upgrade Windows Update Accessibility Data and Tree Services and Hours Hours Internet Options Services and Sharing Center Performance Currency File and Window Access T Object Recognition Vendor and Start Menu Windows Certificate Settings and Protection Default Programs Chrome Setting System Keyboard Authentication Area Iconic Pen and Touch Power Gridlock Application Language Sync Center Emulsifying Windows Connection

1. Ckick on the "Change display settings" button.

Create Panel Name Actual resolution Col tracks line Change display settings Adjust Clear format text Set custom text pair (CPS) Make it easier to read what's on your screen You can change the line of text and other items on your screen by choosing one of these options. To temporarily enable just part of the screen, use the installed text. Lower: 100% Preview Medium: 15% default Larger: 150% None Use print Personalization Delete and Printers

1. Click the "Advanced Settings" button.

Control Panel + All Control Panel Series X Display X Screen Remation Change the appearance of your display Display: 2. Bottle Default Fast Panel Resolution: 1000 x 1000 (Incremental) Orientation: Landscape Active settings Value test and other items later at shorter What displays are all displayed! OK Cancel Apply

1. Click the "Monitor" tab and then click the "Properties" button.

Generic PnP Monitor and NVIDIA GeForce 9100M G Properties Adapter Monitor Troubleshoot Color Management GeForce 9100M G Monitor Type Generic PnP Monitor Properties Monitor Settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an infinite display and/or damaged hardware. Colors: True Color (32 bit) OK Cancel Apply

7. Click the "Driver" tab.

Generic PnP Monitor Properties General Driver Details Generic PnP Monitor Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.1.7600.16385 Digital Signer: Microsoft Windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device. Uninstall To uninstall the driver (Advanced). OK Cancel

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... "and then click the "Browse my computer for driver software" button.

Update Driver Software - Generic Php Monitor How do you want to search for driver software? → Search automatically for updated driver software Windows will search your computer and the Internet for the latest driver software for your device, unless you've disabled this feature in your device installation settings. → Browse my computer for driver software Locate and install driver software manually. Cancel

1. Select "Let me pick from a list of device drivers on my computer".

Update Driver Software = Generic Ph2 Monitor Browse for driver software on your computer Search for driver software in this location: D:\Driver\Touch device Include subfolders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category as the device Next Cancel

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

Update Driver Software - Generic PnP Monitor Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next if you Install From Disk Insert the manufacturer's installation disk and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from: Fi(Driversie836V) Browse... This driver is digitally signed. Have Disk... Tell me why driver signing is important Next Cancel

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

i-Menu

Welcome to "i-Menu" software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

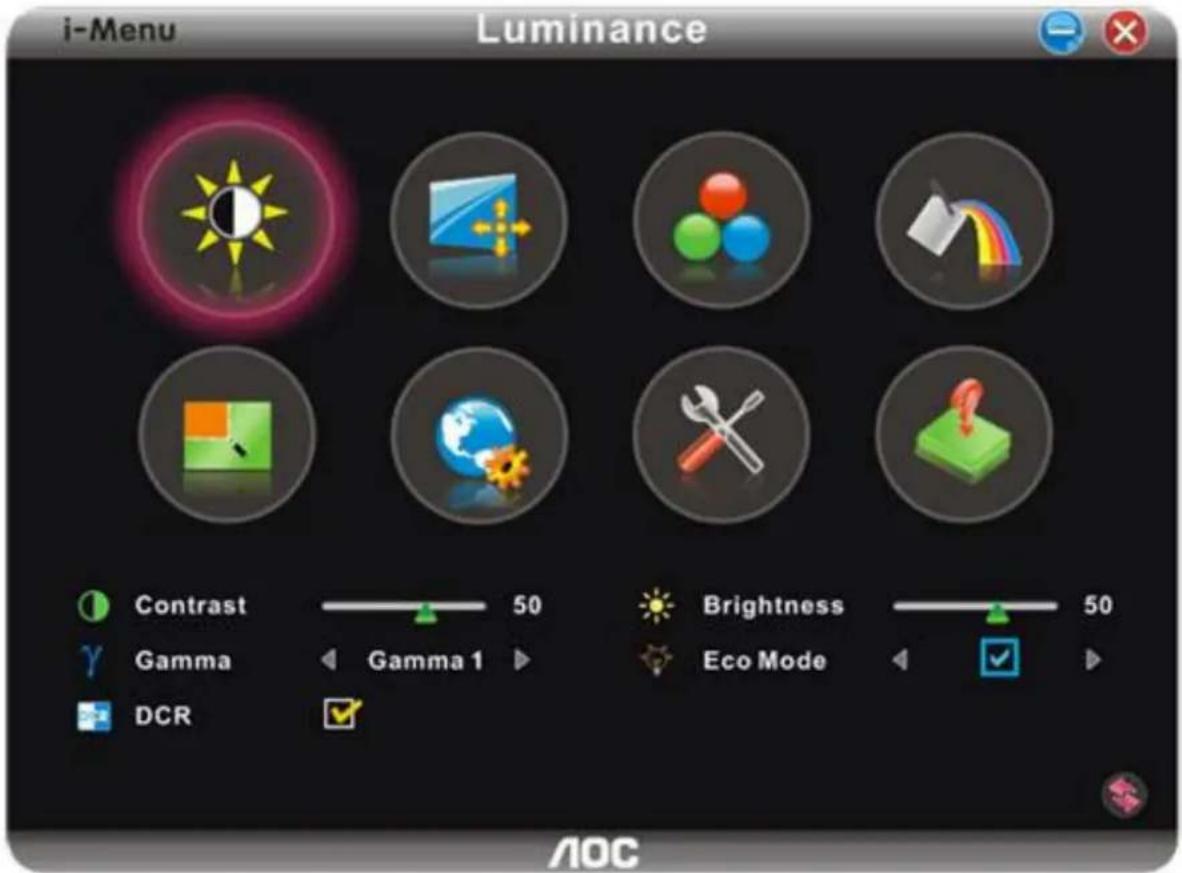

i-Menu Luminance Contrast 50 Brightness 50 Gamma Gamma 1 Eco Mode DCR

e-Saver

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your monitor to automatically shutdown. The example above illustrated:

1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.

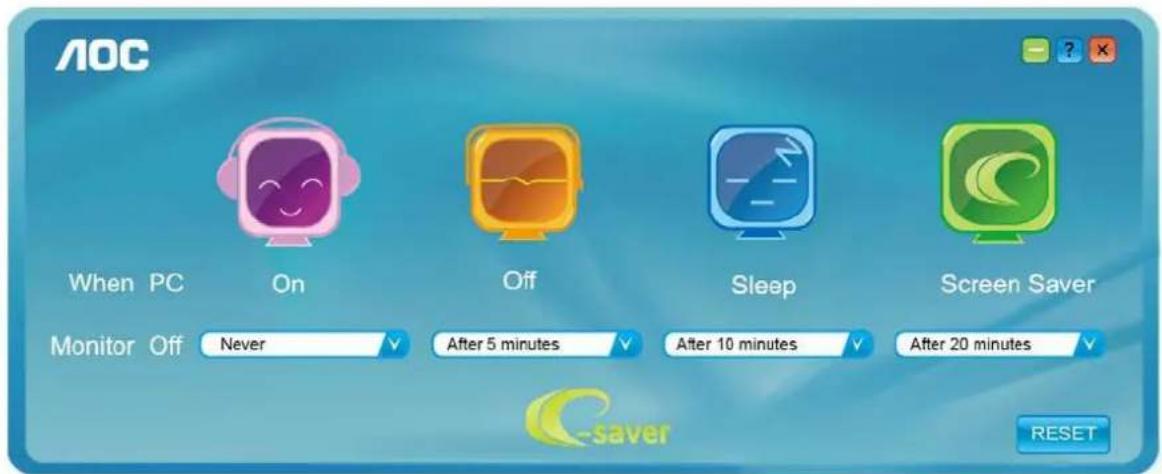

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-saver RESET

You can click "RESET" to set the e-Saver to its default settings like below.

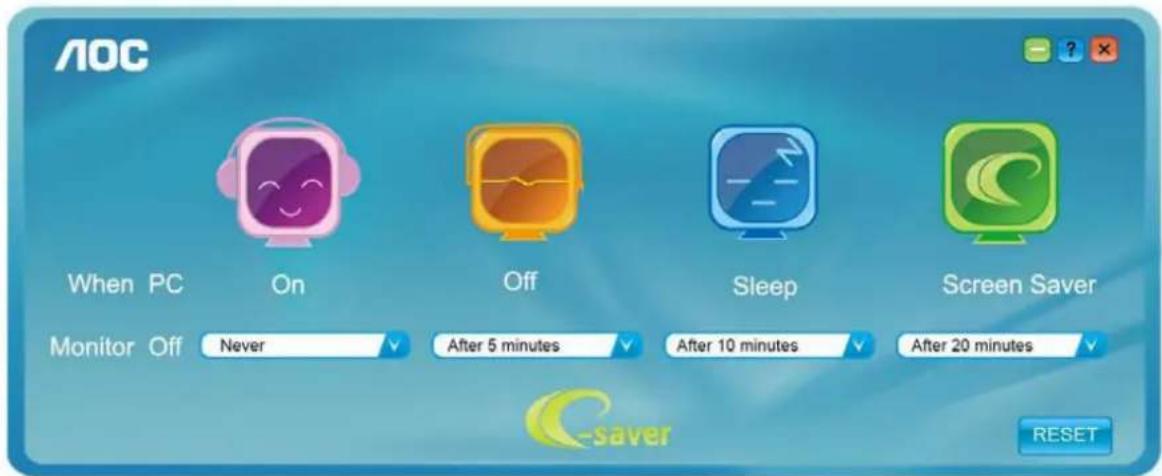

AOC When PC On Off Sleep Screen Saver Monitor Off Never After 5 minutes After 10 minutes After 20 minutes C-Saver RESET

Screen+

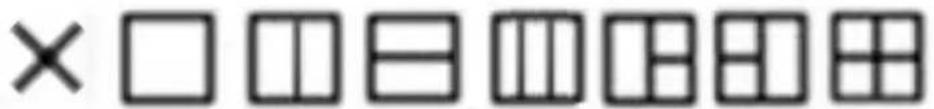

Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

×□□日□□□□

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	•Is the power cord connected properly?Check the power cord connection and power supply.•Is the cable connected correctly?(Connected using the D-sub cable)Check the DB-15 cable connection.•If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.•Can you see "Input Not Supported" on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.•Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & HasGhosting Shadowing Problem	Adjust the Contrast and Brightness Controls.Press to auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution your are using.
Monitor Is Stuck In Active Off-Mode"	The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor's video cable is properly connected to the computer.Inspect the monitor's video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged.Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (Power/AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS.Press to auto-adjust.

Specification

General Specification

Panel	Model name	I2470Swd/I2470Swq/I2470Pwqu
	Driving system TFT Color LCD
	Viewable Image Size	604.7mm Diagonal
	Pixel pitch 0.2745 mm x 0.2745 mm
	Video	I2470Swd:R, G, B Analog Interface ,DVI
		I2470Swq/I2470Pwqu: R, G, B Analog Interface ,DVI,HDMI,DP
	Separate Sync. H/V TTL
	Display Color 16.7M Colors
	Dot Clock 170MHz
Resolution	Horizontal scan range 30kHz to 83kHz
	Horizontal scan Size(Maximum)	527.04mm
	Vertical scan range 50Hz to 76Hz
	Vertical scan Size(Maximum) 296.46mm
	Optimal preset resolution 1920×1080@60Hz
	Plug & Play VESA DDC2B/C1
	Input Connector	I2470Swd:VGA,DVI
		I2470Swq/I2470Pwqu: VGA,DVI,HDMI,DP
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, Positive,TMDS
	Power Source 100-240V~, 50/60Hz
	Power Consumption	I2470Swd: Active<28W(Typical)
		I2470Swq/I2470Pwqu: Active<60W
		I2470Swd/I2470Swq: Standby < 0.5 W
		I2470Pwqu: Standby<1 W
	Off timer	0-24 hrs
Physical Characteristics	Connector Type	I2470Swd:VGA,DVI
		I2470Swq/I2470Pwqu: VGA,DVI,HDMI,DP
	Signal Cable Type	Detachable
	Dimensions & Weight:	I2470Swd/I2470Swq	I2470Pwqu
	Height (with base)	401.9mm	509.9mm
	Width	557.3mm	557.3mm
	Depth	221mm	244.6mm
	Weight (monitor only)	3.67kg /3.9kg	6.0kg
Environmental	Temperature:
	Operating	0°C to 40°C
	Non-Operating	-25°C to 55°C
	Humidity:
	Operating 10% to 85% (non-condensing)
	Non-Operating 5% to 93% (non-condensing)
	Altitude:
	Operating	0~5000m (0~16404 ft)
	Non-Operating 0~12192m (0~40000 ft)

Preset Display Modes

STAND	Resolution	HORIZONTAL FREQUENCY(kHz)	VERTICAL FREQUENCY(Hz)
VGA	640x480@60Hz	31.469	59.940
	640x480@72Hz	37.861	72.809
	640x480@75Hz	37.500	75.00
SVGA	800x600@56Hz	35.156	56.250
	800x600@60Hz	37.879	60.317
	800x600@72Hz	48.077	72.188
	800x600@75Hz	46.875	75.000
XGA	1024x768@60Hz	48.363	60.004
	1024x768@70Hz	56.476	70.069
	1024x768@75Hz	60.023	75.029
SXGA	1280x1024@60Hz	63.981	60.020
	1280x1024@75Hz	79.976	75.025
WXGA+	1440x900@60Hz	55.935	59.887
WSXGA	1680x1050@60Hz	65.290	59.954
HD	1920x1080@60Hz	67.500
***	1280x960@60HZ	60.000	60.000
IBM MODE DOS	720x400@70Hz	31.469	70.087
MAC MODE VGA	640x480@67Hz	35.000	66.667
MAC MODE SVGA	832x624@75Hz	49.725	74.551
MAC MODE XGA	1024x768@75Hz	60.241	74.927

60.000

HDMI Timing:

Format	Resolution	Vertical frequency
480P	640 X 480	60Hz
480P	720 X 480	60Hz
576P	720 X 576	50Hz
720P	1280 X 720	50Hz,60Hz
1080P	1920 X 1080	50Hz,60Hz

MHL Timing:

Format	Resolution	Type	Vertical frequency
480p	640 x 480	SD	60Hz
480p	720 x 480	SD	60Hz
576p	720 x 576	SD	50Hz
720p 12	80 x 720 HD 50Hz, 60Hz
1080i 19	20 x 1080 HD 50Hz, 60Hz
1080p 19	20 x 1080 HD 30Hz

Pin Assignments(VGA)

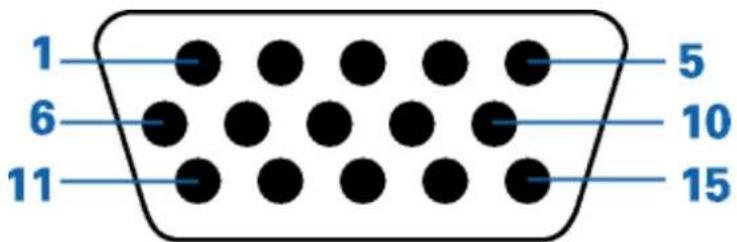

1 6 11 5 10 15

Pin Number 15-Pin Side of the Signal Cable
1	Video-Red
2	Video-Green
3	Video-Blue
s	N.C.
5	Detect Cable
6	GND-R
7	GND-G
8	GND-B
9	+5V
10	Ground
11	N.C.
12	DDC-Serial data
13	H-sync
14	V-sync
15	DDC-Serial clock

PIN 19 PIN 1 PIN 20 PIN 2

(DP)

PIN	MNEMONIC	SIGNAL
1	ML Lane 3 (n)	Lane 3 -
2	GND	Ground
3	ML Lane 3 (p)	Lane 3 +
4	ML Lane 2 (n)	Lane 2 -
5	GND	Ground
6	ML Lane 2 (p)	Lane 2 +
7	ML Lane 1 (n)	Lane 1 -
8	GND	Ground
9	ML Lane 1 (p)	Lane 1 p
10	ML Lane 0 (n)	Lane 0 -
11	GND	Ground
12	ML Lane 0 (p)	Lane 0 +
13	GND	Ground
14	GND	Ground
15	AUX CH (p)	Aux Channel +
16	GND	Ground
17	AUX CH (n)	Aux Channel -
18	HPD	Hot Plug Detect
19	Return	Return
20	DP PWR	Source Power In

19 17 1 18 2

(HDMI)

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1 TM	DS Data 2+ 9 TMDS Data 0 17				DDC/CEC Ground
2	TMDS Data 2 Shield	10	TMDS Clock +	18	+5V Power
3	TMDS Data 2	11 TM	MDS Clock Shield 19	Hot Plug Detect
4 TM	DS Data 1+ 12		TMDS Clock
5 TM	DS Data 1Shield	13 CEC
6	TMDS Data 1	14	Reserved (N.C. on device
7 TM	DS Data 0+ 15 SCL
8 TM	DS Data 0 Shield 16 SDA

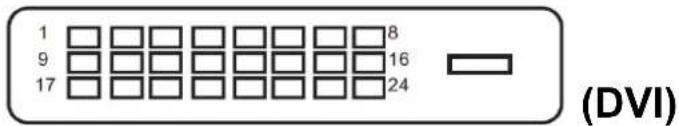

1 9 17 8 16 24 (DVI)

Pin Number	24-Pin Color Display Signal Cable	Pin Number	24-Pin Color Display Signal Cable
1	TMDS data 2—	13	TMDS data 3+
2	TMDS data 2+	14	+5V Power
3	TMDS data 2/4 Shield	15	Ground (for+5V)
4	TMDS data 4—	16	Hot Plug Detect
5	TMDS data 4+	17	TMDS data 0—
6	DDC Clock	18	TMDS data 0+
7	DDC Data	19	TMDS data 0/5 Shield
8	N.C.	20	TMDS data 5—
9	TMDS data 1—	21	TMDS data 5+
10	TMDS data 1+	22	TMDS Clock Shield
11	TMDS data 1/3 Shield	23	TMDS Clock +
12	TMDS data 3—	24	TMDS Clock —

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTICE :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WEEE Declaration for India

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling in India please visit the below web link.

www.aocindia.com/ewaste.php.

EPA Energy Star

ENERGY ENERGY STAR

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

EPEAT Declaration

repeat SILVER

EPEAT is a system to help purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to secure market recognition for efforts to reduce the environmental impact of its products.

AOC believes in protecting the environment.

With a key concern for the conservation of natural resources, as well as landfill protection, AOC announces the launch of AOC monitor's packaging recycling program. This program is designed to help you discard of your monitor carton and filler materials properly. If a local recycling center is not available, AOC will recycle the packaging material for you, including foam filler and carton. AOC Display solution will only recycle AOC monitor packaging. Please refer to the following website address:

Only for North and South American, excluding Brazil:

http://us.aoc.com/about/environmental_impact

For Germany:

http://www.aoc-europe.com/en/service/tco.php

For Brazil:

http://www.aoc.com.br/2007/php/index.php?req=pagina&pgn_id=134

Service

EU WARRANTY FOR AOC MONITORS

LIMITED THREE-YEAR WARRANTY\*

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on www.aoc-europe.com. for warranty instructions. Deliver the product freight pre-paid, along with the dated proof of purchase, to the AOC Certified or Authorized Service Center under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
• Put the RMA number on the address label
• Put the RMA number on the shipping carton

AOC International (Europe) B.V. is not responsible for any damaged during transport due to improper packing. AOC International (Europe) B.V. will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Improper installation or maintenance
• Misuse
• Neglect
• Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center
• Improper environments like humidity and dusts
  • Damaged by violence
• Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A

PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT

for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI (EPI is the abbreviation of Envision Peripherals, Inc.) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI Authorized Service Center. If you cannot deliver the product in person:

• Pack it in its original shipping container (or equivalent)
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
• Insure it (or assume the risk of loss/damage during shipment)
  • Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged.

EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statements.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number [phone]. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Shipping or improper installation or maintenance
• Misuse
• Neglect
  • Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
• Improper environment

• Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center

- Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI' LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii.

Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice.

For more details, please visit:

USA: http://us.aoc.com/support/warranty

ARGENTINA: http://ar.aoc.com/support/warranty

BOLIVIA: http://bo.aoc.com/support/warranty

CHILE: http://cl.aoc.com/support/warranty

COLOMBIA: http://co.aoc.com/warranty

COSTA RICA: http://cr.aoc.com/support/warranty

DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty

ECUADOR: http://ec.aoc.com/support/warranty

EL SALVADOR: http://sv.aoc.com/support/warranty

GUATEMALA: http://gt.aoc.com/support/warranty

HONDURAS: http://hn.aoc.com/support/warranty

NICARAGUA: http://ni.aoc.com/support/warranty

PANAMA: http://pa.aoc.com/support/warranty

PARAGUAY: http://py.aoc.com/support/warranty

PERU: http://pe.aoc.com/support/warranty

URUGUAY: http://pe.aoc.com/warranty

VENEZUELA: http://ve.aoc.com/support/warranty

IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty

Only for AOC branded monitors sold within the continental United States.

All AOC branded monitors are now covered by the EASE Program. If your monitor malfunctions at any time during the first three months, AOC will provide a replacement monitor within 72 hours after you are approved for our program. If your monitor qualifies for the EASE program, AOC will pay for freight both ways.

Step 1: Phone our TECH Department at 888.662.9888

Step 2: Fill out and return EASE registration forms by mail or fax.

Step 3: We will issue a Return Authorization Number upon verification into the program.

Step 4: A monitor will be advance shipped to your location.

Step 5: We will issue a UPS Call Tag to pick up the defective unit.

Step 6: Please review the following chart to see your EASE program qualifications.

WARRANTY PERIOD	COVERAGE AT NO CHARGE	CUSTOMER CHARGES
Within the first three months of purchase: Covered by EASE	- New AOC monitor- Call tag dispatched and return freight charges via UPS	- None*
Between 4 months – 1 Year - All Parts & Labor Including CRT Tube & LCD Panel		- UPS Return Freight to AOC
Between 1 Year - 3 Years: Covered by standard limited warranty	- Parts & Labor (excluding CRT Tube & LCD Panel)	- UPS Return Freight to AOC

*AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC's service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.

us.aoc.com

Congratulations! (I2470Swa/I2470Pwau)

This product is designed for both you and the planet!

Tco CERTIFIED

TCO Development works for sustainable IT - manufacture, use and recycling of IT products reflecting environmental, social and economic responsibility.

TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. TCO

Certified represents one of the toughest certifications for ICT products worldwide.

Some of the Usability features of TCO Certified Displays:

• Visual Ergonomics for image quality is tested to ensure top performance and reduce sight and strain problems. Important parameters are Resolution, Luminance, Contrast, Reflection and Colour characteristics
• Products are tested according to rigorous safety standards at impartial laboratories
• Electric and magnetic fields emissions as low as normal household background levels
• Workload ergonomics to ensure a good physical environment

Some of the Environmental features of TCO Certified Displays:

• Production facilities have an Environmental Management System (EMAS or ISO 14001)
• Low energy consumption to minimize climate impact
• Restrictions on Chlorinated and Brominated flame retardants, plasticizers, plastics and heavy metals such as cadmium, mercury and lead (RoHS compliance)
• Both product and product packaging is prepared for recycling
  • The brand owner offers take-back options

Corporate Social Responsibility

- The brand owner demonstrates the product is manufactured under working practices that promote good labour relations and working conditions.

The Criteria Document can be downloaded from our web site. The criteria included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user and environmentally friendly direction. Our ICT product labeling system began in 1992 and is now requested by users and ICT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com
