Name: P-201
Brand: AIRLIVE
Rating: 7.5 (100 reviews)

Find the device manual for free P-201 AIRLIVE in PDF.

📄 114 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Product Type	Wired Print Server (1 Parallel Port)
Brand	AirLive (OvisLink)
Model	P-201
Network Interface	10/100 Mbps Ethernet (RJ-45)
Printer Interface	1 x Parallel (IEEE 1284)
Supported Protocols	TCP/IP, IPX/SPX, NetBEUI, AppleTalk
Print Protocols	PTPP, LPR, IPP, NetWare Bindery, SMB, AppleTalk
Management	Web GUI, Telnet, Windows Utility, SNMP
Dimensions (Approx.)	180 x 120 x 30 mm (7.1 x 4.7 x 1.2 in)
Weight (Approx.)	0.3 kg (0.66 lb)
Power Supply	DC 5V, 2A (included adapter)
Power Consumption	Max 5W
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10% to 90% (non-condensing)
Certifications	FCC Part 15, CE
Package Contents	Print Server, Power Adapter, Quick Installation Guide, CD-ROM (utility & manual)
Maintenance	Keep dry and dust-free; ensure ventilation; disconnect power before cleaning
Safety	Use only supplied power adapter; do not expose to water or extreme temperatures
Spare Parts & Repairability	No user-serviceable parts; contact authorized dealer for firmware upgrades or repairs
Supported OS	Windows 95/98/Me/NT/2000/XP/2003, NetWare, Unix/Linux, Mac OS

Frequently Asked Questions - P-201 AIRLIVE

How do I set up the AirLive P-201 print server for the first time?

Connect the print server to your printer and network using the Ethernet cable and power adapter. Then install the Print Server Utilities from the CD-ROM on your Windows PC. The utility will automatically detect the print server and add network ports. Finally, use the Add Printer Wizard in Windows to select the print server port and install your printer driver.

What is the default IP address of the AirLive P-201?

The default IP address is 192.168.2.2. You can change it via the Windows configuration utility, web management, or Telnet.

How do I access the web management interface?

Open a web browser and enter the IP address of the print server (default 192.168.2.2). Log in with username admin and password airlive (default). From there you can configure TCP/IP, printing protocols, and system settings.

Can I use the print server with a Mac?

Yes. The print server supports AppleTalk and LPR printing. For Mac OS 9.x and above, go to System Preferences > Print & Fax, add a printer using LPD/LPR protocol, enter the print server's IP address, and set the queue name to lpt1.

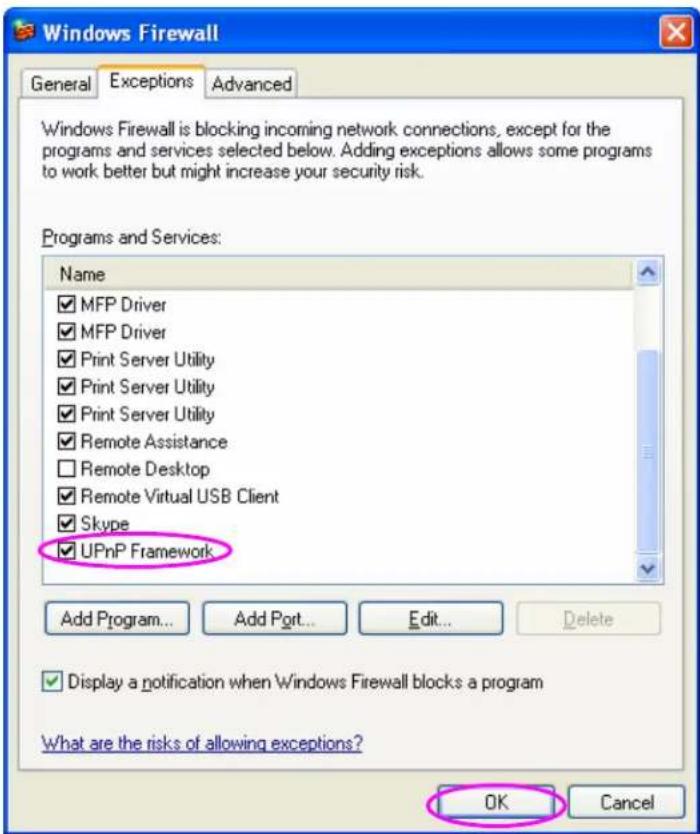

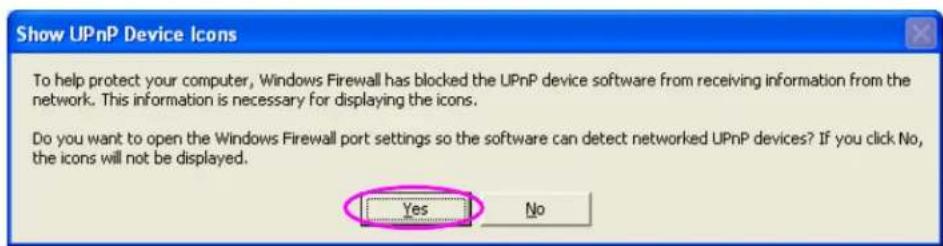

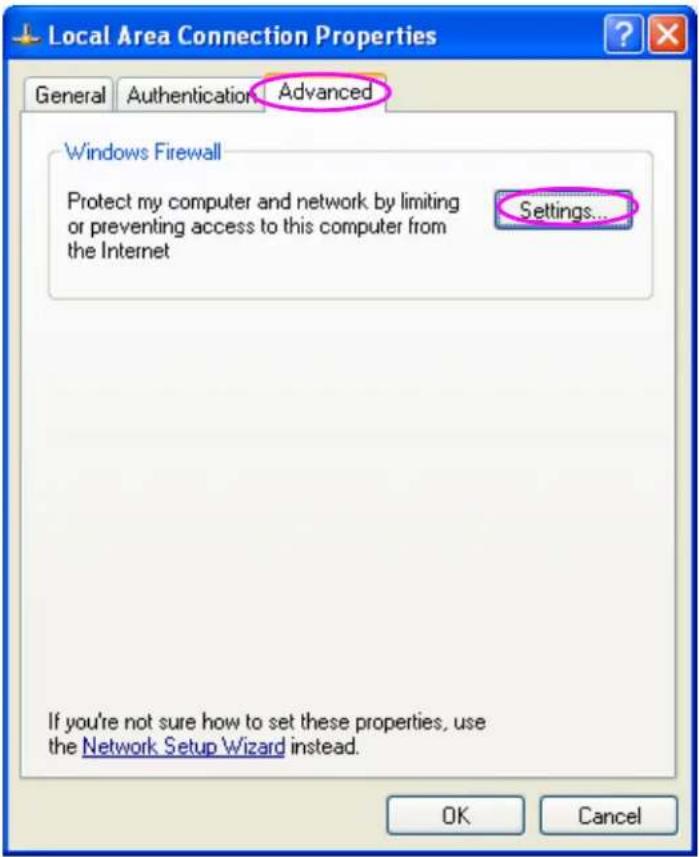

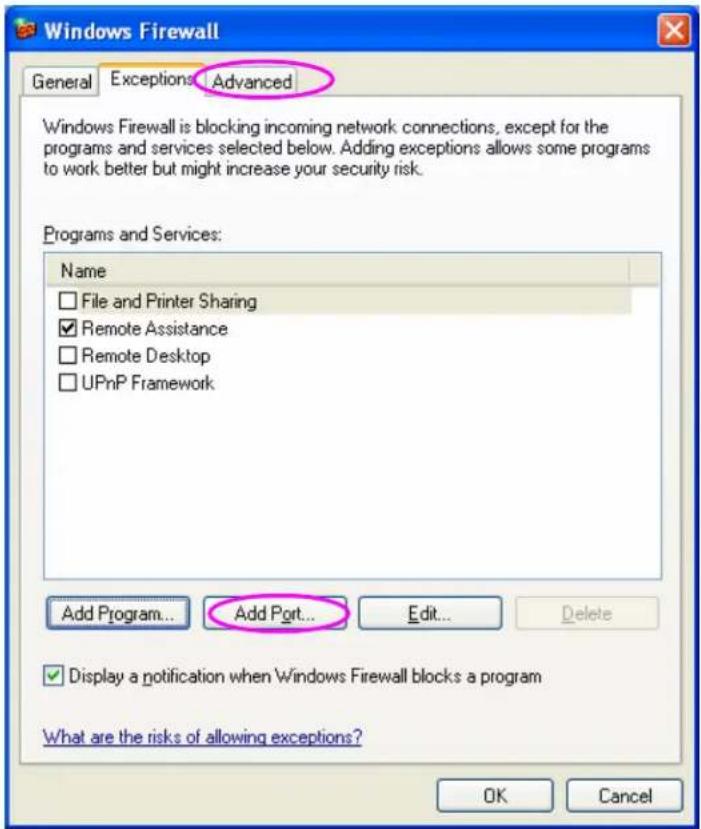

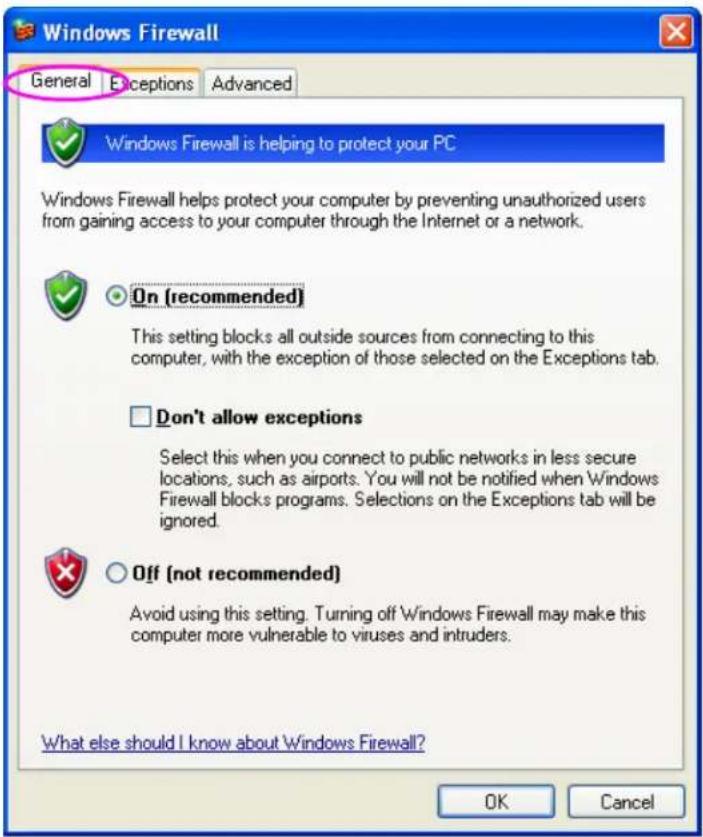

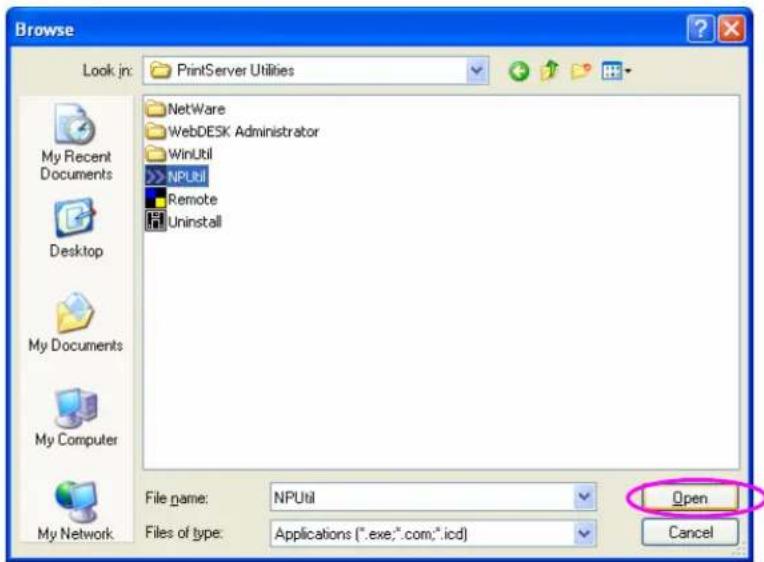

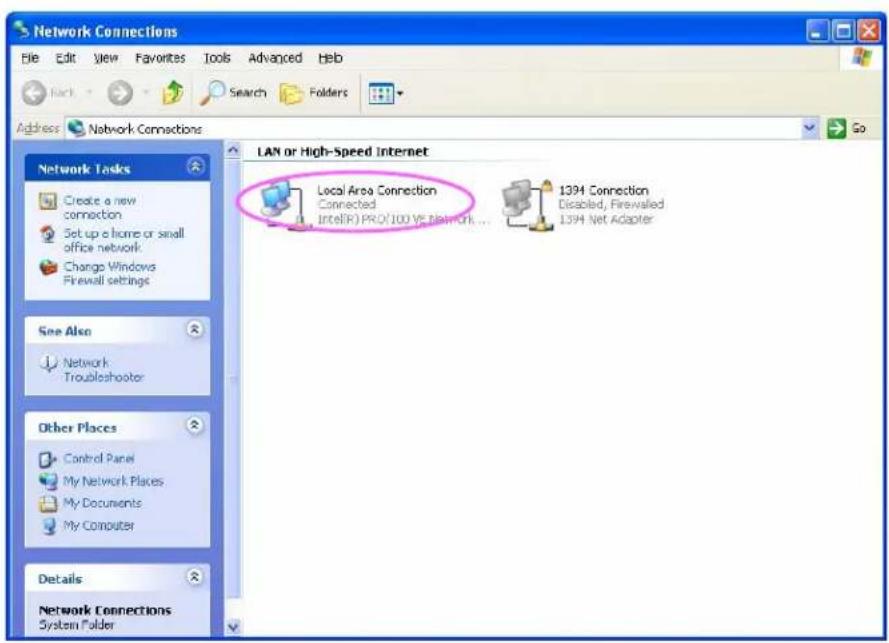

What should I do if my Windows XP SP2 computer does not detect the print server?

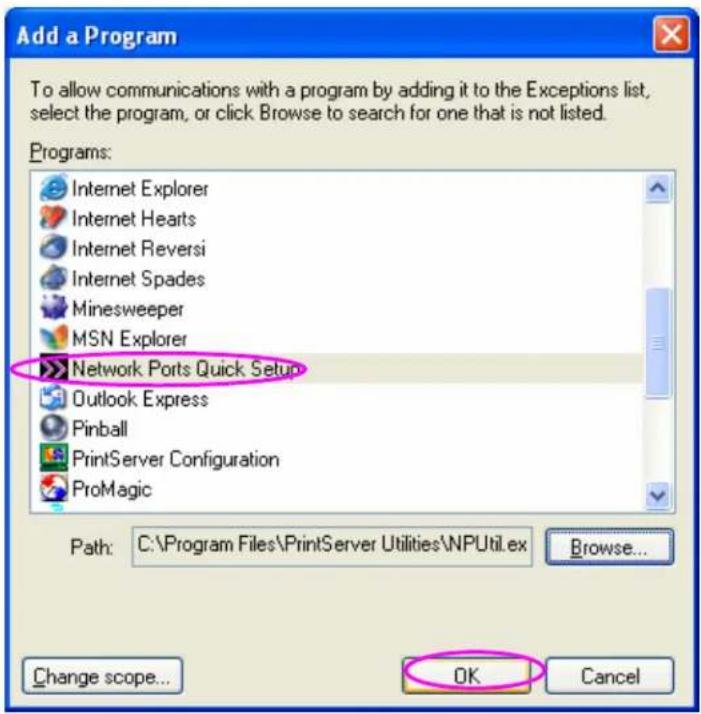

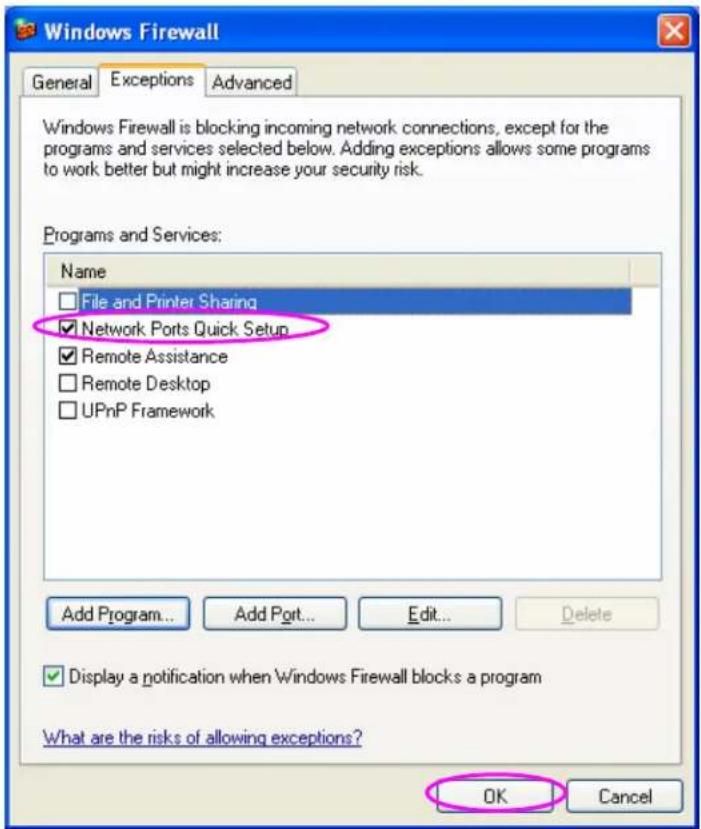

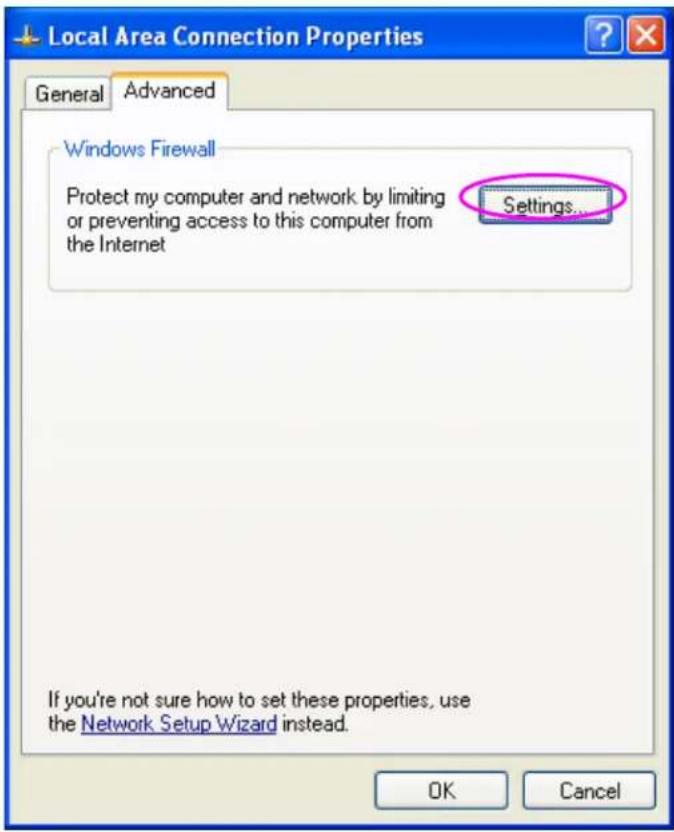

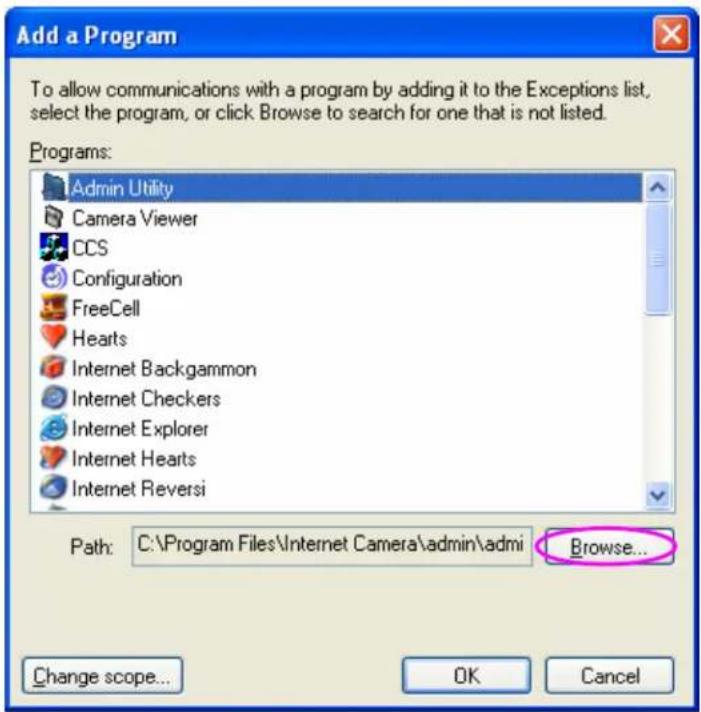

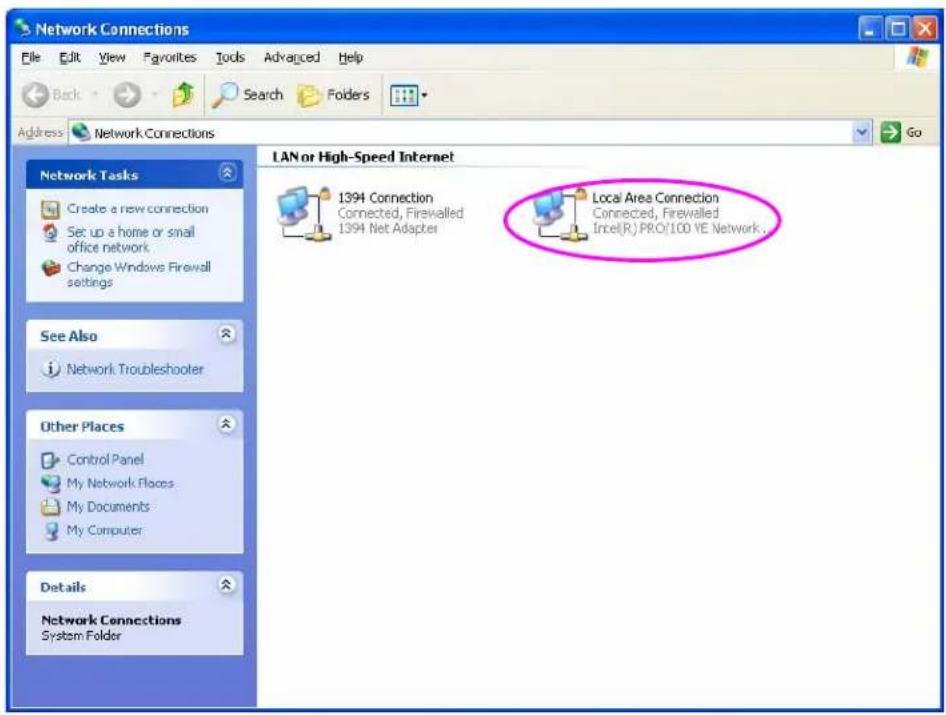

Windows Firewall may block the print server utility. Go to Control Panel > Windows Firewall > Exceptions tab, click Add Program, and browse to the NPUtil.exe file located in C:\Program Files\PrintServer Utilities. Then try running Network Ports Quick Setup again.

Can I print over the Internet using this print server?

Yes, the print server supports IPP (Internet Printing Protocol). Make sure the print server has a public IP address and that your router/firewall allows IPP traffic (port 631). On the client, add a network printer with URL: http://:631/lpt1.

How do I reset the print server to factory defaults?

You can reset via the web interface: go to System Tools > Load Default and confirm. Alternatively, use the Windows utility: select the print server, click Setup, and choose Load Default in the System tab.

What is the default username and password for the print server?

Default username is admin and default password is airlive (or 1234 in some firmware versions). You can change them under General Configuration in the utilities.

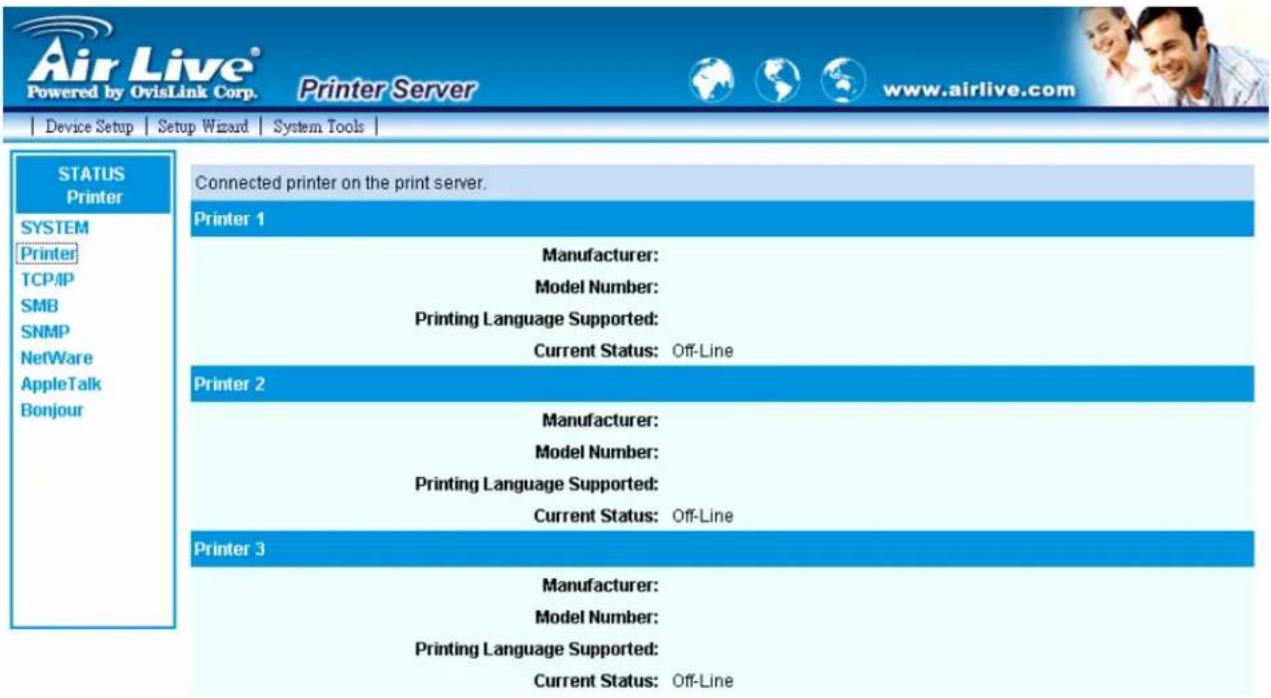

Why is my printer showing as Off-Line in the print server status?

Ensure the printer is powered on and correctly connected to the parallel port. Check that the printer is not in an error state (paper jam, out of paper). You can also reboot the print server by clicking the Reboot button in the Status tab of the Windows utility.

Can I use both USB and parallel printers with the P-201 model?

No, the P-201 model has only one parallel port. For USB printers, please refer to the P-201U model which provides a USB port instead.

User questions about P-201 AIRLIVE

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Print Server in PDF format for free! Find your manual P-201 - AIRLIVE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. P-201 by AIRLIVE.

USER MANUAL P-201 AIRLIVE

Wired Printer Server

AIRLIVE P-201 - 1

AIRLIVE P-201 - 2

COPYRIGHT

Copyright ©2006/2007 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

DISCLAIMER

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

1. INTRODUCTION 1.1 PRODUCT INTRODUCTION .... 1

1.2 Product Package 2
1.3 Network Printing Architecture.... 3

1.3.1 Print Server Network Functions 3
1.3.2 Network Printing Functions for Clients 4
1.3.3 Network Printing Functions for Network Server 6

1.4 Network Printing Environment....7

1.5 Contents of the User's Manual....9
1.6 Firmware & Printing Function.... 11

2. HARDWARE INSTALLATION....12

3. WINDOWS PEER-TO-PEER NETWORK

3.1 SYSTEM ARCHITECTURE....13

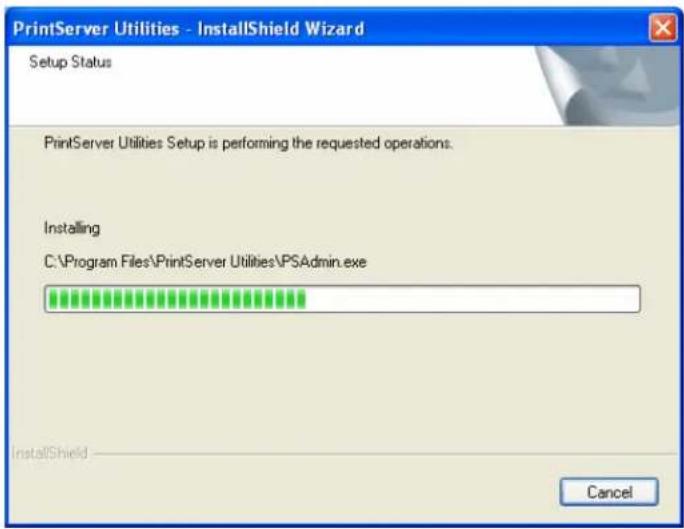

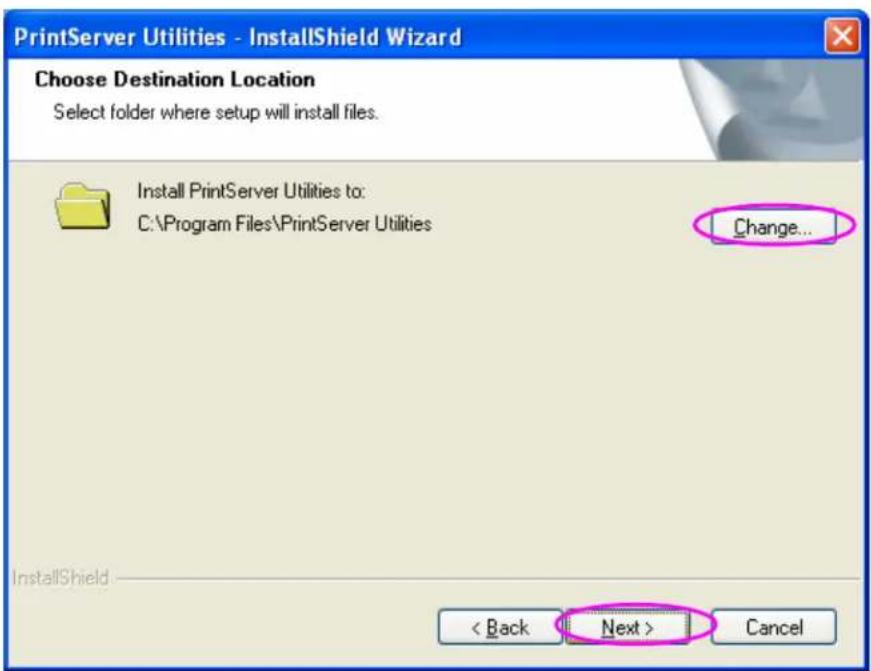

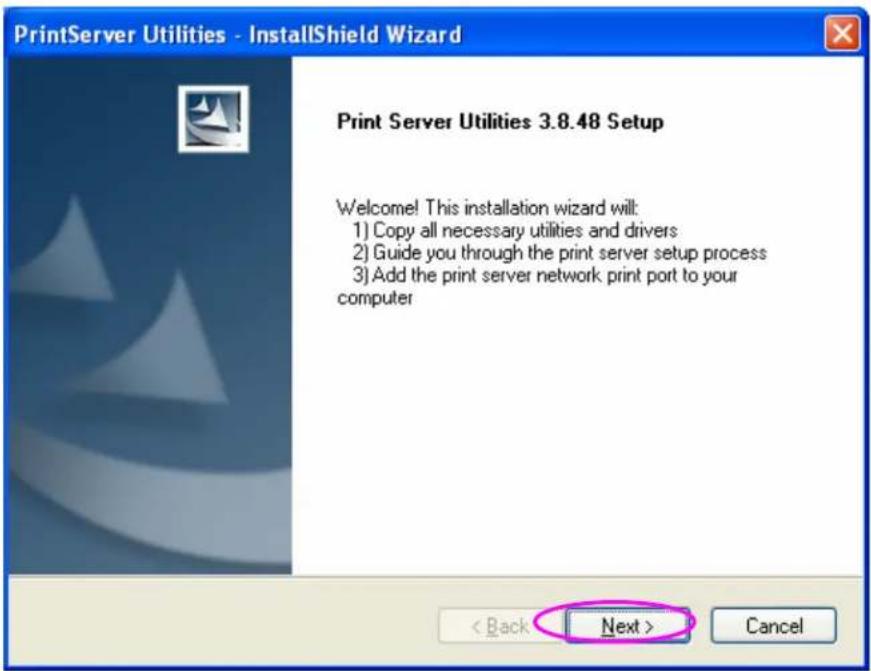

3.2 Install Print Server driver and utility.... 14

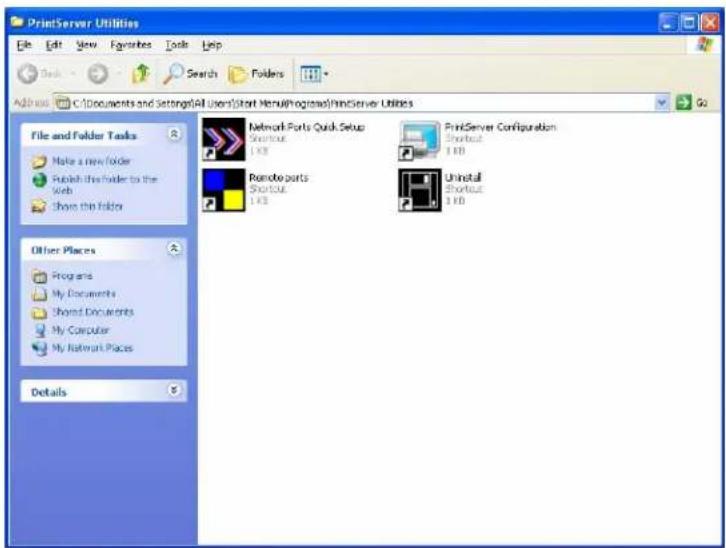

3.3 Print Server Utilities....18

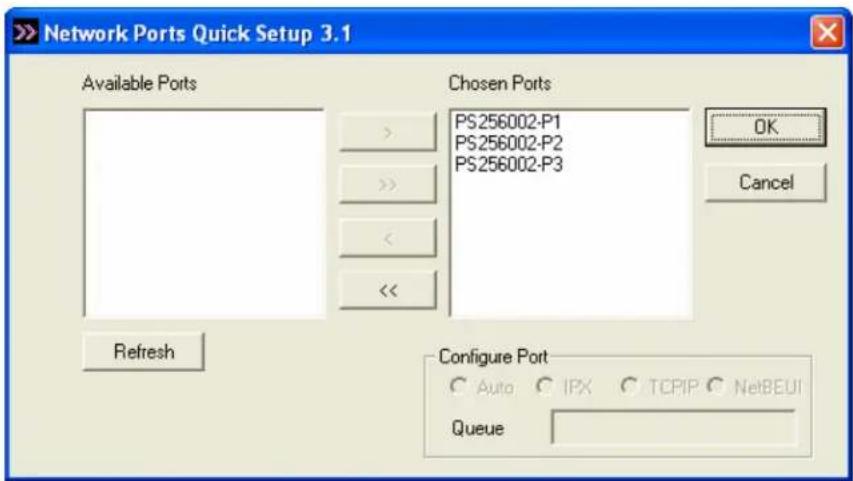

3.3.1 Network Ports Quick Setup.... 19

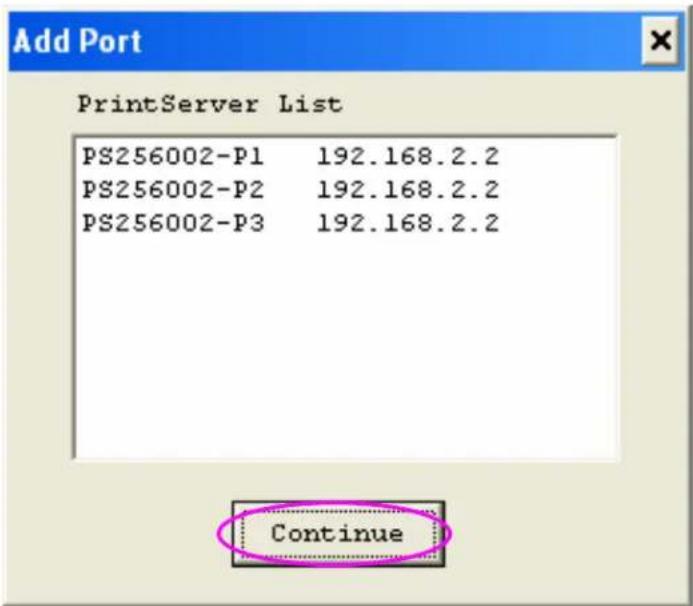

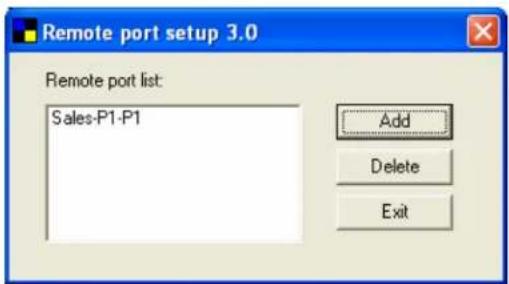

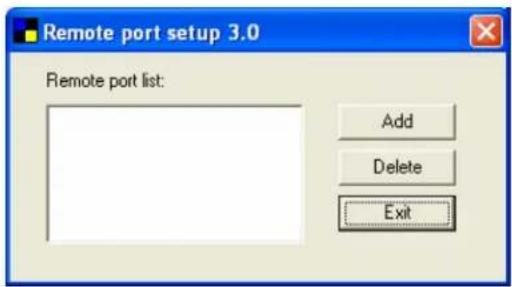

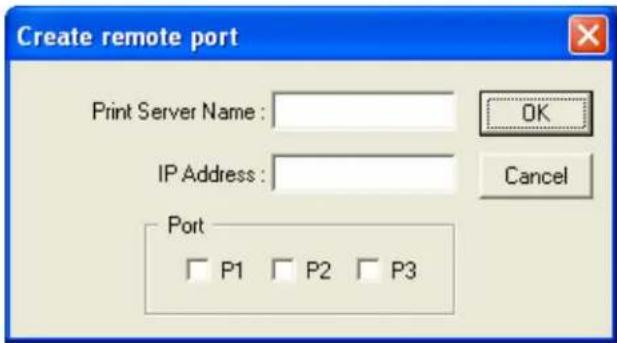

3.3.2 Remote Ports (Utility) 20

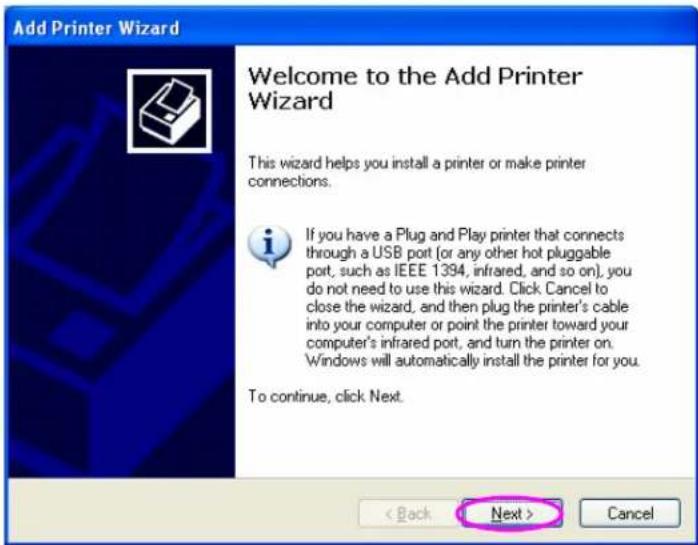

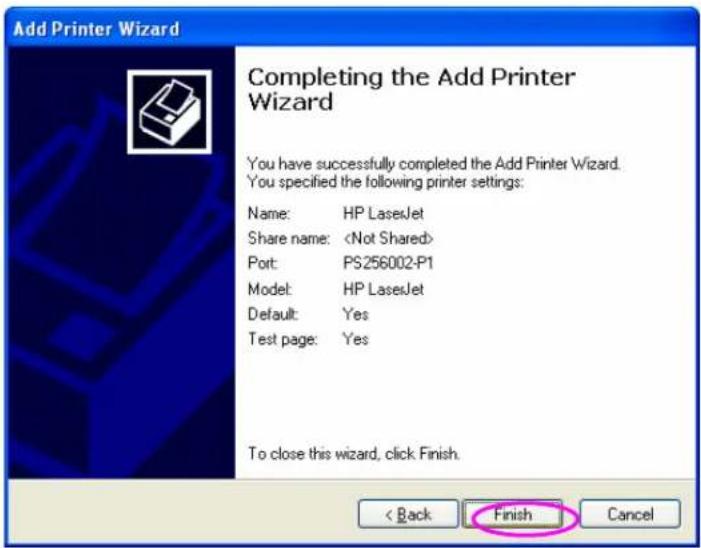

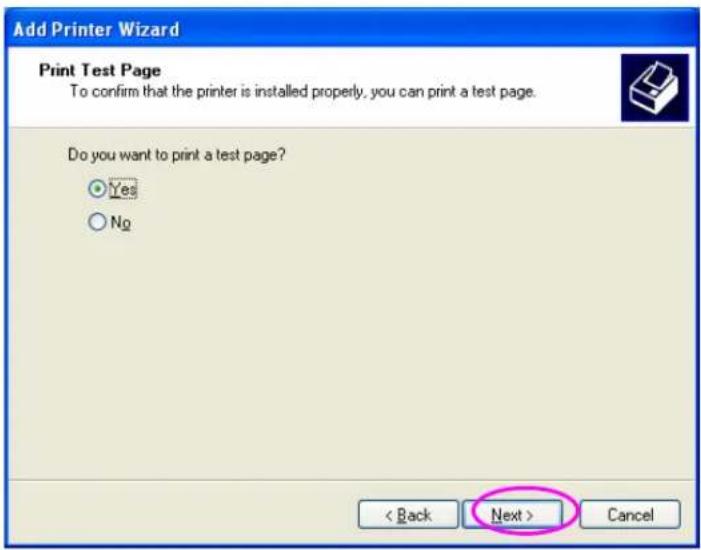

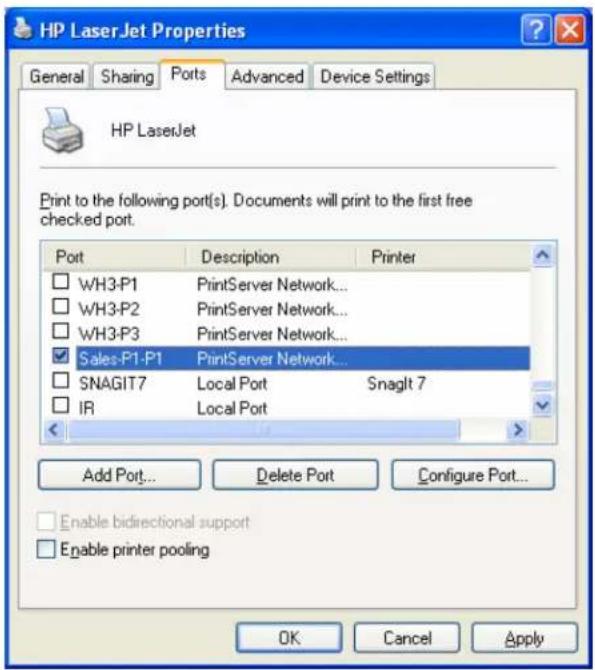

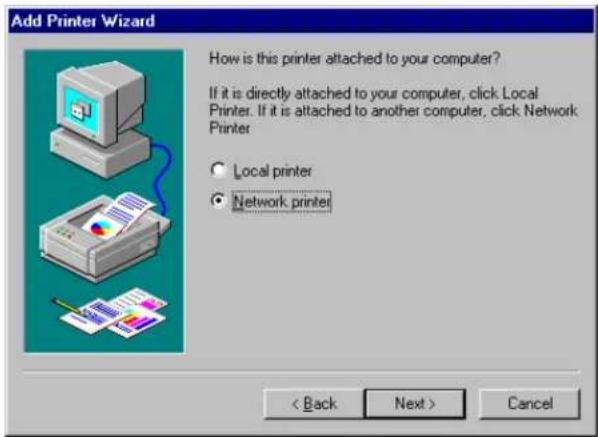

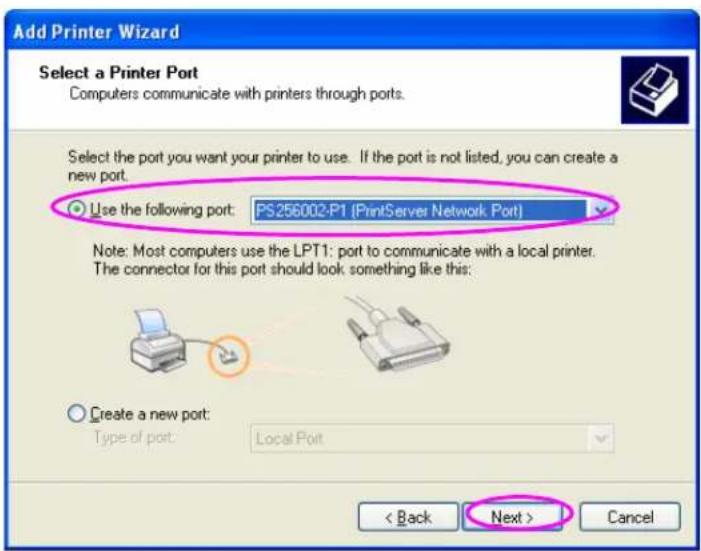

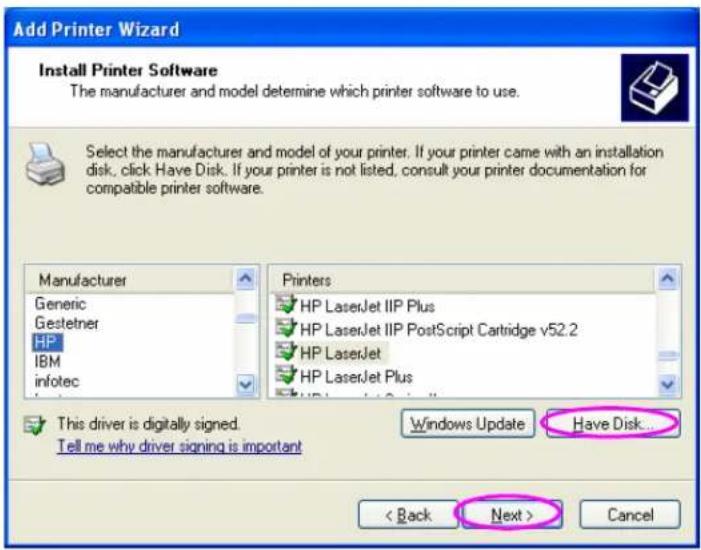

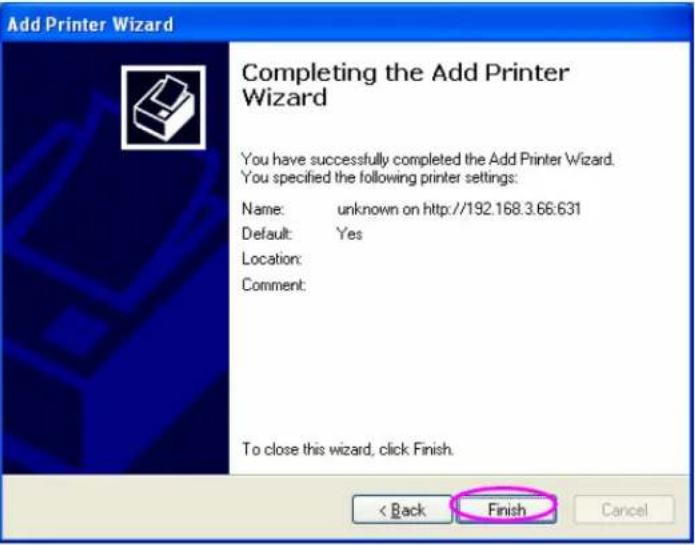

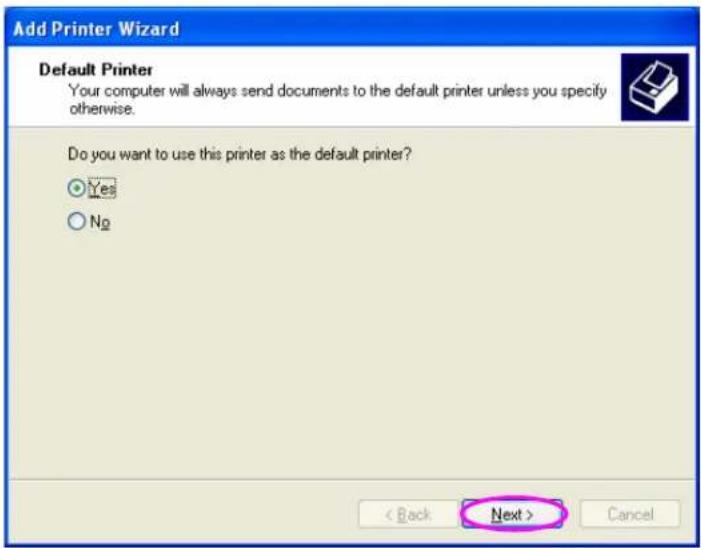

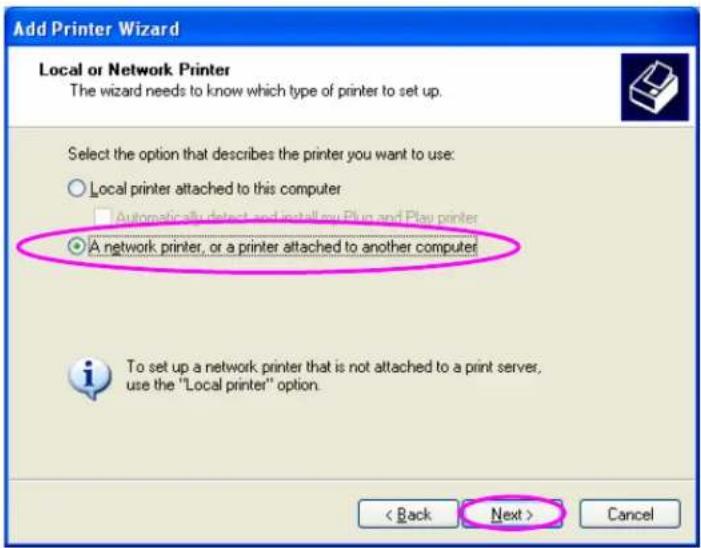

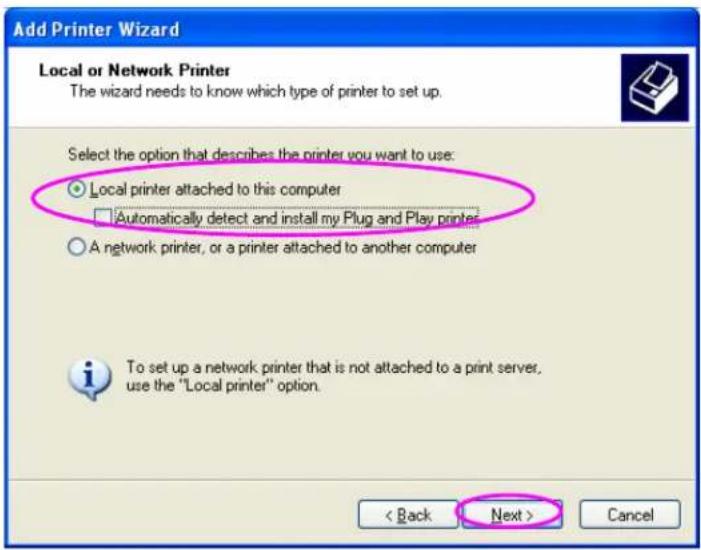

3.4 Windows Add Printer Procedure 23

4. WINDOWS NT/2000/2003 NETWORK 27

4.1 System Architecture 28

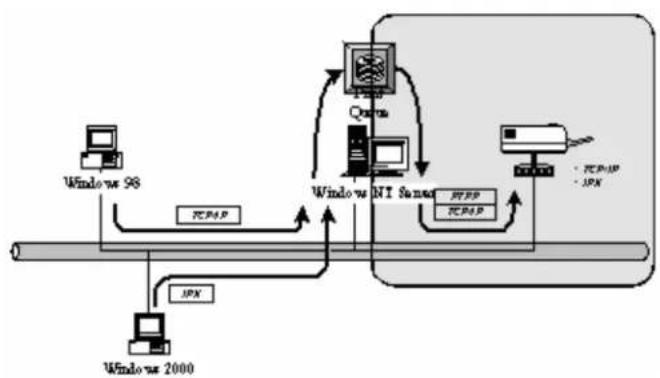

4.2 Windows NT/2000/2003 Server Installation and Setup 29
4.3 User Installation and Setup 30

5. NETWARE NETWORK....31

5.1 System Architecture 32
5.2 NetWare 3.x/4.x/5.x Installation & Setup.... 34

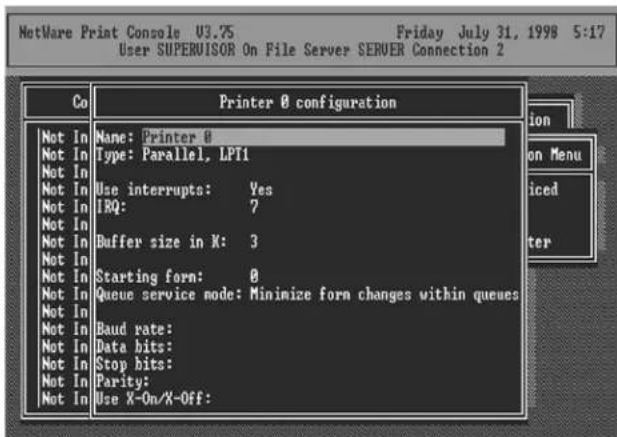

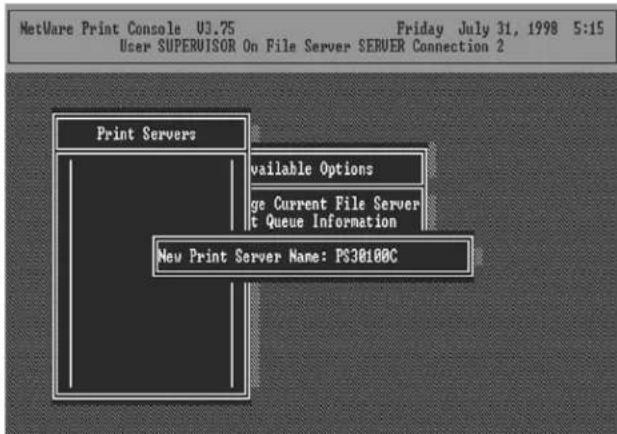

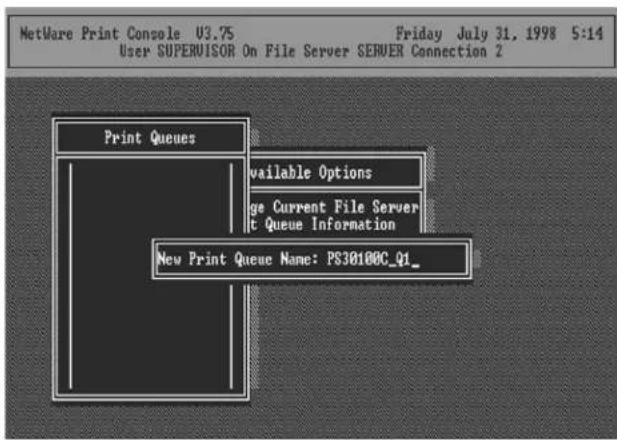

5.2.1 Installation Using PCONSOLE....34

6. UNIX SYSTEM NETWORK....37

6.1 Introduction....38
6.2 Enable Print Server's TCP/IP Support 39
6.3 Setup Print Server's IP Address.... 40

6.3.1 DHCP....40
6.3.2 BOOTP....40

6.4 Verify Print Server's IP Address 42
6.5 Configure Remote LPD Printing on the Host 43

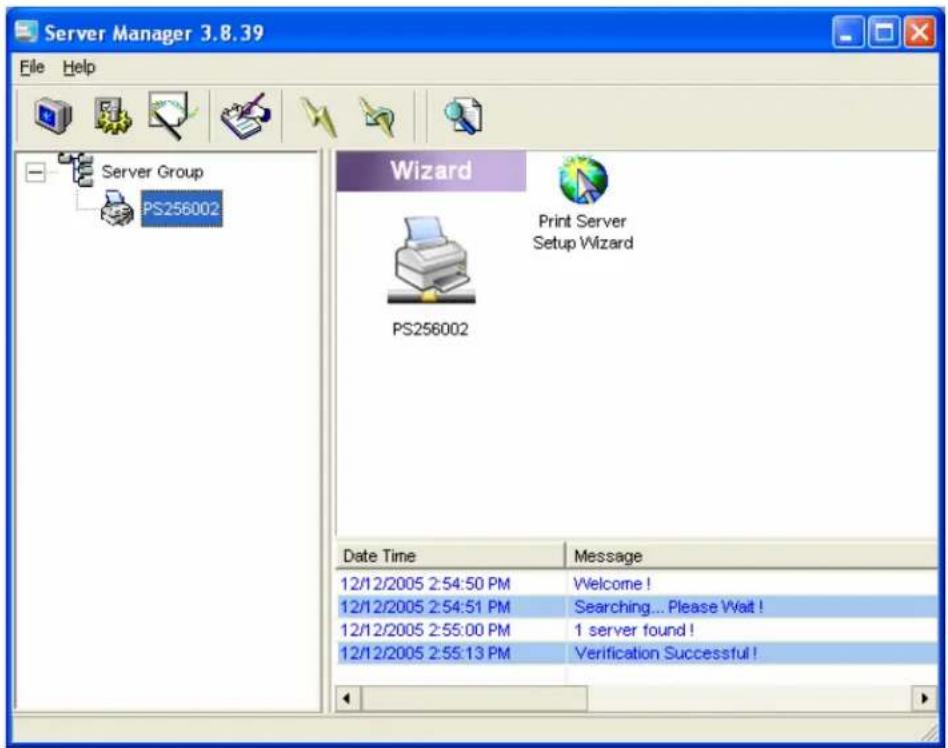

7. PRINT SERVER CONFIGURATION UTILITY

7.1 INTRODUCTION 45

7.2 Search for All Available Print Server 46
7.3 Status of Print Server 47
7.4 Setup the Print Server 48

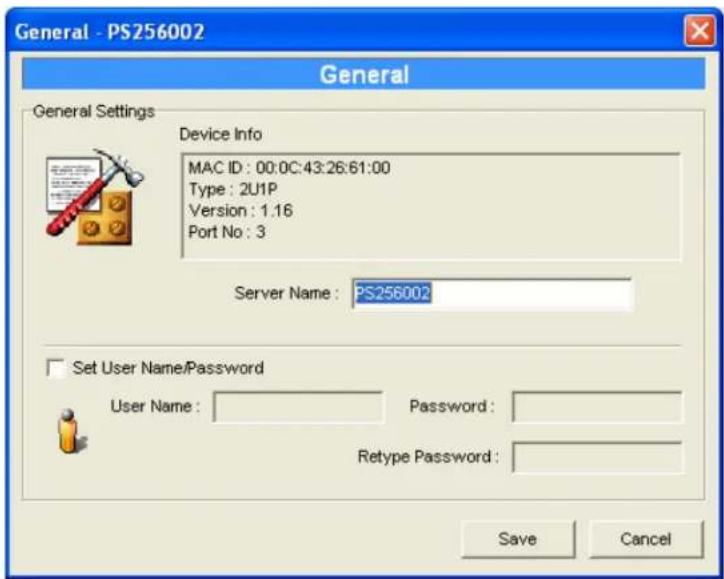

7.5 General Configuration 49

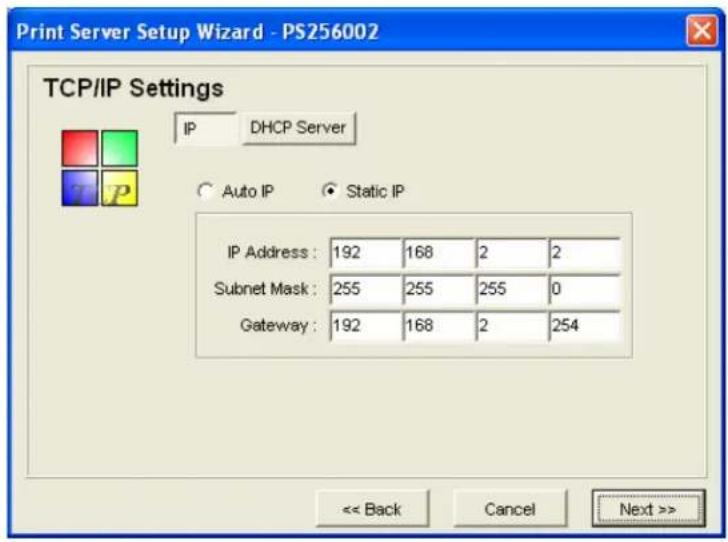

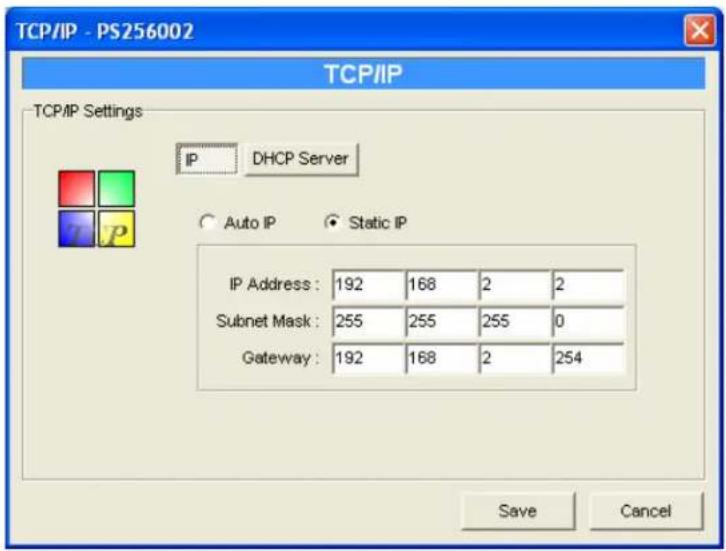

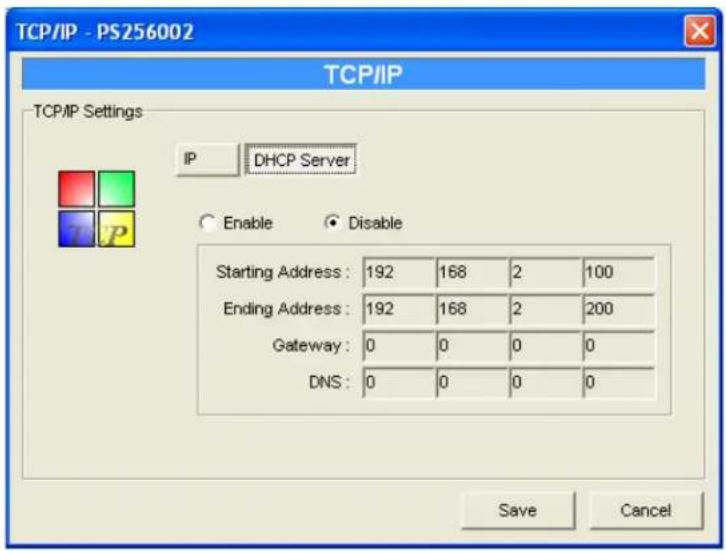

7.6 TCP/IP Configuration 50

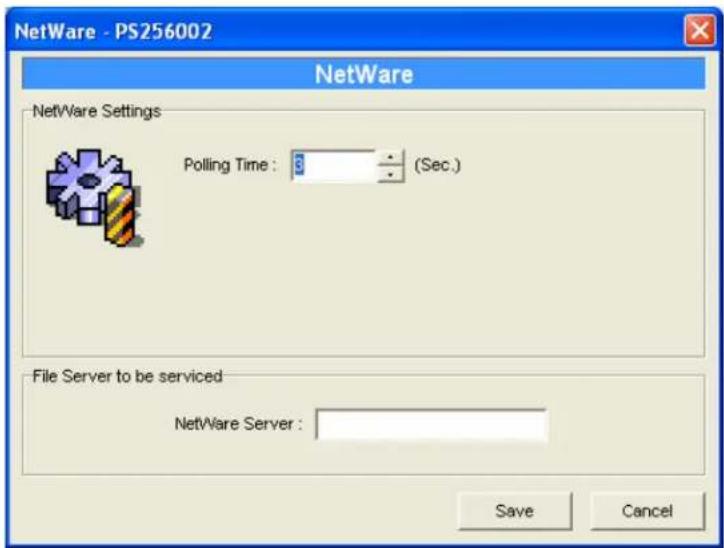

7.7 Netware Print Server Configuration 52

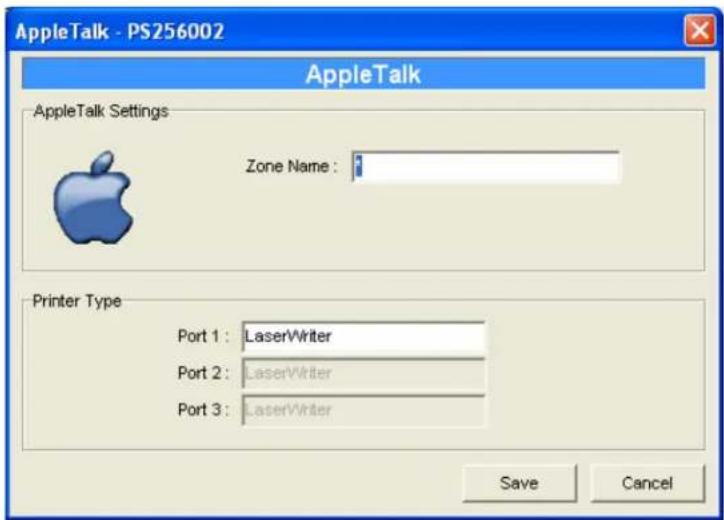

7.8 AppleTalk Configuration....53

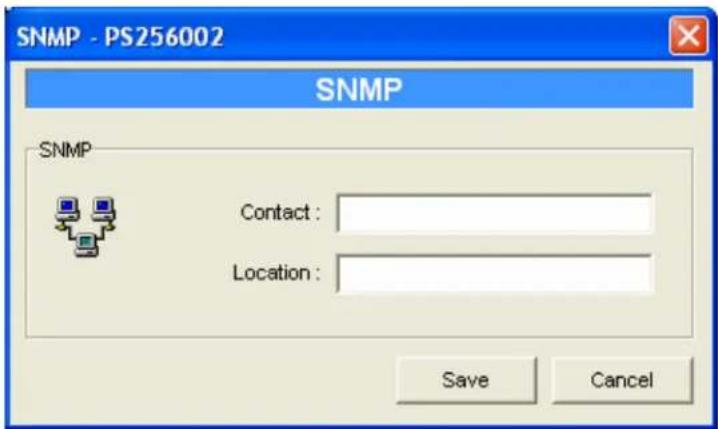

7.9 SNMP Configuration....54

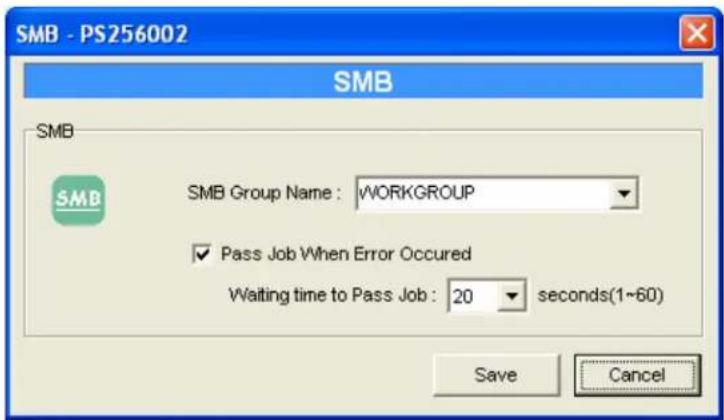

7.10 SMB Configuration 55

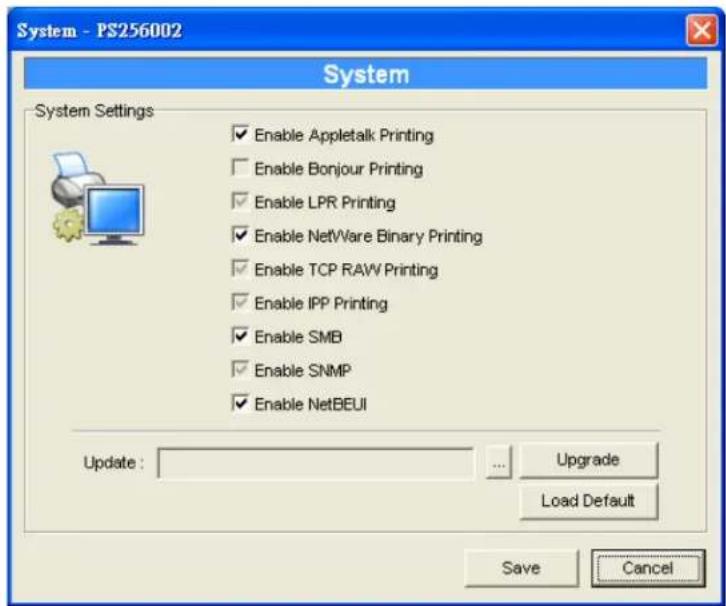

7.11 System Configuration....56

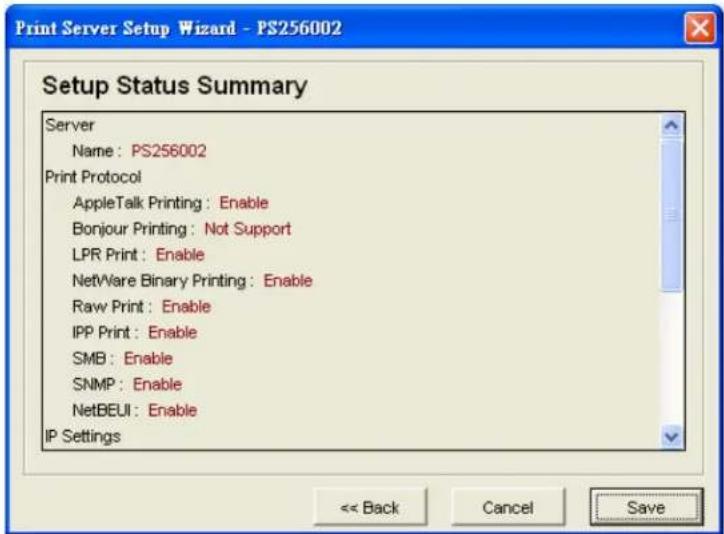

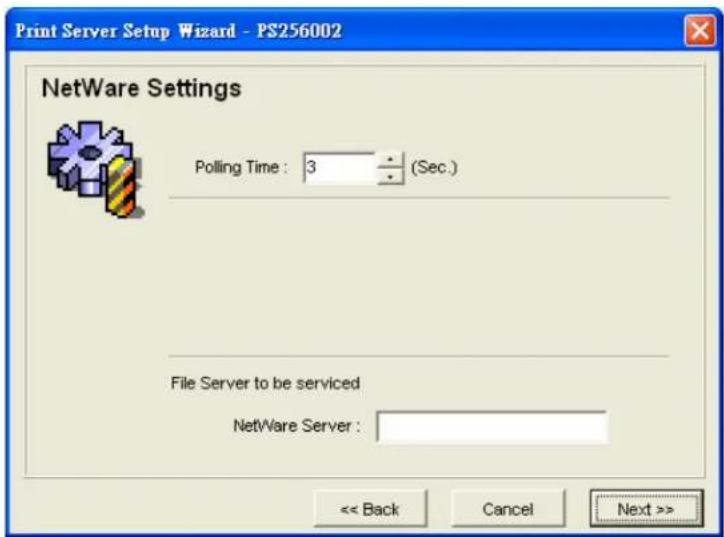

7.12 Wizard 57

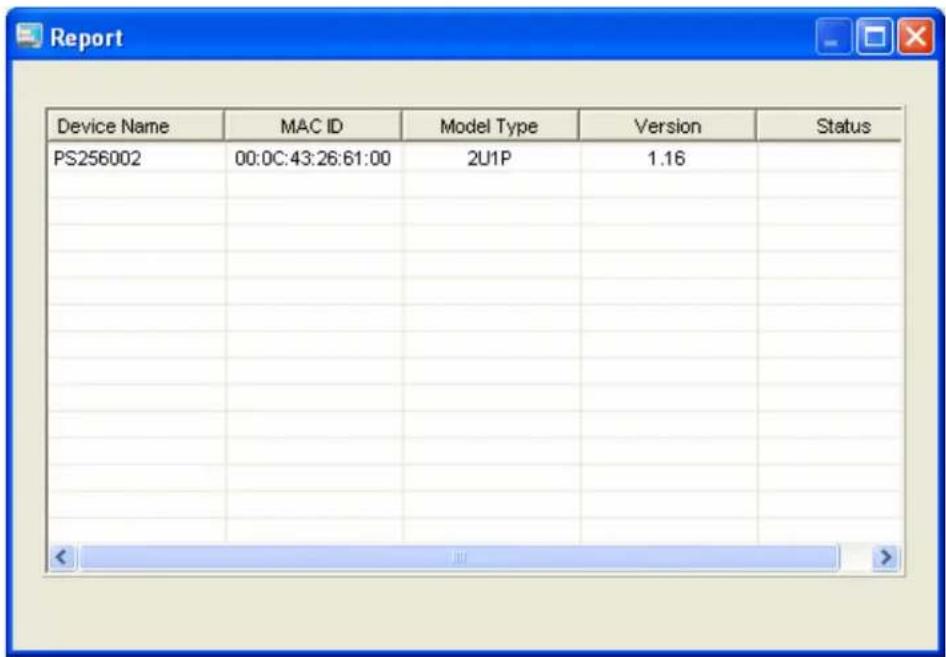

7.13 Report....61

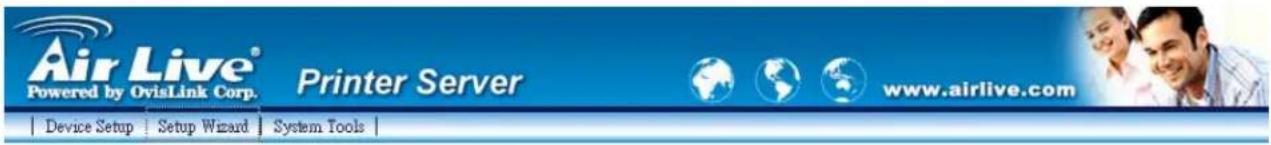

8. WEB MANAGEMENT 62

8.1 Introduction....63

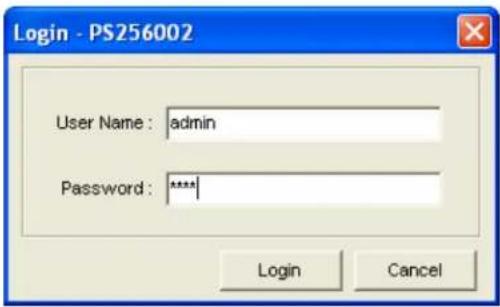

8.2 Login....64

8.3 Device Status 65

8.3.1 System....65

8.3.2 Printer....66

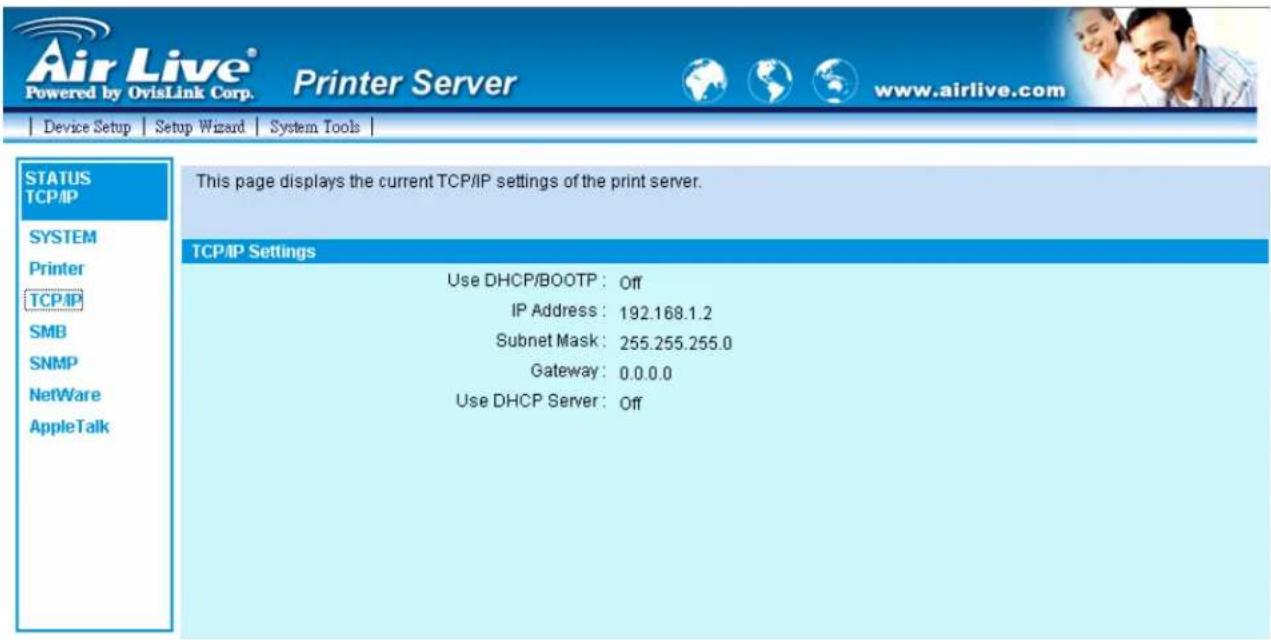

8.3.3 TCP/IP 67

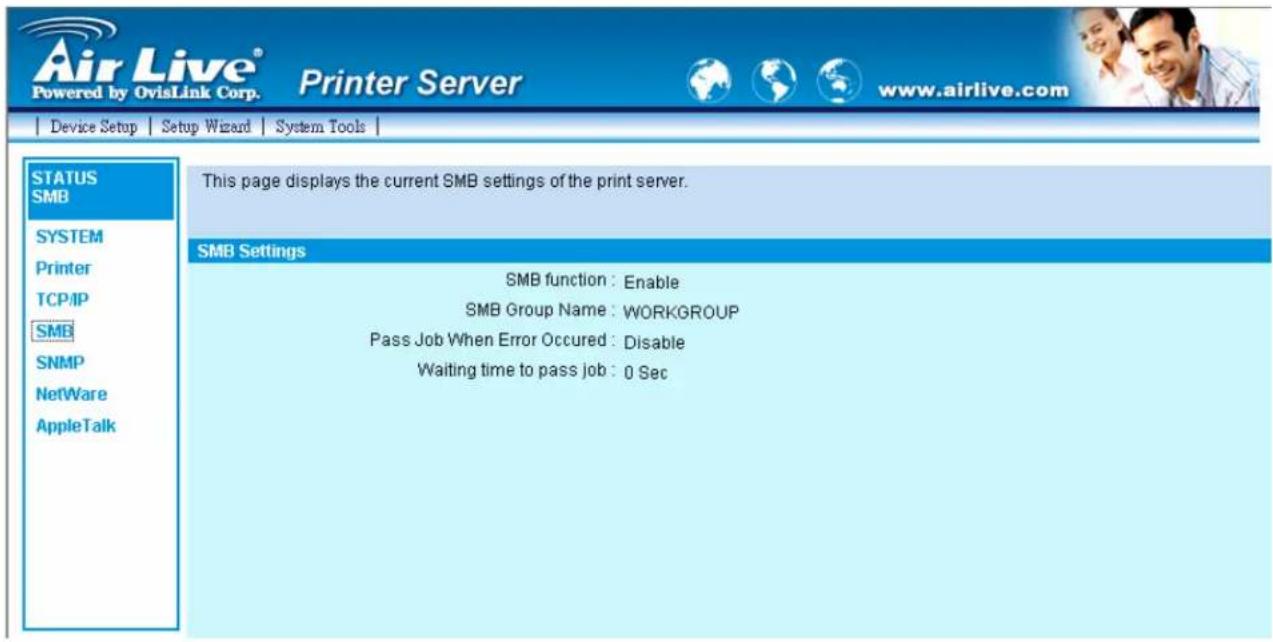

8.3.4 SMB 68

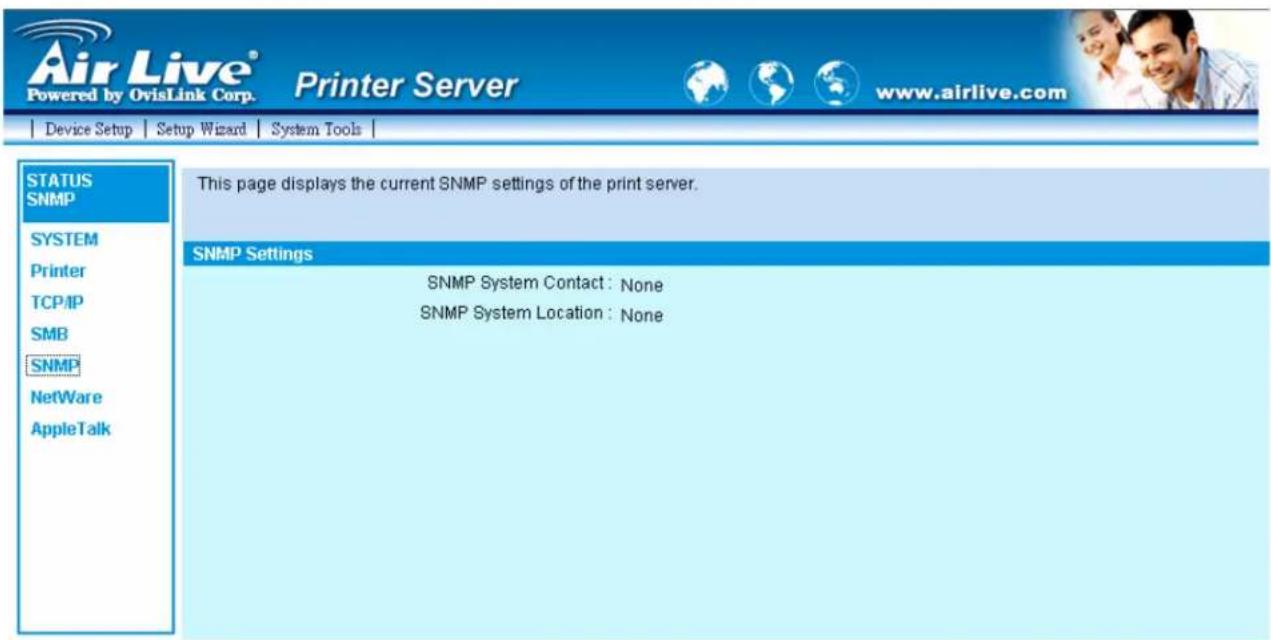

8.3.5 SNMP....68

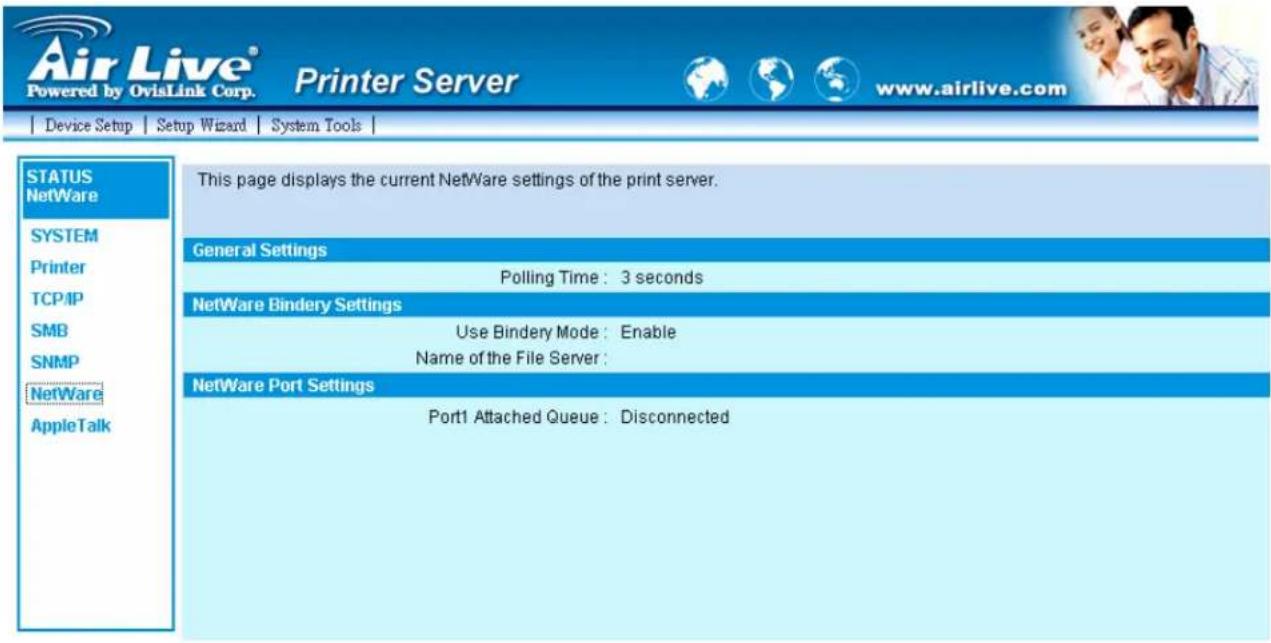

8.3.6 NetWare 69

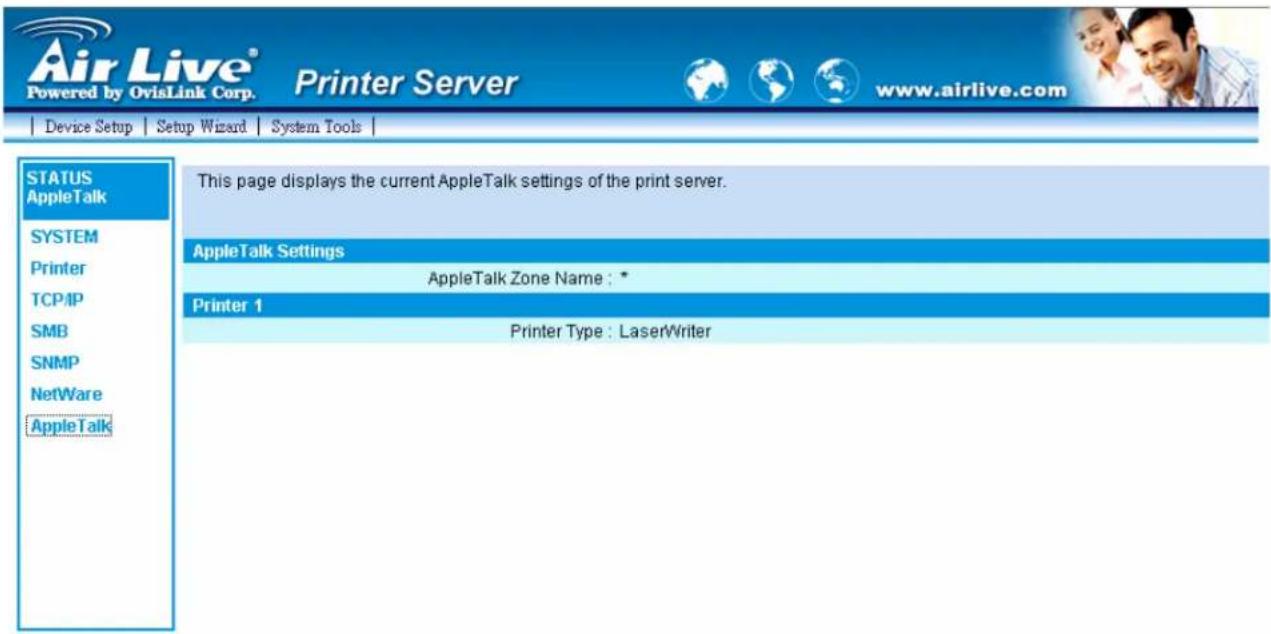

8.3.7 AppleTalk....70

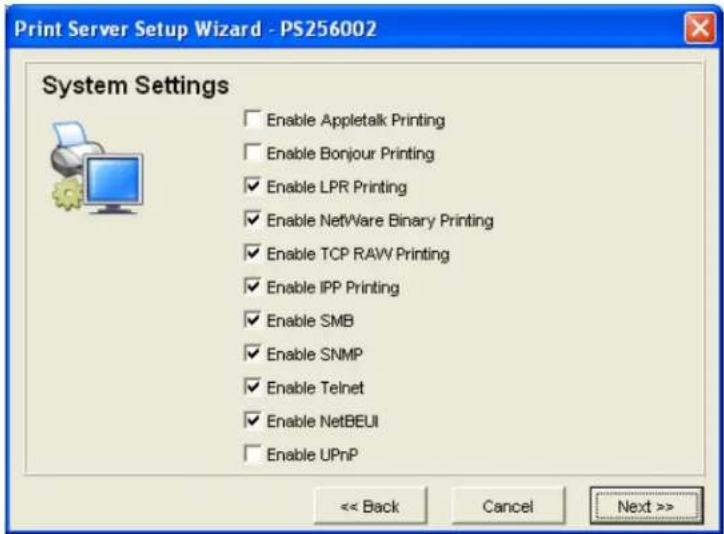

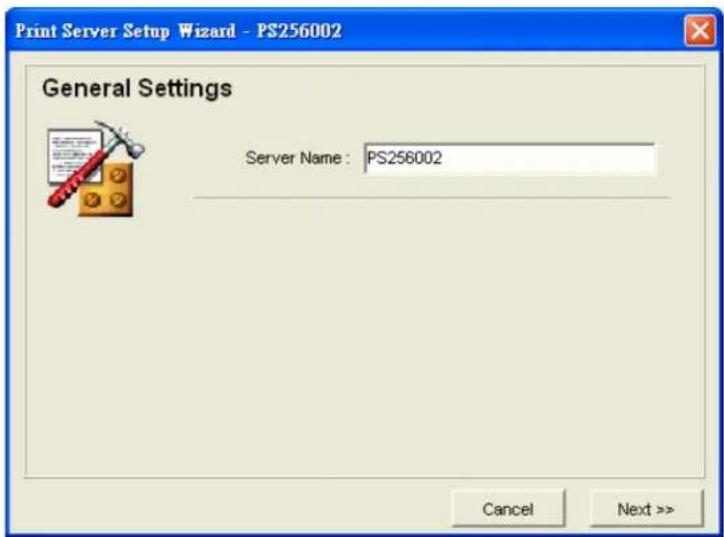

8.4 Setup Wizard....71

8.4.1 System....71

8.4.1.1 Admin Password 72

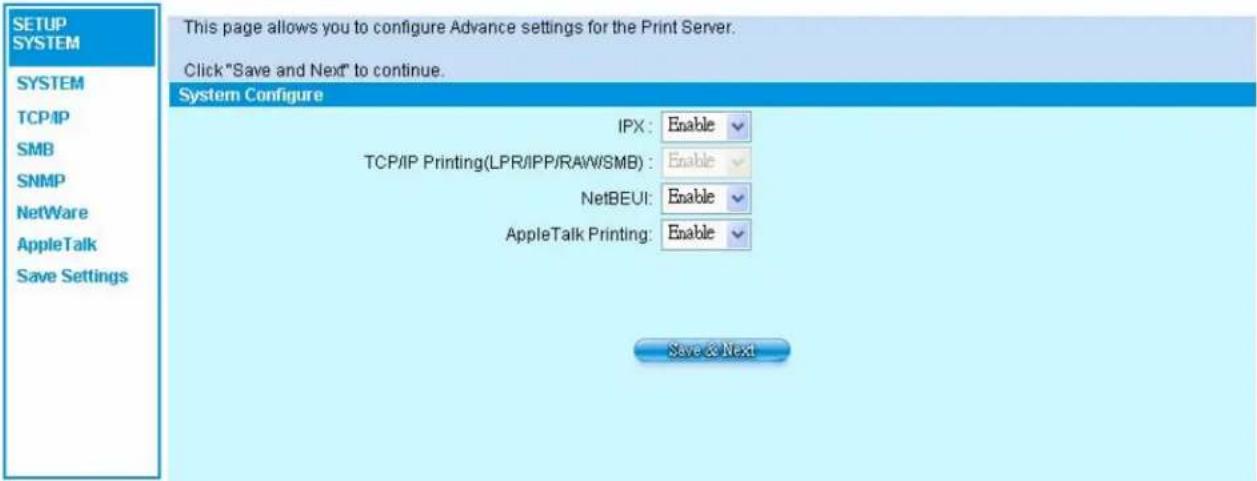

8.4.1.2 Advanced Settings....73

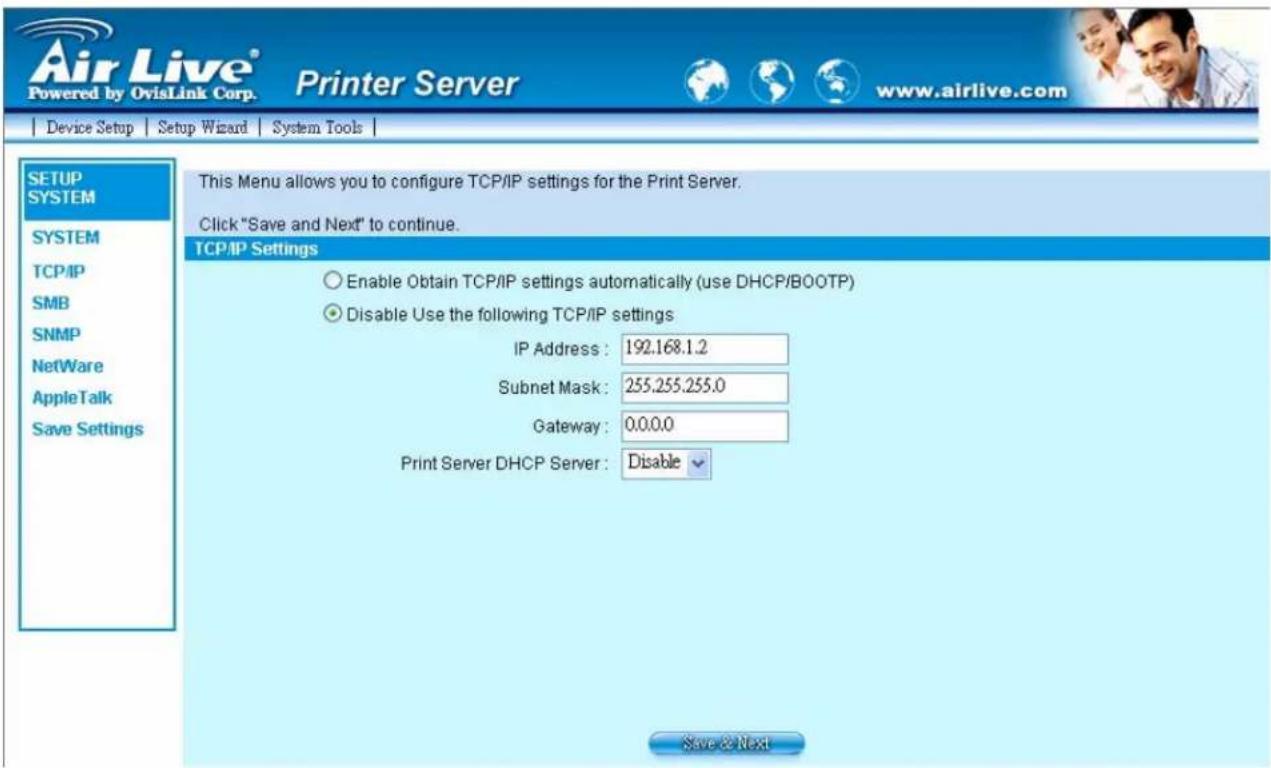

8.4.2 TCP/IP....74

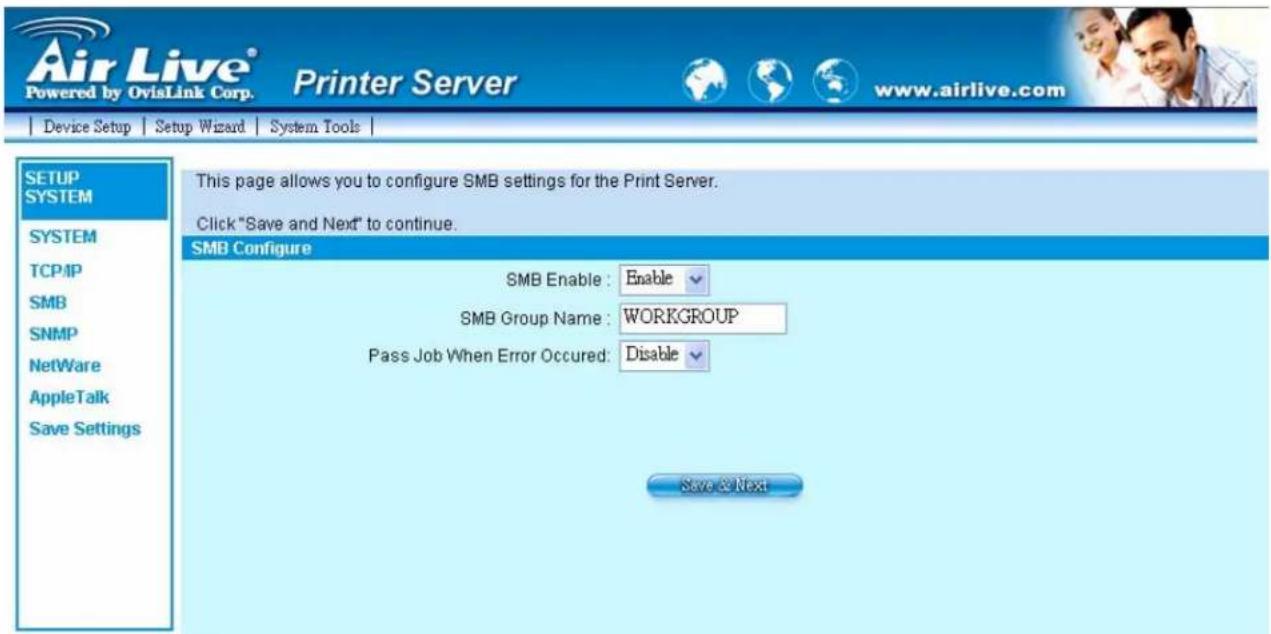

8.4.3 SMB 75

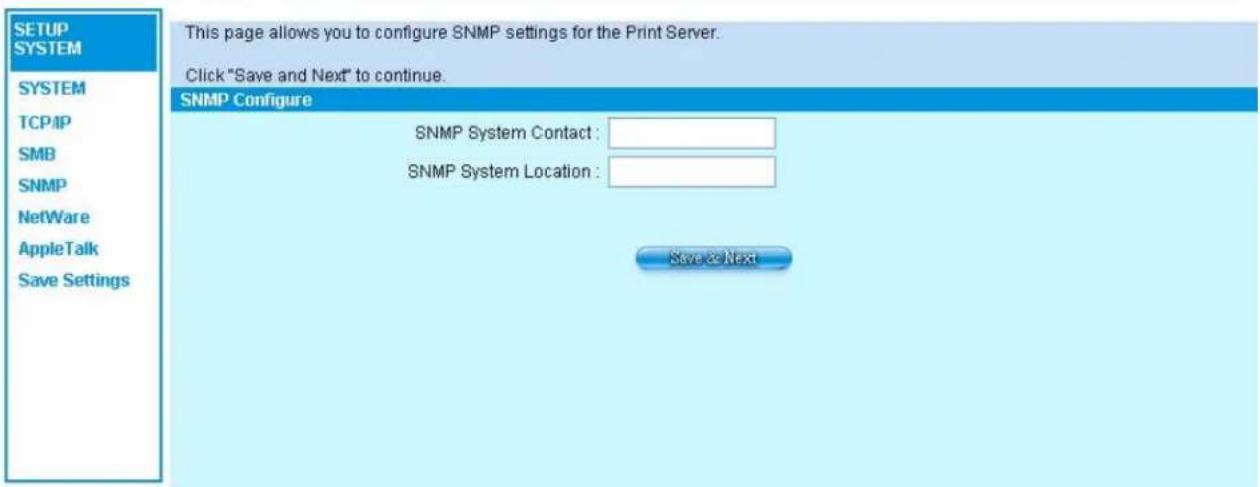

8.4.4 SNMP....76

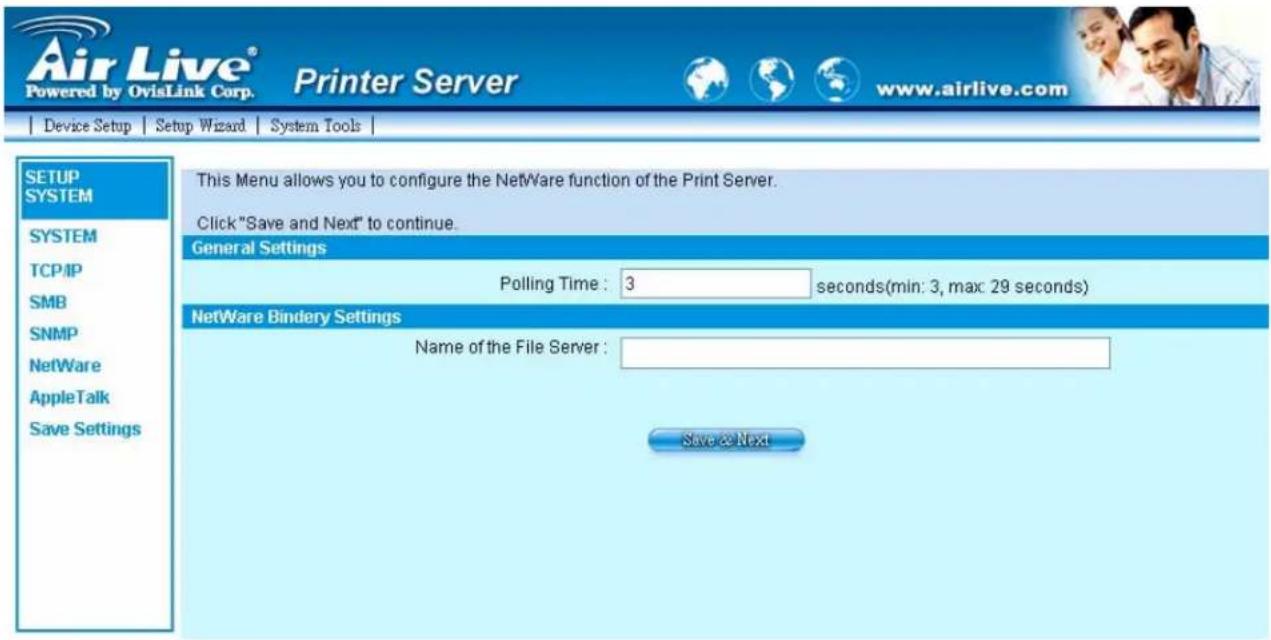

8.4.5 NetWare 77

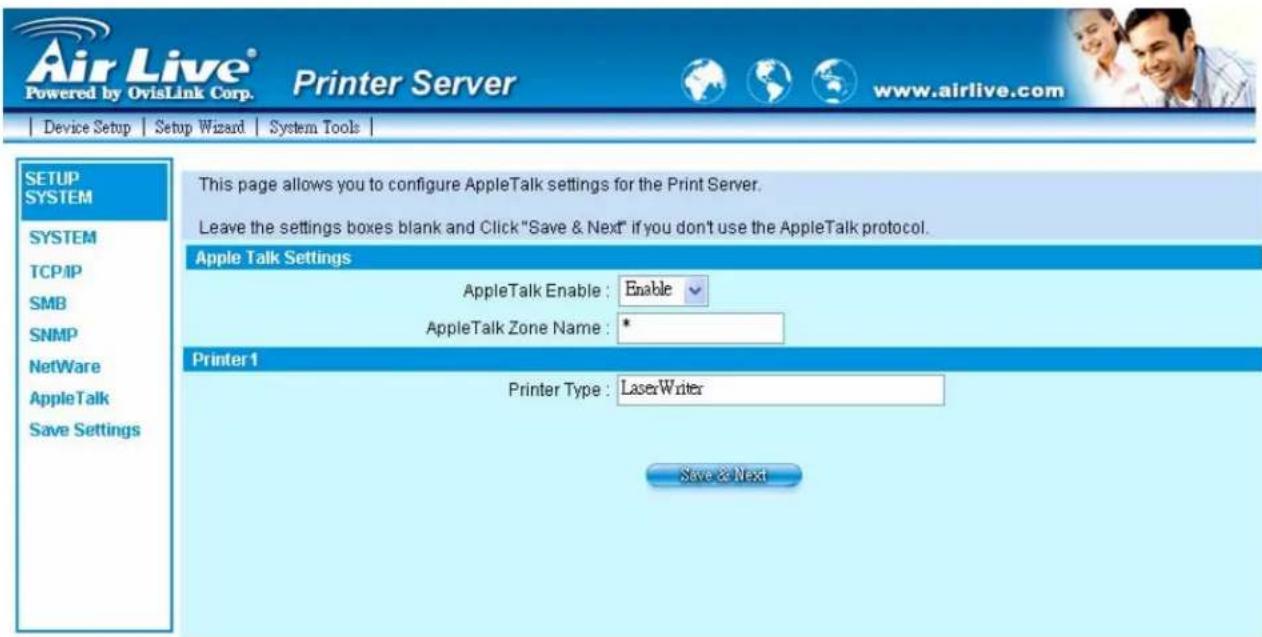

8.4.6 AppleTalk....78

8.4.7 Save Settings....79

8.5 System Tools....80

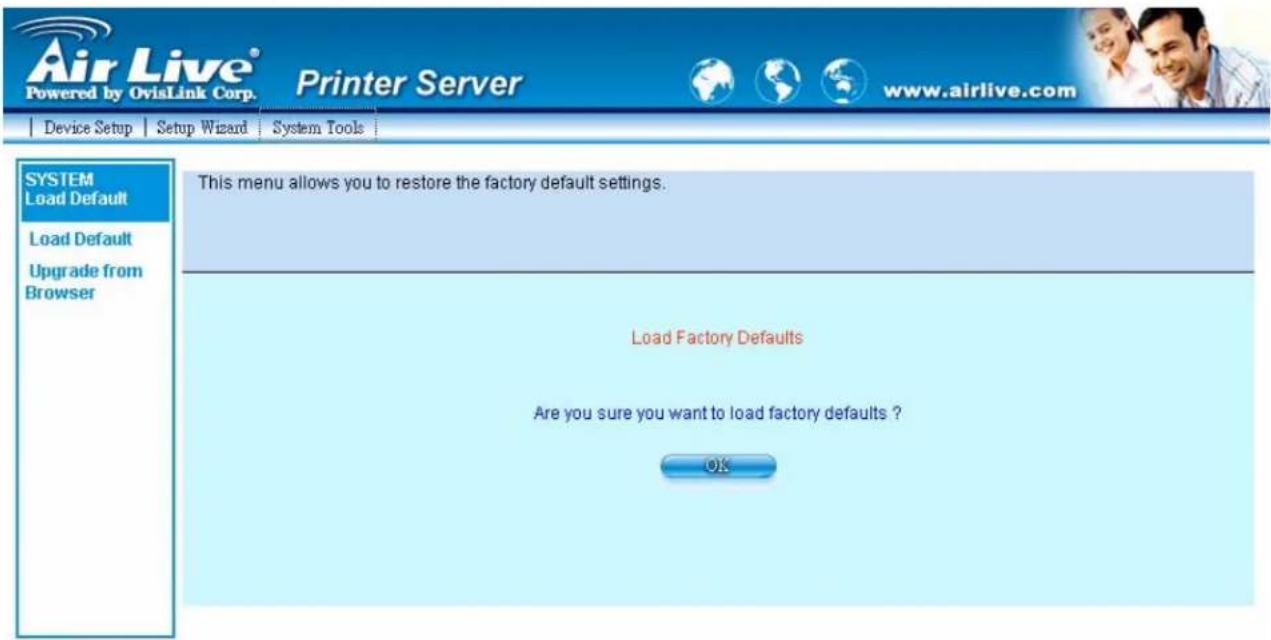

8.5.1 Load Default 80

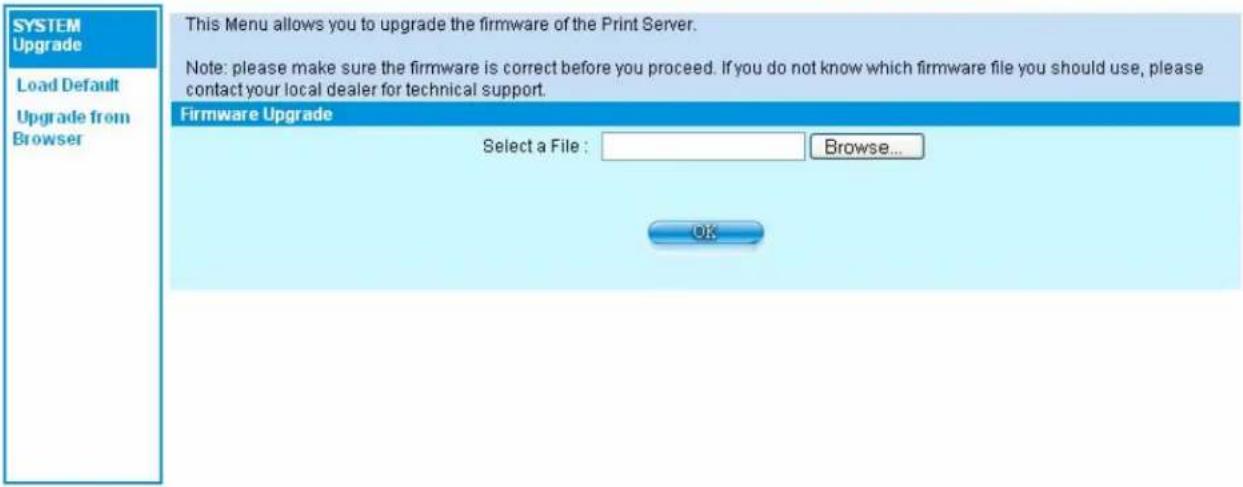

8.5.2 Upgrade....81

9.TELNET MANAGEMENT

9.1 INTRODUCTION....82

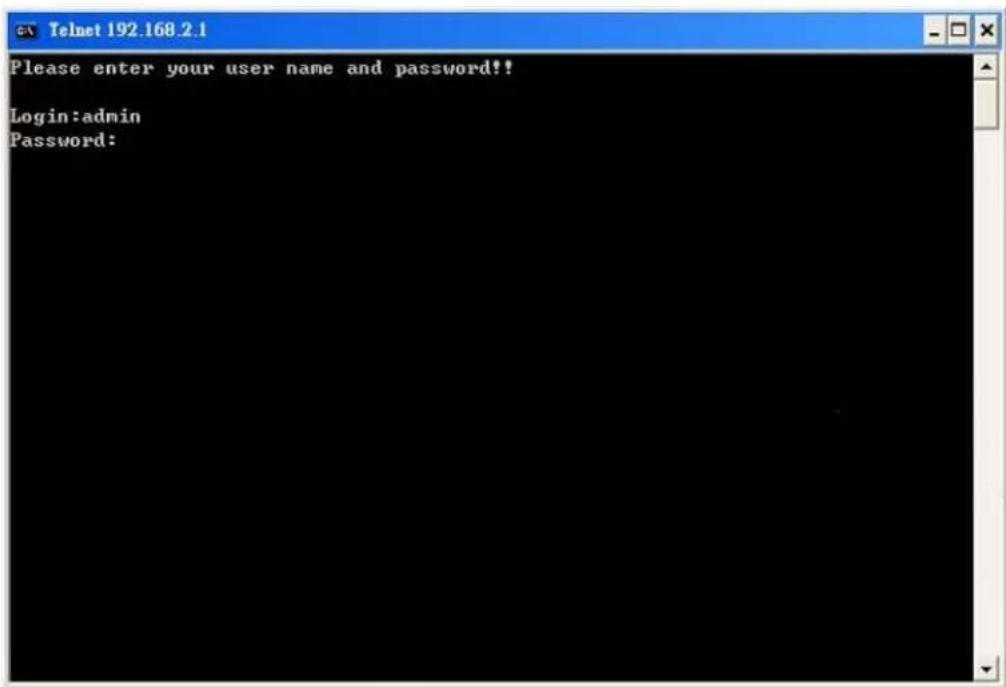

9.2 Login....83

9.3 Get Setting Values – “get” Command 84

9.4 Modify Setting Values – “set” Command.... 86

9.5 Other Commands 88

9.5.1 ipconfig 88

9.5.2 reboot 88

9.5.3 exit....88

9.5.4 help....88

10. IPP PRINTING

10.1 INTRODUCTION 90

10.2 System Setup....91

10.2.1 Print Server Side 91

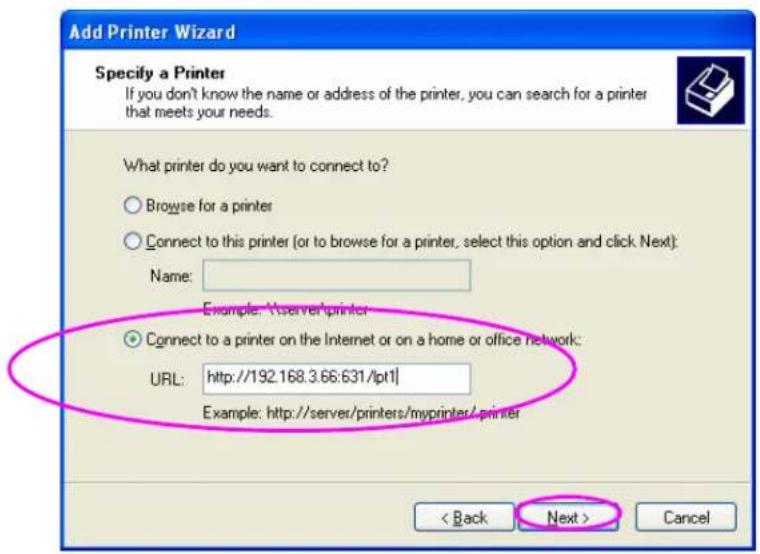

10.2.2 Client Side....91

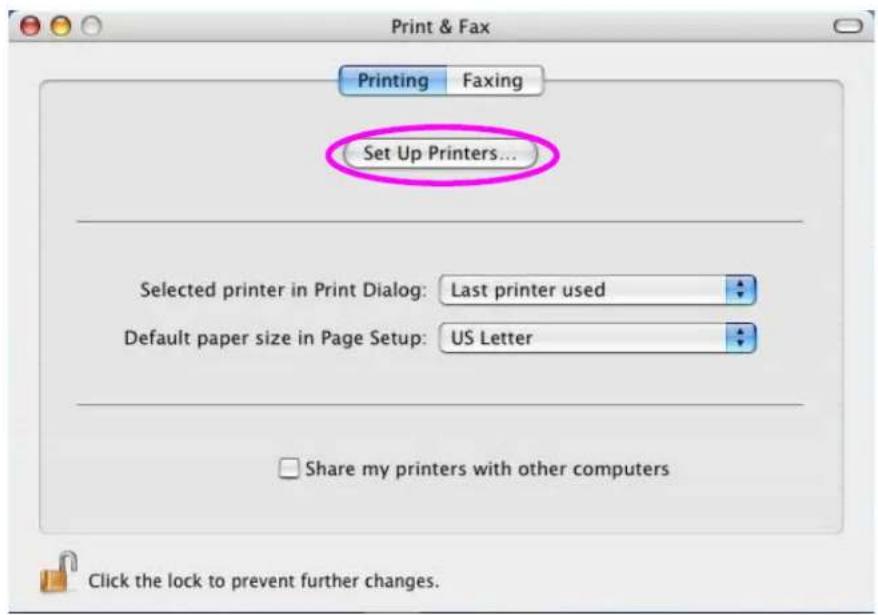

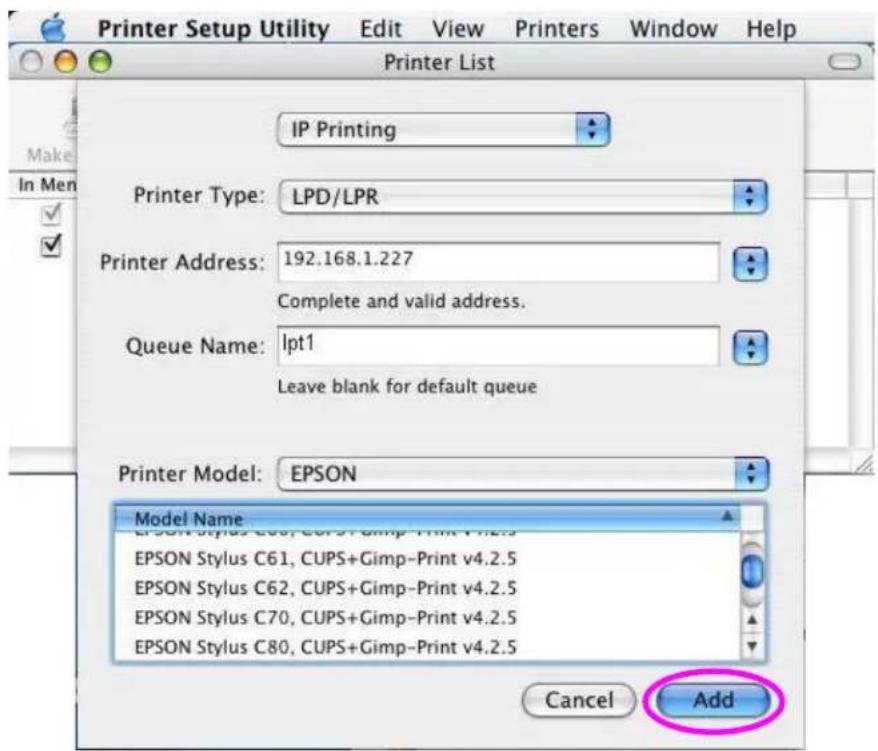

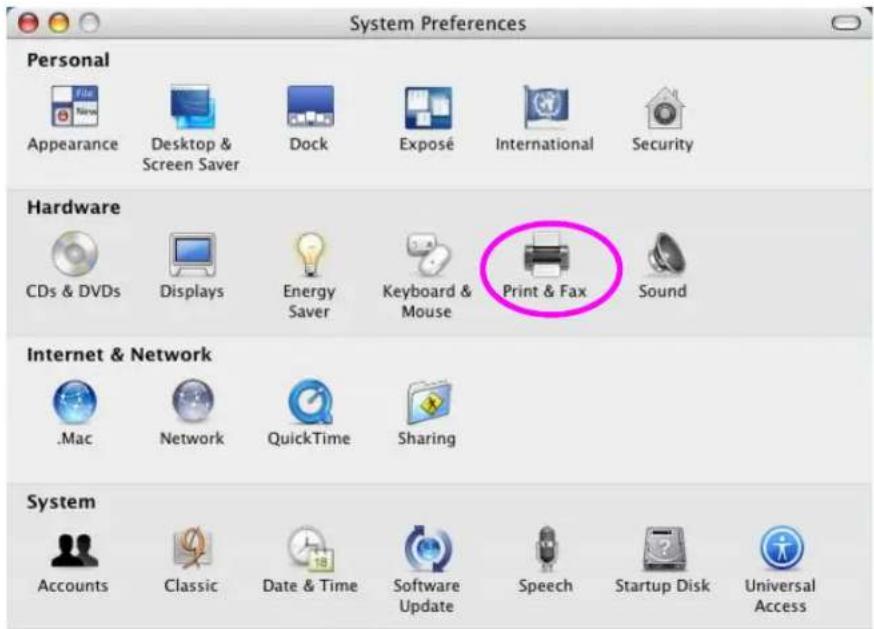

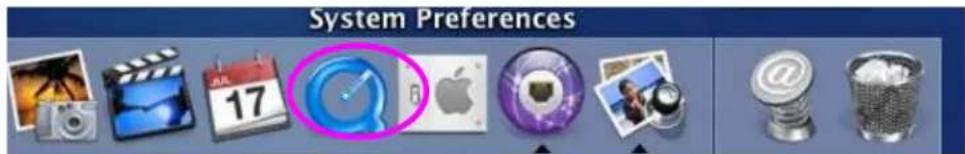

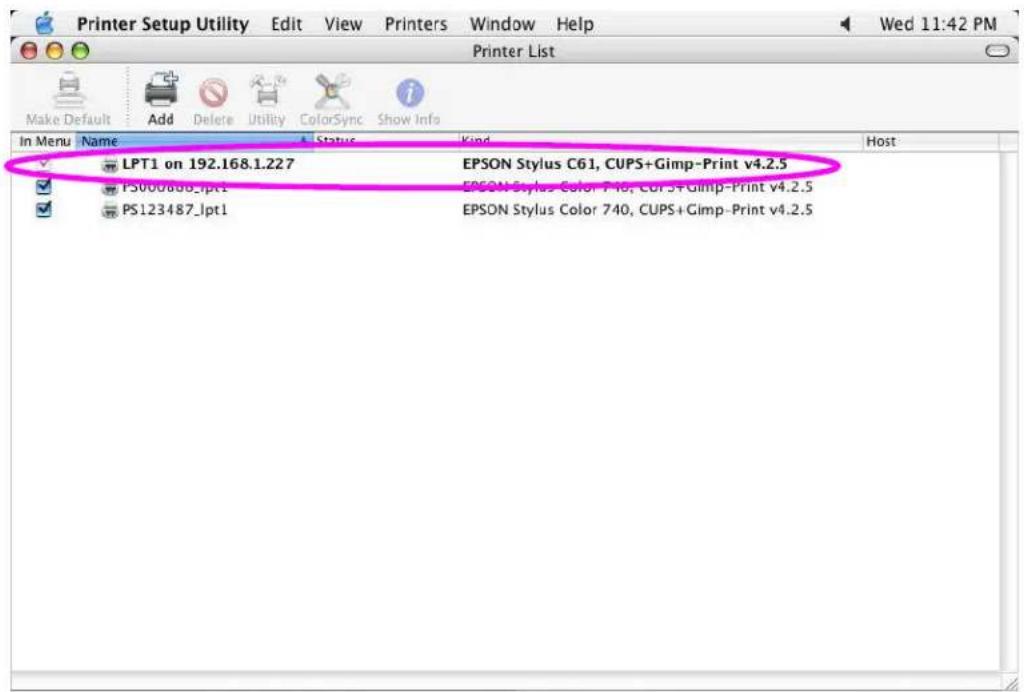

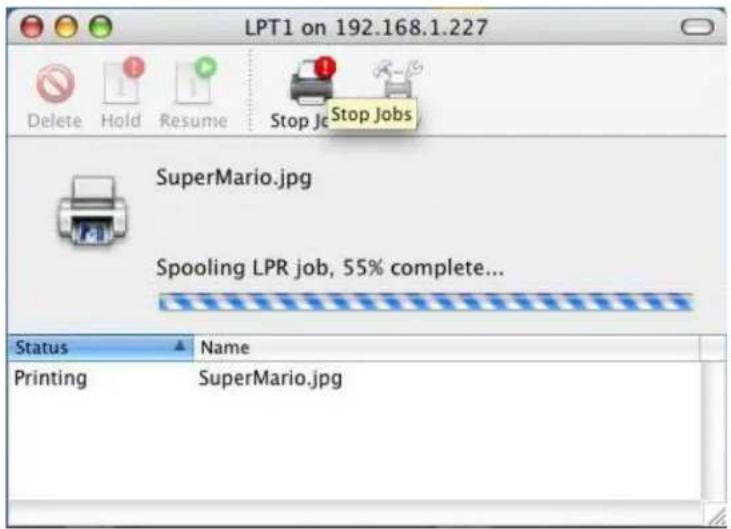

LPR SETTING IN MAC OS....96
UPNP SETUP.... 100
WINDOWS XP SP2 SETUP....105

1. Introduction

1.1 Product Introduction

Thank you for purchasing and using our print server. This print server allows your printer to become a shared device on the network. It offers printing flexibility and manageability on your Local Area Network at an extremely low cost and with an absolute minimum setup and maintenance required.

This print server provides an Ethernet network port (10/100Mbps Ethernet) and one print port for printer. (P-201: one Parallel port, P-201U: one USB port)

This print server supports IPX/SPX, NetBEUI, TCP/IP and AppleTalk protocols. It is the best network printing solutions for various common network operating systems such as Windows 95/98SE/Me/NT/2000/XP/2003, NetWare, Unix/Linux and MAC OS, etc.

With the help of Installation Wizard, you can easily and instantly complete the settings for the printing environment, and start enjoying the fantastic features provided by the print server.

In the following chapters, we will introduce in detail the printing features, installation methods, and system configuration for different network environments.

If you would like to set up and install print server quickly, please refer to the Quick Installation Guide that comes along with this print server.

1.2 Product Package

This package contains the following components:

One Print Server

One Power Adapter

One Quick Installation Guide

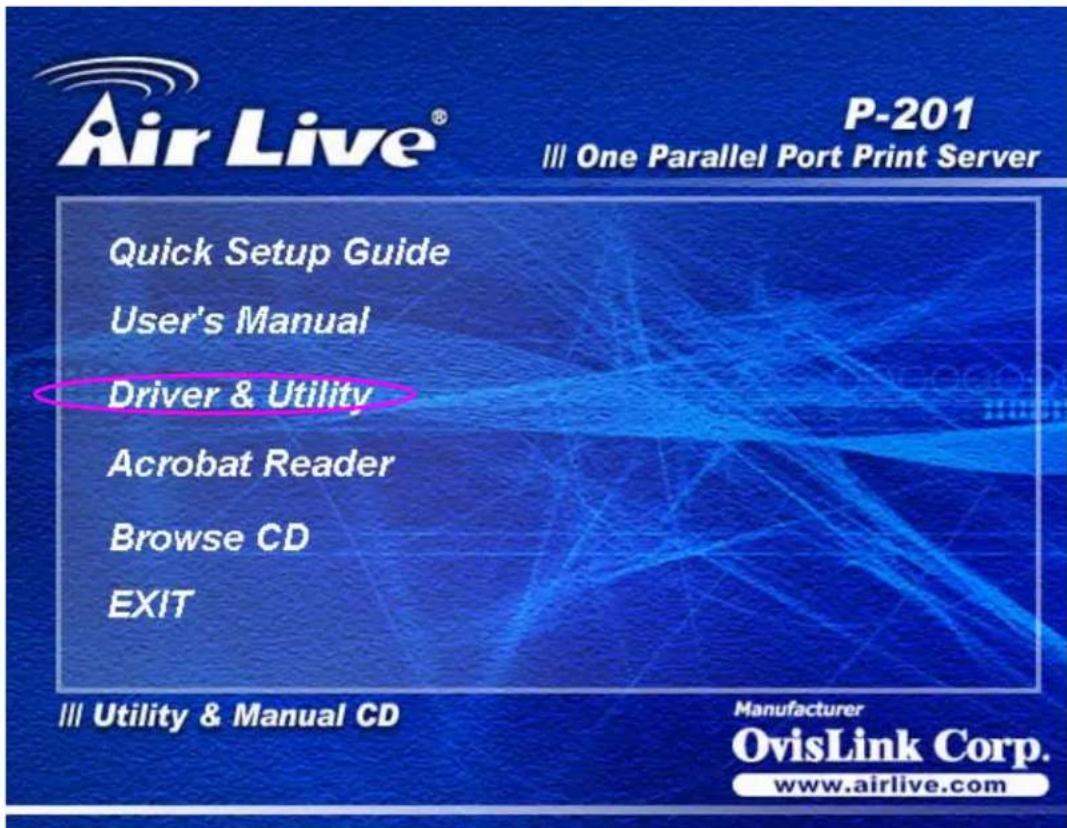

One CD-ROM (Including all the software utilities, drivers and User's Manual)

1.3 Network Printing Architecture

This section illustrates how print server functions and operates on the network. Before you install and use print server, it is strongly recommended that you read this section completely, and select only the chapters you need according to your network operating system by “Contents of the User’s Manual” in next section.

This section will first introduce the role every component plays in the network-printing environment.

Print Server

Client User

Network Server (optional)

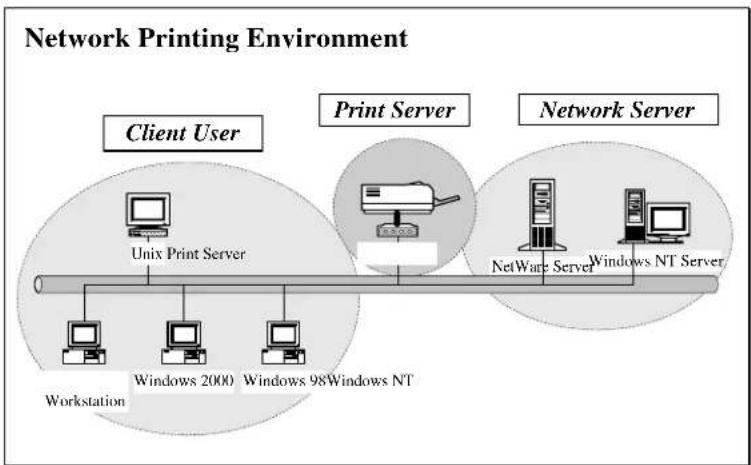

AIRLIVE P-201 - Network Printing Architecture - 1

Because print server supports IPX/SPX, NetBEUI, TCP/IP and AppleTalk network protocols, any networked computer can directly print to the print server from any of its installed protocol.

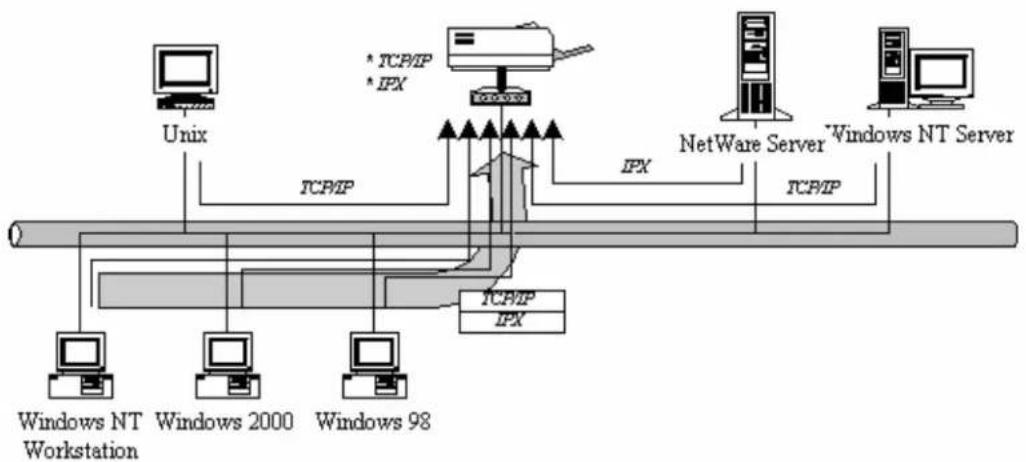

AIRLIVE P-201 - Network Printing Architecture - 2

1.3.2 Network Printing Functions for Clients

AIRLIVE P-201 - Network Printing Functions for Clients - 1

Common operating systems for clients are classified as following:

Windows 95/98SE/Me/NT/2000/XP/2003

Our print server system provides PTPP (Peer-to-Peer Printing) driver and utilities for Windows 95/98SE/Me/NT/2000/XP/2003 users. PTPP (Peer-to-Peer Printing) supports TCP/IP protocol.

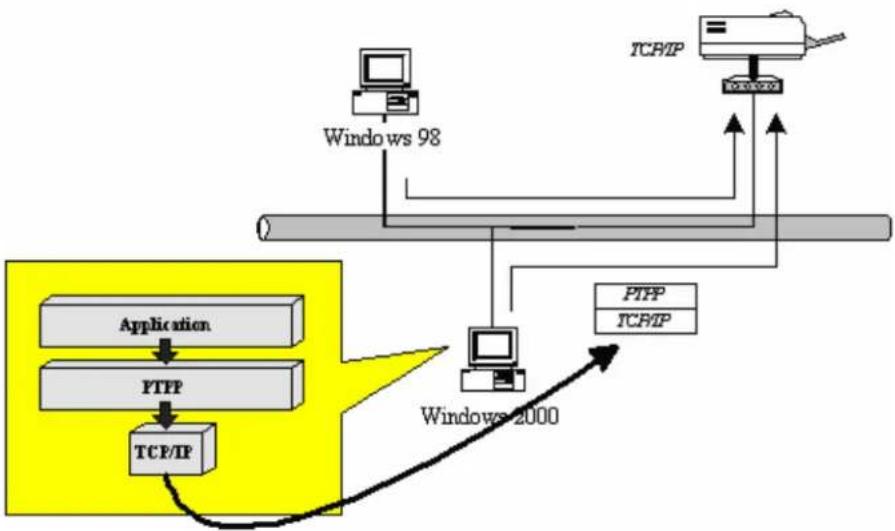

AIRLIVE P-201 - Network Printing Functions for Clients - 2

In the client installation procedure, after PTPP (Peer-to-Peer Printing Driver) is installed into Windows, the system will automatically (manual configuration is also allowed) search all the print servers on the network, and then add their printing ports into Windows' printing port (see below).

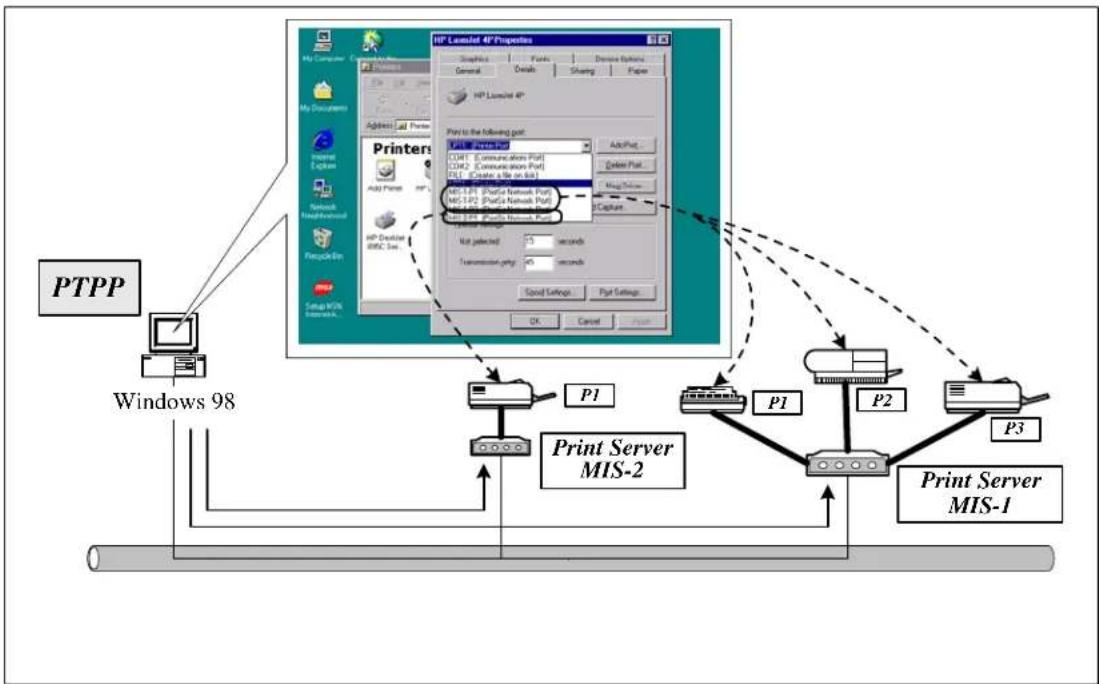

AIRLIVE P-201 - Network Printing Functions for Clients - 3

UNIX / Linux

UNIX (include HP/UX, SCO Unix, SunOS, Solaris, Unixware DECUnix, IBM AIX and others) and Linux use the system-standard LPR to print through print server.

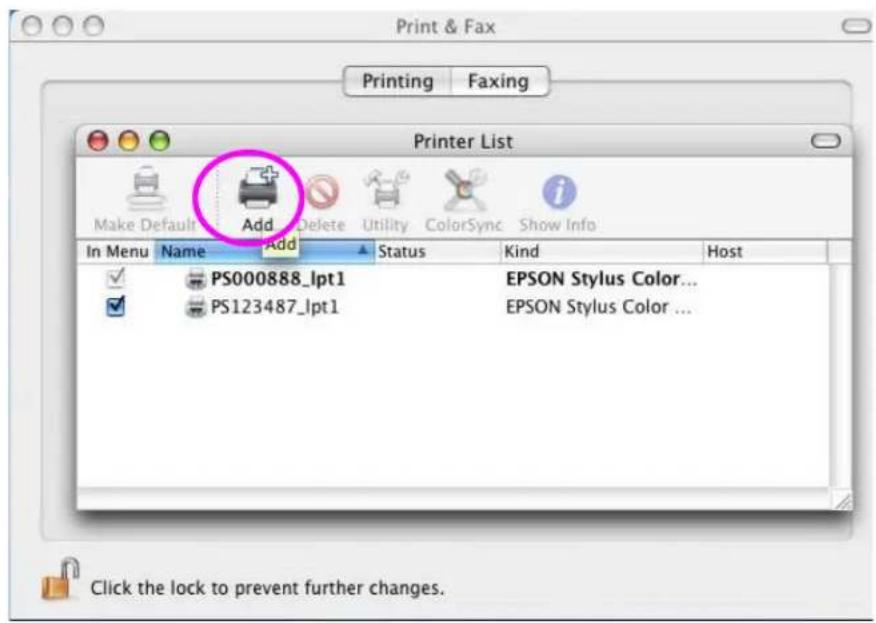

MAC OS

MAC OS can use the system-standard AppleTalk network to print through print server.

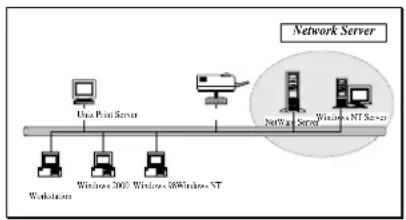

1.3.3 Network Printing Functions for Network Server

AIRLIVE P-201 - Network Printing Functions for Network Server - 1

Common network servers are classified as following:

Windows NT/2000/2003

Our print server system provides PTPP (Peer-to-Peer Printing) driver and utilities for Windows NT/2000/2003. After PTPP is installed, the server can directly print through print server. Adding this printing function into Windows NT/2000/2003 Server allows print queue, user authority management, and many other advanced features to be used.

NetWare 3.x/4.x/5.x

In NetWare environment, print server offers various printing modes like print queue, remote printer, etc.

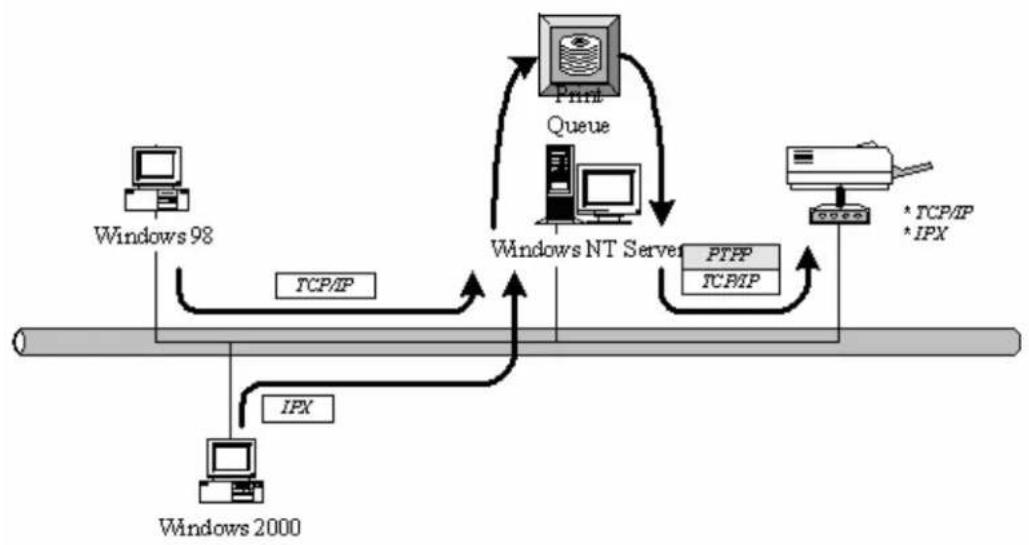

1.4 Network Printing Environment

Common network environment are classified as following:

Windows Peer-to-Peer Network

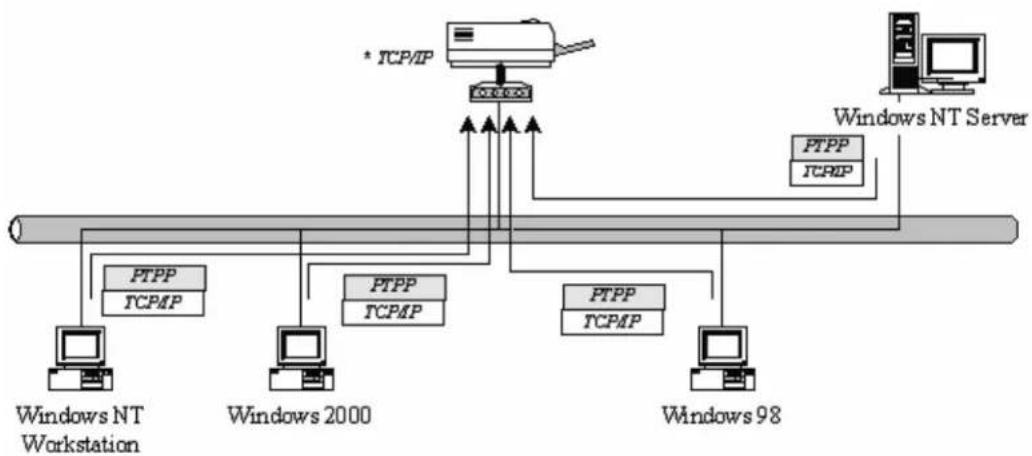

The client's PTPP driver will use TCP/IP protocol to print through print server.

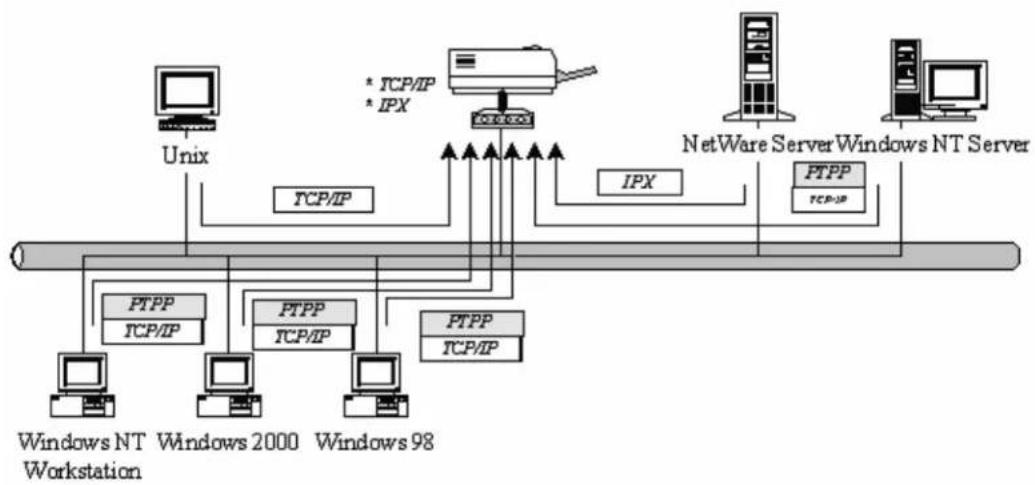

AIRLIVE P-201 - Network Printing Environment - 1

Windows NT/2000/2003 Network

Network printing function will become available after PTPP driver is installed into Windows NT/2000/2003. Adding this printing function into Windows NT/2000/2003 Server allows print queue, user authority management, and many other advanced features to be used.

AIRLIVE P-201 - Network Printing Environment - 2

NetWare Network (see below)

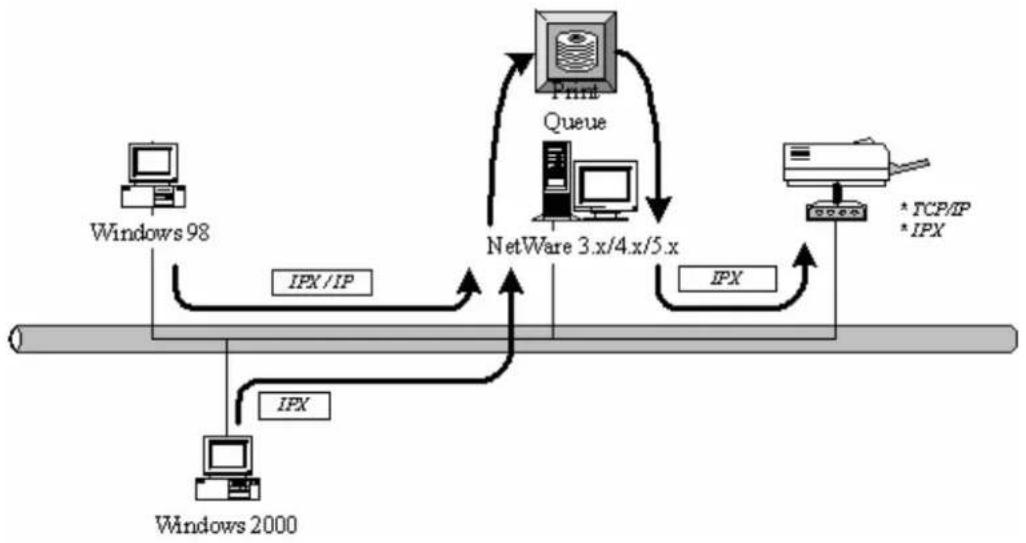

AIRLIVE P-201 - Network Printing Environment - 3

1.5 Contents of the User's Manual

Chapter 2 explains print server's hardware installation and configuration. It is strongly recommended for you to read.

The following chapters introduce:

Chapter 3. Windows Peer-to-Peer Network

Chapter 4. Windows NT/2000/2003 Server-Based Networks

Chapter 5. NetWare Network

Chapter 6. UNIX System Network

You may select the appropriate chapters and sections to read depending on your network printing's requirement.

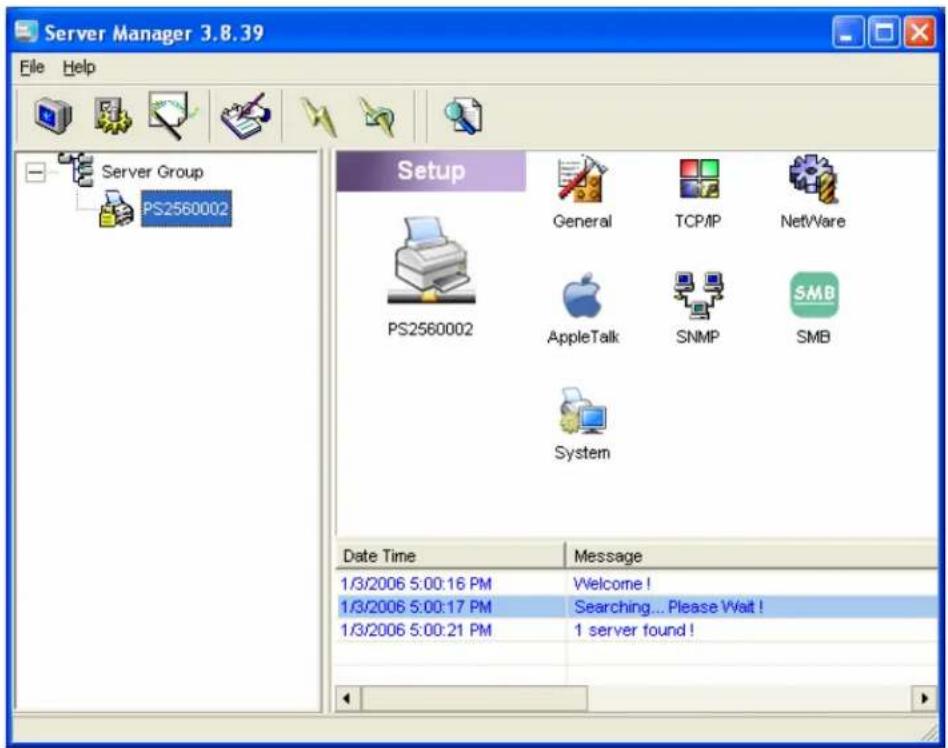

Chapter 7 and chapter 8 introduce print server's management and configuration utilities on Windows and Web Browser's environment respectively. You may select the appropriate management utility according to the administrator's computer platform.

Chapter 9 introduces the commands that can be used in print server management through Telnet.

Chapter 10 introduces Print Server's IPP Printing function and setup procedure. The IPP Printing provides a convenient way to print documents across the Internet by the IPP protocol.

Chapter 11 introduces how to setup LPR printing in MAC OS.

Chapter 12 introduces the UPnP function of the print server. UPnP function will help to find the IP address of the print server and enables user directly link to the web page of the print server without entering the IP Address of the print server in web browser.

Chapter 13 In Windows XP SP2, you may not find any print server listed on the “Available Ports” in “Network Ports Quick Setup”. Please follow the instruction in this chapter and resolve the problem.

1.6 Firmware & Printing Function

The print server provides a complete network printing solution. The feature set is listed below:

PTPP (Peer-to-Peer-Printing)

TCP/IP (LPR)

IPP Printing

NetWare Bindery Printing

AppleTalk

SMB Printing

2. Hardware Installation

Unpack the print server package and verify that all the items listed in the section 1.2 are provided.
Connect the print server to the printer you want to share on the network.
Connect the print server to your network by attached the network cable to the UTP port of the print server.
Connect the power adapter to the print server. The print server will perform the Power-On-Self-Test (POST) after it is powered on. During the POST, the three Printer Port LEDs will be on. When the LEDs are unlighted, the print server is ready.

NOTE1: MUST use the power adapter shipped with the print server, do NOT use any other power adapter from any sources.

NOTE2: To prevent the compatibility problem between print server and a few printer, it is recommended that you power on the print server before the printer.

3. Windows Peer-to-Peer Network

3.1 System Architecture

Print server supports Windows Peer-to-Peer network printing mode, which is suitable for most medium and small network environments. Through quick and simple installation procedure, users can immediately enjoy the convenience of network printing.

AIRLIVE P-201 - System Architecture - 1

3.2 Install Print Server driver and utility

The Print Server windows utility can be performed on Windows 95/98SE/Me/NT/2000/XP/2003 with the same user interface. Before the installation, please verify that your network protocol is installed on your PC (TCP/IP, IPX and/or NetBEUI). It will be helpful in your installation process.

Insert the CD shipped along with the print server into your CD-ROM drive. The Autorun.exe program should be executed automatically. If not, run Autorun.exe manually from CD-ROM drive's root directory.
Click "Driver and Utility" from the Auto-Run menu screen.

P-201 One Parallel Port Print Server Quick Setup Guide User's Manual Driver & Utility Acrobat Reader Browse CD EXIT Utility & Manual CD Manufacturer OvisLink Corp. www.airlive.com

The "Print Server Utilities" window will be displayed. Click "Next".

PrintServer Utilities - InstallShield Wizard Print Server Utilities 3.8.48 Setup Welcome! This installation wizard will: 1) Copy all necessary utilities and drivers 2) Guide you through the print server setup process 3) Add the print server network print port to your computer < Back Next > Cancel

Click “Next” to install the utilities in the default folder or click “Change” to specify the destination folder where you would like to install the utilities.

$PrintServer Utilities - InstallShield Wizard Choose Destination Location Select folder where setup will install files. Install PrintServer Utilities to: C:\Program Files\PrintServer Utilities Change... InstallShield < Back Next > Cancel$

The system will start to install the utilities automatically.

$PrintServer Utilities - InstallShield Wizard Setup Status PrintServer Utilities Setup is performing the requested operations. Installing C:\Program Files\PrintServer Utilities\PSAdmin.exe InstallShield Cancel$

The Print Server windows utilities Installation procedure is totally completed. and All network ports of the Print Servers detected on the network will be added to your PC automatically, click "Continue"

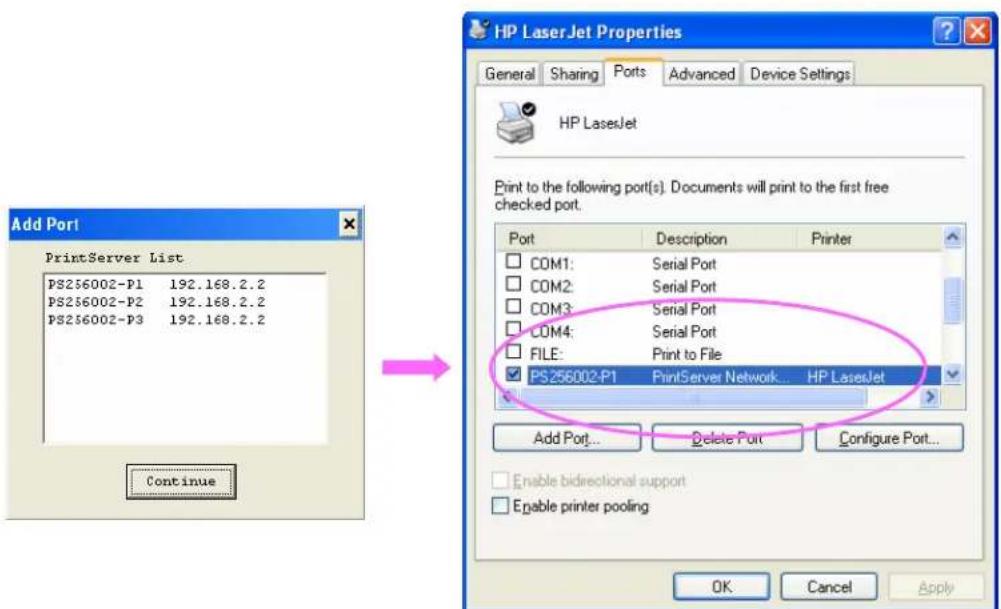

Add Port PrintServer List PS256002-P1 192.168.2.2 PS256002-P2 192.168.2.2 PS256002-P3 192.168.2.2 Continue

The Print Server windows utilities Installation procedure is totally completed. Click "Finish".

PrintServer Utilities - InstallShield Wizard

AIRLIVE P-201 - PrintServer Utilities - InstallShield Wizard - 1

InstallShield Wizard Complete

Congratulations! You have completed the PrintServer Utilities installation procedure.

< Back

Finish

Cancel

3.3 Print Server Utilities

After Print Server Utilities is completed, there will be four utilities in print server's Program folder.

Network Ports Quick Setup - Add the network ports of print servers within the network to your PC.

Print Server Configuration – Allows you to configure the print server's IP Address, network protocols and other advanced functions. Please refer to Chapter 7 for the detail instruction of the configuration.

Remote Ports - Add the network port of remote printer server to your PC.

Uninstall – Assistant for removing all installed administrator software.

$PrintServer Utilities File Edit View Favorites Tools Help Search Folders Address C:\Documents and Settings\All Users\Start Menu\Programs\HindServer Utilities File and Folder Tasks Make a new folder Publish this folder to the Web Show this folder Other Places Programs My Documents Shared Documents My Computer My Network Places Details Network Ports Quick Setup Shortout 1 KB Remote ports Shortout 1 KB PrintServer Configuration Shortout 1 KB Uninstall Shortout 1 KB$

3.3.1 Network Ports Quick Setup

Network Ports Quick Setup Utility offers a very simple method to add or remove print server's printer port from the client's computer.

During the client's installation procedure, the system will automatically search for all print servers on the network, and add them into the printer ports of the client's computer (see below).

If you have just installed another new print server in the network, you must run this program first. This program will search for new print servers and allow you to add the new network printer port into client's computer conveniently. Perform the standard Add Printer procedure, then you can print directly to the printer through the newly installed print server.

Network Ports Quick Setup 3.1 Available Ports Chosen Ports PS256002-P1 PS256002-P2 PS256002-P3 OK Cancel Refresh Configure Port Auto IPX TCP/IP NetBEUI Queue

Please be aware that Network Ports Quick Setup Utility can only detect and configure all print servers on the same network, it cannot search and configure print servers on other subnets across network segments. You must use Remote Ports Utility described in the next section to manage remote (across network segments) print servers.

Select the network ports in the “Available Ports” list and click “>” to add ports. If you want to add all available ports, please click “>>”. To cancel some of the network ports or all ports from the “Chosen Ports” list, please click “<” or “<<”.

3.3.2 Remote Ports (Utility)

Remote Ports Utility offers a convenient way for you to manage and add printer port of the remote print server. From the assistant of this utility, you can print to other print servers outside the subnet across network segment. However, please note that this function only supports TCP/IP network protocol.

Please follow the procedures described below:

Step1. Run Remote Ports Utility. Clicks "Add" to add a remote print port.

Remote port setup 3.0 Remote port list: Add Delete Exit

Step2. Enter print server's name, IP address, select used ports, and enter LPR queue name of each port. Click "Ok".

Create remote port Print Server Name: OK IP Address: Cancel Port P1 P2 P3

Step3. The new remote print port is displayed as follows.

Remote port setup 3.0 Remote port list: Sales-P1-P1 Add Delete Exit

In order to use the remote printing function, you will have to proceed with normal Add Printer procedure and select your printer port as the newly added remote printer port.

3.4 Windows Add Printer Procedure

After adding a “Network Port” of the print server to your PC by Administrator or Client Installation Program, you can follow the procedure described below to add printer to the Windows. Note that following “Add Printer” steps are running in Windows XP, the steps in other Operating Systems are similar.

Step1. Click "Start", choose "Settings" and select "Printers and Faxes".

Step2. Click "Add a Printer".

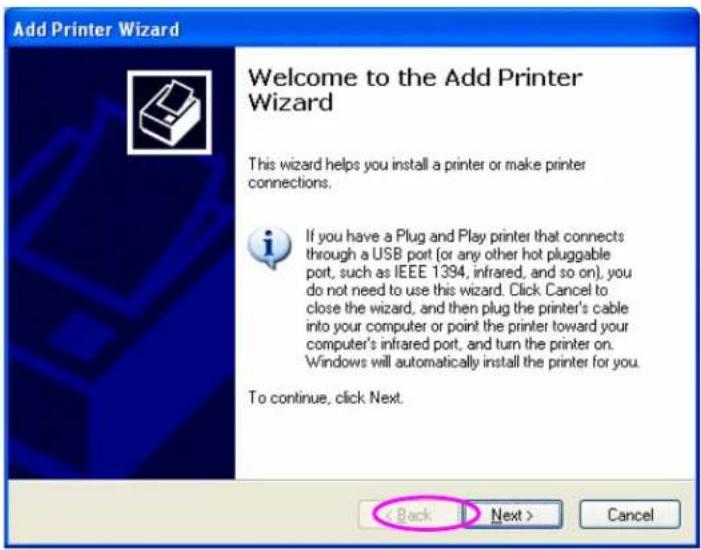

Step3. The "Add Printer Wizard" is displayed. Click "Next".

Step4. Select “Local printer attached to this computer” and make sure that “Automatically detect and install my Plug and Play printer” is not selected. Click “Next”.

Step5. Choose the suitable “Print Server Network Port” which was created by the Administrator Installation or Client Installation process and click “Next”.

Step6. Select a suitable printer manufacturer and the printer model and click "Next". If your printer is not in the list, click "Have Disk..." to install the driver of the printer. After installation, the printer model will be added to the list.

Step7. Name your printer and setup the default printer, click "Next".

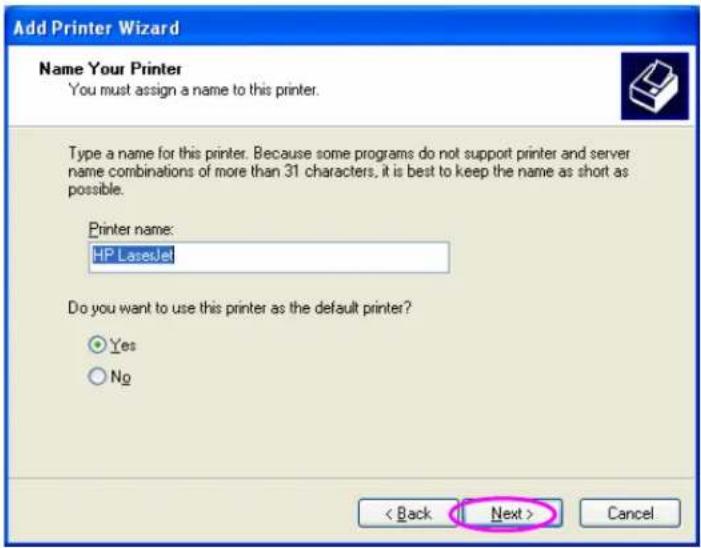

Add Printer Wizard Name Your Printer You must assign a name to this printer. Type a name for this printer. Because some programs do not support printer and server name combinations of more than 31 characters, it is best to keep the name as short as possible. Printer name: HP LaserJet Do you want to use this printer as the default printer? Yes No < Back Next > Cancel

Step8. Choose to print the test page or not. It is recommended to print a test page. Click "Next".

Add Printer Wizard Print Test Page To confirm that the printer is installed properly, you can print a test page. Do you want to print a test page? Yes No < Back Next > Cancel

Step9. You have added the printer to the PC successfully. The information of the printer is displayed in the windows. Click "Finish".

Add Printer Wizard Completing the Add Printer Wizard You have successfully completed the Add Printer Wizard. You specified the following printer settings: Name: HP LaserJet Share name: Port: PS256002-P1 Model: HP LaserJet Default: Yes Test page: Yes To close this wizard, click Finish. < Back Finish Cancel

4. Windows NT/2000/2003 Network

4.1 System Architecture

In Windows network environment, other than the Peer-to-Peer network printing architecture described in the previous chapter, we also offer the Server-Based Printing architecture for Windows NT/2000/2003 server. Only one Windows NT/2000/2003 is required to have Windows PTPP (Peer-to-Peer Printing) driver installed and share the printing service on the network. Other network users can simply connect to the server and access the shared printer (see below).

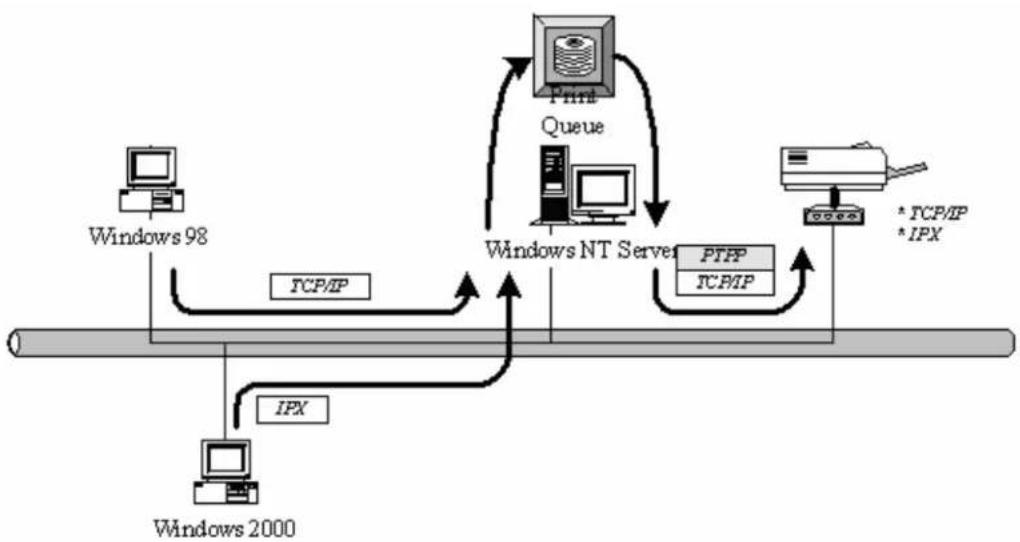

AIRLIVE P-201 - System Architecture - 1

4.2 Windows NT/2000/2003 Server Installation and Setup

Please follow the procedures described below for installation and construct a peer-to-peer connection (PTPP) between Windows NT/2000/2003 Server and Print Server.

AIRLIVE P-201 - Windows NT/2000/2003 Server Installation and Setup - 1

Step1.

If this is your first time installing print server, please install the administrator software on Windows NT/2000/2003 server first. Refer to section 3.2 for installation instructions.

If your network has already installed a working print server and your Windows NT/2000/2003 server has not yet installed the PTPP driver, please install the client software. Refer to section 3.4 and 3.5 for installation instructions.

Step2.

Please add/configure the Peer-to-Peer Printing of the Windows NT/2000/2003 network printer and verify that you can print from Windows NT/2000/2003 to the print server by the installed PTPP driver.

Step3.

Share the above server's printer to the network by performing the standard Windows printer sharing process.

4.3 User Installation and Setup

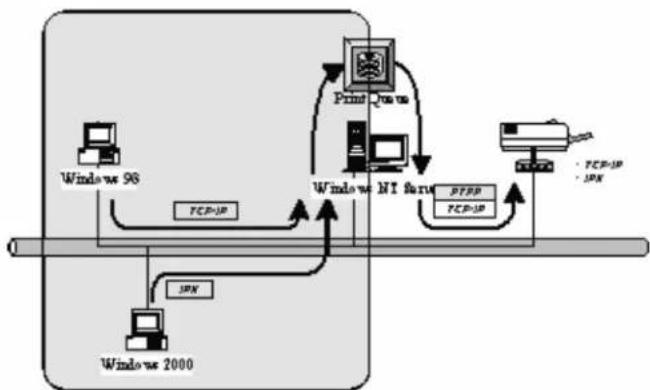

AIRLIVE P-201 - User Installation and Setup - 1

After server side's installation is completed, client side will be able to find the server's shared printer in Network Neighborhood. You only need to perform Window's standard Add New Printer procedure, select "Network Printer" shown in the screen below, and complete the configurations afterwards to access the shared printer.

Add Printer Wizard How is this printer attached to your computer? If it is directly attached to your computer, click Local Printer. If it is attached to another computer, click Network Printer ○ Local printer ● Network printer < Back Next > Cancel

5. NetWare Network

5.1 System Architecture

We implemented NetWare printer sharing functionality into the print server itself, thus allowing one or more printers attached by a print server to be connected to the network. We have developed the print server to support NetWare print server.

Embedded print server, which emulates the “queue management functionality” of NetWare print server, PSERVER program running on the NetWare server. A user first prints a job at a workstation, the job is routed to a NetWare server, the NetWare server stores the job in a print queue and then the print server gets the print job from the queue to printers.

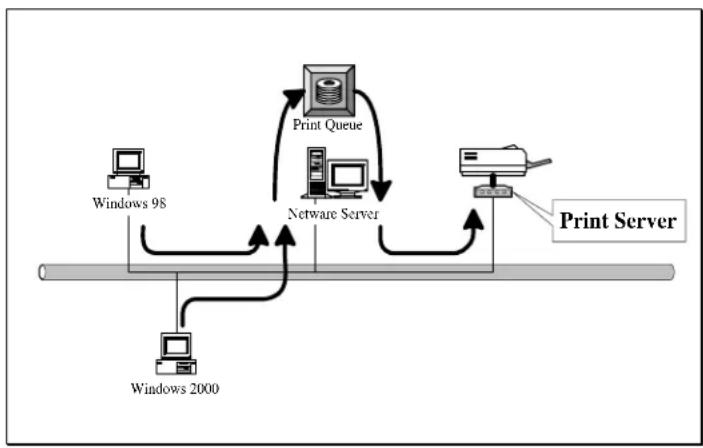

AIRLIVE P-201 - System Architecture - 1

Compare with NetWare printing functionality, the advantages of embedding the NetWare network printing functionality in the print server include:

Installation is easier and quicker.

Network management is easier.

Printing performance is enhanced.

Relieve NetWare file server's burden.

Relieve the need of a workstation running the remote printer utility.

Improve productivity by locating the printer near the workgroup.

Each print server should log into a NetWare server before servicing the print jobs. Each print server will occupy a user account with which it can log into the NetWare server.

5.2 NetWare 3.x/4.x/5.x Installation & Setup

Once your print server is connected to your Ethernet network, you can set it up for use with your networking software.

5.2.1 Installation Using PCONSOLE

5.2.1.1 Configuring as Print Server Mode

Run the NetWare PCONSOLE program.
Change the current file server, if necessary, using the Change Current File Server menu selection.
Choose the Print Queue Information menu selection.
Press the Insert key to add a new print queue.
Type in a print queue name, such as "PQ" or "Q1".

NetWare Print Console U3.75 Friday July 31, 1998 5:14 User SUPERVISOR On File Server SERVER Connection 2 Print Queues available Options ge Current File Server t Queue Information New Print Queue Name: PS30100C_Q1_

You have now successfully created the print queue that your print server will serve. Press the Escape key until the Available Options main menu is displayed.
Select Print Server Information.
Press the Insert key to add a new NetWare print server object. The print server name can be identical to the PSxxxxxx name printed on the label of the print server.

NetWare Print Console U3.75 User SUPERUISOR On File Server SERVER Connection 2 Print Servers available Options ge Current File Server t Queue Information New Print Server Name: PS30100C

Press Enter to select the newly created print server.
Select Print Server Configuration.
Select Printer Configuration.
Select Printer 0 (or Printer 1, Printer 2), and press Enter, then select LPT1 (or LPT2, LPT3) in the Type field. If your print server is with only one port, you do not need to configure this Type field.

Press Escape, and answer Yes to the Save Changes question.
Select Queues Serviced by Printer, then select Printer 0 (or Printer 1, Printer 2) and press Enter.
Press Insert and add your newly created print queue to the list of queues serviced by the printer. Enter a priority number for the queue service, or press Enter to accept the default.

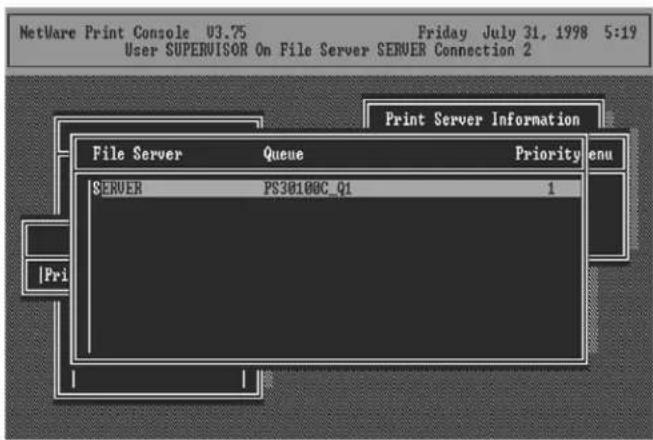

NetWare Print Console U3.75 User SUPERVISOR On File Server SERVER Connection 2 Print Server Information File Server Queue Priority SERVER PS30100C_01 1 |Pri

Repeatedly press Escape to exit the PCONSOLE program.
Reset the print server to have the changes take effect.

NOTE: If the print server you have is with multiple printer connectors, you may create multiple print queues and printer objects.

Your print server should now be ready to use. You should be able to redirect printing to your print server using a CAPTURE command such as the one shown in the previous section.

6. UNIX System Network

6.1 Introduction

The print server is available for TCP/IP printing by Unix LPD (Line Printer Daemon) protocol. The LPD protocol originated with Unix release is based on the BSD version of Unix and supported under most versions of Unix.

This chapter explains how to configure the print server for TCP/IP operation, and how to modify configuration files on your Unix system to allow printing to the print server. The configuration examples in this manual follow the syntax for BSD based Unix systems. Please refer to the related system documentation for the correct syntax of your systems.

To configure the print server for LPD printing, perform the procedures below:

Enable Print Server's TCP/IP Support.
Set up Print Server's IP address.
Verify Print Server's IP Address.
Configure remote LPD printing on the host.
Print a test page.

In the next sections, we will describe these five procedures step by step.

6.2 Enable Print Server's TCP/IP Support

The default configuration of the print server is with TCP/IP support enabled. Anyway, you can configure the print server to enable TCP/IP support using the configuration program.

6.3 Setup Print Server's IP Address

The print server must have a unique IP address in order to be recognized by the network.

You can set up the IP address on the various Unix systems using any one of the following methods:

DHCP (Dynamic Host Configuration Protocol)
BOOTP (Bootstrap Protocol)

The print server will use the last three methods to obtain its IP address automatically if its IP address is configured as Auto (0.0.0.0).

6.3.1 DHCP

There are many Unix systems that support DHCP protocol, and the procedures to configure the DHCP server database are different. This manual does not describe the DHCP server configuration on the Unix systems. It is highly recommended that the DHCP server should be located on the same network as the print server.

6.3.2 BOOTP

If you have the BOOTP daemon, bootpd, running on your UNIX system that is accessible by the print server, you can use the BOOTP protocol to set up the IP address of the print server. We recommend that the BOOTP server should be located on the same subnet as the print server. If you use Network Information Services (NIS) in your system, you may need to rebuild the NIS map with the BOOTP services before doing the following BOOTP configuration. To rebuild the NIS map, please refer to your system documentation.

To configure the IP address data for the BOOTP server, you will need to log in the host of BOOTP server as the superuser (root). Perform the following steps to add address entries,

Optionally, assign a name corresponding to the print server's IP address. You can add this address to the /etc/hosts file, by adding a line such as:
Add an entry to the host's /etc/bootptab file, similar to the following:

hostname:\

:ht=1:\

:ha=print_server_ethernet_address:

:ip=print_server_ip_address:

Lines should be indented with tabs.

Where hostname is the device name of a print server, the ht=1 tag specifies the hardware type is Ethernet, the ha= tag specifies the Ethernet address of a print server, which is the Node ID located on the print server. The ha tag must be preceded by the ht tag. The ip= tag should correspond to the IP address you want to assign to the print server.

For example, a print server with the following configuration:

Node ID: 0000B4010101 (this implies Ethernet

address is 0000B4010101),

IP address: 203.66.191.12

The entry for this print server in the /etc/bootptab file should be:

PS010101:\

:ht=1:\

:ha=0000B4010101:\

:ip=203.66.191.12:

6.4 Verify Print Server's IP Address

To verify that your print server is responding to the newly assigned IP address using a PING command:

ping ip-address

6.5 Configure Remote LPD Printing on the Host

The procedure you use to configure your Unix host(s) to allow printing to your network remote print server varies between different varieties of Unix. The procedure below can be used for Unix variants that are related to BSD Unix, such as SunOS or Linux. For other versions of Unix, consult your system documentation, keeping in mind that:

The print server should be treated as a BSD networked print server host.
The host name should be the name (or IP address) that you have assigned to the print server.
The printer name (or queue name) on the remote host should be lpt1, lpt2 or lpt3, the name of the printer port on the print server.

You will need to perform the tasks below, logged in as the superuser (root). To configure your Unix host for printing,

Optionally, assign a name corresponding to the print server's IP address. You can add this address to the /etc/hosts file, by adding a line such as:

203.66.191.186

pserver

Create a spool directory for the printer in the same directory where spool directories are normally kept on the machine, such as /var/spool or /var/spool/lpd:

mkdir /var/spool/lpd/pserverd chown daemon /var/spool/lpd/pserverd chgrp daemon /var/spool/lpd/pserverd chmod 775 /var/spool/lpd/pserverd

Add an entry to the host's /etc/printcap file, similar to the following:

printer-name:

:Ip=:\

:rm=203.66.191.186:\
:rp=lpt1:\
:lf=/var/spool/lpd/pserverd.log:\
:sd=/var/spool/lpd/pserverd:\
:mx#0:

Lines should be indented with tabs. More than one printer name can be used, with variants separated by vertical bars (name1|name2).

The rm= entry should correspond to the IP address you have assigned to the print server. You can also use a host name if you have assigned one in the /etc/hosts file.

The sd= entry should correspond to the spool directory you created in the previous step.

The rp= entry should correspond to the port name of the remote printer. The values should be one of lpt1, lpt2 or lpt3 depends on the printer port.

The print server should now be available for printing from your Unix host.

7. Print Server Configuration Utility

7.1 Introduction

This chapter introduces print server's system configuration utility in Windows environment. This utility is automatically installed during Windows Administrator Utility installation procedure - refer to section 3.2 and 3.3.

This utility provides the most complete management and configuration functions on the print server side. This utility only provides configuration functions for print server itself; it does not include configuration functions for client side or other file server or NetWare server in the network environment. The Configuration Utility provides the following configuration and management functions:

Search Print Server: Search All Available Printer Servers on the Network.

Print Server Status: Display Print Server Network Status.

General Configuration: General Information of print server.

TCP/IP Configuration: IP Address and DHCP Server Configuration.

NetWare Configuration: NetWare Printing Configuration.

AppleTalk Configuration: AppleTalk Protocol Setting.

Bonjour: Allow you to configure the Bonjour function.

SNMP Configuration: SNMP Information Configuration.

SMB: Configure the SMB Group Name.

System Configuration: Print Server Network Ability Setting and Firmware Upgrade.

Setup Wizard: Guide You Through All the Settings.

Report: List the Status of All Available Print Servers on the Network.

We will explain each function separately in the following section.

7.2 Search for All Available Print Server

Every time when you run print server's configuration utility, click the "Search" icon on the tool bar. The configuration utility will delay for several seconds because the utility is using system's available network protocols to search for all print servers on the network. All available print servers will be listed under "Print Server Group" on the left side of the window.

You must select the print server you would like to configure from the list. The system will, at the same time, display the selected print server's status on the right side of the window.

7.3 Status of Print Server

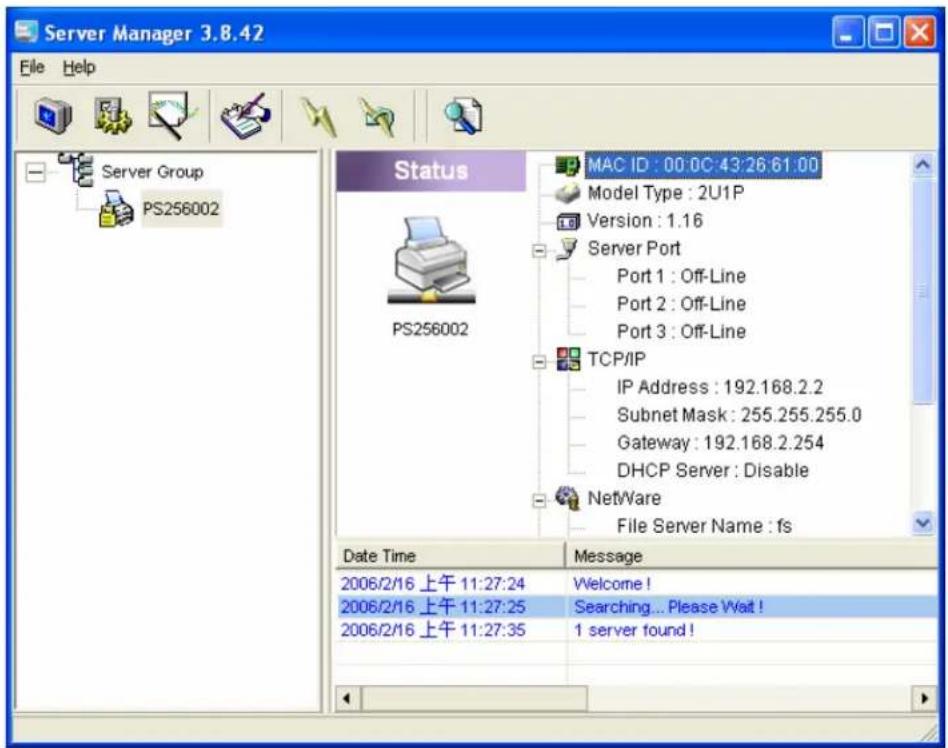

Click "Status" icon on the tool bar, the status of the current selected print server will be showed on the right side of the window.

The information of the print server displayed are MAC ID, Model Type, Firmware Version, status of each printer port, NetWare file server name, NetWare file server polling interval, NetWare printer queue names, IP address, subnet mask, default gateway, AppleTalk printer type, AppleTalk zone and print server printing ability...etc.

You can refresh the print server's status by pressing the "Refresh" button

You can restart the print server by pressing the "Reboot" button

AIRLIVE P-201 - Status of Print Server - 2

7.4 Setup the Print Server

Server Manager 3.8.39 File Help Server Group PS2560002 Setup General TCP/IP NetWare PS2560002 AppleTalk SNMP SMB System Date Time Message 1/3/2006 5:00:16 PM Welcome ! 1/3/2006 5:00:17 PM Searching... Please Wait ! 1/3/2006 5:00:21 PM 1 server found !

Click "Setup" icon 📄 on the tool bar, the setup items of the current selected print server will be showed on the right side of the window.

Double click one of the icons to set up the selected print server. A screen will pop up to verify "User Name" and "Password" of the print server. The default values are as follows.

User Name: admin
Password: airlive

7.5 General Configuration

General - PS256002 General General Settings Device Info MAC ID: 00:0C:43:26:61:00 Type: 2U1P Version: 1.16 Port No: 3 Server Name: PS256002 Set User Name/Password User Name: Password: Retype Password: Save Cancel

Double Click “General” icon and the General configuration window will pop-up.

You can see basic print server information in this page. You also can configure the “Print Server Name”, “SMB Group Name”, “User Name” and “Password” here.

Server Name, the name of the print server. You can use this name to identify the print server when you are searching for the print server by the administration and client utilities.

User Name / Password is used to authenticate the administrator by the Web administration tool.

7.6 TCP/IP Configuration

TCP/IP - PS256002 TCP/IP TCP/IP Settings IP DHCP Server Auto IP Static IP IP Address: 192 168 2 2 Subnet Mask: 255 255 255 0 Gateway: 192 168 2 254 Save Cancel

TCP/IP - PS256002 TCP/IP TCP/IP Settings IP DHCP Server Enable Disable Starting Address: 192 168 2 100 Ending Address: 192 168 2 200 Gateway: 0 0 0 0 DNS: 0 0 0 0 Save Cancel

Double Click “TCP/IP” icon and the TCP/IP configuration window will pop-up.

You can configure the print server to automatically get IP from DHCP server or manually specify static IP. The print server also has a built-in DHCP server. You can enable this DHCP server and let it manages IP for you.

Click the “IP” button to enter the IP setting page. If you need the print server to automatically get an IP from DHCP server, select “Auto IP”. You also can select “Static IP” to manually assign “IP Address”, “Subnet Mask” and “Gateway” for the print server.

Click the “DHCP Server” button to enter the DHCP server’s setting page. You can “Enable/Disable” the DHCP server and assign a range of IP addresses here. The DHCP server is disabled by default. When “Enable” is selected, you have to configure “Starting Address”, “Ending Address”, “Gateway” and “DNS”. The print server will assign a unique IP for each client.

7.7 Netware Print Server Configuration

NetWare - PS256002 NetWare NetWare Settings Polling Time : 3 (Sec.) File Server to be serviced NetWare Server : Save Cancel

Double Click "NetWare" icon and the NetWare configuration window will pop-up.

This print server supports NetWare Bindery Printing method. The print server periodically polls the NetWare server printer queues for printing jobs. You have to assign the NetWare server name, print server polling interval and the name of queue on the NetWare server for each printer port.

Polling Time is the polling interval of the print server for waiting printing jobs on the NetWare server.

Queue Serviced by Printer is the name of the printer queue on the NetWare server. The printer queue keeps all printing jobs waiting on the NetWare server. You have to assign a printer queue for each printer port of this print server.

NetWare Server is the name of the NetWare file server that provides printer queues.

7.8 AppleTalk Configuration

AppleTalk - PS256002 AppleTalk AppleTalk Settings Zone Name : Printer Type Port 1: LaserWriter Port 2: LaserWriter Port 3: LaserWriter Save Cancel

Double Click “AppleTalk” icon and the AppleTalk configuration window will pop-up.

AppleTalk is a data communication protocol often used by Macintoshes. The print server can use these parameters to join the AppleTalk network and share the printer to other AppleTalk workstations. You have to setup the “Zone Name” and “Printer Type” for each printer port of this print server.

Zone Name: Print server has to join zones of AppleTalk before it can be shared to other workstations. Only workstations in the same zone can share the printer. If you want to share the printer to all workstations in all Zones, you should enter only “*” in the “Zone Name” field.

Printer Type, the type of printer attached to each printer port. You can get the printer type from the manufacturer of the printer.

7.9 SNMP Configuration

SNMP - PS256002 SNMP SNMP Contact : Location : Save Cancel

Double Click "SNMP" icon and the SNMP configuration window will pop up.

Contact: You can enter the print server administrator's contact information here. This information will be displayed in the SNMP management tool.

Location: You can enter the installed location of the print server here. This information will be displayed in the SNMP management tool.

7.10 SMB Configuration

SMB - PS256002 SMB SMB Group Name : WORKGROUP ✓ Pass Job When Error Occured Waiting time to Pass Job : 20 seconds(1~60) Save Cancel

SMB Group Name, the name of SMB group that this print server belongs to. All PC should join the same group before they can use this print server by SMB protocol.

Pass Job when Error Occurred: When the printer is interrupted because of paper out or off line while printing, user can enable this function and set the interval time to bypass the current printing job. Or the printing document will not be printed completely or with unformatted messages.

Waiting Time to Pass Job: The range is from 1 to 60 seconds. By default, the parameter is enabled and the default waiting time is 20 seconds.

7.11 System Configuration

System - PS256002 System System Settings Enable Appletalk Printing Enable Bonjour Printing Enable LPR Printing Enable NetWare Binary Printing Enable TCP RAW Printing Enable IPP Printing Enable SMB Enable SNMP Enable NetBEUI Update : ... Upgrade Load Default Save Cancel

Double Click “System” icon and the System configuration window will pop-up.

In the System configuration page, you can select to enable/disable each printing or management protocol, assign name for each printer port of this print server, and upgrade the new firmware for this print server.

Port Name is the name of the printer port. The Print Server has three printer ports, two USB 2.0 ports and one parallel port. Each printer port has to be assigned a name. Then you can use this name to access the printer port. By default, the printer port name is "p1" for port 1, "p2" for port 2 and "p3" for port 3.

Upgrade: You can use this “Upgrade” tool to update the newest firmware of the print server. Click “” button and select the correct firmware in your PC. After selecting the firmware file, click the “Upgrade” button to finish the firmware update process.

Note that before you upgrade the firmware please make sure that the IP Address settings of the print server are in the same network as your computer.

7.12 Wizard

Server Manager 3.8.39 File Help Server Group PS256002 Wizard Print Server Setup Wizard PS256002 Date Time Message 12/12/2005 2:54:50 PM Welcome ! 12/12/2005 2:54:51 PM Searching... Please Wait ! 12/12/2005 2:55:00 PM 1 server found ! 12/12/2005 2:55:13 PM Verification Successful !

Click “Wizard” icon 📄 on the tool bar, the setup wizard item of the current selected print server will be showed on the right side of the window.

Double click the “Print Server Setup Wizard” the setup wizard will guide you through all the setup process.

Step 1: Set up the name of this print server and the port name for each printer port.

Print Server Setup Wizard - PS256002 General Settings Server Name: PS256002 Cancel Next >>

Step 2: Select to enable required printing protocol. Please refer to section 7.12 for detail information.

Print Server Setup Wizard - PS256002 System Settings Enable Appletalk Printing Enable Bonjour Printing Enable LPR Printing Enable NetWare Binary Printing Enable TCP RAW Printing Enable IPP Printing Enable SMB Enable SNMP Enable Telnet Enable NetBEUI Enable UPnP << Back Cancel Next >>

Step 3: Setup the IP of this print server and the DHCP server. Please refer to section 7.6 for detail information.

Print Server Setup Wizard - PS256002 TCP/IP Settings IP DHCP Server Auto IP Static IP IP Address: 192 168 2 2 Subnet Mask: 255 255 255 0 Gateway: 192 168 2 254 << Back Cancel Next >>

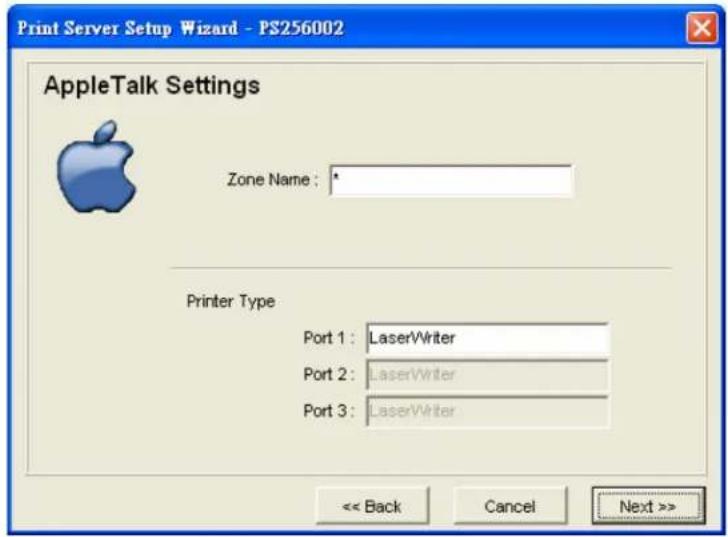

Step 4: Setup the AppleTalk printing. Please refer to section 7.8 for detail information.

Print Server Setup Wizard - PS256002 AppleTalk Settings Zone Name: Printer Type Port 1: LaserWriter Port 2: LaserWriter Port 3: LaserWriter << Back Cancel Next >>

Step 5: Setup the NetWare printing. Please refer to section 7.7 for detail information.

Print Server Setup Wizard - PS256002 NetWare Settings Polling Time : 3 (Sec.) File Server to be serviced NetWare Server : << Back Cancel Next >>

Step 6: Click "Save" to finish setting. Please reboot the print server to let these settings take effect.

Print Server Setup Wizard - PS256002 Setup Status Summary Server Name: PS256002 Print Protocol AppleTalk Printing: Enable Bonjour Printing: Not Support LPR Print: Enable NetWare Binary Printing: Enable Raw Print: Enable IPP Print: Enable SMB: Enable SNMP: Enable NetBEUI: Enable IP Settings << Back Cancel Save

7.13 Report

Click "Report" icon 📄 on the tool bar, the Report window will pop up.

The report lists basic information of all available print servers on the network. The information includes Device Name, MAC ID, Model Type and Firmware Version of print server.

8. Web Management

8.1 Introduction

Print server can be configured and managed on the Web. Through Local Area Network, or even Internet, administrator can easily configure and manage print server's various main functions in browsers. Simply enter print server's IP address into your browser's address field to manage a print server by print server's built-in Web Server.

The default IP Address, User Name and Password settings of the Print server are as follows.

IP Address: 192.168.2.2

User Name: Admin

Password: airlive

You may use any Web Browser to review the status or configure the settings of the print server. After entering the IP address of the print server, a login page display. You have to enter correct “User Name” and “Password” before going to the Web Management pages.

Notes: Default User Name is "admin", default password is "airlive".

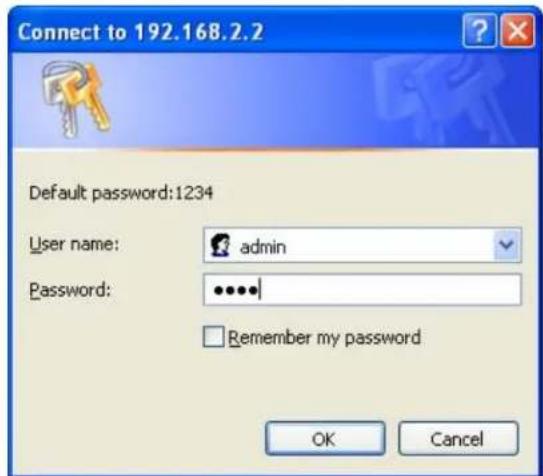

Connect to 192.168.2.2 Default password:1234 User name: admin Password: ••••• Remember my password OK Cancel

8.3 Device Status

8.3.1 System

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com | Device Setup | Setup Wizard | System Tools |

STATUS SYSTEM	This page displays the current system settings of the print server.
SYSTEM Printer TCP/IP SMB SNMP NetWare AppleTalk	System Information
	Device Name :	PSCBA03C	Raw Printing :	Enable
	Printer Server Name :		IPP Printing :	Enable
	Model Type :	OP-101P	LPR Printing :	Enable
	Firmware Version :	2.7.21	AppleTalk Printing :	Enable
	MAC Address :	00:00:B4:CB:A0:3C	NetWare Printing :	Enable
	USB Port Number :	No	SMB :	Enable
	LPT Port Number :	1	SNMP :	Enable
	Wireless Lan Status :	No	NetBEUI :	Enable

System Information includes “Device Name”, “Print Server Name”, “Model Type”, “System Up Time”, “Firmware Version”, “MAC Address” and the protocols enabled status, etc.

8.3.2 Printer

The Print Server can communicate with the printer to get the printer information including printer manufacturer, model number, printing language supported, and also the printer's status. This page lists the information of printers connected to all printer ports.

8.3.3 TCP/IP

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com Device Setup Setup Wizard System Tools STATUS TCP/IP SYSTEM Printer TCP/IP SMB SNMP NetWare AppleTalk This page displays the current TCP/IP settings of the print server. TCP/IP Settings Use DHCP/BOOTP : Off IP Address : 192.168.1.2 Subnet Mask : 255.255.255.0 Gateway : 0.0.0.0 Use DHCP Server : Off

This page lists all TCP/IP settings of the print server including "IP Address", "Subnet Mask" and "Gateway". It also lists DHCP server setting.

8.3.4 SMB

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com Device Setup Setup Wizard System Tools STATUS SMB SYSTEM Printer TCP/IP SMB SNMP NetWare AppleTalk This page displays the current SMB settings of the print server. SMB Settings SMB function : Enable SMB Group Name : WORKGROUP Pass Job When Error Occured : Disable Waiting time to pass job : 0 Sec

This page lists the SMB group and the pass job interval time settings of the print server.

8.3.5 SNMP

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com Device Setup Setup Wizard System Tools STATUS SNMP SYSTEM Printer TCP/IP SMB SNMP NetWare AppleTalk This page displays the current SNMP settings of the print server. SNMP Settings SNMP System Contact : None SNMP System Location : None

This page lists the SNMP settings of the print server. It includes the settings of "SNMP System Contact" and "SNMP System Location".

8.3.6 NetWare

This page lists NetWare settings, including "Polling Time", "Use Bindery Mode", "Name of the File Server" and "Port Attached Queue".

8.3.7 AppleTalk

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com Device Setup Setup Wizard System Tools STATUS AppleTalk SYSTEM Printer TCP/IP SMB SNMP NetWare AppleTalk This page displays the current AppleTalk settings of the print server. AppleTalk Settings AppleTalk Zone Name : * Printer 1 Printer Type : LaserWriter

This page lists AppleTalk settings, including “AppleTalk Zone Name” and “Printer Type” of printers connected to all print ports.

8.4 Setup Wizard

8.4.1 System

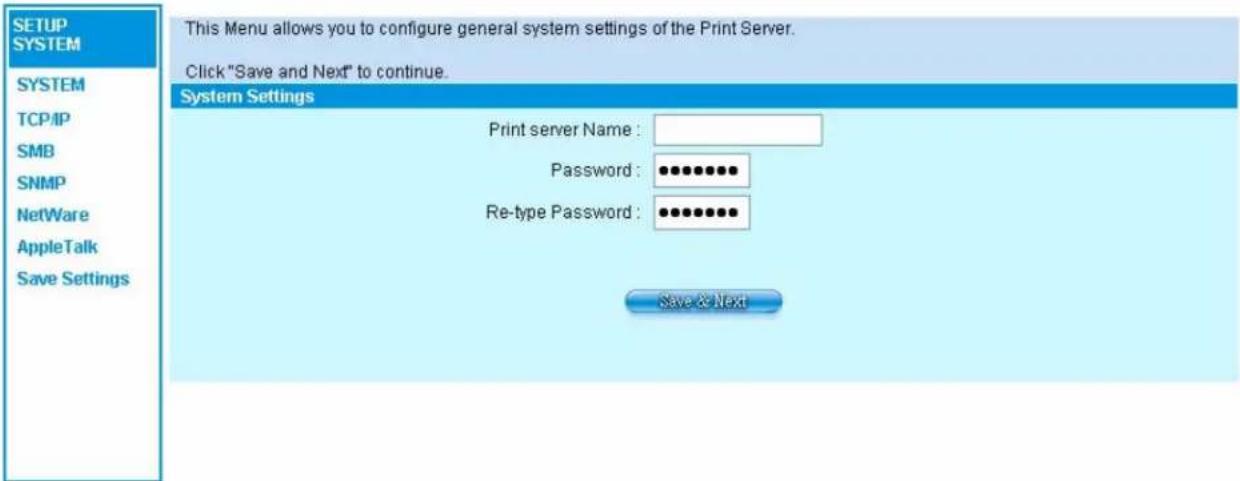

You can change the print server name and port name of the print server from here.

Print Server Name, the name of the print server. You can use this name to identify the print server when you are searching for the print server by the administration and client utilities. By default, the print server name is the last 6-digit of MAC ID with prefix "PS".

8.4.1.1 Admin Password

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com | Device Setup | Setup Wizard | System Tools |

SETUP SYSTEM SYSTEM TCP/IP SMB SNMP NetWare AppleTalk Save Settings This Menu allows you to configure general system settings of the Print Server. Click "Save and Next" to continue. System Settings Print server Name : Password : ••••••••• Re-type Password : •••••••••• Save & Next

It allows you to change the password of the print server.

Name is the administrator name of the print server. If you change the user name, you have to login to the print server from administrator utility or web management with the new name. The default user name is "admin".

Password, enter the password you want to change to the print server. The password can be up to 8-digit alphanumeric format. The default password is "1234".

Re-type Password, enter the password you want to change to the print server again.

8.4.1.2 Advanced Settings

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com | Device Setup | Setup Wizard | System Tools |

SETUP SYSTEM SYSTEM TCP/IP SMB SNMP NetWare AppleTalk Save Settings This page allows you to configure Advance settings for the Print Server. Click "Save and Next" to continue. System Configure IPX: Enable TCP/IP Printing(LPR/IPP/RAW/SMB): Enable NetBEUI: Enable AppleTalk Printing: Enable Save & Next

You can enable/disable the printing protocols and management tools from the screen. To enable the function, please select "Enabled"; to disable the function, please select "Disabled".

8.4.2 TCP/IP

If you need the print server to automatically get an IP from DHCP server, select "Enable Obtain TCP/IP Settings Automatically (Use DHCP/BOOTP)". You also can select "Disable Use the following TCP/IP Settings" to manually assign "IP Address", "Subnet Mask" and "Gateway" for the print server.

You can enable/disable the print server's DHCP server. The DHCP server is disabled by default. If the DHCP Server is enabled, you have to assign a range of IP addresses here. Fill in the "Start IP", "Range", "Gateway", "DNS" and "Domain", and the print server will assign a unique IP for each client.

8.4.3 SMB

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com Device Setup | Setup Wizard | System Tools | SETUP SYSTEM SYSTEM TCP/IP SMB SNMP NetWare AppleTalk Save Settings This page allows you to configure SMB settings for the Print Server. Click "Save and Next" to continue. SMB Configure SMB Enable : Enable SMB Group Name : WORKGROUP Pass Job When Error Occurred: Disable Save & Next

You can enable/disable the SMB protocol from here. If SMB is enabled, enter the "SMB Group Name" to specify the SMB group that this print server belongs to. All PC should join the same group before they can use this print server by SMB protocol.

8.4.4 SNMP

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com | Device Setup | Setup Wizard | System Tools |

SETUP SYSTEM SYSTEM TCP/IP SMB SNMP NetWare AppleTalk Save Settings This page allows you to configure SNMP settings for the Print Server. Click "Save and Next" to continue. SNMP Configure SNMP System Contact : SNMP System Location : Save & Next

The print server supports SNMP configuration. If it is enabled, please set up the following parameters.

SNMP System Contact: You can enter the print server administrator's contact information here. This information will be displayed in the SNMP management tool.

SNMP System Location: You can enter the installed location of the print server here. This information will be displayed in the SNMP management tool.

8.4.5 NetWare

Polling Time is the polling interval of the print server for waiting printing jobs on the NetWare server.

Name of the File Server is the name of the NetWare file server that provides printer queues.

Attached Queue is the name of the printer queue on the NetWare server. The printer queue keeps all printing jobs waiting on the NetWare server. You have to assign a printer queue for each printer port of this print server.

8.4.6 AppleTalk

AppleTalk is a data communication protocol often used by Macintoshes. The print server can use these parameters to join the AppleTalk network and share the printer to other AppleTalk workstations. You have to select to enable or disable AppleTalk, and setup the "Zone Name" and "Printer Type" for each printer port of this print server.

AppleTalk Zone Name: Print server has to join zones of AppleTalk before it can be shared to other workstations. Only workstations in the same zone can share the printer. If you want to share the printer to all workstations in all Zones, you should enter only “*” in the “Zone Name” field.

Printer Type, the type of printer attached to each printer port. You can get the printer type from the manufacturer of the printer.

8.4.7 Save Settings

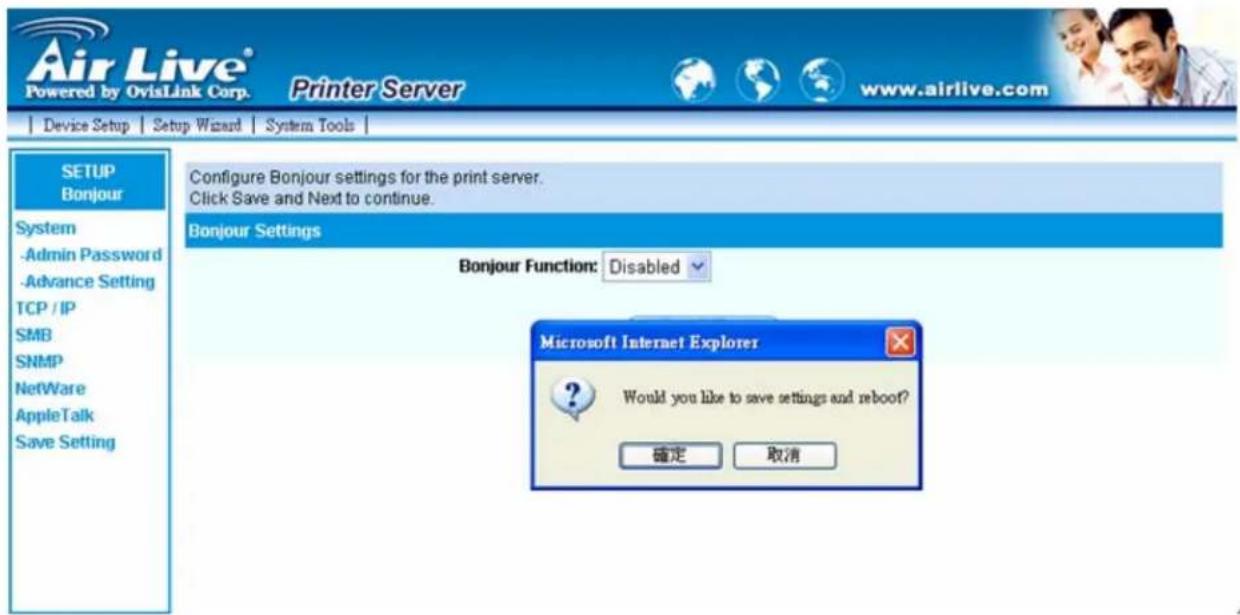

You can click the "Save Settings" to save the settings and restart the system.

8.5 System Tools

8.5.1 Load Default

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com Device Setup Setup Wizard System Tools SYSTEM Load Default Load Default Upgrade from Browser This menu allows you to restore the factory default settings. Load Factory Defaults Are you sure you want to load factory defaults ? OK

You can use this page to restore the factory default settings. All of your previous setup will be cleared.

8.5.2 Upgrade

Air Live® Powered by OvisLink Corp. Printer Server www.airlive.com | Device Setup | Setup Wizard | System Tools |

SYSTEM Upgrade Load Default Upgrade from Browser This Menu allows you to upgrade the firmware of the Print Server. Note: please make sure the firmware is correct before you proceed. If you do not know which firmware file you should use, please contact your local dealer for technical support. Firmware Upgrade Select a File : Browse... OK

You can upgrade new firmware for this print server in this page. Click "Browse" to select the new firmware in your storage and then click "OK", the firmware will be updated in several minutes.

Note that before you upgrade the firmware please make sure that the IP Address settings o the print server are in the same network as your computer.

Be aware that if you have started upgrading firmware, you have to follow all the upgrading steps or the print server can't turn back to normal configuration.

9.Telnet Management

9.1 Introduction

Print server can be configured and managed by Telnet. Through Local Area Network, or even Internet, administrator can easily configure and manage print server's various main functions by a telnet client.

Execute the Telnet client tool and connect to the print server IP.

telnet 192.168.2.2

Then you will be prompted to enter the username and password.

Please enter your user name and password!! Login:admin Password:

After you successfully enter the correct username and password, the following prompt will be displayed and you can start to manage this print server by command.

admin#

9.3 Get Setting Values – “get” Command

“get” command is used to get the setting values of this print server. The format of “get” command is as following:

get argument

Then the argument value will be displayed after the command. For example, if I want to get IP address of the print server, I type “get ip” command and the IP value “IP_ADDR='192.168.2.2'" is displayed:

admin# get ip

IP_ADDR='192.168.2.2'

If you enter “get” only, the system will list all available arguments of “get” command.

The following table lists all the arguments whose value can be got by “get” command:

Argument	Description Example
psname	Print server name admin#	get psnamePORT1_PS='PS254896'
password	Login password admin# get	passwordUSER_PASSWORD='1234'
username	Login username admin# get	usernameUSER_NAME='admin'
ip	IP of the print server ad	min# get ipAP_ADDR='192.168.2.2'
gateway	Default gateway of the print server	admin# get gatewayDEFAULT_GATEWAY='192.168.2.254'
submask	Subnet mask of the print server	admin# get submaskSUBNET_MASK='255.255.255.0'

Argument	Description Example
polling	Polling interval (in second) of the print server for waiting printing jobs on the NetWare server	admin# get pollingPORT1_POLLTIME=3
aq1	Name of the printer queue	admin# get aql
	on the NetWare server PORT1_QNAME='PQ1'
applezone	The name of AppleTalk zone that this print server joins to	admin# get applezonePORT1 APPLEAONE='*'
printertype1	The type of the printer attached to this print server	admin# get printertype1PORT1_PRINTTYPE='LaserWriter'
SMBDG	The name of the SMB group name that this print server joins to	admin# get SMBDGSMBD_NAME='default'
SNMPC	The administrator contact information of this print server for SNMP	admin# get SNMPCSNMP_CONTACT='sbdjohn@hotmail.com'
SNMPL	The installed location of this print server for SNMP	admin# get SNMPLSNMP_LOCATION='Room 301'
port1	The port name of this print server	admin# get port1PORT1_LPTNAME='lpt1'
DHCPS	The DHCP server is enabled or disabled0: disable1: enable	admin# get DHCPSDHCPD=0
DHCP	Get dynamic IP by DHCP is enabled or disabled0: disable1: enable	admin# get DHCP DYNAMIC_IP=0
appletalk	AppleTalk printing is enabled or disabled0: disable1: enable	admin# get appletalkAPPLE_ENABLE=0
SMBD	SMB printing is enabled or disabled0: disable1: enable	admin# get SMBDSMBD_ENABLE=1
SNMP	SNMP management protocol is enabled or disabled0: disable1: enable	admin# get SNMPSNMP_ENABLE=1
IPX	NetWare Bindery printing is enabled or disabled0: disable1: enable	admin# get IPXIPX_ENABLE=1
LPD	LPR printing is enabled or disabled0: disable1: enable	admin# get LPDLPD_ENABLE=1

Argument	Description Example
IPP	IPP printing is enabled or disabled0: disable1: enable	admin# get IPPIPP_ENABLE=1
RAW	RAW printing is enabled or disabled0: disable1: enable	admin# get RAWRAW_ENABLE=1

9.4 Modify Setting Values – “set” Command

“set” command is used to modify the setting values of this print server. The format of “set” command is as following:

set argument_name value

Then the value will be written into the system configuration. For example, if you want to set IP address of the print server to 192.168.2.2, type “set ip ‘192.168.2.2’” command and the IP of the print server will be changed:

admin# set ip 192.168.2.2

If you enter only “set”, the system will list all arguments of “set” command and the command format.

The following table lists all the arguments whose value can be modified by “set” command:

Argument	Description	Example
psname	Print server name set psn	ame PS001
password	Login password set password	rd 1234
username	Login username set username	me admin
ip	IP of the print server set	ip 192.168.2.2
gateway	Default gateway of the print server	set gateway 192.168.2.254
submask	Subnet mask of the print server	set submask 255.255.255.0
polling	Polling interval (in second) of the print server for waiting printing jobs on the NetWare server	Set polling 3
aq1	Name of the printer queue on the NetWare server	set aql PQ1
applezone	The name of AppleTalk zone that this print server joins to	set applezone Apple
Argument	Description Example
printertype1	The type of the printer attached to this print server	set printertype1 LaserW Riter
SMBDG	The name of the SMB group name that this print server joins to	set SMBDG default
SNMPC	The administrator contact information of this print server for SNMP	set SNMPC sbdjohn@hotmail.com
SNMPL	The installed location of this print server for SNMP	set SNMPL Room301
port1	The port name of this print server	set port1 lpt1
DHCPS	Enable or disable the DHCP server.The value should be "disabled" or "enabled".	set DHCPS disable
DHCP	Enable or disable to get dynamic IP by DHCP.The value should be "disabled" or "enabled".	set DHCP disable
appletalk	Enable or disable AppleTalk printingThe value should be "disabled" or "enabled".	set appletalk disable
SMBD	Enable or disable SMB printingThe value should be "disabled" or "enabled".	set SMBD enable
SNMP	Enable or disable SNMP management protocolThe value should be "disabled" or "enabled".	set SNMP enable
IPX	Enable or disable NetWare Bindery printingThe value should be "disabled" or "enabled".	set IPX enable
LPD	Enable or disable LPR printingThe value should be "disabled" or "enabled".	set LPD enable
IPP	Enable or disable IPP printingThe value should be "disabled" or "enabled".	set IPP enable
RAW	Enable or disable RAW printingThe value should be "disabled" or "enabled".	set RAW enable

9.5 Other Commands

9.5.1 ipconfig

“ipconfig” command is used to quickly get the IP settings (IP, subnet mask, default gateway) of the print server:

admin# ipconfig

IP_ADDR=192.168.2.2

SUBNET_MASK=255.255.255.0

DEFAULT_GATEWAY=192.168.2.254

9.5.2 reboot

“reboot” command is used to restart the print server:

admin# reboot

9.5.3 exit

“exit” command is used to leave the print server telnet management:

admin# exit

9.5.4 help

“help” command is used to list all telnet management commands of the print server:

admin# help

set argument value

get argument

ipconfig

reboot

exit

10. IPP Printing

10.1 Introduction

IPP (Internet Printing Protocol) Printing provides a convenient way of remote printing service by TCP/IP. The print server can support IPP printing by default. It is needless to do any setting. Any PC that can support IPP printing, for example Windows 2000/XP, can directly uses the print server by IP. By using the IPP printing, you can share the printer to all the PC's that can access the print server by IP. You can even share your printer to Internet users.

10.2 System Setup

10.2.1 Print Server Side

It is needless to do any setting on the print server side. Make sure the print server has correct IP settings. If you want to share the printers to Internet users, you have to set a real IP to the print server. You also have to make sure that any gateway; router or firewall does not block IPP protocol if you have these gateway devices installed in your network.

10.2.2 Client Side

You only need to perform Window's standard Add New Printer procedure.

Step1. Click “Start”, choose “Settings” and select “Printers and Faxes”.

Step2. Click "Add a Printer".

Step3. The “Add Printer Wizard” is displayed. Click “Next”.

Step4. Select "A network printer, or a printer attached to another computer". Click "Next".

Step5. Select “Connect to a printer on the Internet or on a home or office network” and enter the URL of print server. The URL format is “http://IP:631/Port Name”. The IP should be the print server’s IP. The number 631 is IPP standard port number. Port Name is the port name of print server that your printer is connected to. The default port name is “lpt1”. One example

of the URL is http://192.168.3.66:631/lpt1. After entering the URL of print server, click "Next".

Step7. Choose to set the print whether as a default printer or not. Click "Next".

Add Printer Wizard Default Printer Your computer will always send documents to the default printer unless you specify otherwise. Do you want to use this printer as the default printer? Yes No < Back Next > Cancel

Step8. You have added the network printer to the PC successfully. The information of the printer is displayed in the windows. Click "Finish".

Add Printer Wizard Completing the Add Printer Wizard You have successfully completed the Add Printer Wizard. You specified the following printer settings: Name: unknown on http://192.168.3.66:631 Default: Yes Location: Comment: To close this wizard, click Finish. < Back Finish Cancel

11. LPR Setting in MAC OS

LPR Printing (Line Printer Remote technology) allows Macintosh computers to connect to printers via TCP/IP. LPR Printing can be set up on any Macintosh with version 9.x above.

To enable LPR Printing in Macintosh, please follow the procedures below.

Step1. In the Desktop, click "System Preferences".

System Preferences

Step2. Click "Print & Fax".

System Preferences Personal Appearance Desktop & Screen Saver Dock Exposé International Security Hardware CDs & DVDs Displays Energy Saver Keyboard & Mouse Print & Fax Sound Internet & Network .Mac Network QuickTime Sharing System Accounts Classic Date & Time Software Update Speech Startup Disk Universal Access

Step3. From the "Print & Fax" screen, click "Set Up Printers...".

Print & Fax Printing Faxing Set Up Printers... Selected printer in Print Dialog: Last printer used Default paper size in Page Setup: US Letter Share my printers with other computers Click the lock to prevent further changes.

Step4. Click "Add" to add the new Print Server through TCP/IP.

Print & Fax Printing Faxing Printer List Make Default Add Delete Utility ColorSync Show Info In Menu Name Add Status Kind Host ✓ PS000888_lpt1 EPSON Stylus Color... ✓ PS123487_lpt1 EPSON Stylus Color ... Click the lock to prevent further changes.

Step5. Enter the "Printer Type", "Printer Address" and "Queue Name" and select the "Printer Model" to setup the Print Server. Click "Add" to continue.

Printer Type: LPD/LPR

Printer Address: Input the IP Address of the Print Server

Queue Name: The queue name of the Print Server is "lpt1"

Printer Model: Select the Printer Model that is attached to the Print Server.

Step6. The Print Server is installed completely. You can see it in the "Printer List".

Printer Setup Utility Edit View Printers Window Help Printer List Make Default Add Delete Utility ColorSync Show Info In Menu Name Status Kind Host LPT1 on 192.168.1.227 EPSON Stylus C61, CUPS+Gimp-Print v4.2.5 PS000000_lpt1 EPSON Stylus Color 740, CUPS+Gimp-Print v4.2.5 PS123487_lpt1 EPSON Stylus Color 740, CUPS+Gimp-Print v4.2.5

Step7. You can print a file to check whether the Print Server is installed successfully.

LPT1 on 192.168.1.227 Delete Hold Resume Stop Jobs SuperMario.jpg Spooling LPR job, 55% complete... Status Name Printing SuperMario.jpg

12. UPnP Setup

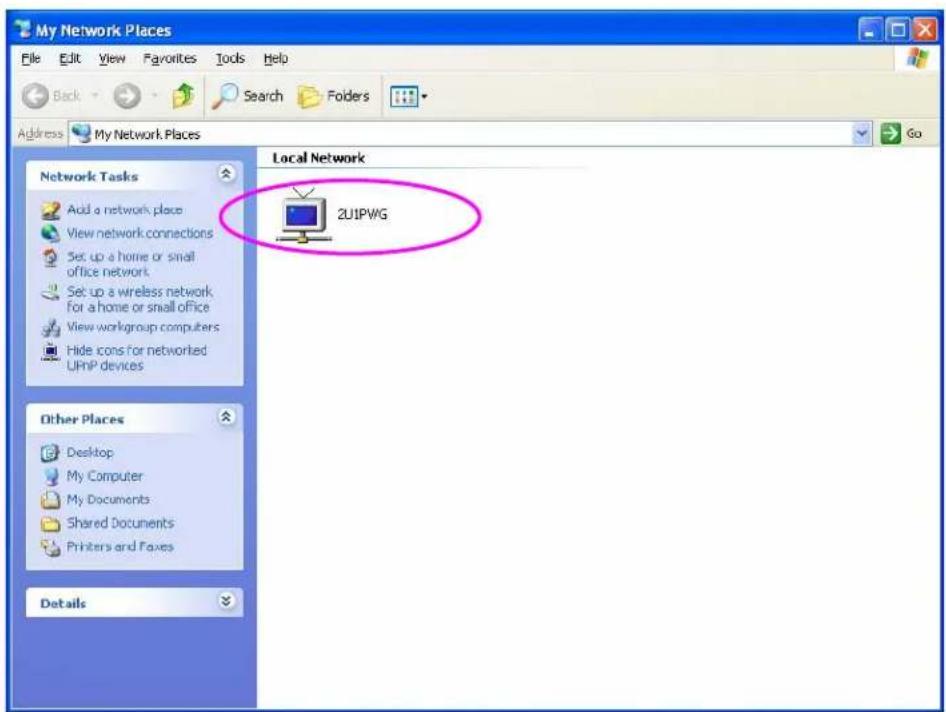

When the UPnP function is enabled, the print server can be detected by UPnP compliant system such as Windows XP. The print server will be displayed in the Neighborhood of Windows XP, so you can directly double click the print server or right click the print server and select “Invoke” to directly get into the web page of the print server for configuration.

Enable UPnP in Windows XP SP2

If you can't find the print server in the Neighborhood of Windows XP SP2 or you have seen the following message when you double click the print server. You have to check if UPnP function is blocked by the firewall. Please follow the steps below to enable it.

Show UPnP Device Icons To help protect your computer, Windows Firewall has blocked the UPnP device software from receiving information from the network. This information is necessary for displaying the icons. Do you want to open the Windows Firewall port settings so the software can detect networked UPnP devices? If you click No, the icons will not be displayed. Yes No

Step1. Click "Yes" on the above message or click "Start", choose "Settings" and select "Network Connections" to enable UPnP manually.

Step2. Right click the "Local Area Connection" and select "Properties".

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections LAN or High-Speed Internet 139H Connection Connected, Firewalled 139H Net Adapter Local Area Connection Connected, Firewalled Intel(R) PRO/100 YE Network .

Step3. In the “Local Area Connection Properties”, select “Advanced” option menu and click “Settings”.

Local Area Connection Properties General Advanced Windows Firewall Protect my computer and network by limiting or preventing access to this computer from the Internet Settings... If you're not sure how to set these properties, use the Network Setup Wizard instead. OK Cancel

Step4. The “Windows Firewall” screen will be popped up, select “Exceptions” option menu.

Step5. Enable "UPnP Framework" from the "Programs and Services list" and click "Ok".

13. Windows XP SP2 Setup

In Windows XP SP2, XP SP2's firewall would block the unknown communications. This print server has allowed the communications data passed through the XP SP2's firewall.

In case that you do not find any print server listed on the “Available Ports” in “Network Ports Quick Setup”, please follow the steps below.

Step1. Click "Start", choose "Settings" and select "Network Connections".

Step2. Right click "Local Area Connection" and select "Properties".

Step3. Select "Advanced" tab and click "Settings...".

Local Area Connection Properties General Authentication Advanced Windows Firewall Protect my computer and network by limiting or preventing access to this computer from the Internet Settings... If you're not sure how to set these properties, use the Network Setup Wizard instead. OK Cancel

Step4. Select "Exceptions" tab and click "Add Program...".

Step5. Click "Browse" to add a new program.

$Add a Program To allow communications with a program by adding it to the Exceptions list, select the program, or click Browse to search for one that is not listed. Programs: Admin Utility Camera Viewer CCS Configuration FreeCell Hearts Internet Backgammon Internet Checkers Internet Explorer Internet Hearts Internet Reversi Path: C:\Program Files\Internet Camera\admin\admi Browse... Change scope... OK Cancel$

Step6. Open the "NPUtil" file from "C:\Program Files\PrintServer Utilities" (where C:\ is the system drive).

Browse Look in: PrintServer Utilities My Recent Documents Desktop My Documents My Computer My Network NetWare WebDESK Administrator WinUtil NPUtil Remote Uninstall File name: NPUtil Files of type: Applications (*.exe;*.com;*.icd) Open Cancel

Step7. A new program “Network Ports Quick Setup” is displayed in the list, click “Ok”.

$Add a Program To allow communications with a program by adding it to the Exceptions list, select the program, or click Browse to search for one that is not listed. Programs: Internet Explorer Internet Hearts Internet Reversi Internet Spades Minesweeper MSN Explorer Network Ports Quick Setup Outlook Express Pinball PrintServer Configuration ProMagic Path: C:\Program Files\PrintServer Utilities\NPUtil.ex Browse... Change scope... OK Cancel$

Step8. Click "Ok". You have completed the setting. The Windows XP SP2 will allow the incoming network connections activated by the program.

P-201 - Print Server AIRLIVE - Free user manual and instructions

This manual is not available in your language

Frequently Asked Questions - P-201 AIRLIVE

User questions about P-201 AIRLIVE

USER MANUAL P-201 AIRLIVE

COPYRIGHT

FCC COMPLIANCE STATEMENT

DISCLAIMER

CONTENTS

1. INTRODUCTION 1.1 PRODUCT INTRODUCTION .... 1

2. HARDWARE INSTALLATION....12

3. WINDOWS PEER-TO-PEER NETWORK

3.1 SYSTEM ARCHITECTURE....13

4. WINDOWS NT/2000/2003 NETWORK 27

5. NETWARE NETWORK....31

6. UNIX SYSTEM NETWORK....37

7. PRINT SERVER CONFIGURATION UTILITY

7.1 INTRODUCTION 45

8. WEB MANAGEMENT 62

9.TELNET MANAGEMENT

9.1 INTRODUCTION....82

10. IPP PRINTING

10.1 INTRODUCTION 90

1. Introduction

1.1 Product Introduction

1.2 Product Package

1.3 Network Printing Architecture

1.3.2 Network Printing Functions for Clients

MAC OS

1.3.3 Network Printing Functions for Network Server

1.4 Network Printing Environment

1.5 Contents of the User's Manual

1.6 Firmware & Printing Function

2. Hardware Installation

3. Windows Peer-to-Peer Network

3.1 System Architecture

3.2 Install Print Server driver and utility

PrintServer Utilities - InstallShield Wizard

InstallShield Wizard Complete

3.3 Print Server Utilities

3.3.1 Network Ports Quick Setup

3.3.2 Remote Ports (Utility)

3.4 Windows Add Printer Procedure

4. Windows NT/2000/2003 Network

4.1 System Architecture

4.2 Windows NT/2000/2003 Server Installation and Setup

4.3 User Installation and Setup

5. NetWare Network

5.1 System Architecture

5.2 NetWare 3.x/4.x/5.x Installation & Setup

5.2.1 Installation Using PCONSOLE

5.2.1.1 Configuring as Print Server Mode

6. UNIX System Network

6.1 Introduction

6.2 Enable Print Server's TCP/IP Support

6.3 Setup Print Server's IP Address

6.3.1 DHCP

6.3.2 BOOTP

6.4 Verify Print Server's IP Address

6.5 Configure Remote LPD Printing on the Host

7. Print Server Configuration Utility

7.1 Introduction

7.2 Search for All Available Print Server

7.3 Status of Print Server

7.4 Setup the Print Server

7.5 General Configuration

7.6 TCP/IP Configuration

7.7 Netware Print Server Configuration

7.8 AppleTalk Configuration

7.9 SNMP Configuration

7.10 SMB Configuration

7.11 System Configuration

7.12 Wizard

7.13 Report

8. Web Management

8.1 Introduction

8.2 Login

8.3 Device Status

8.3.1 System

8.3.2 Printer
