Cestus 315 - Mouse PREDATOR - Free user manual and instructions

USER MANUAL Cestus 315 PREDATOR

Close-up of a black computer mouse with white abstract logo on the side (no text or symbols visible)

Quick Start Guide / Guide de démarrage rapide Guía de inicio rápido / Kurzanleitung Guide de démarrage rapide / Skrócona instrukcja obsługi Snabbstartguide / Hurtigstartguide Pika-aloitusopas / Guide til hurtig opstart Stručná referenční příručka / Краткое руководство دَلِيل بده التشفيل السريع / Guida introduttiva Gyorskezdési útmutató / ćูมื้อเริ่มใช้งานอย่างย่อ 快速入門指南 / 快速入门使用指南

Quick Start Guide

This guide outlines the operating procedures and safety precautions. Please read it carefully to make sure you are using your product properly and keep it for future reference.

Specifications

• Model: PMW010
• Connector type: USB
• Cable Length: ∅3.0, 1.8m ± 0.3m
• Dimensions (L x W x H): 136.2 x 72.2 x 40.4mm ± 0.2mm
  • Weight: 135.2g ± 5g
  • Maximum DPI: 6,500
• Buttons: 8
• Sensor Type: Optical

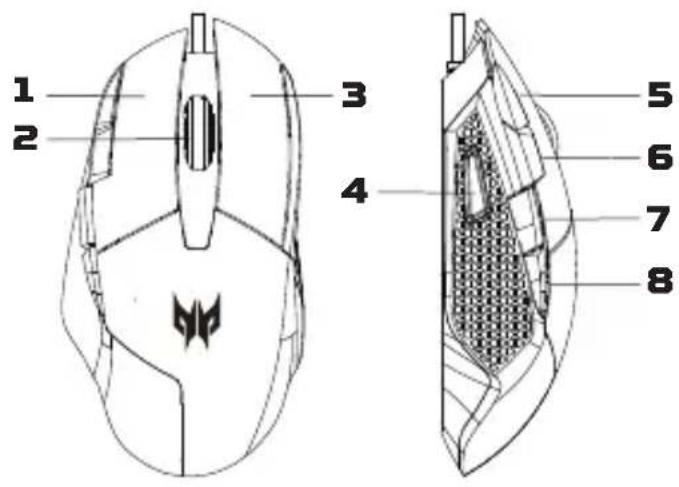

Device features

1. Left button
2. Scroll wheel
3. Right button
4. Fire button
5. DPI up button: 800(Green)→1600(Yellow)→ 3200(Blue)→6500(Red)
6. DPI down button: 6500(Red)→3200(Blue)→ 1600(Yellow)→800(Green)
7. Forward button
8. Backward button

1 2 3 4 5 6 7 8

System Compatibility

• Windows® 10, Windows® 8.1, Windows® 8, Windows® 7
• Interface: USB Port

Getting started

Plug and Play connectivity (no drivers required)

Package Contents

• Predator Gaming mouse x 1
• Quick start guide x 1
• Warranty booklet x 1

Caution

• Do not disassemble the device or operate the device under abnormal conditions.
• Do not submerge the device in water.
• If the device lights could not be lightened up, please re-plug in the USB.
• If the device could not be functional, or there was thermal abnormal situation, please re-plug in the USB.
• If you still encounter problems after going through the corrective measures, please contact your dealer or an authorized service center for assistance.
• For more information regarding the PREDATOR accessories, please visit the PREDATOR website at www.acer.com/predator

Environment

Temperature:

• Operating: 0 °C to 40 °C
  • Non-operating: -20 °C to 60 °C

Humidity (non-condensing):

• Operating: 10% to 85%
• Non-operating: 10% to 95%

Manufacturer address

Acer Inc.

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

Please visit www.acer.com/predator for warranty.

CE

Europe – EU Declaration of Conformity

We declare under our sole responsibility that the product is conformity with all the essential requirements and other provisions of the European Council Directive RoHS Directive (2011/65/EU), EMC Directive (2014/30/EU) on issued by the Commission of the European Community.

This product must not be disposed of with your other House hold waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IC Statement

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Déclaration IC

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IC Statement

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Déclaration IC

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Kurzanleitung

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

Plug and Play-tilkobling (ingen drivere kreves)

Pakkens innhold

• Predator spillmodus x 1
• Hurtigstartguide x 1
• Garantihefte x 1

Forsiktig

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

Plug and Play-forbindelse (intet behov for drivere)

Pakkens indhold

• Predator Gaming-mus x 1
• Guide til hurtig opstart x 1
• Garantihæfte x 1

Forsigtig

8F, 88, sek. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Tchaj-wan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

Per la garanzia, visitare www.acer.com/predator.

CE

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

8F, 88, Sec. 1, Xintai 5th Rd. Xizhi, New Taipei City 221, Taiwan

設備名稱:電競滑鼠Equipment name						型號(型式):PMW010Type designation (Type)
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛	汞 鎥 六	價鉻 多溴聯苯 多溴二苯醚
	Lead	Mercury Cadmium	Hexavalent chromium		Polybrominated biphenyls	Polybrominated diphenyl ethers
	(Pb)	(Hg) (Cd)	[Cr]	+6) (PBB)		(PBDE)
外殼	○	○ ○	○	○		○
電路板	○	○ ○	○	○		○
滾輪	○	○ ○	○	○		○
線材	○	○ ○	○	○		○
備考1.超出0.1 wt %及超出0.01 wt %係指限用物質之百分比含量超出百分比含量基準值。Note 1:“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2.○係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3.一係指該項限用物質為排除項目。Note 3:The “-” indicates that the restricted substance corresponds to the exemption.

快速入门使用指南

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product: Cestus 315

Model Number: PMW010

Name of Responsible

Party:

Address of Responsible

Party:

Acer America Corporation

333 West San Carlos St.

Suite 1500

San Jose, CA 95110

U. S. A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147

EU Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l.

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN55032:2015/AC:2016-07 Class B

EN 55035:2017

RoHS Directive: 2011/65/EU

EN 50581:2012

Year to begin affixing CE marking: 2020.

RU Jan / Sr. Manager

Acer Incorporated (Taipei, Taiwan)

Jul. 16, 2020

Date

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Et,

Acer Italy s.r.l.

RU Jan / Sr. Manager

Acer Incorporated (Taipei, Taiwan)

le 16 juillet 2020

Date

Product name / Наименование / 產品名稱 / 产品名称:
