USER MANUAL 32HH01K Smart Tech

Safety Information....1

Important Safety Precautions 1

TV Buttons And Terminal Interface 2

External device connection diagram 2

TV Install And Connect....3

TV Stand Installation Instructions 3

OSD 4

First Time Installation.... 4

Home page....5

TV Setting 6

Media 8

Help 10

Specifications....11

Remote Control 12

EN

Safety Information

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is inten ded to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

Important Safety Precautions

1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions.

5) Do not use this apparatus near water. 6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments /accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

Caution:

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

16) The socket-out shall be installed near the equipment and shall be easily accessible.

17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.

18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21)

Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth

25) The maximum using environment temperature is 45 degrees. The Maximum using altitude is 2000 meters

EN

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

One key:

Press this button in standby mode to turn on / off the TV.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input	USB5V m500mA	USB inputConnect a USB device here to play its media files.
	Mini AVTV input port for connecting the Mini AV cable		OPTICAL outputConnect the SPDIF receiver.
	CI SLOTThe card reader input CI(common Interface) this requires CAM (conditional access module) used for pay TV.		RJ45Connect the Internet.
	HDMI inputDigital signal input from HDMI video connector.		EARPHONE outputWhen earphones are plugged in, speakers are disabled
	ANT 75Connect the antennal/cadle tv input (75/VHF/UHF)

*Do not touch or be close to the HDMI, USB terminals, and prevent electrostatic discharge to disturb these terminals while in USB operation mode, or it will cause the TV to stop working or abnormal status.

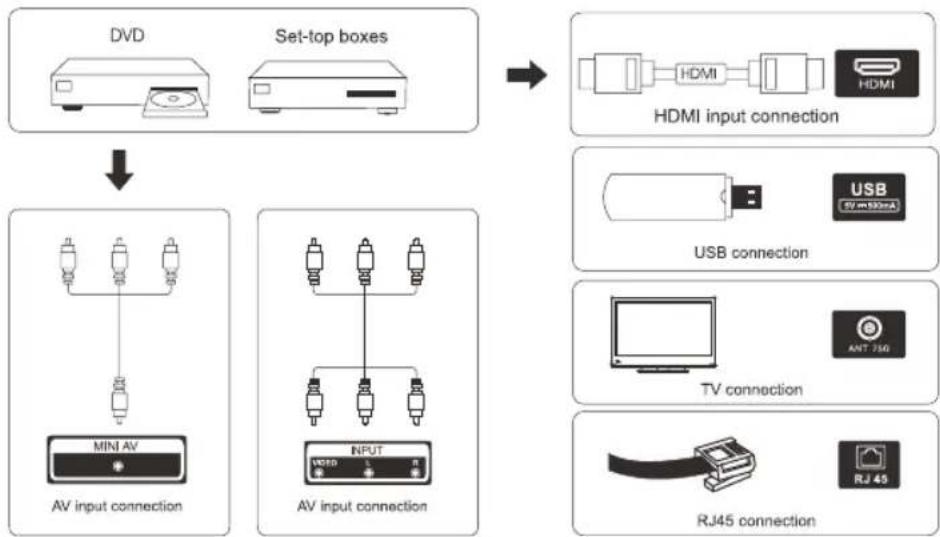

External device connection diagram

EN

TV Install And Connect

10cm 10cm 10cm

③ TV signal output

2
1

Set your TV

To put your TV on a firm place which can bear the weight of the TV. To avoid danger, please don't positions the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

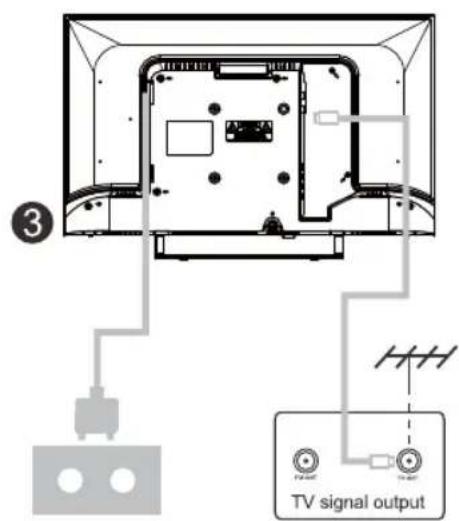

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV (AC 100-240V\~50/60Hz).

Turn on TV

1. Connect the power supply, enter the standby mode (red light), press the power button of the TV or the power button on the remote control to turn on the TV

Note: If the model has a CI card slot on its top, a silicone plug for the CI card slot can be found in the accessory bag (for models without CI card slot, there is no such silicone plug), please insert the silicone plug into the slot when the CI card is not in use.

Diagram of a computer monitor with ports and a red arrow indicating a location (no text or symbols present)

Note: Picture for reference purposes only.

TV Stand Installation Instructions

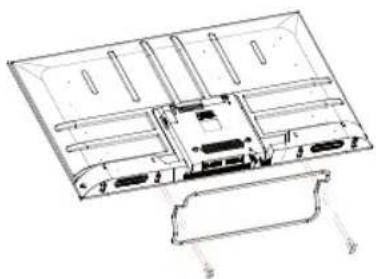

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. In order to avoid damaging the TV, please cover it with soft mattress, put it on the table, face down on the soft material and screw the neck of the base to the TV.
3. screw the base and connected to the TV.
4. the installation is complete.

Technical line drawing of an electronic device chassis with internal components and mounting bracket (no text or symbols)

Note:

Picture for reference purposes only. Please prevail in kind

First Time Installation

First Time Installation

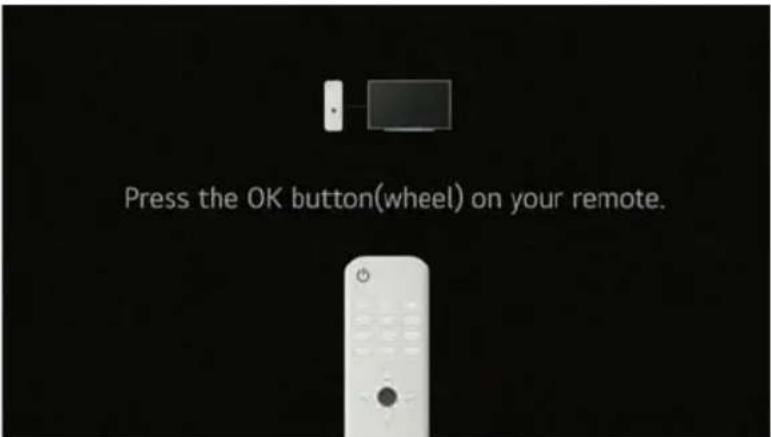

Enter the Home page after First Time install. Press ◀/▶ button to Installation method.

Press the OK button(wheel) on your remote.

EN

Home page

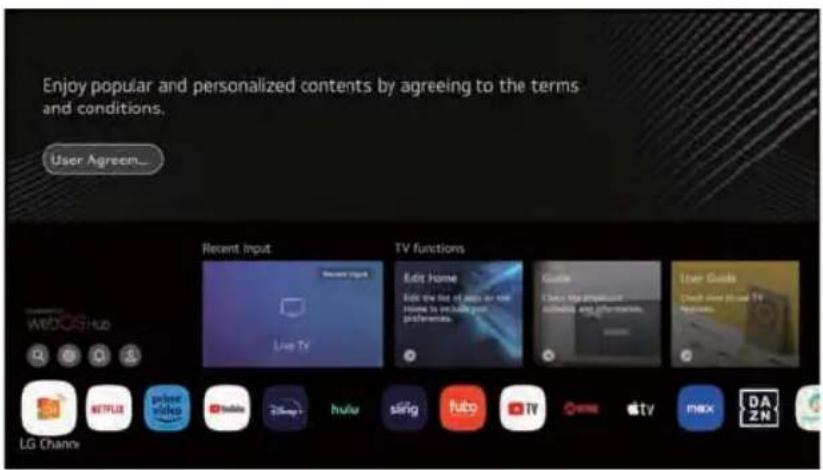

Home page

Enter the Home page after First Time install.

In the list of apps, select the app you want to enter

Enjoy popular and personalized contents by agreeing to the terms and conditions. User Agree... Recent Input TV functions Edit Home Edit the list of apps or new Home to include your platforms. Guide Close the promotional actions and information. User Guide Close user profile TV Access... Lg Change NETFLR please video YouTube Disney hulu sing fubo TV Gems Apple TV MAX DA ZN

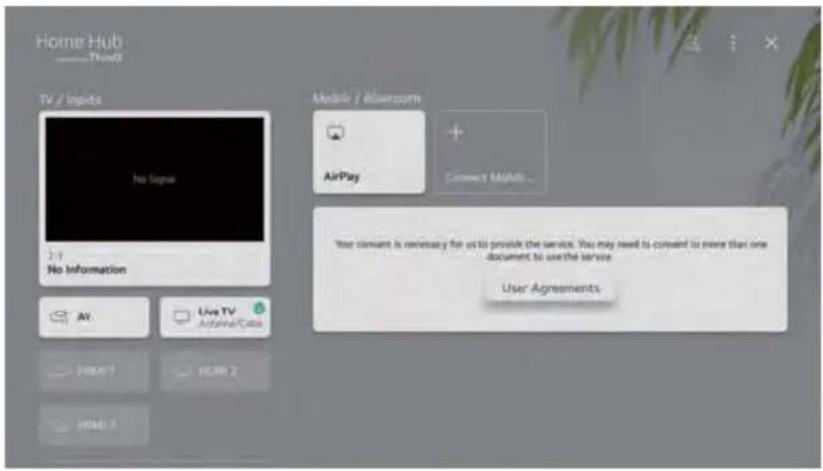

Using Home Dashboard

You can select or control a device (mobile, external device, Home IoT Devices, etc.) connected to the TV. Press ▼ / ▲ / ◀ / ▶ button to select.

Home Hub ——Thirl2 TV / Inputs No Signa 3.7 No Information Air Live TV Affiliated Cable Home 1 HDMI 2 Home 3 Module / Disarray AirPlay + Connect Module... Your consent is necessary for us to provide the service. You may need to consult to more than one document to use the service User Agreements

EN

TV Setting

Press 🔒 button to enter the TV Setting.

Press ▼ / ▲ button to highlight the desired menu icon, and press button to select.

Quick Settings

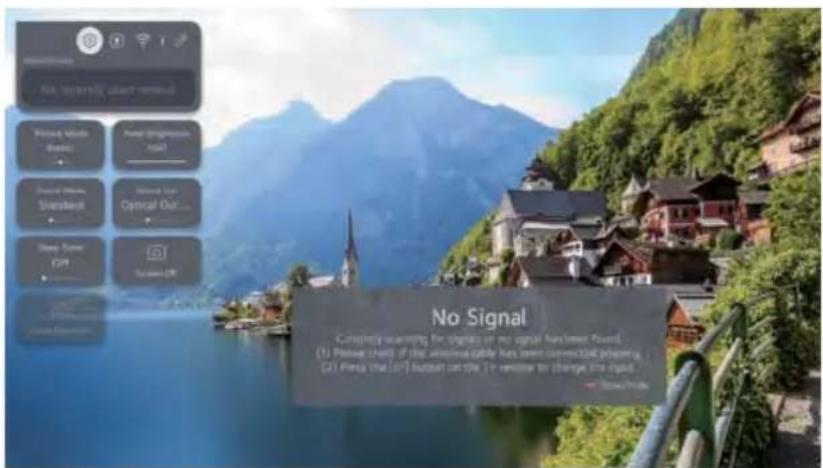

No signal Corresponding the signals on my signal has been found. (1) Please check if the wireless cable has been connected property. (2) Press the [a] instead on the [ ] to ensure to change the signal.

1. You can set Picture Mode.
2. You can set Sound Mode.
3. You can choose Sound Out.
4. You can set Game Optimiser.
5. You can add/delete the quick setting items or change their order.
6. You can set the backlight 0-100.
7. You can set up a Wi-Fi connection.
8. You can set the screen to close quickly.

EN

TV Setting

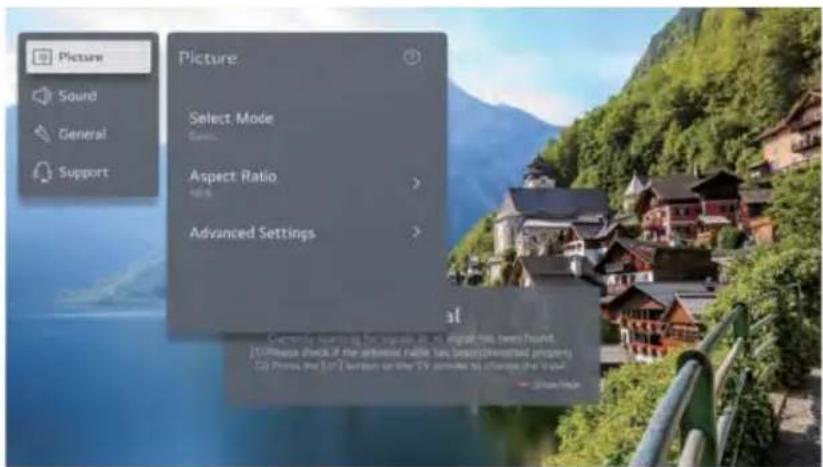

All Settings

Press ▼ / ▲ button to select the All Settings.

Press the key to enter the sub-menu.

Press ▼ / ▲ button to select Picture/Sound/General/Support.


Press ▼ / ▲ button to select Picture.Press button to enter sub-menu and setup.

(option:Select Mode/Aspect Ratio/Advanced Settings)

Picture Sound General Support Picture Select Mode Aspect Aspect Ratio Advanced Settings Customize viewing the image on the image wall, been found. [10] Please check if the image is called 'View should be installed property' [2] Press the 5.0 second on the TV screen to access the image

Picture Mode

Press ▼ / ▲ button to select the Picture Mode.

Press the key to enter the sub-menu.

Press ◀ / ▶ button to select Vivid/Standard/Basic/Cinema/Sports, and press button to setup.

Sound Mode

Press ▼ / ▲ button to select the Sound Mode.

Press the key to enter the sub-menu.

Press ◀ / ▶ button to select Standard/ Cinema/ Clear Voice/ Sports/ Music, and press button to setup.

Sound Out

Press ▼ / ▲ button to select the Sound Out.

Press the key to enter the sub-menu.

Press ◀ / ▶ button to select TV Speaker/ Bluetooth Device/ Mobile Device/ Optical Out Device/ HDMI (ARC) Device/ Wired Headphones/ Optical Out Device+TV Speaker/ Wired Headphones + TV Speaker, and press button to setup.

Game Optimiser

Press ▼ / ▲ button to select Game Optimiser.

Network

If you configure settings for the network, you can use various services such as online contents and applications.

Wired Connection(Ethernet)

Press ▼ / ▲ button to select Wired Connection(Ethernet).

Press button to enter sub-menu and setup.

Wi-Fi Connection

Press ▼ / ▲ button to select Wi-Fi Connection. Press button to enter sub-menu and setup.

EN

Media

Connect a USB storage device (USB HDD, USB stick) to the USB port on the TV to enjoy the content files stored on the USB storage device on your TV.

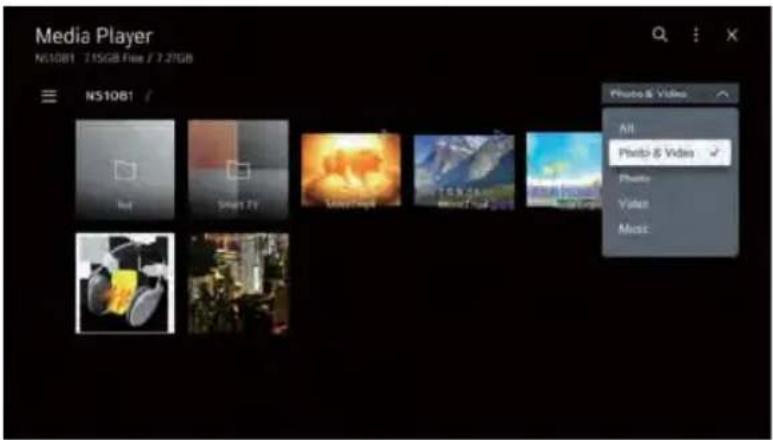

Press ▼ / ▲ button on to select Photo & Video/Photo/Video/Music.

Media Player NS1081 715GB Free / 7.21GB NS1081 Photo & Video All Photo & Video Photo Video Music

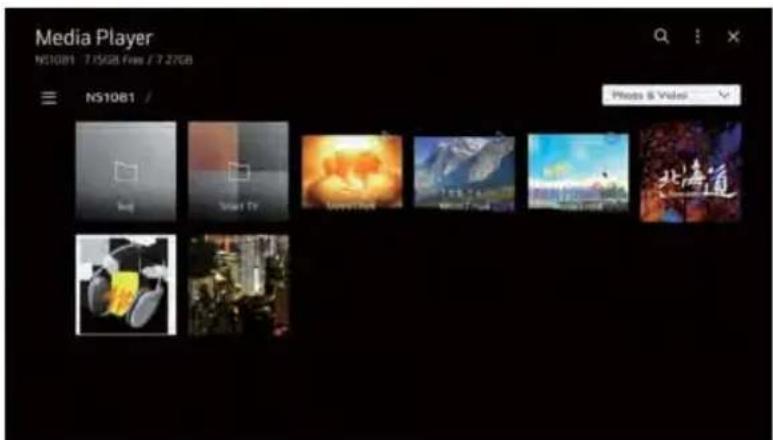

Photo and Video

You can view photos and videos using the Photo & Video app.

Media Player NS1081 7.5GB Free / 7.27GB NS1081 / Photo & Video Smart TV 北海道

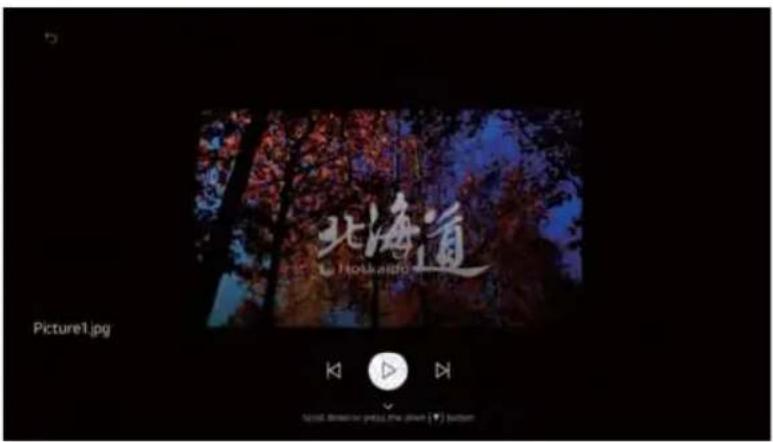

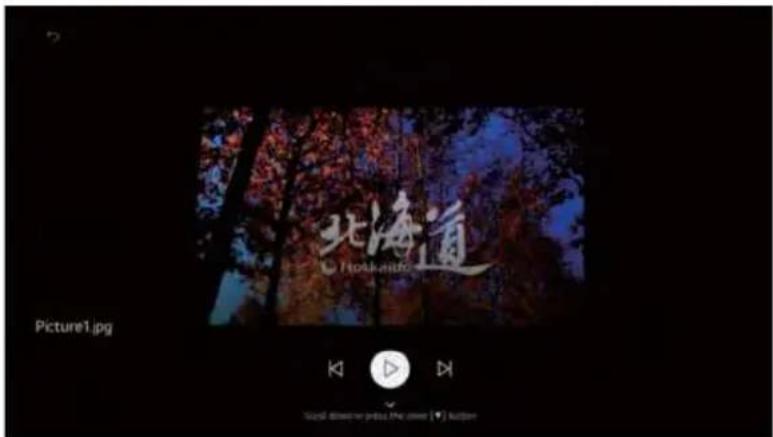

Selecting a photo in the Photo & Video app runs the photo player. You can view your saved photos.

Selecting a photo in the Photo & Video app runs the photo player. You can view your saved videos.

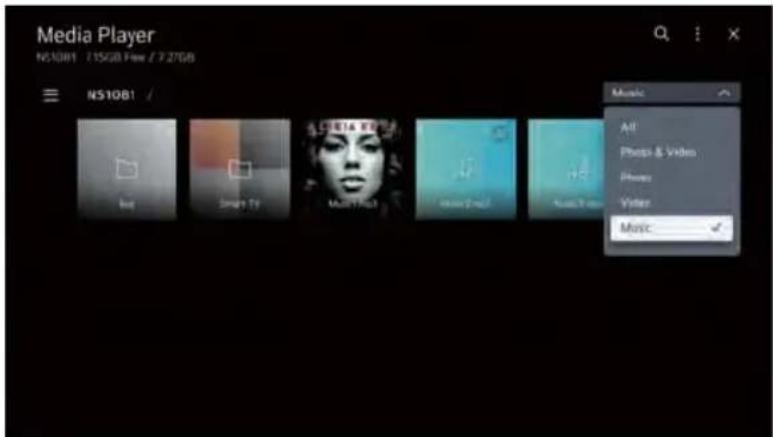

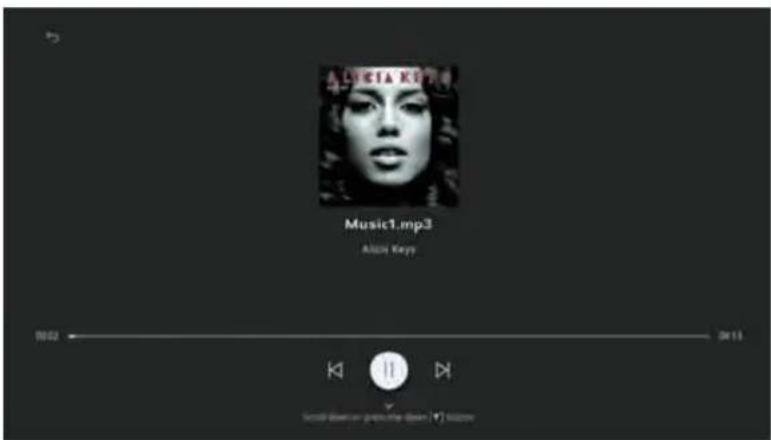

You can play music conveniently by selecting the music files saved in the Music app or by selecting the music player icon during content playback in apps such as Photo & Video.

Media Player N510B1 215GB Free / 7.27GB N510B1 / Music All Pheno & Video Phone Video Music

AUGTA K97 Music1.mp3 Alice Keys 2011 Stockl Beam on puttime down TV Idizer

EN

Help

No power	·Check if the AC cord of TV is plugged in or not. If there's still no power, please disconnect the plug, and reconnect to the socket after 60 seconds. Turn the power back on.
Signal not received properly	·Double or phantom images may appear on your TV if there are high buildings or mountains close to where you are. You can adjust the image thru manual operation: consult instruction of vernier regulation, or adjust the direction of the external antenna.·If you use an indoor antenna, signal reception may be more difficult under certain circumstances. Adjust the direction of the antenna for optimum reception. If this does not improve reception, you may have to switch to an external antenna.
No picture	·Check if the antenna at the back of the TV is connected properly.·View other channels to see if the problem still occurs.
Video appears with no audio	·Try increasing the volume.·Check if the TV's sound is on mute or not.
Audio is present, but video does not appear or is discolored	·Try adjusting the contrast and brightness.
Static noise affects video and audio quality	·Check if the antenna at the back of the TV is connected properly.
Broken lines on screen	·Electrical appliances such as hair dryers or vacuums etc. may be interfering with your TV set. Switch these appliances off.
Remote doesn't work	·Make sure the plastic bag which came with the remote control is removed. Try using the remote in a shorter distance from the TV. Check if the placement of the batteries is correct, or try using new batteries with the remote control.·The TV will go into Standby mode if it receives no response in a few minutes.
No video (PC mode)	·Please check if the cable is connected to the HDMI port correctly, or if the cable is bent in some places.
Vertical line blinking (PC Mode)	·Enter the main menu, and adjust the vertical placement to eliminate the vertical line.
Horizontal tearing (PC Mode)	·Adjust the horizontal placement of the screen to clear any horizontal lines.
Screen is too bright or dark (PC Mode)	·Adjust the brightness or contrast in the main menu.
No response from the PC	·Check if the PC's display resolution is set to a compatible resolution for the TV.
Lines appearing when a device is connected to the RCA port	·Make sure you are using a cable in good quality.
Problems are unresolved	·Unplug the power cable and wait for 30 seconds, then reconnect to the socket. If problems still persist, do not attempt to repair the TV by yourself. Kindly contact the service center.

Do not leave your TV displaying a static image, whether it is from a paused video, menu screen, etc. for an extended period of time, doing so will damage the display and may cause image burn-in.

EN

Specifications

Screen Size	power Consumption	Main accessories
24"	36W	User's manual x1Remote controller x1Power cord x1AAA Batteries x2 (Optional)
32"	56W
39"	60W
40"/42"/43"	90W
50"	100W
55"	110W
58"	120W
65"	160W
70"	180W
75"	250W
85"	300W

LIFE TIME : 60,000 Hrs

AUDIO

Manufactured under license from Dolby Laboratories.

Dolby,Dolby Audio, and the double-D symbol are

trademarks of Dolby Laboratories Licensing Corporation.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death.

Many injuries, particularly to children, can be avoided by taking simple precautions such as:

1. Using cabinets or stands recommended by the manufacturer of the television set.
2. Only using furniture that can safely support the television set.
3. Ensuring the television set is not overhanging the edge of the supporting furniture.
4. Not placing the television set on tall furniture (for example, cupboards or bookcases). without anchoring both the furniture and the television set to a suitable support.
5. Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture,
6. Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Wall-mounted screw:22-24inch M4, 28-70inch M6, 75inch M8

Note: don't hang at an angle to avoid the risk of falling off.

This user manual for reference only

EN

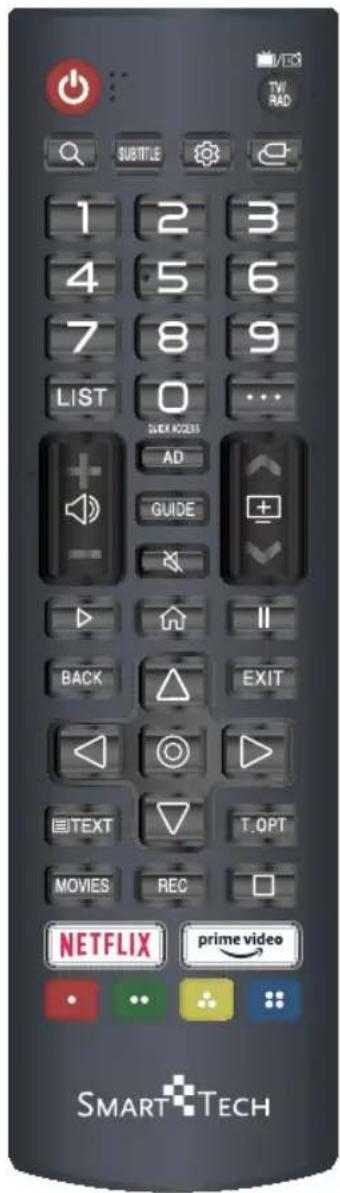

Remote control

1 2 3 4 5 6 7 8 9 LIST 0 ... ADD ACCESS AD GUIDE BACK EXIT TEXT T.OPT MOVIES REC NETFLIX prime video SMART TECH

TV POWER ON/OFF.

TV/RAD

Switch to TV or Radio.

Q

Search.

SUBTITLE

Enable/disable subtitles.

#

Enters the Quick Settings menu.

C

Selects an input source.

1-9

Number selection key.

LIST

The QUICK ACCESS edit screen appears.

□ QUICK ACCESS

Brief:Number Key / Hold:Quick Access.

...

It displays the additional buttons on the remote control.

+

Volume UP.

-

Volume Down.

^ +

Channel UP

∨ +

Channel Down.

AD

Turn the AD switch on or off.

GUIDE

You can check the programme.

区

Mutes the sound.

Play.

[Figure]

Displays the Home menu.

||

Pause.

BACK

Move to the previous step.

EXIT

Closes the menu.

△▽◇

RIGHT/LEFT UP/DOWN buttons to navigate the on-screen menus.

©

Select current option thats highlighted.

TEXT

Open the TEXT.

T.OPT

Open the function menu of TEXT.

MOVIES

Search Movies.

REC

Launch Record.

□

Launch Live Playback.

NETFLIX

NETFLIX APP Execution.

prime video

AMAZON APP Execution.

• • • • •

Corresponds to various colour functions in the menu or teletext.

EN

Based on legislative decree no. 49 dated 14 ^th March, 2014

"Execution of Directive 2012/19/UE about electrical and electronic equipment waste (RAEE)"

This marking indicates that this product should not be disposed with other household wastes, but it should be disposed separately from other wastes. Therefore, the user should bring the product with all essential components to recycling centers for electrical and electronic wastes, or return to retailer before to buy a new product as equivalent type, in the ratio of 1 to 1, or 1 to 0 for products that have larger side lesser of 25cm. Correct disposal of your old appliance will help to prevent potential damage to the environment and to human health and support materials recycling. The unlawful disposal of the product should involve for users' administrative sanctions based on Legislative Decree no. 49 dated 14 ^th March, 2014.

Correct disposal of the batteries in this product (Applicable in countries with separate collection systems)

This marking on battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

CAUTION:

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Environmental Considerations

Operating Temperature: 5 °C -35°C (41°F-95°F)

Operating Humidity: 20% -75%, non-condensing

Storage Temperature: -15 °C -45°C (5°F-113°F)

Storage Humidity: 10% -90%, non-condensing

BT max transmitter power: 100mW at 2.4GHz - 2.4835GHz

Wi-Fi max transmitter power: 100mW at 2.4GHz-2.4835GHz

	BE	BG	CZ	DK	DE	EE	IE
	EL	ES	FR	HR	IT	CY	LV
	LT	LU	HU	MT	NL	AT	PL
	PT	RO	SI	SK	FI	SE	UK

FR

SMART TECH

webOS Hub

MANUEL D'INSTRUCTIONS

FR

Sommaire

Simple line drawing of a blank television monitor with a stand (no text or symbols)

10cm 10cm 10cm TV signal output ① ② ③

Diagram showing a device rear panel with a red arrow pointing to a component, alongside an exploded view of the front panel (no text or symbols present)

Technical line drawing of a mechanical or electronic device with internal components and mounting bracket (no text or symbols)

FR

Press the OK button(wheel) on your remote.

Page d'accueil

Page d'accueil

Enjoy popular and personalized contents by agreeing to the terms and conditions. User Agreements... Recent Input TV functions LG Channels

Home Hub T1 / Inputs to Input No Information AirPlay + Cancel Mobile Your website is necessary for us to private the service. You may need to access to more than any document to use the service. User Agreements.

FR

No Signal Currently happening for any other signal is been found. Please change the right signal from the left side of the right corner. All words the right signal to the right signal are changed on the right.

Picture Sound General Support Picture Select Mode Aspect Ratio Advanced Settings (1) Please view if the image is filled or not connected to any text. (2) From the image to the screen is changed by the user.

Mode image

北海道 Picture1.jpg K D board: down is pure! The clean (▼) sounds

Musique

EN: Hereby, Express LUCK Electric Europe Kft., declares that the radio equipment type LED TV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.smarttech-tv.com/downloads/

To make it more convenient for base installation and to avoid any risk of scratches and damage, we advise you using the type of PH2 screwdriver.

HU:

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

1. Using cabinets or stands recommended by the manufacturer of the television set.
2. Only using furniture that can safely support the television set.
3. Ensuring the television set is not overhanging the edge of the supporting furniture.
4. Not placing the television set on tall furniture (for example, cupboards or bookcases). without anchoring both the furniture and the television set to a suitable support.
5. Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture,
   6.Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Wall-mounted screw:22-24inch M4, 28-70inch M6, 75inch M8

Note: don't hang at an angle to avoid the risk of falling off.

CE

HE NC Advance™ Covered by patents at patentlist.accessadvance.com

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

mPEG4

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Express LUCK Europe Electric Kft Leshegy út 2. 2310 Szigetszentmiklós, HUNGARY

E-mail: [e-mail]

Website: http://www.smarttech-tv.com

Made in China
