USER MANUAL OT-C630A ALCATEL

He) English by Alcatel

[Ps-vaR-11-07-06 22/02/08 1 04 Page 1 Table of contents Safety and use. General information

22 Switching your telephone ON 23 Switching your telephone OFI Receiving a call . 33 Call handsfree 34 Available options during the cal 35 Record dialogue

3.6 Handling multiple calls.

5.5 Voice recording.

14.1 Creating a new event .

142 Deleting old events . 143 Managing events 144 Events views.

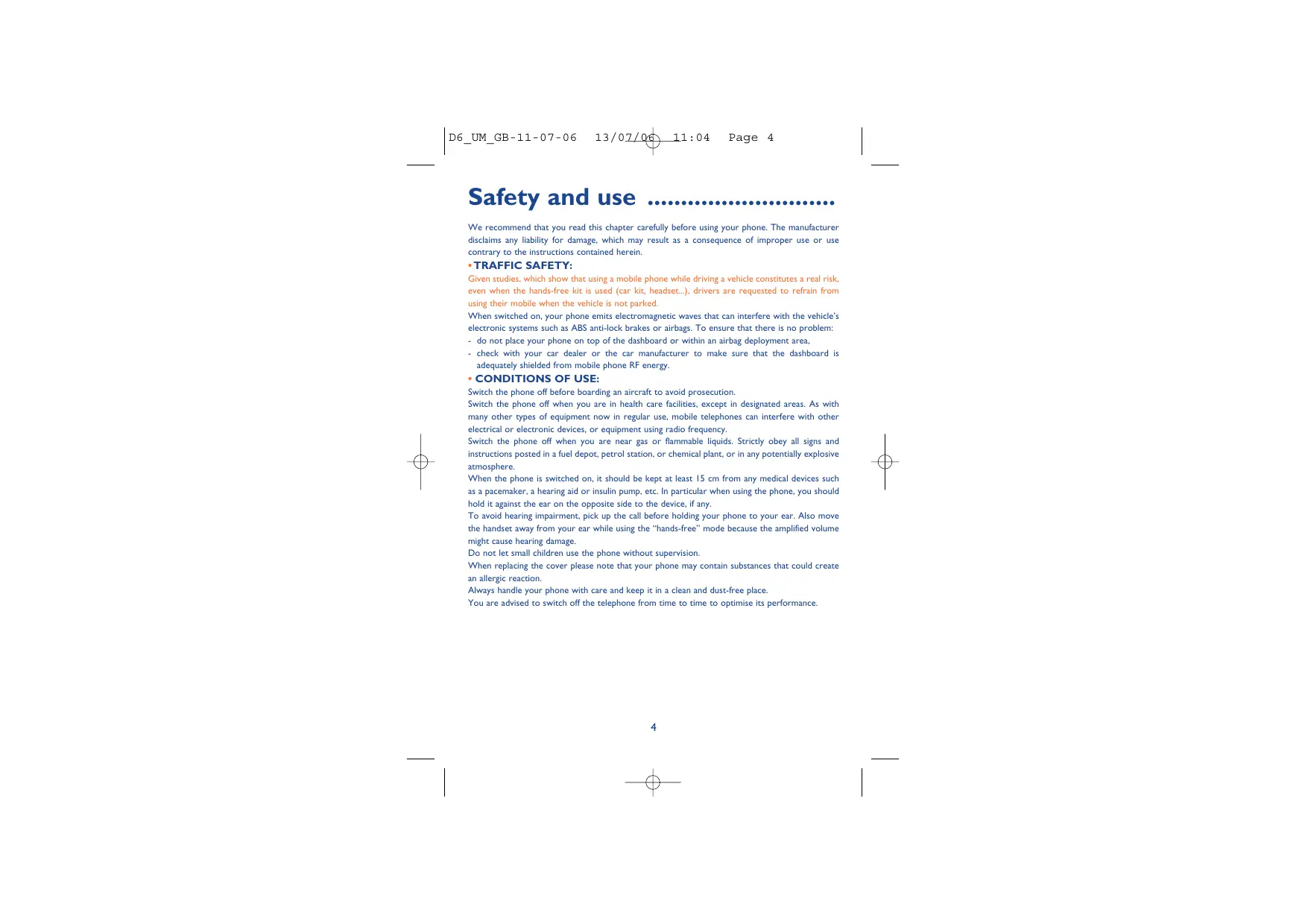

[Ps-vaR-11-07-06 22/02/08512:04 Page 4 Safety and use . We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any labiliy for damage, which may resule as à consequence of improper use or use <contrary 19 the instructions contained herein. + TRAFFIC SAFETY: Given studies, which show that using a mobile phone while driing a vehicle constitutes à real risk, ‘even when the hands-free kit is used (car kit, headser.), drivers are requested to refrain from using their mobile when the vehicle is not parked. When switched on, your phone emits electromagnetic waves that can incerfere with the vehicles electronic systems such as ABS anti-lock brakes or airbags. To ensure that there is no problem: do not place your phone on top of the dushboard or within an airbag deploymenc area, = check with your car dealer or the car manufacturer to make sure that the dashboard is adequately shielded from mobile phone RF enersy. + CONDITIONS OF USE: Switch the phone off before boarding an aireraft to avoid prosecution. Switch the phone off when you are in health care facilities, except in designated areas. As with many other types of equipment now in regular use, mobile celephones can incerfere with other electrical or electronic devices, or equipment using radio frequency. Switch the phone off when you are near gas or flammable liquids. Stricty obey all signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in any potential} explosive atmosphere. When the phone is switched on, i should be kepe ac least 15 em from any medical devices such 25 à pacemaker, a hearing aid or insulin pump, etc. In particular when using the phone, you should hold it against the ear on the opposite side to the device, if any. To avoid hearing impairment, pick up the call before holding your phone to your ear. Also move the handser away from your ear while using the “hands-free” mode because the ampliied volume might cause hearing damage. Do not let small children use the phone without supervision. When replacing the cover please note that your phone may contain substances that could create an allergie reaction. Always handle your phone with care and keep ic in a clean and dust-free place. You are advised to switch off the relephone from time to time to optimise its performance.

D6_UM GB-11-07-06 22/02/08512:04 Page 5 De not allow your phone to be exposed to adverse weather or environmental conditions {moisture, humidiy, rain, infiltration of liquids, dust, sea air, etc). The manufacturer's recommended operating temperature range is -20°C to +55°C. Over 55°C the legibily of the phone display may be impaired, though this is temporary and not serious. De not open or attempt 10 repair your mobile phone yourself De not drop, throw er bend your mobile phone. De not pain it. Use only Alcatel batteries, battery chargers, and accessories that are compatible with your phone model. (See Accessories List, page 71). T&A Mobile Phones Limited and its afiliates disclaim any Hiabiliey for damage caused by the use of other chargers or batteries. Your phone should not be disposed of in à municipal waste. Please check local regulations for disposal of electronic products. Remember 10 make back-up copies or keep a written record of al important information stored in your phone. Some people may suffer epileptic sezures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may oceur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such oceurrences, please consult your doctor before playing video games on your phone or enabling à flashing-ighes feature on your phone. Parents should monitor their children’ use of video games or other features that incorporate flashing lights on the phones. All persons should discontinue use and consult à doctor if any of the following symptoms oceur: convulsion, eye or muscle vwitching, loss of awareness, involuntary movements, or disorientation. To limit the likelihood of such symptoms, please take the following safety precautions: + Do not play or use à flashing-lighes feature if you are tired or need sle Take à minimum of à 15-minute break hour}. + Play in à room in which al lighes are on. = Play at the farthest distance possible from the sereen. ‘When you play games on your phone, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. Follow these instructions to avoid problems such as tendinits, carpal tunnel syndrome, or other musculoskeletal disorders: Take a minimum of a 15 minute-break every hour of game playing = Iyour hands, wrists, or arms become tired or sore while playing, stop and rest for several hours before playing again. If you continue to have sore hands, wrists, or arms during or after playing, stop the game and 56e à doctor.

[Ps-vaR-11-07-06 22/02/08512:04 Page 6 ‘This symbol on your telephone, the battery and the accessories means that these products must be taken to collection points ac the end of their life: - Municipal waste disposal centres with specific bins for these items of equipment - Collection bins at points of sale.

‘They wall chen be recycled, preventing substances being disposed of in the environment, so that their components can be reused. In European Union count ‘These collection points are accessible free of charge. AÏ products with this sign must be brought 0 these collection points. In non European Union count: Items of equipment with this symbol are not be £hrowmn into ordinary bins if yeur country or your region has suitable recycing and collection facilities: instead they are to be taken to collection points for them to be recycled. + BATTERY: Before removing the battery from your phone, please make sure that the phone is swicched off Observe the following precautions for battery use: Do not attempt to open the battery (due to the risk of toxic fumes and burns) Do not puneture, disassemble or cause à short-cireui in à battery, Do not burn or dispose of a used battery in household rubbish or store it a cemperatures above 60°C. Batteries must be disposed of in accordance with localy applicable environmental regulations. Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by T&A Mobile Phones Limited and/or its affliates. + CHARGERS: Mains powered chargers will operate within the cemperature range of 0 *C to 40 C. The chargers designed for your mobile phone meet with the standard for safety of information technology equipment and ofice equipment use. They should be used for this purpose oniy. + RADIO WAVES: Proof of compliance with international standards (ICNIRP) or with European Directive 1999/5/EC {R&TTE) is required of all mobile phone models before they can be put on the market. The protection of the health and safety or the user and any other person is an essential requirement of these standards or this directive. THIS MOBILE PHONE COMPLIES WITH INTERNATIONAL AND EUROPEAN REQUIREMENTS REGARDING EXPOSURE TO RADIO WAVES.

D6_UM GB-11-07-06 22/02/08512:04 Page 7 Your mobile phone is a radio transmitter/receiver. IE was designed and manufactured to complÿ with the radiofrequency (RF) exposure thresholds recommended by international requirements UCNIRP) 0 and by the Council of the European Union (Recommendation 1999/5 9/EC) #. These limits are part of a set of requirements and establish authorised radiofrequency levels for the public. These limits were established by independent groups of experts on the basis of regular and detailed scientific assessments. They include a significant safety margin intended to ensure the safety of all, regardiess of age or state of health. The exposure standard for mobile phones is determined by à measurement unie known as the Specific Absorption Rate or “SAR”. The SAR limic is set by international requirements or by the Couneil of the European Union at 2 watts/logram (Wikg) averaged over 10 grams of body tissue. The tests used to determine SAR levels were carried out on the basis of standard usage modes with the phones transmitting ac their maximum power level over the entire range of frequency bands. Although the SAR was established at the highest certifled level, the actual SAR level for the mobile phone during use is generally much lower chan the maximum values. In fact, since mobile phones are designed to operate at many different power levels they only use the minimum level of power required to provide a connection to the network. In theory, the closer you are to a base station antenna, the lower the power level required by the mobile phone. The highest tested SAR value for this mobile phone for use ac the ear and compliance against the standard is 0.56 Wikg (OT-C550). 0.54 Wikg (OT-C560), 0.79 Wikg (OT-C630). 0.61 Wikg (OT- C635). While there may be differences bevween the SAR levels on various phones and at various positions, they all meet the relevant International guidelines and EU requirements for RF (radio- waves) exposure. The World Health Organisation (WHO) considers that present scientific information does not indicate the need for any special precautions for use of mobile phones. Ifindividuals are concerned, they migh choose co limit their own or their chldren's RF exposure by limiting the lengch of cas, or using “hands-free” devices to keep mobile phones away from the head and body (face sheet n° 193). Additional information about electromagnetic fields and public health are available on the following site: hepilfveww who intipehemf. Your telephone is equipped with à bulin ancenna. For optimal operation, you should avoid rouching it or damaging it. The ICNIRP requirements are applicable in the following regions: Central America (except Mexico), South America, North and South Africa, Pacific Asia (except Korea), Australia. ® The European recommendation (1999/519/EC) is applicable in the following regions: Europe, Israel.

[Ps-vaR-11-07-06 22/02/08512:04 Page 8 General information . + Website: www.tctmobile.com + Wap address: wap.my-onetouch.com + Hot Line Number: see the “T&A Mobile Phones Services” leaflet or 80 to our Internet site. On our Internet site, you will find our FAQ (Frequently Asked Questions) section. You can also contact us by e-mail to ask any questions you may have. Your telephone is a transceiver that operates on GSM networks with 900 and 1800 MHz bands. The CE marking indicates that your telephone complies with "1999/5/EC (R&TTE)" directive and that the accessories concerned comply with current EC directives. The entire copy of the Declaration of Conformity for your telephone can be obtained through our website: www.tctmobile.com. T9 Text Input is licensed under one or more of the following: US. Pat. Nos. 5,187,480, 5,818,437, EXT. 5,945,928, 5,953,541, 6,011,554, 6.286,064, 6,307,548, 6,307,549, and 6,636,162, 6,646,573; European Pat. Nos. 0 842 463 (96927260.8), | 010 057 (98903671.0), 1 018 069 (98950708.2); and additional patents are pending worldwide

D6_UM_GB-11-07-06 23/02/06 11:04 Page 9 Protection against theft (” Your telephone is identified by an IMEI (phone serial number) shown on the packaging label and in the product's memory. We recommend that you note the number the first time you use your telephone by entering %, #, 0, 6,# and keep it in a safe place. It may be requested by the police or your operator if your telephone is stolen. This number allows your mobile telephone to be blocked preventing a third person from using it, even with a different SIM card. Disclaimer There may be certain differences between the user manual description and the phone's operation, depending on the software release of your telephone or specific operator services. April 2006 4 Contact your network operator to check service availability.

[Ps-vaR-11-07-06 23/02/16) 11:04 Page 10 I Your mobile Keys in idle mode OT-C550/560 Left sole Access the menu Ravigacion ke Conf an optinl Camera key) Right softey: Send] Mt Delece / Back / Pick up / Send call = Mute che ring tone Call memory (short DEN RS Et END AERETIENS Ver Voicemal (ong keypresi) za[swlsw End ea Keypad lacune erfors(s Return to the main screen (long keypress)] Vibrator (long keypress) OT-C630/635 Camera ka Navigation key Left softkeÿ Access the menu] Right softkeys @ Delece / Back / Send keÿ [es [5+ Endley rer Au[ 5n Jon Switch oniSwitch of al memory (shore End ea kerpress)] 71 8 pr Return £0 the main sereen = Ur 0 Voicemal/ | + \Ei* ass Mibrator (long keypress) (long keypress) (ons keypr 7 =

A) 9 Switch ON/OFF the phone (long keypress) from the main screen 9 Hangu Reject an incoming call Return to the main screen (long or short keypress) 4 Call/ Pick up ® Access the call memory (short keypress)

• Scroll, adjust the volume during a call (Left softkey:

[ * pions ! Menu / Confirm Display a message received “1 OT-C550/560. ® OT-C630/635.

[Ps-vaR-11-07-06 13/02/0811 104 Page 12 & ‘Right softkey: F\ © Return to the previous screen (short keypress) Mute the ringtone of an incoming call In edition mode : Delete a character (short keypress) Delete all characters (long keypress) 1 œœ Consult your voicemail (long keypress) #44 Change the capitalisation in the following order : Ab/ab/AB (short keypress) Access Symbols table (long keypress) #8 Validates the active word and/or insert a Space (short keypress) Accesses to the languages list (long keypress) Ow.8 Switch between: T9/Multitap/123 (short keypress) Enters the number O (long keypress) 2x to 9 Y Insert letters (short keypress) or digits (long keypress) in edition mode OT-C550/560. a OT-C630/635.

Main screen icons (” Battery charge level. Vibrator mode: your phone vibrates (but the alarms and low battery sound will be played anywaÿ). Silence mode: your phone neither rings, beeps nor vibrates (but the alarms and low battery sound will be played anywaÿ). Unread message. Message list is full: your terminal cannot accept any new messages. You must access the message list and delete at least one message on your SIM card (see page 44). Missed call. Voicemail message arrived. Call forwarding activated: your calls are forwarded (see page 60). Alarm programmed (see page 31). Signal strength indicator. Keypad lock. National roaming. The icons and illustrations in this guide are provided for informational purposes only. (E)

[Ps-vaR-11-07-06 13/02/0811 104 Page 14 2 Getting started

Insei g the SIM Card ( You must insert your SIM card in order to use your phone. To insert your SIM card, turn off your phone by holding down the ,} key. Fit the SIM card with the chip facing downwards. Slide the SIM card into its compartment, Push the SIM card with your finger to release it. Close the card holder and slide it into the locked position. Align the tab on top of the battery with the slor in the battery compartment of your phone. Press down the battery until the latch is securely in place. Check with your network operator to make sure that your SIM card is 3V compatible. The old 5 Volts cards can no longer be used. Please contact your operator.

D6_UM_GB-11-07-06 13/02/0811 104 Page 15 Charging the battery Connect the charger An animation will be on while charging. It may take several minutes before the charging starts. Do not force the plug into the socket. The battery icon will take several minutes before the level is shown. Before connecting to the charger, make sure the battery is inserted correctly. The mains socket must be near to the phone and easily accessible (avoid power extension cables). Before using your phone for the first time, fully charge your battery (approximately 3 hours). Only use Alcatel chargers. We recommend charging the battery once a day so that the phone operates at an optimum level. You are advised to fully charge the battery ( (MD). Precautions during use Your telephone is equipped with a J |built-in antenna. For optimal reception and operation, do not touch the upper part of your telephone.

2.2 Switching your telephone ON

Hold down the ,} key. À welcome animation is displayed for 2 seconds. Type your PIN code if necessary, then confirm with the left softkey. 6 If you do not know your PIN code or if you have forgotten it, contact your network operator. Do not leave your PIN code near your telephone. lt should be stored in a safe place when not needed

2.3 Switching your telephone OFF

From the main screen, press the ,} key (long keypress)

From the main screen, enter the phone number using the keypad. Press [ to dial and ,} or the right softkey to hang up. To call a recently dialed/answered number, from the main screen, press to view numbers in “incoming call”, “outgoing call” and “missed call” lists. Scroll and select the desired number or name and press [_ to send the call. Making an international call Hold down the +++ key. When “+” is displayed, enter the country and area codes, then complete the number and send the call. Calling a number from the directory Press #_in idle mode to access the directory. Select the desired phone number and press [. In the product directory, for all contacts with more than one number, only the default number will be selected for the contact. To select a different number, press # or a .

D6_UM_GB-11-07-06 13/02/0811 104 Page 19

3.2 Receiving a call

To pick up a call, press the [ key. To reject a call, press the ,} key. To mute a ringing tone instead of answering a call, press “Mute”. To answer a new call during a call when the “Call Waiting” function is activated, press [ . The first call is put on hold. To end the active call, press } (| If you have activated “Call forward”, the call is diverted to a number or voicemail. If you have selected “Any Key Answer”, you can accept a call by pressing any key (except ,}).

Dial the desired number then press ok or “Options”, then press “Activate h/fres finally press Ok or “Select”. If you are already on the phone, hold down the [ key to switch to handfree mode and back.

D6_UM_GB-11-07-06 13/02/0811 104 Page 20

3.4 Available options during the call

You can press "Options" or the OK key for some of the following , "Record dialog”, "Call list”, Activate hffree + Use hands-free option. Mute/Unmute + Activate/deactivate the microphone. Record dialog + Record a conversation during a call You can adjust the sound level during a call pressing the # or à navigation key.

To record a conversation during a call, select “Record dialog” and press ok . Press ok again or the left softkey to save and end recording. If you select “Mute” and then “Record dialog”, only the caller's voice is recorded.

3.6 Handing multiple calls (

3.6.1 Making a second call

You can make a second call during an active call or with a call on hold. When first call is put on and the second number is dialed, you can press OK to access following options: Switch calls + To toggle between calls (you can also press w or à to switch calls). Do you wantto + To connect two calls. You are disconnected forward a call? when the transfer is completed. Conference +_ To introduce the caller into a conference call.

3.6.2 Answering a second call

When you receive a second call while being already in communication, the phone emits a beep alert and the screen displays “Call waiting”. You can then press [ to answer the call (the first one is put on hold), press ,} to reject the call and press ok or the left softkey to open the options list. If you select “Accept call”, you'll answer the incoming call, or “End c: &0 end the current call, then answer the incoming call. This service is limited to two current communications (one active and the other on hold). (Contact your network operator to check service availability.

3.63 Answering a third call

If you are in a call and have one call on hold, you can also receive a third call. To do so, you must either end one of the calls or introduce the new caller to a conference. Press ,} to reject the call or press ok or the left softkey to open the options list. You can select “Accept call” to answer the incoming call, or “End call” to end the current call, then answer the incoming call. This service is limited to two current communications (one active and one on hold).

3.6.4 Multi-party call

It allows you to speak with up to five people at the same time. Make a first call with someone, then a second one. Press ok or the left softkey, select “Conference” in option list. Repeat the process until five members are connected. Select “Remove party” to disconnect a member of the conference, or select “Private call” to have a private call with someone only (other members are put on hold). Press ,} to disconnect all calls at once. I there is an incoming call during the conference call with less than five members, you can accept this new call and add it to the conference. If five members are already connected, you can answer the call, but not add it to the conference.

4.1 Accessing the menu

From the main screen, press the OK key, the menu is displayed as a list with small icons beside each function. Select the item you require using the navigation keys (w, 4 ), then press again the left softkey to confirm

4.2 Organising functions

For each of the listed functions, refer to the appropriate chapter in this User Guide.

[Ps-vaR-11-07-06 23/02/0811 105 Page 24 Directory: D kccessicreate directory files and make calls from your directory. Settings: T7 Serthe time, date, language, security mode, answer mode, etc Messages: Read, write and send your messages. View your messages in your inbox, outbox. Adjust the settings and activate/deactivate SMS CB message reception. Camera: Access the camera function. WAP: Access WAP function. Entertainment: Play the 2 games embedded in your telephone. Media album: Access the picture and sound album. Extras: Access the Alarm and Calculator functions. Organizer : Create, store and manage events. Shortcuts (: Configure shorteuts which you access more frequently. Profiles 0: Settings of Profiles, Display and Sounds. T6 V+e0x “ OT-C630/635.

You can use this built-in calculator to perform basic calculations. Numbers are entered with the keypad and operators with the navigation keys indicated on the screen. Press and hold os.» to get the decimal point. Confirm with ok or +.

You can convert a sum from one currency into another using the exchange rate of your choice.

You can create, store and manage events in your organizer. When the organizer alert is “On”, a beep or a sound recorded alerts you when an event is due. The organizer shares the mobile memory capacity with other features (directory, picture album, sound, etc.). Please check the memory available in your phone. “ OT-C550/560.

5.3.1 Creating a new event

Choose “<New>" in “Events”, then the type of event to create (Meeting, To Do, Holiday). Enter time, starting/ending date of the event and name it. Set a reminder and a frequency: alerts will be triggered at the chosen time. Reminder only applies to Meeting and To Do events. lt will be updated when changing time zones.

5.3.2 Deleting old events

You can delete past events. Enter the starting date and press Ok twice 10 delete all events preceding this date. To delete all events set in your organizer, enter a starting date several years ahead (eg. 31st of December 2010) to make sure all events preceding this date are deleted at once.

5.3.3 Managing events

Select an event in the list and press ok or the left softkey to access following options: Delete + Delete the selected event. Change + Change the selected event. Change Sound + Change the sound associated with the alarm type of the selected event. Changing a repeating event will modify all instances of this event.

Events stored in your organizer can be displayed in “Day view”, “Week view” and “Month view”. Select a view format and press the left softkey, then use or & to display the previous or next day, week or month.

You can set and display both the local clock and remote clock in the foreign time zone of your choice. @ Once you choose to display the local and foreign clock on your main screen, the image you selected as wallpaper will no longer be displayed there, but will be replaced with the standard International clock wallpaper.

Press # or à to set the option “On” or “Off”. When “On”, you can display the zone of your choice.

5.4.2 Local settings

Set time Set time by pressing the appropriate keys. Time zone Move w or à to select the time zone corresponding to your area. Daylight saving + Set the daylight saving option “On” or “Off” for the local time zone.

5.43 Switch local/ foreign

Time zone + Move # or à to select the time zone of your choice. Daylight saving * Set the daylight saving option “On” or “Off” for a foreign time zone. Alarms, reminders, programmed events are time zone independent! If you set an alarm or an event at 9:00AM in time zone À, it will still ring or be due at 9:00AM if you change to time zone B.

You can make recordings of up to 12 minutes in length, depending on the memory status. Select “<New>" to begin the recording. When finished, press the left softkey to stop and save recording. You can then either enter a name for the new sound file or accept the default name proposed by pressing OK. Once à sound file is selected, it is played automatically in a loop. Press OK to access the options. You can “Play recording”, “Rename” or “Delete”, “As ringtone” or “As SMS/MMS ringer”. A flashing warning sign indicates that your recording will soon reach the maximum authorized length. If you do not stop recording, a red envelope icon informs you that your recording is too long to be sent via MMS.

Your mobile phone has a built-in alarm clock with a snooze feature. You can set up to three separate alarms and choose whether or not the alarm should repeat. When the alarm rings, press any key to stop it (excepr if the snooze mode is on). Snooze You can set the snooze mode “On” or “Off”. Wihen the alarm rings and the snooze mode is “On”: + Press any key (except the right softkey) to stop the ringing temporarily. The alarm will ring again around 7 minutes later. + Press the right softkey to stop the ringing and the alarm repetition. The snooze mode is automatically deactivated after 9 alarm repetitions.

5.7 Auto Switch On/Off

You can set your mobile phone to switch itself on or off at pre-set times. Ill extend your phone's battery life, let you not be disturbed at given times and have your phone switch back on automatically.

[Ps-vaR-11-07-06 23/02/0811 105 Page 32 6 Media album + Ie contains options related to the multimedia features of your mobile phone.

You'll find the percentage of memory available in your phone. Various features share the memory capacity: pictures, sounds, recorded memos and voice tags for voice commands, stored messages, directory and organizer entries, games, etc. You can only delete sounds or pictures in “My melodies” or “My images”. When “List full” appears when saving a new file you must delete an item to add a new file.

Manage sound files stored in your mobile phone. View all Access all your sound files in a single list. Own melodies Access your downloaded sound files. Prot. melodies Access the list of copyright protected sample sounds. Recordings Access the list of sound recordings.

D6_UM_GB-11-07-06 23/02/0811 105 Page 33 Select a sound file and press OK to access the following options: Send by + Send the selected sound files via E-mail, MMS and VMS. As ringtone + Set the selected sound as ringer. As SMS/MMS ringer+ Set the selected sound as message ringer. Rename + Rename the selected sound files. Delete / Delete all + Delete the selected sound file or all files at once.

Display and modify the images stored in your mobile phone. <Get more...> + Download new image files. View all + Access all your image files in a single list. My photos + Access the photos taken with the phone's embedded camera. My images + Access the images you have downloaded. Prot. images + Access the list of copyright protected sample images. Icons + Access the list of icons you have downloaded.

D6_UM_GB-11-07-06 23/02/0811 105 Page 34 Select an image and press #_ to view the image. Pressing OK to access options below: Send by... Set as wallpaper Modify Rotate View Properties Rename Send the selected image file via E-mail and MMS. Set selected picture as wallpaper. Modify selected picture. - Add text: add text to the selected picture. - Add frame or icon: add a frame or an icon to the selected picture. - Undo: undo the last modification made on the picture or reset, - Send: send the selected picture via E-mail or MMS. - Save: save the picture with all the changes you have applied. Rotate the selected image of -90 degrees, +90 degrees or +180 degrees. Display the selected file. Display its properties (size, format, resolution, etc). Rename the selected image. [5] Pictures protected by copyright cannot be sent.

Service provider may require you to use an Internet access point (IAP) for your default access point. The access point may be configured when you Start your device.

Network access Auto launch

List of network profiles available for games and applications. This list comprises the current WAP profiles and specific profiles for games and applications. To select a profile, go to the list, press OK and choose “Select” To activate/deactivate automatically Java application launch.

[Ps-vaR-11-07-06 23/02/0811 105 Page 36 8 war © You can access services supplied with your network, such as news, sports, weather, etc.

This is à link to the first WAP site you access when launching a WAP session.

You can store your favorite WAP site addresses, rename them and access them quickly from the list. Press the left softkey while browsing and then select “Bookmarks”.

Enter a WAP site address and connect directly when selecting it.

To access WAP sites, you must first configure a WAP connection profile.

8.4.1 Select Profile

Select one of the available profiles, then define the connection settings for each of them.

Activate or deactivate the downloading of images attached to WAP pages. Selecting “Off” will speed up the global down loading time of the pages browsed.

8.4.3 Rename profile

Rename selected profile. 844 Cache Empty an area of the phone's memory where the pages browsed during a WAP session are stored.

Homepage + Change name and address of the homepage. Network access + Select one of the data profiles you have defined. Bearer + Select the type of network used by the selected profile when launching a connection. Proxy address and + Define a gateway address and port number Proxy port when launching a WAP connection using the selected profile. Security Display the list of installed security Certificates, Session information or the Current certificate.

Read and manage messages automatically sent to you by network and/or your operator. In some cases, a red "@" sign will be displayed on the screen to inform you that you have received a new push message.

While browsing, press the left softkey to access following options: Homepage + Access the default homepage. Back Go back to the previously browsed page: Forward Go to the next browsed page. Refresh + Reload the currently browsed page from its original server. Set as homepage + Save currently browsed WAP page as the default homepage. Save as … + Save images embedded in the pages that are displayed in the Picture album. Exit + End a WAP session. Bookmarks + Save this link as bookmark. Go to URL + Go to URL input. Settings + Go to WAP settings. Push Inbox + Check push inbox.

[Ps-vaR-11-07-06 23/02/0811 105 Page 39 9 Messages. A You can create, send, receive, view, edit, and organize SMS, MMS and e- mail messages. You can also receive data, service messages and broadcast messages (?.

You can send emails to one or several recipients at a time, including with an attachment such as a JPEG picture. <Add contacts> + Select the recipient(s) of your e-mail, provided that you have entered e-mail addresses for contacts saved in directory. Add media Design your message. Enter the subject and text, then press left softkey to access following options: - Add sound or Add graphic: attach a sound or a picture to your e-mail, - Send now: send it to the selected recipient(s), - Modif: redesign your e-mail. Ci] You can only attach one picture (JPEG, GIF or BMP) or one sound at a time. If you accept an incoming call while writing an e-mail, the menu is closed and the phone goes back to main screen when you hang up. 9 Contact your network operator or internet service operator to check service availability.

To compose and send an SMS, select “New SMS”, then enter text. You can select “<Add recipient>" to add one recipient from the directory or enter a phone number directly. Select “Add sound” to attach à melody, “Add graphic” to attach an image or an animation, “Input Language” to change the language for typing.

When you select “New MMS”, you are first asked to enter the contact to whom you wish to send MMS. You can select one or more existing contacts or enter a new mobile phone number or a new email address. Then you will be asked to “Add media”. You can add a Picture, add Text, add Sound, Send the message or access the MMS options. Use # or à to move from one option to the next and press OK or the left softkey to access the menu New MMS + Add a Picture, a Text and/or a Sound. Send + Send MMS to selected recipient(s). Following options are available when creating new MMS message: Add Slide + Create a new slide and add it to your slide show. Edit subject Edit and change or enter the subject of your message. Next slide + Move to the next/previous slide. Delete + Delete selected page.

D6_UM_GB-11-07-06 23/02/0811 105 Page 41 Save as draft + Save your message as a draft that you can edit, complete and send later on. Save as template + Save your message as a template Preview MMS + Preview the slide show you have created. Slide duration + Change the value of slide duration.

From the main screen, select “Message” then “New VMS" or select the recipients then to create VMS. You can send a VMS to one or more number at one time. Three ways to reply a VMS: SMS, MMS and VMS.

You can access this menu from main screen, Camera feature, Album feature, Message function and Directory.

You can connect your mailbox and download the e-mail headers (sender and subject lines) from the server. You may then choose to retrieve the corresponding e-mails. (Contact your network operator to check service availability.

It includes sent and received messages. Press Ok or the left softkey to access following options: Delete Edit SMS Reply by SMS Move to Spam box Add to black list Move to Archive Forward to Call handsfree Call back Store number Extracted nb. Store melody Store graphic Delete selected message. Edit, modify and resend SMS to someone. Reply to sender. Move the selected message in the Spam Box. Add sender's phone number to Firewall blacklist. Store messages in the phone memory. Forward selected message. Call sender of the message handsfree. Call the sender of the message (operator- dependent). Save the number of the sender if it is attached +0 the message. Extract a number included in the message itself. Save the melody that was sent with the SMS. Save the graphic and/or animation that was sent together with the SMS.

Your MMS inbox includes all read and unread MMS, Notifications, Delivery and Read reports. To read a message, select it and press Ok . Press Ok or the left softkey to access following options: Play message Forward MMS details Delete Switch back to automatic mode: the MMS is then played as a continuous slide show. Forward selected MMS to someone else. Display the details of the selected message (size, data, etc.). Delete selected MMS. Once you have opened an MMS, press the left softkey to access following options: Play message Next/previous Save picture Save sound Close Switch back to automatic mode: the MMS is then played as a continuous slide show. Move to the next or previous slide. You can also press w or à when viewing the MMS in manual mode. Note that this option only appears if the MMS contains more than one slide. Detach the picture of the current slide and save it in the Picture album. To detach the sound of the current slide and save it in the Sound album. To close the MMS and go back to the list of options. Do NOT delete notifications before you have retrieved the MMS, or you will not be able to retrieve the MMS. Notifications are automatically deleted once you have received the full MMS.

You can save a message as draft manually. You can Play, Edit, Send, view Details and Delete drafts.

It includes all messages saved as templates. You can Play, Edit and Delete them.

Ie includes sent and unsent messages. You can Play, Delete, Send, Forward or view the Details of all these messages. Saved messages can only be sent from Draft or Outbox. You can NOT recover an item (whether message, notification or report) you have deleted. Press “Back” to cancel deletion.

You can enrich T9 dictionary used for writing messages. Select “New”, enter the word of your choice and simply press OK to save it.

Configure your SMS settings. SMS centre Signature Validity period Auto save SMS Reply path Delivery report

Rename profile Select your default SMS center. Add a signature at the end of your message. Select the time your messages are to be stored in the SMS center. Messages sent in the Archive menu will be automatically saved. Transmit the number of your SMS message center together with the message. Inform you via SMS whether your own SMS was received or not. Rename an account from its default name. Modify profile E-mail server Advanced Network access + Modify the configuration of the settings of your profile. Configure the settings of your e-mail service. Access advanced options. + Configure your connection to internet before consulting your e-mails.

Contact your operator to receive information described in the present section and enter them as given.

Manage reception of SMS broadcasts regularly transmitted to all subscribers on the network.

[Ps-vaR-11-07-06 23/02/0811 105 Page 47 I 0 Settings. g? You can change the settings related to each available option (sounds, time and date, security, etc.) and customize your phone.

Set time and date after selecting your “Time zone” and activate “Daylight saving”.

Adjust the volume of your ringer, select a ringer tone and key tones, choose messages ringer, audio settings, animation sounds and set soundsWvibra alerts.

This function allows you to access the features relating to the security of your mobile phone and data you store there.

Change your PIN and PIN2 codes, as well as call Barring code. If you enter a wrong PIN2 code 3 times, your SIM card is blocked. To unblock it, request the PUK2 code from your operator or retailer. If you enter an incorrect PUK code 10 times in a row, the SIM card will be blocked and unusable. If it happens, contact your operator or retailer. “ OT-C550/560.

Manage a specific names list called “Public names” list, and restrict calls to this list via “Call restriction” option. This feature is subscription dependent and requires a PIN2 code. Public names + Consult, edit and modify your Public Names list via a PIN2 code. Call restri + Restrict the calls to Public names list when Public only is selected.

This function can limit the use of your phone to specific calls. It can be applied to incoming calls and/or outgoing calls. I is network dependent and requires a specific call barring password supplied by your operator.

10.3.4 Information Privacy

Protect, with a code of your choice, your messages, directory or call information and prevent them from being read by someone else using your phone.

10.3.5 PIN protection

When On, you will be asked to enter your PIN code when switching your phone on. You cannot change your PIN code if this option is Off.

10.4 Quick profiles (?

A profile is a group of predefined settings that allows you to quickly adapt your phone to your environment.

It gives you a direct access to the features that consume the most energy and allows you to improve your battery life by quickly changing each setting. Deactivating most of the functions in the Autonomy menu will increase battery life.

Choose different levels of back light intensity.

Set the wallpaper of the main screen “On” or “Off”. The wallpaper is not displayed in idle when the World time option is “On”.

If you activate this option, the screen saver will be displayed a little while after the main screen. You can choose a picture or an animation as your screen saver.

Choose different levels of contrast. “ OT-C550/560.

Backlight is activated when receiving incoming calls or messages and browsing menus.

Contact your phone operator to have full information about GPRS availability over its network and for an appropriate subscription. You might also need to configure your phone with GPRS settings supplied by your operator.

You can configure shorteuts to the features and options you access most frequently. Voice command Set up a direct access to a specific function by linking it to a voice tag. You can associate a voice command to most functions supported by hotkeys.

Your phone features a built-in digital camera. You can take pictures, store them in your phone or transfer them to your PC, use them as wallpaper or send them to your friends via MMS or E-mail. I I Camera.

Press the & key and camera application is automatically launched. Please see following for detailed operations of various keys in camera mode. va Zoom in / out Increase/decrease exposure compensation ok oræ Take a picture } Exit Camera mode and return to main screen ou» Activate/deactivate self-timer ex Activate/deactivate burst mode #4 Toggle through the image resolutions Left softkey Access options menu Right softkey Return to previous screen Press the @ key to take the picture. Pictures are saved automatically.

D6_UM_GB-11-07-06 23/02/0811 105 Page 52 Using self-timer In Camera mode, press Où.» . Adjust your picture and press OK to start the countdown of 10 seconds (this value cannot be changed). Press the left softkey to stop the timer and go back to preview mode. À sound is played three seconds before the picture is taken, then again when it's actually shot. 2 Camera menu

When you take a picture and save it, the file is stored in your “My photos” folder. Use up and down navigation keys to move through the list. To view full-screen image, press OK . Press the right softkey to access following options: Send by. +_ Transfer an image to another device. Set as wallpaper + Set the selected photo as wallpaper. Modify + Launch image editing program. Properties + Display Properties of the selected image: Name, Size (in Kb), Resolution and Format. Rotate + Rotate an image. View + Display the picture in full screen. Rename + Rename an image file. Delete all + Delete all files in your “My photos” folder. Delete + Delete only the selected file from your “My photos” folder.

D6_UM_GB-11-07-06 23/02/0811 105 Page 53 Launch a slide show of the contents in “My photos” folder. During the slide show, each photo will be displayed briefly on the screen. Press any key to end the slide show and return to the previous screen. 1123 Continuous shoot You can take a “burst” of 9 photos with one press of ok or & key. Note that to use continuous shoot, the resolution must be set to screen size. When the camera finishes processing the images, they are displayed on screen as thumbnails. You may then press the left softkey to access following options: Save + Pictures are saved automatically. Send by... + Send the selected image by MMS, Email. Delete + Delete selected image. Delete all + Delete all the images in the group. When ou save or delete an image from the group, it is removed from the thumbnail view and stored in the “My photos” folder.

11.24 Picture orientation

Choose how photos are displayed in your photo album so that they can be viewed correctly.

You can take photos with decorative frames. The Standard frames folder contains frames that were loaded on your mobile phone when you purchased it. 11:26 Color mode You can apply a number of different visual effects to your images.

When activated, it allows you to take pictures in low-light situations.

You can take a time-delayed picture so that you can get into the frame as well. To use Self-Timer, select “On” in this menu, return to the view- finder mode, frame your picture, and then press OK .

Adjust the exposure compensation of your mobile phone's screen. 3 Settings

You can adjust the quality of the pictures taken with your camera: Low, Medium, High.

1.3.3 Sound settings

Set Alert and Shutter sounds.

1.3.4 Default settings

Reset all camera settings to their default values.

It provides you with on-screen help in taking pictures with your mobile phone.

[Ps-vaR-11-07-06 23/02/0811 105 Page 56 I 2 Directory . oi The directory allows you to store phone numbers and names either in the SIM memory and/or the phone memory. When entering new names, they will only be added to the directory you have selected.

You can manage the names, telephone numbers, and e-mail addresses of your contacts. You can also access the Names list directly from the main screen by pressing #. Press the key for the letter that you want to be displayed. The first contact starting with this letter is selected in the list. You may also press the +. key then enter the first letter of the contact name you are searching and press OK to go directly to that name. You can also use the “<Search>" item in the directory. Select “Show” to access the list of numbers or files saved in this directory and “<New>" to create a new file. Files stored in the directories can be personalized with a picture and/or a sound. This function is only available in the product directory. Select a contact and press ok or the left softkey. When you have à call from this contact, the telephone will display/play his/her picture and/or sound associated with this contact.

Delete all files at once. This option only applies to the product directory, not to the SIM directory.

12.3 Default directory

It allows you to select the directory you want to use (SIM or product). Press # or à to select a directory. Files in the selected directory can then be copied into the other, using the options “Copy to SIM card” or “Copy to phone”. Your phone only manages one directory at a time and will ignore all information relative to the other.

Display the total number of files you have saved in each directory, of the total number available.

You may copy the content of your SIM card into your phone. If you cancel or abort the automatic copy of your SIM directory when you first switch on your phone, you can do it manually using this option. Selecting this option twice will duplicate all the names.

12.6.1 Adding files in SIM directory

Select “<New>" in the list, enter the name and number of your choice, then the type of number assigned to the name (Phone, Fax or Data) and press Ok to store this file in your directory. À number is limited to 40 digits, depending on your SIM card. Entering international prefix, country and area codes allows you to dial a number from any location. Choose à file in your SIM directory and press OK to access the options.

12.6.2 Adding files in product directory

Select “<New>" in the list, enter name (up to 20 Latin characters) and then select the Number type. Numeric fields can hold up to 40 digits and one "+" sign and alphanumeric fields (e-mail and note) feature up to 50 Latin characters. Each file can feature a maximum of 5 numeric fields. Choose à file in your phone directory and press ok to access the options.

12.63 Adding picture and sound to contacts

Files stored in the product directory can be personalized with a picture and/or a sound. Select à file and press ok or the left softkey “Options”. In the list, choose “Select picture” to add a picture from the Picture album and “Select melody” to open the list of ringers and add a melody.

You can track the cost and duration of your calls. Most options mentioned below are subscription dependent. imes

13.1.1 Data counters

GPRS counter allows you to monitor the amount of data received via GPRS sessions. This feature is subscription and network dependent.

13.1.2 Call counters

Ie is used for keeping track of your incoming and outgoing GSM calls. Please note that GSM call counters do not include WAP connections.

Set all the options related to call: call forwarding, call waiting, etc.

13.2.1_ Info at call ending

Set “On” or “Off” the systematic display of the length and/or cost of each call when hanging up.

With GSM c: It applies to All calls, Voice calls, Fax calls and Data calls. With GPRS call Set “On” or “Off” the call waiting for voice incoming calls while a GPRS connection is ongoing.

Divert incoming calls to your mailbox or to a number (whether in your directory or not) and apply to: Data calls, Voice calls and Fax calls. Uncond nal Divert all incoming calls. Conditional Choose when you want to divert incoming calls: If no reply, If not reachable or If busy. Status Display the status of all call forwarding.

13.25 Voicemail box (

Enter your voice mailbox numbers (if not available on your SIM card). In some cases, you might have to enter wo numbers: one to listen to your mailbox, the other to forward call Contact your operator for more information.

Set the prefix provided by your operator (up to 1Odigits can be stored) in order to make IP calls.

If che person you are calling is busy, when On, your phone will automatically redial the number until a successful connection is made or until the maximum number of attempts is reached (10).

It provides you with the list of outgoing and incoming calls, attempts at auto redialing and call details.

Reset +_ Reset the whole list at once and delete all listed calls. Missed calls +_List phone numbers of missed calls. Received calls +_List phone numbers of Received calls. Outgoing calls +_List phone numbers of Outgoing calls.

[Ps-vaR-11-07-06 23/02/0811 105 Page 62 I 4 Organizer (”. t£ You can create, store and manage events in your organizer. When the organizer alert is “On”, a beep or a sound recorded alerts you when an event is due. The organizer shares the mobile memory capacity with other features (directory, picture album, sound, etc.) Please check the memory available in your phone.

14.1 Creating a new event

Choose “<New>" in “Events”, then the type of event to create (Meeting, To Do, Holiday). Enter time, starting/ending date of the event and name it. Set a reminder and a frequency: alerts will be triggered at the chosen time. Reminder only applies to Meeting and To Do events. lt will be updated when changing time zones.

14.2 Deleting old events

You can delete past events. Enter the starting date and press ok twice 10 delete all events preceding this date. To delete all events set in your organizer, enter a starting date several years ahead (eg. 3st of December 2010) to make sure all events preceding this date are deleted at once. “ OT-C630/635.

14.3 Managing events

Selecting an event in the list and press OK or the left softkey to access following options: Delete + Delete the selected event. Change + Change the selected event. Change Sound + Change the sound associated with the alarm type of the selected event. Changing a repeating event will modify all instances of this event.

Events stored in your organizer can be displayed in “Day view”, “Week view” and “Month view”. Select a view format and press the left softkey, then use or & to display the previous or next day, week or month.

[Ps-vaR-11-07-06 23/02/16) 11:05 Page 64 I 5 Shortcuts ( You can configure shorteuts to the features and options you access most frequently. Voice command Set up a direct access to a specific function by linking it to voice tag. You can associate a voice command to most functions supported by hotkeys. “ OT-C630/635.

A profile is a group of predefined settings that allows you to quickly adapt your phone to your environment.

Adjust the volume of your ringer, select a ringer tone and key tones, choose messages ringer, audio settings animation sounds and set sounds/vibra alerts.

Choose different levels of back light intensity.

Set the wallpaper of he main screen “On” or “Off”. The wallpaper is not displayed in idle when the World time option is “On”.

If you activate this option, the screen saver will be displayed a little while after the main screen. You can choose a picture or an animation as your screen saver. “ OT-C630/635.

Choose different levels of contrast.

Backlight is activated when receiving incoming calls or messages and browsing menus.

[Ps-vaR-11-07-06 23/02/0811 105 Page 67 I 7 Character table To enter a word in normal mode, press the key corresponding to the desired letter several times until the letter appears. Key Upper case Lower case 1 œæ ,-21'@:1 .,-21@:1 æax ABC2AÂÂÆÇ abc2ääàæc 3 cet DEFSÈÉÉED defsèéëed 14 ght GHI4GGTIT ghi4ggiti SH JKLSKÈLE jkISkfit Smno MNO6NNOÔS mnoë6ñnôôo 7% PORS7RRSS pars7Bfss Stw TUV8TTÜUU tuvattüuü sY WXYZ9Ÿ222 Wxyz9Yÿ222 Switch between: T9/Multap/123 (short keypress) O3 Enters the number 0 (long keypress) Change the capitalisation in the following order : Ab/AB/ab (short keypress) ++ Access Symbols table (long keypress) Validates the active word and/or insert a Space (short keypress) Fes Accesses to the languages list (long keypress) This table is given for information purposes only. lt may vary depending on the language and the model.

D6_UM_GB-11-07-06 23/02/0811 105 Page 68 The predictive mode allows you to type your messages more quickly without the need to press the same key several times. Simply press once the key corresponding to the letter you need, and the phone will suggest the most common words from the dictionary. The word may change as you type - don't worry about whats on the screen until after you finish the word. Confirm the suggested word by pressing the #_2 key. If the finished word is wrong, use the Ow.» key to cycle through other words in the dictionary. If your word is missing, add it using the normal mode (ABC). Symbols bar Hold down the +++ key to display the symbols bar. Press the à key to go left, Press the w key to go right. Press the left softkey to confirm and insert the symbol.

[Ps-vaR-11-07-06 23/02/0811 105 Page 69 I 8 Telephone warranty Congratulations on choosing this mobile phone - we hope that you will be completely satsfied with Your phone is guaranteed against any déviation from technical specifications for à period of twele {12) months from the date specified on your original invoice . The warranty terms defined in the manual also apply to the battery and accessories but for a period of sx (6) months ® from the date of purchase shown on your original invoice. Under the terms of this warransy, you must inform your vendor (or any maintenance centre approved by T&A Mobile Phones Limited or its afflates, which are listed on our website wwwitctmobile.com) without delay, of any defect and present the invoice given to you at the time of purchase. The vendor or maintenance centre will decide whether 1 replace or repair, as appropriate, all or any part of the telephone or accessory found to be defective; this warranty covers the cost of parts and labour but excludes any other costs. Repair or replacement may be carried out using reconditioned components offering equivalent funetionality. Servicing under the terms of this warranty, especial} repair, modification or replacement of products, shall entite to a THREE (3) month warranty unless there are statutory provisions to the contrary. This warranty shal not apply to damage or defects to your telephone and/or accessory caused by: 1). failure to follow the instructions for use or instalation, 2). failure to comply with technical and safety standards applicable in the geographical area where the equipment is used, 3)_improper maincenance of batteries and other sources of energy, and of the overal electric installation, 4). accidents or consequences of theft of the vehicle in which the telephone is transported, acts of vandalism, lighaning, fre, humidity, infiltration of liquids, inclement weather, (The warranty period may vary if overriding statutory provisions are applicable in your country. The life of a rechargeable Alcatel telephone battery in terms of conversation time, standby time, and total service life, will depend on the conditions of use and network configuration. Batteries being considered expendable supplies, the specifications state that you should obtain optimal performance for your Alcatel phone during the first six months after purchase and for approximately 200 more recharges.

5) connecting or incegrating the phone into equipment not supplied or not recommended by T&A

Mobile Phones Limited or ts afflites, without their express wricten consent for such,

6) any servicing, modification or repair performed by individuals not authorised by T&A Mobile

Phones Limited or it afliates, che vendor or the approved maintenance centre,

7) use of the equipment for à purpose other than that for which it was designed,

9). malfunetions caused by external causes (e.g, radio interference from other equipment, power or telephone line voltage fluctuations),

10) modifications made to the equipment even if required by changes in regulations and/or

modification of network parameters,

11) fauley connections resulting from unsatisfactory radio transmission or caused by the absence

of radio relay coverage. In accordance with the applicable law, T&A Mobile Phones Limited or is afliates guarantee your product against hidden defects (defects inherent in the design, manufacture, etc.) ‘The above provisions constitute the only claims enforceable against the manufacturer and vendor in the event of defects in the phone or accessory. There are no express warranties, whether written or oral, other than this printed limited warranty. AÏL implied warrants, including without limitation the implied warranties of merchantability or fitness for à particular purpose, are limited to the duration of this limited warranty. In no event shall T&A Mobile Phones Limited or its affliates be lable for incideneal or consequentil damages of any nature whatsoever, including but not limited co loss of profits, “commercial loss, to the full extenc those damages can be disclaimed by lawr. Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply 10 you.

[Ps-vaR-11-07-06 13/07/ 11:05 Page 71 I 9 ACCEessOries M nrrrrrrrrrseses Battery Headset BC 5000023 LE) BC 5000157 à | Charger Cs5 Only use your telephone with Alcatel batteries, chargers and accessories compatible with your model. (_ Depending on availability.

[Ps-vaR-11-07-06 23/02/0811 105 Page 72 20 Troubleshooting Before contacting the aftersales department, you are advised to follow the instructions below: + You are advised to switch off the telephone from time to time to optimise its performance. + You are advised to fully charge the battery ([MD) for optimal operation + Avoid storing large amounts of data in your telephone as this may affect the performance of your telephone. and carry out the following checks: My mobile phone does not switch on + Press 4} until the screen comes on + Check the battery charge level + Check the battery contacts, remove and reinstall your battery, then turn your telephone back on My phone does not respond since several minutes + Press the ,} key + Remove the battery and re-insert it, then switch the phone back on My screen is difficult to read + Clean your screen + Use your mobile phone in accordance with the recommended conditions of use My mobile phone turns off by itself + Check that your keypad is locked when you are not using your mobile phone + Check the battery charge level + Check that the function "Auto OFF" is not activated (see page 31)

D6_UM_GB-11-07-06 23/02/0811 105 Page 73 My mobile phone does not charge properly + Make sure that your battery is not completely discharged; the battery charge indicator can take several minutes and may be accompanied by a quiet hissing sound. Make sure charging is carried out under normal conditions (0°C +40°C) + Make sure your battery is inserted. lt must be inserted before plugging in the charger + Make sure you are using an Alcatel battery and charger + When abroad, check that the electrical current is compatible My mobile phone does not connect to a network + Try connecting in another location + Verify the network coverage with your operator + Check with your operator that your SIM card is valid + Try selecting the available network(s) manually (see page 50) + Try connecting at a later time if the network is overloaded SIM card error + Make sure the SIM card was correctly inserted (see page 14) + Verify with your operator that your SIM card is 3V compatible; the old SV SIM cards cannot be used + Make sure the chip on your SIM card is not damaged or scratched Unable to make outgoing calls + Make sure you have dialled a valid number and pressed the [ key + For international calls, make sure you have entered the country and area codes + Make sure your mobile phone is connected to a network, and that the network is not overloaded or unavailable + Check your subscription with your operator (credit, SIM card valid, etc.) + Make sure you have not barred outgoing calls (see page 48)

D6_UM_GB-11-07-06 23/02/0811 105 Page 74 Unable to receive incoming calls + Make sure your mobile phone is switched on and connected to a network (check for overloaded or unavailable network) + Check our subscription with your operator (credit, SIM card valid, etc.) + Make sure you have not forwarded incoming calls (see page 60) + Make sure that you have not barred certain calls The caller's name does not appear when a call is received + Check that you have subscribed to this service with your operator + Your caller has concealed his/her number The sound quality of the calls is not optimal + You can adjust the volume during a call by means of the W or à keys + Check the radio reception icon all 1 am unable to use the features described in the manual + Check with your operator to make sure that your subscription includes this service + Check to be sure this feature does not require an Alcatel accessory. When I select a number from my directory, the number is not dialled + Make sure that you have correctly recorded the number in your file + Make sure that you have selected the country prefix when calling a foreign country

D6_UM_GB-11-07-06 23/02/0811 105 Page 75 1 am unable to create a file in my directory + Make sure that your directory is not full delete some files or save the files in the product directory My callers are unable to leave messages on my voicem: + Contact your network operator to check service availabiliy 1 can't access my voicemail + Make sure your operators voicemail number is correctly entered in “Call Services/Voicemail” + Try later if the network is busy 1 am unable to send and receive messages + Check your phone memory as it might be full if necessary, delete some messages + Contact your network operator to check service availability, see the messages settings + Verify the server centre number with your operator + The server centre may be saturated, try again later The << - >> icon is displayed + You are outside the network coverage area 1 have already entered 3 incorrect PIN codes + Contact your network operator to obtain the PUK code (Personal Unblocking Key)

D6_UM_GB-11-07-06 23/02/0811 105 Page 76 Alcatel logo and Alcatel name are trademarks of Alcatel used under license by T&A Mobile Phones Limited. All rights reserved © Copyright 2006 T&A Mobile Phones Limited. T&A Mobile Phones Limited reserves the right, in the customers interest, to alter material or technical specification without prior notice.
