USER MANUAL 4912FL Flama

White FLAMA-branded smart appliance with closed lid and black buttons (no visible text or symbols on body)

4912FL

PT SANDUICHEIRA

ES SANDWICHERA

EN SANDWICH MAKER 9

FR APPAREIL À CROQUE MONSIEUR 13

1

5

01 04 05 02 03

DESCRIÇÃO

1. Handle lock
2. Handle
3. Non-stick coating plates
4. Operation indicator light
5. Temperature indicator light

DESCRIPCIÓN

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with no text or numbers present

Please read these instructions carefully before using the appliance for the first time and keep them for future reference.

FLAMA shall not be liable for any use that is not in accordance with the instructions.

Please check that the supply voltage of your home electrical system corresponds to the voltage on the appliance's rating plate. This appliance must be connected to an earthed socket.

The appliance is not intended to be operated using an external timer or separate remote control system.

This appliance was designed for household, indoor use only.

This appliance is intended for households and similar uses, such as:

- Staff kitchen areas in stores, workshops and other working environments;

- Cottages;

- Guests of hotels, motels and other residential environments

- Hotel room-type environments.

This appliance may be used by children aged 8 and over and persons with physical, sensory or mental disabilities or lack of experience and knowledge if they have received supervision or instruction concerning the safe use of the appliance and understand the risks involved.

Children must not play with the appliance.

The cleaning and maintenance of the appliance must not be carried out by children unless they are over 8 years old and supervised.

Keep the appliance and the power cord out of the reach of children under the age of 8.

Warning - The temperature of accessible surfaces may be high when the appliance is switched on.

Please disconnect the appliance from the power supply by removing the plug from the power socket after each use and when cleaning. Please allow it to cool down before carrying out with any cleaning or storage operations.

Before switching on the appliance, please make sure you place it on a flat, stable and horizontal surface.

Do not use the appliance if the power cord or the plug are damaged, have them replaced immediately at an Authorized FLAMA Technical Assistance Service.

If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified personnel in order to avoid a hazard.

The appliance must never be used near flammable or combustible materials.

Never leave the appliance unattended.

Do not cover the appliance while it is switched on.

Do not disassemble the appliance.

The appliance must only be used for cooking food. Using it for other purposes may cause irreparable damage.

Never immerse the appliance in water or any other liquid.

WARNING: Charcoal or other fuels should not be used with this appliance.

This product complies with the Low-Voltage and Electromagnetic Compatibility Directives.

This instruction manual is also available in PDF format at www.flama.pt.

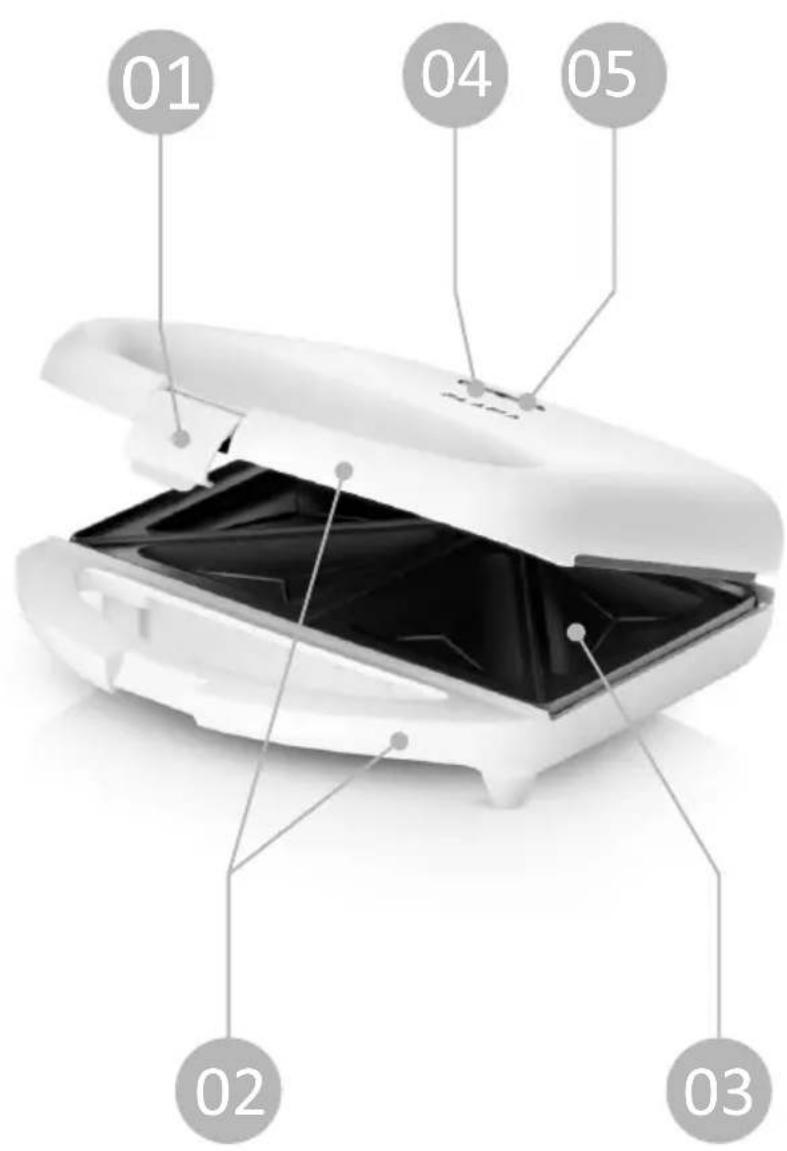

DESCRIPTION

1. Handle lock
2. Handle
3. Non-stick coating plates
4. Operation indicator light
5. Temperature indicator light

OPERATION

Before first use

Remove all labels, stickers and tags except the product nameplate.

Clean the appliance as described in the Cleaning and Maintenance section.

Use

CAUTION: Do not use this product to cook or defrost frozen food. All food must be completely defrosted before cooking with this appliance.

NOTE - during the first few minutes of operation (only in the first use), the appliance may release some smoke and odor, which disappears immediately afterwards.

Unwind the power cord completely.

Place the appliance on a flat, horizontal surface so that the power cord is not stretched.

Use the handle lock to lock and/or unlock the plates.

Lightly grease the plates with cooking oil. Close the appliance and plug it in.

Plug the power cord plug into the power outlet. If using an extension cord, make sure it is earthed and rated for 6A. The indicator lights come on, indicating that the appliance is plugged in and heating up. WARNING: Non-stick plates and appliance surfaces may heat up during appliance operation. To avoid the risk of burns, handle the appliance only by the handle.

Let the non-stick plates preheat; the temperature indicator light goes off.

Use the handle to lift the top plate. Place the food on the lower plate using, if necessary, a wooden or heat-resistant plastic utensil.

CAUTION: Do not use metal utensils on the non-stick plates as this can irreparably damage the non-stick coating.

Lower the top plate using the handle.

While using the appliance, the temperature indicator light goes off and on, which is normal, indicating that the appliance maintains the cooking temperature.

Unplug the appliance when no longer in use.

To close the sandwich maker, lower the top plate holding the handle and without forcing, press the handle lock until you hear a click.

CLEANING AND MAINTENANCE

Switch off the appliance and remove the plug from the socket.

Let the appliance cool down completely, keeping it open.

Danger - Never immerse the appliance in water or any other liquid. The appliance is not suitable for the dishwasher.

ATTENTION - Never use aggressive or abrasive cleaning products and materials to avoid damaging the non-stick coating of the plates.

Never immerse the appliance in water or any other liquid, or rinse it under running water.

Do not use metallic, sharp or abrasive utensils.

First remove excess fat from the plates with a piece of kitchen paper.

Use a wooden or plastic spatula to remove any food particles that are clinging (eg solidified cheese) to the plates.

Clean the plates with a soft, damp cloth or sponge.

Clean the exterior parts of the appliance with a damp cloth and dry them with a soft cloth.

After cleaning, close the appliance using the handle lock.

The appliance can be stored vertically.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

APPAREIL À CROQUE MONSIEUR

CONSIGNES DE SÉCURITÉ

DYSFONCTIONNEMENTS ET RÉPARATIONS

Symbol of a trash bin with crossed lines and a black rectangular base (no text or numbers)

This page has been deliberately left blank

This page has been deliberately left blank

This page has been deliberately left blank

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.
