2907FL - Juicer Flama - Free user manual and instructions

Product type	Citrus juicer (juice extractor for citrus fruits)
Brand	Flama
Model	2907FL
Power supply	220-240 V ~ 50/60 Hz
Power	100 W (estimated)
Filter material	Stainless steel
Body material	Plastic
Pulp regulator	Yes, rotary
Operation	Starts by pressing on the cone, automatic stop when released
Maximum continuous use time	3 minutes
Removable parts	Cone, filter, pulp regulator, juice collector
Body cleaning	Damp cloth with mild detergent, do not immerse
Cleaning of other parts	Dishwasher (delicate cycle) or warm soapy water
Warranty	36 months
After-sales service	Contact an authorized Flama service center
Package contents	Citrus juicer, cone, filter, pulp regulator, juice collector, instruction manual
Environmental protection	Recycling via selective collection of WEEE

Frequently Asked Questions - 2907FL Flama

How to use the Flama 2907FL citrus juicer?

Unwind the cable completely, place the juice collector on the motor body, fit the filter with the regulator, then the cone. Plug in, cut a citrus fruit in half, place the half on the cone and apply light pressure: the appliance starts. Release to stop.

What to do if the appliance does not start?

Check that the appliance is properly plugged in and that the outlet works. Ensure the cone is correctly fitted and that you are applying enough pressure. If the problem persists, contact an authorized Flama service center.

How to adjust the amount of pulp in the juice?

Turn the pulp regulator using the small tab near the filter. This adjusts the pulp filtration according to your preferences.

How long can I use the appliance continuously?

Do not use the appliance continuously for more than 3 minutes. Let it cool down before using again.

Can I wash the parts in the dishwasher?

Yes, except for the motor body. The cone, filter, regulator and juice collector can be washed in the dishwasher on a delicate cycle. Dry them well before reassembling.

What to do if the power cord is damaged?

Do not use the appliance. The cable must be replaced by the manufacturer, its after-sales service or similarly qualified personnel to avoid any danger.

Is the appliance suitable for children?

No. This appliance should not be used by children. Keep it out of reach of children under 8 years. Cleaning must only be done by adults or children over 8 under supervision.

How to clean the body of the appliance?

Unplug the appliance. Clean the body with a damp cloth and a few drops of detergent, then dry. Never immerse the base, cable or plug in water.

What to do if the appliance no longer works properly?

Unplug it and do not attempt to repair it yourself. Take it to an authorized Flama technical support service. Any unauthorized repair voids the warranty.

How to dispose of the appliance at the end of its life?

Do not throw it away with household waste. Drop it off at a selective collection facility for waste electrical and electronic equipment (WEEE) for appropriate recycling.

USER MANUAL 2907FL Flama

White FRAMA brand juicer with lid and handle, no visible text or symbols on the device itself

2907FL

PT ESPREMEDOR DE CITRINOS 1

ES EXPRIMIDOR DE CÍTRICOS 4

EN CITRUS JUICER 7

FR PRESSE-AGRUMES

ESPREMEDOR DE CITRINOS

INSTRUÇÕES DE SEGURANÇA

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Please read these instructions carefully before using the appliance for the first time and keep them for future reference. FLAMA shall not be liable for any use that is not in accordance with the instructions.

Please check that the supply voltage of your electrical system corresponds to the voltage on the appliance's rating plate.

This appliance may be used by persons with limited physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or have received instructions concerning the safe use of the appliance and understand the risks involved.

Children must not play with the appliance.

This appliance must not be used by children.

Keep the appliance and its power cord out of the reach of children.

Cleaning and maintenance must not be carried out by children unless they are over 8 years old and supervised.

Keep the appliance and the cord out of the reach of children under the age of 8.

Do not use the appliance continuously for periods longer than 3 minutes.

Always disconnect the appliance from the power supply by removing the plug from the fixed power socket after each use, when it is left unattended, and before starting assembly, disassembly and cleaning operations.

Never immerse the base of the appliance, the power cord or the plug in water or any other liquid. Cleaning and maintenance must be carried out as indicated in the Cleaning and Maintenance instructions.

Do not use the appliance if it is not working properly, or if it is in any way damaged. Any intervention other than cleaning must be carried out by an Authorized FLAMA Technical Assistance Service.

Do not use the appliance if the power cord or plug are damaged. If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified personnel in order to avoid a hazard.

This product complies with the Low-Voltage and Electromagnetic Compatibility Directives.

This instruction manual is also available in PDF format at www.flama.pt.

This product complies with the Low-Voltage and Electromagnetic Compatibility Directives.

This instruction manual is also available in PDF format at www.flama.pt.

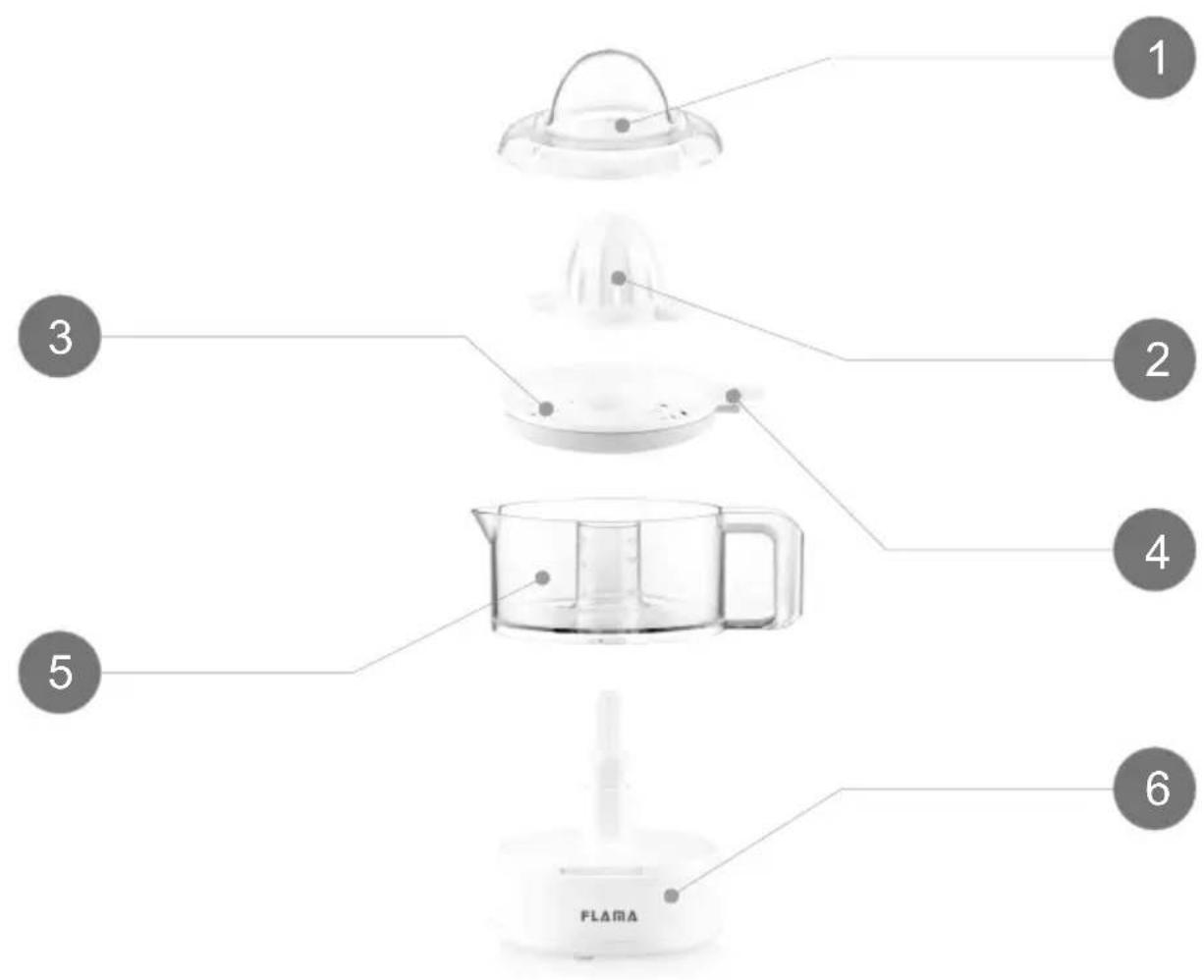

DESCRIPTION

1. Lid
2. Cone
3. Filter
4. Pulp regulator
5. Juice tank
6. Body

OPERATING INSTRUCTIONS

Before use

Make sure that all of the packing material has been removed.

Before using the product for the first time, clean the parts that will come in contact with food as described in the section on maintenance and cleaning.

Pulp amount regulator

This juicer has a system to regulate the amount of filtered pulp.

The amount of pulp may be regulated by turning the pulp regulator with the help of the small clip located next to the regulator and the filter.

Use

Unwind the power cord completely before plugging it in.

Place the juice tank in the body of the motor, turning it until it fits properly.

Connect the filter to the regulator

Insert the cone in the filter until it fits properly.

Connect the appliance to the electrical socket.

Cut the citrus to be squeezed in half.

Place the citrus in the cone. The appliance starts to operate as soon as a slight pressure is exerted on the cone.

To stop, simply stop pressing the cone.

Remove the cone and filter/regulator set in order to empty the juice container.

Note: If you are processing large amounts of fruit, you will need to clean the filter and remove the remaining pulp regularly.

MAINTENANCE AND CLEANING

Regular cleaning of the appliance and removal of all food remnants is recommended.

If the appliance is not well cleaned, its surface may wear out and permanently affect the useful life of the appliance, making its respective use unsafe.

Unplug the appliance from the outlet and let it cool before starting any cleaning procedures.

Remove the tank from the body of the appliance.

Clean the appliance with a damp cloth and a few drops of detergent, and then dry it.

To clean the appliance, do not use solvents or products with an acid or neutral pH, such as bleach, or abrasive products.

Do not soak the body of the appliance in water or in any other liquid, or place it under an open faucet.

Except for the body of the appliance, all of the components may be cleaned with warm water and detergent, then rinsed with clean water or in the dishwasher (using a gentle cleaning cycle).

Next, dry all the parts before assembling and putting them away.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

PRESSE-AGRUMES

CONSIGNES DE SÉCURITÉ

DYSFONCTIONNEMENTS ET RÉPARATIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This page has been deliberately left blank

This page has been deliberately left blank

This page has been deliberately left blank

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.
