Brand	CRAFT + MAIN
Model	N1420S-MB
Product Type	Recessed shower niche
Material	Brushed stainless steel (MB finish)
Compatibility	JETCOAT® shower wall systems (CORE, FLEX™, REFLECTIONS™) and tiled installations
Dimensions (approx.)	Recommended opening: width and height based on studs, with 19 mm (3/4 in) clearance around
Weight (estimated)	1.5 kg
Power Supply	None (no electricity)
Main Function	Storage for shower products (shampoo, soap, etc.)
Installation	Recessed into wall, requires cutting and caulking
Required Tools (not included)	Retractable knife, jigsaw, measuring tape, safety glasses, silicone
Care and Cleaning	Mild, non-abrasive cleaner; avoid steel wool and harsh chemicals
Warranty	1 year against defects in materials and workmanship
Customer Service	1-888-620-3667 (United States), 1-888-256-7551 (Canada), Mon-Fri 7:30 am - 5:00 pm CST
Product Registration	Recommended within 30 days at craftandmain.com or craftandmain.ca

Frequently Asked Questions - N1420S-MB CRAFT + MAIN

How to install the N1420S-MB shower niche?

Installation involves several steps: measuring the opening (allowing for a 19 mm clearance), cutting, adding framing support, applying silicone to the inner flange, inserting the niche, then final caulking. Allow 24 hours to dry before use. It is recommended to hire a professional.

Is this niche compatible with all JETCOAT® shower wall systems?

Yes, it is designed to work with CORE, FLEX™, and REFLECTIONS™ systems. It can also be used with tiled installations.

What tools are needed for installation?

You will need a retractable knife, a jigsaw, a measuring tape, safety glasses, and silicone. These tools are not included.

How to clean the niche without damaging it?

Use a mild, non-abrasive cleaner with a soft cloth. Avoid steel wool pads, abrasive scrubbers, and harsh chemicals that could scratch or degrade the surface.

What is the product warranty?

The CRAFT + MAIN N1420S-MB niche comes with a limited 1-year warranty against defects in materials and workmanship, from the date of delivery.

Can I install the niche myself?

Yes, but it is strongly recommended to hire a professional for proper and safe installation. Follow the instructions in the manual carefully.

How to register my warranty?

Register your product within 30 days of purchase at www.craftandmain.com (United States) or www.craftandmain.ca (Canada).

Is the niche suitable for a tiled shower?

Yes, it is compatible with tiled installations. Complete the tile installation before installing the niche, then apply silicone to ensure waterproofing.

What are the exact dimensions of the required opening?

Dimensions depend on stud placement. Measure the space between studs and subtract 19 mm (3/4 in) from each side to get the opening width and height. See the manual for details.

Where can I find the full manual?

The manual is available for free in PDF format at notice-facile.com. You can also contact customer service at 1-888-620-3667 (United States) or 1-888-256-7551 (Canada).

USER MANUAL N1420S-MB CRAFT + MAIN

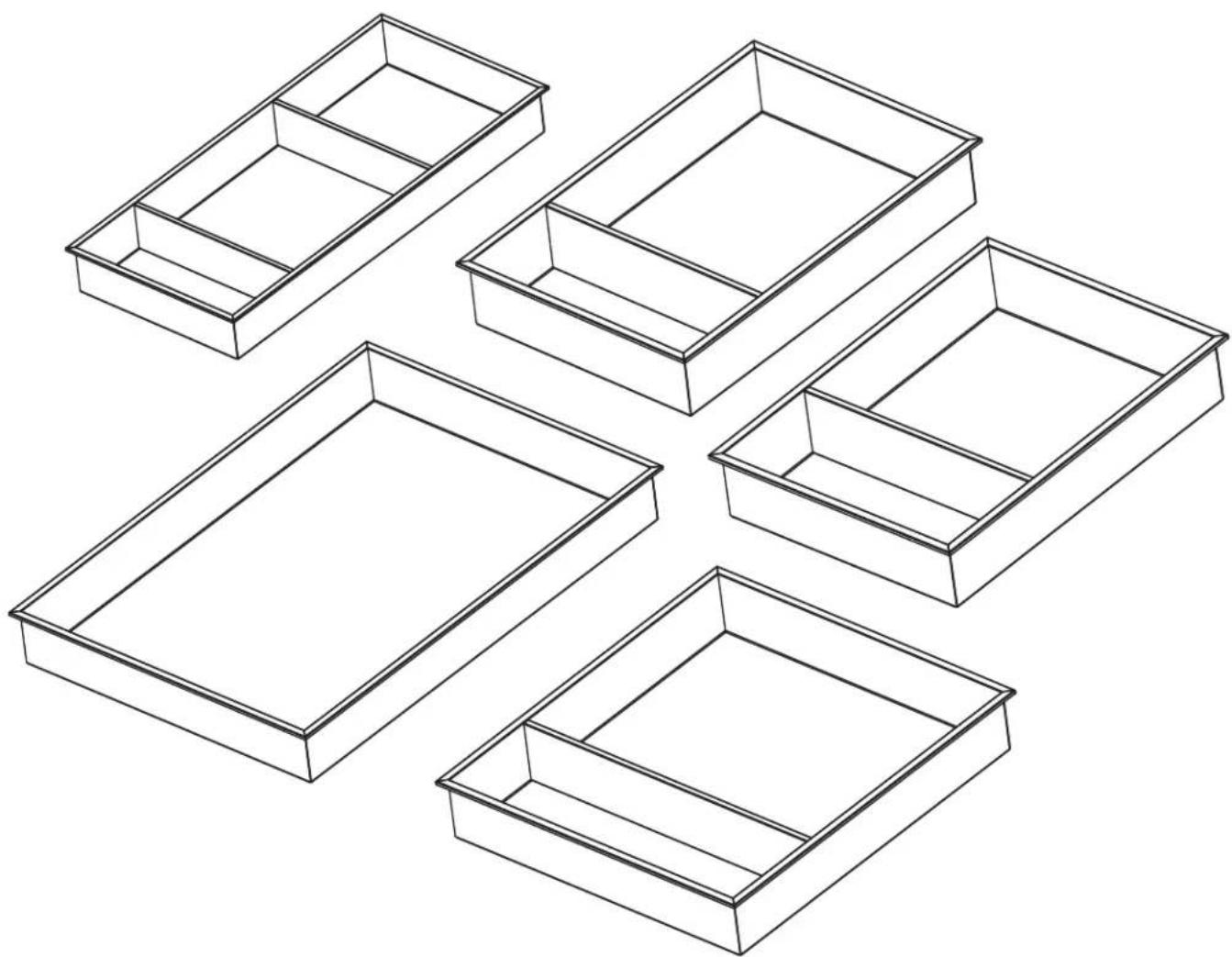

Familiarize yourself with all the parts as shown in the exploded view. The exploded view will also provide a helpful reference when relating to the location of the various parts and how they are mounted.

COPY THE MODEL NUMBER FOR YOUR RECORDS HERE #

Toll Free Customer Assistance

Monday-Friday, 7:30 a.m. To 5:00 p.m. CST

1-888-620-3667

1-888-256-7551

US Customers

Canada Customers

906 Murray Rd., East Hanover, NJ 07936

USA: www.craftandmain.com

5970 Chedworth Way, Unit B, Mississauga, Ontario, Canada L5R 4G5

CANADA: www.craftandmain.ca

Niche can be installed with a variety of products - JETCOAT® Shower Wall System or Tile.

COORDINATE WITH JETCOAT® SHOWER WALL SYSTEM

CRAFT+MAIN® Shower Niches have been designed for easy installation with JETCOAT® Shower Wall Systems - CORE / FLEX™/ REFLECTIONS™ - requiring only minimal vertical or horizontal cuts of the shower wall panels. The Niche gives the ability to customize the look of JETCOAT® Shower Walls, as well as, for tile installations.

SAFETY INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, operate or install the product. We recommend installation performed by a professional.

PREPARATION

Remove niche from packaging and inspect condition.

Tools Required for Assembly (not included): Utility knife, jig saw, measuring tape and safety glasses.

Supplies Required for Assembly (Not Included): Silicone.

1. Check for stud locations and determine desired placement for niche installation.
2. If needed, turn off any electrical or water supply.
3. All plumbing and electrical work inside the walls must be finished prior to installation.
4. When making cut out, make sure to cut lines that are level and square.
5. The mounting surface should be cleaned prior to installation of the niche.

CAULKING TIPS:

• Follow the instructions on the tube of your chosen caulk.
• Once you have completed the project, inspect all areas that have been caulked, filling in any gaps as needed.

• Remove any excess caulk using denatured alcohol and a clean cloth. Use caution.

• Regular Cleaning:

Use a mild, non-abrasive cleaner to wipe down the niche regularly.

DO NOT use any steel wool or abrasive scouring pads to clean niche, as they can damage the surface.

• Soap Residue Removal:

Soap residues may accumulate over time. Clean with a mixture of warm water and mild soap.

Rinse thoroughly and wipe dry with a soft cloth to prevent water stains and mineral deposits.

• Avoid Harsh Chemicals:

Do not use harsh chemicals or abrasive cleaners, as they can damage the surface.

• Avoid Impact:

Be cautious when placing or removing items from the niche to prevent impact damage.

• Avoid Sharp Objects:

Refrain from using sharp objects or tools near the niche to prevent scratches.

Sealant Maintenance:

If your niche has a sealant, periodically check for any signs of wear or damage. Reapply as needed.

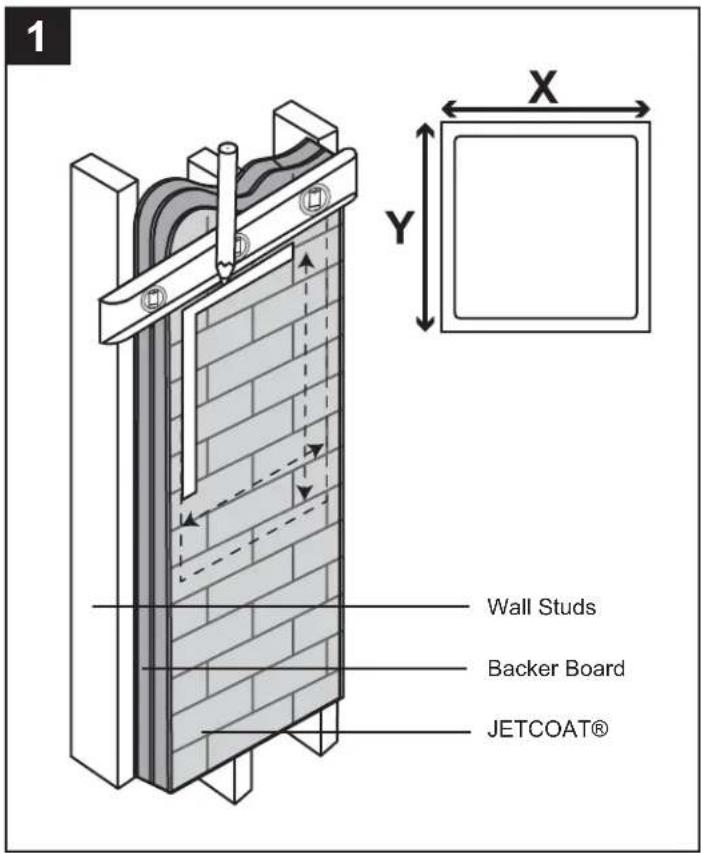

STEP 1: HOW TO MEASURE

While locating wall studs, determine the approximate installation location.

Measure for opening (X) and (Y) (between studs if possible).

Measure outside edge of niche, minus 3 / 4 inch, equals (X). Repeat for Y) measurement.

NOTE:

Complete JETCOAT® Shower Wall System installation prior to niche installation.

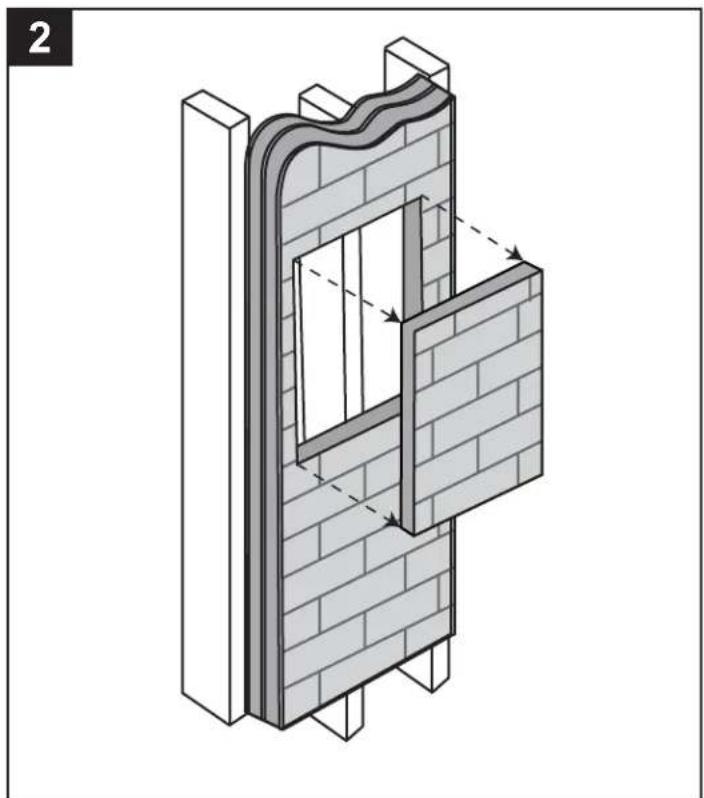

STEP 2: CUT OPENING AND CHECK FITMENT

Mark (X) and (Y) measurements and make cuts.

Check niche fitment prior to adding any bracing or silicone.
Niche fitment must have minimal resistance within the cavity to prevent the niche from shifting.

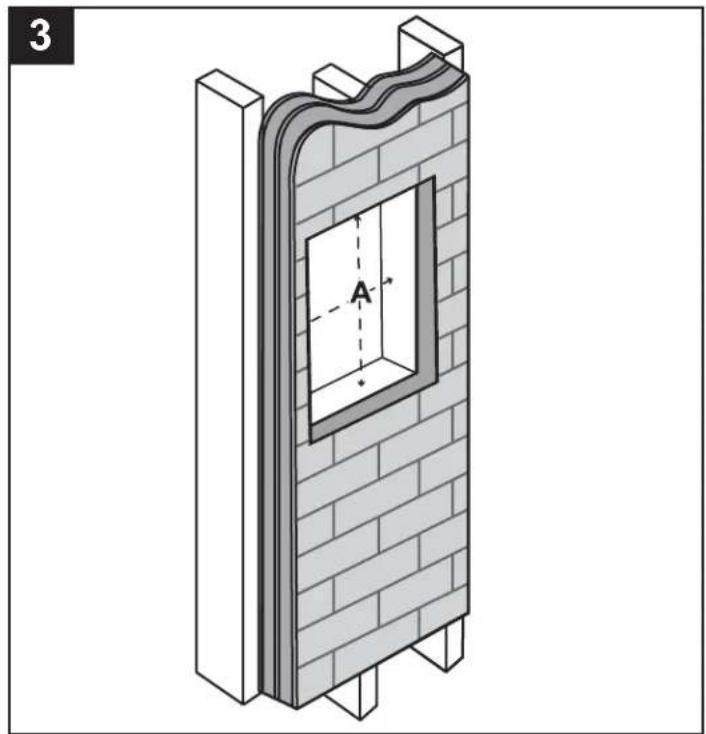

STEP 3: ADD FRAMING SUPPORT

Install and secure inside wall frame to support the niche.

This will provide support for both inside of the wall and the niche.

NOTE:

Complete tile installation prior to niche installation.

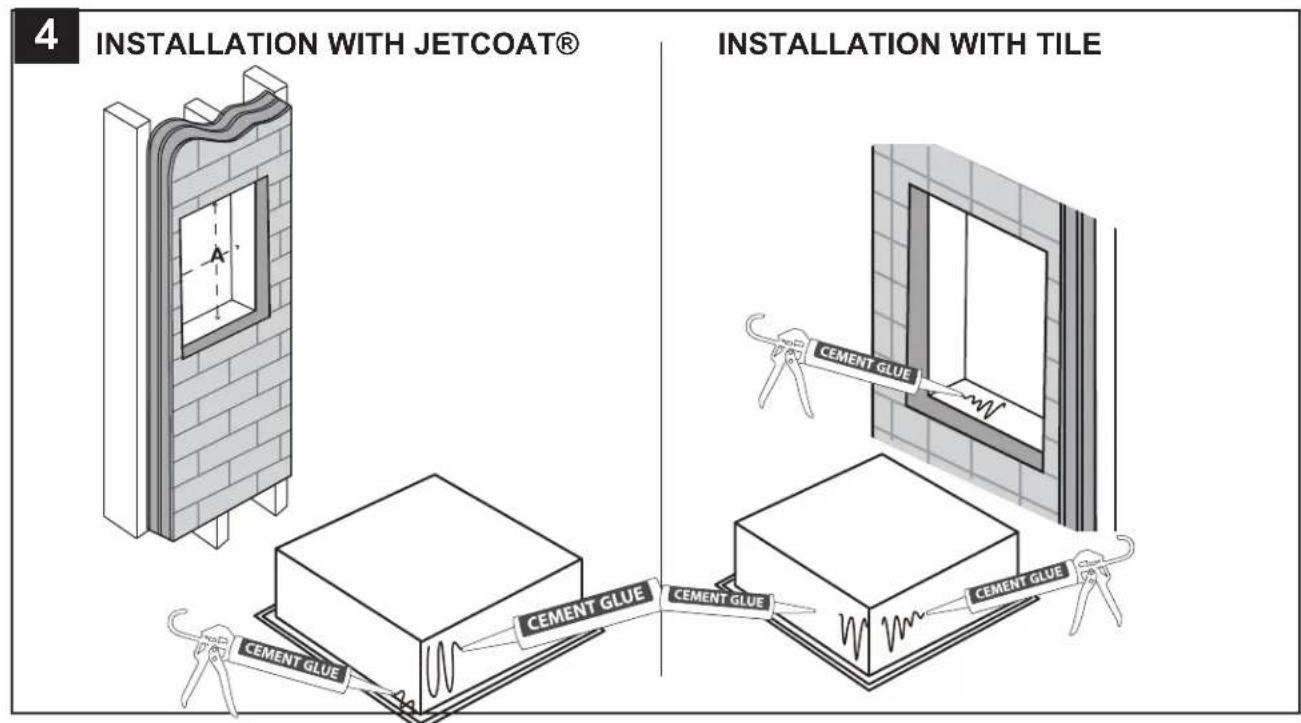

STEP 4: WATERPROOFING

Apply silicone on inside flange and side walls of niche, as shown in the illustration, for optimal seal installation.

NOTE: TILE APPLICATION Tile installation complete prior to niche installation.

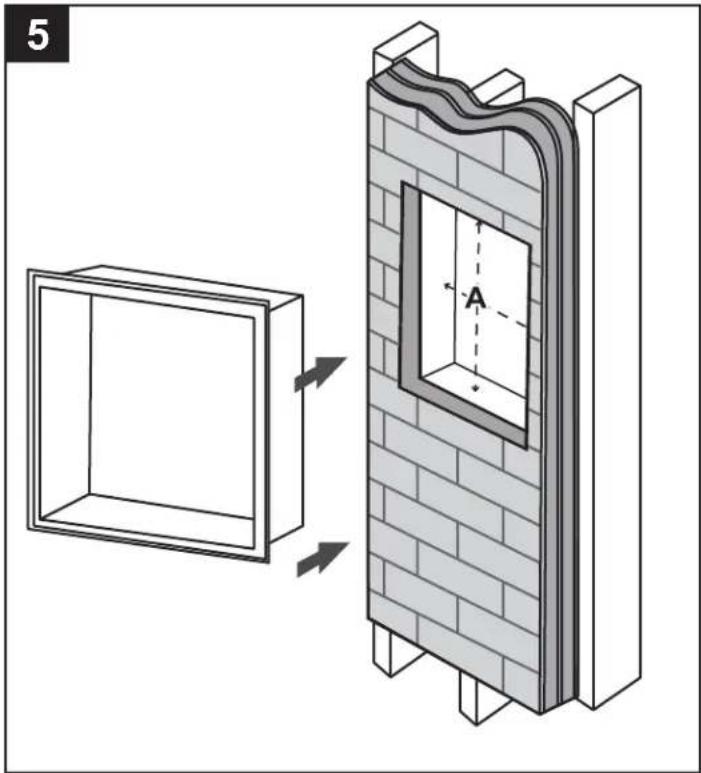

STEP 5: FINAL INSTALLATION

Insert the niche into the wall cavity and press firmly.

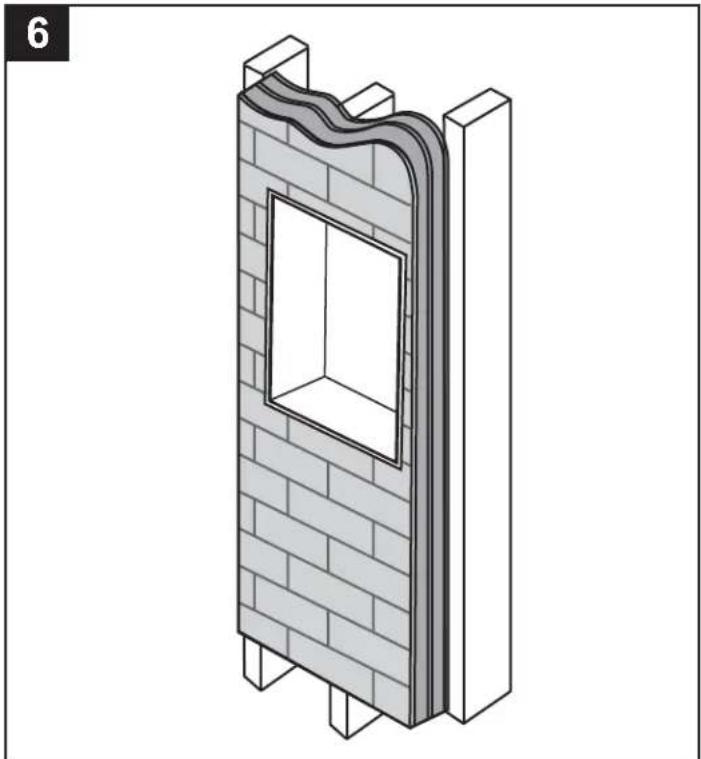

STEP 6: FINISHING

Once the niche is set into place, silicone the outside edge for added watertight protection.

If needed, use painters' tape to hold into place.

Let dry for 24 hours before shower usage.
