USER MANUAL LED2430-RT CRAFT + MAIN

INSTALLATION AND USER GUIDE

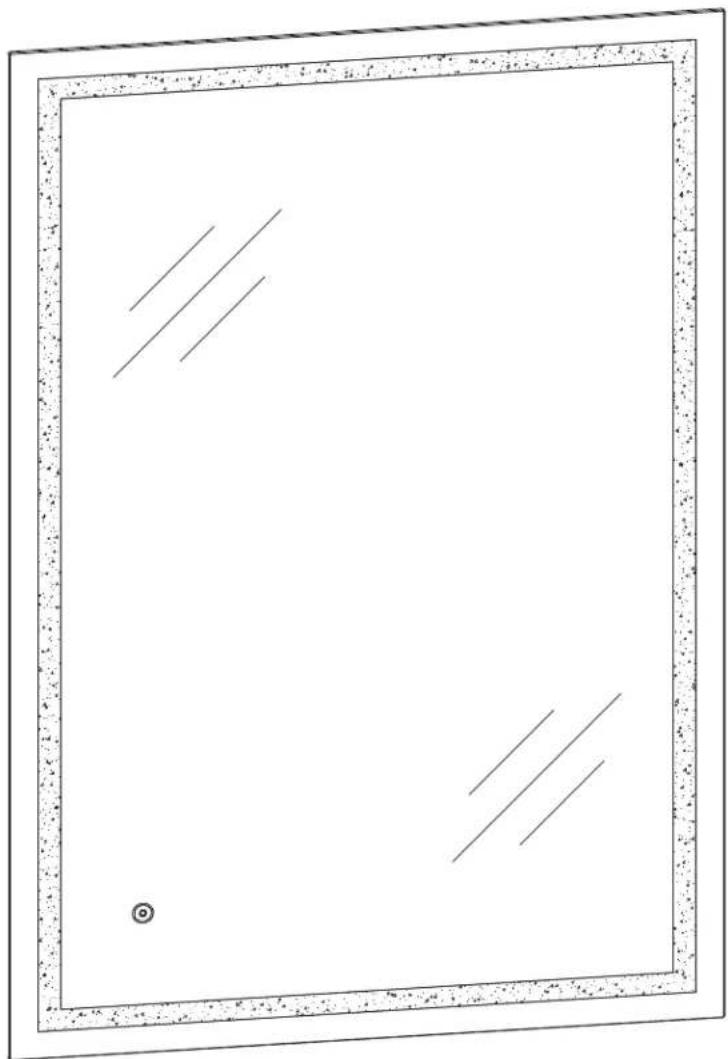

Dimmable LED Lighted Mirror with Touch Sensor and Automatic Anti-Fog

LED2430-RT / LED3036-RT

Read all instructions carefully before proceeding.

Record the serial number on the back page and save this guide for future reference.

Blank whiteboard with a decorative border and two diagonal lines, no text or symbols present.

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

Read all instructions before using.

DANGER - To reduce the risk of electric shock:

Once installed, do not remove the mirror from the wall without first turning the power off from the electrical panel.

WARNING - To reduce the risk of burns, fire, injury, or death from electric shock:

1. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.

2. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

3. Never operate this furnishing if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the furnishing to a service center for examination and repair.

4. Never drop or insert any object into any opening.

5. Do not use outdoors.

6. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

7. To disconnect, turn all controls to the off position and turn the power off from the electrical panel.

8. WARNING: Risk of injury or death from electric shock - Connect this furnishing to a properly grounded outlet only. See Grounding Instructions.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This product must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the product.

THANK YOU

We can assure you that we have used the best materials and have applied the strictest quality control measures to ensure that each and every unit meets the highest quality standards. This booklet contains general information about the unit as well as step-by-step installation instructions.

BEFORE BEGINNING

• Carefully read the instructions before beginning the installation.
  • DANGER! To avoid the risk of electrocution, please turn off the electrical panel before starting the installation.
• It is strongly recommended that this installation be performed by a licensed professional electrician.
• It is recommended that you wear safety glasses at all times during the installation.
• A minimum of two people are needed to perform this installation.
  • This product is wall mounted only.

MAINTENANCE

Never use scouring powder pads, abrasive material, strong bleach or sharp instruments on metal components or glass. An occasional wiping down with a mild soap diluted in water is all that is needed to keep the mirror and aluminum parts looking new. Test products on a small inconspicuous surface prior to use.

TOOLS AND MATERIALS REQUIRED

Yellow triangular warning sign with black exclamation mark symbol

WARNING

To avoid the risk of electrocution, please turn off the electrical panel before starting the installation. Due to the nature of the installation, the mirror should be installed by a licensed professional electrician.

MIRROR INSTALLATION

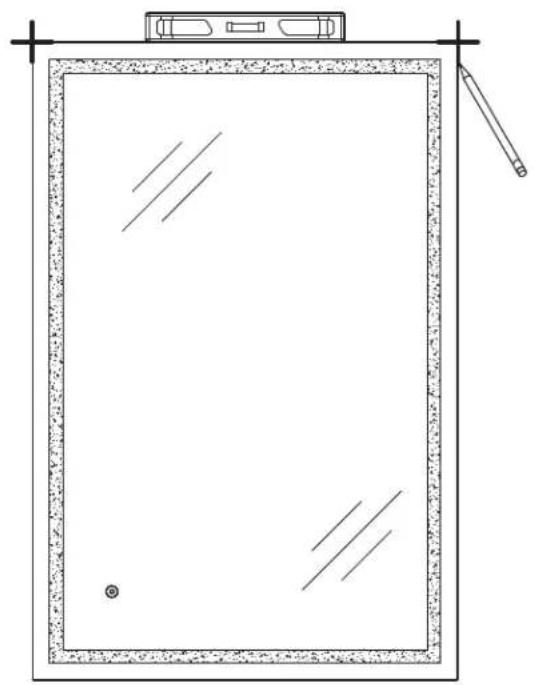

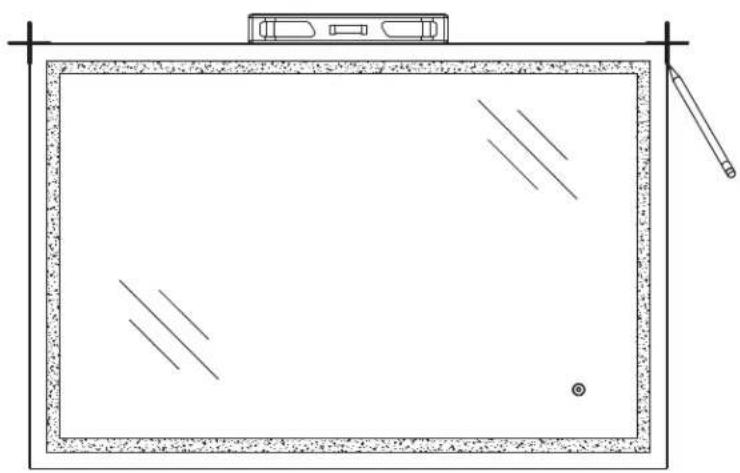

PLACEMENT

Select the desired position of the mirror. Level and mark the location.

Simple line drawing of a blank rectangular frame with diagonal lines and a small pencil on top (no text or symbols)

OR

Simple line drawing of a blank rectangular frame with diagonal lines and a pencil on top (no text or symbols)

MIRROR INSTALLATION

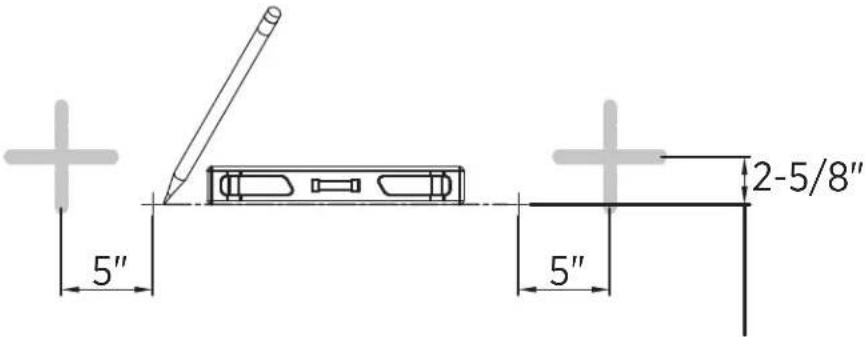

SUPPORT LOCATION

Mark the drill locations based on vertical or horizontal mounting, making sure that the markings are level. When determining the locations, it is recommended that the screw for at least one bracket be drilled into a stud.

5" 5" 2-5/8"

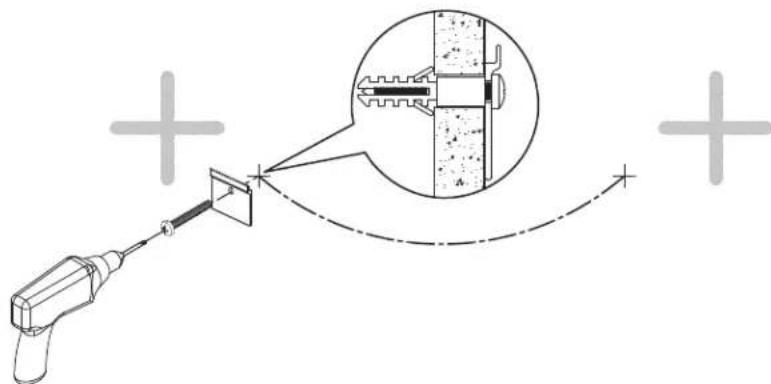

INSTALL MOUNTING BRACKETS

When mounting into sheetrock or hollow walls, make holes with a drill and fill with supplied plugs. Install mounting bracket.

STEP 1

Pure diagram of a tool with a curved dashed line and plus signs, no text or symbols present

STEP 2

Simple line drawing of a hammer and gavel with a curved arrow, no text or symbols present

STEP 3

Diagram illustrating a tool interacting with a wall-mounted device, showing magnified cross-section and curved motion arrows.

CAUTION

To properly install the mirror while concealing the wires from view, ensure that the house electrical wires come out of the wall from within the shaded area shown below.

4"4" 4"12"

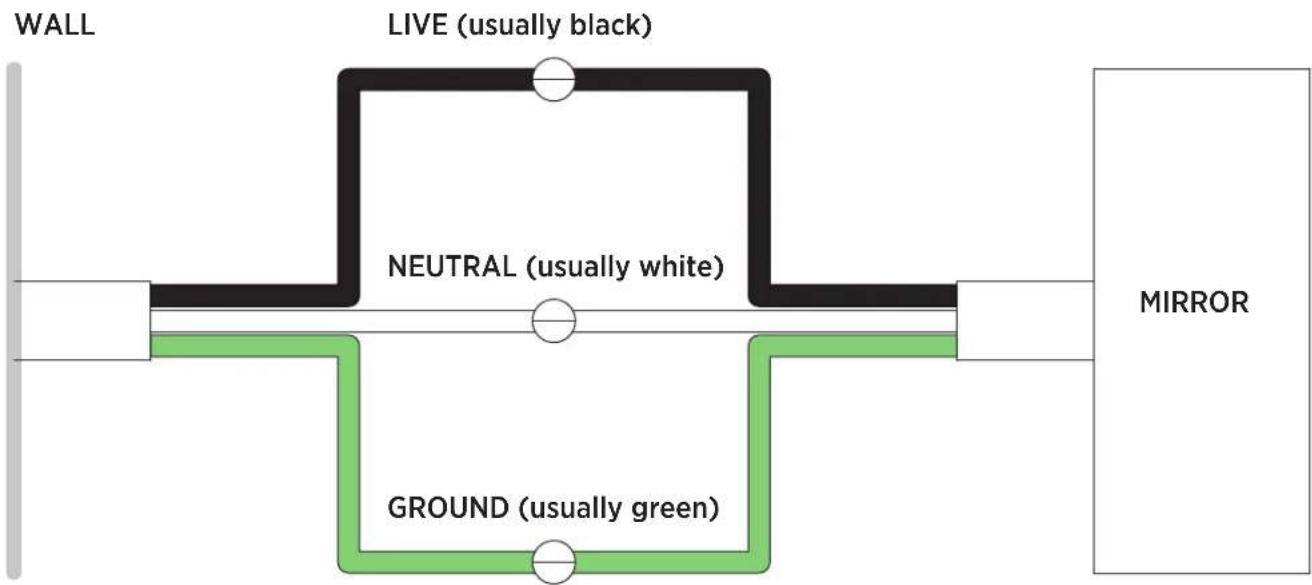

CONNECTING ELECTRICAL WIRING

WALL LIVE (usually black) NEUTRAL (usually white) GROUND (usually green) MIRROR

CAUTION

Yellow triangular warning sign with black exclamation mark symbol

WARNING

The colors referenced in the diagram above are based on conventional standards and may differ between households. If there is any confusion as to how these should be connected, please seek the help of a licensed professional electrician.

MIRROR INSTALLATION

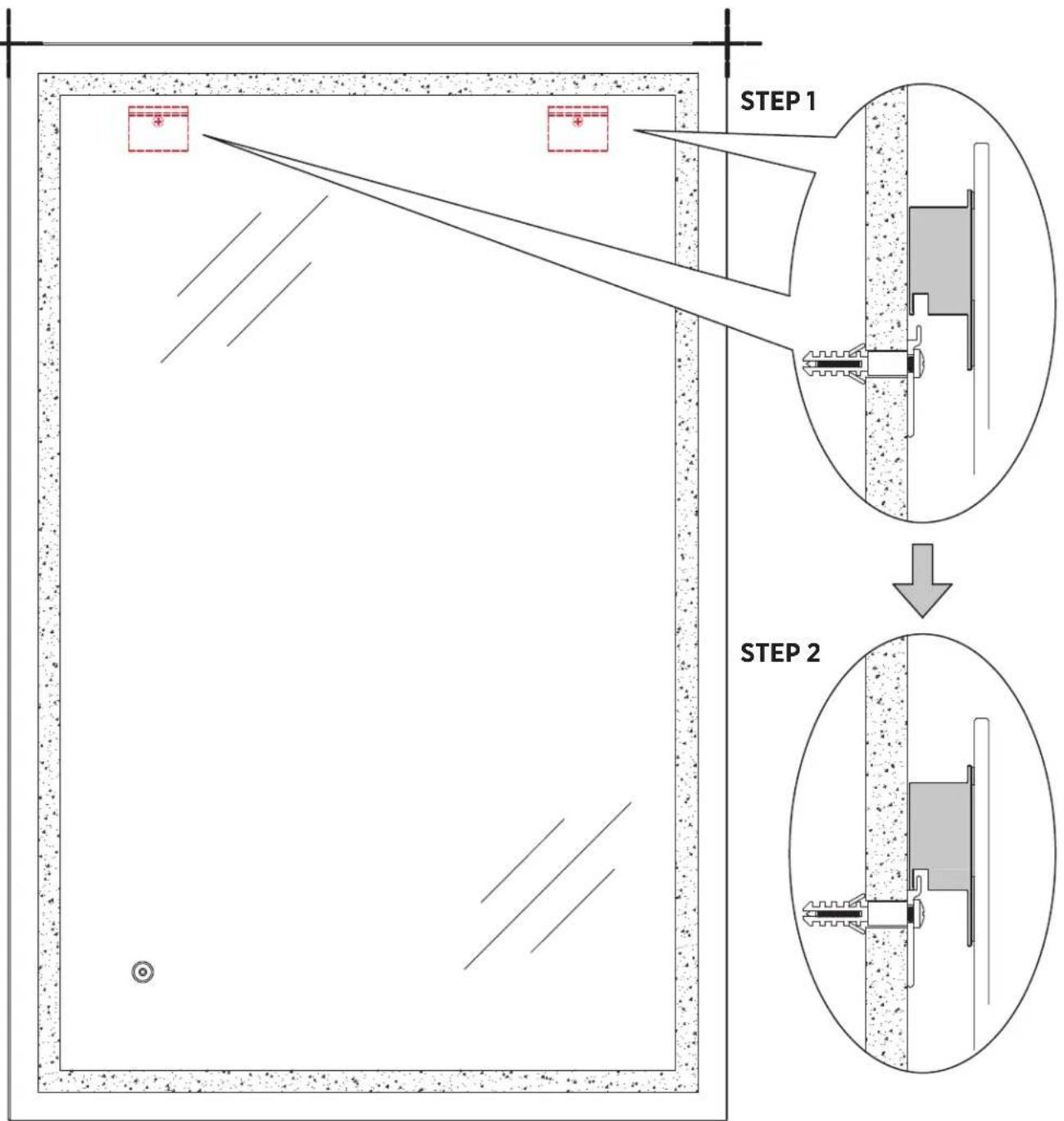

PLACEMENT

Place the mirror against the wall (Step 1). Slide down (Step 2).

STEP 1 STEP 2

USER GUIDE

POWER AND DIMMER WITH AUTOMATIC ANTI FOG FEATURE

Line drawing of a hand holding a circular object (no text or symbols)

Short press the 🔒 touch sensor to turn the light and Anti Fog feature ON. Short press the 🔒 touch sensor again to turn the light and Anti Fog feature OFF.

Long press the Ⓞ touch sensor for 2 or more seconds to adjust the brightness between 5% and 100%.

Our mirror has a memory function which remembers the final status of brightness.

CRAFT + MAIN®

WARRANTY REGISTRATION:

To receive warranty coverage for your purchase, you must complete the warranty registration form found on our website within 30 days of purchase, or provide valid proof of purchase detailing the date and location of your purchase.

U.S. CUSTOMERS: www.craftandmain.com/warranty

CANADIAN CUSTOMERS: www.craftandmain.ca/179-2

CUSTOMER SERVICE:

U.S. CUSTOMERS: 1-888-620-3667

Monday - Friday, 7:00 a.m. - 5:00 p.m., CT

www.craftandmain.com | [e-mail]

CANADIAN CUSTOMERS: 1-888-256-7551

Monday - Friday, 8:00 a.m. - 5:00 p.m., ET

www.craftandmain.ca | [e-mail]

LIMITED WARRANTY

CRAFT + MAIN* products are covered by the FGI Industries, Ltd. 1 year limited warranty, which is as follows:

FGI Industries, Ltd. warrants its products to be free from defects in material or workmanship for 1 year from the date of purchase of the product by the original purchaser.

If inspection of this product, within 1 year after its initial purchase, confirms that it is defective in materials or workmanship, FGI Industries, Ltd. will repair or at its option, exchange the product for a similar model. FGI Industries, Ltd. provides no warranties or guarantees beyond those in this limited warranty.

This limited warranty applies only to the original purchaser and installation of these products. All de-installation and re-installation and transportation costs or charges incidental to warranty services are to be borne by the owner. In no event will FGI Industries, Ltd. be liable for the cost of repair or replacement of any installation materials, including but not limited to, tiles, marble etc. FGI Industries, Ltd. will not be responsible for and this warranty does not cover and specifically excludes any liability to the purchaser or any third party for consequential or incidental damages, all of which are hereby expressly disclaimed, or the extension beyond the duration of this warranty of any implied warranties, including those of merchantability or fitness for an intended purpose.

This warranty does not apply to local building code compliance. Since local building codes vary considerably, the purchaser of this product should check with a local building or plumbing contractor to ensure local code compliance before installation.

This warranty is void if the product has been moved from its initial place of installation; if it has been subjected to faulty maintenance, abuse, misuse, accident, or other damages; if it was not installed in accordance with FGI Industries, Ltd. instructions; or if it has been modified in a manner inconsistent with the product as shipped by FGI Industries, Ltd.

This Warranty excludes the following:

1. Replacement of discolored or damaged parts as a result of strong cleaning or disinfecting chemicals.
2. Damage to, or malfunction of the unit resulting from improper installation, negligence, misuse, abuse or tampering by an unauthorized repair personnel.
3. Under no circumstances will FGI Industries, Ltd. be held liable for any loss or damage directly, consequently or incidentally arising out of the misuse of, or inability to use this product.
4. Damage or loss resulting from electrical surges, electrical outages, lightning strikes or other acts are not covered by this warranty.
5. The owner hereby releases FGI Industries, Ltd. from any or all claims against damages to the property or the product resulting from misuse, improper installation, inadequate maintenance, or exposure to extreme temperature, or strong chemicals.

Note: Some states or provinces do not allow the limitations on an implied warranty, and some states/provinces do not allow exclusions or limitations regarding incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state or province to province. No person is authorized to change, add to, or create any warranty or obligation other than that set forth herein. This warranty gives the original purchaser of this product specific legal rights, which may vary from state to state or from province to province. In some states or provinces, the exclusion or limitation of incidental or consequential damages is not allowed, so those exclusions may not apply to you.

CRAFT + MAIN®

GUIDE D'INSTALLATION ET D'UTILISATION

Blank whiteboard with a decorative border and two diagonal lines, no text or symbols present.

CONSIGNES DE SÉCURITÉ IMPORTANTES CONSERVEZ CES CONSIGNES

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT

Simple line drawing of a rectangular frame with diagonal lines and a small pencil on top, no text or symbols present.

OU

Simple line drawing of a blank rectangular frame with diagonal lines and a pencil on top (no text or symbols)

INSTALLATION DU MIROIR

EMPLACEMENT DU SUPPORT

Pure diagram of a tool with a curved dashed line and plus signs, no text or symbols present

ÉTAPE 2

Simple line drawing of a hammer and sprocket connected by a curved dashed line, with plus signs above (no text or symbols)

ÉTAPE 3

Diagram illustrating a tool interacting with a wall-mounted device, showing magnified cross-section and curved motion arrows.

ATTENTION

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT

Line drawing of a hand holding a circular object (no text or symbols)

www.craftandmain.ca | [e-mail]

GARANTIE LIMITÉE

Blank whiteboard with decorative border and two diagonal lines, no text or symbols present

Yellow triangular warning sign with black exclamation mark symbol

ADVERTENCIA

Simple line drawing of a blank rectangular frame with diagonal lines and a pencil on top, no text or symbols present.

0

Simple line drawing of a blank rectangular frame with diagonal lines and a pencil on top (no text or symbols)

5" 5" 2-5/8"

CÓMO INSTALAR LOS SOPORTES DE MONTAJE

Pure diagram of a tool with a curved dashed line and plus signs, no text or symbols present

PASO 2

Simple line drawing of a hammer and a string attached to a curved dashed line, with plus signs above (no text or symbols)

PASO 3

Diagram illustrating a welding or drilling process with labeled components and directional arrows, including a magnified inset showing internal structure.

PRECAUCIÓN

Yellow triangular warning sign with black exclamation mark symbol

ADVERTENCIA

PASO 1 PASO 2

GUÍA DEL USUARIO

Line drawing of a hand holding a circular object (no text or symbols)

De lunes a viernes, de 7:00am a 5:00pm, Hora Central

www.craftandmain.com | [e-mail]

GARANTÍA LIMITADA
