USER MANUAL WCT7A9PHTSBF WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance, please register your product on www.register10.eu

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

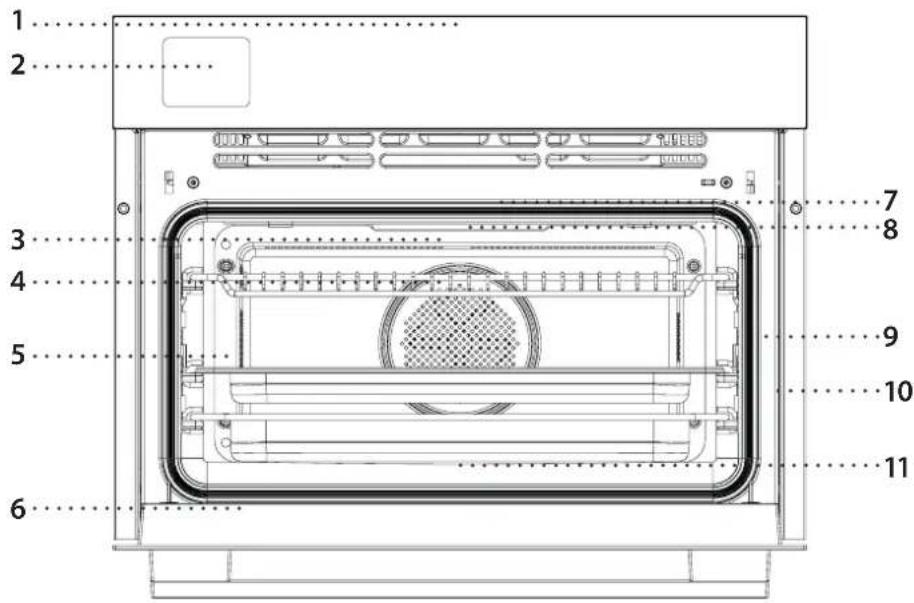

PRODUCT DESCRIPTION

1 2 3 4 5 6 7 8 9 10 11

1. Controlpanel
2. Extractable drawer
3. Fan
4. Circular heating element (not visible)
5. Shelfguides
6. Door
7. Lamp
8. Grill
9. Food probe insert point
10. Identification plate (do not remove)
11. Lower heating element (not visible)

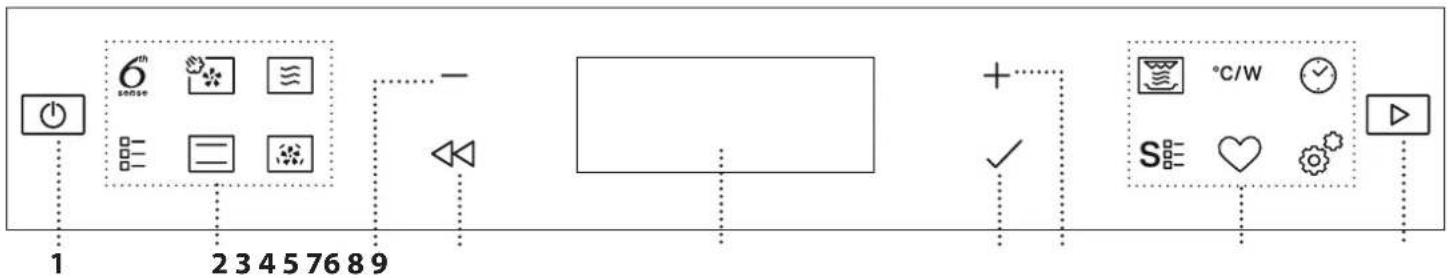

CONTROL PANEL DESCRIPTION

1. ON / OFF

For switching the oven on and off and for stopping an active function.

2. MENU / FUNCTIONS DIRECT ACCESS

For quick access to the functions and menu.

3. NAVIGATION BUTTON MINUS

For scrolling through a menu and decreasing the settings or values of a function.

4. BACK

For returning to the previous screen. During cooking, allows settings to be changed.

5. DISPLAY

6. CONFIRM

For confirming a selected function or a set value.

7. NAVIGATION BUTTON PLUS

For scrolling through a menu and increasing the settings or values of a function.

8. OPTIONS / FUNCTIONS DIRECT ACCESS

For quick access to the functions, settings and favorites.

9. START

For starting a function using the specified or default settings.

ACCESSORIES

Before purchasing other accessories that are available on the market, make sure that they are heat-resistant and suitable for steaming.

Make sure that there is a gap of at least 30 mm between the top of any container and the walls of the

cooking compartment in order to allow steam to flow sufficiently.

Accessories during microwave function may raise in temperature. It is recommended to use protection to handle accessories at the end of the cycle.

	WIRE SHELFThe wire shelf is suitable for all cooking modes, also in Microwave cooking. When using microwaves place the wire shelf always on level 1 (the lower one). You can place food directly on the wire shelf or use it to support baking trays and tins or other oven-ware resistant to heat and microwaves.
	BAKING TRAYThe baking tray is suitable for all cooking modes except for “Microwave” functions.Can be used to cook all kind of foods without container.Use it to collects the cooking juices, placing it below the wire shelf.
	HANDLE FOR CRISP PLATEUseful for removing the hot Crisp plate from the oven.
	STEAMER*(ONLY IN SOME MODELS)To steam foods such as fish or vegetables, place these in the basket (2) and pour drinking water (100 ml) into the bottom of the steamer (3) to achieve the right amount of steam.To boil foods such as potatoes, pasta, rice or cereals, place these directly on the bottom of the steamer (the basket is not required) and add an appropriate amount of drinking water for the amount you are cooking.For best results, cover the steamer with the lid (1) provided.Always place the steamer on the wire shelf at level 1 and only use it with the appropriate cooking functions, or with microwave function.

WIRE SHELF

Simple line drawing of a handheld probe or sensor with a curved cable and terminal connector (no text or symbols)

FOOD PROBE

To accurately measure the core temperature of food during cooking. Thanks to its rigid support, it can be used for meat and fish.

BAKING TRAY

CRISP PLATE

Only for use with the designated functions. The Crisp plate must always be placed in the center of the wire shelf and can be pre-heated when empty, using the special function for this purpose only. Place the food directly on the Crisp plate. Place the silicone feet between the bars of the wire shelf for added stability.

HANDLE FOR CRISP PLATE

The number of accessories may vary depending on which model is purchased.

*Other accessories can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf onto the level you require by holding it tilted slightly upwards and resting the raised rear side (pointing upwards) down first.

Then slide it horizontally along the runners as far as possible. Other accessories, like the baking tray, are to be inserted horizontally, letting them slide on the runners

Push the accessories all the way in, making sure, that it does not touch the appliance door.

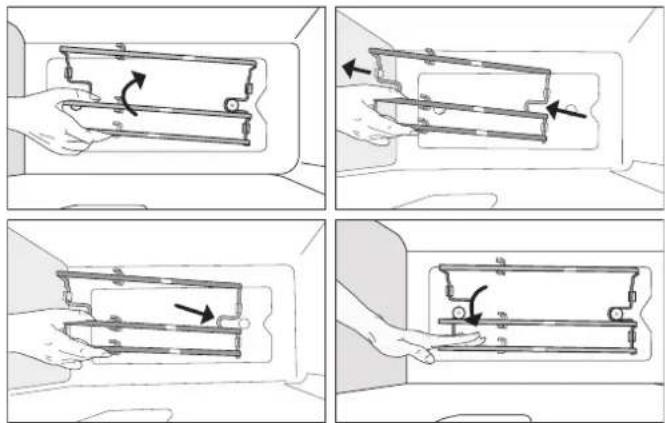

REMOVING AND REFITTING THE LADDER RACKS

There are two ladder racks on both sides of the oven cavity, anchored on two button-shaped supports. The ladder racks are removable to make cleaning more convenient.

1. To remove the ladder racks, firmly grip the external part of the guide, and pull it upwards to extract it from the frontal support while rotating on the rear support, then slide out the whole part from the cavity.

2. To reposition the ladder racks, slide the back part onto the rear support. Then, once anchored, push the assy down until the ladder rack is inserted into the frontal support.

FUNCTIONS

6^th SENSE FUNCTIONS

With the 6th sense FUNCTIONS, simply select the type and weight or the quantity of the food items to obtain the best results. The oven will automatically calculate the optimum settings and continue to change them as cooking progresses.

To use at best this function, follow the indications on the relative cooking table.

Due to food variability, the cooking duration is set on an average grade. We always recommend to check the internal doneness of food and in case prolong the cooking time to achieve proper doneness.

6 ^TH SENSE DEFROST

For quickly defrosting various different types of food. Always place the food in a container directly on the wire shelf for best results, except for Crisp Bread Defrost. At the end let the food stand for 5 minutes.

CRISP BREAD DEFROST

This exclusive function allows you to defrost frozen bread. Combining both Defrost and Crisp technologies, your bread will taste and feel as if it were freshly baked. Use this function to quickly defrost and heat frozen rolls, baguettes & croissants. The Crisp Plate must be used in combination with this function, directly placed on wire shelf.

FOOD WEIGHT
Timed Defrost -
Meat 100 g - 2.0 kg
Poultry 100 g - 3.0 kg
Fish 100 g - 2.0 kg
Crisp Bread Defrost	50 - 800 g

6 ^TH SENSE REHEAT

For reheating ready-made food that is either frozen or at room temperature. The oven automatically calculates the settings required to achieve the best results in the shortest amount of time. Place food on a microwave-safe and heatproof dinner plate or dish directly on wire shelf at level 1.

Food Weight/portions/pieces Note
Plated Meal 250 - 800 g		Take out from packaging being careful to remove any aluminium foil. At the end of reheating process 1-2 minutes standing time always improves the result.
Frozen Lasagna 400 g - 1.5 kg		Take out from packaging being careful to remove any aluminium foil.
Water	100 - 500 g	Heat uncovered in a single container.

6 ^th MW STEAM

For steam-cooking foods, using the steamer provided. The preparation phase automatically generates steam, bringing the water poured into the bottom of the steamer to the boil. Cooking time may vary based on the food type and food quantity.

Add around 100g of water in the steamer bottom and distribute evenly the food in the steamer basket. Always cover with lid and place the steamer directly on wire shelf on level 1.

Do not open the door during cooking.

Food	Note
Poultry Breast Steamed	Function suitable to cook sliced poultry breasts. Avoid excessively overlapping the different slices. Recommended quantities between 100 and 500g
Fish Fillets Steamed	Function suitable to cook sliced fish or fish fillets. Avoid overlapping the different slices. Recommended quantities between 100 and 500g.
Roots Vegetables Steamed	Function suitable to cook diced root or hard vegetables. Recommended quantities between 100 and 800g.
Vegetables Steamed [frozen]	Function suitable to cook any frozen vegetables cut in pieces. Recommended quantities between 100 and 800g.

6 ^th SENSE MELT & SOFT

For melting and softening food . The oven automatically calculates the settings required to achieve the best results in the shortest amount of time. Place food on a microwave-safe and heatproof container directly on the wire shelf at level 1.

Food Weight/portions/pieces Note
Butter Soften 100 - 500 g		Place the butter on a container directly on the wire shelf for best results.
Chocolate Melting	100 - 500 g	Cut the chocolate in pieces for best results. At the end stir the chocolate to complete the melt process.
Cheese Melting 100 - 500 g		Cut the cheese in pieces for best results. At the end stir the cheese to complete the melt process.

6 ^TH SENSE COOK TABLE

For cooking several kind of dishes and foods and achieving optimal results in the easiest and quickest way. To get the best from this function, follow the indications on the relative cooking table.

Category Food		Weight/portions/pieces	Note Accessory
PASTA & CEREALS	Pasta Boil 1 - 3 portions		Set recommended cook time for the pasta. Add salted water and pasta all together into the steamer bottom and cover with steamer lid. Consider around 100g of pasta for each portion. Use 400g of water for each portion of pasta.	1......+......
	Rice 1 - 4 portions		Set recommended cook time for rice. Add water and rice all together into the steamer bottom and cover with lid. Consider around 100g of rice for each portion. Use 300g of water for each portion of rice.	1......+......
MEAT	Roast Beef -		Brush with oil and rub with salt and pepper. Season with garlic and herbs as you prefer. At the end of cooking let rest for at least 15 minutes before carving.	2......+......
	Roast Pork -		Brush with oil and rub with salt and pepper. Season with garlic and herbs as you prefer. At the end of cooking let rest for at least 15 minutes before carving.	2......+......
	Poultry Breast Steamed	-	Add around 100g of water in the steamer bottom and distribute evenly the food in the steamer basket. Cover with lid. This cycle uses sensors: do not open the door during cooking.	1......+......
FISH	Roasted Whole Fish -		Brush with oil and season as you prefer. Insert the food probe in the thickest part of the fish.	1......+......
	Fish Fillets Steamed -		Add around 100g of water in the steamer bottom and distribute evenly the food in the steamer basket. Cover with lid. This cycle uses sensors: do not open the door during cooking.	1......+......
	Fish and Chips [frozen]	1-3 portions	Distribute evenly in the crisp plate alternating the fish fillets and the potatoes. Consider around 100g of fish and 100g of chips for each portion.	1......+......
	Fish Fingers [frozen]	200 - 600 g	Distribute evenly in the crisp plate. To get perfect results, during cooking you will be asked to turn food.	1......+......

ACCESSORIES

Wire shelf

Heathproof tray on wire shelf

Drip tray / Baking tray

Heath and MW-proof container

Food Probe

Steamer bottom and lid

Entire steamer

Crisp plate

Category Food		Weight/portions/ pieces	Note Accessory
VEGETABLES	Roots Vegetables Steamed	-	Add around 100g of water in the steamer bottom. Cut in pieces and distribute evenly the food in the steamer basket. Cover with lid. This cycle uses sensors: do not open the door during cooking.
	Vegetables Steamed [frozen]	-	Add around 100g of water in the steamer bottom. Cut in pieces and distribute evenly the food in the steamer basket. Cover with lid. This cycle uses sensors: do not open the door during cooking.
	Potatoes Fried [frozen]	200 - 600 g Distribute evenly in the crisp plate.		1
SALTY BAKERY	Sandwich Loaf 400 g - 1.0 kg		Prepare dough according to your favorite recipe for a light bread. Form into a loaf container before rise. Use the oven's dedicated rise function.
	Pizza 400 g - 1.2 kg		Prepare pizza dough according to your favorite recipe. Leave it to rise using the oven's dedicated function. Roll out the dough into a lightly greased baking tray. Add topping as you prefer.
	Pizza [frozen] 250 - 700 g		Take out from packaging being careful to remove any aluminium foil.	1
EGGS & SNACKS	Popcorn -		Always place the bag directly on the wire shelf. Pop only one bag at a time. Do not open door during cooking.
	Chicken Nuggets [frozen]	200 - 700 g Distribute evenly in the crisp plate.		1

ACCESSORIES
	Wire shelf	Heathproof tray on wire shelf	Drip tray / Baking tray	Heath and MW-proof container	Food Probe	Steamer bottom and lid	Entire steamer	Crisp plate

STEAM + AIR

Combining the properties of steam with those of the forced air, this function allows you to cook dishes pleasantly crispy and browned outside, but at the same time tender and succulent inside. To achieve the best cooking results, we recommend to select a HIGH steam level for fish cooking, MEDIUM for meat and LOW for bread and desserts.

Recommended accessories: Baking tray / Wire rack

MICROWAVE

Use microwave function only with food or beverages inside to preserve the correct functionality of the product.

Required accessories: wire shelf, microwave-safe and heatproof container.

POWER (W) RECOMMENED FOR

1000	Quickly reheating drinks or other foods with a high water content. If the food contains egg or cream choose a lower power.
750 Cooking vegetables.
600 Cooking meat, fish and dishes that cannot be stirred.
500	Cooking meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350	Slow, gently cooking. Perfect for melting butter or chocolate.
160	Defrosting frozen foods or softening butter and cheese.
90 Softening ice cream.

ACTION FOOD POWER (W) DURATION (min)

Reheat 2 cups 1000 1 - 2
Cook	Sponge cake	750	5 - 6
Cook	Egg custard	750	10 - 12
Cook	Meat loaf	500	20 - 30

OTHER FUNCTIONS MENU

TRADITIONAL FUNCTIONS

FAST PREHEAT

For quickly preheating the oven before a cooking cycle. Wait for the function to finish before placing food inside the oven. Once preheating has finished, the oven will select the "Forced Air" function automatically.

Required accessories: wire shelf with pan or baking tray

GRILL

For browning, grilling and gratins. We recommend turning the food during cooking.

Recommended accessories: wire shelf

FOOD	GRILL LEVEL DURATION (min)
Toast	High	5 - 6

TURBO GRILL

For perfect results, combining the grill and oven air convection. We recommend turning the food during cooking.

Recommended accessories: wire shelf

CONVECTION BAKE

For cooking meat, baking cakes and pies with fillings on one shelf only. To achieve best results this function have the preheating phase: wait the end of preheat to insert the food.

Required accessories: wire shelf with pan or baking tray

MW COMBI FUNCTIONS

GRILL + MW

For quickly cooking and gratinating dishes, combining the microwave and grill functions.

Required accessories: wire shelf at level 1, microwave-safe and heatproof container.

TURBO GRILL + MW

For quickly cooking and browning your food, combining the microwave, grill and the oven air convection.

Required accessories: wire shelf at level 1, microwave-safe and heatproof container.

FOOD POWER (W)		GRILL LEVEL	DURATION (min)
Roast CHicken	350	Medium	20 - 30

*Turn food halfway through cooking

CONVENTIONAL + MW

For preparing baked dishes more quickly by combining the conventional oven and the microwave.

Required accessories: wire shelf at level 1, microwave-safe and heatproof container.

FORCED AIR + MW

For cooking any kind of dish on one shelf only combining hot air circulation and the microwave.

Required accessories: wire shelf at level 1, microwave-safe and heatproof container.

CONVENCTION BAKE + MW

For quickly cooking all food with a liquid filling, by combining the microwave, conventional heating and air convection.

Required accessories: wire shelf at level 1, microwave-safe and heatproof container.

CONVENTIONAL

For perfectly cooking and browning both on the top and bottom any kind of dish on one shelf only. To achieve best results this function have the preheating phase: wait the end of preheat to insert the food.

Required accessories: baking tray or wire shelf and heatproof container.

FOOD	TEMP. (°C)	DURATION (min)
Cupcake / Smallcake	160	20 - 25
Cookies	165	15 - 20

FORCED AIR

For cooking sweets and meats with hot air circulation. To achieve best results this function have the preheating phase: wait the end of preheat to insert the food. Is possible to use it for cooking different foods that require the same cooking temperature on several shelves at the same time. This function can be used to cook different foods without odours being transferred from one food to another.

Required accessories: baking tray or wire shelf and heatproof container.

CRISP MENU

CRISP

For perfectly browning a dish, both on the top and

bottom of the food. This function must only be used with the special Crisp plate.

Required accessories: wire shelf at level 1, Crisp plate, handle for the Crisp plate.

FOOD DURATION (min)

Leavened cake 10 - 12

Hamburgers* 9 - 15

*Turn food halfway through cooking

CRISP FRY: Fresh Foods and Frozen Foods

This healthy and exclusive function combines the quality of crisp function with the properties of the warm air circulation. It allows crunchy, tasty frying results to be achieved, with a remarkable reduction of oil needed compared to the traditional way of cooking, even removing the need for oil in some recipes. To achieve best results with fresh foods brush or season with a little quantity of oil. Cook frozen food directly without any addition of oil. Required accessories: wire shelf at level 1, Crisp plate, handle for the Crisp plate.

S□-SPECIAL FUNCTIONS

KEEP WARM

For keeping just-cooked food hot and crisp, including meat, fried foods or cakes.

RISING

For optimal proving of sweet or savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle. Required accessories: wire shelf and heatproof container.

YOGURT

For making yoghurt.

Required accessories: wire shelf and heatproof container.

MAXI-COOKING

For cooking large joints of meat (above 2.5 kg). It is advisable to turn the meat over during cooking, to obtain even browning on both sides. It is best to baste the meat every now and again to prevent it from drying out. Required accessories: baking tray at level 2.

DEHYDRATION

To dehydrate fruits and vegetables. Cut in thin slices and place directly on wire shelf. Required accessories: wire shelf

ECO CYCLE

For cooking stuffed roasting joints and fillets of meat on a single shelf. When this ECO function is in use, the light will remain switched off during cooking. To use the ECO cycle and therefore optimise power consumption, the oven door should not be opened until the food is completely cooked.

Required accessories: wire shelf with pan or baking tray.

COOK 3

For cooking different foods that require the same cooking temperature on three levels at the same time without mixing flavors and smells.

This function can be used to cook cookies, tarts, frozen pizzas and to prepare a complete meals. The oven does have to be preheated.

COOKIES

Use this function to cook three trays of similar shortbread

biscuits to maximize results. The function includes a preheat. Take the three trays out of the oven at the same time.

TART

Use this function to cook three trays of similar tarts to maximize results. The function includes a preheat. Take the three trays out of the oven at the same time.

PIZZA (frozen)

Use this function to cook three trays of similar frozen pizzas to maximize results. The function includes a preheat. Take the three trays out of the oven at the same time.

COOK 3 MENU 1

This cycle is designed to cook a complete meat-based meal and a dessert. The oven requires preheating. Example of complete meal Prepare a fruit tart according to your preferences in a round pan to be placed on the wire shelf at level 3. Prepare a lasagna according to your preferences (1.5-2kg) in a pan to be placed on the wire shelf at level two. Prepare 6-10 chicken drumsticks with diced potatoes (500-800g) directly in the baking tray to be placed on level 1. After preheating, bake all the dishes at the same time. After 50-60 minutes take out the tart, after 60-70 minutes take out the lasagna, after 80-90 minutes take out the chicken with potatoes.

COOK 3 MENU 2

This cycle is designed to cook a complete fish or vegetarian meal and a dessert. The oven requires preheating.

Example of complete meal

Prepare a fruit tart according to your preferences in a round pan to be placed on the wire shelf at level 3. Prepare pesto lasagna or cannelloni according to your preference (1.5-2kg) in a metal or pyrex tray to be placed on the wire shelf at level two. Prepare fish fillets in foil (700-900g) with sliced vegetables (600-900g) directly in the baking tray to be placed on level 1. After preheating, bake all the dishes at the same time. After 45-55 minutes take out the tart, after 55-65 minutes take out the lasagna, after 60-70 minutes take out the fish with vegetables.

COOK TIME / END TIME / MINUTE-MINDER

Press once this button when programming a

function or while the function is active to set the cook time, press it again to set the End Time. Keep this button pressed to set a Minute Minder (it does not activate any cooking function).

FAVORITES

For retrieving the list of 20 favorite functions.

SETTINGS

For adjusting the oven settings.

When "ECO" mode is active the brightness of the display will be reduced to save energy and lamp switches off after 1 minute.

When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up. To deactivate this mode, access "DEMO" from "SETTINGS" menu and select "Off". By selecting "FACTORY RESET", the product switches off and then it returns to first switch on. All settings will be deleted.

FIRST TIME USE

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time: "English" will show on the display.

English .1

Press or to scroll through the list of available languages and select the one you require.

Press to confirm your selection.

Please note: The language can subsequently be changed by selecting "LANGUAGE" in "SETTINGS" menu, available by pressing 🔒

2. SET THE TIME

After selecting the language, you will need to set the current time: The two digits for the hour will flash on the display.

12:00 CLOCK

Press + or — to set the current hour and press √: The two digits for the minutes will flash on the display. Press + or to set the minutes and press √ to confirm.

Please note: You may need to set the time again following lengthy power outages. Select "CLOCK" in "SETTINGS" menu, available by pressing 🔒

3. SET POWER CONSUMPTION

The oven is programmed to consume a level of electrical power that is compatible with a domestic network that has a rating of more than 3 kW (16 A): if your household uses a lower power, you will need to decrease this value (13 A). Press 🔒 to enter "SETTINGS" menu, then select "POWER" and select desired power setting.

	13	A
1.Low

	16	A
2.High

DAILY USE

1. SELECT A FUNCTION

Press to switch on the oven: the display will show the last running main function or the main menu. The functions can be selected by pressing the icon for one of the main functions or by scrolling through a menu. To select a function contained in a menu, press + or to select the desired one, then press to √ confirm (in case of no press, it will be auto-confirmed after a few seconds).

Please note: Once a function has been selected, the display will recommend the most suitable level for each function.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence. Pressing ◀ allows you to change the previous setting again.

4. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 200 °C for around one hour, using the "Fast Preheat" function. Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

5. SET THE WATER HARDNESS LEVEL

In order to allow the oven to work efficiently, and to guarantee that it regularly prompts the user to perform Descale cycle when needed, it is important to set the correct water hardness level. To set it, switch on the oven by pressing Ⓞ, press and use navigation buttons + and to select "WATER HARDNESS". Press √ to confirm.

Use navigation buttons + and to select the correct level for the water of your area, based on the following table:

WATER HARDNESS LEVELS TABLE

Level		°dHGerman degrees	°fHFrench degrees	°Clark English degrees
1	Very soft 0-6	0-10	0-7
2	Soft 7-11	11-20	8-14
3	Mid 12-16	21-29	15-20
4	Hard	13-34	30-60	21-42
5	Very hard	35-50	61-90	43-62

Press √ to confirm.
For Water Hardness level, "Hard" is preset.

TEMPERATURE / POWER

Temperature 200°C

When the value flashes on the display, press or to change it, then press to confirm and continue with the settings that follow (if possible).

The microwave power or the grill level can be set in the same way. There are defined three power levels for grilling: 3 (high), 2 (mid), 1 (low).

[ ] 500w MW Power

When combined with other functions, the maximum selectable microwave power is reduced to 350 W or 500 W depending by the function.

DURATION

[ ] - - : - - Duration

When the icon flashes on the display, press or + to set the cooking time you require and then press √ to confirm.

Please note: Once the function has been activated, the temperature can be changed using or. —

Please note: You can adjust the cooking time that has been set during cooking by pressing :press or to amend it and then press to confirm.

In not-microwave functions you do not have to set the cooking time if you want to manage cooking manually (untimed): Press √ or to confirm and start the function.

By selecting this mode, you cannot program a delayed start.

END TIME (START DELAY)

In functions which do not activate the microwave such as "Conventional" or "Forced air", once you have set a cooking time you can delay starting the function by programming its end time. In microwaves functions the end time is equal to the duration. The display shows the end time while the ⏻ icon flashes.

12:50 180°C End Time

If you do not intend to postpone the cycle, press √ when NO DELAY is shown on the display: the function will start. Otherwise, press + or - buttons to set the time at which you would like the cycle to end, then press √ to activate the function.

Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Please note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature you require gradually, meaning that cooking times will be slightly longer than expected. During the waiting time, you can press or to amend the programmed end time or press to change other settings. By pressing in order to visualize information, it is possible to switch between end time and duration.

3.6 ^th SENSE

These functions automatically select the best cooking mode, temperature and duration to cook, roast or bake all the dishes available.

When required, simply indicate the characteristic of food to obtain an optimal result.

WEIGHT / PORTIONS / BATCH / PIECES

6 Kilograms Kg 1.2

To set the function correctly, follow the indications on the display, when prompted, and press+ or to set the required value then press √ to confirm.

DONENESS

In some 6^th Sense functions it is possible adjust the doneness level.

[ ] 6 Doneness

When prompted, press or to select the desired level from rare (-1) to well done (+1). Press or to confirm and start the function.

COOKING WITH STEAM

By selecting the "Steam + Air" inside the Manual Functions or one of the several 6th Sense dedicated recipes it is possible cook any kind of food thanks to the use of the steam. Steam spreads more quickly and more evenly through food compared to just the hot air typical of Conventional Functions: this reduce cooking times, locking in food's precious nutrients and ensuring you obtain excellent, truly delicious results with all your recipes. Through the complete duration of the steam cooking the door must be kept closed.

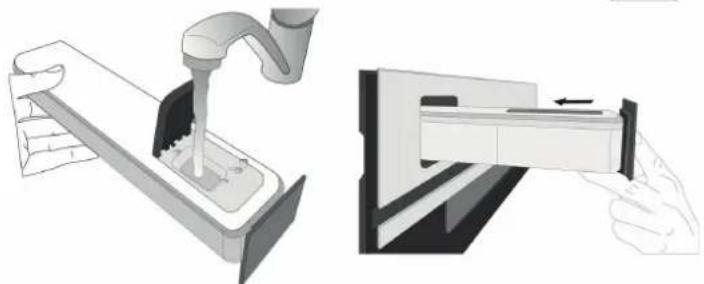

To proceed with steam cooking, it will be necessary to provide water to the boiler located inside the oven using the extractable drawer on the control panel. When requested on the display with "ADD WATER" indications, extract the drawer, open drawer's lid and fill it with water until the level requested on the display. Close the drawer by pushing it carefully towards the panel until completely closed. After the drawer insertion, press START to proceed with the cooking cycle. The drawer must always remain closed, except for water filling.

Please note: The levels indications are visible on the side of the water drawer.

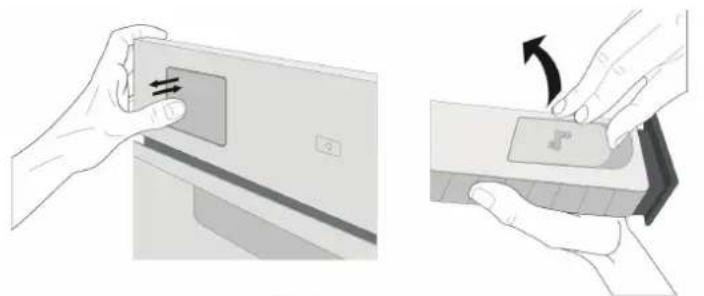

Illustration showing two hands performing a device operation: one inserting a component into a panel, the other adjusting a package with an arrow indicating motion (no text or symbols present)

Illustration of a hand using a tool to lift a component, showing the process from left to right (no text or symbols present)

After the first filling, in case of longer cooking cycles, once water will have ran out, it could be necessary to add it again, in order to complete the cycle: the oven will prompt it in case it is needed.

Avoid to fill the drawer when the oven is switched off or up to it is requested from the display. We suggest emptying the drawer after the cooking steam cycle.

4. ACTIVATE THE FUNCTION

At any time, if the default values are those desired or once you have applied the settings you require, press ▶ to activate the function.

During the delay phase, press ▶ to skip this phase and start the function immediately.

Please note: At any time you can stop the function that has been activated by pressing Ⓓ

If the oven is hot and the function requires a specific maximum temperature, a message will be shown on the display. Select a different function or wait for a complete cooling.

JET START

When the oven is switched off, press to activate cooking with the microwave function set at full power (1000W) for 30 seconds.

Each further press of the Start button ▶ will increase the time by 30s (for example to start a MW cycle of 1m30s it will be sufficient to press the Start button ▶ 3 times).

5. PREHEATING

Some functions have an oven preheating phase: once the function has started, the display indicates that the preheating phase has been activated.

The temperature currently reached by the appliance is shown on the display.

PREHEATING 180°C

Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature, requiring food to be added.

At this point, open the door, place the food in the oven, close the door and start cooking by pressing √ or ▶

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result. Opening the door during the preheating phase will stop pause it.

The cooking time does not include a preheating phase.

6. PAUSE COOKING / ADD OR TURN FOOD

PAUSE

By opening the door, the cooking will be temporarily paused through deactivating heating elements.

To resume the cooking, close the door and press.

Please note: During "6 ^th Sense" functions open the door only when prompted.

ADD, TURN OR STIR FOOD

Some 6 ^th Sense Cook recipes will require the food to be added after the preheating phase or ingredients to be added to complete cooking. In the same way, there will be prompts to turn or stir the food during cooking.

0:30 180°C TURN FOOD

An audible signal will sound and the display shows the action to be done.

Open the door, do the action prompted by the display and close the door, then press ▶ to continue cooking.

Please note: When turning is needed, after 2 minutes, even if no action is performed, the oven will resume the cooking. The "ADD FOOD" phase last 2 minutes: if no action is taken, the function will be ended.

In the same way, near to the cooking completeness, the oven should ask you to check on food.

0:30 180°C CHECK ON FOOD

An audible signal will sound and the displays shows the action must to be done. Check the food, close the door and press ▶ or to continue cooking.

Please note: Press or to skip this actions. Otherwise, after a certain time with no action taken, the oven will continue cooking.

7.END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

END 180°C

Press to continue cooking in manual mode (untimed) or press + to extend the cooking time by setting a new duration. In both cases, the cooking parameters will be retained.

8. FAVORITES

To make the oven easier to use, it can save up to 20 of your favorite functions.

Once cooking is complete the display will prompt you to save the function in a number between 1 and 20 on your list of favorites.

[ ] - - : - - ADD FAVORITE?

If you would like to save a function as a favorite and store the current settings for future use, press √ otherwise, to ignore the request press.

Once has been pressed, press or to select the number position, then press to confirm.

Please note: If the memory is full or the number chosen has already been taken, the oven will ask you to confirm overwriting the previous function.

To call up the functions you have saved at a later time, press ♥: The display will show your list of favorite functions.

[ ] 100 180°c 1. CONVENTIONAL

Press or to select the function, confirm by pressing √, and then press to activate.

9. SMART CLEAN FUNCTION

Press Sd select "Smart Clean" Function.

0:35 Smart Clean

Press to activate the function: the display will prompt you to carry out all actions needed to obtain the best cleaning results: follow the indications and then press √ when done. Once all the steps have been completed, when required, press ▶ to activate the cleaning cycle.

Please note: It is recommended to do not open the oven door during the cleaning cycle to avoid a loss of water vapor that could get an adverse effect on the final cleaning result.

An appropriate message will start flashing on the display once the cycle has finished. Leave the oven to cool and then wipe and dry the interior surfaces with a cloth or sponge.

10. DESCALE

This special function, activated at regular intervals, allows you to keep the steam system in the best condition. Once the function is started, follow all the steps indicated on the display. The average duration of the full function is around 100 minutes. Descale can be initiated anytime by the entering the S then selecting the "CLEANING FUNCTIONS" menu and the Descale function.

The display will show you when it is time to run a Descale cycle.

The number of hours of steam cycles that must pass before the Decale messages are shown depends on the water hardness level set on the appliance and on the selected steam functions, proportionally with the amount of steam generated.

The descaling procedure can also be performed whenever the user desires a deeper cleaning of the internal steam circuit.

Before to run the descaling phase, the appliance will check if some residual water is contained into the boiler, and a Drain cycle could be performed, if needed. In this case, you will have to empty the drawer after the Drain cycle, before continuing with the Descale Phase.

Please note: to ensure that the water is cold, it is not possible to perform this activity before 40 minutes have elapsed from the last cycle (or the last time the product was powered). During this waiting time, the display will show the following feedback "WATER IS HOT".

» PHASE 1/2: DESCALING (70 MIN)

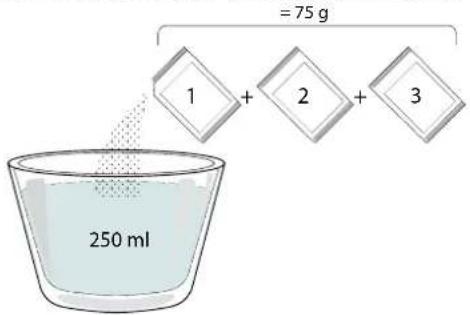

When display will show , please pour the descaling solution in the drawer. For best results in descaling, we recommend filling the tank with a solution composed of 75 g of the specific WPRO product and 250 ml of drinking water. WPRO descaler is the suggested professional product for the maintenance of the best performance of your steam function in the oven.

Whirlpool will not be held responsible for any damage caused by the use of other cleaning products available on the market.

Once the descaling solution is poured inside the drawer, press ▶ to start the main descaling process. The descaling phases do not need you to stay in front of the appliance. After each phase is completed, an

acoustical feedback will be played and the display will show instructions to proceed with the next phase. Once the descaling phase has been completed, the boiler will be drained: the descaling solution used

= 75 g 1 + 2 + 3 250 ml

during this phase will be poured into the extractable drawer.

At the end of the drain, drawers has to be extracted and emptied.

» PHASE 2/2: RINSING (30 MIN.)

To remove descale residuals from the drawer and the steam circuit, rinse cycle has to be done. When display shows fill the tank with 0,25 L of drinking water, then press ▶ to start the rinsing. Do not turn off the oven until all the steps required by the function have been completed.

Please note: if needed from the system, it could be requested to empty the drawer and to repeat this operation.

When Descale procedure is completed, it is suggested to dry the cavity from potential water residuals. It will be then possible to use all the steam functions.

Please note: during the Descale cycle, some noise could potentially be heard since the oven pumps are activated in order to guarantee the optimal descale efficiency.

Once the maintenance cycle has started, do not remove the drawer unless requested by the appliance.

Please note: After the boiler gets filled by the descaling solution and the display shows "DESCALING PHASE 1/2", the cycle should not be interrupted and/or the door opened, otherwise the entire descaling cycle must be repeated before being able to run any steam function.

11.MINUTEMINDER

It is possible to start a minute minder at any moment.. To activate this function, press ⏻ 3s: The icon will flash on the display.

0:01 MINUTE-MINDER

Press or to set the length of time you require and then press √ to activate the timer.

An audible signal will sound and the display will indicate once the minuteminder has finished counting down the selected time.

It is possible to activate a minute-minder also while a cooking function is running.

While a cooking function is running, the timer will continue to count down independently without interfering with the function itself.

During this phase, it isn't possible to see the minuteminder (only the ⏻ icon will be displayed), that will continue counting down in background. To change the minute minder value, keep pressed for 3s the MINUTE MINDER icon ⏻ and use ♦ or to—change its value.

Please note: if “- -:-” value will be set, the minute minder will be deactivated.

12. KEYLOCK

To lock the keypad, press and hold for at least three seconds. Do this again to unlock the keypad.

[ ] KEYLOCK

Please note: this function can also be activated during cooking. For safety reasons, the oven can be switched off at any time by pressing ☐

13. USING THE PROBE

Using the probe enables you to measure the core temperature of the food during cooking to ensure that it reaches the optimum temperature. The temperature of the oven varies according to the function that you have selected, but cooking is always programmed to finish once the specified temperature has been reached.

Once you have inserted the probe, an audible signal is activated and "Probe Plugged In" appears on the display.

PROBE PLUGGED IN 1:20 70°C

Select the function you require from those that are compatible (Conventional, Forced Air, Convection Bake, Turbogrill, Eco Forced Air, Maxi Cooking, 6th Sense functions): When the Probe icon will blink on the display, it will be possible to edit the target temperature of the probe. Press + or to set it and press √ to set the following cooking parameters.

As cooking is programmed to finish once the required temperature has been reached, it is not possible to set the cooking time or set a specific time for cooking to end. The light will remain switched on until the probe is removed.

An audible signal will sound and the display will indicate when the probe has reached the required temperature.

END - - : - - 90°C

Please note: To change the temperature settings, press °C/W (it can be pressed several times to toggle through the different settings). An audible signal and a message will tell you if use of the probe is not compatible with the action done. If this is the case, remove the probe.

Place the food in the oven and connect the plug by inserting it into the connection provided on the righthand side of the oven's cooking compartment. Make sure that the cable does not touch the top heating element during cooking.

MEAT: Insert the probe deep into the meat, avoiding bones or fatty areas. For poultry, insert the probe lengthways into the centre of the breast, avoiding hollow areas.

FISH (whole): Position the tip in the thickest part, avoiding the thorns.

If you use the probe when cooking with the 6th Sense functions, cooking will be stopped automatically when the selected recipe reaches the ideal core temperature, without the need to set the oven temperature.

ATTENTION!

Observe these instructions when using the microwave.

• If metal comes into contact with the cooking compartment wall, sparks occur which can damage the appliance or destroy the internal glass of the door.

• Metal components, for example teaspoons contained in glasses, must remain at a distance of no less than 2 cm from the walls of the cooking compartment and from the inside of the door. Accessories placed directly on top of each other generate sparks.

• Insert accessories only at their respective heights.
  • Sparks could form and damage the cooking compartment.
  • The appliance is damaged due to the formation of sparks.

• Do not use aluminum trays in the appliance. Operating the appliance without food inside the cooking compartment leads to an overload.
• Never start the microwave oven without first placing the food in it. The only exception allowed is that of a short test for dishes

USEFUL TIPS

Microwaves only penetrate food to a certain depth, so when cooking several items at the same time space them out as much as possible to allow the maximum surface area to be exposed to the microwaves.

Small pieces cook more quickly than large pieces: in order to ensure uniform cooking, cut the food items into pieces of equal size.

Most foods will continue to cook after microwave has finished cooking it. Therefore, always allow for standing time to complete the cooking.

Remove any twist ties from paper or plastic bags before placing them in the oven for microwave cooking.

Plastic film should be scored or perforated with a fork in order to relieve the pressure and prevent bursting due to the steam building up during the cooking process.

LIQUIDS

Liquids may overheat beyond boiling point without visibly bubbling. This could cause hot liquids to suddenly boil over. To prevent this, avoid using narrow-necked containers, stir the liquid before placing the container in the microwave oven and leave a teaspoon immersed in the container.

After heating, stir again before carefully removing the container from the microwave oven.

FROZEN FOOD

For best results, we recommend defrosting directly on the wire shelf. If needed, it is possible to use a light-plastic container that is suitable for microwave. Boiled foods, stews and meat-based sauces will defrost better if stirred occasionally while defrosting. Separate the food items once they begin to defrost: the separated portions will defrost more quickly.

FOOD FOR INFANTS

When heating food or liquids in a baby food container or a baby bottle, always stir and check the temperature before serving. This will ensure that the heat is evenly distributed and avoid the risk of scalding or burns.

Ensure that the container lid or bottle teat are removed before heating.

CAKES AND BREAD

For cakes and bread products we recommend using the "Conventional" function, while for cakes containing liquid we recommend the "Convection bake" function.

Alternatively, to shorten the cooking times, select "Conventional + MW", with the microwave set to a maximum power of 160 W in order to keep the products soft and fragrant.

With the "Conventional" and "Convection Bake" functions use dark metal cake tins and place them on the wire shelf supplied.

MEAT AND FISH

To obtain perfect surface browning quickly while keeping the inside of the meat or fish soft and juicy, we recommend using functions combining convection heating and microwave cooking.

In order to obtain the best possible cooking results, set the microwave power level to the value of 160 W.

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning.

Do not use steam cleaners.

Wear protective gloves.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, let the oven to cool completely and then wipe it with a cloth or sponge. Activate the "Smart Clean" function for optimum cleaning of the internal surfaces.
• Clean the glass in the door with a suitable liquid detergent.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they

are still hot. Food residues can be removed using a washing-up brush or a sponge.

WATER DRAWER MAINTENANCE

Caution: The water drawer is not suitable for dishwasher use: risk of damage!

At the end of each cooking cycle with steam, after about 30 min the oven automatically performs a drain cycle lasting about one minute, thus transferring all the water in the system to the extractable drawer. Note: Avoid leaving the water in the system for more than 2 days.

Use only room temperature water when filling the water drawer: hot water may affect the operation of the steam system. Use only drinking water.

BOILER

To ensure that the oven always works at optimum performance and to help prevent the build-up of limescale deposits over time, we recommend using the "Drain" and "Descale" functions regularly. After a long period of non-use of the "Steam + Air" and "Pure Steam" function, it is highly suggested to activate a cooking cycle with the empty oven by filling the tank completely.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The oven makes noises, even when it is switched off.	Cooling fan active.	Open the door or hold or wait until the cooling process has finished.
The display shows the letter “F” followed by a number.	Software fault.	Contact you nearest Client After-sales Service Centre and state the number following the letter “F”.
The oven does not heat up.	When “DEMO” is “On” all commands are active and menus available but the oven doesn’t heat up.DEMO appears on display every 60 seconds.	Access “DEMO” from “SETTINGS” and select “Off”.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance
- Visiting our website docs.whirlpool.eu/docs
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

®/TM/© 2025 Whirlpool. Produced under license.

DANKE, DASS SIE SICH FÜR EIN WHIRLPOOL-PRODUKT ENTSCHIEDEN HABEN

Simple line drawing of a medical or electrical device with a coiled cable and terminal plug (no text or symbols)

KERNTEMPERATURFÜHLER

Deutsch .1

UHR 12:00

Four-step diagram illustrating a mechanical process: pressing a component, moving a device, pouring liquid into a drain, and finally adjusting a final container (no text or symbols present)

10. DESCALE (ENTKALKEN)

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL

Line drawing of a medical or electrical device with a coiled cable and terminal connector (no text or symbols)

SONDE AUTOPORTANTE

Temperature 200°C

[ ] 500w PUISSANCE MO

Four-step diagram illustrating a mechanical process: pressing a component, moving a component, pouring liquid into a drain, and finally adjusting a final container (no text or symbols present)

9. FONCTION SMART CLEAN

3. NAVIGATIETOETS MIN

Line drawing of a soldering iron with a coiled wire and terminal connector (no text or symbols)

VOEDSELSONDE

TRADITIONELE FUNCTIONS

SNEL VOOR- VERWARMEN

Gegiste cake 10 - 12

Hamburgers* 9 - 15

12:00 KLOK

Temperature 200°C

[ ] 6 Gaarheid

Four-step diagram illustrating a mechanical process: pressing a component, adding force, pouring liquid into a drain, and finally adjusting a component (no text or symbols present)

9. SMART CLEAN-FUNCTIE

Simple line drawing of a medical or electrical device with a coiled cable and terminal connector (no text or symbols)

TERMOSONDA

Temperature 200°C

Illustration of four different steps of a cleaning or cleaning procedure, showing hand positioning and movement (no text or symbols)

9. FUNZIONE SMART CLEAN

Simple line drawing of a medical or electrical device with a curved tube and connector (no text or symbols)

A SONDA DE TEMPERATURA

Four-panel illustration showing hands performing a manual task: adding a component, moving a device, pouring liquid into a tank, and inserting a tray (no text or symbols)

FIM 180°C

Simple line drawing of a soldering iron with a probe and wire (no text or symbols)

ΑΙΣΘΗΤΗΡΑΣ

Four-step diagram illustrating a mechanical process: pressing a component, moving a component, pouring liquid into a drain, and finally adjusting a final container (no text or symbols present)

[ ΚΛΕΙΔ.ΠΛΗΚΤΡΩΝ

Simple line drawing of a soldering iron with a coiled cable and terminal plug (no text or symbols)

SONDA DO POTRAW

[ ] 500w MOC MW

Illustration showing two hands performing a device manipulation or disassembly process (no text or symbols present)

Illustration of a hand using a pipette to lift a device into a rack, with no visible text or symbols.

5. PREHEATING (WSTĘPNE NAGRZEWANIE)

KONIEC 180°C
