USER MANUAL Breez Pushchair Silver Cross

QR code image containing encoded data, no visible human-readable text

IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

MIKILVÄGT - LESID LEIDBEININGARNAR OG GEYMID FYRIR SÍDARI NOTKUN

IMPORTANTE - LEIA COM ATENÇÃO E GUARDE PARA REFERÊNCIA FUTURA

IMPORTANTE – LEER DETENIDAMENTE Y MANTENERLAS PARA FUTURAS CONSULTAS

IMPORTANT – A LIRE ATTENTIVEMENT ET À CONSERVER POUR RÉFÉRENCE ULTÉRIEURE

Line drawings of various bicycle seat components including steering wheel, wheel rim, and backpack (no text or symbols)

Line drawing of a mechanical lever or lever mechanism (no text or symbols)

1.1 AN ONLY

Line drawing of a car interior with directional arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical device with a base and sensor, no text or symbols present

Line drawing of a manual push cart with wheels and handle (no text or symbols)

Illustration of a bicycle with two wheels and a handle, showing motion direction (no text or symbols)

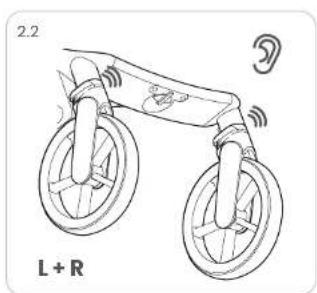

2.2 L + R

3.1 L + R

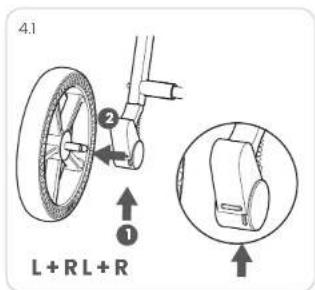

4.1 ① L + R L + R

4.2 ① ②

Line drawing of a two-wheeled cart with wheels and handle (no text or symbols)

Completely blank white image with no visible content, text, or symbols.

5.1

5.2

6.1

Pure diagram of a curved pipe or support structure with no text, numbers, or symbols

7.1 ① ② 4 3 2 1

Line drawing of a baby seat with adjustable backrest and seatbelt (no text or symbols)

10.1 L + R

Line drawing of a hand holding a tool with a pointed tip and a black arrow indicating direction (no text or symbols)

Diagram of a car seat with directional arrows indicating rotation or movement (no text or symbols)

10.2 10.3 L + R

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Line drawing of a stroller with a canopy and directional arrow indicating motion (no text or symbols)

Line drawing of a baby stroller with ear and sound waves (no text or symbols)

Line drawing of a baby car seat with straps and seats (no text or symbols)

10.5

Line drawing of a baby stroller with wheels and handle (no text or symbols)

Simple line drawing of a symmetrical curved shape resembling a lens or arch (no text or symbols)

Line drawing of a baby stroller with a canopy and arrow indicating motion (no text or symbols)

12.212.1

Illustration of a person holding a hat with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding scissors with an arrow indicating the process (no text or symbols present)

Line drawing of a baby stroller with wheels and canopy (no text or symbols)

Line drawing of a stroller with wheels and a handle, no text or symbols present

Line drawing of a helmet with straps and seat (no text or symbols)

Line drawing of a sun-during helmet with a sun icon pointing to it (no text or symbols)

Line drawing of a baby stroller with wheels and seat (no text or symbols)

10

11

Line drawing of two baby strollers with wheels and seat covers (no text or symbols)

Line drawing of two identical views of a backpack or seat (no text or symbols)

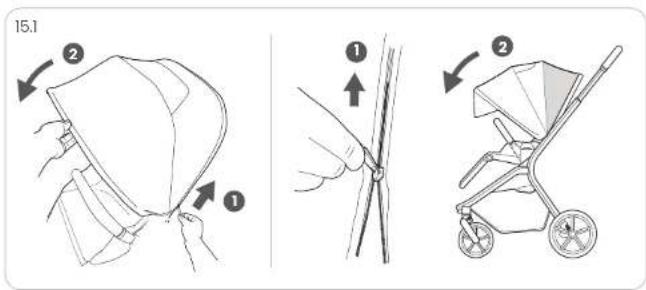

15.1 ② ① ① ②

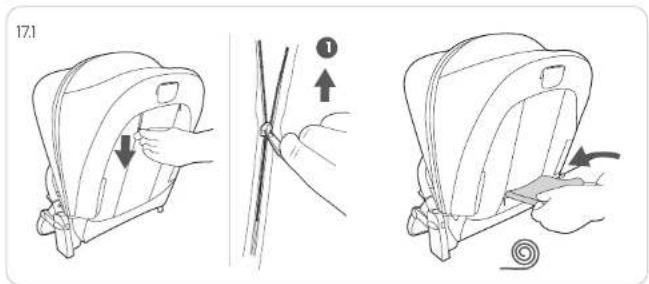

17.1 ①

Line drawings of a stroller with a seatbelt and side view showing motion (no text or symbols)

Line drawing of a car seat assembly showing front and side views with no text or symbols

12

13

Line drawing of a baby stroller with wheels and a curved arrow indicating rotation (no text or symbols)

Line drawing of a baby stroller with wheels and canopy (no text or symbols)

Line drawing of a stroller with two wheels and a seat, no text or symbols present

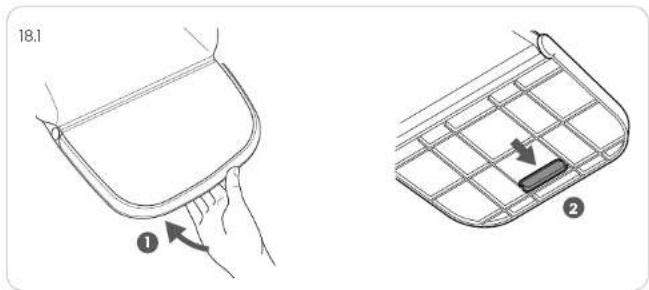

18.1 ① ②

19.2 19.3

Illustration of a baby stroller with ear and lock icons (no text or symbols)

Line drawing of a baby stroller with two wheels and a seat, no text or symbols present

Line drawing of a baby stroller with four wheels and a canopy cover (no text or symbols)

Line drawing of a baby stroller with a handle and arrow indicating motion (no text or symbols)

Line drawing of a stroller with wheels and canopy (no text or symbols)

14

15

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a baby stroller with wheels and a handle, no text or symbols present

Line drawing of a baby stroller with a canopy and arrow indicating motion (no text or symbols)

22.1 L + R

Line drawing of a baby stroller with wheels and a handle, no text or symbols present

Line drawing of a two-wheeled baby stroller with wheels and handle (no text or symbols)

Line drawing of a baby stroller with a canopy and arrow indicating motion (no text or symbols)

Completely blank white image with no visible content, text, or symbols.

21.1 21.2 L + R

Line drawing of a baby stroller with wheels and a canopy, no text or symbols present

Diagram showing hands holding a lock and a padlock, with no text or symbols present

23.1

16

17

Simple line drawing of a mechanical device with a lock and radial arms (no text or symbols)

24.1

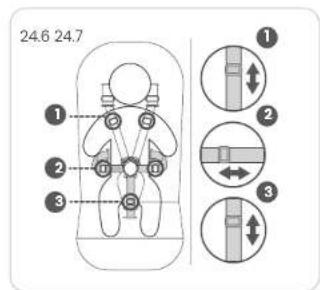

24.6 24.7 ① ② ③

Diagram illustrating a medical procedure with labeled steps and checkmark indicators for correct and incorrect actions.

24.2 24.3

Diagram showing two mechanical components with directional arrows indicating movement (no text or symbols)

Line drawing of a wooden pulley with a circular wheel (no text or symbols)

25.1 ① ② ②

24.4

Diagram of a mechanical or electrical component with a lock and radial lines, no text or symbols present.

25.2 25.3 21.1 - 21.2 1

Line drawing of a baby stroller with wheels and a hand valve (no text or symbols)

18

19

25.4 25.5

Technical line drawing of a mechanical clamp or bracket with a labeled component (no text or symbols present)

Illustration of a baby stroller with a canopy and wheels (no text or symbols)

26.1 L + R

Illustration of a hand holding a pen with an arrow indicating motion (no text or symbols)

Line drawing of a baby stroller with wheels and arrows indicating motion (no text or symbols)

26.2 L + R

Illustration of a baby stroller with a bag and arrow indicating motion (no text or symbols)

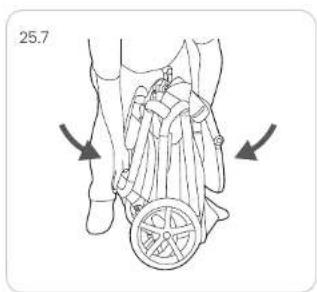

25.7

Line drawing of a bicycle with a wheel and attached jacket (no text or symbols)

26.4 L + R

Illustration of a baby stroller with wheels and a mesh canopy, no text or symbols present

27.1

28.2

Illustration of a baby stroller with wheels and a shaded seat, no text or symbols present

Top-down line drawing of a car viewed from the side (no text or symbols)

29.1 20.1 - 20.3

Illustration of a baby stroller with a baby in the seat and an upward arrow indicating motion (no text or symbols)

28.1 L + R

29.2

29.3

29.4 29.5 I I I I -

Illustration of two hands holding a small object with arrows indicating motion direction (no text or symbols)

29.10 29.11

Top-down line drawing of a car viewed from the side (no text or symbols)

29.6 29.7

Simple line drawing of a mechanical component with no text or symbols

Illustration of a lever mechanism with a droplet on the handle (no text or symbols)

30.1 ① ②

Top-down line drawing of a car's front view showing seat, roof, and dashboard (no text or symbols)

29.9298

30.2 30.3

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

Pure mechanical diagram of a curved bracket with two vertical supports and a checkmark indicator (no text or symbols)

Technical line drawing of a mechanical component with a bracket and separate view (no text or symbols)

31.2

Illustration of a hand holding a metal clamp with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a separate inset showing a knob-like part (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols)

Line drawing of a steaming cup and its side arm with a side handle, no text or symbols present

NORTH AMERICA ONLY

AMÉRIQUE DU NORD UNIQUEMENT

NORDUR-AMERÍKA EINGÖNGU

SOMENTE AMÉRICA DO NORTE

SOLO AMÉRICA DEL NORTE

طَقْف قيْلَامُشْلَا الْكَمِيرُمَا

Line drawing of a baby stroller with wheels and seat (no text or symbols)

32.1

Line drawing of a baby stroller with wheels and seat (no text or symbols)

32.2 32.3

Illustration of a person's abdomen with a downward arrow indicating compression or dislocation (no text or symbols present)

Diagram of a car seatbelt with two hands adjusting the seatbelt (no text or symbols present)

32.4

Abstract line drawing of intersecting curved and straight lines with a central rectangular block (no text or symbols)

L + R

32.5

Line drawing of a baby stroller with four wheels and a seat cover (no text or symbols)

ENG

SAFETY NOTES

If you have any problems with this product, please contact your Silver Cross retailer who will take appropriate action. Safety of the Child is your responsibility.

WARNINGS

1. Never leave the child unattended.

2. Ensure that all the locking devices are engaged before use.

3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. Always use the restraint system.
6. Check that the carrycot (supplied separately) or seat unit or car seat attachment devices are correctly engaged before use.
7. This product is not suitable for running or skating.
8. This stroller is suitable from birth up to 9kg or 6 months old, whichever comes first with the carrycot (supplied separately); and from birth up to 22kg or 4 years whichever comes first with the stroller seat.
9. Always use most reclined position for newborn baby
10. This product is compatible with the Breez Carrycot

11. Do not add a mattress or seat liner other than the one provided

12. Always apply the parking brake when placing and removing the child.

13. Maximum load of basket: 10kg. Maximum load of cup holder: 340g. Maximum load in pocket 1 kg.
14. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the stroller will affect the stability of the stroller.
15. Do not carry more than one child in this stroller
16. For car seats used in conjunction with this chassis, this vehicle does not replace a cot or a bed. Should the child need to sleep, then it should be placed in a suitable pram body, carrycot, cot or bed
17. Only replacement parts and accessories approved by Silver Cross shall be used.
18. Do not lift stroller seat via the bumper bar whilst a child is in place. The bumper bar is not a carry handle.
19. Always ensure the bumper bar is attached when the child is in the stroller seat.
20. Please ensure folding mechanisms are kept clear to avoid possible finger entrapments or injuries to parts of the body.

WARNINGS

1. WARNING: check this product regularly before using it, and do not use it if any part is loose or missing or if there are

2928 29

any signs of damage. Do not substitute parts. Contact the manufacturer if replacement parts or additional instructions are needed.

1. Follow the manufacturer's instructions.

2. Put on all the brakes whenever you park the stroller.

3. Do not leave children unattended.

4. Do not carry extra children or bags on this stroller.

5. Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

6. WARNING: USE THE HARNESS AT ALL TIMES.

7. WARNING: USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY.

8. WARNING: DO NOT USE THIS SEAT WITH ANY OTHER MODELS OF PRAM OR STROLLER

9. WARNING: DO NOT USE THE CARRYCOT (SUPPLIED SEPARATELY) ONCE THE CHILD CAN SIT UP UNAIDED.

10. Secure the child in the harness at all times.

11. Never leave the harness buckled when it is not fitted to a child in the stroller because the harness can form loops which may pose a strangulation hazard.

12. Ensure all locking devices are engaged before use.

13. To avoid possible injury or damage, always ensure the storage lock has been engaged

before lifting and carrying the product.

1. Only replacement parts and accessories approved by the manufacturer shall be used.

2. Take care when using the stroller on stairs or escalators.

3. Be aware of the risk of open fires, gas fires etc. in the near vicinity of the stroller.

4. Always apply the brakes whenever the stroller is stationary.

5. For a list of compatible car seats please visit the manufacturer's website.

6. This stroller is suitable from birth up to 9kg or 6 months old, whichever comes first with the carrycot (supplied separately); and from birth up to 22kg or 4 years whichever comes first with the stroller seat.

7. Maximum load of basket: 10kg. Maximum load of cup holder: 340g. Maximum load in pocket 1kg.

8. This product is designed for use on flat or gently sloping surfaces. Using on higher sloping and uneven surface may cause a hazardous unstable condition to exist and possibility of the vehicle tipping over.

9. Take care when folding and unfolding to avoid possible finger entrapment

10. This product is compatible with the Breez Carrycot

11. Infant should be placed to sleep on a firm, flat surface.

12. Place infant on their back when using this product.

13. Do not put objects or accessories in an infant's sleep environment.

14. Do not place this product near a blind, cord, strap or similar item that could become wrapped around an infant's neck.

15. Do not use this product for infant sleep.

16. Do not leave infant in this product unsupervised.

NORTH AMERICA ONLY

WARNINGS

1. ⚠ WARNING AVOID SERIOUS INJURY FROM FALLING OR SLIDING OUT. ALWAYS USE SEAT HARNESS.

2. Parcels or accessory items, or both, placed on the unit may cause the unit to become unstable

3. Never leave the child unattended

4. ⚠️ WARNING CHILD MAY SLIP INTO LEG OPENINGS AND STRANGLE. NEVER USE IN RECLINED CARRIAGE POSITIONS UNLESS RESTRAINT SYSTEM IS PROPERLY FASTENED AND FOOT END BARRIER IS PROPERLY ATTACHED.

5. Maximum load of basket: 10kg/22lb. Maximum load of cup holder: 340g/12oz

6. Excessive weight in the basket or other load carrying features may cause a hazardous unstable condition to exist.

7. This travel system is suitable from birth up to 9kg/20lb or 6 months old, whichever comes first with the carrycot (supplied separately); and from birth up to 25kg/55lb or 4 years whichever comes first with the stroller seat.

8. To avoid injuries from finger entrapment, keep child away from this product when unfolding and folding it.

9. The carriage or stroller will become unstable if the manufacturer's recommended load is exceeded.

CAR SEAT SAFETY NOTES

- For a list of compatible car seats please visit our website.

- Never place the car seat in the car with the adaptors attached. - Refer to the car seat instruction manual for details of operation

RAINCOVER SAFETY NOTES

- Do not use the raincover indoors or in hot weather - risk of overheating.

- Ensure adequate ventilation at all times when the raincover is in use.

- Remove the raincover when not needed to prevent condensation and discomfort. - Do not leave the raincover on during storage - this can cause mildew or material degradation. - Ensure the raincover is securely attached and does not obstruct the child's face.

- Do not use a damaged or torn raincover. - Keep plastic parts away from children to avoid suffocation hazards.

CLEANING AND MAINTENANCE

Hardware - Always check your carrycot for signs of wear. Regularly lubricate all moving parts. Check for freedom of movement of all locking devices. Polish metal work with a clean, dry cloth. Dirt and dust within moving mechanisms may be rinsed away with clean water. Do not soak or submerge. Fabric - Please refer to the wash care instructions on each individual item's wash care label. A certain degree of fading may occur over time through everyday use.

FRA

NOTES DE SÉCURITÉ

Silver Cross (Pacific) Ltd. Office 527, Lee Garden Three, 1 Sunning Road, Causeway Bay, Hong Kong

CANADA

ELFE Juvenile Products 2520 Av. Marie-Curie, Saint-Laurent (QC) H4S 1N1 1-800-667-8184 [e-mail] silvercrossbaby.ca

Silver Cross®
