APPLIANCE DESCRIPTION
The insecticidal lamp with a fan is an appliance that attracts flying insects, e.g. flies or mosquitoes, with a UV lamp, pulls them inside with a fan into a special basket from which they can no longer escape. The correct, reliable, and safe operation of the equipment requires its proper use, therefore:
Read the entire instructions manual before the first use of the appliance, and keep it for future reference.
The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this instructions manual.
SAFETY INSTRUCTIONS
Only lamps with the IPX4 or higher protection rating are intended for outdoor use. If no protection rating is placed on the lamp, it means that the lamp is intended for indoor use only. Do not expose such appliances to weather conditions.
The appliance may be used by children of at least 8 years of age and by persons with reduced physical, mental abilities and persons with no experience or knowledge of the equipment, if supervised or instructed on its safe use so that they are aware of the risks associated with it. Children should not play with the product. Children should not be allowed to perform cleaning and maintenance of the appliance without supervision.
Recommendations for connecting the appliance to the power supply
Before connecting to the power supply, make sure that the voltage, frequency, and power rating of the supply system correspond to the values shown on the appliance's rating plate. The plug must fit into the socket. It is forbidden to modify the plug or socket in any manner to make them fi t.
The appliance must be connected directly to a single power supply socket.
Avoid contact of the power cord with sharp edges, hot objects or surfaces, including those of the appliance. During operation, the power cord must always be fully extended and the position of the power cord must be set so that it does not become an obstacle during product operation. The power cord should not be placed in a manner which would pose a risk of tripping. The power supply socket should be located in a place where it is always possible to quickly remove the product power cord plug. Always pull the power cord by the plug housing when unplugging it, never by the cord.
If the power cord or the plug is damaged, immediately disconnect it from the power supply and contact an authorised service centre of the manufacturer for replacement. Do not replace the power cord by yourself. Do not use the product with a damaged power cord or plug.
The power cord or plug cannot be repaired and must be replaced with a new one that is free of defects if these components are damaged.
Instructions for use
The device should not be used in potentially flammable or explosive atmospheres, or in highly dusty and humid environments.
Do not stare into the UV lamp. Short-term visual contact with the UV lamp does not cause damage to eyesight.
EN
Always disconnect the appliance from the power supply by taking the power cord out of the socket before emptying the basket, replacing the UV lamp, or carrying out other maintenance.
Keep the appliance away from sources of moisture and water. Never immerse the appliance in water or any other liquid.
Do not insert fingers or other objects into the lamp when powered on.
Set the lamp in a place ensuring free air flow and where the UV lamp light is easily visible to insects.
OPERATING THE LAMP
Preparing for operation
Unpack the appliance by removing all packaging components. The covers can be secured during transport with adhesive tape which should be removed. Clean the external surfaces of the appliance according to the instructions contained in the “Appliance maintenance” section. Set the appliance according to the instructions.

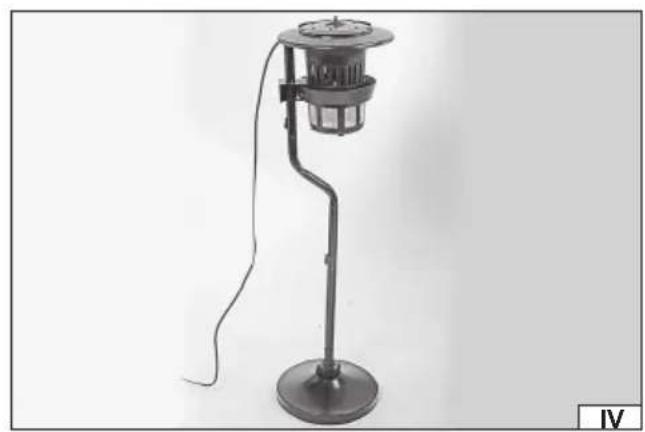

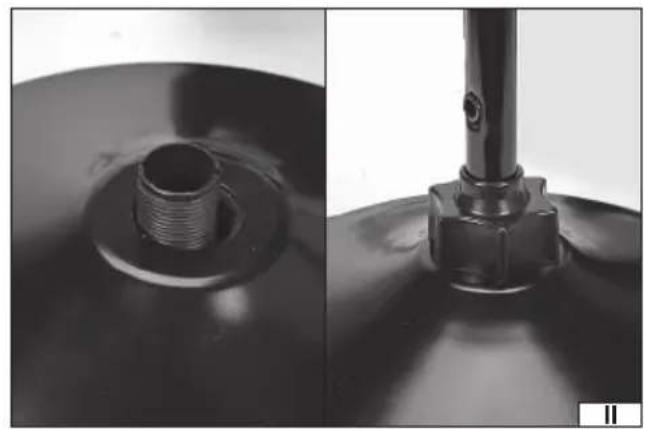

The lamp is provided with a stand. The stand must be assembled. Slide the bolt into the hole in the base and attach the vertical part of the stand (II) to it. Attach the curved part of the stand to the vertical part of it with the latch (III). Install the lamp on the stand (IV) in a similar way.
Turning the lamp on/off
Place the lamp in the place of use according to the recommendations.
Turn the lamp on by moving the switch to the ON position. The UV lamp will light up and the fan will start.
The lamp is turned off when the power switch is set to the OFF position. The UV lamp will go out and the fan will stop after a short while.
When the switch is set to the AUTO position, the lamp goes into the automatic operating mode controlled with the light switch on the top of it. The lamp will start automatically at dusk and turn off automatically at sunrise. Be aware, however, that, if the lamp is stopped in that mode, it does not mean that it is turned off. The lamp is turned off when the power switch is set to the OFF position.

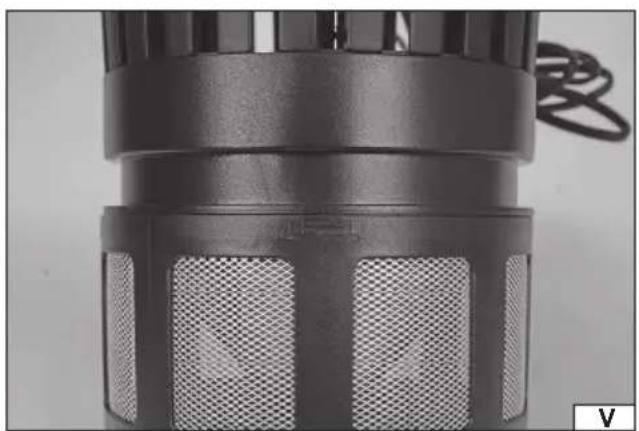

Changing the UV lamp (V)
Warning! Make sure the appliance is disconnected from the power supply before replacing the UV lamp. The power cord plug is unplugged from the socket.

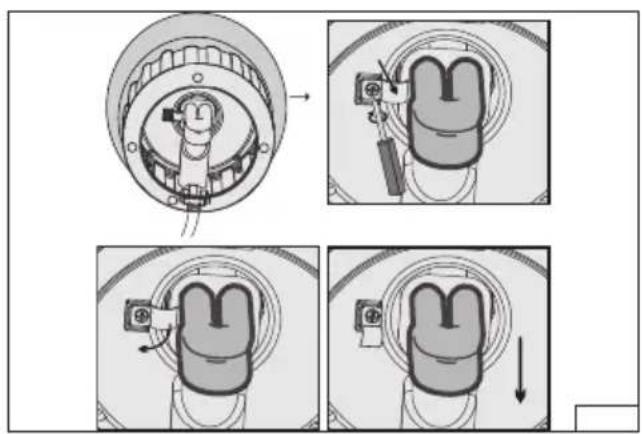

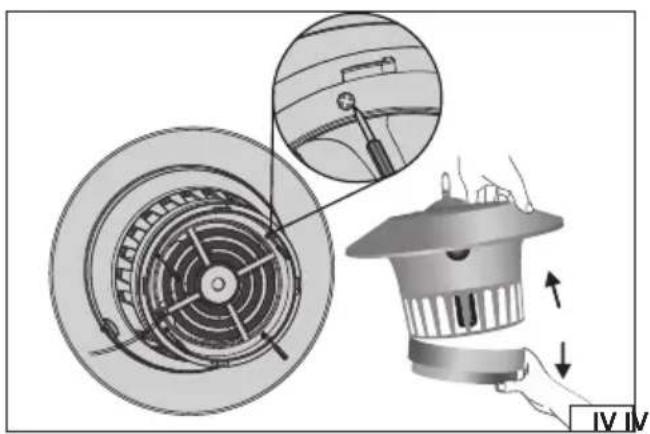

Unscrew the fan mounting bolt, then separate the two parts of the housing. Note that the parts are still connected with the fan supply wiring and care must be taken not to damage it. The UV lamp is mounted under the lid. Loosen the lamp clamp bolt, turn the clamp, then remove the old lamp and install a new one. Turn the clamp so that it holds the UV lamp. Fasten the lamp clamp bolt, assemble both parts of the lamp housing with bolts and fix the insect container.
Lamp maintenance
Warning! Before maintenance, make sure that the appliance is disconnected from the power supply. The power cord plug is unplugged from the socket.
Rotate the insect container according to the arrow aiming at the open padlock symbol, and then slide it out of the housing.

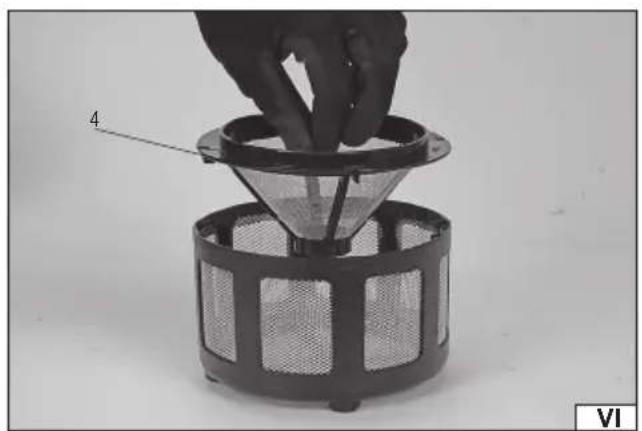

Remove the mesh funnel from the container and then empty the container of insects.
The container and mesh can be cleaned with a soft brush or a brush with plastic bristles. Be careful not to damage both components during cleaning. Both components can also be cleaned with a stream of lukewarm, running water or by immersing them in water. A small amount of dishwashing liquid can be used for cleaning. In case of wet cleaning, dry the container and funnel thoroughly before reinstalling them in the lamp.
Clean other parts of the lamp with a damp cloth, then dry or leave them to dry. Do not immerse the lamp in water or any other liquid.
TECHNICAL DATA
| Parameter Unit Value | ||
| Part no. 67014 | ||
| Rated voltage [VAC] 220-240 | ||
| Rated frequency [Hz] 50/60 | ||
| Rated power [W] 15 | ||
| Protection class II | ||
| UV lamp wavelength [nm] 365 | ||
| Operation area [m] | ^2 300 | |
| Protection rating | IPX4 | |
| Weight | [kg] 5.54 |
