USER MANUAL ELB1-TV-CART StarTech.com

Easel Style Mobile TV Cart - Up To 100" TVs and 220lb (100kg)

Product ID

ELB1-TV-CART

*Product may vary from image

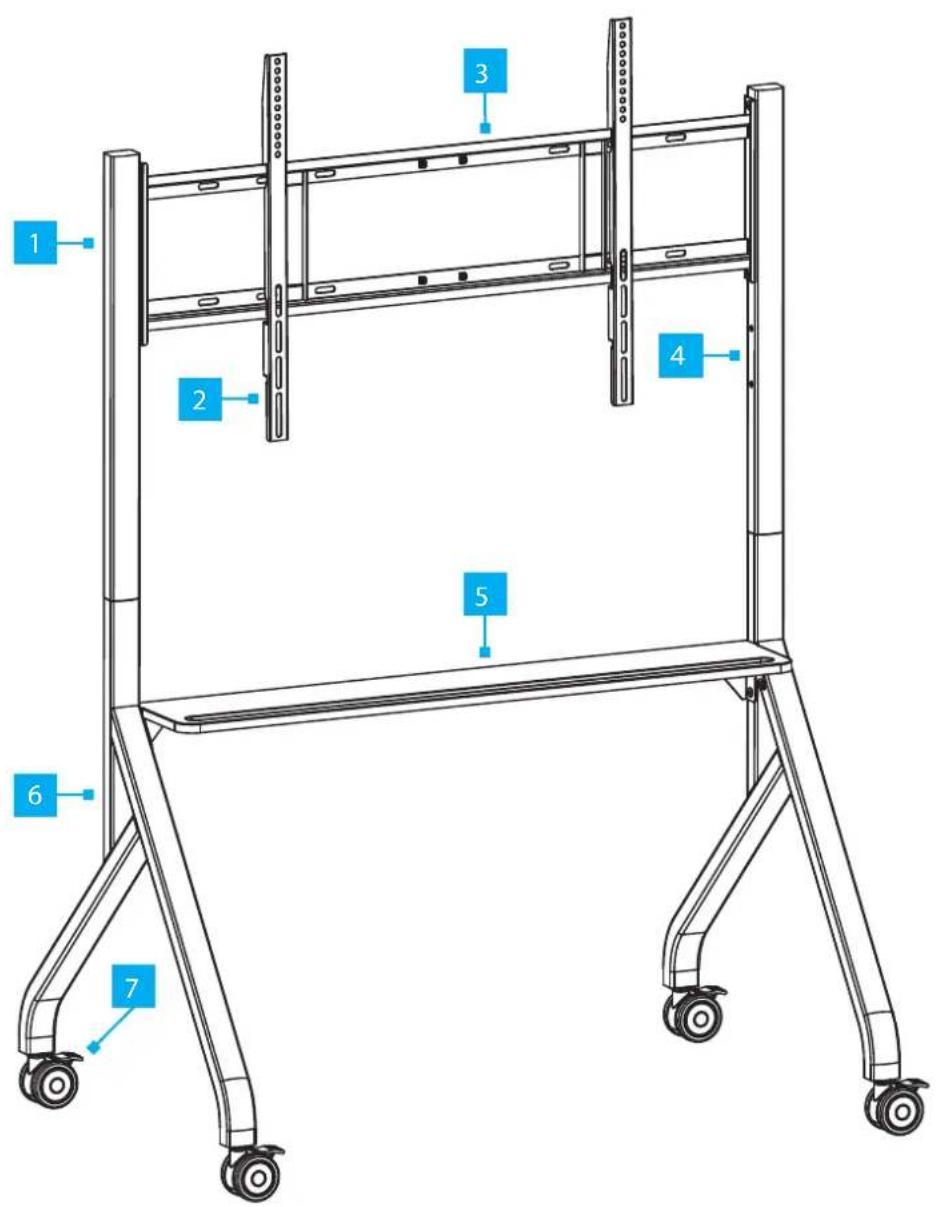

1	Column
2	TV VESA Bracket
3	TV Mounting Bracket
4	TV Mounting Bracket Height Adjustment Holes
5	Shelf
6	Lower Frame
7	Casters with Brake

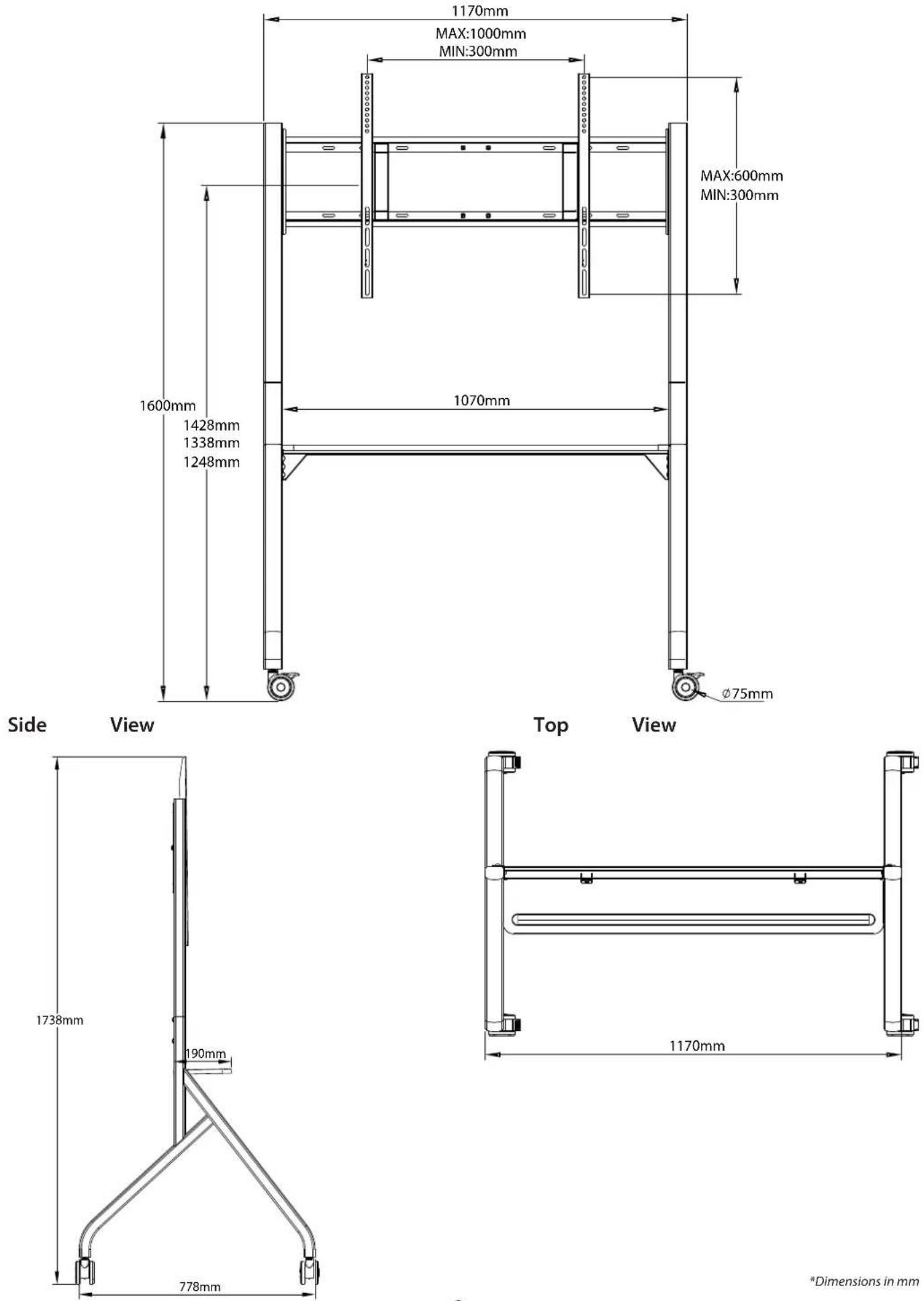

Product Dimensions

Front View

*Dimensions in mm

Package Contents

Column, Left (A)Quantity: 1	Column, Right (B)Quantity: 1	Lower Frame, Left (C)Quantity: 1	Lower Frame, Right (D)Quantity: 1	Shelf (E)Quantity: 1
TV Mounting Bracket (F)Quantity: 1	TV VESA Brackets (G)Quantity: 2	Casters (H)Quantity: 4	M8x20mm Screws (I)Quantity: 16	[HZ2]M6x16mm Screws (J)Quantity: 4
M8x25mm Screws (K)Quantity: 4	Spring Washers (L)Quantity: 4	24mm ∅ Washers (M)Quantity: 4	16mm ∅ Washers (N)Quantity: 4	Wrench (O)Quantity: 1
Quick-Start Guide Quantity: 1

Requirements

For the latest manuals, product information, technical specifications, and declarations of conformance, please visit: www.StarTech.com/ELB1-TV-CART

TV

• Maximum weight of 220lb (100kg)
- Compatible VESA mounting hole patterns: 300x300, 400x400, 600x400, 600x600, 800x400, 800x600, and 1000x600
- Display size up to 100"

Tools

• Phillips head screwdriver
• 17mm spanner wrench (slim)

Warning Statements

• StarTech.com Ltd. is not responsible for any property damage and/or personal injury resulting from the installation procedures outlined in this technical document.
• Read the entire manual and ensure the instructions are fully understood before assembling and/or using this product.

• The attachment/mounting of equipment to this product requires two persons. Do not attempt to complete this task by yourself.

• Do not exceed the load capacity of this product. Overloading this product may cause injury or property damage.
  • Weight capacity of the mount: 220lb (100kg)

• Never operate this product if parts are missing or damaged.
• Do not allow children to climb on this product, or use this product without proper supervision.
• This product is intended for indoor use only and should not be used outdoors.

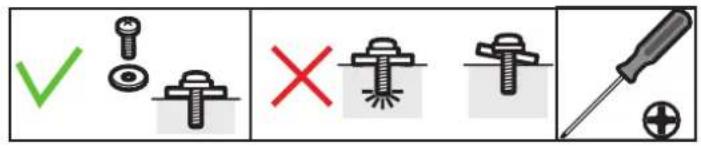

• Do not over-tighten the screws. If any resistance is encountered, stop tightening.
• Do not move the cart over cords, cables, or uneven surfaces.
• Before moving the cart, unlock the casters.

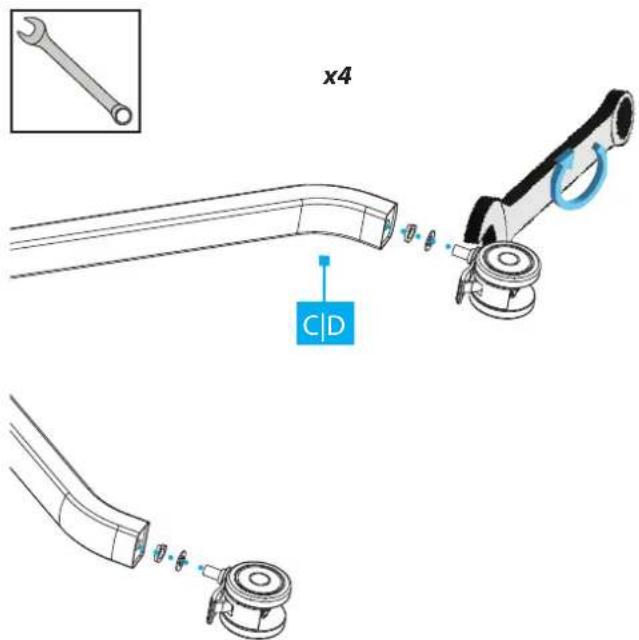

Warnhinweise

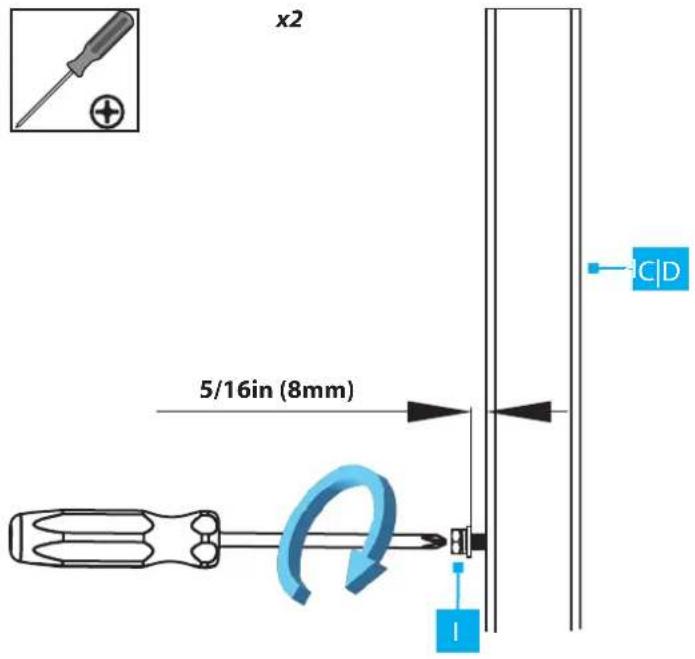

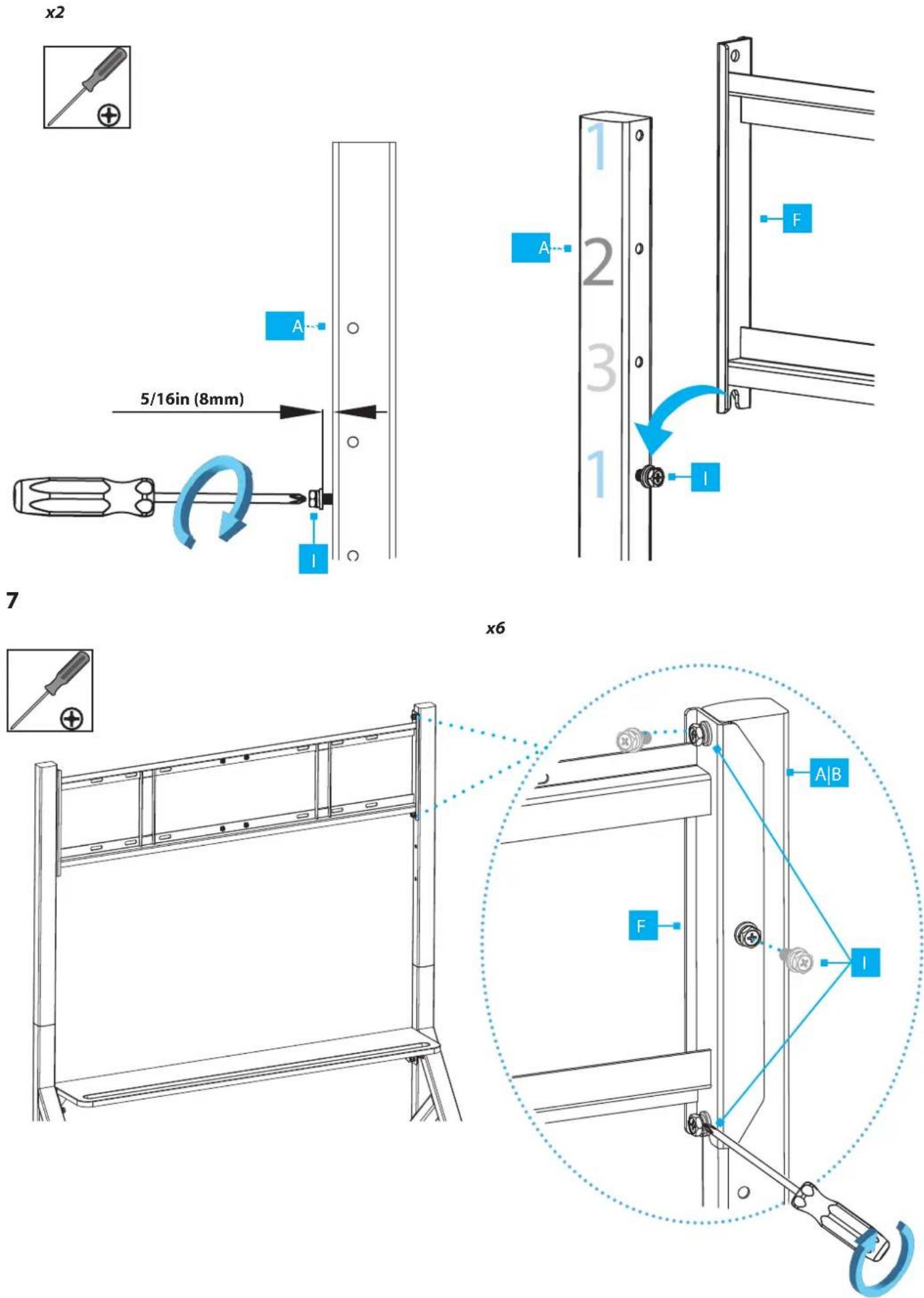

4

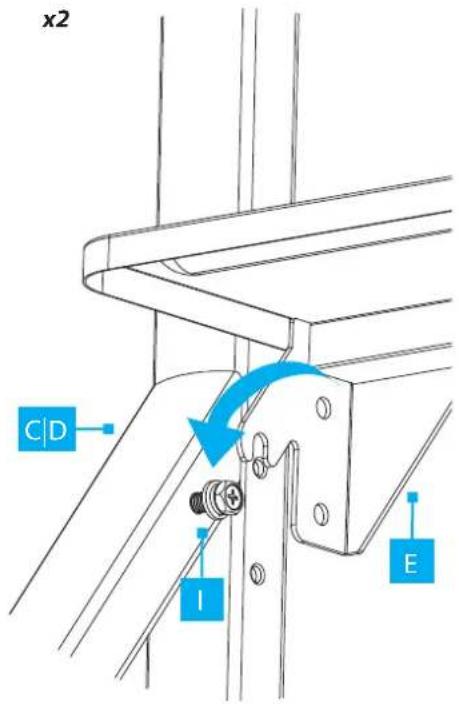

5
Note: Choose the desired height by using the same pair of matching Mounting Holes on the Left and Right Columns. 100" TVs are not supported in the lowest height position.

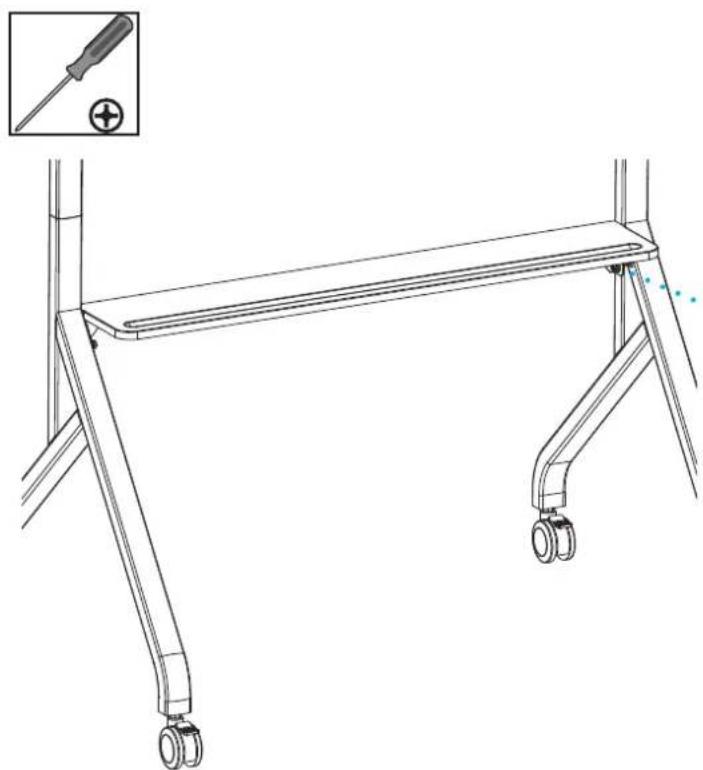

6

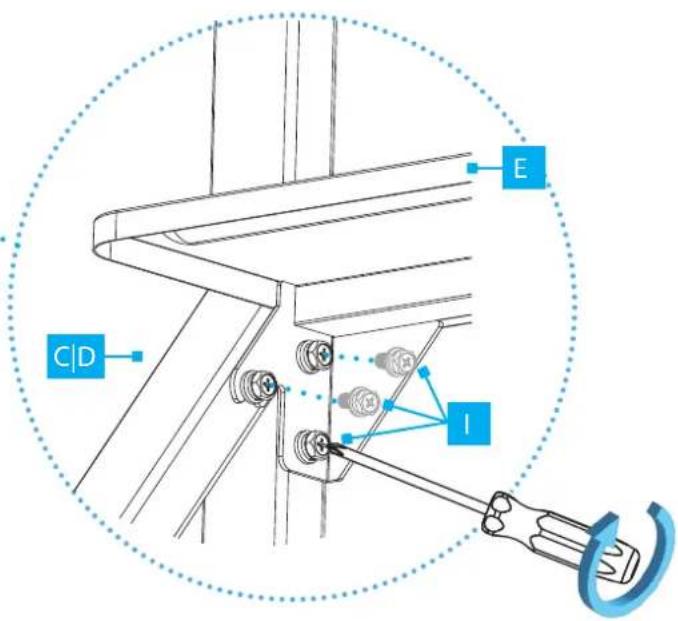

8

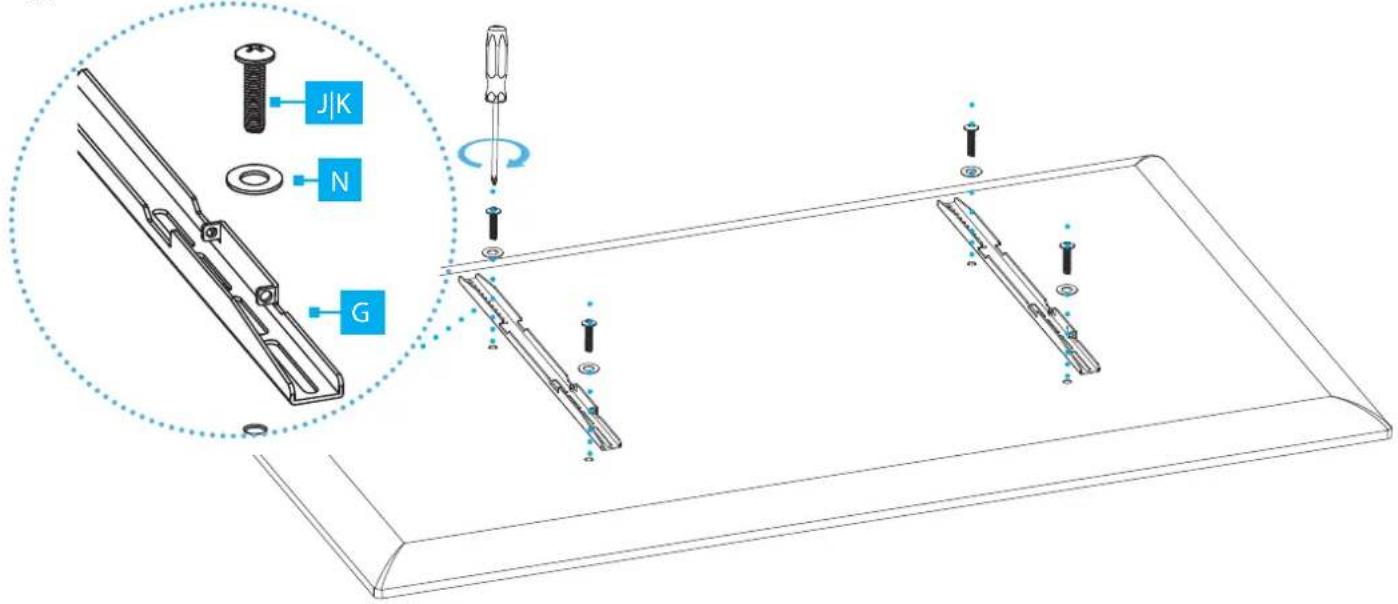

9

10

Technical line drawing of a mechanical support structure with wheels and a screwdriver inset (no text or symbols)

x6

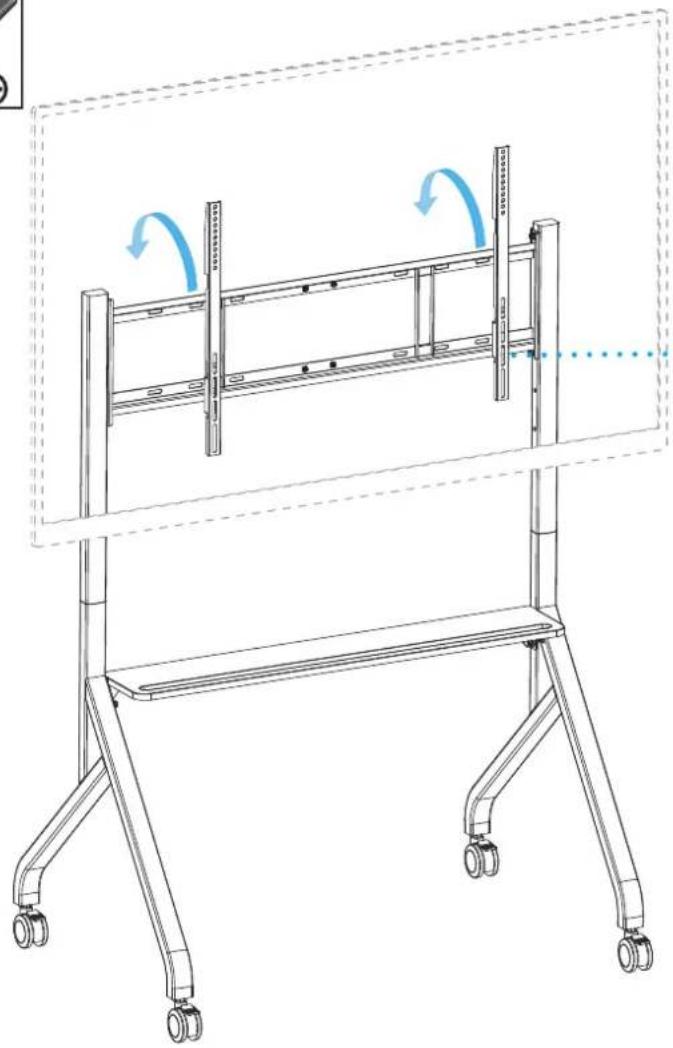

11

x4

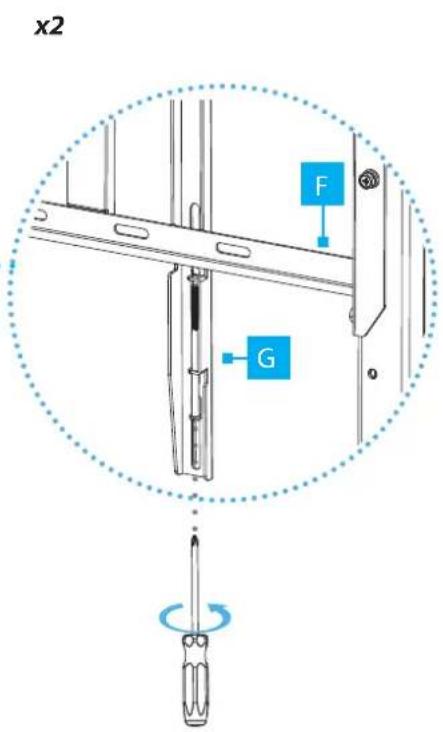

12

Technical line drawing of a mechanical support structure with two vertical supports and a horizontal base, showing rotational motion arrows (no text or symbols)
