USER MANUAL YT-82607 Yato

Exterior view of a handheld metal detector with coiled wire (no text or symbols visible)

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR

Labeled photo of a power tool with numbered parts including a drill, coiled wire, and wrenches

Two-panel black-and-white photo showing hands using a tool to adjust a metal looped component and a test tube (no text or symbols visible)

Close-up of a hand holding a mechanical component, showing part details (no visible text or symbols)

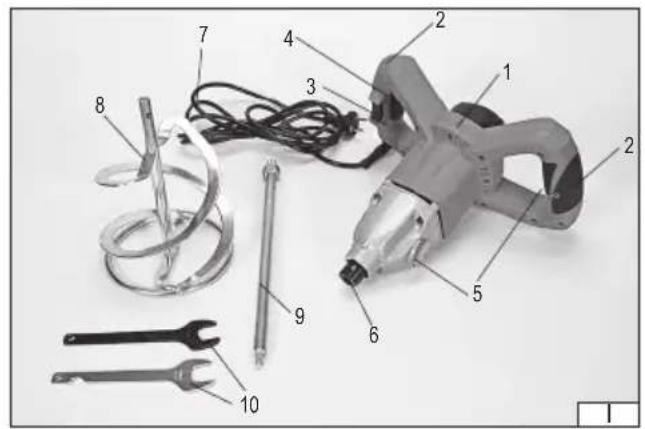

1. housing
2. grip handle
3. switch
4. switch lock
5. rotational speed control
6. spindle
7. power cord with plug
8. mixer
9. mixer's spindle
10. spanner

UA LTRU

Read the operating instruction

Wear protective goggles

Schutzbrille tragen

Wear hearing protectors

Gehörschutz tragen

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

PRODUCT CHARACTERISTICS

A mortar mixer is a power tool allowing fast and accurate mixing of mortars, paints, adhesives and other liquid construction masses. Adjustment of rotational speed and possibility of replacing an agitator allows easy adapting the operating characteristics to type of mass to be mixed. Correct, reliable and safe operation of the product depends on proper operation, therefore:

Before starting the work with this tool, please read this manual and keep it properly.

The supplier does not assume any liability for damages resulting from failure to follow safety regulations and recommendations specified in this manual.

PRODUCT ACCESSORIES

The product is supplied as complete, however, prior to work make the assembly described in later part of this manual.

TECHNICAL PARAMETERS

Parameter Measuring unit Value
Catalogue number YT-82607
Rated voltage [V~] 220 - 240
Rated frequency [Hz] 50/60 Hz
Rated power [W] 1600
Insulation class II
Rated rpm [min]	^-1 ] 1: 180 - 480 / 2: 300 - 750
Mixer mounting M14
Max. mixer diameter	[mm]	160
Noise level
Acoustic pressure L_pA	[dB(A)]	87 ± 3
Acoustic power L_mA	[dB(A)]	98 ± 3
Vibration level	[m/s2]	5,23 ± 1,5
Protection class		IP20
Weight	[kg]	6,5

The declared noise emission values have been measured using the standard test method and can be used to compare one tool to another. The declared noise emission values can also be used for preliminary exposure assessment.

Warning! Noise emissions during the correct operation of a power tool may differ from the declared values depending on the manner in which the tool is used, in particular the type of the workpiece.

Warning! Operator protection measures must be determined based on an approximation of exposure under current conditions of use. All stages of the work cycle must be taken into account. In addition to the working time, other factors must be taken into account, such as the time when the tool is switched off and when it is idle.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.

Keep all warnings and instructions for future reference.

The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

EN

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet. Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

SAFETY INSTRUCTIONS FOR MIXERS

Hold the tool with both hands on the handles provided. Loss of control can cause personal injury.

When mixing flammable materials, ensure adequate ventilation to avoid dangerous atmospheres. The vapours generated can be inhaled or ignited by the sparks produced by the power tool.

Don't mix food. Power tools and their accessories are not intended for food processing.

Keep the cable away from the work area. The cable may get tangled up in the mixer basket.

Make sure that the mixing container is placed in a stable and safe position. If the container is not secured properly, it may move unexpectedly.

EN

Make sure that no liquid splashes onto the power tool housing. Liquid that has entered the power tool can cause damage and lead to electric shock.

Follow the instructions and warnings related to the mixed material. Mixed material can be harmful.

If the power tool gets caught in mixed material, immediately disconnect the power tool from the mains and have it checked by a qualified service technician. Reaching the bucket while the tool is still attached can lead to electric shock.

Do not reach into the mixing container with your hands or put any other objects into it while mixing. Contact with the mixer basket can lead to serious injury.

Start and lower the tool only into the mixing container. The mixer basket can bend or rotate in an uncontrolled way.

TOOL HANDLING

Before starting the work make sure that the housing and connecting cable with a plug are not damaged. Should any damage was found, it is forbidden to continue the work.

Preparation to work

Warning! All actions associated with fixing and replacing of accessories, and adjustment of rotational speed etc. should be carried out with the power supply off, so prior to these actions: Pull out the plug of power cable from the mains socket!

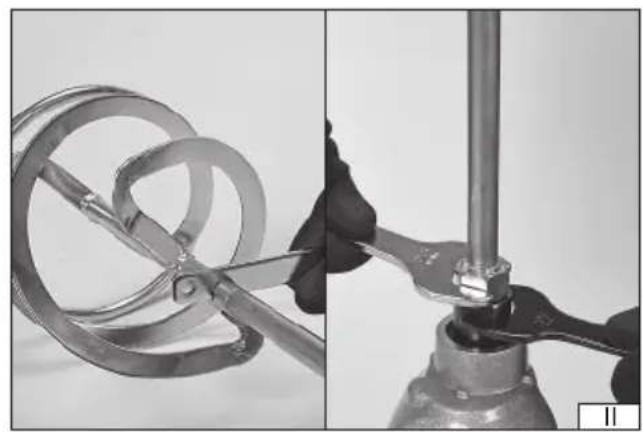

Assembly of agitator (II)

Tighten the agitator's tip using spanners for mixer's spindle. The connector to be tighten firmly to prevent its spontaneous disconnection during operation.

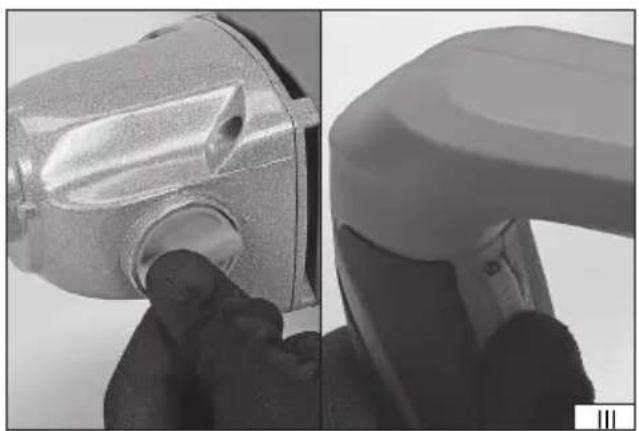

Adjustment of rotational speed (III)

Choose between the two speed ranges with the switch on the front of the tool. The spindle speed must be set using the regulator. The regulator knob has numbers on it, the larger the number visible on the knob, the higher the spindle speed. Speed regulation is smooth.

Starting and stopping the mixer

Note! Prior to each start of operation, make a trial start for approx. 30 seconds. Trial start should be done without agitator submersed in the mass to be mixed. During trial start, please observe the operation of the agitator and the mixer. Proper work may be started provided no symptoms of improper operation such as e.g. excessive oscillations, excessive noise or queer odour were found during the trial start-up.

Use agitators appropriate for the specific job. Make sure that the swindle is not bent.

Take on working clothes as well as eye and ear protectors, and other personal safety equipment required when working with particular material.

Make sure, that the switch of the tool remains in "off" position, insert the plug of mixer's power cable to mains socket.

Grab both mixer's grip handles with your hands.

Adopt a fi rm and stable posture.

Immerse the agitator in product to be mixed. Agitator's head should stay completely under the surface of the liquid being mixed.

This will prevent sloshing of liquid being mixed.

Turn on the mixer by pressing on the electric switch with a finger.

Mixer's switching off takes place after release of pressure on switch button.

In the event of long lasting operation you may use the switch lock. To enable the lock press the switch button and switch lock at the same time. To release the lock press the switch button.

During the work avoid hitting the agitator against walls and bottom of container in which mixing is being carried out. Do not lean the agitator against bottom of container. Do not keep the agitator in one position, displace it within the container, this will ensure more homogenous and faster mixing.

Note! If any suspicious noise, crackles, odour, etc. were observed, immediately switch off the mixer and pull the plug out of the mains.

Operating instructions

Do not use the product otherwise than as a mixer for mortars, paints and other liquid building materials. Do not mount any accessories other than agitators, e.g. sanding discs, polishing discs, drills, etc. on the mixer. Do not use the mixer to mix loose products.

All accessories fitted to the mixer must have a maximum speed greater than the rated product speed. It is forbidden to use accessories with a maximum permissible speed lower than the rated speed of the product.

Damaged agitators must not be used. If cracks are noticed or the agitator shaft is bent, replace it with a defect-free agitator. Check the condition of the accessories and product before each start-up.

Use agitators designed to work with a given type of material to be mixed. The agitator spindle rotates clockwise and the agitator must be selected so that it aerates or deaerates the mixed mass. In the case of aeration, the agitator basket is designed in such

EN

a way that during mixing a vortex will form on the surface of the mass to suck in the air. In the case of deaeration, the agitator is designed so that no vortex is generated and the air in the mass is pushed out of it.

The size of the agitator mounting thread must be the same as the mounting thread of the agitator. Do not use reducing components to mount the agitator in the tool. It is forbidden to modify the mixer mount or the accessory mount in order to make it compatible with each other. To ensure that the mixer is correctly fitted, start the mixer without load for 30 seconds in a safe position.

When excessive vibration or other signs of malfunction or damage occur, stop the device immediately and check the mounting for correctness.

Ensure that the ventilation openings are clear. If necessary, disconnect the product from the power supply by unplugging the plug or disconnecting the battery pack and clean the tool from dust. Do not use metal objects for this purpose. Clean with a soft paint brush, a soft brush or a compressed air stream with a pressure of not more than 0.3 MPa.

Always wear safety glasses and hearing protectors. Other personal protective equipment such as dust masks, gloves, helmets, and aprons should be worn. Long hair should be pinned up.

After the tool is switched off, the agitator still rotates for some time.

Make sure that the agitator does not catch on and/or entangle items of clothing or hair. For this purpose, special care must be taken when switching on and operating the tool.

Select the agitator speed according to the instructions of the mass manufacturer. The general recommendation is that rare masses are mixed at a lower speed than dense masses.

Residual risks

This product has been designed and built according to good design engineering practices and safety principles. However, there may be residual risks when using the product.

Warning of noise hazards caused by failure to use hearing protection.

Danger from entanglement of clothing or body parts in moving parts of the tool.

The residual risks can be minimised by strictly following the safety instructions of this product.

Maintenance of the agitator

It is recommended that the agitator be maintained immediately after operation. This will prevent the mixed mass residue from drying out on the agitator or on the agitator shaft.

Before cleaning, the agitators must be removed from the mixer. Clean the agitator with a solvent suitable for the mixed substance.

After cleaning, wash off the solvent residue with water and dry the agitator thoroughly. When cleaning, use personal protective equipment appropriate for the work with the substance. Refer to the information supplied with the substance.

MAINTENANCE AND OVERHAUL

CAUTION! Remove the battery from the machine's socket before performing adjustment, technical service or maintenance activities. Having finished working, check the power tool for damage by visually inspecting the exterior and the body and the handle, the functioning of the electric switch, the vents for clogging, the motor brushes for sparking, the noise level of the bearings and the drive transmission, and how the power tool starts and runs. During the warranty period, the user is not allowed to disassemble the tool or replace any components or parts, as this will void the warranty rights. Any irregularities found during overhaul or the operation signal the need for repair at a service centre. For this purpose, contact the manufacturer. Having finished your work, clean the housing, the vents, all switches, all handles and guards with compressed air (at 0.3 MPa maximum), a brush or a dry cloth. Do not use any chemicals or cleaners. Do not use sharp tools for cleaning. Remove the circular saw and clean the inside of the guards, the fixing of the circular saw, as well as the saw itself from dust and other impurities generated during operation. Clean handles, knobs and other adjusting parts with a dry, clean cloth.

DE

PRODUKTBESCHREIBUNG

PRODUKTA RAKSTUROJUMS

CARACTERISTIQUES DU PRODUIT

DECLARATION OF CONFORMITY

0425/YT-82607/EC/2025

We declare and guarantee with full responsibility that the following products:

Mortar mixer; 220 - 240 V\~; 50 / 60 Hz; 1600 W; 1: 180 - 480 / 2: 300 - 750 min ^1 ; M14; item no. YT-82607

meet requirements of the following European Standards / Technical Specifications:

EN 62841-1:2015 + AC:2015 + A11:2022

EN 62841-2-10:2017

EN 55014-1:2017 + A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
