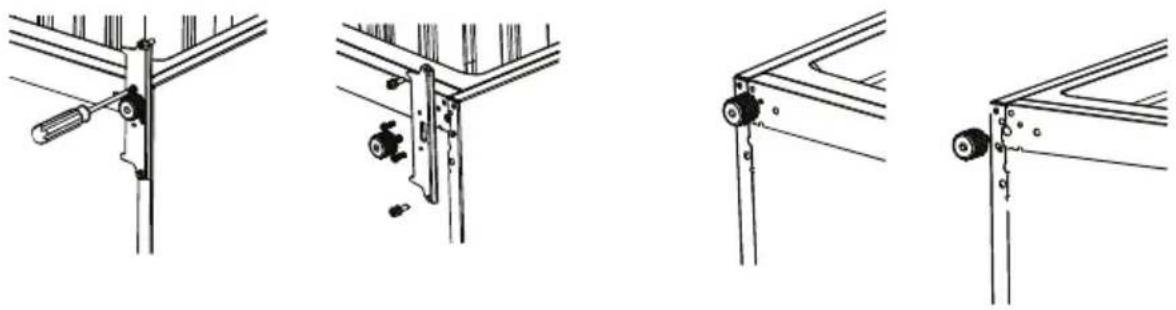

Installatie

Step-by-step diagram showing a mechanical assembly with tool, bracket, and key inserted (no text or symbols)

Technical line drawing of mechanical components and brackets (no text or symbols)

Four technical line drawings of a mechanical bracket or mounting bracket assembly, showing different mounting configurations (no text or symbols present)

Line drawings of four different mechanical or electrical component assembly steps, showing pin connections and mounting points (no text or symbols)

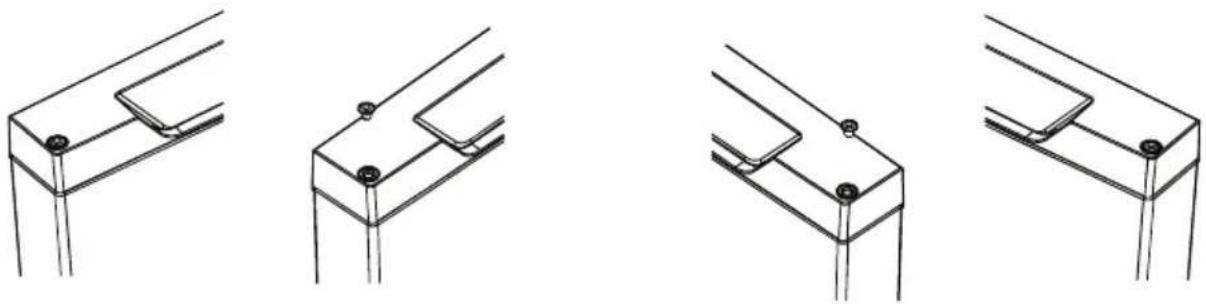

Installatie

Technical line drawings of four different mechanical or structural components with no visible text or symbols

Technical line drawings of mechanical components with no visible text or symbols

Four technical line drawings of mechanical or structural components, showing different mounting or bracketing configurations (no text or symbols present)


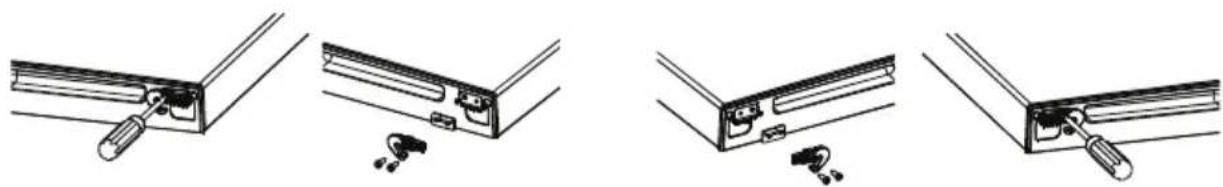

Installatie

Four technical line drawings showing a screwdriver pressing a component onto a base, with no visible text or symbols.

Technical line drawing showing a mechanical assembly with two views of a bracket (no text or symbols present)

Technical diagram showing a mechanical assembly before and after modification, with no visible text or symbols.


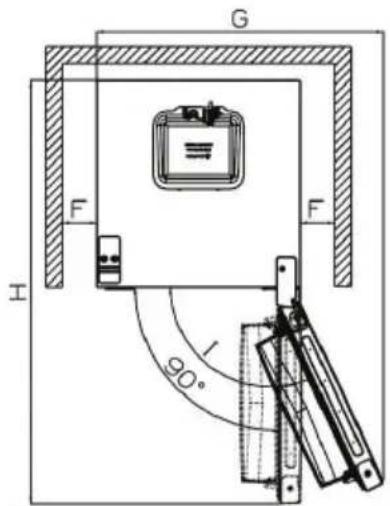

Benodigde ruimte

Diagram illustrating a person installing or adjusting a door panel with an inset showing hager and lager components.

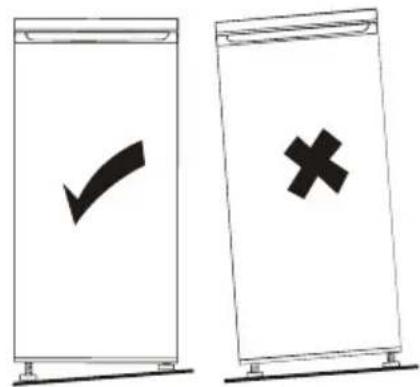

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Simple line drawings of food items: meat, fish, apple, and carrot (no text or symbols)

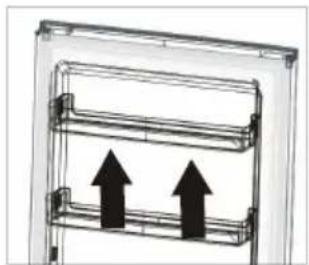

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Diagram of a mechanical or electrical component with two upward-pointing arrows, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

https://www.frilec.nl

domestic and professional appliances

DOMEST

domestic and professional appliances

MULTIBRAND

SALES & SERVICES

USER MANUAL

Combi Fridge Freezer No-Frost

%2 1 1 □□□□1)' □□□□\$ ,1

%2 1 1 □□□1)' □□□\$:

Interior view of a fully stocked refrigerator with open doors and internal compartments (no visible text or symbols)

Contents

1. Safety Information Page 1
2. Overview Page 10
3. Installation Page 11
   4.User interface Page 19
4. Daily Use Page 23
5. Service & Warranty conditions Page 27

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

Safety information

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

⚠ WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

⚠ WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

⚠ WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

- Do not put hot on the plastic parts in the appliance.

- Do not place food products directly against the rear wall.

1) If there is a light in the compartment.

- Frozen food must not be re-frozen once it has been thawed out. ^1)

- Store pre-packed frozen food in accordance with the frozen food manufacture's instructions. ^1)

- Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)

- Ice lollies can cause frost burns if consumed straight from the appliance. ^1)

• To avoid contamination of food, please respect the following instructions

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol 🌐 are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

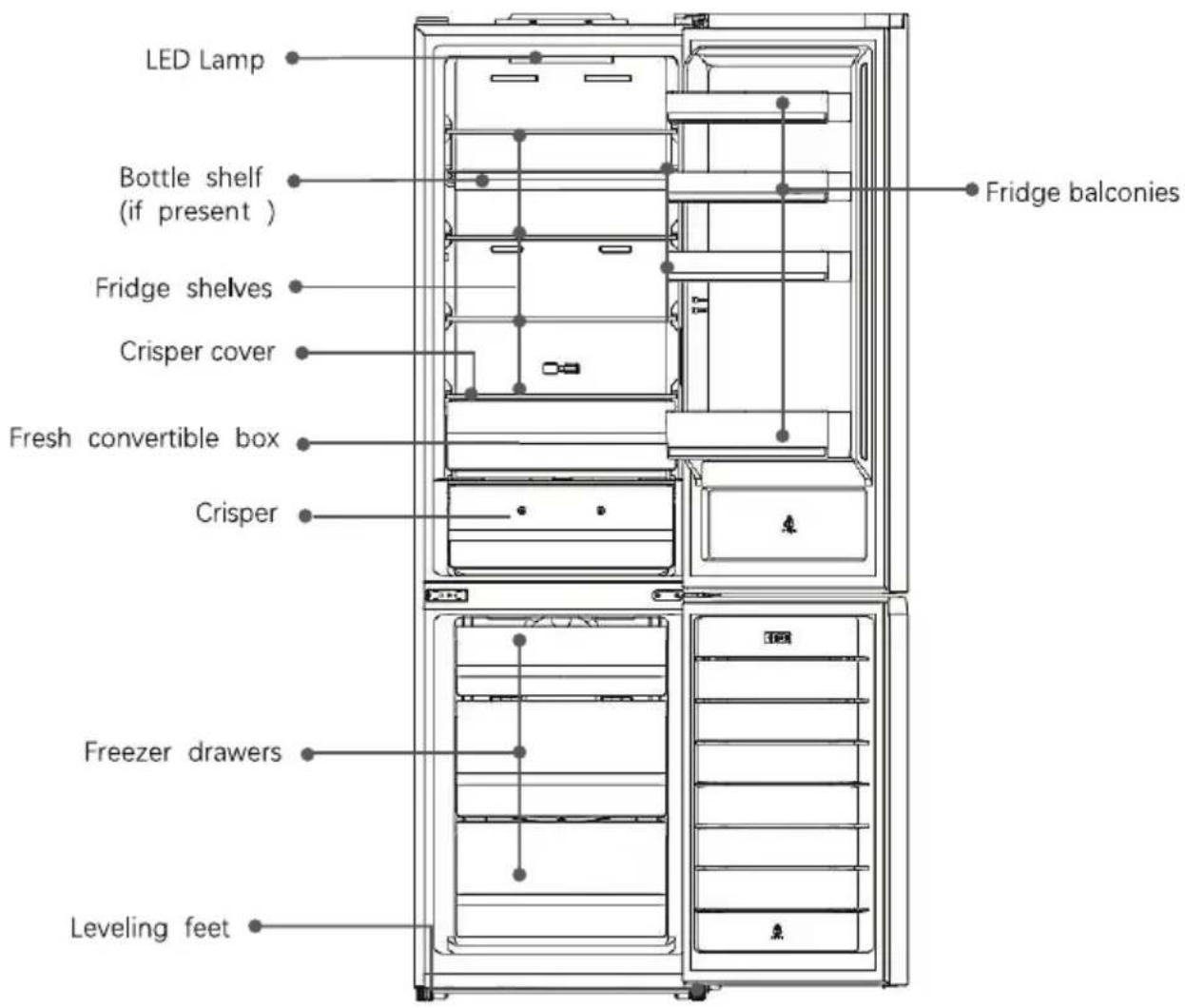

LED Lamp Bottle shelf (if present ) Fridge shelves Crisper cover Fresh convertible box Crisper Freezer drawers Leveling feet Fridge balconies

Note: Above picture is for reference only. Real appliance probably is different.

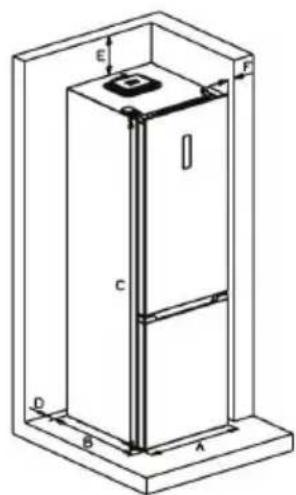

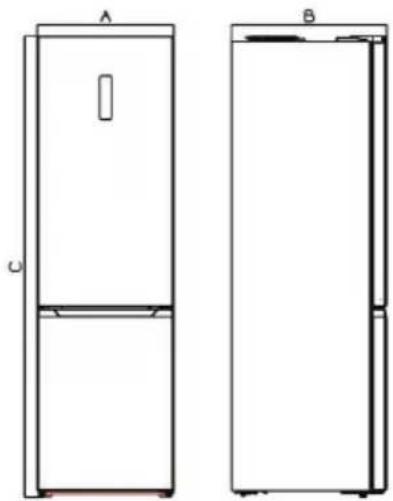

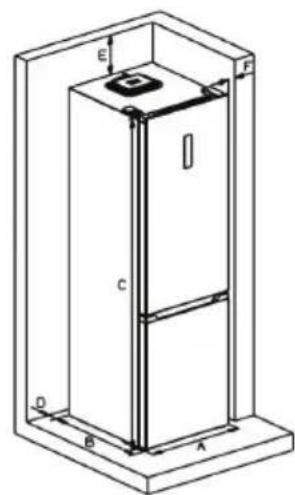

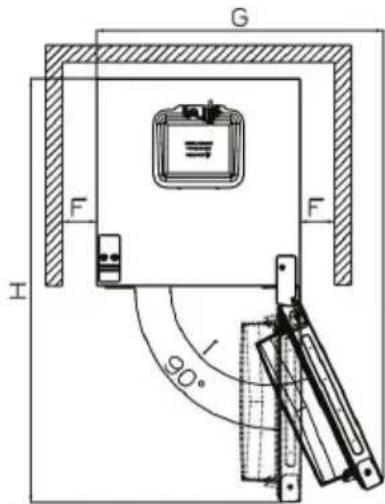

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open easily;

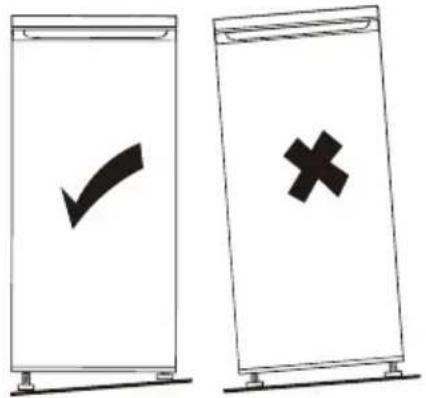

• Select a location with level (or nearly level) flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Keep at lest 50mm gap at two sides and back.

Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should * installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. 80 ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. ! ccurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance.

Warning! It must "possible to disconnect the appliance from the mains power supply; the plug must therefore" easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply&The appliance must "earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.The manufacturer declines all responsibility if the above safety precautions are not observed.This appliance complies with the E.E.C. directives.

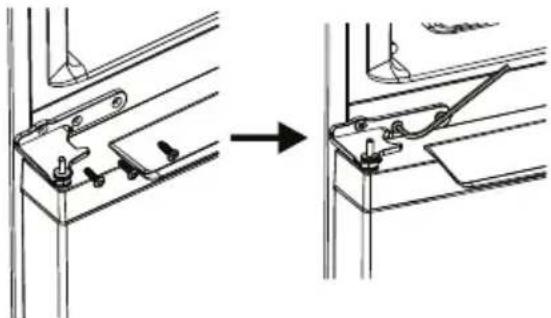

Installation

Door Reversibility

Before reversing the door, please prepare tools and materials below: flathead screwdriver, phillips screwdriver, spanner, hexagon wrench

Technical line drawing of a mechanical bracket component (no text or symbols)

Left Aid-closer x2

Technical line drawing of a mechanical bracket with two circular holes (no text or symbols)

Left Door blocker x2

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

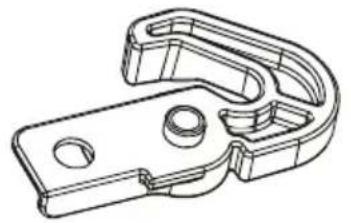

Left Middle hinge x1

Technical line drawing of a mechanical bracket with three circular holes (no text or symbols)

Left Upper blocker x1

Simple line drawing of a rectangular object with a circular hole on top (no text or symbols)

Right upper door cover

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Left Upper hinge x1

Line drawing of a rectangular electronic component with a circular hole and a small protruding port (no text or symbols)

Left Door hinge cover x1

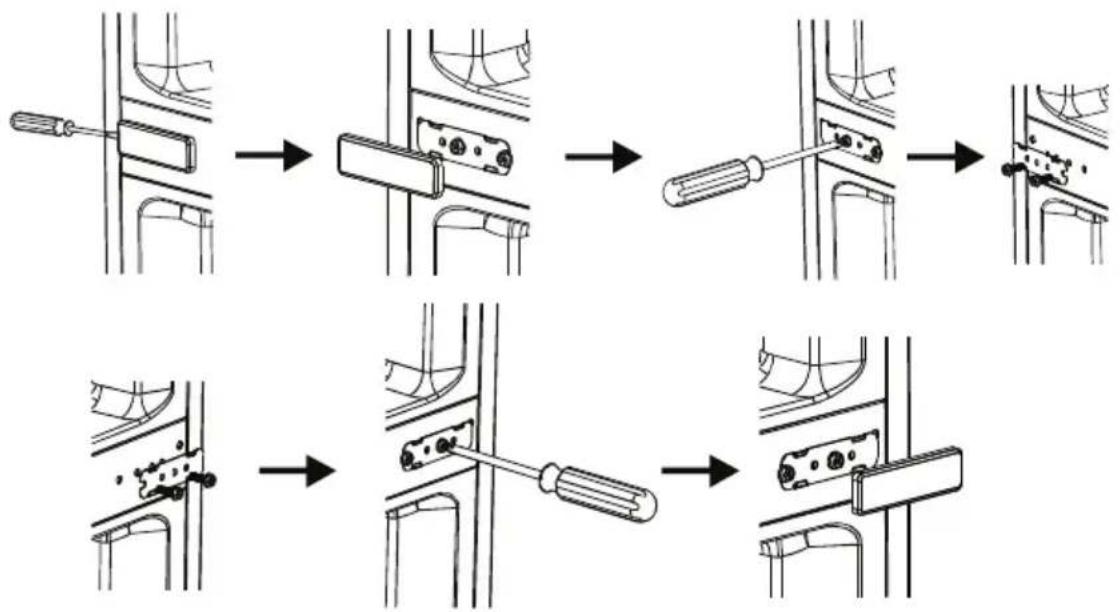

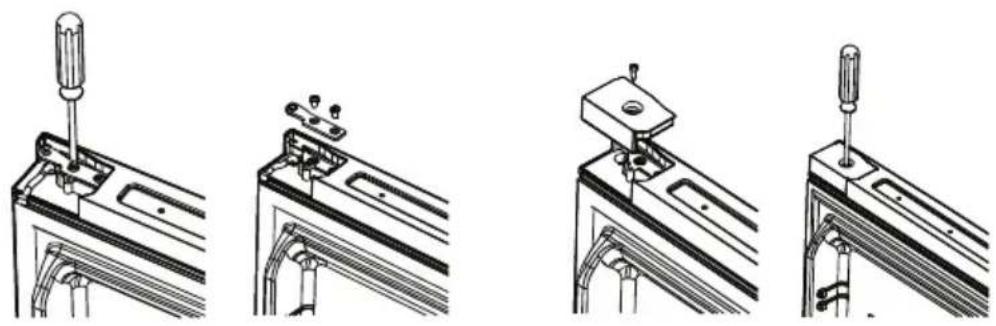

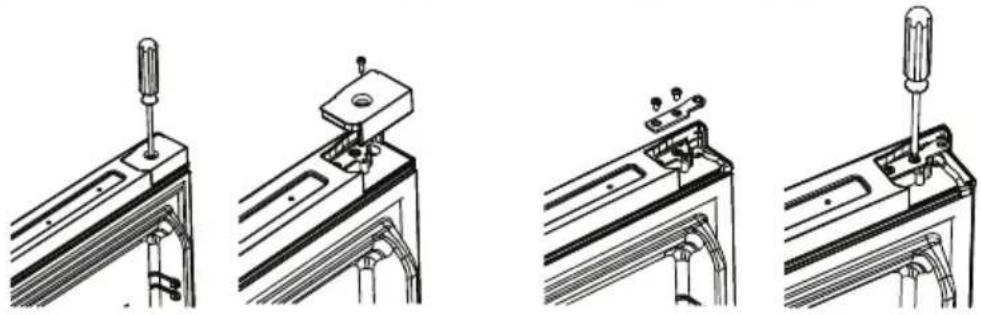

1. Unscrew top hinge cover, unscrew top hinge and disconnect connectors

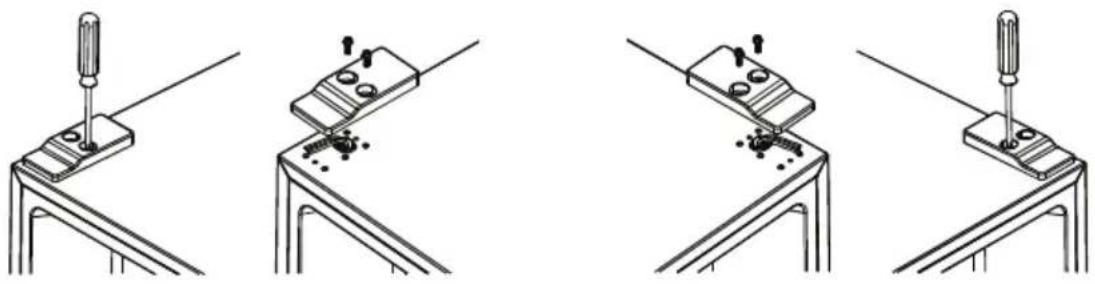

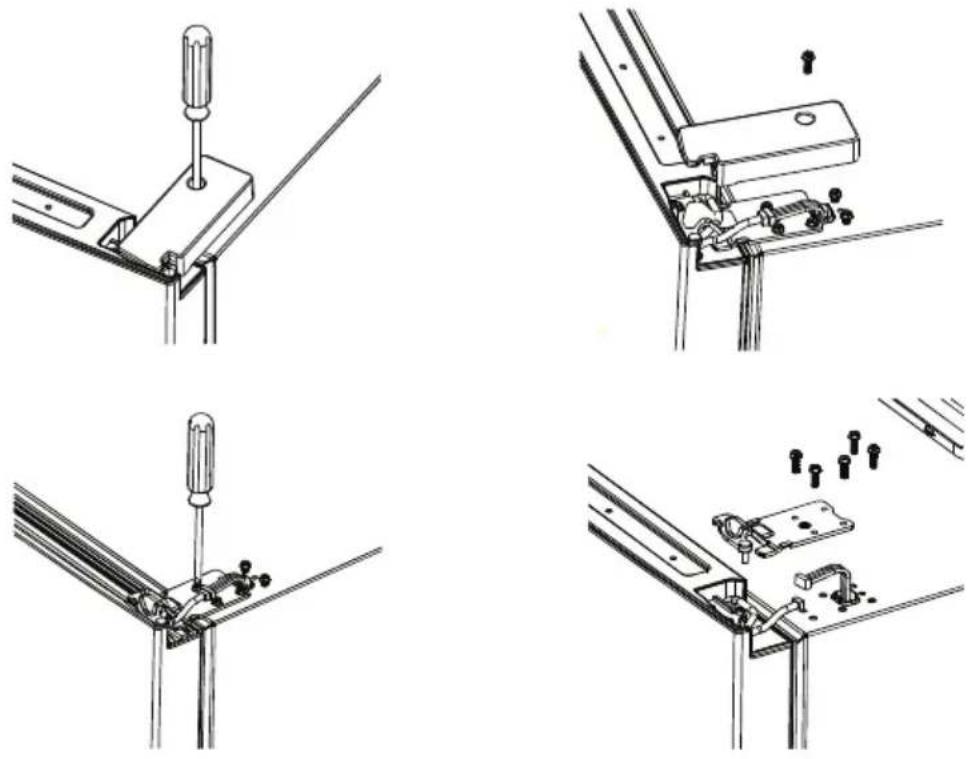

1. Remove upper door, unscrew and remove right upper blocker, fold cable, install right upper door cover with screw on right side.

1. Unscrew left door cover, unfold cable, install left upper blocker with screw on left side.

Installation

1. unscrew the right aid-closer and right door blocker on the lower right side of the door. Screw the left aid-closer and left door blocker onto the lower left side of the door.

Sequence of mechanical assembly steps showing tool positioning and mounting (no text or symbols)

1. unscrew and remove right middle hinge, remove freezer door.

Technical line drawing of mechanical components, no text or symbols present

1. move the hole cover on handle left position to handle right position.

Four technical line drawings of a mechanical bracket or bracket assembly, showing different mounting configurations (no text or symbols present)

1. remove right aid-closer and right door blocker at the lower right side of the freezer door. Now screw left aid-closer and left door blocker on the lower left side of the freezer door.

Four-step diagram showing a mechanical assembly with a tool inserted into a bracket, and a close-up of the component being inserted (no text or symbols present)

Installation

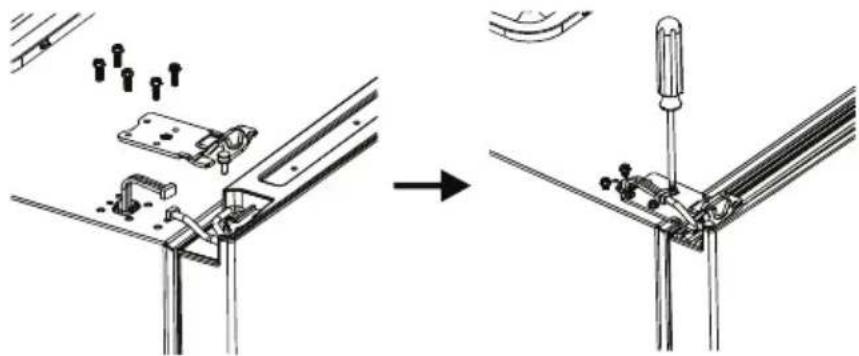

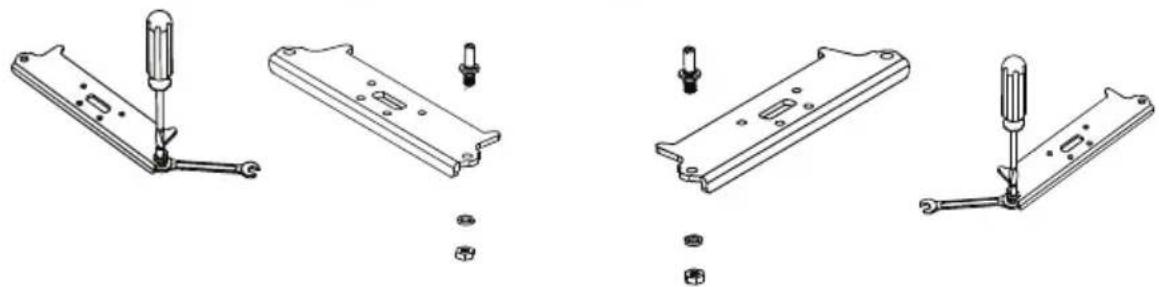

1. remove feet on both sides, unscrew bottom hinge on lower right side of device.

Technical line drawings of four different mechanical or structural components with no visible text or symbols

1. unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

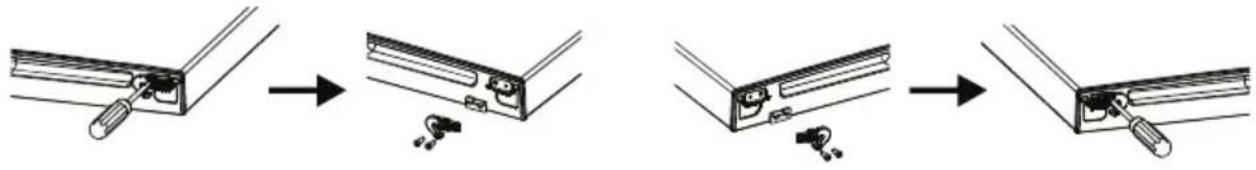

Technical line drawings of mechanical components with screwdriver and mounting bracket (no text or symbols)

1. install bottom hinge on lower left side bottom of device, replace both adjustable feet.

Four technical line drawings of mechanical bracket components with no visible text or symbols

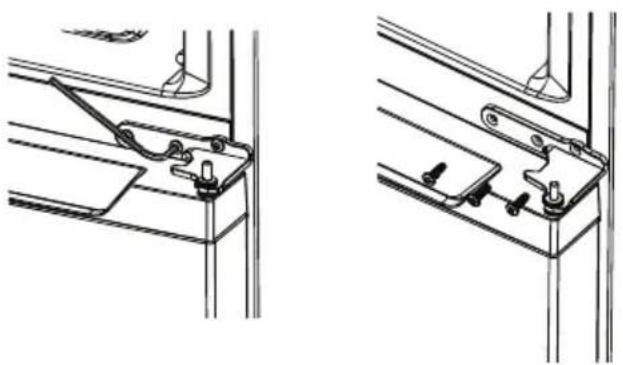

1. remove the middle cover on the left side of the device. Unscrew the mounting plate underneath. Mount both parts on the right side.


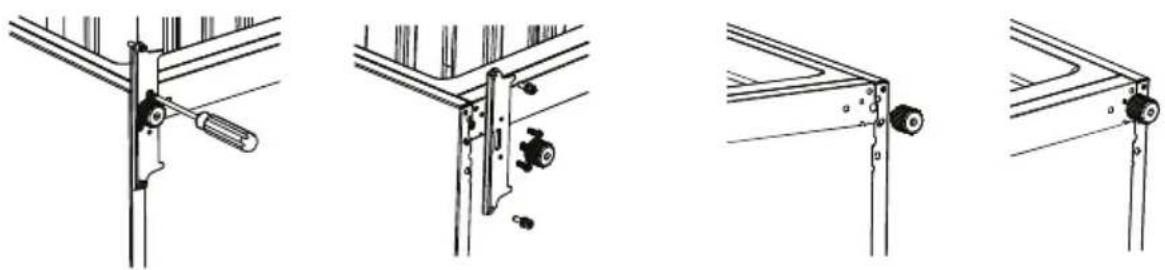

1. Unscrew the cable cover plate on the top left of the device and mount it on the top right of the device.

Four technical line drawings showing a mechanical assembly with screwdriver and mounting bracket (no text or symbols)

1. Place the freezer door on the bottom left hinge, then mount the middle hinge on the left side of the housing.

Technical line drawing showing a mechanical assembly before and after modification (no text or symbols)

1. now place the refrigerator (upper) door on the middle hinge on the left, then mount the top hinge on the top left side of the appliance.

Technical diagram showing a mechanical assembly before and after modification, with no visible text or symbols.

1. Finally, place the cover over the hinge at the top left of the device and screw it into place.

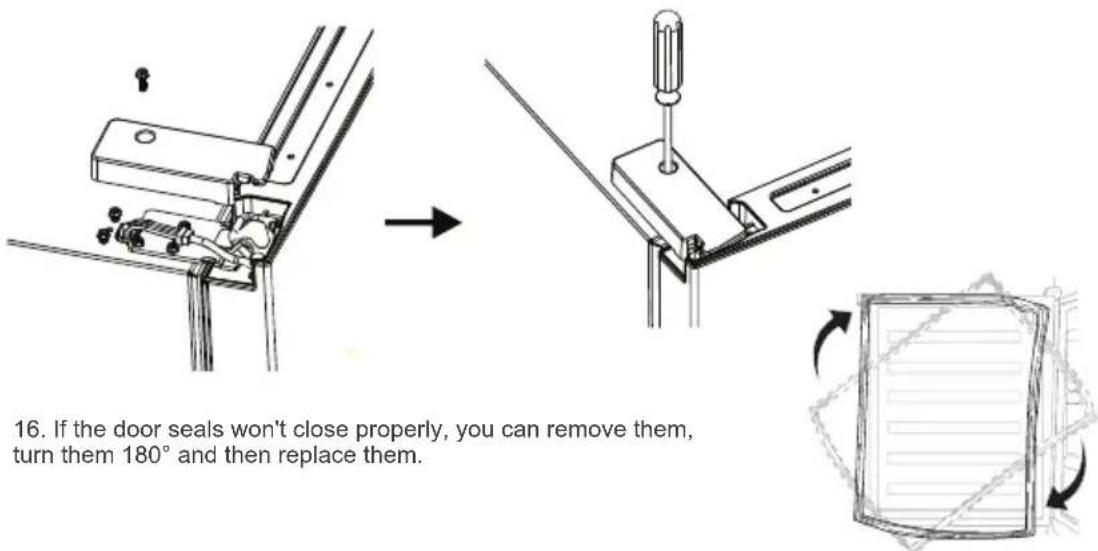

16. If the door seals won't close properly, you can remove them, turn them 180° and then replace them.

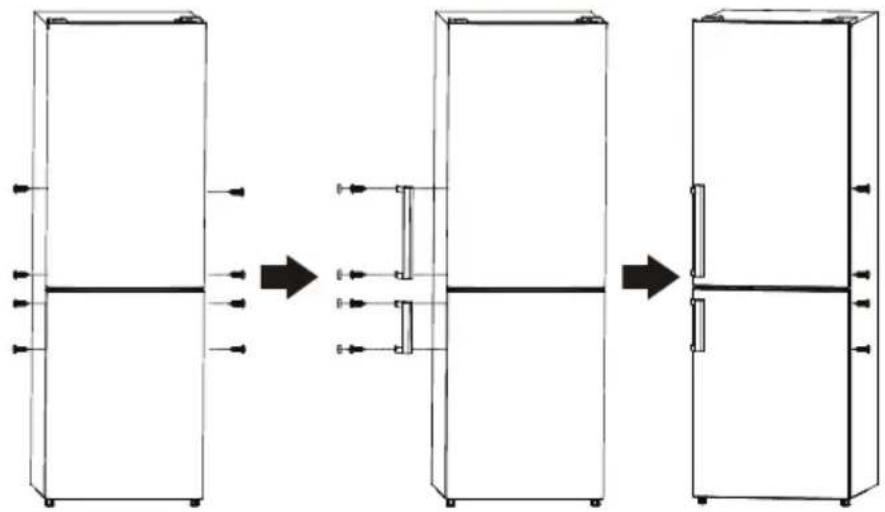

Install door external handle (if external handle is present)

Space Requirement

• Keep enough space of door open. Keep at
  • least 50mm gap at two sides and back.

Technical line drawing of two refrigerator doors (A and B) with labeled sections A, B, and C, showing front and side views without any text or symbols.

A	595
B	678
C	2005
D	min=50
E	min=50
F	min=50
G	838
H	1241
I	115°

E F C D B A

G F F I 90°

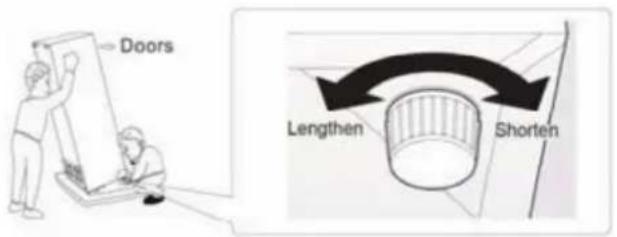

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Doors Lengthen Shorten

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Using the Control Panel

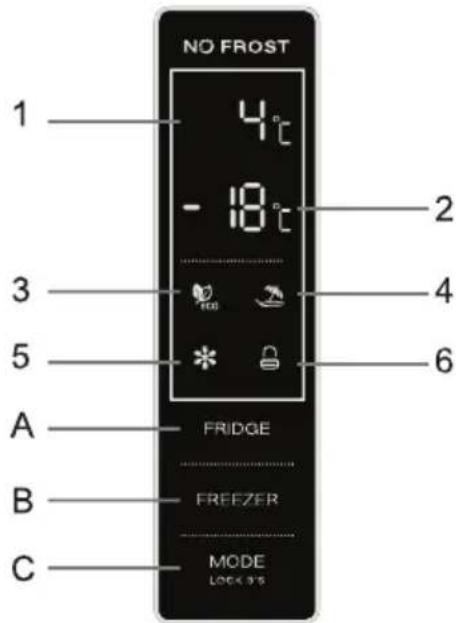

NO FROST 1 4°C - 18°C 2 3............ 4 5............ 6 A FRIDGE B............ FREEZER C MODE LOCK 3'S

1.1 Key Operation (A & B & C)

FRIDGE

: Temperature control of fridge compartment

This key is available in user defined mode and SUPER mode, not available in ECO mode and VACATION mode.

A short tap on this key will open function to select fridge temperature.

FREEZER

: Temperature control of freezer compartment

This key is available in user defined mode and VACATION mode, not available in SUPER mode and ECO mode. Short touching this key to select freezer temperature.

MODE

LOCK 3'S

: Running mode select / Locking / Unlocking

Keep touching this key for 3s to lock or unlock the control panel.

In "Unlocking" status, short touching this key to select running mode

(ECO mode / VACATION mode / SUPER mode / user defined mode).

1.2 Display (1 & 2)

1) Setting temperature display of fridge compartment This area will display setting temperature of fridge compartment. If E0,E1,E2,E3,E5 displays in this area, please call service.

2) Setting temperature display of freezer compartment This area will display setting temperature of freezer compartment.

1.3 Indicators (3 & 4 & 5 & 6)

3) ECO mode indicator This light is on when ECO mode is selected.
4) VACATION mode indicator This light is on when VACATION mode is selected.
5) SUPER mode indicator This light is on when SUPER mode is selected.
6) Locking / Unlocking indicator This light is on when control panel is locked.

2. KEYS

2.1 Operation and display

• Control panel will be 100% lit up for 3s, which operates exactly as per the setting before the power off. After that, operations are available.
• Before your operation, make sure the control panel is in unlocking status.
• In locking status, locking indicator will flash for 3s when you short touching any operation key, but operations are not available.
  • Control panel will be locked 25s after the last operation.
  • Control panel will 100% light off 2 minutes after the last operation.
  • Control panel will be lit up once the door of fridge compartment is opened.
  • Control panel will be lit up once short touching operation keys.
  • There will be a prompt beep for any key operation.

2.2 Temperature setting of fridge compartment

• In user defined mode or SUPER mode, short touch FRIDGE key consecutively, setting temperature of firdge compartment will display in a circle from 2°C to 8°C.
• Setting temperature will be confirmed after 5s of flashing of the indicator.

2.3 Temperature setting of freezer compartment

• In user defined mode, short touching FREEZER consecutively, setting temperature of fridge compartment will display in a circle from -14°C to -22°C.
• Setting temperature will be confirmed after 5s of flashing of the indicator.

2.4 Temperature setting recommendation

Temperature setting recommendation
Environment Temperature	Fridge Compartment	Freezer Compartment
Summer
Normal
Winter

2.5 ECO mode

Activate ECO mode:

• Short touching MODE key conse cutively,when (ECO mode indicator) is lit up, ECO mode is selected.
  • After 5s of flashing of ECO mode indicator, ECO mode will be activated.
• When ECO mode is activated, fridge/freezer temperature will be set automatically according to environmental temperature.
• In ECO mode, if you set fridge or freezer temperature by manual, ECO mode indicator will flash for 3s, fridge and freezer temperature setting operations are not workable.

Quit from ECO mode:

- Short touch MODE key, when ECO mode indicator is light off, the appliance quits from ECO mode.

2.6 VACATION mode

Activate VACATION mode:

• Short touching MODE key consecutively, when (VACATION mode indicator) is lit up, VACATION mode is selected.
  • After 5s of flashing of VACATION mode indicator, VACATION mode will be activated.
• When VACATION mode is activated, fridge temperature will be set automatically to 17°C, setting temperature of freezer compartment is available.
• In VACATION mode, if you set fridge temperature by manual, VACATION mode indicator will flash for 3s, fridge temperature setting operation is not workable.

Quit from VACATION mode:

- Short touch MCDE key, when VACATION mode indicator is light off, the appliance quits from mode.

2.7 SUPER mode

It is advisable to set SUPER mode 24 hours ahead, if lots of foods need to be frozen in one time.

Activate SUPER mode:

• Short touching MODE key consecutively, when (SUPER mode indicator) is lit up, SUPER mode is selected.
  • After 5s of flashing of SUPER mode indicator, SUPER mode will be activated.
• When SUPER mode is activated, freezer temperature will be set automatically to -25^ , setting temperature of fridge compartment is available.
• In SUPER mode, if you set freezer temperature by manual, SUPER mode indicator will flash for 3s, freezer temperature setting operation is not workable.

Quit from SUPER mode:

- Short touch MODE key, when SUPER mode indicator is light off, the appliance quits from SUPER mode.

WARNING !!!

In SUPER mode, the appliance will keep running under heavy load, noise level will be slightly higher than normal condition.

2.8 User defined mode

• Short touch MODE key until ECO mode indicator / VACATION mode indicator / SUPER mode indicator are all light off, user defined mode is activated.
• In user defined mode, users can set fridge temperature and freezer temperature by manual.

2.9 Door opening alarm function

If fridge door keeps open for 60s, door opening alarm will arise.

Temperature control of fresh convertible box.

● Temperature of the convertible zone can be adjusted according to the type of storage food
- Push the knob from right to left, temperature in the convertible zone will be gradually decreased.
- When the knob is placed at the right end, the fresh zone can be functioned as a crisper zone and maintain the appropriate temperature and humidity for fruits and vegetable.
- When the knob is placed at the left end, it is suitable for short-term storage of fish or other fresh food. The food will keep fresh but not frozen. Which makes it the best choice for storing fresh food
- Tips: When you choose crisper function, it is recommended to set the refrigerator temperature below 4°C, and preserved lead-time no more than 3 days, in order to keep the best freshness

FRESH CONVERTER

Simple line drawings of five food items: meat, fish, apple, and carrot (no text or symbols)

Setting the humidity in the Crisper:

Low humidity: move the regulator to the left* High humidity: move the regulator to the right

HUMIDITY CONTROL

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different foods in different compartments according to the table below.

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
  • The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
  • The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

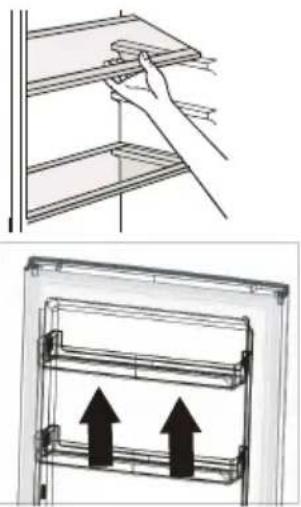

Positioning the door balconies

Door balconies can be disassembled for cleaning. To make the disassembling as follows: gradually pull the balcony in the direction of the arrows until it comes free, after cleaning, reposition it.

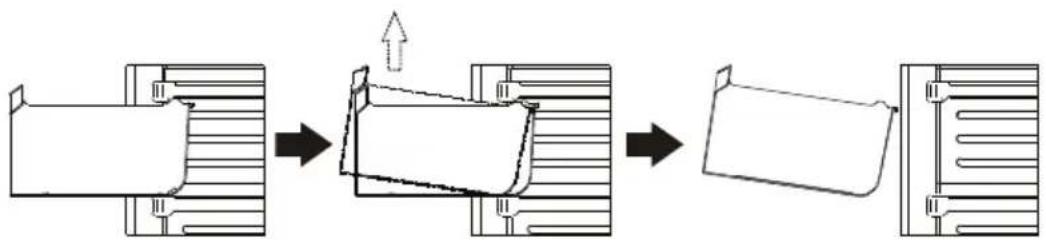

Disassemble the bottom drawer

1. Pull out the bottom drawer to stopper position.
2. Lift up the front of drawer.
   3.Pull out the bottom drawer.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thorough ly cleaned, foodstuf fs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in tempera ture of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuf fs were adequately stored by the retailer;

be sure that frozen foodstuf fs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

- Do not store warm food or evaporating liquids in the refrigerator

- Do cover or wrap the food, particularly if it has a strong

flavour

Hints for refrigeration

Useful hints:

- Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.

- For safety, store in this way only one or two days at the most.

• Cooked foods, cold dishes, etc...these should be covered and may be placed on any shelf.

- Fruit and vegetables: these should be thorough ly cleaned and placed in the special drawer(s) provided.

- butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.

- Milk bottle: these should have a cap and should be stored in the balconies on the door.

- Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical component ts, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at coldest	Set the knob at other switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at coldest.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section.
Side panels are hot.	It's normal. Heat exchange parts are in the sides.	Take gloves to touch sides if needed.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Warranty conditions

Dear user,

For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.

QR code image containing encoded data, no visible human-readable text

https://www.frilec.nl

For questions regarding sales you can email to: [e-mail]

For questions regarding service you can email to: [e-mail]

For other questions you can email to: [e-mail]

We can also be reached by phone : [phone]

DOMEST

domestic and professional appliances

DOMEST

domestic and professional appliances

MULTIBRAND

SALES & SERVICES

Interior view of a fully stocked refrigerator with open doors and internal compartments (no visible text or symbols)

Table des matières

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

Technical line drawing of a mechanical bracket with three circular holes (no text or symbols)

Isometric line drawing of a rectangular electronic component with a circular hole on top (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal brackets (no text or symbols)

Technical line drawing of a rectangular electronic component with a circular hole and internal slots (no text or symbols)

Technical line drawing of two mechanical assembly components (no text or symbols)

Four technical line drawings of a mechanical bracket or mounting bracket assembly, showing different mounting configurations (no text or symbols present)

Four-step diagram showing a mechanical assembly with a tool inserted into a bracket, and a close-up of a small component being inserted (no text or symbols present)

Installation

Technical line drawings of four different mechanical or structural components with no visible text or symbols

Technical line drawings of mechanical components with no visible text or symbols

Four technical line drawings of mechanical components or brackets, showing different mounting or mounting configurations (no text or symbols present)

Installation

Four technical line drawings showing a mechanical assembly or mounting process with no visible text or symbols

Technical line drawing showing a mechanical assembly before and after transformation (no text or symbols)

Technical diagram showing a mechanical assembly before and after modification, with no visible text or symbols.

Technical line drawing showing a mechanical assembly before and after modification, with no visible text or symbols.

Abstract diagram with overlapping geometric shapes and arrows, no text or symbols present

Installation

Espace nécessaire

Simple line drawing of a refrigerator with top and front panels, labeled A and C (no text or symbols on the diagram itself)

Simple line drawing of a refrigerator with no text or symbols

G F F I 90°

A	595
B	678
C	2005
D	min=50
E	min=50
F	min=50
G	838
H	1241
I	115°

E F C D B A

Illustration of a hand using a tool to lift or adjust a shelf (no text or symbols visible)

Diagram of a door frame with two upward arrows indicating movement or force (no text or symbols)

QR code image containing encoded data, no visible human-readable text

https://www.frilec.nl

domestic and professional appliances

DOMEST

domestic and professional appliances

MULTIBRAND SALES & SERVICES
