USER MANUAL BC10MWR Big Chill

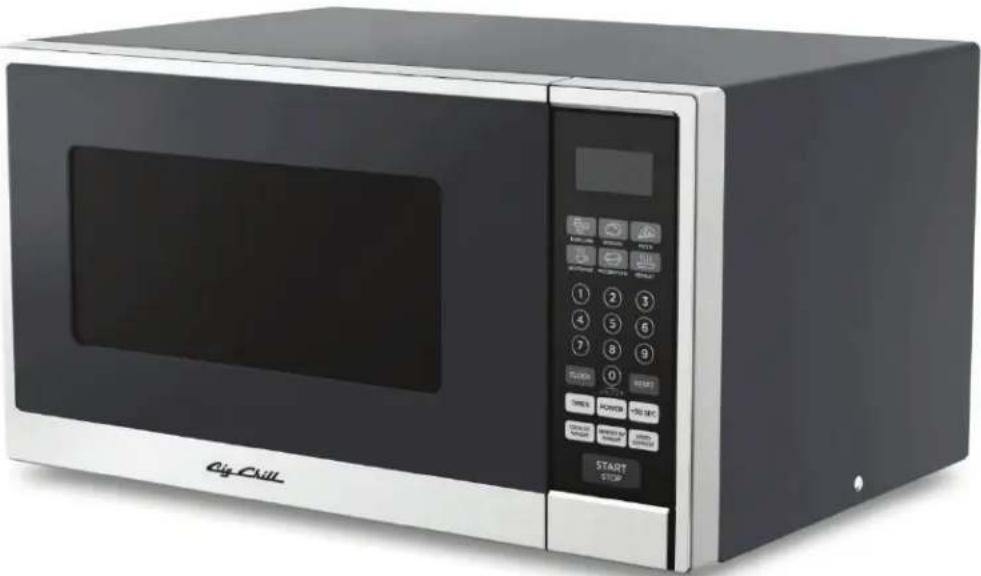

Exterior view of a Big Chill microwave oven with control panel and door (no visible text or symbols beyond branding)

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to remove or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:
   a. Door (bent)
   b. Hinges and latches (broken or loosened)
   c. Door seals and sealing surfaces
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY 2
IMPORTANT SAFETY INSTRUCTIONS ....3
INSTALLATION GUIDE ......4
GROUNDING INSTRUCTIONS ....4
UTENSILS GUIDE ....5
COOKING TECHNIQUES ......6
SPECIFICATIONS....7
PART NAMES....7
CONTROL PANEL......8
OPERATION INSTRUCTIONS....9
How To Use The Child Resistant-Door Lock....9
Enabling and Disabling the
Child Resistant-Door Lock Function 9
Setting the Clock 9
Setting the Timer ....10

Setting a Cooking Program ....10

Adding 30 Seconds ....10

Speed Defrost....10

Cook by Weight 10

Defrost by Weight....11

Setting Safety Lock....11

QUICK COOK SETTINGS....12

Popcorn 12

Potato 12

Pizza....12

Beverage 12

Frozen Food 12

Reheat....12

CLEANING AND CARE....13

WARRANTY....14

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

1 Read all instructions before using the appliance.
2 Read and follow "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 2.
3 This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" on page 4.
4 Install or locate this appliance only in accordance with the provided installation instructions.
5 Some products such as whole eggs and sealed containers —for example, closed glass jars— may explode and should not be heated in this oven.
6 Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7 HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE OVEN. Use caution when removing hot items.
8 To reduce the risk of fire in the oven cavity:
a Do not overcook food.
b Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
c Remove wire twist-ties from paper or plastic bags before placing bag in the oven.
d If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel.
e Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

9 Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to person:

a Do not overheat the liquid.
b Stir the liquid both before and halfway through heating.
c Do not use straight-sided containers with narrow necks.
d After heating, allow the container to stand in the microwave oven for a short time before removing the container.
e Use extreme care when inserting a spoon or other utensil into the container.

10 Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in the microwave oven.

11 Pierce foods with heavy skins such as potatoes, whole squash, apples, and chestnuts before cooking.

12 The contents of feeding bottles and baby jars should be stirred or shaken, and the temperature should be checked before serving in order to avoid burns.

13 Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensils.

14 Do not cover or block any openings on the appliance.

15 Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

16 Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

17 Do not immerse cord or plug in water. Keep cord away from heated surfaces. Do not let cord hang over edge of table or counter.

18 Use only thermometers, which are specifically designed for use in microwave ovens.

19 Do not operate any heating or cooking appliance beneath this appliance.

20 Be certain the glass tray and roller rings are in place when you operate the oven.

21 This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.

22 When cleaning surfaces of door and oven that come together when closed, use only mild, nonabrasive soaps or detergents. Apply with a sponge or soft cloth.

SAVE THESE INSTRUCTIONS

1 Make sure that all the packing materials are removed from the inside of the door.
2 Check the oven for any damage such as misaligned or bent door, damaged door seals and sealing surfaces, broken or loose door hinges and latches, and dents inside the cavity or on the door. If there is any damage, do not operate the oven but contact qualified service personnel.
3 This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4 Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

5 For correct operation, the oven must have sufficient airflow. Allow 20in of space above the oven, 10in at the back and 5in at both sides. Do not cover or block any openings on the appliance. Do not remove feet on which oven stands.
6 Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7 Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8 The socket must be readily accessible so that it can be easily unplugged in an emergency.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not use an extension cord. If the power supply cord is too short have a qualified electrician or service person install an outlet near the appliance.

ELECTRICAL REQUIREMENTS

The electrical requirements are a 120 volt, 60 Hz, AC only, 15 amp. It is recommended that a separate circuit, serving only the oven, be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.

Power Supply Cord

A short power supply cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord.

NOTE: If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

Big Chill cannot accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

Radio or TV Interference

Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven is on a different circuit, relocate the radio or TV as far away from the oven as feasible, or check position and signal of receiving antenna.

This section lists which utensils can be used in the microwave, which ones have limited use for short periods, and which ones should not be used in the microwave.

RECOMMENDED

Microwave browning dish

Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish.

Microwaveable plastic wrap

Use to retain steam. Leave a small opening for some steam to escape, and avoid placing it directly on the food.

Paper towels and napkins

Use for short-term heating and covering; these absorb excess moisture and prevent spattering. Do not use recycled paper towels, which may contain metal and could ignite.

Glass and glass-ceramic bowls and dishes

Use for heating or cooking.

Paper plates and cups

Use for short-term heating at low temperatures. Do not use recycled paper, which may contain metal and could ignite.

Wax paper

Use as a cover to prevent spattering.

Thermometers

Use only those labeled "Microwave Safe" and follow all directions. Check the food in several places. Conventional thermometers may be used on microwaved food once the food has been removed from the oven.

LIMITED USE

Aluminum foil

Use narrow strips of foil to prevent overcooking of exposed areas. Use with caution, as too much foil can damage your oven. You should keep a distance of 1in. (2.54cm) between aluminum foil and cavity.

Ceramic, porcelain, and stoneware

Use these if they are labeled "Microwave Safe". If they are not labeled, test them to make sure they can be used safely.

Plastic

Use only if labeled "Microwave Safe". Other plastics can melt.

NOT RECOMMENDED

Glass jars and bottles

Regular glass is too thin to be used in a microwave. It can shatter and cause damage and injury.

Paper bags

These are a fire hazard, except for popcorn bags that are designed for microwave use.

Styrofoam plates and cups

These can melt and leave an unhealthy residue on food.

Plastic storage and food containers

Containers such as margarine tubs can melt in the microwave.

Metal utensils

These can damage your oven. Remove all metal before cooking.

NOTE: Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.

Your microwave makes cooking easier than conventional cooking, provided you keep these considerations in mind:

STIRRING

Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food on the sides of a dish absorbs more energy and heats more quickly, so stir from the outside to the center. The oven will turn off when you open the door to stir your food.

ARRANGEMENT

Arrange unevenly shaped foods, such as chicken pieces or chops, with the thicker, meatier parts toward the outside of the turntable where they receive more microwave energy. To prevent overcooking, place delicate areas, such as asparagus tips, toward the center of the turntable.

SHIELDING

Shield food with narrow strips of aluminum foil to prevent overcooking. Areas that need shielding include poultry wing tips, the ends of poultry legs, and corners of square baking dishes. Use only small amounts of aluminum foil. Larger amounts can damage your oven.

TURNING

Turn foods over midway through cooking to expose all parts to microwave energy. This is especially important with large foods such as roasts.

STANDING

Foods cooked in the microwave build up internal heat and continue to cook for a few minutes after heating stops. Let foods stand to complete cooking, especially foods such as cakes and whole vegetables. Roasts need this time to complete cooking in the center without overcooking the outer areas. All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete. Let liquids stand a moment before serving. When heating baby food, stir well at removal and test the temperature before serving.

ADDING MOISTURE

Microwave energy is attracted to water molecules. Food that is uneven in moisture content should be covered or allowed to stand so that the heat disperses evenly. Add a small amount of water to dry food to help it cook.

Power Consumption: 120V~60Hz, 1500W (MICROWAVE)
Output: 1000W
Operation Frequency: 2450MHz
Outside Dimensions (H×W×D):	11 3/16 x 21 1/4 x 15 1/2 in. *Height will vary between 11- 3/16 to 15-3/8 in.*
Oven Cavity Dimensions (H×W×D): 9 5/8 x 14	3/16 x 15 5/16 in.
Oven Capacity: 1.1 cu.ft
Cooking Uniformity: Turntable System
Net Weight: Approx. 33.7lb.

PART NAMES

Technical diagram of a microwave oven with numbered components and labeled parts in Chinese

1 Door Safety Lock System
2 Oven Window
3 Roller Ring
4 Shaft
5 Door Open Button
6 Control Panel
7 Wave Guide (Please do not remove the mica plate covering the wave guide)
8 Glass Tray

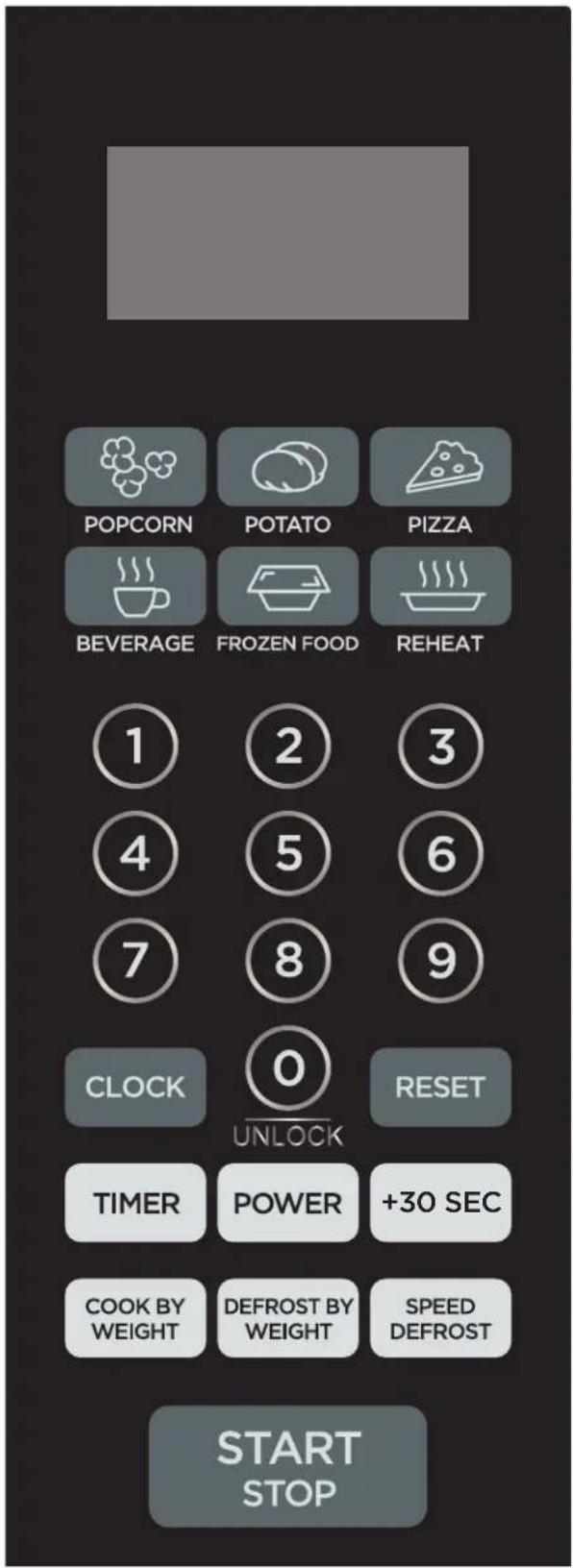

POPCORN POTATO PIZZA BEVERAGE FROZEN FOOD REHEAT 1 2 3 4 5 6 7 8 9 CLOCK 0 UNLOCK RESET TIMER POWER +30 SEC COOK BY WEIGHT DEFROST BY WEIGHT SPEED DEFROST START STOP

MENU ACTION SCREEN

Cooking time, power, indicators and present time are displayed.

QUICK COOK BUTTONS

Instant settings to cook popular foods.

NUMBER PADS (0-9)

Touch to set time or amount.

CLOCK

Use to set current time.

RESET

Use to clear all previous settings.

TIMER

Timer functions independently, even while a cooking program is in process.

POWER LEVEL

Use to set power levels other than high.

+30 SEC

Use to add 30 seconds to current cook time.

COOK BY WEIGHT

Programmed cooking based on the weight of foods.

DEFROST BY WEIGHT

Programmed defrosting based on the weight of foods.

SPEED DEFROST

Quick defrost function that alternates defrost and stand times to quickly and effectively defrost foods.

START/STOP

Touch to start or stop cooking.

SIGNALS DURING OVEN SETTINGS

ONE SIGNAL: Oven accepts the entry. TWO SIGNALS: Oven does not accept the entry. Check and try again.

HOW TO USE THE CHILD RESISTANT-DOOR LOCK

This microwave oven is equipped with the Child Resistant-Door Lock function as an added safeguard against unsupervised operation by children. See instructions below to learn more about this feature.

a) In standby mode:

- The oven door can be opened and closed normally.

b) During cooking:

- The door is locked and cannot be opened directly.

- To pause cooking and unlock, touch the number button "0" once. If the door is not opened within 10 seconds, it will automatically lock. If the door is not opened for 30 minutes, it will automatically unlock.

- To pause cooking, touch the START/STOP button once. To unlock, touch the number button "0" once. If the door is not opened within 10 seconds, it will automatically lock. If the door is not opened for 30 minutes, it will automatically unlock.

c) After cooking ends:

- After cooking ends, the buzzer will emit four beeps and the display screen will show "END". The display screen will switch to "DOOR" every 5 seconds. The system will prompt once every two minutes.

- Touch the number button "0" once to unlock the door. If the door is not opened within 10 seconds, it will automatically lock. If the door is not opened for 30 minutes, it will automatically unlock.

- Touch the RESET button once to clear the screen and the display will show the clock time. If the door is not opened within 10 seconds, it will automatically lock. If the setting is not completed within 30 seconds, the display will show "DOOR". If this occurs, touch the number button "0" once and open the door. After 30 minutes of inactivity, the clock time will display and the system will return to standby mode.

NOTE:

If the Child Resistant-Door Lock function is disabled, the oven door can be opened and closed normally. In this state, touching the number button "0" will result in an invalid sound.

In the process of any cooking operation, when a valid button is touched, the oven will beep once. If an invalid operation is selected, the oven will beep twice.

ENABLING AND DISABLING THE CHILD RESISTANT-DOOR LOCK FUNCTION

Enabling the Child Resistant-Door Lock function: When in standby mode and the lock is off, touch and hold the number button "0" for 2 seconds. The display screen will show "OFF". Touch the number buttons "7" and "9" in sequence. The display screen will show "DOOR". After 1 second, the system will return to standby mode and turn on the lock function.

Disabling the Child Resistant-Door Lock function: When in standby mode and the lock is on, touch and hold the number button "0" for 2 seconds. The display screen will show "DOOR". Touch the number buttons "7" and "9" in sequence. The display screen will show "OFF". After 1 second, the system will return to standby mode and turn off the lock function.

NOTE:

• If setting the Child Resistant-Door Lock is not completed within 10 seconds, the setting is unsuccessful and the system returns to standby mode.
• The Child Resistant-Door Lock function is turned on by default when the oven is first plugged in. The lock setting will not change when powered back on after a power outage.
• When the Child Resistant-Door Lock function is disabled, the door can be opened and closed normally.

SETTING THE CLOCK

This is a 12- or 24- hour clock. You can choose to set the time in a 12- or 24- hour cycle by touching the CLOCK button in standby mode.

1 In standby mode, touch the CLOCK button once or twice to select 12- or 24- hour clock.
2 Use number buttons to set the correct time of day. The display indicators "ENTER", "CLOCK", "TIME" light up.
3 Touch the CLOCK or START/STOP button to confirm the clock time. The display indicator "CLOCK" lights up.

NOTE:

• When the oven is first plugged in or when power resumes after a power interruption, the display will show "1:01" and "CLOCK". If you prefer to not have the clock displayed, touch the RESET button. The system will return to standby mode if there is no operation within 30 seconds.
• You can check the clock time while cooking is in progress by touching the CLOCK button.

SETTING THE TIMER

1 In standby mode or during cooking, touch the TIMER button once. The display indicators "ENTER", "TIMER", "TIME" light up.
2 Use number buttons to set desired time. The longest time is 99 minutes and 99 seconds.
3 Touch the START/STOP button to confirm. The display indicator "TIMER" lights up.

NOTE: When the countdown ends, the buzzer will beep to remind you. You can cancel the program by touching the RESET button, and the display screen will show the time.

SETTING A COOKING PROGRAM

1 Place your food in the microwave.
2 Use the number buttons to set the desired time. The longest time is 99 minutes and 99 seconds.
3 Touch the POWER button once for full power (default 100% power) or continue to touch the POWER button to set the desired percentage. Please see the Power Level chart below for guidance.
4 After the desired Power Level is selected, touch the START/STOP button to confirm and begin cooking.

NOTE :

• POWER level can only be selected after first entering the desired time.
• After cooking, the system will sound beeps with "END" in the display. The beeps will continue to sound every two minutes until the door is opened or any button is touched.

Touch POWER button "X" times for desired Power Level	Power (Display)
POWER x 1 100% (P-100)
POWER x 2 90% (P-90)
POWER x 3 80% (P-80)
POWER x 4 70% (P-70)
POWER x 5 60% (P-60)
POWER x 6 50% (P-50)
POWER x 7 40% (P-40)
POWER x 8 30% (P-30)
POWER x 9 20% (P-20)
POWER x 10 10% (P-10)
POWER x 11 0% (P-00)

NOTE: During cooking, you can check the current cooking power level by touching the POWER button.

ADDING 30 SECONDS

Use this feature to program the oven to microwave food at 100% power conveniently. In standby mode, touch the +30 SEC button once (default cooking time is 30 seconds), and the oven will start working automatically.

NOTE: During microwave cooking, you can add cooking time by touching the +30 SEC button.

NOTE:

- After cooking, the system will sound beeps with "END" in display. The beeps will continue to sound every two minutes until the door is opened or any button is touched.

SPEED DEFROST

1 Touch the SPEED DEFROST button once.
2 The display indicators "ENTER", "DEF", "TIME" light up.
3 Enter the desired defrosting time by touching the correct number buttons.
4 Touch the START/STOP button to confirm.
5 The display indicators "COOK" and "DEF" light up.

Digital timer sets minutes and seconds from left to right, so a single digit can be entered (5 for 5 seconds) or up to 4 digits (2405 for 24 minutes 5 seconds).

NOTE:

- After total time has elapsed, the system will sound beeps with "END" in display. The beeps will continue to sound every two minutes until the door is opened or any button is touched.

NOTE: During cooking, the system will pause as a reminder to turn food over. Touch the START/STOP button to resume.

COOK BY WEIGHT

1 Touch the COOK BY WEIGHT button once, and the display indicator "ENTER CODE" lights up.
2 Touch the number button 1, 2, or 3 to select the food type. The display indicator "ENTER" lights up. The first touch will default to zero, and the second touch will select the number touched. Touch the START/STOP button.
3 Use the number buttons to set the food weight based on the chart below.
4 Touch the START/STOP button, and the display indicator "COOK" lights up.

Cook By Weight Code Description

CODE FOOD	WEIGHT
1 Beef 4 oz -	96 oz.
2	Mutton 4 oz - 9	6 oz.
3	Pork 4 oz - 72	oz.

NOTE: During cooking, the system will pause and sound automatically to remind user to turn food over. Touch the START/STOP button to resume cooking.

NOTE:

• Meat must be defrosted and at a refrigerated temperature.
• Weight must be in pounds and ounces.

- Ounces less than 10 must be preceded by a 0. For example, a weight of 8 ounces should be entered as "08". If a label gives weight in pounds only, change the fraction of a pound to ounces using the following chart.

Converting Fractions of a Pound to Ounces

Fractions of a Pound Ounces
Less than .03 0
.03 to .09	1
.10 to .15	2
.16 to .21	3
.22 to .27	4
.28 to .34	5
.35 to .40	6
.41 to .46	7
.47 to .53	8
.54 to .59	9
.60 to .65	10
.66 to .71	11
.72 to .78	12
.79 to .84	13
.85 to .90	14
.91 to .97	15
above .97	go to next even

• During cooking, the system will pause automatically and sound to remind user to turn meat over. Touch the START/STOP button to resume cooking.
• After total time elapsed, the system will sound beeps with "END" in display. The beeps will continue to sound every two minutes until the door is opened or any button is touched.
• Allow meat to sit for a few minutes before carving.

DEFROST BY WEIGHT

1 Touch the DEFROST BY WEIGHT button once. "ENTER" and "DEF" show on the display.
2 Touch the number buttons to set the food weight. The weight ranges from 4 oz to 64 oz.
3 Touch the START/STOP button to confirm. The display indicators "COOK" and "DEF" light up.

NOTE: During defrosting, the system will pause to remind user to turn food over. Touch the START/STOP button to resume defrosting.

NOTE:

• Weight must be in pounds and ounces. Ounces less than 10 must be preceded by a 0. For example, a weight of 8 ounces should be entered as "08". If a label gives weight in pounds only, change the fraction of a pound to ounces using the chart given above.
• Turn food over when the oven signals twice. Touch the START/STOP button to resume defrosting.
• After total time has elapsed, the system will sound beeps with "END" in display. The beeps will continue to sound every two minutes until the door is opened or any button is touched.

SETTING SAFETY LOCK

The safety lock prevents unsupervised operation by children.

To set in standby mode, touch and hold the RESET button for 3 seconds. A beep will sound on the display, and the screen will show "Loc" for 3 seconds and "LOCK" in the bottom right corner. The oven will automatically enter safety lock mode. If any button is touched, the display screen will show "Loc" for 3 seconds and "LOCK" will remain visible in the bottom right corner.

To cancel, touch and hold the RESET button for 3 seconds. A beep will sound and "LOCK" in the bottom right corner will disappear.

Button Adhesion Protection

In any state, if any button on the control panel is stuck for 1 minute, the program will stop working immediately. The display screen will show "FAIL", and the system will beep.

If the button is continuously stuck, a beep will sound every minute. All buttons will be invalid during this time, and troubleshooting will need to occur.

After troubleshooting has occurred, touch the RESET button to return to standby mode.

The QUICK COOK settings allow you to cook or reheat food automatically without entering power level or time.

For smaller portions, simply touch the applicable button and start. For larger portions, touch the button twice.

FROZEN FOOD, POTATO, and BEVERAGE allow you to cook multiple amounts of the same food.

POPCORN

1 Touch the POPCORN button once, and it will automatically set the cooking time for a 3.5 oz bag of microwave popcorn. "ENTER" lights up on the display.
2 Touch the START/STOP button, and "COOK" lights up on the display.

Weight (OZ) Cooking Time
3.5 2:20

POTATO

1 Touch the POTATO button once, and "1" appears on the display. The display indicators "ENTER", "AMT" light up.
2 Touch the POTATO button repeatedly until the number you wish appears on the display. (The weight for 1 potato is around 8 oz. 2 potatoes is 16 oz.)
3 Touch the START/STOP button. The display indicator "COOK" lights up.

Weight (OZ) Cooking Time
8 4:00
16 7:00

PIZZA

To reheat a slice of pizza:

1 Touch the PIZZA button once. "6" and "ENTER" appear on the display.
2 Touch the PIZZA button repeatedly until the desired weight appears on the display.
3 Touch the START/STOP button. The display indicator "COOK" lights up.

Weight (OZ) Cooking Time
6 0:40
11 1:10
16 1:40

BEVERAGE

1 Touch the BEVERAGE button once. "1", "ENTER", "AMT" appear on the display.
2 Touch the BEVERAGE button repeatedly until the weight you wish appears on the display.
3 Touch the START/STOP button. The display indicator "COOK" lights up.

Weight (200ml/cup) Cooking Time
1 cup 1:20
2 cups 2:20
3 cups 3:20

FROZEN FOOD

To cook a frozen dinner:

1 Touch the FROZEN FOOD button once. "9" and "ENTER" appear on the display.
2 Touch the FROZEN FOOD button repeatedly until the weight you wish appears on the display.
3 Touch the START/STOP button. The display indicator "COOK" lights up.

Weight (OZ) Cooking Time
9 5:00
18 9:00

REHEAT

To reheat a plate of leftovers:

1 Touch the REHEAT button once. "7" and "ENTER" appear on the display.
2 Touch the REHEAT button repeatedly until the weight you wish appears on the display.
3 Touch the START/STOP button. The display indicator "COOK" lights up.

Weight (OZ) Cooking Time
7 1:20
11 1:50
14 2:20
18 2:50
21 3:20
25 3:50
28 4:20

1 Turn off the oven and remove the power plug from the wall socket before cleaning.
2 Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak, or dull the door surface.
3 The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, do not allow water to seep into the ventilation openings.
4 Wipe the window on both sides with a damp cloth to remove any spills or spatters.
5 Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6 If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions. In such case, this is normal.
7 It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm, sudsy water or in a dishwasher.

8 The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, sudsy water or in a dishwasher. When removing the roller ring from the cavity floor for cleaning, be sure to replace in the proper position.
9 Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep, microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10 When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11 The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface. This could adversely affect the life of the appliance and result in a hazardous situation.
12 Please do not dispose of this appliance in a regular trash can. It should be disposed of in a determined disposal center, provided by the municipalities.

Welcome to the Big Chill Family!

Limited One-Year Warranty

Big Chill provides a limited one-year warranty from the date of purchase, which applies only to Big Chill small appliances sold for residential use in the contiguous U.S. and limited areas in Canada. Warranty coverage applies to the original owner and to the original product only and is not transferable.

This Warranty is also void if the original factory installed serial number is altered or removed from the Product.

This Warranty does not cover, and specifically excludes:

• Repairs when your Big Chill small appliances is used in other than normal single-family home use.
• Normal wear, care, and maintenance of the Product as described in the operating manual.
• Damage or repairs caused by alterations or modifications, abuse, misuse, negligent handling, failure to perform required maintenance (e.g., failure to keep the well of the motor base clear of food spills and other debris) and improper storage.
• Cosmetic damage, such as scratches, dents, dings, scuffs, stains, discoloration, color changes, minor paint chips, normal wear and tear, or other nonfunctional changes in the appearance of the product that occur during normal handling and use of the Product by any party and which do not impair the functionality of the product as intended.
  • Accidental or intentional damage.
• Damage or repairs as a result of natural disasters, fires, floods, earthquakes, winds, lightning, corrosive atmosphere, loss of electrical power to the Product for any reason, or other conditions beyond Big Chill's control.
• Damage caused by the use of scouring pads, steel wool, abrasive cleaners, bleach and other cleaning products improperly applied.

This warranty is in lieu of all other expressed warranties. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS WARRANTY. Some states and provinces do not allow limitations on implied warranties, so the above limitation may not apply to you.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so this provision may not apply.

If you are a California or Quebec resident, please refer to the section below.

THE OWNER AND BIG CHILL AGREE THAT THE REMEDIES SET OUT HEREIN ARE THE OWNER'S EXCLUSIVE REMEDIES FOR BREACH OF ALL WARRANTIES, EXPRESSED OR IMPLIED.

WHETHER ANY CLAIM IS BASED ON NEGLIGENCE OR OTHER TORT, BREACH OF WARRANTY OR BREACH OF CONTRACT, OR ANY OTHER TORT THEORY, BIG CHILL SHALL IN NO EVENT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO EXTRA UTILITY EXPENSES, SHIPPING COSTS RELATED TO REPAIR OR REPLACEMENT OR ANY PRODUCT OR DAMAGES TO PROPERTY, RESULTING FROM BREACH OR THIS WARRANTY OR ANY IMPLIED WARRANTY.

For service or a warranty claim, please call 877-842-3269 or visit Parts & Services on bigchill.com.

Big Chill™

MANUEL DE L'UTILISATEUR

Four à micro-ondes

Exterior view of a Big Chill microwave oven with control panel and door (no visible text or symbols beyond branding)

MISE A LA TERRE INSTRUCTIONS....4

GUIDE DES USTENSILES ....5

Technical diagram of a microwave oven with numbered components for identification
