AIR COMPRESSOR/GENERATOR OPERATOR'S MANUAL

PARTS LIST

QR code image containing encoded data, no visible human-readable text

CAUTION

RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING!

THIS MANUAL IS AN IMPORTANT PART OF THE AIR COMPRESSOR/GENERATOR AND MUST REMAIN WITH THIS UNIT!

INTRODUCTION

THANK YOU for purchasing a Mi-T-M product.

READ THIS MANUAL carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage. This manual and safety signs on your machine may also be available in other languages. (See your dealer to order.)

THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should remain with the machine when you sell it.

MEASUREMENTS in this manual are given in both metric and customary U.S. unit equivalents. Use only correct replacement parts and fasteners. Metric and inch fasteners may require a specific metric or inch wrench.

RIGHT HAND AND LEFT HAND sides are determined by facing the motor end of the machine.

The SERIAL NUMBER is located in the Specification or Identification Numbers section. Accurately record all the numbers to help in tracing the machine should it be stolen. Your dealer also needs these numbers when you order parts. File the identification numbers in a secure place off the machine.

WARRANTY is provided from your dealer for customers who operate and maintain their equipment as described in this manual. The warranty is explained on the warranty certificate shown in this manual.

This warranty provides you the assurance that your dealer will back products where defects appear within the warranty period. Should the equipment be abused, or modified to change its performance beyond the original factory specifications, the warranty will become void.

▲ WARNING

⚠ WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

WARNING

⚠ WARNING: This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

CONTENTS

Page

Safety 5

Safety Signs 14

Controls 15

Installation 16

Operation 20

Troubleshooting 23

Maintenance 25

Storage 29

Specifications 30

Warranty 31

ALL INFORMATION, ILLUSTRATIONS AND SPECIFICATIONS IN THIS MANUAL ARE BASED ON THE LATEST INFORMATION AVAILABLE AT THE TIME OF PUBLICATION. THE RIGHT IS RESERVED TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE.

CONTENTS

SAFETY

RECOGNIZE SAFETY INFORMATION

This is the safety alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury.

Follow recommended precautions and safe operating practices.

Black triangular warning symbol with exclamation mark (no text or numbers)

UNDERSTAND SIGNAL WORDS

A signal word--DANGER, WARNING or CAUTION--is used with the safety-alert symbol. DANGER identifies the most serious hazards.

DANGER or WARNING safety signs are located near specific hazards. General precautions are listed on CAUTION safety signs. CAUTION also calls attention to safety messages in this manual.

DANGER

WARNING

CAUTION

FOLLOW SAFETY INSTRUCTIONS

Carefully read all safety messages in this manual and safety signs on your machine. Keep safety signs in good condition. Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from your dealer.

Learn how to operate the machine and how to use controls properly. Do not let anyone operate without instruction.

Keep your machine in proper working condition. Unauthorized modifications to the machine may impair the function and/or safety and affect machine life.

If you do not understand any part of this manual and need assistance, contact your dealer.

WARNING WARNING of WARNING WARNING WARNING CAUTION COVID 1998 COVID 2003 COVID 2006 COVID 2010 COVID 2013 COVID 2016 COVID 2019 COVID 2022 COVID 2025 COVID 2028 COVID 2031 COVID 2034 COVID 2037 COVID 2040 COVID 2043 COVID 2046 COVID 2049 COVID 2052 COVID 2055 COVID 2058 COVID 2061 COVID 2064 COVID 2067 COVID 2070 COVID 2073 COVID 2076 COVID 2079 COVID 2082 COVID 2085 COVID 2088 COVID 2091 COVID 2094 COVID 2097 COVID 2100

Abstract black-and-white graphic of a stylized bird-like figure with a circular head, set against a dotted grid background (no text or symbols)

DANGER / PELIGRO

• DO NOT USE INDOORS OR OUTSIDE OPEN WINDOWS FUMES CAN KILL YOU! • NE PAS UTILISER À L'INTÉRIEUR OU À L'EXTÉRIEUR DES FENÊTRES OUVERTES. LES VAPEURS DE GAZ PEUVENT VOUS TUER! • NO USE ADENTRO O AFUERA DE VENTANAS ABIERTAS LOS CASES PUEDEN MATARLE!

CARBON MONOXIDE - POISONOUS GAS

Use unit outdoors, away from open windows, vents, or doors.

Unit exhaust contains carbon monoxide - a poisonous gas that can kill you. You CAN NOT smell or see this gas.

Never use the unit in enclosed or partially-enclosed spaces. The unit can produce high levels of carbon monoxide very quickly. When you use this unit, remember that you cannot smell or see carbon monoxide. Even if you can't smell exhaust fumes, you may still be exposed to carbon monoxide.

If you start to feel sick, dizzy, or weak while using the unit, get to fresh air RIGHT AWAY. DO NOT DELAY. The carbon monoxide from the unit can rapidly lead to full incapacitation and death.

If you experience serious symptoms, get medical attention immediately. Inform medical staff that carbon monoxide poisoning is suspected. If you experienced symptoms while indoors, have someone call the fire department to determine when it is safe to re-enter the building.

Never operate the unit in an explosive atmosphere, near combustible materials or where ventilation is not sufficient to carry away exhaust fumes. Exhaust fumes can cause serious injury or death.

NEVER use the unit indoors, including in homes, garages, basements, crawl spaces, and other enclosed or partially-enclosed areas, even with ventilation. Opening doors and windows or using fans will not prevent carbon monoxide build-up in the home.

Follow the instructions that come with your unit. Locate the unit outdoors and away from doors, windows, and vents that could allow the carbon monoxide gas to come indoors.

ONLY run unit outdoors and away from air intakes.

NEVER run unit inside homes, garages, sheds, or other semi-enclosed spaces. These spaces can trap poisonous gases EVEN IF you run a fan or open doors and windows.

If you start to feel sick, dizzy, or weak while using the unit, shut if off and get fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery back-up in your home, according to the manufacturer's installation instructions. The carbon monoxide alarms should be certified to the requirements of the latest safety standards for carbon monoxide alarms. (UL 2034, IAS 6-96, or CSA 6.19.01).

Test your carbon monoxide alarm frequently and replace dead batteries.

SAFETY WARNING WHEN REFUELING

Injury or death may occur as a result of improper fueling. Do not smoke while filling engine fuel tank.

Always refuel slowly to avoid the possibility of spilled fuel which may cause a risk of fire.

Gasoline is extremely flammable and its vapors can explode if ignited.

Observe all safety regulations for the safe handling of fuel. Handle fuel in safety containers. If the container does not have a spout, use a funnel.

Do not overfill the fuel tank, leave room for the fuel to expand.

Fill the tank only on an area of bare ground. While fueling the tank, keep heat, sparks and open flame away. Carefully clean up any spilled fuel before starting engine.

Always fill fuel tank in an area with plenty of ventilation to avoid inhaling dangerous fumes.

NEVER store fuel for your unit in the home. Gasoline, propane, kerosene, and other flammable liquids should be stored outside of living areas in properly-labeled, non-glass safety containers. Do not store them near a fuel-burning appliance, such as a natural gas water heater in a garage. If the fuel is spilled or the container is not sealed properly, invisible vapors from the fuel can travel along the ground and can be ignited by the appliance's pilot light or by arcs from electric switches in the appliance.

Safety warning illustration showing a worker using a flashlight with a no-smoking symbol above, surrounded by lightning bolts and a crossed-out cigarette.

Black silhouette of a hand with a lightning bolt and fuse, symbolizing electrical hazard (no text or symbols)

ELECTRICAL HAZARDS

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

DANGER - IMPROPER CONNECTION OF THE EQUIPMENT-GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTROCUTION. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE PERSON IF YOU ARE INDOUBT AS TO WHETHER THE UNIT IS PROPERLY GROUNDED.

This unit is equipped with a grounding terminal for your protection. Always complete the ground path from the unit to an external ground source as instructed in the section labeled “Grounding Instructions” in the Preparation section of this manual.

The unit is a potential source of electrical shock if not kept dry. Keep the unit dry and do not use in rain or wet conditions. To protect from moisture, operate it on a dry surface under an open, canopy-like structure. Dry your hands if wet before touching the unit.

Plug appliances directly into the unit. Or, use a heavy duty, outdoor-rated extension cord that is rated (in watts or amps) at least equal to the sum of the connected appliance loads. Check that the entire cord is free of cuts or tears and that the plug has all three prongs, especially a grounding pin.

NEVER try to power the house wiring by plugging the unit into a wall outlet, a practice known as “back feeding”. This is an extremely dangerous practice that presents an electrocution risk to utility workers and neighbors served by the same utility transformer. It also bypasses some of the built-in household circuit protection devices.

If you must connect the unit to the house wiring to power appliances, have a qualified electrician install the appropriate equipment in accordance with local electrical codes. Or, check with your utility company to see if it can install an appropriate power transfer switch.

For power outages, permanently installed stationary units are better suited for providing backup power to the home. Even a properly connected portable unit can become overloaded. This may result in overheating or stressing the unit components, possibly leading to a unit failure.

RISK OF FIRE OR EXPLOSION

Serious injury or death may occur from normal sparks in the engine ignition system or engine exhaust/muffler. Always operate the unit in a well ventilated area free of flammable vapors, combustible dust, gases or other combustible materials.

DO NOT SMOKE if spraying flammable material. Locate the unit at least 20 feet away from the spray area. (An additional hose may be required.)

Never fill the engine fuel tank while the engine is running or hot. Allow the engine to cool two minutes before refueling. Do not refuel indoors or in a poorly ventilated area.

Do not operate the unit if gasoline is spilled. Wipe the unit clean and move it away from the spill. Avoid creating any ignition until the gasoline has evaporated.

Do not store the unit near an open flame or any equipment such as a stove, furnace, water heater, etc. which utilizes a pilot light or sparking device.

A spark arrester must be added to the muffler of this engine if it is to be used on any forest covered, brush covered or grass covered unimproved land. The arrester must be maintained in effective working order by the operator.

Serious injury may occur if any of the unit's ventilation openings are restricted, causing the unit to overheat and start a fire. Never place objects against or on top of the unit. Operate the unit at least 12 inches away from any wall or obstruction that would restrict proper ventilation.

Abstract black-and-white graphic of a stylized flame or explosion with sharp spikes and smoke (no text or symbols)

RISK OF BURSTING

Serious injury or death may occur from an air tank explosion if air tanks are not properly maintained. Drain air tank daily or after each use to prevent moisture buildup in the air tank.

If air tank develops a leak, replace the air tank immediately. Never repair, weld or make modifications to the air tank or its attachments. Use only genuine manufacturer repair parts for your unit. Never make adjustments to the factory set pressures.

Serious injury may occur from the unit malfunction or exploding accessories if incorrect system components, attachments or accessories are used. Never exceed manufacturers maximum allowable pressure rating of attachments.

Because of extreme heat, do not use plastic pipe or lead tin soldered joints for a discharge line.

Never use the unit to inflate small, low pressure objects such as toys.

Abstract black jagged starburst graphic on white background (no text or symbols)

Abstract black-and-white graphic of a stylized human figure with a circular head and tail, no text or symbols present.

RISK OF BREATHING

Serious injury or death could occur from inhaling compressed air. The air stream may contain carbon monoxide, toxic vapors or solid particles. Never inhale air from the unit either directly or from a breathing device connected to the unit.

Serious injury or death may occur from inhaling engine exhaust. This unit was designed for outdoor use. Never operate this unit in an enclosed area. Always make certain there is adequate ventilation (fresh outside air) for breathing and combustion. This will prevent the buildup of dangerous carbon monoxide gases. Beware of poorly ventilated areas, or areas with inadequate exhaust fans.

Sprayed materials such as paint, solvents, paint remover, insecticides, weed killers, etc. contain harmful vapors and poisons. Operate the unit only in a well ventilated area. Follow all safety instructions provided with the materials you are spraying. Use of a respirator may be required when working with some materials.

Simple line drawing of a hand crossed over a surface with a diagonal line crossing through it (no text or symbols)

RISK OF BURNS

Serious injury could occur from touching exposed metal parts. These areas can remain hot for some time after the unit is shutdown. Never allow any part of your body or other materials to make contact with any exposed metal parts on the unit.

Never allow any part of your body to contact the engine muffler, compressor head or adjacent areas.

Silhouette of a running person with motion arrows indicating movement (no text or symbols)

RISK OF FLYING OBJECTS

Soft tissue damage can occur from the compressed air stream. Always wear safety glasses to shield the eyes from flying debris.

Never point the air stream at any part of your body, anyone else or animals.

Never leave pressurized air in the unit. Shut off the unit and relieve pressure when storing or attempting maintenance.

Serious injury can occur from loose debris being propelled at a high speed from the compressed air stream. Always maintain a safe distance from people and animals while operating the unit.

Do not move the unit while air tank is under pressure. Do not attempt to move the unit by pulling on the hose.

Symbolic illustration of a hand holding a tool with a red circular target and horizontal lines (no text or symbols)

RISK FROM MOVING PARTS

Risk of bodily injury from moving parts. Before performing maintenance, always turn off the unit. Bleed pressure from the air hose and disconnect spark plug wire (for gasoline engines), or remove the negative wire from the battery post (for Diesel engines) to prevent engine from starting unexpectedly. All repairs to the unit should be made by an Authorized Service person.

Do not operate without protective covers/guards. Always turn off the unit before removing any guard. Replace damaged covers/guards before using the unit.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF INJURY, READ THIS OPERATOR'S MANUAL COMPLETELY BEFORE USING. WHEN USING THIS PRODUCT, THE FOLLOWING BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED:

1. Risk from Negligence: Risk of injury from negligent use. Never allow children or adolescents to operate this unit! Stay alert-watch what you are doing. Do not operate the unit when fatigued or under the influence of alcohol or drugs. Know how to stop the unit. Be thoroughly familiar with controls.
2. Risk of Unit Damage: Risk of major repair. Do not operate the unit without an air filter. Do not operate the unit in a corrosive environment. Always operate the unit in a stable, secure position to prevent the unit from falling. Follow all maintenance instructions listed in this manual.
3. When starting the unit, using recoil starter grip, be sure that nothing is in a position to be hit by the operator's hand or arm. Be sure the switch on electric power tools is in the "OFF" position before plugging them into the unit.
4. Do not operate the unit or any electrical tool in any area where water or similar materials constitute an electrical hazard to the operator. Do not operate on wet surfaces, in rain or in snow.
5. Always be sure that the unit is on secure footing so that it cannot slide or shift around, endangering workers.
6. Avoid contacting the hot exhaust manifold, muffler or cylinder(s).
7. Keep clear of all rotating parts.
8. Unless the tool or appliance is double insulated, it must be grounded through a properly grounded receptacle. Tools and appliances which have 3 prong plugs must be plugged into extension cords and electrical receptacles with 3 holes. Before operating any electrical item, be sure it is in good repair.
9. Beware of using this equipment in confined spaces. Confined spaces, without sufficient fresh air ventilation, can contain dangerous gases. Running gasoline engines in such environments can lead to deadly explosions and/or asphyxiation.
10. Use extreme caution when lifting this unit. This unit is heavy so proper lifting techniques should be used.

AREA DURING ACAUATION

SAVE THESE INSTRUCTIONS

Illustration of a person wearing safety gear and icons representing various clothing items (no text or symbols)

WEAR PROTECTIVE CLOTHING

Wear close fitting clothing and safety equipment appropriate to the job.

Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises.

Operating equipment safely requires the full attention of the operator. Do not wear radio or music headphones while operating machine.

Illustration of first aid kit, fire extinguisher, and medical kit (no text or symbols)

PREPARE FOR EMERGENCIES

Keep a first aid kit and fire extinguisher handy.

Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone.

Be prepared if a fire starts.

INSPECT UNIT

Be sure all covers, guards and shields are tight and in place.

Locate all operating controls and safety labels.

Inspect power cord for damage before using. There is a hazard of electrical shock from crushing, cutting or heat damage.

SERVICE UNIT SAFELY

Before servicing the unit, disconnect all equipment and battery (if equipped) and allow unit to cool down.

Service unit in a clean dry flat area.

SAFETY SIGNS

MAINTENANCE INSTRUCTIONS INSTRUCCIONES DE MANTENIMIENTO

REFER TO INSTRUCTION MANUAL FOR DETAILED INSTRUCTIONS.

If unit is operated: in an excessively dirty or dusty area, increase the frequency of all checks.

Daily: •Check for proper oil level(s) and oil leaks

• Drain/moisture from tank(s) daily or after each use use. • Ensure all safety guards are correctly & securely attached

Weekly: • Given the cooling surfaces of the compressor

Check safety values by pulling on pags

Months: Check system for circles

•Check bell-to-formation

Every -Change/pump-off/ail

200 Toures • Replace sin filler

REFER TO ENGINE MANUAL FOR RECOMMENDED ENGINE MAINTENANCE.

LEA LAS INSTRUCCIONES PARA INSTRUCCIONES PARTICULARES.

RISK OF BURNS Muffler and adjacent areas may exceed 150°F.

34-0598/07262012

RISK OF FIRE Do not add fuel when product is operating. Allow engine to cool for two (2) minutes before refueling. 34-0599/07262012

PRECAUCIÓN

- Do not spray traversable liquids in a confined area. Spray area must be well ventilated. Do not smoke while spraying or spray where spalk or flasks or prevent. Keep compressions are far from spraying where no possible.

- When a combustion liquid is sprayed there may be danger of time or explosion, especially in a closed area. A rising part. Keep the unit at level can away from explosive vapor. - Engine creates sparks. Do not operate in favourable environment. Follow all instructions and warnings granted with realized to be proved.

- For not action while lifting engine fuel tank. Follow all fueling instructions in operation's range.

- All values may be above in the property insurance, to prove that weakening of banks caused by corruption, chain banks after each time.

The equipment incorporates parts, such as soap switches, preschlades, produce area or sparks and. Therefore, when located in a garage, it should be in a room or enclosure provided for the purpose, or should be 15 inches (457mm) or more above the floor.

RISK OF ASPHYXIATION!

- Never use compressed air for breathing or respiration!

- Make the key for a precast concrete construction, in precast concrete, concrete can which may cause current LA to start or operate compressor in an ordered area. Area must be well worked.

RISK OF SEVERE IN JURY

- Before servicing gasoline unit, disconnect spark plug wire to prevent unit from starting unexceedly.

- Wear safety glasses/face shields at all times

- Never operate with a guard removed. If guard closures damaged, repair or replace before operating. - Do not remove any air line or ramp connection holes to extend air pressure in the vicinity.

- Loose debris can be propelled at high speeds. Never direct air stream towards yourself or others.

Risk of BURMS

- Do not touch compressor head, discharge lines or engine components. Cool before servicing.

RISK OF DAMAGING COMPRESSOR AND CAUSING INJURY

- Do not operate at pressure or speed in excess of manufacture's recommendations. - Do not operate with compressors rated less than the secure rating on the name.

- Do not operate with components have less than the pressure losses on the manufacture. Follow required maintenance procedures and intervals listed in the operator's manual. Service

should be performed only by qualified personnel. Compressor requires good ventilation to operate

Property, Use only locally representatives plus

FAILURE TO COMPLY WITH THESE WARMINGS WILL RESULT IN PERSONAL

INJURY. DO NOT REMOVE THIS LABEL!

LEA USTED EL MANUAL DE INSTRUCCIONES ANTES DE USAR EL COMPRESOR DEL AIRE!

MIEGO DE INCENDO O EXPLOSIOM

• No rules of inflation in the state on and a state continues to be paid for loss. There are no other provisions. We have considerable costs, expenses, or costs of any other expense. These are the same as we consider

In addition, the following are notations and variations. On the definition, which is obtained in the 2019 results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the results of the

The case was in the "control" group and the control of incidence. The treatment was not allowed, but the control was open with patients. The participants made a dose of 200 mg/min (the listrange).

SI NO SIGA USTED ESTOS POWERING PUE DE CAUDAR LEONERS

MO SAQUE LA ETIGUETAL 24.1811090712

34-1615

⚠ WARNING/ADVERTENCIA

Do not operate unit without beltguard in place.

Beware of Hot Surfaces. Allow unit to cool before servicing. 34-1284/091012

RIESGO DE QUEMADURA

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

PELIGRO

RISK OF ELECTRICAL SHOCK OR ELECTROCUTION! A generator is a potential shock hazard which can result in serious injury or death. - Generator must be kept dry.

- Do NOT operate unit with wet hands. - Generator MUST be grounded before use. See operators manual for specific instructions. - Do not use around water or expose to rain. Store Indoors.

WARNING: Cancer and Reproductive Harm — www.P56earnings.ca.gov 1. Flip the toggle on top of the pilot valve to the upright position. This provides a loadless start.

the compressor will show and show the engine to start each 2. Start the engine, iPater In Engine Manual appropriating this up

1. When service has no for 1-2 minutes, fin intrain hard to original position

2. Stop the engine (Roler to Engine Manual accompany this and.)

3. Drain air from the tanks by releasing air with an attached air tool or by pulling on the safety

rel'd value (bps

1. Once pressure in the tanks register under 10 pounds, open the drain valve under each tank to drain any moisture.

E G F I Air Compressor / Generator -18.4 CPN @ 90 PSI - 18.5 CPN @ 175 PSI 4500 RPM Max. - 2500 Continuous Mi-T-M® H

A -- Generator

B -- Pump

C -- Oil Sight Glass

D -- Handle

E -- Fuel Tank

F -- Engine

G -- Beltguard

H -- Tank Drain Valve

I -- Pressure Gauge

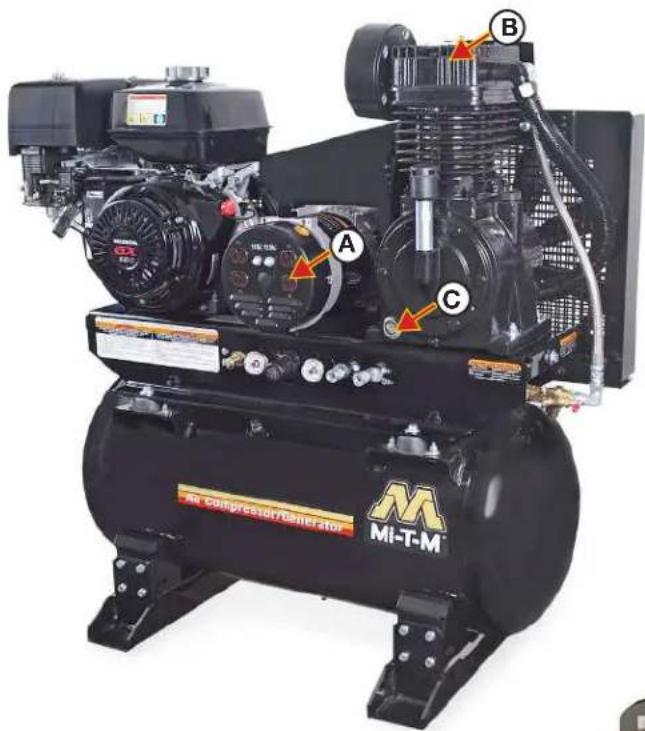

CONTROLS

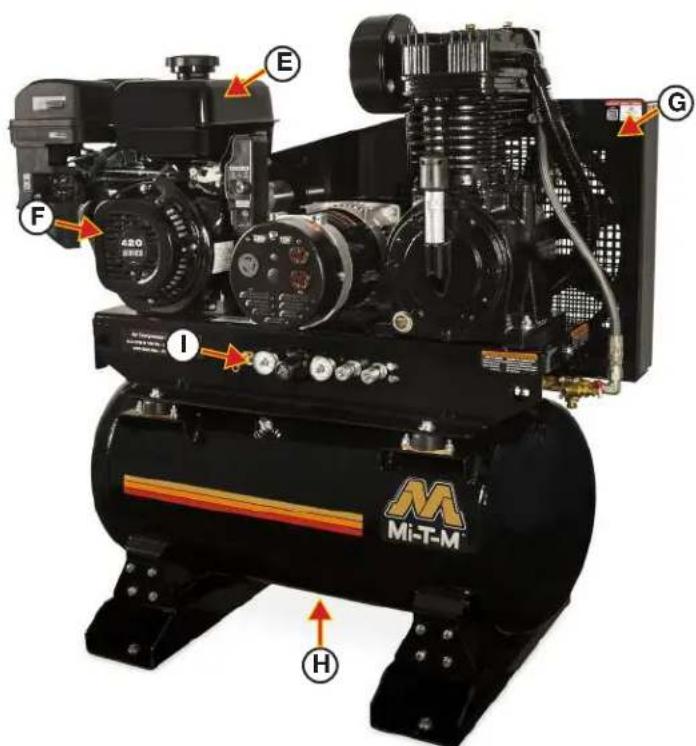

CONTROLS (30 GALLON)

A B C MI-CT-M MI-CTM-Generator M

Mi-T-M E F G I H

A -- Generator

B -- Pump

C -- Oil Sight Glass

D -- Handle

E -- Fuel Tank

F -- Engine

G -- Beltguard

H -- Tank Drain Valve

I -- Pressure Gauge

Abstract black-and-white graphic of a stylized human figure with a looped head, set against a dotted cloud background (no text or symbols)

Abstract black starburst graphic on white background (no text or symbols)

Four black plastic mechanical components with bolts and nuts arranged on a white surface (no text or symbols visible)

INSTALLATION

INSTALLATION

Read safety warnings before setting-up the unit.

Ensure the oil level in the unit's pump is adequate. If low, add SAE-30W non-detergent oil.

LOCATION:

In order to avoid damaging the unit, do not incline the unit transversely or longitudinally more than 10^ .

WARNING: RISK OF ASPHYXIATION! DO NOT OPERATE IN AN ENCLOSED AREA. USE THIS PRODUCT ONLY IN WELL VENTILATED AREAS! THE EXHAUST FROM THE ENGINE CONTAINS CARBON MONOXIDE, A POISONOUS, ODORLESS AND INVISIBLE GAS. BREATHING THE GAS CAN CAUSE SERIOUS INJURY, ILLNESS AND POSSIBLE DEATH.

WARNING: RISK OF EXPLOSION OR FIRE CAUSING SERIOUS INJURY OR DEATH! DO NOT ALLOW THE ENGINE OR MUFFLER TO COME IN CONTACT WITH FLAMMABLE VAPORS, COMBUSTIBLE DUST, GASES OR OTHER COMBUSTIBLE MATERIALS. A SPARK MAY CAUSE A FIRE.

WHEN USING THE UNIT FOR SPRAY PAINTING, PLACE THE UNIT AS FAR AWAY FROM THE WORK AREA AS POSSIBLE, USING EXTRA AIR HOSES IF NEEDED.

Place unit at least 12 inches away from obstacles that may prevent proper ventilation. Do not place unit in an area:

• where there is evidence of oil or gas leaks.
• where flammable gas vapors or materials may be present.
• where air temperatures fall below 32^ F or exceed 104^ F.
• where extremely dirty air or water could be drawn into the unit.

SERVICE TRUCK INSTALLATION:

Installations may vary. Mounting should be done to a rigid frame member. Installer is responsible for securing the equipment in a safe manner.

8 Gallon Units:

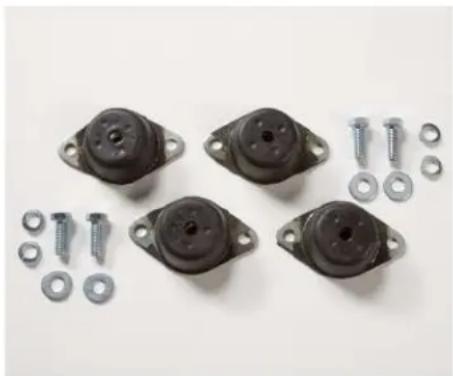

Recommended Hardware: 854-0093 (Dome Isolators)

30 Gallon Units:

Optional Hardware: 854-0093 (Dome Isolators)

GROUNDING INSTRUCTIONS

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

DANGER: IMPROPER CONNECTION OF THE EQUIPMENT - GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTROCUTION. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE PERSON IF YOU ARE IN DOUBT AS TO WHETHER THE UNIT IS PROPERLY GROUNDED.

The screw and ground terminal on the frame must always be used to connect the unit to a suitable ground source. The ground path should be made with #8 size wire. Connect the terminal of the ground wire between the star washers and screw then tighten the screw fully. Connect the other end of the wire securely to a suitable ground source.

The National Electric Code contains several practical ways in which to establish a good ground source. Examples given below illustrate a few of the ways in which a good ground source may be established.

A metal underground water pipe in direct contact with the earth for at least 10 feet can be used as a grounding source. If a pipe is unavailable, an 8 foot length of pipe or rod may be used as the ground source. The pipe should be 3/4 inch trade size or larger and the outer surface must be noncorrosive. If a steel or iron rod is used it should be at least 5/8 inch diameter and if a nonferrous rod is used it should be at least 1/2 inch diameter and be listed as material for grounding. Drive the rod or pipe to a depth of 8 feet. If a rock bottom is encountered less than 4 feet down, bury the rod or pipe in a trench. All electrical tools and appliances operated from this unit, must be properly grounded by use of a third wire or be “Double Insulated”.

It is recommended to:

1. Use electrical devices with 3 prong power cords.
2. Use an extension cord with a 3 hole receptacle and a 3 prong plug at the opposite ends to ensure continuity of the ground protection from the unit to appliance.

Mi-T-M strongly recommend that all applicable federal, state and local regulations relating to grounding specifications be checked and followed.

LINE TRANSFER SWITCH:

If this unit is used for standby service, it must have a transfer switch between the utility power service and the unit. The transfer switch not only prevents the utility power from feeding into the unit, but also prevents the unit from feeding out into the utility company's lines. This is intended to protect the serviceman who may be working on a damaged line.

THIS INSTALLATION MUST BE DONE BY A LICENSED ELECTRICIAN AND ALL LOCAL CODES MUST BE FOLLOWED.

Black silhouette of a hand with a lightning bolt and plug, symbolizing electrical hazard (no text or symbols)

INSTALLATION

ENGINE

Review "Risk of Fire or Explosion" before fueling. Read the engine manual accompanying this unit for correct engine start-up maintenance procedures. Read and understand the safety labels located on the unit.

WARNING: RISK OF EXPLOSION OR FIRE CAUSING SERIOUS INJURY OR DEATH! DO NOT SMOKE WHILE FUELING!

DO NOT FILL FUEL TANK WHILE THE UNIT IS RUNNING OR HOT. ALLOW THE UNIT AND ENGINE TO COOL DOWN FOR TWO MINUTES BEFORE REFUELING.

DO NOT FILL FUEL TANK TO POINT OF OVERFLOWING. ALLOW APPROXIMATELY 1/4" OF TANK SPACE FOR FUEL EXPANSION.

DO NOT PLACE UNIT IN AN AREA WHEREFLAMMABLE GAS VAPORS MAY BE PRESENT. A SPARK COULD CAUSE AN EXPLOSION OR FIRE.

ALWAYS STORE FUEL AWAY FROM THE UNIT WHILE IT IS RUNNING OR HOT.

WARNING: RISK OF EXPLOSION OR FIRE CAUSING SERIOUS INJURY OR DEATH DO NOT ALLOW THE ENGINE OR MUFFLER TO COME IN CONTACT WITH FLAMMABLE VAPORS, COMBUSTIBLE DUST, GASES OR OTHER COMBUSTIBLE MATERIALS. A SPARK MAY CAUSE A FIRE.

WHEN USING THE UNIT FOR SPRAY PAINTING, PLACE THE UNIT AS FAR AWAY FROM THE WORK AREA AS POSSIBLE, USING EXTRA AIR HOSES IF NEEDED.

A minimum of 86 octane fuel is recommended for use with this air compressor. Do not mix oil with gasoline.

Use of clean, fresh, lead free gasoline is recommended. Leaded gasoline may be used if lead free is not available. Do not use gasoline containing methanol or alcohol.

For Diesel units use low or ultra-low sulfur fuels only. Read engine manual for recommended fuels.

Refer to the engine manual for all necessary maintenance and adjustments.

INSTALLATION

HIGH ALTITUDE

At high altitude, the standard carburetor air/fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug on gasoline engines and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions.

High altitude performance can be improved by specific modifications to the carburetor. If you always operate your unit at altitudes above 5,000 feet (1,500 meters), have your dealer perform this carburetor modification. This engine, when operated at high altitude with the carburetor modifications for high altitude use, will meet each emission standard throughout its useful life.

Even with carburetor modification, engine horsepower will decrease about 3.5% for each 1,000-foot (300-meter) increase in altitude. The effect of altitude on horsepower will be greater than this if no carburetor modification is made.

NOTE: When the carburetor has been modified for high altitude operation, the air/fuel mixture will be too lean for low altitude use. Operation at altitudes below 5,000 feet (1,500 meters) with a modified carburetor may cause the engine to overheat and result in serious engine damage.

For use at low altitudes, have your servicing dealer return the carburetor to original factory specifications.

OPERATION

PRE-OPERATION:

Check the engine oil level before starting. (See engine manual.) Fill the fuel tank according to the engine manual instruction.

Pump oil level should be checked before each use. Check the oil level indicator on the pump crankcase. Make certain the oil is in the center of the oil sight glass. If the level appears to be low, fill with SAE20 or 30 non-detergent pump oil.

Remove any moisture in the unit's air tank.

WARNING: NEVER ATTEMPT TO OPEN THE AIR TANK DRAIN VALVE WHEN MORE THAN 10 PSI OF AIR PRESSURE IS IN THE AIR TANK!

Remove excessive pressure with an air tool, then open the Air Tank Drain Valve in the bottom of the air tank. Close tightly when drained. Make sure the Engine Switch is in the "OFF" position.

Make sure the Safety Relief Valve is working correctly.

Make sure all guards and covers are in place and securely mounted.

START-UP:

1. Read safety warnings before performing operation.
   NOTE: Unplug all equipment from the power receptacles before starting the unit.
2. Flip the toggle on top of the Pilot Valve to the upright position. This provides a loadless start. The unit will unload and allow easier engine start-up.
3. Start the engine. (Refer to the Engine Manual accompanying this unit.)
4. When the engine has run for 1-2 minutes, flip toggle back to the original position.
5. Set pressure by adjusting the Pressure Regulator counterclockwise for less pressure and clockwise for more pressure. (Actual delivered pressure may vary from pump maximum pressure rating).
6. Make sure the unit is grounded. See Grounding Instructions.
7. Loads can now be applied to the unit.

NOTE: This engine is equipped with a “Low Oil” shutdown system for engine protection. The engine stops when the oil level gets too low. The engine will not restart without adding oil.

If you notice any unusual noise or vibration, stop the unit and refer to "Troubleshooting".

SHUTDOWN:

1. Remove all load by turning off electrical appliances and unplugging electric cords.
2. Move the Engine Switch to the "Off" position. (Refer to the Engine Manual accompanying this unit.)
3. Drain air from the air tanks by releasing air with an attached air tool or by pulling on the Safety Relief Valve.
4. Once the Air Tank Pressure Gauge registers under 10 pounds, open the drain valve under each air tank to drain any moisture.
5. Allow the unit to cool down.
6. Wipe the unit clean and store in a safe, non-freezing, dry area.

CABLE SIZE:

Equipment damage can result from low voltage. Therefore, to prevent excessive voltage drop between the unit and the equipment, the cable should be of adequate gauge for the length used. The cable selection chart gives the maximum cable lengths for various gauges of wire which can adequately carry the loads shown.

CURRENT IN AMPS	LOAD IN WATTS		MAXIMUM CABLE LENGTH (FEET)
	120 VOLTS	240 VOLTS	#8 WIRE	#10 WIRE	#12 WIRE	#14 WIRE	#16 WIRE
2.5	300	600		1000	600	375	250
5	600	1200		500	300	200	125
7.5	900	1800		350	200	125	100
10	1200	2400		250	150	100	50
15	1800	3600		150	100	65
20	2400	4800	175	125	75	50
25	3000	6000	150	100	60
30	3600	7200	125	65
40	4800	9600	90

ELECTRIC MOTOR LOADS:

It is characteristic of common electric motors in normal operation to draw up to six times their running current while starting. This table may be used to estimate the watts required to start "CODE G" electric motors.

CAUTION: IF AN ELECTRIC MOTOR FAILS TO START OR REACH RUNNING SPEED, TURN OFF THE APPLIANCE OR TOOL IMMEDIATELY TO AVOID EQUIPMENT DAMAGE. ALWAYS CHECK THE REQUIREMENTS OF THE TOOL OR APPLIANCE BEING USED COMPARED TO THE RATED OUTPUT OF THE UNIT.

MOTOR (H.P.)	RUNNING WATTS	WATTS REQUIRED TO START MOTOR
		REPULSION INDUCTION	CAPACITOR	SPLIT PHASE
1/8	275	600	850	1200
1/6	275	600	850	2050
1/4	400	850	1050	2400
1/3	450	975	1350	2700
1/2	600	1300	1800	3600
3/4	850	1900	2600
1	1100	2500	3300

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION
Engine will not start. Various engine problems. Refer to the engine manual accompanying your unit.
Noisy operation. Loose engine pulley or pump flywheel. Tighten pulley and or flywheel.

TROUBLESHOOTING

Excessive oil consumption or oil in hose.	Plugged crankcase breather. Clean or replace.
	Oil leaks. Tighten bolts on compressor to proper torque or re-place gaskets.
	Worn piston rings or scored cylinder
Oil has milky appearance Water in oil due to condensation. Change oil and move air compressor to a less humid environment.

MAINTENANCE

Read the instruction manual before performing maintenance.

Keep all air vents clear.

Keep the unit clean.

DO NOT spray with water.

Periodically check all fasteners and tighten, see the periodic maintenance chart.

The following procedures must be performed when stopping the unit for maintenance or service:

1. Turn off the unit.
2. Disconnect spark plug wire from engine. For electric start engines remove negative wire from battery post.
3. Open all drains.
4. Wait for the unit to cool before starting service.

MAINTENANCE CHART:

To ensure satisfactory operation over an extended period of time, an engine requires normal maintenance at regular intervals. The Periodic Maintenance Chart below shows periodic inspection and maintenance items and suitable intervals. The bullet mark designates that the corresponding item should be performed at that interval.

NOTE: Some adjustments require the use of special tools or other equipment. An electronic tachometer will facilitate setting idle and running speeds.

Procedure Daily Weekly Month-				100 Hours	200 Hours	Before Storage
			ly
Check Pump Oil Level x
Check Engine Oil Level x
Oil Leak Inspection x
Check Engine Air Filter x
Drain Condensation in Air Tank (s) x
Inspect Guards/Covers	x
Check for Unusual Noise/Vibration	x
Check for Air Leaks	x
Check cylinder and head fins for dust and dirt	x
Check battery electrolyte level	x
Check fuel lines (replace if necessary)	x
Clean Exterior of Compressor		x
Inspect Air Filter		x
Inspect Belt			x
Check Safety Relief Valve			x
Change engine oil (●●)				x
Clean fuel filter				x
Clean dust and dirt from cylinder and cylinder head fins (●●●)				x
Change Pump Oil (●)					x
Replace Air Filter					x
Check Engine Spark Plug (gasoline engines only)					x
Add fuel stabilizer						x
Run unit dry						x

• The pump oil must be changed after the first 50 hours of operation and every 200 hours or 3 months, whichever comes first.
  • The engine oil must be changed after the first 5 hours of operation and every 50 hours or 3 months, whichever comes first.
  ••• Service more frequently under dusty conditions.

Every 2 years, an Authorized Mi-T-M Service Technician should check the safety valve, intake valves and delivery valves.

ENGINE:

The engine for this unit is governed to operate at speeds close to 3600 RPM (60Hz) throughout the operating load range.

WARNING: DO NOT TAMPER WITH THE GOVERNOR MECHANISM, CHANGE THE SETTING EXPERIMENTALLY, OR PUSH THE THROTTLE OPEN IN AN ATTEMPT TO GENERATE MORE ELECTRICAL CURRENT; EQUIPMENT DAMAGE OR PERSONAL INJURY MAY RESULT.

GOVERNOR SPEED ADJUSTMENT SHOULD BE MADE ONLY BY A JOHN DEERE SERVICING DEALER.

CHECKING ENGINE OIL:

Check oil level before each operation and ensure that it is maintained per engine manual.

CHANGING ENGINE OIL:

Change oil after the first 25 hours of operation. Thereafter it should be changed every 50 hours.

1. Make sure the unit is on level ground. Run the engine to warm the oil.
2. Stop the engine.
3. Remove the oil drain plug. (See Fig. 1)

CAUTION: OIL BEING DRAINED MAY BE HOT. TO REDUCE THE RISK OF BURN INJURY, HANDLE WITH CARE. DISPOSE OF USED OIL PROPERLY.

1. Drain oil while engine is warm, into a suitable container.
2. Reinstall the oil drain plug.
3. Remove oil gauge and refill with new oil. (Fig. 2)
4. Check the oil level as instructed in the engine manual.
5. Wipe up any spilled oil.

AIR CLEANER:

WARNING: RISK OF FIRE OR EXPLOSION. DO NOT USE GASOLINE OR LOW FLASH-POINT SOLVENTS TO CLEAN THE ELEMENT. CLEAN THE ELEMENT IN A WELL VENTILATED AREA. ENSURE THAT NO SPARKS OR FLAMES ARE NEAR THE WORKING AREA, THIS INCLUDES ANY APPLIANCE WITH A PILOT LIGHT.

CAUTION: NEVER RUN THE ENGINE WITHOUT THE AIR FILTER, SERIOUS DANGER CAN RESULT.

Check the air cleaner daily or before starting the engine. Check for and correct heavy buildup of dirt and debris along with loose or damaged components.

1. Unscrew the air cleaner cover and remove the elements.
2. Clean the element:
   PAPER AIR CLEANER ELEMENT: Do not wash the paper element or use pressurized air, as this will damage the element. Clean by gently tapping the element to remove dust. Replace the element if damaged, bent or extremely dirty. Handle new element carefully; do not use if the sealing surfaces are bent or damaged.

NOTE: Replace the paper element every 100 hours (more often under extremely dusty conditions.)

1. Reinstall the paper air cleaner element. Close air cleaner cover and screw shut.

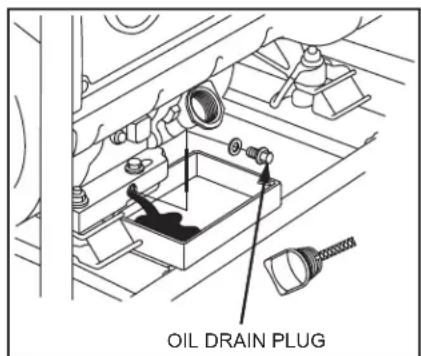

OIL DRAIN PLUG

(Fig. 1)

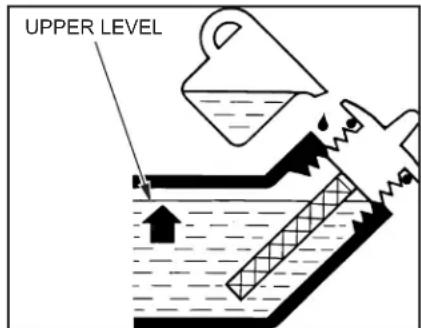

UPPER LEVEL

(Fig. 2)

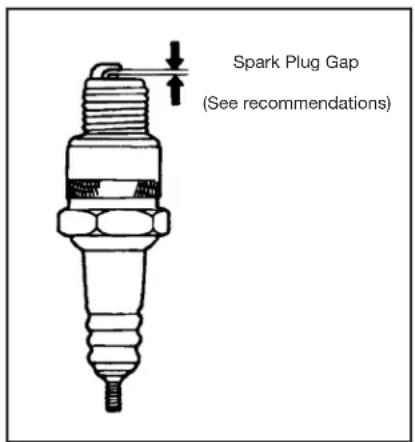

Spark Plug Gap (See recommendations)

(Fig. 3)

MAINTENANCE

CLEANING AND GAPPING SPARK PLUG (GASOLINE ENGINES ONLY):

If the plug is contaminated with carbon, remove it using a plug cleaner or wire brush.

Check the spark plug gap and reset it if necessary. The spark plug gaps are listed below. To change the gap, bend the side-electrode only, using a spark plug tool. (Fig. 3)

Install and tighten the spark plug. Connect the spark plug lead.

Recommended Spark Plug:

ENGINE HONDA
Spark Plug NGK BPR6ES
Spark Plug Gap 0.7 -	0.8 mm (0.03 in.)
Torque - New 8.7-10.9 ft-lb
Torque - Retighten 16.6-19.5 ft-lb

BELT TENSION ADJUSTMENT:

To maintain peak performance of your unit, it may be necessary to adjust the belt tension on occasion. Follow the procedure outlined below:

1. Remove the beltguard and loosen the two nuts on each side of the pump or engine. There are a total of 4 nuts.
2. Turn the cap screw clockwise until a 1/2 inch belt deflection is noticed between the pulleys.
3. Tighten the side nuts.
4. Put a straight edge across both pulleys. If necessary, loosen one set of pulley screws and adjust in or out to properly align. Tighten the pulley screws and check the tension again.
5. Replace the beltguard and tighten the fasteners securely.

STORAGE

STORING UNIT

SHORT TERM (1-6 MONTHS):

1. Add fuel conditioner & stabilizer at the specified concentration.
2. Run the unit for two (2) minutes to ensure the mixed fuel is in the entire fuel system. Close the fuel valve and run the unit until it stops.
3. For Gasoline Engines: Remove the spark plug, pour 1-2 teaspoons (5-10cc) of engine oil into the cylinder, slowly pull the starter handle 2 or 3 times, reinstall the spark plug and tighten securely.
4. Clean the exterior surface of the unit and apply a rust inhibitor.
5. Store the unit in a dry, well ventilated place.

LONG TERM (MORE THAN 6 MONTHS):

1. Add fuel conditioner & stabilizer at the specified concentration.
2. Run the unit until the fuel tank and carburetor are dry. As the engine is beginning to die, move the choke lever to the choke position.
   NOTE: Turn off the idle control to decrease the run time.
3. For Gasoline Engines: Remove the spark plug, pour 1-2 teaspoons (5-10cc) of engine oil into the cylinder, slowly pull the starter handle 2 or 3 times, reinstall the spark plug and tighten securely.
4. Clean the exterior surface of the unit and apply a rust inhibitor.
5. Store the unit in a dry, well ventilated place.

WARNING: FUEL SHOULD BE DRAINED IN A WELL VENTILATED AREA AND STORED IN AN APPROVED CONTAINER.

SPECIFICATIONS

ITEM SPECIFICATION
Unit	*AG2-PH13-08M1*AG2-SH13-08M1**AG2-SH13-30M***AG2-SH13-B	*AG2-PK14-08M1*AG2-SK14-08M1**AG2-SK14-30M***AG2-SK14-B	*AG2-PM14-08M1*AG2-SM14-08M1**AG2-SM14-30M***AG2-SM14-B	*AG2-PV14-08M1*AG2-SV14-08M1**AG2-SV14-30M***AG2-SV14-B
Engine Honda Kohler	Mi-T-M Vanguard
HP 13 14 14 14
Oil (oz) 37 oz 44 oz	32 oz	32 oz
Watts w/o Comp	3500
Watts w/ Comp	3000
Rated Voltage (V)	120V
Frequency (Hz)	60 Hz
Comp Pump	2 stage
Pump Oil (oz)	24.7
Air Tank (gal)	*8 gallon **30 gallon ***N/A
Max Pressure (psi)	175 psi

ITEM	SPECIFICATION
Unit	AG1-PH65-08M1	AG2-SKD9-30M
Engine	Honda	Kohler
HP	6.5 9.1
Oil (oz) 20 oz	48 oz.
Watts w/o Comp	1600	2750
Watts w/ Comp	600	1800
Rated Voltage (V)	120V
Frequency (Hz)	60 Hz
Comp Pump	1 stage	2 Stage
Pump Oil (oz)	25.3	24.7
Air Tank (gal)	8 gallon	30 gallon
Max Pressure (psi)	125 psi	175 psi

RECORD SERIAL NUMBER

Write you model number, machine serial number and date of purchase in the spaces provided below. Your dealer needs this information when ordering parts.

Model No. ____

Machine Serial No. ____

Date of Purchase

(To be filled in by purchaser)

STATEMENT OF WARRANTY

Mi-T-M warrants all parts, (except those referred to below), of your new unit to be free from defects in materials and workmanship during the following periods:

For Two (2) years from the date of original purchase:

Compressor Pump Plumbing Generator

Tank Assembly

For Six (6) months from date of original purchase:

Pressure Switch Regulator

Check Valve Pilot Valve

Copper/stainless steel line

For Ninety (90) days from the date of original purchase:

Pressure Gauges Safety Relief Valves

Drain Valves

Defective parts not subject to normal wear and tear will be repaired or replaced at our option during the warranty period. In any event, reimbursement is limited to the purchase price paid.

EXCLUSIONS

1. Engine is covered under separate warranty by its respective manufacturer and is subject to the terms set forth therein.
2. Normal wear parts:

Isolators Air Filter

1. This warranty does not cover parts damaged due to normal wear, abnormal conditions, misapplication, misuse, accidents, operation at other than recommended speeds, pressures or temperature, improper storage or freight damage. Parts damaged or worn by operation in dusty environments are not warranted. Failure to follow recommended operating and maintenance procedures also voids warranty.
2. Labor charges, loss or damage resulting from improper operation, maintenance (other than routine air tank draining and oil changes, if applicable) or repairs made by persons other than a Mi-T-M Authorized Service Center.
3. The use of other than Genuine Mi-T-M Repair Parts will void warranty. Parts returned, prepaid to our factory or to an Mi-T-M Authorized Service Center will be inspected and replaced free of charge if found to be defective and subject to warranty. Under no circumstances shall the manufacturer bear any responsibility for loss of use of the unit, loss of time or rental, inconvenience, commercial loss or consequential damages. There are no warranties which extend beyond the description of the face hereof.

For Service or Warranty Consideration, contact

Mi-T-M® Corporation, 50 Mi-T-M Drive, Peosta, IA 52068

563-556-7484 / 800-553-9053 / Fax [phone]

Monday - Friday 8:00 a.m. - 5:00 p.m. CST

INTRODUCTION

Black triangular warning symbol with exclamation mark (no text or numbers)

SÉCURITÉ

RECONNAITRE LES SYMBOLES DE SÉCURITÉ

Abstract black-and-white graphic of a bird-like figure with a circular head, set against a dotted grid background (no text or symbols)

DANGER / PELIGRO

• DO NOT USE INDOORS OR OUTSIDE OPEN WINDOWS FUMES CAN KILL YOU! • NE PAS UTILISER À L'INTÉRIEUR OU À L'EXTÉRIEUR DES FENÊTRES OUVERTES. LES VAPEURS DE GAZ PEUVENT VOÛS TUER! • NO USE ADENTRO O AFUERA DE VENTANAS ABIERTAS LOS GASES PUÉDEN MATARLE! 34-1502-09/06-092104-ENG.

Safety warning illustration showing a person using a tool to prevent explosive hazard, with a no-smoking symbol nearby.

CONSIGNES DE SÉCURITÉ LORS DU RAVITAILLEMENT EN CARBURANT

Black-and-white illustration of a hand with a lightning bolt and fuse, symbolizing electrical hazard (no text or symbols)

RISQUE D'EXPLOSION OU D'INCENDIE

Stylized black-and-white graphic of a stylized flame or explosion with sharp spikes and smoke (no text or symbols)

RISQUE D'ÉCLATEMENT

Abstract black starburst graphic on white background (no text or symbols)

RISQUE DE PROBLÉME RESPIRATOIRE

Abstract black-and-white graphic of a stylized bird-like figure with a circular head, set against a dotted grid background (no text or symbols)

RISQUE DE BRULURES

Simple line drawing of a hand holding a triangular object with a diagonal line crossing over it, no text or symbols present.

Silhouette of a running person with motion arrows indicating movement (no text or symbols)

RISQUE DE PROJECTION D'OBJETS

Abstract black-and-red graphic of a stylized hand holding a circular object with red lines (no text or symbols)

RISQUE PROVENANT DES PIÈCES MOBILES

Silhouette of a person in safety gear with corresponding icons for helmet, gloves, and shoes (no text or symbols)

PORTER DES VÊTEMENTS DE PROTECTION

Illustration of first aid kit, fire extinguisher, and medical kit (no text or symbols)

PRÉPARATION POUR LES URGENCES

REFER TO INSTRUCTION MANUAL FOR DETAILED INSTRUCTIONS If unit is operated in an excessively dirty or dusty area, increase the frequency of all checks.

Daily: •Check for proper oil level(s) and to leaks •Check engine air filter, (if applicable) •Drain moisture from tank(s) daily or after each use. •Ensure all safety guards are correctly & securely attached.

Weekly: -Clean the cooling surfaces of the compressor.

Inspect the quake heat. Check safety values by pulling on rings

-Check safety valves by pulling on things.

Monthly: -Grink System Non-class, Check bolt tension

"Check del version

Every •Change pump,dd. 200 hours: •Replace air filter.

REFER TO ENGINE MANUAL FOR RECOMMENDED ENGINE MAINTENANCE.

Evidence: 100 to information about which a product is an open choice. Utilisation

- Inflation for the U.S. mortgage-backed securities, such as the U.S. government and other financial institutions

and adjacent areas may

exceed 150°F.

RISQUE DE BRULURES

Surfaces chaudes le tuvau

RISK OF FIRE RISQ Do not add fuel when product is operating. Allow engine to cool for two (2) minutes before refueling. 34-3033/082814

- Do not spray deformable liquid in a confined area. Spray areas must be well ventilated. Do not ensure the use of spray or spray where spray or flame is compact. Keep compressors on the front opening area as

• When a candidate field is required to be in order of the candidate, this is developed.

- Aerial of the following map of the present water may be used to cover the water of a section, requiring its status here. - Adding parts. Keep the unit at said fire away from explaining waters.

- Engine creates stores. Do not operate in a subordinate environment. Follow all instructions and earnings supplied with material to be sprayed.

- But not smoke while thing engine fuel tank. Follow air heating instructions in operator's manual. - Distribution may operate fuel ramp maintained. To prevent disruption of fuel, caused by occurrence

- All cases may expose if not properly maintained. To prevent extravening of taxes caused by corrosion, drain tanks after each use.

- This equipment incorporates parts, such as snap switches, receptacles, produce bars or sporks and, incontinu, when (optional) is a passenger. Activities to a room or parking are organized by the source, so

therefore, which is possible in a range. Therefore so it should be understood for the purpose, we should be 18 inches (457mm) or more above the floor.

RISK OF ASPHYLATION!

- Never use compressed air for breathing or respiration!

- Baseline engines produce carbon nanoclave, a plasticizer, compress gas which may cause strain be not start or operate component to an endorsed area. Area must be well volatated.

RISK OF SEVERE INJURY!

- Before servicing gasoline unit, disconnect spark plug wire to prevent unit from starting unexpectedly. - Your pointy relationship shows at all times.

- Never operate with belguard removed. If guard becomes damaged, repair or replace before operating.

- Do not remove any air line or tank connections before allowing air pressure in the range(s).

- Earnings can be expected to rise from 2013. Never offer an annual return of \500 or \600. BISK OF BURNS?

- Do not touch compressor head, discharge lines or engine components. Cool before servicing.

RISK OF DAMAGING COMPRESSOR AND CAUSING INJURY!

1. And the existence of promise of spread in excess of the balance and a 200mm thickness, a 100mm diameter with greater size may be than the average market to the name of

Follow required maintenance procedures and intervals listed in the operator's manual. Service

should be performed only by qualified personnel. Compressor requires good ventilation to operate

FAILURE TO COMPLY WITH THESE WARNINGS WILL RESULT IN PERSONAL

INJURY. DO NOT REMOVE THIS LABEL!

LIRE ENTièrement LE MANUEL D'INSTRUCTION AVANT DE FAURE FONCTIONNIER LI

BROUÉ DE D'INCEUR DU VERSISSIONAL COMPRESSEUR.

The following table provides the information in English:

In addition to the S&NOMATOES HAIRES (VOC) in M€40, a Accurser. • In addition to employment in respect to the capital of the capital. Sustenazione, reluzzare d'acordamento

«Conductant Conclusions that be manual operation»

THE LONDON CHINESE IS THE CABBEGY, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESS, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEESE, CHEE

and seque per t resupps de paco, telles que de la bina bena e la ocaia, the reapeties et sartes du mante peue

• New Delic to Buwa (new delic) is the first time. For this time, it is the last time.

RISQUE DE BRULURES!

Beware of HotSurfaces.

Allow unit to cool

Allow unit to cool before car labels

before servicing.

34-1358/062814

RISQUE DE BRÚLURES

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

DANGER

RISK OF ELECTRICAL SHOCK OR ELECTROCUTION! A generator is a potential shock hazard which can result in serious injury or death. - Generator must be kept dry.

- Do NOT operate unit with wet hands.

- Generator MUST be grounded before use. See operators manual for specific

instructions

Do not use around water or expose to rain. Store indoors

WARNING: Cancer and Reproductive Harm — www.PSBwww.ca.gov

1. Flip the toggle on top of the pilot valve to the upright position. This provides a

loadless start. The compressor will be used and allow the engine to start easier.

1. 3041.16.08:19, 4050.10.08:19, 4050.10.08:19, 4050.10.08:19, 4050.10.08:19, 4050.10.08:19, 4050.10.08:19, 4050.10.08:19, 4

2. When engine has run for 1-2 minutes, flip toggle back to original position.

3. Stop the engine. (Refer to Engine Manual accompanying the unit.)

4. Crash by work the same by Reputing up with an anchored by tool or by putting on the safety leg

Valley highs. 6. Open price on the

b. Under pressure in the drop, 600 gm lead pipe

The quick brown fox jumps over the lazy dog.

E G F I Air Compressor / Generator 16.4 CEN @ 90 PSI - 15.7 GPR @ 175 PSI 4800 Nxt Max - 2000 Condensers M Mi-T-M H

Mi-T-M E F G I H

Abstract black-and-white graphic of a bird perched on a human figure with a circular head, set against a dotted cloud background (no text or symbols)

Abstract black jagged starburst graphic on white background (no text or symbols)

Four black plastic mechanical components with bolts and nuts arranged on a white surface (no text or symbols visible)

INSTALLATION

INSTALLATION

Black-and-white illustration of a hand with a lightning bolt and fuse, symbolizing electrical hazard (no text or symbols)

INSTALLATION

MOTEUR

DIMENSION DES CÂBLES:

CONDITIONS DE LA GARANTIE

Black triangular warning symbol with exclamation mark (no text or numbers)

Abstract black-and-white graphic of a bird-like figure with a circular head and tail, set against a dotted background (no text or symbols)

DANGER / PELIGRO

Diagram showing a house with two machines and red X marks indicating failure or rejection, likely illustrating a maintenance or installation scenario.

• DO NOT USE INDOORS OR OUTSIDE OPEN WINDOWS FUMES CAN
KILI YOI
• NE PAS UTILISER À L'INTÉRIEUR OU À L'EXTÉRIEUR DES EENÊTRES
- NE PAS UTILISER A L'INTERIEUR OU A L'EXTERIEUR DES F. OUVERTES. LES VAREFURS DE CAZ REUVENT VOUS TUIERI
OUVERTES. LES VAPEURS DE GAZ PEOVENT VOUS TUER!
•INO USE ADENTRO O AFUERA DE VENTANAS ABIERTAS LOS
GASES PUEDEN MATARLE!
34-1563-E/F/S-062104-ENG

Safety warning illustration showing a worker using a tool to prevent explosive hazard and no smoking

Black-and-white illustration of a hand with a lightning bolt and fuse, symbolizing electrical hazard (no text or symbols)

Abstract black-and-white graphic of a stylized flame or explosion with sharp spikes and smoke (no text or symbols)

Abstract black jagged starburst graphic on white background (no text or symbols)

RIESGO DE EXPLOSIÓN

Abstract black-and-white graphic of a bird-like figure with a circular head, set against a dotted grid background (no text or symbols)

RIESGO DE QUEMADURAS

Simple line drawing of a hand holding a tool over a surface with no text or symbols

Silhouette of a running person with motion arrows indicating movement (no text or symbols)

Abstract black-and-red graphic of a stylized hand holding a circular object with red lines (no text or symbols)

RIESGO DE PARTES EN MOVIMIENTO

AVERAGE CAUTION

Silhouette of a person wearing safety gear and icons representing various clothing items (no text or symbols)

USE ROPA PROTECTORA

Illustration of a first aid kit, fire extinguisher, and medical kit (no text or symbols)

REFER TO INSTRUCTION MANUAL FOR

DETAILED INSTRUCTIONS

If unit is operated in an excessively dirty or dusty area, increase the frequency of all checks.

•Chick Farinprecer oil (dipetol and oil (dipetol)

- Check engine air filter, flat applicable/jacky. - Drain/moisture from tank/b/day dealer each use - Ensure all safety guards are correctly & sedurally attached hard.

Weekly: +Green the cooling surfaces of the compressor

nspara air intake filter

Check Bestets valves achieving dington rings

Monthly, a Chinese version for the world

-Gluek system for the

- Check Delhension.

•Change:putrengail

+Replace airfilter

REFER TO ENGINE MANUAL FOR RECOMMENDED ENGINE MAINTENANCE.

Code may be transposed in instance norms of

The following table is presented in the following table:

Muffler and adjacent areas may exceed 150°F.

34-0598/07262012

RIESGO DE QUEMAR

Do not add fuel when product is operating. Allow engine to cool for two (2) minutes before refueling.

34-0599/07262012

RIESGO DE FUEGE

- Do not spray favourable liquid in a confined area. Spray area must be wall ventilates. Do not amend while spraying or spray where spark or flame is present. Keep compressors as far from spraying area as

• When a computational liquid is sprayed there may be danger of fire or explosion, especially in a closed area. • Adding cards. Here the unit as long fire areas from otherwise various

• Engine creates specks. Do not operate in thermable environment. Follow all instructions and warnings supplied with natural in be swaved.

- Do not smoke while filing engine fuel tank. Follow all fueling instructions in operator's manual. - Activities may episode if not properly maintained. Represent weakness of fuel capacity on drain tanks after each use.

- This equipment incorporates parts, such as spray switches, receptacles, produce arcs or specks and, therefore, when located in a garage, it should be in a room or enclosure provided for the purpose, or should be 18 inches (457mm) or more above the floor.

RISK OF ASPHYXATION

- Baseline engines produce carbon monoxide; a poisonous, octoneous gas which may cause death. Do not start or operate in comprise in an increased area. Ares must be well ventilated

RISK OF BEVERE INJURY

- Before accelerating growth rate, determines spark plug rate to prevent until then starting unexpectedly.

• After thirty government's notice on the time, a House company has honored voted.

- Never operate with Delgado de N°N° 11 place becomes contingent, local or industrial before operating. + Pro and enterprise area are low or high proportions induce monitoring and monitoring in the industry.

- Loose before can be propelled at high speeds. Never direct at stream, once de yourself for others

RISK OF BURNS

• Co- and touch compressor head, discharge lines or engine components. Good before servicing

RISK OF DAMAGING COMPRESSOR AND CAUSING INJURY!

- Do not operate at pressure or speed in excess of manufacturer's recommendations. - Do not operate to its components rated less from the pressure required on the procedure.

Follow required maintenance procedures and interests listed in the operator's manual Service

should be performed only by qualified personnel. Compressant requires good ventilation to operate

property: Use self-factory replacement parts

FAILURE TO COMPLY WITH THESE WARNINGS WILL RESULT IN PERSONAL

INJURY. DO NOT REMOVE THIS LABEL!

LEA USTED EL MANUAL DE INSTRUCCIONES ANTES DE USAR EL COMPRESOR DEL AIRE!

Beware of Hot Surfaces

Allow unit to one

ALLOW UNIT TO COOL

before servicing.

34-1284891012

RIESGO DE QUEMADURA

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

PELIGRO

RISK OF ELECTRICAL SHOCK OR ELECTROCUTION! A generator is a potential shock hazard which can result in serious injury or death. - Generator must be kept dry.

- Do NOT operate unit with wet hands. - Generator MUST be grounded before use. See operators manual for specific instructions. - Do not use around water or expose to rain. Store indoors.

WARNING: Cancer and Reproductive Harm — www.PUSwarnings.co.gov 1. Flip the toggle on top of the pilot value to the upright position. This provides a leadless start. The compressor will united and allow the engine to start easier.

1. Start the engine. (Refer to Engine Manual accompanying this unit.)

2. When engine has run for 0-2 minutes, flip toggle back is original position.

3. Stop the engine, power to engine exhaust accompany this unit.

4. Drain air from the tanks by releasing air with an attached air test or by pulling on the safety relief valve rings.

5. Once pressure in the tanks register under 10 pounds, open the drain valve under each tank to drain any moisture.

ADVERTENCIA: Reform de camera y data representative — www.p5waminas.ca.gov

For the following table, we will find the same plan to use a specific method of the

Four black plastic mechanical components with bolts and nuts arranged on a white surface (no text or symbols visible)

INSTALACIÓN

INSTALACIÓN

Black-and-white illustration of a hand with a lightning bolt and a curved line, symbolizing electrical hazard (no text or symbols present)

INSTALACIÓN

MOTOR

Lunes - Viernes 8:00 a.m. - 5:00 p.m. CST

Manufactured by Mi-T-M

50 Mi-T-M Drive, Peosta IA 52068

563-556-7484/ Fax [phone]
