Product type	Smart home remote control with wheel
Power supply	2 AAA/HR03 batteries (1.5 V)
Main functions	Control of lights, speakers, and outlets; dimming, volume, track selection, on/off
Connectivity	Thread, Matter, IKEA Home smart
Range	10 m in open field
Operating frequency	2402 - 2480 MHz
Output power	5 dBm (EIRP)
Operating temperature	0 °C to 40 °C
Care and cleaning	Clean with a dry cloth
Safety	Indoor use only; do not immerse; observe battery polarity; replace with identical batteries
Reset	Press and hold the System button for 10 seconds
Compatibility	IKEA connected products, Matter systems, IKEA Home smart
Number of groups	Up to 3 product groups
Recommended battery type	LADDA AAA HR03 (rechargeable) or alkaline AAA
Estimated battery life	Approx. 24 months with new batteries

Frequently Asked Questions - BILRESA 706.041.72 IKEA

How to pair the BILRESA remote control with an IKEA Home smart system?

Insert two AAA/HR03 batteries to power on the remote. Pairing mode activates automatically for 15 minutes. Scan the QR code on the yellow packaging with the IKEA Home smart app and follow the instructions. To reactivate pairing mode, open the battery compartment and press the System button.

How to connect the remote to a Matter system?

Power on the remote with batteries. Pairing mode lasts 15 minutes. Scan the Matter QR code located on the document cover or on the remote, then follow the app instructions from your Matter gateway manufacturer.

Can I use the remote without a gateway or connected system?

Yes, you can pair the remote directly to IKEA connected products without a system. Press the System button four times quickly, place the remote 5 cm from the product, and wait for pairing. Each group must contain at least one product before adding to the next group.

How to switch between product groups?

Press the control below the LED indicators to switch between groups. Each indicator corresponds to a different group (1, 2, or 3).

What to do if the remote stops responding?

Try resetting the remote: open the battery compartment and press and hold the System button for 10 seconds until the red light stops flashing. The remote resets and enters pairing mode for 15 minutes.

How to know if the batteries are low?

A red LED flashes twice when you press a button or the wheel. If connected to an IKEA Home smart system, the battery level is also visible in the app.

What type of batteries to use?

Use two AAA/HR03 batteries (rechargeable or alkaline). IKEA recommends LADDA AAA HR03 batteries. Do not mix different battery types and observe polarity (+/-).

What is the range of the remote?

The range is 10 meters in open field. It may vary depending on building materials and product placement.

Is the remote compatible with other brands?

Yes, it is Matter certified and can work with any Matter-compatible system, provided you use a gateway and app from the same manufacturer. Check with the manufacturer for available features.

How to clean the remote?

Clean it with a dry cloth. Never immerse it in water or any other liquid.

USER MANUAL BILRESA 706.041.72 IKEA

BILRESA remote control with scroll wheel is designed to control up to 3 groups of products. It's a Matter-certified smart product that works with the IKEA Home smart system or any other system that uses the Matter standard. Pair it directly with a smart product from IKEA to use it without a smart system.

Getting started

With IKEA Home smart system

To connect to an IKEA Home smart system, a hub from IKEA and the IKEA Home smart app are needed.

1. Turn the remote control on by inserting 2 x AAA HR03 batteries. It will automatically power on and go into pairing mode for 15 minutes to allow connection to an IKEA Home smart system.
2. Scan the QR Code from the yellow cover in the packaging and follow the instructions in the IKEA Home smart app to connect the remote control to the system. Each product has a unique QR code.

To put the remote control back into pairing mode, open the battery compartment and press the system button.

With a Matter-certified smart system

To connect to a smart system that uses the Matter standard, a hub and app from the same manufacturer are needed.

1. Turn the remote control on by inserting 2 x AAA HR03 batteries. It will automatically power on and go into pairing mode for 15 minutes to allow connection to a Matter-certified smart system.
2. Scan the Matter QR Code from the front cover of the Advice & Care Instructions and follow the instructions in the smart home manufacturer's app. The Matter QR Code is also printed on the remote control.

To put the remote control back into pairing mode, open the battery compartment and press the system button.

Without a smart system

Smart products from IKEA can be paired directly to each other without a smart system.

Pair one or more smart products to each of the 3 groups on the remote control. Switch between product groups by pressing beneath the LED lights. Each light controls a different group of products.

Turn the remote control on by inserting 2 x AAA HR03 batteries. Quick-press the system button 4 times and hold the remote within 5 cm of the smart product it should be paired with. Pairing mode will be open for 30 seconds and default to product group 1.

When at least one smart product is connected to group 1, group 2 will be available for pairing. Press under the LED lights until group 2 is illuminated and follow the pairing instructions above to connect products to that group. Once group 2 is connected to at least one product, group 3 can be connected.

Note, a maximum of 10 smart products from IKEA can be controlled with each group on the remote control by direct pairing. If the products intended for pairing are close together, turn off and disconnect the ones already connected while adding the next product.

Using the product

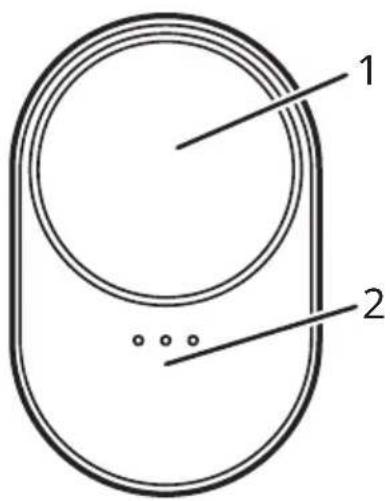

Wheel (1)

Scroll the wheel, single-press, multi-press and long-press to control all products in the group.

Note, wheel functions depend on the product type connected to the remote control and the system it is connected to.

Control under the LED lights (2)

Press to switch between product groups.

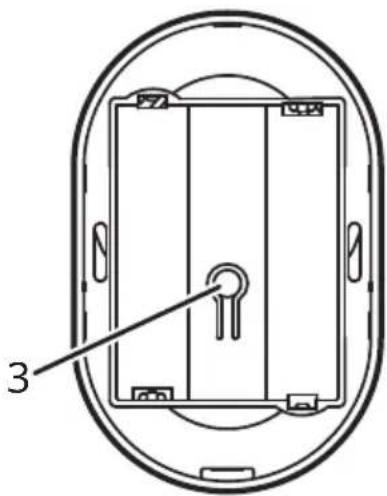

System button (3)

Press to put the remote control into pairing mode or to reset.

Buttons and controls for smart products from IKEA

	Scroll wheel (press)	Scroll wheel (scroll)	Control under the LED light	System button
Lights• Single-press: ON/OFF• Double-press: next colour• Triple-press: previous colour	• Scroll left and right: dim the lights	• Single-press: next product group	• Single-press: pairing mode with a smart system;• Quick-press 4 times: pairing directly with smart product from IKEA
Speakers• Single-press: PLAY/PAUSE• Double-press: next track• Triple-press: previous track	• Scroll left and right: volume up/down	• Single-press: next product group	• Single-press: pairing mode with a smart system
Plugs• Single-press: ON/OFF N/A • Single-press: next		product group	• Single-press: pairing mode with a smart system• Quick-press 4 times: pairing directly with a smart product from IKEA

Pairing mode

The remote control needs to be in pairing mode to connect to an IKEA Home smart system, any system that uses the Matter standard, or to pair directly with a smart product from IKEA.

To connect to an IKEA Home smart system or any other system that uses the Matter standard, press the system button to put the remote control into pairing mode. The pairing will be open for 15 minutes. All 3 LEDs will pulse while pairing and then blink twice once connected.

To pair directly with a smart product from IKEA, quick-press the system button 4 times. Select a group by pressing the control under the LED lights and hold the remote within 5 cm of the smart product it should be paired with. Pairing mode will be open for 30 seconds. The LED assigned to the selected group will blink fast while pairing and then blink twice once connected.

Please note, each group needs at least one smart product before other products can be paired to the next group.

Factory reset

To reset the remote control, open the battery compartment and press and hold the system button for 10 seconds or until the red LED light stops blinking. It will automatically restart and be available for pairing with a smart system for 15 minutes.

Battery care

When the battery is low, a red LED light will blink twice when any button or control is pressed. If the remote control is connected to an IKEA Home smart system, the battery status will also be shown in the IKEA Home smart app. 2 x new LADDA AAA HR03 batteries will usually power the remote control for 24 months before they need to be changed.

Care instructions

To clean the product, wipe with a dry cloth.

Good to know

• If the product is connected to an IKEA Home smart system, additional features are available in the IKEA Home smart app.
• If the product is connected to another smart system that uses the Matter standard, check with the manufacturer for available features.
• This product uses Thread technology to communicate with other smart products. A Thread border router is needed to connect to Matter systems. Many smart products or hubs have a Thread border router built in.
• Different building materials and placement of the product can affect the wireless connectivity range.

Safety and compliance

WARNING

• Use only indoors.
• Discard the product if damaged.
• Never submerge in water or other liquids.
• The product is only suitable for mounting at heights up to 2m.
• Children should be supervised to ensure they do not play with the product.
• Do not use batteries which are low in charge or empty.
• Always insert the batteries according to the polarity indications (+/-).
• Risk of explosion if either battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
• Do not mix batteries of different capacities, types or date stamps.
• Batteries should be handed in for recycling in accordance with local environmental regulations for waste disposal.
• Operating temperature: 0°C to 40°C (32°F to 104°F).

Technical data

Model: BILRESA

Type: E2490, E2704

Input: 2 x AAA/HR03

Range: 10 m in open air.

Operating frequency: 2402 - 2480 MHz

Output power: 5 dBm (EIRP)

Recommended batteries:

LADDA AAA HR03 rechargeable batteries.

Manufacturer: IKEA of Sweden AB

Address: Box 702 SE-343 81 Älmhult SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from

household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Only applicable for US and Canada

This device complies with Part 15 of the FCC Rules/Innovation Science and Economic Development Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
