USER MANUAL iFLOOR 5 Breeze Complete TINECO

Cordless Floor Washer

Instruction Manual

Manual De Uso

Mode D'emploi

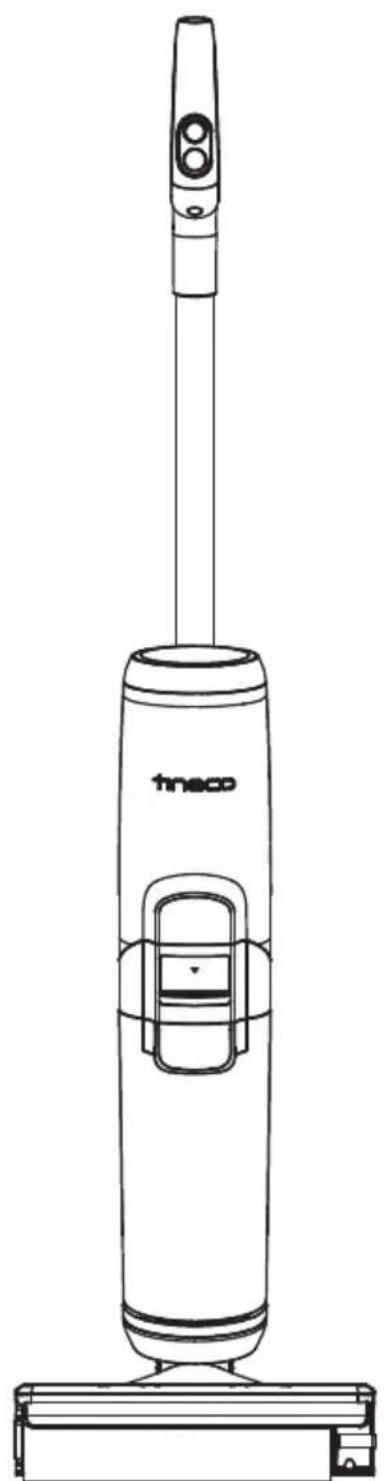

Line drawing of a tneo vacuum cleaner with handle and control panel (no text or symbols)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications....6

Overview....7

Accessories....9

Assembly 10

Operation....11

Maintenance 17

Troubleshooting....21

Warranty 22

Important Safety Instructions

SAVE THESE INSTRUCTIONS Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without filter.
14. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266^ F ( 130^ C) may cause an explosion.
21. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
22. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
23. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
24. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
25. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.
26. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.
27. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.
28. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.
29. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaks electricity.
30. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
31. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
32. Store appropriately indoors in a dry place after use.
33. Do not place or submerge appliance in standing water or try to clean flooded areas.
34. All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.
35. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
36. A hazard may occur if the appliance runs over the supply cord.

37. Do not use the appliance when the water depth is more than 5mm above the surface.

38. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

39. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Range of Usage

1. The cordless hard floor cleaner is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the appliance.
2. Add solution as instructed in the Operation section. We recommend using the provided cleaning solution. Do not use the product with acidic, alkaline solution, or any substances harmful to the environment.
3. Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.
4. Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Charge the appliance with the Tineco adaptor. Input Voltage: AC 100-240V. Both high and low voltages can damage the adaptor, appliance, or even cause danger to the user.
3. Use extra care when cleaning on stairs.
4. Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
5. To avoid being tripped accidentally, please put away the appliance on the Storage Tray.
6. Always install the Dirty Water Tank and Clean Water Tank properly before use.
7. Do not allow the appliance or charger to get wet to avoid risk of fire or injury caused by a short circuit.

FCC Supplier's Declaration of Conformity

TINECO / iFLOOR 5 BREEZE & GO H2O XL BREEZE SERIES

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation.

TINECO INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and find it to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

Specifications

Product	iFLOOR 5 BREEZE SERIESGO H2O XL BREEZE SERIES
AC Input 100-240V~
Voltage 21.6V	=4000mAh Li-Ion
Rated Power 190W
Running Time ECO: ~35 mins MAX:	~23 mins
Charging Time 4-5 hrs
Water Flow Rate 30~100ml/min
CWT Capacity ~0.8L
DWT Capacity ~0.7L
Waterproof IPX4

• For use only with TINECO charger YLJX2I-T260100.

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• When removing the battery, the appliance must be powered off.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of batteries and chargers into household waste!
• If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

Overview

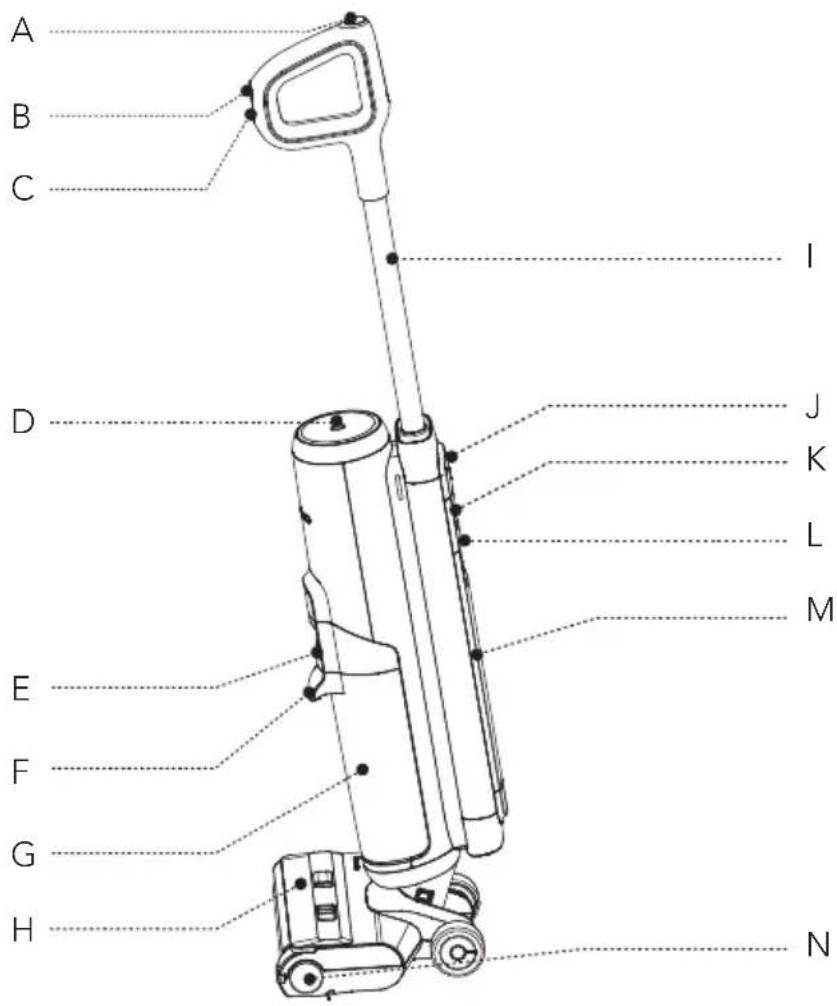

A B C D E F G H I J K L M N

O P Q R S T

A. Self-cleaning Button

B. Mode Switch

C. Power On/Off

D. Indicator

E. Dirty Water Tank Release

F. Dirty Water Tank Handle

G. Dirty Water Tank (DWT)

H. Brush Roller Cover

I. Tube

J. Handle Release Button

K. Clean Water Tank Release

L. Clean Water Tank Handle

M. Clean Water Tank (CWT)

N. Brush Roller

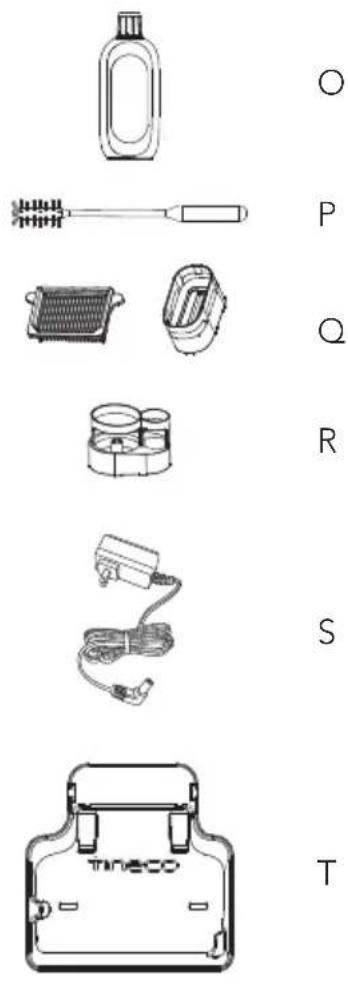

O. Deodorizing & Cleaning Solution

P. Cleaning Tool

Q. Dry Filter & Holder

R. Accessory Holder

S. Adaptor

T. Storage Tray

Accessories

Note:

Accessories may vary among markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Deodorizing & Cleaning Solution

Removes dirt, grime, grease and tough stains from most types of hard surfaces, like tile, marble, sealed hardwood floor, and more. Always use Tineco solution in your appliance.

Add one bottle cap of solution to each full tank of clean water.

Simple line drawing of a cylindrical object with a protruding handle (no text or symbols)

Brush Roller

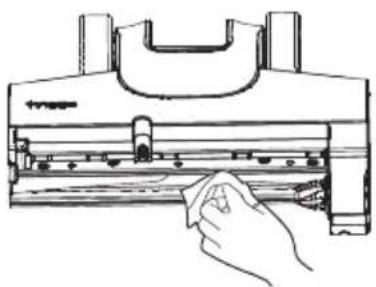

Soft roller head with bristles can be used to vacuum and wash at the same time. It can be easily cleaned with the self-cleaning function.

Dry Filter

Dry filter and filter net can block large particles and debris, ensuring the appliance's durability.

* Please install the dry filter before use, or it may lead to weak suction.

Cleaning Tool

A full brush to clean the DWT, brush chamber and opening. The tool also has a bristled end to remove dirt and mud on the roller and DWT.

Assembly

How to Assemble/Disassemble

Note:

For water tank and brush assembly, please refer to "Operation" and "Maintenance".

click

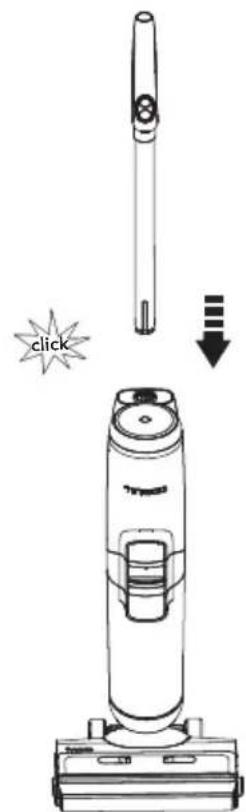

To assemble the handle, insert it into the appliance until you hear a click.

Technical line drawing of a vacuum cleaner with an inset close-up showing internal components (no text or symbols)

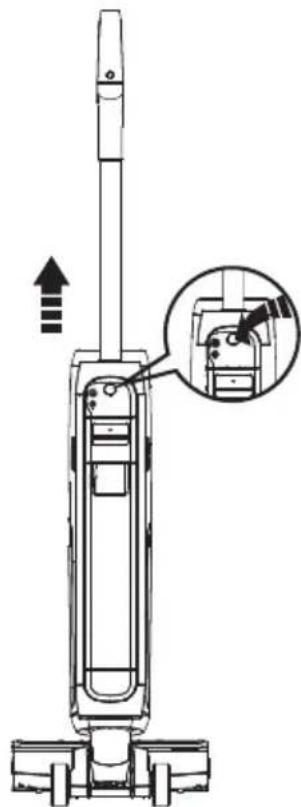

In the event that the handle needs to be disassembled, press and hold the release button on the back of the appliance, then pull the handle upwards.

Operation

Preparing for Use

Before first use, please charge the appliance for 4-5 hours (refer to "Charging Instructions" for details). * Based on results from Tineco lab tests. Lab temperature 39.2^ (4^) 104^ (40^)

Diagram showing a hand holding a device with a circular icon and an arrow pointing to it, indicating a process or operation.

Press the Ⓑ button and the appliance will start in ECO mode by default. Press it again to turn off the appliance. Switch between ECO and MAX modes by pressing the 🌐 button. In MAX mode, the appliance will apply max suction power and will spray max water/suction for deep cleaning.

<142°

Stop Working Start Again

Line drawing of a vacuum cleaner with attached circuit board (no text or symbols)

Place the appliance on the storage tray vertically after use for recharge and storage.

The appliance will stop working when put upright and start running again when reclined.

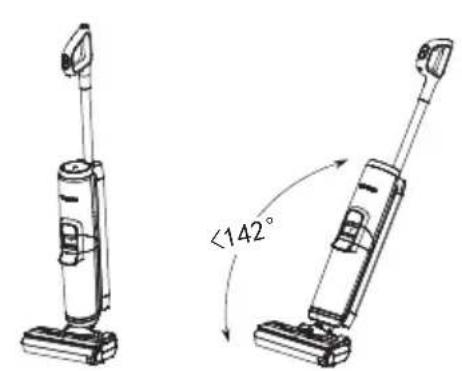

* Do not recline more than 142° to avoid water leakage.

Note:

• Do not vacuum foamed liquid.
• To vacuum water left on the surface, the appliance will keep running for 3 seconds after power off.

Filling Clean Water Tank

Illustration of hands operating a mechanical device with a handle and lever (no text or symbols)

Press the Clean Water Tank release button to remove it from the appliance.

Technical diagram showing mechanical assembly with labeled components and directional arrows, including a 'click' annotation.

Place the tank back into the appliance. You should hear a click if done correctly.

MAX

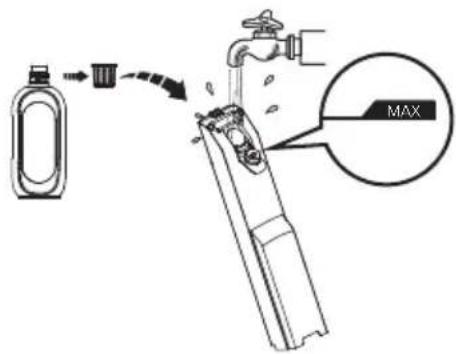

Open the tank cap, and fill with tap water to the Max line. When deep cleaning is necessary, add one bottle cap of solution to the CWT and tightly close the cap.

Note:

Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Charging Instructions

Technical diagram of a vacuum cleaner with labeled components and an inset showing internal wiring connections.

Please charge the appliance when the battery level is low.

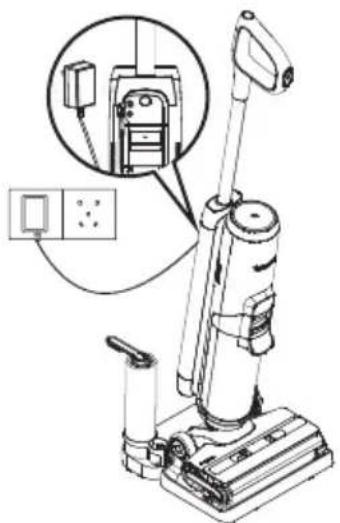

1. To charge the appliance, connect the external charging cord to the appliance and plug it into the wall outlet.
2. To avoid tripping hazards, please place the appliance on the storage tray near a wall during charging.

Note:

• The cooling system has been activated to optimize battery charging with a slight sound.
• During charging, hold the button for 10 seconds to turn on/off the cooling system.

Warning:

• Only charge the appliance with the adaptor supplied by Tineco.
• During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 4-5 hours for a full charge.
• Store indoors in a dry place. Do not expose the appliance to sunlight or freezing temperatures. Recommended temperature range: 39.2°F (4°C) \~ 104°F (40°C).

Runtime

• When in ECO mode, the runtime is approximately 35 minutes. When MAX power is used, the runtime is approximately 23 minutes.
  • Estimated runtime data was obtained by Tineco Laboratory.

Charging Time

• A full charge takes approximately 4-5 hours.

- Estimated data was obtained by Tineco Laboratory using ambient temperatures ranging from 39.2^ (4°C) to 104^ (40°C).

Indicator

When in Use

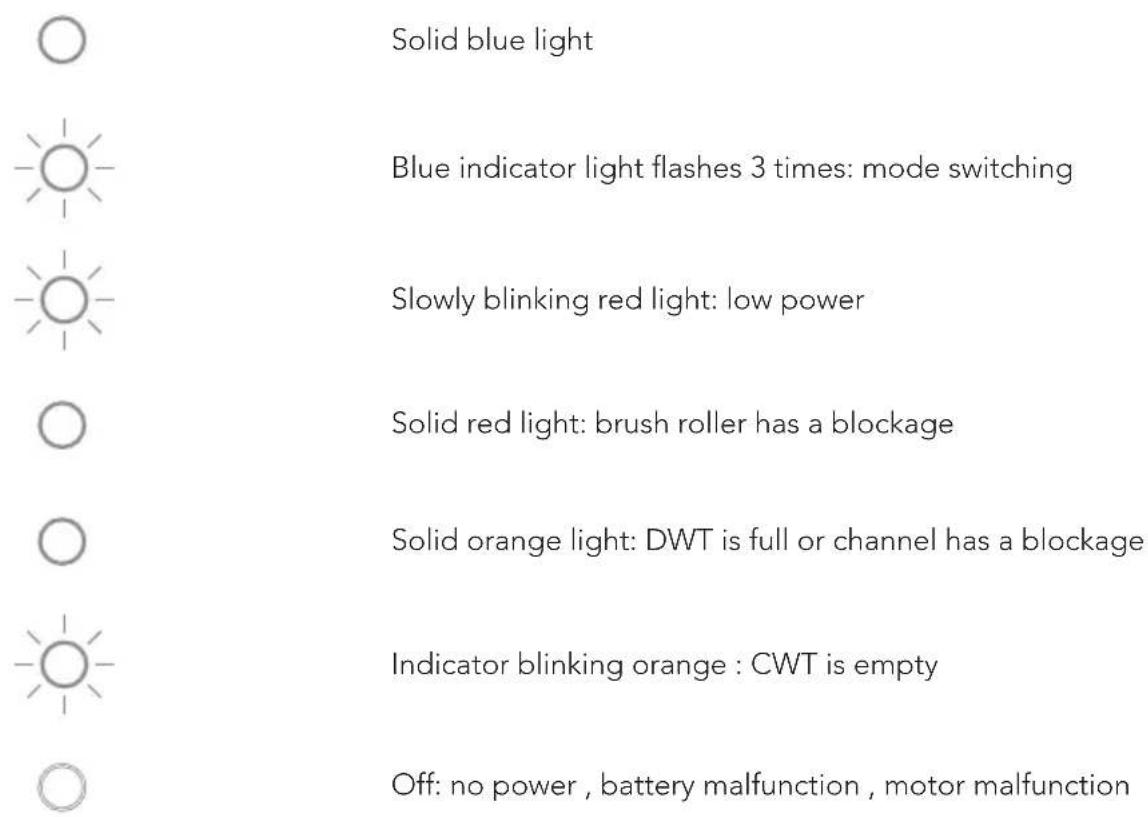

Solid blue light Blue indicator light flashes 3 times: mode switching Slowly blinking red light: low power Solid red light: brush roller has a blockage Solid orange light: DWT is full or channel has a blockage Indicator blinking orange : CWT is empty Off: no power , battery malfunction , motor malfunction

During Charging

Fully Charged

Within 5 minutes of full charge: solid blue light

After 5 minutes: light off

Maintenance

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
  • After maintenance, place the appliance on the storage tray vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

Diagram showing a hand holding a digital device with a speech bubble containing icons and a label '①' pointing to it.

To reduce the risk of injury, switch off before performing maintenance.

Line drawing of a hand holding a thermosorbent bottle with label 'tweco' (no other text or symbols)

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

Line drawing of a vacuum cleaner with an inset close-up showing the brush inside (no text or symbols)

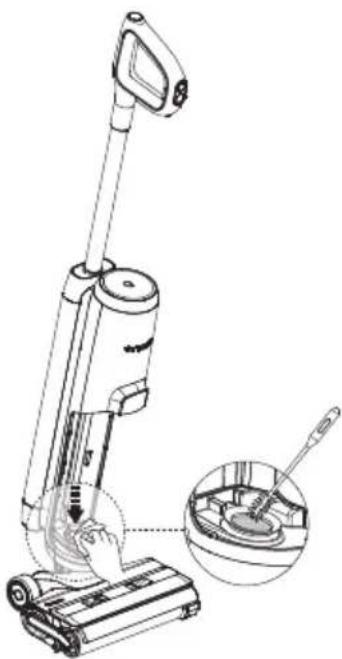

Remove Dirty Water Tank, clean the dirt water port with a damp cloth or the cleaning tool to prevent blockage.

Dirty Water Tank

Z

Illustration of a hand holding a device with a handle, showing a step-down and rotation arrow (no text or symbols)

Illustration of hands using a handheld device to lift a device (no text or symbols visible)

Illustration of a faucet spraying water onto a rectangular object (no text or symbols)

click

• When dirty water reaches the Max line, the appliance will stop working.
• Pull up the tank lid to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance.

Dirty Water Tank Lid

Illustration of hands using a handheld device to lift a cylindrical component (no text or symbols)

Illustration of a hand holding a rectangular object with a pointed tip, emitting a droplet (no text or symbols)

Illustration of a hand using a tap to clean water from a bottle (no text or symbols present)

Illustration of a hand using a tool to clean or spray water, with a faucet partially visible (no text or symbols)

If the Dirty Water Tank lid and the filter inside have been blocked, remove the tank lid and the filter, rinse both parts with water.

Dry Filter

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

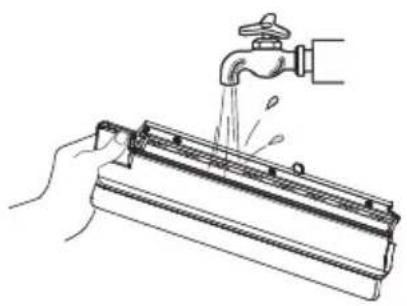

Illustration of two hands cleaning a faucet and a tool, with a sun symbol above (no text or symbols present)

Grasp recessed area on each side of the dry filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

Brush Roller Self-cleaning

Line drawing of a vacuum cleaner with a droplet symbol and mechanical components (no text or labels)

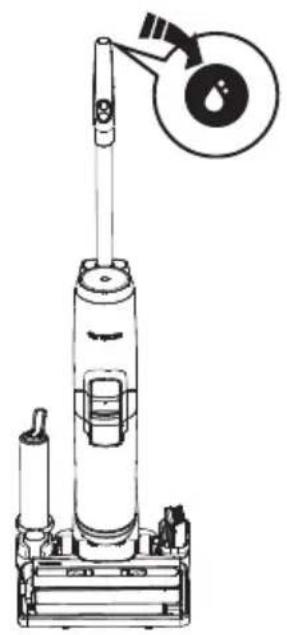

1. Place the appliance on the storage tray and plug in. Press the self-cleaning button and begin the process.
2. Once complete, the appliance will begin charging. Clean the Dirty Water Tank after cleaning completed.

Note:

• Ensure the appliance is plugged in and the battery has enough power.
• Before self-cleaning cycle, please clean the DWT and ensure the water level in the CWT>40%.

Brush Roller Cover

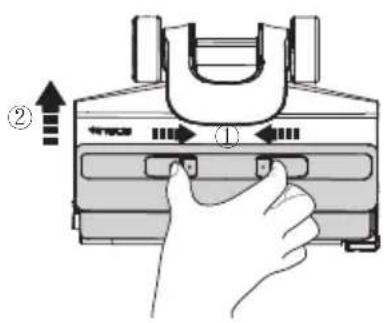

Diagram showing a hand pressing a button on a device with labeled arrows and numbered parts

Squeeze latches on the cover and pull upward to remove.

Illustration of a hand using a faucet to lift water from a plastic tray (no text or symbols)

Rinse with water.

click

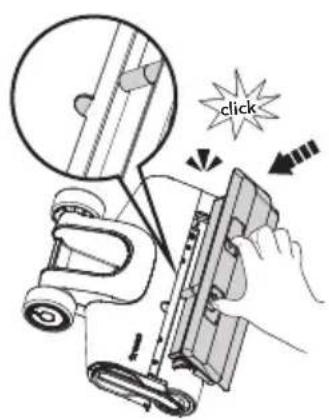

While replacing, always latch the brush cover into place to avoid leakage.

Brush Roller

Z

Illustration of a hand using a handheld device to press or install a sheet of paper (no text or symbols visible)

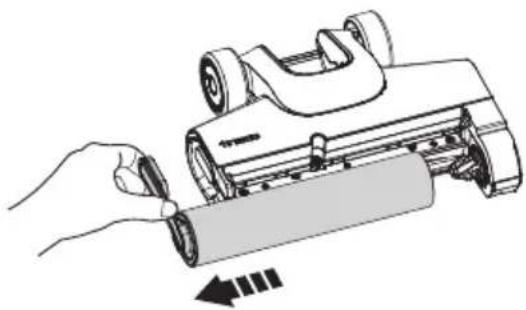

Remove the brush roller by grabbing the brush roller tab and pulling out.

Illustration of three hands performing a manual water tap installation (no text or symbols)

Line drawing of a sun-dominant electrical device with a base and switch (no text or symbols)

Use the cleaning tool to remove the hair and debris wrapped around the roller and then rinse the roller with water. Replace the brush roller back into the accessory holder, and allow it to dry completely before reinstalling.

Line drawing of a hand pressing down on a mechanical device (no text or symbols)

Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth.

Illustration of a hand using a tool to press or install a cylindrical device with a scroll, showing motion arrows (no text or symbols)

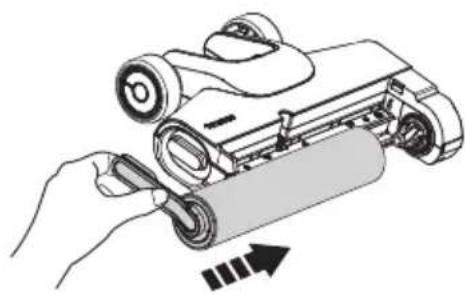

Replace the brush roller by inserting the brush roller end into the right side of the holder, then attach the roller tab to the magnetic buckle on the left side to lock into place.

Note:

• To maintain optimal performance, replace the brush roller every 6 months.

SCAN THE QR CODE BELOW TO GET PRODUCT CARE VIDEOS.

Troubleshooting

Problem Possible cause Solution
The appliance does not turn on		Auto protection for overheating
Weak suction		The dry filter is not installed, or the dry filter is dirty
Solid red light		The brush roller is blocked Remove blockages
Indicator blinking orange		CWT is empty Refill CWT
Solid orange light		The dirty water in DWT has reached the MAX line
Light off in operation		1.No power2.Battery malfunction3.Motor malfunction
Slowly blinking red light		Low power Charge the appliance

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

- Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

- Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

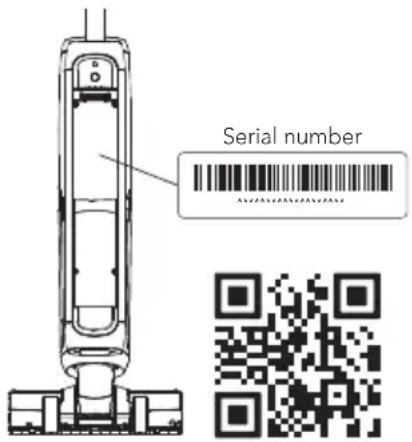

Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code (see right) to enjoy more exclusive benefits. To register, please enter the whole serial number (remove the Clean Water Tank and find it on the back of the appliance).

Failure to register your product won't diminish your warranty rights.

Serial number AVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAVGAV

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or its authorized agency.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

A B C D E F G H I J K L M N

O P Q R S T

Simple line drawing of a cylindrical object with a protruding knob (no text or symbols)

Technical line drawing of a vacuum cleaner with an inset close-up showing the component (no text or symbols)

Diagram showing a hand holding a smartwatch with a circular icon containing grid symbols and an arrow pointing to it, indicating a process or operation.

Line drawing of a vacuum cleaner with attached base mount (no text or symbols)

Illustration of hands operating a mechanical device with a handle and lever mechanism (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and directional arrows, including 'clic' annotation

Technical diagram of a vacuum cleaner with labeled components and an inset showing internal wiring connections.

Diagram showing a hand using a digital device to interact with a control panel, with an icon indicating the function.

Hand holding a thermosorbent bottle with label 'traco' (no other text or symbols visible)

Line drawing of a vacuum cleaner with an inset close-up showing the brush inside (no text or symbols)

Illustration of a hand holding a smartphone with a close-up of its screen (no text or symbols visible)

Illustration of hands using a faucet and a tool to prevent sun exposure (no text or symbols)

Line drawing of a vacuum cleaner with a droplet symbol and mechanical components (no text or labels)

Diagram showing a hand pressing a button on a device with labeled parts and directional arrows indicating movement or adjustment.

Illustration of a hand pouring liquid into a water tank with a faucet (no text or symbols)

Illustration of a hand using a handheld device to press or install a cylindrical component, with an arrow indicating motion (no text or symbols present)

Illustration of four different tools: a cylindrical tool, a faucet with a drain, a tripod-mounted device, and a sun symbol (no text or labels present)

Line drawing of a hand pressing down on a mechanical device (no text or symbols)

Illustration of a hand using a handheld device to press or install a rolled document (no text or symbols visible)

A B C D E F G H I J K L M N

O P Q R S T

Simple line drawing of a cylindrical object with a protruding knob (no text or symbols)

Rouleau brosse

Technical line drawing of a vacuum cleaner with an inset close-up showing the internal mechanism (no text or symbols)

Diagram showing a hand holding a device with a speech bubble containing icons and text, likely illustrating a medical or diagnostic procedure.

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached base and side-mounted components (no text or symbols)

Illustration of hands operating a mechanical device with a handle and lever (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows, including 'clic' annotation

Technical diagram of a vacuum cleaner with labeled components and connection details

Diagram showing a hand holding a device with a circular icon and an arrow pointing to it, indicating a process or operation.

Line drawing of a hand inserting a container into a cylindrical tank (no text or symbols)

Line drawing of a vacuum cleaner with an inset close-up showing the base and handle (no text or symbols)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Illustration of hands using a faucet and a tool to prevent sun exposure (no text or symbols)

Line drawing of a vacuum cleaner with a droplet symbol on the top arm (no text or labels)

Diagram showing a hand pressing a button on a device with labeled parts and directional arrows indicating movement or adjustment.

Illustration of a hand pouring liquid into a water tank with a faucet (no text or symbols)

Rincez à l'eau.

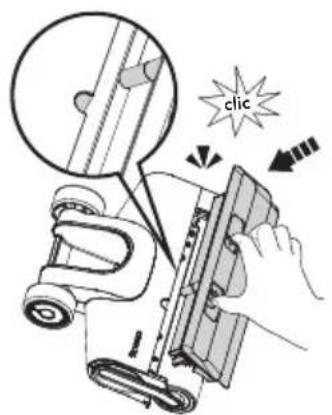

click

Illustration of a hand using a handheld device to press or install a sheet of paper (no text or symbols visible)

Illustration of three different experimental setups: a cylindrical tube being handled, a water tap with a valve, and a tripod-mounted device under sunlight (no text or symbols present)

Line drawing of a hand pressing down on a mechanical device (no text or symbols)

Illustration of a hand using a handheld device to press or install a rolled document (no text or symbols visible)
