SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
  Please read these instructions carefully and follow the instructions.
  Observe all safety warnings. Never remove safety warnings or other information from the equipment.
• Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
- Do not switch the unit on and off in short intervals.
- Do not connect the unit to a dimmerpack.
- Install the unit in a well ventilated place.
- Never place any material over the lens.
- Never let the sunlight lights directly to the front lens, even when the unit is not working.
Always allow free air space of at least 50~cm around the unit for ventilation.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.
- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!
- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
- Never attempt to bypass the thermostatic switch or fuses.
- Do not dismantle or modify the unit.
- For replacement use fuses/bulb of same type and rating only.
- Repairs, servicing and electric connection must be carried out by a qualified technician.
The ambient temperature must always be between -5^ and +45^
If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.
- Plastic bags must be kept out of reach of children.
Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and

have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from

shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to

avoid the risk of electrocution or fire.

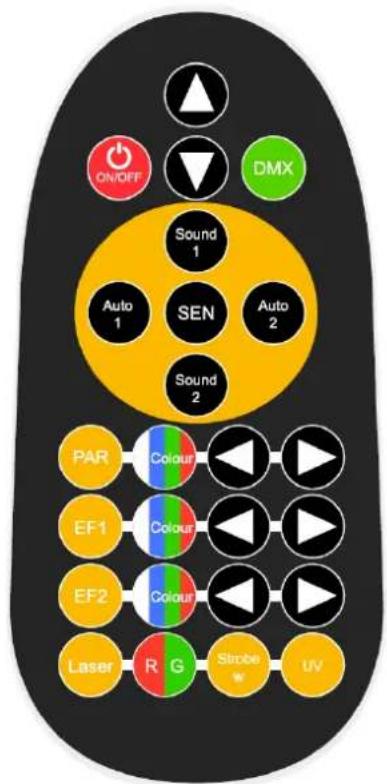

REMOTE CONTROLLER

SENSITIVITY MODE

To adjust sound sensitivity for in Sound-active mode.

Press SEN on the remote controller.

Press or to either increase or decrease sound sensitivity. (note: only available in sound active mode).

ON/OFF

Press this button to turn the device on, press again to turn in standby mode.

DMX

To enable DMX or disallow DMX on the product.

Press DMX n the remote controller, the product work on the DMX controlling modes.

AUTO MODE

Automatic mode will enable you to run the automatic programs on the product.

To turn on Automatic mode:

Press<AutoTulernAutoBoiler.

SOUND MODE

Sound-Active mode will enable the product to respond to the music.

To turn on Sound-Active mode:

Pressem

PAR LIGHT

Press note controller.

Press or to change colour.

STROBE W MODE

To turn on the strobe white.

Press<STROBEmbe controller.

EF1

To turn on Waterwave.

1 Press <out of note controller.

2 Press or to change colour.

EF2

To turn on Wash.

1Press note controller.

2 Press or to change colour and motive.

LASER

To turn on Laser.

1 Press <000> note controller.

2 Press or to change colour and motive.

RG MODE

Red en Green mode.

Press to change to red, green or both colors.

1 Red

2 Green

3 Red and Green

U

Press enable UV light.

Press gain to turn off.

CAUTION! The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control is not possible.

If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, two AAA batteries required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
  Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

MAINTENANCE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.

Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

• Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.
• Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.
  Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.
• Check the mechanically moving parts, these must not show any signs of wear or fatigue.
• Check the electrical power and signal cables, they must not show any damage or fatigue.
• Do not use solvents, abrasives or other aggressive products to clean the unit.
  Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
  Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.	Check that power is turned on. Check cables and connections. Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
	Fuse blown or internal fault.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected. Bad DMX-line.	Connect controller. Inspect connections and cables. Correct poor connections. Repair or replace damaged cables. Insert DMX terminator plug in DMX output socket of last unit on DMX-line.
	DMX-line has no end resistance.
	Incorrect unit addressing. A unit is defective and is disturbing data transmission on the DMX-line.	Check unit address and DMX mode settings. Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained. Have defective unit serviced by an authorized technician.
	Pin 2 and 3 are reversed in XLR connection.	Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary.
	LEDs damaged.	Disconnect unit and contact Beamz support or Beamz authorized service partner.
	The power supply settings do not match local AC voltage and frequency.	Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

1 Druk op <Dukor bandiedening.

REEMPLACEMENT DU FUSIBLE

MENU				DESCRIPTION
ADDR	A001-512-Axxx	A001-512-Axxx		Adress selection
				Display in machine mode SLAU
AUTO PLAY	Built in program	Au 1-2	Sp 1-9 built in program speed	Sn 1 does not extinguish, Sn 2 light 3s extinguish, there is a sound to accelerate and change the color
SOUND	Sound built in program	Sn 1-2	SE 1-9 Voice control sensitivity
BALL	Magic ball	bA00-15	Magic ball color	The bA00 turns of the magic ball function The St 0 motor stops The St 1-9 motor rotation speed
		bA16	Magic ball jump
		SP 1-9	Jump speed
		St 0-9	Magic ball Motor
EYE	Pattern	Ut 00-15	Pattern color	The Ut00 turns off the pattern light function St00, The St10 motor is stopped St01-09 Motor at a clockwise rotation speed St 11-19 Motor counter-clockwise rotation speed.
		Ut16	Pattern jump
		SP 1-9	Pattern jump speed
		St 00-19	Pattern motor
LASE	Laser	LA 0-3	Laser color	The LA0 turns off the laser function St00, the St10 motor is stopped St01-09 Motor at a clockwise rotation speed St11-19 Motor counter-clockwise rotation speed
		LA 4	Laser jump
		SP1-9	Laser jump speed
		St00-10	Laser motor
PAR	Dyeing	PA00-15	Dyeing color	PA00 turn off the dyeing function
		PA16	Dyeing jump
		SP1-9	Dyeing jump speed
BLB	Purple light	P000-255	Purple dimming
STRO	Strobe LED	U000-255	White dimming
		SP1-9	Strobe speed

LEDN/F Off screen
Ledn screen is always bright LedF 30s screen

DMX CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Strobe LED dimming	000-255	White 0°-100%°
2		000-255	From slow Purple 0°-100%°
3	Strobe	000-007	Strobe NO function
		008-255	The strobe from slow to fast (purple light is always bright)
4	Magic ball color macro definition	000-005	Turn off the light
		006-015	Red
		016-029	Red + Green
		030-043	Green
		044-057	Green + Blue
		058-071	Blue
		072-085	Blue + White
		086-099	White
		100-113	Red + White
		114-127	Green + White
		128-141	Red + Blue
		142-155	Green + Blue + White
		156-169	Red + Green + Blue
		170-183	Red + Blue + White
		184-197	Red + Green + White
		198-209	Red + Green + Blue + White
		210-250	The magic ball jumps from slow to fast
		251-255	Magic ball strobe
5	Magic ball motor	000-127	Motor bij 0° to 160° Revolve
		128-255	Rotate from slow to fast
6	Pattern color macro definition	000-005	Turn off the light
		006-015	Red
		016-029	Red + Green
		030-043	Green
		044-057	Green + Blue
		058-071	Blue
		072-185	Blue + White
		086-099	White
		100-113	Red + White
		114-127	Green + White
		128-141	Red + Blue
		142-155	Green + Bl:ue + White
		156-169	Red + Green + Blue
		170-183	Red + Blue + White
		184-197	Red + Green + White
		198-209	Red + Green + Blue + White
		210-255	The pattern jumps from slow to fast
7	Pattern motor	000-004	Stop
		005-127	Rotate clockwise from slow to fast
		128-133	Stop
		134-255	Counterclockwise from slow to fast
8	Laser color control	000-002	Empty
		003-063	Red
		064-127	Green
		128-191	Red + Green
		192-255	Red and Green alternate from slow to fast
9	Laser motor	000-004	Stop
		005-127	Rotate clockwise from slow to fast
		128-133	Stop
		134-255	Counterclockwise rotation from slow to fast
10	Dimmer	000-255	Red 0-100%
11		000-255	Green 0-100%
12		000-255	Blue 0-100%
13		000-255	White 0-100%
14		000-015	Effective dyeing and dimming
		016-075	Dyeing jumps from slow to fast
		076-135	Dyeing gradient, from slow to fast
		136-195	The chromatin changes from slow to fast
		196-255	Dyeing strobe, from slow to fast
15	Built-in program	000-010	Empty
		011-110	Built-in program 1
		111-210	Built-in program 2
		211-235	Voice control triggers the built-in program 1
		236-255	Voice control triggers the built-in program 2
16	Built-in program speed	000-255	The built-in program changes from slow to fast

Design and product specifications are subject to change without prior notice.
