USER MANUAL YB30118 TOTO

Installation and Owner's Manual

(Robe Hook, Paper Holder, Towel Ring, 8", 18",24", & 30" Towel Bar)

Accessorios

(Percha Para Bata, Portarrollos, Anillo de Toalla, 8", 18",24", & 30" Toallero-Barra)

Accessories

(Crochet a Peignoir, Porte-papier, Ring dé Tówél, 8", 18",24", & 30" Porte-serviettes)

TRADITIONAL COLLECTION SERIES B

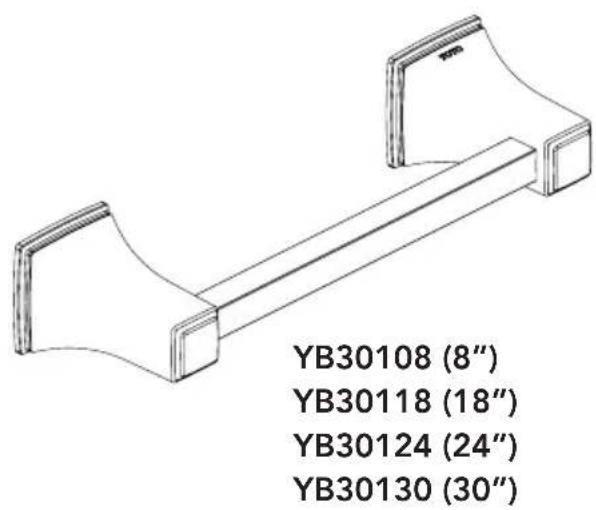

YB30108 (8") YB30118 (18") YB30124 (24") YB30130 (30")

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

TABLE OF CONTENTS

Thanks for Choosing TOTO!......2Care and Cleaning......2Warnings......2Tools You Will Need......3Before Installation......3Installation Procedure......4Warranty......5Rough-In Dimensions......14

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new accessories are designed for years of trouble-free performance.Keep them looking new by cleaning them periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish.Failure to follow these instructions may void your warranty.

WARNINGS

For safe operation and installation, please observe the following:■ Always wear appropriate eye protection while operating a drill.■ Bath accessories are not meant to be used as a grab or support bar.■ Do not force accessories into alignment. Instead, loosen the screws to adjust the mounting plate for proper alignment.

TOOLS YOU WILL NEED

Drill

Phillips Screwdriver

Pencil

Level

Tape Measure

BEFORE INSTALLATION

Check to make sure you have the following parts indicated below:

Traditional Collection Series B

Robe Hook 1 2 2 1	1
Paper Holder 1 2 2	1 1
Towel Bar 2 4 4 2 1

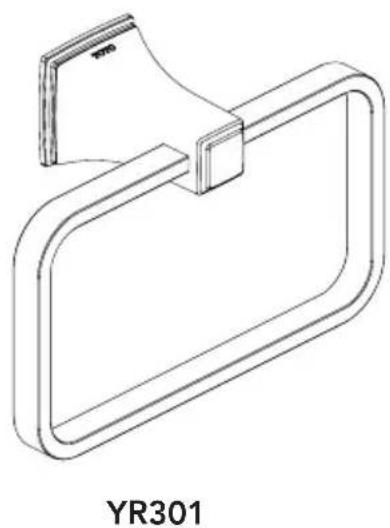

Towel Ring 1 2 2 1	1

INSTALLATION PROCEDURE

1. Using the towel bar as a template, mark the center locations of each post.
2. Center a mounting disc over each of the marks from step 1 and mark the locations for the screws.
3. Choose your installation method.

NOTE: These accessories work best if secured to a wall stud or stringer using the supplied screws.

ForDrywall:

• Drill a hole at each marked location.
• Insert anchors until they are flush with the face of the finished wall.
• Place the mounting bracket over the drywall anchors, insert the screws and tighten to secure them.

INSTALLATION PROCEDURE

For Ceramic Tile:

• Drill 1/4" pilot holes a minimum of 1-1/4" deep at each marked location.
• Insert anchors until they are flush with the face of the finished wall.
• Place the mounting bracket over the anchors, insert the screws and tighten to secure them.

NOTE: If the wall stud is drilled, use a screw instead of an anchor for mounting.

For Wooden Stud or Stringer:

• Drill 1/8" pilot holes.

• Place the mounting bracket, then insert the screw into the pilot hole and tighten to secure it.

• Place the product over the mounting bracket and tighten the set screw(s) with the hex wrench.

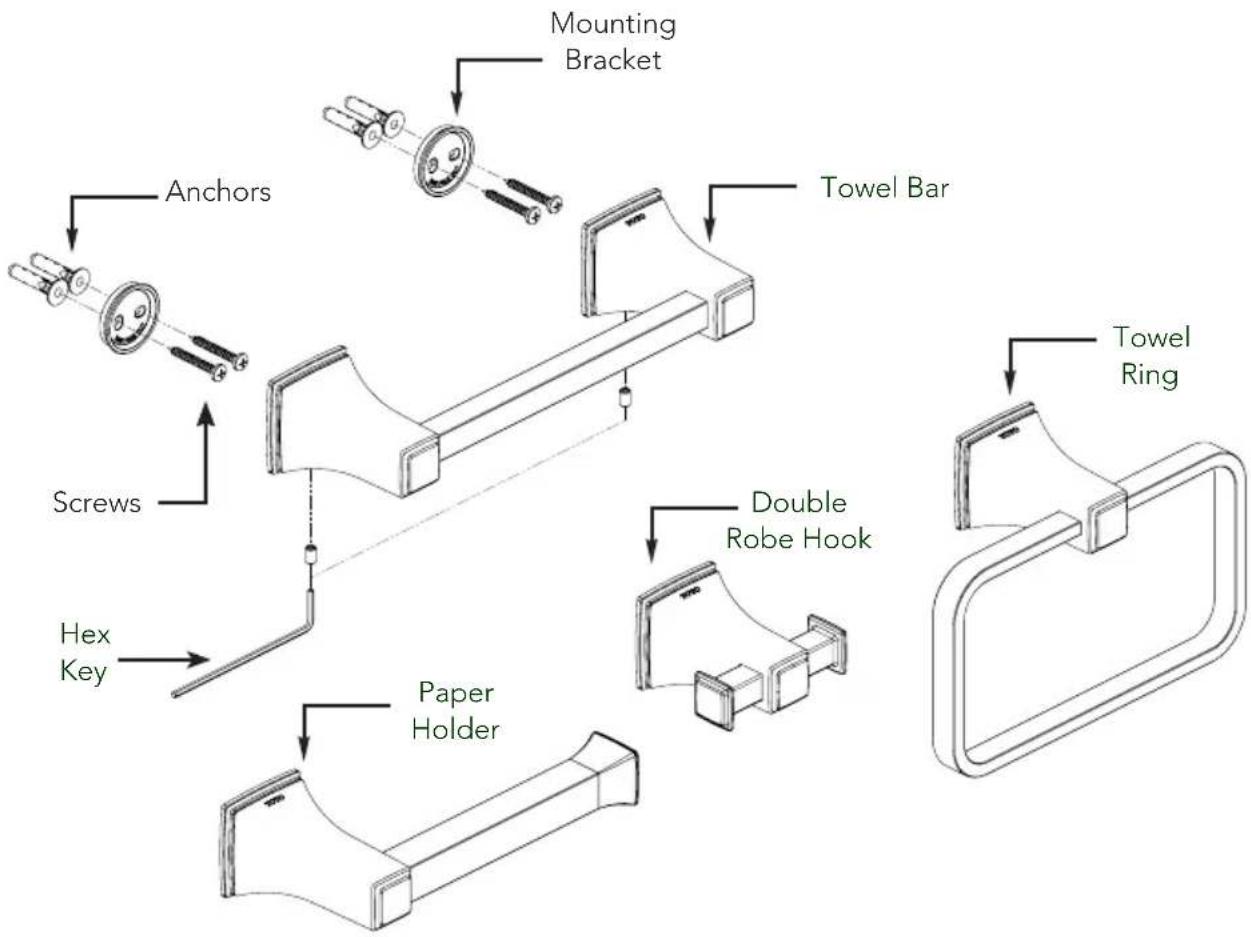


WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.

b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.

c. Damage or loss resulting from sediments or foreign matter contained in a water system.

d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.

e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.

f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Transitional Collection Series A

Gancho Para Bata 1	2 2 1 1
Porta Papel 1 2 2 1	1
Barra Para Toalla 2	4 4 2 1
Anillo de Toalla 1 2	2 1 1

Traditional Collection Series B

7-1/8" [181mm] 17-1/8" [425mm] 23-1/8" [588mm] 29-1/8" [740mm] 9/16" [14mm] 2-3/16" 55mm 3-1/16" [78mm] 5-3/4" [146mm] 15-3/4" [400mm] 21-3/4" [552mm] 27-3/4" [705mm] 8" [203mm] 18" [457mm] 24" [610mm] 30" [762mm] 1-15/16" [50mm] 10-1/4" [261mm] 20-1/4" [515mm] 26-1/4" [667mm] 32-1/4" [819mm]

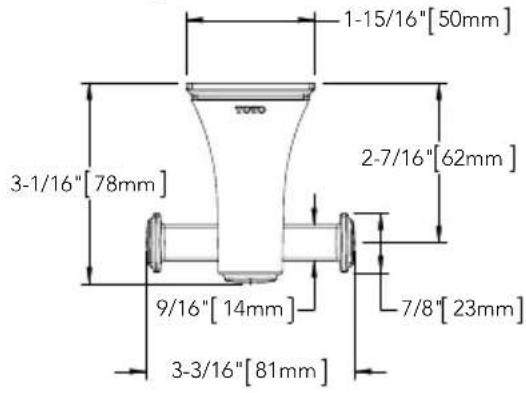

Robe Hook/Gancho Para Bata /Crochet de Peignoirette

1-15/16"[50mm] 3-1/16"[78mm] 2-7/16"[62mm] 9/16"[14mm] 7/8"[23mm] 3-3/16"[81mm]

1-15/16"[50mm] 4-5/16"[109mm] 1/4"[7mm] 7-7/16"[189mm]

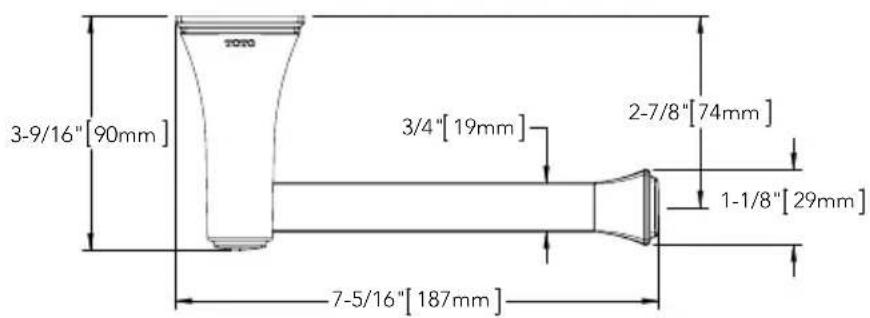

Towel Ring /Ring De Towel / Ring dé Tówél

3-1/16"[78mm] 9/16"[14mm]

3-9/16"[90mm] 7-5/16"[187mm] 3/4"[19mm] 2-7/8"[74mm] 1-1/8"[29mm]

TOTO®

TOTO® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4236

Rev B
