Product type	50-inch LED TV
Brand	SENCOR
Model	SLE 50Q871B
Screen size (diagonal)	126 cm (50 inches)
Resolution	3840 x 2160 pixels (4K UHD)
Display technology	LED LCD
Refresh rate	60 Hz
Energy class (SDR)	E
Energy class (HDR)	E
Power consumption (SDR)	64 W
Power consumption (HDR)	65 W
Standby power consumption	0.5 W
Network standby power consumption	2.0 W
Power supply	100-240 V AC / 12 V DC (optional)
Connectors	HDMI (x2), USB (x2), AV IN, CI, RJ45 (Ethernet), OPTICAL, Headphone jack (EARPHONE), ANT 75Ω
Wireless connectivity	Wi-Fi 2.4/5 GHz, Bluetooth 5.0
Supported USB formats	Video: AVI, MP4, MPG, MKV, MOV, DAT, VOB; Audio: MP3, WAV, OGG, FLAG; Photo: JPEG, PNG
Features	HDR, teletext, USB recording (PVR), Time Shift (delayed)
Wall mount compatibility	Yes, M6 screws (for 28-70 inches)
Included accessories	Remote control (x2: standard + Magic for some models), AAA/AA batteries, table stand and screws, quick guide
Warranty	2 years
Availability of spare parts	7 years after end of marketing
Software updates	8 years after end of marketing
Safety	Double insulation, surge protection, do not expose to moisture

Frequently Asked Questions - SLE 50Q871B SENCOR

How to turn on the TV for the first time?

Plug in the TV, then press the POWER button on the remote control or the button below the screen. At the first startup, the setup wizard guides you through selecting the language, country, and channel search.

How to connect a USB device?

Insert the USB drive into one of the USB ports. Press HOME, open the Photo & Video app, then select the device. Use the remote to navigate and play your files. The file system must be FAT32.

How to mount the TV on the wall?

Use M6 wall mount screws (suitable for 28 to 70 inch screens). Securely attach the bracket to the wall, then hang the TV. Do not install it tilted to avoid falls.

What to do if the screen remains black?

Check that the power cable is properly connected and the wall outlet works. Try pressing the POWER button on the TV or remote. If the problem persists, unplug, wait one minute, then plug back in.

How to adjust picture settings?

Press HOME, go to Settings, then Picture. You can adjust brightness, contrast, color, and choose preset modes like Standard, Cinema or Sports.

How to update the TV software?

Make sure the TV is connected to the Internet. Go to Settings > Support > Software Update and follow the instructions. Updates are guaranteed for 8 years after the end of marketing.

How to record a program on a USB drive?

Plug in a USB drive formatted as FAT32. During broadcast, press the REC button on the remote. To use Time Shift, press the Pause button (II) to pause live TV.

How to connect the TV to the Internet?

Via Wi-Fi: go to Settings > Network > Wi-Fi, select your network and enter the password. Via Ethernet: connect an RJ45 cable to the TV and the router.

How to safely clean the screen?

Use a soft, dry cloth (microfiber) to wipe the screen. Never use chemicals, water, or abrasive cloths, as they may damage the coating.

What types of files can I play via USB?

The TV supports video formats: AVI, MP4, MPG, MKV, MOV, DAT, VOB; audio: MP3, WAV, OGG, FLAG; photo: JPEG, JPG, PNG. Compatibility may vary depending on codec and bitrate.

USER MANUAL SLE 50Q871B SENCOR

EN QUICK GUIDE LED TV

CZ ■ RYCHLÝ PRŮVODCE LED TV

SK ■ RÝCHLY SPRIEVODCA LED TV

HU ■ GYORS ÚTMUTATÓ LED TV

PL ■ KRÓTKI PRZEWODNIK LED TV

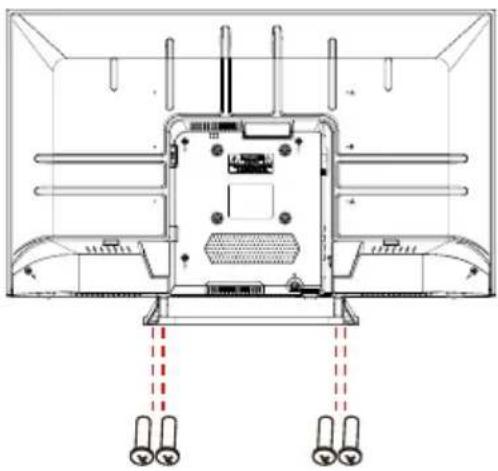

Technical diagram of a mechanical assembly with dashed red lines indicating alignment or support points (no text or symbols present)

Model: SLE XX860B i SLE XX871B

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

Technical line drawing of a mechanical or electronic component with internal components and a circular symbol below (no text or labels)

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32S803TCSB
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1 366	x	768	pixels
13.	Screen diagonal	80,0 cm
14.	Screen diagonal	32 inches
15.	Visible screen area	27,3 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value andprecision					Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 24S803B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)			E
4. On mode power demand in SDR 17,5 W
5. Energy Efficiency Class for High Dynamic Range (HDR)			F
6. On mode power demand in HDR, if implemented 21,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable 2,0 W
10. Electronic display category Television
11. Size ratio 16			:	9
12. Screen resolution 1366			x	768	pixels
13. Screen diagonal 60,0 cm
14. Screen diagonal 24 inches
15. Visible screen area 15,3 dm2
16. Panel technology used LED LCD
17. Automatic Brightness Control (ABC) available No
18. Voice recognition sensor available No
19. Room presence sensor available No
20. Image refresh frequency rate (default) 60 Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market) 8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market) 7 Years
23. Minimum guaranteed product support 8 Years
Minimum duration of the general guarantee offered by the supplier 2 Years
24. Power supply type Internal
25. External power supply (non standardized and included in the product box)
i -
	ii	Input voltage - V
	iii	Output voltage - V
26. External standardised power supply (or suitable one if not included in the product box)
	i -
	ii	Required output voltage - V
	iii	Required delivered current (minimum) - A
	iv	Required current frequency - Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 24S830MB
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 17,5 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 21,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1 366	x	768	pixels
13.	Screen diagonal	60,0 cm
14.	Screen diagonal	24 inches
15.	Visible screen area	15,3 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	- Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and	precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32S830MB
3. Energy Efficiency Class for Standard Dynamic Range (SDR)	E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)	F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable	2,0 W
10. Electronic display category Television
11. Size ratio	16	:	9
12. Screen resolution	1 366	x	768	pixels
13. Screen diagonal	80,0 cm
14. Screen diagonal	32 inches
15. Visible screen area	27,3 dm2
16. Panel technology used	LED LCD
17. Automatic Brightness Control (ABC) available	No
18. Voice recognition sensor available	No
19. Room presence sensor available	No
20. Image refresh frequency rate (default)	60			Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23. Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier	2 Years
24. Power supply type	Internal
25. External power supply (non standardized and included in the product box)
i -
ii Input voltage	-			V
iii Output voltage	- V

1. External standardised power supply (or suitable one if not included in the product box)

i	-
ii	Required output voltage	-	V
iii	Required delivered current (minimum)	-	A
iv	Required current frequency	-	Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision		Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32QF860B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16 :	9
12.	Screen resolution	1 920 x	1 080	pixels
13.	Screen diagonal	80,0 cm
14.	Screen diagonal	32 inches
15.	Visible screen area	27,3 dm2
16.	Panel technology used	QLED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i
	ii	Input voltage	- V
	iii	Output voltage	- V
26. External standardised power supply (or suitable one if not included in the product box)
	i
	ii	Required output voltage	- V
	iii	Required delivered current (minimum)	-	A
	iv	Required current frequency	-	Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 40QF860B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 36,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 39,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1920	x	1080	pixels
13.	Screen diagonal	101,0 cm
14.	Screen diagonal	40 inches
15.	Visible screen area	42,6 dm ^2
16.	Panel technology used	QLED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i
	ii	Input voltage	-		V
	iii	Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i
	ii	Required output voltage	- V
	iii	Required delivered current (minimum)	-		A
	iv	Required current frequency	-		Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		Unitprecision
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 43US804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR 50,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 51,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11. Size ratio		16	:	9
12. Screen resolution		3 840	x	2 160 pixels
13. Screen diagonal		108,0 cm
14. Screen diagonal		43 inches
15. Visible screen area		49,7 dm2
16. Panel technology used		LED LCD
17. Automatic Brightness Control (ABC) available		No
18. Voice recognition sensor available		No
19. Room presence sensor available		No
20. Image refresh frequency rate (default)		60 Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)		8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)		7 Years
23. Minimum guaranteed product support		8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24. Power supply type Internal
25. External power supply (non standardized and included in the product box)
i
ii	Input voltage	- V
iii	Output voltage	- V
26. External standardised power supply (or suitable one if not included in the product box)
i
ii	Required output voltage	-	V
iii	Required delivered current (minimum)	-	A
iv	Required current frequency	-	Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 50US804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 53,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		E
6. On mode power demand in HDR, if implemented 54,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	3 840	x	2 160	pixels
13.	Screen diagonal	126,0 cm
14.	Screen diagonal	50 inches
15.	Visible screen area	67,5 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii	Input voltage	-		V
	iii	Output voltage	-		V
26. External standardised power supply (or suitable one if not included in the product box)
Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays
Parameter Parameter or value and		precision		Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 50Q871B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR W		64,0
5. Energy Efficiency Class for High Dynamic Range (HDR)		E
6. On mode power demand in HDR, if implemented W		65,0
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16 :	9
12.	Screen resolution	3 840 x	2 160 pixels
13.	Screen diagonal	126,0 cm
14.	Screen diagonal	50 inches
15.	Visible screen area	67,5 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 65Q871B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR 101 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 102 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	3 840	x	2 160	pixels
13.	Screen diagonal	164,0 cm
14.	Screen diagonal	65 inches
15.	Visible screen area	114,7 dm ^2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	-			V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

1. Using cabinets or stands recommended by the manufacturer of the television set.
2. Only using furniture that can safely support the television set.
3. Ensuring the television set is not overhanging the edge of the supporting furniture.
4. Not placing the television set on tall furniture (for example, cupboards or bookcases). without anchoring both the furniture and the television set to a suitable support.
5. Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture,
6. Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Wall-mounted screw:22-24inch M4, 28-70inch M6, 75inch M8

Note: don't hang at an angle to avoid the risk of falling off.
