USER MANUAL SLE 65Q871B SENCOR

EN QUICK GUIDE LED TV

CZ ■ RYCHLÝ PRŮVODCE LED TV

SK ■ RÝCHLY SPRIEVODCA LED TV

HU ■ GYORS ÚTMUTATÓ LED TV

PL ■ KRÓTKI PRZEWODNIK LED TV


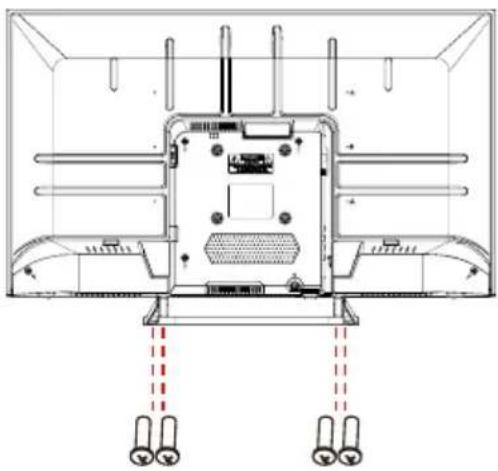

Technical diagram of a mechanical assembly with dashed red lines indicating alignment or support points (no text or symbols present)

Model: SLE XX860B i SLE XX871B

SENCOR SLE 65Q871B - EN QUICK GUIDE LED TV - 1

SENCOR SLE 65Q871B - EN QUICK GUIDE LED TV - 2

SENCOR SLE 65Q871B - EN QUICK GUIDE LED TV - 3

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32S803TCSB
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1 366	x	768	pixels
13.	Screen diagonal	80,0 cm
14.	Screen diagonal	32 inches
15.	Visible screen area	27,3 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value andprecision					Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 24S803B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)			E
4. On mode power demand in SDR 17,5 W
5. Energy Efficiency Class for High Dynamic Range (HDR)			F
6. On mode power demand in HDR, if implemented 21,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable 2,0 W
10. Electronic display category Television
11. Size ratio 16			:	9
12. Screen resolution 1366			x	768	pixels
13. Screen diagonal 60,0 cm
14. Screen diagonal 24 inches
15. Visible screen area 15,3 dm2
16. Panel technology used LED LCD
17. Automatic Brightness Control (ABC) available No
18. Voice recognition sensor available No
19. Room presence sensor available No
20. Image refresh frequency rate (default) 60 Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market) 8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market) 7 Years
23. Minimum guaranteed product support 8 Years
Minimum duration of the general guarantee offered by the supplier 2 Years
24. Power supply type Internal
25. External power supply (non standardized and included in the product box)
i -
	ii	Input voltage - V
	iii	Output voltage - V
26. External standardised power supply (or suitable one if not included in the product box)
	i -
	ii	Required output voltage - V
	iii	Required delivered current (minimum) - A
	iv	Required current frequency - Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 24S830MB
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 17,5 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 21,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1 366	x	768	pixels
13.	Screen diagonal	60,0 cm
14.	Screen diagonal	24 inches
15.	Visible screen area	15,3 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	- Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and	precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32S830MB
3. Energy Efficiency Class for Standard Dynamic Range (SDR)	E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)	F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable	2,0 W
10. Electronic display category Television
11. Size ratio	16	:	9
12. Screen resolution	1 366	x	768	pixels
13. Screen diagonal	80,0 cm
14. Screen diagonal	32 inches
15. Visible screen area	27,3 dm2
16. Panel technology used	LED LCD
17. Automatic Brightness Control (ABC) available	No
18. Voice recognition sensor available	No
19. Room presence sensor available	No
20. Image refresh frequency rate (default)	60			Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23. Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier	2 Years
24. Power supply type	Internal
25. External power supply (non standardized and included in the product box)
i -
ii Input voltage	-			V
iii Output voltage	- V

External standardised power supply (or suitable one if not included in the product box)

i	-
ii	Required output voltage	-	V
iii	Required delivered current (minimum)	-	A
iv	Required current frequency	-	Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32QF860B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16 :		9
12.	Screen resolution	1 920 x		1 080	pixels
13.	Screen diagonal	80,0 cm
14.	Screen diagonal	32 inches
15.	Visible screen area	27,3 dm2
16.	Panel technology used	QLED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i
	ii	Input voltage	- V
	iii	Output voltage	- V
26. External standardised power supply (or suitable one if not included in the product box)
	i
	ii	Required output voltage	- V
	iii	Required delivered current (minimum)	-		A
	iv	Required current frequency	-		Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 40QF860B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 36,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 39,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1920	x	1080	pixels
13.	Screen diagonal	101,0 cm
14.	Screen diagonal	40 inches
15.	Visible screen area	42,6 dm ^2
16.	Panel technology used	QLED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i
	ii	Input voltage	-		V
	iii	Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i
	ii	Required output voltage	- V
	iii	Required delivered current (minimum)	-		A
	iv	Required current frequency	-		Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		Unitprecision
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 43US804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR 50,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 51,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11. Size ratio		16	:	9
12. Screen resolution		3 840	x	2 160 pixels
13. Screen diagonal		108,0 cm
14. Screen diagonal		43 inches
15. Visible screen area		49,7 dm2
16. Panel technology used		LED LCD
17. Automatic Brightness Control (ABC) available		No
18. Voice recognition sensor available		No
19. Room presence sensor available		No
20. Image refresh frequency rate (default)		60 Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)		8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)		7 Years
23. Minimum guaranteed product support		8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24. Power supply type Internal
25. External power supply (non standardized and included in the product box)
i
ii	Input voltage	- V
iii	Output voltage	- V
26. External standardised power supply (or suitable one if not included in the product box)
i
ii	Required output voltage	-	V
iii	Required delivered current (minimum)	-	A
iv	Required current frequency	-	Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 50US804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 53,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		E
6. On mode power demand in HDR, if implemented 54,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	3 840	x	2 160	pixels
13. Screen diagonal		126,0 cm
14. Screen diagonal		50 inches
15. Visible screen area		67,5 dm2
16. Panel technology used		LED LCD
17. Automatic Brightness Control (ABC) available		No
18. Voice recognition sensor available		No
19. Room presence sensor available		No
20.	Image refresh frequency rate (default)	60			Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)		8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)		7 Years
23. Minimum guaranteed product support		8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24. Power supply type Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii	Input voltage	-		V
	iii	Output voltage	-		V
26. External standardised power supply (or suitable one if not included in the product box)
						i -
						ii	Required output voltage	-	V
						iii	Required delivered current (minimum)	-	A
						iv	Required current frequency	-	Hz
Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays
Parameter Parameter or value and		precision		Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 50Q871B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR W		64,0
5. Energy Efficiency Class for High Dynamic Range (HDR)		E
6. On mode power demand in HDR, if implemented W		65,0
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16 :	9
12.	Screen resolution	3 840 x	2 160 pixels
13.	Screen diagonal	126,0 cm
14.	Screen diagonal	50 inches
15.	Visible screen area	67,5 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 65Q871B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR 101 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 102 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	3 840	x	2 160	pixels
13.	Screen diagonal	164,0 cm
14.	Screen diagonal	65 inches
15.	Visible screen area	114,7 dm ^2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	-			V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

Using cabinets or stands recommended by the manufacturer of the television set.
Only using furniture that can safely support the television set.
Ensuring the television set is not overhanging the edge of the supporting furniture.
Not placing the television set on tall furniture (for example, cupboards or bookcases). without anchoring both the furniture and the television set to a suitable support.
Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture,
Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Wall-mounted screw:22-24inch M4, 28-70inch M6, 75inch M8

Note: don't hang at an angle to avoid the risk of falling off.

Table of contents Click a title to access it

EN QUICK GUIDE LED TV
Product Information Sheet

Manual assistant

Waiting for your message

Product information

Brand : SENCOR

Model : SLE 65Q871B

Category : TV
