Brand	NUVO
Model	62/1784 (series 62-1770 to 62-1789)
Product Type	Selectable Color Temperature Indoor LED Luminaire
Usage	Indoor, suitable for damp locations
Power Supply	120/277 V AC, Class 2 protected circuit
Color Temperature	Selectable: 2700K, 3000K, 3500K, 4000K, 5000K
Dimming	Compatible dimmers (list at www.Satco.com)
Available Sizes	Round: 12", 15", 19"; Square: 12"; Rectangular: 5'5"x24", 5'5"x36", 5'5"x48", 1'x2', 2'x2', 1'x4'
Estimated Weight	Approximately 1 kg depending on model
Material	Aluminum and polycarbonate (lens)
Installation	Mounting on junction box, clip fastening
Protection	IP rating not specified, suitable for damp locations
Warranty	5 years (details at www.Satco.com)
Standards	FCC Part 15, Class B compliant
Maintenance	Clean with a dry cloth, do not use water
Safety	Disconnect before installation/maintenance; do not modify
Repairability	Integrated non-replaceable LEDs; spare parts not provided

Frequently Asked Questions - 62/1784 NUVO

How to install this luminaire?

First, turn off the power. Attach the mounting bracket to the junction box, connect the wires with wire nuts, then align the clips and rotate or slide the luminaire to lock it in place. Refer to the detailed steps in the manual.

How to choose the color temperature?

Before installation, set the switch to the desired position: 2700K (warm white), 3000K, 3500K, 4000K, or 5000K (cool white).

Is this luminaire dimmable?

Yes, it is compatible with dimmers. Check the list of compatible dimmers at www.Satco.com.

What is the wattage of this luminaire?

The luminaire operates at 120/277 V AC and is Class 2. The exact wattage is not specified, but it is typical for LEDs of this size (approximately 15-30 W depending on model).

Can I install it in a bathroom?

Yes, it is suitable for damp locations, so it works in bathrooms and kitchens, provided direct water contact is avoided.

How to clean the luminaire?

Use a dry, soft cloth. Do not use water or harsh cleaning products to avoid damaging the lens.

What to do if the luminaire flickers?

Check the dimmer compatibility (see Satco list). Ensure connections are tight and power supply is stable. If the problem persists, consult an electrician.

Is the warranty transferable?

The 5-year warranty applies to the original purchaser. For more details, visit www.Satco.com.

Can I replace the LEDs?

No, the LEDs are integrated and not replaceable. In case of failure, the luminaire must be replaced.

What are the exact dimensions of model 62/1784?

Model 62/1784 is part of series 62-1770 to 62-1789. Dimensions depend on the sub-model. Check the label or manual for precise dimensions.

USER MANUAL 62/1784 NUVO

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing fixture. Retain for future reference.

WARNING: Risk of Fire or Electric Shock

• Disconnect power before installation or maintenance of the fixture.
• To avoid damage, falling, electric shock or fire, do not modify the fixture or replace accessories without confirming with the supplier first.
• Only authorized, qualified personnel should install this fixture and should follow the owner's manual. Any improper installation might cause failure, electric shock, fire or other injury, damage or hazard.
• To prevent fire, this fixture is rated for use in 120/277V.
• The product is purposed for interior use only, suitable for damp locations.
• Suitable for use with dimmers. Visit www.Satco.com for a list of compatible dimmers.
• Protect the product against direct contact with water.
• For use in environments where an accumulation of non-conductive dust on the fixture may be expected.
• Clean with a soft or damp cloth, making sure the power is OFF.
• Assemble the product only with the use of parts provided and the housing; improper assembly may result in device failing which could damage the product, personal property or cause injury.
• CAUTION: When handling the fixture, do not apply pressure to the lens. Hold the fixture by the base only.

The circuit is intended for connection to an external Class 2 supply. Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

WARRANTY: This product is warranted for a 5 year period. For full warranty details visit www.Satco.com.

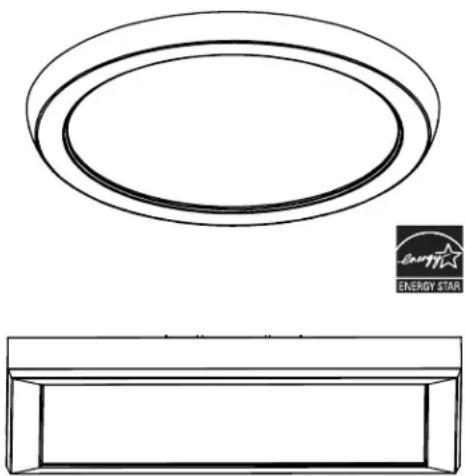

Technical line drawing of a circular component above a rectangular base, with a Energy Star logo in the corner (no text or symbols on the diagram itself)

All Models: CCT Selectable 2700K/3000K/3500K/4000K/5000K

Wiring Diagram

INSTALLATION - 12", 15", 19" Round

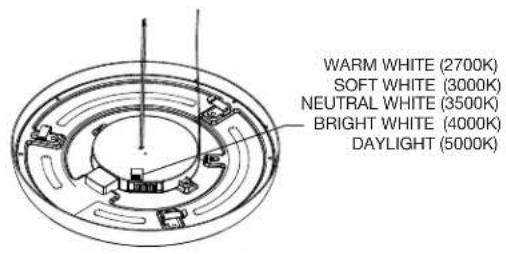

STEP 1: Turn OFF power prior to installation. Before installation, select your preferred CCT by moving the switch to either 2700K, 3000K, 3500K, 4000K or 5000K.

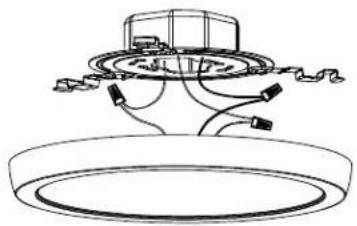

STEP 3: Connect the wires with supplied wiring caps. See wiring diagram on page 1.

Technical line drawing of a mechanical assembly with no visible text or symbols

STEP 2: Screw the mounting bracket on the junction box. Use supplied anchors for additional support for the bracket.

Technical line drawing of a mechanical assembly with no visible text or symbols

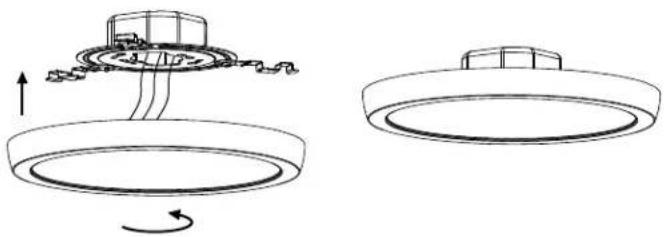

STEP 4: Align the clips with the mounting bracket (using the arrow stickers on frame for guidance) and push the fixture up and twist clockwise to lock the fixture into the mounting bracket. Turn ON power. Installation is complete.

Technical line drawing showing two mechanical components with rotating parts and directional arrows (no text or symbols)

INSTALLATION - 12" Square

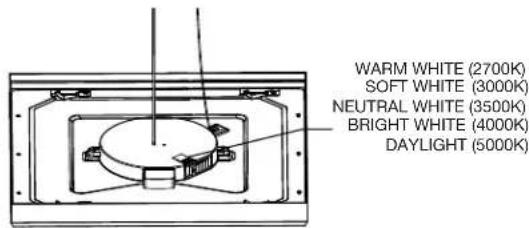

STEP 1: Turn OFF power prior to installation. Before installation, select your preferred CCT by moving the switch to either 2700K, 3000K, 3500K, 4000K or 5000K.

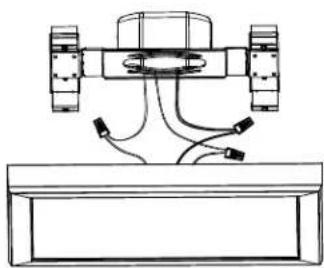

STEP 3: Connect the wires with supplied wiring caps. See wiring diagram on page 1.

Technical line drawing of a mechanical assembly with no visible text or symbols

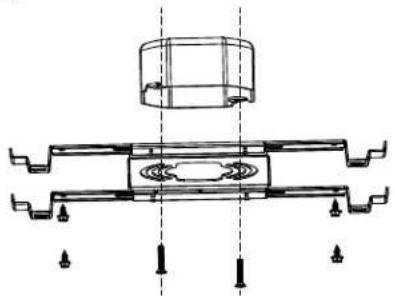

STEP 2: Screw the mounting bracket on the junction box. Use supplied anchors for additional support for the bracket.

Technical line drawing of a mechanical assembly with mounting flanges and a cylindrical component (no text or symbols)

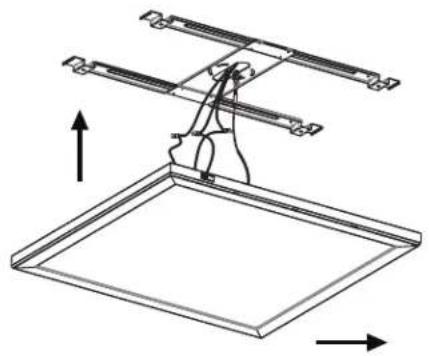

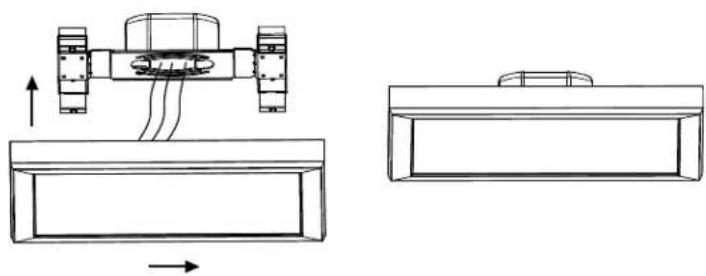

STEP 4: Align the clips with the mounting bracket (using the arrow stickers on frame for guidance) and push the fixture up and slide fixture into the mounting bracket to lock it in place. Turn ON power. Installation is complete.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

INSTALLATION - 5'.5"x24", 5'.5"x36", 5'.5"x48", 1'x2', 2'x2', 1'x4'

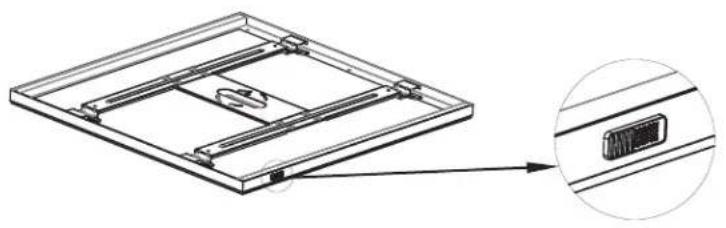

STEP 1: Turn OFF power prior to installation. Before installation, select your preferred CCT by moving the switch to either 2700K, 3000K, 3500K, 4000K or 5000K.

STEP 2: Screw the mounting bracket on the junction box. Use supplied anchors for additional support for the bracket.

Technical line drawing of a rectangular frame with internal components and an inset close-up of a connector (no text or symbols)

Pure mechanical diagram showing a beam supported by vertical supports with no text or symbols

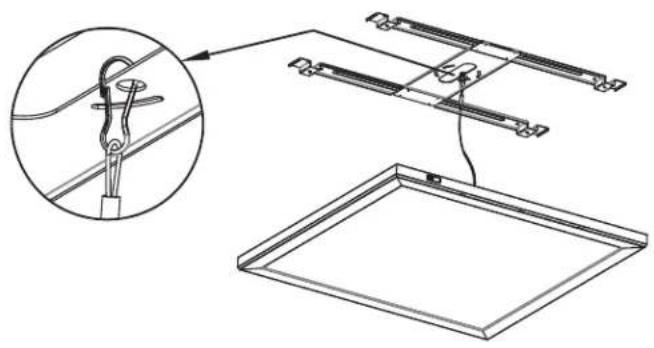

STEP 3: Connect the safety cable to the mounting bracket.

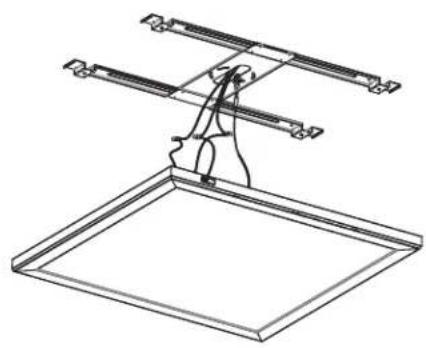

STEP 4: Connect the wires with supplied wiring caps. See wiring diagram on page 1.

Technical diagram showing a mechanical assembly with a magnified inset of a cable or wire connection detail (no text or symbols present)

Technical line drawing of a mechanical assembly with two vertical supports and a rectangular base (no text or symbols)

STEP 5: Align the clips with the mounting bracket (using the arrow stickers on frame for guidance) and push the fixture up and slide fixture into the mounting bracket to lock it in place. Turn ON power. Installation is complete.

Technical diagram of a mechanical assembly with two rotating arms and a rectangular base, showing directional arrows (no text or symbols)
